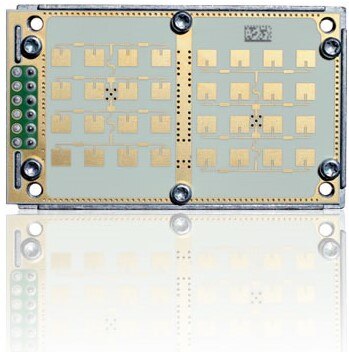

IPS-937 Radar Sensor

InnoSenT GmbH's IPS-937 is a 24 GHz radar frontend which is distinguished by advanced MMIC design. As CW radar it measures the velocity and direction of moving objects. The coverage area is defined for mid-range traffic detection. It detects for example vehicles in a range up to 80 meters. The IPS-937 is primarily used for traffic detection. It can be found in traffic speed displays beside the streets or is used in vehicle counting systems.

To intensify the radar signals, the IPS-937 also has an integrated IF amplifier. Its operating temperature is between -40°C and +85°C. The sensor is designed for low-power operation and offers more flexibility in applications. The IPS-937 is available in different frequency trimmings for worldwide use.
