Certified Bluetooth® LE Modules for Rapid IoT Designs
Infineon's AIROC™ CYW20829 and CYW20822-P4TAI040 modules
Infineon Technologies' Bluetooth portfolio consists of the AIROC CYW20829B0-P4TAI100 and CYW20822-P4TAI040 certified Bluetooth Low Energy (LE) modules providing solutions that deliver extremely reliable and ultra-high performing connectivity for user applications. With these certified modules designed to be soldered to a main PCB, designing for industrial, smart homes, healthcare, gaming, and IoT is made faster, easier, and cost optimized.
AIROC CYW20829B0-P4TAI100 Module

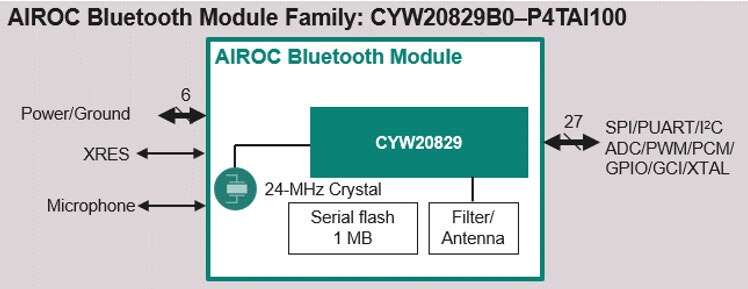

The CYW20829B0-P4TAI100 is a fully integrated Bluetooth LE wireless module that is designed to provide a cost-effective and small-footprint alternative to the combination of an MCU and a Bluetooth LE radio. The CYW20829 module includes an onboard crystal oscillator, passive components, and Flash memory, and features a connected AIROC CYW20829 Bluetooth LE 5.4 MCU, making it ideal for a wide range of applications including industrial, smart homes, wearables, smart buildings, AR/VR/gaming, and PC accessories. The AIROC CYW20829 MCU offers more range and robustness, a longer battery life with a low-power connection, built-in security, and lower system cost for applications that need long-range and CAN FD.
Infineon CYW20822-P4TAI040 Module
The CYW20822–P4TAI040 is an entry-level, low-power long-range (LE-LR) EZ-Serial Bluetooth LE 5.0 module that includes an onboard crystal oscillator, passive components, and Flash memory. The module is ideal for adding Bluetooth connectivity to existing designs with a host MCU. The CYW20822–P4TAI040 module offers seamless integration, enhanced performance with Bluetooth LE long-range (LE-LR) support, and exceptional reliability for a wide range of applications including industrial IoT applications, smart homes, asset tracking, beacons and sensors, and medical devices.
- CYW20829B0-P4TAI100:
- Module size: 14.5 mm x 19 mm x 1.95 mm
- Bluetooth 5.4 core spec qualified module: TBD QDID/declaration ID
- Certified to FCC, ISED, MIC, and CE regulations
- Castellated solder pad connections for ease-of-use
- 1 MB on-module serial Flash memory
- GPIOs: up to 26
- Temperature range: -30°C to +85°C
- 96 MHz Arm® Cortex®-M33 CPU with single-cycle multiply and a memory protection unit (MPU)
- Max. programmable TX output power: up to 10 dBm
- Bluetooth connection range: up to 500 m at 10 dBm
- RX sensitivity:
- LE-1 Mbps: -98 dBm
- LE-2 Mbps: -95 dBm
- Coded-PHY 500 kbps (LE-LR): -101 dBm
- Coded-PHY 125 kbps (LE-LR): -106 dBm
- CYW20822-P4TAI040:
- Module size: 20.2 mm x 10.5 mm x 2.3 mm
- Bluetooth 5.0 core spec qualified module: declaration ID D065177
- Supports Bluetooth 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps
- Certified to FCC, ISED, MIC, and CE regulations
- Castellated solder pad connections for ease-of-use
- 1 MB embedded on-module serial Flash memory
- GPIOs: up to 12 GPIOs
- Temperature range: -45°C to +85°C
- 16 MHz Arm Cortex-M0 MCU
- Max. TX output power for Bluetooth: 4 dBm
- Bluetooth connection range: up to 250 m at 4 dBm
- RX sensitivity for Bluetooth: –101 dBm at 125 kbps
- Power consumption: Bluetooth current consumption:
- RX current: 1.3 mA at -95 dBm
- TX current: 3 mA at 0 dBm
- Retention: 2 µA at 32 KB RAM
- Hibernation: 0.8 µA
- CYW20822 and CYW20829:
- Proven ready-to-use hardware design
- Cost-optimized for applications without space constraints
- Nonvolatile memory for a self-sufficient operation and over-the-air updates
- Bluetooth SIG listed with QDID and declaration IDs
- Fully certified modules eliminate the time needed for design, development, and certification processes
- Modus™ Toolbox provides an easy-to-use integrated design environment (IDE) to configure, develop, and program Bluetooth applications using the CYW20829B0-P4TAI100 module.

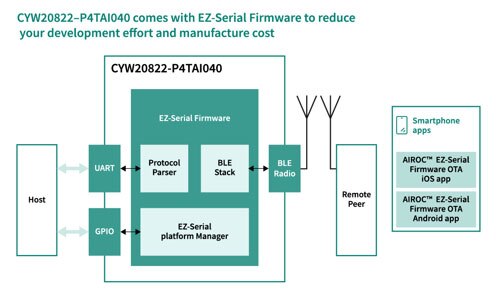

- Pre-loaded EZ-Serial firmware provides an easy-to-use command interface to configure and use the CYW20822-P4TAI040 module, eliminating the need for customer programming, and helping to accelerate the time-to-deployment for Bluetooth-enabled IoT solutions.
- The Infineon CYW920829B0P4TAI100-EVK evaluation kit enables users to evaluate and develop Bluetooth applications using the AIROC CYW20829B0-P4TAI100 Bluetooth LE 5.4 module.
- The Infineon CYW920822M2P4TAI040-EVK evaluation kit enables users to evaluate and develop Bluetooth applications using the AIROC CYW20822M2P4TAI040, an ultra-low-power Bluetooth LE module.
Certified Bluetooth® LE Modules
| Image | Manufacturer Part Number | Description | Protocol | Power - Output | Sensitivity | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 |  | CYW20822P4TAI040XUMA1 | RF TXRX MOD BT TH SMD | Bluetooth v5.0 | 4dBm | -101dBm | 496 - Immediate | $55.73 | View Details |
|  | CYW20829B0P4TAI100XUMA1 | CYW20829B0P4TAI100XUMA1 | Bluetooth v5.4 | 10dBm | -106dBm | 345 - Immediate | $73.18 | View Details |
| | CYW20829B0P4TAI100XUMA1 | CYW20829B0P4TAI100XUMA1 | Bluetooth v5.4 | 10dBm | -106dBm | 345 - Immediate | $73.18 | View Details |
Certified Bluetooth® LE 5 Evaluation Kits
| Image | Manufacturer Part Number | Description | Contents | Antenna Type | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
|  | CYW920822M2P4TAI040-EVK | EVAL KIT FOR CYW20822-P4TAI040 | Board(s) | - | 12 - Immediate | $770.43 | View Details |
Associated IC
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | CYW20829B0LKMLXQLA1 | BLUE TOOTH LOW ENERGY | 191 - Immediate | $28.89 | View Details |
Associated IC Development Kit
| Image | Manufacturer Part Number | Description | Type | Contents | Antenna Type | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
|  | CYW920829M2EVK-02 | EVAL BOARD FOR CYW20829 | Transceiver; Bluetooth® 5.x (BLE) | Board(s), Cable(s), Accessories | - | 20 - Immediate | $469.55 | View Details |
