            ZMID520x Position Sensors

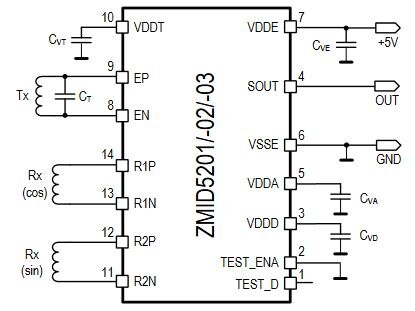

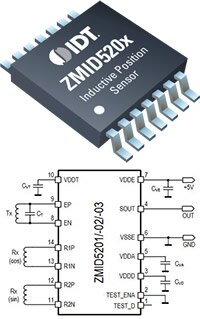

                    Renesas’ ZMID5201,  ZMID5202,  and  ZMID5203 inductive position sensor ICs used for absolute rotary or linear motion sensing


Renesas’ ZMID5201, ZMID5202, and ZMID5203 family of inductive position sensor ICs are used for absolute rotary or linear motion sensing in automotive, industrial, medical, and consumer applications. The ZMID520x uses the physical principles of induction in a wire loop and eddy currents to detect the position of an electrically conducting target that is sliding or rotating above a set of coils consisting of one transmitter coil and two receiver coils.

Features
Position sensing based on inductive principle Cost-effective; no magnet required Immune to magnetic stray fields; no shielding required Suitable for harsh environments and extreme temperatures Only three wires (ground, supply, and output) Nonvolatile user memory; programming through output pin Single IC supports on-axis and off-axis rotation, linear motion, and arc motion sensing High resolution, even for small angle ranges Suitable for implementation in safety-related systems compliant to ISO26262 up to ASIL-B		High accuracy: ≤ 0.2% full scale Overvoltage and reverse-polarity protection: -14 V to +18 V max., depending on product ESD and short-circuit protection Power or ground loss detection Facilitates redundant design requirements Programmable non-linearity correction Adaptive gain control supporting a wide range of coil designs and target displacement

ZMID520x Position Sensors

Manufacturer Part Number	Description	Output	Available Quantity	Price	View Details
ZMID5202AE1R	SENSOR ROTARY 360DEG SMD	PWM	3180 - Immediate	$65.36	View Details
ZMID5201AE1R	SENSOR ROTARY 360DEG SMD	Analog Voltage	0 - Immediate	See Page for Pricing	View Details
ZMID5203AE1R	SENSOR ROTARY 360DEG SMD	SENT	0 - Immediate	$37.38	View Details

Kits

Manufacturer Part Number	Description	Available Quantity	Price	View Details
ZMID5201MROT36001	EVALUATION KIT	0 - Immediate	See Page for Pricing	View Details
ZMID5201MLIN01201	EVALUATOIN KIT	0 - Immediate	See Page for Pricing	View Details
ZMID5202MARC13001	EVALUATION KIT	2 - Immediate	$420.98	View Details
ZMID5202MROT36001	EVALUATION KIT	0 - Immediate	See Page for Pricing	View Details
ZMID5202MLIN01201	EVALUATION KIT	0 - Immediate	See Page for Pricing	View Details
ZMID5203MARC13001	EVALUATION KIT	0 - Immediate	See Page for Pricing	View Details
ZMID5203MROT36001	EVALUATION KIT	0 - Immediate	See Page for Pricing	View Details
ZMID5203MLIN01201	EVALUATION KIT	0 - Immediate	$420.19	View Details
