ZE064W Series Waterproof Connectors

Hirose ZE064W small waterproof connectors are suited for automotive interfaces

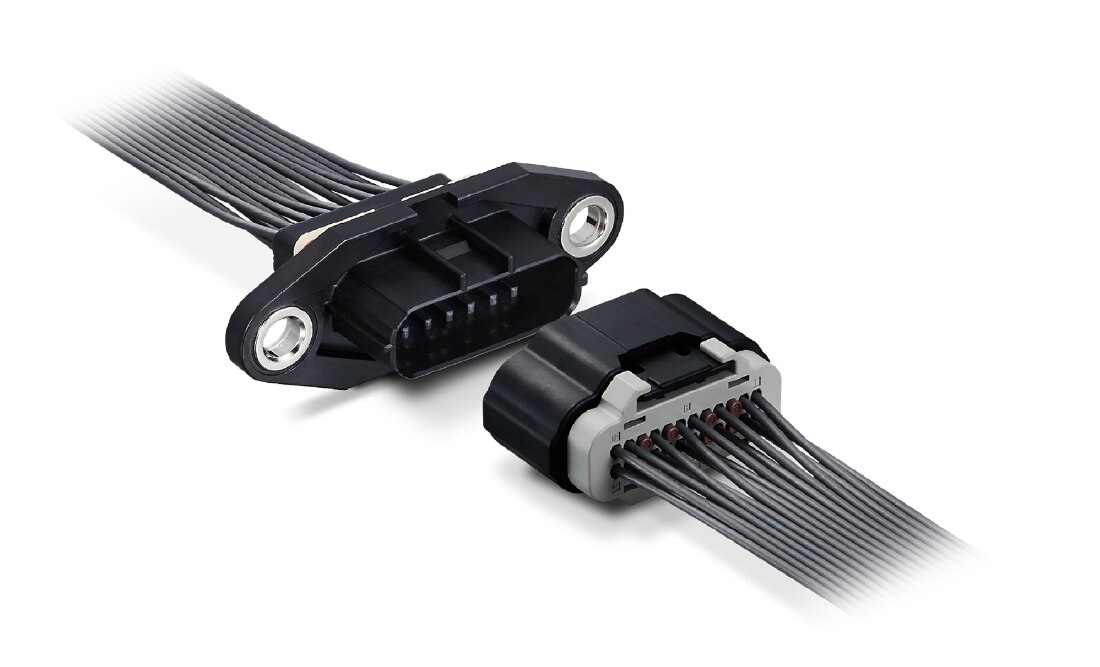

Image of Hirose ZE064W Series Waterproof Connectors Hirose ZE064W series are small, waterproof connectors with IP67/IP69K ratings and a 0.64 mm terminal and 2.2 mm pitch. Engineered for high heat and vibration resistance, the ZE064W is perfect for automotive and industrial applications exposed to harsh environments, such as e-axles, battery packs, and onboard chargers.

Features
  • High vibration resistance: the female crimp terminal design includes a double layer spring, 3-point contact, and 3 serrations in order to surpass the intense vibration requirements for devices mounted in the engine room
  • Waterproof (IP67/IP69K): this original waterproof design by Hirose is compliant with IP67/IP69K when mated. With waterproof performance that withstands high-pressure washing, ZE064W is suitable for use as an interface connector for automotive and industrial applications used in harsh environments
  • Small size (0.64 mm terminal, 2.2 mm pitch) space-saving design contributes to device size reduction
  • High heat resistance: can be used at a temperature of up to +125°C
  • Rated current: 5 A (single pin power supply)/2 A (all pins power supply)
  • Mating keys: prevents mismating when using multiple connectors
  • Retainer: prevents incomplete terminal insertion and has high contact reliability during cable routing
Applications
  • Automotive
    • Inverters
    • Converters
    • Batteries
    • Onboard chargers
    • ECUs
  • Industrial equipment
  • Agricultural equipment
  • Construction equipment

Housings

ImageManufacturer Part NumberDescriptionConnector TypeContact TypeNumber of PositionsAvailable QuantityPriceView Details
CONN RCPT HSG 8POS PNL MNTZE064W-8DS-HU/R(A)CONN RCPT HSG 8POS PNL MNTReceptacleFemale Socket8981 - Immediate$33.92View Details
CONN RCPT HSG 24POSZE064W-24DS-HU/R(A)CONN RCPT HSG 24POSReceptacleFemale Socket24527 - Immediate$41.00View Details
CONN RCPT HSG 24POSZE064W-24DS-HU/R(B)CONN RCPT HSG 24POSReceptacleFemale Socket24118 - Immediate$40.83View Details
CONN PLUG HSG 24POSZE064W-24DP-HU/R(A)CONN PLUG HSG 24POSPlugMale Pin24264 - Immediate$49.47View Details
CONN RCPT HSG 14POSZE064W-14DS-HU/R(B)CONN RCPT HSG 14POSReceptacleFemale Socket14258 - Immediate$36.39View Details
CONN PLUG HSG 8POS PNL MNTZE064W-8DP-HU/R(B)CONN PLUG HSG 8POS PNL MNTPlugMale Pin8181 - Immediate$44.95View Details
CONN PLUG HSG 24POSZE064W-24DP-HU/R(B)CONN PLUG HSG 24POSPlugMale Pin2442 - Immediate$50.05View Details
CONN RCPT HSG 14POSZE064W-14DS-HU/R(A)CONN RCPT HSG 14POSReceptacleFemale Socket14359 - Immediate$35.48View Details
CONN PLUG HSG 14POSZE064W-14DP-HU/R(A)CONN PLUG HSG 14POSPlugMale Pin14256 - Immediate$44.78View Details
CONN PLUG HSG 14POSZE064W-14DP-HU/R(B)CONN PLUG HSG 14POSPlugMale Pin14296 - Immediate$48.82View Details
CONN PLUG HSG 8POS PNL MNTZE064W-8DP-HU/R(A)CONN PLUG HSG 8POS PNL MNTPlugMale Pin8108 - Immediate$42.72View Details
CONN RCPT HSG 8POS PNL MNTZE064W-8DS-HU/R(B)CONN RCPT HSG 8POS PNL MNTReceptacleFemale Socket80 - Immediate$33.59View Details

Contacts

ImageManufacturer Part NumberDescriptionPin or SocketAvailable QuantityPriceView Details
CONN SKT 20-22AWG TINZE064-2022SCFCONN SKT 20-22AWG TINSocket13716 - Immediate$0.82View Details
CONN PIN 20-22AWG TINZE064-2022PCFCONN PIN 20-22AWG TINPin30370 - Immediate$0.82View Details

Tooling and Accessories

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN WATERPROOF PIN ZE064W RCPTZE064W-WCP(2022)CONN WATERPROOF PIN ZE064W RCPT6836 - Immediate$0.99View Details
TOOL HAND CRIMP ZE064 20-22AWGHT802/ZE064-2022STOOL HAND CRIMP ZE064 20-22AWG2 - Immediate$6,175.15View Details
Tools/EquipmentHT802/ZE064-2022PTools/Equipment0 - Immediate$6,175.15View Details
TOOL APP ZE064 FEMALE 20-22AWGAP105-ZE064-2022STOOL APP ZE064 FEMALE 20-22AWG0 - Immediate$43,591.73View Details
TOOL APP ZE064 MALE 20-22AWGAP105-ZE064-2022PTOOL APP ZE064 MALE 20-22AWG0 - Immediate$43,591.73View Details
TOOL EXTRACT ZE064 MALEZE064-P/RE-MDTOOL EXTRACT ZE064 MALE1 - Immediate$3,593.02View Details
TOOL EXTRACT ZE064 FEMALEZE064-S/RE-MDTOOL EXTRACT ZE064 FEMALE1 - Immediate$4,260.55View Details
