Hirose mmWave Test Connectors and Cables for Test Boards

Hirose offers an extensive product line-up for Millimeter Test Board applications including; Receptacles, Terminators, Attenuators, Adapters and Cables. Hirose’s precision screw-mount test connectors provide excellent high-bandwidth performance for High-speed/RF test boards over 20 Gbps.

Applications

Digital: Processors, Connectors, FPGAs, OT devices, Ser-Des, Optical modules
Analog: RF modules, Antennas, RF components

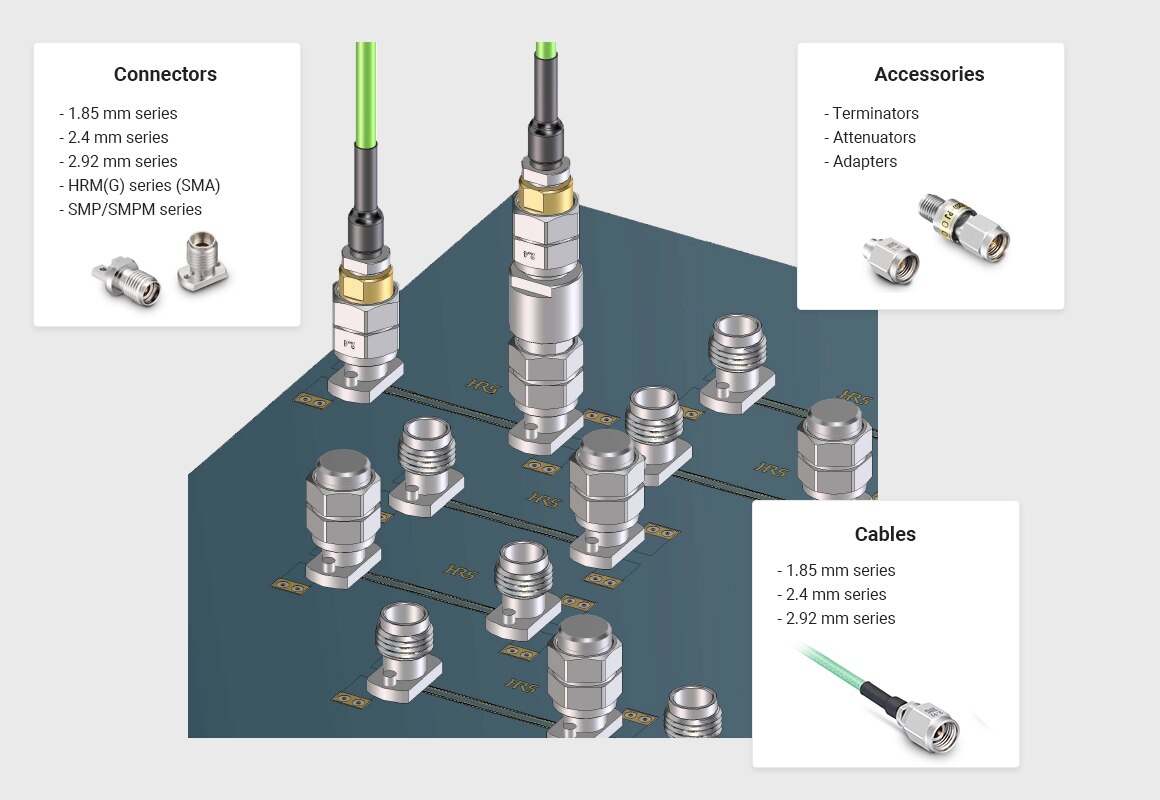

Example Test of High-Speed Transmission Connectors

  • Connectors
  • Cable Assemblies
  • Accessories
  • Related Products

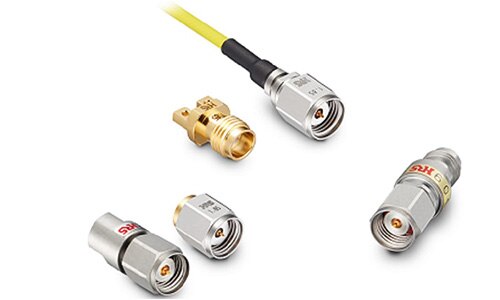

1.85 mm Series

1.85 mm Series

  • IEC standard compliant 1.85 mm coaxial connector (IEC 61169-32)
  • Supports up to 65 GHz frequency
  • Board receptacle is screw-mounted
  • RoHS2 compliant

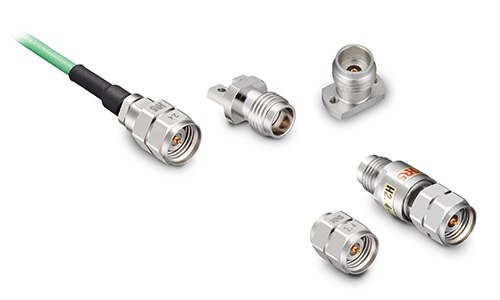

2.4 mm Series

2.4 mm Series

  • 2.4 mm coaxial connector conforming to MIL-STD-348B Standard
  • Supports up to 50 GHz frequency
  • Board receptacle is screw-mounted
  • RoHS2 compliant

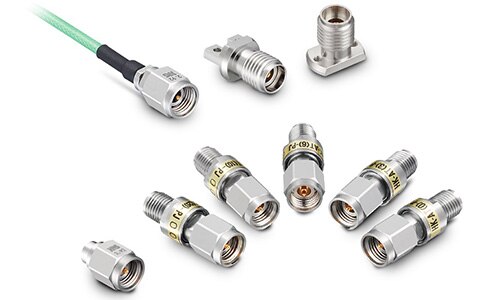

2.92 mm Series

2.92 mm Series

  • 2.92 mm coaxial connector conforming to MIL-STD-348B Standard
  • Supports up to 40 GHz frequency
  • Board receptacle is screw-mounted
  • RoHS2 compliant

HRM(G) Series

HRM(G) Series

  • Excellent high-frequency characteristics up to 28 GHz
  • Available in:
    • Edge-mount: HRM(G)-300-467B-1
    • Vertical-mount: HRM(G)-300-468B-1
  • Unique compression screw mount design offers streamlined installation by eliminating soldering.
  • Common industry footprint
  • Accepts any PCB thickness
  • ROHS-compliant

SMP Series

SMP Series

  • Excellent high-frequency performance: 30 GHz, 40 GHz
  • Easy push-on lock
  • Wide variations
  • High contact reliability
  • MIL standard compliant (MIL-STD-348B)
  • RoHS 2015/863 compliant
  • Halogen-free

SMPM Series

SMPM Series

  • 65 GHz, push-on lock coaxial connectors
  • Conforms to MIL Standard
  • High frequency capability: DC to 65 GHz
  • Push-on lock
  • RoHS compliant

xxxx

1.85 mm Series

  • IEC standard compliant 1.85 mm coaxial connector (IEC 61169-32)
  • Supports up to 65 GHz frequency
  • Board receptacle is screw-mounted
  • RoHS2 compliant

xxxx

2.4 mm Series

  • 2.4 mm coaxial connector conforming to MIL-STD-348B Standard
  • Supports up to 50 GHz frequency
  • Board receptacle is screw-mounted
  • RoHS2 compliant

xxxx

2.92 Series

  • 2.92 mm coaxial connector conforming to MIL-STD-348B Standard
  • Supports up to 40 GHz frequency
  • Board receptacle is screw-mounted
  • RoHS2 compliant

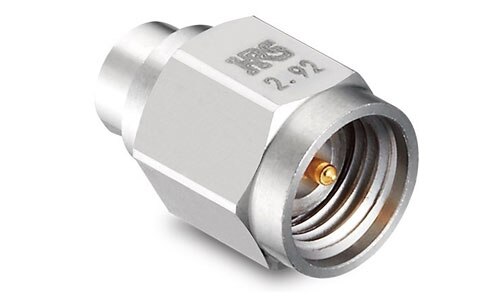

mmWave Terminators

mmWave Terminators

  • Non-reflective terminator supporting 0 to 67 GH
  • Small size, light weight
  • Low V.S.W.R and high reliability

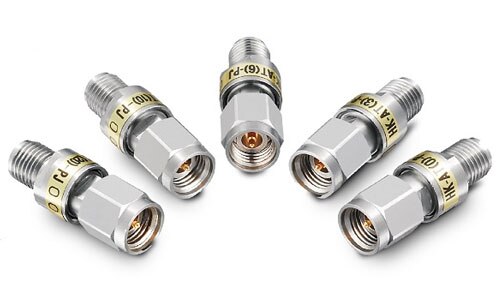

mmWave Attenuators

mmWave Attenuators

  • Fixed attenuators supporting 0 to 67 GH (0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20 db)
  • Small size, light weight
  • Unique internal spring connection for robustness and excellence impedance matching even with temperature change
  • Low V.S.W.R and high reliability

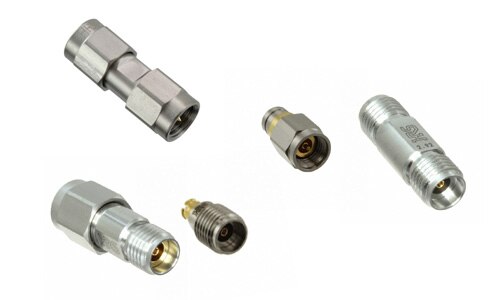

mmWave Adapters

mmWave Adapters

  • Multiple male/female and size adapter combinations
  • Low contact resistance, maintain signal fidelity
  • Robust construction, reliable and repeatable performance

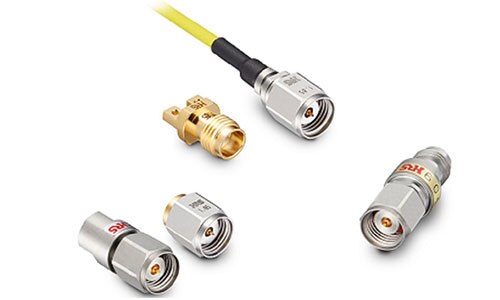

mmWave Cables

mmWave Cables

  • Supports up to 65 GHz frequency
  • 0.085 inch flexible cable applicable
  • RoHS2 compliant

U.FL Series

U.FL Series (Coaxial Cable)

  • 2.0 mm/2.5 mm maximum mated height
  • Frequency: DC to 8 GHz
  • Plug: right-angled
  • Receptacle: SMT

X.FL Series

X.FL Series (Coaxial Cable)

  • A low mated height of 0.94 or 1.2 mm (maximum of 1.0 or 1.3 mm)
  • Minimal mounting area required
  • Ultra lightweight
  • High frequency transmission
  • Automatic board placement
  • The use of ultra - fine coaxial (fluorinated resin insulated) cable
  • Simple connector mating/unmating

MS-156C3 Series

MS-156C Series (Coaxial Switch)

  • Low insertion loss
  • Space-saving design : 2.3 mm x 2.3 mm occupied board space
  • Low profile : 1.35 mm high above the board
  • Lightweight : 0.014 g. total weight
  • Durability : 100 mating/unmating
  • Performs over a wide frequency range : from 0 to 11 GHz
  • Board placement with automatic equipment
  • Halogen Free, Beryllium free

MS-180 Series

MS-180 Series (Coaxial Switch)

  • 0.85 mm height
  • Frequency: DC to 11 GHz
  • VSWR: 1.4 max
  • Small size: 1.8 x 1.8 mm
  • Occupied mounting area: 2 x 1.9 mm
