DF53 Series Wire-to-Board Connector
The Hirose Electric DF53 series wire-to-board connector is designed for space-constrained applications where reliability is critical
With a small, sturdy 0.6 mm pitch, the Hirose Electric DF53 series wire-to-board connector has a high current capacity of up to 1.3 A. Its box-shaped contact design and visual confirmation prevent incomplete mating, making it an excellent choice for wire-to-board applications and small devices.
Features
- High energy efficiency thanks to crimp structure with low contact resistance
- Ultra-compact design with a 0.6 mm pitch, 1.45 mm height, and 3.55 mm depth, perfect for compact devices
- Supports up to 1.3 A max current using two positions for power, enabling robust power delivery
- High lance strength prevents wire disconnect during wiring, ensuring secure and stable connections
- Box-shaped contact design prevents deformation, improving contact stability during handling
- Halogen-free construction
Contacts
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | DF53-32PCF | INTERCONNECT RECTANGULAR | 48737 - Immediate | $0.82 | View Details |
Headers
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | DF53-2S-0.6H | Interconnect Rectangular | 0 - Immediate | $3.78 | View Details |
|  | DF53-3S-0.6H | Interconnect Rectangular | 122 - Immediate | $5.26 | View Details |
|  | DF53-4S-0.6H | Interconnect Rectangular | 43 - Immediate | $5.67 | View Details |
|  | DF53-5S-0.6H | Interconnect Rectangular | 0 - Immediate | $5.84 | View Details |
|  | DF53-6S-0.6H | Interconnect Rectangular | 5823 - Immediate | $5.84 | View Details |
|  | DF53-10S-0.6H | Interconnect Rectangular | 1711 - Immediate | $7.48 | View Details |
|  | DF53-8S-0.6H | Interconnect Rectangular | 0 - Immediate | $7.48 | View Details |
|  | DF53-12S-0.6H | Interconnect Rectangular | 4059 - Immediate | $7.89 | View Details |
|  | DF53-14S-0.6H | INTERCONNECT RECTANGULAR | 3 - Immediate | $8.47 | View Details |
|  | DF53-16S-0.6H | Interconnect Rectangular | 4899 - Immediate | $9.29 | View Details |
|  | DF53-18S-0.6H | Interconnect Rectangular | 4924 - Immediate | $9.62 | View Details |
|  | DF53-20S-0.6H | Interconnect Rectangular | 4890 - Immediate | $10.19 | View Details |
Housings
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | DF53-2P-0.6C | Interconnect Rectangular | 2085 - Immediate | $2.06 | View Details |
|  | DF53-3P-0.6C | Interconnect Rectangular | 139 - Immediate | $3.37 | View Details |

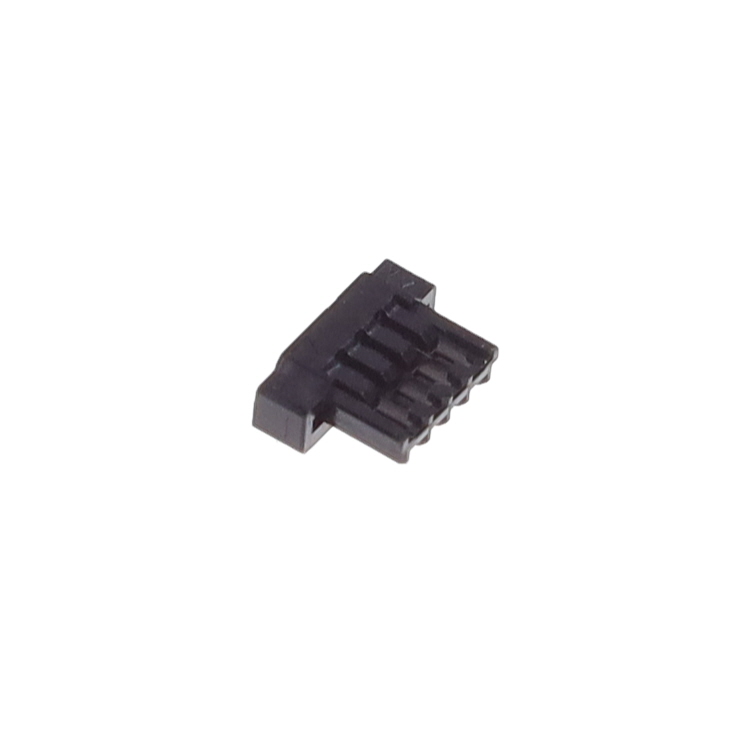

|  | DF53-4P-0.6C | Interconnect Rectangular | 3152 - Immediate | $3.37 | View Details |
|  | DF53-5P-0.6C | Interconnect Rectangular | 4309 - Immediate | $3.62 | View Details |
|  | DF53-6P-0.6C | Interconnect Rectangular | 0 - Immediate | $3.62 | View Details |
|  | DF53-8P-0.6C | Interconnect Rectangular | 2556 - Immediate | $3.86 | View Details |

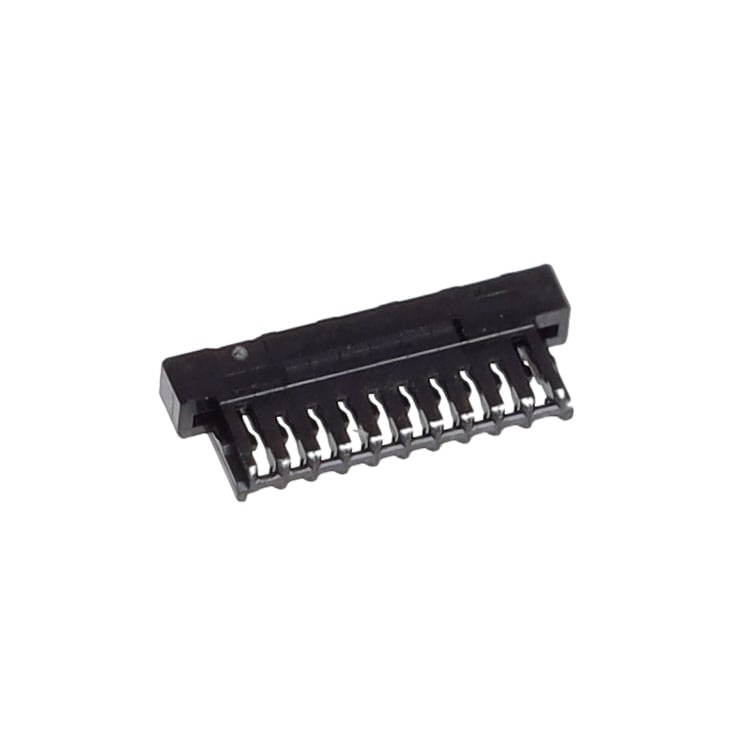

|  | DF53-10P-0.6C | Interconnect Rectangular | 4116 - Immediate | $4.28 | View Details |
|  | DF53-12P-0.6C | Interconnect Rectangular | 3647 - Immediate | $4.44 | View Details |
|  | DF53-14P-0.6C | INTERCONNECT RECTANGULAR | 4651 - Immediate | $4.69 | View Details |
|  | DF53-16P-0.6C | Interconnect Rectangular | 4660 - Immediate | $5.10 | View Details |
|  | DF53-18P-0.6C | Interconnect Rectangular | 4929 - Immediate | $5.51 | View Details |
|  | DF53-20P-0.6C | Interconnect Rectangular | 4955 - Immediate | $5.76 | View Details |
