Liquid Tight Break-Thru™ Strain Relief

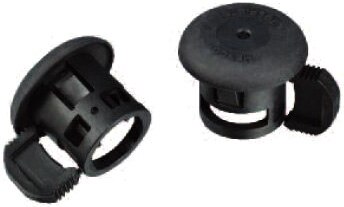

Heyco’s snap-in, low-profile design allows for pre-assembled cables and is ideal for applications where aesthetics are important
Heyco’s unique design combines the protection of a liquid tight cordgrip with the cable protection one might expect from a strain relief bushing. For applications where aesthetics are important, the liquid tight Break-Thru strain relief allows for a much lower profile than a traditional cordgrip.
Features
- Low-profile co-molded nylon and elastomer parts function as a liquid tight strain relief with a cable
- cULus approved under UL 514B
- Low-profile design with height above the panel of less than 0.188" (4.8 mm)
- Can be pre-assembled to the cable prior to installation
- Assembles to cables with a simple hand plier for easy installation
- Smooth, rounded interior edges for ease of installation
- Fast and easy installation
- Available in multiple sizes for cable diameters ranging from 0.280" (7.1 mm) to 0.440" (11.2 mm)
- Using the fitting with the smallest maximum diameter that will fit user's application is recommended
- Meet UL strain relief requirements without bending or kinking the cable
- Special colors available
- Patent #10573463
Liquid Tight Break-Thru™ Strain Relief
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | 1063 | BUSHING W/STR RELIEF BLACK | 985 - Immediate | $9.88 | View Details |
