Gecko-MT Mixed Layout Connector

Harwin's Gecko-MT connectors are high-reliability signal and power connections on a 1.25 mm pitch

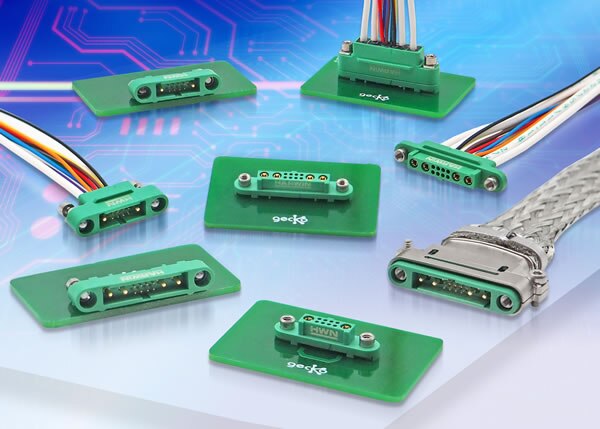

Image of Harwin's Gecko-MT Harwin's Gecko-MT range combines the 1.25 mm pitch Gecko signal connector system with mixed technology layouts, adding 10 A power contacts to the range. They are the smallest and lightest mixed-layout connector currently available for high-performance applications. Gecko is the ideal choice when SWaP matters most. The connectors feature cable-to-board, board-to-board, and cable-to-cable configurations. Stainless steel jackscrews are available in both standard or reverse-fix, ensuring the security of connection in the most extreme environments. Lightweight metal hoods give additional cable protection and EMI/RFI shielding.

Features
  • Mixed current capacity of 10 A power and 2 A signal per contact
  • Four finger beryllium copper signal contact
  • Gold plated signal and power contacts
  • Capable of 1,000 mating cycles
  • Withstands 100G shock and 20G vibration
  • Operates at extreme temperatures: -65°C to +150°C
  • Mate before lock stainless steel jackscrew security
  • Standard and reverse-fix jackscrew options
  • Compatible with EMI/RFI backshells
  • Low outgassing properties
Applications
  • Aviation: controls, guidance systems, engine controls, radar, and tracking
  • Motorsport and electric vehicles: navigation, AI, GPS and tracking equipment, communications and telemetry, and ERS controls
  • Space: satellites and CubeSats, radar, communications, and launch systems
  • Defense and security: UAVs, ground communications, and rugged vehicle electronics

Female Cable Housings

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN RCPT HSG 10POS 1.25MMG125-22496F1-01-08-01CONN RCPT HSG 10POS 1.25MM487 - Immediate$161.06View Details
CONN RCPT HSG 12POS 1.25MMG125-22496F1-02-08-02CONN RCPT HSG 12POS 1.25MM572 - Immediate$163.94View Details
CONN RCPT HSG 12POS 1.25MMG125-2249600-02-08-02CONN RCPT HSG 12POS 1.25MM86 - Immediate$70.95View Details
CONN RCPT 2PWR + 4SIGNALG125-22496F1-02-04-00CONN RCPT 2PWR + 4SIGNAL415 - Immediate$116.75View Details
CONN RCPT 2PWR + 24SIGNALG125-22496F1-02-24-00CONN RCPT 2PWR + 24SIGNAL32 - Immediate$119.95View Details
CONN RCPT 3PWR + 8SIGNALG125-22496F1-03-08-00CONN RCPT 3PWR + 8SIGNAL78 - Immediate$137.22View Details
CONN RCPT 4PWR + 4SIGNALG125-22496F1-04-04-00CONN RCPT 4PWR + 4SIGNAL372 - Immediate$142.23View Details
CONN RCPT 4PWR + 16SIGNALG125-22496F1-04-16-00CONN RCPT 4PWR + 16SIGNAL173 - Immediate$149.96View Details
CONN RCPT 6PWR + 8SIGNALG125-22496F1-06-08-00CONN RCPT 6PWR + 8SIGNAL16 - Immediate$152.67View Details
CONN RCPT HSG 10POS 1.25MMG125-2249600-01-08-01CONN RCPT HSG 10POS 1.25MM0 - Immediate$45.49View Details

Male Cable Housings

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN PLUG HSG 10POS 1.25MMG125-32496M5-01-08-01CONN PLUG HSG 10POS 1.25MM38 - Immediate$160.89View Details
CONN PLUG 2PWR + 4SIGNALG125-32496M1-02-04-00CONN PLUG 2PWR + 4SIGNAL87 - Immediate$84.02View Details
PLUG PNL MNT 2PWR + 24SIGNALG125-32496M2-02-24-00PLUG PNL MNT 2PWR + 24SIGNAL0 - Immediate$85.83View Details
CONN PLUG 2PWR + 24SIGNALG125-32496M1-02-24-00CONN PLUG 2PWR + 24SIGNAL0 - Immediate$85.83View Details
CONN PLUG 3PWR + 8SIGNALG125-32496M1-03-08-00CONN PLUG 3PWR + 8SIGNAL0 - Immediate$107.87View Details
PLUG PNL MNT 3PWR + 8SIGNALG125-32496M2-03-08-00PLUG PNL MNT 3PWR + 8SIGNAL11 - Immediate$107.87View Details
PLUG PNL MNT 2PWR + 4SIGNALG125-32496M5-02-04-00PLUG PNL MNT 2PWR + 4SIGNAL120 - Immediate$114.61View Details
PLUG PNL MNT 2PWR + 24SIGNALG125-32496M5-02-24-00PLUG PNL MNT 2PWR + 24SIGNAL22 - Immediate$117.07View Details
CONN PLUG HSG 10POS 1.25MMG125-32496M1-01-08-01CONN PLUG HSG 10POS 1.25MM18 - Immediate$111.15View Details
CONN PLUG HSG 12POS 1.25MMG125-32496M1-02-08-02CONN PLUG HSG 12POS 1.25MM76 - Immediate$140.67View Details

Female Vertical Throughboard Connectors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN F-HDR 4PWR 8SIG PCB VERTG125-FV10805F1-2AB2ABPCONN F-HDR 4PWR 8SIG PCB VERT122 - Immediate$643.99View Details
CONN HDR FMALE 2PWR + 4SIGNALG125-FV104F1-02AB000PCONN HDR FMALE 2PWR + 4SIGNAL99 - Immediate$311.84View Details
CONN HDR FMALE 4PWR + 4SIGNALG125-FV104F1-04AB000PCONN HDR FMALE 4PWR + 4SIGNAL99 - Immediate$343.33View Details
CONN HDR FMALE 3PWR + 8SIGNALG125-FV108F1-03AB000PCONN HDR FMALE 3PWR + 8SIGNAL0 - Immediate$449.55View Details
CONN F-HDR 2PWR 8SIG PCB VERTG125-FV10805F1-1AB1ABPCONN F-HDR 2PWR 8SIG PCB VERT130 - Immediate$468.30View Details
CONN HDR FMALE 6PWR + 8SIGNALG125-FV108F1-06AB000PCONN HDR FMALE 6PWR + 8SIGNAL0 - Immediate$567.28View Details
CONN HDR FMALE 4PWR + 16SIGNALG125-FV116F1-04AB000PCONN HDR FMALE 4PWR + 16SIGNAL0 - Immediate$582.82View Details
CONN HDR FMALE 2PWR + 24SIGNALG125-FV124F1-02AB000PCONN HDR FMALE 2PWR + 24SIGNAL0 - Immediate$604.12View Details

Male Horizontal Throughboard Connectors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
HDR MALE R/A 2PWR + 4SIGNALG125-MH104M4-02AD000PHDR MALE R/A 2PWR + 4SIGNAL435 - Immediate$399.65View Details
CONN HDR 4PWR 8SIG PCB VERTG125-MH10805M3-2AD2ADPCONN HDR 4PWR 8SIG PCB VERT40 - Immediate$741.41View Details
HDR MALE R/A 3PWR + 8SIGNALG125-MH108M4-03AD000PHDR MALE R/A 3PWR + 8SIGNAL30 - Immediate$525.27View Details
HDR MALE R/A 6PWR + 8SIGNALG125-MH108M4-06AD000PHDR MALE R/A 6PWR + 8SIGNAL1 - Immediate$617.11View Details
HDR MALE R/A 2PWR + 24SIGNALG125-MH124M4-02AD000PHDR MALE R/A 2PWR + 24SIGNAL73 - Immediate$657.14View Details
HDR MALE R/A 4PWR + 4SIGNALG125-MH104M4-04AD000PHDR MALE R/A 4PWR + 4SIGNAL180 - Immediate$440.10View Details
HDR MALE R/A 4PWR + 16SIGNALG125-MH116M4-04AD000PHDR MALE R/A 4PWR + 16SIGNAL42 - Immediate$634.04View Details
CONN HDR 2PWR 8SIG PCB VERTG125-MH10805M3-1AD1ADPCONN HDR 2PWR 8SIG PCB VERT0 - Immediate$518.14View Details

Crimp Contacts

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN PIN 26AWG CRIMP GOLDG125-1010005CONN PIN 26AWG CRIMP GOLD47921 - Immediate$10.19View Details
CONN PIN 28-32AWG CRIMP GOLDG125-1020005CONN PIN 28-32AWG CRIMP GOLD12934 - Immediate$10.19View Details
CONN SOCKET 28-32AWG CRIMP GOLDG125-0020005CONN SOCKET 28-32AWG CRIMP GOLD369623 - Immediate$12.83View Details
CRIMP SKT 18AWGG125-0500005CRIMP SKT 18AWG1611 - Immediate$50.89View Details
CRIMP PIN 18AWGG125-1500005CRIMP PIN 18AWG4927 - Immediate$42.92View Details
CONN SOCKET 26AWG CRIMP GOLDG125-0010005CONN SOCKET 26AWG CRIMP GOLD193469 - Immediate$12.83View Details

Tools

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
TOOL POSITIONER FOR Z125-903Z125-904TOOL POSITIONER FOR Z125-9036 - Immediate$4,301.08View Details
TOOL HAND CRIMP GECKO-MTZ125-903TOOL HAND CRIMP GECKO-MT29 - Immediate$10,629.50View Details
TOOL EXTRACT TIP FOR Z125-902Z125-923TOOL EXTRACT TIP FOR Z125-902412 - Immediate$211.95View Details
TOOL EXTRACT TIP FOR Z125-905Z125-924TOOL EXTRACT TIP FOR Z125-90514 - Immediate$348.76View Details
TOOL INSERTION FOR GECKO-MTZ125-905TOOL INSERTION FOR GECKO-MT49 - Immediate$745.53View Details
