            ionex® USB Connectors for Power Charging Designs
                    GCT’s ionex range offers breakthrough USB Type-C® connectors for charging focused applications


Image of GCT's ionex® USB Connectors for Power Charging Designs GCT’s ionex connectors are available in 16-pin and 6-pin configurations. GCT's ionex aims to create opportunities for engineers to use the Type-C format in cost-conscious product designs where pricing was previously prohibitive compared to micro USB.

USB4125 Features

6-pin design
Horizontal, SMT
Through-hole shell stakes (2 length options)
3 A super-fast charging
For power charging only
Maximum cost-saving due to fewer contacts
Operating temperature range: -30°C to +85°C

USB4130 Features

6-pin design
Vertical, SMT
3 A super-fast charging
For power charging only
Maximum cost-saving due to fewer contacts
Operating temperature range: -30°C to +85°C

USB4120 Features

16-pin design
Vertical, SMT
5 A ultra-fast charging
Complies to USB 2.0
Cost-saving due to fewer contacts
Operating temperature range: -25°C to +85°C

USB4105 Features

16-pin design
5 A ultra-fast charging
Horizontal, hybrid mount

Surface-mount signal contacts
Through-hole shell stakes (3 length options)

Complies to USB standard 2.0
Cost-saving due to fewer contacts
Operating temperature range: -40°C to +85°C

USB4110 Features

16-pin design
3 A super-fast charging
Horizontal, SMT
Complies to USB 2.0
Cost-saving due to fewer contacts
Operating temperature range: -40°C to +85°C

USB4085 Features

16-pin design
3 A super-fast charging
Horizontal, through-hole mount
Complies to USB 2.0
Cost-saving due to fewer contacts
Operating temperature range: -40°C to +85°C

Applications

Charging and docking applications
POS devices
Wearable technology
Instrumentation
Handheld devices

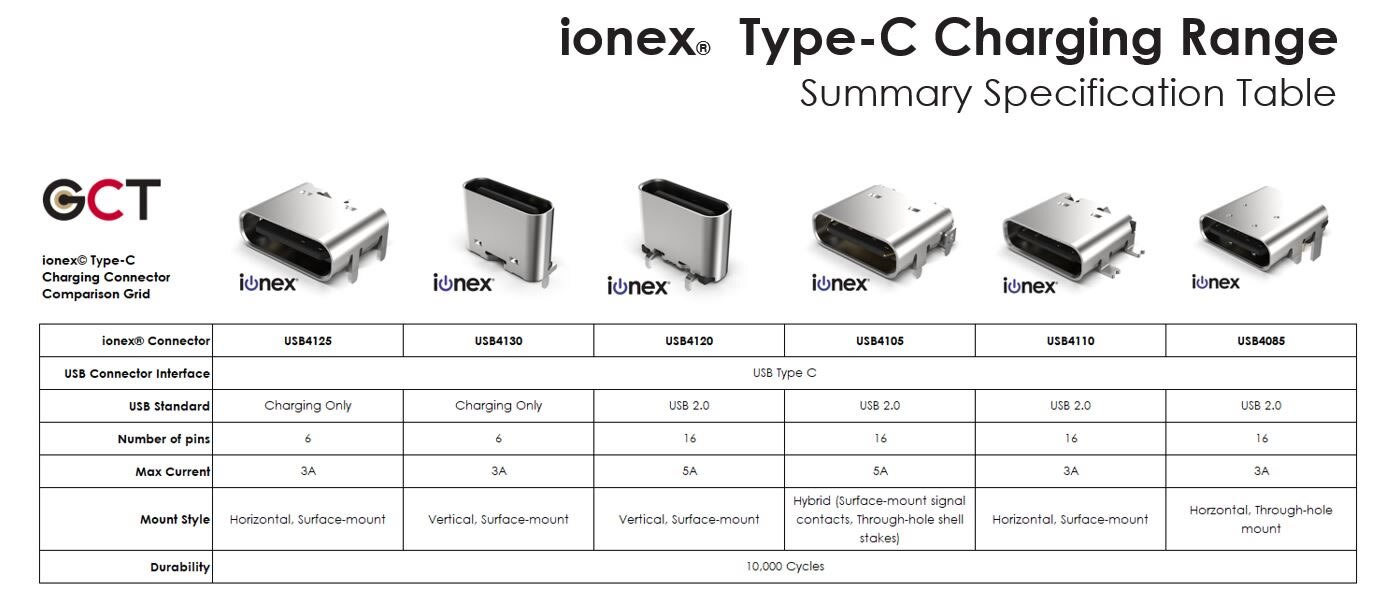

ionex Comparison Chart (Click to Enlarge)
