i.MX6 Series Processors
Unleashes the world's first truly scalable multicore platform >
Scalable multicore solutions breaking the boundaries of user experience
NXP Semiconductor's i.MX6 series unleashes the industry's first truly scalable multicore platform that includes single-, dual- and quad-core families based on the ARM® Cortex™-A9 architecture. Together with a robust ecosystem, i.MX6 series provides the ideal platform to develop a portfolio of end devices based on a single hardware design.
With high-performance multimedia processing, pin*- and software- compatible product families and integrated power management, i.MX6 series is purpose built for the new era of smart devices.
i.mX6 Overview
The market for intelligent, multimedia centric, touch-based devices is increasing exponentially. Tomorrow’s battery-powered smart devices, auto infotainment and in-flight entertainment systems, medical systems, personal and enterprise class intelligent control and data systems, and new classes of devices never before seen need to present data and user interface choices to the end user primarily through rich sound, video, voice, pictures and touch, rather than keyboards and mice. The need for manufacturers to quickly provide multiple devices to fit specific market segments or niches and provide their customers with a broader range of choices is increasing just as quickly.
The i.MX6 series was designed specifically to enable this new market by bringing together high-performance scalable multimedia processing, a software-compatible family of solutions with integrated power management so that a manufacturer can deploy a full portfolio of products with a single hardware design.
Features of the i.MX6 Series Platform:
- ARM Cortex-A9-based solutions up to 1.2 GHz
- Up to HD 1080p encode and decode
- Up to 3D video playback in high definition
- Up to HD 1080p videoconferencing
- Integrated I/Os which may include: HDMI v1.4, MIPI and LVDS display ports, MIPI CSI-2 camera, Gigabit Ethernet, multiple USB 2.0 and PCI Express®
- Comprehensive security

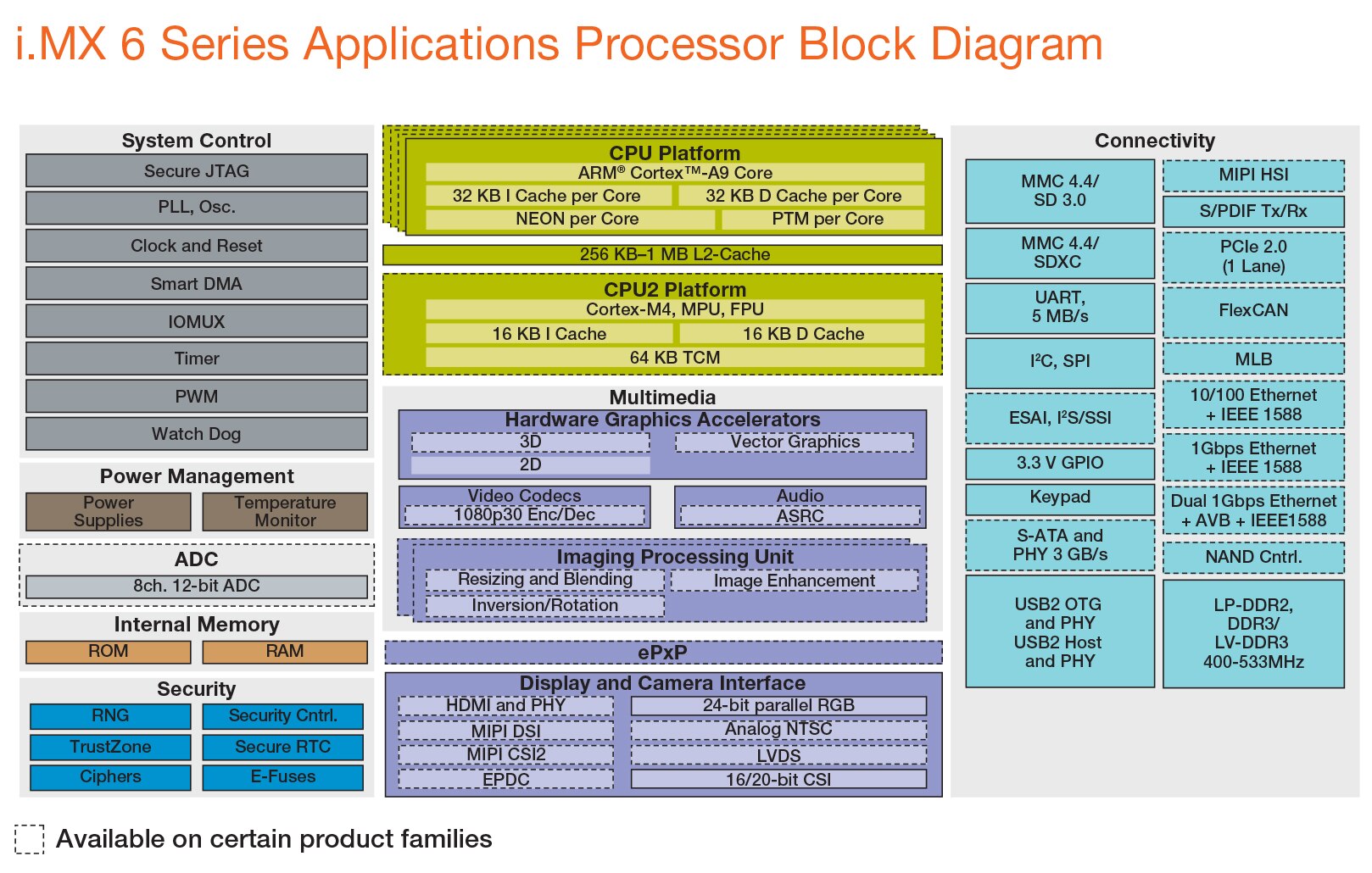

i.MX6 Series at a Glance
Red indicates change from column to the left
| i.MX6UltraLite |
i.MX6SoloLite |
i.MX6SoloX |
i.MX6Solo |
i.MX6DualLite |
i.MX6Dual |
i.MX6DualPlus |
i.MX6Quad |
i.MX6QuadPlus |
- Single ARM® Cortex®-A7 up to 696 MHz
- 128 KB L2 cache, NEON™, VFP, TrustZone®
- X16 LPDDR2, DDR3/LV-DDR3
- 2X 10/100 Mb/s + IEEE 1588
- 2X 12-bit ADC (1 with resistance touch control)
- 10/100 Ethernet MAC
|
- Single ARM® Cortex®-A9 up to 1.0 GHz
- 256 KB L2 cache, Neon, VFPvd16 Trustzon
- 2D graphics
- 32-bit DDR3 and LPDDR2 at 400 MHz
- Integrated EPD controller
- 10/100 Ethernet MAC
|
- Single Cortex®-A9 up to 1.0 GHz
- Single Cortex®M4 up to 200 MHz
- 256 KB L2 cache, Neon, VFP, Trustzone
- 3D and 2D graphics
- 32-bit DDR3 and LPDDR2 at 400 MHz
- Dual Gigabit Ethernet MAC w/ hardware AVB support
- PCIe controller plus PHY
- LVDS controller plus PHY
- Analog camera interface
- 8-channel, 12-bit ADC
- MLB and FlexCAN controllers
|
- Single Cortex®-A9 up to 1.0 GHz
- 512 KB L2 cache, Neon, VFPvd16 Trustzone
- 3D graphics with one shader
- 2D graphics
- 32-bit DDR3 and LPDDR2 at 400 MHz
- Gigabit Ethernet MAC
- Integrated EPD controller
- HDMIv1.4 controller plus PHY
- LVDS controller plus PHY
- PCIe controller plus PHY
- MLB and FlexCAN controllers
|
- Dual Cortex®-A9 up to 1.0 GHz
- 512 KB L2 cache, Neon, VFPvd16 Trustzone
- 3D graphics with one shader
- 2D graphics
- 64-bit DDR3 and 2-channel 32-bit LPDDR2 at 400 MHz
- Gigabit Ethernet MAC
- Integrated EPD controller
- HDMIv1.4 controller plus PHY
- LVDS controller plus PHY
- PCIe controller plus PHY
- MLB and FlexCAN controllers
|
- Dual Cortex®-A9 up to 1.2 GHz
- 1 MB L2 cache, Neon, VFPvd16 Trustzone
- 3D graphics with four shaders
- Two 2D graphics engines
- 64-bit DDR3 and 2-channel 32-bit LPDDR2 at 533 MHz
- Gigabit Ethernet MAC
- Integrated SATA-II
- HDMIv1.4 controller plus PHY
- LVDS controller plus PHY
- PCIe controller plus PHY
- MLB and FlexCAN controllers
|
- Dual Cortex®-A9 up to 1.2 GHz*
- 1 MB L2 cache, Neon, VFPvd16 Trustzone
- Enhanced 3D graphics with four shaders
- Enhanced Two 2D graphics engines
- Prefetch & Resolve Engine
- Gigabit Ethernet MAC
- Optimized 64-bit DDR3 and 2-channel 32-bit LPDDR2 at 533 MHz
- Integrated SATA-II
- HDMIv1.4 controller plus PHY
- LVDS controller plus PHY
- PCIe controller plus PHY
- MLB and FlexCAN controllers
|

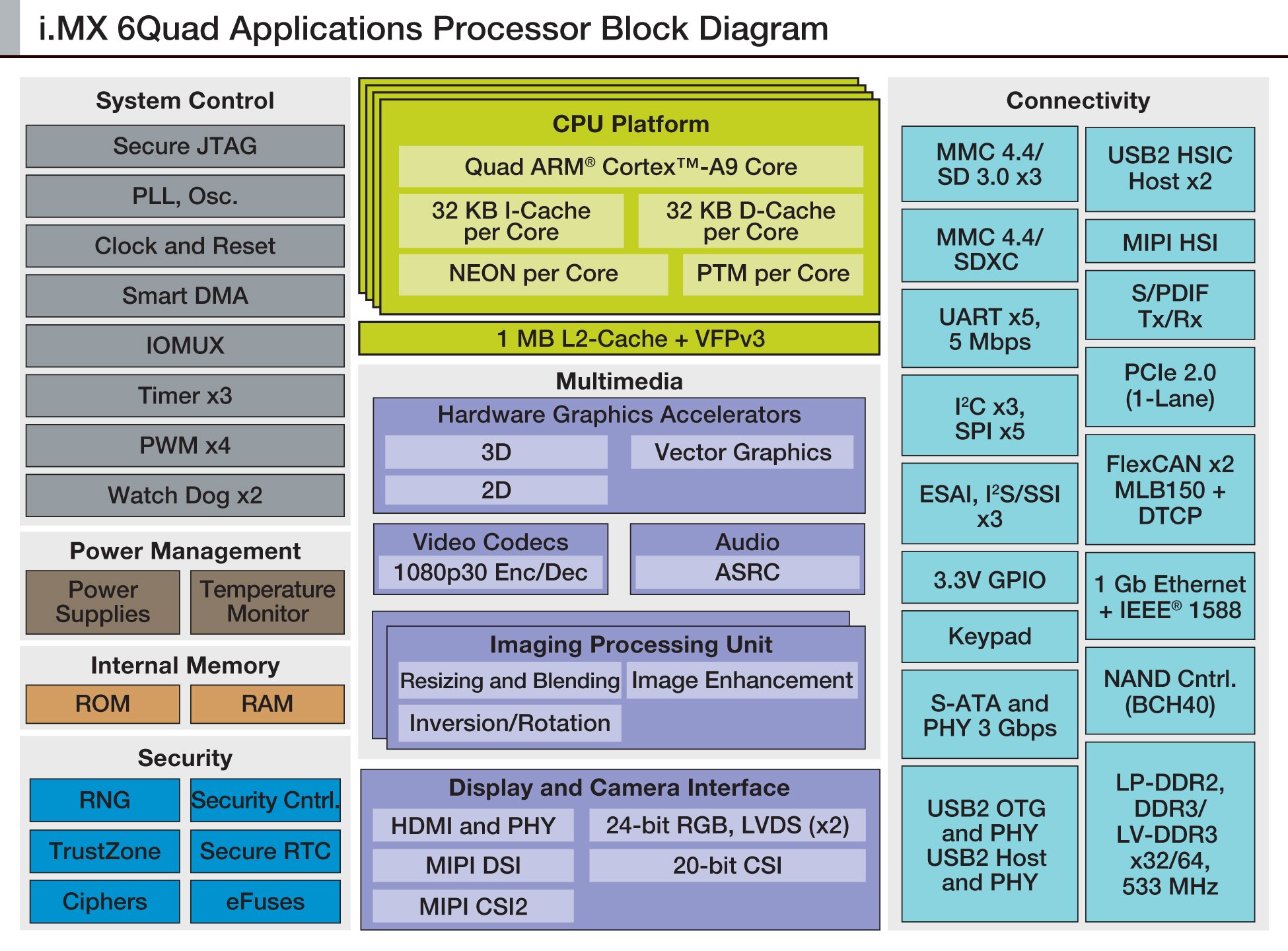

- Quad Cortex®-A9 up to 1.2 GHz
- 1 MB L2 cache, Neon, VFPvd16 Trustzone
- 3D graphics with four shaders
- Two 2D graphics engines
- 64-bit DDR3 and 2-channel 32-bit LPDDR2 at 533 MHz
- Gigabit Ethernet MAC
- Integrated SATA-II
- HDMIv1.4 controller plus PHY
- LVDS controller plus PHY
- PCIe controller plus PHY
- MLB and FlexCAN controllers
|
- Dual Cortex®-A9 up to 1.2 GHz*
- 1 MB L2 cache, Neon, VFPvd16 Trustzone
- Enhanced 3D graphics with four shaders
- Enhanced Two 2D graphics engines
- Prefetch & Resolve Engine
- Gigabit Ethernet MAC
- Optimized 64-bit DDR3 and 2-channel 32-bit LPDDR2 at 533 MHz
- Integrated SATA-II
- HDMIv1.4 controller plus PHY
- LVDS controller plus PHY
- PCIe controller plus PHY
- MLB and FlexCAN controllers
|
 |
 |
|
|
|
|
|
|
|
 |
| Consumer |
Industrial |
Automotive |

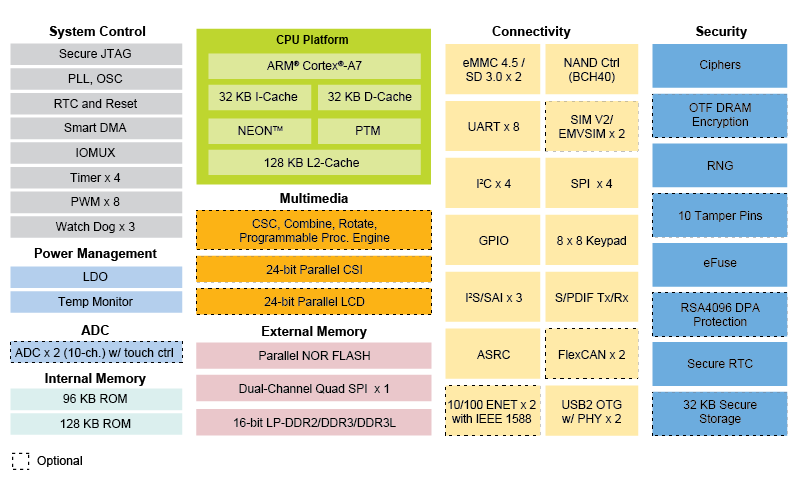

UltraLite
Expanding the i.MX 6 series, the i.MX 6UltraLite is a high performance, ultra-efficient processor family featuring an advanced implementation of a single ARM® Cortex®-A7 core, which operates at speeds up to 696 MHz. The i.MX 6UltraLite applications processor includes an integrated power management module that reduces the complexity of external power supply and simplifies power sequencing. Each processor in this family provides various memory interfaces, including 16-bit LPDDR2, DDR3, DDR3L, raw and managed NAND flash, NOR flash, eMMC, Quad SPI and a wide range of other interfaces for connecting peripherals such as WLAN, Bluetooth™, GPS, displays and camera sensors.
Features
- ARM® Cortex®-A7 @ 696 MHz, 128 KB L2 cache
- Parallel LCD Display up to WXGA (1366x768)
- 8/10/16/24-bit Parallel Camera Sensor Interface
- 16-bit LP-DDR2, DDR3/DDR3L
- 8/16-bit Parallel NOR FLASH / PSRAM
- Dual-channel Quad-SPI NOR FLASH
- 8-bit Raw NAND FLASH with 40-bit ECC
- 2x MMC 4.5/SD 3.0/SDIO Port
- 2x USB 2.0 OTG, HS/FS, Device or Host with PHY
- Audio Interfaces include 3x I2S/SAI, S/PDIF Tx/Rx
|
- 2x 10/100 Ethernet with IEEE 1588
- 2x 12-bit ADC, up to 10 input channel total, with resistive touch controller (4-wire/5-wire)
- Partial PMU Integration
- Security Block: TRNG, Crypto Engine (AES with DPA, TDES/SHA/RSA), Tamper Monitor, Secure Boot, SIMV2/EVMSIM X 2, OTF DRAM Encryption, PCI4.0 pre-certification
- 14x14 289MAPBGA 0.8mm pitch
- 9x9 272 MAPBGA 0.5mm pitch
|

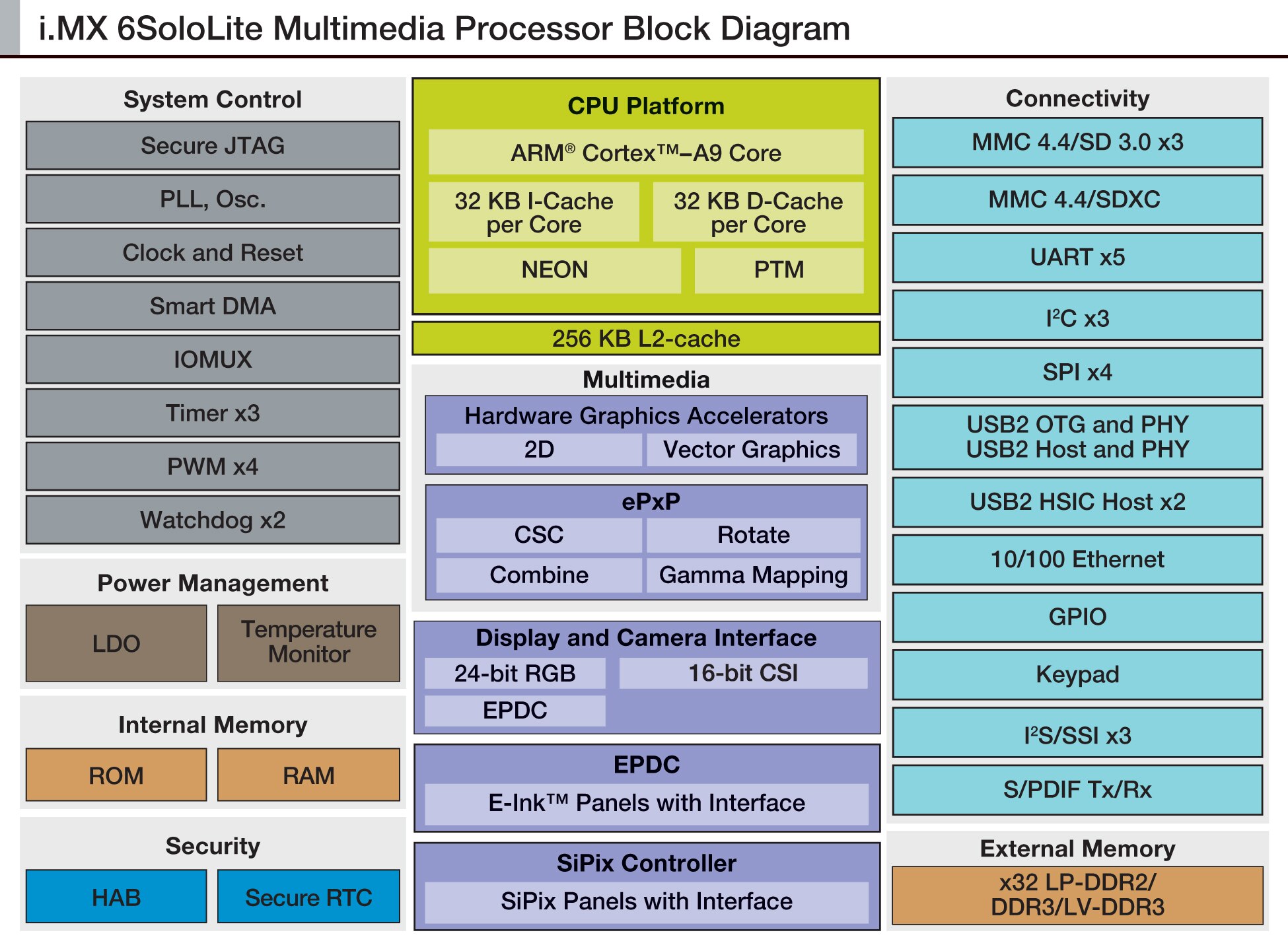

SoloLite
The i.MX6SoloLite family introduces a single core running up to 1.0 GHz with 256 KB of L2 cache and 32-bit DDR3/LPDDR2 support. Targeted integration of an electronic paper display (EPD) controller makes it an ideal solution for next generation e-readers and other emerging consumer and embedded devices using EPD technology.
Features
- CPU Complex
- 1x ARM® Cortex™-A9 up to 1 GHz
- 256 KB L2 cache
- 32 KB instruction and data caches
- NEON SIMD media accelerator
- Multimedia
- GPU 2D(Vector Graphics)
- Vivante GC355
- 300Mpxl/s, OpenVG 1.1
- GPU 2D(Composition)
- 2D BLIT Engine
- Vivante GC320
- Video Decode
- Video Encode
- Camera Interface
- Memory
- 16/32 bit LP-DDR2
- 16/32 bit DDR3/LV-DDR3
|
- Connectivity
- 3x USB 2.0
- 1x HS OTG + PHY
- 1x Host + PHY
- 1x Host USB HSIC
- Ethernet
- Expansion Ports
- 3x SD/MMC 4.4, 1x SDXC
- 4x SPI, 5x UART, 3x I²C
- Display
- Advanced Power Management
- PMU integration
- NXP PF100 power management unit
- Security
- Advanced security supporting High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection
|
SoloX
The i.MX6SoloX family introduces single cores running up to 1.0 GHz (Cortex-A9) and 200 MHz (Cortex-M4) with 256 KB of L2 cache and 32-bit DDR3/LPDDR2 support. Integrated LVDS, FlexCAN, and PCIe Express enables the i.MX6SoloX to be a low-power and flexible platform for consumer, automotive and industrial applications that require real-time responsiveness and a higher levelof system integrity.
Features
- CPU Complex
- 1x ARM® Cortex™-A9 up to 1 GHz
- 512 KB L2 cache
- 32 KB instruction and data caches
- NEON SIMD media accelerator
- 1x ARM® Cortex™-M4 up to 200 MHz
- 16 KB instruction and data caches
- 64 KB TCM
- MPU and FPU
- Multimedia
- GPU 2D/3D
- Vivante GC400T
- 17Mtri/s 133Mpxl/s Open GL ES 2.0
- Camera Interface
- 20-bit parallel CMOS sensor interface
- NTSC/PAL analog video input interface
- PiXel Processing Pipeline (PXP)
- Image re-sizing, rotation, overlay and CSC
- Memory
- DDR
- 16/32-bit DDR3-800 and DDR3L-800
- 16/32-bit LPDDR2-800
- NAND
- SLC/MLC, 62-bit ECC, ONFI2.2
- NOR
- 2x DDR Quad SPI
- 16/32-bit NOR Flash
|
- Connectivity
- 2x 10/100/1000 Ethernet
- Hardware AVB for traffic shaping and enhanced packet prioritization
- Support for IEEE®1588
- PCIe 2.0 (1 lane)
- 2x 8ch 12-bit ADC
- 3x USB 2.0 ports
- 2x HS OTG + PHY
- 1x HS Host HSIC
- 4x SD/MMC 4.5
- 5x SPI, 6x UART, 4x I²C, 5x I²S/SSI
- FlexCAN
- MLB 25/50
- Display
- Advanced Power Management
- Partial PMU integration
- NXP PF0200 PMIC
- Security
- Multicore unit includes for multi-core isolation and sharing
- Resource Domain Controller (RDC)
- Secure Messaging Unit (MU)
- Hardware Semaphores
- High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection
|

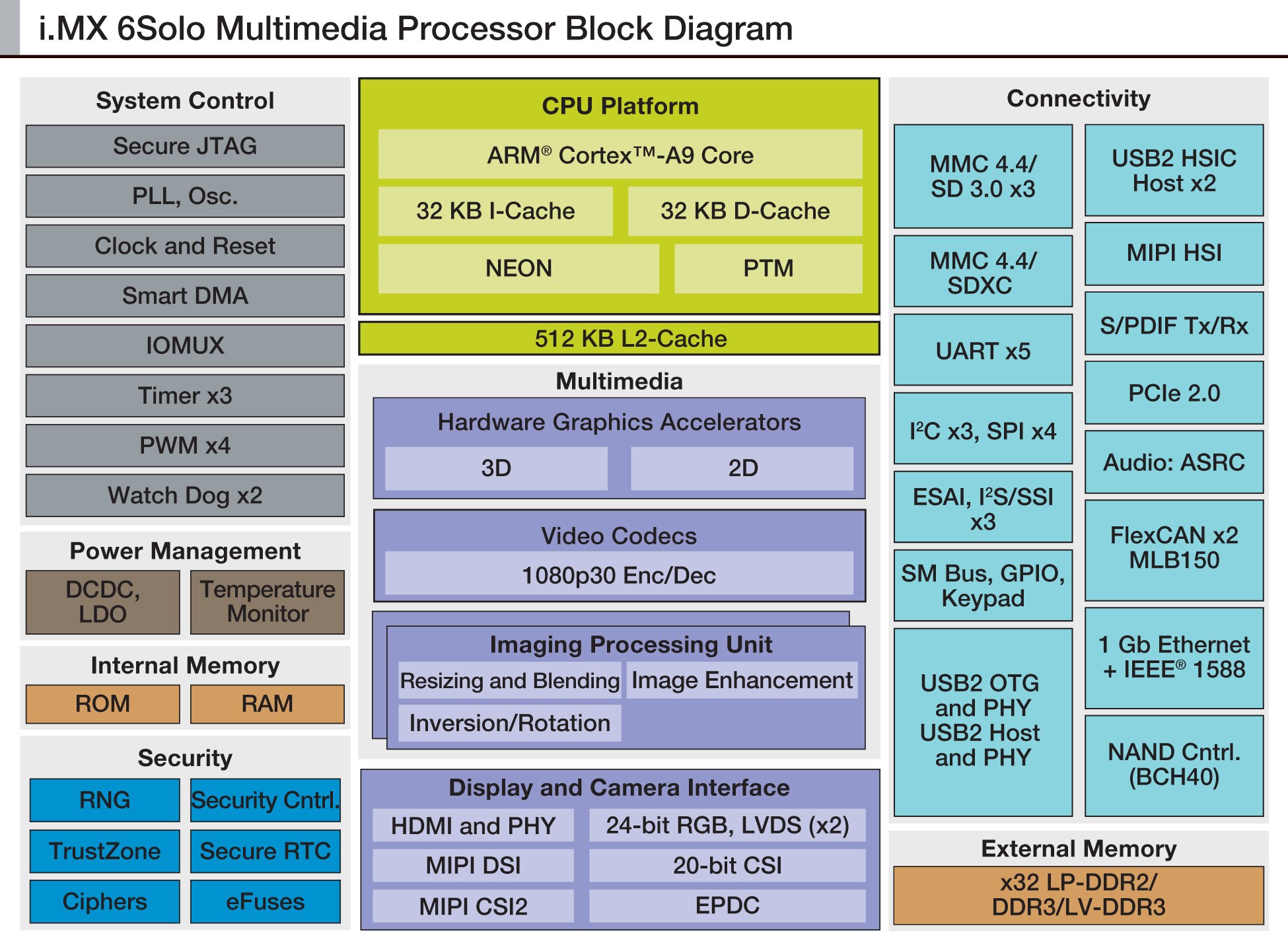

Solo
The i.MX6Solo family provides a single core running up to 1.0 GHz with 512 KB of L2 cache and 32-bit DDR3/LPDDR2 support. Integrated LVDS, MIPI display, MIPI camera port, HDMI v1.4, FlexCAN and MLB enables the i.MX6Solo to be a flexible platform for consumer, automotive and industrial applications.
Features
- CPU Complex
- 1x ARM® Cortex™-A9 up to 1 GHz
- 256 KB L2 cache
- 32 KB instruction and data caches
- NEON SIMD media accelerator
- Multimedia
- GPU 3D
- Vivante GC880
- 35Mtri/s 266Mpxl/s Open GL ES 2.0
- GPU 2D(Vector Graphics)
- GPU 2D(Composition)
- Vivante GC320
- 600Mpxl/s, BLIT
- Video Decode
- Video Encode
- 1080p30 H.264 BP/ Dual 720p encode
- Camera Interface
- Types: 2x 20-bit parallel, MIPI-CSI2 (2 lanes)
- Memory
- 32 bit LP-DDR3/LV-DDR3
- SLC/MLC, 40-bit ECC, ONFI2.2, DDR
|
- Connectivity
- Automotive
- Four USB2.0e
- 1x HS OTG + PHY
- 1x Host + PHY
- 2x Host USB HSIC
- Ethernet
- Expansion Ports
- 3x SD/MMC 4.4, 1x SDXC
- 4x SPI, 5x UART, 3x I²C
- MIPI-HSI
- PCIe 2.0 (1 lane)
- Display
- 2 x WXGA (1366x786)
- EPDC, LVDS, Parallel, MIPI-DSI
- Advanced Power Management
- PMU integration
- NXP PF100 power management unit
- Security
- High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection
|

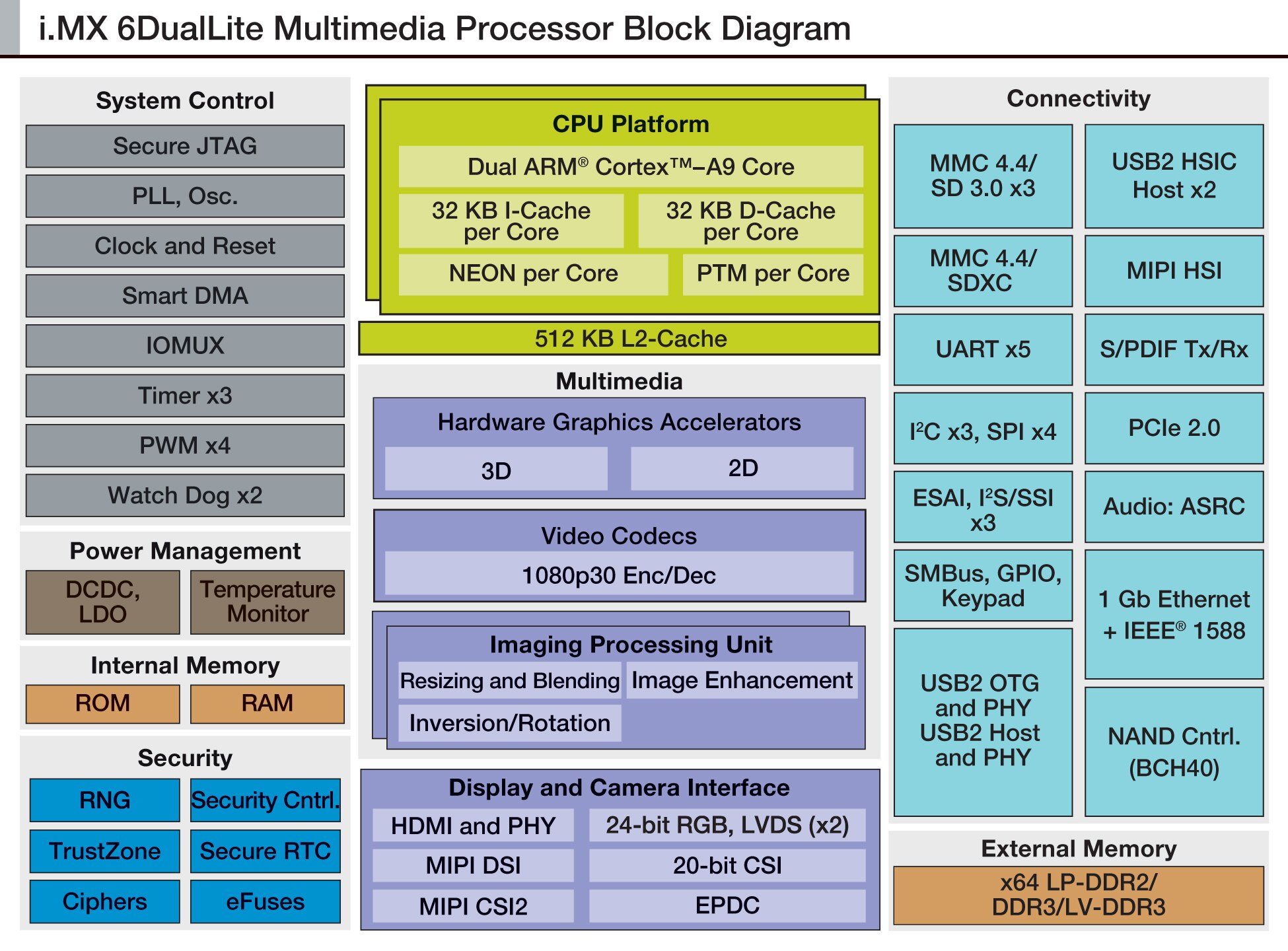

DualLite
The i.MX6DualLite family introduces dual cores running up to 1.0 GHz with 512 KB of L2 cache, and 64-bit DDR3 or 2-channel, 32-bit LPDDR2 support. With integrated FlexCAN and MLB busses, PCI Express, LVDS, and support for MIPI cameras and displays as well as HDMI v1.4, the device is a great fit for consumer, automotive and industrial multimedia centric applications.
Features
- CPU Complex
- 2x ARM® Cortex™-A9 up to 1 GHz
- 512 KB L2 cache
- 32 KB instruction and data caches
- NEON SIMD media accelerator
- Multimedia
- GPU 3D
- Vivante GC880
- 35Mtri/s 266Mpxl/s Open GL ES 2.0
- GPU 2D(Vector Graphics)
- GPU 2D(Composition)
- Vivante GC320
- 600Mpxl/s, BLIT
- Video Decode
- Video Encode
- 1080p30 H.264 BP/ Dual 720p encode
- Camera Interface
- Types: 2x 20-bit parallel, MIPI-CSI2 (2 lanes)
- Memory
- 2x32 LP-DDR2, 1x64 DDR3 / LV-DDR3
- SLC/MLC, 40-bit ECC, ONFI2.2, DDR
|
- Connectivity
- Four USB2.0e
- 1x HS OTG + PHY
- 1x Host + PHY
- 2x Host USB HSIC
- Ethernet
- Expansion Ports
- 3x SD/MMC 4.4, 1x SDXC
- 4x SPI, 5x UART, 3x I²C
- MIPI-HSI
- PCIe 2.0 (1 lane)
- Display
- 2 x WXGA (1366x786)
- EPDC, LVDS, Parallel, MIPI-DSI
- Advanced Power Management
- PMU integration
- NXP PF100 power management unit
- Security
- High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection
|

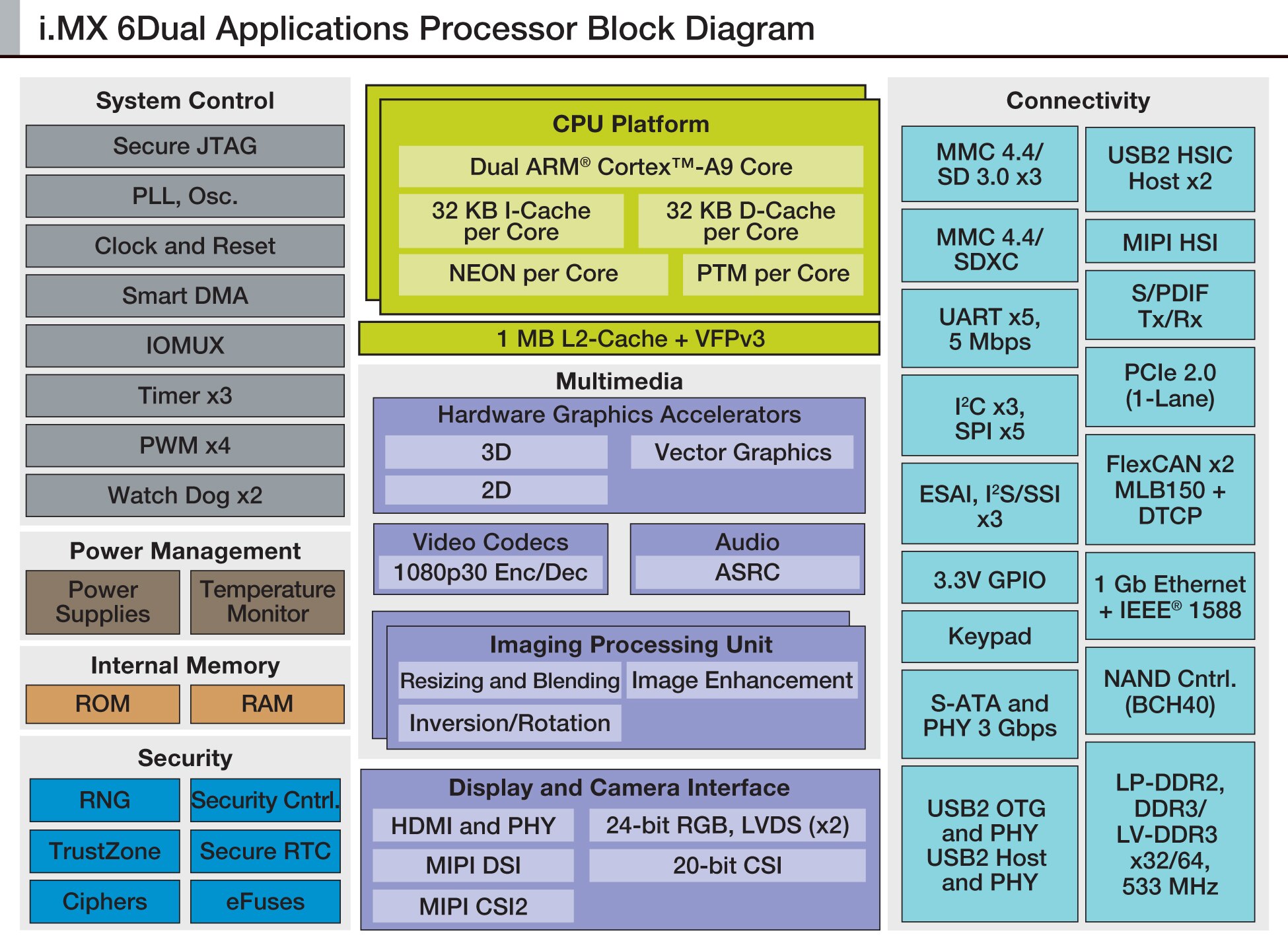

Dual
The i.MX6Dual family provides dual cores running up to 1.2 GHz with 1 MB of L2 cache, and 64-bit DDR3 or 2-channel, 32-bit LPDDR2 support. Leveraging the same integration of the i.MX6Quad family, the i.MX6Dual provides a scalable solution for consumer, automotive and industrial applications.
Features
- CPU Complex
- 2x ARM® Cortex™-A9 up to 1.2 GHz
- 1MB L2 cache
- 32 KB instruction and data caches
- NEON SIMD media accelerator
- Multimedia
- GPU 2D(Vector Graphics)
- Vivante GC880
- 300Mpxl/s, OpenVG 1.1
- GPU 2D(Vector Graphics)
- GPU 2D(Composition)
- Vivante GC320
- 600Mpxl/s, BLIT
- Video Decode
- Video Encode
- 1080p30 H.264 BP/ Dual 720p encode
- Camera Interface
- Types: 2x 20-bit parallel, MIPI-CSI2 (2 lanes)
- Memory
- 2x32 LP-DDR2, 1x64 DDR3 / LV-DDR3
- SLC/MLC, 40-bit ECC, ONFI2.2, DDR
|
- Connectivity
- Four USB2.0e
- 1x HS OTG + PHY
- 1x Host + PHY
- 2x Host USB HSIC
- Ethernet
- Expansion Ports
- 3x SD/MMC 4.4, 1x SDXC
- 4x SPI, 5x UART, 3x I²C
- MIPI-HSI
- PCIe 2.0 (1 lane)
- Display
- 2 x 4XGA (2048x1536) or 2 x [1080p + WXGA (1280x720)]
- EPDC, LVDS, Parallel, MIPI-DSI
- Advanced Power Management
- PMU integration
- NXP PF100 power management unit
- Security
- High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection
|

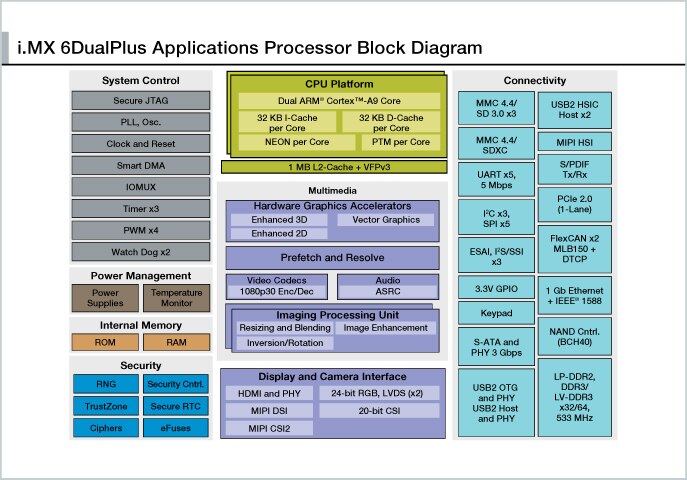

DualPlus
The i.MX 6DualPlus family delivers dramatic graphics and memory performance enhancements and are pin-compatible with a broad range of i.MX 6 processors. This device encompasses a dual-core ARM® Cortex®-A9 platform running up to 1.2 GHz* with 1 MB of L2 cache, advanced graphics, prefetch and resolve engine, and optimized 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB busses, PCI Express® and SATA-2 provide excellent connectivity, while integration of LVDS, MIPI display port, MIPI camera port and HDMI v1.4 makes it an ideal multicore platform for leading-edge consumer, automotive and industrial multimedia applications which require higher graphics performance.
Visit www.nxp.com/imx6tools for the latest software and tools.
Features
- CPU Complex
- 2x ARM® Cortex®-A9 up to 1.2 GHz per core
- 1 MB L2 cache
- 32 KB instruction and data caches
- NEON SIMD media accelerator
- Multimedia
- Embedded prefetch & resolve engine
- GPU 3D
- Vivante GC2000+
- 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, OpenCL™ 1.1 EP
- GPU 2D(Vector Graphics)
- Vivante GC355
- 300Mpxl/s, OpenVG 1.1
- GPU 2D(8-layer Composition)
- Vivante GC320
- 600Mpxl/s, BLIT
- Video Decode
- Video Encode
- Camera Interface
- Types: 1x 20-bit parallel, MIPI-CSI2 (4 lanes), three simultaneous inputs
- Memory
- 512KB OCRAM
- DDR
- Significant increase in 64-bit memory bus performance, and memory interfaces support DDR3, DDR3L and LP-DDR2 at 533 MHz
- 2x32 LP-DDR2, 1x64 DDR3 / DDR3L
|
- Connectivity
- Four USB 2.0
- 1x HS USB 2.0 OTG + PHY
- 1x HS USB 2.0 Host + PHY
- 2x HS USB 2.0 Host (HSIC)
- Ethernet
- Expansion Ports
- 4x eMMC 4.5 / SD 3.0
- 5x SPI, 5x UART, 3x I²C
- PCIe 2.0 (1 lane)
- Display
- 2x QXGA (2048x1536)
- or 2x WXGA (1280 x 720)
- Advanced Power Management
- PMU integration
- NXP PF0100F9 power management unit
- Security
- Advanced security supporting:
- High Assurance Boot
- Cryptographic cipher engines
- Random number generator
- Tamper-resistant RTC
|
Quad
The i.MX6Quad family encompasses a quad-core platform running up to 1.2 GHz with 1 MB of L2 cache, and 64-bit DDR3 or FlexCAN and MLB busses, PCI Express® and SATA-2 provide excellent connectivity while integration of dual, MIPI display port, MIPI camera port and HDMI v1.4 makes it an ideal platform for consumer, automotive and industrial multimedia applications.
Features
- CPU Complex
- 4x ARM® Cortex™-A9 up to 1.2 GHz per core
- 1MB L2 cache
- 32 KB instruction and data caches
- NEON SIMD media accelerator
- Multimedia
- GPU 3D
- Vivante GC2000
- 200Mtri/s 1000Mpxl/s, OpenGL ES 2.0 & Halti, CL EP
- GPU 2D(Vector Graphics)
- -Vivante GC355
- 300Mpxl/s, OpenVG 1.1
- GPU 2D(Composition)
- Vivante GC320
- 600Mpxl/s, BLIT
- Video Decode
- Video Encode
- 1080p30 H.264 BP/ Dual 720p encode
- Camera Interface
- Types: 2x 20-bit parallel, MIPI-CSI2 (4 lanes), three simultaneous inputs
- Memory
- 2x32 LP-DDR2, 1x64 DDR3 / LV-DDR3
- SLC/MLC, 40-bit ECC, ONFI2.2, DDR
|
- Connectivity
- Four USB2.0e
- 1x HS OTG + PHY
- 1x Host + PHY
- 2x Host USB HSIC
- Ethernet
- Expansion Ports
- 3x SD/MMC 4.4, 1x SDXC
- 5x SPI, 5x UART, 3x I²C
- MIPI-HSI
- PCIe 2.0 (1 lane)
- Display
- 2 x 4XGA (2048x1536) or 2 x [1080p + WXGA (1280x720)]
- Advanced Power Management
- PMU integration
- NXP PF100 power management unit
- Security
- High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection
|

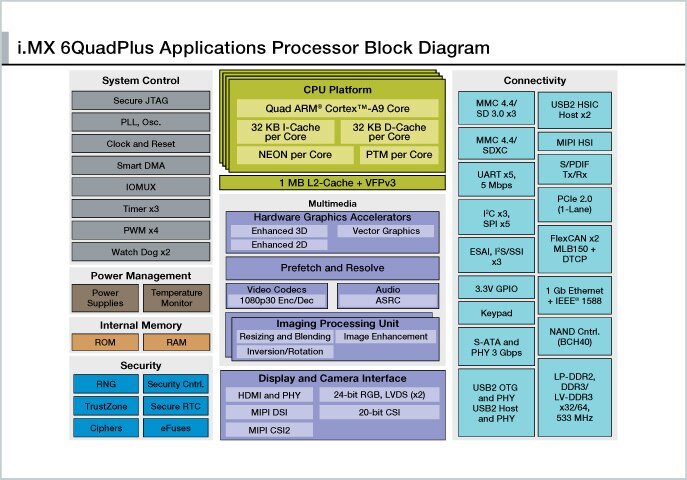

QuadPlus
The i.MX 6QuadPlus family delivers dramatic graphics and memory performance enhancements and are pin-compatible with a broad range of i.MX 6 processors. This device encompasses a quad-core Arm® Cortex®-A9 platform running up to 1.2 GHz* with 1 MB of L2 cache, advanced graphics, prefetch and resolve engine, and optimized 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB busses, PCI Express® and SATA-2 provide excellent connectivity, while integration of LVDS, MIPI display port, MIPI camera port and HDMI v1.4 makes it an ideal multicore platform for a leading-edge consumer, automotive and industrial multimedia applications which require higher graphics performance.
Visit www.nxp.com/imx6tools for the latest software and tools.
Features
- CPU Complex
- 4x ARM® Cortex®-A9 up to 1.2 GHz per core
- 1 MB L2 cache
- 32 KB instruction and data caches
- NEON SIMD media accelerator
- Multimedia
- Embedded prefetch & resolve engine
- GPU 3D
- Vivante GC2000+
- 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, OpenCL™ 1.1 EP
- GPU 2D(Vector Graphics)
- Vivante GC355
- 300Mpxl/s, OpenVG 1.1
- GPU 2D(8-layer Composition)
- Vivante GC320
- 600Mpxl/s, BLIT
- Video Decode
- Video Encode
- Camera Interface
- Types: 1x 20-bit parallel, MIPI-CSI2 (4 lanes), three simultaneous inputs
- Memory
- 512KB OCRAM
- DDR
- Significant increase in 64-bit memory bus performance, and memory interfaces support DDR3, DDR3L and LP-DDR2 at 533 MHz
- 2x32 LP-DDR2, 1x64 DDR3 / DDR3L
|
- Connectivity
- Four USB 2.0
- 1x HS USB 2.0 OTG + PHY
- 1x HS USB 2.0 Host + PHY
- 2x HS USB 2.0 Host (HSIC)
- Ethernet
- Expansion Ports
- 4x eMMC 4.5 / SD 3.0
- 5x SPI, 5x UART, 3x I²C
- PCIe 2.0 (1 lane)
- Display
- 2x QXGA (2048x1536)
- or 2x WXGA (1280 x 720)
- Advanced Power Management
- PMU integration
- NXP PF0100F9 power management unit
- Security
- Advanced security supporting:
- High Assurance Boot
- Cryptographic cipher engines
- Random number generator
- Tamper-resistant RTC
|
Evaluation Boards
i.MX6SoloLite Evaluation Kit
NXP delivers the next installment in a line of highly-flexible, market-focused development tools with an Evaluation Kit (EVK) based on the i.MX6SoloLite applications processor. The i.MX6SoloLite is the first system-on-a-chip (SoC) incorporating a high-performance 1 GHz ARM® Cortex™-A9 CPU and integrated E Ink® and Sipix® display controllers to drive current and next-generation electronic paper display (EPD) panels.
This EVK enables EPD and/or LCD or HDMI display, touch control, audio playback as well as the ability to add WLAN, a 3G modem or Bluetooth® technology. Additionally, the EVK was designed to facilitate software development with the ultimate goal of faster time to market through the support of both Linux® and Android™ operating systems.
View Quick Start Guide
i.MX6UltraLite Evaluation Kit
NXP delivers a highly flexible, market-focused development tools with an evaluation kit (EVK) based on the i.MX 6UltraLite applications processor. The i.MX 6UltraLite processor is the first device in the i.MX product line to have a single ARM® Cortex®-A7 core operating at speeds of up to 696 MHz. This EVK enables an LCD display and audio playback as well as many connectivity options. It is designed to showcase the most commonly used features of the processor in a small, low cost package and to facilitate software development with the ultimate goal of faster time to market through the support of the Linux® operating system.
View Quick Start Guide
SABRE Board for Smart Devices
Based on the i.MX 6 Series
The Smart Application Blueprint for Rapid Engineering (SABRE) board for smart devices
was created to simplify product design by offering a feature-rich development platform that
allows developers to work with the majority of the i.MX 6 series processor’s primary features.
The SABRE board for smart devices simplifies product design with a low-cost, feature-rich development platform that allows developers to work with the majority of the processor’s primary features with the corresponding software support. There are two unique SABRE boards for smart devices — one based on the i.MX6Quad applications processors (also used for i.MX6Dual development) and one based on the i.MX6SoloX applications processor.
View Quick Start Guide
SABRE Platform for Smart Devices Based on the i.MX6 Series
The Smart Application Blueprint for Rapid Engineering (SABRE) platform for smart devices allows you to hold in your hands and evaluate the full multimedia performance capabilities of i.MX6 series applications processors based on ARM® Cortex™-A9 technology.
Targeted for any device requiring an intelligent display, connectivity, low power and amazing user experience, the SABRE platform for smart devices provides a foundation for enabling new product designs in markets such as portable computing, education, industrial, medical and home automation. With system-level power and performance optimizations and an easy to use form factor, the SABRE platform for smart devices can help accelerate your design from production to market.
Broad operating system support includes Android™, Linux® and Windows® Embedded (via third-party). NXP's highly optimized board support packages (BSPs), codecs and middleware maximize the capabilities of the i.MX6Quad and i.MX6DualLite feature sets while minimizing overall power consumption.
View Quick Start Guide
Accessories
Resources
| Videos |
|
|
|
| Product Training Modules |
|
|
|
Settings
Fast Delivery
Free Shipping
Incoterms
Payment Types
Marketplace Product
Hong Kong, China
