FA-20H Series Miniature MHz Crystal

Epson's FA-20H crystal unit is available in a range of frequencies from 12 MHz to 54 MHz

Image of Epson FA-20H Series Miniature MHz CrystalEpson introduces the FA-20H crystal unit. It is available in a range of frequencies from 12 MHz to 54 MHz, oscillates in the fundamental mode, and is provided in a miniature (2.5 mm x 2.0 mm x 0.55 mm) ceramic SMD package.

Features
  • Nominal frequency range: 12 MHz to 54 MHz
  • External dimensions: 2.5 mm x 2.0 mm x 0.55 mm
  • Overtone order: fundamental
Applications
  • Mobile phones
  • Bluetooth
  • W-LAN
  • ISM-band radios
  • Clocks for MPUs

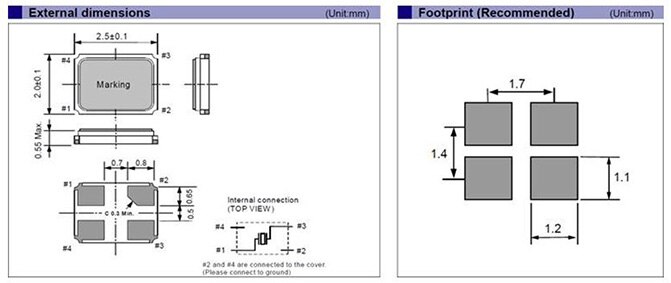

Image of Epson FA-20H Series Miniature MHz Crystal External Dimensions

FA-20H Series Miniature MHz Crystal

ImageManufacturer Part NumberDescriptionFrequency ToleranceLoad CapacitanceESR (Equivalent Series Resistance)Available QuantityPriceView Details
CRYSTAL 16.0000MHZ 8PF SMDFA-20H 16.0000MF10Z-AJ0CRYSTAL 16.0000MHZ 8PF SMD±10ppm8pF80 Ohms140030 - Immediate$5.27View Details
CRYSTAL 32.0000MHZ 10PF SMDFA-20H 32.0000MF20X-K3CRYSTAL 32.0000MHZ 10PF SMD±10ppm10pF50 Ohms145053 - Immediate$10.78View Details
CRYSTAL 25.0000MHZ 10PF SMDFA-20H 25.0000MF20X-K3CRYSTAL 25.0000MHZ 10PF SMD±10ppm10pF80 Ohms14345 - Immediate$10.78View Details
CRYSTAL 32.0000MHZ 12PF SMDFA-20H 32.0000MF12Y-W3CRYSTAL 32.0000MHZ 12PF SMD±10ppm12pF50 Ohms2628 - Immediate$10.78View Details
CRYSTAL 38.4000MHZ 8.5PF SMDFA-20H 38.4000MF10Z-AS3CRYSTAL 38.4000MHZ 8.5PF SMD±10ppm8.5pF40 Ohms2314 - Immediate$10.78View Details
Published: 2016-09-22
