Epson

FA-128 Series SMT Crystals

Ultra-miniature SMD low-profile crystals from Epson

Image of Epson's FA-128 Series SMT CrystalsEpson introduces the FA-128 series ultra-miniature crystals. They are available from 16 MHz to 54 MHz, in fundamental mode oscillation and in an ultra-miniature (2.0 mm x 1.6 mm x 0.5 mm) ceramic SMD package.

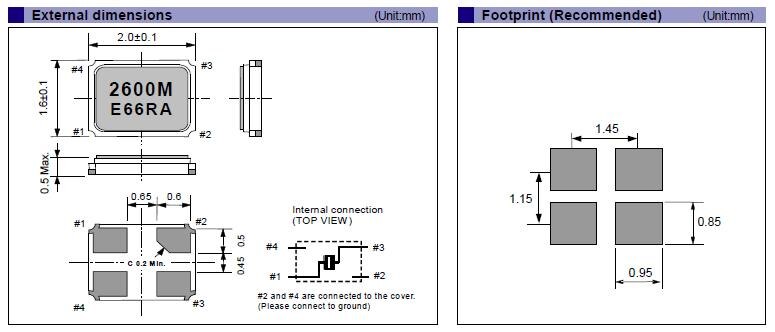

Click the image below to view a larger image of the external dimensions and the recommended footprint of the FA-128.

 Image of Epson's FA-128 Series SMT Crystals

Applications
  • Mobile phones
  • Bluetooth
  • W-LAN
  • ISM band radios
  • MPU clocks

FA-128 Series SMT Crystals

ImageManufacturer Part NumberDescriptionFrequency StabilityFrequency ToleranceAvailable Quantity
CRYSTAL 24.0000MHZ 12PF SMDFA-128 24.0000MF10Z-W3CRYSTAL 24.0000MHZ 12PF SMD±10ppm±10ppm33905 - ImmediateView Details
CRYSTAL 26.0000MHZ 9PF SMDFA-128 26.0000MF10Z-AC3CRYSTAL 26.0000MHZ 9PF SMD±10ppm±10ppm1645 - ImmediateView Details
CRYSTAL 26.0000MHZ 12PF SMDFA-128 26.0000MF10Z-W3CRYSTAL 26.0000MHZ 12PF SMD±10ppm±10ppm508 - ImmediateView Details
CRYSTAL 40.0000MHZ 10PF SMDFA-128 40.0000MF10Z-K3CRYSTAL 40.0000MHZ 10PF SMD±10ppm±10ppm113880 - ImmediateView Details
CRYSTAL 32.0000MHZ 10PF SMDFA-128 32.0000MF20X-K3CRYSTAL 32.0000MHZ 10PF SMD±20ppm±10ppm140975 - ImmediateView Details
CRYSTAL 19.2000MHZ 7PF SMDFA-128S 19.2000MF12Y-AG3CRYSTAL 19.2000MHZ 7PF SMD±12ppm±10ppm0 - ImmediateView Details
Published: 2015-08-31
