Epson

FA-118T Series Crystals

Epson introduces the FA-118T series ultra-miniature low profile crystal

Image of Epson FA-118T Series CrystalsEpson’s FA-118T is not only ultra-miniature (1.6 mm x 1.2 mm), but it also has an extremely low profile (0.35 mm maximum) so thin that it fits flush in a credit card. This crystal is perfect for applications such as smartphones, tablets, and wearables where size and height are critical. It is available in a range of frequencies from 24 MHz to 54 MHz, oscillates in the fundamental mode, and is provided in an ultra-miniature ceramic SMD package.

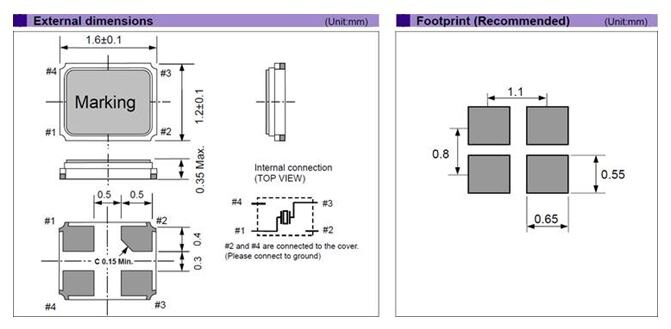

Image of Epson FA-118T Series Crystals Dimensions

FA-118T Series Crystals

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CRYSTAL 26.0000MHZ 9PF SMDFA-118T 26.0000MF12Z-AC3CRYSTAL 26.0000MHZ 9PF SMD2417 - Immediate$6.17View Details
CRYSTAL 27.1200MHZ 10PF SMDFA-118T 27.1200MD50Z-K3CRYSTAL 27.1200MHZ 10PF SMD2304 - Immediate$11.11View Details
CRYSTAL 24.0000MHZ 12PF SMDFA-118T 24.0000MF10Z-W0CRYSTAL 24.0000MHZ 12PF SMD445 - Immediate$5.60View Details
CRYSTAL 52.0000MHZ 9PF SMDFA-118T 52.0000ME12Z-AC3CRYSTAL 52.0000MHZ 9PF SMD250 - Immediate$6.17View Details
CRYSTAL 32.0000MHZ 8PF SMDFA-118T 32.0000MA20Z-AJ8CRYSTAL 32.0000MHZ 8PF SMD0 - Immediate$2.91View Details
Published: 2016-05-26
