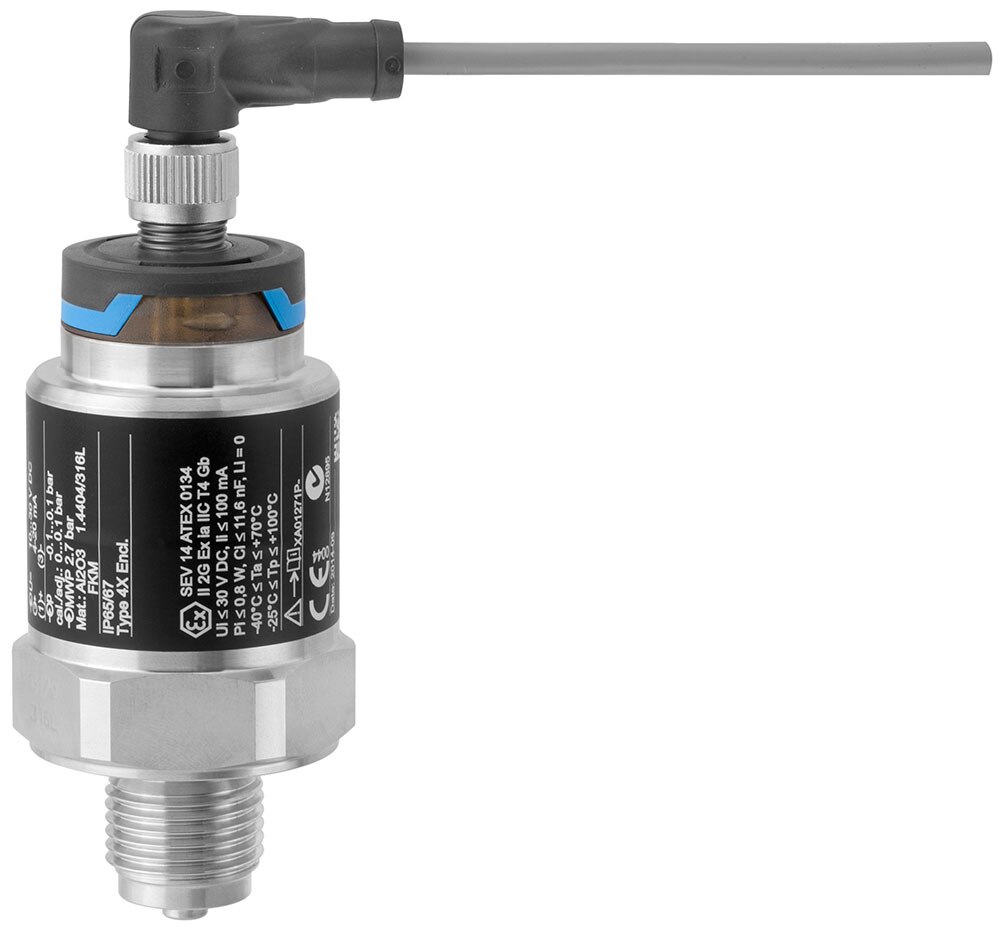

Cerabar PMC21 Series Compact Pressure Transmitters

Endress+Hauser's Cerabar PMC21 compact pressure transmitters with ceramic oil-free sensors are robust and pressure shock resistant. Ceramic cells can measure in low-pressure applications and are perfect for vacuum applications. The PMC21 series can measure absolute or gauge pressure from 100 mbar to 40 bar. All pressure sensors communicate primarily via 4 mA to 20 mA connected by an M12 or valve plug. The sensor range and the process connection needs to be selected according to the application requirements.

These devices are designed to withstand the harsh conditions in the process industry with ingress protection grades up to IP68, a highly abrasion-resistant Ceraphire membrane, and a high-quality 316L housing. They can be used in most areas as they offer various certifications like hazardous area or marine certificates. These devices are easy-to-use and have high performance, long-term stability, and high material quality.
