2.8” Intelligent uniTFTs020-ATC Display Module

Product Highlights > 2.8” Intelligent uniTFTs020-ATC Display Module

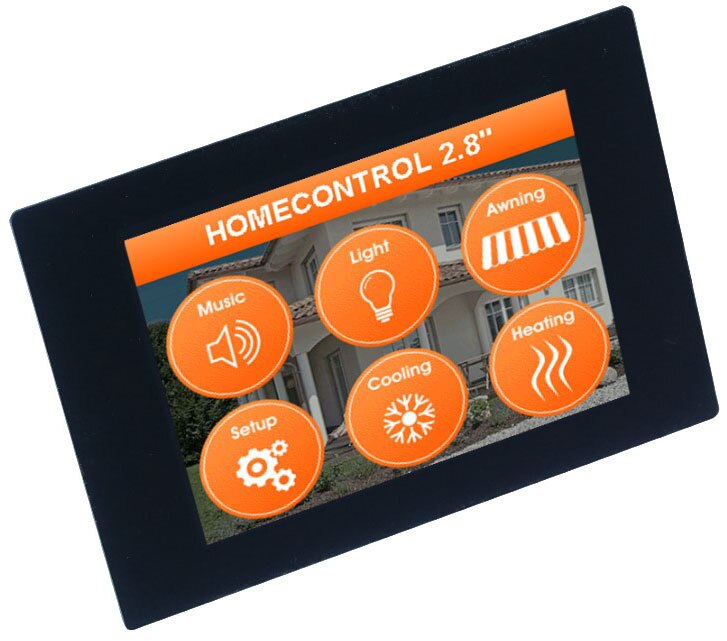

            2.8” Intelligent uniTFTs020-ATC Display Module
                    Display Visions' 2.8” intelligent IPS TFT display module directly controls the user's application and expedites development, prototyping, and deployment of their HMI/GUI


Display Visions 2.8” intelligent uniTFTs020-ATC display module is an all-in-one implementation of the display, microcontroller unit, and touch screen. It is all users need to directly control their application and expedite development, prototyping, and deployment of their HMI/GUI. Design the HMI/GUI using the easy-to-use drag-and-drop uniTFT DESIGNER graphics development software and simple ASCII text-based instructions.

Display Visions recommends all first-time buyers of Display Visions’ displays take full advantage of every feature of the display solution by using starter kits. The starter kits provide all the hardware and software that is required to get projects up and running.

Features

2.8" 320 x 240 (display full-color images, animations, icons, and video clips)
Incl. PCAP touch panel optically bonded
Free and easy-to-use uniTFT designer software
AACS display (all angle color stability, optimized backlight, and IPS TFT panel over widest viewing angle)
Super bright LED backlight over 1000 cd/m²
Object-oriented screen layout
Change object during run-time: size, shape, color, and content
Animate and move objects
Alpha-blending
Fonts: ASCII and Unicode

Single supply 3.3 V or directly through USB
Serial interfaces: USB, RS232, SPI, and I²C
Eight digital, freely definable I/Os built-in and expandable up to 136
Four analog inputs
Flash memory as storage for pictures, fonts, menus, and log files
Internal functions for calculation as well as programmability
Speaker for tone feedback built-in
RoHS, REACH, and CE compliant
-20°C to +70°C temperature range
Waterproof mounting

Applications

Medical devices
Handheld devices
Industrial machines and controls
Measurement instruments
General-purpose embedded graphics

Lab instruments and equipment
Defense applications
Avionics
Test equipment
