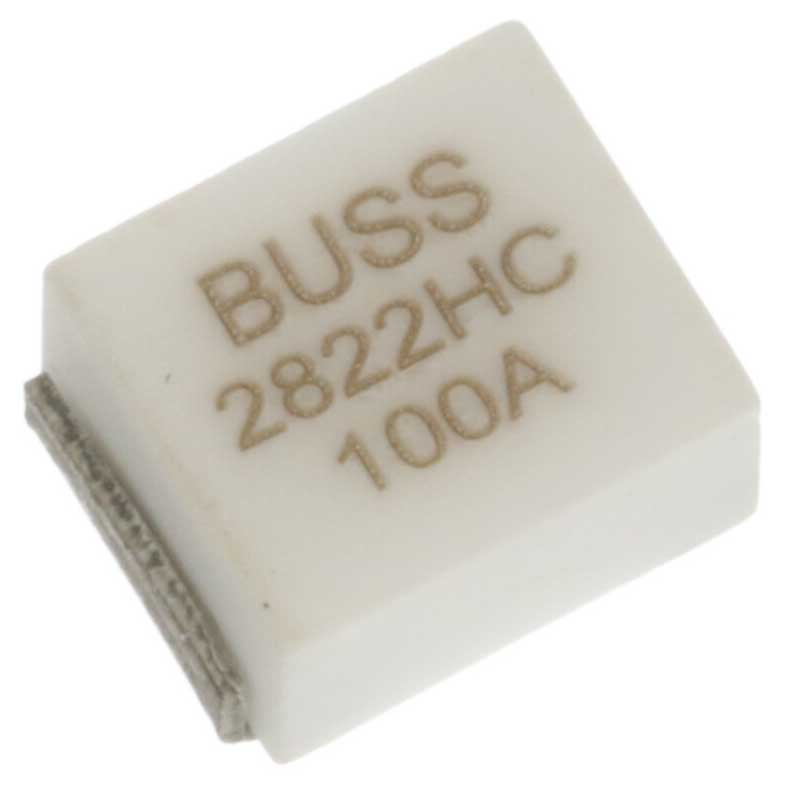

Ultra-High Current SMD Brick Fuses – 2822HC Series
Eaton's surface mount 2822HC series fuses provide a 40 A to 125 A single fuse solution for high-current applications
Eaton's series 2822HC high power brick fuses provide ultra-high current carrying capability in a compact footprint capable of protecting circuits from 40 A to 125 A. A surface mount design makes for easy use in pick-and-place machines and provides reliable overcurrent protection in high-power dense applications. Rather than paralleling a smaller amperage or oversized fuse, the 2822HC series provide a single fuse solution.
Features
- 7.7 mm x 6.0 mm x 4.3 mm surface mount package
- High current brick fuse
- Current rating: 40 A to 125 A
- Voltage rating: Up to 80 VDC
- High interrupt rating
- cURus Recognized
- Single fuse solution for high current applications
Applications
- Servers and backplanes
- Power distribution units (PDUs)
- Power supplies
- Energy storage systems
- Industrial automation tools
- Robotic machinery
- Telecom DC/DC power
- Routers and switches
Ultra-High Current SMD Brick Fuses – 2822HC Series
| Image | Manufacturer Part Number | Description | Voltage Rating - DC | Response Time | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
 |  | 2822HC40-RTR | FUSE BOARD MOUNT 40A 72VDC 2SMD | 72 V | - | 2135 - Immediate | $52.77 | View Details |
| | 2822HC50-RTR | FUSE BOARD MOUNT 50A 72VDC 2SMD | 72 V | - | 1110 - Immediate | $56.12 | View Details |
| | 2822HC60-RTR | FUSE BOARD MOUNT 60A 72VDC 2SMD | 72 V | - | 2085 - Immediate | $61.84 | View Details |
| | 2822HC70-RTR | FUSE BOARD MOUNT 70A 72VDC 2SMD | 72 V | - | 2432 - Immediate | $57.67 | View Details |
| | 2822HC80-RTR | FUSE BOARD MOUNT 80A 72VDC 2SMD | 72 V | - | 1265 - Immediate | $66.50 | View Details |
| | 2822HC90-RTR | FUSE BOARD MOUNT 90A 72VDC 2SMD | 72 V | - | 712 - Immediate | $68.86 | View Details |
| | 2822HC100-RTR | FUSE BOARD MOUNT 100A 72VDC 2SMD | 72 V | - | 1020 - Immediate | $77.36 | View Details |
| | 2822HC125-RTR | FUSE BOARD MOUNT 125A 60VDC 2SMD | 60 V | - | 590 - Immediate | $73.60 | View Details |
Published: 2022-11-03
