High-Power 10 mm x 32 mm Cartridge Fuses - EAC10 Series
Eaton Bussmann's high-power dense fuse rated at 500 VAC with multiple termination options for high-energy applications

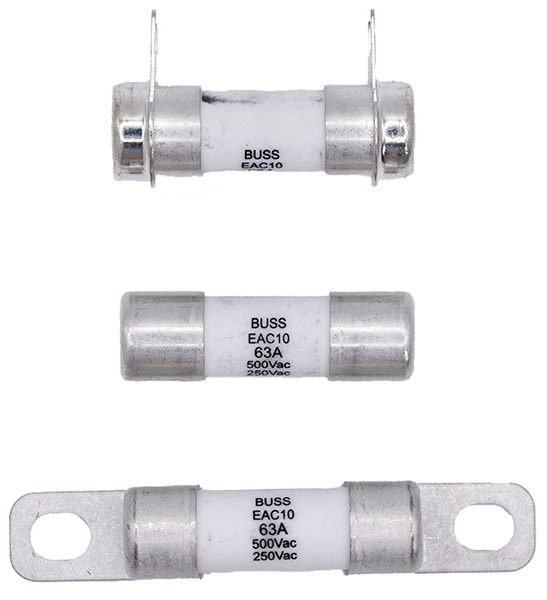

Eaton Bussmann’s series EAC10 are 10 mm x 32 mm high-power dense cartridge fuses with nominal current ratings from 40 A to 63 A and voltage ratings up to 500 V. These families provide highly reliable overcurrent protection in high-voltage and high-current applications. The ExC10s offer multiple termination options to suit application needs, including PCB through-hole and bolt-down screw assembly.
Features
- High breaking capacity for high energy application
- Cartridge, bolt-down terminal, and PCB terminal options available
- Agency information: cURus Recognition file number: E91958 for EAC10-XX-PCB
- 10 mm x 32 mm fuse
- Current rating: 40 A to 63 A
- Up to 500 VAC rating
Applications
- Uninterruptible power supplies (UPS)
- 3-phase EVSE and charging infrastructure
- Motor protection
- VAC input protection in rectifiers
- VAC output in inverters
Radial Leaded EAC10 Series
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | EAC10-40-PCB | FUSE 500V 40A PCB TERM | 432 - Immediate | $81.33 | View Details |
| | EAC10-50-PCB | FUSE 500V 50A PCB TERM | 318 - Immediate | $92.61 | View Details |
| | EAC10-63-PCB | FUSE 500V 63A PCB TERM | 307 - Immediate | $103.81 | View Details |
Cartridge (requires holder) EAC10 Series
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | EAC10-40 | FUSE 500V 40A CARTRIDGE | 350 - Immediate | $65.20 | View Details |
| | EAC10-50 | FUSE 500V 50A CARTRIDGE | 254 - Immediate | $69.89 | View Details |
| | EAC10-63 | FUSE 500V 63A CARTRIDGE | 0 - Immediate | $77.71 | View Details |
Bolt Down EAC10 Series
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | EAC10-40-T | FUSE 500V 40A BOLT DOWN | 408 - Immediate | $94.91 | View Details |
| | EAC10-50-T | FUSE 500V 50A BOLT DOWN | 305 - Immediate | $106.03 | View Details |
| | EAC10-63-T | FUSE 500V 63A BOLT DOWN | 395 - Immediate | $95.57 | View Details |
