R7 Series Rocker Switches

E-Switch presents a rocker switch with ergonomic, panel-mount design

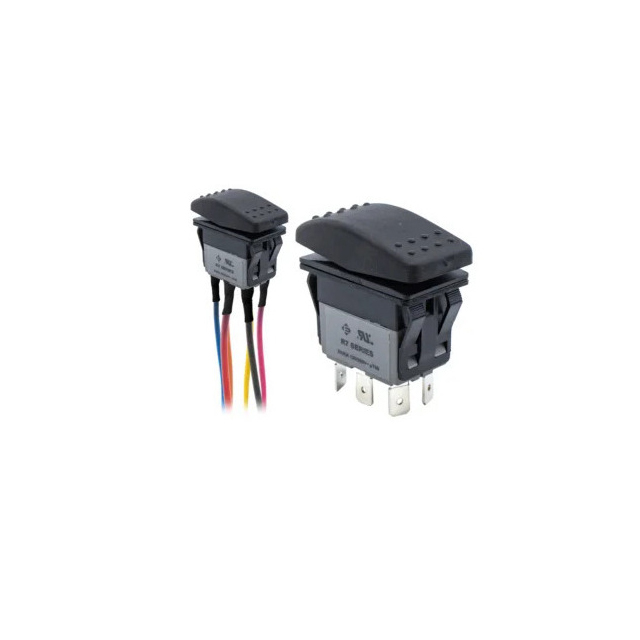

Image of E-Switch's R7 Series Rocker SwitchesE-Switch announces the R7 series rocker switch. The R7 series has an ergonomic, panel-mount design and offers solder, screw, or fast-on termination options. It also offers an array of actuator styles, multiple functions, and red, green, and amber LED colors.

The R7 series rocker switch is IP67 rated to the front panel.

The applications and markets for this switch include transportation equipment, industrial machinery, marine and boating, among others.

Features
  • Rated to IP67
  • UL listed
  • Ergonomic design
  • Solder, faston or screw termination
  • LED illumination options
  • Multiple functions
  • Many actuator styles

R7 Series

ImageManufacturer Part NumberDescriptionSwitch FunctionCurrent Rating (Amps)Available Quantity
SWITCH ROCKER SPDT 16A 30VR716FB1-SXXXNBDNNXSWITCH ROCKER SPDT 16A 30VMom-Off-Mom16A (DC)6413 - ImmediateView Details
SWITCH ROCKER DPDT 20A 125VR726FB1-SXXXNBBNNXSWITCH ROCKER DPDT 20A 125VMom-Off-Mom20A (AC)166 - ImmediateView Details
SWITCH ROCKER SPST 16A 30VR711FA1-SXXXNBDNNXSWITCH ROCKER SPST 16A 30VOn-Off16A (DC)421 - ImmediateView Details
SWITCH ROCKER SPDT 16A 30VR713FA1-SXXXNB4NNXSWITCH ROCKER SPDT 16A 30VOn-Off-On16A (DC)327 - ImmediateView Details
SWITCH ROCKER SPST 16A 30VR711FE1-SXXX2BDGNWSWITCH ROCKER SPST 16A 30VOn-Off16A (DC)485 - ImmediateView Details
SWITCH ROCKER DPDT 16A 30VR726FF3-SXXX2BDGRWSWITCH ROCKER DPDT 16A 30VMom-Off-Mom16A (DC)156 - ImmediateView Details
SWITCH ROCKER SPST 20A 125VR711FC1-SXXXNBBNNXSWITCH ROCKER SPST 20A 125VOn-Off20A (AC)480 - ImmediateView Details
SWITCH ROCKER SPST 20A 125VR711FB1-SXXXNBBNNXSWITCH ROCKER SPST 20A 125VOn-Off20A (AC)347 - ImmediateView Details
SWITCH ROCKER DPDT 20A 125VR723FF3-SXXX4B2RRWSWITCH ROCKER DPDT 20A 125VOn-Off-On20A (AC)365 - ImmediateView Details
SWITCH ROCKER SPDT 16A 30VR712FA1-SXXXNBDNNXSWITCH ROCKER SPDT 16A 30VOn-On16A (DC)193 - ImmediateView Details
SWITCH ROCKER DPDT 20A 125VR723FB1-SXXXNB2NNXSWITCH ROCKER DPDT 20A 125VOn-Off-On20A (AC)63 - ImmediateView Details
SWITCH ROCKER SPDT 20A 125VR712FB1-SXXXNBBNNXSWITCH ROCKER SPDT 20A 125VOn-On20A (AC)37 - ImmediateView Details
SWITCH ROCKER SPST 20A 125VR711FXX-SXXXNXBNNXSWITCH ROCKER SPST 20A 125VOn-Off20A (AC)0 - ImmediateView Details
SWITCH ROCKER SPST 16A 30VR711FA2-SXXX2BDRNWSWITCH ROCKER SPST 16A 30VOn-Off16A (DC)0 - ImmediateView Details
SWITCH ROCKER SPDT 20A 125VR713FB1-SXXXNB2NNXSWITCH ROCKER SPDT 20A 125VOn-Off-On20A (AC)0 - ImmediateView Details
SWITCH ROCKER SPST 16A 30VR711FC2-SXXX2BDGNWSWITCH ROCKER SPST 16A 30VOn-Off16A (DC)0 - ImmediateView Details
SWITCH ROCKER DPST 20A 125VR721FXX-SXXXNXBNNXSWITCH ROCKER DPST 20A 125VOn-Off20A (AC)0 - ImmediateView Details
SWITCH ROCKER DPST 16A 30VR721FB1-SXXXNBDNNXSWITCH ROCKER DPST 16A 30VOff-On16A (DC)0 - ImmediateView Details
SWITCH ROCKER DPST 16A 30VR721FA1-SXXXNBDNNXSWITCH ROCKER DPST 16A 30VOff-On16A (DC)0 - ImmediateView Details
SWITCH ROCKER DPDT 16A 30VR723FA1-SXXXNB4NNXSWITCH ROCKER DPDT 16A 30VOn-Off-On16A (DC)0 - ImmediateView Details
