PVA6 Series Illuminated Long Life Anti-Vandal Switch
E-Switch anti-vandal switch offers long life expectancy, dust and water resistance, and ring or power symbol illumination

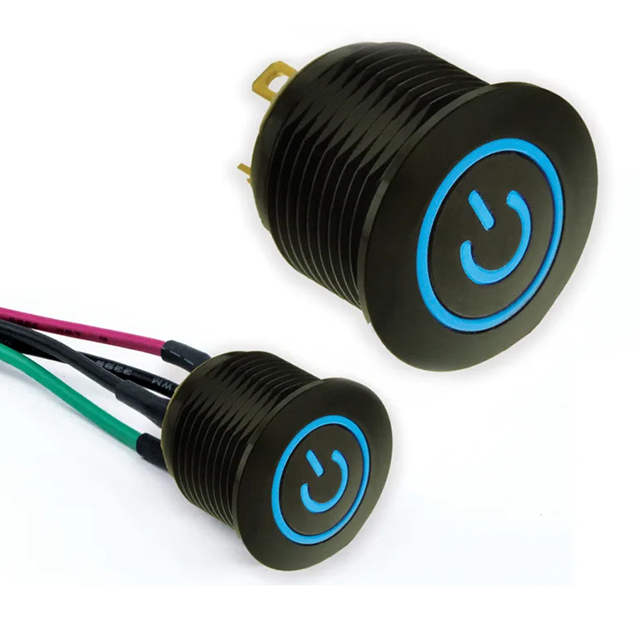

The E-Switch PVA6 is an illuminated anti-vandal switch offering a long life expectancy, dust and water resistance to an IP67 rating, and ring or power symbol illumination. It fits a panel cutout sized 16 mm in diameter with a max depth of 6 mm to 8 mm.
Additional options include a high, high-flat, or rounded bezel option and a choice of solder lug or wire lead termination. The wire lead termination option is 500 mm long. Common applications for the PVA6 series anti-vandal switch include audio/visual equipment, security devices, industrial control panels, ticket kiosks, electrical houseware appliances, medical equipment and other devices that require a tamper-resistant design.
Features
- IP67 rated
- 16 mm panel cutout
- 2 A, 36 VDC
- SPST latching (PVA6L), or momentary (PVA6) function
- Termination: solder, wire leads 500 mm long, or molded back with wire leads 500 mm long
- Rounded, high flat, or flat bezel/actuator options
- Stainless steel, black anodized, or clear anodized finish options
- Illuminated ring, or ring and power symbol options
- Many LED illumination color options including bi-color options
- Up to 200,000 cycles of electrical life
- Operating temperature: -20°C to +70°C
PVA6 Series Illuminated Long Life Anti-Vandal Switch
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | PVA6RE24241 | SWITCH PB SPST-NO 2A 36V | 0 - Immediate | $110.60 | View Details |
|  | PVA6REW4111 | SWITCH PB SPST 2A 36V | 23 - Immediate | $118.73 | View Details |
|  | PVA6RPW41K1 | SWITCH PUSHBUTTON SPST 2A 36V | 101 - Immediate | $119.96 | View Details |
|  | PVA6RPW4141 | SWITCH PB SPST 2A 36V | 34 - Immediate | $132.94 | View Details |
|  | PVA6REW4141 | SWITCH PB SPST 2A 36V | 152 - Immediate | $140.16 | View Details |
|  | PVA6RP24141 | SWITCH PB SPST-NO 2A 36V | 263 - Immediate | $117.91 | View Details |
|  | PVA6HE24S11 | ANTI-VANDAL SWITCH 2A 36VDC | 15 - Immediate | $120.46 | View Details |
|  | PVA6FP24S41 | SWITCH PUSHBUTTON SPST 2A 36V | 87 - Immediate | $140.16 | View Details |
| | PVA6RE241G1 | SWITCH PB SPST-NO 2A 36V | 60 - Immediate | $120.37 | View Details |
|  | PVA6RE24113V | SWITCH PUSHBUTTON SPST 2A 36V | 48 - Immediate | $103.54 | View Details |
|  | PVA6RE24231 | SWITCH PB SPST-NO 2A 36V | 0 - Immediate | $66.23 | View Details |
| | PVA6RE242G1 | SWITCH PB SPST-NO 2A 36V | 0 - Immediate | $72.55 | View Details |
|  | PVA6LRP21101 | SWITCH PB SPST 2A 36V | 0 - Immediate | $75.13 | View Details |
| | PVA6RP24201 | SWITCH PB SPST-NO 2A 36V | 0 - Immediate | $75.98 | View Details |
|  | PVA6LRE21101 | SWITCH PUSHBUTTON SPST 2A 36V | 0 - Immediate | $78.30 | View Details |
| | PVA6RP241G1 | SWITCH PB SPST-NO 2A 36V | 0 - Immediate | $78.23 | View Details |
|  | PVA6REW4131 | SWITCH PB SPST 2A 36V | 0 - Immediate | $80.73 | View Details |
| | PVA6REW4231 | SWITCH PB SPST 2A 36V | 0 - Immediate | $80.73 | View Details |
|  | PVA6LRP21231 | Switches | 0 - Immediate | $78.55 | View Details |
|  | PVA6RPW4131 | SWITCH PB SPST 2A 36V | 0 - Immediate | $82.31 | View Details |
