CUI Inc

PRC40/PRC60 Series DC/DC Converters

CUI Inc’s 6-pin DIP isolated DC/DC converters have a wide -40°C to +105°C operating temperature range and a high 92% efficiency

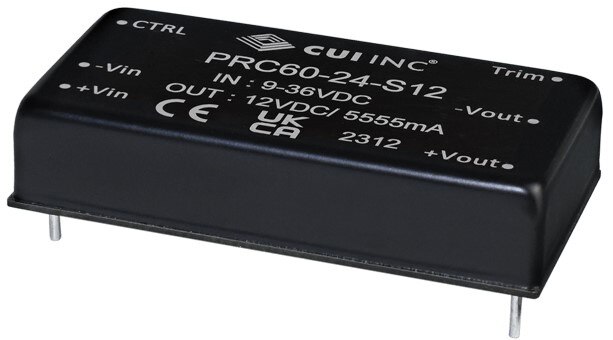

Image of CUI Inc’s PRC40/PRC60 Series DC/DC ConvertersCUI Inc’s PRC40 and PRC60 series are single/dual regulated 40 W and 60 W DC/DC converters designed to meet the needs of commercial, telecom, railway, and other industrial applications. All models meet EN 62368 standards and offer a host of features, including remote on/off control, output voltage trim, and a robust operating temperature range.

Features
  • 40 W/60 W isolated output
  • 4:1 input range (9 VDC to 36 VDC and 18 VDC to 75 VDC options)
  • Wide temperature range -40°C to +105°C
  • Up to 92% efficiency
  • Fully protected: overload, overtemperature, overvoltage, and short circuit
  • Remote on/off control
  • EN/BS EN 62368 certified
  • PRC60 is designed to meet EN 50155
  • Single/dual regulated outputs
  • Output voltage trim
Applications
  • IoT
  • Consumer
  • Industrial
  • Railways
  • EV charging

PRC40 Series DC/DC Converters

ImageManufacturer Part NumberDescriptionNumber of OutputsVoltage - Input (Min)Available QuantityPriceView Details
DC-DC, ISOLATED, 40 W, 9 ~ 36 VDPRC40-24-S5DC-DC, ISOLATED, 40 W, 9 ~ 36 VD19V27 - Immediate$597.68View Details
DC-DC, ISOLATED, 40 W, 18 ~ 75 VPRC40-48-S12DC-DC, ISOLATED, 40 W, 18 ~ 75 V118V2 - Immediate$597.68View Details
DC-DC, ISOLATED, 40 W, 9 ~ 36 VDPRC40-24-S12DC-DC, ISOLATED, 40 W, 9 ~ 36 VD19V26 - Immediate$597.68View Details
DC-DC, ISOLATED, 40 W, 18 ~ 75 VPRC40-48-S5DC-DC, ISOLATED, 40 W, 18 ~ 75 V118V35 - Immediate$625.51View Details
DC-DC, ISOLATED, 40 W, 9 ~ 36 VDPRC40-24-D12DC-DC, ISOLATED, 40 W, 9 ~ 36 VD29V0 - Immediate$625.51View Details
DC-DC, ISOLATED, 40 W, 18 ~ 75 VPRC40-48-D12DC-DC, ISOLATED, 40 W, 18 ~ 75 V218V36 - Immediate$625.51View Details

PRC60 Series DC/DC Converters

ImageManufacturer Part NumberDescriptionNumber of OutputsVoltage - Input (Min)Available QuantityPriceView Details
DC-DC, ISOLATED, 60 W, 18~75 VDCPRC60-48-S12DC-DC, ISOLATED, 60 W, 18~75 VDC118V1 - Immediate$747.45View Details
DC-DC, ISOLATED, 60 W, 18~75 VDCPRC60-48-S5DC-DC, ISOLATED, 60 W, 18~75 VDC118V28 - Immediate$747.45View Details
DC-DC, ISOLATED, 60 W, 9 ~ 36 VDPRC60-24-S12DC-DC, ISOLATED, 60 W, 9 ~ 36 VD19V0 - Immediate$747.45View Details
DC-DC, ISOLATED, 60 W, 9 ~ 36 VDPRC60-24-S5DC-DC, ISOLATED, 60 W, 9 ~ 36 VD19V43 - Immediate$747.45View Details
DC-DC, ISOLATED, 60 W, 18~75 VDCPRC60-48-D12DC-DC, ISOLATED, 60 W, 18~75 VDC218V42 - Immediate$747.45View Details
DC-DC, ISOLATED, 60 W, 9 ~ 36 VDPRC60-24-D12DC-DC, ISOLATED, 60 W, 9 ~ 36 VD29V8 - Immediate$747.45View Details
DC-DC, ISOLATED, 60 W, 9 ~ 36 VDPRC60-24-S24DC-DC, ISOLATED, 60 W, 9 ~ 36 VD19V5 - Immediate$747.45View Details
DC-DC, ISOLATED, 60 W, 18~75 VDCPRC60-48-S24DC-DC, ISOLATED, 60 W, 18~75 VDC118V50 - Immediate$747.45View Details
Published: 2023-11-30
