DC-DC Converters for
Industrial Applications
Isolated Modules from 10~700 W

CUI’s comprehensive line of 10~700 W DC-DC converters are a rugged solution for the harsh environments that often characterize industrial use. Reliable and compact, these isolated modules have a -40°C to 85°C operating temperature range and offer an efficiency up to 92%. The 4:1 and 2:1 input range options combined with a variety of mounting packages, including board mount, chassis mount and DIN rail, provide engineers with the flexibility they need. All of CUI’s industrial DC-DC converter series come with over-current, over-temperature, over-voltage, and short-circuit protections and remote on/off control.

Board Mount

CUI offers three industrial DC-DC converter series—the PRD, PYB and Brick series—that are suitable for on-board use and can power a wide range of applications.

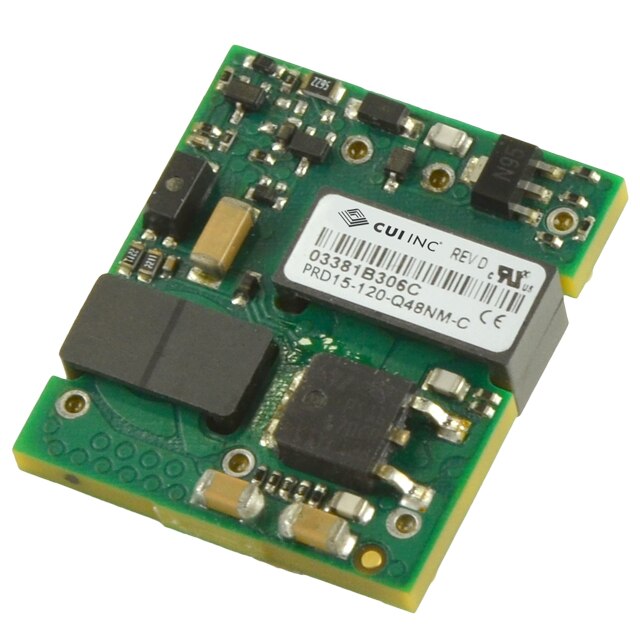

PRD Series – 15 W and 25 W Isolated DC-DC Converters

PRD Series Image

Features

  • Industry-standard 1” x 1” package
  • 4:1 (9~36 V, 18~75 V) and 2:1 (36~75 V) input range
  • Low ripple and noise
  • Through-hole and surface-mount versions
  • Operating temperature range of -40°C to 85°C
PRD Series Product Page

PYB Series – Highly Efficient DC-DC Converters from 10 W to 30 W

PYB Series Image

Features

  • Industry-standard footprints
  • 4:1 input range (9~36 V, 18~75 V)
  • Operating temperature range of -40°C to 85°C
  • Remote on/off control
  • Output trim
PYB Series Product Page

Brick Series – Rugged 1/4, 1/2, and Full Bricks from 50 W to 700 W

Brick Series Image

Features

  • Up to 700 W continuous power
  • Efficiency up to 92.5%
  • 4:1 (9~36 V, 18~75 V) and 2:1 (18~36 V, 36~75 V) input range
  • Remote sense
  • UL/cUL safety approvals
Brick Series Product Page

back to top

Chassis Mount

Where the convenience of chassis mounting is required, CUI’s PYB-T & PQA-T, PYB-U, VHK and VFK series feature a ruggedized solution for industrial applications.

PYB-T & PQA-T Series – 10 W to 50 W Slim-Line Chassis Mount Converters

PYB-T & PQA-T Series Image

Features

  • Compact chassis mount package
  • 10 W to 50 W isolated output
  • Up to a 4:1 input range (9~36 V, 18~75 V)
  • Single and dual outputs
  • Efficiency up to 91%
PYB-T & PQA-T Series Product Page

PYB-U Series – Compact Chassis Mount 4:1 DC-DC Converters from 10~30 W

PYB-U Series Image

Features

  • Chassis mount with screw terminal connectors
  • 4:1 input range (9~36 V, 18~75 V)
  • Compact size
  • Wide temperature operations (-40°C to 85°C)
  • Single and dual outputs
PYB-U Series Product Page

VHK Series – High Power Chassis Mount Where Rugged Design is Required

VHK Series Image

Features

  • 50~200 W of output power
  • Enclosed in an aluminum case measuring 4.25” x 4.00” x 1.50”
  • Built-in heatsink to improve thermal performance
  • High efficiency
  • Fast transient response
VHK Series Product Page

VFK600 Series – Offered in Five Different Regulated Output Voltage Versions

VFK600 Series Image

Features

  • Up to 700 W isolated output
  • Metal enclosure with integrated heatsink
  • 2:1 input range (18~36 V, 36~75 V)
  • Single output from 12~48 V
  • N+1 current sharing
VFK600 Series Product Page

back to top

DIN Rail

Providing low and high power options, CUI’s PYB-DIN, VHK-DIN and VFK-DIN increase the ease of installation in industrial environments and alleviate power consumption concerns with efficiencies reaching 92%.

PYB-DIN Series – Low Power DIN Rail DC-DC Converter Family in a Slim Package

PYB-DIN Series Image

Features

  • Up to 20 W isolated output
  • 4:1 input range (9~36 V, 18~75 V)
  • Output trim
  • Operating temperature range of -40°C to 85°C
  • Efficiency up to 91%
PYB-DIN Series Product Page

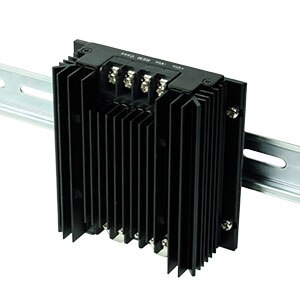

VHK-DIN & VFK-DIN Series – High Efficiency, High Power DIN Rail Converters

VHK-DIN & VFK-DIN Series Image

Features

  • Up to 700 W continuous power
  • Rugged metal enclosure with integrated heat-sink
  • Ultra-wide 4:1 input (9~36 V, 18~75 V, 18~36 V, 36~75 V)
  • Operates at higher temperatures with minimal amount of air flow
  • Load share capability
VHK-DIN & VFK-DIN Series Product Page
