Meet NOVA22, the most powerful 22.5 mm SSR family in the market

NOVA22 are innovative and powerful solid state relays in a 22.5 mm wide package. NOVA22s are available in AC and DC models with ratings up to 35 amps in a DIN rail mount package or 95 amps in a panel mount package. The unique range of connections, screw or spring cage input terminals and use of standard or elevator screw, make the NOVA22 family the most versatile relays in the market.

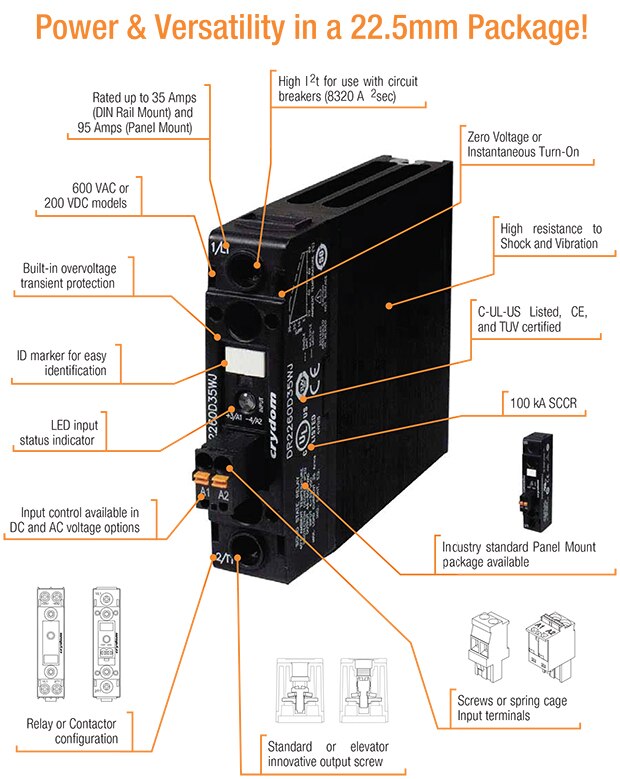

Power and Versatility in a 22.5 mm Package!



DR22 Series

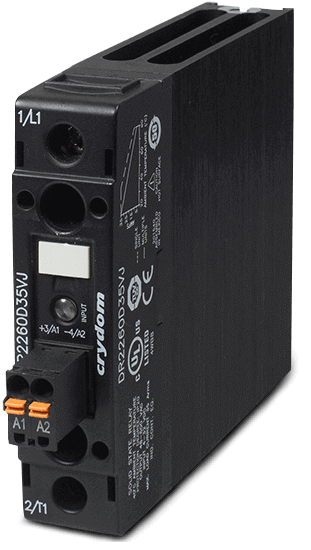

DR22 Series - AC & DC Output DIN Rail-Mount Solid State Relays

The DR22 Series is a family of 22.5 mm wide DIN rail-mount, high performing solid state relays with ratings up to 35 Amps at 600 VAC and 30 Amps at 200 VDC.

These powerful and ready-to-use SSRs come with an integral heatsink, eliminating the need for complex thermal calculations. DR22 Series models are C-UL-US approved.

Features

  • DBC substrate for superior thermal performance
  • LED input status indicator
  • IP20 touch-safe housing
  • 1 kHz maximum PWM frequency
  • 3750 VAC optical isolation



View Details
PM22 Series

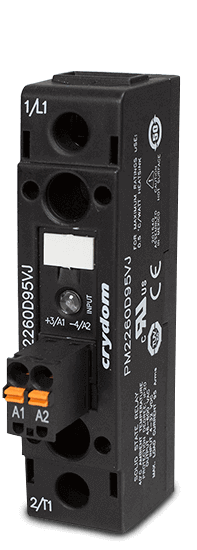

PM22 Series - Panel-Mount Solid State Relays

The PM22 Series is a family of 22.5 mm wide panel-mount solid state relays that offer the highest power density in the market with ratings up to 95 Amps at 600 VAC. PM22s have a contactor terminal configuration which includes a plug-in connector for the control input, available in either standard “screw” or “spring cage” terminals. PM22 Series models are C-UL-US and TUV approved.

Features

  • Built-in overvoltage protection
  • DBC substrate for superior thermal performance
  • IP20 touch-safe housing
  • AC or DC control
  • Zero voltage or instantaneous turn-on output
  • 4000 VAC optical isolation



View Details
PMP Series

PMP - Proportional Control SSR

The PMP series of SSRs come with elevator screw terminals, suitable for most connection termination types. With ratings of up to 90 A at +40°C, these are fully configurable relays which are perfect for applications that control the amount of power delivered to a resistive load in proportion to an analog control input (0 VDC to 5 VDC, 0 VDC to 10 VDC, or 4 mA to 20 mA).

Features

  • C-UL-US recognized CE compliant
  • Ratings up to 90 A at +40°C
  • “Elevator screw” output terminations for added flexibility
  • Compact, 22.5 mm, panel-mount housing
  • Three available operating ranges: 280 VAC, 530 VAC, or 600 VAC



View Details
Versatile Connection

Versatile Connection

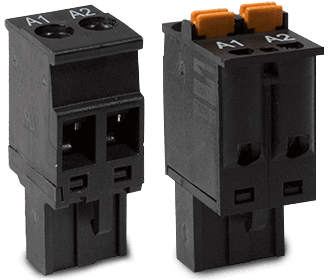

Sensata - Crydom offers plug-in input connectors for use with Contactor configuration NOVA22 Solid State Relays. Available in different terminal styles for added connection versatility including standard screw terminals and spring cage terminal options.



Pluggable Input Connector DR22 and PM22 Series

CP201 View Details CP202 View Details

​
