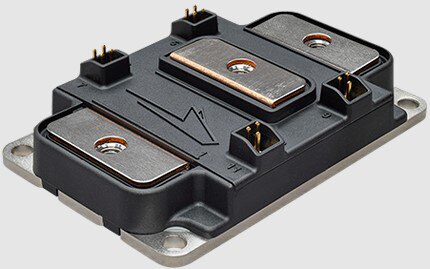

XM Silicon Carbide Power Module Platform
The Wolfspeed half-bridge power module is designed for silicon carbide to enable high power density
Wolfspeed has developed the XM power module platform to maximize the benefits of silicon carbide (SiC) while keeping the module and system design robust, simple, and cost-effective. The XM power module maximizes power density while minimizing loop inductance and enabling simple power bussing. The optimized packaging enables +175°C continuous junction operation with a high-reliability silicon nitride (Si3N4) power substrate to ensure mechanical robustness under extreme conditions.
Typical applications include traction drives, DC fast chargers, universal power supplies, and automotive testing equipment.
CGD12HBXMP Evaluation Gate Driver Tool with ADuM4135 Isolated Gate Driver
- Optimized for use with Wolfspeed high-performance XM3 half-bridge power modules
- High-frequency, ultra-fast switching operation
- Miller clamp to prevent cross-conduction during switching transitions
- On-board 2 W isolated power supplies
- Primary OVLO and UVLO with hysteresis
- On-board overcurrent, shoot-through, and reverse polarity protection
- Differential inputs for increased noise immunity
- Very low isolation capacitance
Features
- High temperature (+175°C) operation
- Low inductance (6.7 nH) design
- Utilizes the latest 3rd generation silicon carbide MOSFETS
- Integrated temperature sensor and Kelvin-drain connection
- Silicon nitride ceramic substrate and copper baseplate
Applications
- Traction drives
- Motor drives
- UPS
- Test and production equipment
- EV fast charging
- Medical
XM3 Power Modules
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | CAB525F12XM3 | SIC MODULE | 3 - Immediate | $10,007.16 | View Details |
|  | CAB400M12XM3 | MOSFET 2N-CH 1200V 395A | 1 - Immediate | $5,510.73 | View Details |
| | CAB450M12XM3 | MOSFET 2N-CH 1200V 450A MODULE | 58 - Immediate | $6,752.40 | View Details |
|  | CAB425M12XM3 | MOSFET 2N-CH 1200V 450A | 2 - Immediate | $6,086.40 | View Details |
| | CAB320M17XM3 | SIC 1700V 320A MODULE | 1 - Immediate | $10,499.82 | View Details |
|  | EAB450M12XM3 | MOSFET 2N-CH 1200V 450A | 3 - Immediate | $8,852.44 | View Details |
XM3 Power Module Gate Driver
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | CGD12HBXMP | EVAL BOARD FOR ADUM4135 | 375 - Immediate | $3,238.66 | View Details |
Evaluation Kits
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | KIT-CRD-CIL12N-XM3 | EVAL BOARD FOR CAB400M12XM3 | 2 - Immediate | $26,252.46 | View Details |
|  | KIT-CRD-CIL17N-XM | EVAL BOARD FOR CAB320M17XM3 | 1 - Immediate | $28,804.52 | View Details |
XM3 Power Module Development Kit and Accessories
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | CRD200DA12E-XM3 | EVAL BOARD FOR CAB400M12XM3 | 1 - Immediate | $76,967.86 | View Details |
|  | CGD12HB00D | 2CH DIFF TRANSCEIVER COMP TOOL | 66 - Immediate | $828.65 | View Details |
|  | CRD300DA12E-XM3 | EVAL BRD CAB450M12XM3 CGD12HBXMP | 16 - Immediate | $76,967.86 | View Details |
|  | CRD600DA12E-XM3 | EVAL BRD CAB450M12XM3 CGD12HBXMP | 1 - Immediate | $230,924.11 | View Details |
