Mini-Con-X® Insta-Click™ Sealed Connectors
Switchcraft/Conxall's Insta-Click spring-loaded latching mechanism locks automatically
Switchcraft/Conxall's Mini-Con-X Insta-Click sealed connectors feature a latching mechanism that provides an automatic positive lock. This latching mechanism improves the water resistance rating to IP68 when used as part of a molded cable assembly making it ideal for harsh environments. The disconnect is easy with a quarter-turn of the coupling ring. The Mini-Con-X Insta-Click connectors are available as field-installable connectors or factory molded cable assemblies. High-quality, high-PBT plastic offers UV resistance for outdoor use and lighting applications.
Features and Benefits
- Hundreds of configurations available up to 10 pins with a variety of options
- Available as field-installable connectors or factory molded cable assemblies
- Easy disconnect with a quarter-turn of the coupling ring
- Insta-Click spring-loaded latching mechanism locks automatically
- Insta-Click connectors mate with special Insta-Click panel mount connectors
Plug, Female Sockets
| Image | Manufacturer Part Number | Description | Shell Size, MIL | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
 | W6280-3SG-P-3DC | CONN PLUG FMALE 3POS GOLD CRIMP | - | 0 - Immediate | $97.34 | View Details | |
 |  | W6380-3SG-P-528 | CONN PLUG FMALE 3POS GOLD CRIMP | - | 73 - Immediate | $99.85 | View Details |
 | W6280-4SG-P-528 | CONN PLUG FMALE 4POS GOLD CRIMP | - | 25 - Immediate | $142.91 | View Details | |
|  | W6282-2SG-P-3DC | CONN PLUG FMALE 2POS SOLDER CUP | - | 0 - Immediate | $101.87 | View Details |
 | W6382-2SG-P-528 | CONN PLUG FMALE 2POS SOLDER CUP | - | 0 - Immediate | $111.20 | View Details | |
| W6380-3SG-P-3DC | CONN PLUG FMALE 3POS GOLD CRIMP | - | 0 - Immediate | $104.13 | View Details | |
| W6280-4SG-P-3DC | CONN PLUG FMALE 4POS GOLD CRIMP | - | 0 - Immediate | $104.55 | View Details | |
|  | W6382-2SG-P-3DC | CONN PLUG FMALE 2POS SOLDER CUP | - | 89 - Immediate | $100.84 | View Details |
 | W6280-5SG-P-528 | CONN PLUG FMALE 5POS GOLD CRIMP | - | 0 - Immediate | $108.20 | View Details | |
| W6380-4SG-P-528 | CONN PLUG FMALE 4POS GOLD CRIMP | - | 0 - Immediate | $110.12 | View Details |
Plug, Male Pins
| Image | Manufacturer Part Number | Description | Shell Size, MIL | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
 | W6280-2PG-P-3DC | CONN PLUG MALE 2POS GOLD CRIMP | - | 0 - Immediate | $84.51 | View Details | |
| W6280-2PG-P-528 | CONN PLUG MALE 2POS GOLD CRIMP | - | 0 - Immediate | $80.89 | View Details | |
 | W6280-3PG-P-3DC | CONN PLUG MALE 3POS GOLD CRIMP | - | 0 - Immediate | $89.10 | View Details | |
| W6280-3PG-P-528 | CONN PLUG MALE 3POS GOLD CRIMP | - | 0 - Immediate | $85.50 | View Details | |
 | W6280-4PG-P-3DC | CONN PLUG MALE 4POS GOLD CRIMP | - | 0 - Immediate | $93.77 | View Details | |
 | W6280-4PG-P-528 | CONN PLUG MALE 4POS GOLD CRIMP | - | 0 - Immediate | $90.19 | View Details | |
 | W6280-5PG-P-3DC | CONN PLUG MALE 5POS GOLD CRIMP | - | 0 - Immediate | $98.31 | View Details | |
 | W6280-5PG-P-528 | CONN PLUG MALE 5POS GOLD CRIMP | - | 0 - Immediate | $94.75 | View Details | |
 | W6280-6PG-P-3DC | CONN PLUG MALE 6POS GOLD CRIMP | - | 0 - Immediate | $102.94 | View Details | |
|  | W6280-6PG-P-528 | CONN PLUG MALE 6POS GOLD CRIMP | - | 37 - Immediate | $140.68 | View Details |
Receptacle, Female Sockets
| Image | Manufacturer Part Number | Description | Shell Size, MIL | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
| W7280-2SG-P-300 | CONN RCPT FMALE 2POS GOLD CRIMP | - | 0 - Immediate | $48.18 | View Details | |
| W7280-3SG-P-300 | CONN RCPT FMALE 3POS GOLD CRIMP | - | 0 - Immediate | $56.38 | View Details | |
| W7280-4SG-P-300 | CONN RCPT FMALE 4POS GOLD CRIMP | - | 0 - Immediate | $64.60 | View Details | |
| W7280-5SG-P-300 | CONN RCPT FMALE 5POS GOLD CRIMP | - | 0 - Immediate | $72.71 | View Details | |

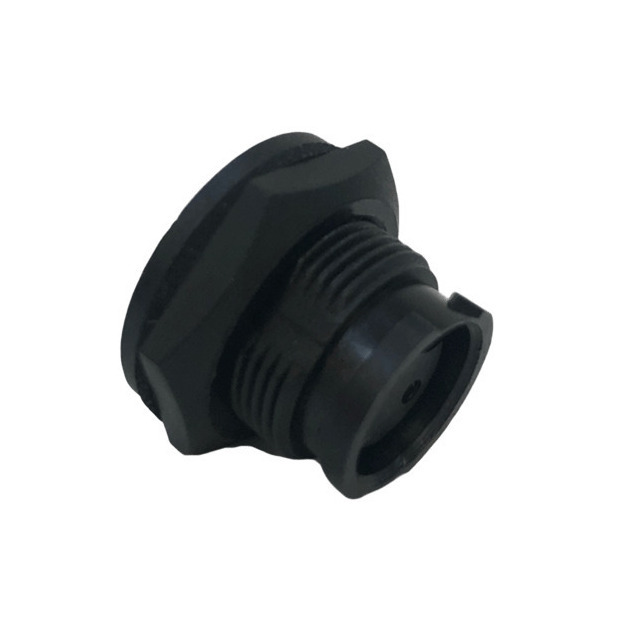

|  | W7280-6SG-P-300 | CONN RCPT FMALE 6POS GOLD CRIMP | - | 0 - Immediate | $80.63 | View Details |
 | W7281-2SG-P-3ES | CONN RCPT FMALE 2POS GOLD SOLDER | - | 23 - Immediate | $81.00 | View Details | |
 | W7281-3SG-P-3ES | CONN RCPT FMALE 3POS GOLD SOLDER | - | 0 - Immediate | $70.10 | View Details | |
 | W7281-4SG-P-3ES | CONN RCPT FMALE 4POS GOLD SOLDER | - | 0 - Immediate | $79.22 | View Details | |
 | W7281-5SG-P-3ES | CONN RCPT FMALE 5POS GOLD SOLDER | - | 0 - Immediate | $88.24 | View Details | |
| | W7281-6SG-P-3ES | CONN RCPT FMALE 6POS GOLD SOLDER | - | 0 - Immediate | $97.17 | View Details |
Receptacle, Male Pins
| Image | Manufacturer Part Number | Description | Shell Size, MIL | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
| W7280-2PG-P-300 | CONN RCPT MALE 2POS GOLD CRIMP | - | 0 - Immediate | $41.97 | View Details | |
| W7280-3PG-P-300 | CONN RCPT MALE 3POS GOLD CRIMP | - | 0 - Immediate | $47.19 | View Details | |
|  | W7280-4PG-P-300 | CONN RCPT MALE 4POS GOLD CRIMP | - | 13 - Immediate | $69.89 | View Details |
| W7280-5PG-P-300 | CONN RCPT MALE 5POS GOLD CRIMP | - | 0 - Immediate | $57.60 | View Details | |
| W7280-6PG-P-300 | CONN RCPT MALE 6POS GOLD CRIMP | - | 0 - Immediate | $62.79 | View Details | |
| W7280-7PG-P-300 | CONN RCPT MALE 7POS GOLD CRIMP | - | 0 - Immediate | $67.83 | View Details | |
|  | W7280-8PG-P-300 | CONN RCPT MALE 8POS GOLD CRIMP | - | 206 - Immediate | $97.06 | View Details |
 | W7281-2PG-P-3ES | CONN RCPT MALE 2POS GOLD SOLDER | - | 0 - Immediate | $53.09 | View Details | |
 | W7281-3PG-P-3ES | CONN RCPT MALE 3POS GOLD SOLDER | - | 0 - Immediate | $58.69 | View Details | |
|  | W7281-4PG-P-3ES | CONN RCPT MALE 4POS GOLD SOLDER | - | 17 - Immediate | $53.34 | View Details |
