High Power Current Sense Chip Resistors – CRF Series

Bourns' AEC-Q200 compliant metal strip construction resistors have a resistance range of 1 mΩ to 50 mΩ

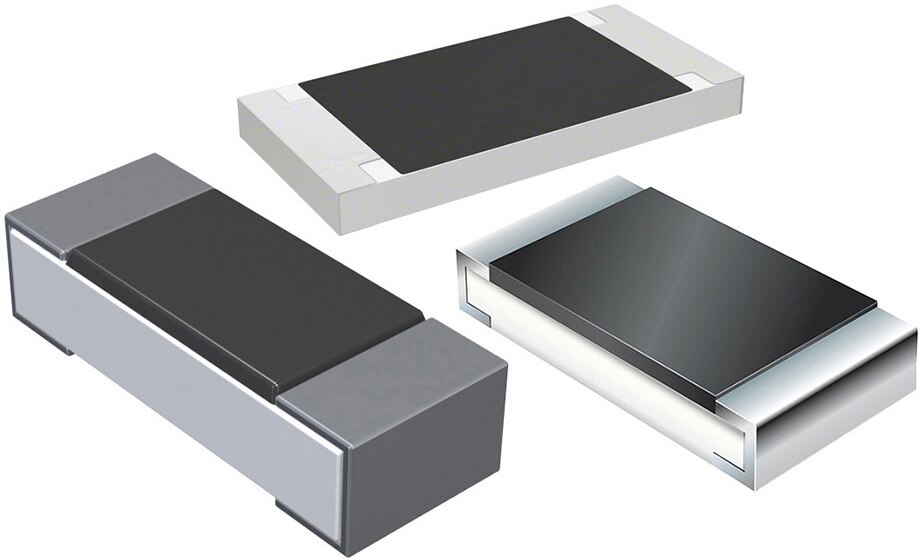

Image of Bourns' High Power Current Sense Chip Resistors – CRF Series Bourns' CRF series automotive grade current sense resistors are a cost-effective component that helps improve system efficiency and reduce losses due to their high measurement accuracy compared to other technologies. Current sense resistors are particularly useful in helping developers precisely measure current in consumer and industrial designs.

The CRF series is designed with metal strip construction, now offered with zero ohm jumpers to expand resistance range 0.0 Ω (jumper) and 1 mΩ up to 50 mΩ with a ±50 ppm temperature coefficient rating in package sizes of 0805, 1206, and 2512, and tolerances of 1% and 5%.

Features
  • AEC-Q200 compliant
  • Resistance range: 0.0 Ω (zero ohm jumper), 0.001 Ω (1 mΩ) to 0.050 Ω (50 mΩ)
  • High power density
  • Inductance less than 5 nH
  • Operating temperature range: -55°C to +150°C
  • Low thermal EMF:
    • <3 µV/°C (CRF0805 and CRF1206)
    • <40 µV/°C (CRF2512)
Applications
  • Power supplies
  • Stepper motor drives
  • Input amplifiers

CRF0805 Series Resistors - 0805 Size

ImageManufacturer Part NumberDescriptionResistanceToleranceAvailable QuantityPriceView Details
RESMETALSTRIP 0805 R0 JUMPER 0.5CRF0805-J/-000ELFRESMETALSTRIP 0805 R0 JUMPER 0.50 Ohms-0 - Immediate$3.61View Details
RES METAL STRIP 0805 R001 1% .5WCRF0805-FZ-R001ELFRES METAL STRIP 0805 R001 1% .5W1 mOhms±1%7173 - Immediate$5.99View Details
RES METAL STRIP 0805 R002 1% .5WCRF0805-FZ-R002ELFRES METAL STRIP 0805 R002 1% .5W2 mOhms±1%5375 - Immediate$5.99View Details
RESMETALSTRIP 0805 R003 1% 500MWCRF0805-FZ-R003ELFRESMETALSTRIP 0805 R003 1% 500MW3 mOhms±1%0 - Immediate$1.01View Details
RESMETALSTRIP 0805 R004 1% 500MWCRF0805-FZ-R004ELFRESMETALSTRIP 0805 R004 1% 500MW4 mOhms±1%0 - Immediate$1.01View Details

CRF1206 Series Resistors - 1206 Size

ImageManufacturer Part NumberDescriptionResistanceToleranceAvailable QuantityPriceView Details
RESMETALSTRIP 1206 R0 JUMPER 1WCRF1206-J/-000ELFRESMETALSTRIP 1206 R0 JUMPER 1W0 Ohms-1650 - Immediate$4.93View Details
RESMETALSTRIP 1206 R001 1% 1W TCCRF1206-FZ-R001ELFRESMETALSTRIP 1206 R001 1% 1W TC1 mOhms±1%1314 - Immediate$4.60View Details
RES 0.002 OHM 1% 1W 1206CRF1206-FZ-R002ELFRES 0.002 OHM 1% 1W 12062 mOhms±1%14994 - Immediate$3.61View Details
RESMETALSTRIP 1206 R003 1% 1W TCCRF1206-FZ-R003ELFRESMETALSTRIP 1206 R003 1% 1W TC3 mOhms±1%6924 - Immediate$5.50View Details
RES 0.0035 OHM 1% 1W 1206CRF1206-FZ-3L50ELFRES 0.0035 OHM 1% 1W 12063.5 mOhms±1%0 - ImmediateSee Page for PricingView Details

CRF2010 Series Resistors - 2010 Size

ImageManufacturer Part NumberDescriptionResistanceToleranceAvailable QuantityPriceView Details
RES ZERO OHM JUMPER HIGH CURRENTCRF2010-J/-000ELFRES ZERO OHM JUMPER HIGH CURRENT0 OhmsJumper6877 - Immediate$5.58View Details

CRF2512 Series Resistors - 2512 Size

ImageManufacturer Part NumberDescriptionResistanceToleranceAvailable QuantityPriceView Details
RES 0.001 OHM 1% 2W 2512CRF2512-FZ-R001ELFRES 0.001 OHM 1% 2W 25121 mOhms±1%18956 - Immediate$6.40View Details
RES 0.002 OHM 1% 2W 2512CRF2512-FZ-R002ELFRES 0.002 OHM 1% 2W 25122 mOhms±1%13531 - Immediate$4.02View Details
RES 0.003 OHM 1% 2W 2512CRF2512-FZ-R003ELFRES 0.003 OHM 1% 2W 25123 mOhms±1%1154 - Immediate$4.02View Details
RES 0.004 OHM 1% 2W 2512CRF2512-FZ-R004ELFRES 0.004 OHM 1% 2W 25124 mOhms±1%6081 - Immediate$6.40View Details
RES 0.005 OHM 1% 2W 2512CRF2512-FZ-R005ELFRES 0.005 OHM 1% 2W 25125 mOhms±1%0 - Immediate
7260 - Marketplace		$4.02View Details

CRF2512 Series Resistors - 2512 Size

ImageManufacturer Part NumberDescriptionResistanceToleranceAvailable QuantityPriceView Details
RESMETALSTRIP 2512 R0 JUMPER 2WCRF2512-J/-000ELFRESMETALSTRIP 2512 R0 JUMPER 2W0 Ohms-306 - Immediate$5.91View Details
RES 0.001 OHM 5% 2W 2512CRF2512-JZ-R001ELFRES 0.001 OHM 5% 2W 25121 mOhms±5%3574 - Immediate$6.08View Details
RES 0.002 OHM 5% 2W 2512CRF2512-JZ-R002ELFRES 0.002 OHM 5% 2W 25122 mOhms±5%5620 - Immediate$4.27View Details
RES 0.003 OHM 5% 2W 2512CRF2512-JZ-R003ELFRES 0.003 OHM 5% 2W 25123 mOhms±5%0 - Immediate$1.43View Details
RES 0.005 OHM 5% 2W 2512CRF2512-JZ-R005ELFRES 0.005 OHM 5% 2W 25125 mOhms±5%6633 - Immediate$6.08View Details
