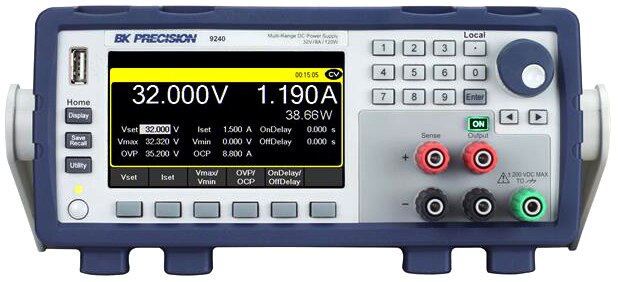

9240 Series Single Output Multi-Range DC Power Supplies

B&K Precision's 9240 series general purpose DC power supplies include many features and capabilities found in high-performance instruments. The multi-range operation provides up to 200 W of clean output power in any volt/amp combination within the rated voltage and current limits. This series combines an easy-to-use interface with advanced list programming features, battery charge mode, and data logging to serve a wide range of applications, including production test, research and development, electronic service, and education.

Intuitive list mode programming makes setting up and executing complex test sequences directly from the front panel easy. Advanced list mode features include the ability to output multiple user-defined list mode programs in sequence and step triggering for synchronizing the power supply’s output with external events.

The 9240 series battery charge mode provides configurable fail-safe settings to disable the output when a specified energy, capacity, or time threshold is reached, protecting both the power supply and the battery. Battery charge data, including Wh, Ah, and time, can be logged directly to a USB Flash drive connected to the front panel USB host port. User-configurable battery charge profiles, instrument settings, and list mode programs can also be saved/recalled from the USB host port.

This series offers system integrators with LXI compliant LAN and USB (USBTMC compliant) interfaces standard for remote control and programming with a GPIB model option. The provided LabVIEW™, IVI-C, and IVI.NET drivers further simplify system development and integration. In addition to overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP), these power supplies support remote inhibit and voltage fault features to protect both the power supply and the device under test (DUT).
