Smart Energy Harvesting and Low Power FCI Design

Power Transmission and Distribution (T&D) systems have evolved into a vast, interconnected power delivery network between the power generating station and different end user loads. These systems are best used to monitor the branches of a distribution grid as closely as possible, especially for the overhead power lines in urban and rural areas. Quickly locating and responding to any fault and bringing operation back to steady-state condition, within the least amount of time possible, is of the utmost importance in the field. Fault Circuit Indicators (FCIs) are growing devices for fault detection in these types of applications, due to their easy implementation, low cost solutions, and the lack of maintenance they require. Designing such devices is mostly composed of energy harvesting, power management, processor, AFE circuit, and communication interfaces. Smart energy harvesting/management and ultra-low power consumption became critical requirements in customers’ designs. As the worldwide, technical leader of mixed-signal processing products, Analog Devices is a major electronic system solution supplier.

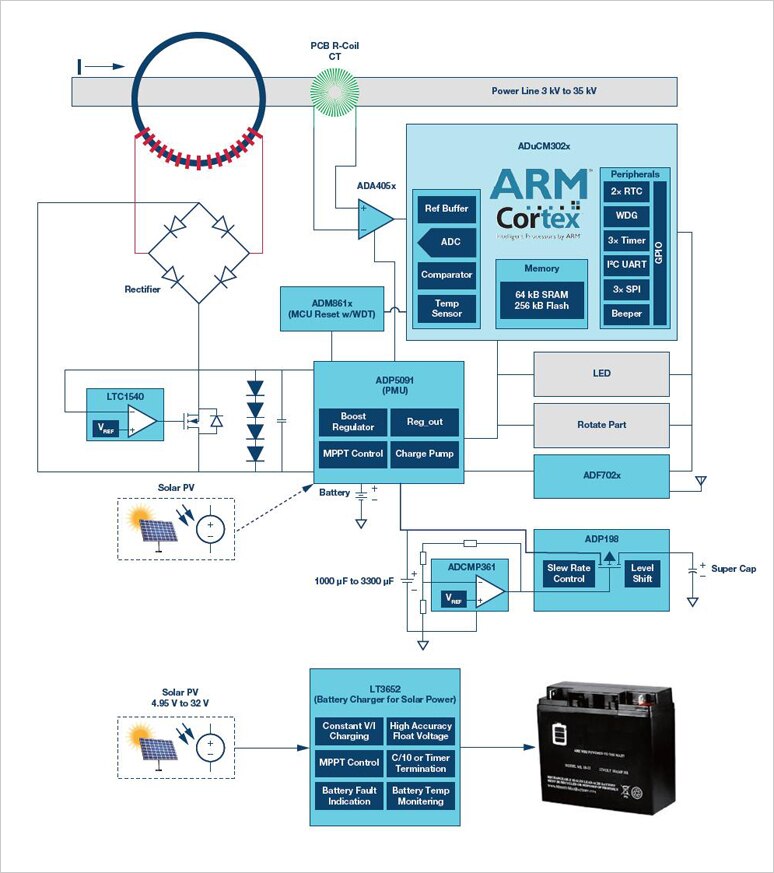

System Block Diagram

Products

Product Type	Power Management Acquisition	Power Management Collection	Signal Condition
Model	ADP5091 / LTC3330	LT3652	ADA4051 / AD850x
Product Type	Processor	Power Supervisor	RF Transceiver
Model	ADuCM302	ADM861	ADF702
Product Type	Voltage Comparator	Voltage Reference
Model	LTC1540 / ADCMP361	AD1582 / ADR525

Resources

• Smart Energy Harvesting and Low Power FCI Design
