HMC1121 4 W GaAs, pHEMT MMIC Power Amplifier 5.5 GHz to 8.5 GHz

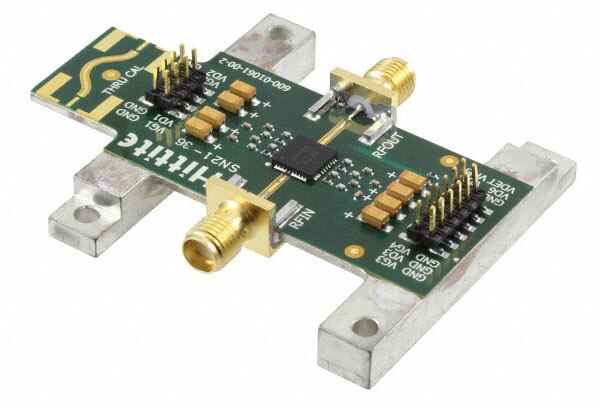

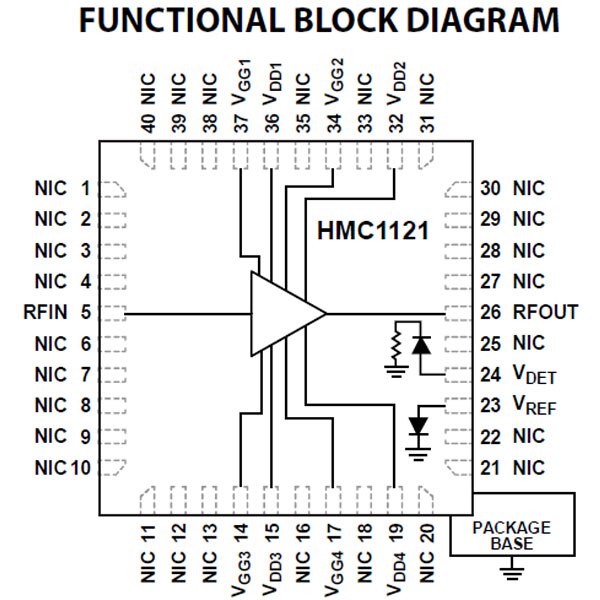

ADI’s HMC1121 is a three-stage, gallium arsenide (GaAs), pseudomorphic high electron mobility transfer (pHEMT), MMIC power amplifier. This 4 W power amplifier has an integrated temperature compensated on-chip power detector that operates between 5.5 GHz and 8.5 GHz. The HMC1121 provides 28 dB of gain, 44 dBm output IP3, and 36.5 dBm of saturated output power at 30% PAE from a 7 V power supply. This power amplifier exhibits excellent linearity and it is optimized for high capacity, point-to-point, and point-to-multipoint radio systems. The amplifier configuration and high gain make it an excellent candidate for last stage signal amplification preceding the antenna. The HMC1121 comes in a 40-lead LFCSP package and is ideal for telecom, point-to-point, and point-to-multipoint radios.

Features	Applications
Total supply current: 2,200 mA at 7 V High output third-order intercept (IP3): 44 dBm typical High saturated output power (PSAT): 36.5 dBm at 30% power added efficiency (PAE) High gain: 28 dB typical High output power for 1 dB compression (P1dB): 36 dBm typical 40-lead, 6 mm x 6 mm LFCSP package: 36 mm2	Radios Point-to-point Point-to-multipoint VSAT SATCOMs Telecom
