ADI makes it easier for customers to connect Analog Devices’ high-speed and precision data converters, sensors, RF ICs and other components to FPGAs and microprocessors. In collaboration with industry-leading supplier Xilinx, ADI aims to simplify field-programmable gate array system design with the growing development of complete reference design solution boards and tools. HDL code, device drivers and reference project examples for rapid prototyping and reduced development time are available from Analog.com.

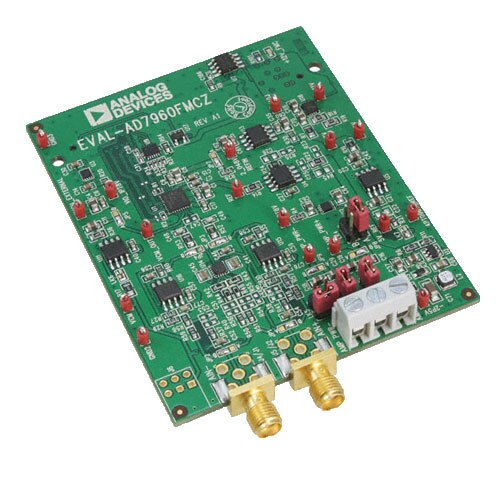

The AD7960 is an 18-bit, 5 MSPS charge redistribution successive approximation (SAR) ADC. The SAR architecture provides excellent performance both in noise and in linearity. The AD7960 contains an internal conversion clock and an internal reference buffer. The EVAL-AD7960FMCZ board includes the circuits required to interface with an FMC-based platform.

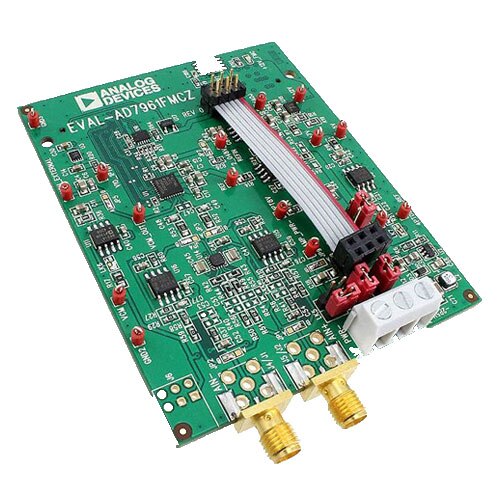

The AD7961 is a 16-bit, 5 MSPS charge redistribution successive approximation (SAR) ADC. The SAR architecture provides excellent performance both in noise and in linearity. The AD7961 contains an internal conversion clock and an internal reference buffer. The EVAL-AD7961FMCZ board includes the circuits required to interface with an FPGA-based platform.

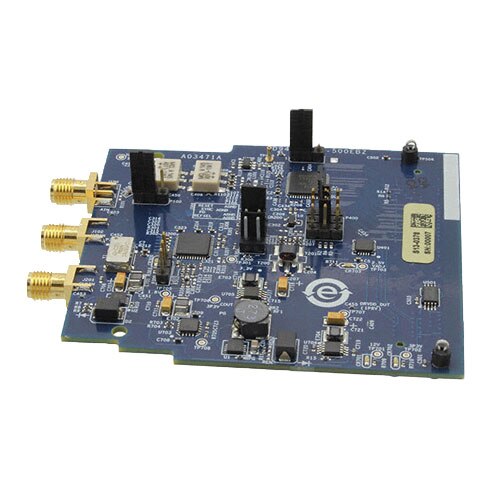

The AD9434 is a 12-bit monolithic sampling analog-to-digital converter (ADC) optimized for high performance, low power, and ease of use. The part operates at up to a 500 MSPS conversion rate and is optimized for outstanding dynamic performance in wideband carrier and broadband systems. All necessary functions, including a sample-and-hold and voltage reference, are included on the chip to provide a complete signal conversion solution. The AD9434-FMC-500EBZ board includes the circuits required to interface with an FPGA-based platform.

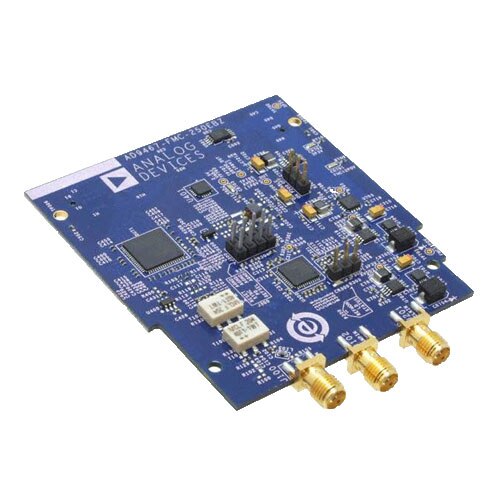

The AD9467-FMC-250EBZ board is based on the AD9467, a 16-Bit, 250 MSPS analog-to-digital converter that provides a new level of signal processing performance for test and measurement instrumentation, defense electronics, and communications applications where high resolution over a wide bandwidth is needed. The AD9467-FMC-250EBZ board includes the circuits required to interface with an FPGA-based platform.

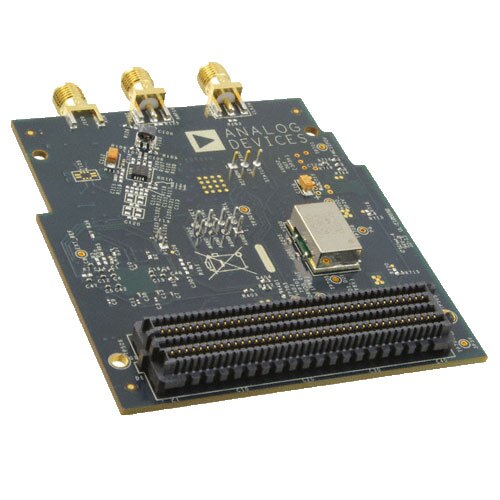

The AD9265-FMC-125EBZ board is based on the AD9265, a 16-Bit, 125 MSPS analog-to-digital converter that provides a new level of signal processing performance for test and measurement instrumentation, defense electronics, and communications applications where high resolution over a wide bandwidth is needed. The AD9265-FMC-125EBZ board includes the circuits required to interface with an FPGA-based platform.

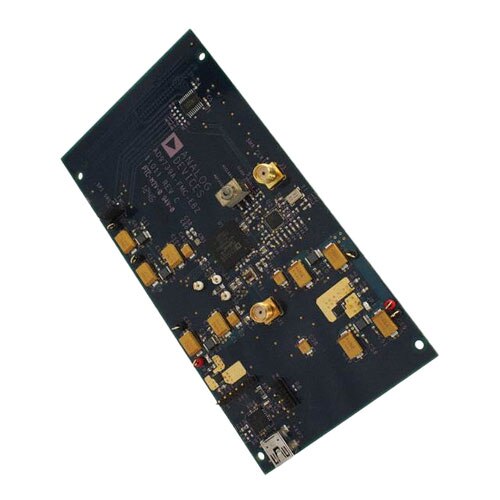

The AD9739A-FMC-EBZ board is based on the AD9739A, a 14-Bit, 2.5 GSPS digital-to-analog converter capable of synthesizing wideband signals from dc up to 3 GHz. The AD739A-FMC-EBZ board includes the circuits required to interface with an FPGA-based platform. Watch a Video Tutorial

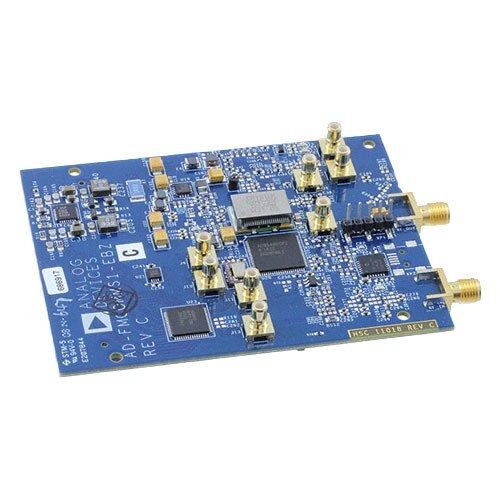

The AD-FMCOMMS1-EBZ is an analog front end hardware platform that addresses a broad range of research, academic, industrial and defense applications. The AD-FMCOMMS1-EBZ enables RF applications from 400 MHz to 4 GHz. The module is customizable to a wide range of frequencies by software without any hardware changes, providing options for GPS or IEEE 1588 Synchronization, and MIMO configurations. Watch a Video Tutorial

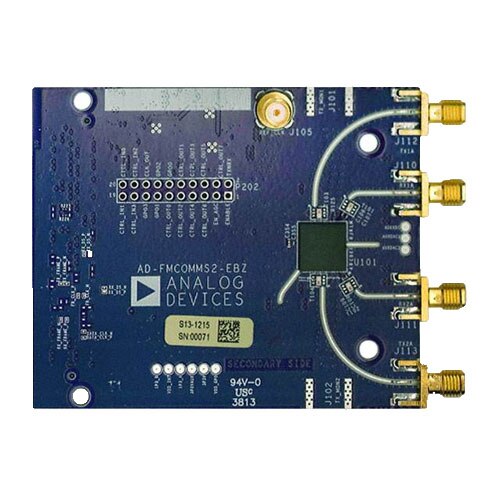

The AD-FMCOMMS2-EBZ is a high-speed analog module designed to showcase the AD9361, a high performance, highly integrated RF agile transceiver intended for use in RF applications, such as 3G and 4G base station applications and software defined radios. The AD-FMCOMMS2-EBZ provides RF engineers the ability to connect the AD9361 to a RF testbench (Vector Signal Analyzer, Signal generator, etc) and measure performance. The external components (which can easily be swapped) on the AD-FMCOMMS2-EBZ have a narrower RF tuning range 2400 – 2500 MHz. It is expected that most engineers will change these external components (pin for pin replacements from various vendors are available) for their specific application/ frequency of interest. Anyone interested in a wider tuning range board should look at the AD-FMCOMMS3-EBZ.

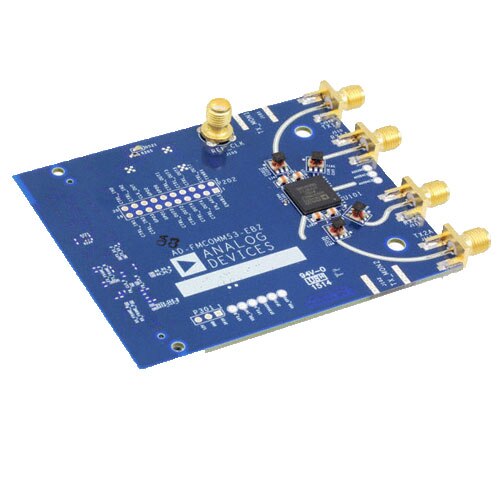

The AD-FMCOMMS3-EBZ is a high-speed analog module designed to showcase the AD9361, a high performance, highly integrated RF agile transceiver intended for use in RF applications, such as 3G and 4G base station applications and software defined radios. The purpose of the AD-FMCOMMS3-EBZ is to provide an RF platform to software developers, system architects, etc, who want a single platform that operates over a much wider tuning range (70 MHz – 6 GHz) than the AD-FMCOMMS2-EBZ.

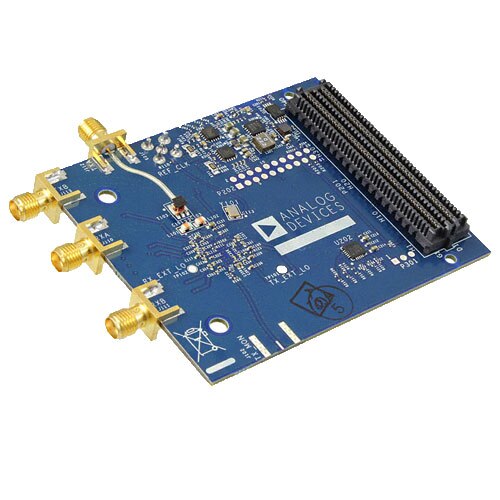

The AD-FMCOMMS4-EBZ is a high-speed analog module designed to showcase the AD9364, a high performance, highly integrated RF agile transceiver intended for use in RF applications, such as 3G and 4G base station applications and software defined radios. The purpose of the AD-FMCOMMS4-EBZ is to provide an RF platform to software developers, system architects, etc, who want a single platform that operates over a much wider tuning range (70 MHz – 6 GHz) than the AD-FMCOMMS2-EBZ.

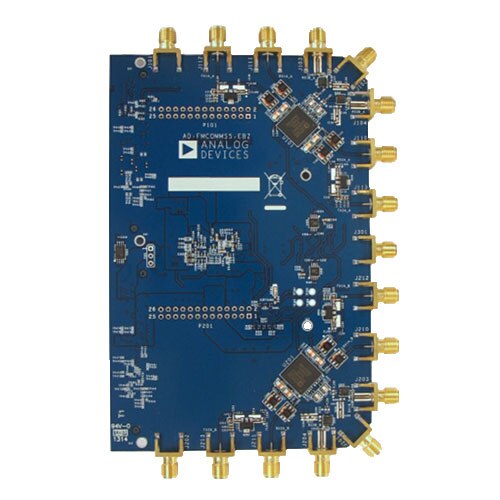

The AD-FMCOMMS5-EBZ is a high-speed analog module designed to showcase the AD9361, a high performance, highly integrated RF agile transceiver intended for use in RF applications, such as 3G and 4G base station applications and software defined radios. The board includes two AD9361s in a 4 x 4 RF configuration, which demonstrates how to synchronize multiple devices together.

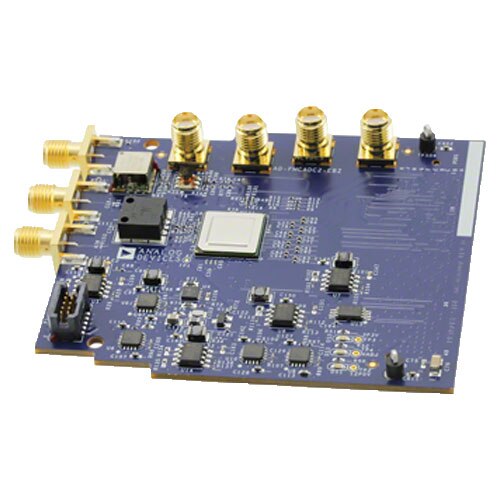

The AD-FMCADC2-EBZ is a data acquisition and signal processing platform that contains a complete signal chain for digitizing wideband RF signals for a variety of high-performance applications. The board has operating software and drivers for seamless connectivity within the Xilinx FPGA development platform ecosystem. This board is comprised of the AD9625-2.5 12-bit, 2.5 GSPS JESD204B ADC, input balun, clock oscillator, and critical power management components.
The AD-FMCJESDADC1-EBZ is an easy-to-use FMC-based rapid development board comprising four 14-bit, 250 MSPS, A/D conversion channels and featuring a JESD204B high-speed serial output interface. The board contains two AD9250 dual-channel ADC ICs with on-board clocking and power supplies to facilitate seamless connectivity with the Xilinx ML605, KC705 or VC707 development platform.
