Amphenol SV Microwave

VITA 67.3 SMPM and SMPS Product Lines

Amphenol SV Microwave's VITA 67.3 standard SMPM and SMPS product lines are customizable RF solutions ideal for embedded systems applications

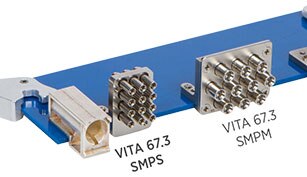

Image of Amphenol SV Microwave's VITA 67.3 SMPM and SMPS Product Line Amphenol SV Microwave's VITA 67.3 standard SMPM and SMPS product lines are the latest additions to the RF/coaxial section of the VPX platform. These customizable RF solutions are ideal for a customer's embedded systems application and are designed for side-by-side implementation with other VITA connector standards. SV Microwave is an associate member of The OpenGroup and an active participant of SOSA™ electromechanical hardware group.

Resources

Features/Benefits
  • SMPM min. pitch 0.228" and SMPS min. pitch 0.155"
  • Designed for side-by-side implementation with other VITA connector standards
  • Blindmate and simplified cable routing reduces mean-time-to-repair (MTTR)
  • Unique SV connector retention mechanism offers significant ease of assembly/disassembly
Applications
  • Robust and rugged high speed cabled solution
  • High-reliability, high-density for aerospace and defense applications
  • SIGINT, EWR, ground base station and communication systems, avionics, radar systems
  • Air transport racks (ATRs) without rear transition modules (RTMs) or limited speed through RTM

VITA 67.3 SMPM and SMPS Coaxial Cables (RF)

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
COAX CBL SMA TO SMPS 12"7038-0370COAX CBL SMA TO SMPS 12"20 - Immediate$2,464.66View Details
COAX CBL SMA TO SMPS 12"7038-0371COAX CBL SMA TO SMPS 12"43 - Immediate$2,464.66View Details
COAX CBL SMA TO SMPS 12"7038-0337COAX CBL SMA TO SMPS 12"2 - Immediate$2,464.66View Details

VITA 67.3 SMPM and SMPS Coaxial Connectors (RF)

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
SMPS MALE VITA 67.3 PLUG-IN CONTSF3811-60060SMPS MALE VITA 67.3 PLUG-IN CONT147 - Immediate$505.44View Details
SMPM MALE VITA 67.3 PLUG-IN .0853211-60350SMPM MALE VITA 67.3 PLUG-IN .08555 - Immediate$559.86View Details
SMPM MALE VITA 67.3 PLUG-IN CONT3211-60327SMPM MALE VITA 67.3 PLUG-IN CONT28 - Immediate$987.18View Details

VITA 67.3 SMPM and SMPS Coaxial Connectors (RF) - Contacts

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
SMPM FEMALE VITA 67.3 CONTACT3221-40066SMPM FEMALE VITA 67.3 CONTACT0 - Immediate$1,014.76View Details
SMPS VITA 67.3 BACKPLANE CONTACT3821-40024SMPS VITA 67.3 BACKPLANE CONTACT0 - Immediate$1,112.64View Details
SMPM FEMALE VITA 67.3 CONTACT3221-40071SMPM FEMALE VITA 67.3 CONTACT97 - Immediate$1,014.76View Details

VITA 67.3 SMPM and SMPS Coaxial Connectors (RF) - Adapters

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
COAX ADAPT SMPS TO SMPSSF1138-6020COAX ADAPT SMPS TO SMPS29 - Immediate$685.07View Details

VITA 67.3 SMPM and SMPS Coaxial Connectors (RF) - Accessories

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
SMPM MOTHERBOARD VITA 67.3SF9321-60059SMPM MOTHERBOARD VITA 67.3121 - Immediate$3,123.96View Details
SMPM DAUGHTERCARD VITA 67.3SF9311-60097SMPM DAUGHTERCARD VITA 67.3194 - Immediate$3,901.72View Details
SMPM DAUGHTERCARD VITA 67.3 CONNSF9321-60086SMPM DAUGHTERCARD VITA 67.3 CONN191 - Immediate$3,112.52View Details

VITA 67.3 SMPM and SMPS Tools - Insertion, Extraction

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
VITA 67.3 CONTACT REMOVAL TOOL500-32-015VITA 67.3 CONTACT REMOVAL TOOL18 - Immediate$6,761.52View Details
SMPM VITA 67.3 INSTALLATION/REMO500-32-042SMPM VITA 67.3 INSTALLATION/REMO6 - Immediate$12,356.64View Details
SMPS VITA 67.3 CONTACT REMOVAL T500-38-006SMPS VITA 67.3 CONTACT REMOVAL T7 - Immediate$6,761.52View Details

VITA 67.3 SMPM and SMPS Specialized Tools

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
SMPS VITA 67.3 CABLE INSTALLATIO500-38-008SMPS VITA 67.3 CABLE INSTALLATIO5 - Immediate$2,204.69View Details
Published: 2022-03-30
