Flexible Board-to-Board RF Connectors Solutions

Coaxial connectors offer ideal solution for blindmate applications

Amphenol RF board-to-board connector solutions feature compact, small-footprint designs with industry leading float to provide a maximum tolerance for radial and axial misalignment, making these interconnects ideal for blind mating applications. Amphenol RF offers a wide variety of connector configurations in AFI, SMP and PSMP interfaces to provide maximum flexibility to board to board designs.

Mating Configurations

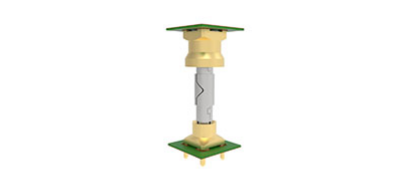

Parallel

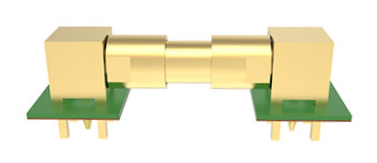

Co-Planar

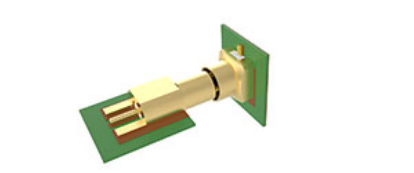

Right-Angle

Board-To-Board RF Connector Types

AFI Board-To-Board RF Connectors

The AFI connector series is a board-to-board solution for RF applications commonly used in military and broadband applications. The AFI interface utilizes a proprietary two-piece configuration that compensates for high axial and radial misalignment with industry leading float (0.030” [0.8 mm] radial and 0.040” [1.0 mm] axial). 50 ohm AFI connectors operate to 6 GHz and 75 ohm options support a maximum frequency of 3 GHz.

HD-EFI Board-To-Board RF Connectors

The HD-EFI connector system is a 50 ohm three-piece board-to-board solution offering excellent performance through 6 GHz. It is an ideal board-to-board solution where space constraints exist or where PCB stack heights vary. The HD-EFI supports blindmating needs with a crash-proof, closed entry contact design.

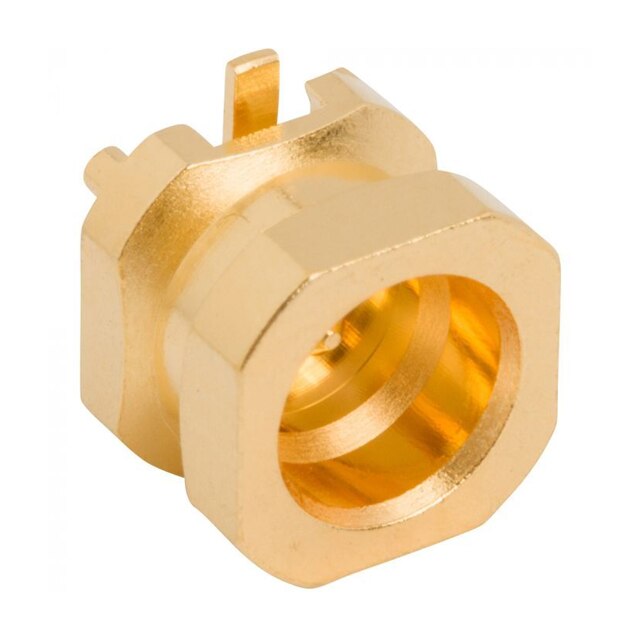

P-SMP Board-To-Board RF Connectors

The P-SMP connector series is a board-to-board solution for RF applications requiring high power. With a minimum board spacing of 12.6 mm, the three-piece design allows maximum flexibility for high-density board spacing. The interface is capable of continuous power handling of 220 W at 2.2 GHz making it ideal for wireless antenna applications.

SMP Board-To-Board RF Connectors

The SMP connector system is a 50 ohm board-to-board solution offering performance through 26.5 GHz, with the ability to enhance performance to 40 GHz for some designs through PCB optimization analysis. This dependable mating system utilizes the three-piece configuration, and a design focused on keeping a consistent RF signal with ample float (0.020” [0.51 mm] radial and 0.010” [0.25 mm] axial). This performance focus makes SMP connectors a good choice for military, measurement and quantum computing applications.

SMP Non-Magnetic Board-To-Board Connectors

Amphenol RF offers a variety of non-magnetic SMP connectors and adapters constructed from non-ferrous materials and platings. These high-performance RF interconnects feature low magnetic field susceptibility and no electric field distortion while providing the same reliable connections for board-to-board and board-to-cable as standard SMP products. Non-magnetic SMP options are ideal for sensitive medical, aerospace, and quantum computing applications.

SMPM Board-To-Board RF Connectors

The SMPM interface is a micro-miniature interface with an optimized frequency range of DC to 65 GHz. This series is a smaller version of the SMP, with full detent and smooth bore mating systems providing mating force options. This family of interconnects addresses small package, high-performance design needs, with float (0.020” [0.51 mm] radial and 0.010” [0.25 mm] axial) designed to maintain a strong RF signal.

Board-To-Board Product Summary

List of users
  High-Frequency High-Power High-Float
  SMPM SMP P-SMP AFI HD-AFI HD-EFI
Impedance 50 Ohm 50 Ohm 50 Ohm 50 Ohm | 75 Ohm 75 Ohm 50 Ohm
Max Frequency 65 GHz 40 GHz 10 GHz 6 | 3 GHz 18 GHz 6 GHz
Min PCB Spacing 6.6 mm 9.1 mm 12.6 mm 12.7 mm 11.5 mm 11.5 mm
Power Handling 50 W @ 2.2 GHz @ 25˚ C 30 W @ 2.2 GHz @ 25˚ C 200 W @ 2.2 GHz 200 W @ 2.2 GHz @ 8.8˚ C 10 W @ 2 GHz @ 25˚ C 40 W @ 2.2 GHz @ 85˚ C
Axial Misalignment 0.25 mm 0.25 mm 2.00 mm 1.00 mm 2.00 mm 1.40 mm
Radial Misalignment 0.51 mm 0.51 mm 1.32 mm 0.80 mm 0.80 mm 0.7 mm
