OCTIS™ Outdoor I/O System

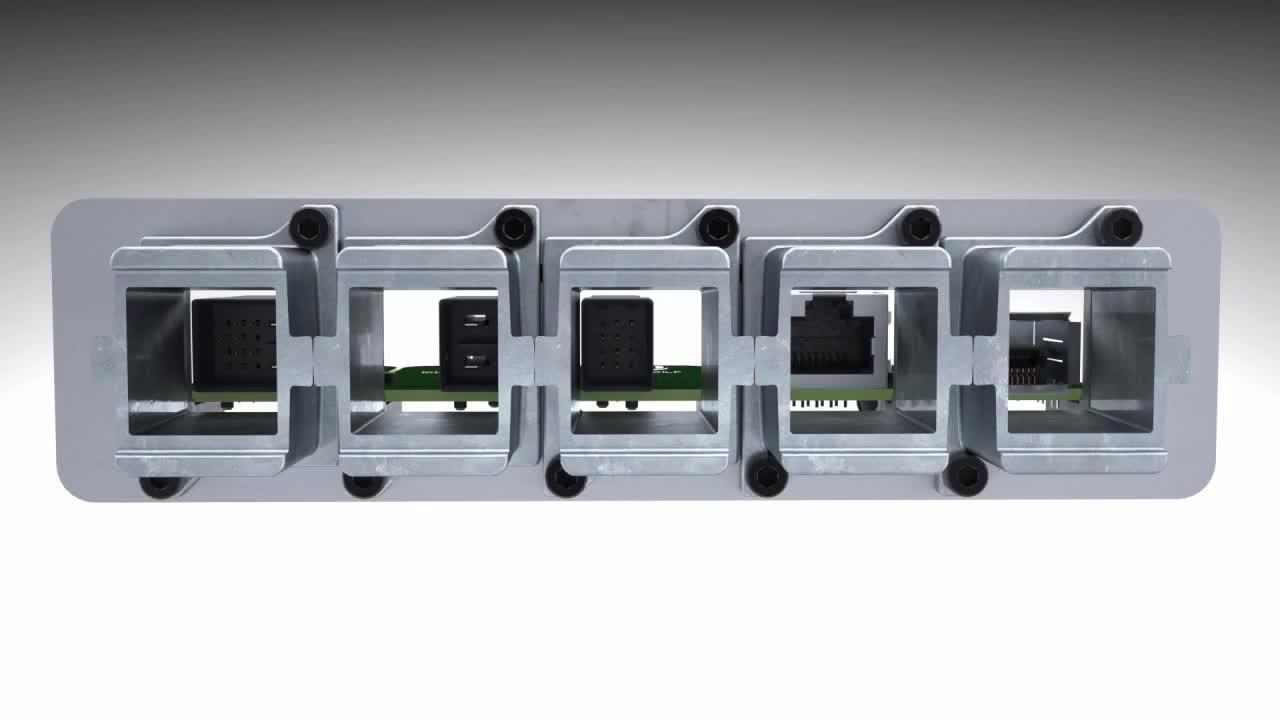

FCI Basics' OCTIS I/O system for outdoor, compact, and harsh environments
The
FCI Basics' OCTIS I/O system, uses multiple industry standard interfaces, features high-speed signal and power, lightning protection, EMI shielding, and ease of installation for outdoor, compact, and harsh environments.
Datasheet: OCTIS™ Outdoor I/O System
- Transceiver moves outside the box, saving board space and providing better thermal management
- Lightning protection, EMI shielding features, and a rugged weatherproof design make it ideal for use in harsh environment applications
- Blind mate, float mount, color, and physical coding features makes it easy to use and avoid incorrect mating
- Plug assembly options: field installable or factory certified cable assembly
- Use of standard small form factor interfaces enables greater port to port density. This interface makes it ideal for outdoor applications like small cells, macro cells, smart radios, and RRU/RRH.
Features
- Outdoor weatherproof
- Rugged design
- Multi-standard and varying interconnection interface
- Adaptable interface holder and outer housing
- Color coding on gland nuts
- System addresses present and future signal and power requirements with the option for additional connector interfaces
- 26 mm pitch and <100 m length from panel
- Double locking feature
Applications
- Suitable for most demanding environments. Lightning protection up to 15 K Amps
- 100 mating cycles, 200 N tensile load; suitable for sophisticated equipment used in modern telecom and industrial markets
- Suitable for various applications with standard connector interfaces like SFP/SFP+, Signal, PoE (Power over Ethernet), Power, Hybrid of Signal and Power, and RJ45
- Cable mounting, mating, and locking remain the same regardless of the interface used
- Visual identification of cable assembly type
- Upgrade option to higher data rate up to 10 G and 25 G per lane bandwidth and 35 A+ per contact
- High density and small form factor
- Tamper-proof
Modular Connectors
| Image | Manufacturer Part Number | Description | Color | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
 |  | 10135748-101LF | OCTIS PLUG KIT HYB8S2P 26MM | Black | 0 - Immediate | $395.83 | View Details |
|  | 10135750-101LF | OCTIS PLUG KIT 8POS SIG POE 26MM | Black | 0 - Immediate | $522.79 | View Details |
|  | 10137559-102LF | OCTIS 8POS SIGNAL HEADER | Black | 0 - Immediate | See Page for Pricing | View Details |
|  | 10135742-101LF | OCTIS 3 POSN POWER HEADER | Black | 95 - Immediate | $484.70 | View Details |
Backplane Connectors
| Image | Manufacturer Part Number | Description | Pitch | Number of Rows | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
|  | 10131868-101LF | CONN HEADER 14POS PCB | 0.079" (2.00mm) | - | 608 - Immediate | See Page for Pricing | View Details |
|  | 10133085-101LF | CONN HEADER 12POS PCB | 0.079" (2.00mm) | 4 | 20 - Immediate | See Page for Pricing | View Details |
|  | 10139481-102LF | OCTIS PLUG KIT 4POSN SIGNAL | - | - | 0 - Immediate | $517.54 | View Details |
SFP+ Connector
| Image | Manufacturer Part Number | Description | Number of Positions | Mounting Type | Termination | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
|  | 10135746-101LF | CONN SFP+ PLUG 20POS CRIMP STR | 20 | Free Hanging (In-Line) | Crimp | 10 - Immediate | $487.40 | View Details |
Published: 2018-03-27
