Amphenol Communications Solutions

Minitek® 2.00 mm Pitch Connectors

FCI Basics' Minitek 2.00 mm pitch connectors provides a modular system for flexible design

Image of Amphenol ICC's Minitek® 2.00 mm Pitch Connectors The FCI Basics' Minitek series of board-to-board and wire/cable-to-board connectors in 2.00 mm pitch are fully modular system enabling all types of connections between PCBs, wires, and flat cables. Its 2.00 mm spacing allows up to 38% space saving compared to traditional modular systems. It is available in vertical and horizontal configurations in both single and double row with 2- to 25-positions per row. With a very low coplanarity at 0.1 mm, these connectors facilitate automatic placement. The modular system ensures an interchangeable solution for flexible design.

Diagrams

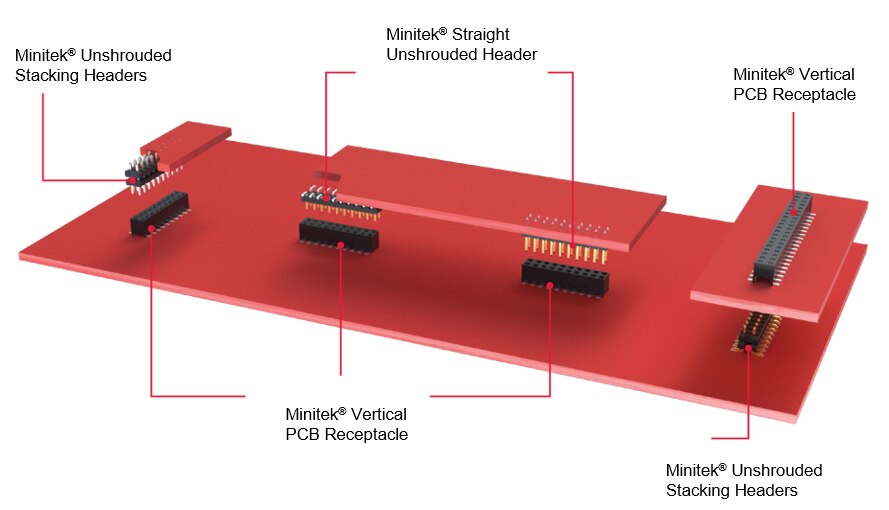

Image of Amphenol's Minitek BtB Diagram

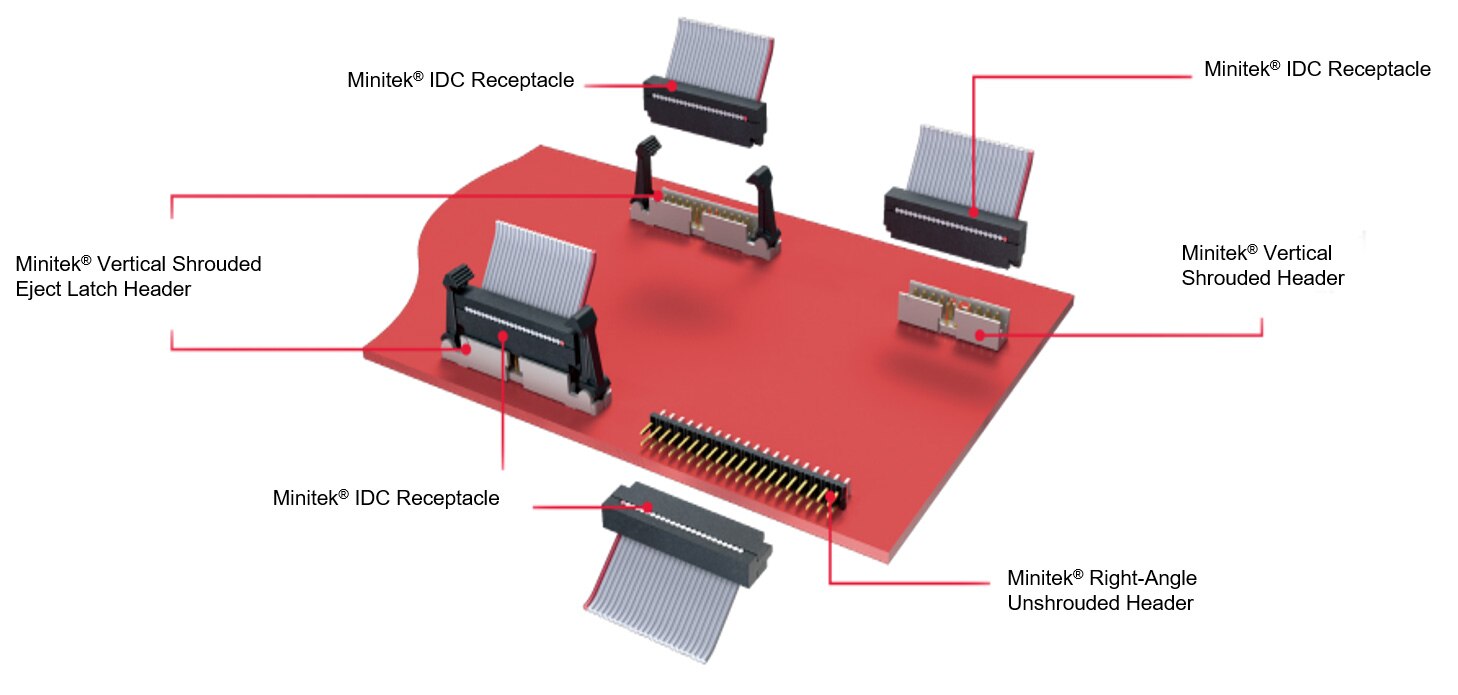

Image of Amphenol's Minitek CtB Diagram

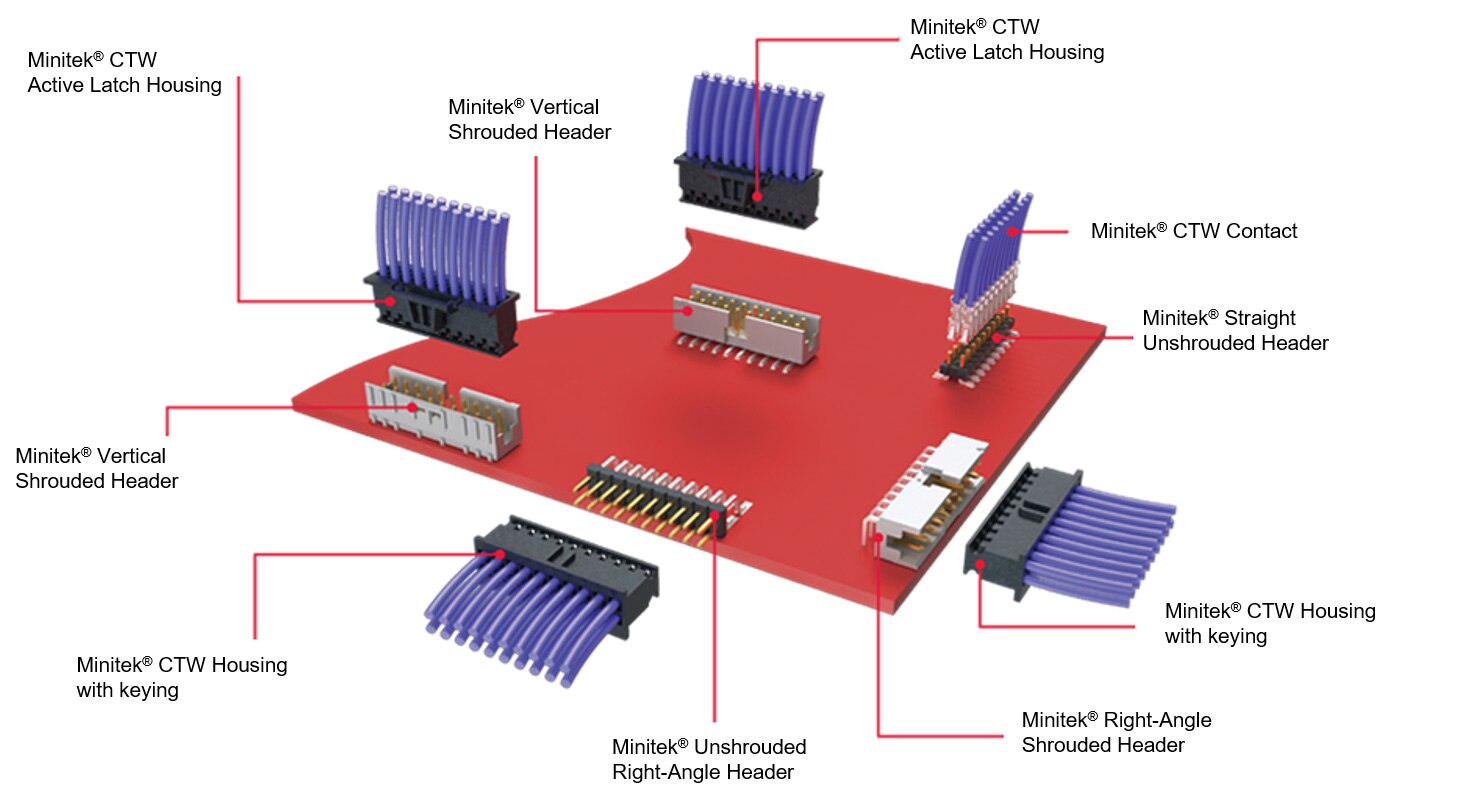

Image of Amphenol's Minitek CtW Diagram

Resources
Features and Benefits
  • 2.00 mm pitch solution
  • Modular system
  • Lowest profile eject latch header
  • Lowest coplanarity at 0.10 mm
  • Standoff design
  • 0.50 mm square drawn wire pin
  • High raw material temperature range
  • Ensures interchangeable solution for flexible design
  • 38% less board space compared with 2.54 mm
  • Meets specific design requirements
  • Facilitates automatic placement
  • Ease of cleaning the PCB
  • Provides four smooth mating surfaces
  • Withstands reflow soldering process

Rectangular Connectors - Headers, Male Pins

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN HEADER SMD 8POS 2MM98424-G52-08ALFCONN HEADER SMD 8POS 2MM11618 - Immediate$7.47View Details
CONN HEADER SMD 12POS 2MM98424-G52-12ALFCONN HEADER SMD 12POS 2MM17658 - Immediate$9.77View Details
CONN HEADER SMD 14POS 2MM98424-G52-14ALFCONN HEADER SMD 14POS 2MM8588 - Immediate$11.91View Details
CONN HEADER VERT 8POS 2MM98414-G06-08ULFCONN HEADER VERT 8POS 2MM6496 - Immediate$8.95View Details
CONN HEADER VERT 12POS 2MM98414-G06-12ULFCONN HEADER VERT 12POS 2MM2683 - Immediate$12.89View Details

Rectangular Connectors - Headers, Receptacles, Female Sockets

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN RCPT 4POS 0.079 GOLD SMD55510-304TRLFCONN RCPT 4POS 0.079 GOLD SMD5647 - Immediate$6.08View Details
CONN RCPT 8POS 0.079 GOLD SMD55510-308TRLFCONN RCPT 8POS 0.079 GOLD SMD7500 - Immediate$10.43View Details
CONN RCPT 10POS 0.079 GOLD SMD55510-310TRLFCONN RCPT 10POS 0.079 GOLD SMD773 - Immediate$10.59View Details
CONN RCPT 14POS 0.079 GOLD PCB63453-114LFCONN RCPT 14POS 0.079 GOLD PCB163 - Immediate$12.15View Details
CONN RCPT 12POS 0.079 GOLD PCB63453-112LFCONN RCPT 12POS 0.079 GOLD PCB854 - Immediate$12.73View Details

Rectangular Connectors - Free Hanging, Panel Mount

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN RCPT 6POS IDC 28AWG GOLD89361-706LFCONN RCPT 6POS IDC 28AWG GOLD6040 - Immediate$16.18View Details
CONN RCPT 6POS IDC 28AWG GOLD89947-706LFCONN RCPT 6POS IDC 28AWG GOLD3586 - Immediate$10.92View Details
CONN RCPT 8POS IDC 28AWG GOLD89361-708LFCONN RCPT 8POS IDC 28AWG GOLD7869 - Immediate$12.40View Details
CONN RCPT 10POS IDC 28AWG GOLD89361-110LFCONN RCPT 10POS IDC 28AWG GOLD1165 - Immediate$6.98View Details
CONN RCPT 8POS IDC 28AWG GOLD89947-708LFCONN RCPT 8POS IDC 28AWG GOLD840 - Immediate$7.80View Details

Rectangular Connectors - Housings

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN RCPT HSG 8POS 2.00MM90312-008LFCONN RCPT HSG 8POS 2.00MM3388 - Immediate$9.20View Details
CONN RCPT HSG 10POS 2.00MM10073599-010LFCONN RCPT HSG 10POS 2.00MM3215 - Immediate$6.57View Details
CONN RCPT HSG 6POS 2.00MM90311-006LFCONN RCPT HSG 6POS 2.00MM3253 - Immediate$5.75View Details
CONN RCPT HSG 12POS 2.00MM10073599-012LFCONN RCPT HSG 12POS 2.00MM2131 - Immediate$7.31View Details
CONN RCPT HSG 6POS 2.00MM10073599-006LFCONN RCPT HSG 6POS 2.00MM10739 - Immediate$8.46View Details

Rectangular Connectors - Contacts

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN SOCKET 26-30AWG CRIMP GOLD77138-101LFCONN SOCKET 26-30AWG CRIMP GOLD143485 - Immediate$0.90View Details

Shunts, Jumpers

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
MINITEK JUMPER 2MM 2POD AU BLK86730-001LFMINITEK JUMPER 2MM 2POD AU BLK5346 - Immediate$4.76View Details
CONN SHUNT 2MM 2POS GOLD BLACK86730-101LFCONN SHUNT 2MM 2POS GOLD BLACK41621 - Immediate$6.08View Details
MINITEK JUMPER86730-301LFMINITEK JUMPER6128 - Immediate$3.53View Details

Crimp Wire Leads

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
MINITEKCRIMPED LEAD WITH TIN PLA10164491-001LFMINITEKCRIMPED LEAD WITH TIN PLA804 - Immediate$8.62View Details
MINITEKCRIMPED LEAD WITH TIN PLA10164491-002LFMINITEKCRIMPED LEAD WITH TIN PLA2418 - Immediate$8.62View Details
MINITEKCRIMPED LEAD WITH TIN PLA10164490-001LFMINITEKCRIMPED LEAD WITH TIN PLA811 - Immediate$8.62View Details
MINITEKCRIMPED LEAD WITH GOLD10164490-002LFMINITEKCRIMPED LEAD WITH GOLD0 - Immediate$9.20View Details
Published: 2019-02-26
