1. Arria® V GX, GT, SX, and ST Device Datasheet

This datasheet describes the electrical characteristics, switching characteristics, configuration specifications, and I/O timing

for Arria® V devices.

Arria V devices are offered in commercial and industrial grades. Commercial devices are offered in –C4 (fastest), –C5, and –

C6 speed grades. Industrial grade devices are offered in the –I3 and –I5 speed grades.

Related Information

Arria V Device Overview

Provides more information about the densities and packages of devices in the Arria V family.

1.1. Electrical Characteristics

The following sections describe the operating conditions and power consumption of Arria V devices.

1.1.1. Operating Conditions

Arria V devices are rated according to a set of defined parameters. To maintain the highest possible performance and

reliability of the Arria V devices, you must consider the operating requirements described in this section.

1.1.1.1. Absolute Maximum Ratings

This section defines the maximum operating conditions for Arria V devices. The values are based on experiments conducted

with the devices and theoretical modeling of breakdown and damage mechanisms.

The functional operation of the device is not implied for these conditions.

Caution: Conditions outside the range listed in the following table may cause permanent damage to the device. Additionally, device

operation at the absolute maximum ratings for extended periods of time may have adverse effects on the device.

AV-51002 | 2019.04.26

Send Feedback

of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current

specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel

assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in

writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing

orders for products or services.

*Other names and brands may be claimed as the property of others.

ISO

9001:2015

Registered

Table 1. Absolute Maximum Ratings for Arria V Devices

Symbol Description Minimum Maximum Unit

VCC Core voltage power supply –0.50 1.43 V

VCCP Periphery circuitry, PCI Express* (PCIe*) hard IP block, and transceiver physical

coding sublayer (PCS) power supply

–0.50 1.43 V

VCCPGM Configuration pins power supply –0.50 3.90 V

VCC_AUX Auxiliary supply –0.50 3.25 V

VCCBAT Battery back-up power supply for design security volatile key register –0.50 3.90 V

VCCPD I/O pre-driver power supply –0.50 3.90 V

VCCIO I/O power supply –0.50 3.90 V

VCCD_FPLL Phase-locked loop (PLL) digital power supply –0.50 1.80 V

VCCA_FPLL PLL analog power supply –0.50 3.25 V

VCCA_GXB Transceiver high voltage power –0.50 3.25 V

VCCH_GXB Transmitter output buffer power –0.50 1.80 V

VCCR_GXB Receiver power –0.50 1.50 V

VCCT_GXB Transmitter power –0.50 1.50 V

VCCL_GXB Transceiver clock network power –0.50 1.50 V

VIDC input voltage –0.50 3.80 V

VCC_HPS HPS core voltage and periphery circuitry power supply –0.50 1.43 V

VCCPD_HPS HPS I/O pre-driver power supply –0.50 3.90 V

VCCIO_HPS HPS I/O power supply –0.50 3.90 V

VCCRSTCLK_HPS HPS reset and clock input pins power supply –0.50 3.90 V

VCCPLL_HPS HPS PLL analog power supply –0.50 3.25 V

VCC_AUX_SHARED HPS auxiliary power supply –0.50 3.25 V

IOUT DC output current per pin –25 40 mA

TJOperating junction temperature –55 125 °C

TSTG Storage temperature (no bias) –65 150 °C

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.1.1.2. Maximum Allowed Overshoot and Undershoot Voltage

During transitions, input signals may overshoot to the voltage listed in the following table and undershoot to –2.0 V for input

currents less than 100 mA and periods shorter than 20 ns.

The maximum allowed overshoot duration is specified as a percentage of high time over the lifetime of the device. A DC signal

is equivalent to 100% duty cycle.

For example, a signal that overshoots to 4.00 V can only be at 4.00 V for ~15% over the lifetime of the device; for a device

lifetime of 10 years, this amounts to 1.5 years.

Table 2. Maximum Allowed Overshoot During Transitions for Arria V Devices

This table lists the maximum allowed input overshoot voltage and the duration of the overshoot voltage as a percentage of device lifetime.

Symbol Description Condition (V) Overshoot Duration as % of High Time Unit

Vi (AC) AC input voltage 3.8 100 %

3.85 68 %

3.9 45 %

3.95 28 %

4 15 %

4.05 13 %

4.1 11 %

4.15 9 %

4.2 8 %

4.25 7 %

4.3 5.4 %

4.35 3.2 %

4.4 1.9 %

4.45 1.1 %

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol Description Condition (V) Overshoot Duration as % of High Time Unit

4.5 0.6 %

4.55 0.4 %

4.6 0.2 %

For an overshoot of 3.8 V, the percentage of high time for the overshoot can be as high as 100% over a 10-year period.

Percentage of high time is calculated as ([delta T]/T) × 100. This 10-year period assumes that the device is always turned on

with 100% I/O toggle rate and 50% duty cycle signal.

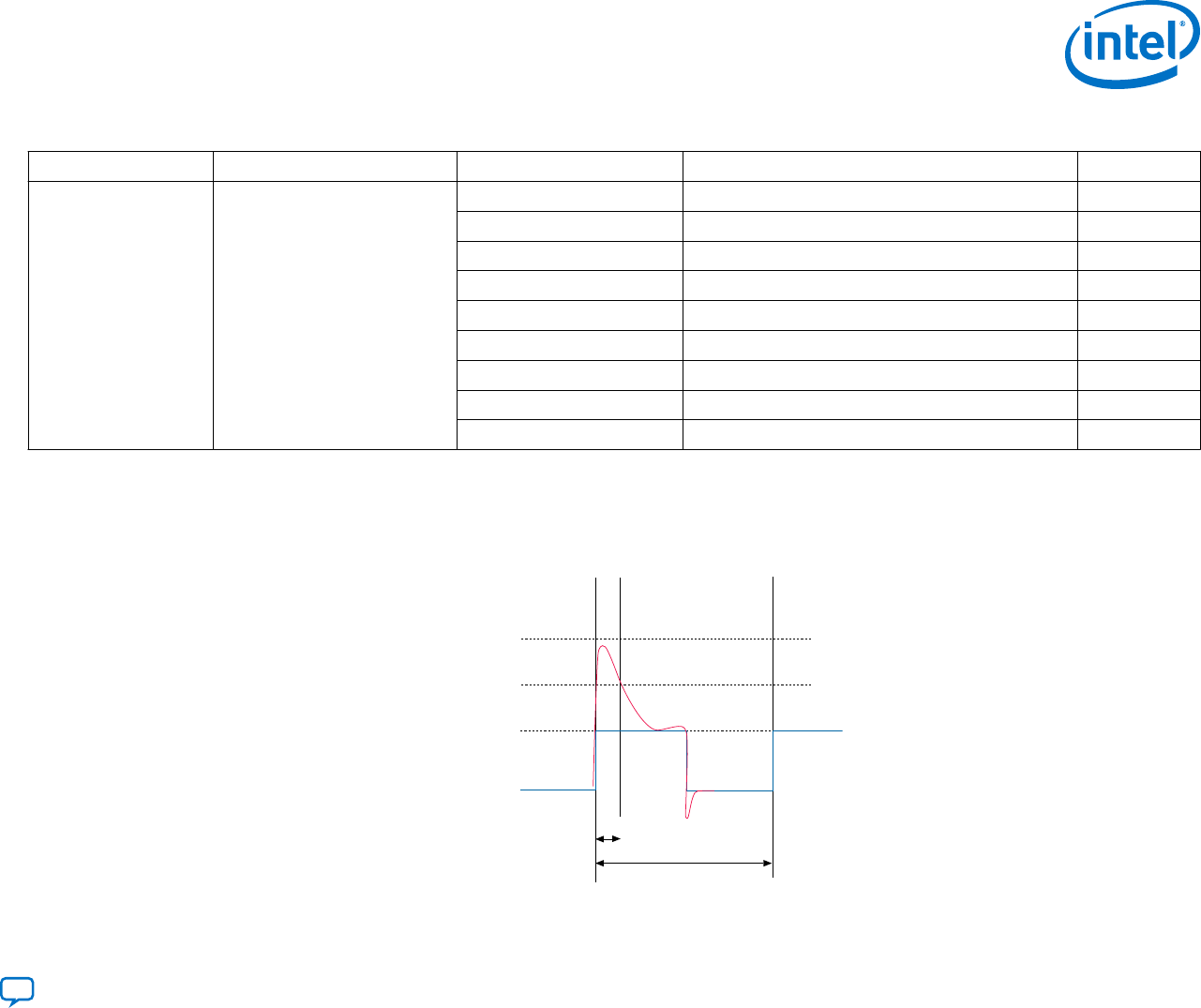

Figure 1. Arria V Devices Overshoot Duration

3.3 V

4 V

4.1 V

1.1.1.3. Recommended Operating Conditions

This section lists the functional operation limits for the AC and DC parameters for Arria V devices.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.1.1.3.1. Recommended Operating Conditions

Table 3. Recommended Operating Conditions for Arria V Devices

This table lists the steady-state voltage values expected from Arria V devices. Power supply ramps must all be strictly monotonic, without plateaus.

Symbol Description Condition Minimum(1) Typical Maximum(1) Unit

VCC Core voltage power supply –C4, –I5, –C5, –C6 1.07 1.1 1.13 V

–I3 1.12 1.15 1.18 V

VCCP Periphery circuitry, PCIe hard IP block, and

transceiver PCS power supply

–C4, –I5, –C5, –C6 1.07 1.1 1.13 V

–I3 1.12 1.15 1.18 V

VCCPGM Configuration pins power supply 3.3 V 3.135 3.3 3.465 V

3.0 V 2.85 3.0 3.15 V

2.5 V 2.375 2.5 2.625 V

1.8 V 1.71 1.8 1.89 V

VCC_AUX Auxiliary supply — 2.375 2.5 2.625 V

VCCBAT(2) Battery back-up power supply

(For design security volatile key register)

— 1.2 — 3.0 V

VCCPD(3) I/O pre-driver power supply 3.3 V 3.135 3.3 3.465 V

3.0 V 2.85 3.0 3.15 V

2.5 V 2.375 2.5 2.625 V

VCCIO I/O buffers power supply 3.3 V 3.135 3.3 3.465 V

continued...

(1) The power supply value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance

requirements. Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.

(2) If you do not use the design security feature in Arria V devices, connect VCCBAT to a 1.5-V, 2.5-V, or 3.0-V power supply. Arria V

power-on reset (POR) circuitry monitors VCCBAT. Arria V devices do not exit POR if VCCBAT is not powered up.

(3) VCCPD must be 2.5 V when VCCIO is 2.5, 1.8, 1.5, 1.35, 1.25, or 1.2 V. VCCPD must be 3.0 V when VCCIO is 3.0 V. VCCPD must be 3.3 V

when VCCIO is 3.3 V.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol Description Condition Minimum(1) Typical Maximum(1) Unit

3.0 V 2.85 3.0 3.15 V

2.5 V 2.375 2.5 2.625 V

1.8 V 1.71 1.8 1.89 V

1.5 V 1.425 1.5 1.575 V

1.35 V 1.283 1.35 1.418 V

1.25 V 1.19 1.25 1.31 V

1.2 V 1.14 1.2 1.26 V

VCCD_FPLL PLL digital voltage regulator power supply — 1.425 1.5 1.575 V

VCCA_FPLL PLL analog voltage regulator power supply — 2.375 2.5 2.625 V

VIDC input voltage — –0.5 — 3.6 V

VOOutput voltage — 0 — VCCIO V

TJOperating junction temperature Commercial 0 — 85 °C

Industrial –40 — 100 °C

tRAMP(4) Power supply ramp time Standard POR 200 µs — 100 ms —

Fast POR 200 µs — 4 ms —

(1) The power supply value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance

requirements. Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.

(4) This is also applicable to HPS power supply. For HPS power supply, refer to tRAMP specifications for standard POR when HPS_PORSEL

= 0 and tRAMP specifications for fast POR when HPS_PORSEL = 1.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.1.1.3.2. Transceiver Power Supply Operating Conditions

Table 4. Transceiver Power Supply Operating Conditions for Arria V Devices

Symbol Description Minimum(5) Typical Maximum(5) Unit

VCCA_GXBL Transceiver high voltage power (left side) 2.375 2.500 2.625 V

VCCA_GXBR Transceiver high voltage power (right side)

VCCR_GXBL GX and SX speed grades—receiver power (left side) 1.08/1.12 1.1/1.15(6)1.14/1.18 V

VCCR_GXBR GX and SX speed grades—receiver power (right side)

VCCR_GXBL GT and ST speed grades—receiver power (left side) 1.17 1.20 1.23 V

VCCR_GXBR GT and ST speed grades—receiver power (right side)

VCCT_GXBL GX and SX speed grades—transmitter power (left side) 1.08/1.12 1.1/1.15(6)1.14/1.18 V

VCCT_GXBR GX and SX speed grades—transmitter power (right side)

VCCT_GXBL GT and ST speed grades—transmitter power (left side) 1.17 1.20 1.23 V

VCCT_GXBR GT and ST speed grades—transmitter power (right side)

VCCH_GXBL Transmitter output buffer power (left side) 1.425 1.500 1.575 V

VCCH_GXBR Transmitter output buffer power (right side)

VCCL_GXBL GX and SX speed grades—clock network power (left side) 1.08/1.12 1.1/1.15(6)1.14/1.18 V

VCCL_GXBR GX and SX speed grades—clock network power (right side)

VCCL_GXBL GT and ST speed grades—clock network power (left side) 1.17 1.20 1.23 V

VCCL_GXBR GT and ST speed grades—clock network power (right side)

(5) The power supply value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance

requirements. Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.

(6) For data rate <=3.2 Gbps, connect VCCR_GXBL/R, VCCT_GXBL/R, or VCCL_GXBL/R to either 1.1-V or 1.15-V power supply. For data rate >3.2

Gbps, connect VCCR_GXBL/R, VCCT_GXBL/R, or VCCL_GXBL/R to a 1.15-V power supply. For details, refer to the Arria V GT, GX, ST, and SX

Device Family Pin Connection Guidelines.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Related Information

Arria V GT, GX, ST, and SX Device Family Pin Connection Guidelines

Provides more information about the power supply connection for different data rates.

1.1.1.3.3. HPS Power Supply Operating Conditions

Table 5. HPS Power Supply Operating Conditions for Arria V SX and ST Devices

This table lists the steady-state voltage and current values expected from Arria V system-on-a-chip (SoC) devices with Arm*-based hard processor system (HPS).

Power supply ramps must all be strictly monotonic, without plateaus. Refer to Recommended Operating Conditions for Arria V Devices table for the steady-state

voltage values expected from the FPGA portion of the Arria V SoC devices.

Symbol Description Condition Minimum(7) Typical Maximum(7) Unit

VCC_HPS HPS core

voltage and

periphery

circuitry

power

supply

–C4, –I5, –C5, –C6 1.07 1.1 1.13 V

–I3 1.12 1.15 1.18 V

VCCPD_HPS (8) HPS I/O pre-

driver power

supply

3.3 V 3.135 3.3 3.465 V

3.0 V 2.85 3.0 3.15 V

2.5 V 2.375 2.5 2.625 V

VCCIO_HPS HPS I/O

buffers

power

supply

3.3 V 3.135 3.3 3.465 V

3.0 V 2.85 3.0 3.15 V

2.5 V 2.375 2.5 2.625 V

1.8 V 1.71 1.8 1.89 V

1.5 V 1.425 1.5 1.575 V

1.35 V (9) 1.283 1.35 1.418 V

continued...

(7) The power supply value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance

requirements. Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.

(8) VCCPD_HPS must be 2.5 V when VCCIO_HPS is 2.5, 1.8, 1.5, or 1.2 V. VCCPD_HPS must be 3.0 V when VCCIO_HPS is 3.0 V. VCCPD_HPS must be

3.3 V when VCCIO_HPS is 3.3 V.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Symbol Description Condition Minimum(7) Typical Maximum(7) Unit

1.2 V 1.14 1.2 1.26 V

VCCRSTCLK_HPS HPS reset

and clock

input pins

power

supply

3.3 V 3.135 3.3 3.465 V

3.0 V 2.85 3.0 3.15 V

2.5 V 2.375 2.5 2.625 V

1.8 V 1.71 1.8 1.89 V

VCCPLL_HPS HPS PLL

analog

voltage

regulator

power

supply

— 2.375 2.5 2.625 V

VCC_AUX_SHARED HPS auxiliary

power

supply

— 2.375 2.5 2.625 V

Related Information

Recommended Operating Conditions on page 8

Provides the steady-state voltage values for the FPGA portion of the device.

1.1.1.4. DC Characteristics

1.1.1.4.1. Supply Current and Power Consumption

Intel offers two ways to estimate power for your design—the Excel-based Early Power Estimator (EPE) and the Intel®

Quartus® Prime Power Analyzer feature.

Use the Excel-based EPE before you start your design to estimate the supply current for your design. The EPE provides a

magnitude estimate of the device power because these currents vary greatly with the resources you use.

(7) The power supply value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance

requirements. Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.

(9) VCCIO_HPS 1.35 V is supported for HPS row I/O bank only.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

The Intel Quartus Prime Power Analyzer provides better quality estimates based on the specifics of the design after you

complete place-and-route. The Power Analyzer can apply a combination of user-entered, simulation-derived, and estimated

signal activities that, when combined with detailed circuit models, yields very accurate power estimates.

Related Information

•Early Power Estimator User Guide

Provides more information about power estimation tools.

•Power Analysis chapter, Intel Quartus Prime Handbook

Provides more information about power estimation tools.

1.1.1.4.2. I/O Pin Leakage Current

Table 6. I/O Pin Leakage Current for Arria V Devices

Symbol Description Condition Min Typ Max Unit

IIInput pin VI = 0 V to VCCIOMAX –30 — 30 µA

IOZ Tri-stated I/O pin VO = 0 V to VCCIOMAX –30 — 30 µA

1.1.1.4.3. Bus Hold Specifications

Table 7. Bus Hold Parameters for Arria V Devices

The bus-hold trip points are based on calculated input voltages from the JEDEC* standard.

Parameter Symbol Condition VCCIO (V) Unit

1.2 1.5 1.8 2.5 3.0 3.3

Min Max Min Max Min Max Min Max Min Max Min Max

Bus-hold, low,

sustaining

current

ISUSL VIN > VIL

(max)

8 — 12 — 30 — 50 — 70 — 70 — µA

Bus-hold, high,

sustaining

current

ISUSH VIN < VIH

(min)

–8 — –12 — –30 — –50 — –70 — –70 — µA

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Parameter Symbol Condition VCCIO (V) Unit

1.2 1.5 1.8 2.5 3.0 3.3

Min Max Min Max Min Max Min Max Min Max Min Max

Bus-hold, low,

overdrive current

IODL 0 V < VIN <

VCCIO

— 125 — 175 — 200 — 300 — 500 — 500 µA

Bus-hold, high,

overdrive current

IODH 0 V <VIN

<VCCIO

— –125 — –175 — –200 — –300 — –500 — –500 µA

Bus-hold trip

point

VTRIP — 0.3 0.9 0.375 1.125 0.68 1.07 0.7 1.7 0.8 2 0.8 2 V

1.1.1.4.4. OCT Calibration Accuracy Specifications

If you enable on-chip termination (OCT) calibration, calibration is automatically performed at power up for I/Os connected to

the calibration block.

Table 8. OCT Calibration Accuracy Specifications for Arria V Devices

Calibration accuracy for the calibrated on-chip series termination (RS OCT) and on-chip parallel termination (RT OCT) are applicable at the moment of calibration.

When process, voltage, and temperature (PVT) conditions change after calibration, the tolerance may change.

Symbol Description Condition (V) Calibration Accuracy Unit

–I3, –C4 –I5, –C5 –C6

25-Ω RSInternal series termination with

calibration (25-Ω setting)

VCCIO = 3.0, 2.5, 1.8, 1.5,

1.2

±15 ±15 ±15 %

50-Ω RSInternal series termination with

calibration (50-Ω setting)

VCCIO = 3.0, 2.5, 1.8, 1.5,

1.2

±15 ±15 ±15 %

34-Ω and 40-Ω RSInternal series termination with

calibration (34-Ω and 40-Ω setting)

VCCIO = 1.5, 1.35, 1.25, 1.2 ±15 ±15 ±15 %

48-Ω, 60-Ω, and 80-Ω RSInternal series termination with

calibration (48-Ω, 60-Ω, and 80-Ω

setting)

VCCIO = 1.2 ±15 ±15 ±15 %

50-Ω RTInternal parallel termination with

calibration (50-Ω setting)

VCCIO = 2.5, 1.8, 1.5, 1.2 –10 to +40 –10 to +40 –10 to +40 %

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol Description Condition (V) Calibration Accuracy Unit

–I3, –C4 –I5, –C5 –C6

20-Ω, 30-Ω, 40-Ω,60-Ω, and

120-Ω RT

Internal parallel termination with

calibration (20-Ω, 30-Ω, 40-Ω, 60-Ω,

and 120-Ω setting)

VCCIO = 1.5, 1.35, 1.25 –10 to +40 –10 to +40 –10 to +40 %

60-Ω and 120-Ω RTInternal parallel termination with

calibration (60-Ω and 120-Ω setting)

VCCIO = 1.2 –10 to +40 –10 to +40 –10 to +40 %

25-Ω RS_left_shift Internal left shift series termination

with calibration (25-Ω RS_left_shift

setting)

VCCIO = 3.0, 2.5, 1.8, 1.5,

1.2

±15 ±15 ±15 %

1.1.1.4.5. OCT Without Calibration Resistance Tolerance Specifications

Table 9. OCT Without Calibration Resistance Tolerance Specifications for Arria V Devices

This table lists the Arria V OCT without calibration resistance tolerance to PVT changes.

Symbol Description Condition (V) Resistance Tolerance Unit

–I3, –C4 –I5, –C5 –C6

25-Ω RSInternal series termination without

calibration (25-Ω setting)

VCCIO = 3.0, 2.5 ±30 ±40 ±40 %

25-Ω RSInternal series termination without

calibration (25-Ω setting)

VCCIO = 1.8, 1.5 ±30 ±40 ±40 %

25-Ω RSInternal series termination without

calibration (25-Ω setting)

VCCIO = 1.2 ±35 ±50 ±50 %

50-Ω RSInternal series termination without

calibration (50-Ω setting)

VCCIO = 3.0, 2.5 ±30 ±40 ±40 %

50-Ω RSInternal series termination without

calibration (50-Ω setting)

VCCIO = 1.8, 1.5 ±30 ±40 ±40 %

50-Ω RSInternal series termination without

calibration (50-Ω setting)

VCCIO = 1.2 ±35 ±50 ±50 %

100-Ω RDInternal differential termination (100-Ω

setting)

VCCIO = 2.5 ±25 ±40 ±40 %

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

dR dR Rm: REAL 1+ EXAT 4; WXAV

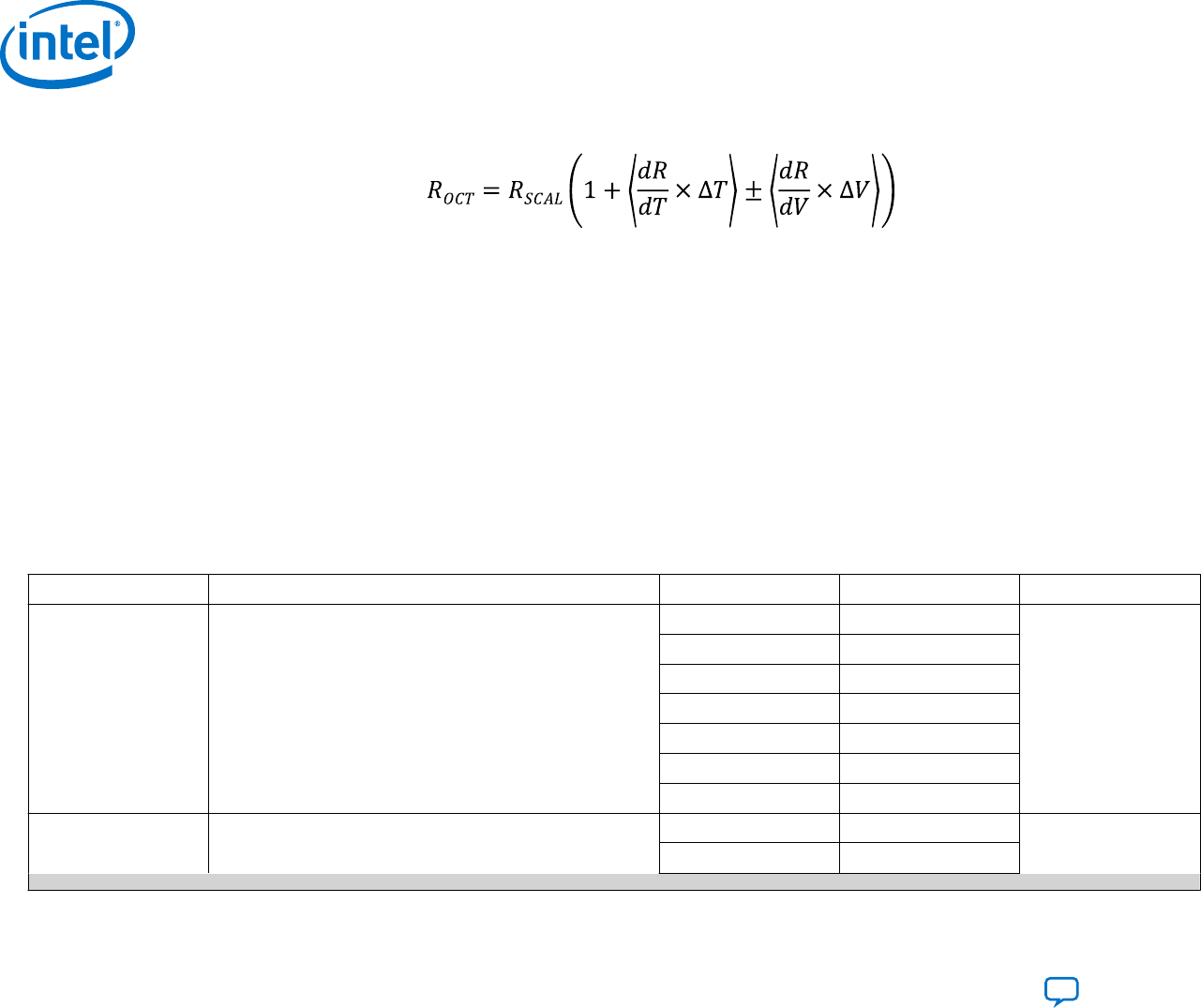

Figure 2. Equation for OCT Variation Without Recalibration

The definitions for the equation are as follows:

• The ROCT value calculated shows the range of OCT resistance with the variation of temperature and VCCIO.

• RSCAL is the OCT resistance value at power-up.

• ΔT is the variation of temperature with respect to the temperature at power up.

• ΔV is the variation of voltage with respect to the VCCIO at power up.

• dR/dT is the percentage change of RSCAL with temperature.

• dR/dV is the percentage change of RSCAL with voltage.

1.1.1.4.6. OCT Variation after Power-Up Calibration

Table 10. OCT Variation after Power-Up Calibration for Arria V Devices

This table lists OCT variation with temperature and voltage after power-up calibration. The OCT variation is valid for a VCCIO range of ±5% and a temperature

range of 0°C to 85°C.

Symbol Description VCCIO (V) Value Unit

dR/dV OCT variation with voltage without recalibration 3.0 0.100 %/mV

2.5 0.100

1.8 0.100

1.5 0.100

1.35 0.150

1.25 0.150

1.2 0.150

dR/dT OCT variation with temperature without recalibration 3.0 0.189 %/°C

2.5 0.208

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol Description VCCIO (V) Value Unit

1.8 0.266

1.5 0.273

1.35 0.200

1.25 0.200

1.2 0.317

1.1.1.4.7. Pin Capacitance

Table 11. Pin Capacitance for Arria V Devices

Symbol Description Maximum Unit

CIOTB Input capacitance on top/bottom I/O pins 6 pF

CIOLR Input capacitance on left/right I/O pins 6 pF

COUTFB Input capacitance on dual-purpose clock output/feedback pins 6 pF

CIOVREF Input capacitance on VREF pins 48 pF

1.1.1.4.8. Hot Socketing

Table 12. Hot Socketing Specifications for Arria V Devices

Symbol Description Maximum Unit

IIOPIN (DC) DC current per I/O pin 300 μA

IIOPIN (AC) AC current per I/O pin 8(10) mA

IXCVR-TX (DC) DC current per transceiver transmitter (TX) pin 100 mA

IXCVR-RX (DC) DC current per transceiver receiver (RX) pin 50 mA

(10) The I/O ramp rate is 10 ns or more. For ramp rates faster than 10 ns, |IIOPIN| = C dv/dt, in which C is the I/O pin capacitance and

dv/dt is the slew rate.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.1.1.4.9. Internal Weak Pull-Up Resistor

All I/O pins, except configuration, test, and JTAG pins, have an option to enable weak pull-up.

Table 13. Internal Weak Pull-Up Resistor Values for Arria V Devices

Symbol Description Condition (V)(11) Value(12) Unit

RPU Value of the I/O pin pull-up resistor before and during configuration, as well

as user mode if you have enabled the programmable pull-up resistor

option.

VCCIO = 3.3 ±5% 25 kΩ

VCCIO = 3.0 ±5% 25 kΩ

VCCIO = 2.5 ±5% 25 kΩ

VCCIO = 1.8 ±5% 25 kΩ

VCCIO = 1.5 ±5% 25 kΩ

VCCIO = 1.35 ±5% 25 kΩ

VCCIO = 1.25 ±5% 25 kΩ

VCCIO = 1.2 ±5% 25 kΩ

Related Information

Arria V GT, GX, ST, and SX Device Family Pin Connection Guidelines

Provides more information about the pins that support internal weak pull-up and internal weak pull-down features.

1.1.1.5. I/O Standard Specifications

Tables in this section list the input voltage (VIH and VIL), output voltage (VOH and VOL), and current drive characteristics (IOH

and IOL) for various I/O standards supported by Arria V devices.

You must perform timing closure analysis to determine the maximum achievable frequency for general purpose I/O standards.

(11) Pin pull-up resistance values may be lower if an external source drives the pin higher than VCCIO.

(12) Valid with ±10% tolerances to cover changes over PVT.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

1.1.1.5.1. Single-Ended I/O Standards

Table 14. Single-Ended I/O Standards for Arria V Devices

I/O Standard VCCIO (V) VIL (V) VIH (V) VOL (V) VOH (V) IOL(13)

(mA)

IOH(13)

(mA)

Min Typ Max Min Max Min Max Max Min

3.3-V LVTTL 3.135 3.3 3.465 –0.3 0.8 1.7 3.6 0.45 2.4 4 –4

3.3-V LVCMOS 3.135 3.3 3.465 –0.3 0.8 1.7 3.6 0.2 VCCIO – 0.2 2 –2

3.0-V LVTTL 2.85 3 3.15 –0.3 0.8 1.7 3.6 0.4 2.4 2 –2

3.0-V LVCMOS 2.85 3 3.15 –0.3 0.8 1.7 3.6 0.2 VCCIO – 0.2 0.1 –0.1

3.0-V PCI* 2.85 3 3.15 — 0.3 × VCCIO 0.5 × VCCIO VCCIO + 0.3 0.1 × VCCIO 0.9 × VCCIO 1.5 –0.5

3.0-V PCI-X 2.85 3 3.15 — 0.35 × VCCIO 0.5 × VCCIO VCCIO + 0.3 0.1 × VCCIO 0.9 × VCCIO 1.5 –0.5

2.5 V 2.375 2.5 2.625 –0.3 0.7 1.7 3.6 0.4 2 1 –1

1.8 V 1.71 1.8 1.89 –0.3 0.35 × VCCIO 0.65 × VCCIO VCCIO + 0.3 0.45 VCCIO – 0.45 2 –2

1.5 V 1.425 1.5 1.575 –0.3 0.35 × VCCIO 0.65 × VCCIO VCCIO + 0.3 0.25 × VCCIO 0.75 × VCCIO 2 –2

1.2 V 1.14 1.2 1.26 –0.3 0.35 × VCCIO 0.65 × VCCIO VCCIO + 0.3 0.25 × VCCIO 0.75 × VCCIO 2 –2

1.1.1.5.2. Single-Ended SSTL, HSTL, and HSUL I/O Reference Voltage Specifications

Table 15. Single-Ended SSTL, HSTL, and HSUL I/O Reference Voltage Specifications for Arria V Devices

I/O Standard VCCIO (V) VREF (V) VTT (V)

Min Typ Max Min Typ Max Min Typ Max

SSTL-2 Class I,

2.375 2.5 2.625 0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO VREF – 0.04 VREF VREF + 0.04

SSTL-18 Class I,

1.71 1.8 1.89 0.833 0.9 0.969 VREF – 0.04 VREF VREF + 0.04

continued...

(13) To meet the IOL and IOH specifications, you must set the current strength settings accordingly. For example, to meet the 3.3-V LVTTL

specification (4 mA), you should set the current strength settings to 4 mA. Setting at lower current strength may not meet the IOL

and IOH specifications in the datasheet.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

I/O Standard VCCIO (V) VREF (V) VTT (V)

Min Typ Max Min Typ Max Min Typ Max

SSTL-15 Class I,

1.425 1.5 1.575 0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO 0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO

SSTL-135 Class

I, II

1.283 1.35 1.418 0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO 0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO

SSTL-125 Class

I, II

1.19 1.25 1.26 0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO 0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO

HSTL-18 Class I,

1.71 1.8 1.89 0.85 0.9 0.95 — VCCIO/2 —

HSTL-15 Class I,

1.425 1.5 1.575 0.68 0.75 0.9 — VCCIO/2 —

HSTL-12 Class I,

1.14 1.2 1.26 0.47 × VCCIO 0.5 × VCCIO 0.53 × VCCIO — VCCIO/2 —

HSUL-12 1.14 1.2 1.3 0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO — — —

1.1.1.5.3. Single-Ended SSTL, HSTL, and HSUL I/O Standards Signal Specifications

Table 16. Single-Ended SSTL, HSTL, and HSUL I/O Standards Signal Specifications for Arria V Devices

I/O Standard VIL(DC) (V) VIH(DC) (V) VIL(AC) (V) VIH(AC) (V) VOL (V) VOH (V) IOL(14)

(mA)

IOH(14)

(mA)

Min Max Min Max Max Min Max Min

SSTL-2 Class I –0.3 VREF – 0.15 VREF + 0.15 VCCIO + 0.3 VREF – 0.31 VREF + 0.31 VTT – 0.608 VTT + 0.608 8.1 –8.1

SSTL-2 Class

–0.3 VREF – 0.15 VREF + 0.15 VCCIO + 0.3 VREF – 0.31 VREF + 0.31 VTT – 0.81 VTT + 0.81 16.2 –16.2

SSTL-18 Class

–0.3 VREF – 0.125 VREF + 0.125 VCCIO + 0.3 VREF – 0.25 VREF + 0.25 VTT – 0.603 VTT + 0.603 6.7 –6.7

SSTL-18 Class

–0.3 VREF – 0.125 VREF + 0.125 VCCIO + 0.3 VREF – 0.25 VREF + 0.25 0.28 VCCIO – 0.28 13.4 –13.4

continued...

(14) To meet the IOL and IOH specifications, you must set the current strength settings accordingly. For example, to meet the SSTL15CI

specification (8 mA), you should set the current strength settings to 8 mA. Setting at lower current strength may not meet the IOL

and IOH specifications in the datasheet.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

I/O Standard VIL(DC) (V) VIH(DC) (V) VIL(AC) (V) VIH(AC) (V) VOL (V) VOH (V) IOL(14)

(mA)

IOH(14)

(mA)

Min Max Min Max Max Min Max Min

SSTL-15 Class

— VREF – 0.1 VREF + 0.1 — VREF – 0.175 VREF + 0.175 0.2 × VCCIO 0.8 × VCCIO 8 –8

SSTL-15 Class

— VREF – 0.1 VREF + 0.1 — VREF – 0.175 VREF + 0.175 0.2 × VCCIO 0.8 × VCCIO 16 –16

SSTL-135 — VREF – 0.09 VREF + 0.09 — VREF – 0.16 VREF + 0.16 0.2 × VCCIO 0.8 × VCCIO — —

SSTL-125 — VREF – 0.85 VREF + 0.85 — VREF – 0.15 VREF + 0.15 0.2 × VCCIO 0.8 × VCCIO — —

HSTL-18 Class

— VREF – 0.1 VREF + 0.1 — VREF – 0.2 VREF + 0.2 0.4 VCCIO – 0.4 8 –8

HSTL-18 Class

— VREF – 0.1 VREF + 0.1 — VREF – 0.2 VREF + 0.2 0.4 VCCIO – 0.4 16 –16

HSTL-15 Class

— VREF – 0.1 VREF + 0.1 — VREF – 0.2 VREF + 0.2 0.4 VCCIO – 0.4 8 –8

HSTL-15 Class

— VREF – 0.1 VREF + 0.1 — VREF – 0.2 VREF + 0.2 0.4 VCCIO – 0.4 16 –16

HSTL-12 Class

–0.15 VREF – 0.08 VREF + 0.08 VCCIO + 0.15 VREF – 0.15 VREF + 0.15 0.25 × VCCIO 0.75 × VCCIO 8 –8

HSTL-12 Class

–0.15 VREF – 0.08 VREF + 0.08 VCCIO+ 0.15 VREF – 0.15 VREF + 0.15 0.25 × VCCIO 0.75 × VCCIO 16 –16

HSUL-12 — VREF – 0.13 VREF + 0.13 — VREF – 0.22 VREF + 0.22 0.1 × VCCIO 0.9 × VCCIO — —

(14) To meet the IOL and IOH specifications, you must set the current strength settings accordingly. For example, to meet the SSTL15CI

specification (8 mA), you should set the current strength settings to 8 mA. Setting at lower current strength may not meet the IOL

and IOH specifications in the datasheet.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.1.1.5.4. Differential SSTL I/O Standards

Table 17. Differential SSTL I/O Standards for Arria V Devices

I/O Standard VCCIO (V) VSWING(DC) (V) VX(AC) (V) VSWING(AC) (V)

Min Typ Max Min Max Min Typ Max Min Max

SSTL-2 Class I,

2.375 2.5 2.625 0.3 VCCIO + 0.6 VCCIO/2 – 0.2 — VCCIO/2 + 0.2 0.62 VCCIO + 0.6

SSTL-18 Class

I, II

1.71 1.8 1.89 0.25 VCCIO + 0.6 VCCIO/2 –

0.175

— VCCIO/2 +

0.175

0.5 VCCIO + 0.6

SSTL-15 Class

I, II

1.425 1.5 1.575 0.2 (15)VCCIO/2 – 0.15 — VCCIO/2 + 0.15 2(VIH(AC) –

VREF)

2(VIL(AC) –

VREF)

SSTL-135 1.283 1.35 1.45 0.18 (15)VCCIO/2 – 0.15 VCCIO/2 VCCIO/2 + 0.15 2(VIH(AC) –

VREF)

2(VIL(AC) –

VREF)

SSTL-125 1.19 1.25 1.31 0.18 (15)VCCIO/2 – 0.15 VCCIO/2 VCCIO/2 + 0.15 2(VIH(AC) –

VREF)

2(VIL(AC) –

VREF)

1.1.1.5.5. Differential HSTL and HSUL I/O Standards

Table 18. Differential HSTL and HSUL I/O Standards for Arria V Devices

I/O Standard VCCIO (V) VDIF(DC) (V) VX(AC) (V) VCM(DC) (V) VDIF(AC) (V)

Min Typ Max Min Max Min Typ Max Min Typ Max Min Max

HSTL-18 Class

I, II

1.71 1.8 1.89 0.2 — 0.78 — 1.12 0.78 — 1.12 0.4 —

HSTL-15 Class

I, II

1.425 1.5 1.575 0.2 — 0.68 — 0.9 0.68 — 0.9 0.4 —

HSTL-12 Class

I, II

1.14 1.2 1.26 0.16 VCCIO + 0.3 — 0.5 × VCCIO — 0.4 × VCCIO 0.5 × VCCIO 0.6 × VCCIO 0.3 VCCIO +

0.48

HSUL-12 1.14 1.2 1.3 0.26 0.26 0.5 × VCCIO

– 0.12

0.5 × VCCIO 0.5 × VCCIO

+ 0.12

0.4 × VCCIO 0.5 × VCCIO 0.6 × VCCIO 0.44 0.44

(15) The maximum value for VSWING(DC) is not defined. However, each single-ended signal needs to be within the respective single-ended

limits (VIH(DC) and VIL(DC)).

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

1.1.1.5.6. Differential I/O Standard Specifications

Table 19. Differential I/O Standard Specifications for Arria V Devices

Differential inputs are powered by VCCPD which requires 2.5 V.

I/O Standard VCCIO (V) VID (mV)(16) VICM(DC) (V) VOD (V)(17) VOCM (V)(17)(18)

Min Typ Max Min Condition Max Min Condition Max Min Typ Max Min Typ Max

PCML Transmitter, receiver, and input reference clock pins of high-speed transceivers use the PCML I/O standard. For transmitter, receiver, and reference clock

I/O pin specifications, refer to Transceiver Specifications for Arria V GX and SX Devices and Transceiver Specifications for Arria V GT and ST Devices

tables.

2.5 V LVDS(19) 2.375 2.5 2.625 100 VCM = 1.25

— 0.05 DMAX ≤ 1.25

Gbps

1.80 0.247 — 0.6 1.125 1.25 1.375

— 1.05 DMAX > 1.25

Gbps

1.55

RSDS (HIO)(20) 2.375 2.5 2.625 100 VCM = 1.25

— 0.25 — 1.45 0.1 0.2 0.6 0.5 1.2 1.4

continued...

(16) The minimum VID value is applicable over the entire common mode range, VCM.

(17) RL range: 90 ≤ RL ≤ 110 Ω.

(18) This applies to default pre-emphasis setting only.

(19) For optimized LVDS receiver performance, the receiver voltage input range must be within 1.0 V to 1.6 V for data rates above 1.25

Gbps and 0 V to 1.85 V for data rates below 1.25 Gbps.

(20) For optimized RSDS receiver performance, the receiver voltage input range must be within 0.25 V to 1.45 V.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

I/O Standard VCCIO (V) VID (mV)(16) VICM(DC) (V) VOD (V)(17) VOCM (V)(17)(18)

Min Typ Max Min Condition Max Min Condition Max Min Typ Max Min Typ Max

Mini-LVDS (HIO)

(21)

2.375 2.5 2.625 200 — 600 0.300 — 1.425 0.25 — 0.6 1 1.2 1.4

LVPECL(22) — — — 300 — — 0.60 DMAX ≤ 700

Mbps

1.80 — — — — — —

1.00 DMAX > 700

Mbps

1.60

Related Information

•Transceiver Specifications for Arria V GX and SX Devices on page 25

Provides the specifications for transmitter, receiver, and reference clock I/O pin.

•Transceiver Specifications for Arria V GT and ST Devices on page 30

Provides the specifications for transmitter, receiver, and reference clock I/O pin.

1.2. Switching Characteristics

This section provides performance characteristics of Arria V core and periphery blocks.

(16) The minimum VID value is applicable over the entire common mode range, VCM.

(17) RL range: 90 ≤ RL ≤ 110 Ω.

(18) This applies to default pre-emphasis setting only.

(21) For optimized Mini-LVDS receiver performance, the receiver voltage input range must be within 0.3 V to 1.425 V.

(22) For optimized LVPECL receiver performance, the receiver voltage input range must be within 0.85 V to 1.75 V for data rates above

700 Mbps and 0.45 V to 1.95 V for data rates below 700 Mbps.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

1.2.1. Transceiver Performance Specifications

1.2.1.1. Transceiver Specifications for Arria V GX and SX Devices

Table 20. Reference Clock Specifications for Arria V GX and SX Devices

Symbol/Description Condition Transceiver Speed Grade 4 Transceiver Speed Grade 6 Unit

Min Typ Max Min Typ Max

Supported I/O standards 1.2 V PCML, 1.4 V PCML,1.5 V PCML, 2.5 V PCML, Differential LVPECL(23), HCSL, and LVDS

Input frequency from REFCLK

input pins

— 27 — 710 27 — 710 MHz

Rise time Measure at ±60 mV of

differential signal(24)

— — 400 — — 400 ps

Fall time Measure at ±60 mV of

differential signal(24)

— — 400 — — 400 ps

Duty cycle — 45 — 55 45 — 55 %

Peak-to-peak differential input

voltage

— 200 — 300(25)/

2000

200 — 300(25)/

2000

Spread-spectrum modulating clock

frequency

PCIe 30 — 33 30 — 33 kHz

Spread-spectrum downspread PCIe — 0 to –0.5% — — 0 to –0.5% — —

On-chip termination resistors — — 100 — — 100 — Ω

VICM (AC coupled) — — 1.1/1.15(26)— — 1.1/1.15(26)— V

continued...

(23) Differential LVPECL signal levels must comply to the minimum and maximum peak-to-peak differential input voltage specified in this

table.

(24) REFCLK performance requires to meet transmitter REFCLK phase noise specification.

(25) The maximum peak-to peak differential input voltage of 300 mV is allowed for DC coupled link.

(26) For data rate ≤3.2 Gbps, connect VCCR_GXBL/R to either 1.1-V or 1.15-V power supply. For data rate >3.2 Gbps, connect VCCR_GXBL/R to

a 1.15-V power supply. For details, refer to the Arria V GT, GX, ST, and SX Device Family Pin Connection Guidelines.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Symbol/Description Condition Transceiver Speed Grade 4 Transceiver Speed Grade 6 Unit

Min Typ Max Min Typ Max

VICM (DC coupled) HCSL I/O standard for the

PCIe reference clock

250 — 550 250 — 550 mV

Transmitter REFCLK phase

noise(27)

10 Hz — — –50 — — –50 dBc/Hz

100 Hz — — –80 — — –80 dBc/Hz

1 KHz — — –110 — — –110 dBc/Hz

10 KHz — — –120 — — –120 dBc/Hz

100 KHz — — –120 — — –120 dBc/Hz

≥1 MHz — — –130 — — –130 dBc/Hz

RREF — — 2000 ±1% — — 2000 ±1% — Ω

Table 21. Transceiver Clocks Specifications for Arria V GX and SX Devices

Symbol/Description Condition Transceiver Speed Grade 4 Transceiver Speed Grade 6 Unit

Min Typ Max Min Typ Max

fixedclk clock frequency PCIe Receiver Detect — 125 — — 125 — MHz

Transceiver Reconfiguration

Controller Intel FPGA IP

(mgmt_clk_clk) clock frequency

— 75 — 125 75 — 125 MHz

Table 22. Receiver Specifications for Arria V GX and SX Devices

Symbol/Description Condition Transceiver Speed Grade 4 Transceiver Speed Grade 6 Unit

Min Typ Max Min Typ Max

Supported I/O standards 1.5 V PCML, 2.5 V PCML, LVPECL, and LVDS

Data rate(28) — 611 — 6553.6 611 — 3125 Mbps

continued...

(27) The transmitter REFCLK phase jitter is 30 ps p-p at bit error rate (BER) 10-12.

(28) To support data rates lower than the minimum specification through oversampling, use the CDR in LTR mode only.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol/Description Condition Transceiver Speed Grade 4 Transceiver Speed Grade 6 Unit

Min Typ Max Min Typ Max

Absolute VMAX for a receiver pin(29) — — — 1.2 — — 1.2 V

Absolute VMIN for a receiver pin — –0.4 — — –0.4 — — V

Maximum peak-to-peak differential

input voltage VID (diff p-p) before

device configuration

— — — 1.6 — — 1.6 V

Maximum peak-to-peak differential

input voltage VID (diff p-p) after

device configuration

— — — 2.2 — — 2.2 V

Minimum differential eye opening

at the receiver serial input pins(30)

— 100 — — 100 — — mV

VICM (AC coupled) — — 0.7/0.75/0.8

(31)

— — 0.7/0.75/0.8

(31)

— mV

VICM (DC coupled) ≤ 3.2Gbps(32)670 700 730 670 700 730 mV

Differential on-chip termination

resistors

85-Ω setting — 85 — — 85 — Ω

100-Ω setting — 100 — — 100 — Ω

120-Ω setting — 120 — — 120 — Ω

150-Ω setting — 150 — — 150 — Ω

continued...

(29) The device cannot tolerate prolonged operation at this absolute maximum.

(30) The differential eye opening specification at the receiver input pins assumes that you have disabled the Receiver Equalization

feature. If you enable the Receiver Equalization feature, the receiver circuitry can tolerate a lower minimum eye opening,

depending on the equalization level.

(31) The AC coupled VICM = 700 mV for Arria V GX and SX in PCIe mode only. The AC coupled VICM = 750 mV for Arria V GT and ST in

PCIe mode only.

(32) For standard protocol compliance, use AC coupling.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Symbol/Description Condition Transceiver Speed Grade 4 Transceiver Speed Grade 6 Unit

Min Typ Max Min Typ Max

tLTR(33) — — — 10 — — 10 µs

tLTD(34) — 4 — — 4 — — µs

tLTD_manual(35) — 4 — — 4 — — µs

tLTR_LTD_manual(36) — 15 — — 15 — — µs

Programmable ppm detector(37) — ±62.5, 100, 125, 200, 250, 300, 500, and 1000 ppm

Run length — — — 200 — — 200 UI

Programmable equalization AC and

DC gain

AC gain setting = 0 to 3(38)

DC gain setting = 0 to 1

Refer to CTLE Response at Data Rates > 3.25 Gbps across Supported AC Gain and DC

Gain for Arria V GX, GT, SX, and ST Devices and CTLE Response at Data Rates ≤ 3.25

Gbps across Supported AC Gain and DC Gain for Arria V GX, GT, SX, and ST Devices

diagrams.

Table 23. Transmitter Specifications for Arria V GX and SX Devices

Symbol/Description Condition Transceiver Speed Grade 4 Transceiver Speed Grade 6 Unit

Min Typ Max Min Typ Max

Supported I/O standards 1.5 V PCML

Data rate — 611 — 6553.6 611 — 3125 Mbps

continued...

(33) tLTR is the time required for the receive CDR to lock to the input reference clock frequency after coming out of reset.

(34) tLTD is time required for the receiver CDR to start recovering valid data after the rx_is_lockedtodata signal goes high.

(35) tLTD_manual is the time required for the receiver CDR to start recovering valid data after the rx_is_lockedtodata signal goes high

when the CDR is functioning in the manual mode.

(36) tLTR_LTD_manual is the time the receiver CDR must be kept in lock to reference (LTR) mode after the rx_is_lockedtoref signal goes

high when the CDR is functioning in the manual mode.

(37) The rate match FIFO supports only up to ±300 parts per million (ppm).

(38) The Intel Quartus Prime software allows AC gain setting = 3 for design with data rate between 611 Mbps and 1.25 Gbps only.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol/Description Condition Transceiver Speed Grade 4 Transceiver Speed Grade 6 Unit

Min Typ Max Min Typ Max

VOCM (AC coupled) — — 650 — — 650 — mV

VOCM (DC coupled) ≤ 3.2Gbps(32)670 700 730 670 700 730 mV

Differential on-chip termination

resistors

85-Ω setting — 85 — — 85 — Ω

100-Ω setting — 100 — — 100 — Ω

120-Ω setting — 120 — — 120 — Ω

150-Ω setting — 150 — — 150 — Ω

Intra-differential pair skew TX VCM = 0.65 V (AC

coupled) and slew rate of

15 ps

— — 15 — — 15 ps

Intra-transceiver block transmitter

channel-to-channel skew

×6 PMA bonded mode — — 180 — — 180 ps

Inter-transceiver block transmitter

channel-to-channel skew(39)

×N PMA bonded mode — — 500 — — 500 ps

Table 24. CMU PLL Specifications for Arria V GX and SX Devices

Symbol/Description Transceiver Speed Grade 4 Transceiver Speed Grade 6 Unit

Min Max Min Max

Supported data range 611 6553.6 611 3125 Mbps

fPLL supported data range 611 3125 611 3125 Mbps

Table 25. Transceiver-FPGA Fabric Interface Specifications for Arria V GX and SX Devices

Symbol/Description Transceiver Speed Grade 4 and 6 Unit

Min Max

Interface speed (single-width mode) 25 187.5 MHz

Interface speed (double-width mode) 25 163.84 MHz

(39) This specification is only applicable to channels on one side of the device across two transceiver banks.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Related Information

•CTLE Response at Data Rates > 3.25 Gbps across Supported AC Gain and DC Gain on page 36

•CTLE Response at Data Rates ≤ 3.25 Gbps across Supported AC Gain and DC Gain on page 37

•Arria V GT, GX, ST, and SX Device Family Pin Connection Guidelines

Provides more information about the power supply connection for different data rates.

1.2.1.2. Transceiver Specifications for Arria V GT and ST Devices

Table 26. Reference Clock Specifications for Arria V GT and ST Devices

Symbol/Description Condition Transceiver Speed Grade 3 Unit

Min Typ Max

Supported I/O standards 1.2 V PCML, 1.4 VPCML, 1.5 V PCML, 2.5 V PCML, Differential LVPECL(40), HCSL, and LVDS

Input frequency from REFCLK input pins — 27 — 710 MHz

Rise time Measure at ±60 mV of differential

signal(41)

— — 400 ps

Fall time Measure at ±60 mV of differential

signal(41)

— — 400 ps

Duty cycle — 45 — 55 %

Peak-to-peak differential input voltage — 200 — 300(42)/2000 mV

Spread-spectrum modulating clock frequency PCIe 30 — 33 kHz

Spread-spectrum downspread PCIe — 0 to –0.5% — —

On-chip termination resistors — — 100 — Ω

VICM (AC coupled) — — 1.2 — V

continued...

(40) Differential LVPECL signal levels must comply to the minimum and maximum peak-to-peak differential input voltage specified in this

table.

(41) REFCLK performance requires to meet transmitter REFCLK phase noise specification.

(42) The maximum peak-to peak differential input voltage of 300 mV is allowed for DC coupled link.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol/Description Condition Transceiver Speed Grade 3 Unit

Min Typ Max

VICM (DC coupled) HCSL I/O standard for the PCIe

reference clock

250 — 550 mV

Transmitter REFCLK phase noise(43) 10 Hz — — –50 dBc/Hz

100 Hz — — –80 dBc/Hz

1 KHz — — –110 dBc/Hz

10 KHz — — –120 dBc/Hz

100 KHz — — –120 dBc/Hz

≥ 1 MHz — — –130 dBc/Hz

RREF — — 2000 ±1% — Ω

Table 27. Transceiver Clocks Specifications for Arria V GT and ST Devices

Symbol/Description Condition Transceiver Speed Grade 3 Unit

Min Typ Max

fixedclk clock frequency PCIe Receiver Detect — 125 — MHz

Transceiver Reconfiguration Controller Intel FPGA

IP (mgmt_clk_clk) clock frequency

— 75 — 125 MHz

Table 28. Receiver Specifications for Arria V GT and ST Devices

Symbol/Description Condition Transceiver Speed Grade 3 Unit

Min Typ Max

Supported I/O Standards 1.5 V PCML, 2.5 V PCML, LVPECL, and LVDS

Data rate (6-Gbps transceiver)(44)— 611 — 6553.6 Mbps

continued...

(43) The transmitter REFCLK phase jitter is 30 ps p-p (5 ps RMS) with bit error rate (BER) 10-12, equivalent to 14 sigma.

(44) To support data rates lower than the minimum specification through oversampling, use the CDR in LTR mode only.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Symbol/Description Condition Transceiver Speed Grade 3 Unit

Min Typ Max

Data rate (10-Gbps transceiver)(44)— 0.611 — 10.3125 Gbps

Absolute VMAX for a receiver pin(45) — — — 1.2 V

Absolute VMIN for a receiver pin — –0.4 — — V

Maximum peak-to-peak differential input

voltage VID (diff p-p) before device

configuration

— — — 1.6 V

Maximum peak-to-peak differential input

voltage VID (diff p-p) after device configuration

— — — 2.2 V

Minimum differential eye opening at the

receiver serial input pins(46)

— 100 — — mV

VICM (AC coupled) — — 750(47)/800 — mV

VICM (DC coupled) ≤ 3.2Gbps(48)670 700 730 mV

Differential on-chip termination resistors 85-Ω setting 85 Ω

100-Ω setting 100 Ω

120-Ω setting 120 Ω

150-Ω setting 150 Ω

tLTR(49) — — — 10 µs

continued...

(45) The device cannot tolerate prolonged operation at this absolute maximum.

(46) The differential eye opening specification at the receiver input pins assumes that you have disabled the Receiver Equalization

feature. If you enable the Receiver Equalization feature, the receiver circuitry can tolerate a lower minimum eye opening,

depending on the equalization level.

(47) The AC coupled VICM is 750 mV for PCIe mode only.

(48) For standard protocol compliance, use AC coupling.

(49) tLTR is the time required for the receive CDR to lock to the input reference clock frequency after coming out of reset.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol/Description Condition Transceiver Speed Grade 3 Unit

Min Typ Max

tLTD(50) — 4 — — µs

tLTD_manual(51) — 4 — — µs

tLTR_LTD_manual(52) — 15 — — µs

Programmable ppm detector(53) — ±62.5, 100, 125, 200, 250, 300, 500, and 1000 ppm

Run length — — — 200 UI

Programmable equalization AC and DC gain AC gain setting = 0 to 3(54)

DC gain setting = 0 to 1

Refer to CTLE Response at Data Rates > 3.25 Gbps across Supported AC Gain and

DC Gain for Arria V GX, GT, SX, and ST Devices and CTLE Response at Data Rates ≤

3.25 Gbps across Supported AC Gain and DC Gain for Arria V GX, GT, SX, and ST

Devices diagrams.

Table 29. Transmitter Specifications for Arria V GT and ST Devices

Symbol/Description Condition Transceiver Speed Grade 3 Unit

Min Typ Max

Supported I/O standards 1.5 V PCML

Data rate (6-Gbps transceiver) — 611 — 6553.6 Mbps

Data rate (10-Gbps transceiver) — 0.611 — 10.3125 Gbps

VOCM (AC coupled) — — 650 — mV

continued...

(50) tLTD is time required for the receiver CDR to start recovering valid data after the rx_is_lockedtodata signal goes high.

(51) tLTD_manual is the time required for the receiver CDR to start recovering valid data after the rx_is_lockedtodata signal goes high

when the CDR is functioning in the manual mode.

(52) tLTR_LTD_manual is the time the receiver CDR must be kept in lock to reference (LTR) mode after the rx_is_lockedtoref signal goes

high when the CDR is functioning in the manual mode.

(53) The rate match FIFO supports only up to ±300 ppm.

(54) The Intel Quartus Prime software allows AC gain setting = 3 for design with data rate between 611 Mbps and 1.25 Gbps only.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Symbol/Description Condition Transceiver Speed Grade 3 Unit

Min Typ Max

VOCM (DC coupled) ≤ 3.2 Gbps(48)670 700 730 mV

Differential on-chip termination resistors 85-Ω setting — 85 — Ω

100-Ω setting — 100 — Ω

120-Ω setting — 120 — Ω

150-Ω setting — 150 — Ω

Intra-differential pair skew TX VCM = 0.65 V (AC coupled) and

slew rate of 15 ps

— — 15 ps

Intra-transceiver block transmitter channel-to-

channel skew

×6 PMA bonded mode — — 180 ps

Inter-transceiver block transmitter channel-to-

channel skew(55)

×N PMA bonded mode — — 500 ps

Table 30. CMU PLL Specifications for Arria V GT and ST Devices

Symbol/Description Transceiver Speed Grade 3 Unit

Min Max

Supported data range 0.611 10.3125 Gbps

fPLL supported data range 611 3125 Mbps

(55) This specification is only applicable to channels on one side of the device across two transceiver banks.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Table 31. Transceiver-FPGA Fabric Interface Specifications for Arria V GT and ST Devices

Symbol/Description Transceiver Speed Grade 3 Unit

Min Max

Interface speed (PMA direct mode) 50 153.6(56), 161(57) MHz

Interface speed (single-width mode) 25 187.5 MHz

Interface speed (double-width mode) 25 163.84 MHz

Related Information

•CTLE Response at Data Rates > 3.25 Gbps across Supported AC Gain and DC Gain on page 36

•CTLE Response at Data Rates ≤ 3.25 Gbps across Supported AC Gain and DC Gain on page 37

(56) The maximum frequency when core transceiver local routing is selected.

(57) The maximum frequency when core transceiver network routing (GCLK, RCLK, or PCLK) is selected.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

[dBV) 5n GraphZ 1dBV) MHz) ac:D‘ aka ac:1‘ aka ac:2 dc:0 ac:0 dc:1 ac:l dc:l ac:2 dc:l IOOmeg MHZ) 19

1.2.1.3. CTLE Response at Data Rates > 3.25 Gbps across Supported AC Gain and DC Gain

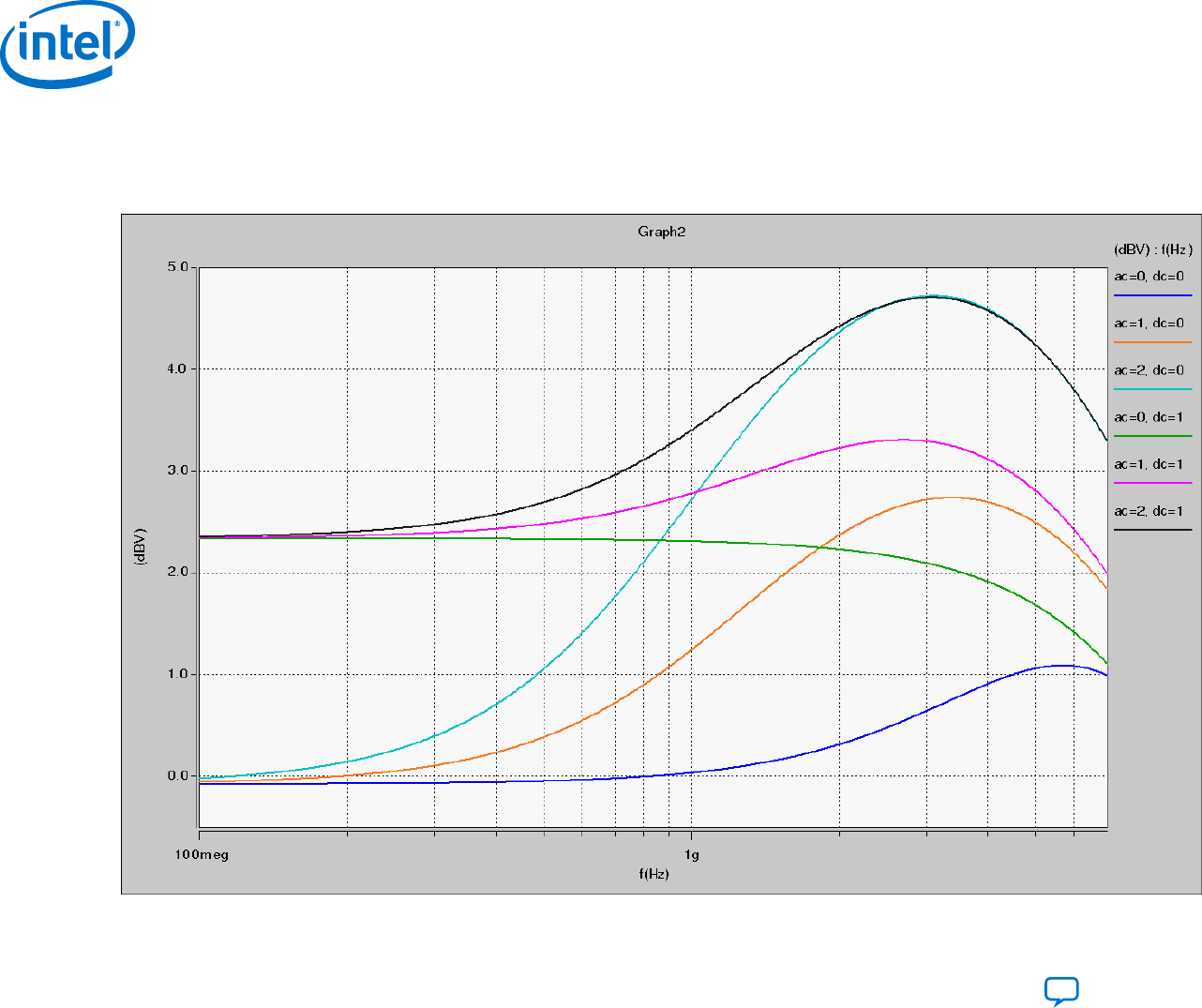

Figure 3. Continuous Time-Linear Equalizer (CTLE) Response at Data Rates > 3.25 Gbps across Supported AC Gain and DC

Gain for Arria V GX, GT, SX, and ST Devices

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

1.2.1.4. CTLE Response at Data Rates ≤ 3.25 Gbps across Supported AC Gain and DC Gain

Figure 4. CTLE Response at Data Rates ≤ 3.25 Gbps across Supported AC Gain and DC Gain for Arria V GX, GT, SX, and ST

Devices

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.2.1.5. Typical TX VOD Setting for Arria V Transceiver Channels with termination of 100 Ω

Table 32. Typical TX VOD Setting for Arria V Transceiver Channels with termination of 100 Ω

Symbol VOD Setting(58) VOD Value (mV) VOD Setting(58) VOD Value (mV)

VOD differential peak-to-peak typical 6(59)120 34 680

7(59)140 35 700

8(59)160 36 720

9 180 37 740

10 200 38 760

11 220 39 780

12 240 40 800

13 260 41 820

14 280 42 840

15 300 43 860

16 320 44 880

17 340 45 900

18 360 46 920

19 380 47 940

20 400 48 960

21 420 49 980

22 440 50 1000

23 460 51 1020

24 480 52 1040

continued...

(58) Convert these values to their binary equivalent form if you are using the dynamic reconfiguration mode for PMA analog controls.

(59) Only valid for data rates ≤ 5 Gbps.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol VOD Setting(58) VOD Value (mV) VOD Setting(58) VOD Value (mV)

25 500 53 1060

26 520 54 1080

27 540 55 1100

28 560 56 1120

29 580 57 1140

30 600 58 1160

31 620 59 1180

32 640 60 1200

33 660

1.2.1.6. Transmitter Pre-Emphasis Levels

The following table lists the simulation data on the transmitter pre-emphasis levels in dB for the first post tap under the

following conditions:

• Low-frequency data pattern—five 1s and five 0s

• Data rate—2.5 Gbps

The levels listed are a representation of possible pre-emphasis levels under the specified conditions only and the pre-

emphasis levels may change with data pattern and data rate.

Arria V devices only support 1st post tap pre-emphasis with the following conditions:

• The 1st post tap pre-emphasis settings must satisfy |B| + |C| ≤ 60 where |B| = VOD setting with termination value, RTERM

= 100 Ω and |C| = 1st post tap pre-emphasis setting.

• |B| – |C| > 5 for data rates < 5 Gbps and |B| – |C| > 8.25 for data rates > 5 Gbps.

• (VMAX/VMIN – 1)% < 600%, where VMAX = |B| + |C| and VMIN = |B| – |C|.

(58) Convert these values to their binary equivalent form if you are using the dynamic reconfiguration mode for PMA analog controls.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Exception for PCIe Gen2 design: VOD setting = 43 and pre-emphasis setting = 19 are allowed for PCIe Gen2 design with

transmit de-emphasis –6dB setting (pipe_txdeemp = 1’b0) using Arria V Hard IP for PCI Express Intel FPGA IP and PHY for

PCI Express (PIPE) Intel FPGA IP cores.

For example, when VOD = 800 mV, the corresponding VOD value setting is 40. The following conditions show that the 1st post

tap pre-emphasis setting = 2 is valid:

•|B| + |C| ≤ 60→ 40 + 2 = 42

•|B| – |C| > 5→ 40 – 2 = 38

•(VMAX/VMIN – 1)% < 600%→ (42/38 – 1)% = 10.52%

To predict the pre-emphasis level for your specific data rate and pattern, run simulations using the Arria V HSSI HSPICE

models.

Table 33. Transmitter Pre-Emphasis Levels for Arria V Devices

Intel Quartus Prime 1st

Post Tap Pre-Emphasis

Setting

Intel Quartus Prime VOD Setting Unit

10 (200 mV) 20 (400 mV) 30 (600 mV) 35 (700 mV) 40 (800 mV) 45 (900 mV) 50 (1000 mV)

0 0 0 0 0 0 0 0 dB

1 1.97 0.88 0.43 0.32 0.24 0.19 0.13 dB

2 3.58 1.67 0.95 0.76 0.61 0.5 0.41 dB

3 5.35 2.48 1.49 1.2 1 0.83 0.69 dB

4 7.27 3.31 2 1.63 1.36 1.14 0.96 dB

5 — 4.19 2.55 2.1 1.76 1.49 1.26 dB

6 — 5.08 3.11 2.56 2.17 1.83 1.56 dB

7 — 5.99 3.71 3.06 2.58 2.18 1.87 dB

8 — 6.92 4.22 3.47 2.93 2.48 2.11 dB

9 — 7.92 4.86 4 3.38 2.87 2.46 dB

10 — 9.04 5.46 4.51 3.79 3.23 2.77 dB

11 — 10.2 6.09 5.01 4.23 3.61 — dB

12 — 11.56 6.74 5.51 4.68 3.97 — dB

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Intel Quartus Prime 1st

Post Tap Pre-Emphasis

Setting

Intel Quartus Prime VOD Setting Unit

10 (200 mV) 20 (400 mV) 30 (600 mV) 35 (700 mV) 40 (800 mV) 45 (900 mV) 50 (1000 mV)

13 — 12.9 7.44 6.1 5.12 4.36 — dB

14 — 14.44 8.12 6.64 5.57 4.76 — dB

15 — — 8.87 7.21 6.06 5.14 — dB

16 — — 9.56 7.73 6.49 — — dB

17 — — 10.43 8.39 7.02 — — dB

18 — — 11.23 9.03 7.52 — — dB

19 — — 12.18 9.7 8.02 — — dB

20 — — 13.17 10.34 8.59 — — dB

21 — — 14.2 11.1 — — — dB

22 — — 15.38 11.87 — — — dB

23 — — — 12.67 — — — dB

24 — — — 13.48 — — — dB

25 — — — 14.37 — — — dB

26 — — — — — — — dB

27 — — — — — — — dB

28 — — — — — — — dB

29 — — — — — — — dB

30 — — — — — — — dB

31 — — — — — — — dB

Related Information

SPICE Models for Intel Devices

Provides the Arria V HSSI HSPICE models.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.2.1.7. Transceiver Compliance Specification

The following table lists the physical medium attachment (PMA) specification compliance of all supported protocol for Arria V

GX, GT, SX, and ST devices. For more information about the protocol parameter details and compliance specifications, contact

your Intel Sales Representative.

Table 34. Transceiver Compliance Specification for All Supported Protocol for Arria V GX, GT, SX, and ST Devices

Protocol Sub-protocol Data Rate (Mbps)

PCIe PCIe Gen1 2,500

PCIe Gen2 5,000

PCIe Cable 2,500

XAUI XAUI 2135 3,125

Serial RapidIO® (SRIO) SRIO 1250 SR 1,250

SRIO 1250 LR 1,250

SRIO 2500 SR 2,500

SRIO 2500 LR 2,500

SRIO 3125 SR 3,125

SRIO 3125 LR 3,125

SRIO 5000 SR 5,000

SRIO 5000 MR 5,000

SRIO 5000 LR 5,000

SRIO_6250_SR 6,250

SRIO_6250_MR 6,250

SRIO_6250_LR 6,250

Common Public Radio Interface (CPRI) CPRI E6LV 614.4

CPRI E6HV 614.4

CPRI E6LVII 614.4

CPRI E12LV 1,228.8

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Protocol Sub-protocol Data Rate (Mbps)

CPRI E12HV 1,228.8

CPRI E12LVII 1,228.8

CPRI E24LV 2,457.6

CPRI E24LVII 2,457.6

CPRI E30LV 3,072

CPRI E30LVII 3,072

CPRI E48LVII 4,915.2

CPRI E60LVII 6,144

CPRI E96LVIII(60) 9,830.4

Gbps Ethernet (GbE) GbE 1250 1,250

OBSAI OBSAI 768 768

OBSAI 1536 1,536

OBSAI 3072 3,072

OBSAI 6144 6,144

Serial digital interface (SDI) SDI 270 SD 270

SDI 1485 HD 1,485

SDI 2970 3G 2,970

SONET SONET 155 155.52

SONET 622 622.08

SONET 2488 2,488.32

Gigabit-capable passive optical network (GPON) GPON 155 155.52

GPON 622 622.08

continued...

(60) You can achieve compliance with TX channel restriction of one HSSI channel per six-channel transceiver bank.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Protocol Sub-protocol Data Rate (Mbps)

GPON 1244 1,244.16

GPON 2488 2,488.32

QSGMII QSGMII 5000 5,000

1.2.2. Core Performance Specifications

1.2.2.1. Clock Tree Specifications

Table 35. Clock Tree Specifications for Arria V Devices

Parameter Performance Unit

–I3, –C4 –I5, –C5 –C6

Global clock and Regional clock 625 625 525 MHz

Peripheral clock 450 400 350 MHz

1.2.2.2. PLL Specifications

Table 36. PLL Specifications for Arria V Devices

This table lists the Arria V PLL block specifications. Arria V PLL block does not include HPS PLL.

Symbol Parameter Condition Min Typ Max Unit

fIN Input clock frequency –3 speed grade 5 — 800(61)MHz

–4 speed grade 5 — 800(61)MHz

–5 speed grade 5 — 750(61)MHz

–6 speed grade 5 — 625(61)MHz

fINPFD Integer input clock frequency to the phase

frequency detector (PFD)

— 5 — 325 MHz

continued...

(61) This specification is limited in the Intel Quartus Prime software by the I/O maximum frequency. The maximum I/O frequency is

different for each I/O standard.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol Parameter Condition Min Typ Max Unit

fFINPFD Fractional input clock frequency to the PFD — 50 — 160 MHz

fVCO(62) PLL voltage-controlled oscillator (VCO)

operating range

–3 speed grade 600 — 1600 MHz

–4 speed grade 600 — 1600 MHz

–5 speed grade 600 — 1600 MHz

–6 speed grade 600 — 1300 MHz

tEINDUTY Input clock or external feedback clock input

duty cycle

— 40 — 60 %

fOUT Output frequency for internal global or

regional clock

–3 speed grade — — 500(63)MHz

–4 speed grade — — 500(63)MHz

–5 speed grade — — 500(63)MHz

–6 speed grade — — 400(63)MHz

fOUT_EXT Output frequency for external clock output –3 speed grade — — 670(63)MHz

–4 speed grade — — 670(63)MHz

–5 speed grade — — 622(63)MHz

–6 speed grade — — 500(63)MHz

tOUTDUTY Duty cycle for external clock output (when set

to 50%)

— 45 50 55 %

tFCOMP External feedback clock compensation time — — — 10 ns

tDYCONFIGCLK Dynamic configuration clock for mgmt_clk

and scanclk

— — — 100 MHz

tLOCK Time required to lock from end-of-device

configuration or deassertion of areset

— — — 1 ms

continued...

(62) The VCO frequency reported by the Intel Quartus Prime software takes into consideration the VCO post divider value. Therefore, if the

VCO post divider value is 2, the frequency reported can be lower than the fVCO specification.

(63) This specification is limited by the lower of the two: I/O fMAX or FOUT of the PLL.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Symbol Parameter Condition Min Typ Max Unit

tDLOCK Time required to lock dynamically (after

switchover or reconfiguring any non-post-

scale counters/delays)

— — — 1 ms

fCLBW PLL closed-loop bandwidth Low — 0.3 — MHz

Medium — 1.5 — MHz

High(64) — 4 — MHz

tPLL_PSERR Accuracy of PLL phase shift — — — ±50 ps

tARESET Minimum pulse width on the areset signal — 10 — — ns

tINCCJ(65)(66) Input clock cycle-to-cycle jitter FREF ≥ 100 MHz — — 0.15 UI (p-p)

FREF < 100 MHz — — ±750 ps (p-p)

tOUTPJ_DC(67)Period jitter for dedicated clock output in

integer PLL

FOUT ≥ 100 MHz — — 175 ps (p-p)

FOUT < 100 MHz — — 17.5 mUI (p-p)

tFOUTPJ_DC(67)Period jitter for dedicated clock output in

fractional PLL

FOUT ≥ 100 MHz — — 250(68), 175(69)ps (p-p)

FOUT < 100 MHz — — 25(68), 17.5(69)mUI (p-p)

continued...

(64) High bandwidth PLL settings are not supported in external feedback mode.

(65) A high input jitter directly affects the PLL output jitter. To have low PLL output clock jitter, you must provide a clean clock source with

jitter < 120 ps.

(66) FREF is fIN/N, specification applies when N = 1.

(67) Peak-to-peak jitter with a probability level of 10–12 (14 sigma, 99.99999999974404% confidence level). The output jitter specification

applies to the intrinsic jitter of the PLL, when an input jitter of 30 ps is applied. The external memory interface clock output jitter

specifications use a different measurement method and are available in Memory Output Clock Jitter Specification for Arria V Devices

table.

(68) This specification only covered fractional PLL for low bandwidth. The fVCO for fractional value range 0.05–0.95 must be ≥ 1000 MHz.

(69) This specification only covered fractional PLL for low bandwidth. The fVCO for fractional value range 0.20–0.80 must be ≥ 1200 MHz.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol Parameter Condition Min Typ Max Unit

tOUTCCJ_DC(67)Cycle-to-cycle jitter for dedicated clock output

in integer PLL

FOUT ≥ 100 MHz — — 175 ps (p-p)

FOUT < 100 MHz — — 17.5 mUI (p-p)

tFOUTCCJ_DC(67)Cycle-to-cycle jitter for dedicated clock output

in fractional PLL

FOUT ≥ 100 MHz — — 250(68), 175(69)ps (p-p)

FOUT < 100 MHz — — 25(68), 17.5(69)mUI (p-p)

tOUTPJ_IO(67)(70)Period jitter for clock output on a regular I/O

in integer PLL

FOUT ≥ 100 MHz — — 600 ps (p-p)

FOUT < 100 MHz — — 60 mUI (p-p)

tFOUTPJ_IO(67)(68)(70)Period jitter for clock output on a regular I/O

in fractional PLL

FOUT ≥ 100 MHz — — 600 ps (p-p)

FOUT < 100 MHz — — 60 mUI (p-p)

tOUTCCJ_IO(67)(70)Cycle-to-cycle jitter for clock output on a

regular I/O in integer PLL

FOUT ≥ 100 MHz — — 600 ps (p-p)

FOUT < 100 MHz — — 60 mUI (p-p)

tFOUTCCJ_IO(67)(68)(70)Cycle-to-cycle jitter for clock output on a

regular I/O in fractional PLL

FOUT ≥ 100 MHz — — 600 ps (p-p)

FOUT < 100 MHz — — 60 mUI (p-p)

tCASC_OUTPJ_DC(67)(71) Period jitter for dedicated clock output in

cascaded PLLs

FOUT ≥ 100 MHz — — 175 ps (p-p)

FOUT < 100 MHz — — 17.5 mUI (p-p)

tDRIFT Frequency drift after PFDENA is disabled for a

duration of 100 µs

— — — ±10 %

dKBIT Bit number of Delta Sigma Modulator (DSM) — 8 24 32 bits

kVALUE Numerator of fraction — 128 8388608 2147483648 —

fRES Resolution of VCO frequency fINPFD = 100 MHz 390625 5.96 0.023 Hz

(70) External memory interface clock output jitter specifications use a different measurement method, which are available in Memory

Output Clock Jitter Specification for Arria V Devices table.

(71) The cascaded PLL specification is only applicable with the following conditions:

• Upstream PLL: 0.59 MHz ≤ Upstream PLL BW < 1 MHz

• Downstream PLL: Downstream PLL BW > 2 MHz

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Related Information

Memory Output Clock Jitter Specifications on page 56

Provides more information about the external memory interface clock output jitter specifications.

1.2.2.3. DSP Block Performance Specifications

Table 37. DSP Block Performance Specifications for Arria V Devices

Mode Performance Unit

–I3, –C4 –I5, –C5 –C6

Modes using One DSP Block Independent 9 × 9 multiplication 370 310 220 MHz

Independent 18 × 19 multiplication 370 310 220 MHz

Independent 18 × 25 multiplication 370 310 220 MHz

Independent 20 × 24 multiplication 370 310 220 MHz

Independent 27 × 27 multiplication 310 250 200 MHz

Two 18 × 19 multiplier adder mode 370 310 220 MHz

18 × 18 multiplier added summed with 36-bit input 370 310 220 MHz

Modes using Two DSP Blocks Complex 18 × 19 multiplication 370 310 220 MHz

1.2.2.4. Memory Block Performance Specifications

To achieve the maximum memory block performance, use a memory block clock that comes through global clock routing from

an on-chip PLL and set to 50% output duty cycle. Use the Intel Quartus Prime software to report timing for the memory block

clocking schemes.

When you use the error detection cyclical redundancy check (CRC) feature, there is no degradation in fMAX.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Table 38. Memory Block Performance Specifications for Arria V Devices

Memory Mode Resources Used Performance Unit

ALUTs Memory –I3, –C4 –I5, –C5 –C6

MLAB Single port, all supported widths 0 1 500 450 400 MHz

Simple dual-port, all supported widths 0 1 500 450 400 MHz

Simple dual-port with read and write at the same

address

0 1 400 350 300 MHz

ROM, all supported width — — 500 450 400 MHz

M10K Block Single-port, all supported widths 0 1 400 350 285 MHz

Simple dual-port, all supported widths 0 1 400 350 285 MHz

Simple dual-port with the read-during-write option

set to Old Data, all supported widths

0 1 315 275 240 MHz

True dual port, all supported widths 0 1 400 350 285 MHz

ROM, all supported widths 0 1 400 350 285 MHz

1.2.2.5. Internal Temperature Sensing Diode Specifications

Table 39. Internal Temperature Sensing Diode Specifications for Arria V Devices

Temperature Range Accuracy Offset Calibrated Option Sampling Rate Conversion

Time(72)

Resolution Minimum Resolution with

no Missing Codes

–40 to 100°C ±8°C No 1 MHz < 100 ms 8 bits 8 bits

Related Information

Intel FPGA Temperature Sensor IP Core User Guide

Provides more information about the temperature sensing operation.

1.2.3. Periphery Performance

This section describes the periphery performance, high-speed I/O, and external memory interface.

(72) For more details about the temperature sensing operations, refer to the Intel FPGA Temperature Sensor IP Core User Guide.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Actual achievable frequency depends on design and system specific factors. Ensure proper timing closure in your design and

perform HSPICE/IBIS simulations based on your specific design and system setup to determine the maximum achievable

frequency in your system.

1.2.3.1. High-Speed I/O Specifications

Table 40. High-Speed I/O Specifications for Arria V Devices

When J = 3 to 10, use the serializer/deserializer (SERDES) block. When J = 1 or 2, bypass the SERDES block.

For LVDS applications, you must use the PLLs in integer PLL mode.

The Arria V devices support the following output standards using true LVDS output buffer types on all I/O banks.

• True RSDS output standard with data rates of up to 360 Mbps

• True mini-LVDS output standard with data rates of up to 400 Mbps

Symbol Condition –I3, –C4 –I5, –C5 –C6 Unit

Min Typ Max Min Typ Max Min Typ Max

fHSCLK_in (input clock frequency) True Differential

I/O Standards

Clock boost factor W = 1

to 40(73)

5 — 800 5 — 750 5 — 625 MHz

fHSCLK_in (input clock frequency) Single-Ended

I/O Standards(74)

Clock boost factor W = 1

to 40(73)

5 — 625 5 — 625 5 — 500 MHz

fHSCLK_in (input clock frequency) Single-Ended

I/O Standards(75)

Clock boost factor W = 1

to 40(73)

5 — 420 5 — 420 5 — 420 MHz

fHSCLK_OUT (output clock frequency) — 5 — 625(76)5 — 625(76

)

5 — 500(76)MHz

Transmitter True Differential I/O

Standards - fHSDR (data

rate)

SERDES factor J =3 to

10(77)

(78)— 1250 (78)— 1250 (78)— 1050 Mbp

continued...

(73) Clock boost factor (W) is the ratio between the input data rate and the input clock rate.

(74) This applies to DPA and soft-CDR modes only.

(75) This applies to non-DPA mode only.

(76) This is achieved by using the LVDS clock network.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol Condition –I3, –C4 –I5, –C5 –C6 Unit

Min Typ Max Min Typ Max Min Typ Max

SERDES factor J ≥ 8(77)

(79), LVDS TX with RX

DPA

(78)— 1600 (78)— 1500 (78)— 1250 Mbp

SERDES factor J = 1 to

2, Uses DDR Registers

(78)—(80) (78)—(80) (78)—(80)Mbp

Emulated Differential I/O

Standards with Three

External Output Resistor

Network - fHSDR (data rate)

(81)

SERDES factor J = 4 to

10(82)

(78)— 945 (78)— 945 (78)— 945 Mbp

Emulated Differential I/O

Standards with One External

Output Resistor Network -

fHSDR (data rate)(81)

SERDES factor J = 4 to

10(82)

(78)— 200 (78)— 200 (78)— 200 Mbp

tx Jitter -True Differential I/O

Standards

Total Jitter for Data Rate

600 Mbps – 1.25 Gbps

— — 160 — — 160 — — 160 ps

Total Jitter for Data Rate

< 600 Mbps

— — 0.1 — — 0.1 — — 0.1 UI

continued...

(77) The Fmax specification is based on the fast clock used for serial data. The interface Fmax is also dependent on the parallel clock domain

which is design dependent and requires timing analysis.

(78) The minimum specification depends on the clock source (for example, the PLL and clock pin) and the clock routing resource (global,

regional, or local) that you use. The I/O differential buffer and input register do not have a minimum toggle rate.

(79) The VCC and VCCP must be on a separate power layer and a maximum load of 5 pF for chip-to-chip interface.

(80) The maximum ideal data rate is the SERDES factor (J) x the PLL maximum output frequency (fOUT), provided you can close the design

timing and the signal integrity simulation is clean.

(81) You must calculate the leftover timing margin in the receiver by performing link timing closure analysis. You must consider the board

skew margin, transmitter channel-to-channel skew, and receiver sampling margin to determine the leftover timing margin.

(82) When using True LVDS RX channels for emulated LVDS TX channel, only serialization factors 1 and 2 are supported.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Symbol Condition –I3, –C4 –I5, –C5 –C6 Unit

Min Typ Max Min Typ Max Min Typ Max

tx Jitter -Emulated Differential

I/O Standards with Three

External Output Resistor

Network

Total Jitter for Data Rate

600 Mbps – 1.25 Gbps

— — 260 — — 300 — — 350 ps

Total Jitter for Data Rate

< 600 Mbps

— — 0.16 — — 0.18 — — 0.21 UI

tx Jitter -Emulated Differential

I/O Standards with One

External Output Resistor

Network

— — — 0.15 — — 0.15 — — 0.15 UI

tDUTY TX output clock duty

cycle for both True and

Emulated Differential I/O

Standards

45 50 55 45 50 55 45 50 55 %

tRISE and tFALL True Differential I/O

Standards(83)

— — 160 — — 180 — — 200 ps

Emulated Differential I/O

Standards with Three

External Output Resistor

Network

— — 250 — — 250 — — 300 ps

Emulated Differential I/O

Standards with One

External Output Resistor

Network

— — 500 — — 500 — — 500 ps

TCCS True Differential I/O

Standards

— — 150 — — 150 — — 150 ps

Emulated Differential I/O

Standards

— — 300 — — 300 — — 300 ps

Receiver True Differential I/O

Standards - fHSDRDPA (data

rate)

SERDES factor J =3 to

10(77)

150 — 1250 150 — 1250 150 — 1050 Mbp

SERDES factor J ≥ 8 with

DPA(77)(79)

150 — 1600 150 — 1500 150 — 1250 Mbp

continued...

(83) This applies to default pre-emphasis and VOD settings only.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol Condition –I3, –C4 –I5, –C5 –C6 Unit

Min Typ Max Min Typ Max Min Typ Max

fHSDR (data rate) SERDES factor J = 3 to

(78)—(84) (78)—(84) (78)—(84)Mbp

SERDES factor J = 1 to

2, uses DDR registers

(78)—(80) (78)—(80) (78)—(80)Mbp

DPA Mode DPA run length — — — 10000 — — 10000 — — 10000 UI

Soft-CDR Mode Soft-CDR ppm tolerance — — — 300 — — 300 — — 300 ±pp

Non-DPA Mode Sampling Window — — — 300 — — 300 — — 300 ps

1.2.3.2. DPA Lock Time Specifications

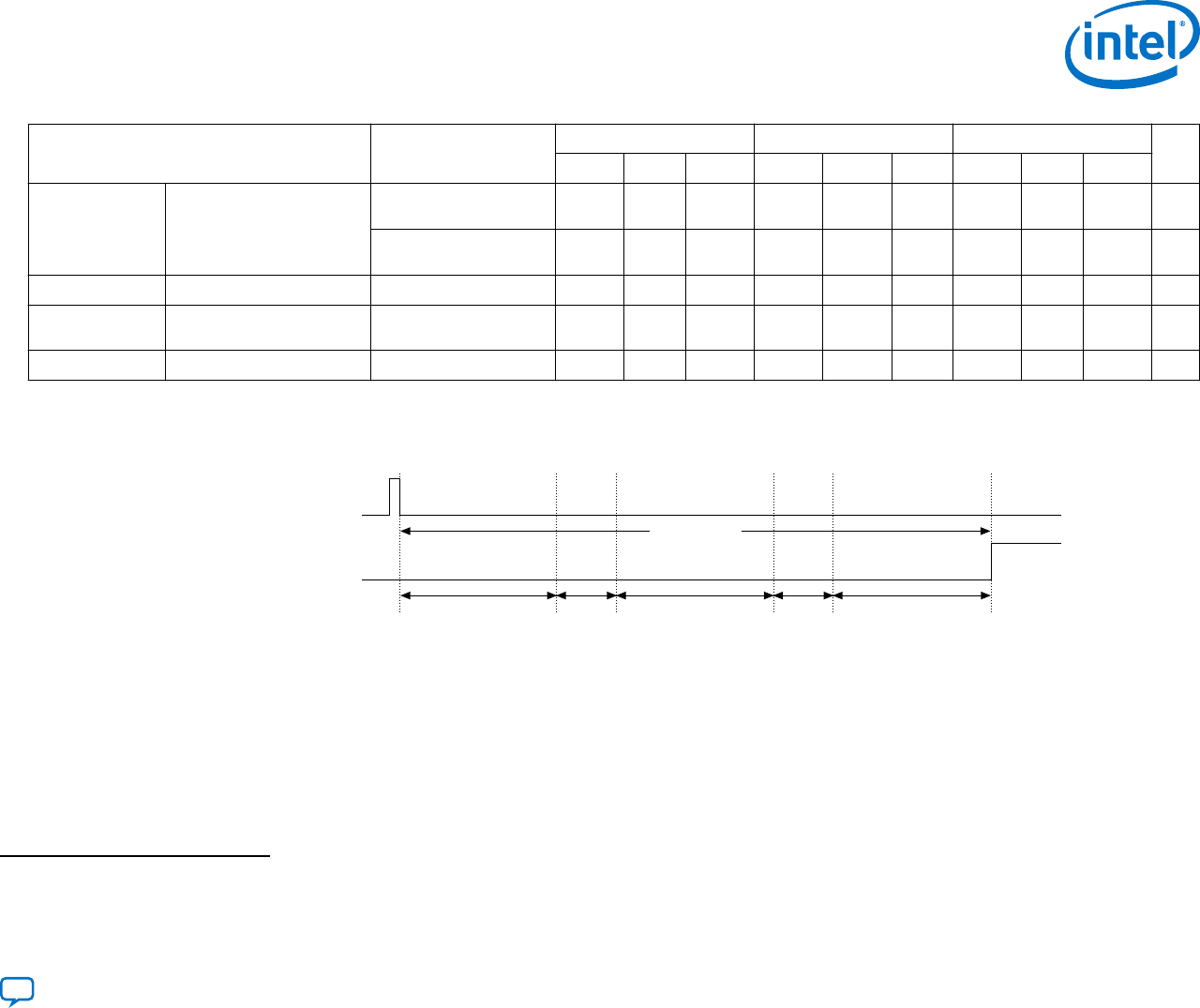

Figure 5. Dynamic Phase Alignment (DPA) Lock Time Specifications with DPA PLL Calibration Enabled

rx_dpa_locked

rx_reset

DPA Lock Time

256 Data

Transitions

96 Slow

Clock Cycles

256 Data

Transitions

256 Data

Transitions

96 Slow

Clock Cycles

(84) You can estimate the achievable maximum data rate for non-DPA mode by performing link timing closure analysis. You must consider

the board skew margin, transmitter delay margin, and receiver sampling margin to determine the maximum data rate supported.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Jmer Amphlmme (UI)

Table 41. DPA Lock Time Specifications for Arria V Devices

The specifications are applicable to both commercial and industrial grades. The DPA lock time is for one channel. One data transition is defined as a 0-to-1 or 1-

to-0 transition.

Standard Training Pattern Number of Data Transitions in

One Repetition of the Training

Pattern

Number of Repetitions per

256 Data Transitions(85)

Maximum Data Transition

SPI-4 00000000001111111111 2 128 640

Parallel Rapid I/O 00001111 2 128 640

10010000 4 64 640

Miscellaneous 10101010 8 32 640

01010101 8 32 640

1.2.3.3. LVDS Soft-CDR/DPA Sinusoidal Jitter Tolerance Specifications

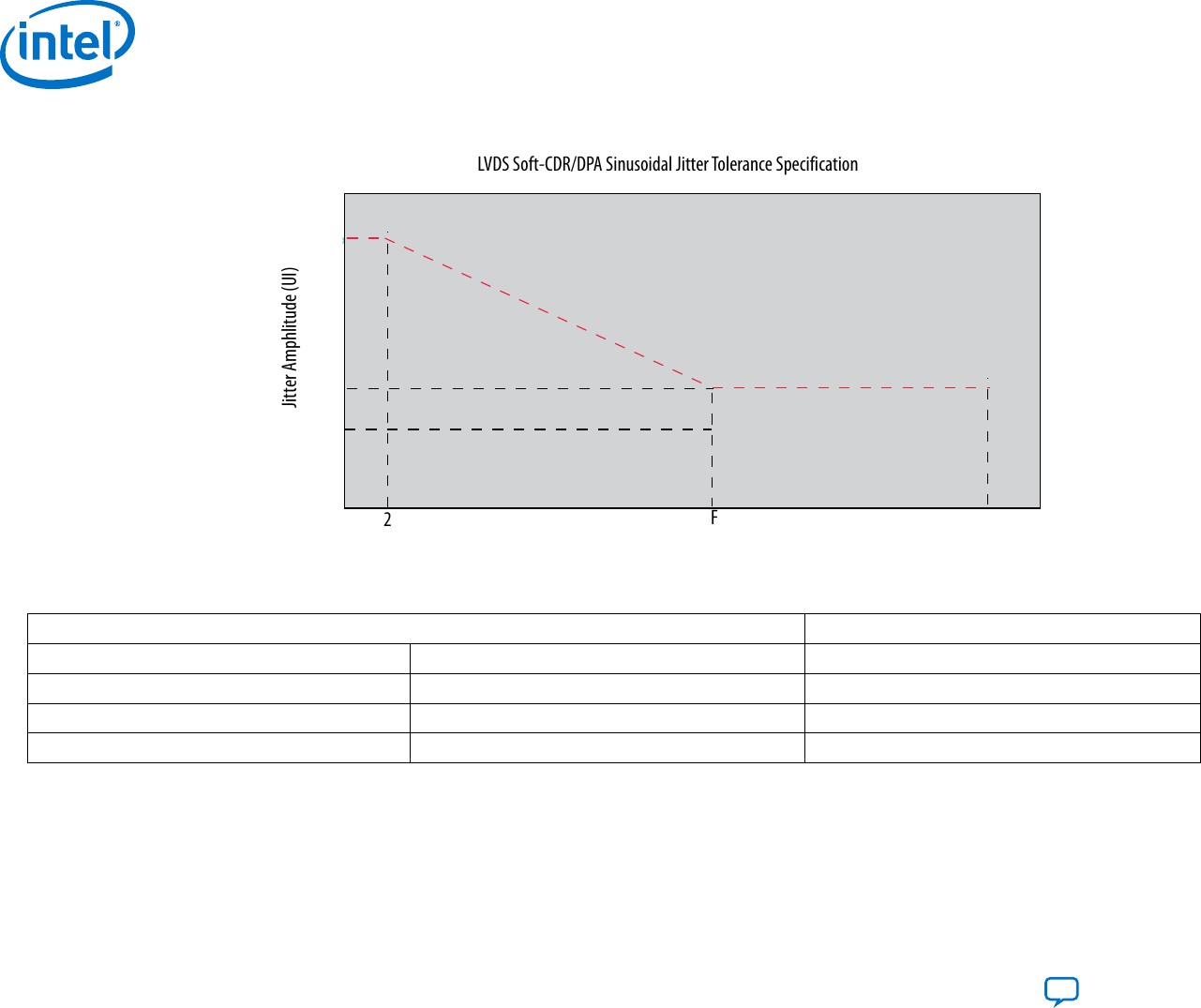

Figure 6. LVDS Soft-Clock Data Recovery (CDR)/DPA Sinusoidal Jitter Tolerance Specification for a Data Rate Equal to 1.25

Gbps

F1 F2 F3 F4

Jitter Frequency (Hz)

Jitter Amphlitude (UI)

0.1

0.35

8.5

(85) This is the number of repetitions for the stated training pattern to achieve the 256 data transitions.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Sinusoida‘ Jmer Ampmude

Table 42. LVDS Soft-CDR/DPA Sinusoidal Jitter Mask Values for a Data Rate Equal to 1.25 Gbps

Jitter Frequency (Hz) Sinusoidal Jitter (UI)

F1 10,000 25.000

F2 17,565 25.000

F3 1,493,000 0.350

F4 50,000,000 0.350

Figure 7. LVDS Soft-CDR/DPA Sinusoidal Jitter Tolerance Specification for a Data Rate Less than 1.25 Gbps

0.1 UI

P-P

baud/1667 20 MHz Frequency

Sinusoidal Jitter Amplitude

20db/dec

1.2.3.4. DLL Frequency Range Specifications

Table 43. DLL Frequency Range Specifications for Arria V Devices

Parameter –I3, –C4 –I5, –C5 –C6 Unit

DLL operating frequency range 200 – 667 200 – 667 200 – 667 MHz

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.2.3.5. DQS Logic Block Specifications

Table 44. DQS Phase Shift Error Specifications for DLL-Delayed Clock (tDQS_PSERR) for Arria V Devices

This error specification is the absolute maximum and minimum error.

Number of DQS Delay Buffer –I3, –C4 –I5, –C5 –C6 Unit

2 40 80 80 ps

1.2.3.6. Memory Output Clock Jitter Specifications

Table 45. Memory Output Clock Jitter Specifications for Arria V Devices

The memory output clock jitter measurements are for 200 consecutive clock cycles, as specified in the JEDEC DDR2/DDR3 SDRAM standard.

The memory output clock jitter is applicable when an input jitter of 30 ps (p-p) is applied with bit error rate (BER) 10–12, equivalent to 14 sigma.

Intel recommends using the UniPHY IP cores with PHYCLK connections for better jitter performance.

Parameter Clock Network Symbol –I3, –C4 –I5, –C5 –C6 Unit

Min Max Min Max Min Max

Clock period jitter PHYCLK tJIT(per) –41 41 –50 50 –55 55 ps

Cycle-to-cycle period jitter PHYCLK tJIT(cc) 63 90 94 ps

1.2.3.7. OCT Calibration Block Specifications

Table 46. OCT Calibration Block Specifications for Arria V Devices

Symbol Description Min Typ Max Unit

OCTUSRCLK Clock required by OCT calibration blocks — — 20 MHz

TOCTCAL Number of OCTUSRCLK clock cycles required for RS OCT/RT

OCT calibration

— 1000 — Cycles

TOCTSHIFT Number of OCTUSRCLK clock cycles required for OCT code to

shift out

— 32 — Cycles

TRS_RT Time required between the dyn_term_ctrl and oe signal

transitions in a bidirectional I/O buffer to dynamically switch

between RS OCT and RT OCT

— 2.5 — ns

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

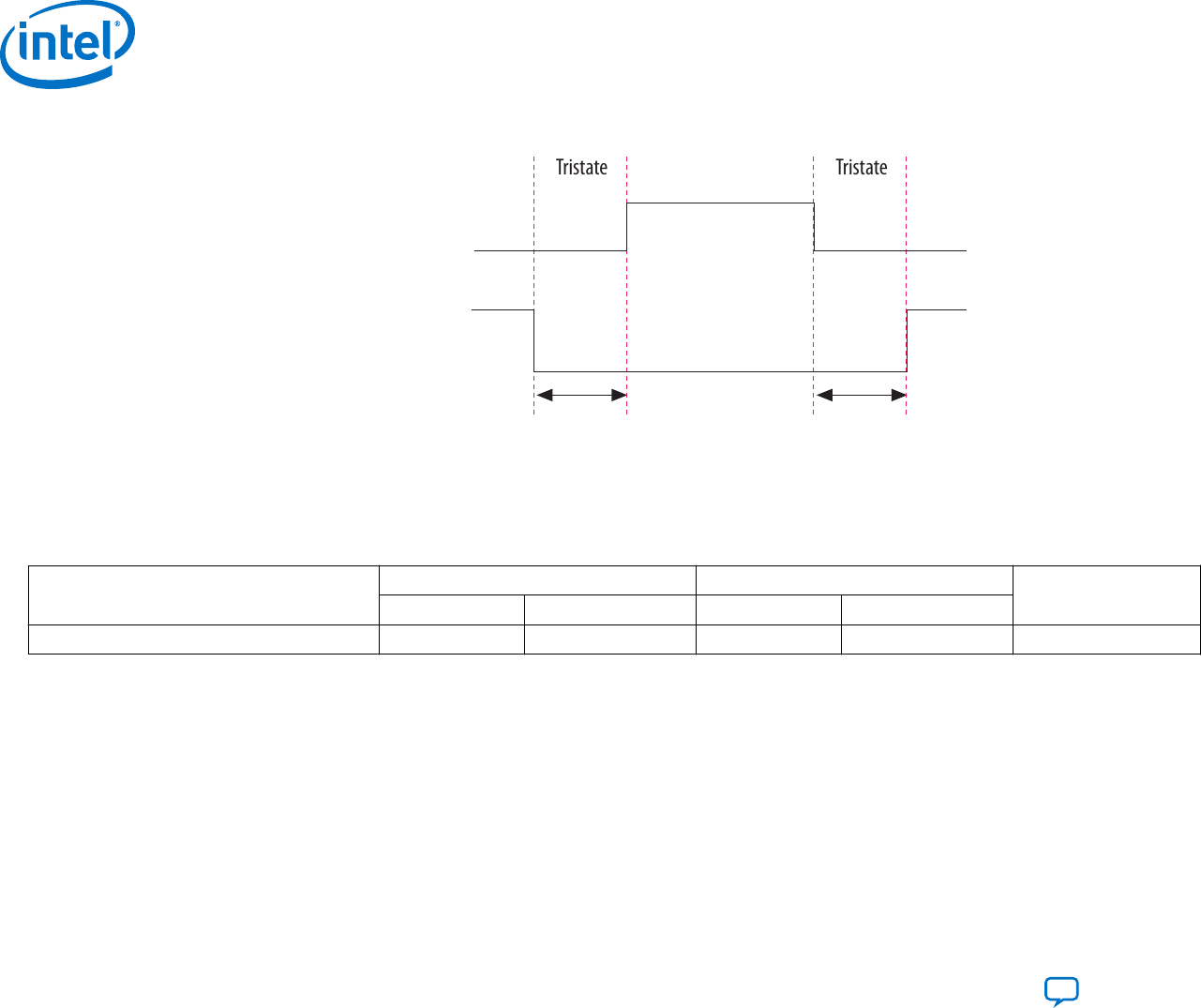

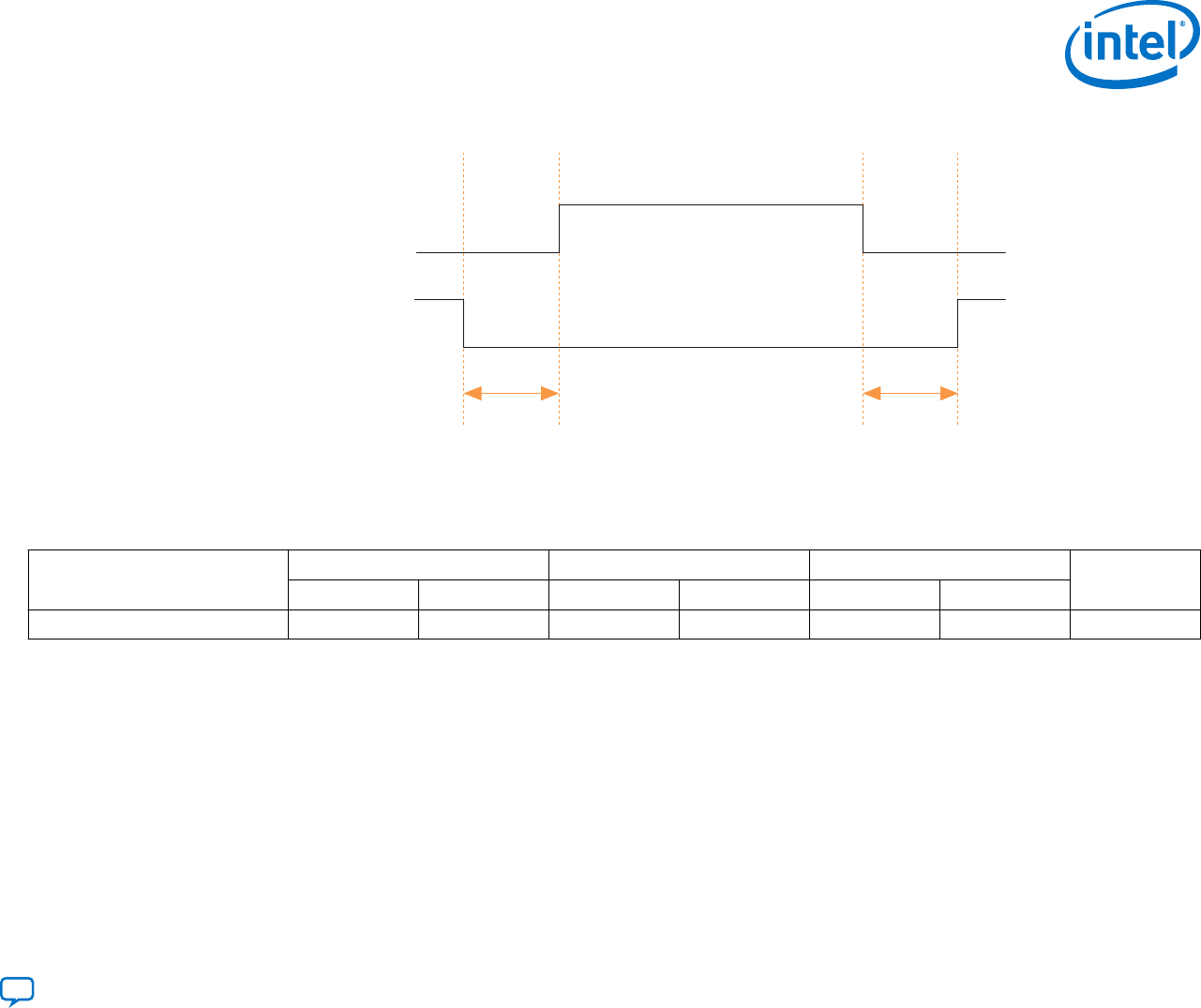

Figure 8. Timing Diagram for oe and dyn_term_ctrl Signals

TX RXRX

dyn_term_ctrl

TRS_RT

Tristate Tristate

1.2.3.8. Duty Cycle Distortion (DCD) Specifications

Table 47. Worst-Case DCD on Arria V I/O Pins

The output DCD cycle only applies to the I/O buffer. It does not cover the system DCD.

Symbol –I3, –C4 –C5, –I5 –C6 Unit

Min Max Min Max Min Max

Output Duty Cycle 45 55 45 55 45 55 %

1.2.4. HPS Specifications

This section provides HPS specifications and timing for Arria V devices.

For HPS reset, the minimum reset pulse widths for the HPS cold and warm reset signals (HPS_nRST and HPS_nPOR) are six

clock cycles of HPS_CLK1.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.2.4.1. HPS Clock Performance

Table 48. HPS Clock Performance for Arria V Devices

Symbol/Description –I3 –C4 –C5, –I5 –C6 Unit

mpu_base_clk (microprocessor unit clock) 1050 925 800 700 MHz

main_base_clk (L3/L4 interconnect clock) 400 400 400 350 MHz

h2f_user0_clk 100 100 100 100 MHz

h2f_user1_clk 100 100 100 100 MHz

h2f_user2_clk 200 200 200 160 MHz

1.2.4.2. HPS PLL Specifications

1.2.4.2.1. HPS PLL VCO Frequency Range

Table 49. HPS PLL VCO Frequency Range for Arria V Devices

Description Speed Grade Minimum Maximum Unit

VCO range –C5, –I5, –C6 320 1,600 MHz

–C4 320 1,850 MHz

–I3 320 2,100 MHz

1.2.4.2.2. HPS PLL Input Clock Range

The HPS PLL input clock range is 10 – 50 MHz. This clock range applies to both HPS_CLK1 and HPS_CLK2 inputs.

Related Information

Clock Select, Booting and Configuration chapter

Provides more information about the clock range for different values of clock select (CSEL).

1.2.4.2.3. HPS PLL Input Jitter

Use the following equation to determine the maximum input jitter (peak-to-peak) the HPS PLLs can tolerate. The divide value

(N) is the value programmed into the denominator field of the VCO register for each PLL. The PLL input reference clock is

divided by this value. The range of the denominator is 1 to 64.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Maximum input jitter = Input clock period × Divide value (N) × 0.02

Table 50. Examples of Maximum Input Jitter

Input Reference Clock Period Divide Value (N) Maximum Jitter Unit

40 ns 1 0.8 ns

40 ns 2 1.6 ns

40 ns 4 3.2 ns

1.2.4.3. Quad SPI Flash Timing Characteristics

Table 51. Quad Serial Peripheral Interface (SPI) Flash Timing Requirements for Arria V Devices

Symbol Description Min Typ Max Unit

Fclk SCLK_OUT clock frequency (External clock) — — 108 MHz

Tqspi_clk QSPI_CLK clock period (Internal reference clock) 2.32 — — ns

Tdutycycle SCLK_OUT duty cycle 45 — 55 %

Tdssfrst Output delay QSPI_SS valid before first clock edge — 1/2 cycle of

SCLK_OUT

— ns

Tdsslst Output delay QSPI_SS valid after last clock edge –1 — 1 ns

Tdio I/O data output delay –1 — 1 ns

Tdin_start Input data valid start — — (2 + Rdelay) ×

Tqspi_clk – 7.52 (86)

Tdin_end Input data valid end (2 + Rdelay) ×

Tqspi_clk – 1.21 (86)

— — ns

(86) Rdelay is set by programming the register qspiregs.rddatacap. For the SoC EDS software version 13.1 and later, Intel provides

automatic Quad SPI calibration in the preloader. For more information about Rdelay, refer to the Quad SPI Flash Controller chapter in

the Arria V Hard Processor System Technical Reference Manual.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

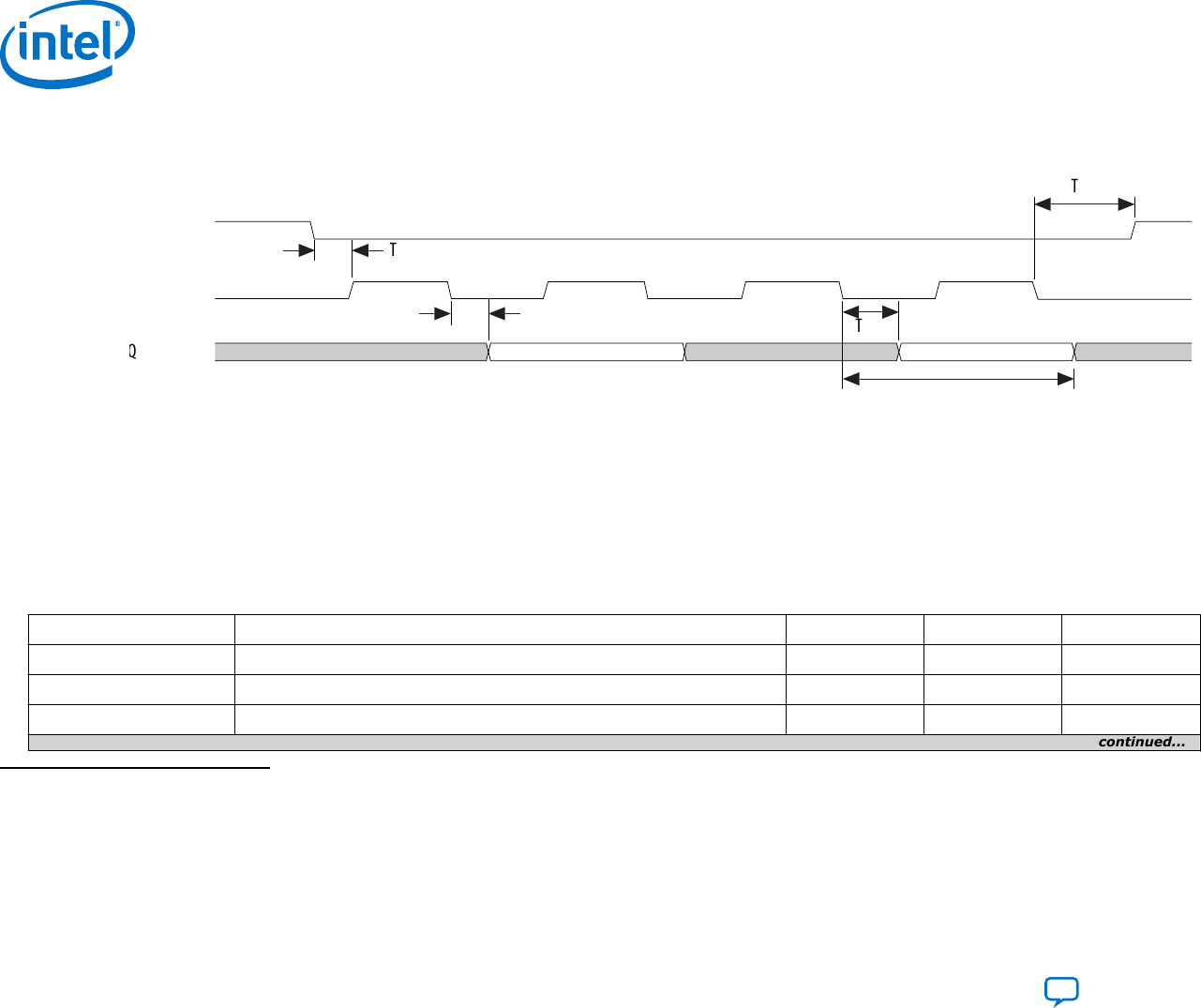

Figure 9. Quad SPI Flash Timing Diagram

This timing diagram illustrates clock polarity mode 0 and clock phase mode 0.

QSPI_SS

SCLK_OUT

QSPI_DATA

Tdin_start

Tdsslst

Tdio

Tdin_end

Tdssfrst

Data Out Data In

Related Information

Quad SPI Flash Controller Chapter, Arria V Hard Processor System Technical Reference Manual

Provides more information about Rdelay.

1.2.4.4. SPI Timing Characteristics

Table 52. SPI Master Timing Requirements for Arria V Devices

The setup and hold times can be used for Texas Instruments SSP mode and National Semiconductor Microwire mode.

Symbol Description Min Max Unit

Tclk CLK clock period 16.67 — ns

Tsu SPI Master-in slave-out (MISO) setup time 8.35 (87) — ns

ThSPI MISO hold time 1 — ns

continued...

(87) This value is based on rx_sample_dly = 1 and spi_m_clk = 120 MHz. spi_m_clk is the internal clock that is used by SPI Master

to derive it’s SCLK_OUT. These timings are based on rx_sample_dly of 1. This delay can be adjusted as needed to accommodate

slower response times from the slave. Note that a delay of 0 is not allowed. The setup time can be used as a reference starting point.

It is very crucial to do a calibration to get the correct rx_sample_dly value because each SPI slave device may have different

output delay and each application board may have different path delay. For more information about rx_sample_delay, refer to the

SPI Controller chapter in the Hard Processor System Technical Reference Manual.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol Description Min Max Unit

Tdutycycle SPI_CLK duty cycle 45 55 %

Tdssfrst Output delay SPI_SS valid before first clock edge 8 — ns

Tdsslst Output delay SPI_SS valid after last clock edge 8 — ns

Tdio Master-out slave-in (MOSI) output delay –1 1 ns

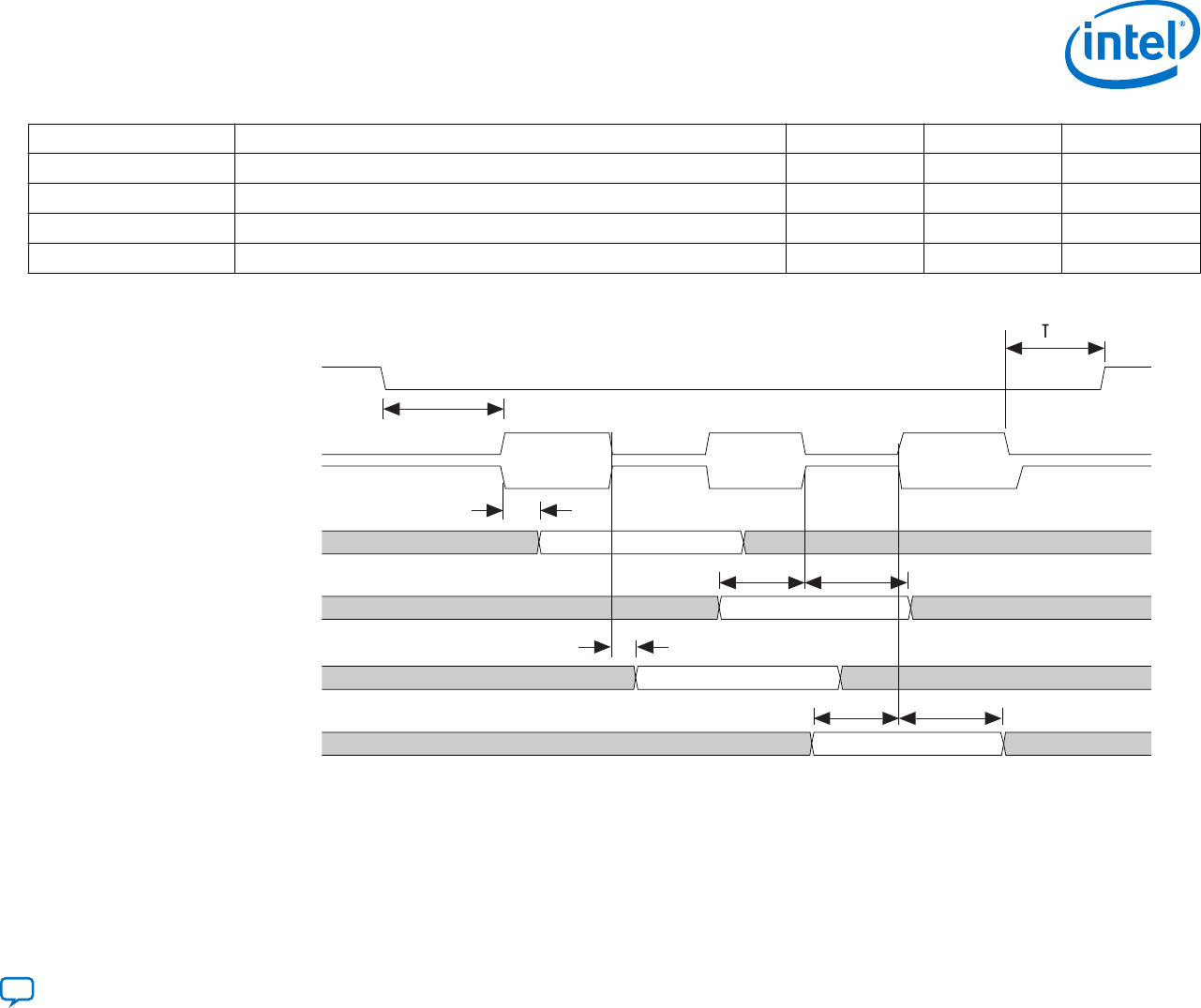

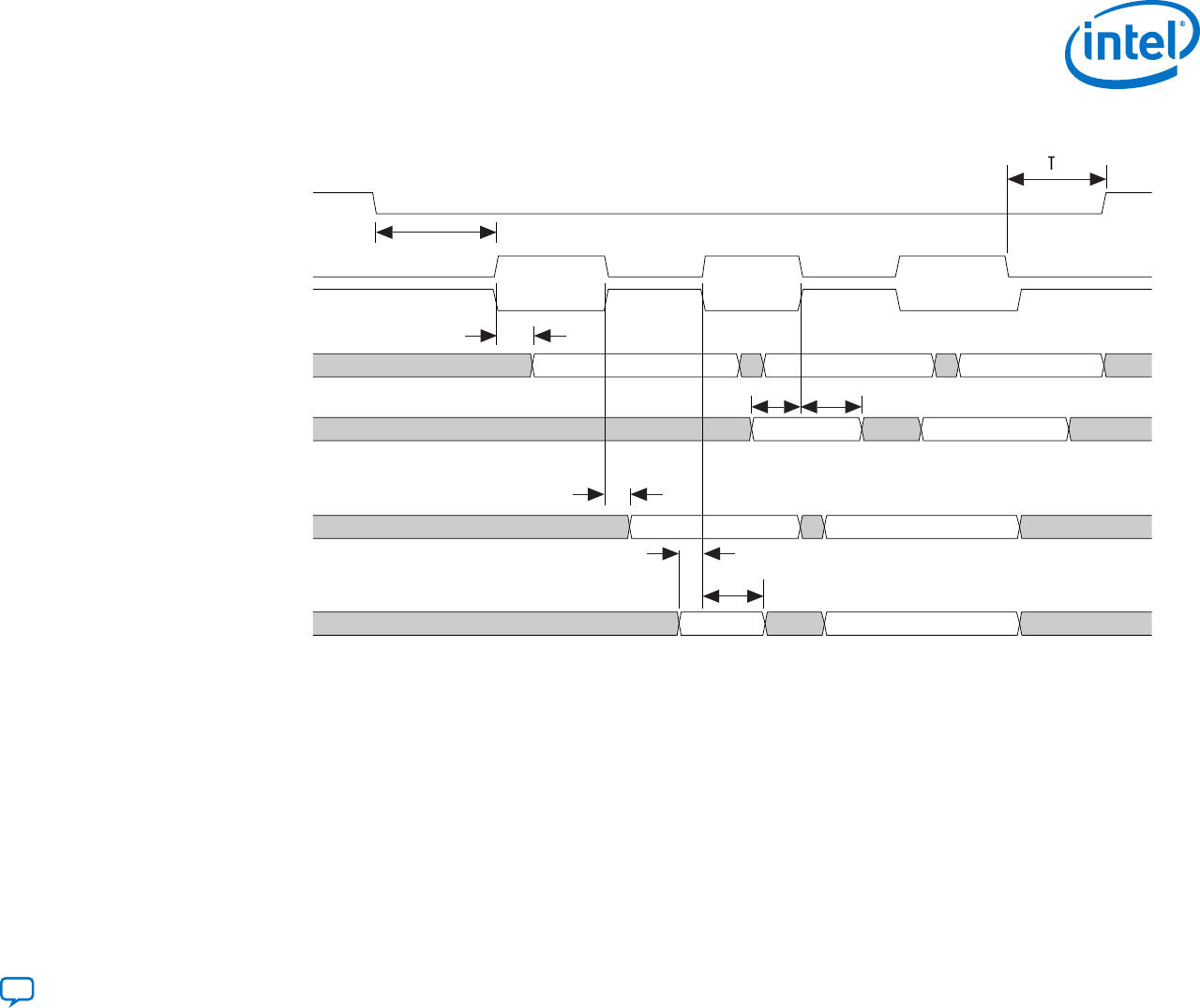

Figure 10. SPI Master Timing Diagram

SPI_SS

SPI_CLK (scpol = 0)

SPI_MOSI (scph = 1)

SPI_MISO (scph = 1)

Tdssfrst

SPI_CLK (scpol = 1)

SPI_MOSI (scph = 0)

SPI_MISO (scph = 0)

Tdio

Tdsslst

Tsu Th

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Table 53. SPI Slave Timing Requirements for Arria V Devices

The setup and hold times can be used for Texas Instruments SSP mode and National Semiconductor Microwire mode.

Symbol Description Min Max Unit

Tclk CLK clock period 20 — ns

TsMOSI Setup time 5 — ns

ThMOSI Hold time 5 — ns

Tsuss Setup time SPI_SS valid before first clock edge 8 — ns

Thss Hold time SPI_SS valid after last clock edge 8 — ns

TdMISO output delay — 6 ns

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Figure 11. SPI Slave Timing Diagram

SPI_SS

SPI_CLK (scpol = 0)

SPI_MOSI (scph = 1)

SPI_MISO (scph = 1)

SPI_CLK (scpol = 1)

SPI_MOSI (scph = 0)

SPI_MISO (scph = 0)

Tsuss

TsTh

Thss

Related Information

SPI Controller, Arria V Hard Processor System Technical Reference Manual

Provides more information about rx_sample_delay.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.2.4.5. SD/MMC Timing Characteristics

Table 54. Secure Digital (SD)/MultiMediaCard (MMC) Timing Requirements for Arria V Devices

After power up or cold reset, the Boot ROM uses drvsel = 3 and smplsel = 0 to execute the code. At the same time, the SD/MMC controller enters the

Identification Phase followed by the Data Phase. During this time, the value of interface output clock SDMMC_CLK_OUT changes from a maximum of 400 kHz

(Identification Phase) up to a maximum of 12.5 MHz (Data Phase), depending on the internal reference clock SDMMC_CLK and the CSEL setting. The value of

SDMMC_CLK is based on the external oscillator frequency and has a maximum value of 50 MHz.

After the Boot ROM code exits and control is passed to the preloader, software can adjust the value of drvsel and smplsel via the system manager. drvsel

can be set from 1 to 7 and smplsel can be set from 0 to 7. While the preloader is executing, the values for SDMMC_CLK and SDMMC_CLK_OUT increase to a

maximum of 200 MHz and 50 MHz respectively.

Symbol Description Min Max Unit

Tsdmmc_clk (internal reference

clock)

SDMMC_CLK clock period (Identification

mode)

20 — ns

SDMMC_CLK clock period (Default speed

mode)

5 — ns

SDMMC_CLK clock period (High speed

mode)

5 — ns

Tsdmmc_clk_out (interface output

clock)

SDMMC_CLK_OUT clock period

(Identification mode)

2500 — ns

SDMMC_CLK_OUT clock period (Default

speed mode)

40 — ns

SDMMC_CLK_OUT clock period (High speed

mode)

20 — ns

Tdutycycle SDMMC_CLK_OUT duty cycle 45 55 %

TdSDMMC_CMD/SDMMC_D output delay (Tsdmmc_clk × drvsel)/2 – 1.23

(88)

(Tsdmmc_clk × drvsel)/2 +

1.69 (88)

Tsu Input setup time 1.05 – (Tsdmmc_clk × smplsel)/2

(89)

— ns

ThInput hold time (Tsdmmc_clk × smplsel)/2 (89)— ns

(88) drvsel is the drive clock phase shift select value.

(89) smplsel is the sample clock phase shift select value.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

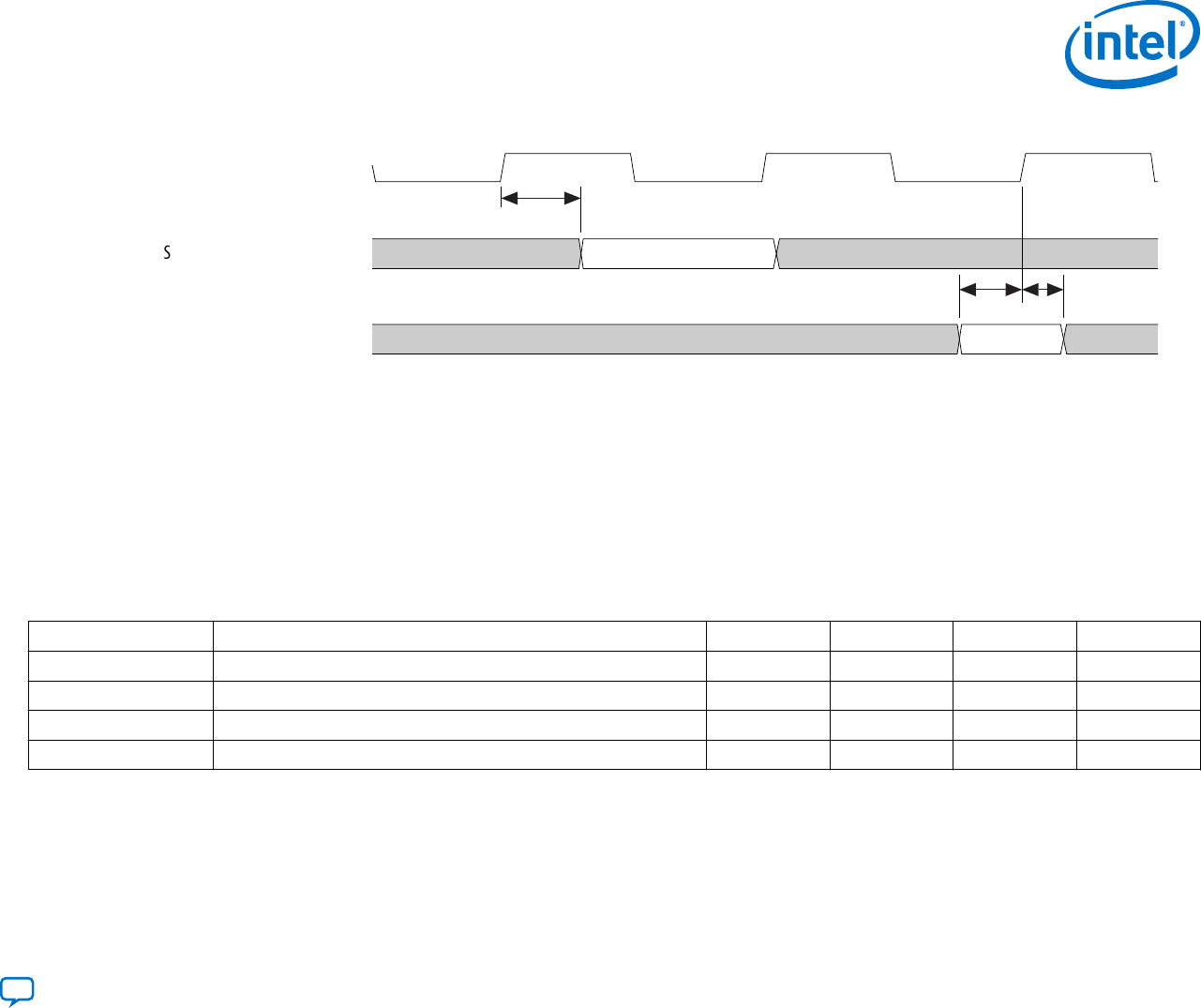

Figure 12. SD/MMC Timing Diagram

Command/Data In

SDMMC_CLK_OUT

SDMMC_CMD & SDMMC_D (Out)

SDMMC_CMD & SDMMC_D (In)

Command/Data Out

Tsu

Related Information

Booting and Configuration Chapter, Arria V Hard Processor System Technical Reference Manual

Provides more information about CSEL pin settings in the SD/MMC Controller CSEL Pin Settings table.

1.2.4.6. USB Timing Characteristics

PHYs that support LPM mode may not function properly with the USB controller due to a timing issue. It is recommended that

designers use the MicroChip USB3300 PHY device that has been proven to be successful on the development board.

Table 55. USB Timing Requirements for Arria V Devices

Symbol Description Min Typ Max Unit

Tclk USB CLK clock period — 16.67 — ns

TdCLK to USB_STP/USB_DATA[7:0] output delay 4.4 — 11 ns

Tsu Setup time for USB_DIR/USB_NXT/USB_DATA[7:0] 2 — — ns

ThHold time for USB_DIR/USB_NXT/USB_DATA[7:0] 1 — — ns

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

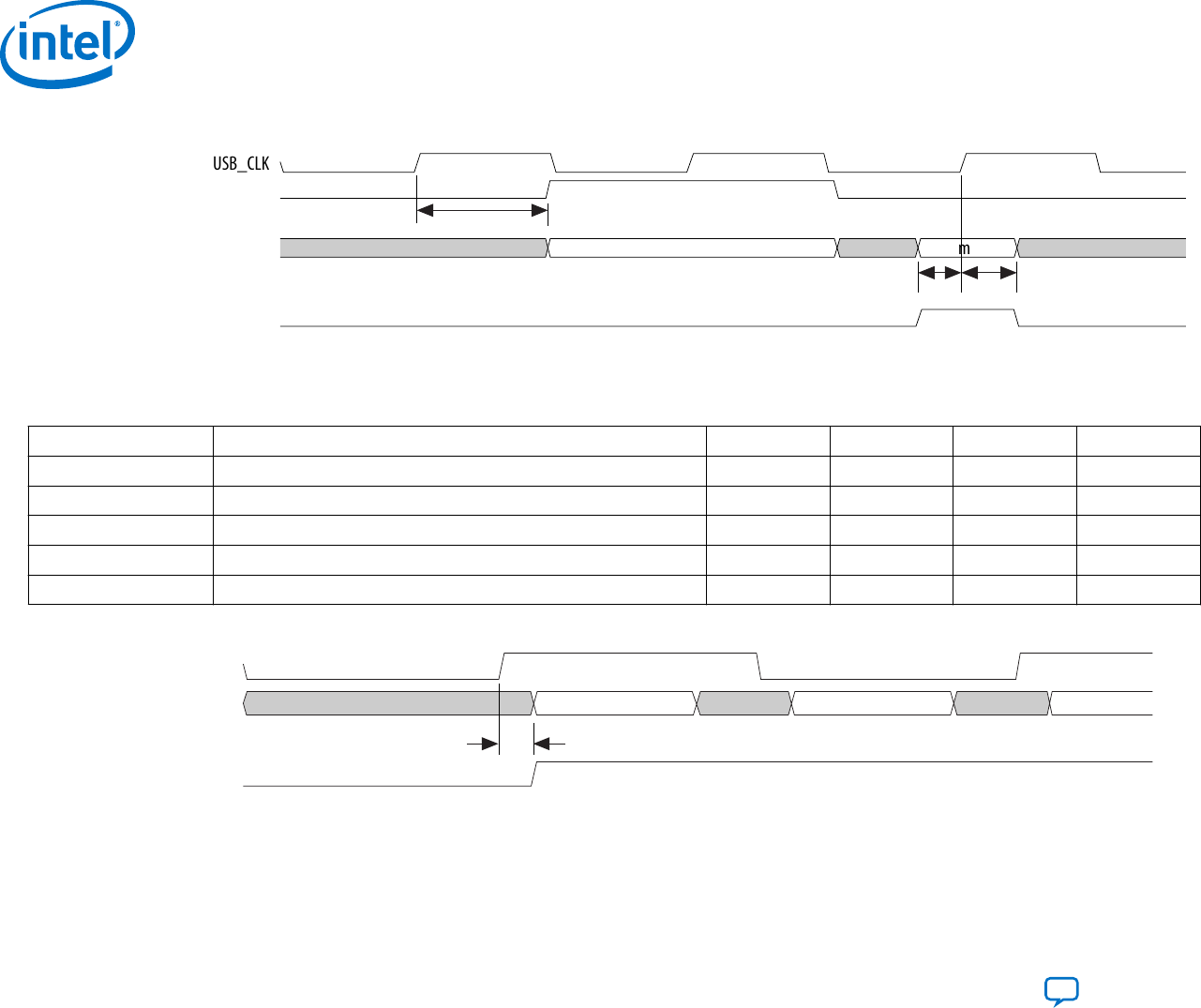

Figure 13. USB Timing Diagram

USB_CLK

USB_STP

USB_DATA[7:0]

USB_DIR & USB_NXT

To PHY From PHY

Tsu Th

1.2.4.7. Ethernet Media Access Controller (EMAC) Timing Characteristics

Table 56. Reduced Gigabit Media Independent Interface (RGMII) TX Timing Requirements for Arria V Devices

Symbol Description Min Typ Max Unit

Tclk (1000Base-T) TX_CLK clock period — 8 — ns

Tclk (100Base-T) TX_CLK clock period — 40 — ns

Tclk (10Base-T) TX_CLK clock period — 400 — ns

Tdutycycle TX_CLK duty cycle 45 — 55 %

TdTX_CLK to TXD/TX_CTL output data delay –0.85 — 0.15 ns

Figure 14. RGMII TX Timing Diagram

TX_CLK

TX_D[3:0]

TX_CTL

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

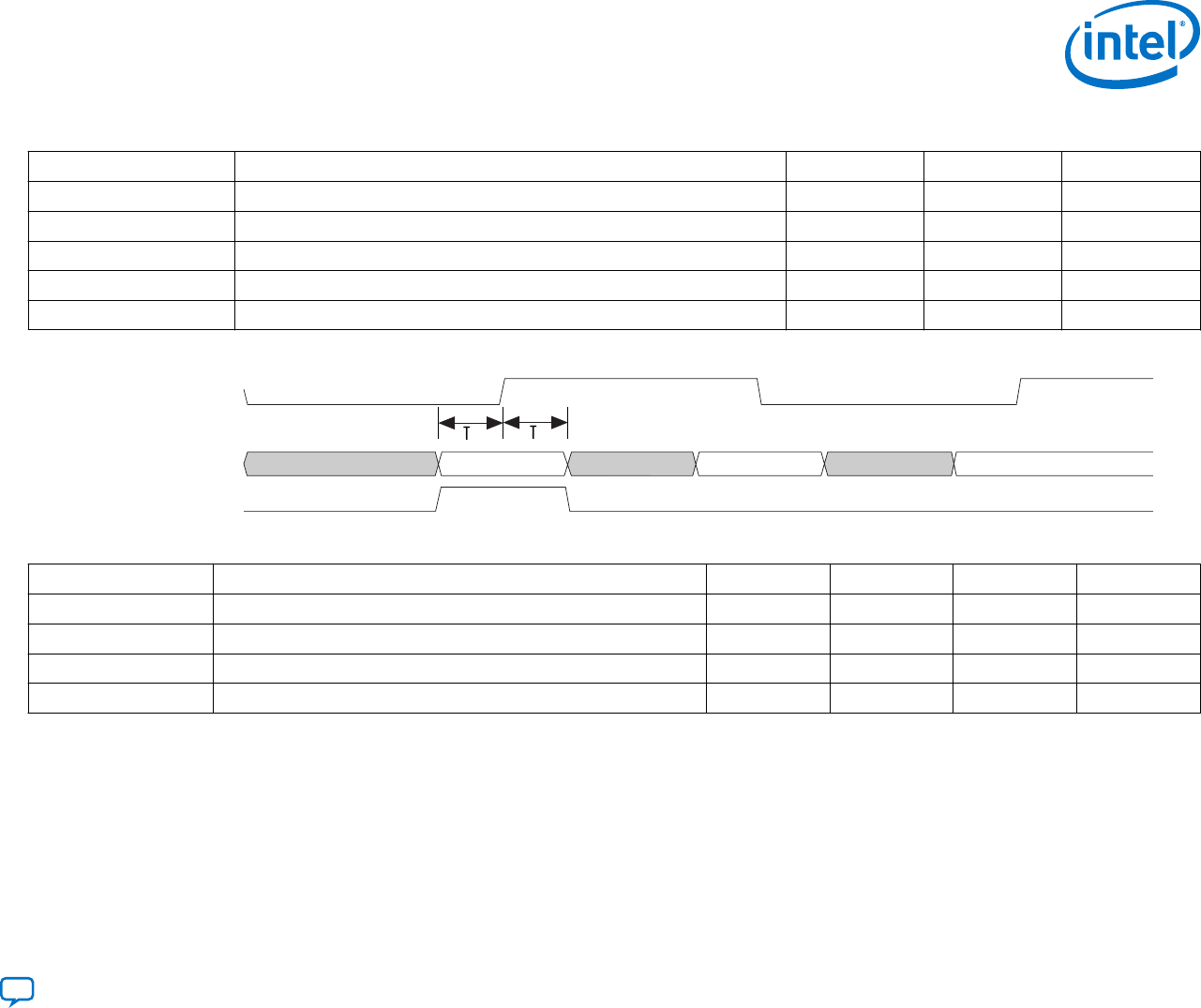

Table 57. RGMII RX Timing Requirements for Arria V Devices

Symbol Description Min Typ Unit

Tclk (1000Base-T) RX_CLK clock period — 8 ns

Tclk (100Base-T) RX_CLK clock period — 40 ns

Tclk (10Base-T) RX_CLK clock period — 400 ns

Tsu RX_D/RX_CTL setup time 1 — ns

ThRX_D/RX_CTL hold time 1 — ns

Figure 15. RGMII RX Timing Diagram

RX_CLK

RX_D[3:0]

RX_CTL

Tsu Th

Table 58. Management Data Input/Output (MDIO) Timing Requirements for Arria V Devices

Symbol Description Min Typ Max Unit

Tclk MDC clock period — 400 — ns

TdMDC to MDIO output data delay 10 — 20 ns

TsSetup time for MDIO data 10 — — ns

ThHold time for MDIO data 0 — — ns

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

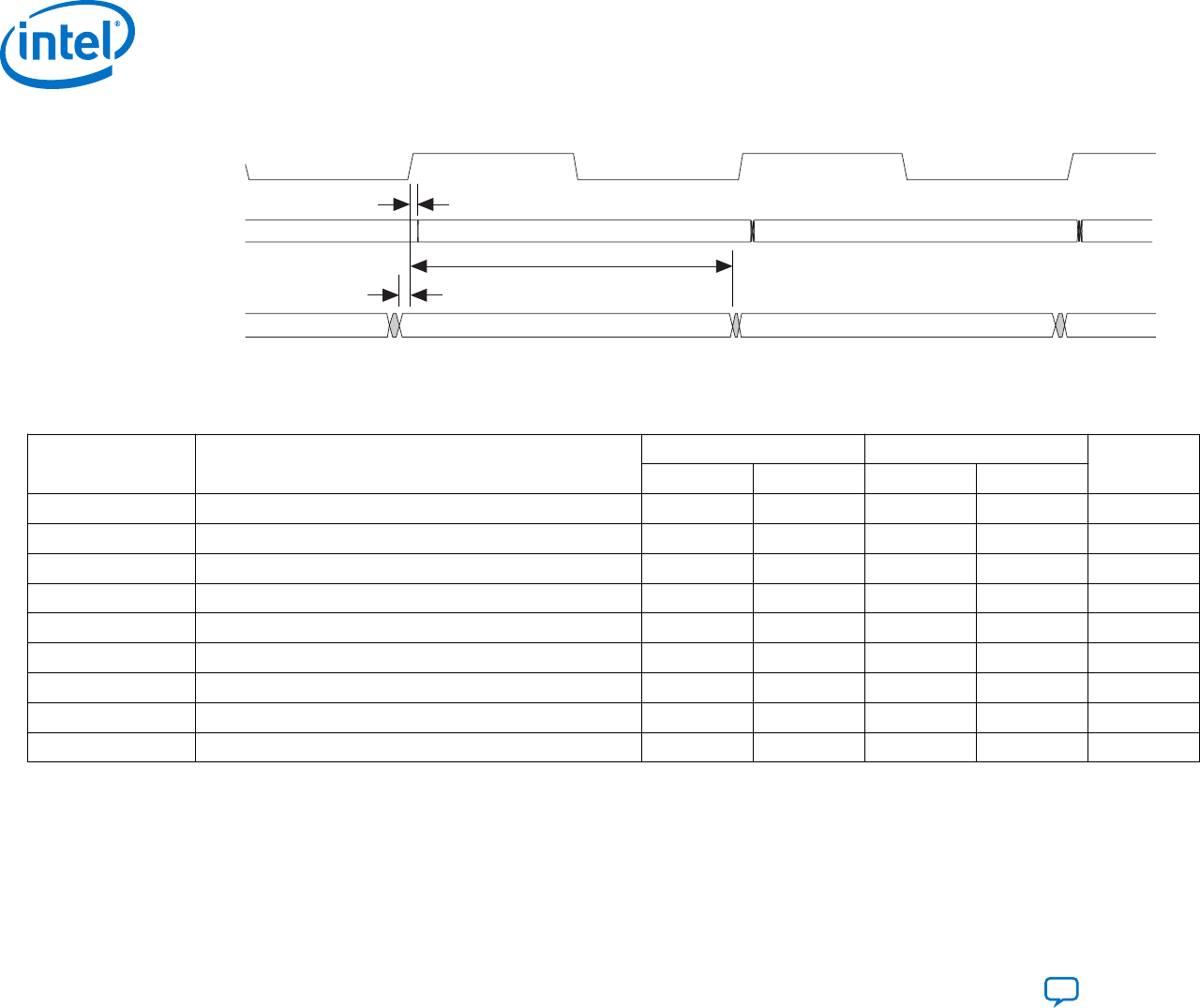

Figure 16. MDIO Timing Diagram

MDC

MDIO_OUT

MDIO_IN

Tsu

1.2.4.8. I2C Timing Characteristics

Table 59. I2C Timing Requirements for Arria V Devices

Symbol Description Standard Mode Fast Mode Unit

Min Max Min Max

Tclk Serial clock (SCL) clock period 10 — 2.5 — µs

Tclkhigh SCL high time 4.7 — 0.6 — µs

Tclklow SCL low time 4 — 1.3 — µs

TsSetup time for serial data line (SDA) data to SCL 0.25 — 0.1 — µs

ThHold time for SCL to SDA data 0 3.45 0 0.9 µs

TdSCL to SDA output data delay — 0.2 — 0.2 µs

Tsu_start Setup time for a repeated start condition 4.7 — 0.6 — µs

Thd_start Hold time for a repeated start condition 4 — 0.6 — µs

Tsu_stop Setup time for a stop condition 4 — 0.6 — µs

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

(intel IZCJCL 3‘ \ ‘x ' \ y“ \ + «I I I + e T I F7 | x 1’ Data cm X Dam \n ‘

Figure 17. I2C Timing Diagram

Data In

Data Out

I2C_SCL

I2C_SDA

Tsu_start Thd_start

Tsu_stop

1.2.4.9. NAND Timing Characteristics

Table 60. NAND ONFI 1.0 Timing Requirements for Arria V Devices

The NAND controller supports Open NAND FLASH Interface (ONFI) 1.0 Mode 5 timing as well as legacy NAND devices. This table lists the requirements for ONFI

1.0 mode 5 timing. The HPS NAND controller can meet this timing by programming the C4 output of the main HPS PLL and timing registers provided in the NAND

controller.

Symbol Description Min Max Unit

Twp(90)Write enable pulse width 10 — ns

Twh(90)Write enable hold time 7 — ns

Trp(90)Read enable pulse width 10 — ns

Treh(90)Read enable hold time 7 — ns

Tclesu(90)Command latch enable to write enable setup time 10 — ns

Tcleh(90)Command latch enable to write enable hold time 5 — ns

Tcesu(90)Chip enable to write enable setup time 15 — ns

Tceh(90)Chip enable to write enable hold time 5 — ns

Talesu(90)Address latch enable to write enable setup time 10 — ns

Taleh(90)Address latch enable to write enable hold time 5 — ns

Tdsu(90)Data to write enable setup time 10 — ns

Tdh(90)Data to write enable hold time 5 — ns

continued...

(90) Timing of the NAND interface is controlled through the NAND configuration registers.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Symbol Description Min Max Unit

Tcea Chip enable to data access time — 25 ns

Trea Read enable to data access time — 16 ns

Trhz Read enable to data high impedance — 100 ns

Trr Ready to read enable low 20 — ns

Figure 18. NAND Command Latch Timing Diagram

Command

NAND_CLE

NAND_CE

NAND_WE

NAND_DQ[7:0]

Tclesu

Tcesu Tcleh

Tceh

Twp

Talesu Taleh

Tdsu Tdh

NAND_ALE

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

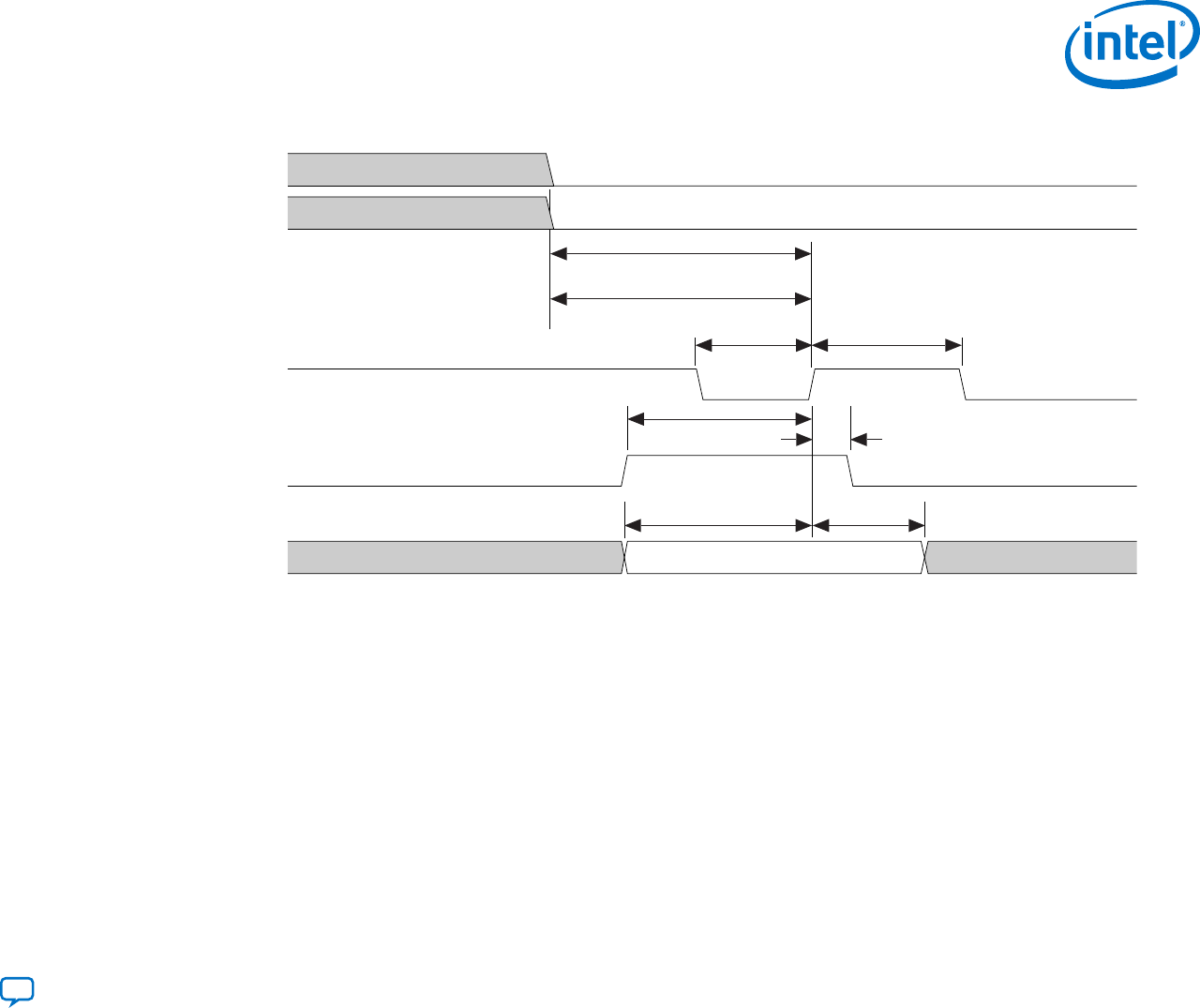

Figure 19. NAND Address Latch Timing Diagram

Address

NAND_CLE

NAND_WE

NAND_ALE

NAND_DQ[7:0]

Tclesu

Tcesu

Twh

Twp

Talesu Taleh

Tdsu Tdh

NAND_CE

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

NANI)_(LE

Figure 20. NAND Data Write Timing Diagram

NAND_CLE

NAND_WE

NAND_ALE

NAND_DQ[7:0]

Tceh

Tcleh

Twp

Talesu

Tdsu

Tdh

NAND_CE

Din

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

intel‘) \ 41“ ‘E ," \ a, + +

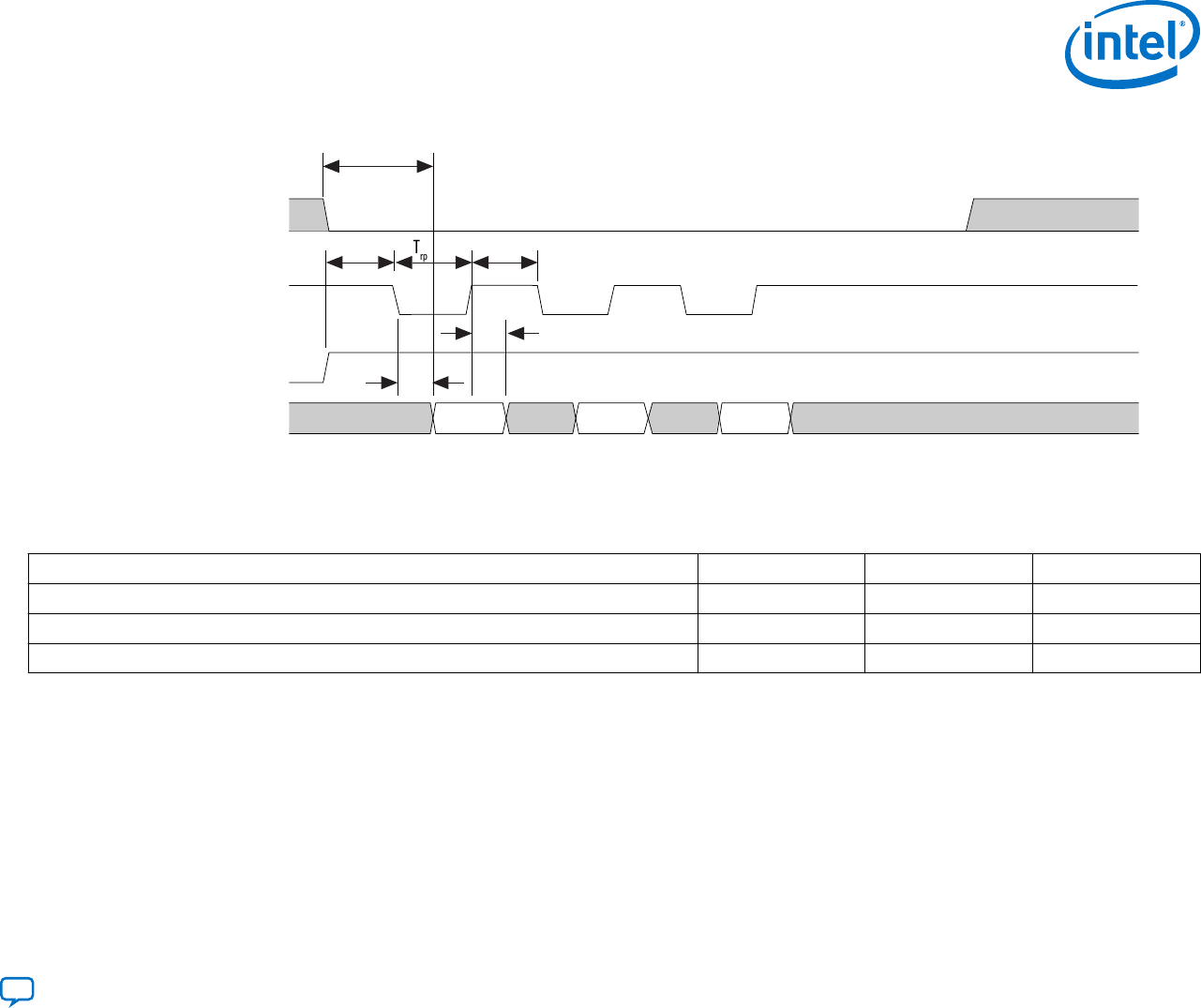

Figure 21. NAND Data Read Timing Diagram

NAND_RE

NAND_RB

NAND_DQ[7:0]

NAND_CE

Dout

Tcea

Trp Treh

Trea

Trhz

Trr

1.2.4.10. Arm Trace Timing Characteristics

Table 61. Arm Trace Timing Requirements for Arria V Devices

Most debugging tools have a mechanism to adjust the capture point of trace data.

Description Min Max Unit

CLK clock period 12.5 — ns

CLK maximum duty cycle 45 55 %

CLK to D0 –D7 output data delay –1 1 ns

1.2.4.11. UART Interface

The maximum UART baud rate is 6.25 megasymbols per second.

1.2.4.12. GPIO Interface

The minimum detectable general-purpose I/O (GPIO) pulse width is 2 μs. The pulse width is based on a debounce clock

frequency of 1 MHz.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.2.4.13. HPS JTAG Timing Specifications

Table 62. HPS JTAG Timing Parameters and Values for Arria V Devices

Symbol Description Min Max Unit

tJCP TCK clock period 30 — ns

tJCH TCK clock high time 14 — ns

tJCL TCK clock low time 14 — ns

tJPSU (TDI) TDI JTAG port setup time 2 — ns

tJPSU (TMS) TMS JTAG port setup time 3 — ns

tJPH JTAG port hold time 5 — ns

tJPCO JTAG port clock to output — 12(91)ns

tJPZX JTAG port high impedance to valid output — 14(91)ns

tJPXZ JTAG port valid output to high impedance — 14(91)ns

1.3. Configuration Specifications

This section provides configuration specifications and timing for Arria V devices.

1.3.1. POR Specifications

Table 63. Fast and Standard POR Delay Specification for Arria V Devices

POR Delay Minimum Maximum Unit

Fast 4 12(92) ms

Standard 100 300 ms

(91) A 1-ns adder is required for each VCCIO _HPS voltage step down from 3.0 V. For example, tJPCO= 13 ns if VCCIO _HPS of the TDO I/O bank

= 2.5 V, or 14 ns if it equals 1.8 V.

(92) The maximum pulse width of the fast POR delay is 12 ms, providing enough time for the PCIe hard IP to initialize after the POR trip.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Related Information

MSEL Pin Settings

Provides more information about POR delay based on MSEL pin settings for each configuration scheme.

1.3.2. FPGA JTAG Configuration Timing

Table 64. FPGA JTAG Timing Parameters and Values for Arria V Devices

Symbol Description Min Max Unit

tJCP TCK clock period 30, 167(93) — ns

tJCH TCK clock high time 14 — ns

tJCL TCK clock low time 14 — ns

tJPSU (TDI) TDI JTAG port setup time 2 — ns

tJPSU (TMS) TMS JTAG port setup time 3 — ns

tJPH JTAG port hold time 5 — ns

tJPCO JTAG port clock to output — 12(94)ns

tJPZX JTAG port high impedance to valid output — 14(94)ns

tJPXZ JTAG port valid output to high impedance — 14(94)ns

1.3.3. FPP Configuration Timing

1.3.3.1. DCLK-to-DATA[] Ratio (r) for FPP Configuration

Fast passive parallel (FPP) configuration requires a different DCLK-to-DATA[] ratio when you turn on encryption or the

compression feature.

(93) The minimum TCK clock period is 167 ns if VCCBAT is within the range 1.2 V – 1.5 V when you perform the volatile key programming.

(94) A 1-ns adder is required for each VCCIO voltage step down from 3.0 V. For example, tJPCO= 13 ns if VCCIO of the TDO I/O bank =

2.5 V, or 14 ns if it equals 1.8 V.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Depending on the DCLK-to-DATA[] ratio, the host must send a DCLK frequency that is r times the DATA[] rate in byte per

second (Bps) or word per second (Wps). For example, in FPP ×16 where the r is 2, the DCLK frequency must be 2 times the

DATA[] rate in Wps.

Table 65. DCLK-to-DATA[] Ratio for Arria V Devices

Configuration Scheme Encryption Compression DCLK-to-DATA[] Ratio (r)

FPP (8-bit wide) Off Off 1

On Off 1

Off On 2

On On 2

FPP (16-bit wide) Off Off 1

On Off 2

Off On 4

On On 4

1.3.3.2. FPP Configuration Timing when DCLK-to-DATA[] = 1

When you enable decompression or the design security feature, the DCLK-to-DATA[] ratio varies for FPP ×8 and FPP ×16. For

the respective DCLK-to-DATA[] ratio, refer to the DCLK-to-DATA[] Ratio for Arria V Devices table.

Table 66. FPP Timing Parameters When DCLK-to-DATA[] Ratio is 1 for Arria V Devices

Symbol Parameter Minimum Maximum Unit

tCF2CD nCONFIG low to CONF_DONE low — 600 ns

tCF2ST0 nCONFIG low to nSTATUS low — 600 ns

tCFG nCONFIG low pulse width 2 — µs

tSTATUS nSTATUS low pulse width 268 1506(95) µs

continued...

(95) You can obtain this value if you do not delay configuration by extending the nCONFIG or the nSTATUS low pulse width.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol Parameter Minimum Maximum Unit

tCF2ST1 nCONFIG high to nSTATUS high — 1506(96) µs

tCF2CK(97)nCONFIG high to first rising edge on DCLK 1506 — µs

tST2CK(97)nSTATUS high to first rising edge of DCLK 2 — µs

tDSU DATA[] setup time before rising edge on DCLK 5.5 — ns

tDH DATA[] hold time after rising edge on DCLK 0 — ns

tCH DCLK high time 0.45 × 1/fMAX — s

tCL DCLK low time 0.45 × 1/fMAX — s

tCLK DCLK period 1/fMAX — s

fMAX DCLK frequency (FPP ×8/ ×16) — 125 MHz

tCD2UM CONF_DONE high to user mode(98) 175 437 µs

tCD2CU CONF_DONE high to CLKUSR enabled 4× maximum DCLK period — —

tCD2UMC CONF_DONE high to user mode with CLKUSR option on tCD2CU + (Tinit × CLKUSR period) — —

Tinit Number of clock cycles required for device initialization 8,576 — Cycles

Related Information

FPP Configuration Timing

Provides the FPP configuration timing waveforms.

(96) You can obtain this value if you do not delay configuration by externally holding the nSTATUS low.

(97) If nSTATUS is monitored, follow the tST2CK specification. If nSTATUS is not monitored, follow the tCF2CK specification.

(98) The minimum and maximum numbers apply only if you chose the internal oscillator as the clock source for initializing the device.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.3.3.3. FPP Configuration Timing when DCLK-to-DATA[] >1

Table 67. FPP Timing Parameters When DCLK-to-DATA[] Ratio is >1 for Arria V Devices

Use these timing parameters when you use the decompression and design security features.

Symbol Parameter Minimum Maximum Unit

tCF2CD nCONFIG low to CONF_DONE low — 600 ns

tCF2ST0 nCONFIG low to nSTATUS low — 600 ns

tCFG nCONFIG low pulse width 2 — µs

tSTATUS nSTATUS low pulse width 268 1506(99) µs

tCF2ST1 nCONFIG high to nSTATUS high — 1506(100) µs

tCF2CK(101)nCONFIG high to first rising edge on DCLK 1506 — µs

tST2CK(101)nSTATUS high to first rising edge of DCLK 2 — µs

tDSU DATA[] setup time before rising edge on DCLK 5.5 — ns

tDH DATA[] hold time after rising edge on DCLK N – 1/fDCLK(102) — s

tCH DCLK high time 0.45 × 1/fMAX — s

tCL DCLK low time 0.45 × 1/fMAX — s

tCLK DCLK period 1/fMAX — s

fMAX DCLK frequency (FPP ×8/ ×16) — 125 MHz

tRInput rise time — 40 ns

tFInput fall time — 40 ns

continued...

(99) This value can be obtained if you do not delay configuration by extending the nCONFIG or nSTATUS low pulse width.

(100) This value can be obtained if you do not delay configuration by externally holding nSTATUS low.

(101) If nSTATUS is monitored, follow the tST2CK specification. If nSTATUS is not monitored, follow the tCF2CK specification.

(102) N is the DCLK-to-DATA[] ratio and fDCLK is the DCLK frequency of the system.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Symbol Parameter Minimum Maximum Unit

tCD2UM CONF_DONE high to user mode(103) 175 437 µs

tCD2CU CONF_DONE high to CLKUSR enabled 4 × maximum DCLK period — —

tCD2UMC CONF_DONE high to user mode with CLKUSR option on tCD2CU + (Tinit × CLKUSR period) — —

Tinit Number of clock cycles required for device initialization 8,576 — Cycles

Related Information

FPP Configuration Timing

Provides the FPP configuration timing waveforms.

1.3.4. Active Serial (AS) Configuration Timing

Table 68. AS Timing Parameters for AS ×1 and ×4 Configurations in Arria V Devices

The minimum and maximum numbers apply to both the internal oscillator and CLKUSR when either one is used as the clock source for device configuration.

The tCF2CD, tCF2ST0, tCFG, tSTATUS, and tCF2ST1 timing parameters are identical to the timing parameters for passive serial (PS) mode listed in PS Timing Parameters

for Arria V Devices table. You can obtain the tCF2ST1 value if you do not delay configuration by externally holding nSTATUS low.

Symbol Parameter Condition Minimum Maximum Unit

tCO (104) DCLK falling edge to the AS_DATA0/ASDO output — — 2 ns

tSU(105)Data setup time before the falling edge on DCLK — 1.5 — ns

tDH(105)Data hold time after the falling edge on DCLK –3 speed grade 1.7 — ns

–4 speed grade 2.0 — ns

continued...

(103) The minimum and maximum numbers apply only if you chose the internal oscillator as the clock source for initializing the device.

(104) Load capacitance for DCLK = 6 pF and AS_DATA/ASDO = 8 pF. Intel recommends obtaining the tCO for a given link (including receiver,

transmission lines, connectors, termination resistors, and other components) through IBIS or HSPICE simulation.

(105) To evaluate the data setup (tSU) and data hold time (tDH) slack on your board in order to ensure you are meeting the tSU and tDH

requirement, Intel recommends following the guideline in the "Evaluating Data Setup and Hold Timing Slack" chapter in AN822: Intel

FPGA Configuration Device Migration Guideline.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Symbol Parameter Condition Minimum Maximum Unit

–5 speed grade 2.3 — ns

–6 speed grade 2.6 — ns

tCD2UM CONF_DONE high to user mode — 175 437 µs

tCD2CU CONF_DONE high to CLKUSR enabled —4 × maximum DCLK period — —

tCD2UMC CONF_DONE high to user mode with CLKUSR option on —tCD2CU + (Tinit × CLKUSR

period)

— —

Tinit Number of clock cycles required for device initialization — 8,576 — Cycles

Related Information

•Passive Serial (PS) Configuration Timing on page 81

•AS Configuration Timing

Provides the AS configuration timing waveform.

•Evaluating Data Setup and Hold Timing Slack chapter, AN822: Intel FPGA Configuration Device Migration Guideline

1.3.5. DCLK Frequency Specification in the AS Configuration Scheme

Table 69. DCLK Frequency Specification in the AS Configuration Scheme

This table lists the internal clock frequency specification for the AS configuration scheme. The DCLK frequency specification applies when you use the internal

oscillator as the configuration clock source. The AS multi-device configuration scheme does not support DCLK frequency of 100 MHz.

Parameter Minimum Typical Maximum Unit

DCLK frequency in AS configuration scheme 5.3 7.9 12.5 MHz

10.6 15.7 25.0 MHz

21.3 31.4 50.0 MHz

42.6 62.9 100.0 MHz

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

1.3.6. Passive Serial (PS) Configuration Timing

Table 70. PS Timing Parameters for Arria V Devices

Symbol Parameter Minimum Maximum Unit

tCF2CD nCONFIG low to CONF_DONE low — 600 ns

tCF2ST0 nCONFIG low to nSTATUS low — 600 ns

tCFG nCONFIG low pulse width 2 — µs

tSTATUS nSTATUS low pulse width 268 1506(106) µs

tCF2ST1 nCONFIG high to nSTATUS high — 1506(107) µs

tCF2CK(108)nCONFIG high to first rising edge on DCLK 1506 — µs

tST2CK(108)nSTATUS high to first rising edge of DCLK 2 — µs

tDSU DATA[] setup time before rising edge on DCLK 5.5 — ns

tDH DATA[] hold time after rising edge on DCLK 0 — ns

tCH DCLK high time 0.45 × 1/fMAX — s

tCL DCLK low time 0.45 × 1/fMAX — s

tCLK DCLK period 1/fMAX — s

fMAX DCLK frequency — 125 MHz

tCD2UM CONF_DONE high to user mode(109) 175 437 µs

continued...

(106) You can obtain this value if you do not delay configuration by extending the nCONFIG or nSTATUS low pulse width.

(107) You can obtain this value if you do not delay configuration by externally holding nSTATUS low.

(108) If nSTATUS is monitored, follow the tST2CK specification. If nSTATUS is not monitored, follow the tCF2CK specification.

(109) The minimum and maximum numbers apply only if you chose the internal oscillator as the clock source for initializing the device.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Symbol Parameter Minimum Maximum Unit

tCD2CU CONF_DONE high to CLKUSR enabled 4 × maximum DCLK period — —

tCD2UMC CONF_DONE high to user mode with CLKUSR option on tCD2CU + (Tinit × CLKUSR period) — —

Tinit Number of clock cycles required for device initialization 8,576 — Cycles

Related Information

PS Configuration Timing

Provides the PS configuration timing waveform.

1.3.7. Initialization

Table 71. Initialization Clock Source Option and the Maximum Frequency for Arria V Devices

Initialization Clock Source Configuration Scheme Maximum Frequency (MHz) Minimum Number of Clock Cycles

Internal Oscillator AS, PS, and FPP 12.5 Tinit

CLKUSR(110) PS and FPP 125

AS 100

DCLK PS and FPP 125

(110) To enable CLKUSR as the initialization clock source, turn on the Enable user-supplied start-up clock (CLKUSR) option in the Intel

Quartus Prime software from the General panel of the Device and Pin Options dialog box.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

1.3.8. Configuration Files

Table 72. Uncompressed .rbf Sizes for Arria V Devices

Use this table to estimate the file size before design compilation. Different configuration file formats, such as a hexadecimal file (.hex) or tabular text file (.ttf)

format, have different file sizes.

For the different types of configuration file and file sizes, refer to the Intel Quartus Prime software. However, for a specific version of the Intel Quartus Prime

software, any design targeted for the same device has the same uncompressed configuration file size.

The IOCSR raw binary file (.rbf) size is specifically for the Configuration via Protocol (CvP) feature.

Variant Member Code Configuration .rbf Size (bits) IOCSR .rbf Size (bits)

Arria V GX A1 71,015,712 439,960

A3 71,015,712 439,960

A5 101,740,800 446,360

A7 101,740,800 446,360

B1 137,785,088 457,368

B3 137,785,088 457,368

B5 185,915,808 463,128

B7 185,915,808 463,128

Arria V GT C3 71,015,712 439,960

C7 101,740,800 446,360

D3 137,785,088 457,368

D7 185,915,808 463,128

Arria V SX B3 185,903,680 450,968

B5 185,903,680 450,968

Arria V ST D3 185,903,680 450,968

D5 185,903,680 450,968

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.3.9. Minimum Configuration Time Estimation

Table 73. Minimum Configuration Time Estimation for Arria V Devices

The estimated values are based on the configuration .rbf sizes in Uncompressed .rbf Sizes for Arria V Devices table.

Variant Member Code Active Serial(111) Fast Passive Parallel(112)

Width DCLK (MHz) Minimum Configuration

Time (ms)

Width DCLK (MHz) Minimum Configuration

Time (ms)

Arria V GX A1 4 100 178 16 125 36

A3 4 100 178 16 125 36

A5 4 100 255 16 125 51

A7 4 100 255 16 125 51

B1 4 100 344 16 125 69

B3 4 100 344 16 125 69

B5 4 100 465 16 125 93

B7 4 100 465 16 125 93

Arria V GT C3 4 100 178 16 125 36

C7 4 100 255 16 125 51

D3 4 100 344 16 125 69

D7 4 100 465 16 125 93

Arria V SX B3 4 100 465 16 125 93

B5 4 100 465 16 125 93

Arria V ST D3 4 100 465 16 125 93

D5 4 100 465 16 125 93

(111) DCLK frequency of 100 MHz using external CLKUSR.

(112) Maximum FPGA FPP bandwidth may exceed bandwidth available from some external storage or control logic.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Related Information

Configuration Files on page 83

1.3.10. Remote System Upgrades

Table 74. Remote System Upgrade Circuitry Timing Specifications for Arria V Devices

Parameter Minimum Unit

tRU_nCONFIG(113) 250 ns

tRU_nRSTIMER(114) 250 ns

Related Information

•Remote System Upgrade State Machine

Provides more information about configuration reset (RU_CONFIG) signal.

•User Watchdog Timer

Provides more information about reset_timer (RU_nRSTIMER) signal.

1.3.11. User Watchdog Internal Oscillator Frequency Specifications

Table 75. User Watchdog Internal Oscillator Frequency Specifications for Arria V Devices

Parameter Minimum Typical Maximum Unit

User watchdog internal oscillator frequency 5.3 7.9 12.5 MHz

1.4. I/O Timing

Intel offers two ways to determine I/O timing—the Excel-based I/O timing and the Intel Quartus Prime Timing Analyzer.

(113) This is equivalent to strobing the reconfiguration input of the Remote Update Intel FPGA IP core high for the minimum timing

specification.

(114) This is equivalent to strobing the reset timer input of the Remote Update Intel FPGA IP core high for the minimum timing

specification.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Excel-based I/O timing provides pin timing performance for each device density and speed grade. The data is typically used

prior to designing the FPGA to get an estimate of the timing budget as part of the link timing analysis.

The Intel Quartus Prime Timing Analyzer provides a more accurate and precise I/O timing data based on the specifics of the

design after you complete place-and-route.

Related Information

Arria V I/O Timing Spreadsheet

Provides the Arria V Excel-based I/O timing spreadsheet.

1.4.1. Programmable IOE Delay

Table 76. I/O element (IOE) Programmable Delay for Arria V Devices

Parameter(115

)

Available

Settings

Minimum

Offset(116)

Fast Model Slow Model Unit

Industrial Commercial –C4 –C5 –C6 –I3 –I5

D1 32 0 0.508 0.517 0.870 1.063 1.063 0.872 1.057 ns

D3 8 0 1.763 1.795 2.999 3.496 3.571 3.031 3.643 ns

D4 32 0 0.508 0.518 0.869 1.063 1.063 1.063 1.057 ns

D5 32 0 0.508 0.517 0.870 1.063 1.063 0.872 1.057 ns

(115) You can set this value in the Intel Quartus Prime software by selecting D1, D3, D4, and D5 in the Assignment Name column of

Assignment Editor.

(116) Minimum offset does not include the intrinsic delay.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

1.4.2. Programmable Output Buffer Delay

Table 77. Programmable Output Buffer Delay for Arria V Devices

This table lists the delay chain settings that control the rising and falling edge delays of the output buffer.

You can set the programmable output buffer delay in the Intel Quartus Prime software by setting the Output Buffer Delay Control assignment to either

positive, negative, or both edges, with the specific values stated here (in ps) for the Output Buffer Delay assignment.

Symbol Parameter Typical Unit

DOUTBUF Rising and/or falling edge delay 0 (default) ps

50 ps

100 ps

150 ps

1.5. Glossary

Table 78. Glossary

Term Definition

Differential I/O standards Receiver Input Waveforms

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Single-Ended Wavefovm ?

Term Definition

Single-Ended Waveform

Differential Waveform

Positive Channel (p) = VIH

Negative Channel (n) = VIL

Ground

VID

p - n = 0 V

VCM

Transmitter Output Waveforms

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

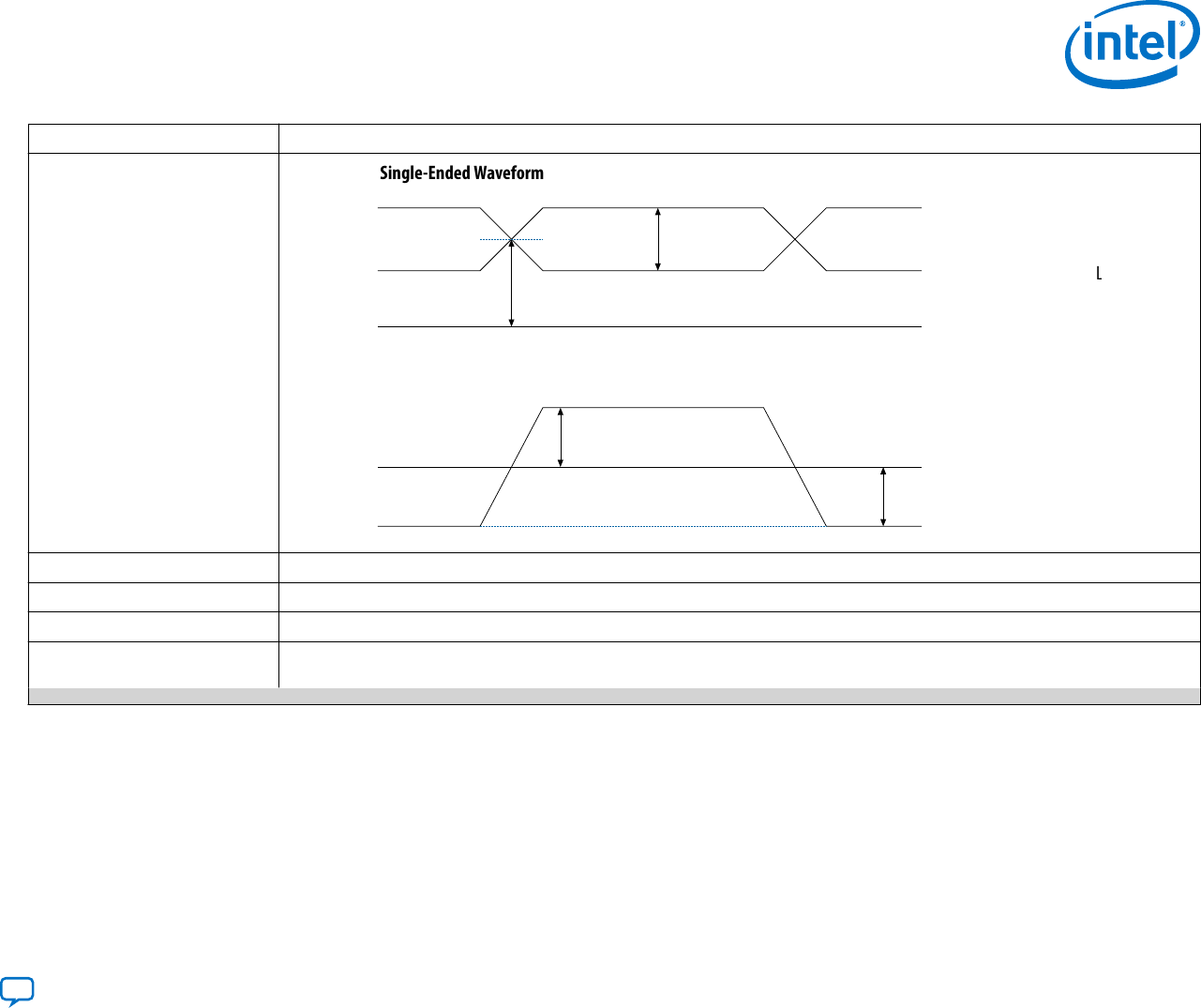

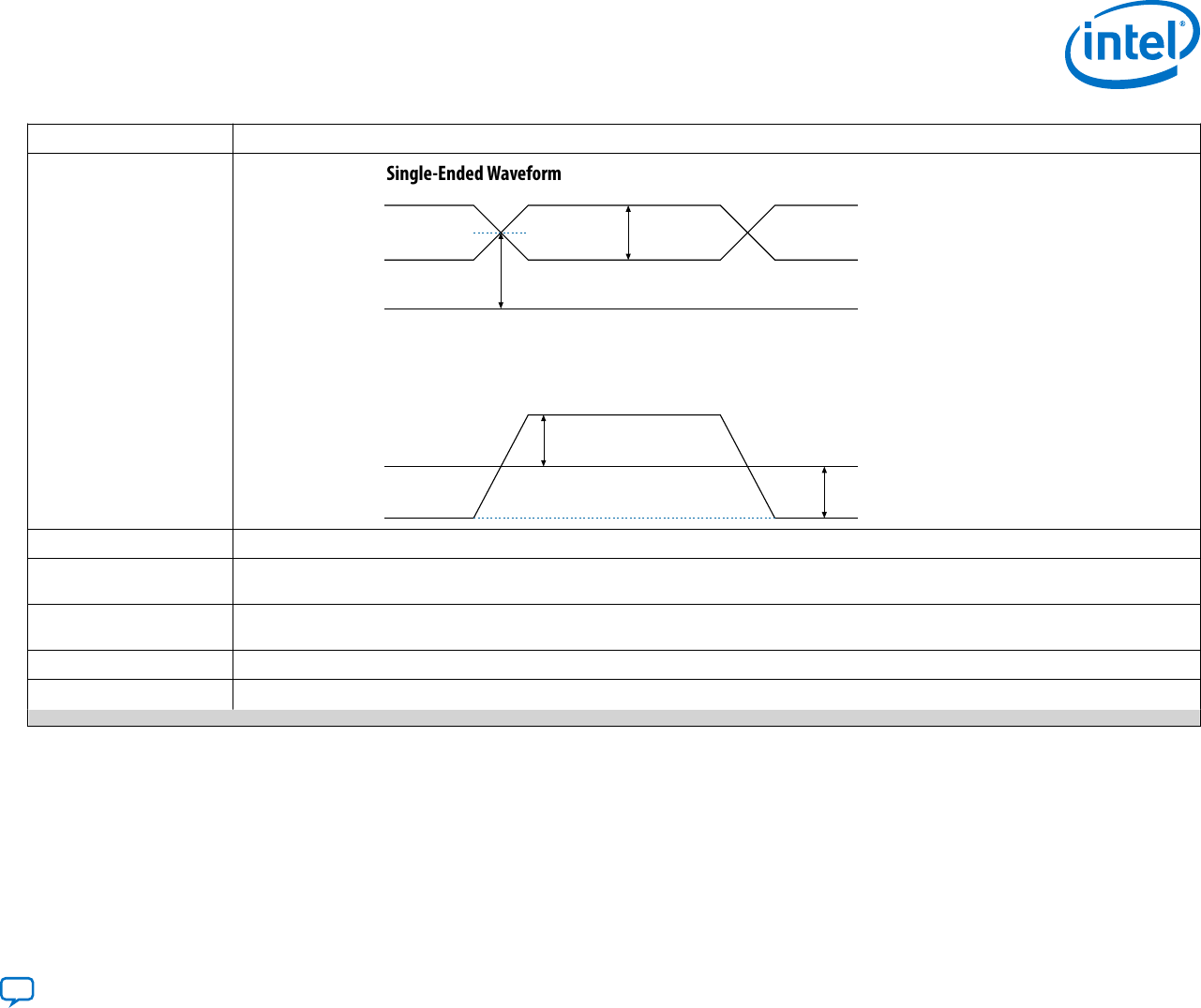

Single-Ended Waveform

Term Definition

Single-Ended Waveform

Differential Waveform

Positive Channel (p) = VOH

Negative Channel (n) = VOL

Ground

VOD

p - n = 0 V

VCM

fHSCLK Left/right PLL input clock frequency.

fHSDR High-speed I/O block—Maximum/minimum LVDS data transfer rate (fHSDR =1/TUI).

J High-speed I/O block—Deserialization factor (width of parallel data bus).

JTAG timing specifications JTAG Timing Specifications

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

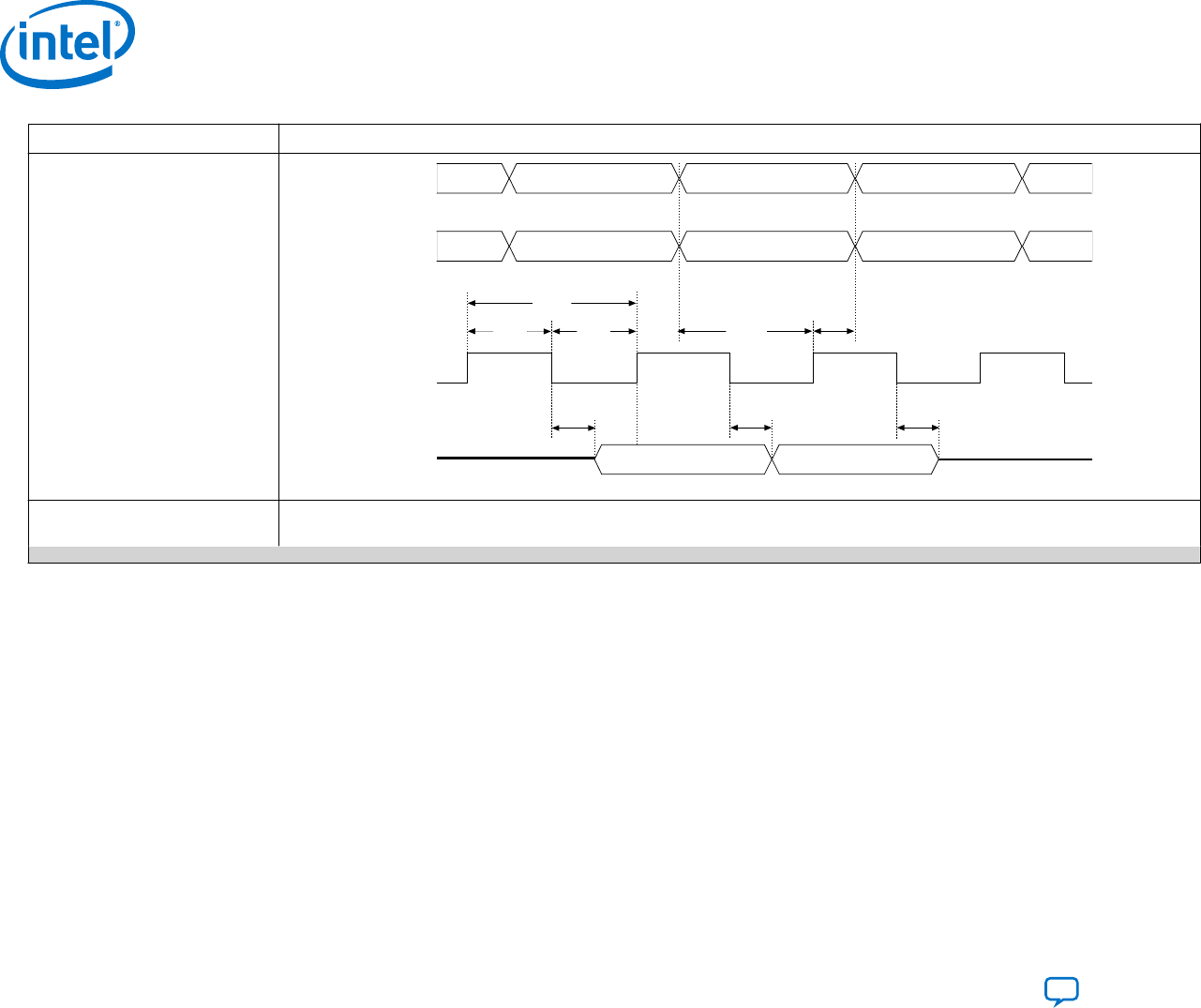

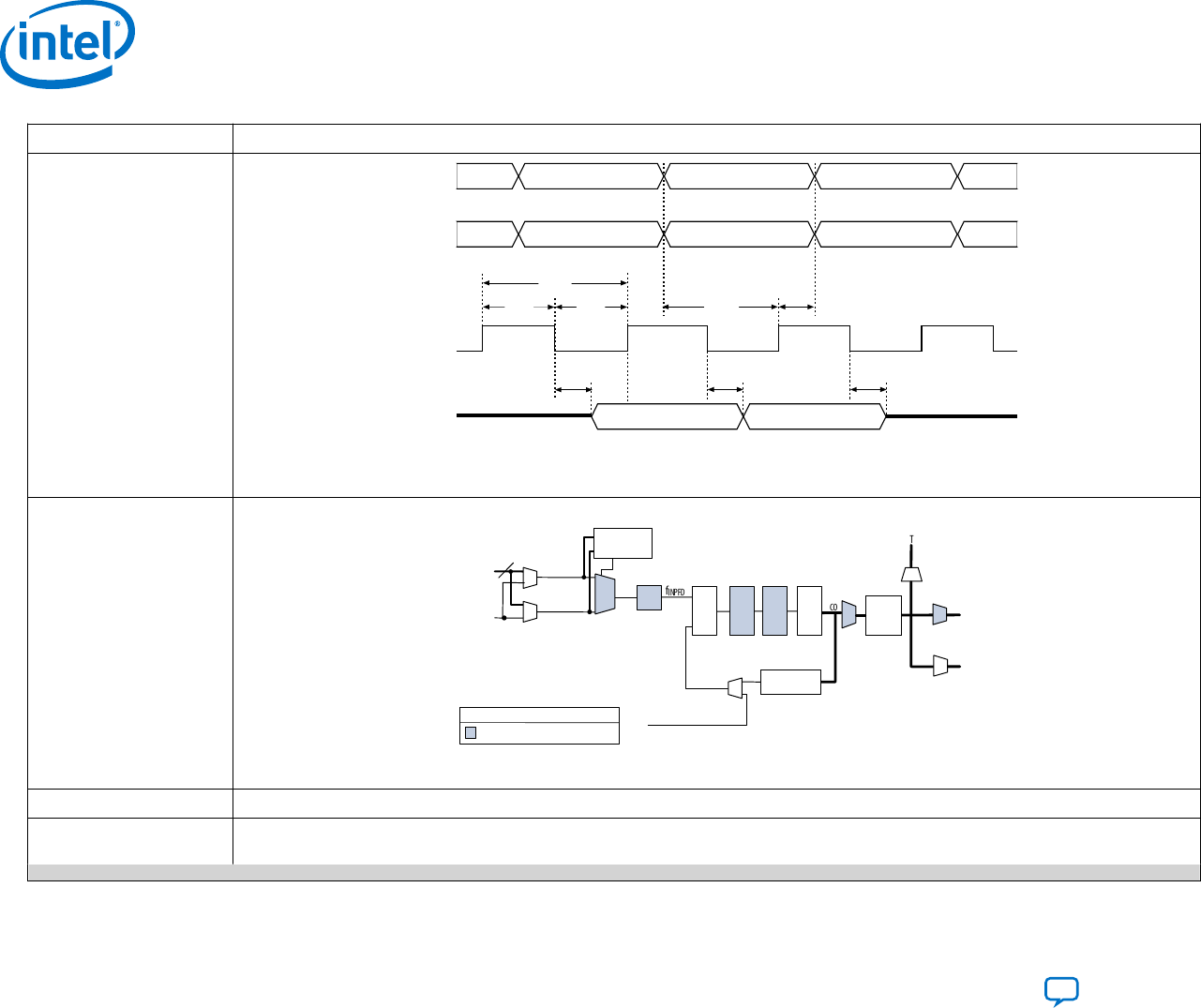

Term Definition

TDO

TCK

tJPZX tJPCO

tJPH

tJPXZ

t JCP

t JPSU

t JCL

t JCH

TDI

TMS

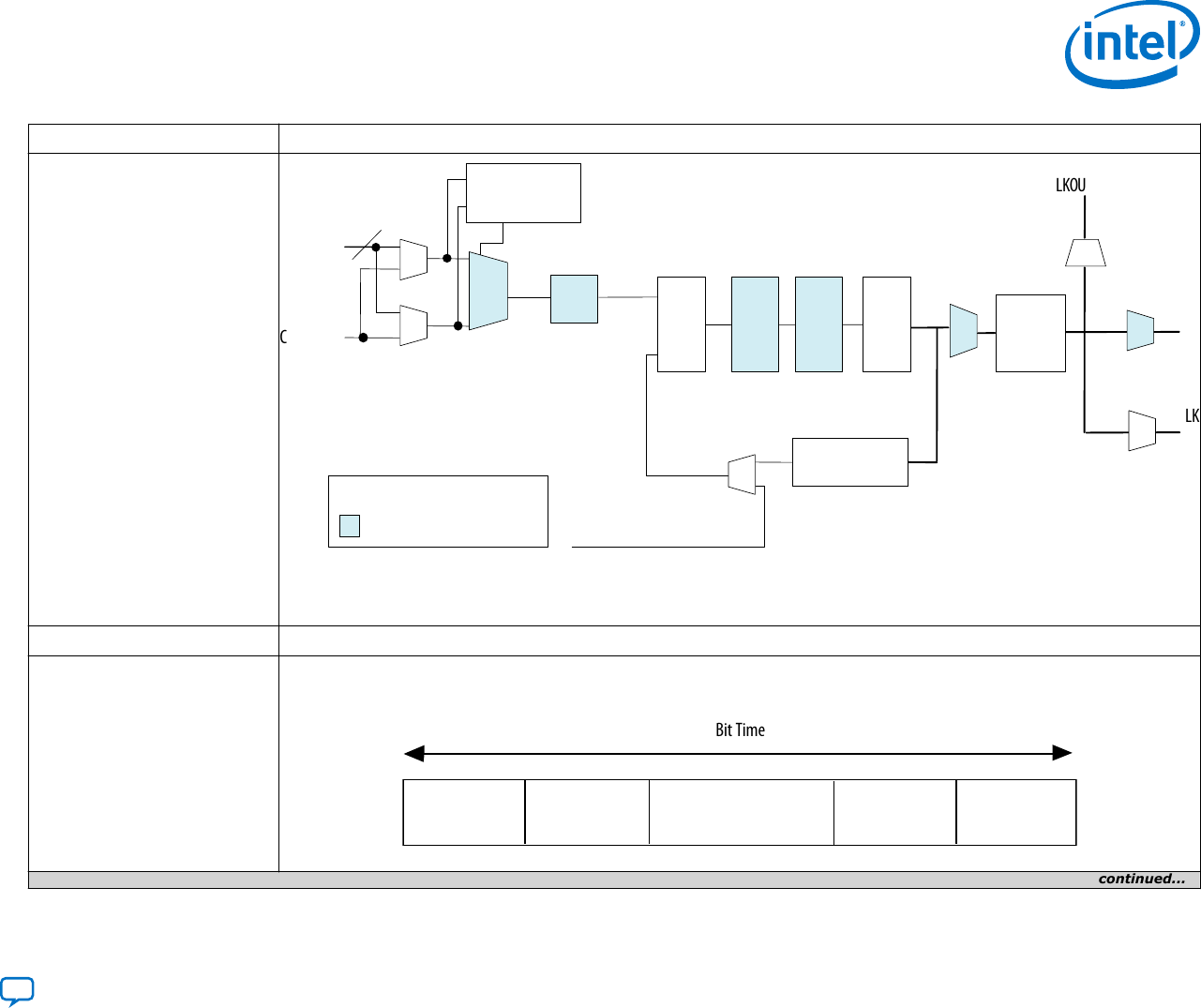

PLL specifications Diagram of PLL specifications

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Bit Time

Term Definition

Core Clock

External Feedback

Reconfigurable in User Mode

Legend

CLK

PFD

Switchover

Delta Sigma

Modulator

VCO

CP LF

CLKOUT Pins

GCLK

RCLK

Counters

C0..C17

Note:

(1) Core Clock can only be fed by dedicated clock input pins or PLL outputs.

fIN fINPFD

fVCO

fOUT_EXT

fOUT

RLReceiver differential input discrete resistor (external to the Arria V device).

Sampling window (SW) Timing diagram—The period of time during which the data must be valid in order to capture it correctly. The setup and hold times

determine the ideal strobe position in the sampling window, as shown:

Bit Time

0.5 x TCCS RSKM Sampling Window

(SW)

RSKM 0.5 x TCCS

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Term Definition

Single-ended voltage referenced

I/O standard

The JEDEC standard for the SSTL and HSTL I/O defines both the AC and DC input signal values. The AC values indicate the voltage

levels at which the receiver must meet its timing specifications. The DC values indicate the voltage levels at which the final logic state of

the receiver is unambiguously defined. After the receiver input has crossed the AC value, the receiver changes to the new logic state.

The new logic state is then maintained as long as the input stays beyond the DC threshold. This approach is intended to provide

predictable receiver timing in the presence of input waveform ringing.

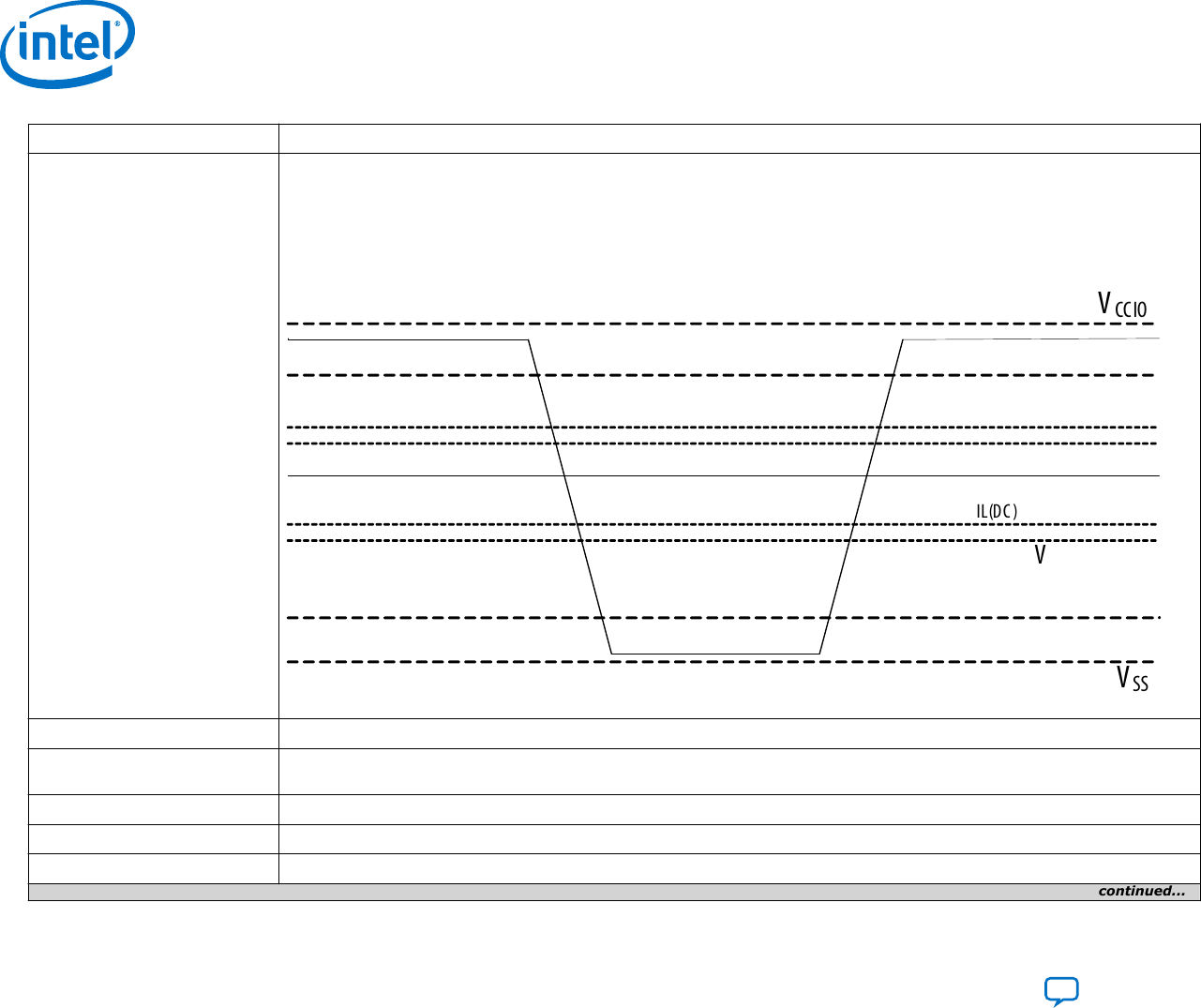

Single-Ended Voltage Referenced I/O Standard

VIH(AC )

VIH(DC )

VREF VIL(D C )

VIL(AC )

VOH

VOL

VCCIO

VSS

tCHigh-speed receiver/transmitter input and output clock period.

TCCS (channel-to-channel-skew) The timing difference between the fastest and slowest output edges, including the tCO variation and clock skew, across channels driven

by the same PLL. The clock is included in the TCCS measurement (refer to the Timing Diagram figure under SW in this table).

tDUTY High-speed I/O block—Duty cycle on high-speed transmitter output clock.

tFALL Signal high-to-low transition time (80–20%)

tINCCJ Cycle-to-cycle jitter tolerance on the PLL clock input

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Term Definition

tOUTPJ_IO Period jitter on the GPIO driven by a PLL

tOUTPJ_DC Period jitter on the dedicated clock output driven by a PLL

tRISE Signal low-to-high transition time (20–80%)

Timing Unit Interval (TUI) The timing budget allowed for skew, propagation delays, and the data sampling window. (TUI = 1/(Receiver Input Clock Frequency

Multiplication Factor) = tC/w)

VCM(DC) DC common mode input voltage.

VICM Input common mode voltage—The common mode of the differential signal at the receiver.

VID Input differential voltage swing—The difference in voltage between the positive and complementary conductors of a differential

transmission at the receiver.

VDIF(AC) AC differential input voltage—Minimum AC input differential voltage required for switching.

VDIF(DC) DC differential input voltage— Minimum DC input differential voltage required for switching.

VIH Voltage input high—The minimum positive voltage applied to the input which is accepted by the device as a logic high.

VIH(AC) High-level AC input voltage

VIH(DC) High-level DC input voltage

VIL Voltage input low—The maximum positive voltage applied to the input which is accepted by the device as a logic low.

VIL(AC) Low-level AC input voltage

VIL(DC) Low-level DC input voltage

VOCM Output common mode voltage—The common mode of the differential signal at the transmitter.

VOD Output differential voltage swing—The difference in voltage between the positive and complementary conductors of a differential

transmission line at the transmitter.

VSWING Differential input voltage

VXInput differential cross point voltage

VOX Output differential cross point voltage

W High-speed I/O block—Clock boost factor

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

1.6. Arria V GX, GT, SX, and ST Device Datasheet Revision History

Document

Version

Changes

2019.04.26 • Added a note for Conversion Time in the Internal Temperature Sensing Diode Specifications for Arria V Devices table.

• Updated tDH specifications in the AS Timing Parameters for AS ×1 and ×4 Configurations in Arria V Devices table.

2019.01.25 • Added Arria V Devices Overshoot Duration diagram.

•Changed "VCO post-scale counter K value" to "VCO post divider value" in the fVCO note in the PLL Specifications for Arria V Devices table.

• Updated the AS Timing Parameters for AS ×1 and ×4 Configurations in Arria V Devices table.

— Updated tDH specifications. These specifications are applicable to the commercial and industrial grade devices.

— Added note to tCO, tSU, and tDH.

• Removed PowerPlay text from tool name.

• Renamed IP cores as per Intel rebranding.

Date Version Changes

December 2016 2016.12.09 • Updated VICM (AC coupled) specifications in Receiver Specifications for Arria V GX and SX Devices table.

• Added maximum specification for Td in Management Data Input/Output (MDIO) Timing Requirements for Arria V Devices

table.

• Updated Tinit specifications in the following tables:

— FPP Timing Parameters When DCLK-to-DATA[] Ratio is 1 for Arria V Devices

— FPP Timing Parameters When DCLK-to-DATA[] Ratio is >1 for Arria V Devices

— AS Timing Parameters for AS ×1 and ×4 Configurations in Arria V Devices

— PS Timing Parameters for Arria V Devices

June 2016 2016.06.10 • Changed pin capacitance to maximum values.

• Updated SPI Master Timing Requirements for Arria V Devices table.

— Added Tsu and Th specifications.

— Removed Tdinmax specifications.

• Updated SPI Master Timing Diagram.

• Updated Tclk spec from maximum to minimum in I2C Timing Requirements for Arria V Devices table.

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

can .......

Date Version Changes

December 2015 2015.12.16 • Updated Quad Serial Peripheral Interface (SPI) Flash Timing Requirements for Arria V Devices table.

— Updated Fclk, Tdutycycle, and Tdssfrst specifications.

— Added Tqspi_clk, Tdin_start, and Tdin_end specifications.

— Removed Tdinmax specifications.

• Updated the minimum specification for Tclk to 16.67 ns and removed the maximum specification in SPI Master Timing

Requirements for Arria V Devices table.

• Updated Secure Digital (SD)/MultiMediaCard (MMC) Timing Requirements for Arria V Devices table.

— Updated T clk to Tsdmmc_clk_out symbol.

— Updated Tsdmmc_clk_out and Td specifications.

— Added Tsdmmc_clk, Tsu, and Th specifications.

— Removed Tdinmax specifications.

• Updated the following diagrams:

— Quad SPI Flash Timing Diagram

— SD/MMC Timing Diagram

• Updated configuration .rbf sizes for Arria V devices.

• Changed instances of Quartus II to Quartus Prime.

June 2015 2015.06.16 • Added the supported data rates for the following output standards using true LVDS output buffer types in the High-Speed

I/O Specifications for Arria V Devices table:

— True RSDS output standard: data rates of up to 360 Mbps

— True mini-LVDS output standard: data rates of up to 400 Mbps

• Added note in the condition for Transmitter—Emulated Differential I/O Standards fHSDR data rate parameter in the High-

Speed I/O Specifications for Arria V Devices table. Note: When using True LVDS RX channels for emulated LVDS TX

channel, only serialization factors 1 and 2 are supported.

• Changed Queued Serial Peripheral Interface (QSPI) to Quad Serial Peripheral Interface (SPI) Flash.

• Updated Th location in I2C Timing Diagram.

• Updated Twp location in NAND Address Latch Timing Diagram.

• Corrected the unit for tDH from ns to s in FPP Timing Parameters When DCLK-to-DATA[] Ratio is >1 for Arria V Devices

table.

• Updated the maximum value for tCO from 4 ns to 2 ns in AS Timing Parameters for AS ×1 and ×4 Configurations in Arria V

Devices table.

• Moved the following timing diagrams to the Configuration, Design Security, and Remote System Upgrades in Arria V

Devices chapter.

— FPP Configuration Timing Waveform When DCLK-to-DATA[] Ratio is 1

— FPP Configuration Timing Waveform When DCLK-to-DATA[] Ratio is >1

— AS Configuration Timing Waveform

— PS Configuration Timing Waveform

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Date Version Changes

January 2015 2015.01.30 • Updated the description for VCC_AUX_SHARED to “HPS auxiliary power supply” in the following tables:

— Absolute Maximum Ratings for Arria V Devices

— HPS Power Supply Operating Conditions for Arria V SX and ST Devices

• Added statement in I/O Standard Specifications: You must perform timing closure analysis to determine the maximum

achievable frequency for general purpose I/O standards.

• Updated the conditions for transceiver reference clock rise time and fall time: Measure at ±60 mV of differential signal.

Added a note to the conditions: REFCLK performance requires to meet transmitter REFCLK phase noise specification.

• Updated the description in Periphery Performance Specifications to mention that proper timing closure is required in

design.

• Updated HPS Clock Performance main_base_clk specifications from 525 MHz (for –I3 speed grade) and 462 MHz (for –C4

speed grade) to 400 MHz.

• Updated HPS PLL VCO maximum frequency to 1,600 MHz (for –C5, –I5, and –C6 speed grades), 1,850 MHz (for –C4

speed grade), and 2,100 MHz (for –I3 speed grade).

• Changed the symbol for HPS PLL input jitter divide value from NR to N.

• Removed “Slave select pulse width (Texas Instruments SSP mode)” parameter from the following tables:

— SPI Master Timing Requirements for Arria V Devices

— SPI Slave Timing Requirements for Arria V Devices

• Added descriptions to USB Timing Characteristics section in HPS Specifications: PHYs that support LPM mode may not

function properly with the USB controller due to a timing issue. It is recommended that designers use the MicroChip

USB3300 PHY device that has been proven to be successful on the development board.

• Added HPS JTAG timing specifications.

• Updated FPGA JTAG timing specifications note as follows: A 1-ns adder is required for each VCCIO voltage step down from

3.0 V. For example, tJPCO = 13 ns if VCCIO of the TDO I/O bank = 2.5 V, or 14 ns if it equals 1.8 V.

• Updated the value in the VICM (AC Coupled) row and in note 6 from 650 mV to 750 mV in the Transceiver Specifications for

Arria V GT and ST Devices table.

July 2014 3.8 • Added a note in Table 3, Table 4, and Table 5: The power supply value describes the budget for the DC (static) power

supply tolerance and does not include the dynamic tolerance requirements. Refer to the PDN tool for the additional budget

for the dynamic tolerance requirements.

• Updated VCC_HPS specification in Table 5.

• Added a note in Table 19: Differential inputs are powered by VCCPD which requires 2.5 V.

• Updated "Minimum differential eye opening at the receiver serial input pins" specification in Table 20 and Table 21.

• Updated description in “HPS PLL Specifications” section.

• Updated VCO range maximum specification in Table 39.

• Updated Td and Th specifications in Table 45.

• Added Th specification in Table 47 and Figure 13.

• Updated a note in Figure 20, Figure 21, and Figure 23 as follows: Do not leave DCLK floating after configuration. DCLK is

ignored after configuration is complete. It can toggle high or low if required.

• Removed “Remote update only in AS mode” specification in Table 58.

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Date Version Changes

• Added DCLK device initialization clock source specification in Table 60.

•Added description in “Configuration Files” section: The IOCSR .rbf size is specifically for the Configuration via Protocol

(CvP) feature.

• Removed fMAX_RU_CLK specification in Table 63.

February 2014 3.7 • Updated VCCRSTCLK_HPS maximum specification in Table 1.

• Added VCC_AUX_SHARED specification in Table 1.

December 2013 3.6 • Added “HPS PLL Specifications”.

• Added Table 24, Table 39, and Table 40.

• Updated Table 1, Table 3, Table 5, Table 19, Table 20, Table 21, Table 38, Table 41, Table 42, Table 43, Table 44, Table 45,

Table 46, Table 47, Table 48, Table 49, Table 50, Table 51, Table 55, Table 56, and Table 59.

• Updated Figure 7, Figure 13, Figure 15, Figure 16, and Figure 19.

• Removed table: GPIO Pulse Width for Arria V Devices.

August 2013 3.5 • Removed “Pending silicon characterization” note in Table 29.

• Updated Table 25.

August 2013 3.4 • Removed Preliminary tags for Table 1, Table 2, Table 3, Table 4, Table 5, Table 6, Table 7, Table 9, Table 12, Table 13, Table

14, Table 15, Table 16, Table 17, Table 18, Table 19, Table 20, Table 21, Table 22, Table 23, Table 24, Table 25, Table 26,

Table 27, Table 28, Table 29, Table 30, Table 31, Table 35, Table 36, Table 51, Table 53, Table 54, Table 55, Table 56, Table

57, Table 60, Table 62, and Table 64.

• Updated Table 1, Table 3, Table 11, Table 19, Table 20, Table 21, Table 22, Table 25, and Table 29.

June 2013 3.3 Updated Table 20, Table 21, Table 25, and Table 38.

May 2013 3.2 • Added Table 37.

• Updated Figure 8, Figure 9, Figure 20, Figure 22, and Figure 23.

• Updated Table 1, Table 5, Table 10, Table 13, Table 19, Table 20, Table 21, Table 23, Table 29, Table 39, Table 40, Table 46,

Table 56, Table 57, Table 60, and Table 64.

• Updated industrial junction temperature range for –I3 speed grade in “PLL Specifications” section.

March 2013 3.1 • Added HPS reset information in the “HPS Specifications” section.

• Added Table 60.

• Updated Table 1, Table 3, Table 17, Table 20, Table 29, and Table 59.

• Updated Figure 21.

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

Date Version Changes

November 2012 3.0 • Updated Table 2, Table 4, Table 9, Table 14, Table 16, Table 17, Table 20, Table 21, Table 25, Table 29, Table 36, Table 56,

Table 57, and Table 60.

• Removed table: Transceiver Block Jitter Specifications for Arria V Devices.

• Added HPS information:

— Added “HPS Specifications” section.

— Added Table 38, Table 39, Table 40, Table 41, Table 42, Table 43, Table 44, Table 45, Table 46, Table 47, Table 48, Table

49, and Table 50.

— Added Figure 7, Figure 8, Figure 9, Figure 10, Figure 11, Figure 12, Figure 13, Figure 14, Figure 15, Figure 16, Figure

17, Figure 18, and Figure 19.

— Updated Table 3 and Table 5.

October 2012 2.4 • Updated Arria V GX VCCR_GXBL/R, VCCT_GXBL/R, and VCCL_GXBL/R minimum and maximum values, and data rate in Table 4.

• Added receiver VICM (AC coupled) and VICM (DC coupled) values, and transmitter VOCM (AC coupled) and VOCM (DC

coupled) values in Table 20 and Table 21.

August 2012 2.3 Updated the SERDES factor condition in Table 30.

July 2012 2.2 • Updated the maximum voltage for VI (DC input voltage) in Table 1.

• Updated Table 20 to include the Arria V GX -I3 speed grade.

• Updated the minimum value of the fixedclk clock frequency in Table 20 and Table 21.

• Updated the SERDES factor condition in Table 30.

• Updated Table 50 to include the IOE programmable delay settings for the Arria V GX -I3 speed grade.

June 2012 2.1 Updated VCCR_GXBL/R, VCCT_GXBL/R, and VCCL_GXBL/R values in Table 4.

June 2012 2.0 • Updated for the Quartus II software v12.0 release:

• Restructured document.

• Updated “Supply Current and Power Consumption” section.

• Updated Table 20, Table 21, Table 24, Table 25, Table 26, Table 35, Table 39, Table 43, and Table 52.

• Added Table 22, Table 23, and Table 33.

• Added Figure 1–1 and Figure 1–2.

• Added “Initialization” and “Configuration Files” sections.

February 2012 1.3 • Updated Table 2–1.

• Updated Transceiver-FPGA Fabric Interface rows in Table 2–20.

• Updated VCCP description.

continued...

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

Date Version Changes

December 2011 1.2 Updated Table 2–1 and Table 2–3.

November 2011 1.1 • Updated Table 2–1, Table 2–19, Table 2–26, and Table 2–36.

• Added Table 2–5.

• Added Figure 2–4.

August 2011 1.0 Initial release.

1. Arria® V GX, GT, SX, and ST Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

2. Arria V GZ Device Datasheet

This document covers the electrical and switching characteristics for Arria V GZ devices. Electrical characteristics include

operating conditions and power consumption. Switching characteristics include transceiver specifications, core, and periphery

performance. This document also describes I/O timing, including programmable I/O element (IOE) delay and programmable

output buffer delay.

Related Information

Arria V Device Overview

For information regarding the densities and packages of devices in the Arria V GZ family.

2.1. Electrical Characteristics

2.1.1. Operating Conditions

When you use Arria V GZ devices, they are rated according to a set of defined parameters. To maintain the highest possible

performance and reliability of Arria V GZ devices, you must consider the operating requirements described in this datasheet.

Arria V GZ devices are offered in commercial and industrial temperature grades.

Commercial devices are offered in –3 (fastest) and –4 core speed grades. Industrial devices are offered in –3L and –4 core

speed grades. Arria V GZ devices are offered in –2 and –3 transceiver speed grades.

AV-51002 | 2019.04.26

Send Feedback

of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current

specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel

assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in

writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing

orders for products or services.

*Other names and brands may be claimed as the property of others.

ISO

9001:2015

Registered

Table 79. Commercial and Industrial Speed Grade Offering for Arria V GZ Devices

C = Commercial temperature grade; I = Industrial temperature grade.

Lower number refers to faster speed grade.

L = Low power devices.

Transceiver Speed Grade

Core Speed Grade

C3 C4 I3L I4

2 Yes — Yes —

3 — Yes — Yes

2.1.1.1. Absolute Maximum Ratings

Absolute maximum ratings define the maximum operating conditions for Arria V GZ devices. The values are based on

experiments conducted with the devices and theoretical modeling of breakdown and damage mechanisms. The functional

operation of the device is not implied for these conditions.

Caution: Conditions other than those listed in the following table may cause permanent damage to the device. Additionally, device

operation at the absolute maximum ratings for extended periods of time may have adverse effects on the device.

Table 80. Absolute Maximum Ratings for Arria V GZ Devices

Symbol Description Minimum Maximum Unit

VCC Power supply for core voltage and periphery circuitry –0.5 1.35 V

VCCPT Power supply for programmable power technology –0.5 1.8 V

VCCPGM Power supply for configuration pins –0.5 3.9 V

VCC_AUX Auxiliary supply for the programmable power technology –0.5 3.4 V

VCCBAT Battery back-up power supply for design security volatile key register –0.5 3.9 V

VCCPD I/O pre-driver power supply –0.5 3.9 V

VCCIO I/O power supply –0.5 3.9 V

VCCD_FPLL PLL digital power supply –0.5 1.8 V

VCCA_FPLL PLL analog power supply –0.5 3.4 V

continued...

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

101

Symbol Description Minimum Maximum Unit

VIDC input voltage –0.5 3.8 V

TJOperating junction temperature –55 125 °C

TSTG Storage temperature (No bias) –65 150 °C

IOUT DC output current per pin –25 40 mA

Table 81. Transceiver Power Supply Absolute Conditions for Arria V GZ Devices

Symbol Description Minimum Maximum Unit

VCCA_GXBL Transceiver channel PLL power supply (left side) –0.5 3.75 V

VCCA_GXBR Transceiver channel PLL power supply (right side) –0.5 3.75 V

VCCHIP_L Transceiver hard IP power supply (left side) –0.5 1.35 V

VCCHSSI_L Transceiver PCS power supply (left side) –0.5 1.35 V

VCCHSSI_R Transceiver PCS power supply (right side) –0.5 1.35 V

VCCR_GXBL Receiver analog power supply (left side) –0.5 1.35 V

VCCR_GXBR Receiver analog power supply (right side) –0.5 1.35 V

VCCT_GXBL Transmitter analog power supply (left side) –0.5 1.35 V

VCCT_GXBR Transmitter analog power supply (right side) –0.5 1.35 V

VCCH_GXBL Transmitter output buffer power supply (left side) –0.5 1.8 V

VCCH_GXBR Transmitter output buffer power supply (right side) –0.5 1.8 V

2.1.1.2. Maximum Allowed Overshoot and Undershoot Voltage

During transitions, input signals may overshoot to the voltage shown in the following table. They may also undershoot to –

2.0 V for input currents less than 100 mA and periods shorter than 20 ns.

The maximum allowed overshoot duration is specified as a percentage of high time over the lifetime of the device. A DC signal

is equivalent to 100% of the duty cycle.

For example, a signal that overshoots to 3.95 V can be at 3.95 V for only ~21% over the lifetime of the device; for a device

lifetime of 10 years, the overshoot duration amounts to ~2 years.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

102

Table 82. Maximum Allowed Overshoot During Transitions for Arria V GZ Devices

Symbol Description Condition (V) Overshoot Duration as % @ TJ = 100°C Unit

Vi (AC) AC input voltage 3.8 100 %

3.85 64 %

3.9 36 %

3.95 21 %

4 12 %

4.05 7 %

4.1 4 %

4.15 2 %

4.2 1 %

For an overshoot of 3.8 V, the percentage of high time for the overshoot can be as high as 100% over a 10-year period.

Percentage of high time is calculated as ([delta T]/T) × 100. This 10-year period assumes that the device is always turned on

with 100% I/O toggle rate and 50% duty cycle signal.

Figure 22. Arria V GZ Devices Overshoot Duration

3.3 V

3.95V

4 V

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

103

2.1.1.3. Recommended Operating Conditions

Table 83. Recommended Operating Conditions for Arria V GZ Devices

Power supply ramps must all be strictly monotonic, without plateaus.

Symbol Description Condition Minimum(117) Typical Maximum (117) Unit

VCC Core voltage and periphery circuitry power supply (118)— 0.82 0.85 0.88 V

VCCPT Power supply for programmable power technology — 1.45 1.50 1.55 V

VCC_AUX Auxiliary supply for the programmable power technology — 2.375 2.5 2.625 V

VCCPD (119) I/O pre-driver (3.0 V) power supply — 2.85 3.0 3.15 V

I/O pre-driver (2.5 V) power supply — 2.375 2.5 2.625 V

VCCIO I/O buffers (3.0 V) power supply — 2.85 3.0 3.15 V

I/O buffers (2.5 V) power supply — 2.375 2.5 2.625 V

I/O buffers (1.8 V) power supply — 1.71 1.8 1.89 V

I/O buffers (1.5 V) power supply — 1.425 1.5 1.575 V

I/O buffers (1.35 V) power supply — 1.283 1.35 1.45 V

I/O buffers (1.25 V) power supply — 1.19 1.25 1.31 V

I/O buffers (1.2 V) power supply — 1.14 1.2 1.26 V

VCCPGM Configuration pins (3.0 V) power supply — 2.85 3.0 3.15 V

Configuration pins (2.5 V) power supply — 2.375 2.5 2.625 V

Configuration pins (1.8 V) power supply — 1.71 1.8 1.89 V

VCCA_FPLL PLL analog voltage regulator power supply — 2.375 2.5 2.625 V

continued...

(117) The power supply value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance

requirements. Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.

(118) The VCC core supply must be set to 0.9 V if the Partial Reconfiguration (PR) feature is used.

(119) VCCPD must be 2.5 V when VCCIO is 2.5, 1.8, 1.5, 1.35, 1.25 or 1.2 V. VCCPD must be 3.0 V when VCCIO is 3.0 V.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

104

Symbol Description Condition Minimum(117) Typical Maximum (117) Unit

VCCD_FPLL PLL digital voltage regulator power supply — 1.45 1.5 1.55 V

VCCBAT (120)Battery back-up power supply (For design security volatile

key register)

— 1.2 — 3.0 V

VIDC input voltage — –0.5 — 3.6 V

VOOutput voltage — 0 — VCCIO V

TJOperating junction temperature Commercial 0 — 85 °C

Industrial –40 — 100 °C

tRAMP Power supply ramp time Standard POR 200 µs — 100 ms —

Fast POR 200 µs — 4 ms —

2.1.1.3.1. Recommended Transceiver Power Supply Operating Conditions

Table 84. Recommended Transceiver Power Supply Operating Conditions for Arria V GZ Devices

Symbol Description Minimum (121) Typical Maximum(121) Unit

VCCA_GXBL (122), (123)Transceiver channel PLL power supply (left side) 2.85 3.0 3.15 V

2.375 2.5 2.625

VCCA_GXBR (122), (123)Transceiver channel PLL power supply (right side) 2.85 3.0 3.15 V

continued...

(117) The power supply value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance

requirements. Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.

(120) If you do not use the design security feature in Arria V GZ devices, connect VCCBAT to a 1.2- to 3.0-V power supply. Arria V GZ power-

on-reset (POR) circuitry monitors VCCBAT. Arria V GZ devices do not exit POR if VCCBAT is not powered up.

(121) This value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance requirements.

Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.

(122) This supply must be connected to 3.0 V if the CMU PLL, receiver CDR, or both, are configured at a base data rate > 6.5 Gbps. Up to

6.5 Gbps, you can connect this supply to either 3.0 V or 2.5 V.

(123) When using ATX PLLs, the supply must be 3.0 V.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

105

Symbol Description Minimum (121) Typical Maximum(121) Unit

2.375 2.5 2.625

VCCHIP_L Transceiver hard IP power supply (left side) 0.82 0.85 0.88 V

VCCHSSI_L Transceiver PCS power supply (left side) 0.82 0.85 0.88 V

VCCHSSI_R Transceiver PCS power supply (right side) 0.82 0.85 0.88 V

VCCR_GXBL (124)Receiver analog power supply (left side) 0.82 0.85 0.88 V

0.97 1.0 1.03

1.03 1.05 1.07

VCCR_GXBR (124)Receiver analog power supply (right side) 0.82 0.85 0.88 V

0.97 1.0 1.03

1.03 1.05 1.07

VCCT_GXBL (124)Transmitter analog power supply (left side) 0.82 0.85 0.88 V

0.97 1.0 1.03

1.03 1.05 1.07

VCCT_GXBR (124)Transmitter analog power supply (right side) 0.82 0.85 0.88 V

0.97 1.0 1.03

1.03 1.05 1.07

VCCH_GXBL Transmitter output buffer power supply (left side) 1.425 1.5 1.575 V

VCCH_GXBR Transmitter output buffer power supply (right side) 1.425 1.5 1.575 V

(121) This value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance requirements.

Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.

(124) This supply must be connected to 1.0 V if the transceiver is configured at a data rate > 6.5 Gbps, and to 1.05 V if configured at a

data rate > 10.3 Gbps when DFE is used. For data rate up to 6.5 Gbps, you can connect this supply to 0.85 V.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

106

2.1.1.3.2. Transceiver Power Supply Requirements

Table 85. Transceiver Power Supply Voltage Requirements for Arria V GZ Devices

Conditions VCCR_GXB and VCCT_GXB (125) VCCA_GXB VCCH_GXB Unit

If BOTH of the following conditions are true:

• Data rate > 10.3 Gbps.

• DFE is used.

1.05 3.0 1.5 V

If ANY of the following conditions are true (126) :

• ATX PLL is used.

• Data rate > 6.5Gbps.

• DFE (data rate ≤ 10.3 Gbps), AEQ, or EyeQ feature is used.

1.0

If ALL of the following conditions are true:

• ATX PLL is not used.

• Data rate ≤ 6.5Gbps.

• DFE, AEQ, and EyeQ are not used.

0.85 2.5

2.1.1.4. DC Characteristics

2.1.1.4.1. Supply Current

Standby current is the current drawn from the respective power rails used for power budgeting.

Use the Excel-based Early Power Estimator (EPE) to get supply current estimates for your design because these currents vary

greatly with the resources you use.

Related Information

•Early Power Estimator User Guide

For more information about the EPE tool.

•Power Analysis chapter, Intel Quartus Prime Handbook

For more information about power analysis.

(125) If the VCCR_GXB and VCCT_GXB supplies are set to 1.0 V or 1.05 V, they cannot be shared with the VCC core supply. If the

VCCR_GXB and VCCT_GXB are set to 0.85 V, they can be shared with the VCC core supply.

(126) Choose this power supply voltage requirement option if you plan to upgrade your design later with any of the listed conditions.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

107

2.1.1.4.2. Power Consumption

Intel offers two ways to estimate power consumption for a design—the Excel-based Early Power Estimator and the Intel

Quartus Prime Power Analyzer feature.

Note: You typically use the interactive Excel-based EPE before designing the FPGA to get a magnitude estimate of the device power.

The Intel Quartus Prime Power Analyzer provides better quality estimates based on the specifics of the design after you

complete place-and-route. The Power Analyzer can apply a combination of user-entered, simulation-derived, and estimated

signal activities that, when combined with detailed circuit models, yields very accurate power estimates.

Related Information

•Early Power Estimator User Guide

For more information about the EPE tool.

•Power Analysis chapter, Intel Quartus Prime Handbook

For more information about power analysis.

2.1.1.4.3. I/O Pin Leakage Current

Table 86. I/O Pin Leakage Current for Arria V GZ Devices

If VO = VCCIO to VCCIOMax, 100 µA of leakage current per I/O is expected.

Symbol Description Conditions Min Typ Max Unit

IIInput pin VI = 0 V to VCCIOMAX –30 — 30 µA

IOZ Tri-stated I/O pin VO = 0 V to VCCIOMAX –30 — 30 µA

2.1.1.4.4. Bus Hold Specifications

Table 87. Bus Hold Parameters for Arria V GZ Devices

Parameter Symbol Conditions VCCIO Unit

1.2 V 1.5 V 1.8 V 2.5 V 3.0 V

Min Max Min Max Min Max Min Max Min Max

Low sustaining

current

ISUSL VIN > VIL 22.5 — 25.0 — 30.0 — 50.0 — 70.0 — µA

continued...

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

108

Parameter Symbol Conditions VCCIO Unit

1.2 V 1.5 V 1.8 V 2.5 V 3.0 V

Min Max Min Max Min Max Min Max Min Max

(maximum)

High sustaining

current

ISUSH VIN < VIH

(minimum)

–22.5 — –25.0 — –30.0 — –50.0 — –70.0 — µA

Low overdrive

current

IODL 0V < VIN < VCCIO — 120 — 160 — 200 — 300 — 500 µA

High overdrive

current

IODH 0V < VIN < VCCIO — –120 — –160 — –200 — –300 — –500 µA

Bus-hold trip

point

VTRIP — 0.45 0.95 0.50 1.00 0.68 1.07 0.70 1.70 0.80 2.00 V

2.1.1.4.5. On-Chip Termination (OCT) Specifications

If you enable OCT calibration, calibration is automatically performed at power-up for I/Os connected to the calibration block.

Table 88. OCT Calibration Accuracy Specifications for Arria V GZ Devices

OCT calibration accuracy is valid at the time of calibration only.

Symbol Description Conditions Calibration Accuracy Unit

C3, I3L C4, I4

25-Ω RSInternal series termination with calibration (25-Ω

setting)

VCCIO = 3.0, 2.5, 1.8, 1.5, 1.2 V ±15 ±15 %

50-Ω RSInternal series termination with calibration (50-Ω

setting)

VCCIO = 3.0, 2.5, 1.8, 1.5, 1.2 V ±15 ±15 %

34-Ω and 40-Ω RSInternal series termination with calibration (34-Ω

and 40-Ω setting)

VCCIO = 1.5, 1.35, 1.25, 1.2 V ±15 ±15 %

48-Ω, 60-Ω, 80-Ω, and 240-Ω RSInternal series termination with calibration (48-

Ω, 60-Ω, 80-Ω, and 240-Ω setting)

VCCIO = 1.2 V ±15 ±15 %

50-Ω RTInternal parallel termination with calibration (50-

Ω setting)

VCCIO = 2.5, 1.8, 1.5, 1.2 V –10 to +40 –10 to

+40

continued...

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

109

Symbol Description Conditions Calibration Accuracy Unit

C3, I3L C4, I4

20-Ω, 30-Ω, 40-Ω, 60-Ω, and 120-

Ω RT

Internal parallel termination with calibration (20-

Ω , 30-Ω, 40-Ω, 60-Ω, and 120-Ω setting)

VCCIO = 1.5, 1.35, 1.25 V –10 to +40 –10 to

+40

60-Ω and 120-Ω RTInternal parallel termination with calibration (60-

Ω and 120-Ω setting)

VCCIO = 1.2 –10 to +40 –10 to

+40

25-Ω RS_left_shift Internal left shift series termination with

calibration (25-Ω RS_left_shift setting)

VCCIO = 3.0, 2.5, 1.8, 1.5, 1.2 V ±15 ±15 %

Table 89. OCT Without Calibration Resistance Tolerance Specifications for Arria V GZ Devices

Symbol Description Conditions Resistance Tolerance Unit

C3, I3L C4, I4

25-Ω R, 50-Ω RSInternal series termination without calibration

(25-Ω setting)

VCCIO = 3.0 and 2.5 V ±40 ±40 %

25-Ω RSInternal series termination without calibration

(25-Ω setting)

VCCIO = 1.8 and 1.5 V ±40 ±40 %

25-Ω RSInternal series termination without calibration

(25-Ω setting)

VCCIO = 1.2 V ±50 ±50 %

50-Ω RSInternal series termination without calibration

(50-Ω setting)

VCCIO = 1.8 and 1.5 V ±40 ±40 %

50-Ω RSInternal series termination without calibration

(50-Ω setting)

VCCIO = 1.2 V ±50 ±50 %

100-Ω RDInternal differential termination (100-Ω setting) VCCIO = 2.5 V ±25 ±25 %

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

110

Figure 23. OCT Variation Without Re-Calibration for Arria V GZ Devices

ROCT = RSCAL dR

dT T±dR

dV V

(

)

1 + x

( ) (x

Notes:

1. The ROCT value shows the range of OCT resistance with the variation of temperature and VCCIO.

2. RSCAL is the OCT resistance value at power-up.

3. ΔT is the variation of temperature with respect to the temperature at power-up.

4. ΔV is the variation of voltage with respect to the VCCIO at power-up.

5. dR/dT is the percentage change of RSCAL with temperature.

6. dR/dV is the percentage change of RSCAL with voltage.

Table 90. OCT Variation after Power-Up Calibration for Arria V GZ Devices

Valid for a VCCIO range of ±5% and a temperature range of 0° to 85°C.

Symbol Description VCCIO (V) Typical Unit

dR/dV OCT variation with voltage without re-calibration 3.0 0.0297 %/mV

2.5 0.0344

1.8 0.0499

1.5 0.0744

1.2 0.1241

dR/dT OCT variation with temperature without re-calibration 3.0 0.189 %/°C

2.5 0.208

1.8 0.266

1.5 0.273

1.2 0.317

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

111

2.1.1.4.6. Pin Capacitance

Table 91. Pin Capacitance for Arria V GZ Devices

Symbol Description Maximum Unit

CIOTB Input capacitance on the top and bottom I/O pins 6 pF

CIOLR Input capacitance on the left and right I/O pins 6 pF

COUTFB Input capacitance on dual-purpose clock output and feedback pins 6 pF

2.1.1.4.7. Hot Socketing

Table 92. Hot Socketing Specifications for Arria V GZ Devices

Symbol Description Maximum

IIOPIN (DC) DC current per I/O pin 300 μA

IIOPIN (AC) AC current per I/O pin 8 mA (127)

IXCVR-TX (DC) DC current per transceiver transmitter pin 100 mA

IXCVR-RX (DC) DC current per transceiver receiver pin 50 mA

(127) The I/O ramp rate is 10 ns or more. For ramp rates faster than 10 ns, |IIOPIN| = C dv/dt, in which C is the I/O pin capacitance and

dv/dt is the slew rate.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

112

2.1.1.4.8. Internal Weak Pull-Up Resistor

Table 93. Internal Weak Pull-Up Resistor for Arria V GZ Devices

All I/O pins have an option to enable the weak pull-up resistor except the configuration, test, and JTAG pins. The internal weak pull-down feature is only available

for the JTAG TCK pin. The typical value for this internal weak pull-down resistor is approximately 25 kΩ .

Symbol Description VCCIO Conditions (V) (128) Value (129) Unit

RPU Value of the I/O pin pull-up resistor before and

during configuration, as well as user mode if you

enable the programmable pull-up resistor option.

3.0 ±5% 25 k Ω

2.5 ±5% 25 k Ω

1.8 ±5% 25 k Ω

1.5 ±5% 25 kΩ

1.35 ±5% 25 k Ω

1.25 ±5% 25 k Ω

1.2 ±5% 25 k Ω

2.1.1.5. I/O Standard Specifications

The VOL and VOH values are valid at the corresponding IOH and IOL, respectively.

Table 94. Single-Ended I/O Standards for Arria V GZ Devices

I/O Standard VCCIO (V) VIL (V) VIH (V) VOL (V) VOH (V) IOL (mA) IOH (mA)

Min Typ Max Min Max Min Max Max Min

LVTTL 2.85 3 3.15 –0.3 0.8 1.7 3.6 0.4 2.4 2 –2

LVCMOS 2.85 3 3.15 –0.3 0.8 1.7 3.6 0.2 VCCIO – 0.2 0.1 –0.1

2.5 V 2.375 2.5 2.625 –0.3 0.7 1.7 3.6 0.4 2 1 –1

continued...

(128) The pin pull-up resistance values may be lower if an external source drives the pin higher than VCCIO.

(129) These specifications are valid with a ±10% tolerance to cover changes over PVT.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

113

I/O Standard VCCIO (V) VIL (V) VIH (V) VOL (V) VOH (V) IOL (mA) IOH (mA)

Min Typ Max Min Max Min Max Max Min

1.8 V 1.71 1.8 1.89 –0.3 0.35 ×

VCCIO

0.65 ×

VCCIO

VCCIO + 0.3 0.45 VCCIO – 0.45 2 –2

1.5 V 1.425 1.5 1.575 –0.3 0.35 ×

VCCIO

0.65 ×

VCCIO

VCCIO + 0.3 0.25 × VCCIO 0.75 × VCCIO 2 –2

1.2 V 1.14 1.2 1.26 –0.3 0.35 ×

VCCIO

0.65 ×

VCCIO

VCCIO + 0.3 0.25 × VCCIO 0.75 × VCCIO 2 –2

Table 95. Single-Ended SSTL, HSTL, and HSUL I/O Reference Voltage Specifications for Arria V GZ Devices

I/O Standard VCCIO (V) VREF (V) VTT (V)

Min Typ Max Min Typ Max Min Typ Max

SSTL-2

Class I, II

2.375 2.5 2.625 0.49 × VCCIO 0.5 × VCCIO 0.51 ×

VCCIO

VREF – 0.04 VREF VREF + 0.04

SSTL-18

Class I, II

1.71 1.8 1.89 0.833 0.9 0.969 VREF – 0.04 VREF VREF + 0.04

SSTL-15

Class I, II

1.425 1.5 1.575 0.49 × VCCIO 0.5 × VCCIO 0.51 ×

VCCIO

0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO

SSTL-135

Class I, II

1.283 1.35 1.418 0.49 × VCCIO 0.5 × VCCIO 0.51 ×

VCCIO

0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO

SSTL-125

Class I, II

1.19 1.25 1.26 0.49 × VCCIO 0.5 × VCCIO 0.51 ×

VCCIO

0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO

SSTL-12

Class I, II

1.14 1.20 1.26 0.49 × VCCIO 0.5 × VCCIO 0.51 ×

VCCIO

0.49 × VCCIO 0.5 × VCCIO 0.51 × VCCIO

HSTL-18

Class I, II

1.71 1.8 1.89 0.85 0.9 0.95 — VCCIO/2 —

HSTL-15

Class I, II

1.425 1.5 1.575 0.68 0.75 0.9 — VCCIO/2 —

HSTL-12

Class I, II

1.14 1.2 1.26 0.47 × VCCIO 0.5 × VCCIO 0.53 ×

VCCIO

— VCCIO/2 —

HSUL-12 1.14 1.2 1.3 0.49 × VCCIO 0.5 × VCCIO 0.51 ×

VCCIO

— — —

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

114

Table 96. Single-Ended SSTL, HSTL, and HSUL I/O Standards Signal Specifications for Arria V GZ Devices

I/O Standard VIL(DC) (V) VIH(DC) (V) VIL(AC) (V) VIH(AC) (V) VOL (V) VOH (V) Iol (mA) Ioh (mA)

Min Max Min Max Max Min Max Min

SSTL-2 Class I –0.3 VREF – 0.15 VREF + 0.15 VCCIO + 0.3 VREF – 0.31 VREF + 0.31 VTT – 0.608 VTT + 0.608 8.1 –8.1

SSTL-2 Class II –0.3 VREF – 0.15 VREF + 0.15 VCCIO + 0.3 VREF – 0.31 VREF + 0.31 VTT – 0.81 VTT + 0.81 16.2 –16.2

SSTL-18 Class I –0.3 VREF –

0.125

VREF +

0.125

VCCIO + 0.3 VREF – 0.25 VREF + 0.25 VTT – 0.603 VTT + 0.603 6.7 –6.7

SSTL-18 Class II –0.3 VREF –

0.125

VREF +

0.125

VCCIO + 0.3 VREF – 0.25 VREF + 0.25 0.28 VCCIO – 0.28 13.4 –13.4

SSTL-15 Class I — VREF – 0.1 VREF + 0.1 — VREF – 0.175 VREF + 0.175 0.2 × VCCIO 0.8 × VCCIO 8 –8

SSTL-15 Class II — VREF – 0.1 VREF + 0.1 — VREF – 0.175 VREF + 0.175 0.2 × VCCIO 0.8 × VCCIO 16 –16

SSTL-135

Class I, II

— VREF – 0.09 VREF + 0.09 — VREF – 0.16 VREF + 0.16 0.2 * VCCIO 0.8 * VCCIO — —

SSTL-125

Class I, II

— VREF – 0.85 VREF + 0.85 — VREF – 0.15 VREF + 0.15 0.2 * VCCIO 0.8 * VCCIO — —

SSTL-12

Class I, II

— VREF – 0.1 VREF + 0.1 — VREF – 0.15 VREF + 0.15 0.2 * VCCIO 0.8 * VCCIO — —

HSTL-18 Class I — VREF – 0.1 VREF + 0.1 — VREF – 0.2 VREF + 0.2 0.4 VCCIO – 0.4 8 –8

HSTL-18 Class II — VREF – 0.1 VREF + 0.1 — VREF – 0.2 VREF + 0.2 0.4 VCCIO – 0.4 16 –16

HSTL-15 Class I — VREF – 0.1 VREF + 0.1 — VREF – 0.2 VREF + 0.2 0.4 VCCIO – 0.4 8 –8

HSTL-15 Class II — VREF – 0.1 VREF + 0.1 — VREF – 0.2 VREF + 0.2 0.4 VCCIO – 0.4 16 –16

HSTL-12 Class I –0.15 VREF – 0.08 VREF + 0.08 VCCIO +

0.15

VREF – 0.15 VREF + 0.15 0.25 × VCCIO 0.75 × VCCIO 8 –8

HSTL-12 Class II –0.15 VREF – 0.08 VREF + 0.08 VCCIO +

0.15

VREF – 0.15 VREF + 0.15 0.25 × VCCIO 0.75 × VCCIO 16 –16

HSUL-12 — VREF – 0.13 VREF + 0.13 — VREF – 0.22 VREF + 0.22 0.1 × VCCIO 0.9 × VCCIO — —

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

115

Table 97. Differential SSTL I/O Standards for Arria V GZ Devices

I/O Standard VCCIO (V) VSWING(DC) (V) VX(AC) (V) VSWING(AC) (V)

Min Typ Max Min Max Min Typ Max Min Max

SSTL-2 Class I, II 2.375 2.5 2.625 0.3 VCCIO + 0.6 VCCIO/2 –

0.2

— VCCIO/2 +

0.2

0.62 VCCIO + 0.6

SSTL-18 Class I, II 1.71 1.8 1.89 0.25 VCCIO + 0.6 VCCIO/2 –

0.175

— VCCIO/2 +

0.175

0.5 VCCIO + 0.6

SSTL-15 Class I, II 1.425 1.5 1.575 0.2 (130)VCCIO/2 –

0.15

— VCCIO/2 +

0.15

0.35 —

SSTL-135

Class I, II

1.283 1.35 1.45 0.2 (130)VCCIO/2 –

0.15

VCCIO/2 VCCIO/2 +

0.15

2(VIH(AC) -

VREF)

2(VIL(AC) - VREF)

SSTL-125

Class I, II

1.19 1.25 1.31 0.18 (130)VCCIO/2 –

0.15

VCCIO/2 VCCIO/2 +

0.15

2(VIH(AC) -

VREF)

—

SSTL-12

Class I, II

1.14 1.2 1.26 0.18 — VREF

–0.15

VCCIO/2 VREF + 0.15 –0.30 0.30

Table 98. Differential HSTL and HSUL I/O Standards for Arria V GZ Devices

I/O Standard VCCIO (V) VDIF(DC) (V) VX(AC) (V) VCM(DC) (V) VDIF(AC) (V)

Min Typ Max Min Max Min Typ Max Min Typ Max Min Max

HSTL-18 Class I, II 1.71 1.8 1.89 0.2 — 0.78 — 1.12 0.78 — 1.12 0.4 —

HSTL-15 Class I, II 1.425 1.5 1.575 0.2 — 0.68 — 0.9 0.68 — 0.9 0.4 —

HSTL-12 Class I, II 1.14 1.2 1.26 0.16 VCCIO +

0.3

— 0.5 × VCCIO — 0.4 ×

VCCIO

0.5

VCCI

0.6 ×

VCCIO

0.3 VCCIO +

0.48

HSUL-12 1.14 1.2 1.3 0.26 0.26 0.5 ×

VCCIO –

0.12

0.5 × VCCIO 0.5 × VCCIO

+ 0.12

0.4 ×

VCCIO

0.5

VCCI

0.6 ×

VCCIO

0.44 0.44

(130) The maximum value for VSWING(DC) is not defined. However, each single-ended signal needs to be within the respective single-ended

limits (VIH(DC) and VIL(DC)).

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

116

Table 99. Differential I/O Standard Specifications for Arria V GZ Devices

I/O Standard VCCIO (V) (131) VID (mV) (132) VICM(DC) (V) VOD (V) (133) VOCM (V) (133)

Min Typ Max Min Condition Max Min Condition Max Min Typ Max Min Typ Max

PCML Transmitter, receiver, and input reference clock pins of the high-speed transceivers use the PCML I/O standard. For transmitter, receiver, and reference clock

I/O pin specifications, refer to the "Transceiver Performance Specifications" section.

2.5 V LVDS

(134)

2.375 2.5 2.625 100 VCM = 1.25 V — 0.05 DMAX ≤

700 Mbps

1.8 0.247 — 0.6 1.125 1.25 1.375

— 1.05 DMAX >

700 Mbps

1.55 0.247 — 0.6 1.125 1.25 1.375

BLVDS (135)2.375 2.5 2.625 100 — — — — — — — — — — —

RSDS (HIO)

(136)

2.375 2.5 2.625 100 VCM = 1.25 V — 0.3 — 1.4 0.1 0.2 0.6 0.5 1.2 1.4

continued...

(131) Differential inputs are powered by VCCPD which requires 2.5 V.

(132) The minimum VID value is applicable over the entire common mode range, VCM.

(133) RL range: 90 ≤ RL ≤ 110 Ω.

(134) For optimized LVDS receiver performance, the receiver voltage input range must be between 0.25 V to 1.6 V for data rates above 700

Mbps, and 0 V to 1.85 V for data rates below 700 Mbps.

(135) There are no fixed VICM, VOD, and VOCM specifications for BLVDS. They depend on the system topology.

(136) For optimized RSDS receiver performance, the receiver voltage input range must be between 0.25 V to 1.45 V.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

117

I/O Standard VCCIO (V) (131) VID (mV) (132) VICM(DC) (V) VOD (V) (133) VOCM (V) (133)

Min Typ Max Min Condition Max Min Condition Max Min Typ Max Min Typ Max

Mini-LVDS

(HIO) (137)

2.375 2.5 2.625 200 — 600 0.4 — 1.325 0.25 — 0.6 1 1.2 1.4

LVPECL

(138), (139)

— — — 300 — — 0.6 DMAX ≤

700 Mbps

1.8 — — — — — —

— — — 300 — — 1 DMAX >

700 Mbps

1.6 — — — — — —

Related Information

Glossary on page 169

(131) Differential inputs are powered by VCCPD which requires 2.5 V.

(132) The minimum VID value is applicable over the entire common mode range, VCM.

(133) RL range: 90 ≤ RL ≤ 110 Ω.

(137) For optimized Mini-LVDS receiver performance, the receiver voltage input range must be between 0.3 V to 1.425 V.

(138) LVPECL is only supported on dedicated clock input pins.

(139) For optimized LVPECL receiver performance, the receiver voltage input range must be between 0.85 V to 1.75 V for data rate above

700 Mbps and 0.45 V to 1.95 V for data rate below 700 Mbps.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

118

2.2. Switching Characteristics

2.2.1. Transceiver Performance Specifications

2.2.1.1. Reference Clock

Table 100. Reference Clock Specifications for Arria V GZ Devices

Speed grades shown refer to the PMA Speed Grade in the device ordering code. The maximum data rate could be restricted by the Core/PCS speed grade. Contact

your Intel Sales Representative for the maximum data rate specifications in each speed grade combination offered. For more information about device ordering

codes, refer to the Arria V Device Overview.

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

Reference Clock

Supported I/O Standards Dedicated reference clock pin 1.2-V PCML, 1.4-V PCML, 1.5-V PCML, 2.5-V PCML, Differential LVPECL, LVDS, and HCSL

RX reference clock pin 1.4-V PCML, 1.5-V PCML, 2.5-V PCML, LVPECL, and LVDS

Input Reference Clock Frequency

(CMU PLL) (140)

— 40 — 710 40 — 710 MHz

Input Reference Clock Frequency

(ATX PLL)(140)

— 100 — 710 100 — 710 MHz

Rise time Measure at ±60 mV of

differential signal (141)

— — 400 — — 400 ps

Fall time Measure at ±60 mV of

differential signal (141)

— — 400 — — 400

Duty cycle — 45 — 55 45 — 55 %

Spread-spectrum modulating clock

frequency

PCI Express (PCIe) 30 — 33 30 — 33 kHz

Spread-spectrum downspread PCIe — 0 to

–0.5

— — 0 to

–0.5

— %

continued...

(140) The input reference clock frequency options depend on the data rate and the device speed grade.

(141) REFCLK performance requires to meet transmitter REFCLK phase noise specification.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

119

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

On-chip termination resistors — — 100 — — 100 — Ω

Absolute VMAX Dedicated reference clock pin — — 1.6 — — 1.6 V

RX reference clock pin — — 1.2 — — 1.2

Absolute VMIN — –0.4 — — –0.4 — — V

Peak-to-peak differential input voltage — 200 — 1600 200 — 1600 mV

VICM (AC coupled) Dedicated reference clock pin 1000/900/850 (142)1000/900/850 (142)mV

RX reference clock pin 1.0/0.9/0.85 (143)1.0/0.9/0.85(143)mV

VICM (DC coupled) HCSL I/O standard for PCIe

reference clock

250 — 550 250 — 550 mV

Transmitter REFCLK Phase Noise

(622 MHz) (144)

100 Hz — — -70 — — -70 dBc/Hz

1 kHz — — -90 — — -90 dBc/Hz

10 kHz — — -100 — — -100 dBc/Hz

100 kHz — — -110 — — -110 dBc/Hz

≥1 MHz — — -120 — — -120 dBc/Hz

Transmitter REFCLK Phase Jitter

(100 MHz) (145)

10 kHz to 1.5 MHz

(PCIe)

— — 3 — — 3 ps (rms)

RREF — — 1800 ±1% — — 1800 ±1% — Ω

(142) The reference clock common mode voltage is equal to the VCCR_GXB power supply level.

(143) This supply follows VCCR_GXB

(144) To calculate the REFCLK phase noise requirement at frequencies other than 622 MHz, use the following formula: REFCLK phase noise

at f(MHz) = REFCLK phase noise at 622 MHz + 20*log(f/622).

(145) To calculate the REFCLK rms phase jitter requirement for PCIe at reference clock frequencies other than 100 MHz, use the following

formula:

REFCLK rms phase jitter at f(MHz) = REFCLK rms phase jitter at 100 MHz × 100/f.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

120

Related Information

Arria V Device Overview

For more information about device ordering codes.

2.2.1.2. Transceiver Clocks

Table 101. Transceiver Clocks Specifications for Arria V GZ Devices

Speed grades shown refer to the PMA Speed Grade in the device ordering code. The maximum data rate could be restricted by the Core/PCS speed grade. Contact

your Intel Sales Representative for the maximum data rate specifications in each speed grade combination offered. For more information about device ordering

codes, refer to the Arria V Device Overview.

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

fixedclk clock frequency PCIe

Receiver Detect

— 100 or

125

— — 100 or

125

— MHz

Reconfiguration clock (mgmt_clk_clk)

frequency

— 100 — 125 100 — 125 MHz

Related Information

Arria V Device Overview

For more information about device ordering codes.

2.2.1.3. Receiver

Table 102. Receiver Specifications for Arria V GZ Devices

Speed grades shown refer to the PMA Speed Grade in the device ordering code. The maximum data rate could be restricted by the Core/PCS speed grade. Contact

your Intel Sales Representative for the maximum data rate specifications in each speed grade combination offered. For more information about device ordering

codes, refer to the Arria V Device Overview.

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

Supported I/O Standards 1.4-V PCML, 1.5-V PCML, 2.5-V PCML, LVPECL, and LVDS

Data rate (Standard PCS) (146), (147)— 600 — 9900 600 — 8800 Mbps

continued...

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

121

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

Data rate (10G PCS) (146), (147)— 600 — 12500 600 — 10312.5 Mbps

Absolute VMAX for a receiver pin (148)— — — 1.2 — — 1.2 V

Absolute VMIN for a receiver pin — –0.4 — — –0.4 — — V

Maximum peak-to-peak differential input

voltage VID (diff p-p) before device

configuration

— — — 1.6 — — 1.6 V

Maximum peak-to-peak differential input

voltage VID (diff p-p) after device

configuration (149)

VCCR_GXB = 1.0 V

(VICM = 0.75 V)

— — 1.8 — — 1.8 V

VCCR_GXB = 0.85 V

(VICM = 0.6 V)

— — 2.4 — — 2.4 V

Minimum differential eye opening at receiver

serial input pins (150)(151)

— 85 — — 85 — — mV

Differential on-chip termination resistors 85−Ω setting — 85 ±

30%

— — 85 ±

30%

— Ω

100−Ω setting — 100 ±

30%

— — 100 ±

30%

— Ω

120−Ω setting — 120 ±

30%

— — 120 ±

30%

— Ω

continued...

(146) The line data rate may be limited by PCS-FPGA interface speed grade.

(147) To support data rates lower than the minimum specification through oversampling, use the CDR in LTR mode only.

(148) The device cannot tolerate prolonged operation at this absolute maximum.

(149) The maximum peak to peak differential input voltage VID after device configuration is equal to 4 × (absolute VMAX for receiver pin -

VICM).

(150) The differential eye opening specification at the receiver input pins assumes that Receiver Equalization is disabled. If you enable

Receiver Equalization, the receiver circuitry can tolerate a lower minimum eye opening, depending on the equalization level.

(151) Minimum eye opening of 85 mV is only for the unstressed input eye condition.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

122

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

150−Ω setting — 150 ±

30%

— — 150 ±

30%

— Ω

VICM (AC and DC coupled) VCCR_GXB = 0.85 V

full bandwidth

— 600 — — 600 — mV

VCCR_GXB = 0.85 V

half bandwidth

— 600 — — 600 — mV

VCCR_GXB = 1.0 V

full bandwidth

— 700 — — 700 — mV

VCCR_GXB = 1.0 V

half bandwidth

— 700 — — 700 — mV

tLTR (152)— — — 10 — — 10 µs

tLTD (153)— 4 — — 4 — — µs

tLTD_manual (154)— 4 — — 4 — — µs

tLTR_LTD_manual (155)— 15 — — 15 — — µs

Programmable equalization

(AC Gain)

Full bandwidth (6.25 GHz)

Half bandwidth (3.125 GHz)

— — 16 — — 16 dB

Programmable DC gain DC gain setting = 0 — 0 — — 0 — dB

DC gain setting = 1 — 2 — — 2 — dB

continued...

(152) tLTR is the time required for the receive CDR to lock to the input reference clock frequency after coming out of reset.

(153) tLTD is time required for the receiver CDR to start recovering valid data after the rx_is_lockedtodata signal goes high.

(154) tLTD_manual is the time required for the receiver CDR to start recovering valid data after the rx_is_lockedtodata signal goes high

when the CDR is functioning in the manual mode.

(155) tLTR_LTD_manual is the time the receiver CDR must be kept in lock to reference (LTR) mode after the rx_is_lockedtoref signal goes

high when the CDR is functioning in the manual mode.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

123

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

DC gain setting = 2 — 4 — — 4 — dB

DC gain setting = 3 — 6 — — 6 — dB

DC gain setting = 4 — 8 — — 8 — dB

Related Information

Arria V Device Overview

For more information about device ordering codes.

2.2.1.4. Transmitter

Table 103. Transmitter Specifications for Arria V GZ Devices

Speed grades shown refer to the PMA Speed Grade in the device ordering code. The maximum data rate could be restricted by the Core/PCS speed grade. Contact

your Intel Sales Representative for the maximum data rate specifications in each speed grade combination offered. For more information about device ordering

codes, refer to the Arria V Device Overview.

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

Supported I/O Standards 1.4-V and 1.5-V PCML

Data rate (Standard PCS) — 600 — 9900 600 — 8800 Mbps

Data rate (10G PCS) — 600 — 12500 600 — 10312.5 Mbps

Differential on-chip termination resistors 85-Ω setting — 85 ±

20%

— — 85 ±

20%

— Ω

100-Ω setting — 100 ±

20%

— — 100 ±

20%

— Ω

120-Ω setting — 120 ±

20%

— — 120 ±

20%

— Ω

150-Ω setting — 150 ±

20%

— — 150 ±

20%

— Ω

VOCM (AC coupled) 0.65-V setting — 650 — — 650 — mV

VOCM (DC coupled) — — 650 — — 650 — mV

continued...

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

124

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

Intra-differential pair skew Tx VCM = 0.5 V and slew rate of

15 ps

— — 15 — — 15 ps

Intra-transceiver block transmitter channel-to-

channel skew

x6 PMA bonded mode — — 120 — — 120 ps

Inter-transceiver block transmitter channel-to-

channel skew

xN PMA bonded mode — — 500 — — 500 ps

Related Information

Arria V Device Overview

For more information about device ordering codes.

2.2.1.5. CMU PLL

Table 104. CMU PLL Specifications for Arria V GZ Devices

Speed grades shown refer to the PMA Speed Grade in the device ordering code. The maximum data rate could be restricted by the Core/PCS speed grade. Contact

your Intel Sales Representative for the maximum data rate specifications in each speed grade combination offered. For more information about device ordering

codes, refer to the Arria V Device Overview.

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

Supported data range — 600 — 12500 600 — 10312.5 Mbps

tpll_powerdown (156)— 1 — — 1 — — µs

tpll_lock(157)— — 10 — — 10 µs

Related Information

Arria V Device Overview

For more information about device ordering codes.

(156) tpll_powerdown is the PLL powerdown minimum pulse width.

(157) tpll_lock is the time required for the transmitter CMU/ATX PLL to lock to the input reference clock frequency after coming out of reset.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

125

2.2.1.6. ATX PLL

Table 105. ATX PLL Specifications for Arria V GZ Devices

Speed grades shown refer to the PMA Speed Grade in the device ordering code. The maximum data rate could be restricted by the Core/PCS speed grade. Contact

your Intel Sales Representative for the maximum data rate specifications in each speed grade combination offered. For more information about device ordering

codes, refer to the Arria V Device Overview.

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

Supported data rate range VCO post-divider

L = 2

8000 — 12500 8000 — 10312.5 Mbps

L = 4 4000 — 6600 4000 — 6600 Mbps

L = 8 (158)2000 — 3300 2000 — 3300 Mbps

tpll_powerdown (159)— 1 — — 1 — — µs

tpll_lock (160)— — — 10 — — 10 µs

Related Information

•Arria V Device Overview

For more information about device ordering codes.

•Transceiver Clocking in Arria V Devices

For more information about clocking ATX PLLs.

•Dynamic Reconfiguration in Arria V Devices

For more information about reconfiguring ATX PLLs.

(158) This clock can be further divided by central or local clock dividers making it possible to use ATX PLL for data rates < 1 Gbps. For more

information about ATX PLLs, refer to the Transceiver Clocking in Arria V Devices chapter and the Dynamic Reconfiguration in Arria V

Devices chapter.

(159) tpll_powerdown is the PLL powerdown minimum pulse width.

(160) tpll_lock is the time required for the transmitter CMU/ATX PLL to lock to the input reference clock frequency after coming out of reset.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

126

2.2.1.7. Fractional PLL

Table 106. Fractional PLL Specifications for Arria V GZ Devices

Speed grades shown refer to the PMA Speed Grade in the device ordering code. The maximum data rate could be restricted by the Core/PCS speed grade. Contact

your Intel Sales Representative for the maximum data rate specifications in each speed grade combination offered. For more information about device ordering

codes, refer to the Arria V Device Overview.

Symbol/Description Conditions Transceiver Speed Grade 2 Transceiver Speed Grade 3 Unit

Min Typ Max Min Typ Max

Supported data range — 600 — 3250/

3125(161)

600 — 3250/

3125 (161)

Mbps

tpll_powerdown(162)— 1 — — 1 — — µs

tpll_lock (163)— — — 10 — 10 µs

Related Information

Arria V Device Overview

For more information about device ordering codes.

(161) When you use fPLL as a TXPLL of the transceiver.

(162) tpll_powerdown is the PLL powerdown minimum pulse width.

(163) tpll_lock is the time required for the transmitter CMU/ATX PLL to lock to the input reference clock frequency after coming out of reset.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

127

2.2.1.8. Clock Network Data Rate

Table 107. Clock Network Maximum Data Rate Transmitter Specifications

Valid data rates below the maximum specified in this table depend on the reference clock frequency and the PLL counter settings. Check the Parameter Editor

message during the Arria V Transceiver Native PHY Intel FPGA IP core instantiation.

Clock Network ATX PLL CMU PLL (164) fPLL

Non-bonded

Mode (Gbps)

Bonded Mode

(Gbps)

Channel

Span

Non-bonded

Mode (Gbps)

Bonded Mode

(Gbps)

Channel

Span

Non-bonded

Mode (Gbps)

Bonded Mode

(Gbps)

Channel

Span

x1 (165)12.5 — 6 12.5 — 6 3.125 — 3

x6 (165)— 12.5 6 — 12.5 6 — 3.125 6

x6 PLL Feedback (166)— 12.5 Side-wide — 12.5 Side-wide — — —

xN (PCIe) — 8.0 8 — 5.0 8 — — —

xN (Arria V Transceiver

Native PHY Intel FPGA IP

core)

8.0 8.0 Up to 13

channels

above and

below PLL

7.99 7.99 Up to 13

channels

above and

below PLL

3.125 3.125 Up to 13

channels

above and

below PLL

— 8.01 to

9.8304

Up to 7

channels

above and

below PLL

(164) ATX PLL is recommended at 8 Gbps and above data rates for improved jitter performance.

(165) Channel span is within a transceiver bank.

(166) Side-wide channel bonding is allowed up to the maximum supported by the Arria V Transceiver Native PHY Intel FPGA IP core.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

128

2.2.1.9. Standard PCS Data Rate

Table 108. Standard PCS Approximate Maximum Date Rate (Gbps) for Arria V GZ Devices

The maximum data rate is also constrained by the transceiver speed grade. Refer to the “Commercial and Industrial Speed Grade Offering for Arria V GZ Devices”

table for the transceiver speed grade.

Mode (167) Transceiver

Speed Grade

PMA Width 20 20 16 16 10 10 8 8

PCS/Core Width 40 20 32 16 20 10 16 8

FIFO 2 C3, I3L

core speed grade

9.9 9 7.84 7.2 5.3 4.7 4.24 3.76

3 C4, I4

core speed grade

8.8 8.2 7.2 6.56 4.8 4.3 3.84 3.44

core speed grade

9.9 9 7.92 7.2 4.9 4.,5 3.92 3.6

3 C4, I4

core speed grade

8.8 8.2 7.04 6.56 4.4 4.1 3.52 3.28

Related Information

Operating Conditions on page 100

(167) The Phase Compensation FIFO can be configured in FIFO mode or register mode. In the FIFO mode, the pointers are not fixed, and

the latency can vary. In the register mode the pointers are fixed for low latency.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

129

2.2.1.10. 10G PCS Data Rate

Table 109. 10G PCS Approximate Maximum Data Rate (Gbps) for Arria V GZ Devices

Mode (168) Transceiver Speed

Grade

PMA Width 64 40 40 40 32 32

PCS Width 64 66/67 50 40 64/66/67 32

FIFO 2 C3, I3L core speed grade 12.5 12.5 10.69 12.5 10.88 10.88

3 C4, I4 core speed grade 10.3125 10.3125 10.69 10.3125 9.92 9.92

2.2.1.11. Typical VOD Settings

Table 110. Typical VOD Setting for Arria V GZ Channel, TX Termination = 100 Ω

The tolerance is +/-20% for all VOD settings except for settings 2 and below.

Symbol VOD Setting VOD Value (mV) VOD Setting VOD Value (mV)

VOD differential peak to peak typical 0 (169)0 32 640

1(169)20 33 660

2(169)40 34 680

3(169)60 35 700

4(169)80 36 720

5(169)100 37 740

6 120 38 760

7 140 39 780

8 160 40 800

continued...

(168) The Phase Compensation FIFO can be configured in FIFO mode or register mode. In the FIFO mode, the pointers are not fixed, and

the latency can vary. In the register mode the pointers are fixed for low latency.

(169) If TX termination resistance = 100 Ω,this VOD setting is illegal.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

130

Symbol VOD Setting VOD Value (mV) VOD Setting VOD Value (mV)

9 180 41 820

10 200 42 840

11 220 43 860

12 240 44 880

13 260 45 900

14 280 46 920

VOD differential peak to peak typical 15 300 47 940

16 320 48 960

17 340 49 980

18 360 50 1000

19 380 51 1020

20 400 52 1040

21 420 53 1060

22 440 54 1080

23 460 55 1100

24 480 56 1120

25 500 57 1140

26 520 58 1160

27 540 59 1180

28 560 60 1200

29 580 61 1220

30 600 62 1240

31 620 63 1260

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

131

(new ‘50 mo 59 W 4w 450 ram 725 u 7300 mmeg wamsg ‘9 mg ﬂHz) (usv) W2) Eu=‘5 E040 E013 2:142 Eo=H Eas‘D E03 m; 20.7 20,9 sag: E04 m; 20.2 EG=1 Eu=0

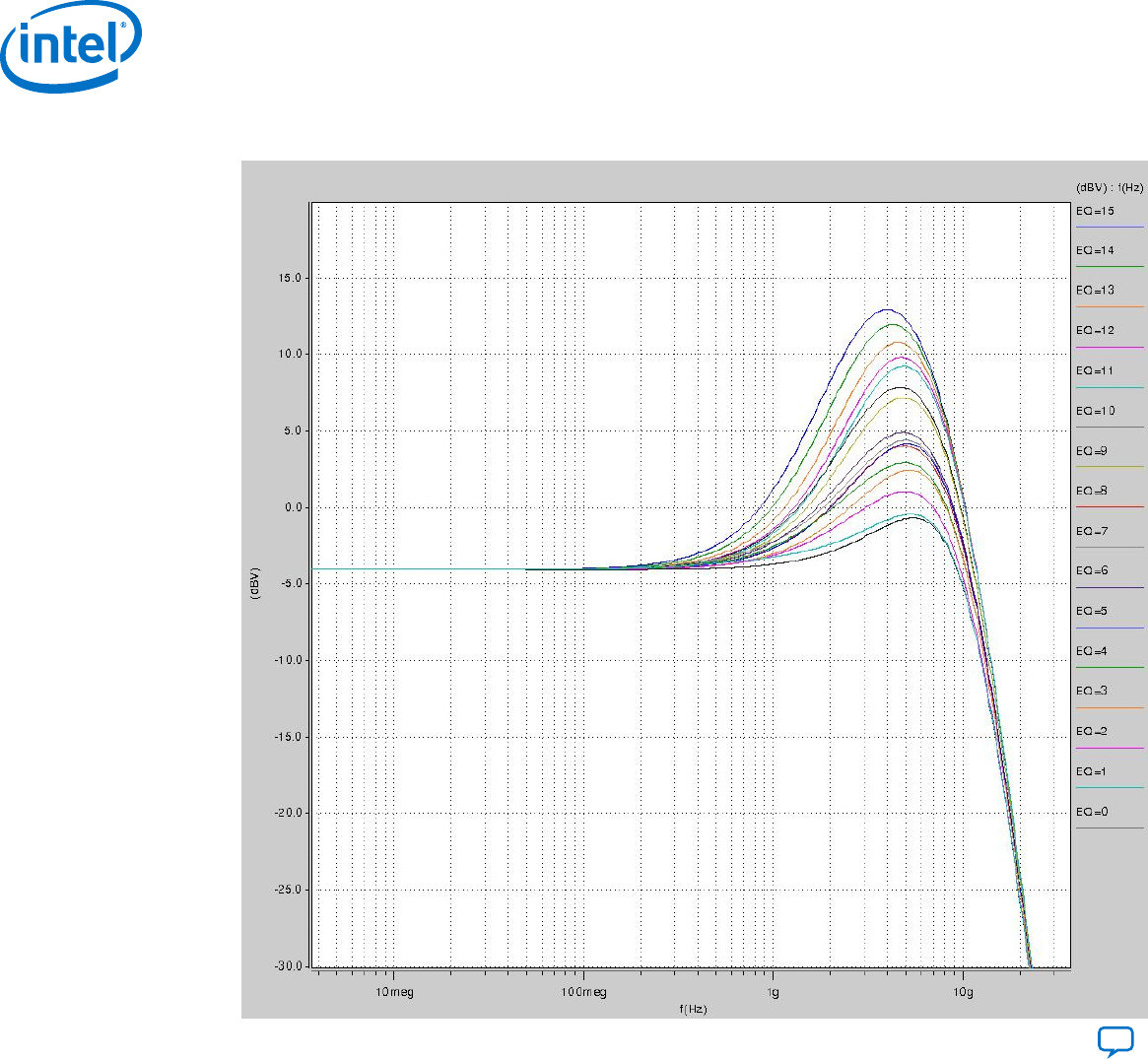

Figure 24. AC Gain Curves for Arria V GZ Channels (full bandwidth)

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

132

2.2.2. Core Performance Specifications

2.2.2.1. Clock Tree Specifications

Table 111. Clock Tree Performance for Arria V GZ Devices

Symbol Performance Unit

C3, I3L C4, I4

Global and Regional Clock 650 580 MHz

Periphery Clock 500 500 MHz

2.2.2.2. PLL Specifications

Table 112. PLL Specifications for Arria V GZ Devices

Symbol Parameter Min Typ Max Unit

fIN (170)Input clock frequency (C3, I3L speed grade) 5 — 800 MHz

Input clock frequency (C4, I4 speed grade) 5 — 650 MHz

fINPFD Input frequency to the PFD 5 — 325 MHz

fFINPFD Fractional Input clock frequency to the PFD 50 — 160 MHz

fVCO (171)PLL VCO operating range (C3, I3L speed grade) 600 — 1600 MHz

PLL VCO operating range (C4, I4 speed grade) 600 — 1300 MHz

tEINDUTY Input clock or external feedback clock input duty cycle 40 — 60 %

continued...

(170) This specification is limited in the Intel Quartus Prime software by the I/O maximum frequency. The maximum I/O frequency is

different for each I/O standard.

(171) The VCO frequency reported by the Intel Quartus Prime software in the PLL Usage Summary section of the compilation report takes

into consideration the VCO post divider value. Therefore, if the VCO post divider value is 2, the frequency reported can be lower than

the fVCO specification.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

133

Symbol Parameter Min Typ Max Unit

fOUT (172)Output frequency for an internal global or regional clock (C3,

I3L speed grade)

— — 650 MHz

Output frequency for an internal global or regional clock (C4,

I4 speed grade)

— — 580 MHz

fOUT_EXT (172)Output frequency for an external clock output (C3, I3L speed

grade)

— — 667 MHz

Output frequency for an external clock output (C4, I4 speed

grade)

— — 533 MHz

tOUTDUTY Duty cycle for a dedicated external clock output (when set to

50%)

45 50 55 %

tFCOMP External feedback clock compensation time — — 10 ns

fDYCONFIGCLK Dynamic configuration clock for mgmt_clk and scanclk — — 100 MHz

tLOCK Time required to lock from the end-of-device configuration or

deassertion of areset

— — 1 ms

tDLOCK Time required to lock dynamically (after switchover or

reconfiguring any non-post-scale counters/delays)

— — 1 ms

fCLBW PLL closed-loop low bandwidth — 0.3 — MHz

PLL closed-loop medium bandwidth — 1.5 — MHz

PLL closed-loop high bandwidth (173)— 4 — MHz

tPLL_PSERR Accuracy of PLL phase shift — — ±50 ps

tARESET Minimum pulse width on the areset signal 10 — — ns

tINCCJ (174), (175)Input clock cycle-to-cycle jitter (fREF ≥ 100 MHz) — — 0.15 UI (p-p)

continued...

(172) This specification is limited by the lower of the two: I/O fMAX or fOUT of the PLL.

(173) High bandwidth PLL settings are not supported in external feedback mode.

(174) A high input jitter directly affects the PLL output jitter. To have low PLL output clock jitter, you must provide a clean clock source with

jitter < 120 ps.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

134

Symbol Parameter Min Typ Max Unit

Input clock cycle-to-cycle jitter (fREF < 100 MHz) -750 — +750 ps (p-p)

tOUTPJ_DC (176)Period Jitter for dedicated clock output in integer PLL (fOUT ≥

100 MHz)

— — 175 ps (p-p)

Period Jitter for dedicated clock output in integer PLL (fOUT <

100 Mhz)

— — 17.5 mUI (p-p)

tFOUTPJ_DC (176)Period Jitter for dedicated clock output in fractional PLL (fOUT

≥ 100 MHz)

— — 250(179),

175(177)

ps (p-p)

Period Jitter for dedicated clock output in fractional PLL (fOUT

< 100 MHz)

— — 25(179),

17.5 (177)

mUI (p-p)

tOUTCCJ_DC (176)Cycle-to-cycle Jitter for a dedicated clock output in integer

PLL (fOUT ≥ 100 MHz)

— — 175 ps (p-p)

Cycle-to-cycle Jitter for a dedicated clock output in integer

PLL (fOUT < 100 MHz)

— — 17.5 mUI (p-p)

tFOUTCCJ_DC (176)Cycle-to-cycle Jitter for a dedicated clock output in fractional

PLL (fOUT ≥ 100 MHz)

— — 250(179),

175 (177)

ps (p-p)

Cycle-to-cycle Jitter for a dedicated clock output in fractional

PLL (fOUT < 100 MHz)

— — 25(179),

17.5 (177)

mUI (p-p)

tOUTPJ_IO, (176), (178)Period Jitter for a clock output on a regular I/O in integer PLL

(fOUT ≥ 100 MHz)

— — 600 ps (p-p)

Period Jitter for a clock output on a regular I/O in integer PLL

(fOUT < 100 MHz)

— — 60 mUI (p-p)

continued...

(175) The fREF is fIN/N specification applies when N = 1.

(176) Peak-to-peak jitter with a probability level of 10–12 (14 sigma, 99.99999999974404% confidence level). The output jitter specification

applies to the intrinsic jitter of the PLL, when an input jitter of 30 ps is applied. The external memory interface clock output jitter

specifications use a different measurement method and are available in the Worst-Case DCD on Arria V GZ I/O Pins table.

(177) This specification only covered fractional PLL for low bandwidth. The fVCO for fractional value range 0.20–0.80 must be ≥ 1200 MHz.

(178) The external memory interface clock output jitter specifications use a different measurement method, which is available in the

Memory Output Clock Jitter Specification for Arria V GZ Devices table.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

135

Symbol Parameter Min Typ Max Unit

tFOUTPJ_IO (176), (178), (179)Period Jitter for a clock output on a regular I/O in fractional

PLL (fOUT ≥ 100 MHz)

— — 600 ps (p-p)

Period Jitter for a clock output on a regular I/O in fractional

PLL (fOUT < 100 MHz)

— — 60 mUI (p-p)

tOUTCCJ_IO (176), (178)Cycle-to-cycle Jitter for a clock output on a regular I/O in

integer PLL (fOUT ≥ 100 MHz)

— — 600 ps (p-p)

Cycle-to-cycle Jitter for a clock output on a regular I/O in

integer PLL (fOUT < 100 MHz)

— — 60 mUI (p-p)

tFOUTCCJ_IO (176), (178), (179)Cycle-to-cycle Jitter for a clock output on a regular I/O in

fractional PLL (fOUT ≥ 100 MHz)

— — 600 ps (p-p)

Cycle-to-cycle Jitter for a clock output on a regular I/O in

fractional PLL (fOUT < 100 MHz)

— — 60 mUI (p-p)

tCASC_OUTPJ_DC (176), (180)Period Jitter for a dedicated clock output in cascaded PLLs

(fOUT ≥ 100 MHz)

— — 175 ps (p-p)

Period Jitter for a dedicated clock output in cascaded PLLS

(fOUT < 100 MHz)

— — 17.5 mUI (p-p)

dKBIT Bit number of Delta Sigma Modulator (DSM) 8 24 32 Bits

kVALUE Numerator of Fraction 128 8388608 2147483648 —

fRES Resolution of VCO frequency (fINPFD = 100 MHz) 390625 5.96 0.023 Hz

Related Information

•Duty Cycle Distortion (DCD) Specifications on page 150

•DLL Range Specifications on page 148

(179) This specification only covered fractional PLL for low bandwidth. The fVCO for fractional value range 0.05–0.95 must be ≥ 1000 MHz.

(180) The cascaded PLL specification is only applicable with the following condition:

a. Upstream PLL: 0.59Mhz ≤ Upstream PLL BW < 1 MHz

b. Downstream PLL: Downstream PLL BW > 2 MHz

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

136

2.2.2.3. DSP Block Specifications

Table 113. DSP Block Performance Specifications for Arria V GZ Devices

Mode Performance Unit

C3, I3L C4 I4

Modes using One DSP Block

Three 9 × 9 480 420 MHz

One 18 × 18 480 420 400 MHz

Two partial 18 × 18 (or 16 × 16) 480 420 400 MHz

One 27 × 27 400 350 MHz

One 36 × 18 400 350 MHz

One sum of two 18 × 18 (One sum of two 16 × 16) 400 350 MHz

One sum of square 400 350 MHz

One 18 × 18 plus 36 (a × b) + c 400 350 MHz

Modes using Two DSP Blocks

Three 18 × 18 400 350 MHz

One sum of four 18 × 18 380 300 MHz

One sum of two 27 × 27 380 300 290 MHz

One sum of two 36 × 18 380 300 MHz

One complex 18 × 18 400 350 MHz

One 36 × 36 380 300 MHz

Modes using Three DSP Blocks

One complex 18 × 25 340 275 265 MHz

Modes using Four DSP Blocks

One complex 27 × 27 350 310 MHz

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

137

2.2.2.4. Memory Block Specifications

Table 114. Memory Block Performance Specifications for Arria V GZ Devices

To achieve the maximum memory block performance, use a memory block clock that comes through global clock routing from an on-chip PLL set to 50% output

duty cycle. Use the Intel Quartus Prime software to report timing for this and other memory block clocking schemes.

When you use the error detection cyclical redundancy check (CRC) feature, there is no degradation in FMAX.

Memory Mode Resources Used Performance Unit

ALUTs Memory C3 C4 I3L I4

MLAB Single port, all supported widths 0 1 400 315 400 315 MHz

Simple dual-port, x32/x64 depth 0 1 400 315 400 315 MHz

Simple dual-port, x16 depth (181)0 1 533 400 533 400 MHz

ROM, all supported widths 0 1 500 450 500 450 MHz

M20K Block Single-port, all supported widths 0 1 650 550 500 450 MHz

Simple dual-port, all supported widths 0 1 650 550 500 450 MHz

Simple dual-port with the read-during-write option

set to Old Data, all supported widths

0 1 455 400 455 400 MHz

Simple dual-port with ECC enabled, 512 × 32 0 1 400 350 400 350 MHz

Simple dual-port with ECC and optional pipeline

registers enabled, 512 × 32

0 1 500 450 500 450 MHz

True dual port, all supported widths 0 1 650 550 500 450 MHz

ROM, all supported widths 0 1 650 550 500 450 MHz

(181) The FMAX specification is only achievable with Fitter options, MLAB Implementation In 16-Bit Deep Mode enabled.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

138

2.2.2.5. Temperature Sensing Diode Specifications

Table 115. Internal Temperature Sensing Diode Specification for Arria V GZ Devices

Temperature Range Accuracy Offset Calibrated

Option

Sampling Rate Conversion Time(182) Resolution Minimum Resolution

with no Missing

Codes

–40°C to 100°C ±8°C No 1 MHz, 500 kHz < 100 ms 8 bits 8 bits

Table 116. External Temperature Sensing Diode Specifications for Arria V GZ Devices

Description Min Typ Max Unit

Ibias, diode source current 8 — 200 μA

Vbias, voltage across diode 0.3 — 0.9 V

Series resistance — — < 1 Ω

Diode ideality factor 1.006 1.008 1.010 —

Related Information

Intel FPGA Temperature Sensor IP Core User Guide

Provides more information about the temperature sensing operation.

2.2.3. Periphery Performance

I/O performance supports several system interfaces, such as the LVDS high-speed I/O interface, external memory interface,

and the PCI/PCI-X bus interface. General-purpose I/O standards such as 3.3-, 2.5-, 1.8-, and 1.5-LVTTL/LVCMOS are

capable of a typical 167 MHz and 1.2-LVCMOS at 100 MHz interfacing frequency with a 10 pF load.

Note: The actual achievable frequency depends on design- and system-specific factors. Ensure proper timing closure in your design

and perform HSPICE/IBIS simulations based on your specific design and system setup to determine the maximum achievable

frequency in your system.

2.2.3.1. High-Speed I/O Specification

(182) For more details about the temperature sensing operations, refer to the Intel FPGA Temperature Sensor IP Core User Guide.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

139

2.2.3.1.1. High-Speed Clock Specifications

Table 117. High-Speed Clock Specifications for Arria V GZ Devices

When J = 3 to 10, use the serializer/deserializer (SERDES) block.

When J = 1 or 2, bypass the SERDES block.

For LVDS applications, you must use the PLLs in integer PLL mode.

Arria V GZ devices support the following output standards using true LVDS output buffer types on all I/O banks.

• True RSDS output standard with data rates of up to 230 Mbps

• True mini-LVDS output standard with data rates of up to 340 Mbps

Symbol Conditions C3, I3L C4, I4 Unit

Min Typ Max Min Typ Max

fHSCLK_in (input clock frequency) True

Differential I/O Standards (183)

Clock boost factor

W = 1 to 40 (184)

5 — 625 5 — 525 MHz

fHSCLK_in (input clock frequency)

Single Ended I/O Standards

Clock boost factor

W = 1 to 40 (184)

5 — 625 5 — 525 MHz

fHSCLK_in (input clock frequency)

Single Ended I/O Standards

Clock boost factor

W = 1 to 40 (184)

5 — 420 5 — 420 MHz

fHSCLK_OUT (output clock frequency) — 5 — 625 (185)5 — 525 (185)MHz

(183) This only applies to DPA and soft-CDR modes.

(184) Clock Boost Factor (W) is the ratio between the input data rate to the input clock rate.

(185) This is achieved by using the LVDS clock network.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

140

2.2.3.1.2. Transmitter High-Speed I/O Specifications

Table 118. Transmitter High-Speed I/O Specifications for Arria V GZ Devices

When J = 3 to 10, use the serializer/deserializer (SERDES) block.

When J = 1 or 2, bypass the SERDES block.

Symbol Conditions C3, I3L C4, I4 Unit

Min Typ Max Min Typ Max

True Differential I/O Standards -

fHSDR (data rate)

SERDES factor J = 3 to 10 (186), (187) (188)— 1250 (188)— 1050 Mbps

SERDES factor J ≥ 4

LVDS TX with DPA

(189), (190), (191), (192)

(188)— 1600 (188)— 1250 Mbps

SERDES factor J = 2,

uses DDR Registers

(188)—(193) (188)—(193)Mbps

SERDES factor J = 1,

uses SDR Register

(188)—(193) (188)—(193)Mbps

continued...

(186) If the receiver with DPA enabled and transmitter are using shared PLLs, the minimum data rate is 150 Mbps.

(187) The FMAX specification is based on the fast clock used for serial data. The interface FMAX is also dependent on the parallel clock domain

which is design dependent and requires timing analysis.

(188) The minimum specification depends on the clock source (for example, the PLL and clock pin) and the clock routing resource (global,

regional, or local) that you use. The I/O differential buffer and input register do not have a minimum toggle rate.

(189) Arria V GZ RX LVDS will need DPA. For Arria V GZ TX LVDS, the receiver side component must have DPA.

(190) Requires package skew compensation with PCB trace length.

(191) Do not mix single-ended I/O buffer within LVDS I/O bank.

(192) Chip-to-chip communication only with a maximum load of 5 pF.

(193) The maximum ideal data rate is the SERDES factor (J) x the PLL maximum output frequency (fOUT) provided you can close the

design timing and the signal integrity simulation is clean.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

141

Symbol Conditions C3, I3L C4, I4 Unit

Min Typ Max Min Typ Max

Emulated Differential I/O Standards

with Three External Output Resistor

Networks - fHSDR (data rate) (194)

SERDES factor J = 4 to 10 (195) (188)— 840 (188)— 840 Mbps

tx Jitter - True Differential I/O

Standards

Total Jitter for Data Rate 600 Mbps -

1.25 Gbps

— — 160 — — 160 ps

Total Jitter for Data Rate < 600 Mbps — — 0.1 — — 0.1 UI

tx Jitter - Emulated Differential I/O

Standards with Three External

Output Resistor Network

Total Jitter for Data Rate 600 Mbps -

1.25 Gbps

— — 300 — — 325 ps

Total Jitter for Data Rate < 600 Mbps — — 0.2 — — 0.25 UI

tDUTY Transmitter output clock duty cycle

for both True and Emulated

Differential I/O Standards

45 50 55 45 50 55 %

tRISE & tFALL True Differential I/O Standards — — 200 — — 200 ps

Emulated Differential I/O Standards

with three external output resistor

networks

— — 250 — — 300 ps

TCCS True Differential I/O Standards — — 150 — — 150 ps

Emulated Differential I/O Standards — — 300 — — 300 ps

(194) You must calculate the leftover timing margin in the receiver by performing link timing closure analysis. You must consider the board

skew margin, transmitter channel-to-channel skew, and receiver sampling margin to determine leftover timing margin.

(195) When using True LVDS RX channels for emulated LVDS TX channel, only serialization factors 1 and 2 are supported.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

142

2.2.3.1.3. Receiver High-Speed I/O Specifications

Table 119. Receiver High-Speed I/O Specifications for Arria V GZ Devices

When J = 3 to 10, use the serializer/deserializer (SERDES) block.

When J = 1 or 2, bypass the SERDES block.

Symbol Conditions C3, I3L C4, I4 Unit

Min Typ Max Min Typ Max

True Differential I/O Standards -

fHSDRDPA (data rate)

SERDES factor J = 3 to 10

(196), (197), (198), (199), (200), (201)

150 — 1250 150 — 1050 Mbps

SERDES factor J ≥ 4

LVDS RX with DPA

(197), (199), (200), (201)

150 — 1600 150 — 1250 Mbps

SERDES factor J = 2,

uses DDR Registers

(202)—(203) (202)—(203)Mbps

SERDES factor J = 1,

uses SDR Register

(202)—(203) (202)—(203)Mbps

continued...

(196) The FMAX specification is based on the fast clock used for serial data. The interface FMAX is also dependent on the parallel clock domain

which is design dependent and requires timing analysis.

(197) Arria V GZ RX LVDS will need DPA. For Arria V GZ TX LVDS, the receiver side component must have DPA.

(198) Arria V GZ LVDS serialization and de-serialization factor needs to be x4 and above.

(199) Requires package skew compensation with PCB trace length.

(200) Do not mix single-ended I/O buffer within LVDS I/O bank.

(201) Chip-to-chip communication only with a maximum load of 5 pF.

(202) The minimum specification depends on the clock source (for example, the PLL and clock pin) and the clock routing resource (global,

regional, or local) that you use. The I/O differential buffer and input register do not have a minimum toggle rate.

(203) The maximum ideal data rate is the SERDES factor (J) x the PLL maximum output frequency (fOUT) provided you can close the

design timing and the signal integrity simulation is clean.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

143

Symbol Conditions C3, I3L C4, I4 Unit

Min Typ Max Min Typ Max

fHSDR (data rate) SERDES factor J = 3 to 10 (202)—(204) (202)—(204)Mbps

SERDES factor J = 2,

uses DDR Registers

(202)—(203) (202)—(203)Mbps

SERDES factor J = 1,

uses SDR Register

(202)—(203) (202)—(203)Mbps

2.2.3.1.4. DPA Mode High-Speed I/O Specifications

Table 120. High-Speed I/O Specifications for Arria V GZ Devices

When J = 3 to 10, use the serializer/deserializer (SERDES) block.

When J = 1 or 2, bypass the SERDES block.

Symbol Conditions C3, I3L C4, I4 Unit

Min Typ Max Min Typ Max

DPA run length — — — 10000 — — 10000 UI

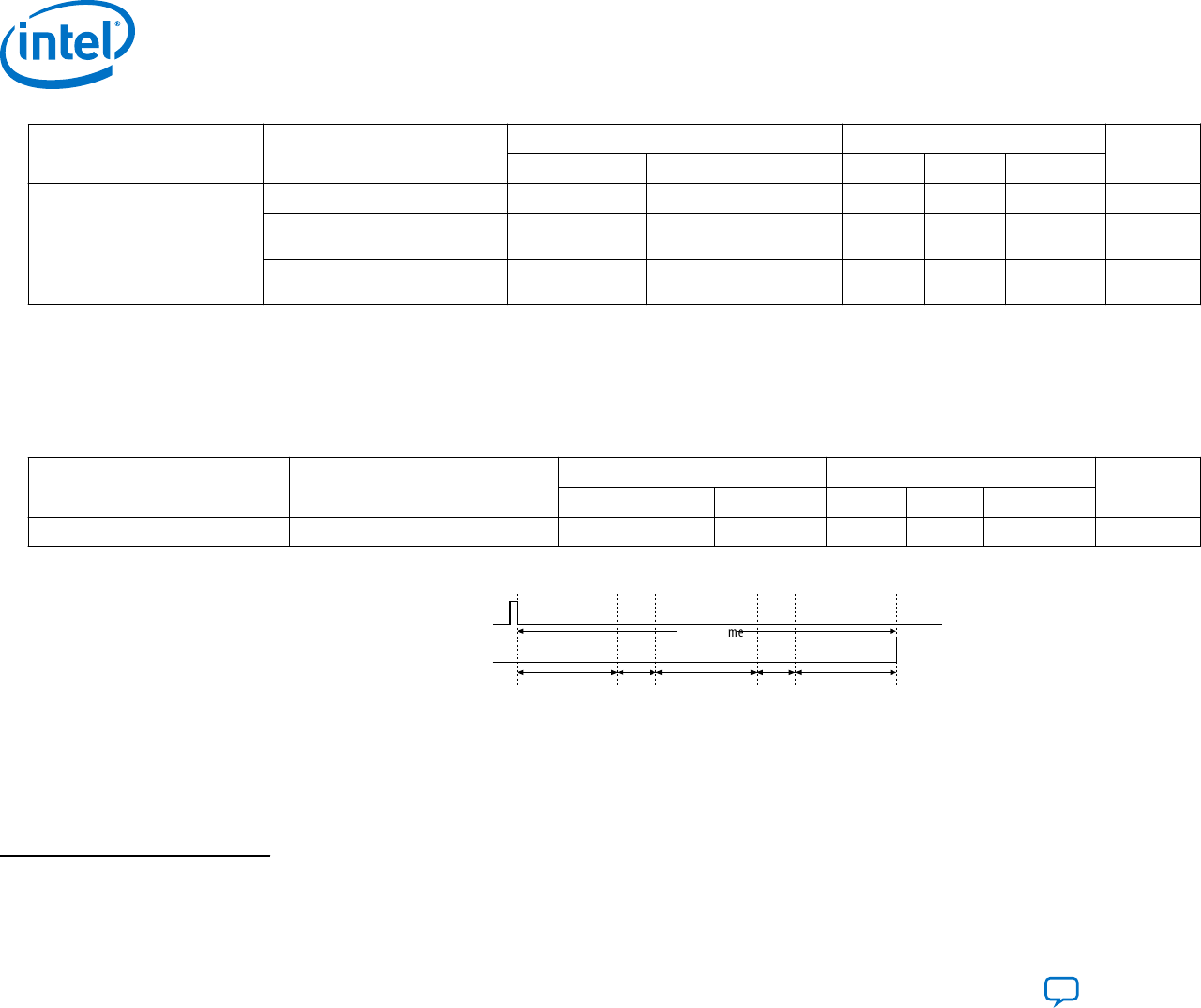

Figure 25. DPA Lock Time Specification with DPA PLL Calibration Enabled

rx_dpa_locked

rx_reset

DPA Lock Time

256 data

transitions 96 slow

clock cycles 256 data

transitions 256 data

transitions

96 slow

clock cycles

(204) You can estimate the achievable maximum data rate for non-DPA mode by performing link timing closure analysis. You must consider

the board skew margin, transmitter delay margin, and receiver sampling margin to determine the maximum data rate supported.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

144

Table 121. DPA Lock Time Specifications for Arria V GZ Devices

The DPA lock time is for one channel.

One data transition is defined as a 0-to-1 or 1-to-0 transition.

The DPA lock time stated in this table applies to both commercial and industrial grade.

Standard Training Pattern Number of Data Transitions

in One Repetition of the

Training Pattern

Number of Repetitions per

256 Data Transitions (205)

Maximum

SPI-4 00000000001111111111 2 128 640 data transitions

Parallel Rapid I/O 00001111 2 128 640 data transitions

10010000 4 64 640 data transitions

Miscellaneous 10101010 8 32 640 data transitions

01010101 8 32 640 data transitions

2.2.3.1.5. Soft CDR Mode High-Speed I/O Specifications

Table 122. High-Speed I/O Specifications for Arria V GZ Devices

When J = 3 to 10, use the serializer/deserializer (SERDES) block.

When J = 1 or 2, bypass the SERDES block.

Symbol Conditions C3, I3L C4, I4 Unit

Min Typ Max Min Typ Max

Soft-CDR ppm tolerance — — — 300 — — 300 ± ppm

(205) This is the number of repetitions for the stated training pattern to achieve the 256 data transitions.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

145

Jimer Amphli‘ude (UI) LVDS Soft-(DR/DPA Sinusoidal Jineﬂolerante Speciﬂtation

Figure 26. LVDS Soft-CDR/DPA Sinusoidal Jitter Tolerance Specification for a Data Rate ≥ 1.25 Gbps

LVDS Soft-CDR/DPA Sinusoidal Jitter Tolerance Specification

F1 F2 F3 F4

Jitter Frequency (Hz)

Jitter Amphlitude (UI)

0.1

0.35

8.5

Table 123. LVDS Soft-CDR/DPA Sinusoidal Jitter Mask Values for a Data Rate ≥ 1.25 Gbps

Jitter Frequency (Hz) Sinusoidal Jitter (UI)

F1 10,000 25.000

F2 17,565 25.000

F3 1,493,000 0.350

F4 50,000,000 0.350

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

146

Sinusoidal Jitter Amplitude

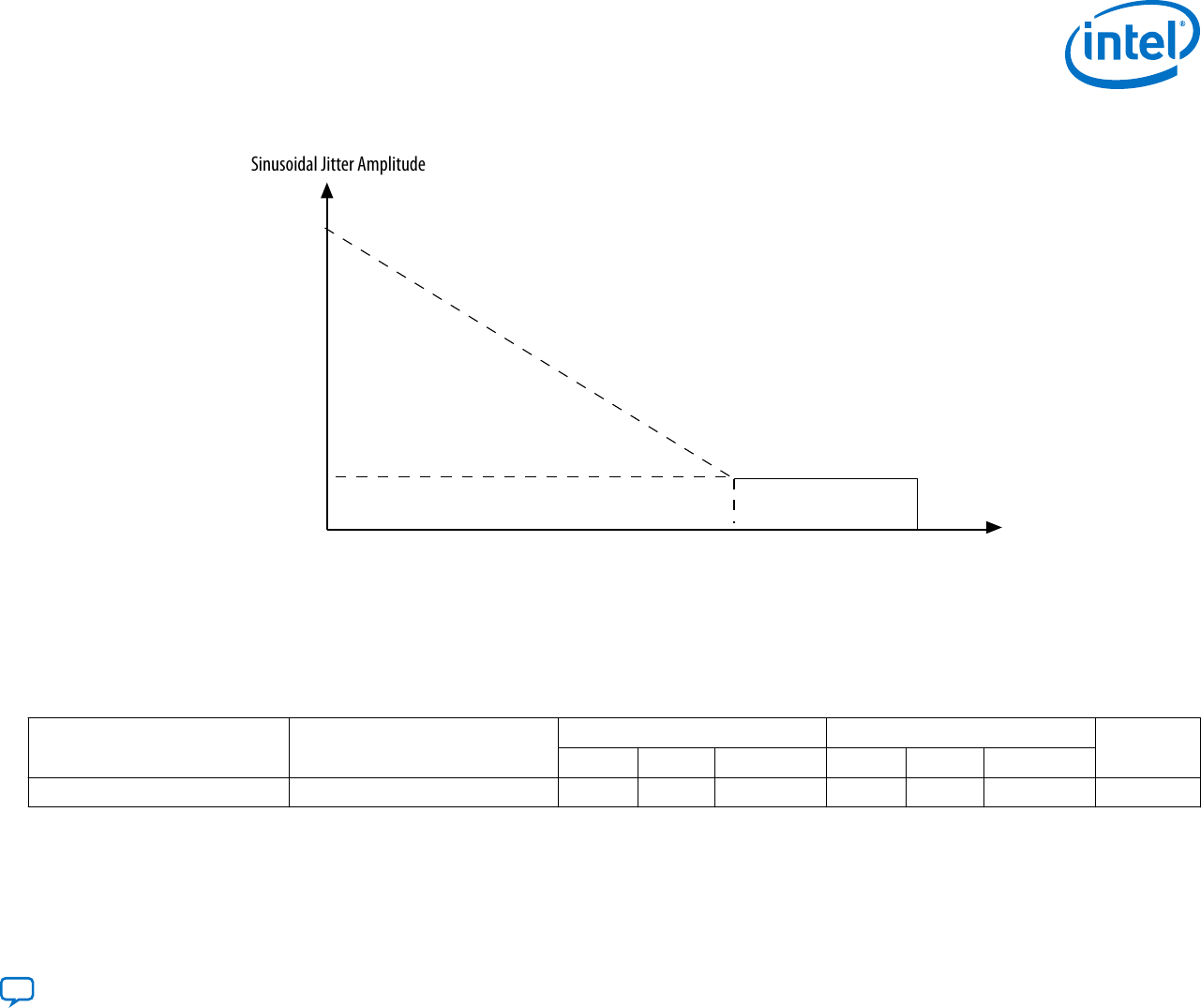

Figure 27. LVDS Soft-CDR/DPA Sinusoidal Jitter Tolerance Specification for a Data Rate < 1.25 Gbps

0.1 UI P-P

baud/1667 20 MHz Frequency

Sinusoidal Jitter Amplitude

20db/dec

2.2.3.1.6. Non DPA Mode High-Speed I/O Specifications

Table 124. High-Speed I/O Specifications for Arria V GZ Devices

When J = 3 to 10, use the serializer/deserializer (SERDES) block.

When J = 1 or 2, bypass the SERDES block.

Symbol Conditions C3, I3L C4, I4 Unit

Min Typ Max Min Typ Max

Sampling Window — — — 300 — — 300 ps

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

147

2.2.3.2. DLL Range Specifications

Table 125. DLL Range Specifications for Arria V GZ Devices

Arria V GZ devices support memory interface frequencies lower than 300 MHz, although the reference clock that feeds the DLL must be at least 300 MHz. To

support interfaces below 300 MHz, multiply the reference clock feeding the DLL to ensure the frequency is within the supported range of the DLL.

Parameter C3, I3L C4, I4 Unit

DLL operating frequency range 300 – 890 300 – 890 MHz

2.2.3.3. DQS Logic Block Specifications

Table 126. DQS Phase Offset Delay Per Setting for Arria V GZ Devices

The typical value equals the average of the minimum and maximum values.

The delay settings are linear with a cumulative delay variation of 40 ps for all speed grades. For example, when using a –3 speed grade and applying a 10-phase

offset setting to a 90° phase shift at 400 MHz, the expected average cumulative delay is [625 ps + (10 × 11 ps) ± 20 ps] = 735 ps ± 20 ps.

Speed Grade Min Max Unit

C3, I3L 8 15 ps

C4, I4 8 16 ps

Table 127. DQS Phase Shift Error Specification for DLL-Delayed Clock (tDQS_PSERR) for Arria V GZ Devices

This error specification is the absolute maximum and minimum error. For example, skew on three DQS delay buffers in a –3 speed grade is ±84 ps or ±42 ps.

Number of DQS Delay Buffers C3, I3L C4, I4 Unit

1 30 32 ps

2 60 64 ps

3 90 96 ps

4 120 128 ps

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

148

2.2.3.4. Memory Output Clock Jitter Specifications

Table 128. Memory Output Clock Jitter Specification for Arria V GZ Devices

The clock jitter specification applies to the memory output clock pins generated using differential signal-splitter and DDIO circuits clocked by a PLL output routed

on a PHY, regional, or global clock network as specified. Intel recommends using PHY clock networks whenever possible.

The clock jitter specification applies to the memory output clock pins clocked by an integer PLL.

The memory output clock jitter is applicable when an input jitter of 30 ps peak-to-peak is applied with bit error rate (BER) -12, equivalent to 14 sigma.

Clock Network Parameter Symbol C3, I3L C4, I4 Unit

Min Max Min Max

Regional Clock period jitter tJIT(per) –55 55 –55 55 ps

Cycle-to-cycle period jitter tJIT(cc) –110 110 –110 110 ps

Duty cycle jitter tJIT(duty) –82.5 82.5 –82.5 82.5 ps

Global Clock period jitter tJIT(per) –82.5 82.5 –82.5 82.5 ps

Cycle-to-cycle period jitter tJIT(cc) –165 165 –165 165 ps

Duty cycle jitter tJIT(duty) –90 90 –90 90 ps

PHY Clock Clock period jitter tJIT(per) –30 30 –35 35 ps

Cycle-to-cycle period jitter tJIT(cc) –60 60 –70 70 ps

Duty cycle jitter tJIT(duty) –45 45 –56 56 ps

2.2.3.5. OCT Calibration Block Specifications

Table 129. OCT Calibration Block Specifications for Arria V GZ Devices

Symbol Description Min Typ Max Unit

OCTUSRCLK Clock required by the OCT calibration blocks — — 20 MHz

TOCTCAL Number of OCTUSRCLK clock cycles required for OCT RS/RT calibration — 1000 — Cycles

TOCTSHIFT Number of OCTUSRCLK clock cycles required for the OCT code to shift out — 32 — Cycles

TRS_RT Time required between the dyn_term_ctrl and oe signal transitions in a bidirectional

I/O buffer to dynamically switch between OCT RS and RT (See the figure below.)

— 2.5 — ns

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

149

TIH i Tristat

Figure 28. Timing Diagram for oe and dyn_term_ctrl Signals

Tristate

RX RXTX

dyn_term_ctrl

TRS_RT

Tristate

TRS_RT

2.2.3.6. Duty Cycle Distortion (DCD) Specifications

Table 130. Worst-Case DCD on Arria V GZ I/O Pins

The DCD numbers do not cover the core clock network.

Symbol C3, I3L C4, I4 Unit

Min Max Min Max

Output Duty Cycle 45 55 45 55 %

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

150

2.3. Configuration Specification

2.3.1. POR Specifications

Table 131. Fast and Standard POR Delay Specification for Arria V GZ Devices

Select the POR delay based on the MSEL setting as described in the “Configuration Schemes for Arria V Devices” table in the Configuration, Design Security, and

Remote System Upgrades in Arria V Devices chapter.

POR Delay Minimum (ms) Maximum (ms)

Fast 4 12 (206)

Standard 100 300

Related Information

Configuration, Design Security, and Remote System Upgrades in Arria V Devices

2.3.2. JTAG Configuration Specifications

Table 132. JTAG Timing Parameters and Values for Arria V GZ Devices

Symbol Description Min Max Unit

tJCP TCK clock period 30 — ns

tJCP TCK clock period 167 (207)— ns

tJCH TCK clock high time 14 — ns

tJCL TCK clock low time 14 — ns

tJPSU (TDI) TDI JTAG port setup time 2 — ns

tJPSU (TMS) TMS JTAG port setup time 3 — ns

tJPH JTAG port hold time 5 — ns

continued...

(206) The maximum pulse width of the fast POR delay is 12 ms, providing enough time for the Arria V Hard IP for PCI Express Intel FPGA IP

to initialize after the POR trip.

(207) The minimum TCK clock period is 167 ns if VCCBAT is within the range 1.2V-1.5V when you perform the volatile key programming.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

151

Symbol Description Min Max Unit

tJPCO JTAG port clock to output — 11 (208)ns

tJPZX JTAG port high impedance to valid output — 14 (208)ns

tJPXZ JTAG port valid output to high impedance — 14 (208)ns

2.3.3. Fast Passive Parallel (FPP) Configuration Timing

2.3.3.1. DCLK-to-DATA[] Ratio (r) for FPP Configuration

FPP configuration requires a different DCLK-to-DATA[] ratio when you turn on encryption or the compression feature.

Table 133. DCLK-to-DATA[] Ratio for Arria V GZ Devices

Depending on the DCLK-to-DATA[] ratio, the host must send a DCLK frequency that is r times the data rate in bytes per second (Bps), or words per second

(Wps). For example, in FPP ×16 when the DCLK-to-DATA[] ratio is 2, the DCLK frequency must be 2 times the data rate in Wps. Arria V GZ devices use the

additional clock cycles to decrypt and decompress the configuration data.

Configuration Scheme Decompression Design Security DCLK-to-DATA[] Ratio

FPP ×8 Disabled Disabled 1

Disabled Enabled 1

Enabled Disabled 2

Enabled Enabled 2

FPP ×16 Disabled Disabled 1

Disabled Enabled 2

Enabled Disabled 4

Enabled Enabled 4

FPP ×32 Disabled Disabled 1

continued...

(208) A 1-ns adder is required for each VCCIO voltage step down from 3.0 V. For example, tJPCO = 12 ns if VCCIO of the TDO I/O bank = 2.5

V, or 13 ns if it equals 1.8 V.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

152

Configuration Scheme Decompression Design Security DCLK-to-DATA[] Ratio

Disabled Enabled 4

Enabled Disabled 8

Enabled Enabled 8

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

153

2.3.3.2. FPP Configuration Timing when DCLK to DATA[] = 1

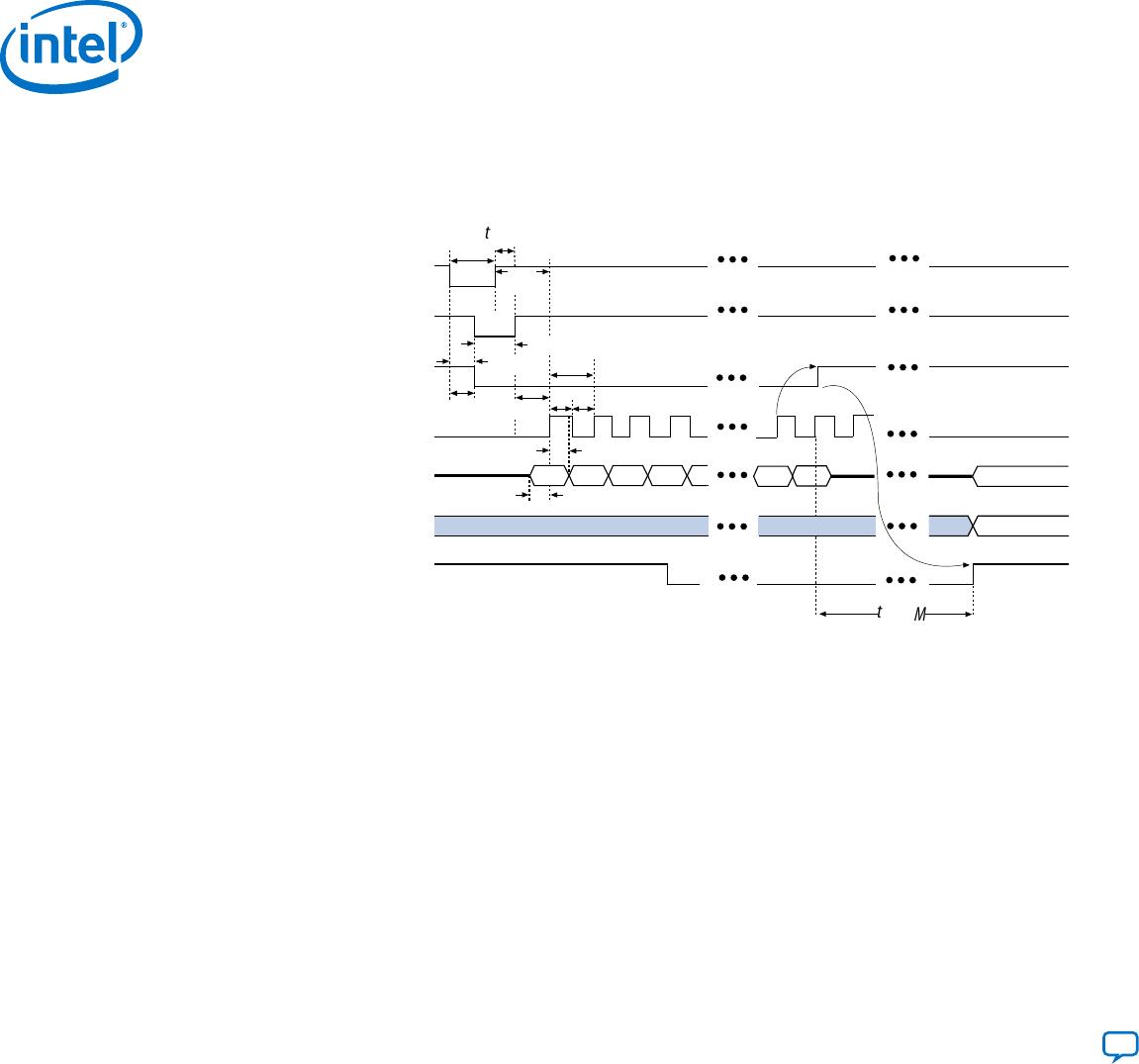

Figure 29. FPP Configuration Timing Waveform When the DCLK-to-DATA[] Ratio is 1

Timing waveform for FPP configuration when using a MAX® II or MAX V device as an external host.

nCONFIG

nSTATUS (2)

CONF_DONE (3)

DCLK

DATA[31..0]

User I/O

INIT_DONE

Word 0 Word 1 Word 2 Word 3

tCD2UM

tCF2ST1

tCF2CD

tCFG

tCH tCL

tDH

tDSU

tCF2CK

tSTATUS

tCLK

tCF2ST0

tST2CK

High-Z User Mode

(5)

(7)

(4)

User Mode

Word n-2 Word n-1

(6)

Notes:

1. The beginning of this waveform shows the device in user mode. In user mode,

nCONFIG, nSTATUS, and CONF_DONE are at logic-high levels. When nCONFIG is

pulled low, a reconfiguration cycle begins.

2. After power-up, the Arria V GZ device holds nSTATUS low for the time of the POR delay.

3. After power-up, before and during configuration, CONF_DONE is low.

4. Do not leave DCLK floating after configuration. DCLK is ignored after configuration is complete.

It can toggle high or low if required.

5. For FPP ×16, use DATA[15..0]. For FPP ×8, use DATA[7..0]. DATA[31..0] are available as a user I/O

pin after configuration. The state of this pin depends on the dual-purpose pin settings.

6. To ensure a successful configuration, send the entire configuration data to the Arria V GZ device.

CONF_DONE is released high when the Arria V GZ device receives all the configuration data

successfully. After CONF_DONE goes high, send two additional falling edges on DCLK to begin

initialization and enter user mode.

7. After the option bit to enable the INIT_DONE pin is configured into the device, the INIT_DONE

goes low.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

154

Note: When you enable the decompression or design security feature, the DCLK-to-DATA[] ratio varies for FPP ×8, FPP ×16, and

FPP ×32. For the respective DCLK-to-DATA[] ratio, refer to the DCLK-to-DATA[] Ratio for Arria V GZ Devices table.

Table 134. FPP Timing Parameters for Arria V GZ Devices When the DCLK-to-DATA[] Ratio is 1

Use these timing parameters when the decompression and design security features are disabled.

Symbol Parameter Minimum Maximum Unit

tCF2CD nCONFIG low to CONF_DONE low — 600 ns

tCF2ST0 nCONFIG low to nSTATUS low — 600 ns

tCFG nCONFIG low pulse width 2 — μs

tSTATUS nSTATUS low pulse width 268 1,506 (209)μs

tCF2ST1 nCONFIG high to nSTATUS high — 1,506 (210)μs

tCF2CK (211)nCONFIG high to first rising edge on DCLK 1,506 — μs

tST2CK (211)nSTATUS high to first rising edge of DCLK 2 — μs

tDSU DATA[] setup time before rising edge on DCLK 5.5 — ns

tDH DATA[] hold time after rising edge on DCLK 0 — ns

tCH DCLK high time 0.45 × 1/fMAX — s

tCL DCLK low time 0.45 × 1/fMAX — s

tCLK DCLK period 1/fMAX — s

fMAX DCLK frequency (FPP ×8/×16) — 125 MHz

DCLK frequency (FPP ×32) — 100 MHz

continued...

(209) This value is applicable if you do not delay configuration by extending the nCONFIG or nSTATUS low pulse width.

(210) This value is applicable if you do not delay configuration by externally holding the nSTATUS low.

(211) If nSTATUS is monitored, follow the tST2CK specification. If nSTATUS is not monitored, follow the tCF2CK specification.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

155

Symbol Parameter Minimum Maximum Unit

tCD2UM CONF_DONE high to user mode (212)175 437 μs

tCD2CU CONF_DONE high to CLKUSR enabled 4 × maximum

DCLK period

— —

tCD2UMC CONF_DONE high to user mode with CLKUSR option on tCD2CU +

(8576 × CLKUSR period)

(213)

— —

Related Information

•DCLK-to-DATA[] Ratio (r) for FPP Configuration on page 152

•Configuration, Design Security, and Remote System Upgrades in Arria V Devices

(212) The minimum and maximum numbers apply only if you chose the internal oscillator as the clock source for initializing the device.

(213) To enable the CLKUSR pin as the initialization clock source and to obtain the maximum frequency specification on these pins, refer to

the Initialization section of the Configuration, Design Security, and Remote System Upgrades in Arria V Devices chapter.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

156

2.3.3.3. FPP Configuration Timing when DCLK to DATA[] > 1

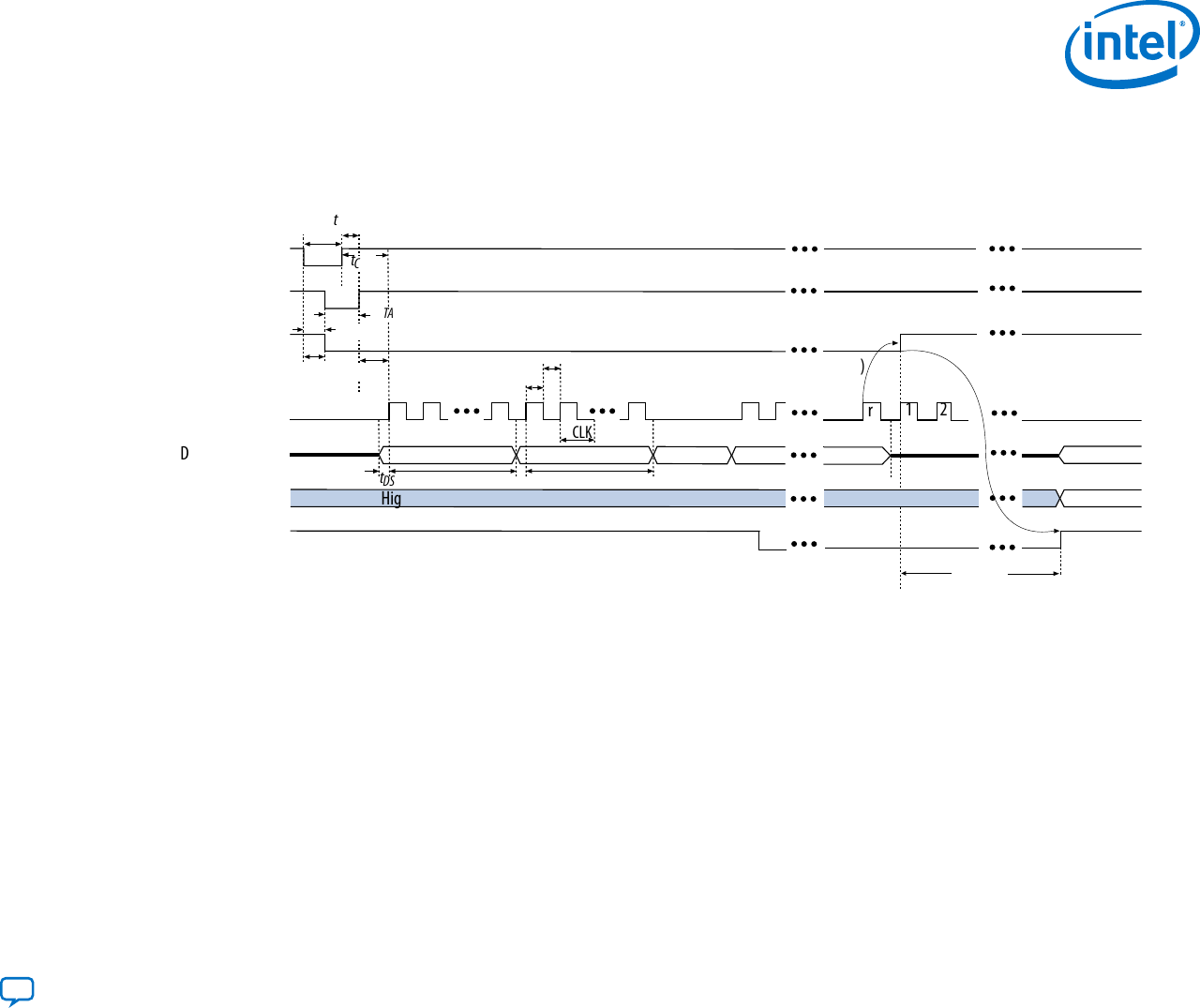

Figure 30. FPP Configuration Timing Waveform When the DCLK-to-DATA[] Ratio is >1 ,

Timing when using a MAX II device, MAX V device, or microprocessor as an external host.

nCONFIG

nSTATUS (3)

CONF_DONE (4)

DCLK (6)

DATA[31..0] (8)

User I/O

INIT_DONE

tCD2UM

tCF2ST1

tCF2CD

tCFG

tCF2CK

tCF2ST0

tST2CK

High-Z User Mode

1 2 r 1 2 r 1 2

Word 0 Word 1 Word 3

tDSU tDH

STATUS

tDH

tCH

tCL

tCLK

Word (n-1)

(7)

(8)

(9)

(5)

User Mode

Notes:

1. To find out the DCLK-to-DATA[] ratio for your system, refer to the "DCLK-to-DATA[] Ratio for Arria V GZ Devices" table.

2. The beginning of this waveform shows the device in user mode. In user mode, nCONFIG, nSTATUS, and CONF_DONE

are at logic high levels. When nCONFIG is pulled low, a reconfiguration cycle begins.

3. After power-up, the Arria V GZ device holds nSTATUS low for the time as specified by the POR delay.

4. After power-up, before and during configuration, CONF_DONE is low.

5. Do not leave DCLK floating after configuration. DCLK is ignored after configuration is complete. It can toggle high or

low if required.

6. “r” denotes the DCLK-to-DATA[] ratio. For the DCLK-to-DATA[] ratio based on the decompression and the design

security feature enable settings, refer to the "DCLK-to-DATA[] Ratio for Arria V GZ Devices" table.

7. If needed, pause DCLK by holding it low. When DCLK restarts, the external host must provide data on the DATA[31..0]

pins prior to sending the first DCLK rising edge.

8. To ensure a successful configuration, send the entire configuration data to the Arria V GZ device. CONF_DONE is

released high after the Arria V GZ device receives all the configuration data successfully. After CONF_DONE goes

high, send two additional falling edges on DCLK to begin initialization and enter user mode.

9. After the option bit to enable the INIT_DONE pin is configured into the device, the INIT_DONE goes low.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

157

Table 135. FPP Timing Parameters for Arria V GZ Devices When the DCLK-to-DATA[] Ratio is >1

Use these timing parameters when you use the decompression and design security features.

Symbol Parameter Minimum Maximum Unit

tCF2CD nCONFIG low to CONF_DONE low — 600 ns

tCF2ST0 nCONFIG low to nSTATUS low — 600 ns

tCFG nCONFIG low pulse width 2 — μs

tSTATUS nSTATUS low pulse width 268 1,506 (214)μs

tCF2ST1 nCONFIG high to nSTATUS high — 1,506 (215)μs

tCF2CK (216)nCONFIG high to first rising edge on DCLK 1,506 — μs

tST2CK(216)nSTATUS high to first rising edge of DCLK 2 — μs

tDSU DATA[] setup time before rising edge on DCLK 5.5 — ns

tDH DATA[] hold time after rising edge on DCLK N–1/fDCLK (217)— s

tCH DCLK high time 0.45 × 1/fMAX — s

tCL DCLK low time 0.45 × 1/fMAX — s

tCLK DCLK period 1/fMAX — s

fMAX DCLK frequency (FPP ×8/×16) — 125 MHz

DCLK frequency (FPP ×32) — 100 MHz

tRInput rise time — 40 ns

tFInput fall time — 40 ns

continued...

(214) You can obtain this value if you do not delay configuration by extending the nCONFIG or nSTATUS low pulse width.

(215) You can obtain this value if you do not delay configuration by externally holding the nSTATUS low.

(216) If nSTATUS is monitored, follow the tST2CK specification. If nSTATUS is not monitored, follow the tCF2CK specification.

(217) N is the DCLK-to-DATA ratio and fDCLK is the DCLK frequency the system is operating.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

158

Symbol Parameter Minimum Maximum Unit

tCD2UM CONF_DONE high to user mode (218)175 437 μs

tCD2CU CONF_DONE high to CLKUSR enabled 4 × maximum DCLK

period

— —

tCD2UMC CONF_DONE high to user mode with CLKUSR option on tCD2CU +

(8576 × CLKUSR period)

(219)

— —

Related Information

•DCLK-to-DATA[] Ratio (r) for FPP Configuration on page 152

•Configuration, Design Security, and Remote System Upgrades in Arria V Devices

(218) The minimum and maximum numbers apply only if you use the internal oscillator as the clock source for initializing the device.

(219) To enable the CLKUSR pin as the initialization clock source and to obtain the maximum frequency specification on these pins, refer to

the Initialization section of the Configuration, Design Security, and Remote System Upgrades in Arria V Devices chapter.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

159

j? 4 % HWJHEHLNT‘HI

2.3.4. Active Serial Configuration Timing

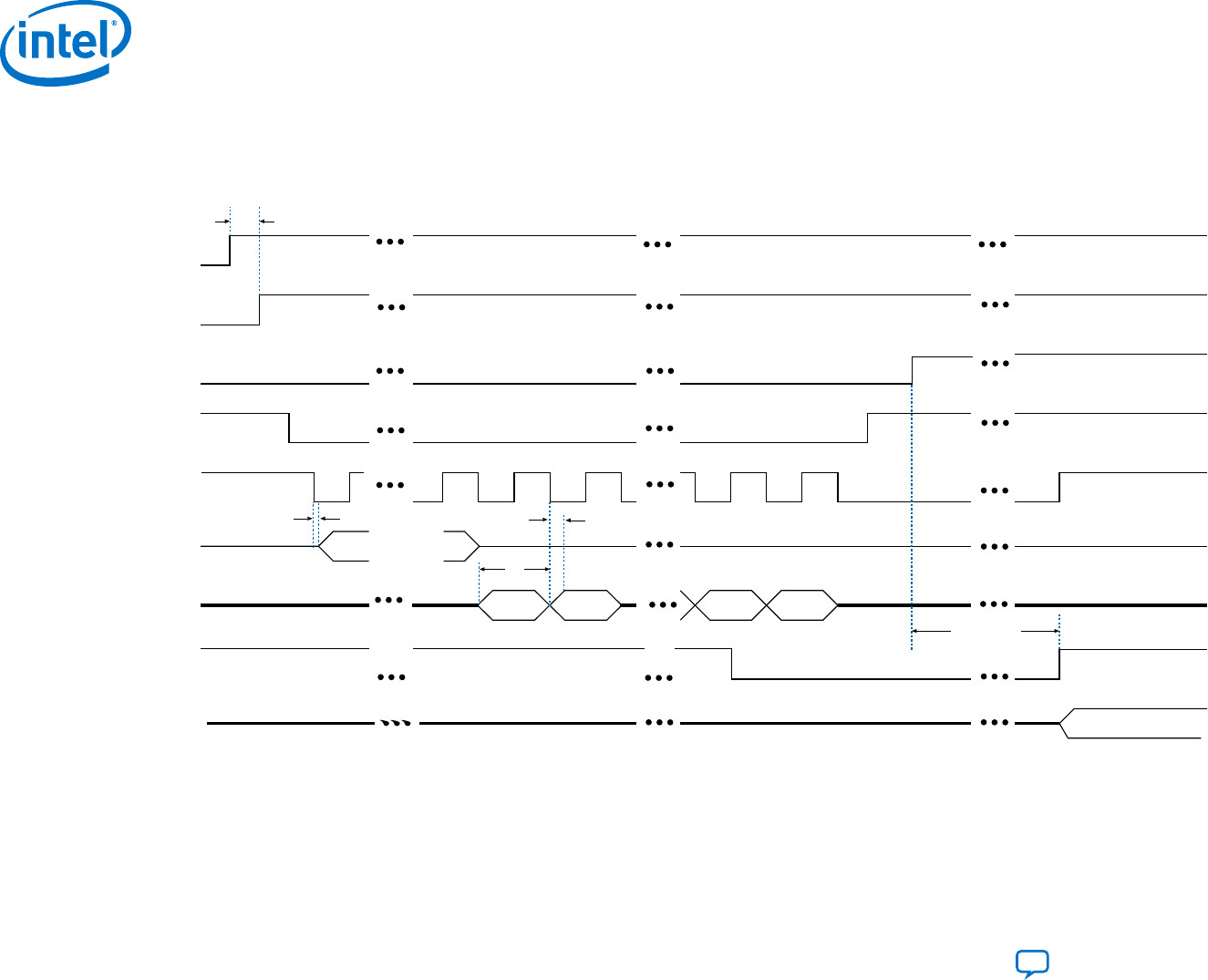

Figure 31. AS Configuration Timing

Timing waveform for the active serial (AS) x1 mode and AS x4 mode configuration timing.

Read Address

bit 1

bit 0 bit (n - 2) bit (n - 1)

tCD2UM

nSTATUS

nCONFIG

CONF_DONE

nCSO

DCLK

AS_DATA0/ASDO

AS_DATA1 (1)

INIT_DONE (3)

User I/O User Mode

tCF2ST1

tDH

tSU

tCO

(2)

Notes:

1. If you are using AS ×4 mode, this signal represents the AS_DATA[3..0] and EPCQ sends in 4-bits of data for each DCLK cycle.

2. The initialization clock can be from internal oscillator or CLKUSR pin.

3. After the option bit to enable the INIT_DONE pin is configured into the d evice, the INIT_DONE goes low.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

160

Table 136. AS Timing Parameters for AS x1 and AS x4 Configurations in Arria V GZ Devices

The minimum and maximum numbers apply only if you choose the internal oscillator as the clock source for initializing the device.

tCF2CD, tCF2ST0, tCFG, tSTATUS, and tCF2ST1 timing parameters are identical to the timing parameters for PS mode listed in the "PS Timing Parameters for Arria V GZ

Devices" table.

Symbol Parameter Condition Minimum Maximum Unit

tCO (220) DCLK falling edge to AS_DATA0/ASDO output — — 4 ns

tSU (221)Data setup time before falling edge on DCLK — 1.5 — ns

tDH (221)Data hold time after falling edge on DCLK –3 speed grade 3.7 — ns

–4 speed grade 3.9 — ns

tCD2UM CONF_DONE high to user mode (222)— 175 437 μs

tCD2CU CONF_DONE high to CLKUSR enabled —4 × maximum DCLK period — —

tCD2UMC CONF_DONE high to user mode with CLKUSR option on —tCD2CU + (8576 × CLKUSR

period)

— —

(220) Load capacitance for DCLK = 6 pF and AS_DATA/ASDO = 8 pF. Intel recommends obtaining the tCO for a given link (including receiver,

transmission lines, connectors, and termination resistors) through IBIS or HSPICE simulation.

(221) To evaluate the data setup (tSU) and data hold time (tDH) slack on your board in order to ensure you are meeting the tSU and tDH

requirement, Intel recommends following the guideline in the "Evaluating Data Setup and Hold Timing Slack" chapter in AN822: Intel

FPGA Configuration Device Migration Guideline.

(222) To enable the CLKUSR pin as the initialization clock source and to obtain the maximum frequency specification on this pin, refer to the

“Initialization” section of the Configuration, Design Security, and Remote System Upgrades in Arria V Devices chapter.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

161

Table 137. DCLK Frequency Specification in the AS Configuration Scheme

This applies to the DCLK frequency specification when using the internal oscillator as the configuration clock source.

The AS multi-device configuration scheme does not support DCLK frequency of 100 MHz.

Minimum Typical Maximum Unit

5.3 7.9 12.5 MHz

10.6 15.7 25.0 MHz

21.3 31.4 50.0 MHz

42.6 62.9 100.0 MHz

Related Information

•Passive Serial Configuration Timing on page 163

•Evaluating Data Setup and Hold Timing Slack chapter, AN822: Intel FPGA Configuration Device Migration Guideline

•Configuration, Design Security, and Remote System Upgrades in Arria V Devices

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

162

2.3.5. Passive Serial Configuration Timing

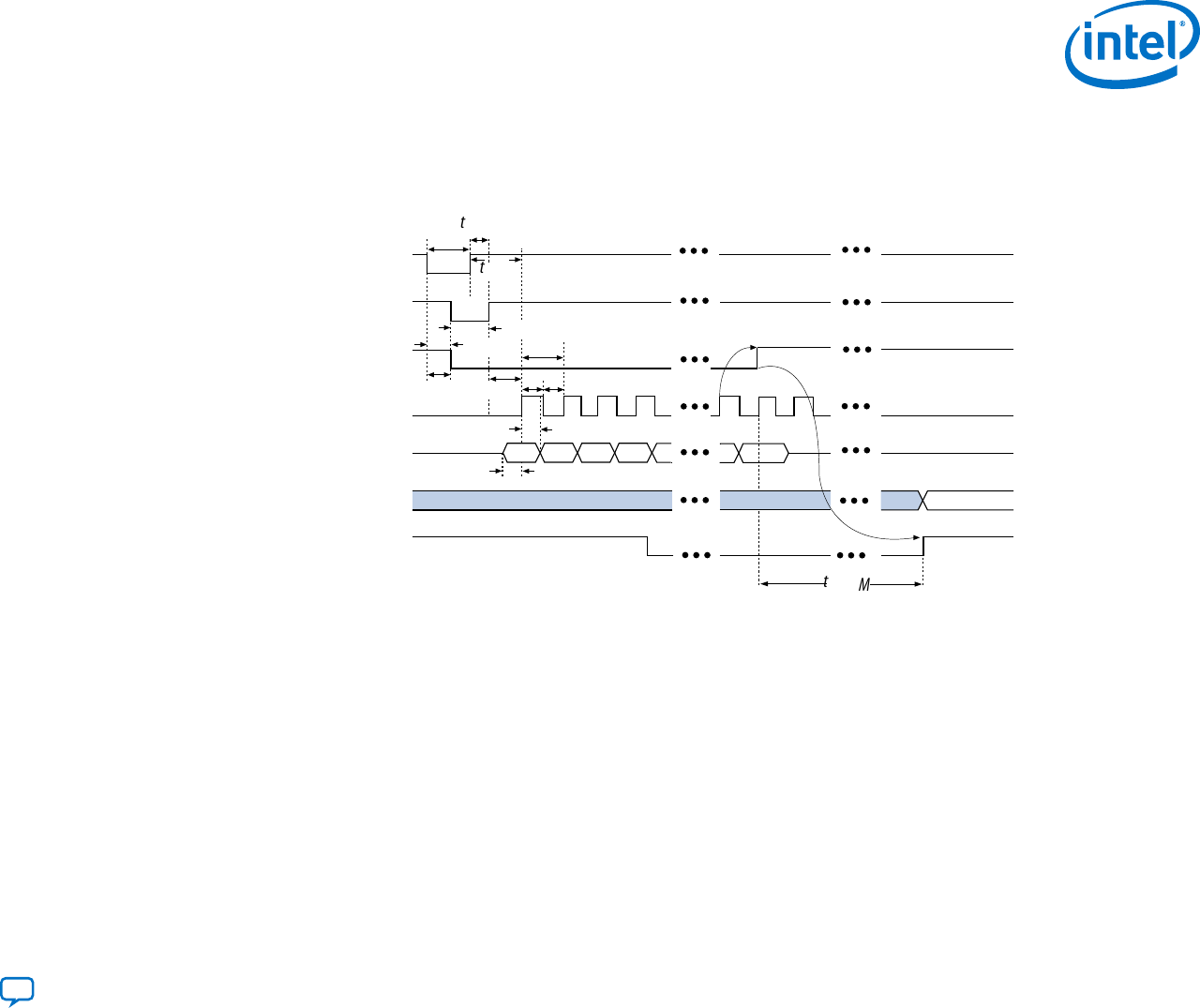

Figure 32. PS Configuration Timing Waveform

Timing waveform for a passive serial (PS) configuration when using a MAX II device, MAX V device, or microprocessor as an external host.

nCONFIG

nSTATUS (2)

CONF_DONE (3)

DCLK

DATA0

User I/O

INIT_DONE (7)

Bit 0 Bit 1 Bit 2 Bit 3

tCD2UM

tCF2ST1

tCF2CD

tCFG

tCH tCL

tDH

tDSU

tCF2CK

tSTATUS

tCLK

tCF2ST0

tST2CK

High-Z User Mode

(5)

(4)

(6)

Bit (n-1)

Notes:

1. The beginning of this waveform shows the device in user mode. In user mode, nCONFIG, nSTATUS,

and CONF_DONE are at logic high levels. When nCONFIG is pulled low, a reconfiguration cycle begins.

2. After power-up, the Arria V GZ device holds nSTATUS low for the time of the POR delay.

3. After power-up, before and during configuration, CONF_DONE is low.

4. Do not leave DCLK floating after configuration. DCLK is ignored after configuration is complete.

It can toggle high or low if required.

5. DATA0 is available as a user I/O pin after configuration. The state of this pin depends on the

dual-purpose pin settings in the Device and Pins Option.

6. To ensure a successful configuration, send the entire configuration data to the Arria V GZ device.

CONF_DONE is released high after the Arria V GZ device receives all the configuration data

successfully. After CONF_DONE goes high, send two additional falling edges on DCLK to begin

initialization and enter user mode.

7. After the option bit to enable the INIT_DONE pin is configured into the device, the INIT_DONE goes low.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

163

Table 138. PS Timing Parameters for Arria V GZ Devices

Symbol Parameter Minimum Maximum Unit

tCF2CD nCONFIG low to CONF_DONE low — 600 ns

tCF2ST0 nCONFIG low to nSTATUS low — 600 ns

tCFG nCONFIG low pulse width 2 — μs

tSTATUS nSTATUS low pulse width 268 1,506 (223)μs

tCF2ST1 nCONFIG high to nSTATUS high — 1,506 (224)μs

tCF2CK (225)nCONFIG high to first rising edge on DCLK 1,506 — μs

tST2CK (225)nSTATUS high to first rising edge of DCLK 2 — μs

tDSU DATA[] setup time before rising edge on DCLK 5.5 — ns

tDH DATA[] hold time after rising edge on DCLK 0 — ns

tCH DCLK high time 0.45 × 1/fMAX — s

tCL DCLK low time 0.45 × 1/fMAX — s

tCLK DCLK period 1/fMAX — s

fMAX DCLK frequency — 125 MHz

tCD2UM CONF_DONE high to user mode (226)175 437 μs

tCD2CU CONF_DONE high to CLKUSR enabled 4 × maximum DCLK period — —

tCD2UMC CONF_DONE high to user mode with CLKUSR option on tCD2CU + (8576 × CLKUSR

period) (227)

— —

(223) This value is applicable if you do not delay configuration by extending the nCONFIG or nSTATUS low pulse width.

(224) This value is applicable if you do not delay configuration by externally holding the nSTATUS low.

(225) If nSTATUS is monitored, follow the tST2CK specification. If nSTATUS is not monitored, follow the tCF2CK specification.

(226) The minimum and maximum numbers apply only if you choose the internal oscillator as the clock source for initializing the device.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

164

Related Information

Configuration, Design Security, and Remote System Upgrades in Arria V Devices

2.3.6. Initialization

Table 139. Initialization Clock Source Option and the Maximum Frequency for Arria V GZ Devices

Initialization Clock Source Configuration Schemes Maximum Frequency (MHz) Minimum Number of Clock Cycles

Internal Oscillator AS, PS, FPP 12.5 8576

CLKUSR (228) PS, FPP 125

AS 100

DCLK PS, FPP 125

2.3.7. Configuration Files

Use the following table to estimate the file size before design compilation. Different configuration file formats, such as a

hexadecimal file (.hex) or tabular text file (.ttf) format, have different file sizes.

For the different types of configuration file and file sizes, refer to the Intel Quartus Prime software. However, for a specific

version of the Intel Quartus Prime software, any design targeted for the same device has the same uncompressed

configuration file size.

(227) To enable the CLKUSR pin as the initialization clock source and to obtain the maximum frequency specification on these pins, refer to

the Initialization section of the Configuration, Design Security, and Remote System Upgrades in Arria V Devices chapter.

(228) To enable CLKUSR as the initialization clock source, turn on the Enable user-supplied start-up clock (CLKUSR) option in the Intel

Quartus Prime software from the General panel of the Device and Pin Options dialog box.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

165

Table 140. Uncompressed .rbf Sizes for Arria V GZ Devices

Variant Member Code Configuration .rbf Size (bits) IOCSR .rbf Size (bits) (229)

Arria V GZ E1 137,598,880 562,208

E3 137,598,880 562,208

E5 213,798,880 561,760

E7 213,798,880 561,760

Table 141. Minimum Configuration Time Estimation for Arria V GZ Devices

Variant Member Code Active Serial (230) Fast Passive Parallel (231)

Width DCLK (MHz) Min Config Time

(ms)

Width DCLK (MHz) Min Config Time

(ms)

Arria V GZ E1 4 100 344 32 100 43

E3 4 100 344 32 100 43

E5 4 100 534 32 100 67

E7 4 100 534 32 100 67

(229) The IOCSR .rbf size is specifically for the Configuration via Protocol (CvP) feature.

(230) DCLK frequency of 100 MHz using external CLKUSR.

(231) Max FPGA FPP bandwidth may exceed bandwidth available from some external storage or control logic.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

166

2.3.8. Remote System Upgrades Circuitry Timing Specification

Table 142. Remote System Upgrade Circuitry Timing Specifications

Parameter Minimum Maximum Unit

tRU_nCONFIG (232)250 — ns

tRU_nRSTIMER (233)250 — ns

Related Information

•Configuration, Design Security, and Remote System Upgrades in Arria V Devices

For more information about the reconfiguration input for the Remote Update Intel FPGA IP core, refer to the User

Watchdog Timer section.

•Configuration, Design Security, and Remote System Upgrades in Arria V Devices

For more information about the reset_timer input for the Remote Update Intel FPGA IP core, refer to the Remote

System Upgrade State Machine section.

2.3.9. User Watchdog Internal Oscillator Frequency Specification

Table 143. User Watchdog Internal Oscillator Frequency Specifications

Minimum Typical Maximum Unit

5.3 7.9 12.5 MHz

2.4. I/O Timing

Intel offers two ways to determine I/O timing—the Excel-based I/O Timing and the Intel Quartus Prime Timing Analyzer.

(232) This is equivalent to strobing the reconfiguration input of the Remote Update Intel FPGA IP core high for the minimum timing

specification. For more information, refer to the Remote System Upgrade State Machine section in the Configuration, Design Security,

and Remote System Upgrades in Arria V Devices chapter.

(233) This is equivalent to strobing the reset_timer input of the Remote Update Intel FPGA IP core high for the minimum timing

specification. For more information, refer to the User Watchdog Timer section in the Configuration, Design Security, and Remote

System Upgrades in Arria V Devices chapter.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

167

Excel-based I/O timing provides pin timing performance for each device density and speed grade. The data is typically used

prior to designing the FPGA to get an estimate of the timing budget as part of the link timing analysis.

The Intel Quartus Prime Timing Analyzer provides a more accurate and precise I/O timing data based on the specifics of the

design after you complete place-and-route.

Related Information

Arria V Devices Documentation page

For the Excel-based I/O Timing spreadsheet.

2.4.1. Programmable IOE Delay

Table 144. IOE Programmable Delay for Arria V GZ Devices

Parameter (234) Available

Settings

Min Offset (235) Fast Model Slow Model Unit

Industrial Commercial C3 C4 I3L I4

D1 64 0 0.464 0.493 0.924 1.011 0.921 1.006 ns

D2 32 0 0.230 0.244 0.459 0.503 0.456 0.500 ns

D3 8 0 1.587 1.699 2.992 3.192 3.047 3.257 ns

D4 64 0 0.464 0.492 0.924 1.011 0.920 1.006 ns

D5 64 0 0.464 0.493 0.924 1.011 0.921 1.006 ns

D6 32 0 0.229 0.244 0.458 0.503 0.456 0.499 ns

(234) You can set this value in the Intel Quartus Prime software by selecting D1, D2, D3, D4, D5, and D6 in the Assignment Name

column of Assignment Editor.

(235) Minimum offset does not include the intrinsic delay.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

168

2.4.2. Programmable Output Buffer Delay

Table 145. Programmable Output Buffer Delay for Arria V GZ Devices

You can set the programmable output buffer delay in the Intel Quartus Prime software by setting the Output Buffer Delay Control assignment to either

positive, negative, or both edges, with the specific values stated here (in ps) for the Output Buffer Delay assignment.

Symbol Parameter Typical Unit

DOUTBUF Rising and/or falling edge delay 0 (default) ps

50 ps

100 ps

150 ps

2.5. Glossary

Table 146. Glossary

Term Definition

Differential I/O Standards Receiver Input Waveforms

continued...

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

169

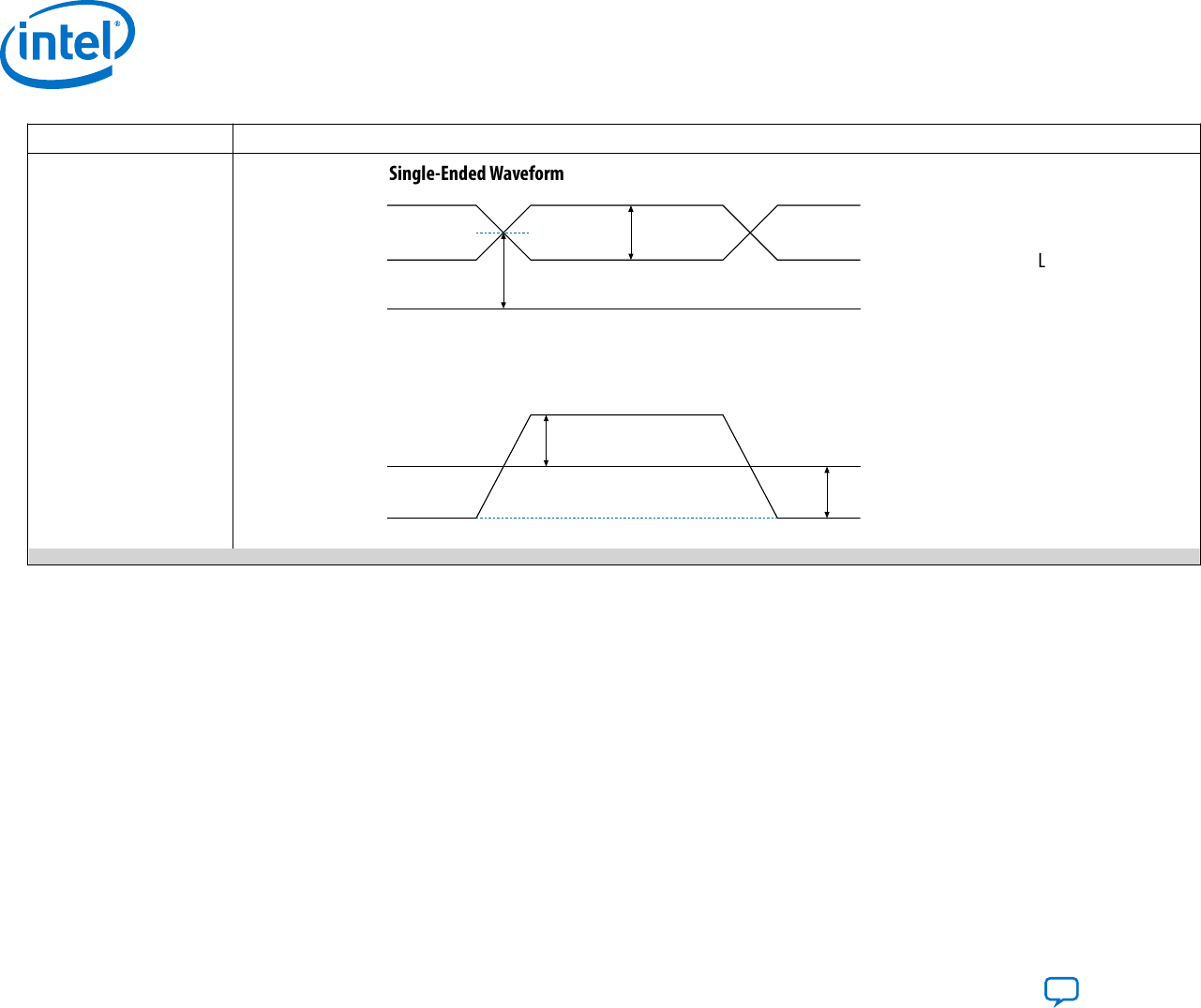

Single-Ended Waveform

Term Definition

Single-Ended Waveform

Differential Waveform

Positive Channel (p) = VIH

Negative Channel (n) = VIL

Ground

VID

p - n = 0 V

VCM

Transmitter Output Waveforms

continued...

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

170

Single-Ended Waveform ?

Term Definition

Single-Ended Waveform

Differential Waveform

Positive Channel (p) = VOH

Negative Channel (n) = VOL

Ground

VOD

p - n = 0 V

VCM

fHSCLK Left and right PLL input clock frequency.

fHSDR High-speed I/O block—Maximum and minimum LVDS data transfer rate

(fHSDR = 1/TUI), non-DPA.

fHSDRDPA High-speed I/O block—Maximum and minimum LVDS data transfer rate

(fHSDRDPA = 1/TUI), DPA.

J High-speed I/O block—Deserialization factor (width of parallel data bus).

JTAG Timing Specifications JTAG Timing Specifications:

continued...

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

171

x x x x Ji_li‘\_ll_lL

Term Definition

TDO

TCK

tJPZX tJPCO

tJPH

tJPXZ

tJCP

tJPSU

tJCL

tJCH

TDI

TMS

PLL Specifications Diagram of PLL Specifications

Core Clock

External Feedback

Reconfigurable in User Mode

Key

CLK

NPFD

Switchover

Delta Sigma

Modulator

VCO

CP LF

CLKOUT Pins

GCLK

RCLK

fINPFD

fIN

fVCO fOUT

fOUT_EXT

Counters

C0..C 17

Note:

1. Core Clock can only be fed by dedicated clock input pins or PLL outputs.

RLReceiver differential input discrete resistor (external to the Arria V GZ device).

SW (sampling window) Timing Diagram—the period of time during which the data must be valid in order to capture it correctly. The setup and hold times determine

the ideal strobe position within the sampling window, as shown:

continued...

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

172

Bthime cantinued...

Term Definition

Bit Time

0.5 x TCCS RSKM Sampling Window

(SW)

RSKM 0.5 x TCCS

Single-ended voltage

referenced I/O standard

The JEDEC standard for SSTL and HSTL I/O defines both the AC and DC input signal values. The AC values indicate the voltage levels at which

the receiver must meet its timing specifications. The DC values indicate the voltage levels at which the final logic state of the receiver is

unambiguously defined. After the receiver input has crossed the AC value, the receiver changes to the new logic state.

The new logic state is then maintained as long as the input stays beyond the DC threshold. This approach is intended to provide predictable

receiver timing in the presence of input waveform ringing:

Single-Ended Voltage Referenced I/O Standard

VIH(AC )

VIH(DC )

VREF VIL(DC )

VIL(AC )

VOH

VOL

VCCIO

VSS

tCHigh-speed receiver and transmitter input and output clock period.

TCCS (channel-to-channel-

skew)

The timing difference between the fastest and slowest output edges, including tCO variation and clock skew, across channels driven by the

same PLL. The clock is included in the TCCS measurement (refer to the Timing Diagram figure under SW in this table).

tDUTY High-speed I/O block—Duty cycle on the high-speed transmitter output clock.

tFALL Signal high-to-low transition time (80-20%)

tINCCJ Cycle-to-cycle jitter tolerance on the PLL clock input.

tOUTPJ_IO Period jitter on the general purpose I/O driven by a PLL.

tOUTPJ_DC Period jitter on the dedicated clock output driven by a PLL.

tRISE Signal low-to-high transition time (20-80%)

continued...

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

173

Term Definition

Timing Unit Interval (TUI) The timing budget allowed for skew, propagation delays, and the data sampling window.

(TUI = 1/(receiver input clock frequency multiplication factor) = tC/w)

VCM(DC) DC common mode input voltage.

VICM Input common mode voltage—The common mode of the differential signal at the receiver.

VID Input differential voltage swing—The difference in voltage between the positive and complementary conductors of a differential transmission at

the receiver.

VDIF(AC) AC differential input voltage—Minimum AC input differential voltage required for switching.

VDIF(DC) DC differential input voltage— Minimum DC input differential voltage required for switching.

VIH Voltage input high—The minimum positive voltage applied to the input which is accepted by the device as a logic high.

VIH(AC) High-level AC input voltage

VIH(DC) High-level DC input voltage

VIL Voltage input low—The maximum positive voltage applied to the input which is accepted by the device as a logic low.

VIL(AC) Low-level AC input voltage

VIL(DC) Low-level DC input voltage

VOCM Output common mode voltage—The common mode of the differential signal at the transmitter.

VOD Output differential voltage swing—The difference in voltage between the positive and complementary conductors of a differential transmission

at the transmitter.

VSWING Differential input voltage

VXInput differential cross point voltage

VOX Output differential cross point voltage

W High-speed I/O block—clock boost factor

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

174

2.6. Arria V GZ Device Datasheet Revision History

Document

Version

Changes

2019.04.26 Added a note for Conversion Time in the Internal Temperature Sensing Diode Specification for Arria V GZ Devices table.

2019.01.25 • Added Arria V GZ Devices Overshoot Duration diagram.

•Changed "VCO post-scale counter K value" to "VCO post divider value" in the fVCO note in the PLL Specifications for Arria V GZ Devices table.

• Updated the AS Timing Parameters for AS ×1 and ×4 Configurations in Arria V GZ Devices table.

— Updated tDH specifications. These specifications are applicable to the commercial and industrial grade devices.

— Added note to tCO, tSU, and tDH.

• Changed instances of Quartus II to Intel Quartus Prime.

• Removed PowerPlay text from tool name.

• Renamed IP cores as per Intel rebranding.

Date Version Changes

February 2017 2017.02.10 • Changed the minimum value for tCD2UMC in the “FPP Timing Parameters for Arria V GZ Devices When the DCLK-to-DATA[] Ratio

is 1” table.

• Changed the minimum value for tCD2UMC in the "FPP Timing Parameters for Arria V GZ Devices When the DCLK-to-DATA[] Ratio

is >1" table.

• Changed the minimum value for tCD2UMC in the "AS Timing Parameters for AS x1 and AS x4 Configurations in Arria V GZ

Devices" table.

• Changed the minimum value for tCD2UMC in the "PS Timing Parameters for Arria V GZ Devices" table.

• Changed the minimum number of clock cycles value in the "Initialization Clock Source Option and the Maximum Frequency for

Arria V GZ Devices" table.

June 2016 2016.06.20 • Changed column heading from "Value" to "Maximum" in the "Pin Capacitance for Arria V GZ Devices" table.

• Changed the minimum supported data rate range values from "1000" to "2000" in the "ATX PLL Specifications for Arria V GZ

Devices" table.

• Added the supported data rates for the following output standards using true LVDS output buffer types in the "High-Speed

Clock Specifications for Arria V GZ Devices" table:

— True RSDS output standard: data rates of up to 230 Mbps

— True mini-LVDS output standard: data rates of up to 340 Mbps

December 2015 2015.12.16 • Removed the CDR ppm tolerance specification from the "Receiver Specifications for Arria V GZ Devices" table.

• Removed transmitter rise and fall time specifications from the "Transmitter Specifications for Arria V GZ Devices" table.

• Changed the .rbf sizes in the "Uncompressed .rbf Sizes for Arria V GZ Devices" table.

• Added a footnote to the "Transmitter High-Speed I/O Specifications for Arria V GZ Devices" table.

continued...

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Send Feedback Arria V Device Datasheet

175

Date Version Changes

June 2015 2015.06.16 • Changed the conditions for the reference clock rise and fall time and added a note to the condition in the "Reference Clock

Specifications for Arria V GZ Devices" table.

• Added a note to the "Minimum differential eye opening at receiver serial input pins" specification in the "Receiver

Specifications for Arria V GZ Devices" table.

January 2015 2015.01.30 • Added 240-Ω to the "OCT Calibration Accuracy Specifications for Arria V GZ Devices" table.

• Changed the CDR PPM tolerance spec in the "Receiver Specifications for Arria V GZ Devices" table.

• Added additional max data rate for fPLL in the "Fractional PLL Specifications for Arria V GZ Devices" table.

July 2014 3.8 • Updated Table 21.

• Updated Table 22 VOCM (DC Coupled) condition.

• Updated the DCLK note to Figure 6, Figure 7, and Figure 9.

• Added note to Table 5 and Table 6.

• Added the DCLK specification to Table 50.

• Added note to Table 51.

• Updated the list of parameters in Table 53.

February 2014 3.7 Updated Table 28.

December 2013 3.6 • Updated Table 2, Table 13, Table 18, Table 19, Table 22, Table 30, Table 33, Table 37, Table 38, Table 45, Table 46, Table 47,

Table 56, Table 49.

• Updated “PLL Specifications”.

August 2013 3.5 Updated Table 28.

August 2013 3.4 • Removed Preliminary tags for Table 2, Table 4, Table 5, Table 14, Table 27, Table 28, Table 29, Table 31, Table 32, Table 43,

Table 45, Table 46, Table 47, Table 48, Table 49, Table 50, and Table 54.

• Updated Table 2 and Table 28.

June 2013 3.3 Updated Table 23, Table 28, Table 51, and Table 55.

May 2013 3.2 • Added Table 23.

• Updated Table 5, Table 22, Table 26, and Table 57.

• Updated Figure 6, Figure 7, Figure 8, and Figure 9.

March 2013 3.1 • Updated Table 2, Table 6, Table 7, Table 8, Table 19, Table 22, Table 26, Table 29, Table 52.

• Updated “Maximum Allowed Overshoot and Undershoot Voltage”.

December 2012 3.0 Initial release.

2. Arria V GZ Device Datasheet

AV-51002 | 2019.04.26

Arria V Device Datasheet Send Feedback

176

Products related to this Datasheet

IC FPGA 384 I/O 896FBGA

5AGXBA5D4F31C5N

IC FPGA 544 I/O 1152FBGA

5AGTFC7H3F35I3N

IC FPGA 544 I/O 1152FBGA

5AGTFC7H3F35I5N

IC FPGA 544 I/O 1152FBGA

5AGTFD3H3F35I3N

IC FPGA 544 I/O 1152FBGA

5AGTFD3H3F35I5N

IC FPGA 704 I/O 1517FBGA

5AGTFD3H3F40I3N

IC FPGA 704 I/O 1517FBGA

5AGTFD3H3F40I5N

IC FPGA 544 I/O 1152FBGA

5AGTFD7H3F35I3N

IC FPGA 544 I/O 1152FBGA

5AGTFD7H3F35I5N

IC FPGA 704 I/O 1517FBGA

5AGTFD7K3F40I3N

IC FPGA 704 I/O 1517FBGA

5AGTFD7K3F40I5N

IC FPGA 336 I/O 672FBGA

5AGTMC3D3F27I3N

IC FPGA 336 I/O 672FBGA

5AGTMC3D3F27I5N

IC FPGA 416 I/O 896FBGA

5AGTMC3D3F31I3N

IC FPGA 416 I/O 896FBGA

5AGTMC3D3F31I5N

IC FPGA 384 I/O 896FBGA

5AGTMC7G3F31I3N

IC FPGA 384 I/O 896FBGA

5AGTMC7G3F31I5N

IC FPGA 384 I/O 896FBGA

5AGTMD3G3F31I3N

IC FPGA 384 I/O 896FBGA

5AGTMD3G3F31I5N

IC FPGA 336 I/O 672FBGA

5AGXBA1D4F27C4N

IC FPGA 336 I/O 672FBGA

5AGXBA1D4F27C5N

IC FPGA 336 I/O 672FBGA

5AGXBA1D4F27I5N

IC FPGA 416 I/O 896FBGA

5AGXBA1D4F31C4N

IC FPGA 416 I/O 896FBGA

5AGXBA1D4F31C5N

IC FPGA 416 I/O 896FBGA

5AGXBA1D4F31I5N

IC FPGA 336 I/O 672FBGA

5AGXBA1D6F27C6N

IC FPGA 416 I/O 896FBGA

5AGXBA1D6F31C6N

IC FPGA 336 I/O 672FBGA

5AGXBA3D4F27C4N

IC FPGA 336 I/O 672FBGA

5AGXBA3D4F27C5N

IC FPGA 336 I/O 672FBGA

5AGXBA3D4F27I5N
