74ALVC244 Datasheet by Nexperia USA Inc.

r with ate 0 1 6E 26E nUE Table 1. Ordering information nexpeﬂa

74ALVC244

Octal buffer/line driver; 3-state

Rev. 4 — 10 October 2017 Product data sheet

1 General description

The 74ALVC244 is a high-performance, low-power, low-voltage, Si-gate CMOS device

and superior to most advanced CMOS compatible TTL families.

The 74ALVC244 is an octal non-inverting buffer/line driver with 3-state outputs. The

3-state outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE

causes the outputs to assume a high-impedance OFF-state. Schmitt-trigger action at all

inputs makes the circuit highly tolerant for slower input rise and fall times.

2 Features and benefits

•Wide supply voltage range from 1.65 V to 3.6 V

•3.6 V tolerant inputs/outputs

•CMOS low power consumption

•Direct interface with TTL levels (2.7 V to 3.6 V)

•Power-down mode

•Latch-up performance exceeds 250 mA

•Complies with JEDEC standards:

–JESD8-7 (1.65 V to 1.95 V)

–JESD8-5 (2.3 V to 2.7 V)

–JESD8B/JESD36 (2.7 V to 3.6 V)

•ESD protection:

–HBM JESD22-A114E exceeds 2000 V

–MM JESD22-A115-A exceeds 200 V

3 Ordering information

Table 1. Ordering information

PackageType number

Temperature range Name Description Version

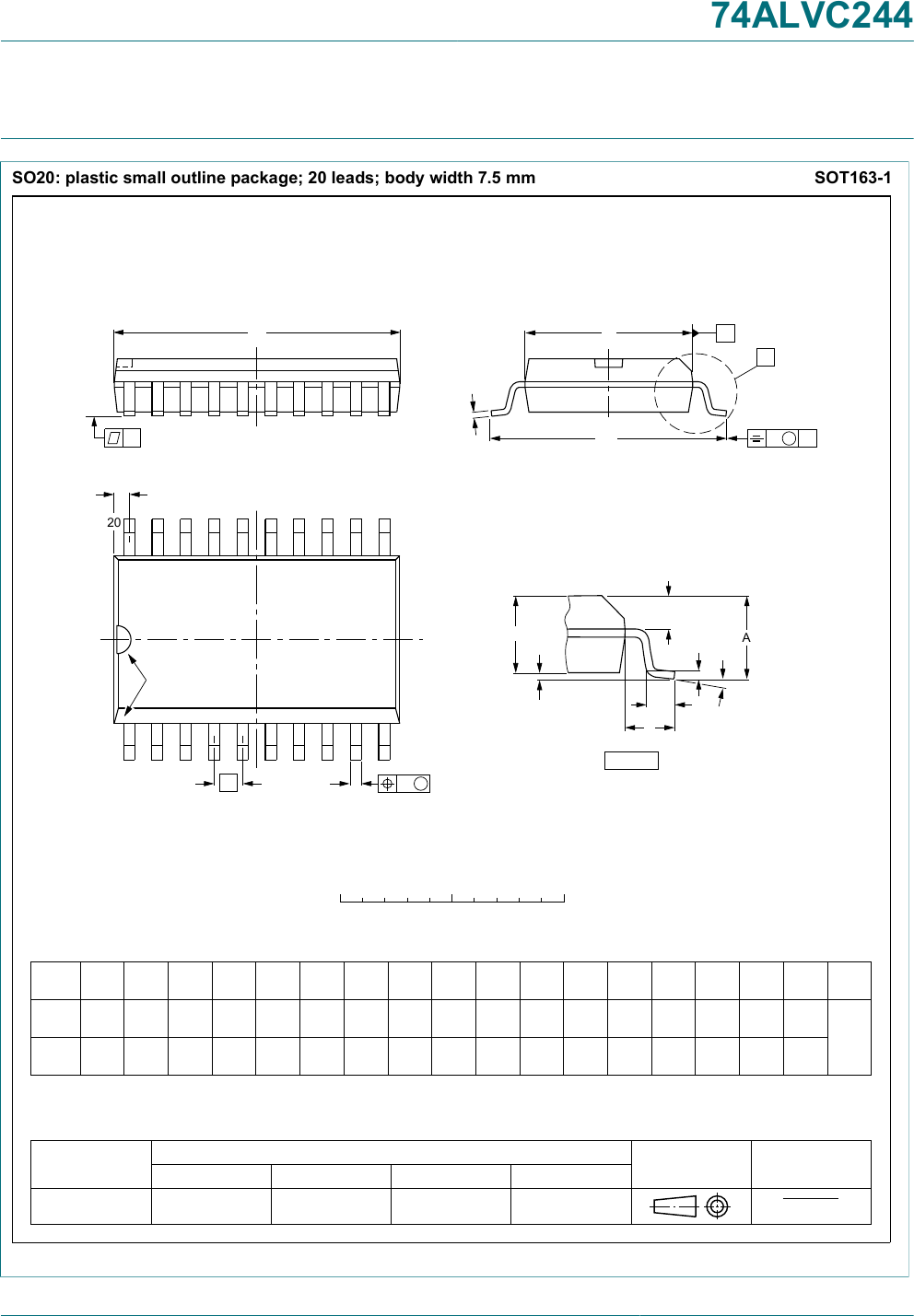

74ALVC244D -40 °C to +85 °C SO20 plastic small outline package; 20 leads;

body width 7.5 mm

SOT163-1

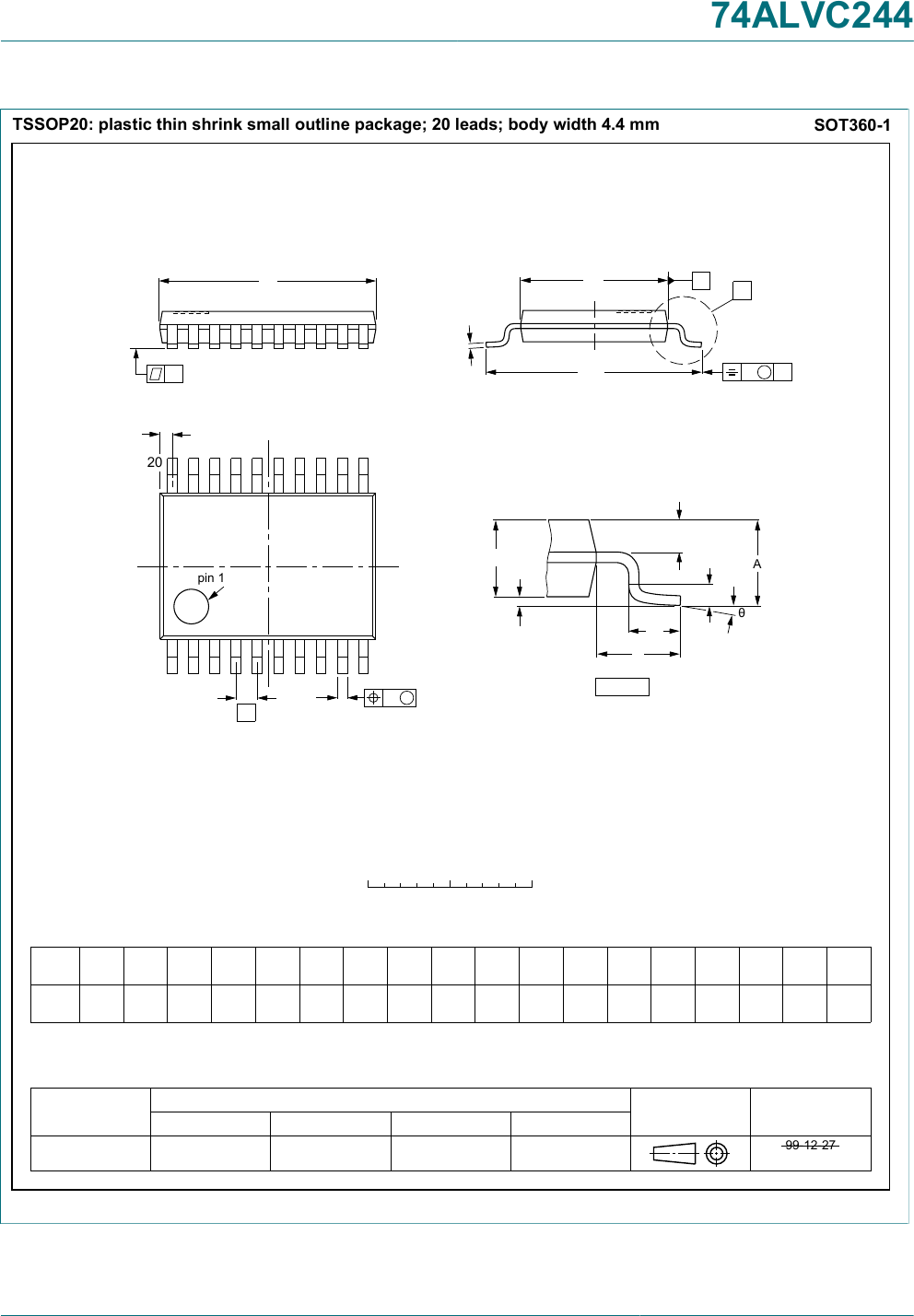

74ALVC244PW -40 °C to +85 °C TSSOP20 plastic thin shrink small outline package; 20 leads;

body width 4.4 mm

SOT360-1

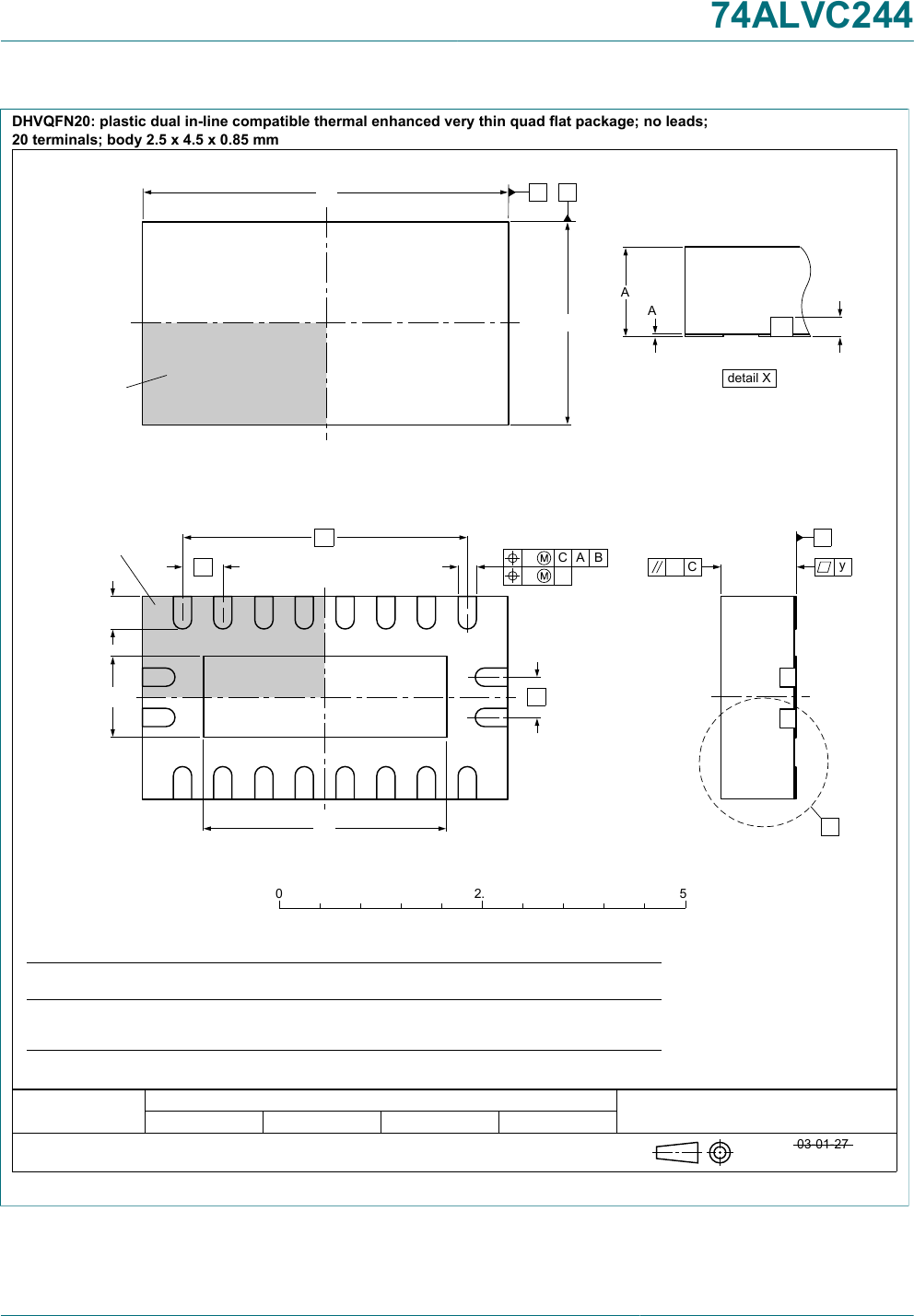

74ALVC244BQ -40 °C to +85 °C DHVQFN20 plastic dual-in-line compatible thermal enhanced

very thin quad flat package; no leads; 20 terminals;

body 2.5 × 4.5 × 0.85 mm

SOT764-1

74ALVCZ44

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

2 / 16

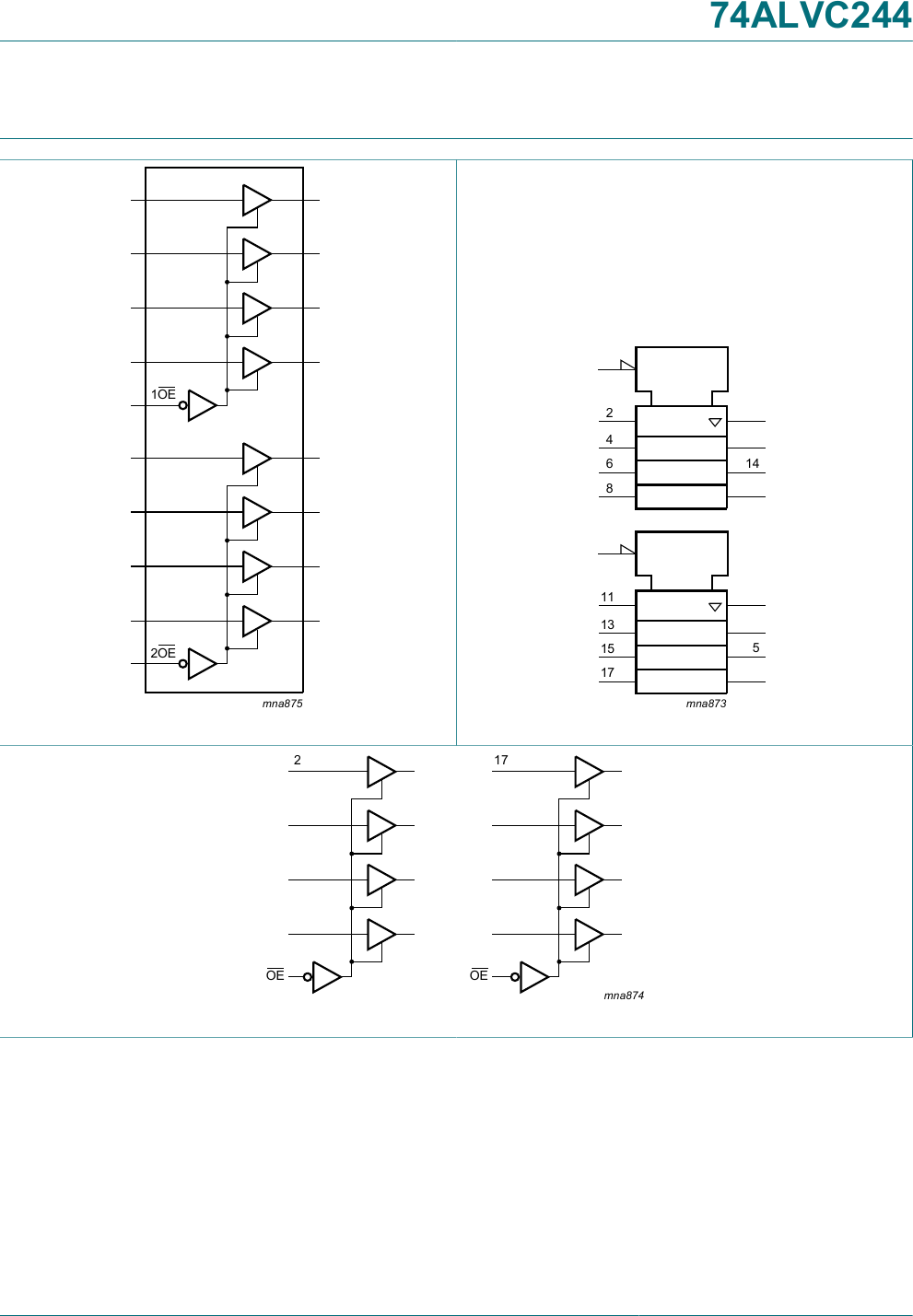

4 Functional diagram

mna875

1A3

1A2

1A1

1A0

1Y0

1Y1

1Y2

1Y3

1OE

2A3

2A2

2A1

2A0

2Y0

2Y1

2Y2

2Y3

2OE

Figure 1. Functional diagram

1EN

mna873

19 EN

Figure 2. IEC logic symbol

mna874

1A0

1A1

1A2

1A3

1OE

1Y0

1Y1

1Y2

1Y3

2A0

2A1

2A2

2A3

2OE

2Y0

2Y1

2Y2

2Y3

Figure 3. Logic symbol

74ALVC244 14ALVCZM Ig E @ E E 2i 3 E 2) E E E E E 3 @ 74ALV0244 74ALV0244 3 GND E E) E (f E 3 (TE E Q 3 PI (Q I: :I 2E I: :l zﬁ I: :I I: :I I: :I I: :| Transparent top new I: :I I: :I I: :I I: :I I: :I I: :I I: :I I: :I I: :I I: :I I: :I I: :I sag-027557 “3.027559 Table 2. Pin description 16E 26E

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

3 / 16

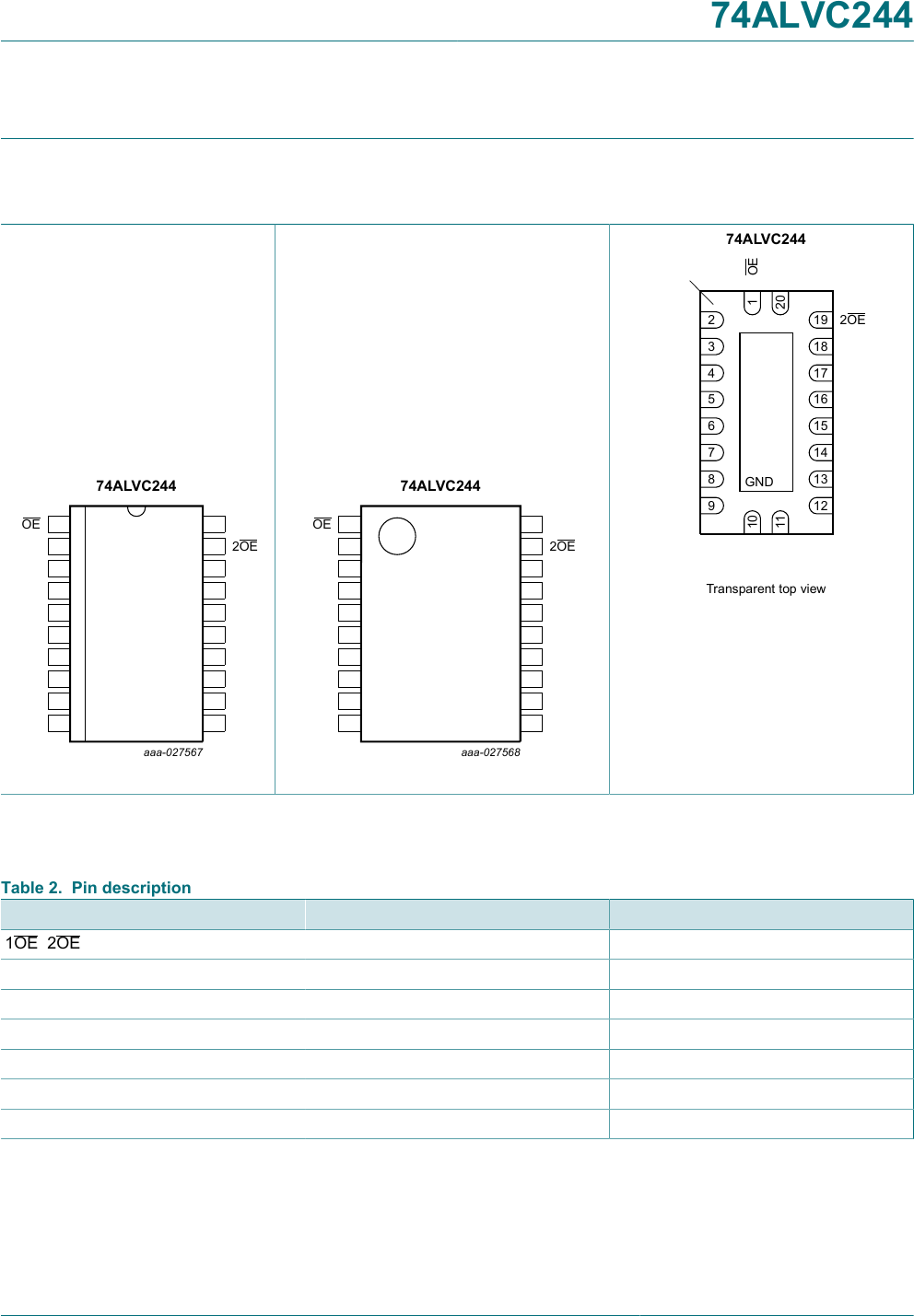

5 Pinning information

5.1 Pinning

74ALVC244

1OE VCC

1A0 2OE

2Y0 1Y0

1A1 2A0

2Y1 1Y1

1A2 2A1

2Y2 1Y2

1A3 2A2

2Y3 1Y3

GND 2A3

aaa-027567

Figure 4. Pin configuration SO20

74ALVC244

VCC

aaa-027568

19 2OE

1Y0

2A0

1Y1

2A1

1Y2

2A2

1Y3

2A3

1OE

1A0

2Y0

1A1

2Y1

1A2

2Y2

1A3

2Y3

GND

Figure 5. Pin configuration TSSOP20

aaa-027569

74ALVC244

Transparent top view

1Y3

GND(1)

1A3

2Y3

2A2

2Y2 1Y2

1A2 2A1

2Y1 1Y1

1A1 2A0

2Y0 1Y0

1A0 2OE

GND

2A3

9 12

8 13

7 14

6 15

5 16

4 17

3 18

2 19

terminal 1

index area

(1) This is not a supply pin. The

substrate is attached to this pad using

conductive die attach material. There is

no electrical or mechanical requirement

to solder this pad. However, if it is

soldered, the solder land should remain

floating or be connected to GND.

Figure 6. Pin configuration

DHVQFN20

5.2 Pin description

Table 2. Pin description

Symbol Pin Description

1OE, 2OE 1, 19 output enable input (active LOW)

1A0, 1A1, 1A2, 1A3 2, 4, 6, 8 data input

2Y0, 2Y1, 2Y2, 2Y3 3, 5, 7, 9 bus output

GND 10 ground (0 V)

2A0, 2A1, 2A2, 2A3 17, 15, 13, 11 data input

1Y0, 1Y1, 1Y2, 1Y3 18, 16, 14, 12 bus output

VCC 20 supply voltage

74ALVC244 Table 3. Function (able nUE

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

4 / 16

6 Functional description

Table 3. Function table [1]

Input Output

nOE nAn nYn

LLL

L H H

H X Z

[1] H = HIGH voltage level;

L = LOW voltage level;

X = don’t care;

Z = high-impedance OFF-state.

7 Limiting values

Table 4. Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V).

Symbol Parameter Conditions Min Max Unit

VCC supply voltage -0.5 +4.6 V

VIinput voltage [1] -0.5 +4.6 V

output HIGH or LOW state [1] -0.5 VCC + 0.5 V

output OFF-state -0.5 +4.6 V

VOoutput voltage

power-down mode, VCC = 0 V [2] -0.5 +4.6 V

IIK input clamping current VI < 0 V - -50 mA

IOK output clamping current VO > VCC or VO < 0 V - ±50 mA

IOoutput current VO = 0 V to VCC - ±50 mA

ICC supply current - 100 mA

IGND ground current -100 - mA

Tstg storage temperature -65 +150 °C

Ptot total power dissipation Tamb = -40 °C to +85 °C [3] - 500 mW

[1] The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

[2] When VCC = 0 V (power-down mode), the output voltage can be 3.6 V in normal operation.

[3] For SO20 packages: above 70 °C derate linearly with 8 mW/K.

For TSSOP20 packages: above 60 °C derate linearly with 5.5 mW/K.

For DHVQFN20 packages: above 60 °C derate linearly with 4.5 mW/K.

74ALVCZ44 Table 5. Recommended operating conditions

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

5 / 16

8 Recommended operating conditions

Table 5. Recommended operating conditions

Symbol Parameter Conditions Min Max Unit

VCC supply voltage 1.65 3.6 V

VIinput voltage 0 3.6 V

VCC = 1.65 to 3.6 V;

output HIGH or LOW state

0 VCC V

VCC = 1.65 to 3.6 V; output OFF-state 0 3.6 V

VOoutput voltage

VCC = 0 V; power-down mode 0 3.6 V

Tamb ambient temperature in free air -40 +85 °C

VCC = 1.65 V to 2.7 V 0 20 ns/VΔt/ΔV input transition rise and fall rate

VCC = 2.7 V to 3.6 V 0 10 ns/V

9 Static characteristics

Table 6. Static characteristics

At recommended operating conditions. Voltages are referenced to GND (ground = 0 V).

Tamb = -40 °C to +85 °CSymbol Parameter Conditions

Min Typ [1] Max

Unit

VCC = 1.65 V to 1.95 V 0.65 × VCC - - V

VCC = 2.3 V to 2.7 V 1.7 - - V

VIH HIGH-level input

voltage

VCC = 2.7 V to 3.6 V 2.0 - - V

VCC = 1.65 V to 1.95 V - - 0.35 × VCC V

VCC = 2.3 V to 2.7 V - - 0.7 V

VIL LOW-level input

voltage

VCC = 2.7 V to 3.6 V - - 0.8 V

VI = VIH or VIL

IO = -100 μA; VCC = 1.65 V to 3.6 V VCC - 0.2 - - V

IO = -6 mA; VCC = 1.65 V 1.25 - - V

IO = -12 mA; VCC = 2.3 V 1.8 - - V

IO = -18 mA; VCC = 2.3 V 1.7 - - V

IO = -12 mA; VCC = 2.7 V 2.2 - - V

IO = -18 mA; VCC = 3.0 V 2.4 - - V

VOH HIGH-level output

voltage

IO = -24 mA; VCC = 3.0 V 2.2 - - V

74ALVCZ44

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

6 / 16

Tamb = -40 °C to +85 °CSymbol Parameter Conditions

Min Typ [1] Max

Unit

VI = VIH or VIL

IO = 100 μA; VCC = 1.65 V to 3.6 V - - 0.2 V

IO = 6 mA; VCC = 1.65 V - - 0.3 V

IO = 12 mA; VCC = 2.3 V - - 0.4 V

IO = 18 mA; VCC = 2.3 V - - 0.6 V

IO = 12 mA; VCC = 2.7 V - - 0.4 V

IO = 18 mA; VCC = 3.0 V - - 0.4 V

VOL LOW-level output

voltage

IO = 24 mA; VCC = 3.0 V - - 0.55 V

IIinput leakage

current

VCC = 3.6 V; VI = 3.6 V or GND - ±0.1 ±5 μA

IOZ OFF-state output

current

VCC = 3.6 V; VI = VIH or VIL;

VO = 3.6 V or GND

- 0.1 ±10 μA

IOFF power-off leakage

current

VCC = 0 V; VI or VO = 3.6 V - ±0.1 ±10 μA

ICC supply current VCC = 3.6 V; VI = VCC or GND; IO = 0 A - 0.2 20 μA

ΔICC additional supply

current

per input pin; VCC = 3.0 V to 3.6 V;

VI = VCC - 0.6 V; IO = 0 A

- 5 750 μA

CIinput capacitance - 3.5 - pF

[1] All typical values are measured at Tamb = 25 °C.

74ALVCZ44 Figure 9

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

7 / 16

10 Dynamic characteristics

Table 7. Dynamic characteristics

Voltages are referenced to GND (ground = 0 V). For test circuit, see Figure 9.

Tamb = -40 °C to +85 °CSymbol Parameter Conditions

Min Typ [1] Max

Unit

nAn to nYn; see Figure 7 [2]

VCC = 1.65 V to 1.95 V 1.0 2.7 4.4 ns

VCC = 2.3 V to 2.7 V 1.0 2.0 3.1 ns

VCC = 2.7 V 1.0 2.3 3.1 ns

tpd propagation delay

VCC = 3.0 V to 3.6 V 1.0 2.2 2.8 ns

nOE to nYn; see Figure 8 [3]

VCC = 1.65 V to 1.95 V 1.0 3.4 6.9 ns

VCC = 2.3 V to 2.7 V 1.0 2.6 5.4 ns

VCC = 2.7 V 1.0 3.2 5.3 ns

ten enable time

VCC = 3.0 V to 3.6 V 1.0 2.5 4.5 ns

nOE to nYn; see Figure 8 [4]

VCC = 1.65 V to 1.95 V 1.0 3.8 5.9 ns

VCC = 2.3 V to 2.7 V 1.0 2.2 4.1 ns

VCC = 2.7 V 1.0 3.0 4.4 ns

tdis disable time

VCC = 3.0 V to 3.6 V 1.0 2.9 4.2 ns

CPD power dissipation

capacitance

per buffer; VI = GND to VCC; VCC = 3.3 V [5] - 20 - pF

[1] Typical values are measured at Tamb = 25 °C

Typical values for VCC = 1.65 V to 1.95 V are measured at VCC = 1.8 V

Typical values for VCC = 2.3 V to 2.7 V are measured at VCC = 2.5 V

Typical values for VCC = 3.0 V to 3.6 V are measured at VCC = 3.3 V

[2] tpd is the same as tPHL and tPLH.

[3] ten is the same as tPZH and tPZL.

[4] tdis is the same as tPHZ and tPLZ.

[5] CPD is used to determine the dynamic power dissipation (PD in μW).

PD = CPD x VCC

2 x fi x N + Σ(CL x VCC

2 x fo) where:

fi = input frequency in MHz

fo = output frequency in MHz

CL = output load capacitance in pF

VCC = supply voltage in Volt

N = number of inputs switching

Σ(CL x VCC

2 x fo) = sum of the outputs

74ALVC244 mna171 Table 8 T l ammm Table 8 Table 8. Measurement points

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

8 / 16

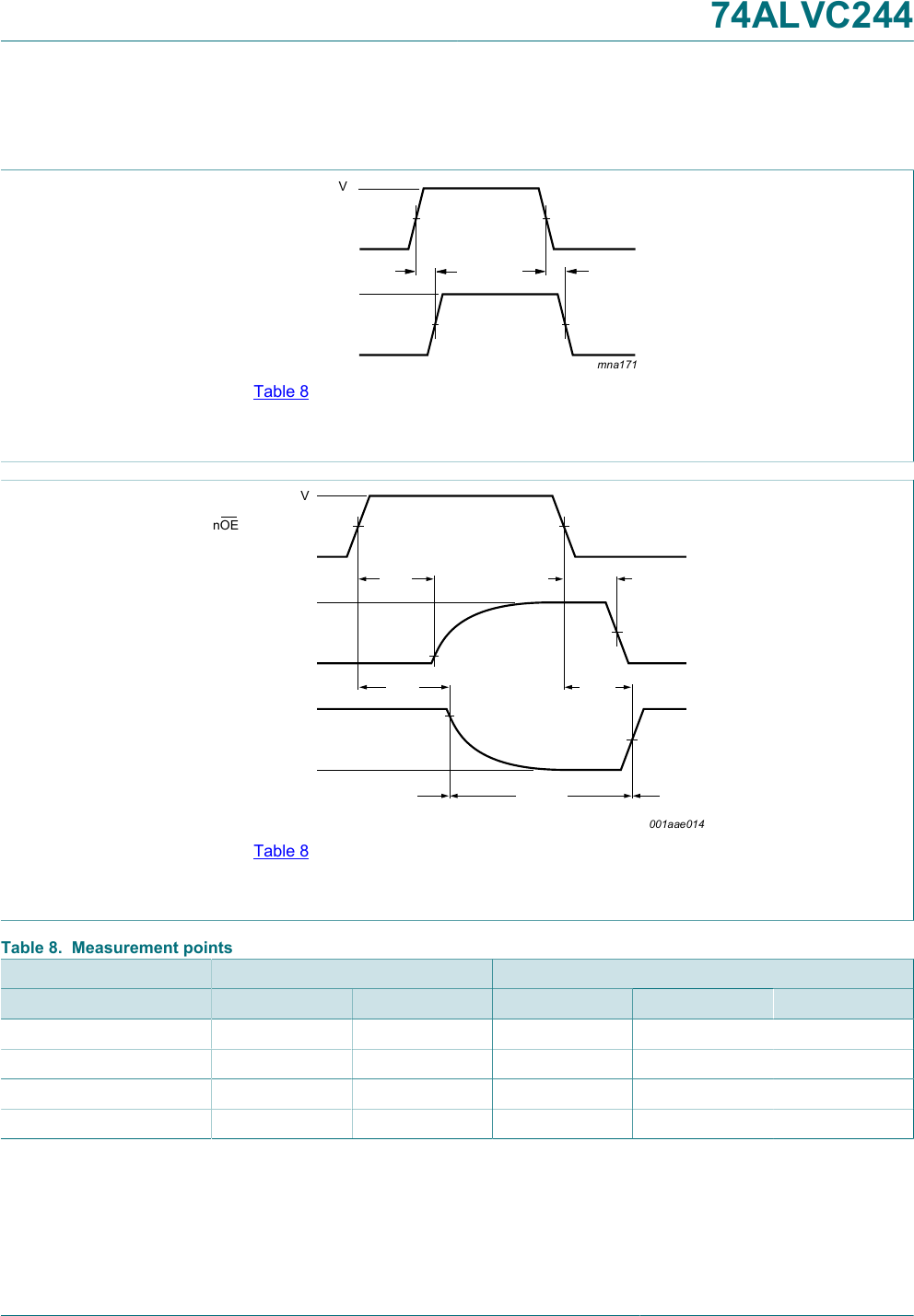

10.1 Waveforms and test circuit

mna171

nAn input

nYn output

tPLH tPHL

GND

VOH

VOL

Measurement points are given in Table 8.

VOL and VOH are typical voltage output levels that occur with the output load.

Figure 7. Inputs nAn to output nYn propagation delays

001aae014

tPLZ

tPHZ

outputs

disabled

outputs

enabled

outputs

enabled

nYn output

LOW-to-OFF

OFF-to-LOW

nYn output

HIGH-to-OFF

OFF-to-HIGH

nOE input

VOL

VOH

VCC

GND

tPZL

tPZH

Measurement points are given in Table 8.

VOL and VOH are typical voltage output levels that occur with the output load.

Figure 8. 3-state enable and disable times

Table 8. Measurement points

Supply voltage Input Output

VCC VIVMVMVXVY

1.65 V to 1.95 V VCC 0.5 x VCC 0.5VCC VOL + 0.15 V VOH - 0.15 V

2.3 V to 2.7 V VCC 0.5 x VCC 0.5VCC VOL + 0.15 V VOH - 0.15 V

2.7 V 2.7 V 1.5 V 1.5 V VOL + 0.3 V VOH - 0.3 V

3.0 V to 3.6 V 2.7 V 1.5 V 1.5 V VOL + 0.3 V VOH - 0.3 V

74ALVC244

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

9 / 16

VMVM

10 %

90 %

0 V

negative

pulse

positive

pulse

0 V

VMVM

90 %

10 %

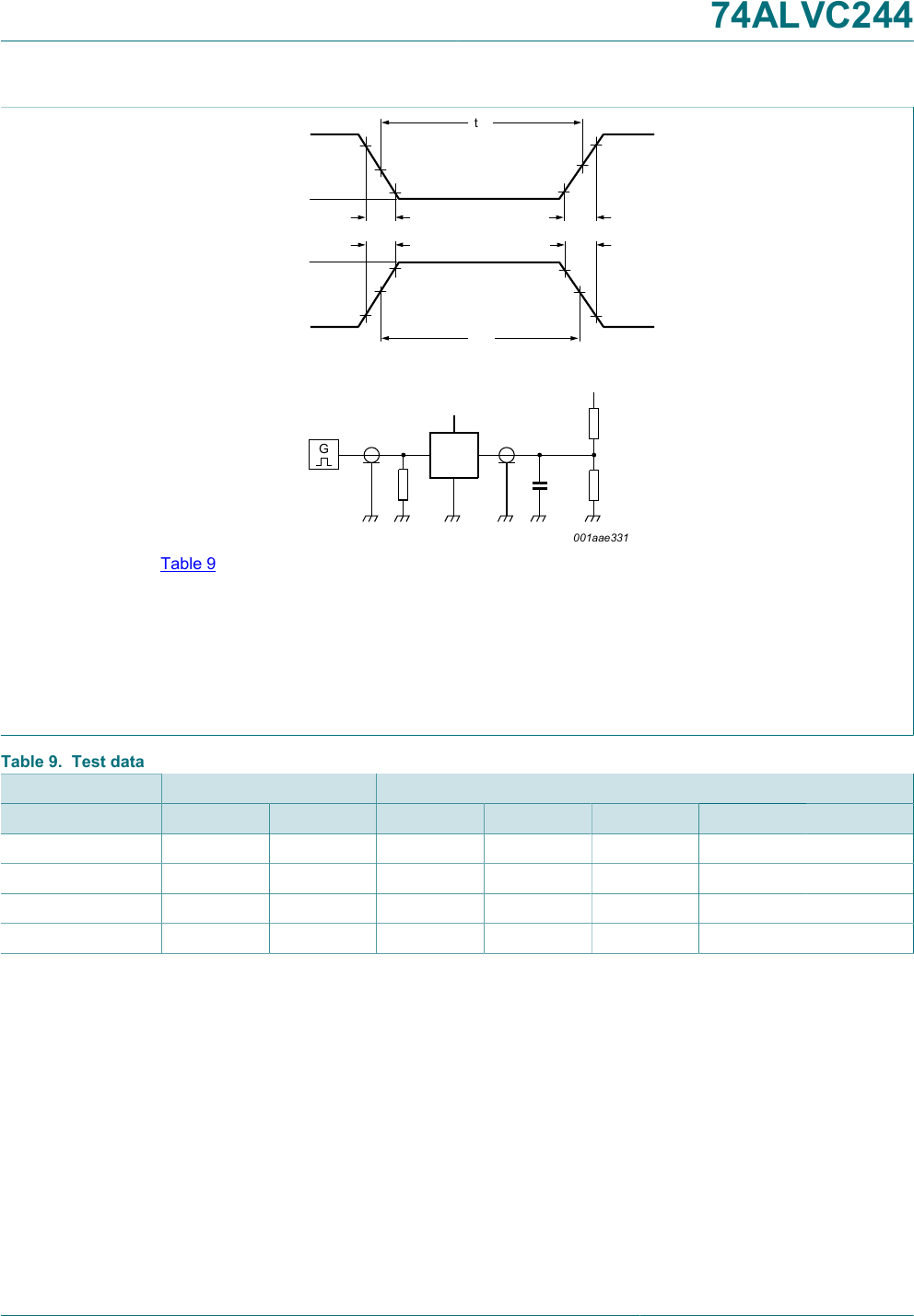

001aae331

VEXT

VCC

VIVO

DUT

Test data is given in Table 9.

Definitions for test circuit:

RL = Load resistance.

CL = Load capacitance including jig and probe capacitance.

RT = Termination resistance should be equal to output impedance Zo of the pulse generator.

VEXT = External voltage for measuring switching times.

Figure 9. Test circuit for measuring switching times

Table 9. Test data

Supply voltage Input Load VEXT

VCC VItr, tfCLRLtPLH, tPHL tPLZ, tPZL tPHZ, tPZH

1.65 V to 1.95 V VCC ≤ 2.0 ns 30 pF 1 kΩ open 2 × VCC GND

2.3 V to 2.7 V VCC ≤ 2.0 ns 30 pF 500 Ω open 2 × VCC GND

2.7 V 2.7 V ≤ 2.5 ns 50 pF 500 Ω open 6 V GND

3.0 V to 3.6 V 2.7 V ≤ 2.5 ns 50 pF 500 Ω open 6 V GND

74ALVCZ44 $020: plastic small outline package; 20 leads; body width 7.5 mm SOT163-1 ’ MM l,:J%%giy ﬁwmﬂﬂﬂﬂf 'H H WW H W S

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

10 / 16

11 Package outline

UNIT A

max. A1A2A3bpc D (1) E(1) (1)

e HEL LpQZ

ywv θ

REFERENCES

OUTLINE

VERSION

EUROPEAN

PROJECTION ISSUE DATE

IEC JEDEC JEITA

inches

2.65 0.3

0.1

2.45

2.25

0.49

0.36

0.32

0.23

13.0

12.6

7.6

7.4 1.27 10.65

10.00

1.1

1.0

0.9

0.4 8

0.25 0.1

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

Note

1. Plastic or metal protrusions of 0.15 mm (0.006 inch) maximum per side are not included.

1.1

0.4

SOT163-1

detail X

0.25

075E04 MS-013

pin 1 index

0.1 0.012

0.004

0.096

0.089

0.019

0.014

0.013

0.009

0.51

0.49

0.30

0.29 0.05

1.4

0.055

0.419

0.394

0.043

0.039

0.035

0.016

0.01

0.25

0.01 0.004

0.043

0.016

0.01

0 5 10 mm

scale

vMA

(A )

SO20: plastic small outline package; 20 leads; body width 7.5 mm SOT163-1

99-12-27

03-02-19

Figure 10. Package outline SOT163-1 (SO20)

74ALVCZ44 TSSOPZO: plastic lhin shrink small outline package; 20 leads; body width 44 mm SOT360-1

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

11 / 16

UNIT A1A2A3bpc D (1) E(2) (1)

e HEL LpQ Zywv θ

REFERENCES

OUTLINE

VERSION

EUROPEAN

PROJECTION ISSUE DATE

IEC JEDEC JEITA

mm 0.15

0.05

0.95

0.80

0.30

0.19

0.2

0.1

6.6

6.4

4.5

4.3 0.65 6.6

6.2

0.4

0.3

0.5

0.2

0.13 0.10.21

DIMENSIONS (mm are the original dimensions)

Notes

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

2. Plastic interlead protrusions of 0.25 mm maximum per side are not included.

0.75

0.50

SOT360-1 MO-153 99-12-27

03-02-19

0.25

1 10

20 11

pin 1 index

detail X

(A )

vMA

0 2.5 5 mm

scale

TSSOP20: plastic thin shrink small outline package; 20 leads; body width 4.4 mm SOT360-1

max.

1.1

Figure 11. Package outline SOT360-1 (TSSOP20)

74ALVCZ44 DHVQFNZU: plastic dual ill-line compatible thermal enhanced very thin quad flat package; no leads; 20 terminals; body 2.5 x 4.5 x 0.35 mm l *5? l l liﬁ/ ~~ ~~~~~~~ l 77777777 * W’ﬂ‘: l l E! HZ! L »D‘« ‘ ’H :1 36““ III F ‘ [U U U§U U U U D ‘ E4 g5; ***** Ewe? ** ii ﬂﬂﬂﬂlﬂﬂﬂﬂ l: EL© W

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

12 / 16

References

Outline

version

European

projection Issue date

IEC JEDEC JEITA

SOT764-1 - - -

MO-241

- - -

sot764-1_po

03-01-27

14-12-12

Unit

max

nom

min

1.00 0.05 4.6 3.15 2.6

0.5 3.5 0.1

A(1)

Dimensions (mm are the original dimensions)

Note

1. Plastic or metal protrusions of 0.075 mm maximum per side are not included.

A1b

0.30

c D(1) DhE(1) Eh

1.00

e e1L

0.4

v w

0.05

y y1

0.90 0.02 0.2 4.5 3.00 2.50.25 0.05 0.1

0.85 0.30.80 0.00 4.4 2.85 2.40.18

1.15 0.5

detail X

B A

AC B

scale

2 9

19 12

terminal 1

index area

terminal 1

index area

0 5 mm2.5

DHVQFN20: plastic dual in-line compatible thermal enhanced very thin quad flat package; no leads;

20 terminals; body 2.5 x 4.5 x 0.85 mm SOT764-1

Figure 12. Package outline SOT764-1 (DHVQFN20)

74ALVC244 Table 10. Abbreviations Table 11. Revision history

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

13 / 16

12 Abbreviations

Table 10. Abbreviations

Acronym Description

CMOS Complementary Metal-Oxide Semiconductor

DUT Device Under Test

ESD ElectroStatic Discharge

HBM Human Body Model

MM Machine Model

TTL Transistor-Transistor Logic

13 Revision history

Table 11. Revision history

Document ID Release date Data sheet status Change notice Supersedes

74ALVC244 v.4 20171010 Product data sheet - 74ALVC244 v.3

Modifications: •The format of this data sheet has been redesigned to comply with the identity guidelines of

Nexperia.

•Legal texts have been adapted to the new company name where appropriate.

74ALVC244 v.3 20030908 Product specification - 74ALVC244 v.2

74ALVC244 v.2 20030811 Product specification - 74ALVC244 v.1

74ALVC244 v.1 20011030 Product specification - -

74ALVCZ44 Ince mis dacumenl was pu mg llwww neggenamm

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

14 / 16

14 Legal information

14.1 Data sheet status

Document status[1][2] Product status[3] Definition

Objective [short] data sheet Development This document contains data from the objective specification for product

development.

Preliminary [short] data sheet Qualification This document contains data from the preliminary specification.

Product [short] data sheet Production This document contains the product specification.

[1] Please consult the most recently issued document before initiating or completing a design.

[2] The term 'short data sheet' is explained in section "Definitions".

[3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple

devices. The latest product status information is available on the Internet at URL http://www.nexperia.com.

14.2 Definitions

Draft — The document is a draft version only. The content is still under

internal review and subject to formal approval, which may result in

modifications or additions. Nexperia does not give any representations or

warranties as to the accuracy or completeness of information included herein

and shall have no liability for the consequences of use of such information.

Short data sheet — A short data sheet is an extract from a full data sheet

with the same product type number(s) and title. A short data sheet is

intended for quick reference only and should not be relied upon to contain

detailed and full information. For detailed and full information see the

relevant full data sheet, which is available on request via the local Nexperia

sales office. In case of any inconsistency or conflict with the short data sheet,

the full data sheet shall prevail.

Product specification — The information and data provided in a Product

data sheet shall define the specification of the product as agreed between

Nexperia and its customer, unless Nexperia and customer have explicitly

agreed otherwise in writing. In no event however, shall an agreement be

valid in which the Nexperia product is deemed to offer functions and qualities

beyond those described in the Product data sheet.

14.3 Disclaimers

Limited warranty and liability — Information in this document is believed

to be accurate and reliable. However, Nexperia does not give any

representations or warranties, expressed or implied, as to the accuracy

or completeness of such information and shall have no liability for the

consequences of use of such information. Nexperia takes no responsibility

for the content in this document if provided by an information source outside

of Nexperia. In no event shall Nexperia be liable for any indirect, incidental,

punitive, special or consequential damages (including - without limitation -

lost profits, lost savings, business interruption, costs related to the removal

or replacement of any products or rework charges) whether or not such

damages are based on tort (including negligence), warranty, breach of

contract or any other legal theory. Notwithstanding any damages that

customer might incur for any reason whatsoever, Nexperia's aggregate and

cumulative liability towards customer for the products described herein shall

be limited in accordance with the Terms and conditions of commercial sale of

Nexperia.

Right to make changes — Nexperia reserves the right to make changes

to information published in this document, including without limitation

specifications and product descriptions, at any time and without notice. This

document supersedes and replaces all information supplied prior to the

publication hereof.

Suitability for use — Nexperia products are not designed, authorized or

warranted to be suitable for use in life support, life-critical or safety-critical

systems or equipment, nor in applications where failure or malfunction

of an Nexperia product can reasonably be expected to result in personal

injury, death or severe property or environmental damage. Nexperia and its

suppliers accept no liability for inclusion and/or use of Nexperia products in

such equipment or applications and therefore such inclusion and/or use is at

the customer’s own risk.

Applications — Applications that are described herein for any of these

products are for illustrative purposes only. Nexperia makes no representation

or warranty that such applications will be suitable for the specified use

without further testing or modification. Customers are responsible for the

design and operation of their applications and products using Nexperia

products, and Nexperia accepts no liability for any assistance with

applications or customer product design. It is customer’s sole responsibility

to determine whether the Nexperia product is suitable and fit for the

customer’s applications and products planned, as well as for the planned

application and use of customer’s third party customer(s). Customers should

provide appropriate design and operating safeguards to minimize the risks

associated with their applications and products. Nexperia does not accept

any liability related to any default, damage, costs or problem which is based

on any weakness or default in the customer’s applications or products, or

the application or use by customer’s third party customer(s). Customer is

responsible for doing all necessary testing for the customer’s applications

and products using Nexperia products in order to avoid a default of the

applications and the products or of the application or use by customer’s third

party customer(s). Nexperia does not accept any liability in this respect.

Limiting values — Stress above one or more limiting values (as defined in

the Absolute Maximum Ratings System of IEC 60134) will cause permanent

damage to the device. Limiting values are stress ratings only and (proper)

operation of the device at these or any other conditions above those

given in the Recommended operating conditions section (if present) or the

Characteristics sections of this document is not warranted. Constant or

repeated exposure to limiting values will permanently and irreversibly affect

the quality and reliability of the device.

Terms and conditions of commercial sale — Nexperia products are

sold subject to the general terms and conditions of commercial sale, as

published at http://www.nexperia.com/profile/terms, unless otherwise agreed

in a valid written individual agreement. In case an individual agreement is

concluded only the terms and conditions of the respective agreement shall

apply. Nexperia hereby expressly objects to applying the customer’s general

terms and conditions with regard to the purchase of Nexperia products by

customer.

No offer to sell or license — Nothing in this document may be interpreted

or construed as an offer to sell products that is open for acceptance or

the grant, conveyance or implication of any license under any copyrights,

patents or other industrial or intellectual property rights.

Export control — This document as well as the item(s) described herein

may be subject to export control regulations. Export might require a prior

authorization from competent authorities.

74ALVCZ44

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Product data sheet Rev. 4 — 10 October 2017

15 / 16

Non-automotive qualified products — Unless this data sheet expressly

states that this specific Nexperia product is automotive qualified, the

product is not suitable for automotive use. It is neither qualified nor tested in

accordance with automotive testing or application requirements. Nexperia

accepts no liability for inclusion and/or use of non-automotive qualified

products in automotive equipment or applications. In the event that customer

uses the product for design-in and use in automotive applications to

automotive specifications and standards, customer (a) shall use the product

without Nexperia's warranty of the product for such automotive applications,

use and specifications, and (b) whenever customer uses the product for

automotive applications beyond Nexperia's specifications such use shall be

solely at customer’s own risk, and (c) customer fully indemnifies Nexperia

for any liability, damages or failed product claims resulting from customer

design and use of the product for automotive applications beyond Nexperia's

standard warranty and Nexperia's product specifications.

Translations — A non-English (translated) version of a document is for

reference only. The English version shall prevail in case of any discrepancy

between the translated and English versions.

14.4 Trademarks

Notice: All referenced brands, product names, service names and

trademarks are the property of their respective owners.

74ALVCZ44

Nexperia 74ALVC244

Octal buffer/line driver; 3-state

Please be aware that important notices concerning this document and the product(s)

described herein, have been included in section 'Legal information'.

For more information, please visit: http://www.nexperia.com

For sales office addresses, please send an email to: salesaddresses@nexperia.com

Date of release: 10 October 2017

Document identifier: 74ALVC244

Contents

1 General description ............................................ 1

2 Features and benefits .........................................1

3 Ordering information .......................................... 1

4 Functional diagram ............................................. 2

5 Pinning information ............................................ 3

5.1 Pinning ............................................................... 3

5.2 Pin description ................................................... 3

6 Functional description ........................................4

7 Limiting values ....................................................4

8 Recommended operating conditions ................ 5

9 Static characteristics .......................................... 5

10 Dynamic characteristics .....................................7

10.1 Waveforms and test circuit ................................ 8

11 Package outline .................................................10

12 Abbreviations .................................................... 13

13 Revision history ................................................ 13

14 Legal information .............................................. 14

Products related to this Datasheet

IC BUFF NON-INVERT 3.6V 20DHVQFN

74ALVC244BQ,115

IC BUF NON-INVERT 3.6V 20TSSOP

74ALVC244PW,118

IC BUFF NON-INVERT 3.6V 20DHVQFN

74ALVC244BQ,115

IC BUFFER NON-INVERT 3.6V 20SO

74ALVC244D,112

IC BUFFER NON-INVERT 3.6V 20SO

74ALVC244D,118

IC BUF NON-INVERT 3.6V 20TSSOP

74ALVC244PW,112

IC BUF NON-INVERT 3.6V 20TSSOP

74ALVC244PW,118

IC BUF NON-INVERT 3.6V 20TSSOP

74ALVC244PW,118

IC BUFFER NON-INVERT 3.6V 20SO

74ALVC244D,118

IC BUFFER NON-INVERT 3.6V 20SO

74ALVC244D,118

IC BUFF NON-INVERT 3.6V 20DHVQFN

74ALVC244BQ,115
