A“ TAOGLASE

SPE-17-8-042/D/AW Page 1 of 10

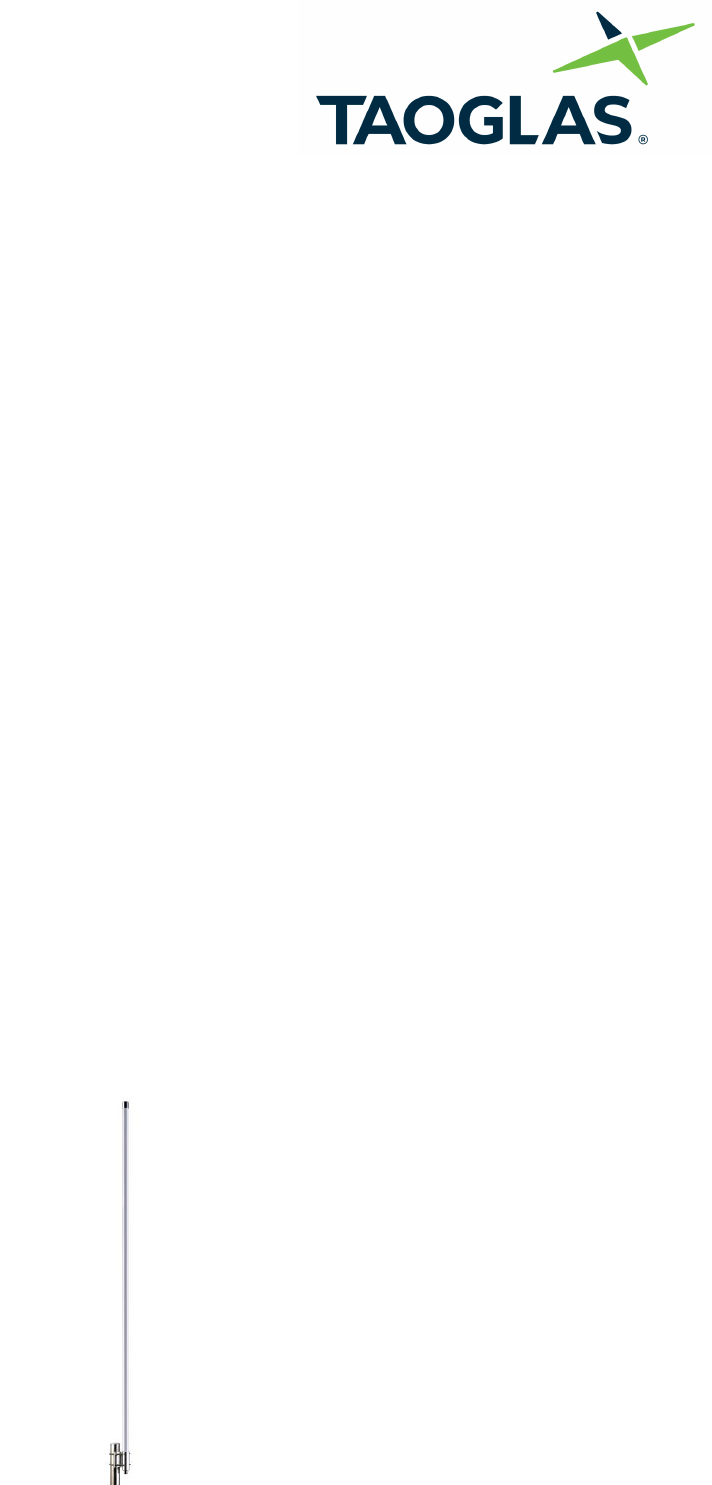

Specification

Part No.

OMB.868.B12F21

Description

Barracuda 868MHz 12dBi

Omnidirectional Outdoor Antenna

Features

Omni-Directional Radiation Pattern

Collinear

11.4 dBi Peak Gain

Robust Design for all Weather operation

IP65 Waterproof

Length: 2240mm Weight: 994g

Connector: N-type Female

Wall/Pole Mount Bracket Included

RoHS Compliant

A“ TAOGLASE

SPE-17-8-042/D/AW Page 2 of 10

1. Introduction

The Barracuda OMB.868.B12F21 is a fiberglass omnidirectional outdoor antenna,

operating in the 868MHz ISM band and is designed to offer long distance coverage. The

antenna is designed for applications such as metering, industrial & environmental

monitoring, remote asset monitoring and mesh network applications. The 868MHz

band is one of the most widely used license free ISM bands. Typical applications are in

SigFox, LoRa and LPWA networks.

With a 12dBi peak gain, the OMB.868.B12F21 omnidirectional antenna radiates

uniformly in the azimuth. This collinear design characteristic provides the best

performance, giving optimized coverage and therefore longer range in the horizontal

plane over 360 degrees, thus minimizing the amount of nodes needed for a mesh

network. The UV resistant fiberglass housing enables the OMB antenna to be utilized in

all kinds of harsh environments making it more robust and safer than traditional whip

antennas. It can be connected directly to the access point or telemetry unit or can be

mounted on wall or device surface via the N-type connector and a pole-mount and

wall-mount bracket is included.

A“ TAOGLAS®

SPE-17-8-042/D/AW Page 3 of 10

2. Specification

ELECTRICAL

Standard

ISM 868

Band

860~870MHz

Antenna Type

Collinear

Peak Gain

11.4dBi

Polarization

Vertical

Impedance

50 ohms

Max Input Power

50 watts

VSWR

<2:1

Radiation

Omnidirectional

Vertical Beam-width

10 Deg

Horizontal Beam-width

360 Deg

Antenna Design

Dipole Array

Internal Material

Copper

Connector

N Type Female

MECHANICAL

Length

2240mm(Max)

Bracket Dimension

70*73mm(Max)

Antenna Weight

994g

Mounting Accessories

70g

Application

Indoor/Outdoor

Radome Material

White Fiberglass

Base Material

Aluminum

Mount Style

Pole Mount/Wall Mount

Mounting

Stainless Steel

Wind Resistance

>150mph(>241km/h)

ENVIRONMENTAL

Storage Temperature

-40°C to +80°C

Operating Temperature

-40°C to +60°C

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

TAOGLAS® é: \ Return Lass [as] ‘8 / r'o eh I / 6.: en an S 810 320 830 340 850 860 870 380 390 900 Frequency [MHz] 35 2.5 \ VSWR 0.5 800 810 820 830 840 850 860 870 880 890 900 Frequency [MHz]

SPE-17-8-042/D/AW Page 4 of 10

3. Antenna Characteristics

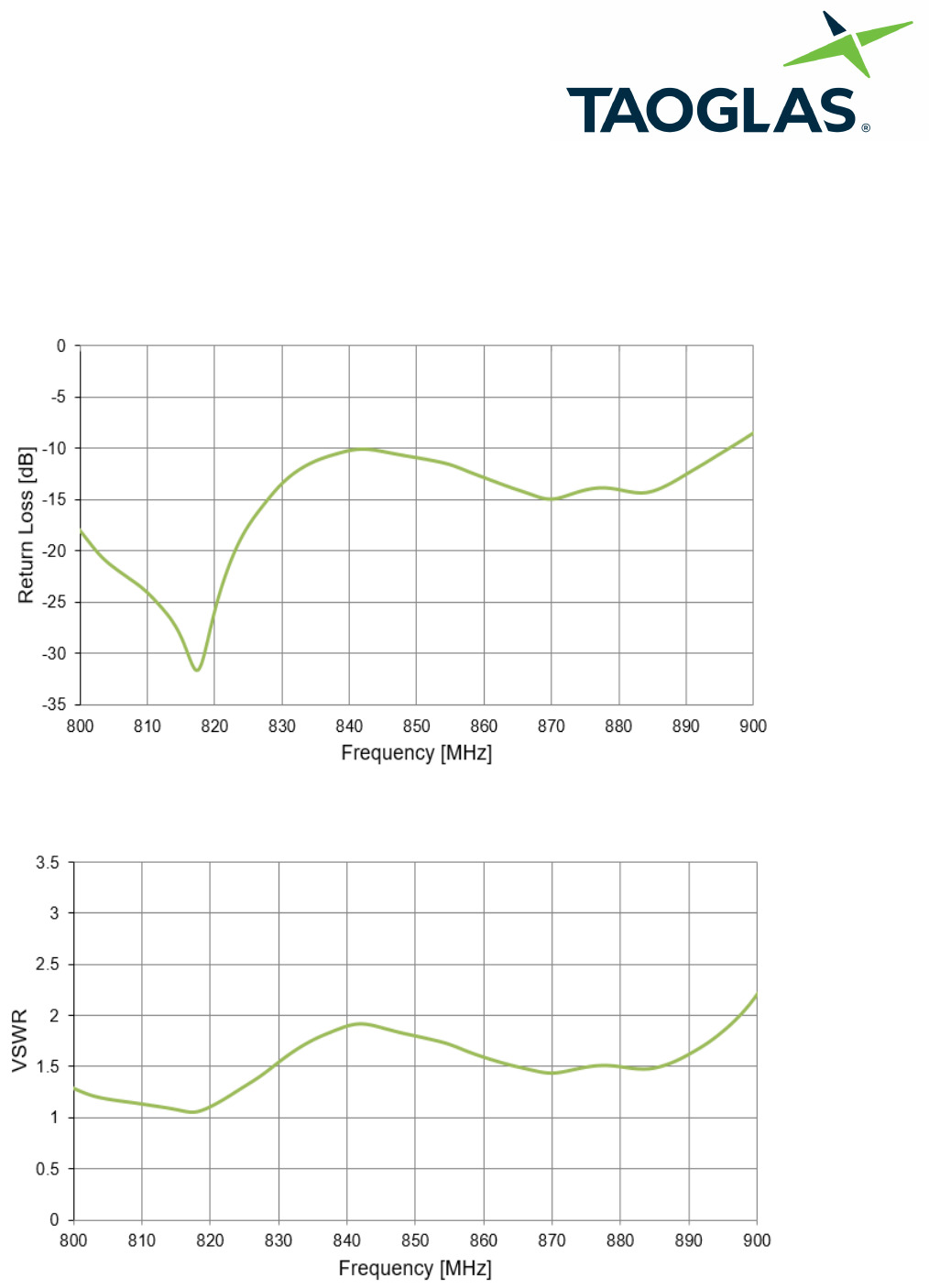

3.1. Return Loss

3.2. VSWR

Return Loss (dB) 12 TAOGLASG, 10 550 355 850 555 B70 375 Frequency (MHZ) aao ass syn 895 900

SPE-17-8-042/D/AW Page 5 of 10

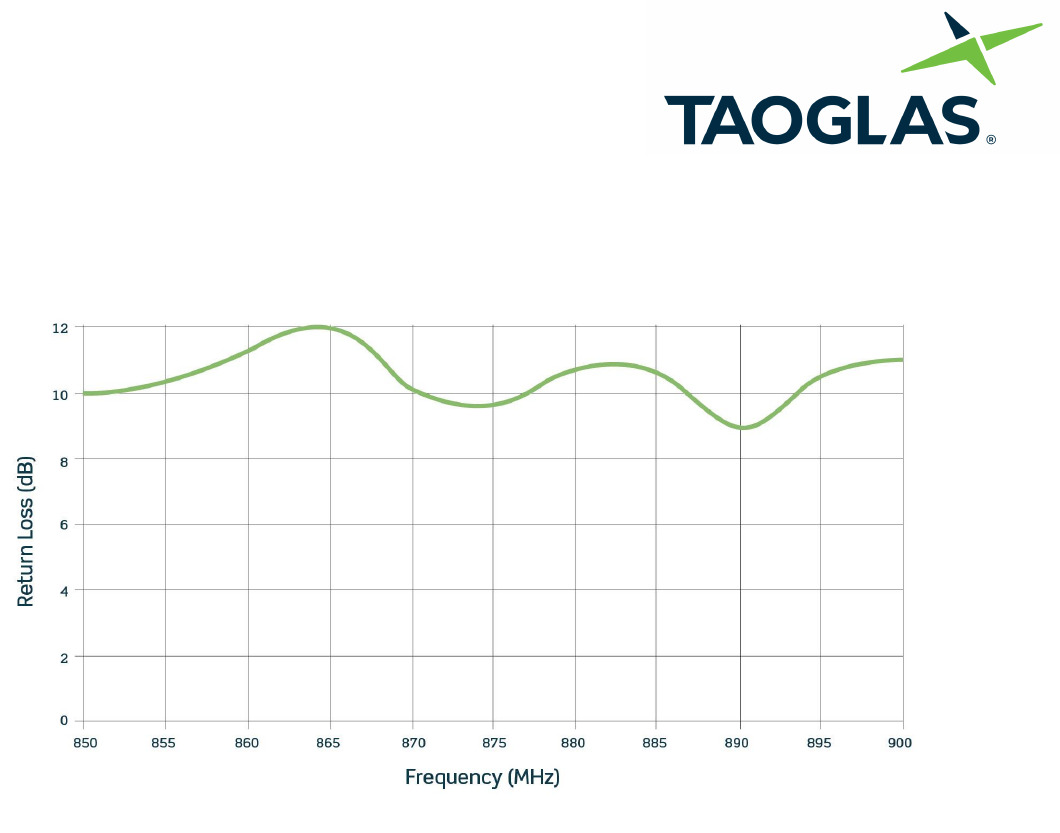

3.3. Peak Gain

A“ TAOGLAS® lea —8$MHZ

SPE-17-8-042/D/AW Page 6 of 10

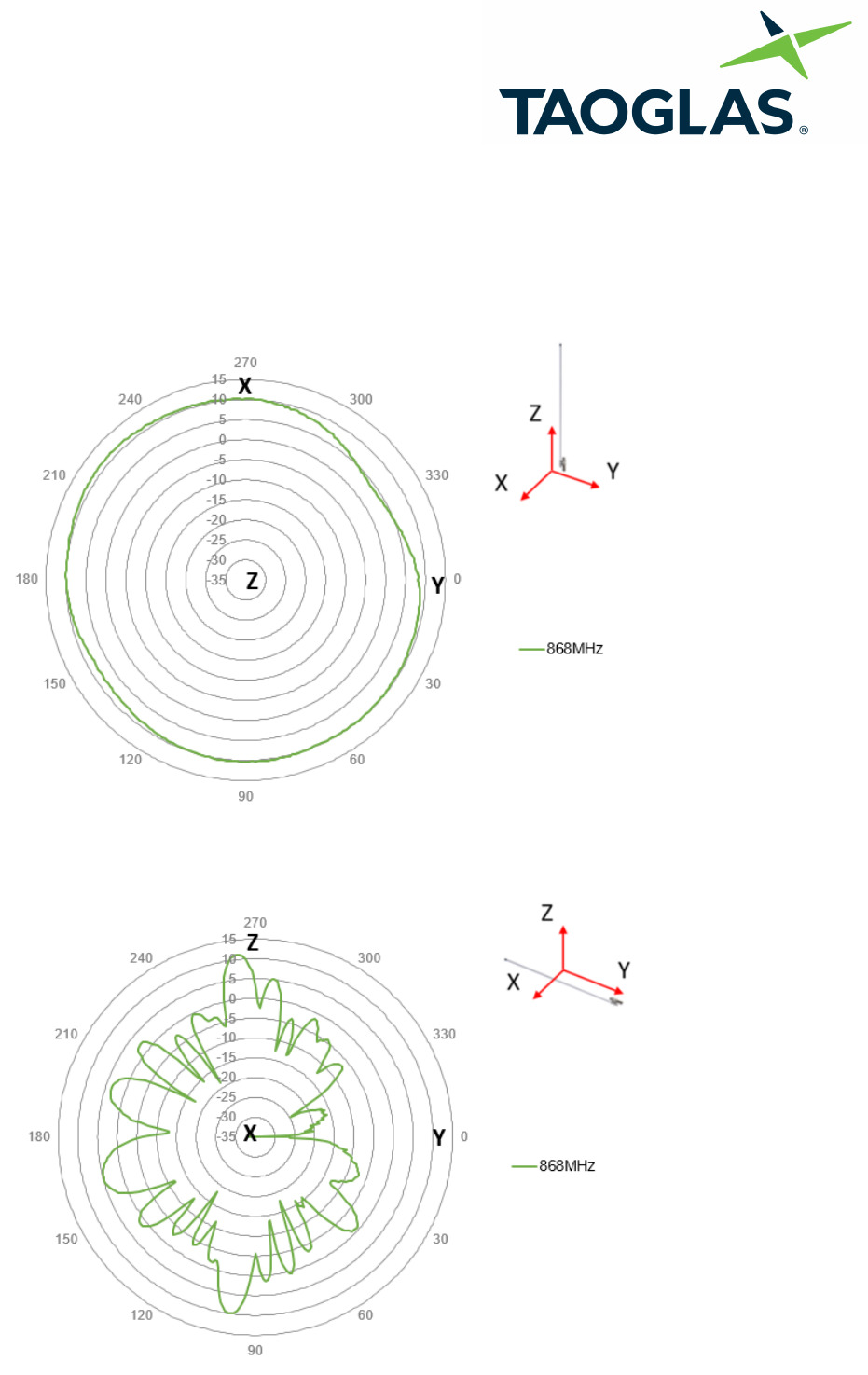

4. 2D Radiation Pattern

4.1. Azimuth

4.2. Elevation

TAOGLASG, Front View Side View Tog View I ‘ I h < 2="" i="" i="" -="">< !="" !="" l="" !="" !="" '="" j="" _="" !="" !="" 7="" ”i="" 7‘,="" !="" !="" am-="" g%="" i="" !="" '="" .="" i="" !="" !="" !="" !="" i="" !="" !="" !="" j»="" '="" 7l="" i="" i="" 1="" !="" -i="" !="" i="" !="" '="" !="" ‘="" !="" !="" !="" !="" !="" !="" ea="" !="" e»="" '="" !="" !="" !="" !="" !="" !=""><9 !="" q9="" !="" !="" i="" “f="" .="" i‘;="" i="" u—bolt="" ‘="" 1]="" i="" ‘="" i="777$" «97="" i="" v="" 7="" l="u==" .—~="" .—.="" ._="" i="" 6="" (:3="" detail="" a="" scuiezzl="" name="" p/n="" mulerial="" ﬁnish="" qty="" 1="" waasa="" mtenna="" omzleooooum="" glass="" fiber="" white="" i="" 2="" cover="" ooomkoooozm="" abs="" silver="" l="" 3="" bracket="" uddjizbodouzia="" aluminum="" silver="" l="" 4="" n="" type(f)="" zoiznkoooum="" brass="" ni="" plated="" i="" 5="" m6="" u="" boll="" noumaoooum="" stainless="" sleel="" silver="" 2="" 5="" m6="" washer="" oounlkmoom="" stainless="" steel="" silver="" 4="" 7="" m6="" nul="" nomnkozonm="" stainless="" steei="" silvel="" 4="">

SPE-17-8-042/D/AW Page 7 of 10

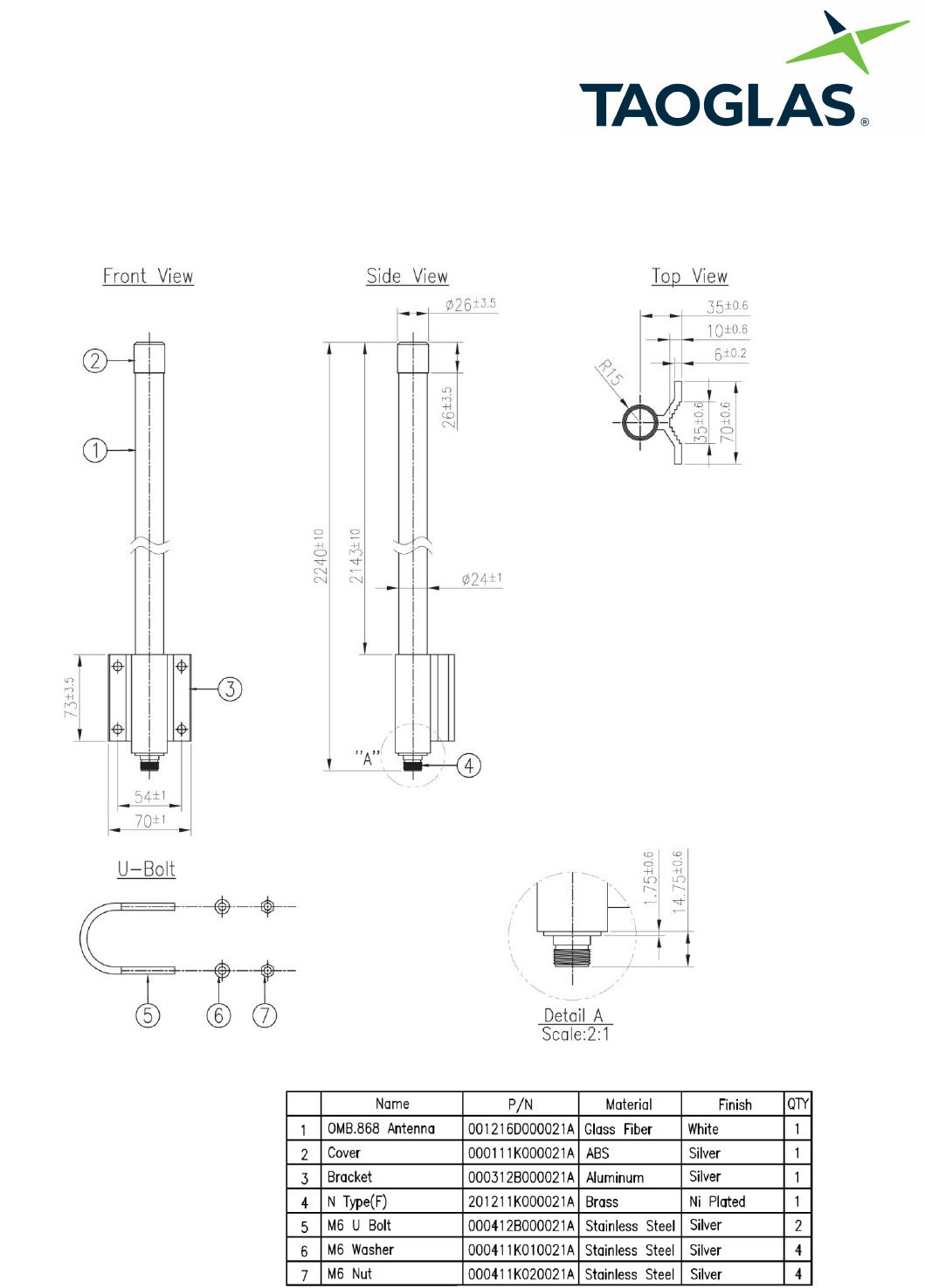

5. Mechanical Drawing (Unit: mm)

TAOGLASG, 2240mm 2300mm l: 10MBVSA8.812.F21 pertube Tube Dimenswons , BBOmm‘Heigm 2300mm Total Wswght , mag msnmm 1U tubes per carton Carmn Dimensions - 2310*A1D*19Umm Welght - 2U.8Kg m mm

SPE-17-8-042/D/AW Page 8 of 10

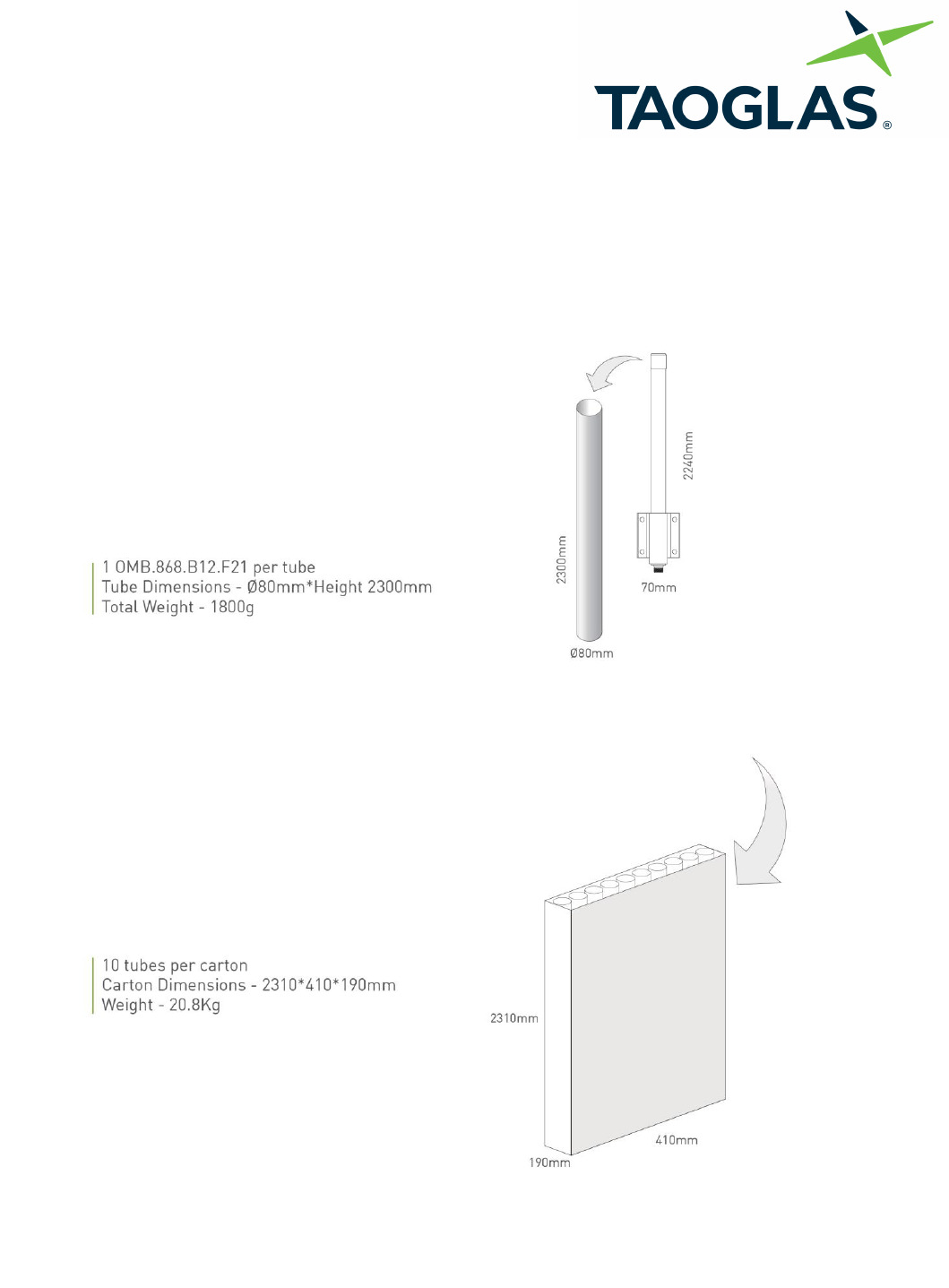

6. Packaging

A“ TAOGLASG,

SPE-17-8-042/D/AW Page 9 of 10

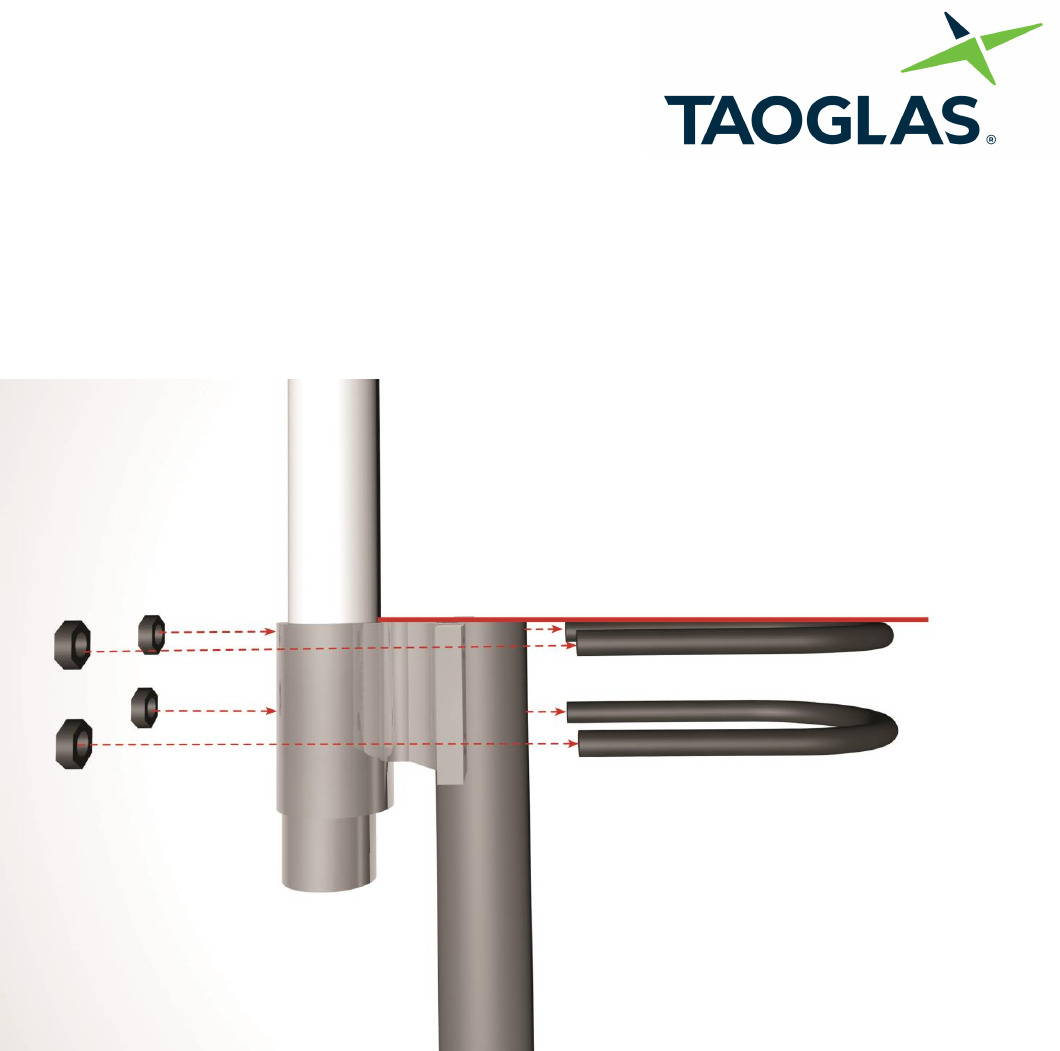

7. Antenna Installation Guide

A“ TAOGLASE

SPE-17-8-042/D/AW Page 10 of 10

Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and

reserves the right to make changes to specifications and product descriptions at any time without notice.

Taoglas reserves all rights to this document and the information contained herein.

Reproduction, use or disclosure to third parties without express permission is strictly prohibited.
