5400 RPM - SATA Manual Datasheet by Advantech Corp

@SEAGATE

Standard models

ST1000LM035

ST2000LM007

Self-Encrypting Drive models

ST1000LM037

ST2000LM009

SED (FIPS 140-2) models

ST1000LM038

ST2000LM010

100775165, Rev. C

May 2016

Mobile HDD

5400 RPM - SATA Product Manual

Publication number: 100775165, Rev. C May 2016

Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SeaTools and 3D Defense System are

either a trademark or registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark

of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments. All other trademarks or registered trademarks are the property of their respective

owners.

No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.

Call 877-PUB-TEK1(877-782-8351) to request permission.

When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different

standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage.

Actual quantities will vary based on various factors, including file size, file format, features and application software. Actual data rates may vary depending on operating environment

and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for

more information, visit www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice, product offerings or specifications.

Document Revision History

Revision Date Pages affected and Description of change

Rev. A 11/30/2015 Initial release.

Rev. B 04/18/2015

6: Delete 3D Defense System bullet

6-7 & 14-15: Change nonoperating to non-operating

7 -9 & 14-15: Revised Recording, Interface Technology, Physical, Non-operating and Shock/Vibe specs

7 & 9: Changed Sustained Data transfer rate to 140 MB/s & Height inches to 0.276

15: Reorganized Acoustic table

17: Added Regulatory Model Numbers to certification section; Updated effectivity dates for EMC &

Changed Korean RRL to Korean RRA

Rev. C 05-11-2016 16: Added DC Magnetic Field Immunity Table.

Seagate Mobile HDD Product Manual, Rev. C 2

Contents

Seagate® Technology Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

1.1 About the Serial ATA Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.0 Drive Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2.1 Formatted Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1.1 LBA mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 Physical organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3 Recording and Interface Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5 Seek time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.6 Start/stop times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.7 Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.7.1 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.7.2 Conducted noise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.7.3 Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.7.4 Power management modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.8 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.8.1 Shock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.8.2 Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.9 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.9.1 Test for prominent discrete tones (PDTs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.10 Electromagnetic Immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.10.1 DC Magnetic Field Immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.11 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.12 Agency Certification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.12.1 Safety certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.12.2 Electromagnetic Compatibility (EMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.12.3 FCC verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.13 Environmental Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.13.1 European Union Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . . . . . . . . . . . . . 18

2.13.2 China Restriction of Hazardous Substances (RoHS) Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.14 Corrosive Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

3.0 Configuring and Mounting the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1 Handling and Static-Discharge Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.2 Configuring the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.2.1 Serial ATA Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.3 Drive Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.0 About FIPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.0 About (SED) Self-Encrypting Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.1 Data Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.2 Controlled Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.2.1 Admin SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.2.2 Locking SP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.2.3 Default password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.2.4 ATA Enhanced Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.3 Random Number Generator (RNG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.4 Drive Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.5 Data Bands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Seagate Mobile HDD Product Manual, Rev. C 3

Contents

5.6 Cryptographic Erase. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.7 Authenticated Firmware Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.8 Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.9 Supported Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.10 RevertSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

6.0 Serial ATA (SATA) Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.1 Hot-Plug Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

6.2 Serial ATA Device Plug Connector Pin Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.3 Supported ATA Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

6.3.1 Identify Device command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

6.3.2 Set Features command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.3.3 S.M.A.R.T. commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Seagate Mobile HDD Product Manual, Rev. C 4

Figures

Figure 1 Typical 1D - 5V Startup and Operation Current Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 2 Typical 2D - 5V Startup and Operation Current Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

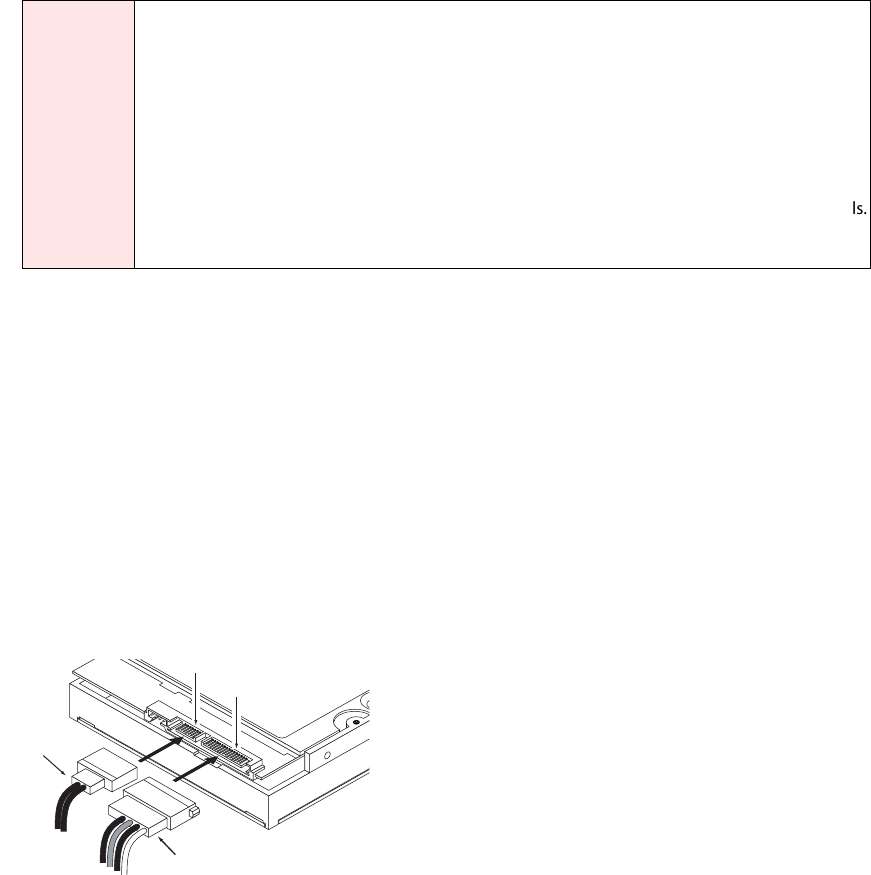

Figure 3 Attaching SATA Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

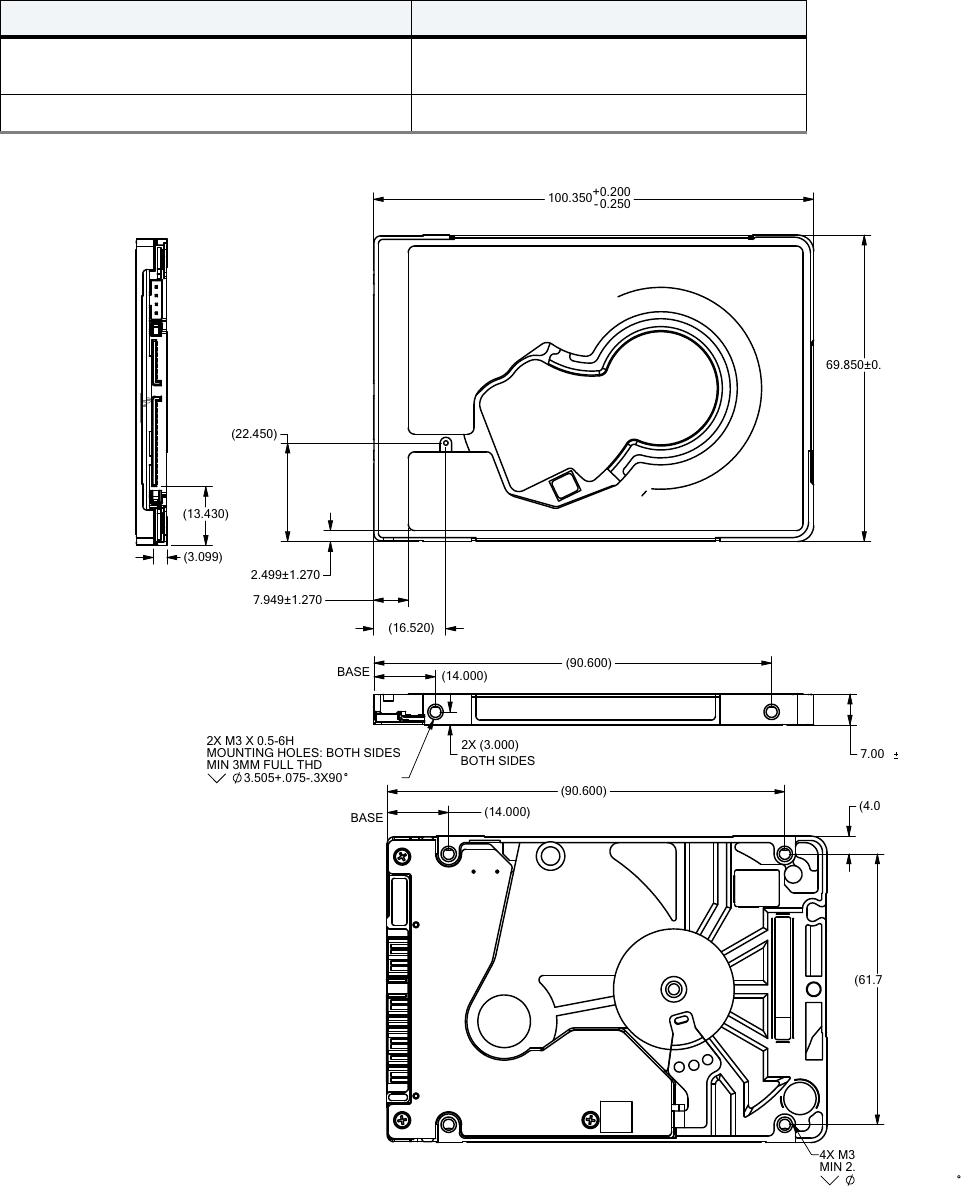

Figure 4 Mounting Dimensions (for 1-disk models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

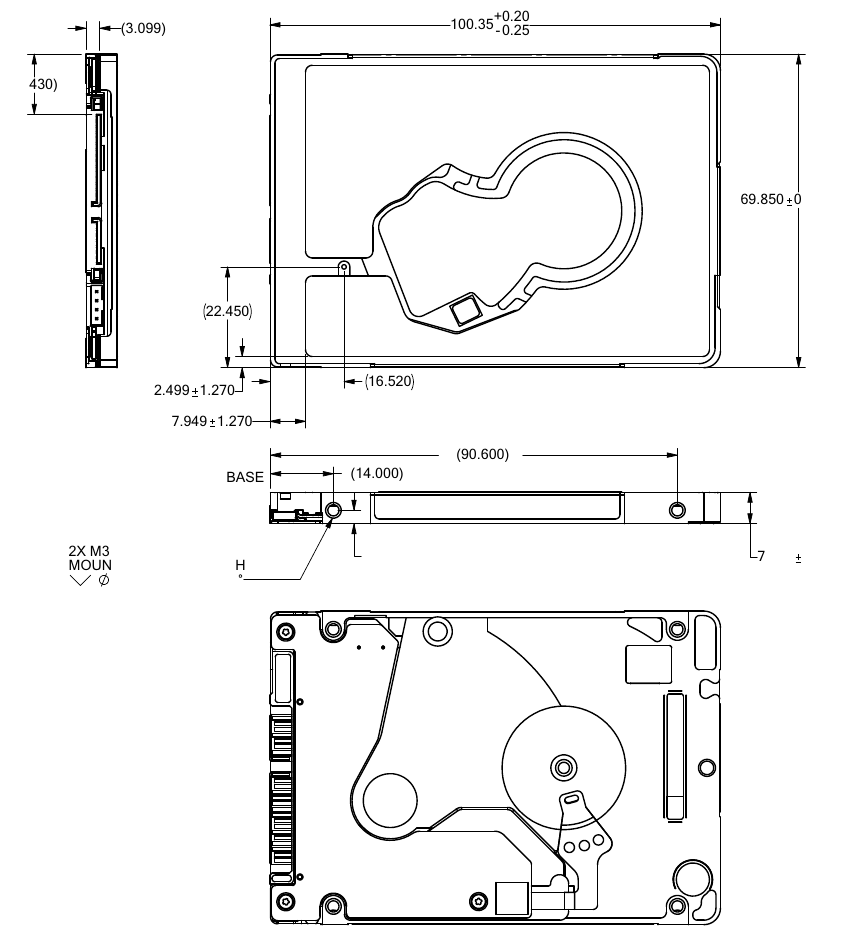

Figure 5 Mounting Dimensions (for 2-disk models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 6 Example of FIPS tamper evidence labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

hnp. www.5eagate.(om/contacts/ http://www.seagate.(om/supDort/warrantvrandrreplacements/ http://www.sea atacom/servicesVsoftware/datarrecovervrservices/ hm; www.5ea ate.com/parmers/

Seagate Mobile HDD Product Manual, Rev. C 5

For information regarding online support and services, visit: http://www.seagate.com/contacts/

For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/

For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/

For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/

Seagate® Technology Support Services

del aded from www e '

Seagate Mobile HDD Product Manual, Rev. C 6

1.0 Introduction

This manual describes the functional, mechanical and interface specifications for the following Seagate® Mobile HDD model drives:

For more information on SED drives see About (SED) Self-Encrypting Drives on page 23.

For more information on FIPS 140-2 Level 2 certification see About FIPS on page 22.

These drives provide the following key features:

• 1000 Gs non-operating shock and 400 Gs of operating shock.

• 128MB buffer.

• 5400-RPM spindle speed.

• Full-track multiple-sector transfer capability without local processor intervention.

• High instantaneous (burst) data-transfer rates (up to 6Gb/s).

• Native Command Queuing (NCQ) with command ordering.

• Perpendicular recording technology.

• Quiet operation. Fluid Dynamic Bearing (FDB) motor.

• SeaToolsTM diagnostic software performs a drive self-test that eliminates unnecessary drive returns.

• State-of-the-art cache and on-the-fly error-correction algorithms.

• Support for Read Multiple and Write Multiple commands.

• Support for S.M.A.R.T. drive monitoring and reporting.

• Worldwide Name (WWN) capability uniquely identifies the drive.

Mobile HDD Self-Encrypting Drive models have the following additional features

• 16 independent data bands

• Authenticated firmware download.

• Automatic data encryption/decryption

• Controlled access

• Cryptographic erase of user data for a drive that will be repurposed or scrapped

•Drive locking

• Random number generator

There is no significant performance difference between Self-Encrypting Drive and standard (non-Self-Encrypting Drive) models.

1.1 About the Serial ATA Interface

The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include:

• Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options.

• Thinner and more flexible cabling for improved enclosure airflow and ease of installation.

• Scalability to higher performance levels.

In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial ATA was designed to allow users to

install a Serial ATA host adapter and Serial ATA disk drive in the current system and expect all of the existing applications to work as normal.

The Serial ATA interface connects each disk drive in a point-to-point configuration with the Serial ATA host adapter. There is no master/slave

relationship with Serial ATA devices like there is with parallel ATA. If two drives are attached on one Serial ATA host adapter, the host operating

system views the two devices as if they were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0

(master) devices.

The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing

host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated.

The Serial ATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as the Shadow

Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to

the Serial ATA International Organization: Serial ATA (Revision 2.6). The specification can be downloaded from www.serialata.org.

Standard

models

Standard SED

models

Standard SED

(FIPS 140-2) models

ST1000LM035 ST1000LM037 ST1000LM038

ST2000LM007 ST2000LM009 ST2000LM010

Note Previous generations of Seagate Self-Encrypting Drive models were called Full Disk Encryption (FDE) models

before a differentiation between drive-based encryption and other forms of encryption was necessary.

Note

The host adapter may, optionally, emulate a master/slave environment to host software where two devices on separate Serial ATA ports

are represented to host software as a Device 0 (master) and Device 1 (slave) accessed at the same set of host bus addresses. A host

adapter that emulates a master/slave environment manages two sets of shadow registers. This is not a typical Serial ATA environment.

Seagate Mobile HDD Product Manual, Rev. C 7

2.0 Drive Specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases the

drive and this drive are used throughout this manual to indicate the following drive models:

The specification summaries listed in the following tables are for quick reference. For details on specification measurement or definition, refer to the

appropriate section of this manual.

Table 1 Drive Specifications Summary

Drive Specification ST1000LM035, ST1000LM037

and ST1000LM038

ST2000LM007, ST2000LM009

and ST2000LM010

Formatted capacity (1) 1TB 2TB

Guaranteed sectors 1,953,525,168 3,907,029,168

Heads 2 4

Disks 1 2

Bytes per sector 512 (logical) / 4096 (physical)

Recording density 2276 Kb/in

Track density 580 Ktracks/in avg

Areal density 1320 Gb/in2 avg

Spindle speed 5400 RPM

Data transfer rate (up to) 140 MB/s

Interface SATA 6Gb/s

ATA data-transfer modes supported

PIO modes 0–4

Multiword DMA modes 0–2

Ultra DMA modes 0–6

Cache buffer 128 MB

Height (mm/in) 7.0 (± 0.2) / 0.276 (± 008)

Width (mm/in) 69.85 (± 0.25) / 2.750 (± 0.010)

Length (mm/in) 100.35 (+0.20/-0.25) / 3.951 (+0.008/-0.010)

Weight (g/lb) max 90 / 0.198

Average latency 5.6 ms

Startup current, Max (+5V) 1.0 A

Voltage tolerance (including noise) 5V ± 5%

Operating temperature 0° to 60°C

Non-operating temperature (ambient) –40° to 70°C

Temperature gradient 20°C per hour max (operating)

35°C per hour max (non-operating)

Relative humidity 5% to 95% (operating)

5% to 95% (non-operating)

Relative humidity gradient (max) 30% per hour

Wet bulb temperature 37.7°C max (operating)

40.0°C max (non-operating)

Altitude, operating –304.8 m to 3048 m (–1000 ft to 10,000+ ft)

Altitude, non-operating

(below mean sea level, max) –304.8 m to 12,192 m (–1000 ft to 40,000+ ft)

hnp://www seaga‘e com/su990n/warramyrandrreg‘acemenlsl

Seagate Mobile HDD Product Manual, Rev. C 8

Drive Specifications

2.1 Formatted Capacity

2.1.1 LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed

sectors as defined above.

Refer to Configuring and Mounting the Drive on page 19 (words 60-61 and 100-103) for additional information about 48-bit addressing support

of drives with capacities over 137 GB.

Operational Shock 400 Gs at 2 ms max

Non-Operational Shock 1000 Gs at 1 ms max

Vibration, operating 5–200 Hz: 2.0 Gs

201–500 Hz: 1.0 Gs

Vibration, non-operating 5–500 Hz: 5.0 Gs

Nonrecoverable read errors 1 per 1014 bits read

Rated workload

Average annualized workload rating: <55 TB/year.

The AFR specification for the product assumes the I/O workload does not exceed the average annual-

ized workload rate limit of 55 TB/year. Workloads exceeding the annualized rate may degrade the

product AFR and impact reliability as experienced by the particular application. The average annual-

ized workload rate limit is in units of TB per calendar year.

Warranty

To determine the warranty for a specific drive, use a web browser to access the following web page:

http://www.seagate.com/support/warranty-and-replacements/.

From this page, click on the “Is my Drive under Warranty” link. The following are required to be pro-

vided: the drive serial number, model number (or part number) and country of purchase. The system

will display the warranty information for the drive.

Load-unload cycles 600,000 at 25°C, 50% rel. humidity

Supports Hotplug operation per the

Serial ATA Revision 3.2 specification Yes

1. One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and

formatting.

Model Formatted Capacity(1)

1. One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary

depending on operating environment and formatting.

Guaranteed Sectors Bytes per Sector

1TB models 1000 GB 1,953,525,168 512 (logical) /

4096 (physical)

2TB models 2000 GB 3,907,029,168

Table 1 Drive Specifications Summary (continued)

Drive Specification ST1000LM035, ST1000LM037

and ST1000LM038

ST2000LM007, ST2000LM009

and ST2000LM010

Seeks d Me

Seagate Mobile HDD Product Manual, Rev. C 9

Drive Specifications

2.2 Physical organization

2.3 Recording and Interface Technology

2.4 Physical Characteristics

2.5 Seek time

Seek measurements are taken with nominal power at 25°C ambient temperature. All times are measured using drive diagnostics. The specifications

in the table below are defined as follows:

• Track-to-track seek time is an average of all possible single-track seeks in both directions.

• Average seek time is a true statistical random average of at least 5000 measurements of seeks between random tracks, less overhead.

Drive model Read/write heads Number of discs

ST1000LM035, ST1000LM037

and ST1000LM038 2 1

ST2000LM007, ST2000LM009

and ST2000LM010 4 2

Interface SATA 6Gb/s

Recording method Perpendicular

Recording density 2276 Kb/in

Track density 580 ktracks/in avg

Areal density 1320 Gb/in2 avg

Spindle speed 5400 RPM

Data transfer rate (up to) 140 MB/s

Height (mm/in) 7.0 (± 0.2) / 0.276 (± 008)

Width (mm/in) 69.85 (± 0.25) / 2.750 (± 0.010)

Length (mm/in) 100.35 (+0.20/-0.25) / 3.951 (+0.008/-0.010)

Typical weight (g/lb) 90 / 0.198

Cache buffer 128MB

Table 2 Typical seek times

Typical seek times (ms) Read

Track-to-track 1.5

Average 13.0

Average latency 5.6

Note

These drives are designed to consistently meet the seek times represented in this manual. Physical seeks,

regardless of mode (such as track-to-track and average), are expected to meet the noted values. However, due

to the manner in which these drives are formatted, benchmark tests that include command overhead or

measure logical seeks may produce results that vary from these specifications.

Seagate Mobile HDD Product Manual, Rev. C 10

Drive Specifications

2.6 Start/stop times

2.7 Power Specifications

The drive receives DC power (+5V) through a native SATA power connector (refer to Figure 3).

2.7.1 Power consumption

Power requirements for the drives are listed in the table in Table 4. Typical power measurements are based on an average of drives tested, under

nominal conditions, at 25°C ambient temperature. These power measurements are done with Interface Power Management modes like HIPM

and DIPM enabled.

• Spinup power

Spinup power is measured from the time of power-on to the time that the drive spindle reaches operating speed.

•Seek mode

During seek mode, the read/write actuator arm moves toward a specific position on the disk surface and does not execute a read or write

operation. Servo electronics are active. Seek mode power is measured based on three random seek operations every 100 ms. This mode is not

typical.

• Read/write power and current

Read/write power is measured with the heads on track, based on three 63 sector read or write operations every 100 ms.

•Idle mode power

Idle mode power is measured with the drive up to speed, with servo electronics active and with the heads in a random track location.

•Standby mode

During standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/write electronics are in

power-down mode.

Table 3 Start/stop times

Capacity 1TB models 2TB models 1TB models 2TB models

Typical seek times (ms) Typical Max @ 25°C

Power-on to ready (sec) 2.8 3.2 3.0 3.5

Power-on to ready (sec) (SED models) 3.0 3.5 3.2 3.7

Standby to ready (sec) 2.5 3.0

Table 4 DC Power Requirements

Power Dissipation 1TB models

+5V input average (25° C)

2TB models

+5V input average (25° C)

Spinup (max) 1.00A

Write average 1.70W 1.80W

Read average 1.60W 1.70W

Idle, performance (1)

1. During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which

may increase acoustic and power to operational levels.

1.40W 1.50W

Idle, active 0.69W 0.85W

Idle, low power mode 0.45W 0.50W

Standby(2)

2. Standby power is measured at steady state (after 200ms from transition)

0.13W

Sleep 0.13W

12mg M tors inup 2' toReady k . qWIte ‘- l l " PHle I: I 0 Idlelf: " St I) :: a” V n +5vnnpm . ldl 2 supdycmem E s 1 [1.2 v sun 2 ‘5 V 500 1.8 kS/S 32 V DC}: 1 000.388U 4 ‘5 V 50% U STOPPED

Seagate Mobile HDD Product Manual, Rev. C 11

Drive Specifications

2.7.1.1 Typical current profiles

The typical 5V startup and operation current profile is shown in Figure 1 and Figure 2.

Figure 1 Typical 1D - 5V Startup and Operation Current Profile

.meu Ln'm'm'm < 50!]="" 500="" cid="" f.="" 50h="" lecmg="" :="" enoﬁo="" spimp="" ‘:="" oready="" z:="" wu="" plﬂle="" i:="" idleﬁf="" i="" i:="" standby="" 3:="" idle="" 9="" 1="" 1="" dd="" 0.363="" v="" ci="" 45v="" lnm="" suppiy="" current="" 1.8="" ks/s="" stopped="">

Seagate Mobile HDD Product Manual, Rev. C 12

Drive Specifications

Figure 2 Typical 2D - 5V Startup and Operation Current Profile

Seagate Mobile HDD Product Manual, Rev. C 13

Drive Specifications

2.7.2 Conducted noise

Input noise ripple is measured at the host system power supply across an equivalent 15-ohm resistive load on the +5 volt line.

• Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected noise at up to 20 MHz.

2.7.3 Supply Voltage

2.7.4 Power management modes

The drive provides programmable power management to provide greater energy efficiency. In most systems, power management is controlled

through the system setup program. The drive features the following power-management modes:

•Active mode

The drive is in active mode during the read/write and seek operations.

nIdle mode

The buffer remains enabled, and the drive accepts all commands and returns to active mode any time disk access is necessary.

•Standby mode

The drive enters standby mode when the host sends a standby Immediate command. If the host has set the standby timer, the drive can also

enter standby mode automatically after the drive has been inactive for a specifiable length of time. The standby timer delay is established using

a standby or idle command. In standby mode, the drive buffer is enabled, the heads are parked and the spindle is at rest. The drive accepts all

commands and returns to active mode any time disk access is necessary.

nSleep mode

The drive enters sleep mode after receiving a sleep command from the host. In sleep mode, the drive buffer is disabled, the heads are parked and

the spindle is at rest. The drive leaves sleep mode after it receives a hard reset or soft reset from the host. After receiving a reset, the drive exits

sleep mode and enters standby mode with all current translation parameters intact.

nIdle and standby timers

Each time the drive performs an active function (read, write or seek), the standby timer is reinitialized and begins counting down from its

specified delay times to zero. If the standby timer reaches zero before any drive activity is required, the drive makes a transition to standby mode.

In both Idle and standby mode, the drive accepts all commands and returns to active mode when disk access is necessary.

Note Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current.

Allowable voltage 5V ± 5%

Allowable noise/ripple 100 p-p max, 0-20 MHz

Allowable supply rise time <100 ms

Power modes Heads Spindle Buffer

Active (operating) Tracking Rotating Full power

Idle, performance Tracking Rotating Self refresh—low power

Idle, active Floating Rotating Self refresh—low power

Idle, low power Parked Rotating Self refresh—low power

Standby Parked Stopped Self refresh—low power

Sleep Parked Stopped Self refresh—low power

Seagate Mobile HDD Product Manual, Rev. C 14

Drive Specifications

2.8 Environmental Specifications

This section provides the temperature, humidity, shock, and vibration specifications for Mobile HDD drives.

Ambient temperature is defined as the temperature of the environment immediately surrounding the drive.

Above 1000 feet (305 meters), the maximum temperature is derated linearly by 1°C every 1000 feet.

2.8.1 Shock

All shock specifications assume that the drive is mounted securely with the input shock applied at the drive mounting screws. Shock may be

applied in the X, Y, or Z axis.

2.8.1.1 Operating shock

These drives comply with the performance levels specified in this document when subjected to a maximum operating shock of 400 Gs based on

half-sine shock pulses of 2ms. Shocks should not be repeated more than one time per axis.

2.8.1.2 Non-operating shock

The non-operating shock level that the drive can experience without incurring physical damage or degradation in performance when subsequently

put into operation is 1000 Gs based on a nonrepetitive half-sine shock pulse of 1 ms duration.

Table 5: Environmental specifications

Parameters Operating Non-Operating

Ambient temperature 0° to 60°C (32° to 140°F) -40° to 70°C (-40° to 158°F)

Temperature gradient 20°C per hour (68°F per hour) max,

without condensation

35°C per hour (95°F per hour) max,

without condensation

Humidity 5% to 95% non-condensing

(30% per hour)

5% to 95% non-condensing

(30% per hour)

Wet bulb 37.7°C (99.8°F) max 40°C (104°F) max

Altitude -304.8m to 3048m

(-1000ft to 10,000ft)

-304.8m to 12,192m

(-1000ft to 40,000ft)

Note

The recommended storage period:

• 1 year under controlled conditions of 34°C 90%RH or less

• 90 days in uncontrolled storage conditions

Seagate Mobile HDD Product Manual, Rev. C 15

Drive Specifications

2.8.2 Vibration

All vibration specifications assume that the drive is mounted securely with the input vibration applied at the drive mounting screws. Vibration may

be applied in the X, Y, or Z axis.

2.8.2.1 Operating vibration

The maximum vibration levels that the drive may experience while meeting the performance standards specified in this document are specified

below.

2.8.2.2 Non-operating vibration

The maximum non-operating vibration levels that the drive may experience without incurring physical damage or degradation in performance

when subsequently put into operation are specified below.

2.9 Acoustics

Drive emission of sound is measured consistent with the ECMA-74 and its referenced standards. Testing is conducted at room temperature

(approximately 25°C). Emission levels are reported as the total A-weighted sound power levers for steady state, idle, and active seeks modes of

operation.

2.9.1 Test for prominent discrete tones (PDTs)

Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute

threshold of hearing. Seagate uses the lower limit for the threshold curve* to discern tone audibility and to compensate for the inaudible

components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards.

*Defined as the median curve given by ISO 389-7 (Tf curve) minus 10dB at all frequencies.

5–200 Hz 2.0 Gs (0 to peak). Max displacement may apply below 10

Hz.

201–500 Hz 1.0 Gs (0 to peak).

5–500 Hz 5.0 Gs (0 to peak). Max displacement may apply below 22 Hz.

Table 6 Drive A-weighted Sound Power Levels (SWL, BA)

1TB models 2TB models

Idle(1)

1. During periods of drive idle, some offline activity may occur according to

the S.M.A.R.T. specification, which may increase acoustic and power to

operational levels.

2.0 bels (typ)

2.2 bels (max)

2.2 bels (typ)

2.4 bels (max)

Performance Seek 2.2 bels (typ)

2.4 bels (max)

2.4 bels (typ)

2.6 bels (max)

hng://www.sea ate com/suggort/warranty-and»reglacemems/

Seagate Mobile HDD Product Manual, Rev. C 16

Drive Specifications

2.10 Electromagnetic Immunity

When properly installed in a representative host system, the drive operates without errors or degradation in performance when subjected to the

radio frequency (RF) environment as defined in Table 7.

2.10.1 DC Magnetic Field Immunity

2.11 Reliability

Table 7 Radio Frequency Environments

Test Description Performance

Level

Reference

Standard

Electrostatic discharge Contact, HCP, VCP: ± 4 kV; Air: ± 8 kV B EN 61000-4-2: 95

Radiated RF immunity 80 to 1GHz, 3 V/m, 80% AM with 1 kHz sine

900 MHz, 3 V/m, 50% pulse modulation @ 200 Hz AEN 61000-4-3: 96

ENV 50204: 95

Electrical fast transient ± 1 kV on AC mains, ± 0.5 kV on external I/O B EN 61000-4-4: 95

Surge immunity ± 1 kV differential, ± 2 kV common, AC mains B EN 61000-4-5: 95

Conducted RF immunity 150 kHz to 80 MHz, 3 Vrms, 80% AM with 1 kHz sine A EN 61000-4-6: 97

Power Frequency H-field immunity 1 A/m, 50Hz/60Hz, 3 axes A EN 61000-4-8: 97

Voltage dips, interrupts

30% Reduction for 25 cycles

>95% Reduction for 250 cycles

>95%, 0.5 cycles

EN 61000-4-11: 94

Table 8: DC Magnetic Field Immunity

Test Product Spec (Standalone)

DC Magnetic Field Immunity 1, 2, 3 400 Gauss, RMS

1 Field in Gauss at the drive envelope. Testing per procedures 20800109-349 and 20800109-350.

2 Passing Field in Gauss at the drive envelope. In practice, testing is conducted using a fixed distance from the bottom of the mag-

net to the top of the drive. Calibration of the field vs. distance is done with a Hall probe with no magnetic materials present.

3 Testing to be done with magnet .375” dia. x 0.100” Ni-plated NdFeB; B,~11.5 kG, magnetized along its length; the magnet is

oriented with the length perpendicular to the drive cover/PCBA. Drive to be properly secured during test.

Nonrecoverable read errors 1 per 1014 bits read, max

Load/Unload (U/UL)

25°C, 50% relative humidity

600,000 software-controlled power on/off cycles

20,000 hard power on/off cycles

Rated workload Average annualized workload rating: <55 TB/year.

The AFR specification for the product assumes the I/O workload does not exceed the average annualized

workload rate limit of 55 TB/year. Workloads exceeding the annualized rate may degrade the product

AFR and impact reliability as experienced by the particular application. The average annualized work-

load rate limit is in units of TB per calendar year.

Warranty To determine the warranty for a specific drive, use a web browser to access the following web page:

http://www.seagate.com/support/warranty-and-replacements/.

From this page, click on the “Is my Drive under Warranty” link. The following are required to be provided:

the drive serial number, model number (or part number) and country of purchase. The system will dis-

play the warranty information for the drive.

Seagate Mobile HDD Product Manual, Rev. C 17

Drive Specifications

2.12 Agency Certification

2.12.1 Safety certification

These products are certified to meet the requirements of UL60950-1, CSA60950-1 and EN60950 and so marked as to the certify agency.

The following regulatory model number represent all features and configurations within the series:

Regulatory Model Numbers: SDC001/SDC003

2.12.2 Electromagnetic Compatibility (EMC)

Hard drives that display the CE mark comply with the European Union (EU) requirements specified in the Electromagnetic Compatibility Directive

2004/108/EC (Until 19th April, 2016) and 2014/30/EU (From 20th April, 2016). Testing is performed to the levels specified by the product standards

for Information Technology Equipment (ITE). Emission levels are defined by EN 55022, Class B and the immunity levels are defined by EN 55024.

Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the directives when used in the test systems,

we cannot guarantee that all systems will comply with the directives. The drive is designed for operation inside a properly designed enclosure, with

properly shielded I/O cable (if necessary) and terminators on all unused I/O ports. Computer manufacturers and system integrators should confirm

EMC compliance and provide CE marking for their products.

Korean RRA

If these drives have the Korean Communications Commission (KCC) logo, they comply with paragraph 1 of Article 11 of the Electromagnetic

Compatibility control Regulation and meet the Electromagnetic Compatibility (EMC) Framework requirements of the Radio Research Agency (RRA)

Communications Commission, Republic of Korea.

These drives have been tested and comply with the Electromagnetic Interference/Electromagnetic Susceptibility (EMI/EMS) for Class B products.

Drives are tested in a representative, end-user system by a Korean-recognized lab.

Australian RCM Compliance Mark

Models displayed with the RCM compliance mark, comply with the mandatory standards as per the Australian Communications and Media Author-

ity (AMCA) Electromagnetic Compatibility (EMC) regulatory arrangement.

2.12.3 FCC verification

These drives are intended to be contained solely within a personal computer or similar enclosure (not attached as an external device). As such, each

drive is considered to be a subassembly even when it is individually marketed to the customer. As a subassembly, no Federal Communications

Commission verification or certification of the device is required.

Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power

supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. Operation with noncertified

assemblies is likely to result in interference to radio and television reception.

Radio and television interference. This equipment generates and uses radio frequency energy and if not installed and used in strict accordance

with the manufacturer’s instructions, may cause interference to radio and television reception.

This equipment is designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause interference to radio or television, which can be determined

by turning the equipment on and off, users are encouraged to try one or more of the following corrective measures:

• Reorient the receiving antenna.

• Move the device to one side or the other of the radio or TV.

• Move the device farther away from the radio or TV.

• Plug the computer into a different outlet so that the receiver and computer are on different branch outlets.

If necessary, users should consult the dealer or an experienced radio/television technician for additional suggestions. Users may find helpful the

following booklet prepared by the Federal Communications Commission: How to Identify and Resolve Radio-Television Interference Problems. This

booklet is available from the Superintendent of Documents, U.S. Government Printing Office, Washington, DC 20402. Refer to publication number

004-000-00345-4.

ﬁFn‘EiﬁZUEEﬁWiﬁﬁ‘fﬁﬁﬁll/ﬁ (EPU?) o ‘rﬁ‘lﬁﬁiE‘E—Eiﬁ" mamas“ TiE’sTiFEI “%¥Fn‘hﬁﬁ§§ﬂﬁﬂi§3’km§ Toxic or Hazardous Subaances or EIememEiEﬂﬂﬁﬁiﬁ Hexavalent Pulybruminated Pulybruminated Lead Mercury Cadmium Chromium Diphenvl Diphemll Ether Name of Fans 59 i ii fiﬁTéﬁ $i§ﬁ$ giiiﬁﬁ ﬂﬁ'gﬁ: (Pb) (Hg) (Cd) (Cr5+) (PBB) ( PBDE) PCBA X 0 0 0 0 0 HDA X 0 O 0 O O

Seagate Mobile HDD Product Manual, Rev. C 18

Drive Specifications

2.13 Environmental Protection

Seagate designs its products to meet environmental protection requirements worldwide, including regulations restricting certain chemical

substances.

2.13.1 European Union Restriction of Hazardous Substances (RoHS) Directive

The European Union Restriction of Hazardous Substances (RoHS) Directive, restricts the presence of chemical substances, including Lead, Cadmium,

Mercury, Hexavalent Chromium, PBB and PBDE, in electronic products, effective July 2006. This drive is manufactured with components and

materials that comply with the RoHS Directive.

2.13.2 China Restriction of Hazardous Substances (RoHS) Directive

This product has an Environmental Protection Use Period (EPUP) of 20 years. The following table contains information mandated by

China's "Marking Requirements for Control of Pollution Caused by Electronic Information Products" Standard.

"O" indicates the hazardous and toxic substance content of the part (at the homogeneous material level) is lower than the threshold defined by the

China RoHS MCV Standard.

"X" indicates the hazardous and toxic substance content of the part (at the homogeneous material level) is over the threshold defined by the China

RoHS MCV Standard.

2.14 Corrosive Environment

Seagate electronic drive components pass accelerated corrosion testing equivalent to 10 years exposure to light industrial environments

containing sulfurous gases, chlorine and nitric oxide, classes G and H per ASTM B845. However, this accelerated testing cannot duplicate every

potential application environment.

Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive

component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate products are

especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic

components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient

relative humidity greater than 95%. Materials used in cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should

be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free

alternatives.

中国限制危险物品的指令

“O”表示该部件（于同类物品程度上）所含的危险和有毒物质低于中国RoHS MCV标准所定义的门槛值。

“X”表示该部件（于同类物品程度上）所含的危险和有毒物质超出中国RoHS MCV标准所定义的门槛值。

Seagate Mobile HDD Product Manual, Rev. C 19

3.0 Configuring and Mounting the Drive

This section contains the specifications and instructions for configuring and mounting the drive.

3.1 Handling and Static-Discharge Precautions

After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe the

following standard handling and static-discharge precautions.

3.2 Configuring the Drive

Each drive on the Serial ATA interface connects in a point-to-point configuration with the Serial ATA host adapter. There is no master/slave

relationship because each drive is considered a master in a point-to-point relationships. If two drives are attached on one Serial ATA host adapter,

the host operating system views the two devices as if they were both “masters” on two separate ports. Both drives behave as if they are Device 0

(master) devices.

3.2.1 Serial ATA Cables and Connectors

The Serial ATA interface cable consists of four conductors in two differential pairs, plus three ground connections. The cable size may be 30 to 26

AWG with a maximum length of one meter (39.37 in). Refer to Table 9 for connector pin definitions. Either end of the SATA signal cable can be

attached to the drive or host.

For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive and the host receptacle incorporate

features that enable the direct connection to be hot pluggable and blind mateable. For installations which require cables, users can connect the

drive as shown in Figure 3.

Figure 3 Attaching SATA Cabling

Each cable is keyed to ensure correct orientation. Mobile HDD drives support latching SATA connectors.

CAUTION

• Keep the drive in the electrostatic discharge (ESD) bag until ready for installation to limit the

drive’s exposure to ESD.

• Before handling the drive, put on a grounded wrist strap, or ground yourself frequently by

touching the metal chassis of a computer that is plugged into a grounded outlet. Wear a

grounded wrist strap throughout the entire installation procedure.

• Handle the drive by its edges or frame only.

• The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.

• Always rest the drive on a padded, antistatic surface until mounting it in the computer.

• Do not touch the connector pins or the printed circuit board.

• Do not remove the factory-installed labels from the drive or cover them with additional labels.

Removal voids the warranty. Some factory-installed labels contain information needed to

service the drive. Other labels are used to seal out dirt and contamination.

Power cable

Signal cable

Signal connector

Power connector

mu mt“ 2W a 250 69 35mm) qua : (22 #50», _L “99:1 270] 7 mg 270 ——— + maze» + (an sun) BASE (wane) u 2x M3X m 55H 2M3 m) MouNnNe HOLES BOTH stEs MW SMM FULLTHD Bow snags v «>3 505‘ o7sraxsu< (an="" mm)="" m="" can»="" base="" [my="">

Seagate Mobile HDD Product Manual, Rev. C 20

Configuring and Mounting the Drive

3.3 Drive Mounting

Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-mounting holes. Refer to

Figure 4 and Figure 5 for drive mounting dimensions. Follow these important mounting precautions when mounting the drive:

• Allow a minimum clearance of 0.030 in (0.76 mm) around the entire perimeter of the drive for cooling.

• Use only M3 x 0.5 mounting screws.

• Do not overtighten the mounting screws. Maximum torque: 4.0 in-lb (0.4519 N-m).

• Four (4) threads (0.080 in, 2.032 mm) minimum screw engagement recommended.

• Avoid excessive drive distortion when mounting. Refer to the following specifications for stiffness/deflection information:

Figure 4 Mounting Dimensions (for 1-disk models)

Top cover stiffness/deflection

Operating: no performance degradation, emitted

noise, mechanical damage, or hard errors

10 mm probe: 2.0kgf (typical)

Non-operating: no hard errors 10 mm probe: maximum 2.0kgf (instantaneous)

100.350

0.200

0.250

69.850±0.250

2.499±1.270

7.949±1.270

(16.520)

(22.450)

(90.600)

(14.000)

2X (3.000)

7.000 0.200

2X M3 X 0.5-6H

MOUNTING HOLES: BOTH SIDES

MIN 3MM FULL THD

3.505+.075-.3X90

(61.720)

(4.070)

(90.600)

(14.000)

4X M3 X 0.5-6H

MIN 2.5MM FULL THD

3.505+.075-.3X90

(13.430)

(3.099)

BASE

BOTH SIDES

BASE

.u 20 j WWW) mu 35702 69 850:0 T ;22 {so} 2 499:1270j+ «as 520” 7 949m 270 (90 600) BASE (‘4 DU“) a —J O , 2x M3 ,7 , MDUN H , Vi)

Seagate Mobile HDD Product Manual, Rev. C 21

Figure 5 Mounting Dimensions (for 2-disk models)

100.35

0.20

0.25

69.850

0.250

22.450

16.520

7.949

1.270

2.499 1.270

(90.600)

(14.000)

2X (3.000) BOTH SIDES

7.000

0.200

2X M3 X 0.5-6H

MOUNTING HOLES: BOTH SIDES

3.505 +.075 -.3 X90

BASE

(13.430)

(3.099)

h“D://csrc.nisL (Ll/granps/STM/(mVp/documentS/14071/1401Vend mm

Seagate Mobile HDD Product Manual, Rev. C 22

About FIPS

4.0 About FIPS

The Federal Information Processing Standard (FIPS) Publication 140-2, FIPS PUB 140-2, is a U.S. government computer security standard used to

accredit cryptographic modules. It is titled “Security Requirements for Cryptographic Modules”. The initial publication was on May 25, 2001 and was

last updated December 3, 2002.

Purpose.

The National Institute of Standards and Technology (NIST) issued the FIPS 140 Publication Series to coordinate the requirements and standards for

cryptography modules that include both hardware and software components.

Federal Information Processing Standard (FIPS) 140-2 Level 2 Certification requires drives to go through government agencies certifications to add

requirements for physical tamper-evidence and role-based authentication. For more information, refer to 'Security Rules' section in the 'Security

Policy' document uploaded on the NIST website. To reference the product certification visit:

http://csrc.nist.gov/groups/STM/cmvp/documents/140-1/1401vend.htm, and search for “Seagate”.

Security Level 2.

Security Level 2 enhances the physical security mechanisms of a Security Level 1 cryptographic module by adding the requirement for tamper-

evidence, which includes the use of tamper-evident coatings or seals on removable covers of the module. Tamper-evident coatings or seals are

placed on a cryptographic module so that the coating or seal must be broken to attain physical access to the critical security parameters (CSP)

within the module. Tamper-evident seals (example shown in Figure 6 on page 22) are placed on covers to protect against unauthorized physical

access. In addition Security Level 2 requires, at a minimum, role-based authentication in which a cryptographic module authenticates the

authorization of an operator to assume a specific role and perform a corresponding set of services.

Figure 6 Example of FIPS tamper evidence labels.

Note For reference only. May not represent actual drive.

www lrus‘edcompu‘in group or

Seagate Mobile HDD Product Manual, Rev. C 23

About (SED) Self-Encrypting Drives

5.0 About (SED) Self-Encrypting Drives

Self-encrypting drives (SEDs) offer encryption and security services for the protection of stored data, commonly known as "protection of data at

rest." These drives are compliant with the Trusted Computing Group (TCG) Opal Storage Specifications as detailed in the following:

Trusted Computing Group (TCG) Documents (apply to Self-Encrypting Drive models only)

TCG Storage Architecture Core Specification, Version 2.0

TCG Storage Security Subsystem Class Opal Specification, Version 2.0

(see www.trustedcomputinggroup.org)

In case of conflict between this document and any referenced document, this document takes precedence.

The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital

communications industry. Seagate's SED models comply with the standards published by the TCG.

To use the security features in the drive, the host must be capable of constructing and issuing the following two SATA commands:

•Trusted Send

•Trusted Receive

These commands are used to convey the TCG protocol to and from the drive in their command payloads.

5.1 Data Encryption

Encrypting drives use one inline encryption engine for each drive employing AES-256 data encryption in Cipher Block Chaining (CBC) mode to

encrypt all data prior to being written on the media and to decrypt all data as it is read from the media. The encryption engine is always in operation

and cannot be disabled.

The 32-byte Data Encryption Key (DEK) is a random number which is generated by the drive, never leaves the drive, and is inaccessible to the host

system. The DEK is itself encrypted when it is stored on the media and when it is in volatile temporary storage (DRAM) external to the encryption

engine. A unique data encryption key is used for each of the drive's possible16 data bands (see Section 5.5, Data Bands).

5.2 Controlled Access

The drive has two security providers (SPs) called the "Admin SP" and the "Locking SP." These act as gatekeepers to the drive security services.

Security-related commands will not be accepted unless they also supply the correct credentials to prove the requester is authorized to perform the

command.

5.2.1 Admin SP

The Admin SP allows the drive's owner to enable or disable firmware download operations (see Section 5.4, Drive Locking). Access to the Admin

SP is available using the SID (Secure ID) password or the MSID (Manufacturers Secure ID) password.

5.2.2 Locking SP

The Locking SP controls read/write access to the media and the cryptographic erase feature. Access to the Locking SP is available using the Admin

or User passwords.

5.2.3 Default password

When the drive is shipped from the factory, all passwords are set to the value of MSID. This 32-byte random value can only be read by the host

electronically over the interface. After receipt of the drive, it is the responsibility of the owner to use the default MSID password as the authority to

change all other passwords to unique owner-specified values.

5.2.4 ATA Enhanced Security

The drive can utilize the system's BIOS through the ATA Security API for cases that do not require password management and additional security

policies.

Furthermore, the drive's ATA Security Erase Unit command shall support both Normal and Enhanced Erase modes with the following modifications/

additions:

Normal Erase: Normal erase feature shall be performed by changing the Data Encryption Key (DEK) of the drive, followed by an overwrite

operation that repeatedly writes a single sector containing random data to the entire drive. This write operation bypasses the media encryption. On

reading back the overwritten sectors, the host will receive a decrypted version, using the new DEK of the random data sector (the returned data will

not match what was written).

Enhanced Erase: Enhanced erase shall be performed by changing the Data Encryption Key of the drive.

Seagate Mobile HDD Product Manual, Rev. C 24

About (SED) Self-Encrypting Drives

5.3 Random Number Generator (RNG)

The drive has a 32-byte hardware RNG that it is uses to derive encryption keys or, if requested to do so, to provide random numbers to the host for

system use, including using these numbers as Authentication Keys (passwords) for the drive's Admin and Locking SPs.

5.4 Drive Locking

In addition to changing the passwords, as described in Section 5.2.3, Default password, the owner should also set the data access controls for the

individual bands.

The variable "LockOnReset" should be set to "PowerCycle" to ensure that the data bands will be locked if power is lost. In addition

"ReadLockEnabled" and "WriteLockEnabled" must be set to true in the locking table in order for the bands "LockOnReset" setting of "PowerCycle" to

actually lock access to the band when a "PowerCycle" event occurs. This scenario occurs if the drive is removed from its cabinet. The drive will not

honor any data read or write requests until the bands have been unlocked. This prevents the user data from being accessed without the appropriate

credentials when the drive has been removed from its cabinet and installed in another system.

5.5 Data Bands

When shipped from the factory, the drive is configured with a single data band called Band 0 (also known as the Global Data Band) which comprises

LBA 0 through LBA max. The host may allocate additional bands (Band1 to Band15) by specifying a start LBA and an LBA range. The real estate for

this band is taken from the Global Band.

Data bands cannot overlap but they can be sequential with one band ending at LBA (x) and the next beginning at LBA (x+1).

Each data band has its own drive-generated encryption key. The host may change the Encryption Key (see Section 5.6, Cryptographic Erase) or

the password when required. The bands should be aligned to 4K LBA boundaries.

5.6 Cryptographic Erase

A significant feature of SEDs is the ability to perform a cryptographic erase. This involves the host telling the drive to change the data encryption key

for a particular band. Once changed, the data is no longer recoverable since it was written with one key and will be read using a different key. Since

the drive overwrites the old key with the new one, and keeps no history of key changes, the user data can never be recovered. This is tantamount to

an instantaneous data erase and is very useful if the drive is to be scrapped or redispositioned.

5.7 Authenticated Firmware Download

In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which

have been cryptographically signed by the appropriate Seagate Design Center.

Three conditions must be met before the drive will allow the download operation:

1. The download must be an SED file. A standard (base) drive (non-SED) file will be rejected.

2. The download file must be signed and authenticated.

3. As with a non-SED drive, the download file must pass the acceptance criteria for the drive. For example it must be applicable to the correct drive

model, and have compatible revision and customer status.

5.8 Power Requirements

The standard drive models and the SED drive models have identical hardware, however the security and encryption portion of the drive controller

ASIC is enabled and functional in the SED models. This represents a small additional drain on the 5V supply of about

30mA and a commensurate increase of about 150mW in power consumption. There is no additional drain on the 12V supply. See the tables in

Section 2.7, Power Specifications for power requirements on the standard (non-SED) drive models.

5.9 Supported Commands

The SED models support the following two commands in addition to the commands supported by the standard (non-SED) models as listed

in Table 10:

•Trusted Send

•Trusted Receive

5.10 RevertSP

SED models will support the RevertSP feature which erases all data in all bands on the device and returns the contents of all SPs (Security Providers)

on the device to their original factory state. In order to execute the RevertSP method the unique PSID (Physical Secure ID) printed on the drive label

must be provided. PSID is not electronically accessible and can only be manually read from the drive label or scanned in via the 2D barcode.

www.5erwa‘ata or

Seagate Mobile HDD Product Manual, Rev. C 25

Serial ATA (SATA) Interface

6.0 Serial ATA (SATA) Interface

These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA programmed input/output (PIO) modes

0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6. The drive also supports the use of the IORDY signal to provide reliable high-speed data

transfers.

For detailed information about the Serial ATA interface, refer to the Serial ATA: High Speed Serialized AT Attachment specification.

6.1 Hot-Plug Compatibility

Mobile HDD drives incorporate connectors which enable users to hot plug these drives in accordance with the Serial ATA: High Speed Serialized AT

Attachment specification revision 2.0. This specification can be downloaded from www.serialata.org. This device requires a COMRESET from the

host after a hotplug event.

6.2 Serial ATA Device Plug Connector Pin Definitions

Table 9 summarizes the signals on the Serial ATA interface and power connectors. Refer to the Notes below.

Notes

1All pins are in a single row, with a 1.27 mm (0.050 in) pitch.

2The comments on the mating sequence apply to the case of backplane blindmate connector only. In this case, the mating sequences are:

• the ground pins P4 and P12.

• the pre-charge power pins and the other ground pins.

• the signal pins and the rest of the power pins.

3There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane

configuration.

4All used voltage pins (Vx) must be terminated.

Table 9 Serial ATA Connector Pin Definitions

Segment Pin Function Definition

Signal

S1 Ground 2nd mate

S2 A+ Differential signal pair A from Phy

S3 A-

S4 Ground 2nd mate

S5 B- Differential signal pair B from Phy

S6 B+

S7 Ground 2nd mate

Key and spacing separate signal and power segments

Power

P1 V33 3.3V power

P2 V33 3.3V power

P3 V33 3.3V power, pre-charge, 2nd mate

P4 Ground 1st mate

P5 Ground 2nd mate

P6 Ground 2nd mate

P7 V5 5V power, pre-charge, 2nd mate

P8 V5 5V power

P9 V5 5V power

P10 Ground 2nd mate

P11 Ground or LED signal If grounded, drive does not use deferred spin

P12 Ground 1st mate

P13 V12 12V power, pre-charge, 2nd mate

P14 V12 12V power

P15 V12 12V power

www gate 0 or

Seagate Mobile HDD Product Manual, Rev. C 26

Serial ATA (SATA) Interface

6.3 Supported ATA Commands

Table 10 lists Serial ATA standard commands that the drive supports. For a detailed description of the ATA commands, refer to the Serial ATA

International Organization: Serial ATA (Revision 2.6). Refer to www.sata-io.org.

Refer to S.M.A.R.T. commands on page 33 for details and subcommands used in the S.M.A.R.T. implementation.

Table 10 Supported ATA commands

ATA-standard commands names Command code (in hex)

Device Configuration Restore B1h/C0h

Device Configuration Freeze Lock B1h/C1h

Device Configuration Identify B1h/C2h

Device Configuration Set B1h/C3h

Download Microcode 92h

Execute Device Diagnostics 90h

Flush Cache E7h

Flush Cache Extended EAh

Identify Device ECh

Initialize Device Parameters 91h

Read Buffer E4h

Read DMA C8h

Read DMA Extended 25h

Read DMA without Retries C9h

Read Long with Retries 22h

Read Long without Retries 23h

Read Multiple C4h

Read Multiple Extended 29h

Read Native Max Address F8h

Read Native Max Address Extended 27h

Read Sectors 20h

Read Sectors Extended 24h

Read Sectors without Retries 21h

Read Verify Sectors 40h

Read Verify Sectors Extended 42h

Read Verify Sectors without Retries 41h

Seek 70h

Set Features EFh

Set Max Address F9h

Note: Individual Set Max commands are identified

by the value placed in the Set Max Features

Address:

Password:

Lock:

Unlock:

Freeze Lock:

00H

01H

02H

03H

04H

Set Max Address Ext 37h

Set Multiple Mode C6h

S.M.A.R.T. Disable Operations B0h/D9h

S.M.A.R.T. Enable/Disable Autosave B0h/D2h

S.M.A.R.T. Enable Operations B0h/D8h

Seagate Mobile HDD Product Manual, Rev. C 27

Serial ATA (SATA) Interface

S.M.A.R.T. Enable/Disable Auto Offline B0h/DBh

S.M.A.R.T. Enable One Attribute Modification B0h/E0h

S.M.A.R.T. Execute Offline B0h/D4h

S.M.A.R.T. Free Fall Protection Host Interface FEh

S.M.A.R.T. Read Attribute Thresholds B0h/D1h

S.M.A.R.T. Read Data B0h/D0h

S.M.A.R.T. Read Log Sector B0h/D5h

S.M.A.R.T. Return Status B0h/DAh

S.M.A.R.T. Save Attribute Values B0h/D3h

S.M.A.R.T. Write Attribute Thresholds B0h/D7h

S.M.A.R.T. Write Attribute Values B0h/E1h

S.M.A.R.T. Write Log Sector B0h/D6h

Trusted Receive 5Ch (SED only)

Trusted Receive DMA 5Dh (SED only)

Trusted Send 5Eh (SED only)

Trusted Send DMA 5Fh (SED only)

Write Buffer E8h

Write DMA CAh

Write DMA Extended 35h

Write DMA without Retries CBh

Write Long with Retries 32h

Write Long without Retries 33h

Write Multiple C5h

Write Multiple Extended 39h

Write Sectors 30h, 31h

Write Sectors Extended 34h

ATA-standard power-management commands

Check Power Mode E5h

Idle E3h

Idle Immediate E1h

Sleep E6h

Standby E2h

Standby Immediate E0h

ATA-standard security commands

Security Set Password F1h

Security Unlock F2h

Security Erase Prepare F3h

Security Erase Unit F4h

Security Freeze Lock F5h

Security Disable Password F6h

Table 10 Supported ATA commands

ATA-standard commands names Command code (in hex)

Seagate Mobile HDD Product Manual, Rev. C 28

Serial ATA (SATA) Interface

6.3.1 Identify Device command

The Identify Device command (command code ECH) transfers information about the drive to the host following power up. The data is organized as

a single 512-byte block of data, whose contents are shown in Table 11. All reserved bits or words should be set to zero. Parameters listed with an “x”

are drive-specific or vary with the state of the drive. Refer to Drive Specifications on page 7 for default parameter settings.

The following commands contain drive-specific features that may not be included in the Serial ATA specification.

Table 11 Identify Device command

Word Description Value

Configuration information:

• Bit 15: 0 = ATA; 1 = ATAPI

• Bit 7: removable media

• Bit 6: removable controller

• Bit 0: reserved

0C5AH

1 Number of logical cylinders 16,383

2 Specific configuration C837H

3 Number of logical heads 16

4 Retired 0000H

5 Retired 0000H

6 Number of logical sectors per logical track: 63 003FH

7–9 Retired 0000H

10–19 Serial number: (20 ASCII characters, 0000H = none) ASCII

20 Retired 0000H

21 Retired 8000H

22 Obsolete 0004H

23–26 Firmware revision: (8 ASCII character string, padded with blanks to end of string) x.xx

27–46 Drive model number:

(40 ASCII characters, padded with blanks to end of string)

ST1000LM035

ST1000LM037

ST1000LM038

ST2000LM007

ST2000LM009

ST2000LM010

47 (Bits 7–0) Maximum sectors per interrupt on Read multiple and Write multiple (16) 8010H

48 Trusted Computing Feature set options 4001H

49 Standard Standby timer, IORDY supported and may be disabled 2F00H

50 Capabilities 4000H

51 PIO data-transfer cycle timing mode 0200H

52 Retired 0200H

53 Words 54–58, 64–70 and 88 are valid 0007H

54 Number of current logical cylinders xxxxH

55 Number of current logical heads xxxxH

56 Number of current logical sectors per logical track xxxxH

57–58 Current capacity in sectors xxxxH

59 Number of sectors transferred during a Read Multiple or Write Multiple command xxxxH

60–61 Total number of user-addressable sectors

This field contains a value that is one greater than the total number of

user-addressable sectors. The maximum value that shall be placed in this field is

0FFFFFFFh. The 0FFFFFFFh value applies to all capacities over 137GB

(see Section 2.1, Formatted Capacity for related information).

ST1000LM035 = 0FFFFFFFh

ST1000LM037 = 0FFFFFFFh

ST1000LM038 = 0FFFFFFFh

ST2000LM007 = 0FFFFFFFh

ST2000LM009 = 0FFFFFFFh

ST2000LM010 = 0FFFFFFFh

Seagate Mobile HDD Product Manual, Rev. C 29

Serial ATA (SATA) Interface

62 Retired 0000H

63 Multiword DMA active and modes supported (see note following this table) xx07H

64 Advanced PIO modes supported (modes 3 and 4 supported) 0003H

65 Minimum multiword DMA transfer cycle time per word (120 ns) 0078H

66 Recommended multiword DMA transfer cycle time per word (120 ns) 0078H

67 Minimum PIO cycle time without IORDY flow control (240 ns) 0078H

68 Minimum PIO cycle time with IORDY flow control (120 ns) 0078H

69 Additional Supported bits

Bit 4 means Device Encrypts All User Data on the device.

Bit 7 means IEEE1667 protocol is supported.

xx1xH

xx9xH

70–74 ATA-reserved 0000H

75 Queue depth 001FH

76 Serial ATA capabilities 0D06H

77 ATA-reserved 0000H

78 Serial ATA features supported 0048H

79 Serial ATA features enabled 0048H

80 Major version number 01F0H

81 Minor version number 0029H

82 Command sets supported 746BH

83 Command sets supported 7D69H

84 Command sets support extension 61E3H

85 Command sets enabled 7469

86 Command sets enabled BC49H

87 Command sets enable extension 61E3H

88 Ultra DMA support and current mode (see note following this table) xx7FH

89 Security erase time xxxxH

90 Enhanced security erase time xxxxH

91 Current APM values 8080H

92 Master password revision code FFFEH

93 Hardware reset value (see description following this table) xxxxH

94 Auto acoustic management setting xxxxH

95 Stream Min. Request Size 0000H

96 Streaming Transfer Time - DMA 0000H

97 Streaming Access Latency - DMA and PIO 0000H

98-99 Streaming Performance Granularity 0000H

100–103 Total number of user-addressable LBA sectors available

(see Section 3.2, Configuring the Drive for related information)

These words are required for drives that support the 48-bit addressing

feature. Maximum value: 0000FFFFFFFFFFFFh.

ST1000LM035 = 1,953,525,168

ST1000LM037 = 1,953,525,168

ST1000LM038 = 1,953,525,168

ST2000LM007 = 3,907,029,168

ST2000LM009 = 3,907,029,168

ST2000LM010 = 3,907,029,168

Table 11 Identify Device command

Word Description Value

Seagate Mobile HDD Product Manual, Rev. C 30

Serial ATA (SATA) Interface

104 Streaming Transfer Time - PIO 0000H

105 Reserved 0000H

106 Physical sector size / Logical sector size 6003H

107 Seagate reserved 0000H

108-111 The mandatory value of the world wide name (WWN) for the drive.

NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support.

Each drive will have a unique value.

112-118 ATA-reserved 0000H

119 Free Fall Protection support (bit 5) 1 = Free Fall Protection supported

0 = Free Fall Protection not supported

120 Free Fall Protection enable/disable (bit 5) 1 = Free Fall Protection feature is enabled

0 = Free Fall Protection feature is disabled

121–127 ATA-reserved 0000H

128 Security status 0021H

129–159 Seagate-reserved xxxxH

160–221 ATA-reserved 0000H

222 Transport major version number 101FH

223–254 ATA-reserved 0000H

255 Integrity word xxA5H

Note See the bit descriptions below for words 63, 88 and 93 of the Identify Drive data. (on next page)

Table 11 Identify Device command

Word Description Value

Seagate Mobile HDD Product Manual, Rev. C 31

Serial ATA (SATA) Interface

Table 12 Bit Descriptions

Description (if bit is set to 1)

Bit Word 63

0 Multiword DMA mode 0 is supported.

1 Multiword DMA mode 1 is supported.

2 Multiword DMA mode 2 is supported.

8 Multiword DMA mode 0 is currently active.

9 Multiword DMA mode 1 is currently active.

10 Multiword DMA mode 2 is currently active.

Bit Word 88

0 Ultra DMA mode 0 is supported.

1 Ultra DMA mode 1 is supported.

2 Ultra DMA mode 2 is supported.

3 Ultra DMA mode 3 is supported.

4 Ultra DMA mode 4 is supported.

5 Ultra DMA mode 5 is supported.

6 Ultra DMA mode 6 is supported.

8 Ultra DMA mode 0 is currently active.

9 Ultra DMA mode 1 is currently active.

10 Ultra DMA mode 2 is currently active.

11 Ultra DMA mode 3 is currently active.

12 Ultra DMA mode 4 is currently active.

13 Ultra DMA mode 5 is currently active.

14 Ultra DMA mode 6 is currently active.

Bit Word 93

13 1 = 80-conductor cable detected, CBLID above VIH

0 = 40-conductor cable detected, CBLID below VIL

Seagate Mobile HDD Product Manual, Rev. C 32

Serial ATA (SATA) Interface

6.3.2 Set Features command

This command controls the implementation of various features that the drive supports. When the drive receives this command, it sets BSY, checks

the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not represent a feature that the drive

supports, the command is aborted. Power-on default has the read look-ahead and write caching features enabled.

The acceptable values for the Features register are defined as follows:

Table 13 Set Features command values

02HEnable write cache (default).

03HSet transfer mode (based on value in Sector Count register).

Sector Count register values:

00HSet PIO mode to default (PIO mode 2).

01HSet PIO mode to default and disable IORDY (PIO mode 2).

08HPIO mode 0

09HPIO mode 1

0AHPIO mode 2

0BHPIO mode 3

0CHPIO mode 4 (default)

20HMultiword DMA mode 0

21HMultiword DMA mode 1

22HMultiword DMA mode 2

40HUltra DMA mode 0

41HUltra DMA mode 1

42HUltra DMA mode 2

43HUltra DMA mode 3

44HUltra DMA mode 4

45HUltra DMA mode 5

46HUltra DMA mode 6

55HDisable read look-ahead (read cache) feature.

82HDisable write cache

AAHEnable read look-ahead (read cache) feature (default).

C1HDisable the Free Fall Protection feature (41H above enables the Free Fall Protection feature)

F1HReport full capacity available

Note At power-on, or after a hardware or software reset, the default values of the features are as indicated above

h“p://www.seagate.com/supgon/downloads/Seatoo‘5/

Seagate Mobile HDD Product Manual, Rev. C 33

Serial ATA (SATA) Interface

6.3.3 S.M.A.R.T. commands

S.M.A.R.T. provides near-term failure prediction for disk drives. When S.M.A.R.T. is enabled, the drive monitors predetermined drive attributes that

are susceptible to degradation over time. If self-monitoring determines that a failure is likely, S.M.A.R.T. makes a status report available to the host.

Not all failures are predictable. S.M.A.R.T. predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T.

commands and implementation, see the Draft ATA-5 Standard.

SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4H) that eliminates unnecessary drive returns. The

diagnostic software ships with all new drives and is also available at:

http://www.seagate.com/support/downloads/seatools/.

This drive is shipped with S.M.A.R.T. features disabled. Users must have a recent BIOS or software package that supports S.M.A.R.T. to enable this

feature. The table below shows the S.M.A.R.T. command codes that the drive uses.

Table 14 S.M.A.R.T. Commands

Code in features register S.M.A.R.T. command

D0HS.M.A.R.T. Read Data

D2HS.M.A.R.T. Enable/Disable Attribute Autosave

D3HS.M.A.R.T. Save Attribute Values

D4HS.M.A.R.T. Execute Off-line Immediate (runs DST)

D5HS.M.A.R.T. Read Log Sector

D6HS.M.A.R.T. Write Log Sector

D8HS.M.A.R.T. Enable Operations

D9HS.M.A.R.T. Disable Operations

DAHS.M.A.R.T. Return Status

Note If an appropriate code is not written to the Features Register, the

command is aborted and 0x 04 (abort) is written to the Error register.

@SEAGATE

Seagate Technology LLC

AMERICAS Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000

ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888

EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00

Publication Number: 100775165, Rev. C

May 2016

Products related to this Datasheet

HDD 2TB SATA III 5V

96ND2TB-ST-SG5KG1
