ADN8835 Datasheet by Analog Devices Inc.

ANALOG DEVICES ADN8835 uuuuuuuuuuuuuuuuuuuuu

Ultracompact, 3

Thermoelectric Cooler (TEC) Controller

Data Sheet

ADN8835

Rev. B Document Feedback

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Technical Support www.analog.com

FEATURES

High efficiency single inductor architecture

Integrated low RDSON MOSFETs for the TEC controller

TEC voltage and current operation monitoring

No external sense resistor required

Independent TEC heating and cooling current-limit settings

Programmable maximum TEC voltage

2.0 MHz (typical) PWM driver switching frequency

External synchronization

Two integrated, zero-drift, rail-to-rail chopper amplifiers

Compatible with NTC or RTD thermal sensors

2.50 V reference output with 1% accuracy

Temperature lock indicator

Available in a 36-lead, 6 mm × 6 mm LFCSP

APPLICATIONS

TEC temperature control

Optical modules

Optical fiber amplifiers

Optical networking systems

Instruments requiring TEC temperature control

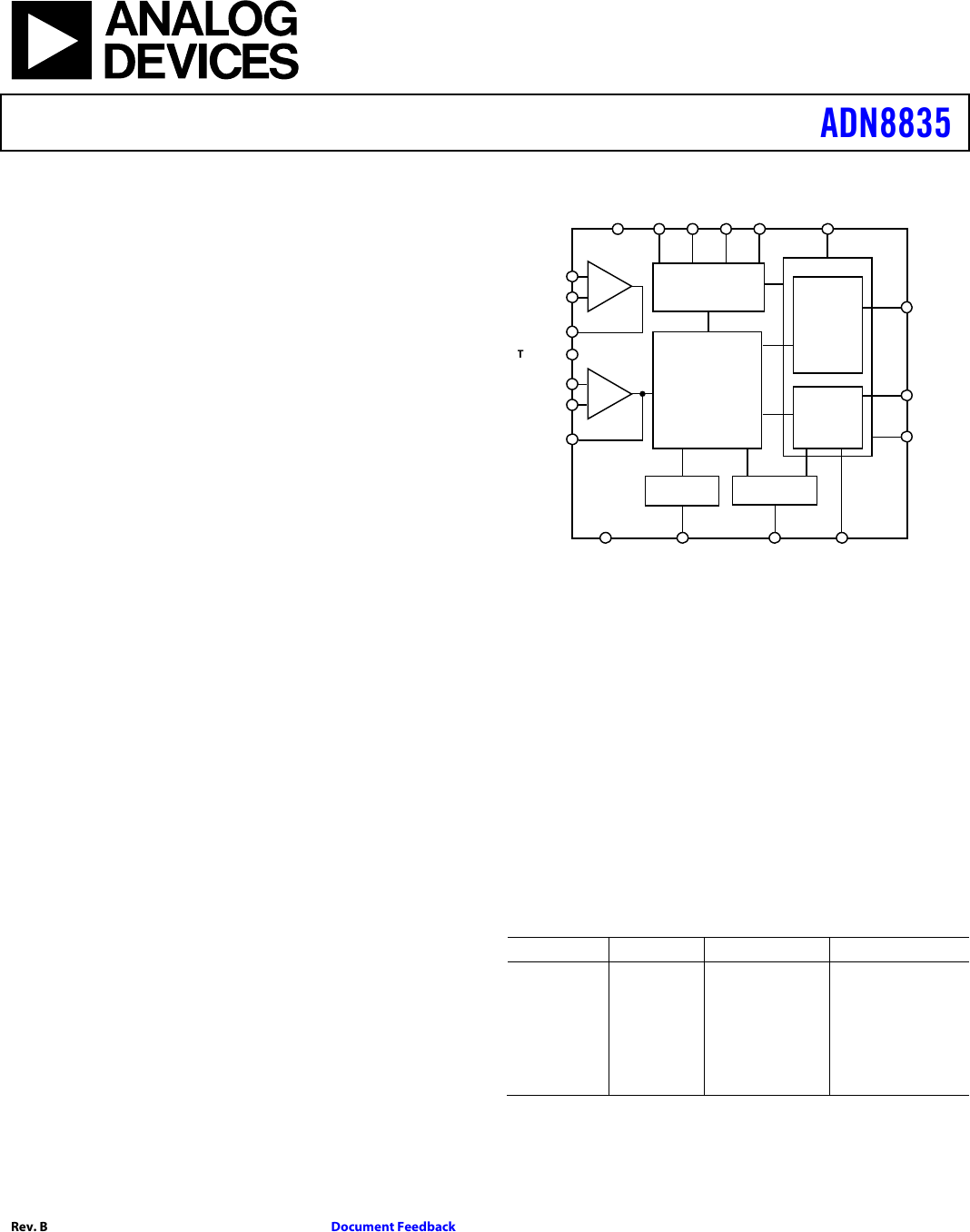

FUNCTIONAL BLOCK DIAGRAM

Figure 1.

GENERAL DESCRIPTION

The ADN88351 is a monolithic TEC controller with an integrated

TEC controller. It has a linear power stage, a pulse-width

modulation (PWM) power stage, and two zero-drift, rail-to-rail

chopper amplifiers. The linear controller works with the PWM

driver to control the internal power MOSFETs in an H bridge

configuration. By measuring the thermal sensor feedback

voltage and using the integrated operational amplifiers as a

proportional integral differential (PID) compensator to condition

the signal, the ADN8835 drives current through a TEC to settle

the temperature of a laser diode or a passive component attached

to the TEC module to the programmed target temperature.

The ADN8835 supports negative temperature coefficient

(NTC) thermistors as well as positive temperature coefficient

(PTC) resistive temperature detectors (RTDs). The target

temperature is set as an analog voltage input either from a

digital-to-analog converter (DAC) or from an external resistor

divider.

The temperature control loop of the ADN8835 is stabilized by

PID compensation utilizing the built in, zero-drift chopper

amplifiers. The internal 2.50 V reference voltage provides a 1%

accurate output that biases a thermistor temperature sensing

bridge as well as a voltage divider network to program the

maximum TEC current and voltage limits for both the heating and

cooling modes. With the zero-drift chopper amplifiers, excellent

long-term temperature stability is maintained via an autonomous

analog temperature control loop.

Table 1. TEC Family Models

Device No. MOSFET Thermal Loop Package

ADN8831 Discrete Digital/analog LFCSP (CP-32-7)

ADN8833

Integrated

Digital

WLCSP (CB-25-7),

LFCSP (CP-24-15)

ADN8834 Integrated Digital/analog WLCSP (CB-25-7),

LFCSP (CP-24-15)

ADN8835 Integrated Digital/analog LFCSP (CP-36-5)

1 Product is covered by U.S. Patent No. 6,486,643.

TEC CURRENT

AND VOLTAGE

SENSE AND LIMIT

CONTROLLER

LINEAR

POWER

STAGE

TEC DRIVER

PWM

POWER

STAGE

OSCILLATOR

VOLTAGE

REFERENCE

OUT1

TMPGND

VLIM/

SD VTECILIM PVINxITEC

EN/SYVREF

LDR

ADN8835

SFB

IN2P

IN2N

IN1P

IN1N

OUT2

PGNDx

VDD

AGND

ERROR

AMP

COMP

AMP

14174-001

ADN8835 Data Sheet

Rev. B | Page 2 of 27

TABLE OF CONTENTS

Features .............................................................................................. 1

Applications ....................................................................................... 1

Functional Block Diagram .............................................................. 1

General Description ......................................................................... 1

Revision History ............................................................................... 2

Detailed Functional Block Diagram .............................................. 3

Specifications ..................................................................................... 4

Absolute Maximum Ratings ............................................................ 7

Thermal Resistance ...................................................................... 7

Maximum Power Dissipation ..................................................... 7

ESD Caution .................................................................................. 7

Pin Configuration and Function Descriptions ............................. 8

Typical Performance Characteristics ............................................. 9

Theory of Operation ...................................................................... 13

Analog PID Control ................................................................... 14

Digital PID Control .................................................................... 14

Powering the Controller ............................................................ 14

Enable and Shutdown ................................................................ 15

Oscillator Clock Frequency ....................................................... 15

Temperature Lock Indicator ..................................................... 15

Soft Start on Power-Up .............................................................. 15

TEC Voltage/Current Monitor ................................................. 16

Maximum TEC Voltage Limit .................................................. 16

Maximum TEC Current Limit ................................................. 16

Applications Information .............................................................. 18

Signal Flow .................................................................................. 18

Thermistor Setup ........................................................................ 18

Thermistor Amplifier (Chopper 1) .......................................... 19

PID Compensation Amplifier (Chopper 2) ............................ 19

MOSFET Driver Amplifiers ...................................................... 20

PWM Output Filter Requirements .......................................... 20

Input Capacitor Selection .......................................................... 21

Power Dissipation....................................................................... 21

Thermal Consideration ............................................................. 22

PCB Layout Guidelines .................................................................. 23

Block Diagrams and Signal Flow ............................................. 23

Guidelines for Reducing Noise and Minimizing Power Loss23

Example PCB Layout Using Two Layers ................................. 24

Outline Dimensions ....................................................................... 27

Ordering Guide .......................................................................... 27

REVISION HISTORY

9/2018—Rev. A to Rev. B

Added Patent Information ................................................................. 1

Changes to Specifications, Table 2, Voltage Measurement

Accuracy Parameter ......................................................................... 6

5/2017—Rev. 0 to Rev. A

Changes to PID Compensation Amplifier (Chopper 2) Section... 18

Changes to Ordering Guide .......................................................... 26

12/2016—Revision 0: Initial Version

Data Sheet ADN8835

Rev. B | Page 3 of 27

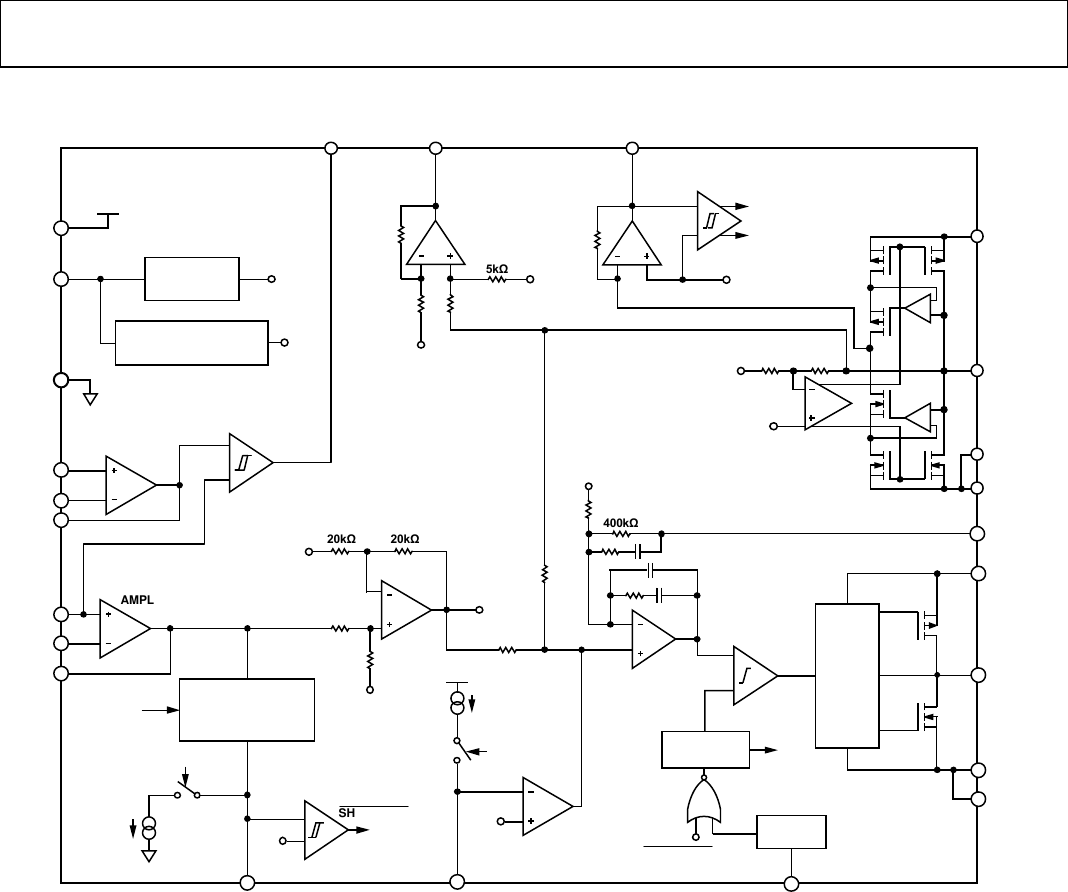

DETAILED FUNCTIONAL BLOCK DIAGRAM

Figure 2. Detailed Functional Block Diagram of the ADN8835

LINEAR

AMPLIFIER

20kΩ

ITEC

1.25V

1.25V1.25V

5kΩ

VTEC

20kΩ20kΩ

5kΩ

SFB

IN2P

IN2N

OUT2

IN1P

IN1N

OUT1

1.25V

VLIM/SD

= 2.5V AT VDD > 4.0V

= 1.5V AT VDD < 4.0V

BAND GAP

VOLTAGE

REFERENCE

VREF 2.5V

VDD

AGND

TEC VOLTAGE

LIMIT AND INTERNAL

SOFT START

COMPENSATION

AMPLIFIER

TEMPERATURE

ERROR

AMPLIFIER

VDD

ADN8835

VDD

40µA

10µA

HEATING

TEC CURRENT SENSE

LDR

TEC

VOLTAGE

SENSE

PGNDS

PVINS

PWM POWER

STAGE

PWM

MOSFET

DRIVER

EN/SY

SFB

20kΩ20kΩ

20kΩ

100kΩ

400kΩ

80kΩ

PWM

MODULATOR

PWM

ERROR

AMPLIFIER

ILIM

COOLING

ITEC

20kΩ

TEC

CURRENT

LIMIT

PGNDS

LDR

PGNDL

PVINL

PGNDL

HEATING

COOLING

CLK

SHUTDOWN

0.07V

OSCILLATOR CLK

SHUTDOWN

DEGLITCH

HIGH

≥ 2.1V

LOW

≤ 0.8V

2kΩ 80kΩ

TEC DRIVER

LINEAR POWER

STAGE

–

14174-002

TMPGD

ADN8835 Data Sheet

Rev. B | Page 4 of 27

SPECIFICATIONS

VIN = 2.7 V to 5.5 V, T J = −40°C to +125°C for minimum/maximum specifications, and TA = 25°C for typical specifications, unless

otherwise noted.

Table 2.

Parameter Symbol Test Conditions/Comments Min Typ Max Unit

POWER SUPPLY

Driver Supply Voltage VPVIN 2.7 5.5 V

Controller Supply Voltage VVDD 2.7 5.5 V

Supply Current IVDD PWM not switching 3.3 5 mA

Shutdown Current ISD EN/SY = AGND or VLIM/SD = AGND 350 700 µA

Undervoltage Lockout (UVLO) VUVLO VVDD rising 2.45 2.55 2.65 V

UVLO Hysteresis UVLOHYST 80 90 100 mV

REFERENCE VOLTAGE

VREF

= 0 mA to 10 mA

2.475

2.50

2.525

LINEAR OUTPUT

Output Voltage VLDR ILDR = 0 A

Low

High VPVIN V

Maximum Source Current ILDR_SOURCE 3.5 A

Maximum Sink Current ILDR_SINK 3.5 A

On Resistance ILDR = 1.5 A

P-MOSFET RDS_PL(ON) VPVIN = 5.0 V 50 70 mΩ

VPVIN = 3.3 V 55 85 mΩ

N-MOSFET RDS_NL(ON) VPVIN = 5.0 V 45 80 mΩ

VPVIN = 3.3 V 50 90 mΩ

Leakage Current

P-MOSFET ILDR_P_LKG 0.1 10 µA

N-MOSFET

LDR_N_LKG

0.1

µA

Linear Amplifier Gain ALDR 40 V/V

LDR Short-Circuit Threshold ILDR_SH_GNDL LDR short to PGNDL, enter hiccup 4 A

ILDR_SH_PVIN(L) LDR short to PVIN, enter hiccup −4 A

Hiccup Cycle tHICCUP 15 ms

PWM OUTPUT

Output Voltage VSFB ISFB = 0 A V

Low 0.06 × VPVIN V

High 0.93 × VPVIN V

Maximum Source Current ISW_SOURCE 3.5 A

Maximum Sink Current ISW_SINK 3.5 A

On Resistance ISW = 1.5 A

P-MOSFET RDS_PS(ON) VPVIN = 5.0 V 60 85 mΩ

VPVIN = 3.3 V 70 100 mΩ

N-MOSFET RDS_NS(ON) VPVIN = 5.0 V 45 85 mΩ

VPVIN = 3.3 V 55 95 mΩ

Leakage Current

P-MOSFET ISW_P_LKG 0.1 10 µA

N-MOSFET ISW_N_LKG 0.1 10 µA

SW Node Rise Time1 tSW_R CSW = 1 nF 1 ns

PWM Duty Cycle2 DSW 6 93 %

SFB Input Bias Current ISFB 1 2 µA

PWM OSCILLATOR

Internal Oscillator Frequency fOSC EN/SY high 1.85 2.0 2.15 MHz

Data Sheet ADN8835

Rev. B | Page 5 of 27

Parameter

Symbol

Test Conditions/Comments

Min

Typ

Max

Unit

EN/SY Input Voltage

Low VEN/SY_ILOW 0.8 V

High VEN/SY_IHIGH 2.1 V

External Synchronization Frequency fSYNC 1.85 3.25 MHz

Synchronization Pulse Duty Cycle DSYNC 10 90 %

EN/SY Rising to PWM Rising Delay tSYNC_PWM 50 ns

EN/SY to PWM Lock Time tSY_LOCK Number of sync cycles 11 Cycles

EN/SY Input Current IEN/SY 0.3 0.5 µA

Pull-Down Current 0.3 0.5 µA

ERROR/COMPENSATION AMPLIFIERS

Input Offset Voltage VOS1 VCM1 = 1.5 V, VOS1 = VIN1P − VIN1N 10 100 µV

VOS2 VCM2 = 1.5 V, VOS2 = VIN2P − VIN2N 10 100 µV

Input Voltage Range VCM1, VCM2 0 VVDD V

Common-Mode Rejection Ratio (CMRR) CMRR1, CMRR2 VCM1, VCM2 = 0.2 V to VVDD − 0.2 V 120 dB

Output Voltage

High VOH1, VOH2 VVDD −

0.04

Low

OL1

, V

OL2

Power Supply Rejection Ratio (PSRR) PSRR1, PSRR2 120 dB

Output Current IOUT1, IOUT2 Sourcing and sinking 5 mA

Gain Bandwidth Product1 GBW1, GBW2 VOUT1, VOUT2 = 0.5 V to VVDD − 1 V 2 MHz

TEC CURRENT LIMIT

ILIM Input Voltage Range

Cooling VILIMC 1.3 VVREF −

0.2

Heating VILIMH 0.2 1.2 V

Current-Limit Threshold

Cooling VILIMC_TH VITEC = 0.5 V 1.98 2.0 2.02 V

Heating VILIMH_TH VITEC = 2 V 0.48 0.5 0.52 V

ILIM Input Current

Heating IILIMH −0.2 +0.2 µA

Cooling

ILIMC

Sourcing current

37.5

42.5

µA

Cooling to Heating Current Detection

Threshold

ICOOL_HEAT_TH 40 mA

TEC VOLTAGE LIMIT

Voltage Limit Gain AVLIM (VDRL − VSFB)/VVLIM 2 V/V

VLIM/SD Input Voltage Range1VVLIMC, VVLIMH 0.2 VVDD/2 V

VLIM/SD Input Current

Cooling IILIMC VOUT2 < VVREF/2 −0.2 +0.2 µA

Heating

ILIMH

OUT2

> V

VREF

/2, sinking current

µA

TEC CURRENT MEASUREMENT

Current Sense Gain RCS 0.285 V/A

Current Measurement Accuracy

LDR_ERROR

1 A ≤ I

LDR

≤ 3 A

ITEC Voltage Accuracy VITEC_AT_1_A Cooling, VVREF/2 + ILDR × RCS 1.493 1.535 1.577 V

ITEC Voltage Output Range VITEC ITEC = 0 A 0 VVREF −

0.05

ITEC Bias Voltage VITEC_B ILDR = 0 A 1.210 1.250 1.285 V

Maximum ITEC Output Current IITEC −2 +2 mA

TEC VOLTAGE MEASUREMENT

Voltage Sense Gain AVTEC 0.24 0.25 0.26 V/V

ADN8835 Data Sheet

Rev. B | Page 6 of 27

Parameter

Symbol

Test Conditions/Comments

Min

Typ

Max

Unit

Voltage Measurement Accuracy VVTEC_AT_1_V VLDR − VSFB = 1 V, VVREF/2 + AVTEC ×

(VLDR − VSFB)

1.475 1.50 1.525 V

VTEC Output Voltage Range VVTEC 0.005 2.625 V

VTEC Bias Voltage VVTEC_B VLDR = VSFB 1.225 1.250 1.285 V

Maximum VTEC Output Current RVTEC −2 +2 mA

TEMPERATURE GOOD

TMPGD Output Voltage

No load

Low VTMPGD_LO 0.4 V

High VTMPGD_HO 2.0 V

TMPGD Output Impedance

Low RTMPGD_LOW 25 Ω

High RTMPGD_LOW 50 Ω

Threshold IN2N tied to OUT2, VIN2P = 1.5 V

High VOUT1_THH 1.54 1.56 V

Low VOUT1_THL 1.40 1.46 V

INTERNAL SOFT START

Soft Start Time tSS 150 ms

VLIM/SD SHUTDOWN

Low Voltage Threshold VVLIM/SD_THL 0.07 V

THERMAL SHUTDOWN

Threshold

SHDN_TH

170

°C

Hysteresis TSHDN_HYS 17 °C

1 This specification is guaranteed by design.

2 This specification is guaranteed by characterization.

Am ESD (electrostati: disdlavge) sensitive device‘ (havged devlzes and (mun boards can dwxchavge wlmom daemon Akhough (MS pvcdun (EEWIES palemed or pmpnexary pvoleman mcumy, damage may mm on dewces submded m high enevgy ESD Thevefove, proper {so pvetaunon: shoum be (aken m avmd pevfovmame degradation 0! ‘05: of {unctlonalwy

Data Sheet ADN8835

Rev. B | Page 7 of 27

ABSOLUTE MAXIMUM RATINGS

Table 3.

Parameter Rating

PVINL to PGNDL −0.3 V to +6 V

PVINS to PGNDS

−0.3 V to +6 V

LDR to PGNDL −0.3 V to VPVINL

SW to PGNDS −0.3 V to +6 V

SFB to AGND −0.3 V to VVDD

AGND to PGNDL −0.3 V to +0.3 V

AGND to PGNDS −0.3 V to +0.3 V

VLIM/SD to AGND −0.3 V to VVDD

ILIM to AGND −0.3 V to VVDD

VREF to AGND −0.3 V to +3 V

VDD to AGND −0.3 V to +6 V

IN1P to AGND −0.3 V to VVDD

IN1N to AGND

−0.3 V to V

VDD

OUT1 to AGND −0.3 V to +6 V

IN2P to AGND −0.3 V to VVDD

IN2N to AGND −0.3 V to VVDD

OUT2 to AGND −0.3 V to +6 V

EN/SY to AGND −0.3 V to VVDD

ITEC to AGND −0.3 V to +6 V

VTEC to AGND −0.3 V to +6 V

Maximum Current

VREF to AGND 20 mA

OUT1 to AGND 50 mA

OUT2 to AGND

50 mA

ITEC to AGND 50 mA

VTEC to AGND 50 mA

Junction Temperature 125°C

Storage Temperature Range −65°C to +150°C

Lead Temperature (Soldering, 10 sec) 260°C

Stresses at or above those listed under Absolute Maximum

Ratings may cause permanent damage to the product. This is a

stress rating only; functional operation of the product at these

or any other conditions above those indicated in the operational

section of this specification is not implied. Operation beyond

the maximum operating conditions for extended periods may

affect product reliability.

THERMAL RESISTANCE

θJA is specified for the worst-case conditions, that is, a device

soldered in a circuit board for surface-mount packages, and is

based on a 4-layer standard JEDEC board.

Table 4. Thermal Resistance

Package Type θJA ΨJT ΨJB Unit

36-Lead LFCSP 33 1.2 12.3 °C/W

MAXIMUM POWER DISSIPATION

The maximum power that the ADN8835 can dissipate is limited

by the associated rise in junction temperature. The maximum

safe junction temperature for a plastic encapsulated device is

determined by the glass transition temperature of the plastic,

approximately 125°C. Exceeding this limit may cause a shift in

parametric performance or device failure.

The driver stage of the ADN8835 is designed for maximum

load current capability. To ensure proper operation, it is

necessary to observe the corresponding maximum power

derating curves.

Figure 3. Maximum Power Dissipation vs. Ambient Temperature

ESD CAUTION

3.5

3.0

2.5

2.0

1.5

1.0

0.5

030 705040 8060

MAXIMUM POWER DISSIPATION (W)

AMBIENT TEMPERATURE (°C)

14174-003

TJ = 125°C

~42 D'U ADN3335 mp VIEW (Mm m same)

ADN8835 Data Sheet

Rev. B | Page 8 of 27

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

Figure 4. Pin Configuration

Table 5. Pin Function Descriptions

Pin No. Mnemonic Description

0 EPAD Exposed Pad. Solder the exposed pad to the analog ground plane on the board.

1, 2, 9, 10, 11, 19,

35, 36

DNC Do Not Connect. Leave these pins floating.

3 IN2N Inverting Input of the Compensation Amplifier.

4 OUT2 Output of the Compensation Amplifier.

5 VLIM/SD Voltage Limit/Shutdown. This pin sets the cooling and heating TEC voltage limits. When this pin is pulled

low, the device shuts down.

6 ILIM Current Limit. This pin sets the TEC cooling and heating current limits.

7 VDD Power for the Controller Circuits.

8 VREF 2.5 V Reference Output.

AGND

Signal Ground.

13 EN/SY Enable/Synchronization. Set this pin high to enable the device. An external synchronization clock input

can be applied to this pin.

14 VTEC TEC Voltage Output.

15 SFB Feedback of the PWM TEC Controller Output.

16 ITEC TEC Current Output.

17, 18 PGNDS Power Ground of the PWM TEC Controller.

20, 21 SW Switch Node Output of the PWM TEC Controller.

22, 23 PVINS Power Input for the PWM TEC Driver.

24, 25 PVINL Power Input for the Linear TEC Driver.

26, 27 LDR Output of the Linear TEC Controller.

28, 29

PGNDL

Power Ground of the Linear TEC Controller.

30 TMPGD Temperature Good Output.

31 OUT1 Output of the Error Amplifier.

32 IN1N Inverting Input of the Error Amplifier.

33 IN1P Noninverting Input of the Error Amplifier.

IN2P

Noninverting Input of the Compensation Amplifier.

1DNC

2DNC

3IN2N

4OUT2

5VLIM/SD

6ILIM

7VDD

8VREF

9DNC

27 LDR

26 LDR

25 PVINL

24 PVINL

23 PVINS

22 PVINS

21 SW

20 SW

19 DNC

10DNC

11DNC 12AGND

13EN/SY

14VTEC

15SFB

16ITEC

17PGNDS

18PGNDS

36 DNC

35 DNC

34 IN2P

33 IN1P

32 IN1N

31 OUT1

30 TMPGD

29 PGNDL

28 PGNDL

ADN8835

TOP VIEW

(Not to Scale)

NOTES

1. DO NOT CONNECT. LEAVE THESE PINS PIN FLOATING.

2. EXPOSED PAD. SOLDER THE EXPOSED PAD TO THE

ANALOG GROUND PLANE ON THE BOARD.

14174-004

Data Sheet ADN8835

Rev. B | Page 9 of 27

TYPICAL PERFORMANCE CHARACTERISTICS

TA = 25°C, unless otherwise noted.

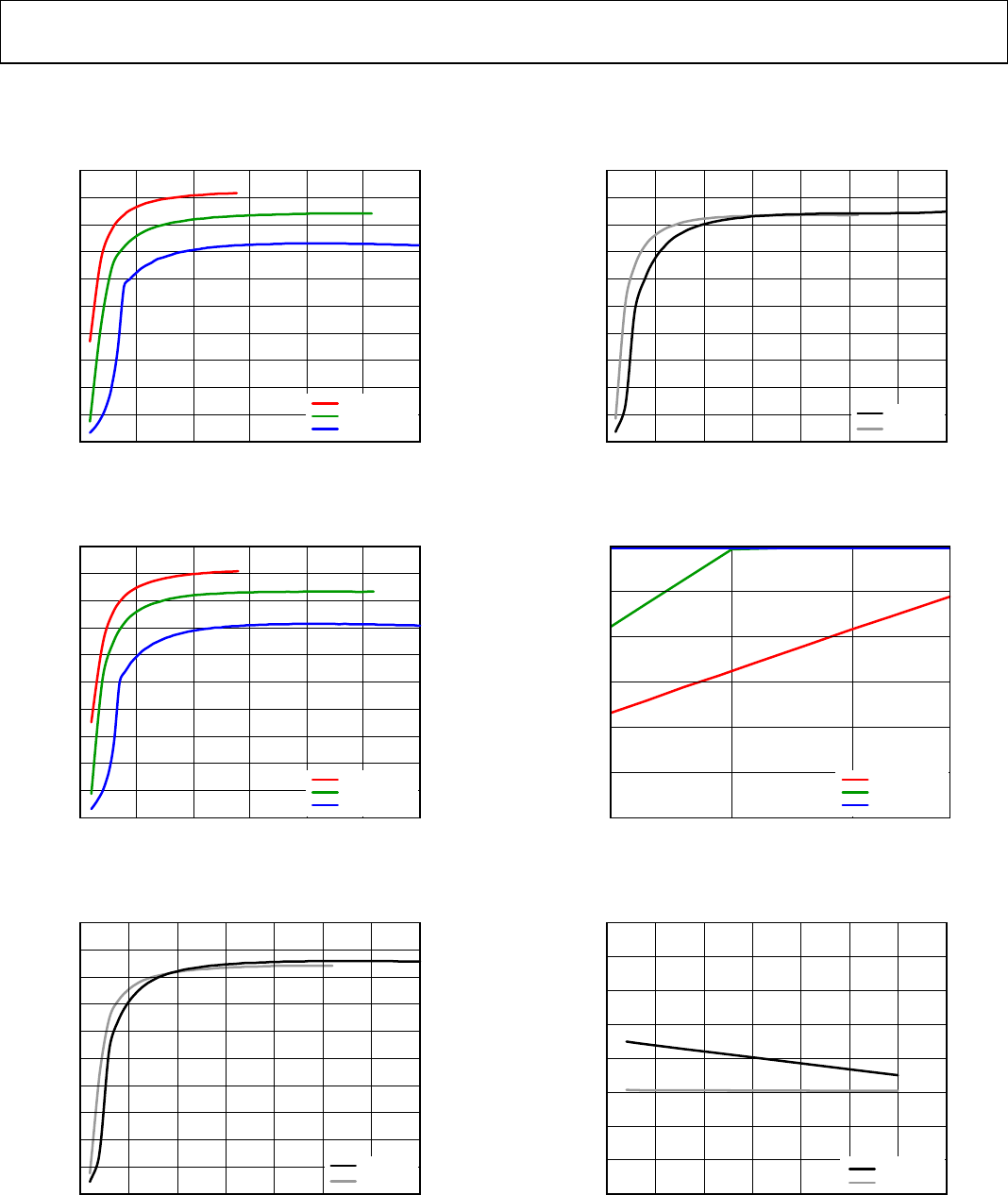

Figure 5. Efficiency vs. TEC Current at VIN = 3.3 V at Various Loads in Cooling

Mode

Figure 6. Efficiency vs. TEC Current at VIN = 3.3 V at Various Loads in Heating

Mode

Figure 7. Efficiency vs. TEC Current at VIN = 3.3 V and 5 V in Cooling Mode

with 1 Ω Load

Figure 8. Efficiency vs. TEC Current at VIN = 3.3 V and 5 V in Heating Mode

with 1 Ω Load

Figure 9. Maximum TEC Current vs. Input Voltage at PVIN at Various Loads,

Without Voltage and Current Limit

Figure 10. VREF Line Regulation

100

003.02.52.01.51.00.5

EFFICIENCY (%)

TEC CURRENT (A)

LOAD = 0.5Ω

LOAD = 1Ω

LOAD = 2Ω

14174-007

100

003.02.52.01.51.00.5

EFFICIENCY (%)

TEC CURRENT (A)

LOAD = 0.5Ω

LOAD = 1Ω

LOAD = 2Ω

14174-008

100

003.53.02.52.01.51.00.5

EFFICIENCY (%)

TEC CURRENT (A)

VIN = 3.3V

VIN = 5V

14174-005

100

003.53.02.52.01.51.00.5

EFFICIENCY (%)

TEC CURRENT (A)

VIN = 3.3V

VIN = 5V

14174-006

3.0

2.5

2.0

1.5

1.0

0.5

2.7 4.73.7

MAXIMUM TEC CURRENT (A)

INPUT VOLTAGE AT PVIN (V)

LOAD = 0.5Ω

LOAD = 1Ω

LOAD = 2Ω

14174-009

0.20

–0.20

–0.15

–0.10

–0.05

0.05

0.10

0.15

2.5 5.0 6.04.0 4.5 5.53.53.0

VREF ERROR (%)

SUPPLY VOLTAGE (V)

5mA LOAD

NO LOAD

14174-010

ADN8835 Data Sheet

Rev. B | Page 10 of 27

Figure 11. Thermal Stability (TEMPOUT) Voltage Error at Various Ambient

Temperatures, VIN = 3.3 V, VTEMPSET = 1 V

Figure 12. Thermal Stability (TEMPOUT) Voltage Error at Various Ambient

Temperatures, VIN = 3.3 V, VTEMPSET = 1.5 V

Figure 13. VREF Error vs. Ambient Temperature

Figure 14. VREF Load Regulation

Figure 15. ITEC Current Reading Error vs. TEC Current in Cooling Mode

Figure 16. ITEC Current Reading Error vs. TEC Current in Heating Mode

–0.10

–0.08

–0.06

–0.04

–0.02

0.02

0.04

0.06

0.08

0.10

020 40 60 80 100 120 140 160 180 200

TEMPOUT (V

OUT1

) VOLTAGE ERROR (%)

TIME (Seconds)

= 15°C

= 25°C

= 35°C

= 45°C

= 55°C

14174-011

–0.10

–0.08

–0.06

–0.04

–0.02

0.02

0.04

0.06

0.08

0.10

020 40 60 80 100 120 140 160 180 200

TEMPOUT (V

OUT1

) VOLTAGE ERROR (%)

TIME (Seconds)

= 15°C

= 25°C

= 35°C

= 45°C

= 55°C

14174-012

–1.0

–0.8

–0.6

–0.4

–0.2

0.2

0.4

0.6

0.8

1.0

–50 150100500

REF

ERROR (%)

AMBIENT TEMPERATURE (°C)

= 2.7V AT 5mA LOAD

= 3.3V AT 5mA LOAD

= 5.5V AT 5mA LOAD

= 2.7V AT NO LOAD

= 3.3V AT NO LOAD

= 5.5V AT NO LOAD

14174-013

–1.0

–0.8

–0.6

–0.4

–0.2

0.2

0.4

0.6

0.8

1.0

0 1 5432

REF

(%)

LOAD CURRENT AT V

REF

(mA)

= 3.3V, ITEC = 0.5A, COOLING

= 3.3V, ITEC = 0.0A

= 3.3V, ITEC = 0.5A, HEATING

= 5V, ITEC = 0.5A, COOLING

= 5V, ITEC = 0A

= 5V, ITEC = 0.5A, HEATING

14174-014

–20

–15

–10

–5

03.02.52.01.51.00.5

ITEC CURRENT READING ERROR (%)

TEC CURRENT (A)

VIN = 3.3V

VIN = 5V

14174-015

–20

–15

–10

–5

03.02.52.01.51.00.5

ITEC CURRENT READING ERROR (%)

TEC CURRENT (A)

VIN = 3.3V

VIN = 5V

14174-016

um new - 1:0 cunnzm pwm (vac-1 D we cunnzm pwm (rEc-Y cm I

Data Sheet ADN8835

Rev. B | Page 11 of 27

Figure 17. VTEC Voltage Reading Error vs. TEC Voltage in Cooling Mode

Figure 18. VTEC Voltage Reading Error vs. TEC Voltage in Heating Mode

Figure 19. Cooling to Heating Transition

Figure 20. Zero-Crossing TEC Current Zoom In from Heating to Cooling

Figure 21. Zero-Crossing TEC Current Zoom In from Cooling to Heating

Figure 22. Typical Enable Waveforms in Cooling Mode,

VIN = 5 V, Load = 1 Ω, TEC Current = 2 A

–20

–15

–10

–5

0 4321

VTEC VOLTAGE READING ERROR (%)

TEC VOLTAGE (V)

VIN = 3.3V

VIN = 5V

14174-017

0 4321

–20

–15

–10

–5

VTEC VOLTAGE READING ERROR (%)

TEC VOLTAGE (V)

VIN = 3.3V

VIN = 5V

14174-018

CH1 1.00V

CH2 1.00V

CH4 500mA Ω

M200ms

500kS/s 1M POINTS

CH4 –500mA

LDO (TEC+)

PWM

(TEC–)

TEC

CURRENT

14174-019

CH1 1.00V

CH2 1.00V

CH4 500mA Ω

M20.0ms 1.0MS/s

1M POINTS

CH4 20.0mA

LDO (TEC+)

TEC CURRENT

PWM (TEC–)

T 15.1000ms

14174-020

CH1 1.00V

CH2 1.00V

CH4 500mA Ω

M20.0ms 5.0MS/s

1M POINTS

CH4 20.0mA

LDO (TEC+)

TEC CURRENT PWM (TEC–)

T 15.8000ms

14174-021

CH1 2.00V

CH2 1.00V

CH4 1.00A Ω

M40.0ms 2.50MS/s

1M POINTS

CH3 1.60V

LDO (TEC+)

ENABLE

TEC CURRENT

PWM (TEC–)

T 79.6000ms

CH3 5.00V

14174-022

I pwu (YES-l pwm ﬁst") I w w cm I cm I m x cm .r

ADN8835 Data Sheet

Rev. B | Page 12 of 27

Figure 23. Typical Enable Waveforms in Heating Mode,

VIN = 5 V, Load = 1 Ω, TEC Current = 2 A

Figure 24. Typical Switch and Voltage Ripple Waveforms in Cooling Mode

VIN = 5 V, Load = 1 Ω, TEC Current = 2 A

Figure 25. Typical Switch and Voltage Ripple Waveforms in Heating Mode,

VIN = 5 V, Load = 1 Ω, TEC Current = 2 A

CH1 2.00V

CH2 2.00V

CH4 1.00A Ω

M40.0ms 2.50MS/s

1M POINTS

CH3 1.90V

LDO (TEC+)

ENABLE

TEC CURRENT

PWM (TEC–)

T 79.6000ms

CH3 5.00V

14174-023

CH1 20.0mV

CH2 20.0mV

M400ns 2.50GS/s

1M POINTS

CH3 2.24V

LDO (TEC+)

PWM (TEC–)

T 4.0000ns

CH3 2.00V

14174-024

CH1 20.0mV

CH2 20.0mV

M400ns 2.50GS/s

1M POINTS

CH3 2.24V

LDO (TEC+)

PWM (TEC–)

T 4.0000ns

CH3 2.00V

14174-025

Data Sheet ADN8835

Rev. B | Page 13 of 27

THEORY OF OPERATION

The ADN8835 is a single-chip TEC controller that sets and

stabilizes a TEC temperature. A voltage applied to the input of

the ADN8835 corresponds to the temperature setpoint of the

target object attached to the TEC. The ADN8835 controls an

internal FET H bridge whereby the direction of the current fed

through the TEC can be either positive (for cooling mode) to

pump heat away from the object attached to the TEC, or

negative (for heating mode) to pump heat into the object attached

to the TEC.

Temperature is measured with a thermal sensor attached to the

target object, and the sensed temperature (voltage) is fed back

to the ADN8835 to complete a closed thermal control loop of

the TEC. For the best overall stability, couple the thermal sensor

close to the TEC. In most laser diode modules, a TEC and a

NTC thermistor are already mounted in the same package to

regulate the laser diode temperature.

The TEC is differentially driven in an H bridge configuration.

The ADN8835 drives its internal MOSFET transistors to provide

the TEC current. To provide good power efficiency and zero-

crossing quality, only one side of the H bridge uses a PWM

driver. Only one inductor and one capacitor are required to filter

out the switching frequency. The other side of the H bridge uses a

linear output without requiring any additional circuitry. This pro-

prietary configuration allows the ADN8835 to provide efficiency of

>90%. For most applications, a 1 µH inductor, a 10 μF capacitor,

and a switching frequency of 2.0 MHz maintain less than 1% of the

worst-case output voltage ripple across a TEC.

The maximum voltage across the TEC and the current flowing

through the TEC are set by using the VLIM/SD and ILIM pins.

The maximum cooling and heating currents can be set indepen-

dently to allow asymmetric heating and cooling limits. For

additional details, see the Maximum TEC Voltage Limit section

and the Maximum TEC Current Limit section.

Figure 26. Typical Application Circuit with Analog PID Compensation in a Temperature Control Loop

ADN8835

L = 1µH

2.7V TO 5.5V

TEC

SFB

LDR

PGNDS

PVINL

PVINS

VDD

ILIM

VLIM/SD

ITEC

TEC

VOLTAGE

LIMIT

SHUTDOWN

VTEC

–

EN/SY TMPGD

SW_OUT

10µF

L_OUT

0.1µF

10µF

VDD

0.1µF R

PGNDL

NTC

TEC

VOLTAGE

TEC

CURRENT

ENABLE/

SYNC

TEMP

SET

IN1N

IN1P

IN2P

VREF

AGND

OUT1 IN2N OUT2

TEC

CURRENT

LIMITS

VREF

0.1µF

THERMISTOR

14174-026

ADN8835 Data Sheet

Rev. B | Page 14 of 27

ANALOG PID CONTROL

The ADN8835 integrates two self correcting, auto-zeroing

amplifiers (Chopper 1 and Chopper 2). The Chopper 1 amplifier

takes a thermal sensor input and converts or regulates the input

to a linear voltage output. The OUT1 voltage is proportional to the

object temperature. The OUT1 voltage is fed into the compensa-

tion amplifier (Chopper 2) and is compared with a temperature

setpoint voltage, which creates an error voltage that is propor-

tional to the difference. For autonomous analog temperature

control, Chopper 2 can implement a PID network as shown in

Figure 26 to set the overall stability and response of the thermal

loop. Adjusting the PID network optimizes the step response of

the TEC control loop. A compromised settling time and the

maximum current ringing become available when this

adjustment is done. To adjust the compensation network, see

the PID Compensation Amplifier (Chopper 2) section.

DIGITAL PID CONTROL

The ADN8835 can also be configured for use in a software

controlled PID loop. In this scenario, the Chopper 1 amplifier

can either be left unused or configured as a thermistor input

amplifier connected to an external temperature measurement

analog-to-digital converter (ADC). For more information, see

the Thermistor Amplifier (Chopper 1) section. If Chopper 1 is

left unused, tie IN1N and IN1P to AGND.

The Chopper 2 amplifier is used as a buffer for the external

DAC, which controls the temperature setpoint. Connect the

DAC to IN2P and short the IN2N and OUT2 pins together. See

Figure 27 for an overview of how to configure the ADN8835

external circuitry for digital PID control.

POWERING THE CONTROLLER

The ADN8835 operates at an input voltage range of 2.7 V to

5.5 V that is applied to the PVINS pins and PVINL pins. The

VDD pin is the input power for the driver and internal reference.

The PVINS and the PVINL input power pins are for the PWM

driver and the linear driver, respectively. Apply the same input

voltage to all power input pins. In some circumstances, an RC

low-pass filter can be added between the PVINS/PVINL and

the VDD pins to prevent high frequency noise from entering

VDD, as shown in Figure 27. The capacitor and resistor values

are typically 10 Ω and 0.1 µF, respectively.

When configuring the power supply to the ADN8835, keep in

mind that at high current loads, the input voltage may drop

substantially due to a voltage drop on the wires between the

front-end power supply and the PVINS and the PVINL pins.

Leave a proper voltage margin when designing the front-end

power supply to maintain the performance. Minimize the trace

length from the power supply to the PVINS and the PVINL

pins to help mitigate the voltage drop.

Figure 27. TEC Controller in a Digital Temperature Control Loop

ADN8835

L = 1µH

2.7V TO 5.5V

TEC

SFB

LDR

PGNDS

PVINL

PVINS

VDD

ILIM

VLIM/SD

ITEC

IN2P

VTEC

TEC

VOLTAGE

LIMIT

2.5V VREF

–

EN/SY

SW_OUT

10µF

= 2MHz

L_OUT

0.1µF

10µF

VDD

0.1µF

PGNDL

ENABLE

IN1N

IN1P

VREF

AGND

IN2N OUT2

OUT1

COOLING AND HEATING

TEC CURRENT LIMITS

VREF

0.1uF

2.5V VREF

TEC VOLTAGE READBACK

TEC CURRENT READBACK

TEMPERATURE SET

NTC

THERMISTOR

TEMPERATURE

READBACK ADC

DAC

2.5V VREF

TMPGD

14174-027

LEE

Data Sheet ADN8835

Rev. B | Page 15 of 27

ENABLE AND SHUTDOWN

To enable the ADN8835, apply a logic high voltage to the

EN/SY pin while the voltage at the VLIM/SD pin is above the

maximum shutdown threshold of 0.07 V. If either the EN/SY pin

voltage is set to logic low or the VLIM/SD voltage is below 0.07 V,

the controller goes into an ultralow current state. The current

drawn in shutdown mode is 350 µA typically. Most of the current

is consumed by the VREF circuit block, which is always on even

when the device is disabled or shut down. The device can also

be enabled when an external synchronization clock signal is

applied to the EN/SY pin, and the voltage at VLIM/SD input is

above 0.07 V. Table 6 shows the combinations of the two input

signals that are required to enable the ADN8835.

Table 6. Enable Pin Combinations

EN/SY Input

VLIM/SD Input

Controller

>2.1 V >0.07 V Enabled

Switching Between High

(>2.1 V) and Low (<0.8 V)

>0.07 V Enabled

<0.8 V No effect1 Shutdown

Floating No effect1 Shutdown

No effect1 ≤0.07 V Shutdown

1 No effect means this signal has no effect in shutting down or in enabling the

device.

OSCILLATOR CLOCK FREQUENCY

The ADN8835 has an internal oscillator that generates a 2.0 MHz

switching frequency for the PWM output stage. This oscillator is

active when the enabled voltage at the EN/SY pin is set to a logic

level higher than 2.1 V and the VLIM/SD pin voltage is greater

than the shutdown threshold of 0.07 V.

External Clock Operation

The PWM switching frequency of the ADN8835 can be synchro-

nized to an external clock from 1.85 MHz to 3.25 MHz, applied

to the EN/SY input pin, as shown on Figure 28.

Figure 28. Synchronize to an External Clock

Connecting Multiple ADN8835 Devices

Multiple ADN8835 devices can be driven from a single master

clock signal by connecting the external clock source to the

EN/SY pin of each slave device. The input ripple can be greatly

reduced by operating the ADN8835 devices 180° out of phase from

each other and placing an inverter at one of the EN/SY pins, as

shown in Figure 29.

Figure 29. Multiple ADN8835 Devices Driven from a Master Clock

TEMPERATURE LOCK INDICATOR

The TMPGD pin outputs logic high when the temperature

error amplifier output voltage, VOUT1, reaches the IN2P

temperature setpoint (TEMPSET) voltage. The TMPGD pin has a

detection range between 1.46 V and 1.54 V of VOUT1 and hysteresis.

The TMPGD function allows direct interfacing either to the

microcontrollers or to the supervisory circuitry.

SOFT START ON POWER-UP

The ADN8835 has an internal soft start circuit that generates a

ramp with a typical 150 ms profile to minimize inrush current

during power-up. The settling time and the final voltage across

the TEC depends on the TEC voltage required by the control

voltage of voltage loop. The higher the TEC voltage is, the longer it

requires to increase.

When the ADN8835 is first powered up, the linear side discharges

the output of any prebias voltage. As soon as the prebias is elimi-

nated, the soft start cycle begins. During the soft start cycle, both

the PWM and linear outputs track the internal soft start ramp

until they reach midscale, where the control voltage, VC, is equal

to the bias voltage, VB. From the midscale voltage, the PWM and

linear outputs are then controlled by VC and diverge from each

other until the required differential voltage is developed across

the TEC or the differential voltage reaches the voltage limit. The

voltage developed across the TEC depends on the control point

at that moment in time. Figure 30 shows an example of the soft

start profile in cooling mode. Note that, as both the LDR and SFB

voltages increase with the soft start ramp and approach VB, the

ramp slows to avoid possible current overshoot at the point

where the TEC voltage starts to increase.

EXTERNAL CLOCK

SOURCE

ADN8835

AGND

EN/SY

14174-028

ADN8835

EXTERNAL CLOCK

SOURCE

AGND

EN/SY

AGND

EN/SY

14174-029

LDR V 71.25V

ADN8835 Data Sheet

Rev. B | Page 16 of 27

Figure 30. Soft Start Profile in Cooling Mode

TEC VOLTAGE/CURRENT MONITOR

The TEC real-time voltage and current are detectable at VTEC

and ITEC, respectively.

Voltage Monitor

VTEC is an analog voltage output pin with a voltage proportional

to the actual voltage across the TEC. A center VTEC voltage of

1.25 V corresponds to 0 V across the TEC. Convert the voltage

at VTEC and the voltage across the TEC using the following

equation:

VVTEC = 1.25 V + 0.25 × (VLDR − VSFB)

Current Monitor

ITEC is an analog voltage output pin with a voltage proportional

to the actual current through the TEC. A center ITEC voltage of

1.25 V corresponds to 0 A through the TEC. Convert the

voltage at ITEC and the current through the TEC using the

following equations:

VITEC_COOLING = 1.25 V + ILDR × RCS

where the current sense gain (RCS) is 0.285 V/A.

VITEC_HEATING = 1.25 V − ILDR × RCS

MAXIMUM TEC VOLTAGE LIMIT

The maximum TEC voltage is set by applying a voltage divider

at the VLIM/SD pin to protect the TEC. The voltage limiter

operates bidirectionally and allows the cooling limit to be

different from the heating limit.

Using a Resistor Divider to Set the TEC Voltage Limit

Separate voltage limits are set using a resistor divider. The

internal current sink circuitry connected to VLIM/SD draws a

current when the ADN8835 drives the TEC in a heating direction,

which lowers the voltage at VLIM/SD. The current sink is not

active when the TEC is driven in a cooling direction; therefore,

the TEC heating voltage limit is always lower than the cooling

voltage limit.

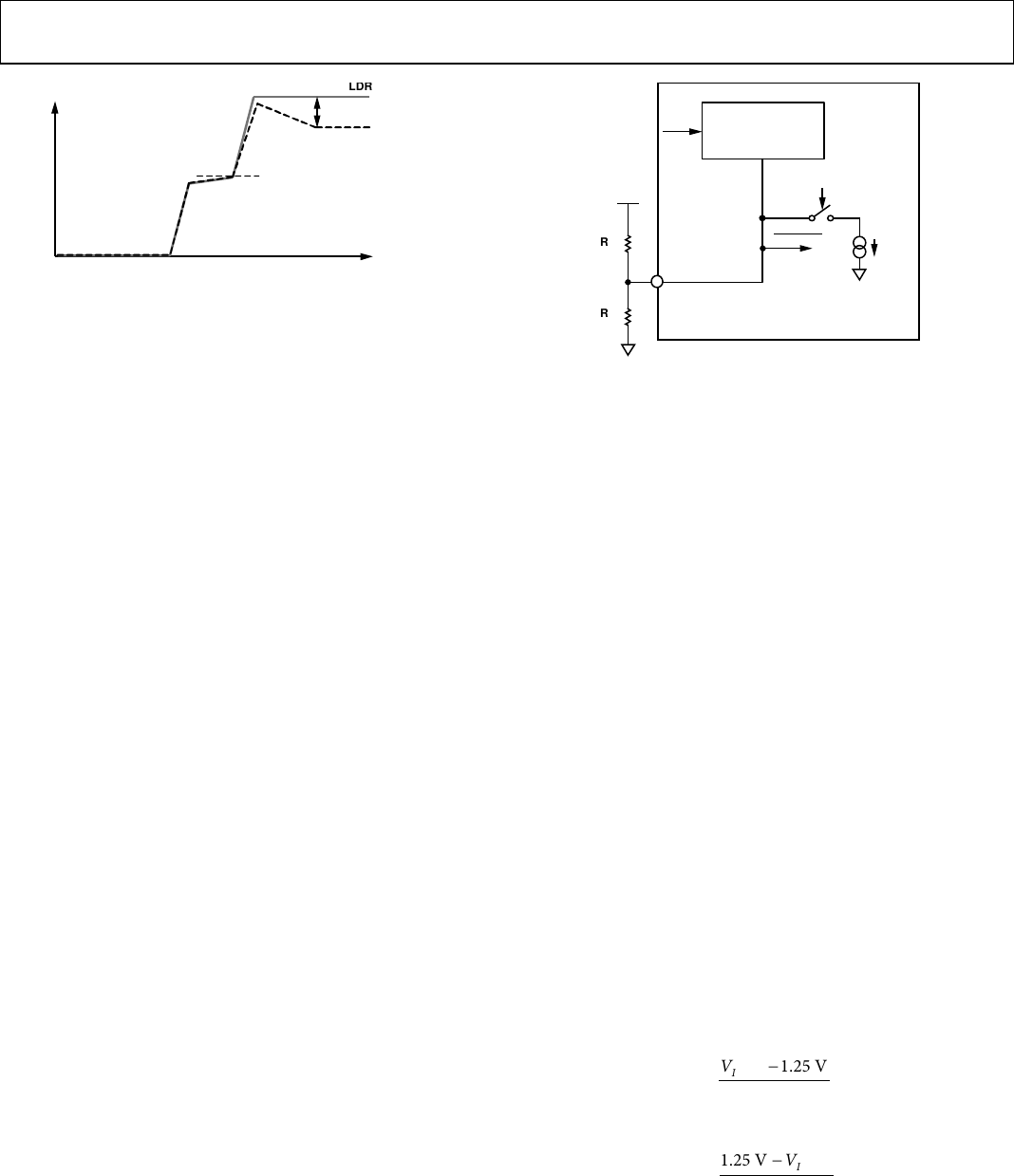

Figure 31. Using a Resistor Divider to Set the TEC Voltage Limit

Calculate the cooling and heating limits using the following

equations:

VVLIMC = VREF × RV2/(RV1 +RV2)

where VREF = 2.5 V.

VVLIMH = VVLIMC − ILIMH × RV1||RV2

where ILIMH = 10 µA.

VTEC_MAX_COOLING = VVLIMC × AVLIM

where AVLIM = 2 V / V.

VTEC_MAX_HEATING = VVLIMH × AVLIM

MAXIMUM TEC CURRENT LIMIT

To protect the TEC, separate maximum TEC current limits in

cooling and heating directions are set by applying a voltage

combination at the ILIM pin.

Using a Resistor Divider to Set the TEC Current Limit

The internal current sink circuitry connected to ILIM draws a

40 µA current when the ADN8835 drives the TEC in a cooling

direction, which allows a high cooling current. Use the following

equations to calculate the maximum TEC currents:

VILIMH = VREF × RC2/(RC1 +RC2)

where VREF = 2.5 V.

VILIMC = VILIMH + ILIMC × RC1||RC2

where ILIMC = 40 µA.

ILIMC

COOLING

MAXTEC

IV25.1

−

where RCS = 0.285 V/A.

ILIMH

HEATINGMAXTEC

I−

=V25.1

VILIMH must not exceed 1.2 V and VILIMC must be more than

1.3 V to leave proper margins between the heating and the

cooling modes.

LDR

SFB

TIME

DISCHARGE

PREBIAS SOFT START

BEGINS

TEC VOLTAGE

BUILDS UP

REACH

VOLTAGE LIMIT

14174-030

VLIM/SD

TEC VOLTAGE

LIMIT AND

INTERNAL

SOFT START

10µA

HEATING

CLK

DISABLE

REF

SW OPEN = V

VLIMC

SW CLOSED = V

VLIMH

14174-031

Data Sheet ADN8835

Rev. B | Page 17 of 27

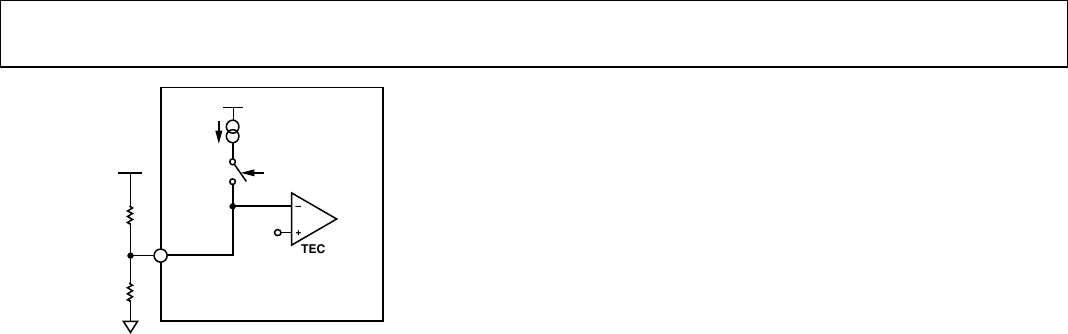

Figure 32. Using a Resistor Divider to Set the TEC Current Limit

VDD

40µA

ILIM

COOLING

ITEC

–

TEC

CURRENT

LIMIT

REF

SW OPEN = V

ILIMH

SW CLOSED = V

ILIMC

14174-032

ADN8835 Data Sheet

Rev. B | Page 18 of 27

APPLICATIONS INFORMATION

Figure 33. Signal Flow Block Diagram

SIGNAL FLOW

The ADN8835 integrates two auto-zero amplifiers, defined as

the Chopper 1 amplifier and the Chopper 2 amplifier. Both of the

amplifiers can be used as standalone amplifiers; therefore, the

implementation of temperature control can vary. Figure 33

shows the signal flow through the ADN8835, and a typical

implementation of the temperature control loop using the

Chopper 1 amplifier and the Chopper 2 amplifier.

In Figure 33, the Chopper 1 and Chopper 2 amplifiers are config-

ured as the thermistor input amplifier and the PID compensation

amplifier, respectively. The thermistor input amplifier amplifies

the thermistor voltage, and then outputs to the PID compensa-

tion amplifier. The PID compensation amplifier then compensates

a loop response over the frequency domain.

The output from the compensation loop at OUT2 is fed to the linear

MOSFET gate driver. The voltage at LDR is fed with OUT2 into

the PWM MOSFET gate driver. Including the internal transistors,

the gain of the differential output section is fixed at 5. For details

on the output drivers, see the MOSFET Driver Amplifier section.

THERMISTOR SETUP

The thermistor has a nonlinear relationship to temperature; near

optimal linearity over a specified temperature range can be achieved

with the proper value of a compensation resistor, RX, placed in

series with the thermistor.

First, the resistance of the thermistor must be known, where

•RLOW = RTH at TLOW

•RMID = RTH at TMID

•RHIGH = RTH at THIGH

TLOW and THIGH are the endpoints of the temperature range and

TMID is the average. In some cases, with only the β constant

available, calculate RTH using the following equation:























−=

RR 11

βexp

LINEAR

AMPLIFIER

LDR

TEC CURRENT SENSE

PGNDS

PVINS

PWM POWER

STAGE

PWM

MOSFET

DRIVER

CONTROL SFB

PWM

MODULATOR

PGNDS

LDR

TEC

PGNDL

PVINL

PGNDL

–

OSCILLATOR

IN2P

OUT2

IN2N

TEC DRIVER

LINEAR POWER

STAGE

–

IN1P

OUT1

IN1N

IN1P

IN1N

OUT1

IN2P

IN2N

OUT2

REF

TEMPSET

OUT2

OUT1

TEMPERATURE ERROR

AMPLIFIER

= R

/(R

+ R

) – R

CHOPPER 1

PID COMPENSATION

AMPLIFIER

= Z2/Z1

CHOPPER 2

14174-033

22 A1

Data Sheet ADN8835

Rev. B | Page 19 of 27

where:

RTH is a resistance at T (K).

RR is a resistance at TR (K).

Calculate RX using the following equation:













−+

MID

HIGHLOW

HIGHLOWHIGH

MIDMID

LOW

RRR

RRRRRR

THERMISTOR AMPLIFIER (CHOPPER 1)

The Chopper 1 amplifier can be used as a thermistor input

amplifier. In Figure 33, the output voltage is a function of the

thermistor temperature. The voltage at OUT1 is expressed as:

REF

OUT1

V×











+−

where:

RFB is the feedback resistor.

RTH is a thermistor.

RX is a compensation resistor.

Calculate R using the following equation:

R = RX + RTH_AT_25°C

VOUT1 is centered around VVREF/2 at 25°C. An average temperature

to voltage coefficient is −25 mV/°C at a range of 5°C to 45°C.

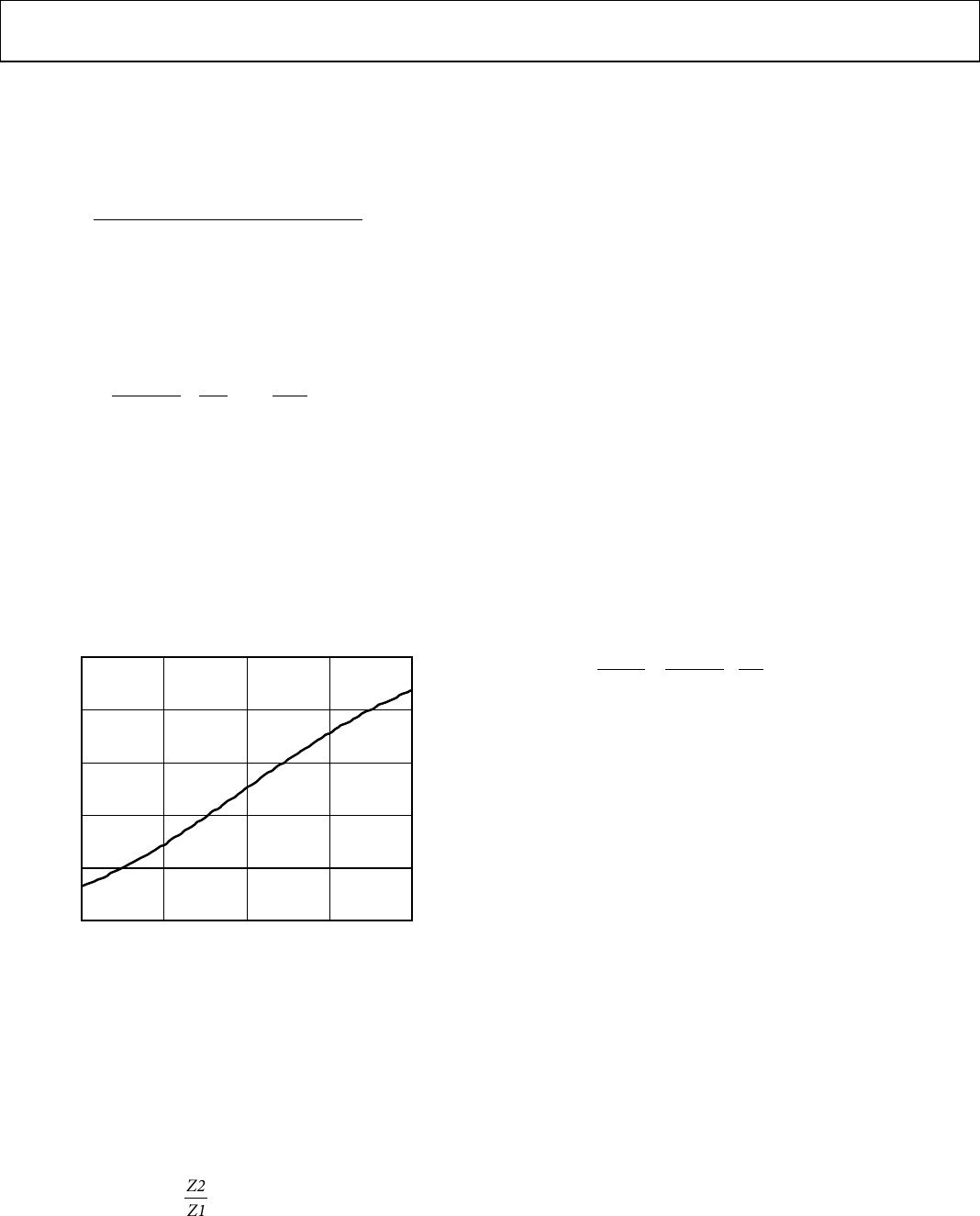

Figure 34. VOUT1 vs. Temperature

PID COMPENSATION AMPLIFIER (CHOPPER 2)

Use the Chopper 2 amplifier as the PID compensation amplifier.

The voltage at OUT1 feeds into the PID compensation amplifier.

The frequency response of the PID compensation amplifier is

dictated by the compensation network. Apply the temperature

set voltage at IN2P. In Figure 39, the voltage at OUT2 is

calculated using the following equation:

( )

TEMPSETOUT1TEMPSETOUT2 VV

VV −−=

where:

VTEMPSET is the temperature setpoint voltage to the IN2P pin.

Z1 is the combination of RI, RD, and CD (see Figure 35).

Z2 is the combination of RP, CI, and CF (see Figure 35).

The user sets the exact compensation network. This network

varies from a simple integrator to proportional integral (PI), PID,

or any other type of network. The user also determines the type of

compensation and component values because they are dependent

on the thermal response of the object and the TEC. One method to

empirically determine these values is to input a step function to

IN2P (thus changing the target temperature), and adjust the

compensation network to minimize the settling time of the TEC

temperature.

A typical compensation network for temperature control of a laser

module is a PID loop consisting of a very low frequency pole and

two separate zeros at higher frequencies. Figure 35 shows a simple

network for implementing PID compensation. To reduce the noise

sensitivity of the control loop, an additional pole is added at a higher

frequency than that of the zeros. The bode plot of the magnitude is

shown in Figure 36. Use the following equation to calculate the

unity-gain crossover frequency of the feedforward amplifier:

TECGAIN

fFB

0dB ×











−

×= 2π

where TECGAIN is the symbolic gain of the TEC module.

TECGAIN is critical to the mathematical design of the PID

loop. However, the thermal time constant of the TEC module is

usually unspecified, making it difficult to characterize

TECGAIN as well as the feedback transfer function. In this

case, the PID loop can be determined empirically by tuning the

components step by step. There are many documents written on

loop stabilization, and it is beyond the scope of this data sheet to

discuss all methods and trade-offs for optimizing compensation

networks.

VOUT1 is a convenient measure to gauge the thermal instability of

the system, which is also known as TEMPOUT. If the thermal loop

is in steady state, the TEMPOUT voltage equals the TEMPSET

voltage, meaning that the temperature of the controlled object

equals the target temperature.

–15 525 45

2.5

0.5

1.0

1.5

2.0

TEMPERATURE (°C)

OUT1

(V)

14174-034

an? R 2"? a 2.”: 2w? R 1.5 7,5

ADN8835 Data Sheet

Rev. B | Page 20 of 27

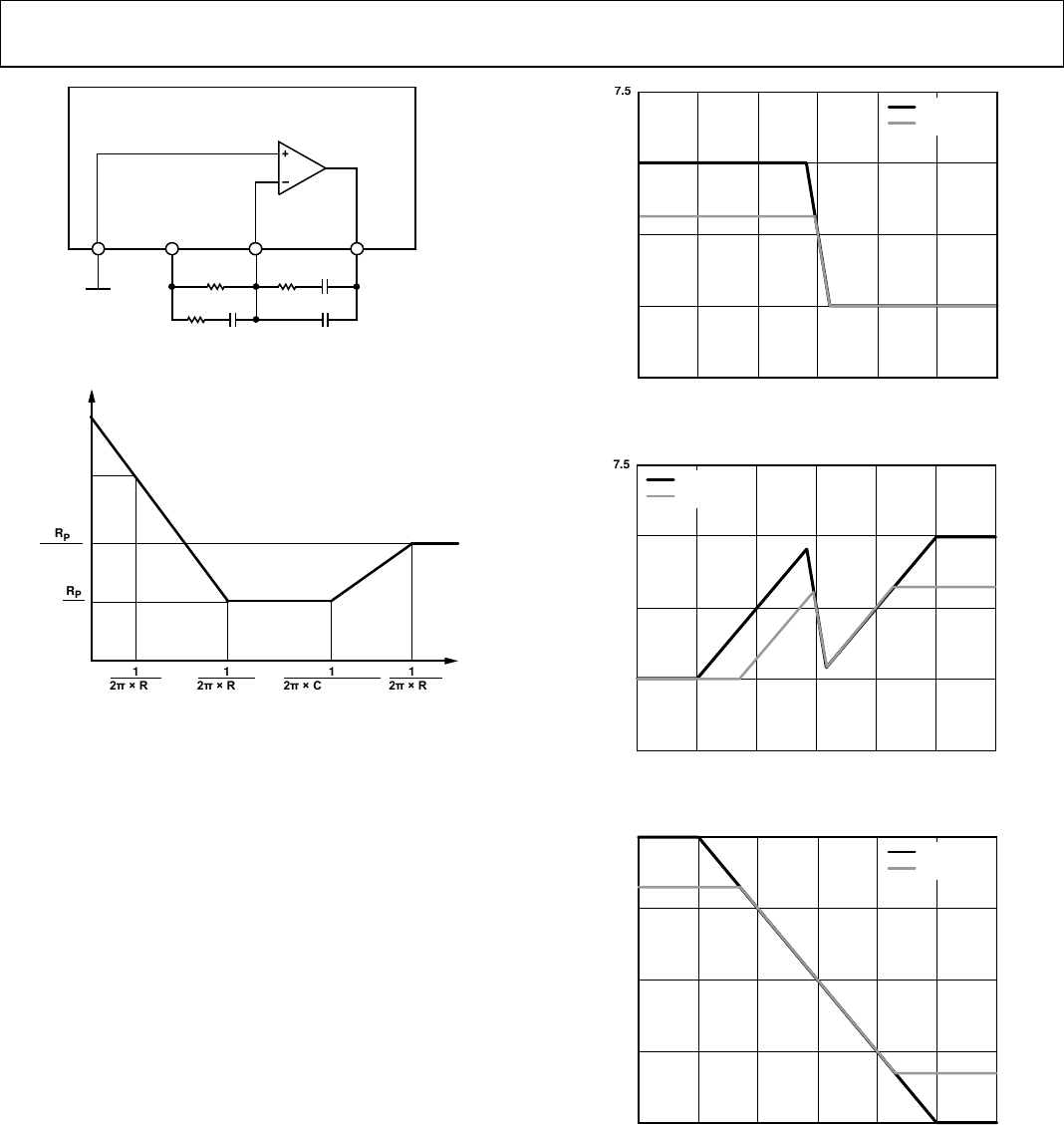

Figure 35. Implementing a PID Compensation Loop

Figure 36. Bode Plot for PID Compensation

MOSFET DRIVER AMPLIFIERS

The ADN8835 has two separate MOSFET drivers: a switched

output or PWM amplifier, and a high gain linear amplifier. Each

amplifier has a pair of outputs that drive the gates of the internal

MOSFETs, which, in turn, drive the TEC as shown in Figure 33. A

voltage across the TEC is monitored via the SFB and LDR pins.

Although both MOSFET drivers achieve the same result, to

provide constant voltage and high current, their operation is

different. The exact equations for the two outputs are

VLDR = VB − 80(VOUT2 − 1.25 V)

VSFB = VLDR + 5(VOUT2 − 1.25 V)

where:

VOUT2 is the voltage at OUT2.

VB is determined by VVDD as

VB = 1.5 V for VVDD < 4.0 V

VB = 2.5 V for VVDD > 4.0 V

The compensation network that receives the temperature set voltage

and the thermistor voltage fed by the input amplifier determines

the voltage at OUT2. VLDR and VSFB have a low limit of 0 V and

an upper limit of VVDD. Figure 37, Figure 38, and Figure 39

show the graphs of these equations.

Figure 37. LDR Voltage vs. OUT2 Voltage

Figure 38. SFB Voltage vs. OUT2 Voltage

Figure 39. TEC Voltage (LDR – SFB) vs. OUT2 Voltage

PWM OUTPUT FILTER REQUIREMENTS

A Type III compensator internally compensates the PWM

amplifier. Because the poles and zeros of the compensator are

designed and fixed by assuming the resonance frequency of the

output LC tank is 50 kHz, the selection of the inductor and the

capacitor must follow this guideline to ensure system stability.

OUT1 IN2N OUT2

PID COMPENSATOR

CHOPPER 2

IN2P

ADN8835

VTEMPSET

RDCDCF

14174-035

FREQUENCY

(

Hz Log Scale)

MAGNITUDE (Log Scale)

0dB

2π × R

2π × C

+ R

)

|| R

14174-036

OUT2 (V)

LDR (V)

1.25

0.75

0.2501.75 2.25 2.75

–2.5

2.5

7.5

5.0

VDD

= 3.3V

VDD

= 5.0V

14174-037

SFB (V)

OUT2 (V)

1.250.750.2501.75 2.25 2.75

–2.5

2.5

7.5

5.0

VDD

= 3.3V

VDD

= 5.0V

14174-038

–2.5

–5.0

2.5

5.0

OUT2 (V)

VTEC (V)

LDR – SFB

1.250.750.2501.75 2.25 2.75

VDD

= 3.3V

VDD

= 5.0V

14174-039

v; x (v 7 m xtv in J

Data Sheet ADN8835

Rev. B | Page 21 of 27

Inductor Selection

The inductor selection determines the inductor current ripple and

loop dynamic response. Larger inductance results in smaller

current ripple and slower transient response because smaller

inductance results in the opposite performance. To optimize the

performance, the trade-off must be made between transient

response speed, efficiency, and component size. Calculate the

inductor value with the following equation:

( )

OUTSW

IfV

VVV

L∆××

=__ –

where:

VSW_OUT is the PWM amplifier output.

fSW is the switching frequency (2 MHz by default).

∆IL is the inductor current ripple.

A 1 µH inductor is typically recommended to allow reasonable

output capacitor selection while maintaining a low inductor

current ripple. If lower inductance is required, a minimum

inductor value of 0.68 µH is suggested to ensure that the current

ripple is set to a value between 30% and 40% of the maximum

load current.

Except for the inductor value, the equivalent dc resistance (DCR)

inherent in the metal conductor is also a critical factor for

inductor selection. The DCR accounts for most of the power loss

on the inductor by DCR × IOUT2. Using an inductor with high

DCR degrades the overall efficiency significantly. In addition,

there is a conduct voltage drop across the inductor because of

the DCR. When the PWM amplifier is sinking current in cooling

mode, this voltage drives the minimum voltage of the amplifier

higher than 0.06 × VPVIN by at least tenth of millivolts. Similarly, the

maximum PWM amplifier output voltage is lower than 0.93 ×

VPVIN.

This voltage drop is proportional to the value of the DCR, and

reduces the output voltage range at the TEC.

When selecting an inductor, ensure that the saturation current

rating is higher than the maximum current peak to prevent sat-

uration. In general, ceramic multilayer inductors are suitable for low

current applications due to small size and low DCR. When the

noise level is critical, use a shielded ferrite inductor to reduce the

electromagnetic interference (EMI).

Table 7. Recommended Inductors

Vendor Value Device No. Footprint (mm)

Coilcraft 1.0 μH ±

20%

XFL4020-102MEB 4.3 × 4.3

Murata 1.0 μH ±

20%

DFE252012P-1R0M 2.5 × 2.0

Capacitor Selection

The output capacitor selection determines the output voltage

ripple, transient response, as well as the loop dynamic response

of the PWM amplifier output. Use the following equation to

select the capacitor:

( )

OUT

OUTSW

VfLV

VVV

C∆××××

)(8

–

Note that the voltage caused by the product of current ripple,

ΔIL, and the capacitor equivalent series resistance (ESR) also

add up to the total output voltage ripple. Selecting a capacitor

with low ESR can increase overall regulation and efficiency

performance.

Table 8. Recommended Output Capacitors

Vendor Value Device No.

Footprint

(mm)

Murata 10 µF ±

10%, 10 V

ZRB18AD71A106KE01L 1.6 × 0.8

Murata 10 µF ±

20%, 10 V

GRM188D71A106MA73 1.6 × 0.8

Taiyo

Yuden

10 µF ±

20%, 10 V

LMK107BC6106MA-T 1.6 × 0.8

INPUT CAPACITOR SELECTION

On the PVIN pin, the amplifiers require an input capacitor

to decouple the noise and to provide the transient current to

maintain a stable input and output voltage. A 10 µF ceramic

capacitor rated at 10 V is the minimum recommended value.

Increasing the capacitance reduces the switching ripple that

couples into the power supply but increases the capacitor size.

Because the current at the input terminal of the PWM amplifier

is discontinuous, a capacitor with low effective series inductance

(ESL) is preferred to reduce voltage spikes.

In most applications, a decoupling capacitor is used in parallel

with the input capacitor. The decoupling capacitor is usually a

100 nF ceramic capacitor with very low ESR and ESL, which

provides better noise rejection at high frequency bands.

POWER DISSIPATION

This section provides guidelines to calculate the power

dissipation of the ADN8835. Approximate the total power

dissipation in the device by

PLOSS = PPWM + PLINEAR

where:

PPWM is the power dissipation in the PWM regulator.

PLOSS is the total power dissipation in the ADN8835.

PLINEAR is the power dissipation in the linear regulator.

PWM Regulator Power Dissipation

The PWM power stage is configured as a buck regulator and

its dominant power dissipation (PPWM) includes power switch

ADN8835 Data Sheet

Rev. B | Page 22 of 27

conduction losses (PCOND), switching losses (PSW), and transition

losses (PTRAN). Other sources of power dissipation are usually

less significant at the high output currents of the application

thermal limit and can be neglected in approximation.

Use the following equation to estimate the power dissipation of

the buck regulator:

PLOSS = PCOND + PSW + PTRAN

Conduction Loss (PCOND)

The conduction loss consists of two parts: inductor conduction

loss (PCOND_L) and power switch conduction loss (PCOND_S).

PCOND = PCOND_L + PCOND_S

Inductor conduction loss is proportional to the DCR of the output

inductor, L. Using an inductor with low DCR enhances the overall

efficiency performance. Estimate inductor conduction loss by

PCOND_L = DCR × IOUT2

Power switch conduction losses are caused by the flow of the

output current through both the high-side and low-side power

switches, each of which has its own internal on resistance (RDSON).

Use the following equation to estimate the amount of power

switch conduction loss:

PCOND_S = (RDSON_HS × D + RDSON_LS × (1 − D)) × IOUT2

where:

RDSON_HS is the on resistance of the high-side MOSFET.

D is the duty cycle (D = VOUT/VIN).

RDSON_LS is the on resistance of the low-side MOSFET.

Switching Losses (PSW)

Switching losses are associated with the current drawn by the

controller to turn the power devices on and off at the switching

frequency. Each time a power device gate is turned on or off,

the controller transfers a charge from the input supply to the

gate, and then from the gate to ground. Use the following

equation to estimate the switching loss:

PSW = (CGATE_HS + CGATE_LS) × VIN2 × fSW

where:

CGATE_HS is the gate capacitance of the high-side MOSFET.

CGATE_LS is the gate capacitance of the low-side MOSFET.

fSW is the switching frequency.

For the ADN8835, the total of CGATE_HS + CGATE_LS is

approximately 1 nF.

Transition Losses (PTRAN)

Transition losses occur because the high-side MOSFET cannot

turn on or off instantaneously. During a switch node transition,

the MOSFET provides all the inductor current. The source to

drain voltage of the MOSFET is half the input voltage, resulting

in power loss. Transition losses increase with both load and input

voltage and occur twice for each switching cycle.

Use the following equation to estimate the transition loss:

PTRAN = 0.5 × VPVIN × IOUT × (tR + tF) × fSW

where:

VPVIN is the voltage at PVIN.

IOUT is the output current of the PWM regulator.

tR is the rise time of the switch node.

tF is the fall time of the switch node.

Linear Regulator Power Dissipation

In the ADN8835, the output voltage of linear regulator is

typically tied either to ground or VIN. The main power

dissipation in this case comes from the conduction loss of the

FETs and thus is quite low. When the load is light and the linear

regulator must operate in a linear region, the power dissipation

can be calculated using the following equation:

PLINEAR = ((VIN − VOUT) × IOUT) + (VIN × IGND)

where:

VIN and VOUT are the input and output voltages of the linear

regulator.

IOUT is the load current of the linear regulator.

IGND is the ground current of the linear regulator.

Power dissipation due to the ground current is generally small

and can be ignored for the purposes of this calculation.

THERMAL CONSIDERATION

To ensure that the ADN8835 operates below the maximum

junction temperature even at high load, careful attention must

be paid to provide a lower θJA value of the device. Typical

techniques for enhancing heat dissipation include using larger

copper layer and vias on the printed circuit board (PCB) and

adding a heat sink.

The ADN8835 LFCSP package has a large exposed pad (EPAD)

at the bottom that must be soldered to the analog ground plane

on the board. The majority of the heat of the device dissipates

through the EPAD. Therefore, the copper layer connected to the

EPAD as well as the vias on it must be optimized to conduct the

heat effectively. It is recommended to use at least a 6 × 6 via

array and distribute them evenly on the EPAD. Generally, it is

more effective to increase the number of vias than to increase

the diameter of the via within a limited area.

souRchF 1 vEc rEc ammo“ ‘ ‘ vouAcE vouAGE POWER \ LIMIYING SENSING : rzmgssséukz m 1 mznuonzc + ﬂ» comm . coMPENsAnoN DRIVER ‘ (12c) m m “175mm cum." —— cum" mmam “mm mm

Data Sheet ADN8835

Rev. B | Page 23 of 27

PCB LAYOUT GUIDELINES

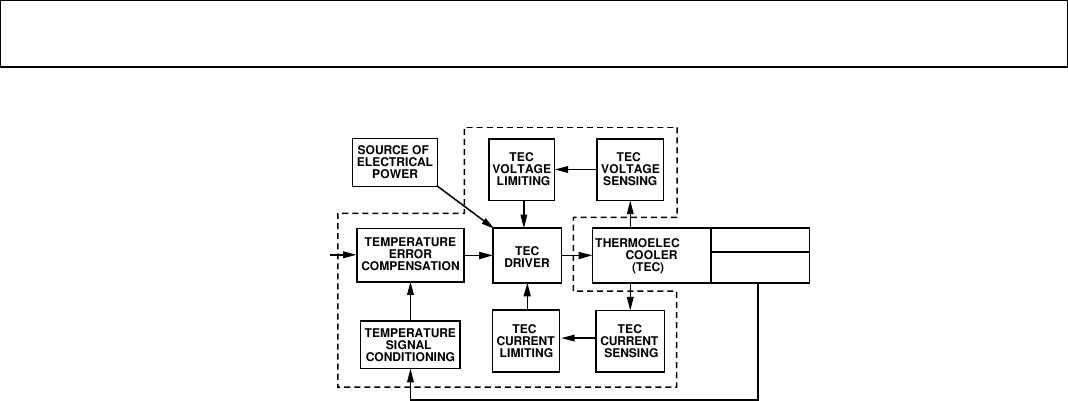

Figure 40. System Block Diagram

BLOCK DIAGRAMS AND SIGNAL FLOW

The ADN8835 integrates analog signal conditioning blocks, a

load protection block, and a TEC controller power stage, all in a

single IC. To achieve the best possible circuit performance,

attention must be paid to keep the noise of the power stage from

contaminating the sensitive analog conditioning and protection

circuits. In addition, the layout of the power stage must be

performed such that the IR losses are minimized to obtain the

best possible electrical efficiency.

The system block diagram of the ADN8835 is shown in Figure 40.

GUIDELINES FOR REDUCING NOISE AND

MINIMIZING POWER LOSS

Each PCB layout is unique because of the physical constraints

defined by the mechanical aspects of a given design. In addition,

several other circuits work in conjunction with the TEC

controller; these circuits have their own layout requirements.

Therefore, there are always compromises that must be made for a

given system. However, to minimize noise and keep power losses

to a minimum during the PCB layout process, observe the

following guidelines.

General PCB Layout Guidelines

Switching noise can interfere with other signals in the system;

therefore, the switching signal traces must be placed away from

the power stage to minimize the effect. If possible, place the

ground plate between the small signal layer and power stage

layer as a shield.

Supply voltage drop on traces is also an important consideration

because it determines the voltage headroom of the TEC controller

at high currents. For example, if the supply voltage from the front-

end system is 3.3 V, and the voltage drop on the traces is 0.5 V,

PVIN sees only 2.8 V, which limits the maximum voltage of the

linear regulator as well as the maximum voltage across the TE C. To

mitigate the voltage waste on traces and impedance interconnec-

tion, place the ADN8835 and the input decoupling components

close to the supply voltage terminal. This placement not only

improves the system efficiency but also provides better regulation

performance at the output.

To prevent the noise signal from circulating through the ground

plates, reference all of the sensitive analog signals to AGND and

connect AGND to PGNDS using only a single-point connection.

This connection ensures that the switching currents of the power

stage do not flow into the sensitive AGND node.

PWM Power Stage Layout Guidelines

The PWM power stage consists of a MOSFET pair that forms a

switch mode output that switches current from PVINS to the

load via an LC filter. The ripple voltage on the PVINS pin is

caused by the discontinuous current switched by the PWM side

MOSFETs. This rapid switching causes voltage ripple to form at

the PVINS input, which must be filtered using a bypass capaci-

tor. Place a 10 µF capacitor as close as possible to the PVINS pin

to connect PVINS to PGNDS. Because the 10 µF capacitor is

sometimes bulky and has higher ESR and ESL, a 100 nF decou-

pling capacitor is usually used in parallel with it, placed between

PVINS and PGNDS.

Because the decoupling is part of the pulsating current loop,

which carries high di/dt signals, the traces must be short and

wide to minimize the parasitic inductance. As a result, this

capacitor is usually placed on the same side of the board as the

ADN8835 to ensure short connections. If the layout requires

that a 10 µF capacitor be on the opposite side of the PCB, use

multiple vias to reduce via impedance.

The layout around the SW node is also critical because it switches

between PVINS and ground rapidly, which makes this node a

strong EMI source. Keep the copper area that connects the SW

node to the inductor small to minimize parasitic capacitance

between the SW node and other signal traces. The small copper

area helps minimize noise on the SW node due to excessive

charge injection. However, in high current applications, the

copper area can be increased reasonably to provide a heat sink

and to sustain high current flow.

TEMPERATURE

SIGNAL

CONDITIONING

TEC

VOLTAGE

LIMITING

TEC

CURRENT

LIMITING

TEC

VOLTAGE

SENSING

TEC

CURRENT

SENSING

TEC

DRIVER

OBJECT

THERMOELECTRIC

COOLER

(TEC)

TEMPERATURE

ERROR

COMPENSATION TEMPERATURE

SENSOR

SOURCE OF

ELECTRICAL

POWER

TARGET

TEMPERATURE

14174-040

IWIWIWIWIWIWIWIWIWW !!!! !!ill°l [1 I° . .Il: {III}. 00 0° i! .l

ADN8835 Data Sheet

Rev. B | Page 24 of 27

Connect the ground side of the capacitor in the LC filter as close as

possible to PGNDS to minimize the ESL in the return path.

Linear Power Stage Layout Guidelines

The linear power stage consists of a MOSFET pair that forms a

linear amplifier, which operates in linear mode for very low output

currents, and changes to fully enhanced mode for greater

output currents.

Because the linear power stage does not switch currents rapidly

like the PWM power stage, it does not generate noise currents.

However, the linear power stage still requires a minimum

amount of bypass capacitance to decouple its input.

Place a 100 nF capacitor that connects from PVINL to PGNDL

as close as possible to the PVINL pin.

Placing the Thermistor Amplifier and PID Components

The thermistor conditioning and PID compensation amplifiers

work with very small signals and have gain; therefore, attention

must be paid when placing the external components with these

circuits.

Place the thermistor conditioning and PID circuit components

close to each other near the inputs of Chopper 1 and Chopper 2.

Avoid crossing paths between the amplifier circuits and the

power stages to prevent noise pickup on the sensitive nodes.

Always reference the thermistor to AGND to have the cleanest

connection to the amplifier input and to avoid any noise or

offset buildup.

EXAMPLE PCB LAYOUT USING TWO LAYERS

Figure 41, Figure 42, and Figure 43 show an example ADN8835

PCB layout that uses two layers. This layout example achieves a

small solution size of approximately 20 mm2 with all of the

conditioning circuitry and PID included. Using more layers and

blinds via allows the solution size to be reduced even further

because more of the discrete components can relocate to the

bottom side of the PCB.

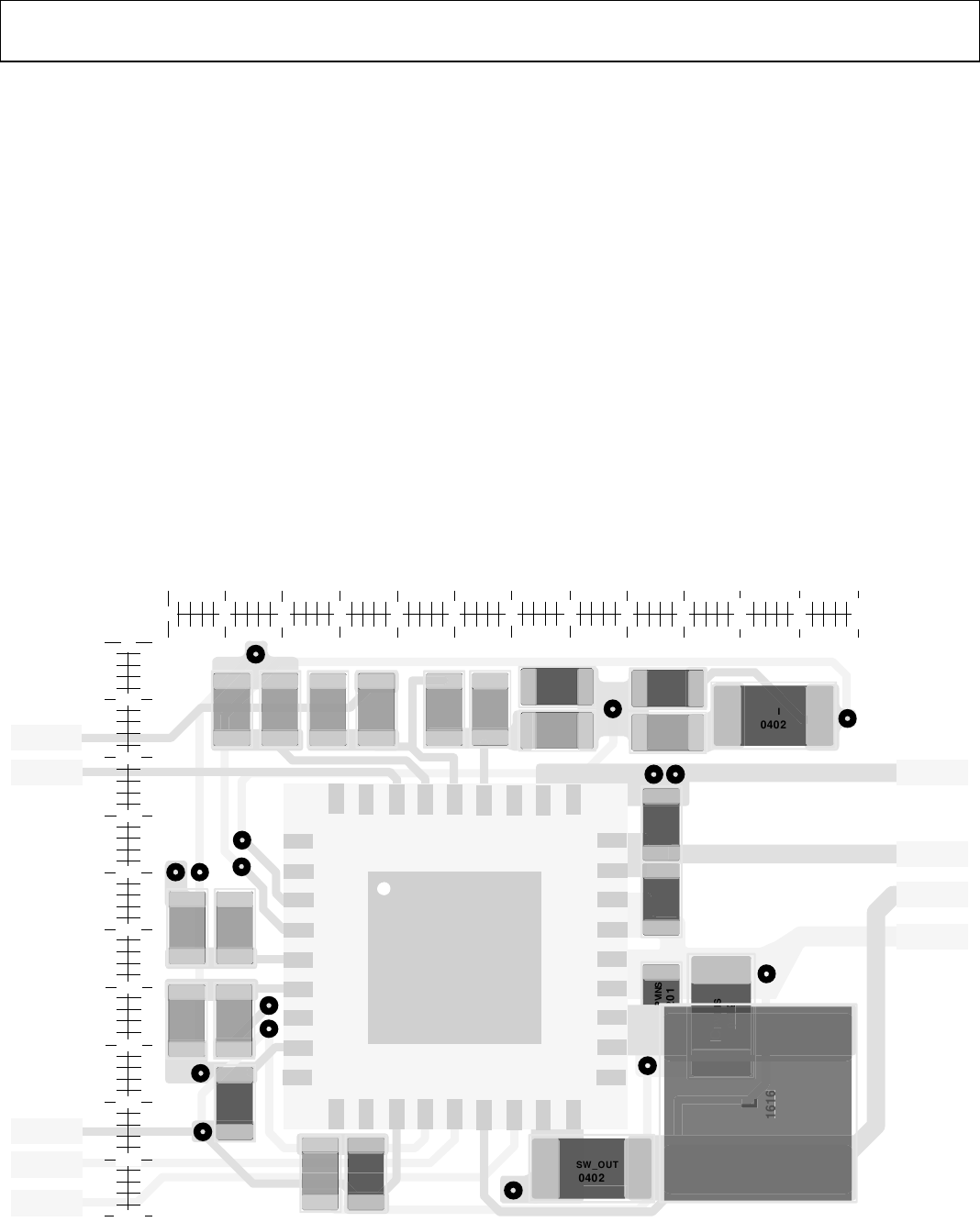

Figure 41. Example PCB Layout Using Two Layers (Top and Bottom Layers)

PVINL

0201

PVINS

0201

VREF

0201

SW_OUT

0402

L_OUT

0201

VTEC

PGND

TEMPSET

VIN

TEC+

TEC–

0402

AGND

VDD

0201

1.0

NTC

3.0

ITEC

5.0

6.0

7.0

8.0

9.0

10.0

2.0

4.0

1.0

3.0

5.0

6.0

7.0

8.0

9.0

10.0

2.0

4.0

11.0

12.0

UNITS = (mm)

PVINS

0402

1616

PVI

040

TMPGD

PGNDL

OUT1

LDR

IN2N

VLIM/SD

PVINS

PVINL

ITEC

OUT2

ILIM

VTEC

EN/SY

PGNDS

SFB

AGND

VREF

VDD

ADN8835

PVINS

PVINL

IN2P

IN1N

IN1P

PGNDL

DNC

14174-041

1wlewlwlwlwlwlwlwlwlwlw: % i_ﬁi ﬂ E: g!!! 9%.} I . 3.: i i" . 3w . if 0! iii !! . I

Data Sheet ADN8835

Rev. B | Page 25 of 27

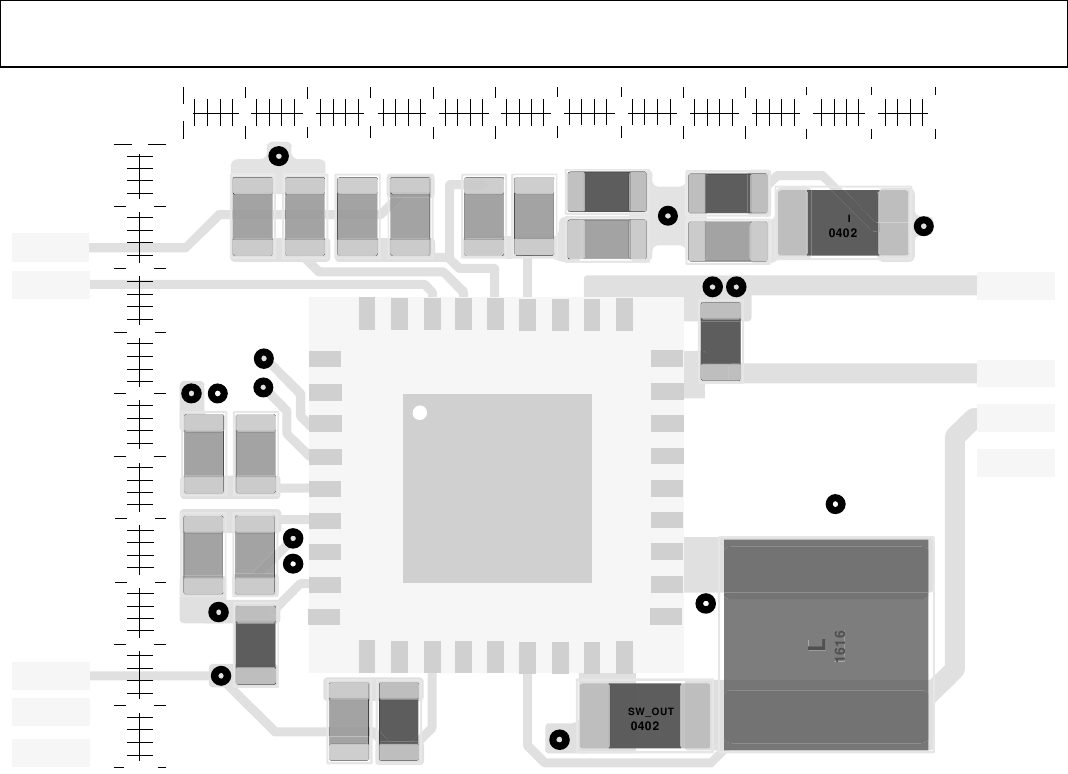

Figure 42. Example PCB Layout Using Two Layers (Top Layer Only)

1616

0201

VREF

0201

SW_OUT

0402

L_OUT

0201

VTEC

PGND

TEMPSET

VIN

TEC+

TEC–

0402

AGND

VDD

0201

1.0

NTC

3.0

ITEC

5.0

6.0

7.0

8.0

9.0

10.0

2.0

4.0

1.0

3.0

5.0

6.0

7.0

8.0

9.0

10.0

2.0

4.0

11.0

12.0

UNITS = (mm)

TMPGD

PGNDL

OUT1

LDR

IN2N

VLIM/SD

PVINS

PVINL

ITEC

OUT2

ILIM

VTEC

EN/SY

PGNDS

SFB

AGND

VREF

VDD

ADN8835

PVINS

PVINL

IN2P

IN1N

IN1P

PGNDL

DNC

14174-042

lW1+W1++HI+WI++HI++H1+WIW+IW1WIWIWI i, ° i, ‘ ‘ ‘ L ° 0 iii 00 i, ..: ,i, H I i, ‘ 0 El 1: l I g o! i

ADN8835 Data Sheet

Rev. B | Page 26 of 27

Figure 43. Example PCB Layout Using Two Layers (Bottom Layer Only)

TMPGD

PGNDL

OUT1

LDR

IN2N

VLIM/SD

PVINS

PVINL

ITEC

OUT2

ILIM

VTEC

EN/SY

PGNDS

SFB

AGND

VREF

VDD

ADN8835

PVINS

PVINL

IN2P

IN1N

IN1P

PGNDL

DNC

PVINS

0402

PVINL

0201

PVINS

0201

VREF

0201

VTEC

PGND

TEMPSET

VIN

TEC+

TEC–

AGND

0201

1.0

NTC

3.0

ITEC

5.0

6.0

7.0

8.0

9.0

10.0

2.0

4.0

1.0

3.0

5.0

6.0

7.0

8.0

9.0

10.0

2.0

4.0

11.0

12.0

UNITS = (mm)

14174-043

-Ha uuuuuuuuu ’"mnnnnnnnmA’ \nnnnnnnnn U A ANALOG DEVICES www.analug.cnm

Data Sheet ADN8835

Rev. B | Page 27 of 27

OUTLINE DIMENSIONS

Figure 44. 36-Lead Lead Frame Chip Scale Package [LFCSP]

6 mm × 6 mm Body and 0.75 mm Package Height

(CP-36-5)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature

Range2 Package Description

Package

Option

ADN8835ACPZ-R7 −40°C to +125°C 36-Lead Lead Frame Chip Scale Package [LFCSP] CP-36-5

ADN8835CP-EVALZ 36-Lead LFCSP Evaluation Board: 3 A (Source/Sink) TEC Current Limit, 5 V TEC

Voltage Limit

ADN8834MB-EVALZ3 Evaluation Board

1 Z = RoHS Compliant Part.

2 Operating junction temperature range. The ambient operating temperature range is −40°C to +85°C.

3 The ADN8834MB-EVALZ evaluation board can be used with the ADN8835CP-EVALZ to evaluate the ADN8835 product.

12-01-2015-A

0.50

BSC

BOTTOM VIEWTOP VIEW

SIDE VIEW

PIN 1

INDICATOR

EXPOSED

PAD

PIN 1

INDICATOR

SEATING

PLANE

0.05 MAX

0.02 NOM

0.203 REF

COPLANARITY

0.08

0.30

0.23

0.18

6.10

6.00 SQ

5.90

0.80

0.75

0.70

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

0.45

0.40

0.35

0.20 MIN

4.80

4.70 SQ

4.60

PKG-005013

4.00 REF

COMPLIANT

JEDEC STANDARDS MO-220-WJJD-4

registered trademarks are the property of their respective owners.

D14174-0-9/18(B)
