CYW43364 Preliminary Datasheet by Cypress Semiconductor Corp

View All Related Products | Download PDF Datasheet
PRELIMINARY CYW43364
Single-Chip IEEE 802.11 b/g/n MAC/
Baseband/Radio
Cypress Semiconductor Corporation • 198 Champion Court • San Jose,CA 95134-1709 • 408-943-2600
Document Number: 002-14781 Rev. *E Revised Thursday, April 5, 2018
The Cypress CYW43364 is a highly integrated single-chip solution and offers the lowest RBOM in the industry for Internet of Things
(IoT) and a wide range of other portable devices. The chip includes a 2.4 GHz WLAN IEEE 802.11 b/g/n MAC/baseband/radio. In
addition, it integrates a power amplifier (PA) that meets the output power requirements of most handheld systems, a low-noise amplifier
(LNA) for best-in-class receiver sensitivity, and an internal transmit/receive (iTR) RF switch, further reducing the overall solution cost
and printed circuit board area.
The WLAN host interface supports SDIO v2.0 mode, providing a raw data transfer rate up to 200 Mbps when operating in 4-bit mode
at a 50 MHz bus frequency.
Using advanced design techniques and process technology to reduce active and idle power, the CYW43364 is designed to address
the needs of highly mobile devices that require minimal power consumption and compact size. It includes a power management unit
that simplifies the system power topology while maximizing battery life.
Cypress Part Numbering Scheme
Cypress is converting the acquired IoT part numbers from Broadcom to the Cypress part numbering scheme. Due to this conversion,
there is no change in form, fit, or function as a result of offering the device with Cypress part number marking. The table provides
Cypress ordering part number that matches an existing IoT part number.
Features
IEEE 802.11x Key Features
■Single-band 2.4 GHz IEEE 802.11b/g/n.
■Support for 2.4 GHz Cypress TurboQAM® data rates (256-
QAM) and 20 MHz channel bandwidth.
■Integrated iTR switch supports a single 2.4 GHz antenna.
■Supports explicit IEEE 802.11n transmit beamforming.
■Tx and Rx low-density parity check (LDPC) support for
improved range and power efficiency.
■Supports standard SDIO v2.0 host interface.
■Supports space-time block coding (STBC) in the receiver.
■Integrated ARM Cortex-M3 processor and on-chip memory for
complete WLAN subsystem functionality, minimizing the need
to wake up the applications processor for standard WLAN
functions. This allows for further minimization of power
consumption, while maintaining the ability to field-upgrade with
future features. On-chip memory includes 512 KB SRAM and
640 KB ROM.
■OneDriver™ software architecture for easy migration from
existing embedded WLAN.
General Features
■Support diversity antenna.
■Supports a battery voltage range from 3.0V to 4.8V with an
internal switching regulator.
■Programmable dynamic power management.
■4 Kbit one-time programmable (OTP) memory for storing board
parameters.
■Can be routed on low-cost 1-x-1 PCB stack-ups.
■74-ball WLBGA package (4.87 mm × 2.87 mm, 0.4 mm pitch).
■Security:
❐WPA and WPA2 (Personal) support for powerful encryption
and authentication.
❐AES in WLAN hardware for faster data encryption and IEEE
802.11i compatibility.
❐Reference WLAN subsystem provides Cisco Compatible Ex-
tensions (CCX, CCX 2.0, CCX 3.0, CCX 4.0, CCX 5.0).
❐Reference WLAN subsystem provides Wi-Fi protected setup
(WPS).
■Worldwide regulatory support: Global products supported with
worldwide homologated design.
Table 1. Mapping Table for Part Number between Broadcom and Cypress
Broadcom Part Number Cypress Part Number
BCM43364 CYW43364
BCM43364KUBG CYW43364KUBG
l i
Document Number: 002-14781 Rev. *E Page 2 of 56
PRELIMINARY CYW43364
Figure 1. CYW43364 System Block Diagram
VDDIO VBAT
2.4GHzWLANTX/RX
WLAN
HostI/F
WL_REG_ON
SDIO
WL_HOST_WAKE
BPF
CLK_REQ
REF_CLK
(19.2,26,or37.4MHz)
CYW43364
nnnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 3 of 56
PRELIMINARY CYW43364
Contents
1. Overview ........................................................................ 4
1.1 Overview ............................................................... 4
1.2 Features ................................................................ 5
1.3 Standards Compliance .......................................... 5
2. Power Supplies and Power Management ...................6
2.1 Power Supply Topology ........................................ 6
2.2 CYW43364 PMU Features .................................... 6
2.3 WLAN Power Management ................................... 9
2.4 PMU Sequencing .................................................. 9
2.5 Power-Off Shutdown ........................................... 10
2.6 Power-Up/Power-Down/Reset Circuits ...............10
3. Frequency References ............................................... 11
3.1 Crystal Interface and Clock Generation ..............11
3.2 TCXO .................................................................. 12
3.3 External 32.768 kHz Low-Power Oscillator ......... 13
4. WLAN System Interfaces ........................................... 14
4.1 SDIO v2.0 ............................................................ 14
5. Wireless LAN MAC and PHY ..................................... 15
5.1 MAC Features ..................................................... 15
5.2 PHY Description .................................................. 17
6. WLAN Radio Subsystem ............................................ 19
6.1 Receive Path ....................................................... 19
6.2 Transmit Path ...................................................... 19
6.3 Calibration ........................................................... 19
7. CPU and Global Functions ........................................ 20
7.1 WLAN CPU and Memory Subsystem .................. 20
7.2 One-Time Programmable Memory ......................20
7.3 GPIO Interface .................................................... 20
7.4 External Coexistence Interface ...........................21
7.5 JTAG Interface ................................................... 23
7.6 UART Interface ................................................... 23
8. Pinout and Signal Descriptions ................................ 24
8.1 Ball Map .............................................................. 24
8.2 WLBGA Ball List in Ball Number Order with X-Y
Coordinates ....................................................... 25
8.3 WLBGA Ball List Ordered By Ball Name .............27
8.4 Signal Descriptions .............................................. 28
8.5 WLAN GPIO Signals and Strapping Options ...... 30
8.6 Chip Debug Options ............................................ 30
8.7 I/O States ............................................................ 31
9. DC Characteristics ..................................................... 33
9.1 Absolute Maximum Ratings ................................. 33
9.2 Environmental Ratings ........................................ 33
9.3 Electrostatic Discharge Specifications ................ 34
9.4 Recommended Operating Conditions and DC
Characteristics ................................................... 34
10. WLAN RF Specifications .......................................... 36
10.1 2.4 GHz Band General RF Specifications ......... 36
10.2 WLAN 2.4 GHz Receiver Performance
Specifications ..................................................... 37
10.3 WLAN 2.4 GHz Transmitter Performance
Specifications ..................................................... 40
10.4 General Spurious Emissions Specifications ...... 41
11. Internal Regulator Electrical Specifications .......... 42
11.1 Core Buck Switching Regulator ......................... 42
11.2 3.3V LDO (LDO3P3) .........................................43
11.3 CLDO ................................................................ 44
11.4 LNLDO .............................................................. 45
12. System Power Consumption ...................................46
12.1 WLAN Current Consumption ............................. 46
13. Interface Timing and AC Characteristics ............... 47
13.1 SDIO Default Mode Timing ............................... 47
13.2 SDIO High-Speed Mode Timing ........................ 48
13.3 JTAG Timing ..................................................... 49
14. Power-Up Sequence and Timing ............................. 50
14.1 Sequencing of Reset and Regulator Control
Signals ............................................................... 50
15. Package Information ................................................ 51
15.1 Package Thermal Characteristics ..................... 51
16. Mechanical Information ........................................... 52
17. Ordering Information ................................................ 54
18. Additional information ............................................. 54
18.1 Acronyms and Abbreviations ............................. 54
18.2 IoT Resources ................................................... 54
Document History .......................................................... 55
n Sales, Solutions, and Legal Information ................... 56
v‘igmgss
Document Number: 002-14781 Rev. *E Page 4 of 56
PRELIMINARY CYW43364
1. Overview
1.1 Overview
The Cypress CYW43364 provides the highest level of integration for IoT and wireless automation system, with integrated
IEEE 802.11 b/g/n. It provides a small form-factor solution with minimal external components to drive down cost for mass volumes
and allows for handheld device flexibility in size, form, and function. The CYW43364 is designed to address the needs of highly mobile
devices that require minimal power consumption and reliable operation.
Figure 2 on page 4 shows the interconnection of all the major physical blocks in the CYW43364 and their associated external
interfaces, which are described in greater detail in subsequent sections.
Figure 2. CYW43364 Block Diagram
Common and
Radio Digital
SWREG
LDOx2
LPO
XTAL OSC.
BPF
WLAN
SDIO
JTAG*
ARM
CM3
Backplane
BT-WLAN
ECI
WDT
OTP
GPIO
UART
JTAG*
RAM
ROM
PMU
Control
MAC
LNPPHY
Radio
AHB Bus Matrix
Cortex
M3
ETM
JTAG*
SDP
RAM
ROM
Patch
InterCtrl
DMA
Bus Arb
ARM IP
WD Timer
SW Timer
GPIO
Ctrl
APB
SDIO
Debug
IEEE 802.11a/b/g/n
GPIO
UART
2.4 GHz
2.4 GHz
PA
LNA
Power
Supply
Sleep CLK
XTAL
AHB to
APB Bridge
AHB
Supported over SDIO
JTAG supported
over SDIO
POR WL_REG_ON
nnnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 5 of 56
PRELIMINARY CYW43364
1.2 Features
The CYW43364 supports the following WLAN features:
■ IEEE 802.11b/g/n single-band radio with an internal power amplifier, LNA, and T/R switch
■ On-chip WLAN driver execution capable of supporting IEEE 802.11 functionality
■ WLAN host interface options:
❐SDIO v2.0, including default and high-speed timing.
1.3 Standards Compliance
The CYW43364 supports the following standards:
■ IEEE 802.11n—Handheld Device Class (Section 11)
■ IEEE 802.11b
■ IEEE 802.11g
■ IEEE 802.11d
■ IEEE 802.11h
■ IEEE 802.11i
The CYW43364 will support the following future drafts/standards:
■ IEEE 802.11r — Fast Roaming (between APs)
■ IEEE 802.11k — Resource Management
■ IEEE 802.11w — Secure Management Frames
■ IEEE 802.11 Extensions:
■ IEEE 802.11e QoS Enhancements (as per the WMM specification is already supported)
■ IEEE 802.11i MAC Enhancements
■ IEEE 802.11r Fast Roaming Support
■ IEEE 802.11k Radio Resource Measurement
The CYW43364 supports the following security features and proprietary protocols:
■ Security:
❐WEP
❐WPA Personal
❐WPA2 Personal
❐WMM
❐WMM-PS (U-APSD)
❐WMM-SA
❐WAPI
❐AES (Hardware Accelerator)
❐TKIP (host-computed)
❐CKIP (SW Support)
■ Proprietary Protocols:
❐CCXv2
❐CCXv3
❐CCXv4
❐CCXv5
■ IEEE 802.15.2 Coexistence Compliance — on silicon solution compliant with IEEE 3-wire requirements.
nnnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 6 of 56
PRELIMINARY CYW43364
2. Power Supplies and Power Management
2.1 Power Supply Topology
One Buck regulator, multiple LDO regulators, and a power management unit (PMU) are integrated into the CYW43364. All regulators
are programmable via the PMU to simplify the power supply.
A single VBAT (3.0V to 4.8V DC maximum) and VDDIO supply (1.8V to 3.3V) can be used, with all additional voltages being provided
by the regulators in the CYW43364.
The WL_REG_ON control signal is used to power up the regulators and take the respective circuit blocks out of reset. The CBUCK
CLDO and LNLDO power up when any of the reset signals are deasserted. All regulators are powered down only when WL_REG_ON
is deasserted. The CLDO and LNLDO can be turned on and off based on the dynamic demands of the digital baseband.
The CYW43364 allows for an extremely low power-consumption mode by completely shutting down the CBUCK, CLDO, and LNLDO
regulators. When in this state, LPLDO1 provides the CYW43364 with all required voltage, further reducing leakage currents.
Notes:
VBAT should be connected to the LDO_VDDBAT5V and SR_VDDBAT5V pins of the device.
VDDIO should be connected to the SYS_VDDIO and WCC_VDDIO pins of the device.
2.2 CYW43364 PMU Features
The PMU supports the following:
■ VBAT to 1.35Vout (170 mA nominal, 370 mA maximum) Core-Buck (CBUCK) switching regulator
■ VBAT to 3.3Vout (250 mA nominal, 450 mA maximum 800 mA peak maximum) LDO3P3
■ 1.35V to 1.2Vout (100 mA nominal, 150 mA maximum) LNLDO
■ 1.35V to 1.2Vout (80 mA nominal, 200 mA maximum) CLDO with bypass mode for deep sleep
■ Additional internal LDOs (not externally accessible)
■ PMU internal timer auto-calibration by the crystal clock for precise wake-up timing from extremely low power-consumption mode.
Figure 3 on page 7 and Figure 4 on page 8 show the typical power topology of the CYW43364.
:3 DUB EDD V A '1 EM A
Document Number: 002-14781 Rev. *E Page 7 of 56
PRELIMINARY CYW43364
Figure 3. Typical Power Topology (1 of 2)
MiniPMU
WLRF—LOGEN
WLRF—RXLNA
WLRF—ADCREF
WLRF—TX
WLRF—AFEandTIA
WLRF—XTAL
InternalVCOLDO
80mA(NMOS)
InternalRXLDO
10mA(NMOS)
InternalADCLDO
10mA(NMOS)
InternalTXLDO
80mA(PMOS)
InternalAFELDO
80mA(NMOS)
LNLDO
(100mA)
1.2V
1.2V
1.2V
1.2V
CLLDO
Peak:200mA
Avg:80mA
(Bypassindeep‐
sleep)
CoreBuck
Regulator
Peak:370mA
Avg:170mA
LPLDO1
(5mA)
2.2uH
0603
1.35V
1.1V
1.2V
1.2V
SR_VDDBAT5V
VDD1P35
LDO_VDD_1P5
4.7uF
0402
SR_PVSS
SR_VLX
o_wl_resetbWL_REG_ON
WCC_VDDIO
WCC_VDDIO (40mA)
PMU_VSS
GND
SR_VBAT5V
VBAT
Int_SR_VBAT
CYW43364
1.2V
VBAT:
Operational: 3.0V—4.8V
Performance: 3.0V—4.8V
AbsoluteMaximum: 5.5V
VDDIO
Operational: 1.8V—3.3V
600@
100MHz
2.2uF
0402
0.1uF
0201
WLRF_XTAL_
VDD1P2
WLRF—TXMixerandPA
WLRF—RFPLLPFDandMMD
10mAaverage,
>10mAatstart‐up
VOUT_LNLDO
2.2uF
0402
VDDC1
VDDC2
(AVS)
VOUT_CLDO
1.3V,1.2V,
or0.95V
WLAN/CLB/Top,AlwaysOn
WLOTP
WLDigitalandPHY
WLVDDM(SROMs&AOS)
MiniPMUisplaced
inWLradio
VBAT
Supplyball Supplybump/pad
Groundball Groundbump/pad
Externaltochip
Powerswitch
Nopowerswitch
Nodedicatedpowerswitch,butinternalpower‐
downmodesandblock‐specificpowerswitches
(320mA)
SW1
WLANresetballs
2.5V CapJess i ¢ HP [10 mA)
Document Number: 002-14781 Rev. *E Page 8 of 56
PRELIMINARY CYW43364
Figure 4. Typical Power Topology (2 of 2)
CYW43364
1.8V,2.5V,and3.3V
4.7uF
0402
LDO3P3with
Back‐Power
Protection
(Peak450‐800mA
200mAAverage)
VOUT_3P3
3.3V
LDO_
VDDBAT5V
VBAT WLRF_PA_VDD
2.5VCap‐less
LNLDO
(10mA)
WLRF—PA(2.4GHz)
WLOTP3.3V
WLRF—ADC,AFE,LOGEN,
LNA,NMOSMini‐PMULDOs
6.4mA
480to800mA
Supplyball
Externaltochip
Powerswitch
Nopowerswitch
Nodedicatedpowerswitch,butinternalpower‐
downmodesandblock‐specificpowerswitches
1uF
0201
WLBBPLL/DFLL
VOUT_3P3 6.4mA
nnnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 9 of 56
PRELIMINARY CYW43364
2.3 WLAN Power Management
The CYW43364 has been designed with the stringent power consumption requirements of mobile devices in mind. All areas of the
chip design are optimized to minimize power consumption. Silicon processes and cell libraries were chosen to reduce leakage current
and supply voltages. Additionally, the CYW43364 integrated RAM is a high volatile memory with dynamic clock control. The dominant
supply current consumed by the RAM is leakage current only. Additionally, the CYW43364 includes an advanced WLAN power
management unit (PMU) sequencer. The PMU sequencer provides significant power savings by putting the CYW43364 into various
power management states appropriate to the operating environment and the activities that are being performed. The power
management unit enables and disables internal regulators, switches, and other blocks based on a computation of the required
resources and a table that describes the relationship between resources and the time needed to enable and disable them. Power-up
sequences are fully programmable. Configurable, free-running counters (running at the 32.768 kHz LPO clock) in the PMU sequencer
are used to turn on/turn off individual regulators and power switches. Clock speeds are dynamically changed (or gated altogether) for
the current mode. Slower clock speeds are used wherever possible.
The CYW43364 WLAN power states are described as follows:
■ Active mode: All WLAN blocks in the CYW43364 are powered up and fully functional with active carrier sensing and frame
transmission and receiving. All required regulators are enabled and put in the most efficient mode based on the load current. Clock
speeds are dynamically adjusted by the PMU sequencer.
■ Doze mode: The radio, analog domains, and most of the linear regulators are powered down. The rest of the CYW43364 remains
powered up in an IDLE state. All main clocks (PLL, crystal oscillator) are shut down to reduce active power to the minimum. The
32.768 kHz LPO clock is available only for the PMU sequencer. This condition is necessary to allow the PMU sequencer to wake
up the chip and transition to Active mode. In Doze mode, the primary power consumed is due to leakage current.
■ Deep-sleep mode: Most of the chip, including analog and digital domains, and most of the regulators are powered off. Logic states
in the digital core are saved and preserved to retention memory in the always-on domain before the digital core is powered off. To
avoid lengthy hardware reinitialization, the logic states in the digital core are restored to their pre-deep-sleep settings when a wake-
up event is triggered by an external interrupt, a host resume through the SDIO bus, or by the PMU timers.
■ Power-down mode: The CYW43364 is effectively powered off by shutting down all internal regulators. The chip is brought out of
this mode by external logic re-enabling the internal regulators.
2.4 PMU Sequencing
The PMU sequencer is used to minimize system power consumption. It enables and disables various system resources based on a
computation of required resources and a table that describes the relationship between resources and the time required to enable and
disable them.
Resource requests can derive from several sources: clock requests from cores, the minimum resources defined in the ResourceMin
register, and the resources requested by any active resource request timers. The PMU sequencer maps clock requests into a set of
resources required to produce the requested clocks.
Each resource is in one of the following four states:
■ enabled
■ disabled
■ transition_on
■ transition_off
The timer value is 0 when the resource is enabled or disabled and nonzero during state transition. The timer is loaded with the time_on
or time_off value of the resource when the PMU determines that the resource must be enabled or disabled. That timer decrements
on each 32.768 kHz PMU clock. When it reaches 0, the state changes from transition_off to disabled or transition_on to enabled. If
the time_on value is 0, the resource can transition immediately from disabled to enabled. Similarly, a time_off value of 0 indicates that
the resource can transition immediately from enabled to disabled. The terms enable sequence and disable sequence refer to either
the immediate transition or the timer load-decrement sequence.
During each clock cycle, the PMU sequencer performs the following actions:
■ Computes the required resource set based on requests and the resource dependency table.
■ Decrements all timers whose values are nonzero. If a timer reaches 0, the PMU clears the ResourcePending bit for the resource
and inverts the ResourceState bit.
■ Compares the request with the current resource status and determines which resources must be enabled or disabled.
■ Initiates a disable sequence for each resource that is enabled, no longer being requested, and has no powered-up dependents.
■ Initiates an enable sequence for each resource that is disabled, is being requested, and has all of its dependencies enabled.
Document Number: 002-14781 Rev. *E Page 10 of 56
PRELIMINARY CYW43364
2.5 Power-Off Shutdown
The CYW43364 provides a low-power shutdown feature that allows the device to be turned off while the host, and any other devices
in the system, remain operational. When the CYW43364 is not needed in the system, VDDIO_RF and VDDC are shut down while
VDDIO remains powered. This allows the CYW43364 to be effectively off while keeping the I/O pins powered so that they do not draw
extra current from any other devices connected to the I/O.
During a low-power shutdown state, provided VDDIO remains applied to the CYW43364, all outputs are tristated, and most input
signals are disabled. Input voltages must remain within the limits defined for normal operation. This is done to prevent current paths
or create loading on any digital signals in the system, and enables the CYW43364 to be fully integrated in an embedded device and
to take full advantage of the lowest power-savings modes.
When the CYW43364 is powered on from this state, it is the same as a normal power-up, and the device does not retain any
information about its state from before it was powered down.
2.6 Power-Up/Power-Down/Reset Circuits
The CYW43364 has two signals (see Ta ble 2 ) that enable or disable the WLAN circuits and the internal regulator blocks, allowing the
host to control power consumption. For timing diagrams of these signals and the required power-up sequences, see Section14.:“Power‐
UpSequenceandTiming,”onpage 50.
Table 2. Power-Up/Power-Down/Reset Control Signals
Signal Description
WL_REG_ON
This signal is used by the PMU to power-up the WLAN section. When this pin is high, the regulators are enabled
and the WLAN section is out of reset. When this pin is low, the WLAN section is in reset. This pin has an
internal 200 kΩ pull-down resistor that is enabled by default. It can be disabled through programming.
Document Number: 002-14781 Rev. *E Page 11 of 56
PRELIMINARY CYW43364
3. Frequency References
An external crystal is used for generating all radio frequencies and normal operation clocking. As an alternative, an external frequency
reference driven by a temperature-compensated crystal oscillator (TCXO) signal may be used. No software settings are required to
differentiate between the two. In addition, a low-power oscillator (LPO) is provided for lower power mode timing.
3.1 Crystal Interface and Clock Generation
The CYW43364 can use an external crystal to provide a frequency reference. The recommended configuration for the crystal oscillator,
including all external components, is shown in Figure 5. Consult the reference schematics for the latest configuration.

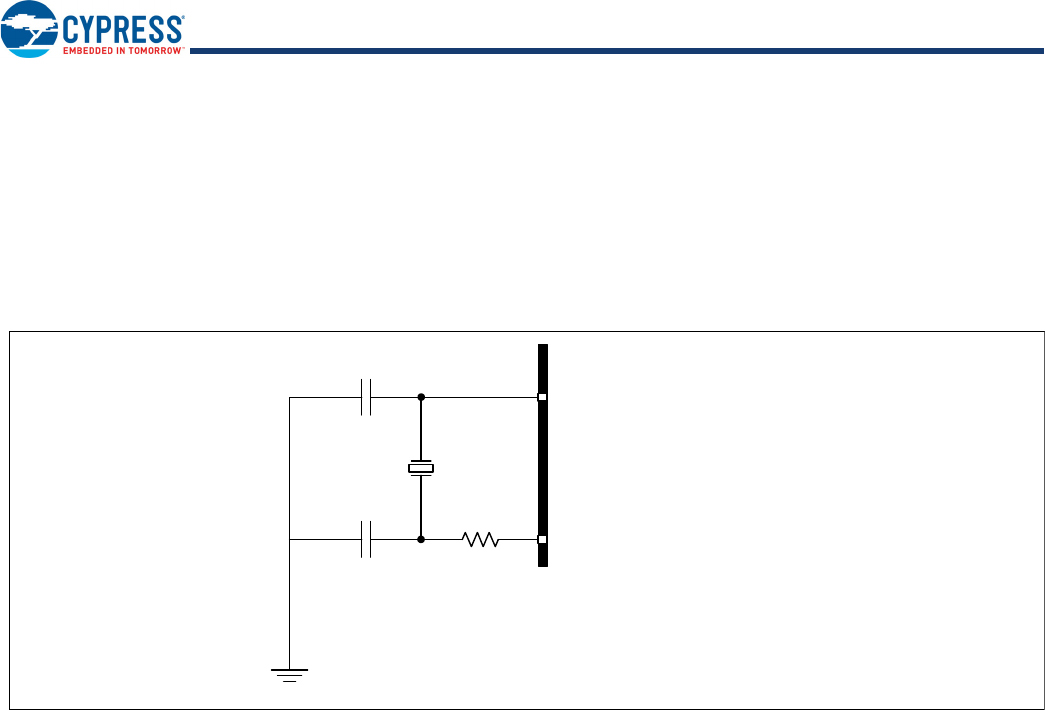

Figure 5. Recommended Oscillator Configuration
The CYW43364 uses a fractional-N synthesizer to generate the radio frequencies, clocks, and data/packet timing so that it can operate
using numerous frequency references. The frequency reference can be an external source such as a TCXO or a crystal interfaced
directly to the CYW43364.
The default frequency reference setting is a 37.4 MHz crystal or TCXO. The signal requirements and characteristics for the crystal
interface are shown in Table 3 on page 12.
Note: Although the fractional-N synthesizer can support many reference frequencies, frequencies other than the default require
support to be added in the driver, plus additional extensive system testing. Contact Cypress for further details.
12 – 27 pF
12 – 27 pF
WLRF_XTAL_XON
WLRF_XTAL_XOP
C
C
R
Note: Resistor value determined by crystal
drive level. See reference schematics for
details.
{pi-CYPRESS ' manna: mlanRRow
Document Number: 002-14781 Rev. *E Page 12 of 56
PRELIMINARY CYW43364
3.2 TCXO
As an alternative to a crystal, an external precision TCXO can be used as the frequency reference, provided that it meets the phase
noise requirements listed in Table 3 on page 12.
If the TCXO is dedicated to driving the CYW43364, it should be connected to the WLRF_XTAL_XOP pin through an external capacitor
with value ranges from 200 pF to 1000 pF as shown in Figure 6.
Figure 6. Recommended Circuit to Use with an External Dedicated TCXO
Table 3. Crystal Oscillator and External Clock Requirements and Performance
Parameter Conditions/Notes Crystal External Frequency Refer-
ence Units
Min. Typ. Max. Min. Typ. Max.
Frequency – – 37.4a
a. The frequency step size is approximately 80 Hz. The CYW43364 does not auto-detect the reference clock frequency; the frequency is specified in the software
and/or NVRAM file.
––– –MHz
Crystal load capacitance – – 12 – – – – pF
ESR – – – 60 – – – Ω
Input Impedance
(WLRF_XTAL_XOP)
Resistive – – – 10k 100k – Ω
Capacitive – – – – – 7 pF
WLRF_XTAL_XOP input
voltage AC-coupled analog signal – – – 400b
b. To use 256-QAM, a 800 mV minimum voltage is required.
– 1260 mVp-p
WLRF_XTAL_XOP input
low level DC-coupled digital signal – – – 0 – 0.2 V
WLRF_XTAL_XOP input
high level DC-coupled digital signal – – – 1.0 – 1.26 V
Frequency tolerance
Initial + over temperature – –20 – 20 –20 – 20 ppm
Duty cycle 37.4 MHz clock – – – 40 50 60 %
Phase Noisec, d, e
(IEEE 802.11 b/g)
c. For a clock reference other than 37.4 MHz, 20 × log10(f/37.4) dB should be added to the limits, where f = the reference clock frequency in MHz.
d. Phase noise is assumed flat above 100 kHz.
e. The CYW43364 supports a 26 MHz reference clock sharing option. See the phase noise requirement in the table.
37.4 MHz clock at 10 kHz offset – – – – – –129 dBc/Hz
37.4 MHz clock at 100 kHz offset – – – – – –136 dBc/Hz
Phase Noisec, d, e
(IEEE 802.11n, 2.4 GHz)
37.4 MHz clock at 10 kHz offset – – – – – –134 dBc/Hz
37.4 MHz clock at 100 kHz offset – – – – – –141 dBc/Hz
Phase Noisec, d, e
(256-QAM)
37.4 MHz clock at 10 kHz offset – – – – – –140 dBc/Hz
37.4 MHz clock at 100 kHz offset – – – – – –147 dBc/Hz
TCXO
NC
200 pF – 1000 pF
WLRF_XTAL_XOP
WLRF_XTAL_XON
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 13 of 56
PRELIMINARY CYW43364
3.3 External 32.768 kHz Low-Power Oscillator
The CYW43364 uses a secondary low-frequency sleep clock for low-power mode timing. Either the internal low-precision LPO or an
external 32.768 kHz precision oscillator is required. The internal LPO frequency range is approximately 33 kHz ± 30% over process,
voltage, and temperature, which is adequate for some applications. However, one trade-off caused by this wide LPO tolerance is a
small current consumption increase during power save mode that is incurred by the need to wake up earlier to avoid missing beacons.
Whenever possible, the preferred approach is to use a precision external 32.768 kHz clock that meets the requirements listed in Table
4 on page 13.
Note: The CYW43364 will auto-detect the LPO clock. If it senses a clock on the EXT_SLEEP_CLK pin, it will use that clock. If it
doesn't sense a clock, it will use its own internal LPO.
■ To use the internal LPO: Tie EXT_SLEEP_CLK to ground. Do not leave this pin floating.
■To use an external LPO: Connect the external 32.768 kHz clock to EXT_SLEEP_CLK.
Table 4. External 32.768 kHz Sleep-Clock Specifications
Parameter LPO Clock Units
Nominal input frequency 32.768 kHz
Frequency accuracy ±200 ppm
Duty cycle 30–70 %
Input signal amplitude 200–3300 mV, p-p
Signal type Square wave or sine wave –
Input impedancea
a. When power is applied or switched off.
>100 kΩ
<5 pF
Clock jitter <10,000 ppm
aCYPRESS' ' manna: mlanRRaw
Document Number: 002-14781 Rev. *E Page 14 of 56
PRELIMINARY CYW43364
4. WLAN System Interfaces
4.1 SDIO v2.0
The CYW43364 WLAN section supports SDIO version 2.0. for both 1-bit (25 Mbps) and 4-bit modes (100 Mbps), as well as high speed
4-bit mode (50 MHz clocks—200 Mbps). It has the ability to map the interrupt signal on a GPIO pin. This out-of-band interrupt signal
notifies the host when the WLAN device wants to turn on the SDIO interface. The ability to force control of the gated clocks from within
the WLAN chip is also provided.
SDIO mode is enabled using the strapping option pins. See Table 9 on page 30 for details.
Three functions are supported:
■ Function 0 standard SDIO function. The maximum block size is 32 bytes.
■ Function 1 backplane function to access the internal System-on-a-Chip (SoC) address space. The maximum block size is 64 bytes.
■ Function 2 WLAN function for efficient WLAN packet transfer through DMA. The maximum block size is 512 bytes.
4.1.1 SDIO Pin Descriptions
Figure 7. Signal Connections to SDIO Host (SD 4-Bit Mode)
Figure 8. Signal Connections to SDIO Host (SD 1-Bit Mode)
Table 5. SDIO Pin Descriptions
SD 4-Bit Mode SD 1-Bit Mode
DATA0 Data line 0 DATA Data line
DATA1 Data line 1 or Interrupt IRQ Interrupt
DATA2 Data line 2 NC Not used
DATA3 Data line 3 NC Not used
CLK Clock CLK Clock
CMD Command line CMD Command line
SDHost
CMD
DAT[3:0]
CLK
CYW43364
SDHost
CMD
CLK
DATA
IRQ
CYW43364
nnnnnnnnnnnnnnnnnn Embedded CPU \nlerface Host Registers, DMA Engines «WV
Document Number: 002-14781 Rev. *E Page 15 of 56
PRELIMINARY CYW43364
5. Wireless LAN MAC and PHY
5.1 MAC Features
The CYW43364 WLAN MAC supports features specified in the IEEE 802.11 base standard, and amended by IEEE 802.11n. The
salient features are listed below:
■ Transmission and reception of aggregated MPDUs (A-MPDU).
■ Support for power management schemes, including WMM power-save, power-save multipoll (PSMP) and multiphase PSMP
operation.
■ Support for immediate ACK and Block-ACK policies.
■ Interframe space timing support, including RIFS.
■ Support for RTS/CTS and CTS-to-self frame sequences for protecting frame exchanges.
■ Back-off counters in hardware for supporting multiple priorities as specified in the WMM specification.
■ Timing synchronization function (TSF), network allocation vector (NAV) maintenance, and target beacon transmission time (TBTT)
generation in hardware.
■ Hardware off-load for AES-CCMP, legacy WPA TKIP, legacy WEP ciphers, WAPI, and support for key management.
■ Programmable independent basic service set (IBSS) or infrastructure basic service set functionality
■ Statistics counters for MIB support.
5.1.1 MAC Description
The CYW43364 WLAN MAC is designed to support high throughput operation with low-power consumption. In addition, several
power-saving modes that have been implemented allow the MAC to consume very little power while maintaining network-wide timing
synchronization. The architecture diagram of the MAC is shown in Figure 9 on page 15.
Figure 9. WLAN MAC Architecture
EmbeddedCPUInterface
HostRegisters,DMAEngines
TX‐FIFO
32KB
WEP
WEP,TKIP,AES
TXE
TXA‐MPDU
RXE
PMQ PSM
SharedMemory
6KB
PSM
UCODE
Memory
EXT‐ IHR
IFS
TSF
NAV
IHR
BUS
SHM
BUS
MAC ‐ PHYInterface
RX‐FIFO
10KB
RXA‐MPDU
nnnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 16 of 56
PRELIMINARY CYW43364
The following sections provide an overview of the important modules in the MAC.
PSM
The programmable state machine (PSM) is a microcoded engine that provides most of the low-level control to the hardware to
implement the IEEE 802.11 specification. It is a microcontroller that is highly optimized for flow-control operations, which are predom-
inant in implementations of communication protocols. The instruction set and fundamental operations are simple and general, which
allows algorithms to be optimized until very late in the design process. It also allows for changes to the algorithms to track evolving
IEEE 802.11 specifications.
The PSM fetches instructions from the microcode memory. It uses the shared memory to obtain operands for instructions, as a data
store, and to exchange data between both the host and the MAC data pipeline (via the SHM bus). The PSM also uses a scratch-pad
memory (similar to a register bank) to store frequently accessed and temporary variables.
The PSM exercises fine-grained control over the hardware engines by programming internal hardware registers (IHR). These IHRs
are collocated with the hardware functions they control and are accessed by the PSM via the IHR bus.
The PSM fetches instructions from the microcode memory using an address determined by the program counter, an instruction literal,
or a program stack. For ALU operations, the operands are obtained from shared memory, scratch-pad memory, IHRs, or instruction
literals, and the results are written into the shared memory, scratch-pad memory, or IHRs.
There are two basic branch instructions: conditional branches and ALU-based branches. To better support the many decision points
in the IEEE 802.11 algorithms, branches can depend on either readily available signals from the hardware modules (branch condition
signals are available to the PSM without polling the IHRs) or on the results of ALU operations.
WEP
The wired equivalent privacy (WEP) engine encapsulates all the hardware accelerators to perform the encryption and decryption, as
well as the MIC computation and verification. The accelerators implement the following cipher algorithms: legacy WEP, WPA TKIP,
and WPA2 AES-CCMP.
Based on the frame type and association information, the PSM determines the appropriate cipher algorithm to be used. It supplies
the keys to the hardware engines from an on-chip key table. The WEP interfaces with the transmit engine (TXE) to encrypt and
compute the MIC on transmit frames and the receive engine (RXE) to decrypt and verify the MIC on receive frames. WAPI is also
supported.
TXE
The transmit engine (TXE) constitutes the transmit data path of the MAC. It coordinates the DMA engines to store the transmit frames
in the TXFIFO. It interfaces with WEP module to encrypt frames and transfers the frames across the MAC-PHY interface at the
appropriate time determined by the channel access mechanisms.
The data received from the DMA engines are stored in transmit FIFOs. The MAC supports multiple logical queues to support traffic
streams that have different QoS priority requirements. The PSM uses the channel access information from the IFS module to schedule
a queue from which the next frame is transmitted. Once the frame is scheduled, the TXE hardware transmits the frame based on a
precise timing trigger received from the IFS module.
The TXE module also contains the hardware that allows the rapid assembly of MP DUs into an A-MPD U for transmission. The hardware
module aggregates the encrypted MPDUs by adding appropriate headers and pad delimiters as needed.
RXE
The receive engine (RXE) constitutes the receive data path of the MAC. It interfaces with the DMA engine to drain the received frames
from the RX FIFO. It transfers bytes across the MAC-PHY interface and interfaces with the WEP module to decrypt frames. The
decrypted data is stored in the RX FIFO.
The RXE module contains programmable filters that are programmed by the PSM to accept or filter frames based on several criteria
such as receiver address, BSSID, and certain frame types.
The RXE module also contains the hardware required to detect A-MPDUs, parse the headers of the containers, and disaggregate
them into component MPDUS.
IFS
The IFS module contains the timers required to determine interframe space timing including RIFS timing. It also contains multiple
back-off engines required to support prioritized access to the medium as specified by WMM.
The interframe spacing timers are triggered by the cessation of channel activity on the medium, as indicated by the PHY. These timers
provide precise timing to the TXE to begin frame transmission. The TXE uses this information to send response frames or perform
transmit frame-bursting (RIFS or SIFS separated, as within a TXOP).
The back-off engines (for each access category) monitor channel activity, in each slot duration, to determine whether to continue or
pause the back-off counters. When the back-off counters reach 0, the TXE gets notified so that it may commence frame transmission.
nnnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 17 of 56
PRELIMINARY CYW43364
In the event of multiple back-off counters decrementing to 0 at the same time, the hardware resolves the conflict based on policies
provided by the PSM.
The IFS module also incorporates hardware that allows the MAC to enter a low-power state when operating under the IEEE power-
saving mode. In this mode, the MAC is in a suspended state with its clock turned off. A sleep timer, whose count value is initialized
by the PSM, runs on a slow clock and determines the duration over which the MAC remains in this suspended state. Once the timer
expires, the MAC is restored to its functional state. The PSM updates the TSF timer based on the sleep duration, ensuring that the
TSF is synchronized to the network.
TSF
The timing synchronization function (TSF) module maintains the TSF timer of the MAC. It also maintains the target beacon trans-
mission time (TBTT). The TSF timer hardware, under the control of the PSM, is capable of adopting timestamps received from beacon
and probe response frames in order to maintain synchronization with the network.
The TSF module also generates trigger signals for events that are specified as offsets from the TSF timer, such as uplink and downlink
transmission times used in PSMP.
NAV
The network allocation vector (NAV) timer module is responsible for maintaining the NAV information conveyed through the duration
field of MAC frames. This ensures that the MAC complies with the protection mechanisms specified in the standard.
The hardware, under the control of the PSM, maintains the NAV timer and updates the timer appropriately based on received frames.
This timing information is provided to the IFS module, which uses it as a virtual carrier-sense indication.
MAC-PHY Interface
The MAC-PHY interface consists of a data path interface to exchange RX/TX data from/to the PHY. In addition, there is a programming
interface, which can be controlled either by the host or the PSM to configure and control the PHY.
5.2 PHY Description
The CYW43364 WLAN digital PHY is designed to comply with IEEE 802.11b/g/n single stream to provide wireless LAN connectivity
supporting data rates from 1 Mbps to 96 Mbps for low-power, high-performance handheld applications.
The PHY has been designed to meet specification requirements in the presence of interference, radio nonlinearity, and impairments.
It incorporates efficient implementations of the filters, FFT, and Viterbi decoder algorithms. Efficient algorithms have been designed
to achieve maximum throughput and reliability, including algorithms for carrier sense/rejection, frequency/phase/timing acquisition
and tracking, and channel estimation and tracking. The PHY receiver also contains a robust IEEE 802.11b demodulator. The PHY
carrier sense has been tuned to provide high throughput for IEEE 802.11g/IEEE 802.11b hybrid networks.
5.2.1 PHY Features
■ Supports the IEEE 802.11b/g/n single-stream standards.
■ Supports explicit IEEE 802.11n transmit beamforming.
■ Supports optional Greenfield mode in TX and RX.
■ Tx and Rx LDPC for improved range and power efficiency.
■ Supports IEEE 802.11h/d for worldwide operation.
■ Algorithms achieving low power, enhanced sensitivity, range, and reliability.
■ Automatic gain control scheme for blocking and nonblocking application scenarios for cellular applications.
■ Closed-loop transmit power control.
■ Designed to meet FCC and other regulatory requirements.
■ Support for 2.4 GHz Cypress TurboQAM data rates and 20 MHz channel bandwidth.
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 18 of 56
PRELIMINARY CYW43364
Figure 10. WLAN PHY Block Diagram
The PHY is capable of fully calibrating the RF front-end to extract the highest performance. On power-up, the PHY performs a full
calibration suite to correct for IQ mismatch and local oscillator leakage. The PHY also performs periodic calibration to compensate
for any temperature related drift, thus maintaining high-performance over time. A closed-loop transmit control algorithm maintains the
output power at its required level and can control TX power on a per-packet basis.
Filters
and
Radio
Comp
Frequency
andTiming
Synch
CarrierSense,
AGC,andRx
FSM
Radio
Control
Block
Filtersand
RadioComp
AFE
and
Radio
MAC
Interface
Buffers
OFDM
Demodulate
Viterbi
Decoder
TxFSM
PAComp
Modulation
andCoding
Modulate/
Spread
Frameand
Scramble
FFT/IFFT
CCK/DSSS
Demodulate
Descramble
and
Deframe
COEX
A :i CYPRESS nnnnnnnnnnnnnnnnnn ® (X)
Document Number: 002-14781 Rev. *E Page 19 of 56
PRELIMINARY CYW43364
6. WLAN Radio Subsystem
The CYW43364 includes an integrated WLAN RF transceiver that has been optimized for use in 2.4 GHz Wireless LAN systems. It
is designed to provide low power, low cost, and robust communications for applications operating in the globally available 2.4 GHz
unlicensed ISM band. The transmit and receive sections include all on-chip filtering, mixing, and gain control functions. Improvements
to the radio design include shared TX/RX baseband filters and high immunity to supply noise.
Figure 11 shows the radio functional block diagram.
Figure 11. Radio Functional Block Diagram
6.1 Receive Path
The CYW43364 has a wide dynamic range, direct conversion receiver. It employs high-order on-chip channel filtering to ensure
reliable operation in the noisy 2.4 GHz ISM band.
6.2 Transmit Path
Baseband data is modulated and upconverted to the 2.4 GHz ISM band. A linear on-chip power amplifier is included, which is capable
of delivering high output powers while meeting IEEE 802.11b/g/n specifications without the need for an external PA. This PA is supplied
by an internal LDO that is directly supplied by VBAT, thereby eliminating the need for a separate PALDO. Closed-loop output power
control is integrated.
6.3 Calibration
The CYW43364 features dynamic on-chip calibration, eliminating process variation across components. This enables the CYW43364
to be used in high-volume applications because calibration routines are not required during manufacturing testing. These calibration
routines are performed periodically during normal radio operation. Automatic calibration examples include baseband filter calibration
for optimum transmit and receive performance and LOFT calibration for leakage reduction. In addition, I/Q calibration, R calibration,
and VCO calibration are performed on-chip.
WLLOGEN WLPLL
WLANBB
CLB
Voltage
Regulators
WLPA WLPGA
WLTXG‐Mixer WLTXLPF
WLRXG‐Mixer
SLNA WLG‐LNA12
WLRXLPF
WLATX
WLGRX
WLGTX
WLARX
WLADC
WLADC
WLRXLPF
WLDAC
WLDAC
WLTXLPF
WLRF_2G_eLG
WLRF_2G_RF
4~6nH
10pF
Recommend
Q=40
nnnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 20 of 56
PRELIMINARY CYW43364
7. CPU and Global Functions
7.1 WLAN CPU and Memory Subsystem
The CYW43364 includes an integrated ARM Cortex-M3 processor with internal RAM and ROM. The ARM Cortex-M3 processor is a
low-power processor that features low gate count, low interrupt latency, and low-cost debugging. It is intended for deeply embedded
applications that require fast interrupt response features. The processor implements the ARM architecture v7-M with support for the
Thumb-2 instruction set. ARM Cortex-M3 provides a 30% performance gain over ARM7TDMI.
At 0.19 µW/MHz, the Cortex-M3 is the most power efficient general purpose microprocessor available, outperforming 8- and 16-bit
devices on MIPS/µW. It supports integrated sleep modes.
ARM Cortex-M3 uses multiple technologies to reduce cost through improved memory utilization, reduced pin overhead, and reduced
silicon area. ARM Cortex-M3 supports independent buses for code and data access (ICode/DCode and system buses). ARM Cortex-
M3 supports extensive debug features including real-time tracing of program execution.
On-chip memory for the CPU includes 512 KB SRAM and 640 KB ROM.
7.2 One-Time Programmable Memory
Various hardware configuration parameters may be stored in an internal 4096-bit One-Time Programmable (OTP) memory, which is
read by system software after a device reset. In addition, customer-specific parameters, including the system vendor ID and the MAC
address, can be stored, depending on the specific board design.
The initial state of all bits in an unprogrammed OTP device is 0. After any bit is programmed to a 1, it cannot be reprogrammed to 0.
The entire OTP array can be programmed in a single write cycle using a utility provided with the Cypress WLAN manufacturing test
tools. Alternatively, multiple write cycles can be used to selectively program specific bytes, but only bits which are still in the 0 state
can be altered during each programming cycle.
Prior to OTP memory programming, all values should be verified using the appropriate editable nvram.txt file, which is provided with
the reference board design package. Documentation on the OTP development process is available on the Cypress customer support
portal (http://community.cypress.com/).
7.3 GPIO Interface
Five general-purpose I/O (GPIO) pins are available on the CYW43364 that can be used to connect to various external devices.
GPIOs are tristated by default. Subsequently, they can be programmed to be either input or output pins via the GPIO control register.
They can also be programmed to have internal pull-up or pull-down resistors.
GPIO_0 is normally used as a WL_HOST_WAKE signal.
The CYW43364 supports 2-wire, 3-wire, and 4-wire coexistence configurations using GPIO_1 through GPIO_4. The signal functions
of GPIO_1 through GPIO_4 are programmable to support the three coexistence configurations.
Document Number: 002-14781 Rev. *E Page 21 of 56
PRELIMINARY CYW43364
7.4 External Coexistence Interface
The CYW43364 supports 2-wire, 3-wire, and 4-wire coexistence interfaces to enable signaling between the device and an external
colocated wireless device in order to manage wireless medium sharing for optimal performance. The external colocated device can
be any of the following ICs: GPS, WiMAX, LTE, or UWB. An LTE IC is used in this section for illustration.
7.4.1 2-Wire Coexistence
Figure 12 shows a 2-wire LTE coexistence example. The following definitions apply to the GPIOs in the figure:
■ GPIO_1: WLAN_SECI_TX output to an LTE IC.
■ GPIO_2: WLAN_SECI_RX input from an LTE IC.
Figure 12. 2-Wire Coexistence Interface to an LTE IC
7.4.2 3-Wire and 4-Wire Coexistence Interfaces
Figure 13 and Figure 14 show 3-wire and 4-wire LTE coexistence examples, respectively. The following definitions apply to the GPIOs
in the figures:
■ For the 3-wire coexistence interface:
■ GPIO_2: WLAN priority output to an LTE IC.
■ GPIO_3: LTE_RX input from an LTE IC.
■ GPIO_4: LTE_TX input from an LTE IC.
For the 4-wire coexistence interface:
■ GPIO_1: WLAN priority output to an LTE IC.
■ GPIO_2: LTE frame sync input from an LTE IC. This GPIO applies only to the 4-wire coexistence interface.
■ GPIO_3: LTE_RX input from an LTE IC.
■ GPIO_4: LTE_TX input from an LTE IC.
LTE/IC
UART_IN
UART_OUT
Note: WLAN_SECI_OUT and WLAN_SECI_IN are multiplexed on the GPIOs.
GPIO_1 WLAN_SECI_TX
WLAN_SECI_RX
GPIO_2
CYW43364
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 22 of 56
PRELIMINARY CYW43364
Figure 13. 3-Wire Coexistence Interface to an LTE IC
Figure 14. 4-Wire Coexistence Interface to an LTE IC
LTE/IC
GPIO_2
GPIO_3
GPIO_4
LTE_RX
LTE_TX
WLAN Priority
CYW43364
LTE/IC
GPIO_1
GPIO_2
GPIO_3
WLAN Priority
LTE_Frame_Sync
LTE_RX
GPIO_4 LTE_TX
CYW43364
nnnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 23 of 56
PRELIMINARY CYW43364
7.5 JTAG Interface
The CYW43364 supports the IEEE 1149.1 JTAG boundary scan standard over SDIO for performing device package and PCB
assembly testing during manufacturing. In addition, the JTAG interface allows Cypress to assist customers by using proprietary debug
and characterization test tools during board bring-up. Therefore, it is highly recommended to provide access to the JTAG pins by
means of test points or a header on all PCB designs.
7.6 UART Interface
One UART interface can be enabled by software as an alternate function on the JTAG pins. UART_RX is available on the JTAG_TDI
pin, and UART_TX is available on the JTAG_TDO pin.
The UART is primarily for debugging during development. By adding an external RS-232 transceiver, this UART enables the
CYW43364 to operate as RS-232 data termination equipment (DTE) for exchanging and managing data with other serial devices. It
is compatible with the industry standard 16550 UART, and it provides a FIFO size of 64 × 8 in each direction.
‘CYPRESS' ' ENIEnnzn m vmmw- A B c D E F s 1 NC NC NC NC VDDJ P2 VDDJ P2 2 NC NC NC NC VDDJ P2 quJ P2 vss : NC NC NC VDDC vss 4 NC NC NC VSSC NC VDDC - 6 NC NC SVSBVDD' NC NC LPOJN NC 5 SR VLX PM” AVSS VouTicLD VOUTiLNL GND wccivonl WLiREeio 7 7 0 DO 0 N SRivDDEA LDoivom LDOivDDE 1 SR, vas r5v P5 v0 UT73P3 ATSV A B c E F
Document Number: 002-14781 Rev. *E Page 24 of 56
PRELIMINARY CYW43364
8. Pinout and Signal Descriptions
8.1 Ball Map
Figure 15 shows the 74-ball WLBGA ball map.
Figure 15. 74-Ball WLBGA Ball Map (Bottom View)
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 25 of 56
PRELIMINARY CYW43364
8.2 WLBGA Ball List in Ball Number Order with X-Y Coordinates
Tab le 6 provides ball numbers and names in ball number order. The table includes the X and Y coordinates for a top view with a (0,0)
center.
Table 6. CYW43364 WLBGA Ball List — Ordered By Ball Number
Ball Number Ball Name X Coordinate Y Coordinate
A1 NC –1200.006 2199.996
A2 NC –799.992 2199.996
A3 NC –399.996 2199.996
A4 NC 0 2199.996
A5 NC 399.996 2199.996
A6 SR_VLX 799.992 2199.978
A7 SR_PVSS 1199.988 2199.978
B1 NC –1200.006 1800
B2 NC –799.992 1800
B3 NC –399.996 1800
B4 NC 0 1800
B5 NC 399.996 1800
B6 PMU_AVSS 799.992 1799.982
B7 SR_VBAT5V 1199.988 1799.982
C1 NC –1200.006 1399.995
C2 NC –799.992 1399.986
C3 NC –399.996 1399.995
C4 NC 0 1399.995
C5 SYS_VDDIO 399.996 1399.986
C6 VOUT_CLDO 799.992 1399.986
C7 LDO_VDD15V 1199.988 1399.986
D2 NC –799.992 999.99
D3 VDDC –399.996 999.999
D4 VSSC 0 999.999
D5 NC 399.996 999.99
D6 VOUT_LNLDO 799.992 999.99
E1 NC –1199.988 599.994
E2 VDD_1P2 –799.992 599.994
E3 VSS –399.996 599.994
E5 NC 399.996 599.994
E6 GND 799.992 599.994
E7 VOUT_3P3 1199.988 599.994
F1 VDD_1P2 –1199.988 199.998
F2 VDD_1P2 –799.992 199.998
F4 NC 0 199.998
F5 LPO_IN 399.996 199.998
F6 WCC_VDDIO 800.001 199.998
F7 LDO_VBAT5V 1199.988 199.998
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 26 of 56
PRELIMINARY CYW43364
G1 VDD_1P2 –1199.988 –199.998
G2 VSS –799.992 –199.998
G4 VDDC 0 –199.998
G5 NC 399.996 –199.998
G6 WL_REG_ON 800.001 –199.998
H1 VDDB_PA –1199.988 –599.994
H2 VSS –799.992 –599.994
H3 VSS –399.996 –599.994
H4 WLRF_AFE_GND 0 –599.994
H5 NC 399.996 –599.994
H6 GPIO_1 800.001 –599.994
H7 SDIO_DATA_1 1200.006 –599.994
J1 WLRF_2G_eLG –1199.988 –999.99
J2 WLRF_LNA_GND –799.992 –999.99
J3 WLRF_GPIO –399.996 –999.99
J5 VSSC 399.996 –999.999
J6 GPIO_0 800.001 –999.999
J7 SDIO_DATA_3 1200.006 –999.999
K1 WLRF_2G_RF –1199.988 –1399.986
K2 WLRF_GENERAL_GND –799.992 –1399.986
K4 GPIO_3 0 –1399.995
K5 GPIO_4 399.996 –1399.995
K6 SDIO_DATA_0 800.001 –1399.995
L2 WLRF_PA_GND –799.992 –1799.982
L3 WLRF_VCO_GND –399.996 –1799.982
L4 WLRF_XTAL_GND 0 –1799.982
L5 GPIO_2 399.996 –1799.991
L6 SDIO_CMD 800.001 –1799.991
L7 SDIO_DATA_2 1200.006 –1799.991
M1 WLRF_PA_VDD –1199.988 –2199.978
M2 WLRF_VDD_1P35 –799.992 –2199.978
M3 WLRF_XTAL_VDD1P2 –399.996 –2199.978
M4 WLRF_XTAL_XOP 0 –2199.978
M5 WLRF_XTAL_XON 399.996 –2199.978
M6 CLK_REQ 800.001 –2199.996
M7 SDIO_CLK 1200.006 –2199.996
Table 6. CYW43364 WLBGA Ball List — Ordered By Ball Number
Ball Number Ball Name X Coordinate Y Coordinate
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 27 of 56
PRELIMINARY CYW43364
8.3 WLBGA Ball List Ordered By Ball Name
Tab le 7 provides the ball numbers and names in ball name order.
Table 7. CYW43364 WLBGA Ball List — Ordered By Ball Name
Ball Name Ball Number
CLK_REQ M6
GND E6
GPIO_0 J6
GPIO_1 H6
GPIO_2 L5
GPIO_3 K4
GPIO_4 K5
LDO_VDD1P5 C7
LDO_VDDBAT5V F7
LPO_IN F5
NC A1
NC A2
NC A3
NC A4
NC A5
NC B1
NC B2
NC B3
NC B4
NC B5
NC C1
NC C2
NC C3
NC C4
NC D2
NC D5
NC E1
NC E5
NC F4
NC G5
NC H5
PMU_AVSS B6
SDIO_CLK M7
SDIO_CMD L6
SDIO_DATA_0 K6
SDIO_DATA_1 H7
SDIO_DATA_2 L7
SDIO_DATA_3 J7
SR_PVSS A7
SR_VDDBAT5V B7
SR_VLX A6
SYS_VDDIO C5
VDD_1P2 E2
VDD_1P2 F1
VDD_1P2 F2
VDD_1P2 G1
VDDB_PA H1
VDDC D3
VDDC G4
VOUT_3P3 E7
VOUT_CLDO C6
VOUT_LNLDO D6
VSS E3
VSS G2
VSS H2
VSS H3
VSSC D4
VSSC J5
WCC_VDDIO F6
WL_REG_ON G6
WLRF_2G_eLG J1
WLRF_2G_RF K1
WLRF_AFE_GND H4
WLRF_GENERAL_GND K2
WLRF_GPIO J3
WLRF_LNA_GND J2
WLRF_PA_GND L2
WLRF_PA_VDD M1
WLRF_VCO_GND L3
WLRF_VDD_1P35 M2
WLRF_XTAL_GND L4
WLRF_XTAL_VDD1P2 M3
WLRF_XTAL_XON M5
WLRF_XTAL_XOP M4
Ball Name Ball Number
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 28 of 56
PRELIMINARY CYW43364
8.4 Signal Descriptions
Tab le 8 provides the WLBGA package signal descriptions.
Table 8. WLBGA Signal Descriptions
Signal Name WLBGA Ball Type Description
RF Signal Interface
WLRF_2G_RF K1 O 2.4 GHz WLAN RF output port.
SDIO Bus Interface
SDIO_CLK M7 I SDIO clock input.
SDIO_CMD L6 I/O SDIO command line.
SDIO_DATA_0 K6 I/O SDIO data line 0.
SDIO_DATA_1 H7 I/O SDIO data line 1.
SDIO_DATA_2 L7 I/O SDIO data line 2. Also used as a strapping option (see
Table 11 on page 31).
SDIO_DATA_3 J7 I/O SDIO data line 3.
Note: Per Section 6 of the SDIO specification, 10 to 100 kΩ pull-ups are required on the four DATA lines and the CMD line. This
requirement must be met during all operating states by using external pull-up resistors or properly programming internal SDIO host
pull-ups.
WLAN GPIO Interface
WLRF_GPIO J3 I/O Test pin. Not connected in normal operation.
Clocks
WLRF_XTAL_XON M5 O XTAL oscillator output.
WLRF_XTAL_XOP M4 I XTAL oscillator input.
CLK_REQ M6 O
External system clock request—Used when the
system clock is not provided by a dedicated crystal (for
example, when a shared TCXO is used). Asserted to
indicate to the host that the clock is required.
LPO_IN F5 I
External sleep clock input (32.768 kHz). If an external
32.768 kHz clock cannot be provided, pull this pin low.
However, BLE will be always on and cannot go to deep
sleep.
No Connect
NC_A1 A1 I No connect.
NC_A2 A2 O No connect.
NC_A3 A3 I/O No connect.
NC_A4 A4 I/O No connect.
NC_A5 A5 I/O No connect.
NC_B1 B1 I/O No connect.
NC_B2 B2 I No connect.
NC_B3 B3 I/O No connect.
NC_B4 B4 O No connect.
NC_B5 B5 I/O No connect.
NC_C1 C1 I/O No connect.
NC_C2 C2 O No connect.
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 29 of 56
PRELIMINARY CYW43364
NC_C3 C3 O No connect.
NC_C4 C4 I No connect.
NC_D2 D2 O No connect.
NC_E1 E1 I No connect.
NC_F4 F4 I/O No connect.
NC_G5 G5 I/O No connect.
NC_H5 H5 I/O No connect.
NC_E5 E5 N/A Not used. Do not connect to this pin.
NC_D5 D5 N/A Not used. Do not connect to this pin.
Miscellaneous
WL_REG_ON G6 I
Used by PMU to power up or power down the internal
regulators used by the WLAN section. Also, when
deasserted, this pin holds the WLAN section in reset.
This pin has an internal 200 kΩ pull-down resistor that
is enabled by default. It can be disabled through
programming.
GND_E6 E6 I Tie pin E6 to ground.
GPIO_0 J6 I/O
Programmable GPIO pins. This pin becomes an
output pin when it is used as WLAN_HOST_WAKE/
out-of-band signal.
GPIO_1 H6 I/O Programmable GPIO pins.
GPIO_2 L5 I/O Programmable GPIO pins.
GPIO_3 K4 I/O Programmable GPIO pins.
GPIO_4 K5 I/O Programmable GPIO pins.
WLRF_2G_eLG J1 I Connect to an external inductor. See the reference
schematic for details.
Integrated Voltage Regulators
SR_VDDBAT5V B7 I SR VBAT input power supply.
SR_VLX A6 O
CBUCK switching regulator output. See Table 20 on
page 42 for details of the inductor and capacitor
required on this output.
LDO_VDDBAT5V F7 I LDO VBAT.
LDO_VDD1P5 C7 I LNLDO input.
VOUT_LNLDO D6 O Output of low-noise LNLDO.
VOUT_CLDO C6 O Output of core LDO.
VDDB_PA H1 I Connect to VOUT_3P3.
VDD_1P2 G1 I Connect to VOUT_LNLDO.
VDD_1P2 F2 I Connect to VOUT_LNLDO.
VDD_1P2 F1 I Connect to VOUT_LNLDO.
VDD_1P2 E2 I Connect pin E2 to VOUT_LNLDO.
Power Supplies
WLRF_XTAL_VDD1P2 M3 I XTAL oscillator supply.
WLRF_PA_VDD M1 I Power amplifier supply.
WCC_VDDIO F6 I VDDIO input supply. Connect to VDDIO.
Table 8. WLBGA Signal Descriptions (Cont.)
Signal Name WLBGA Ball Type Description
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 30 of 56
PRELIMINARY CYW43364
8.5 WLAN GPIO Signals and Strapping Options
The pins listed in Table 9 are sampled at power-on reset (POR) to determine the various operating modes. Sampling occurs a few
milliseconds after an internal POR or deassertion of the external POR. After the POR, each pin assumes the GPIO or alternative
function specified in the signal descriptions table. Each strapping option pin has an internal pull-up (PU) or pull-down (PD) resistor
that determines the default mode. To change the mode, connect an external PU resistor to VDDIO or a PD resistor to ground using
a 10 kΩ resistor or less.
Note: Refer to the reference board schematics for more information.
8.6 Chip Debug Options
The chip can be accessed for debugging via the JTAG interface, multiplexed on the SDIO_DATA_0 through SDIO_DATA_3 (and
SDIO_CLK) I/O depending on the bootstrap state of GPIO_1 and GPIO_2.
Tab le 10 shows the debug options of the device.
SYS_VDDIO C5 I VDDIO input supply. Connect to VDDIO.
WLRF_VDD_1P35 M2 I LNLDO input supply.
VDDC D3, G4 I Core supply for WLAN.
VOUT_3P3 E7 O 3.3V output supply. See the reference schematic for
details.
Ground
VSS_H2 H2 I Connect to ground.
VSS_G2 G2 I Connect to ground.
VSS_H3 H3 I Connect to ground.
VSS_E3 E3 I Connect to ground.
PMU_AVSS B6 I Quiet ground.
SR_PVSS A7 I Switcher-power ground.
VSSC D4, J5 I Core ground for WLAN.
WLRF_AFE_GND H4 I AFE ground.
WLRF_LNA_GND J2 I 2.4 GHz internal LNA ground.
WLRF_GENERAL_GND K2 I Miscellaneous RF ground.
WLRF_PA_GND L2 I 2.4 GHz PA ground.
WLRF_VCO_GND L3 I VCO/LO generator ground.
WLRF_XTAL_GND L4 I XTAL ground.
Table 9. GPIO Functions and Strapping Options
Pin Name WLBGA Pin # Default Function Description
SDIO_DATA_2 L7 1 WLAN host interface
select
This pin selects the WLAN host interface mode. The
default is SDIO.
Table 10. Chip Debug Options
JTAG_SEL GPIO_2 GPIO_1 Function SDIO I/O Pad Function
0 0 0 Normal mode SDIO
00 1JTAG over SDIO JTAG
0 1 1 SWD over GPIO_1/GPIO_2 SDIO
Table 8. WLBGA Signal Descriptions (Cont.)
Signal Name WLBGA Ball Type Description
Document Number: 002-14781 Rev. *E Page 31 of 56
PRELIMINARY CYW43364
8.7 I/O States
The following notations are used in Table 11:
■ I: Input signal
■ O: Output signal
■ I/O: Input/Output signal
■ PU = Pulled up
■ PD = Pulled down
■ NoPull = Neither pulled up nor pulled down
Table 11. I/O States
Name I/O Keeper Active Mode
Low Power State/
Sleep
(All Power Present)
Power-down
(WL_REG_ON=0
BT_REG_ON=don’t
care)
Out-of-Reset;
(WL_REG_ON=1;
BT_REG_ON=don’t
care)
(WL_REG_ON=1 and
BT_REG_ON=0) and
VDDIOs are Present
(WL_REG_ON=0
and
BT_REG_ON=1)
and VDDIOs are
Present
Power
Rail
WL_REG_ON I N Input; PD (pull-down can
be disabled)
Input; PD (pull-down can
be disabled)
Input; PD (of 200K) Input; PD (200k) Input; PD (200k) – –
CLK_REQ I/O Y Open drain or push-pull
(programmable). Active
high.
Open drain or push-pull
(programmable). Active
high
PD Open drain,
active high.
Open drain,
active high.
Open drain,
active high.
WCC_VDDIO
SDIO_DATA_0 I/O N SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> PU SDIO MODE ->
NoPull
Input; PU WCC_VDDIO
SDIO_DATA_1 I/O N SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> PU SDIO MODE ->
NoPull
Input; PU WCC_VDDIO
SDIO_DATA_2 I/O N SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> PU SDIO MODE ->
NoPull
Input; PU WCC_VDDIO
SDIO_DATA_3 I/O N SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> PU SDIO MODE ->
NoPull
Input; PU WCC_VDDIO
SDIO_CMD I/O N SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> PU SDIO MODE ->
NoPull
Input; PU WCC_VDDIO
SDIO_CLK I N SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE -> NoPull SDIO MODE ->
NoPull
Input WCC_VDDIO
JTAG_SEL I Y PD PD High-Z, NoPull Input, PD PD Input, PD WCC_VDDIO
GPIO_0 I/O Y TBD Active mode High-Z, NoPullaInput, SDIO OOB Int,
NoPull
Active mode Input, NoPull WCC_VDDIO
GPIO_1 I/O Y TBD Active mode High-Z, NoPullaInput, PD Active mode Input, Strap, PD WCC_VDDIO
GPIO_2 I/O Y TBD Active mode High-Z, NoPullaInput, GCI GPIO[7],
NoPull
Active mode Input, Strap,
NoPull
WCC_VDDIO
GPIO_3 I/O Y TBD Active mode High-Z, NoPullaInput, GCI GPIO[0], PU Active mode Input, PU WCC_VDDIO
GPIO_4 I/O Y TBD Active mode High-Z, NoPullaInput, GCI GPIO[1], PU Active mode Input, PU WCC_VDDIO
@chREss
Document Number: 002-14781 Rev. *E Page 32 of 56
PRELIMINARY CYW43364
Note:
1. Keeper column: N = pad has no keeper. Y = pad has a keeper. Keeper is always active except in the Power-down state.
2. If there is no keeper, and it is an input and there is Nopull, then the pad should be driven to prevent leakage due to a floating pad (e.g., SDIO_CLK).
3. In the Power-down state (xx_REG_ON = 0): High-Z; NoPull => The pad is disabled because power is not supplied.
4. Depending on whether the PCM interface is enabled and the configuration is master or slave mode, it can be either an output or input.
5. Depending on whether the I2S interface is enabled and the configuration is master or slave mode, it can be either an output or input.
6. The GPIO pull states for the Active and Low-Power states are hardware defaults. They can all be subsequently programmed as pull-ups or pull-downs.
7. Regarding GPIO pins, the following are the pull-up and pull-down values for both 3.3V and 1.8V VDDIO:
Minimum (kΩ) Typical (kΩ) Maximum (kΩ)
3.3V VDDIO pull-downs: 51.5 44.5 38
3.3V VDDIO pull-ups: 37.4 39.5 44.5
1.8V VDDIO pull-downs: 64 83 116
1.8V VDDIO pull-ups: 65 86 118
a. The GPIO pull states for the active and low-power states are hardware defaults. They can all be subsequently programmed as a pull-up or pull-down.
Table 11. I/O States (Cont.)
Name I/O Keeper Active Mode
Low Power State/
Sleep
(All Power Present)
Power-down
(WL_REG_ON=0
BT_REG_ON=don’t
care)
Out-of-Reset;
(WL_REG_ON=1;
BT_REG_ON=don’t
care)
(WL_REG_ON=1 and
BT_REG_ON=0) and
VDDIOs are Present
(WL_REG_ON=0
and
BT_REG_ON=1)
and VDDIOs are
Present
Power
Rail
{pi-CYPRESS ' manna: mlanRRaw
Document Number: 002-14781 Rev. *E Page 33 of 56
PRELIMINARY CYW43364
9. DC Characteristics
Note: Values in this data sheet are design goals and are subject to change based on the results of device characterization.
9.1 Absolute Maximum Ratings
Caution: The absolute maximum ratings in Ta ble 12 indicate levels where permanent damage to the device can occur, even if these
limits are exceeded for only a brief duration. Functional operation is not guaranteed under these conditions. Excluding VBAT,
operation at the absolute maximum conditions for extended periods can adversely affect long-term reliability of the device.
9.2 Environmental Ratings
The environmental ratings are shown in Ta bl e 13.
Table 12. Absolute Maximum Ratings
Rating Symbol Value Unit
DC supply for VBAT and PA driver supply VBAT –0.5 to +6.0a
a. Continuous operation at 6.0V is supported.
V
DC supply voltage for digital I/O VDDIO –0.5 to 3.9 V
DC supply voltage for RF switch I/Os VDDIO_RF –0.5 to 3.9 V
DC input supply voltage for CLDO and LNLDO – –0.5 to 1.575 V
DC supply voltage for RF analog VDDRF –0.5 to 1.32 V
DC supply voltage for core VDDC –0.5 to 1.32 V
Maximum undershoot voltage for I/Ob
b. Duration not to exceed 25% of the duty cycle.
Vundershoot –0.5 V
Maximum overshoot voltage for I/ObVovershoot VDDIO + 0.5 V
Maximum junction temperature Tj 125 °C
Table 13. Environmental Ratings
Characteristic Value Units Conditions/Comments
Ambient temperature (TA) –30 to +70°C a
a. Functionality is guaranteed, but specifications require derating at extreme temperatures (see the specification tables for details).
C Operation
Storage temperature –40 to +125°C C–
Relative humidity Less than 60 % Storage
Less than 85 % Operation
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 34 of 56
PRELIMINARY CYW43364
9.3 Electrostatic Discharge Specifications
Extreme caution must be exercised to prevent electrostatic discharge (ESD) damage. Proper use of wrist and heel grounding straps
to discharge static electricity is required when handling these devices. Always store unused material in its antistatic packaging.
9.4 Recommended Operating Conditions and DC Characteristics
Functional operation is not guaranteed outside the limits shown in Ta ble 1 5, and operation outside these limits for extended periods
can adversely affect long-term reliability of the device.
Table 14. ESD Specifications
Pin Type Symbol Condition ESD Rating Unit
ESD, Handling Reference:
NQY00083, Section 3.4, Group
D9, Table B
ESD_HAND_HBM Human Body Model Contact Discharge
per JEDEC EID/JESD22-A114 1250 V
Machine Model (MM) ESD_HAND_MM Machine Model Contact 50 V
CDM ESD_HAND_CDM
Charged Device Model Contact
Discharge per JEDEC EIA/JESD22-
C101
300 V
Table 15. Recommended Operating Conditions and DC Characteristics
Element Symbol Value Unit
Minimum Typical Maximum
DC supply voltage for VBAT VBAT 3.0a–4.8
bV
DC supply voltage for core VDD 1.14 1.2 1.26 V
DC supply voltage for RF blocks in chip VDDRF 1.14 1.2 1.26 V
DC supply voltage for digital I/O VDDIO,
VDDIO_SD 1.71 – 3.63 V
DC supply voltage for RF switch I/Os VDDIO_RF 3.13 3.3 3.46 V
External TSSI input TSSI 0.15 – 0.95 V
Internal POR threshold Vth_POR 0.4 – 0.7 V
SDIO Interface I/O Pins
For VDDIO_SD = 1.8V:
Input high voltage VIH 1.27 – – V
Input low voltage VIL – – 0.58 V
Output high voltage @ 2 mA VOH 1.40 – – V
Output low voltage @ 2 mA VOL – – 0.45 V
For VDDIO_SD = 3.3V:
Input high voltage VIH 0.625 × VDDIO – – V
Input low voltage VIL – – 0.25 × VDDIO V
Output high voltage @ 2 mA VOH 0.75 × VDDIO – – V
Output low voltage @ 2 mA VOL – – 0.125 × VDDIO V
Other Digital I/O Pins
For VDDIO = 1.8V:
Input high voltage VIH 0.65 × VDDIO – – V
Input low voltage VIL – – 0.35 × VDDIO V
Output high voltage @ 2 mA VOH VDDIO – 0.45 – – V
Output low voltage @ 2 mA VOL – – 0.45 V
For VDDIO = 3.3V:
Document Number: 002-14781 Rev. *E Page 35 of 56
PRELIMINARY CYW43364
Input high voltage VIH 2.00 – – V
Input low voltage VIL – – 0.80 V
Output high voltage @ 2 mA VOH VDDIO – 0.4 – – V
Output low Voltage @ 2 mA VOL – – 0.40 V
RF Switch Control Output Pinsc
For VDDIO_RF = 3.3V:
Output high voltage @ 2 mA VOH VDDIO – 0.4 – – V
Output low voltage @ 2 mA VOL – – 0.40 V
Input capacitance CIN –– 5pF
a. The CYW43364 is functional across this range of voltages. However, optimal RF performance specified in the data sheet is guaranteed only for 3.2V < VBAT <
4.8V.
b. The maximum continuous voltage is 4.8V. Voltages up to 6.0V for up to 10 seconds, cumulative duration over the lifetime of the device are allowed. Voltages as
high as 5.0V for up to 250 seconds, cumulative duration over the lifetime of the device are allowed.
c. Programmable 2 mA to 16 mA drive strength. Default is 10 mA.
Table 15. Recommended Operating Conditions and DC Characteristics (Cont.)
Element Symbol Value Unit
Minimum Typical Maximum
nnnnnnnnnnnnnnnnnn %H w+
Document Number: 002-14781 Rev. *E Page 36 of 56
PRELIMINARY CYW43364
10. WLAN RF Specifications
The CYW43364 includes an integrated direct conversion radio that supports the 2.4 GHz band. This section describes the RF
characteristics of the 2.4 GHz radio.
Note: Values in this data sheet are design goals and may change based on device characterization results.
Unless otherwise stated, the specifications in this section apply when the operating conditions are within the limits specified in Table
13 on page 33 and Table 15 on page 34. Functional operation outside these limits is not guaranteed.
Typical values apply for the following conditions:
■ VBAT = 3.6V.
■ Ambient temperature +25°C.
Figure 16. RF Port Location
Note: All specifications apply at the chip port unless otherwise specified.
10.1 2.4 GHz Band General RF Specifications
Table 16. 2.4 GHz Band General RF Specifications
Item Condition Minimum Typical Maximum Unit
TX/RX switch time Including TX ramp down – – 5 µs
RX/TX switch time Including TX ramp up – – 2 µs
TX
RX
C2
10 pF
L1
4.7 nH
C1
10 pF
Filter
Chip
Port
Antenna
Port
CYW43364
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 37 of 56
PRELIMINARY CYW43364
10.2 WLAN 2.4 GHz Receiver Performance Specifications
Note: Unless otherwise specified, the specifications in Table 17 are measured at the chip port (for the location of the chip port, see
Figure 16 on page 36).
Table 17. WLAN 2.4 GHz Receiver Performance Specifications
Parameter Condition/Notes Minimum Typical Maximum Unit
Frequency range – 2400 – 2500 MHz
RX sensitivity (8% PER for 1024
octet PSDU) a
1 Mbps DSSS –97.5 –99.5 – dBm
2 Mbps DSSS –93.5 –95.5 – dBm
5.5 Mbps DSSS –91.5 –93.5 – dBm
11 Mbps DSSS –88.5 –90.5 – dBm
RX sensitivity (10% PER for 1000
octet PSDU) at WLAN RF port a
6 Mbps OFDM –91.5 –93.5 – dBm
9 Mbps OFDM –90.5 –92.5 – dBm
12 Mbps OFDM –87.5 –89.5 – dBm
18 Mbps OFDM –85.5 –87.5 – dBm
24 Mbps OFDM –82.5 –84.5 – dBm
36 Mbps OFDM –80.5 –82.5 – dBm
48 Mbps OFDM –76.5 –78.5 – dBm
54 Mbps OFDM –75.5 –77.5 – dBm
RX sensitivity
(10% PER for 4096 octet PSDU).
Defined for default parameters:
GF, 800 ns GI.
20 MHz channel spacing for all MCS rates (Mixed mode)
256-QAM, R = 5/6 –67.5 –69.5 – dBm
256-QAM, R = 3/4 –69.5 –71.5 – dBm
MCS7 –71.5 –73.5 – dBm
MCS6 –73.5 –75.5 – dBm
MCS5 –74.5 –76.5 – dBm
MCS4 –79.5 –81.5 – dBm
MCS3 –82.5 –84.5 – dBm
MCS2 –84.5 –86.5 – dBm
MCS1 –86.5 –88.5 – dBm
MCS0 –90.5 –92.5 – dBm
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 38 of 56
PRELIMINARY CYW43364
Blocking level for 3 dB Rx sensi-
tivity degradation (without
external filtering)
704–716 LTE – –13 – dBm
777–787 LTE – –13 – dBm
776–794 MHz CDMA2000 – –13.5 – dBm
815–830 LTE – –12.5 – dBm
816–824 CDMA2000 – –13.5 – dBm
816–849 LTE – –11.5 – dBm
824–849 WCDMA – –11.5 – dBm
824–849 CDMA2000 – –12.5 – dBm
824–849 LTE – –11.5 – dBm
824–849 GSM850 – –8 – dBm
830–845 LTE – –11.5 – dBm
832–862 LTE – –11.5 – dBm
880–915 WCDMA – –10 – dBm
880–915 LTE – –12 – dBm
880–915 E-GSM – –9 – dBm
1710–1755 WCDMA – –13 – dBm
1710–1755 LTE – –14.5 – dBm
1710–1755 CDMA2000 – –14.5 – dBm
1710–1785 WCDMA – –13 – dBm
1710–1785 LTE – –14.5 – dBm
1710–1785 GSM1800 – –12.5 – dBm
1850–1910 GSM1900 – –11.5 – dBm
1850–1910 CDMA2000 – –16 – dBm
1850–1910 WCDMA – –13.5 – dBm
1850–1910 LTE – –16 – dBm
1850–1915 LTE – –17 – dBm
1920–1980 WCDMA – –17.5 – dBm
Blocking level for 3 dB Rx sensi-
tivity degradation (without
external filtering)
(cont.)
1920–1980 CDMA2000 – –19.5 – dBm
1920–1980 LTE – –19.5 – dBm
2300–2400 LTE – –44 – dBm
2500–2570 LTE – –43 – dBm
2570–2620 LTE – –34 – dBm
5G (WLAN) WLAN – >–4 – dBm
Maximum receive level
@ 2.4 GHz
@ 1, 2 Mbps (8% PER, 1024 octets) –6 – – dBm
@ 5.5, 11 Mbps (8% PER, 1024 octets) –12 – – dBm
@ 6–54 Mbps (10% PER, 1000 octets) –15.5 – – dBm
Table 17. WLAN 2.4 GHz Receiver Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 39 of 56
PRELIMINARY CYW43364
Adjacent channel rejection-
DSSS.
(Difference between interfering
and desired signal [25 MHz
apart] at 8% PER for 1024 octet
PSDU with desired signal level
as specified in Condition/Notes.)
11 Mbps DSSS –70 dBm 35 – – dB
Adjacent channel rejection-
OFDM.
(Difference between interfering
and desired signal (25 MHz
apart) at 10% PER for 1000b
octet PSDU with desired signal
level as specified in Condition/
Notes.)
6 Mbps OFDM –79 dBm 16 – – dB
9 Mbps OFDM –78 dBm 15 – – dB
12 Mbps OFDM –76 dBm 13 – – dB
18 Mbps OFDM –74 dBm 11 – – dB
24 Mbps OFDM –71 dBm 8 – – dB
36 Mbps OFDM –67 dBm 4 – – dB
48 Mbps OFDM –63 dBm 0 – – dB
54 Mbps OFDM –62 dBm –1 – – dB
65 Mbps OFDM –61 dBm –2 – – dB
RCPI accuracycRange –98 dBm to –75 dBm –3 – 3 dB
Range above –75 dBm –5 – 5 dB
Return loss Zo = 50Ω across the dynamic range. 10 – – dB
a. Optimal RF performance, as specified in this data sheet, is guaranteed only for temperatures between –10°C and 55°C.
b. For 65 Mbps, the size is 4096.
c. The minimum and maximum values shown have a 95% confidence level.
Table 17. WLAN 2.4 GHz Receiver Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 40 of 56
PRELIMINARY CYW43364
10.3 WLAN 2.4 GHz Transmitter Performance Specifications
Note: Unless otherwise specified, the specifications in Table 17 are measured at the chip port (for the location of the chip port, see
Figure 16 on page 36).
Table 18. WLAN 2.4 GHz Transmitter Performance Specifications
Parameter Condition/Notes Minimum Typical Maximum Unit
Frequency range – 2400 – 2500 MHz
Transmitted power in cellular
and WLAN 5G band (at 21
dBm, 90% duty cycle, 1 Mbps
CCK).
776–794 MHz CDMA2000 – –167.5 – dBm/Hz
869–960 MHz CDMAOne, GSM850 – –163.5 – dBm/Hz
1450–1495 DAB – –154.5 – dBm/Hz
1570–1580 MHz GPS – –152.5 – dBm/Hz
1592–1610 MHz GLONASS – –149.5 – dBm/Hz
1710–1800 DSC-1800-Uplink – –145.5 – dBm/Hz
1805–1880 MHz GSM 1800 – –143.5 – dBm/Hz
1850–1910 MHz GSM 1900 – –140.5 – dBm/Hz
1910–1930 MHz TDSCDMA,LTE – –138.5 – dBm/Hz
1930–1990 MHz GSM1900, CDMAOne,
WCDMA ––139 –dBm/Hz
2010–2075 MHz TDSCDMA – –127.5 – dBm/Hz
2110–2170 MHz WCDMA – –124.5 – dBm/Hz
2305–2370 LTE Band 40 – –104.5 – dBm/Hz
2370–2400 LTE Band 40 – –81.5 – dBm/Hz
2496–2530 LTE Band 41 – –94.5 – dBm/Hz
2530–2560 LTE Band 41 – –120.5 – dBm/Hz
2570–2690 LTE Band 41 – –121.5 – dBm/Hz
5000–5900 WLAN 5G – –109.5 – dBm/Hz
Harmonic level (at 21 dBm with
90% duty cycle, 1 Mbps CCK)
4.8-5.0 GHz 2nd Harmonic – –26.5 – dBm/
MHz
7.2-7.5 GHz 3rd Harmonic – –23.5 – dBm/
MHz
9.6-10 GHz 4th Harmonic – –32.5 – dBm/
MHz
TX power at the chip port for the
highest power level setting at
25°C, VBA = 3.6V, an d spectral
mask and EVM compliancea, b
EVM Does Not Exceed
IEEE 802.11b
(DSSS/CCK) –9 dB 21 – – dBm
OFDM, BPSK –8 dB 20.5 – – dBm
OFDM, QPSK –13 dB 20.5 – – dBm
OFDM, 16-QAM –19 dB 20.5 – – dBm
OFDM, 64-QAM
(R = 3/4) –25 dB 18 – – dBm
OFDM, 64-QAM
(R = 5/6) –27 dB 17.5 – – dBm
OFDM, 256-QAM (R
= 5/6) –32 dB 15 – – dBm
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 41 of 56
PRELIMINARY CYW43364
10.4 General Spurious Emissions Specifications
TX power control
dynamic range –9––dB
Closed loop TX power variation
at highest power level setting
Across full temperature and voltage range.
Applies across 5 to 21 dBm output power range. ––±1.5dB
Carrier suppression – 15 – – dBc
Gain control step – – 0.25 – dB
Return loss Zo = 50 4 6 – dB
Load pull variation for output
power, EVM, and Adjacent
Channel Power Ratio (ACPR)
VSWR = 2:1.
EVM degradation – 3.5 – dB
Output power variation – ±2 – dB
ACPR-compliant power
level –15 –dBm
VSWR = 3:1.
EVM degradation – 4 – dB
Output power variation – ±3 – dB
ACPR-compliant power
level –15 –dBm
a. TX power for channel 1 and channel 11 is specified separately by nonvolatile memory parameters to ensure band-edge compliance.
b. Optimal RF performance, as specified in this data sheet, is guaranteed only for temperatures between –10°C and 55°C.
Table 19. General Spurious Emissions Specifications
Parameter Condition/Notes Minimum Typical Maximum Unit
Frequency range – 2400 – 2500 MHz
General Spurious Emissions
TX emissions
30 MHz < f < 1 GHz RBW = 100 kHz – –99 –96 dBm
1 GHz < f < 12.75 GHz RBW = 1 MHz – –44 –41 dBm
1.8 GHz < f < 1.9 GHz RBW = 1 MHz – –68 –65 dBm
5.15 GHz < f < 5.3 GHz RBW = 1 MHz – –88 –85 dBm
RX/standby
emissions
30 MHz < f < 1 GHz RBW = 100 kHz – –99 –96 dBm
1 GHz < f < 12.75 GHz RBW = 1 MHz – –54 –51 dBm
1.8 GHz < f < 1.9 GHz RBW = 1 MHz – –88 –85 dBm
5.15 GHz < f < 5.3 GHz RBW = 1 MHz – –88 –85 dBm
Note: The specifications in this table apply at the chip port.
Table 18. WLAN 2.4 GHz Transmitter Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
nnnnnnnnnnnnnnnnnn 8a
Document Number: 002-14781 Rev. *E Page 42 of 56
PRELIMINARY CYW43364
11. Internal Regulator Electrical Specifications
Note: Values in this data sheet are design goals and are subject to change based on device characterization results.
Functional operation is not guaranteed outside of the specification limits provided in this section.
11.1 Core Buck Switching Regulator
Table 20. Core Buck Switching Regulator (CBUCK) Specifications
Specification Notes Min. Typ. Max. Units
Input supply voltage (DC) DC voltage range inclusive of disturbances. 2.4 3.6 4.8a
a. The maximum continuous voltage is 4.8V. Voltages up to 6.0V for up to 10 seconds, cumulative duration, over the lifetime of the device are allowed. Voltages as
high as 5.0V for up to 250 seconds, cumulative duration, over the lifetime of the device are allowed.
V
PWM mode switching
frequency CCM, load > 100 mA VBAT = 3.6V. – 4 – MHz
PWM output current – – – 370 mA
Output current limit – – 1400 – mA
Output voltage range Programmable, 30 mV steps.
Default = 1.35V. 1.2 1.35 1.5 V
PWM output voltage
DC accuracy
Includes load and line regulation.
Forced PWM mode. –4 – 4 %
PWM ripple voltage, static
Measure with 20 MHz bandwidth limit.
Static load, max. ripple based on VBAT = 3.6V,
Vout = 1.35V,
Fsw = 4 MHz, 2.2 μH inductor L > 1.05 μH, Cap +
Board total-ESR < 20 mΩ,
Cout > 1.9 μF, ESL<200 pH
– 7 20 mVpp
PWM mode peak efficiency Peak efficiency at 200 mA load, inductor DCR =
200 mΩ, VBAT = 3.6V, VOUT = 1.35V –85– %
PFM mode efficiency 10 mA load current, inductor DCR = 200 mΩ,
VBAT = 3.6V, VOUT = 1.35V –77– %
Start-up time from
power down
VDDIO already ON and steady.
Time from REG_ON rising edge to CLDO reaching
1.2V
– 400 500 µs
External inductor 0603 size, 2.2 μH ±20%,
DCR = 0.2Ω ± 25% –2.2–µH
External output capacitor Ceramic, X5R, 0402,
ESR <30 mΩ at 4 MHz, 4.7 μF ±20%, 10V 2.0b
b. Minimum capacitor value refers to the residual capacitor value after taking into account the part-to-part tolerance, DC-bias, temperature, and aging.
4.7 10c
c. Total capacitance includes those connected at the far end of the active load.
µF
External input capacitor
For SR_VDDBATP5V pin,
ceramic, X5R, 0603,
ESR < 30 mΩ at 4 MHz, ±4.7 μF ±20%, 10V
0.67b4.7 – µF
Input supply voltage ramp-up time 0 to 4.3V 40 – – µs
Document Number: 002-14781 Rev. *E Page 43 of 56
PRELIMINARY CYW43364
11.2 3.3V LDO (LDO3P3)
Table 21. LDO3P3 Specifications
Specification Notes Min. Typ. Max. Units
Input supply voltage, Vin
Min. = Vo + 0.2V = 3.5V dropout voltage
requirement must be met under maximum load
for performance specifications.
3.1 3.6 4.8a
a. The maximum continuous voltage is 4.8V. Voltages up to 6.0V for up to 10 seconds, cumulative duration, over the lifetime of the device are allowed. Voltages as
high as 5.0V for up to 250 seconds, cumulative duration, over the lifetime of the device are allowed.
V
Output current – 0.001 – 450 mA
Nominal output voltage, VoDefault = 3.3V. – 3.3 – V
Dropout voltage At max. load. – – 200 mV
Output voltage DC accuracy Includes line/load regulation. –5 – +5 %
Quiescent current No load – 66 85 µA
Line regulation Vin from (Vo + 0.2V) to 4.8V, max. load – – 3.5 mV/V
Load regulation load from 1 mA to 450 mA – – 0.3 mV/mA
PSRR
Vin ≥ Vo + 0.2V,
Vo = 3.3V, Co = 4.7 µF,
Max. load, 100 Hz to 100 kHz
20 – – dB
LDO turn-on time Chip already powered up. – 160 250 µs
External output capacitor, Co
Ceramic, X5R, 0402,
(ESR: 5 mΩ–240 mΩ), ± 10%, 10V 1.0b
b. Minimum capacitor value refers to the residual capacitor value after taking into account the part-to-part tolerance, DC-bias, temperature, and aging.
4.7 5.64 µF
External input capacitor
For SR_VDDBATA5V pin (shared with band
gap) Ceramic, X5R, 0402,
(ESR: 30m-200 mΩ), ± 10%, 10V.
Not needed if sharing VBAT capacitor 4.7 µF
with SR_VDDBATP5V.
–4.7– µF
aCYPRESS' ' manna: mlanRRaw 1.13
Document Number: 002-14781 Rev. *E Page 44 of 56
PRELIMINARY CYW43364
11.3 CLDO
Table 22. CLDO Specifications
Specification Notes Min. Typ. Max. Units
Input supply voltage, Vin
Min. = 1.2 + 0.15V = 1.35V dropout voltage
requirement must be met under maximum load. 1.3 1.35 1.5 V
Output current 7 0.2 – 200 mA
Output voltage, Vo
Programmable in 10 mV steps.
Default = 1.2.V 0.95 1.2 1.26 V
Dropout voltage At max. load – – 150 mV
Output voltage DC accuracy Includes line/load regulation –4 – +4 %
Quiescent current No load – 13 – µA
200 mA load – 1.24 – mA
Line regulation Vin from (Vo + 0.15V) to 1.5V,
maximum load ––5mV/V
Load regulation Load from 1 mA to 300 mA – 0.02 0.05 mV/mA
Leakage current Power down – 5 20 µA
Bypass mode – 1 3 µA
PSRR @1 kHz, Vin ≥ 1.35V, Co = 4.7 µF 20 – – dB
Start-up time of PMU
VDDIO up and steady. Time from the REG_ON rising
edge to the CLDO
reaching 1.2V.
– – 700 µs
LDO turn-on time LDO turn-on time when rest of the
chip is up. – 140 180 µs
External output capacitor, CoTotal ESR: 5 mΩ–240 mΩ 1.1a
a. Minimum capacitor value refers to the residual capacitor value after taking into account the part-to-part tolerance, DC-bias, temperature, and aging.
2.2 – µF
External input capacitor
Only use an external input capacitor
at the VDD_LDO pin if it is not supplied
from CBUCK output.
–12.2µF
aCYPRESS' ' manna: mlanRRaw
Document Number: 002-14781 Rev. *E Page 45 of 56
PRELIMINARY CYW43364
11.4 LNLDO
Table 23. LNLDO Specifications
Specification Notes Min. Typ. Max. Units
Input supply voltage, Vin
Min. VIN = VO + 0.15V = 1.35V
(where VO = 1.2V) dropout voltage requirement
must be met under maximum load.
1.3 1.35 1.5 V
Output current – 0.1 – 150 mA
Output voltage, Vo
Programmable in 25 mV steps.
Default = 1.2V 1.1 1.2 1.275 V
Dropout voltage At maximum load – – 150 mV
Output voltage DC accuracy Includes line/load regulation –4 – +4 %
Quiescent current No load – 10 12 µA
Max. load – 970 990 µA
Line regulation Vin from (Vo + 0.15V) to 1.5V,
200 mA load –– 5mV/V
Load regulation Load from 1 mA to 200 mA:
Vin ≥ (Vo + 0.12V) – 0.025 0.045 mV/mA
Leakage current Power-down, junction temp. = 85°C – 5 20 µA
Output noise @30 kHz, 60–150 mA load Co = 2.2 µF
@100 kHz, 60–150 mA load Co = 2.2 µF – – 60
35 –
PSRR @1 kHz, Vin ≥ (Vo + 0.15V), Co = 4.7 µF 20 – – dB
LDO turn-on time LDO turn-on time when rest of chip is up – 140 180µs
External output capacitor, Co Total ESR (trace/capacitor):
5 mΩ–240 mΩ 0.5a
a. Minimum capacitor value refers to the residual capacitor value after taking into account the part-to-part tolerance, DC-bias, temperature, and aging.
2.2 4.7 µF
External input capacitor
Only use an external input capacitor at the
VDD_LDO pin if it is not supplied from CBUCK
output.
Total ESR (trace/capacitor): 30 mΩ–200 mΩ
– 1 2.2 µF
nV/ Hz
CYPRESS ' manna: mlanRRaw PM1DT|M1 Av ° ( PM1 DTIMB (Av PM2 DT|M1 (Av PM2 DT|M3(AV . d 9-) 9-)“ 9-)° 9)
Document Number: 002-14781 Rev. *E Page 46 of 56
PRELIMINARY CYW43364
12. System Power Consumption
Note:
The values in this data sheet are design goals and are subject to change based on device characterization.Unless otherwise stated, these
values apply for the conditions specified in Table 15 on page 34.
12.1 WLAN Current Consumption
Tab le 24 shows typical currents consumed by the CYW43364’s WLAN section.
12.1.1 2.4 GHz Mode
Table 24. 2.4 GHz Mode WLAN Power Consumption
Mode Rate VBAT = 3.6V, VDDIO = 1.8V, TA 25°C
VBAT (mA) Vio (µA)
Sleep Modes
Leakage (OFF) N/A 0.0035 0.08
Sleep (idle, unassociated) a
a. Device is initialized in Sleep mode, but not associated.
N/A 0.0058 80
Sleep (idle, associated, inter-beacons) b
b. Device is associated, and then enters Power Save mode (idle between beacons).
Rate 1 0.0058 80
IEEE Power Save PM1 DTIM1 (Avg.) c
c. Beacon interval = 100 ms; beacon duration = 1 ms @ 1 Mbps (Integrated Sleep + wakeup + beacon).
Rate 1 1.05 74
IEEE Power Save PM1 DTIM3 (Avg.) d
d. Beacon interval = 300 ms; beacon duration = 1 ms @ 1 Mbps (Integrated Sleep + wakeup + beacon).
Rate 1 0.35 86
IEEE Power Save PM2 DTIM1 (Avg.) cRate 1 1.05 74
IEEE Power Save PM2 DTIM3 (Avg.) dRate 1 0.35 86
Active Modes
Rx Listen Mode e
e. Carrier sense (CCA) when no carrier present.
N/A 37 12
Rx Active (at –50dBm RSSI) f
f. Tx output power is measured on the chip-out side; duty cycle =100%. Tx Active mode is measured in Packet Engine mode (pseudo-random data)
Rate 1 39 12
Rate 11 40 12
Rate 54 40 12
Rate MCS7 41 12
Tx f
Rate 1 @ 20 dBm 320 15
Rate 11 @ 18 dBm 290 15
Rate 54 @ 15 dBm 260 15
Rate C7 @ 15 dBm 260 15
Document Number: 002-14781 Rev. *E Page 47 of 56
PRELIMINARY CYW43364
13. Interface Timing and AC Characteristics
Note: Values in this data sheet are design goals and are subject to change based on the results of device characterization.
Unless otherwise stated, the specifications in this section apply when the operating conditions are within the limits specified in Table
13 on page 33 and Table 15 on page 34. Functional operation outside of these limits is not guaranteed.
13.1 SDIO Default Mode Timing
SDIO default mode timing is shown by the combination of Figure 17 and Table 25 on page 48.
Figure 17. SDIO Bus Timing (Default Mode)
tWL tWH
fPP
tTHL
tISU
tTLH
tIH
tODLY
(max)
tODLY
(min)
Input
Output
SDIO_CLK
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 48 of 56
PRELIMINARY CYW43364
13.2 SDIO High-Speed Mode Timing
SDIO high-speed mode timing is shown by the combination of Figure 18 and Table 26.
Figure 18. SDIO Bus Timing (High-Speed Mode)
Table 25. SDIO Bus Timing a Parameters (Default Mode)
a. Timing is based on CL 40 pF load on command and data.
Parameter Symbol Minimum Typical Maximum Unit
SDIO CLK (All values are referred to minimum VIH and maximum VILb)
b. Min (Vih) = 0.7 × VDDIO and max (Vil) = 0.2 × VDDIO.
Frequency—Data Transfer mode fPP 0 – 25 MHz
Frequency—Identification mode fOD 0 – 400 kHz
Clock low time tWL 10 – – ns
Clock high time tWH 10 – – ns
Clock rise time tTLH – – 10 ns
Clock fall time tTHL – – 10 ns
Inputs: CMD, DAT (referenced to CLK)
Input setup time tISU 5 – – ns
Input hold time tIH 5 – – ns
Outputs: CMD, DAT (referenced to CLK)
Output delay time—Data Transfer mode tODLY 0 – 14 ns
Output delay time—Identification mode tODLY 0 – 50 ns
tWL tWH
fPP
tTHL
tISU
tTLH
tIH
tODLY
Input
Output
50% VDD
tOH
SDIO_CLK
{pi-CYPRESS ' manna: mlanRRow
Document Number: 002-14781 Rev. *E Page 49 of 56
PRELIMINARY CYW43364
13.3 JTAG Timing
Table 26. SDIO Bus Timing a Parameters (High-Speed Mode)
a. Timing is based on CL 40 pF load on command and data.
Parameter Symbol Minimum Typical Maximum Unit
SDIO CLK (all values are referred to minimum VIH and maximum VILb)
b. Min (Vih) = 0.7 × VDDIO and max (Vil) = 0.2 × VDDIO.
Frequency – Data Transfer Mode fPP 0 – 50 MHz
Frequency – Identification Mode fOD 0 – 400 kHz
Clock low time tWL 7 – – ns
Clock high time tWH 7 – – ns
Clock rise time tTLH – – 3 ns
Clock fall time tTHL – – 3 ns
Inputs: CMD, DAT (referenced to CLK)
Input setup time tISU 6 – – ns
Input hold time tIH 2 – – ns
Outputs: CMD, DAT (referenced to CLK)
Output delay time – Data Transfer Mode tODLY – – 14 ns
Output hold time tOH 2.5 – – ns
Total system capacitance (each line) CL – – 40 pF
Table 27. JTAG Timing Characteristics
Signal Name Period Output
Maximum
Output
Minimum Setup Hold
TCK 125 ns – – – –
TDI – – – 20 ns 0 ns
TMS – – – 20 ns 0 ns
TDO – 100 ns 0 ns – –
JTAG_TRST 250 ns – – – –
WWWVL U .\ / :3 JUUUUUUUUUUUL J J
Document Number: 002-14781 Rev. *E Page 50 of 56
PRELIMINARY CYW43364
14. Power-Up Sequence and Timing
14.1 Sequencing of Reset and Regulator Control Signals
The CYW43364 WL_REG_ON signal allows the host to control power consumption by enabling or disabling the WLAN and internal
regulator blocks. These signals are described below. Additionally, diagrams are provided to indicate proper sequencing of the signals
for various operational states (see Figure 19 and Figure 20). The timing values indicated are minimum required values; longer delays
are also acceptable.
Note:
■ The CYW43364 has an internal power-on reset (POR) circuit. The device will be held in reset for a maximum of 110 ms after VDDC
and VDDIO have both passed the POR threshold (see Table 15 on page 34). Wait at least 150 ms after VDDC and VDDIO are
available before initiating SDIO accesses.
■VBAT and VDDIO should not rise faster than 40 µs. VBAT should be up before or at the same time as VDDIO. VDDIO should not
be present first or be held high before VBAT is high.
14.1.1 Control Signal Timing Diagrams
Figure 19. WLAN = ON
Figure 20. WLAN = OFF
32.678 kHz
Sleep Clock
VBAT
VDDIO
WL_REG_ON
90% of VH
~ 2 Sleep cycles
32.678 kHz
Sleep Clock
VBAT
VDDIO
WL_REG_ON
aCYPRESS' ' manna: mmmw
Document Number: 002-14781 Rev. *E Page 51 of 56
PRELIMINARY CYW43364
15. Package Information
15.1 Package Thermal Characteristics
15.1.1 Junction Temperature Estimation and PSI Versus Thetajc
Package thermal characterization parameter PSI-JT (
JT) yields a better estimation of actual junction temperature (TJ) versus using
the junction-to-case thermal resistance parameter Theta-JC (JC). The reason for this is JC assumes that all the power is dissipated
through the top surface of the package case. In actual applications, some of the power is dissipated through the bottom and sides of
the package.
JT takes into account power dissipated through the top, bottom, and sides of the package. The equation for calculating
the device junction temperature is as follows:
TJ = TT + P

JT
Where:
■ TJ = junction temperature at steady-state condition, °C
■ TT = package case top center temperature at steady-state condition, °C
■ P = device power dissipation, Watts
■ JT = package thermal characteristics (no airflow), °C/W
Table 28. Package Thermal Characteristicsa
a. No heat sink, TA = 70°C. This is an estimate based on a 4-layer PCB that conforms to EIA/JESD51–7 (101.6 mm x 114.3 mm x 1.6 mm) and P = 1.2W continuous
dissipation.
Characteristic Value in Still Air
JA (°C/W) 53.11
JB (°C/W) 13.14
JC (°C/W) 6.36
JT (°C/W) 0.04
JB (°C/W) 14.21
Maximum Junction Temperature Tj (°C)b
b. Absolute junction temperature limits maintained through active thermal monitoring and dynamic TX duty cycle limiting.
125
Maximum Power Dissipation (W) 1.2
‘CYPRESS' ' manna: mlanRRaw —Dm 4x v Noggin!!!” 1 pm A. mnmnzw 7 77 7 7 E 7 1:) r” 6% ¢ddd®\z\x\v| < ¢eee®|2|="" ~a1="" 7a7="" top="" v‘ew="" s‘de="" v‘ew="" d="" 1%="" nmmsxoml="" “mimosa="" (mm)="" fa="" i:="" 41="" 7="" ff="" m="" mu="" m="" m="" “900="" w="" a="" 7="" 7="" m="" .="" or:="" 000="" t="" .="" k="" 00="" 00="" re="" al="" men="" mm="" mm="" 1000\oo$="" n="" 1!:="" 2m="" :92="" 233“="" set="" m="" “0...,="" rec="" 000="" e1="" :="" 432="" \="" m="" \="" m="" z="" 0="" 000="" u="" mm="" joggwggo="" »="" cm="" x="" x="" cm="" mum="" (on)="" 00°="" 000="" f="" .="" mom="" was="" no="" 4="" 1="" 0215350="" '="" ’="" ’="" {7="" 7="" y="" ...="" 7="" 7="" nm="" "cewew="" m="" .="" .="" um="" .="" .="" m="" eowom="" view="" m="" 7="" 7="" m="" (74="" solder="" balls)="" 7="" 7="" m="" mum="" manama="" 3-1900="" -,="" mu="" m="" lwmcou="" wmmuu="" m:="" mum—m;="" mu.="" m="" now="" (mm:="" 0mm="" m:="" mm="" nmnmms'="" fun="" mm,="" mmmm="" mu="" www»="" kmuummmnws="" mn="" swims="" mm="" mu="" 1="" up="" saw:="" m:="" m="" mm="" m="" w:="" swam="" m="" u;="" m:="" suumw="" mm="" bumsm="" s="" umzn="" n="" w="" mum="" 50mm="" mm="" mm,="" mun="" yo="" mm="" mu.="" 1="" m:="" use="" sum="" law?="" mm="" ‘5="" mw="" ms="" mm:="" mm="" m="" m:="" m="" lemed="" cum:="" uu-zza="" mm="" mm="" was="" mums:="" sums»="">
Document Number: 002-14781 Rev. *E Page 52 of 56
PRELIMINARY CYW43364
16. Mechanical Information
Figure 21 shows the mechanical drawing for the CYW43364 WLBGA package.
Figure 21. 74-Ball WLBGA Mechanical Information
12345 6 7 0000000 0000000 0000000 @0000 000 000 @q 0000 0%? <3c>0 6&00000 90 000 0 000 00fi0000 qm00000 Routing Keepiflut ZWXQIOWWUOUU>
Document Number: 002-14781 Rev. *E Page 53 of 56
PRELIMINARY CYW43364
Figure 22. WLBGA Package Keep-Out Areas—Top View with the Bumps Facing Down
Document Number: 002-14781 Rev. *E Page 54 of 56
PRELIMINARY CYW43364
17. Ordering Information
18. Additional information
18.1 Acronyms and Abbreviations
In most cases, acronyms and abbreviations are defined upon first use. For a more complete list of acronyms and other terms used in
Cypress documents, go to: http://www.cypress.com/glossary.
18.2 IoT Resources
Cypress provides a wealth of data at http://www.cypress.com/internet-things-iot to help you to select the right IoT device for your
design, and quickly and effectively integrate the device into your design. Cypress provides customer access to a wide range of
information, including technical documentation, schematic diagrams, product bill of materials, PCB layout information, and software
updates. Customers can acquire technical documentation and software from the Cypress Support Community website
(https://community.cypress.com/).
Part Number a
a. Add a “T” to the end of the part number to specify “Tape and Reel.”
Package Description Operating Ambient
Temperature
CYW43364KUBG 74-ball WLBGA halogen-free package
(4.87 mm x 2.87 mm, 0.40 pitch)
2.4 GHz single-band WLAN
IEEE 802.11n –30°C to +70°C
CG8883AMb
b. Note that CG8883 part has the same marking as CYW4343WKWBG (Datasheet spec number 002-14797). CG8883 however only supports
Wi-Fi and is functionally equivalent to CYW43364. CG8883 is only available in modules through specific module partners. The CG8883 pin
descriptions and ball map are the same as CYW4343WKWBG and are available in the 002-14797 spec.
153-bump WLCSP 2.4 GHz single-band WLAN IEEE
802.11n –30°C to +70°C
nnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Page 55 of 56
PRELIMINARY CYW43364
Document History
Document Title: CYW43364 Single-Chip IEEE 802.11 b/g/n MAC/Baseband/Radio
Document Number: 002-14781
Revision ECN Orig. of
Change
Submis-
sion Date Description of Change
** – – 12/08/2014 43364-DS100-R
Initial release
*A – – 08/06/2015
43364-DS101-R
Updated:
■Figure 3: “Typical Power Topology (1 of 2),” on page 14.
■Figure 4: “Typical Power Topology (2 of 2),” on page 15.
■Figure 22: “74-Ball WLBGA Ball Map (Bottom View),” on page 44.
■Table 7: “BCM43364 WLBGA Ball List — Ordered By Ball Number,” on page 45.
■Table 8: “BCM43364 WLBGA Ball List — Ordered By Ball Name,” on page 48.
■Table 9: “WLBGA Signal Descriptions,” on page 49.
■Table 12: “I/O States,” on page 53.
■Table 18: “WLAN 2.4 GHz Receiver Performance Specifications,” on page 59.
■Table 19: “WLAN 2.4 GHz Transmitter Performance Specifications,” on page 62.
■Table 25: “2.4 GHz Mode WLAN Power Consumption,” on page 70.
*B – – 10/05/2015
43364-DS102-R
Updated:
■Table 8, “WLBGA Signal Descriptions,” on page 28
■Table 11, “I/O States,” on page 31
*C 5525641 UTSV 11/18/2016 Added Cypress Part numbering Scheme.
Updated to Cypress format
*D 5600251 SGUP 03/28/2017
Figure 3: “Typical Power Topology (1 of 2),” on page 7.
Removed gSPI condition from the Features.
Removed gSPI Mode from Table 5.
Removed “4.2 Generic SPI Mode”, “4.2.1 SPI Protocol” and “13.3 gSPI Signal
Timing”
*E 6123728 UTSV 04/05/2018
Added Part number “CG8883AM” and added the footnote “Note that CG8883
part has the same marking as CYW4343WKWBG (Datasheet spec number
002-14797). CG8883 however only supports Wi-Fi and is functionally equivalent
to CYW43364. CG8883 is only available in modules through specific module
partners. The CG8883 pin descriptions and ball map are the same as
CYW4343WKWBG and are available in the 002-14797 spec” in the Ordering
Information section.
nnnnnnnnnnnnnnnnnnn
Document Number: 002-14781 Rev. *E Revised April 5, 2018 Page 56 of 56
© Cypress Semiconductor Corporation, 2014-2018. This document is the property of Cypress Semiconductor Corporation and its subsidiaries, including Spansion LLC ("Cypress"). This document,
including any software or firmware included or referenced in this document ("Software"), is owned by Cypress under the intellectual property laws and treaties of the United States and other countries
worldwide. Cypress reserves all rights under such laws and treaties and does not, except as specifically stated in this paragraph, grant any license under its patents, copyrights, trademarks, or other
intellectual property rights. If the Software is not accompanied by a license agreement and you do not otherwise have a written agreement with Cypress governing the use of the Software, then Cypress
hereby grants you a personal, non-exclusive, nontransferable license (without the right to sublicense) (1) under its copyright rights in the Software (a) for Software provided in source code form, to
modify and reproduce the Software solely for use with Cypress hardware products, only internally within your organization, and (b) to distribute the Software in binary code form externally to end users
(either directly or indirectly through resellers and distributors), solely for use on Cypress hardware product units, and (2) under those claims of Cypress's patents that are infringed by the Software (as
provided by Cypress, unmodified) to make, use, distribute, and import the Software solely for use with Cypress hardware products. Any other use, reproduction, modification, translation, or compilation
of the Software is prohibited.
TO THE EXTENT PERMITTED BY APPLICABLE LAW, CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS DOCUMENT OR ANY SOFTWARE
OR ACCOMPANYING HARDWARE, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. No computing
device can be absolutely secure. Therefore, despite security measures implemented in Cypress hardware or software products, Cypress does not assume any liability arising out of any security breach,
such as unauthorized access to or use of a Cypress product. In addition, the products described in these materials may contain design defects or errors known as errata which may cause the product
to deviate from published specifications. To the extent permitted by applicable law, Cypress reserves the right to make changes to this document without further notice. Cypress does not assume any
liability arising out of the application or use of any product or circuit described in this document. Any information provided in this document, including any sample design information or programming
code, is provided only for reference purposes. It is the responsibility of the user of this document to properly design, program, and test the functionality and safety of any application made of this
information and any resulting product. Cypress products are not designed, intended, or authorized for use as critical components in systems designed or intended for the operation of weapons, weapons
systems, nuclear installations, life-support devices or systems, other medical devices or systems (including resuscitation equipment and surgical implants), pollution control or hazardous substances
management, or other uses where the failure of the device or system could cause personal injury, death, or property damage ("Unintended Uses"). A critical component is any component of a device
or system whose failure to perform can be reasonably expected to cause the failure of the device or system, or to affect its safety or effectiveness. Cypress is not liable, in whole or in part, and you
shall and hereby do release Cypress from any claim, damage, or other liability arising from or related to all Unintended Uses of Cypress products. You shall indemnify and hold Cypress harmless from
and against all claims, costs, damages, and other liabilities, including claims for personal injury or death, arising from or related to any Unintended Uses of Cypress product.
Cypress, the Cypress logo, Spansion, the Spansion logo, and combinations thereof, WICED, PSoC, CapSense, EZ-USB, F-RAM, and Traveo are trademarks or registered trademarks of Cypress in
the United States and other countries. For a more complete list of Cypress trademarks, visit cypress.com. Other names and brands may be claimed as property of their respective owners.
PRELIMINARY CYW43364
Sales, Solutions, and Legal Information
Worldwide Sales and Design Support
Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office
closest to you, visit us at Cypress Locations.
Products
Arm® Cortex® Microcontrollers cypress.com/arm
Automotive cypress.com/automotive
Clocks & Buffers cypress.com/clocks
Interface cypress.com/interface
Internet of Things cypress.com/iot
Memory cypress.com/memory
Microcontrollers cypress.com/mcu
PSoC cypress.com/psoc
Power Management ICs cypress.com/pmic
Touch Sensing cypress.com/touch
USB Controllers cypress.com/usb
Wireless Connectivity cypress.com/wireless
PSoC® Solutions
PSoC 1 | PSoC 3 | PSoC 4 | PSoC 5LP | PSoC 6 MCU
Cypress Developer Community
Community | Projects | Video | Blogs | Training | Components
Technical Support
cypress.com/support
56

Products related to this Datasheet

IC RF TXRX+MCU WIFI 74UFBGA
