SDURF1060 Datasheet by SMC Diode Solutions

man: snLu-‘uNs lTO-ZZDAC I“? lCothode 7 Anode RoHS @ Antiparallel diode for high frequency Anti saturation diode Snubber diode Free wheeling diode in converters and motor control circuits Rect ers in switch mode power supplies (SMPS) lndu e heating and melting Uninterruptible power supplies (UPSl Ultrasonic cleaners and welders Ultra-Fast switching High current capability Low reverse leakage current High surge current capab ty This is a Pb - free device All SMC parts are traceable to the wafer lot Add: onal testing can be offered upon request Characteristics Symbol Condition Max. Units Peak Repetitive Reverse Voltage V , Working Peak Rever VRw DC Blocking Voltage Va 50% duty cycle @Tc:105°C. rectangular waveform Peak One Cycle NonrRepetitive Surge Characteristics Symbol Condltlon Typ. Max. Units Forward Voltage Drop ' V Reverse Current ' Reverse Recovery Time ~ Pulse mm. < 300="" “5‘="" duty="" cycle="">< 2%="" .china="" -="" germany="" —="" korea="" -="" singapore="" -="" united="" states-="">

Technical Data

Data Sheet N0011, Rev. D

China - Germany - Korea - Singapore - United States 

http://www.smc-diodes.com - sales@ smc-diodes.com 

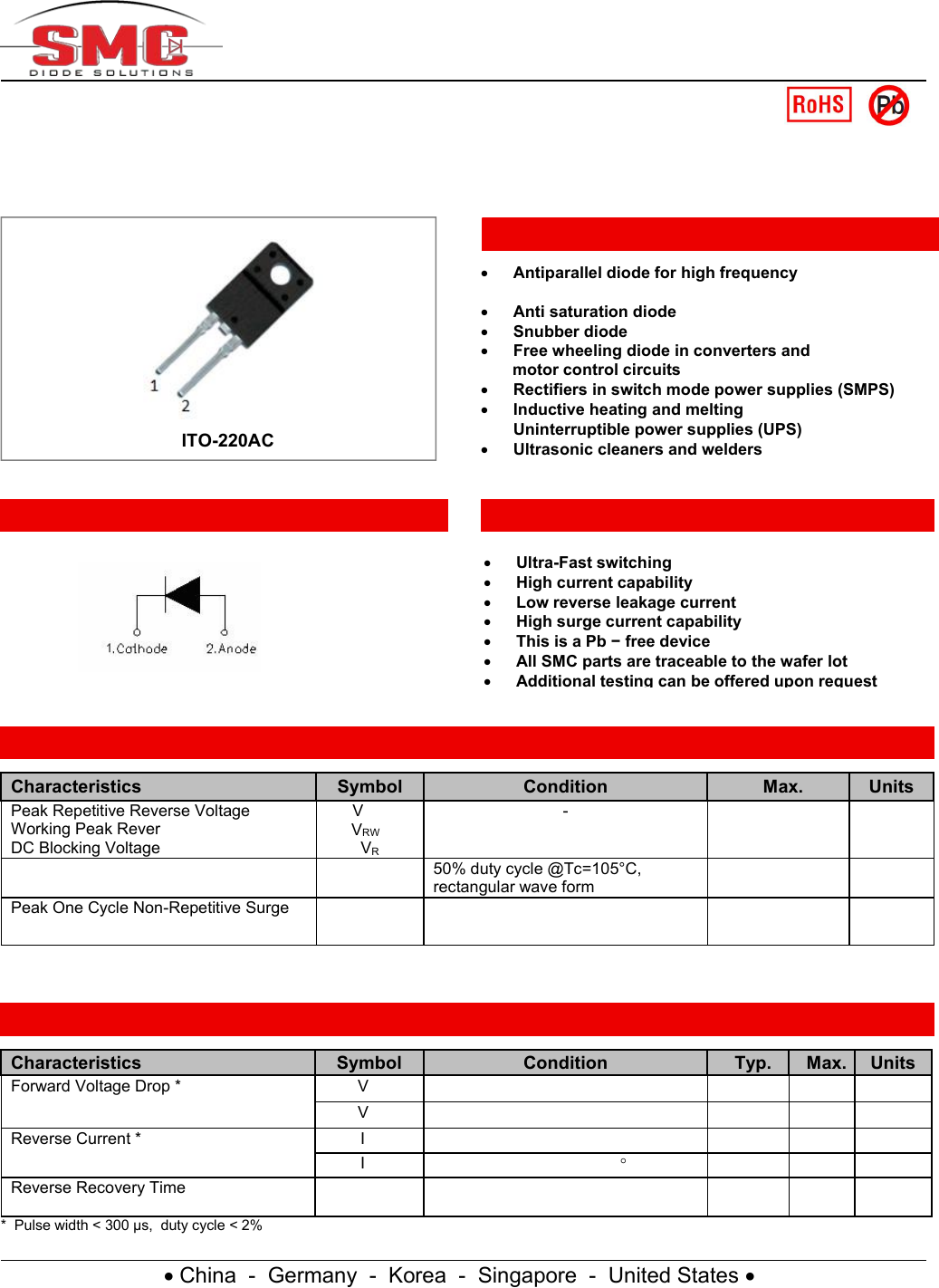

SDURF1060

SDURF1060 ULTRAFAST RECTIFIER

* Pulse width < 300 µs, duty cycle < 2%

Applications

Circuit Diagram

Features

Maximum Ratings:

Characteristics

Symbol

Condition

Max.

Units

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

VRRM

VRWM

600

Average Rectified Forward Current

IF (AV)

50% duty cycle @Tc=105°C,

rectangular wave form

Peak One Cycle Non-Repetitive Surge

Current

IFSM

8.3ms, Half Sine pulse

100

Electrical Characteristics:

Characteristics

Symbol

Condition

Typ.

Max.

Units

Forward Voltage Drop *

VF1

@10A, Pulse, TJ= 25C

1.66

2.2

VF2

@10A, Pulse, TJ= 100C

2.0

Reverse Current *

IR1

@VR= rated VR, TJ= 25C

0.3

μA

IR2

@VR= rated VR, TJ= 125C

150

500

μA

Reverse Recovery Time

trr

IF=500mA, IR=1A,and Irm=250mA

Antiparallel diode for high frequency

switching devices

Anti saturation diode

Snubber diode

Free wheeling diode in converters and

motor control circuits

Rectifiers in switch mode power supplies (SMPS)

Inductive heating and melting

Uninterruptible power supplies (UPS)

Ultrasonic cleaners and welders

Ultra-Fast switching

High current capability

Low reverse leakage current

High surge current capability

This is a Pb − free device

All SMC parts are traceable to the wafer lot

Additional testing can be offered upon request

ITO-220AC

DI no: SDLuTlDNS ROHS ® Characteristlcs Symbol Condltlon Speclflcatlon Unlts Junction Temperature T » -55 to +150 ”C Storage Temperature Tug » -55 to +150 “C Typicai Thermai Resistance Junction to R DC operation Case Approximate Weight wl » 1.6 9 Case Slyie ITO-220AC lnstabtabeous Forward Current -IF(A) Figure1 2 Typical Forward Characteristics 10 a. o 1:'0.1 0.9 Foward Voltage -VF(V) 1.1 1.3 1.5 1.7 1.9 lnstabtabeous Reverse Current - (HA) Junction Capacitance '01- (PF) Figure 2 10“ Typical Reverse Characteristics 125‘C 1D 10 10° 10' 10' too zoo 300 400 sea son Reverse Voltage -VR(V) Figure 3 200 Typical Junction Capacitance 160 120 80 40 0 1o 20 30 Reverse Voltage -VR(V) 4o .China - Germany - Korea - Singapore - United States-

Technical Data

Data Sheet N0011, Rev. D

China - Germany - Korea - Singapore - United States 

http://www.smc-diodes.com - sales@ smc-diodes.com 

SDURF1060

Characteristics

Symbol

Condition

Specification

Units

Junction Temperature

-55 to +150

C

Storage Temperature

Tstg

-55 to +150

C

Typical Thermal Resistance Junction to

Case

RJC

DC operation

C/W

Approximate Weight

1.6

Case Style

ITO-220AC

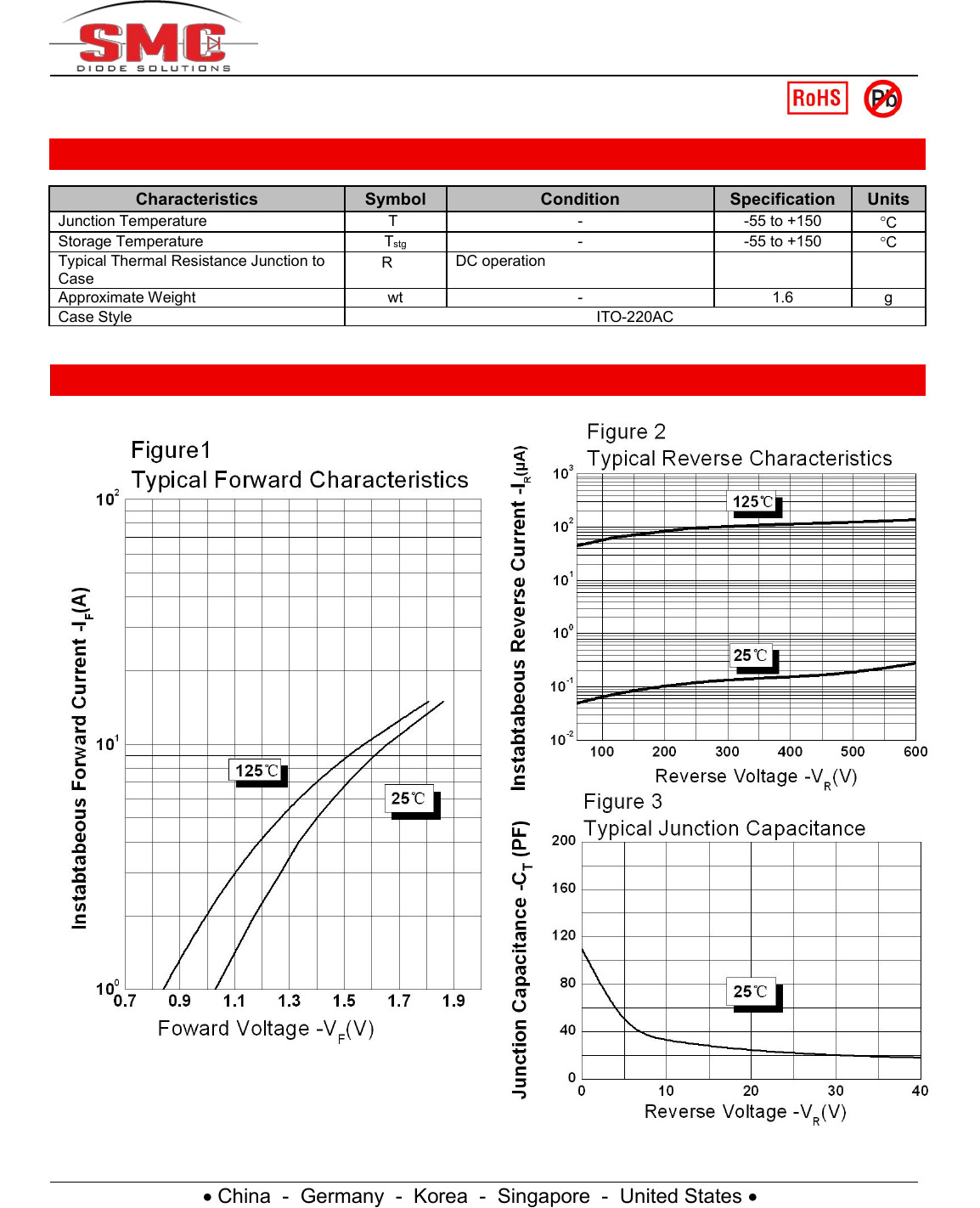

Thermal-Mechanical Specifications:

Ratings and Characteristics Curves

/—\ 457M137 man: snLu-‘uNs RoHS @ Mechanical D'mensions ITO 220AC m H‘ —‘ Millimeters TYP. m, n \ A \ 7mm I Where XXXXX \s YVWWL suukrmsn SSE? XXXXX |_1 530mm 32mm Devlce Package Shlpplng For Inlormalion on tape and ree‘ speciﬁcaiions‘ includmg pan onenlation and tape sizes, p‘ease refer «3 our Tape and Reel Packagmg .China - Germany — Korea - Singapore - United States-

Technical Data

Data Sheet N0011, Rev. D

China - Germany - Korea - Singapore - United States 

http://www.smc-diodes.com - sales@ smc-diodes.com 

SDURF1060

For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging

Specification.

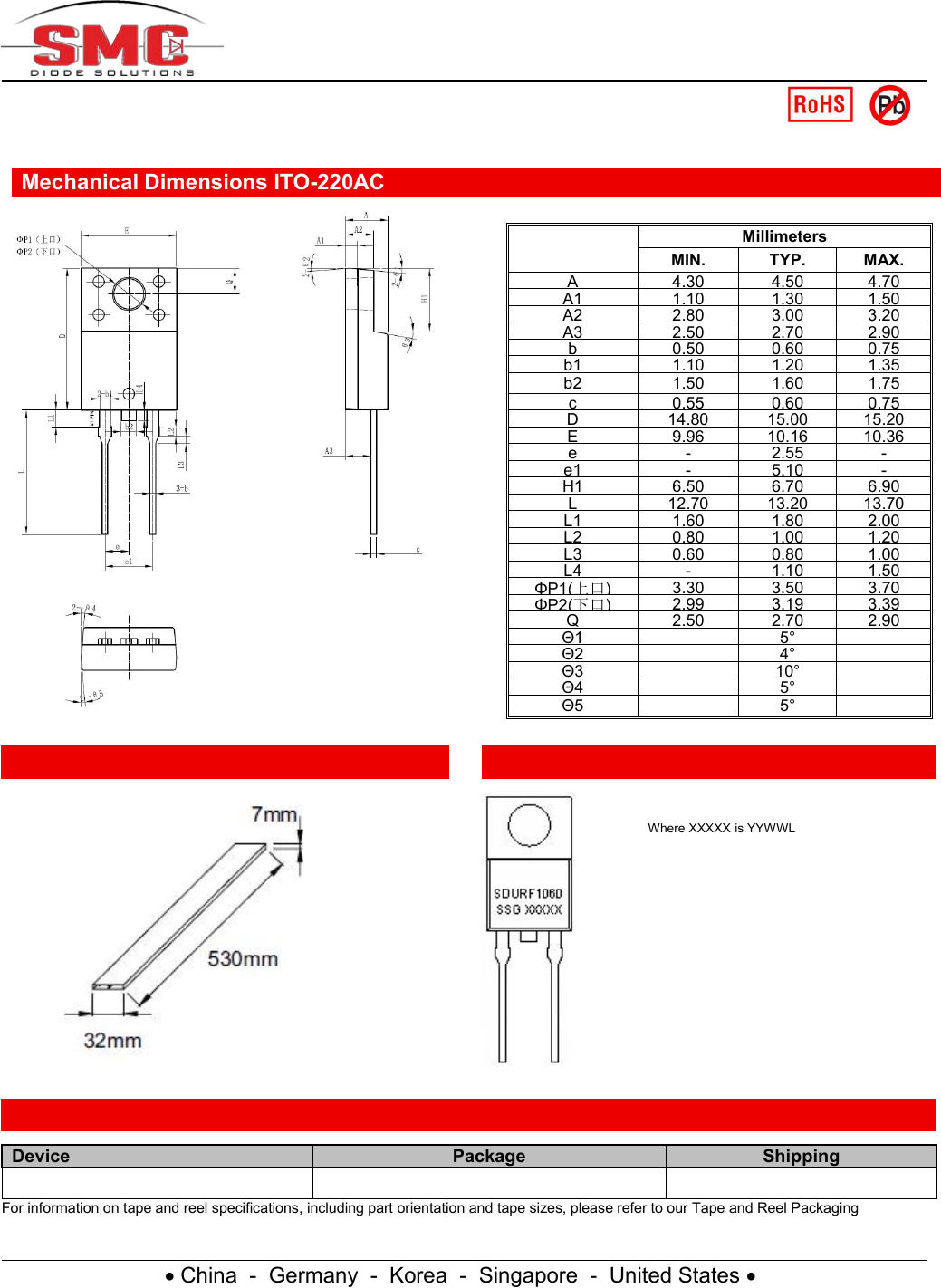

Mechanical Dimensions ITO-220AC

SYMBOL

Millimeters

MIN.

TYP.

MAX.

4.30

4.50

4.70

1.10

1.30

1.50

2.80

3.00

3.20

2.50

2.70

2.90

0.50

0.60

0.75

1.10

1.20

1.35

1.50

1.60

1.75

0.55

0.60

0.75

14.80

15.00

15.20

9.96

10.16

10.36

2.55

5.10

6.50

6.70

6.90

12.70

13.20

13.70

1.60

1.80

2.00

0.80

1.00

1.20

0.60

0.80

1.00

1.10

1.50

ΦP1(上口)

3.30

3.50

3.70

ΦP2(下口)

2.99

3.19

3.39

2.50

2.70

2.90

Θ1

5°

Θ2

4°

Θ3

10°

Θ4

5°

Θ5

5°

Tube Speciﬁcation

Marking Diagram

Ordering Information:

Device

Package

Shipping

SDURF1060

ITO-220AC (Pb-Free)

50 pcs/ tube

Where XXXXX is YYWWL

SDUR = Device Type

F = Package type

10 = Forward Current (10A)

60 = Reverse Voltage (600V)

SSG = SSG

YY = Year

WW = Week

L = Lot Number

Cautions：Molding resin

Epoxy resin UL:94V-0

ROHS DISCLAIMER: 1- The Inlormalion gw characlensllcs. Befor department (or the ra 2- rn cases where e medrcal equrpmem means 0! users la 3- rn no event sha any olher cause a assumes no resp produers or erreu 4- rn no event s secondary dam 5- No ncensei (Nanjrng) Co , 6- The dalash - Sangdesl M 7- The produ hinder marnt pany. When regulations. .China - Germany — Korea - Singapore - United States-

Technical Data

Data Sheet N0011, Rev. D

China - Germany - Korea - Singapore - United States 

http://www.smc-diodes.com - sales@ smc-diodes.com 

SDURF1060

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product

characteristics. Before ordering, purchasers are advised to contact the SMC - Sangdest Microelectronics (Nanjing) Co., Ltd sales

department for the latest version of the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement .

3- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any damages that may result from an accident or

any other cause during operation of the user’s units according to the datasheet(s). SMC - Sangdest Microelectronics (Nanjing) Co., Ltd

assumes no responsibility for any intellectual property claims or any other problems that may result from applications of information,

products or circuits described in the datasheets.

4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any failure in a semiconductor device or any

secondary damage resulting from use at a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or SMC - Sangdest Microelectronics

(Nanjing) Co., Ltd.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of SMC

- Sangdest Microelectronics (Nanjing) Co., Ltd.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will

hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third

party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and

regulations..
