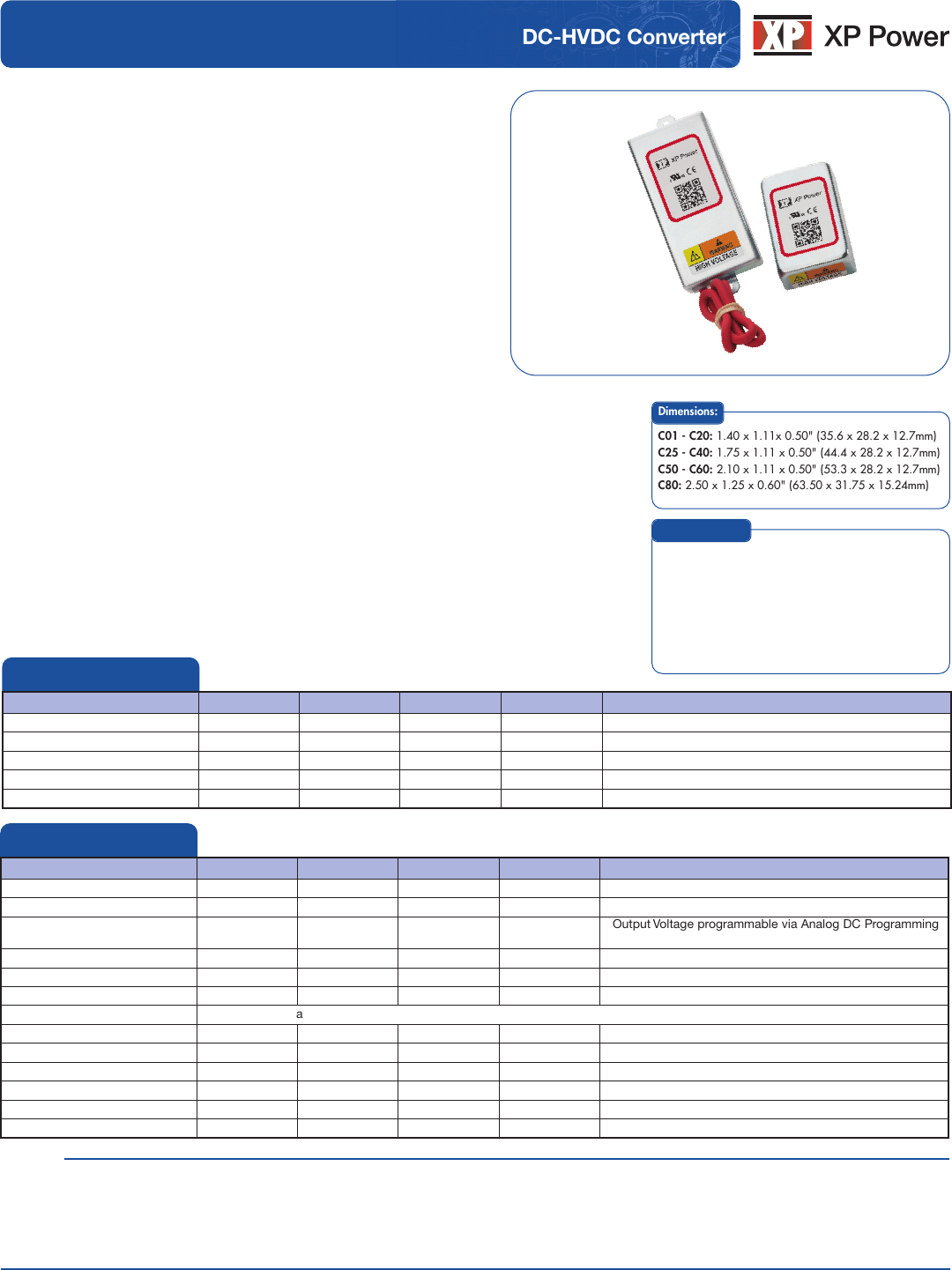

C Series DC-HVDC Converter

Input

Output

Characteristic Minimum Typical Maximum Units Notes & Conditions

Output Voltage 8000 VDC See Models and Ratings Table

Output Current 10 mA See Models and Ratings Table

Output Programming 0 100 % Output Voltage programmable via Analog DC Programming

Voltage Input

Setpoint Accuracy(4) ±1 % @ Max Vpgm, No Load

Gain Adjust(5) ±5 % Potentiometer, See Signals & Controls

Linearity: Output vs Program(6) ±1 % 15 to 100% Output

Minimum Load No minimum load required

Start Up Response 250 msec At Max Vout, Full Load

Line Regulation 0.05 1.0 % 100% Vpgm, Full Load, [Min to Max Input]

Load Regulation 0.07 0.75 % 100% Vpgm, 13.75Vin, [NL to FL]

Ripple and Noise 0.002 0.75 % 1MHz bandwidth, See Models and Ratings Table

Temperature Coefficient 50 ppm/°C

Stability 100 ppm/hr After 30 minute warm up

Characteristic Minimum Typical Maximum Units Notes & Conditions

Input Voltage Range 11.5 13.75 16 VDC Works with nominal 12V or 15V supply

Input Current, Full Load 250 mA

Input Current, No Load 100 mA

Programming Inputs 05VDC Analog DC Voltage Controls Output 0 to 100%

Input Capacitance 440 µA Low ESR

xxx Series

www.xppower.com

Notes

1. Maximum current is available at maximum output voltage.

2. Specifications after 1 hour warm-up, full load, 25°C, unless otherwise noted.

3. Proper thermal management techniques are required to maintain safe case

temperature.

4. SET POINT ACCURACY refers to the ability of the unit to accurately deliver the

programmed voltage.

5. GAIN ADJUST refers to the ability to alter the gain of the circuit to allow for

set-point accuracy error.

6. LINEARITY refers to how much the transfer function can deviate from a straight

line in the absence of any set-point error.

• +12VDC Input [11.5 to 16V]

• Voltage Regulated

• Output Voltages from 100V to 8000V

• 0 to 100% Programmable Output

• High Reliability 2.6MHrs MTBF

• <50ppm/°C Temperature Coefficient

• Shielded Case for Low EMI

• Low Ripple - down to 0.002%

• 3 Year Warranty

Dimensions:

C01 - C20: 1.40 x 1.11x 0.50" (35.6 x 28.2 x 12.7mm)

C25 - C40: 1.75 x 1.11 x 0.50" (44.4 x 28.2 x 12.7mm)

C50 - C60: 2.10 x 1.11 x 0.50" (53.3 x 28.2 x 12.7mm)

C80: 2.50 x 1.25 x 0.60" (63.50 x 31.75 x 15.24mm)

Key Applications:

• Photo Multiplier Tube

• Solid State Detectors

• Electrophoresis

• Piezo Devices

• Capacitor Charging

• EO Lenses

1 Watt

The C Series is a line of miniature, regulated high voltage power supplies. Each model is

programmed from 0 to 100% of rated output via a 0 to +5 volt, DAC-compatible, high-impedance

programming input voltage. An externally accessible potentiometer provides adjustable gain trim,

allowing for individual calibration of units.

These converters exhibit very low ripple, noise, and EMI/RFI by utilizing a quasi-sinewave

oscillator, shielded transformer, excellent filtering techniques and an isolated steel enclosure

featuring a separate grounding pin. A proprietary encapsulation process and a custom UL 94 V-0

listed, high-performance formula are used to achieve excellent high voltage and thermal

properties. Temperature drift is typically less than 50ppm/°C.

C Series

www.xppower.com 2

DC-HVDC Converter

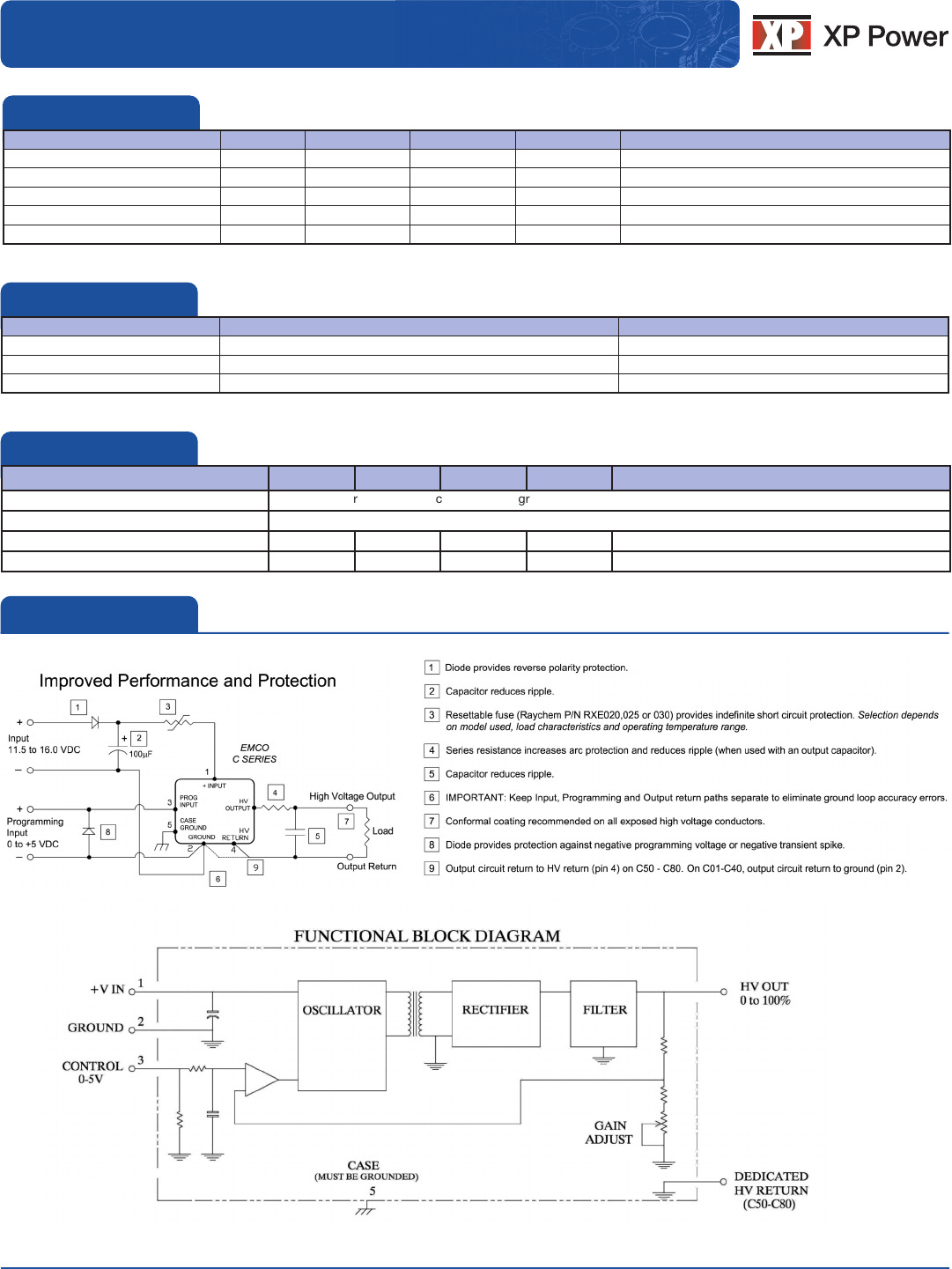

Safety Approvals

Safety Agency Safety Standard Notes & Conditions

UL and TUV IEC/UL/CSA/EN 62368

CE CE Directive, RoHs and LVD Where applicable

RoHS RoHS 2 and 3 Directive (2011/65/EU) Where applicable

General

Characteristic Minimum Typical Maximum Units Notes & Conditions

Isolation: Input to Output N/A – Input ground is connected to output ground

Construction Case material is zinc plated steel. Solid vacuum encapsulation, UL 94 V-0 rated.

Switching Frequency 50350 kHz

Mean Time Between Failure 2.6 MHrs Per Bellcore TR 332

Environmental

Characteristic Minimum Typical Maximum Units Notes & Conditions

Operating Temperature -10 +60 °C Case Temperature

Storage Temperature -20 +90 °C

Humidity 95 %RH Non-condensing

Cooling Natural convection

Thermal Shock Limit 1 °C/10sec Natural convection

Application Notes

XP Power o la +100v 10mA «1.1% <0,1%><0.75% 20112501011="" 001="" 0="" m="" +200v="" 5m="" «1.1%=""><0,1%><0.o5% 250-350khz="" 002="" o="" la="" »2o0v="" 5m="" «1.1%=""><1,0%><0.o5% 75-150khz="" 002m="" 0="" m="" +300v="" mm="" «1.1%=""><0,1%><0.oa% 200-300khz="" 003="" 0="" m="" +500v="" 2m=""><0.07%><0,1%><0.00a% 250-350khz="" 005="" o="" la="" 500v="" 2m="" «1.5%=""><0,5%><0.005% 2004501011="" 00501="" 0="" m="" +600v="" 1,s7ma="" «1.1%=""><0,1%><0.003% 2500001011="" 006="" o="" la="" »eo0v="" 1,s7ma=""><0.75%><0,75%><0.003% 125-300khz="" 00sn="" 010="" +1000v="" ima="" «1.3%=""><0,3%><0.005% 20112501011="" 010="" 0="" to="" -1000v="" ima="" «1.5%=""><0,3%><0.002% 1004251011="" 010m="" 0="" m="" +1250v="" ima="" «1.1%=""><0,1%><0.00a% 20112501011="" 012="" 010-1250v="" ima=""><0,175%><0,1%><0.003% 1004251011="" 012m="" 0="" ta="" +1500v="" 0,67ma="" «1.1%=""><0,1%><0.002% 1004251011="" 015="" 0="" m="" -1500v="" 0,67ma="" «1.2%=""><0,2%><0.002% 75»100khz="" 015m="" 0="" m="" +200ov="" 0,5ma="" «1="" 15%=""><0,1%><0.002% 75»100khz="" 020="" o="" 10="" »2o00v="" 0,5ma="" «1="" 15%=""><0,1%><0.002% 75»100khz="" cqdn="" 010="" +2500v="" 0,4ma=""><0.03%><0,2%><0.1% 125-150khz="" 025="" 0="" ta="" -2500v="" 0,4ma="" «1.5%=""><0,2%><0.2% 125-150khz="" 025m="" 0="" m="" +300ov="" 0,33ma=""><0.03%><0,05%><0.1% 75»100khz="" 030="" o="" 10="" »3000v="" 0,33ma=""><0.03%><0.075%><0.2% 75»100khz="" 030m="" 0="" m="" +400ov="" 0,25ma=""><0.25%><0,2%><0.1% 50-125khz="" 0a0="" 11="" 10="" »4000v="" 0,25ma="" «1.2%=""><0,1%><0.1% 75-150khz="" cadn="" 0="" m="" +500ov="" 0,2ma=""><0.35%><0,1%><0.1% 75-150khz="" 050="" o="" 10="" »5o00v="" 0,2ma=""><0.25%><0,1%><0.1% 1254751011="" csdn="" 0="" m="" +so0ov="" 0167ma=""><0.25%><0,1%><0.1% 1254751011="" 000="" o="" 10="" »so00v="" 0167ma=""><0.25%><0.15%><0.1% 1254751011="" csdn="" 0="" m="" +ao0ov="" 0125ma=""><0.75%><0.15%><0.2% 1004501011="" 080="" o="" 10="" »5000v="" 0125ma=""><0.75%><0,25%><0.2% 1004501011="" cbdn="" 4h4="" 1="" pin="" funci'ion="" f="" u="" u="" uiu="" 1="" 1+1="" input="" 17="" 2="" 0mm:="" ‘h‘="" 3="" programming="" vollage="" a="" hv="" 001="" 5="" case="" ground="">

Mechanical Details

HIGH

VOLTAGE

1.11

(28.19)

1.40 (35.56)

PC PINS

0.031 (.79) DIA

5 places

0.20 (5.08)

0.50

(12.70)

GAIN

ADJUST

0.100 (2.54)

0.500 (12.7)

0.350 (8.89)

0.100 (2.54)

0.34 (8.64)

0.09 (2.29)

0.250 (6.35)

0.65 (16.51)

0.45

(11.43)

0.700 (17.78)

ø0.187 (4.75) MIN

For pot access

0.250

(6.35)

0.100

(2.54)

0.500 (12.7)

0.350 (8.89)

0.100 (2.54)

0.34 (8.64)

0.09

(2.29)

0.65 (16.51)

0.45

(11.43)

0.700

(17.78)

5 places

Recommended

Ø 0.052 & Ø 0.082

hole and pad size

C01-C20

Top View Bottom View PCB Layout

PIN FUNCTION

1 (+) Input

2 Ground

3 Programming Votlage

4 HV Out

5 Case Ground

All dimensions are in inches (mm)

Tolerance: X.XX ±0.02 (0.51)

Pin Tolerance: ±0.005 (0.127)

Weight: C01-C20: 1.1oz (31g)

All grounds internally connected except case. Case ground (Pin5) must be

connected to ground, with no more than 50V between case ground (Pin 5) and

circuit ground (Pin 2).

C Series

www.xppower.com

DC-HVDC Converter

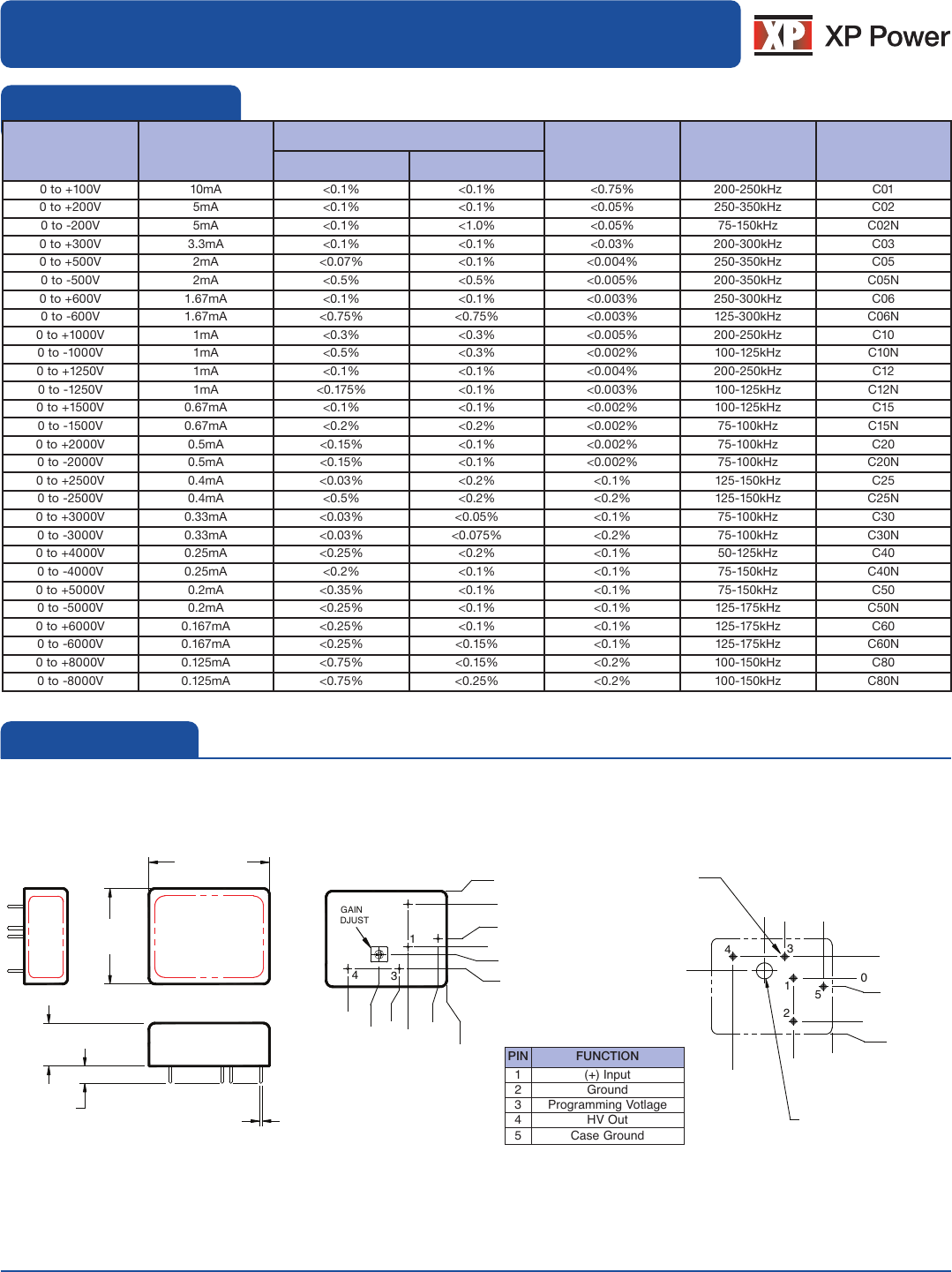

Models & Ratings

Output Voltage Output Current(1)

Regulation

Ripple Frequency Model Number

Load Line

0 to +100V 10mA <0.1% <0.1% <0.75% 200-250kHz C01

0 to +200V 5mA <0.1% <0.1% <0.05% 250-350kHz C02

0 to -200V 5mA <0.1% <1.0% <0.05% 75-150kHz C02N

0 to +300V 3.3mA <0.1% <0.1% <0.03% 200-300kHz C03

0 to +500V 2mA <0.07% <0.1% <0.004% 250-350kHz C05

0 to -500V 2mA <0.5% <0.5% <0.005% 200-350kHz C05N

0 to +600V 1.67mA <0.1% <0.1% <0.003% 250-300kHz C06

0 to -600V 1.67mA <0.75% <0.75% <0.003% 125-300kHz C06N

0 to +1000V 1mA <0.3% <0.3% <0.005% 200-250kHz C10

0 to -1000V 1mA <0.5% <0.3% <0.002% 100-125kHz C10N

0 to +1250V 1mA <0.1% <0.1% <0.004% 200-250kHz C12

0 to -1250V 1mA <0.175% <0.1% <0.003% 100-125kHz C12N

0 to +1500V 0.67mA <0.1% <0.1% <0.002% 100-125kHz C15

0 to -1500V 0.67mA <0.2% <0.2% <0.002% 75-100kHz C15N

0 to +2000V 0.5mA <0.15% <0.1% <0.002% 75-100kHz C20

0 to -2000V 0.5mA <0.15% <0.1% <0.002% 75-100kHz C20N

0 to +2500V 0.4mA <0.03% <0.2% <0.1% 125-150kHz C25

0 to -2500V 0.4mA <0.5% <0.2% <0.2% 125-150kHz C25N

0 to +3000V 0.33mA <0.03% <0.05% <0.1% 75-100kHz C30

0 to -3000V 0.33mA <0.03% <0.075% <0.2% 75-100kHz C30N

0 to +4000V 0.25mA <0.25% <0.2% <0.1% 50-125kHz C40

0 to -4000V 0.25mA <0.2% <0.1% <0.1% 75-150kHz C40N

0 to +5000V 0.2mA <0.35% <0.1% <0.1% 75-150kHz C50

0 to -5000V 0.2mA <0.25% <0.1% <0.1% 125-175kHz C50N

0 to +6000V 0.167mA <0.25% <0.1% <0.1% 125-175kHz C60

0 to -6000V 0.167mA <0.25% <0.15% <0.1% 125-175kHz C60N

0 to +8000V 0.125mA <0.75% <0.15% <0.2% 100-150kHz C80

0 to -8000V 0.125mA <0.75% <0.25% <0.2% 100-150kHz C80N

1 I XP Power ﬂ (a Inpm 17 JL PIN FUNCTION Ground ngramming vauage HV 0m Case Gmuna mbum‘ N « ﬂ Fifi 4 U L,,J a , r % a ‘ I f § 02115 as. U_UJJ_U Q ‘5— a u n52 “.32 a Man ‘2 2 s PLACES PIN FUNCTION 1 m Input 2 Gmund 3 ngrammmg leage 4 HV Remm 5 Case Ground LEAD HV 0m

C Series

www.xppower.com

DC-HVDC Converter

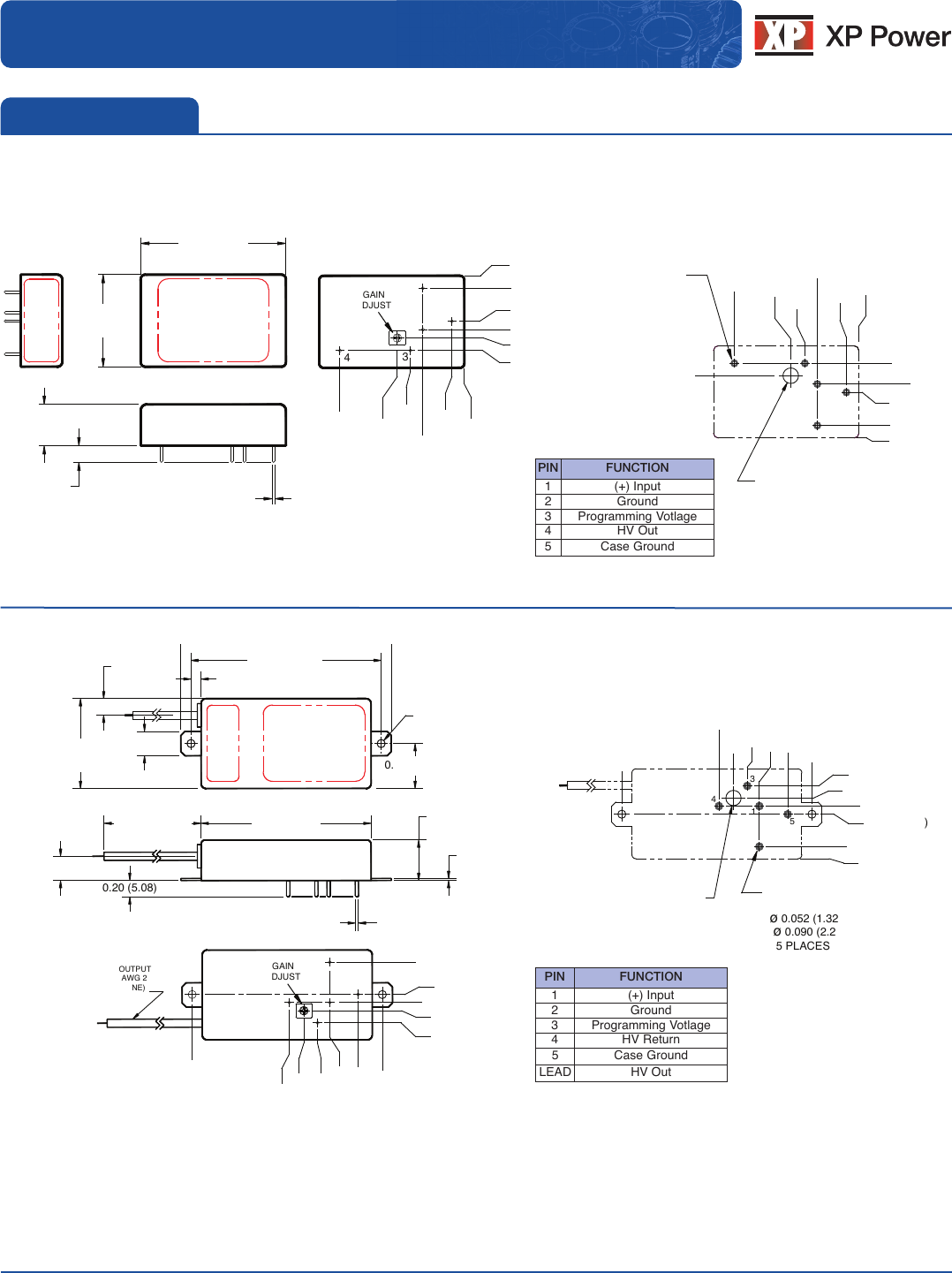

Mechanical Details

1.11

(28.19)

PC PINS

0.031 (.79) DIA

5 places

0.20 (5.08)

0.50

(12.70)

1.75 (44.45)

TOP

HIGH

VOLTAGE

0.100 (2.54)

0.500 (12.70)

0.350 (8.89)

0.32 (8.13)

0.10 (2.54)

0.250 (6.35)

0.65 (16.51)

0.45

(11.43)

1.000 (25.4)

0.150 (3.81)

TOP

GAIN

ADJUST

0.100 (2.54)

0.500 (12.70)

0.350 (8.89)

0.32 (8.13)

0.250 (6.35)

0.65 (16.51)

0.45

(11.43)

1.000

(25.4)

0.10 (2.54)

0.150 (3.81)

0.187 (4.75) MIN

TOP

For pot access

5 places

Recommended

Ø 0.052 & Ø 0.082

hole and pad size

Top View Bottom View PCB Layout

C25-C40

PIN FUNCTION

1 (+) Input

2 Ground

3 Programming Votlage

4 HV Out

5 Case Ground

All dimensions are in inches (mm)

Tolerance: X.XX ±0.02 (0.51)

Pin Tolerance: ±0.005 (0.127)

Weight: C25-C40: 1.3oz (36.8g)

C50-C60: 1.8oz (51g)

All grounds internally connected except case. Case ground (Pin5) must be

connected to ground, with no more than 50V between case ground (Pin 5) and

circuit ground (Pin 2).

0.30 (7.62)

0.55 (14.10)

2.10 (53.34)

10.00 ±1.00

(254.0 ± 25.4)

0.20 (5.08)

0.025

(.64)

0.50 (12.70)

5X 0.040 (1.02)

P.C. PIN

1.11

(28.19)

(HV OUTPUT LEAD)

0.20 (5.08)

0.30 (7.62)

T VIEW

(

2.350 (59.69)

0.13 (3.18) ø.104 (2.64)

#2/M2 clearance

for mounting, 2 places

HIGH

VOLTAGE

T VIEW

0.500 (12.7)

0.350 (8.89)

0.850 (21.59)

0.250 (6.35)

0.500 (12.70)

0.100 (2.54)

1.15 (29.21)

0.10 (2.54)

1.20 (30.48)

HV OUTPUT LEAD

(#22AWG 20KV

SILICONE)

0.18 (4.57)

GAIN

ADJUST

1.200 (30.48)

0.10 (2.54)

1.150 (29.21)

0.100 (2.54)

0.500 (12.70)

0.250 (6.35)

0.850 (21.59)

0.500 (12.70)

T VIEW

0.65 (16.51)

0.18 (4.57)

ø0.187 (4.75) MIN

For pot access

0.350 (8.89)

ø 0.052 (1.32) &

ø 0.090 (2.29)

5 PLACES

Recommended

hole and pad size

C50-C60

Top View PCB Layout

PIN FUNCTION

1 (+) Input

2 Ground

3 Programming Votlage

4 HV Return

5 Case Ground

LEAD HV Out

Bottom View

son (752m r m f"? f U p4 ' 1* ﬂ 1—422. y a 21295 as. w I], ‘ -L UNCI'ION 1+) Inpm Gmum Programming Vnuags HV Rein/n Case Ground HV out

C Series

www.xppower.com

DC-HVDC Converter

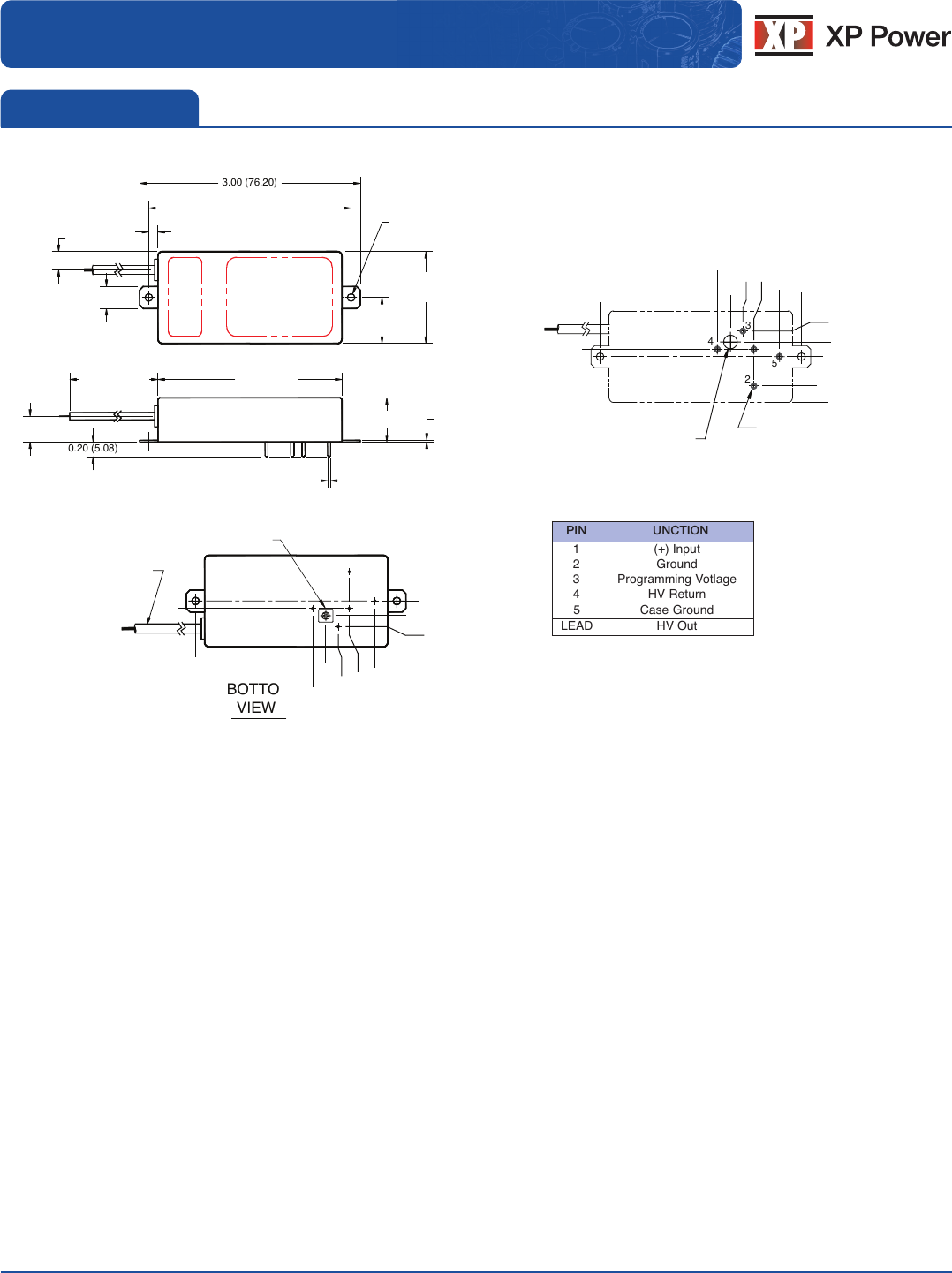

Mechanical Details

0.350 (8.89)

0.500 (12.70)

0.850 (21.59)

0.500 (12.70)

0.100 (2.54)

0.250 (6.35)

0.18 (4.57)

0.10 (2.54)

GAIN

ADJUST

HV OUTPUT LEAD

(#22AWG 20KV

SILICONE)

1.60 (40.64)

1.15 (29.21)

P.C. PIN

BOTTOM

VIEW

0.350 (8.89)

0.850 (21.59)

0.500 (12.70)

0.100 (2.54)

0.250 (6.35)

0.18 (4.57)

0.10 (2.54)

1.600 (40.64)

1.150 (29.21)

0.187 (4.75) MIN

For pot access

0.500 (12.70)

Recommended

Hole & Pad Size

ø 0.052 (1.32) &

ø 0.090 (2.29)

5 PLACES

0.73 (5.84)

C80

Top View PCB Layout

PIN FUNCTION

1 (+) Input

2 Ground

3 Programming Votlage

4 HV Return

5 Case Ground

LEAD HV Out

Bottom View

All dimensions are in inches (mm)

Tolerance: X.XX ±0.02 (0.51)

Pin Tolerance: ±0.005 (0.127)

Weight: C80: 2.0oz (57g)

All grounds internally connected except case. Case ground (Pin5) must be

connected to ground, with no more than 50V between case ground (Pin 5) and

circuit ground (Pin 2).

2.750 (69.85)

2.50 (63.50)

1.25

(31.75)

0.13 (3.18)

0.60 (15.24)

0.63 (15.88)

3.00 (76.20)

ø.104 (2.64)

#2/M2 CLEARANCE

FOR MOUNTING

2 PLACES

0.30 (7.62)

10.00 ±1.00

(254.0 ± 25.4)

0.20 (5.08)

(HV OUTPUT LEAD)

0.35 (8.89)

0.25 (6.35)

0.025

(.64)

5X ø 0.040 (1.02)

HIGH

VOLTAGE

Dimensions Mm mwwmz ‘55 sun mm n INHIY common W v~ mm vNPur mum mun) mocwuwe mum mmmmws wpuv vows: memo: you-ms Mama: mama Pm onmmn PDT

C Series

www.xppower.com

DC-HVDC Converter

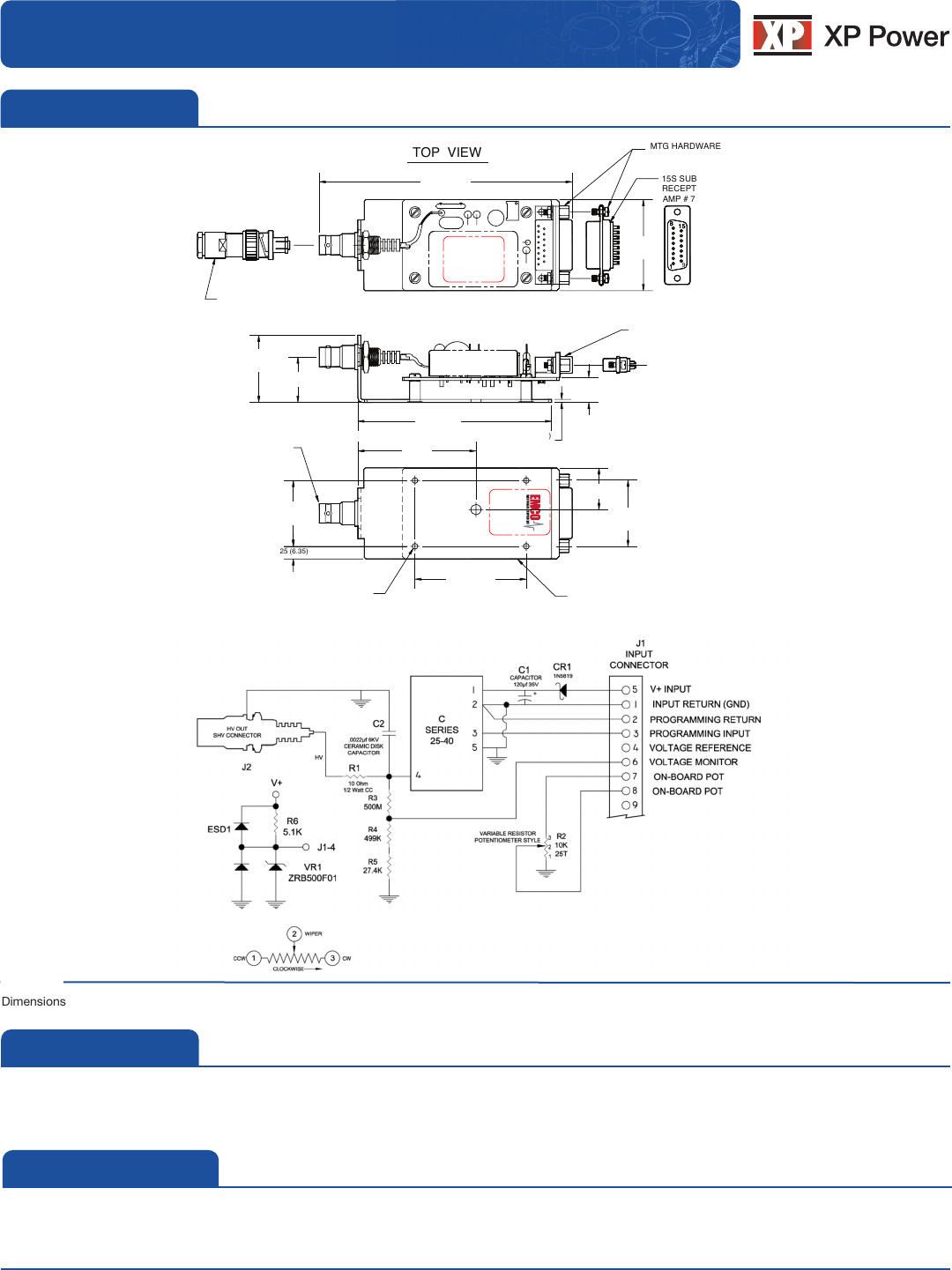

Mounting Kit

CM3 fits models C25-C40

15S SUB-MIN 'D'

RECEPTACLE

AMP # 747909-2

1.80

(45.72)

SOLDER

CUP SIDE

15P SUB MIN-D

PLUG (MALE)

AMP # 747841-4

.05 (1.27)

THICK

.50

(12.7)

3.83 (97.28)

.90 (22.86)

1.33

(33.78)

SHV

MATING

CONNECTOR

5.00 (127.00)

1.312

(33.32)

.82 (20.83)

2.33

(59.18)

ADJUST

GAIN

2.200 (55.88)

ANODIZED

ALUMINUM

MOUNTING PLATE

#4-40 MTG HOLE

4 PLACES

.25 (6.35)

1.300

(33.02)

SHV

CONNECTOR

OUTPUT

815

MTG HARDWARE

SUPPLIED

TOP VIEW

Dimensions are in inches (metric equivalents are in parentheses) Dimensional tolerances: .xx +/- 0.02 (0.51mm)

.xxx +/- 0.005 (0.127mm)

Notes

Block Diagram

Product Description

These adapters provide convenient prototyping and evaluation during system development and integration. They allow C Series modules to be mounted to a chassis

instead of designed into a PC board. Extra filtering on the input and output improves performance. A schottky diode on the input provides reverse polarity protection.

Input connector is via a 15P SUB MIN-D plug (mate supplied) and output is via an SHV style coaxial connector (mate supplied).Please note when ordering a CM3 the

C Series is not included and must be ordered separately.

Programming Instructions

Onboard Potentiometer: connect pins 7 to 4 and 8 to 3, turn potentiometer to adjust high voltage.

Or Remote Potentiometer: connect wiper arm to pin 3, other sides to pins 4 and 2.

Or Remote Analog Signal: apply programming voltage to pin 3, return to pin 2.

M v~ mm ”WWW”.- mm“, mm- \‘1 4. c , m 50.50 m u Jag: 2:91 5 m Dimensions L mm LEAD wur mum mum Pamkmwne «mm mun-me mm muss assumes mugs MONWOR oN-acmn Pot 0WD rm

12 August 20

C Series

www.xppower.com

DC-DC Converter

Mounting Kit

CM4 fits models C50-C80

Block Diagram

HIGH

VOLTAGE

1.80

(45.72)

15S SUB-MIN 'D'

RECEPTACLE

AMP # 747909-2

SOLDER

CUP SIDE

815

MTG HARDWARE

SUPPLIED

ADJUST

GAIN

15P SUB MIN-D

PLUG (MALE)

AMP # 747841-4

6.77 (171.96)

LGH

MATING

CONNECTOR

.50

(12.7)

.05 (1.27)

THICK

5.25 (133.35)

.75 (19.05)

1.40 (35.56)

3.80 (96.52)

1.312

(33.32)

.85 (21.59)

3.700 (93.98)

1.30

(33.02)

.24 (6.09)

1.312

(33.32)

ANODIZED

ALUMINUM

MOUNTING PLATE

#4-40 MTG HOLE

4 PLACES

LGH

CONNECTOR

OUTPUT

TOP VIEW

Dimensions are in inches (metric equivalents are in parentheses) Dimensional tolerances: .xx +/- 0.02 (0.51mm)

.xxx +/- 0.005 (0.127mm)

Notes

Product Description

These adapters provide convenient prototyping and evaluation during system development and integration. They allow C Series modules to be mounted to a chassis

instead of designed into a PC board. Extra filtering on the input and output improves performance. A schottky diode on the input provides reverse polarity protection.

Input connector is via a 15P SUB MIN-D plug (mate supplied) and output is via an SHV style coaxial connector (mate supplied).Please note when ordering a CM3 the C

Series is not included and must be ordered separately.

Programming Instructions

Onboard Potentiometer: connect pins 7 to 4 and 8 to 3, turn potentiometer to adjust high voltage.

Or Remote Potentiometer: connect wiper arm to pin 3, other sides to pins 4 and 2.

Or Remote Analog Signal: apply programming voltage to pin 3, return to pin 2.
