molexa
REVTSION. ECR/ECN INFORMATION. TTTLE. SHEET No.
EC No. M
DATE.
DOCUMENT NUMBER. CREATED / REVTSED BY. CHECKED EV. APPROVED BY.
PK-104238-001
PACKAGING SPECIFICATION
REVISION:
ECR/ECN INFORMATION:
TITLE:
MINI S-POKE CONNECTOR -1,2P
MINI LITE-TRAP CONNECTOR -1,2CKT
PACKAGING SPECIFICATION.
SHEET No.
A
EC No:
RELEASED
1 of 2
DATE:
2014/12/10
DOCUMENT NUMBER:
CREATED / REVISED BY:
CHECKED BY:
APPROVED BY:
PK-104238-001
SC.HONG
SH.CHU
YSOO.KIM
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC
1. 제품 명칭(PRODUCT NAME) : MINI S-POKE CONNECTOR -1,2P
MINI LITE-TRAP CONNECTOR -1,2 CIRCUIT
제품 번호(PART NUMBER) :
2. 표준 포장 수량(PACKING QUANTITY) :
3.LABEL SPECIFICATION
4. NOTE
- 포장 평가는 ES40000-7001에 따르고, LEVELⅡ 기준 1을 적용한다
(Estimate : applied to ES-40000-7001 and level Ⅱ, criterion 1)
포장 전 제품 번호
(BEFORE PACKING)
포장 후 제품 번호
(AFTER PACKING)
1P
104238-0110
104238-0110
2P
104238-0210
104238-0210
CKT
EMBOSS TAPE
REEL
CARTON BOX
ENG. NO. : 96708-0005
CARRIER
TOP
WIDTH
ENG. No.
ENG. No.
ENG. No.
Q’TY
REEL
Q’TY
Q’TY
(TOTAL)
1
16
104238-9001
35902-0027
35908-1011
3,500
8
28,000
2
16
104238-9002
35902-0027
35908-1011
2,500
8
20,000
Current Rating
Voltage Rating
해외인증
3.0A Max.
160V Max.
UL
molexa
AIR-CAP M :ZPCS
[165x365mm, QBOmm)
EWOSS PACKING
[43 380mm REEL]
AIR~CAPIMI :ZI’CS
[165X365mm, (2)30mm]
\é,
CARTON BOX
REVISION: ECFI/ECN INFORMATION: TITLE: SHEET N0.
EC No: M
DATE:
DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY:
PK-104238-001
PACKAGING SPECIFICATION
REVISION:
ECR/ECN INFORMATION:
TITLE:
MINI S-POKE CONNECTOR -1,2P
MINI LITE-TRAP CONNECTOR -1,2CKT
PACKAGING SPECIFICATION.
SHEET No.
A
EC No:
RELEASED
2 of 2
DATE:
2014/12/10
DOCUMENT NUMBER:
CREATED / REVISED BY:
CHECKED BY:
APPROVED BY:
PK-104238-001
SC.HONG
SH.CHU
YSOO.KIM
TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC

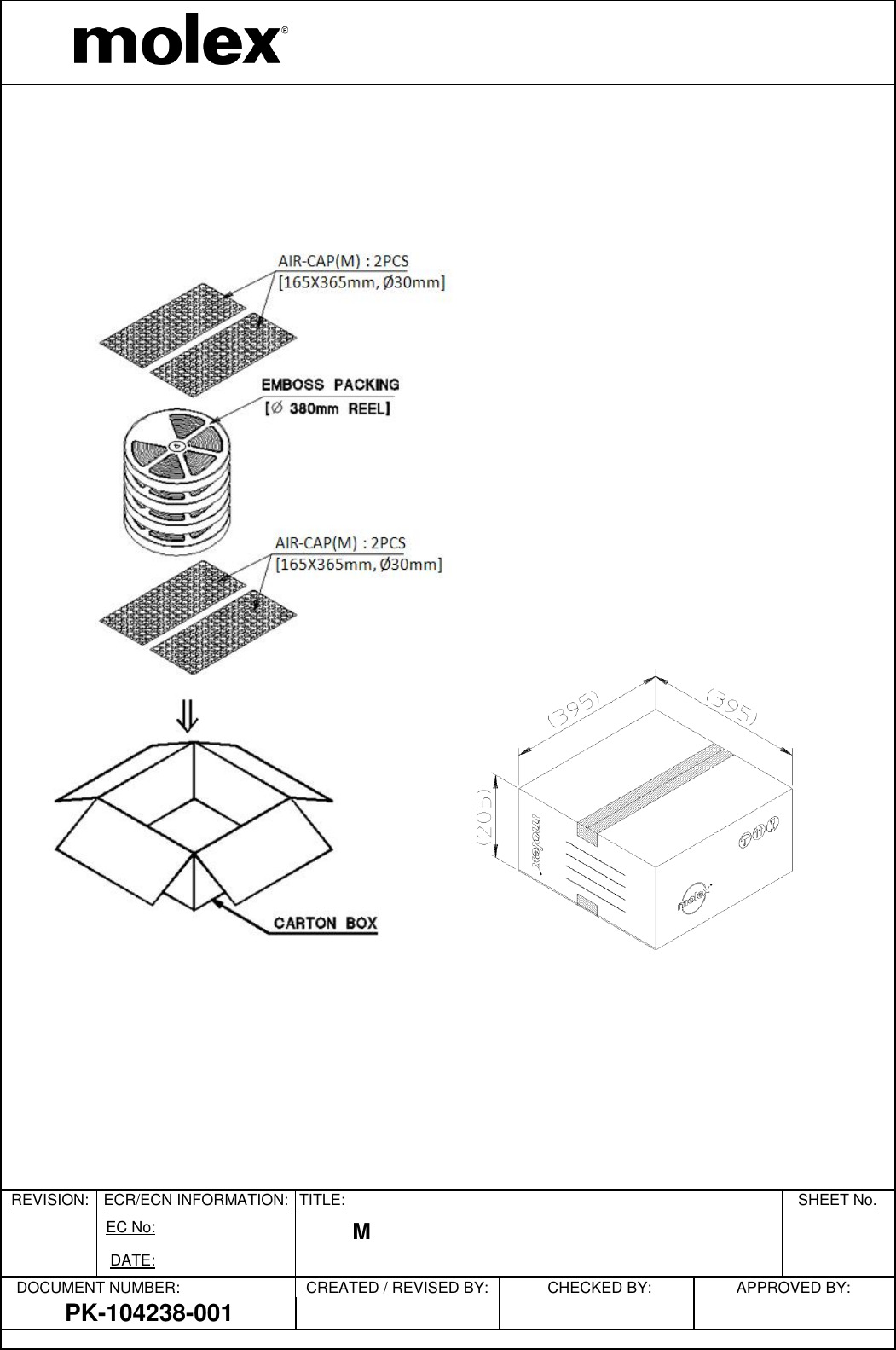

5. PACKING DRAWING
- 해당 BO0X에 AIR CAP(35906-0063)과 Packing된 8 Reel를 넣고 포장한다..
[ Packing Process ] [Packing completion]
