ST
ST7735R
262K Color Single-Chip TFT Controller/Driver
V0.2 1 2009-8-5
1 Introduction
The ST7735R is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 396 source line and 162
gate line driving circuits. This chip is capable of connecting directly to an external microprocessor, and accepts Serial
Peripheral Interface (SPI), 8-bit/9-bit/16-bit/18-bit parallel interface. Display data can be stored in the on-chip display data
RAM of 132 x 162 x 18 bits. It can perform display data RAM read/write operation with no external operation clock to
minimize power consumption. In addition, because of the integrated power supply circuits necessary to drive liquid crystal,
it is possible to make a display system with fewer components.
2 Features
Single chip TFT-LCD Controller/Driver with RAM
On-chip Display Data RAM (i.e. Frame Memory)
132 (H) x RGB x 162 (V) bits
LCD Driver Output Circuits:
Source Outputs: 132 RGB channels
Gate Outputs: 162 channels
Common electrode output
Display Colors (Color Mode)
Full Color: 262K, RGB=(666) max., Idle Mode OFF
Color Reduce: 8-color, RGB=(111), Idle Mode ON
Programmable Pixel Color Format (Color Depth) for
Various Display Data input Format
12-bit/pixel: RGB=(444) using the 384k-bit frame memory
and LUT
16-bit/pixel: RGB=(565) using the 384k-bit frame memory
and LUT
18-bit/pixel: RGB=(666) using the 384k-bit frame memory
and LUT
Various Interfaces

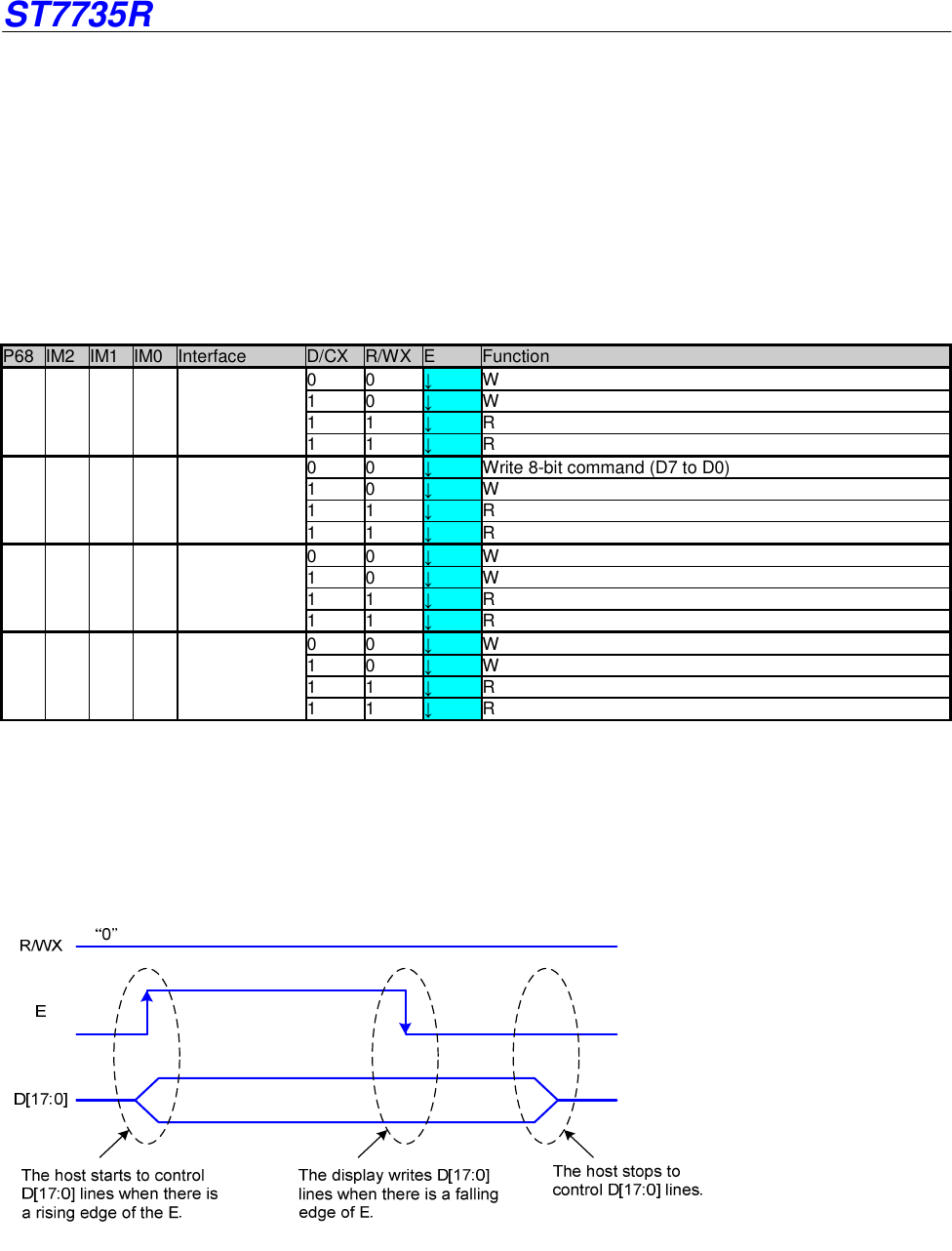

Parallel 8080-series MCU Interface
(8-bit, 9-bit, 16-bit & 18-bit)
Parallel 6800-series MCU Interface
(8-bit, 9-bit, 16-bit & 18-bit)

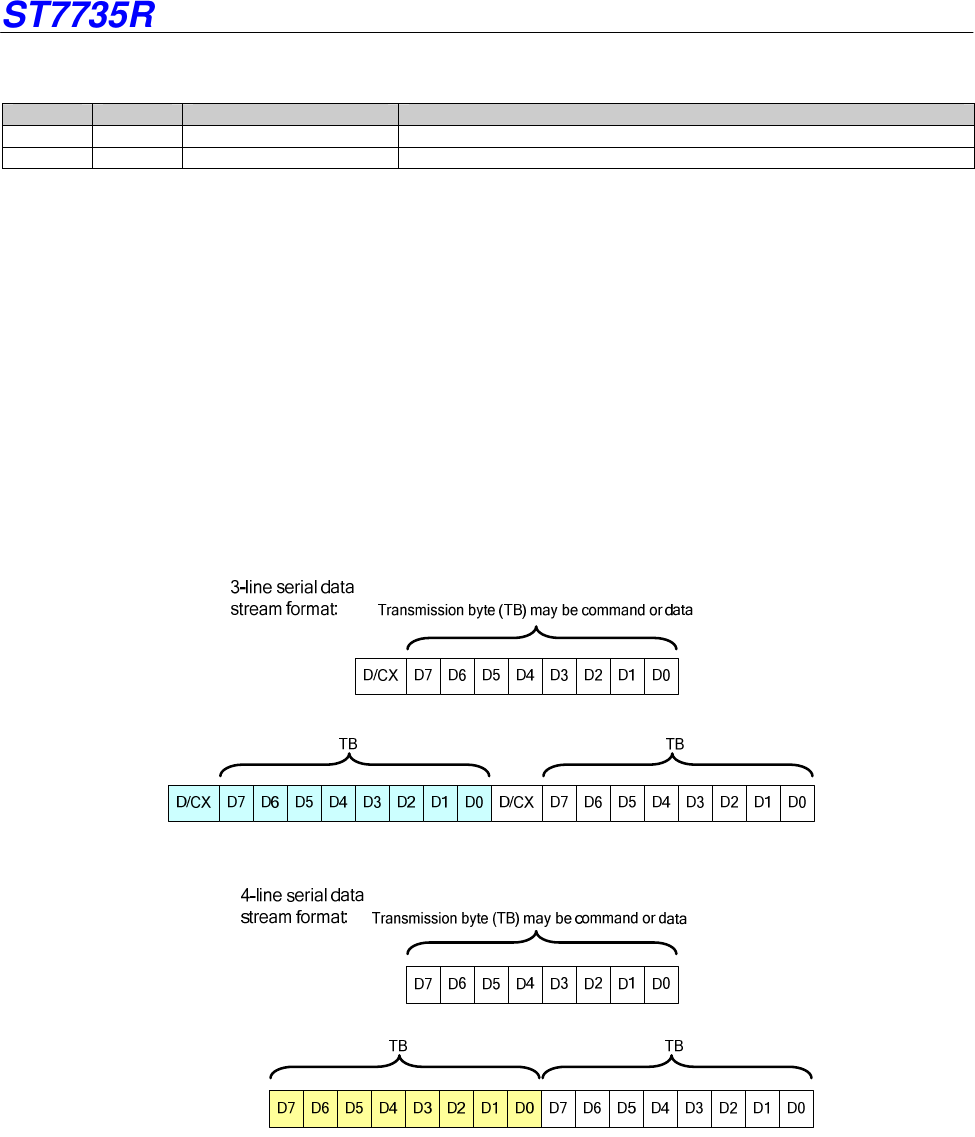

3-line serial interface
4-line serial interface
Display Features
Support both normal-black & normal-white LC
Software programmable color depth mode
Built-in Circuits
DC/DC converter
Adjustable VCOM generation
Non-volatile (NV) memory to store initial register setting
Oscillator for display clock generation
Factory default value (module ID, module version, etc) are
stored in NV memory
Timing controller
Built-in NV Memory for LCD Initial Register Setting
7-bits for ID2
8-bits for ID3
7-bits for VCOM adjustment
Wide Supply Voltage Range
I/O Voltage (VDDI to DGND): 1.65V~3.7V (VDDI ≤ VDD)
Analog Voltage (VDD to AGND): 2.3V~4.8V

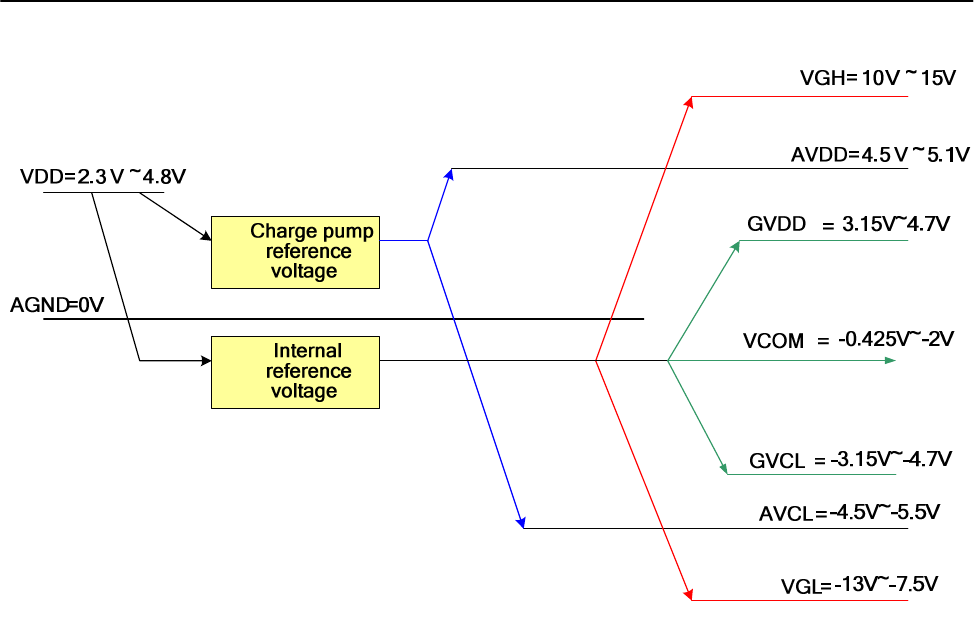

On-Chip Power System
Source Voltage (GVDD to AGND): 3.0V~4.5V
VCOM level (VCOM to AGND): -0.4V to -2.0V
Gate driver HIGH level (VGH to AGND): +10.0V to +15V
Gate driver LOW level (VGL to AGND): -13V to -7.5V
Operating Temperature: -30°C to +85°C
ST7735R Parallel Interface: 8080,6800(8-bit/9-bit/16-bit/18-bit)
Serial Interface: 3-line, 4-line
Sitronix Technology Corp. reserves the right to change the contents in this document without prior notice.
S T7735 R
ST7735R
V0.2 2 2009-08-05
3 Pad arrangement

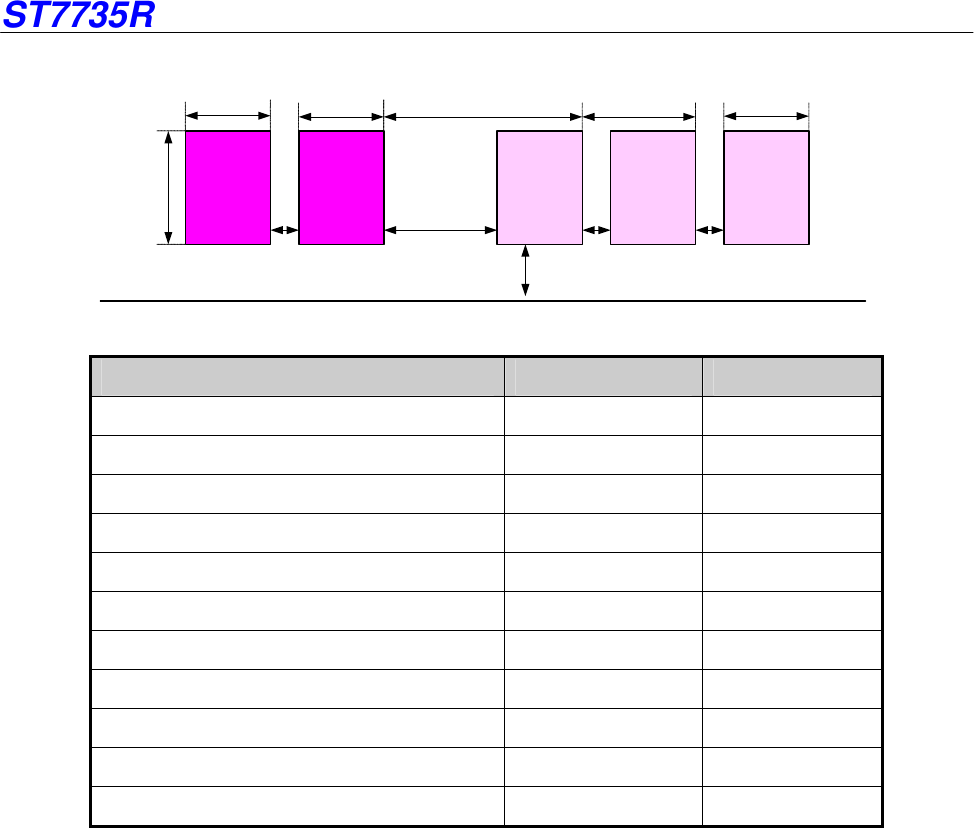

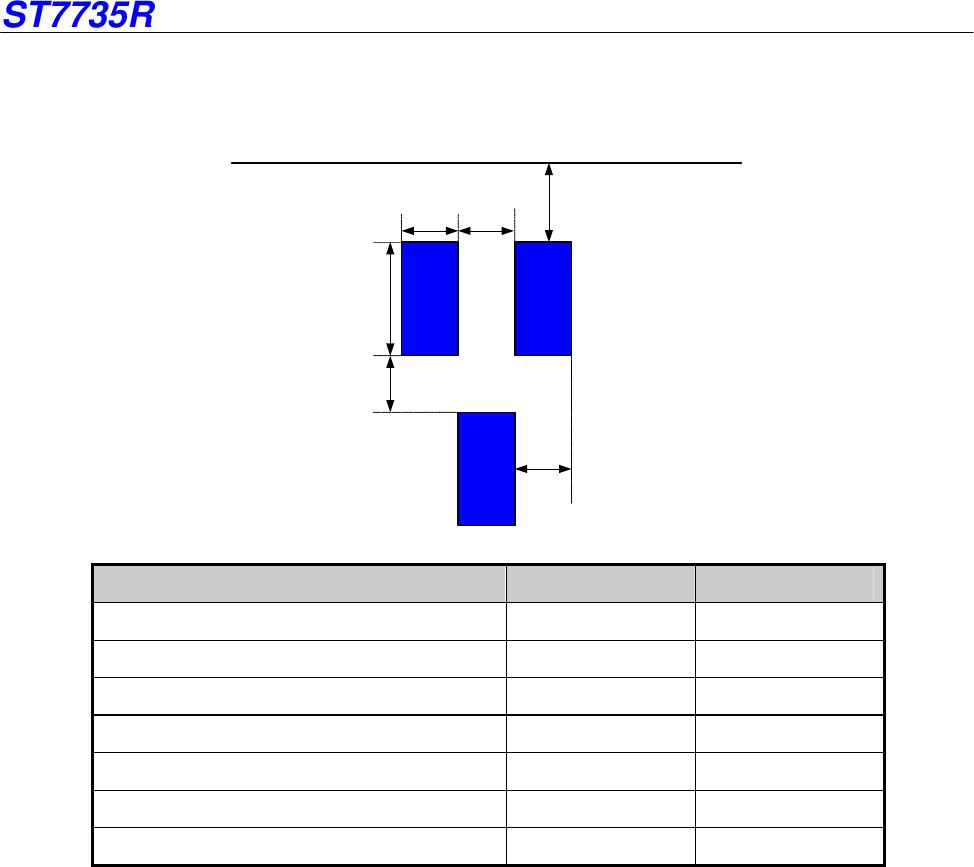

3.1 Output Bump Dimension
C K
H
A
L
J
Boundary (Include scribe Lane)
Item Symbol Size
Bump pitch A 16 um
Bump width C 16 um
Bump height H 98 um
Bump gap1 (Vertical) J 19 um
Bump gap2 (Horizontal) K 16 um
Bump area C x H 1568 um2
Chip Boundary (include scribe Lane) L 59 um
S T7735 R
ST7735R
V0.2 3 2009-08-05
3.2 Input Bump Dimension
A2
H
C1
KK2
C2
K1 K1
A1
C2
L
Boundary (Include scribe Lane)
Item Symbol Size
Bump pitch 1 A1 67 um
Bump pitch 2 A2 50 um
Bump width 1 C1 33 um
Bump width 2 C2 38 um
Bump height H 88 um
Bump gap K 22 um
Bump gap1 K1 17 um
Bump gap2 K2 34 um
Bump area 1 C1 X H 2904 um2
Bump area 2 C2 X H 3344 um2
Chip Boundary(include scribe Lane) L 59 um
~+—+—+—+4
ST7735R
V0.2 4 2009-08-05

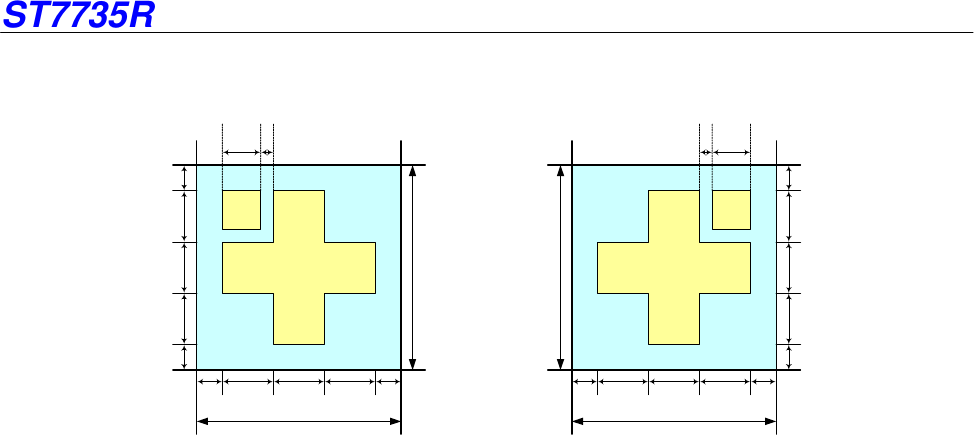

3.3 Alignment Mark Dimension
80
80
2015 1515 15
105
2015 1515 15
80
80
20 1515 1515
10 5
20 1515 1515
S T7735]?
No.185
No.1
No.186
No.759
ST7735R
V0.2 5 2009-08-05

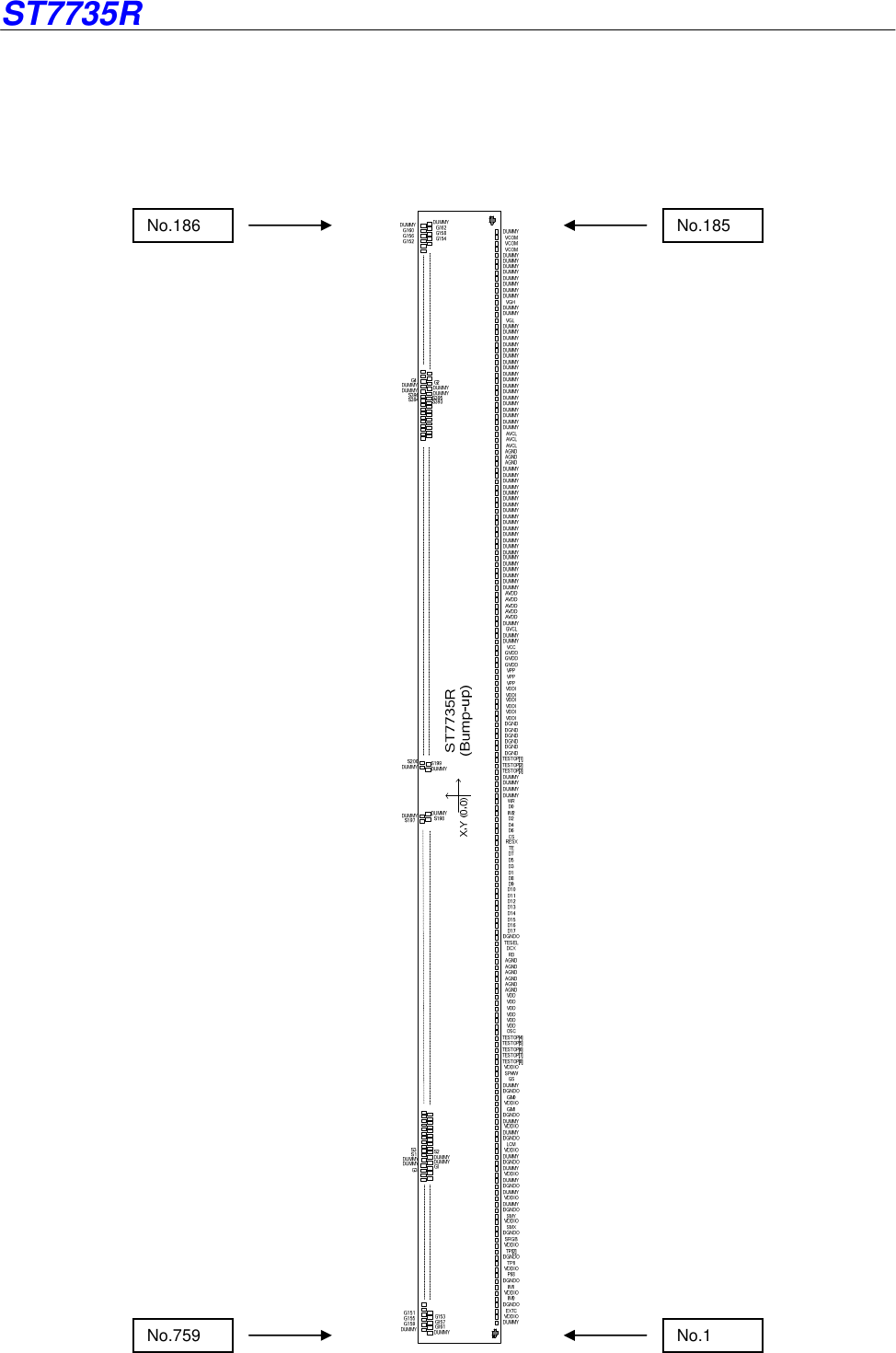

3.4 Chip Information
Chip size (um x um): 10080 x 670
PAD coordinate: pad center
Coordinate origin: chip center
Chip thickness (um): 300(TYP)
Bump height (um): 15(TYP)
Bump hardness (HV): 75(TYP)
No.1
No.185
No.186
No.759
S T7735 R
ST7735R
V0.2 6 2009-08-05

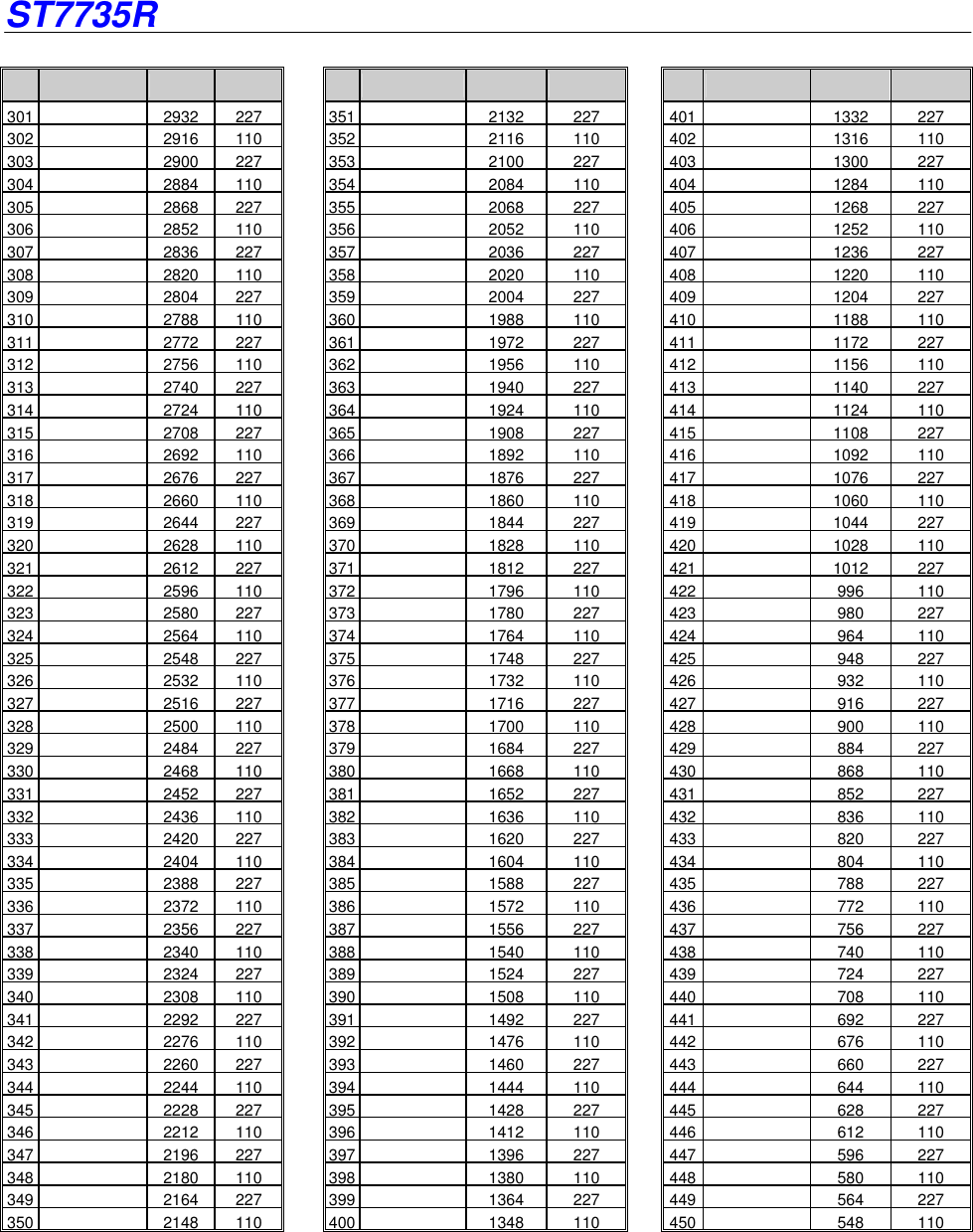

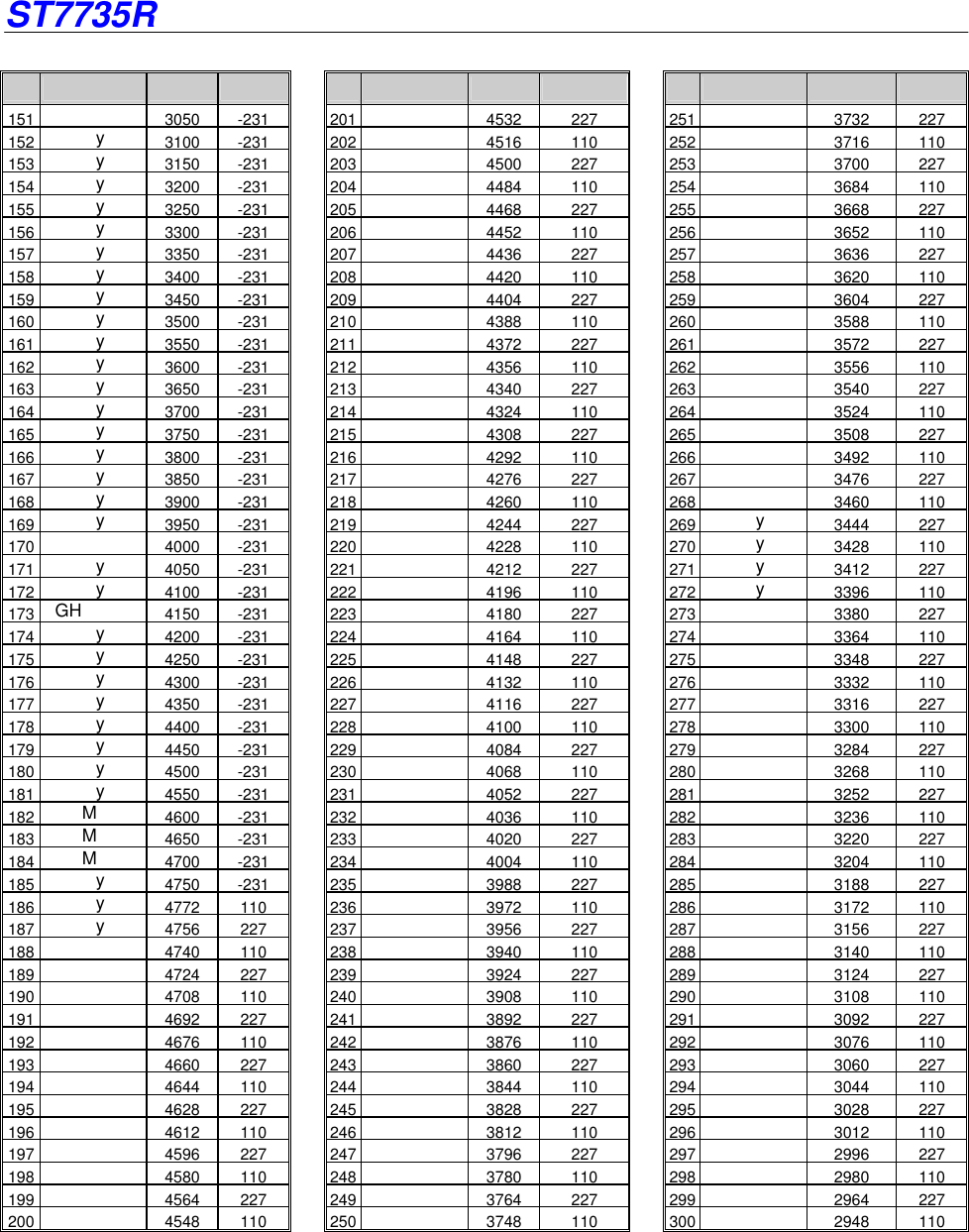

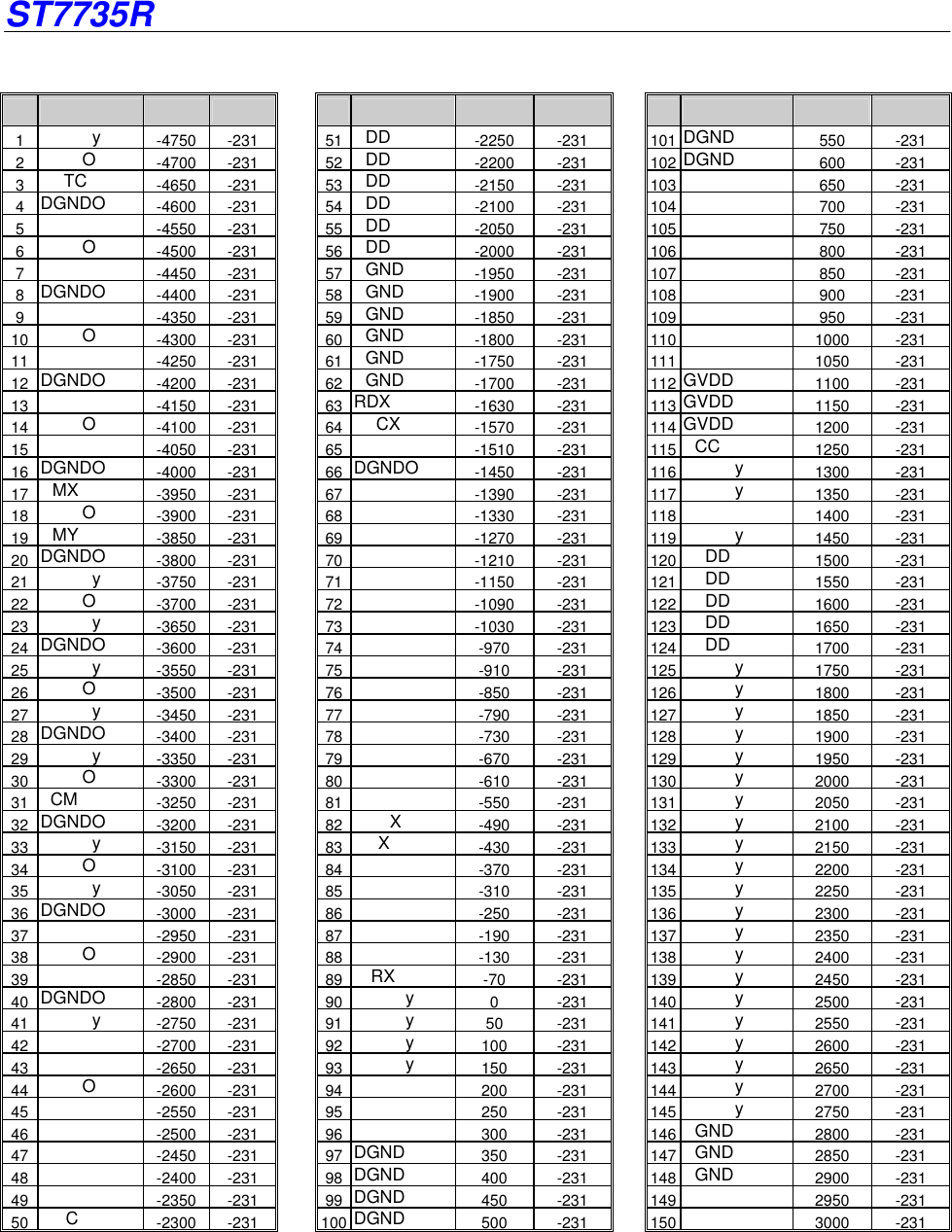

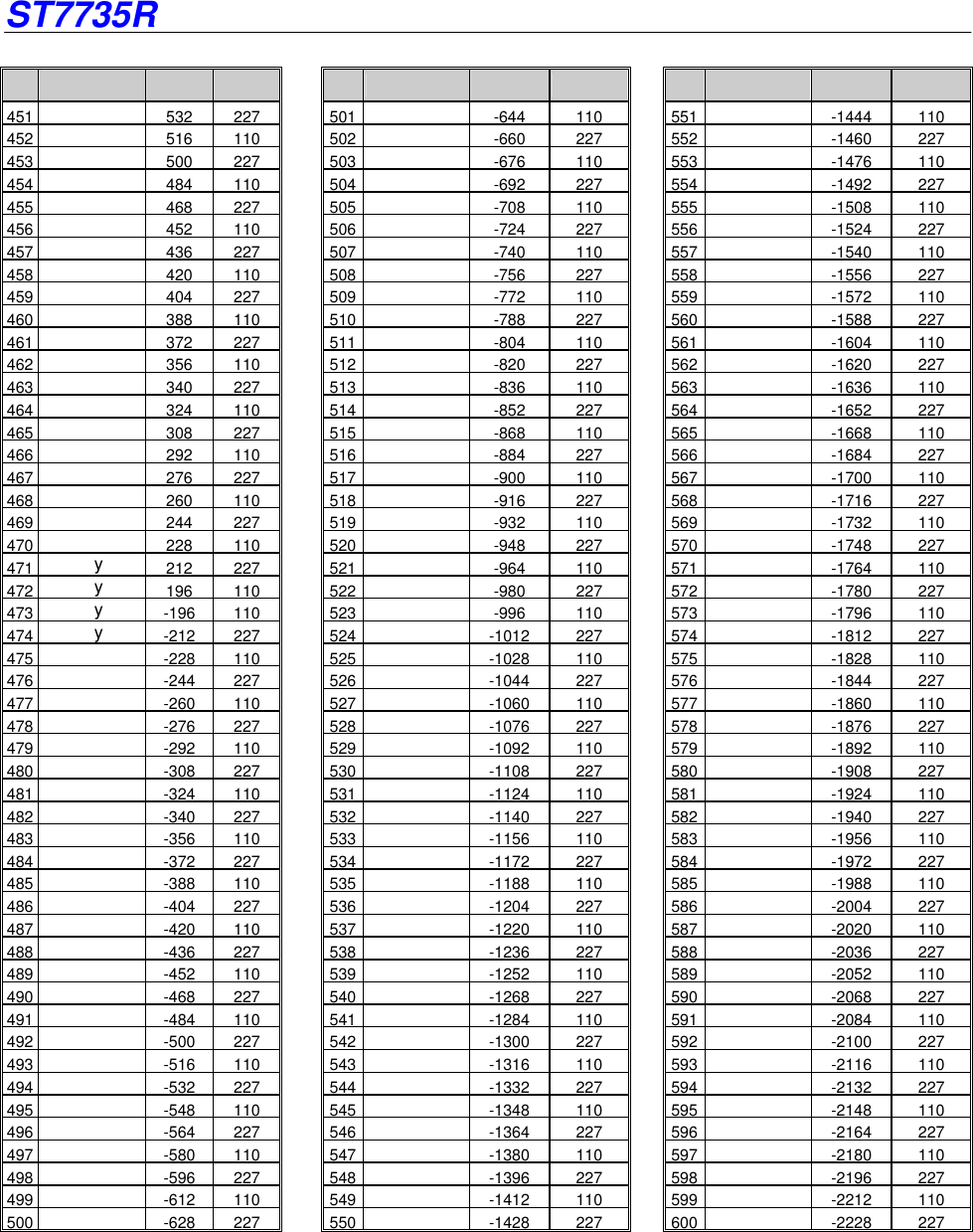

4 Pad Center Coordinates
No.
PAD Name
X Y No.
PAD Name
X Y
No.
PAD Name
X Y
1
Dummy
-
4750
-
231
5
1
VDD
-
2250
-
231
10
1
DGND
550
-
231
2
VDDIO
-
4700
-
231
5
2
VDD
-
2200
-
231
10
2
DGND
600
-
231
3
EXTC
-
4650
-
231
5
3
VDD
-
2150
-
231
10
3
VDDI
650
-
231
4
DGNDO
-
4600
-
231
5
4
VDD
-
2100
-
231
10
4
VDDI
700
-
231
5
IM[0]
-
4550
-
231
5
5
VDD
-
2050
-
231
10
5
VDDI
750
-
231
6
VDDIO
-
4500
-
231
5
6
VDD
-
2000
-
231
10
6
VDDI
800
-
231
7
IM[1]
-
4450
-
231
5
7
AGND
-
1950
-
231
10
7
VDDI
850
-
231
8
DGNDO
-
4400
-
231
5
8
AGND
-
1900
-
231
10
8
VDDI
900
-
231
9
P68
-
4350
-
231
5
9
AGND
-
1850
-
231
10
9
VPP
950
-
231
10
VDDIO
-
4300
-
231
6
0
AGND
-
1800
-
231
1
10
VPP
1000
-
231
11
TEST1P
-
4250
-
231
6
1
AGND
-
1750
-
231
1
11
VPP
1050
-
231
12
DGNDO
-
4200
-
231
6
2
AGND
-
1700
-
231
1
12
GVDD
1100
-
231
13
TEST2P
-
4150
-
231
6
3
RDX
-
1630
-
231
1
13
GVDD
1150
-
231
14
VDDIO
-
4100
-
231
6
4
D_CX
-
1570
-
231
1
14
GVDD
1200
-
231
15
SRGB
-
4050
-
231
6
5
TESEL
-
1510
-
231
1
15
VCC
1250
-
231
16
DGNDO
-
4000
-
231
66
DGNDO
-
1450
-
231
1
16
Dummy
1300
-
231
17
SMX
-
3950
-
231
6
7
D[17]
-
1390
-
231
1
17
Dummy
1350
-
231
18
VDDIO
-
3900
-
231
6
8
D[16]
-
1330
-
231
1
18
GVCL
1400
-
231
19
SMY
-
3850
-
231
6
9
D[15]
-
1270
-
231
1
19
Dummy
1450
-
231
20
DGNDO
-
3800
-
231
7
0
D[14]
-
1210
-
231
1
20
AVDD
1500
-
231
21
Dummy
-
3750
-
231
7
1
D[13]
-
1150
-
231
1
21
AVDD
1550
-
231
22
VDDIO
-
3700
-
231
7
2
D[12]
-
1090
-
231
1
22
AVDD
1600
-
231
23
Dummy
-
365
0
-
231
7
3
D[11]
-
1030
-
231
1
23
AVDD
1650
-
231
24
DGNDO
-
3600
-
231
7
4
D[10]
-
970
-
231
1
24
AVDD
1700
-
231
25
Dummy
-
3550
-
231
7
5
D[9]
-
910
-
231
1
25
Dummy
1750
-
231
26
VDDIO
-
3500
-
231
7
6
D[8]
-
850
-
231
1
26
Dummy
1800
-
231
27
Dummy
-
3450
-
231
7
7
D[1]
-
790
-
231
1
27
Dummy
1850
-
231
28
DGNDO
-
3400
-
231
7
8
D[3]
-
730
-
231
1
28
Dummy
1900
-
231
29
Dummy
-
3350
-
231
7
9
D[5]
-
670
-
231
1
29
Dummy
1950
-
231
30
VDDIO
-
3300
-
231
8
0
D[7]
-
610
-
231
1
30
Dummy
2000
-
231
31
LCM
-
3250
-
231
8
1
TE
-
550
-
231
1
31
Dummy
2050
-
231
32
DGNDO
-
3200
-
231
8
2
RESX
-
490
-
231
1
32
Dummy
2100
-
231
33
Dummy
-
3150
-
231
8
3
CSX
-
430
-
231
1
33
Dummy
2150
-
231
34
VDDIO
-
3100
-
231
8
4
D[6]
-
370
-
231
1
34
Dummy
2200
-
231
35
Dummy
-
3050
-
231
8
5
D[4]
-
310
-
231
1
35
Dummy
225
0
-
231
36
DGNDO
-
3000
-
231
8
6
D[2]
-
250
-
231
1
36
Dummy
2300
-
231
37
GM[1]
-
2950
-
231
8
7
IM[2]
-
190
-
231
1
37
Dummy
2350
-
231
38
VDDIO
-
2900
-
231
8
8
D[0]
-
130
-
231
1
38
Dummy
2400
-
231
39
GM[0]
-
2850
-
231
8
9
WRX
-
70
-
231
1
39
Dummy
2450
-
231
40
DGNDO
-
2800
-
231
9
0
Dummy
0
-
231
1
40
Dummy
2500
-
231
41
Dummy
-
2750
-
231
91
Dummy
50
-
231
1
41
Dummy
2550
-
231
42
GS
-
2700
-
231
92
Dummy
100
-
231
1
42
Dummy
2600
-
231
43
SPI4W
-
2650
-
231
93
Dummy
150
-
231
1
43
Dummy
2650
-
231
44
VDDIO
-
2600
-
231
94
TESTOP[3]
200
-
231
1
44
Dummy
2700
-
231
45
TESTOP[8]
-
2550
-
231
95
TESTOP[2]
250
-
231
1
45
Dummy
2750
-
231
46
TESTOP[7]
-
2500
-
231
96
TESTOP[1]
300
-
231
1
46
AGND
2800
-
231
47
TESTOP[6]
-
2450
-
231
97
DGND
350
-
231
1
47
AGND
2850
-
231
48
TESTOP[5]
-
2400
-
231
98
DGND
400
-
231
1
48
AGND
2900
-
231
49
TESTOP[4]
-
2350
-
231
99
DGND
450
-
231
1
49
AVCL
2950
-
231
50
OSC
-
2300
-
231
100
DGND
500
-
231
1
50
AVCL
3000
-
231
S T7735 R
ST7735R
V0.2 7 2009-08-05
No.
PAD Name
X Y
No.
PAD Name
X Y
No.
PAD Name
X Y
15
1
AVCL
3050
-
231
201
G136
4532
227
251
G36
3732
227
15
2
Dummy
3100
-
231
202
G134
4516
110
252
G34
3716
110
15
3
Dummy
3150
-
231
203
G132
4500
227
253
G32
3700
227
15
4
Dummy
3200
-
231
204
G130
4484
110
254
G30
3684
110
15
5
Dummy
3250
-
231
205
G128
4468
227
255
G28
3668
227
15
6
Dummy
3300
-
231
206
G126
4452
110
256
G26
3652
110
15
7
Dummy
3350
-
231
207
G124
4436
227
257
G24
3636
227
15
8
Dummy
3400
-
231
208
G122
4420
110
258
G22
3620
110
15
9
Dummy
3450
-
231
209
G120
4404
227
259
G20
3604
227
160
Dummy
3500
-
23
1
210
G118
4388
110
260
G18
3588
110
161
Dummy
3550
-
231
211
G116
4372
227
261
G16
3572
227
162
Dummy
3600
-
231
212
G114
4356
110
262
G14
3556
110
16
3
Dummy
3650
-
231
213
G112
4340
227
263
G12
3540
227
16
4
Dummy
3700
-
231
214
G110
4324
110
26
4
G10
3524
110
1
6
5
Dummy
3750
-
231
215
G108
4308
227
265
G8
3508
227
1
6
6
Dummy
3800
-
231
216
G106
4292
110
266
G6
3492
110
1
6
7
Dummy
3850
-
231
217
G104
4276
227
267
G4
3476
227
1
6
8
Dummy
3900
-
231
218
G102
4260
110
268
G2
3460
110
1
6
9
Dummy
39
50
-
231
219
G100
4244
227
269
Dummy
3444
227
17
0
VGL
4000
-
231
220
G98
4228
110
270
Dummy
3428
110
17
1
Dummy
4050
-
231
221
G96
4212
227
271
Dummy
3412
227
172
Dummy
4100
-
231
222
G94
4196
110
272
Dummy
3396
110
173
VGH
4150
-
231
223
G92
4180
2
27
273
S396
3380
227
174
Dummy
4200
-
231
224
G90
4164
110
274
S395
3364
110
175
Dummy
4250
-
231
225
G88
4148
227
275
S394
3348
227
176
Dummy
4300
-
231
226
G86
4132
110
276
S393
3332
110
177
Dummy
4350
-
231
227
G84
4116
227
277
S392
3316
227
1
78
Dummy
4400
-
231
228
G82
4100
110
278
S391
3300
110
179
Dummy
4450
-
231
229
G80
4084
227
279
S390
3284
227
180
Dummy
4500
-
231
230
G78
4068
110
280
S389
3268
110
181
Dummy
4550
-
231
231
G76
4052
227
281
S388
3252
227
182
VCOM
4600
-
231
232
G74
4036
110
282
S387
3236
110
183
VCOM
4650
-
231
233
G72
4020
227
283
S386
3220
227
184
VCOM
4700
-
231
234
G70
4004
110
284
S385
3204
110
185
Dummy
4750
-
231
235
G68
3988
227
285
S384
3188
227
186
Dummy
4772
110
236
G66
3972
110
286
S383
3172
110
187
Dummy
4756
227
237
G64
3956
227
287
S382
3156
227
188
G162
4740
110
238
G62
3940
110
288
S381
3140
110
189
G160
4724
227
239
G60
3924
227
289
S380
3124
227
190
G158
4708
110
240
G58
3908
110
290
S379
3108
110
191
G156
4692
227
241
G56
3892
227
291
S378
3092
227
192
G154
4676
110
242
G54
3876
110
292
S377
3076
110
193
G152
4660
227
243
G52
3860
227
293
S376
3060
227
194
G150
4644
110
244
G50
3844
110
294
S375
3044
110
195
G148
4628
227
245
G48
3828
227
295
S374
3028
227
19
6
G146
4612
110
246
G46
3812
110
296
S373
3012
110
197
G144
4596
227
247
G44
3796
227
297
S372
2996
227
198
G142
4580
110
248
G42
3780
110
298
S371
2980
110
199
G140
4564
227
249
G40
3764
227
299
S370
2964
227
200
G138
4548
110
250
G38
3748
11
0
300
S369
2948
110
S T7735 R
ST7735R
V0.2 8 2009-08-05
No.
PAD Name
X Y No.
PAD Name
X Y
No.
PAD Name
X Y
30
1
S368
2932
227
35
1
S318
2132
227
401
S268
1332
227
30
2
S367
2916
110
35
2
S317
2116
110
402
S267
1316
110
30
3
S366
2900
227
35
3
S316
2100
227
403
S266
1300
227
30
4
S365
2884
110
35
4
S315
2084
110
404
S265
1284
110
30
5
S364
2868
227
35
5
S314
2068
227
405
S264
1268
227
30
6
S363
2852
110
35
6
S313
2052
110
406
S263
1252
110
30
7
S362
2836
227
35
7
S312
2036
227
407
S262
1236
227
30
8
S361
2820
110
35
8
S311
2020
1
10
408
S261
1220
110
30
9
S360
2804
227
35
9
S310
2004
227
409
S260
1204
227
3
10
S359
2788
110
36
0
S309
1988
110
410
S259
1188
110
3
11
S358
2772
227
36
1
S308
1972
227
411
S258
1172
227
3
12
S357
2756
110
36
2
S307
1956
110
412
S257
1156
110
3
13
S356
2740
227
36
3
S306
1940
227
413
S256
1140
227
3
14
S355
2724
110
36
4
S305
1924
110
414
S255
1124
110
3
15
S354
2708
227
36
5
S304
1908
227
415
S254
1108
227
3
16
S353
2692
110
366
S303
1892
110
416
S253
1092
110
3
17
S352
2676
227
36
7
S302
1876
227
417
S252
1076
227
3
18
S351
2660
110
36
8
S301
1860
110
418
S251
1060
110
3
19
S350
2644
227
36
9
S300
1844
227
419
S250
1044
227
3
20
S349
2628
110
37
0
S299
1828
110
420
S249
1028
110
3
21
S348
2612
227
37
1
S298
1812
227
421
S248
1012
227
3
22
S347
2596
110
37
2
S297
1796
110
422
S247
996
110
3
23
S346
2580
227
37
3
S296
1780
227
423
S246
980
227
3
24
S345
2564
110
37
4
S295
1764
110
424
S245
964
110
3
25
S344
2548
227
37
5
S294
1748
227
425
S244
948
227
3
26
S343
2532
110
37
6
S293
1732
110
426
S243
932
110
3
27
S342
2516
227
37
7
S292
1716
227
427
S242
916
227
3
28
S341
2500
110
37
8
S291
1700
110
428
S241
900
110
3
29
S340
2484
227
37
9
S290
1684
227
429
S240
884
227
3
30
S339
2468
110
38
0
S289
1668
110
430
S239
868
110
3
31
S338
245
2
227
38
1
S288
1652
227
431
S238
852
227
3
32
S337
2436
110
38
2
S287
1636
110
432
S237
836
110
3
33
S336
2420
227
38
3
S286
1620
227
433
S236
820
227
3
34
S335
2404
110
38
4
S285
1604
110
434
S235
804
110
3
35
S334
2388
227
38
5
S284
1588
227
435
S234
788
227
3
36
S333
2372
110
38
6
S283
1572
110
436
S233
772
110
3
37
S332
2356
227
38
7
S282
1556
227
437
S232
756
227
3
38
S331
2340
110
38
8
S281
1540
110
438
S231
740
110
3
39
S330
2324
227
38
9
S280
1524
227
439
S230
724
227
3
40
S329
2308
110
3
9
0
S279
1508
110
440
S229
708
110
3
41
S328
2292
227
391
S278
1492
227
441
S228
692
227
3
42
S327
2276
110
392
S277
1476
110
442
S227
676
110
3
43
S326
2260
227
393
S276
1460
227
443
S226
660
227
3
44
S325
2244
110
394
S275
1444
110
444
S225
644
1
10
3
45
S324
2228
227
395
S274
1428
227
445
S224
628
227
3
46
S323
2212
110
396
S273
1412
110
446
S223
612
110
3
47
S322
2196
227
397
S272
1396
227
447
S222
596
227
3
48
S321
2180
110
398
S271
1380
110
448
S221
580
110
3
49
S320
2164
227
399
S270
1364
227
449
S220
564
227
3
50
S319
2148
110
400
S269
1348
110
450
S219
548
110
S T7735 R
ST7735R
V0.2 9 2009-08-05
No.
PAD Name
X Y No.
PAD Name
X Y
No.
PAD Name
X Y
451
S218
532
227
501
S172
-
644
110
551
S122
-
1444
110
452
S217
516
110
502
S171
-
660
227
552
S121
-
1460
227
4
53
S216
500
227
503
S170
-
676
110
553
S120
-
1476
110
454
S215
484
110
504
S169
-
692
227
554
S119
-
1492
227
455
S214
468
227
505
S168
-
708
110
555
S118
-
1508
110
456
S213
452
110
506
S167
-
724
227
556
S117
-
1524
227
457
S212
436
227
507
S166
-
7
40
110
557
S116
-
1540
110
458
S211
420
110
508
S165
-
756
227
558
S115
-
1556
227
459
S210
404
227
509
S164
-
772
110
559
S114
-
1572
110
460
S209
388
110
510
S163
-
788
227
560
S113
-
1588
227
461
S208
372
227
511
S162
-
804
110
561
S112
-
1604
110
462
S207
356
110
512
S161
-
820
227
562
S111
-
1620
227
463
S206
340
227
513
S160
-
836
110
563
S110
-
1636
110
464
S205
324
110
514
S159
-
852
227
564
S109
-
1652
227
465
S204
308
227
515
S158
-
868
110
565
S108
-
1668
110
466
S203
292
110
516
S157
-
884
227
566
S107
-
1684
227
467
S202
276
227
517
S156
-
900
110
567
S106
-
1700
110
468
S201
260
110
518
S155
-
916
227
568
S105
-
1716
227
469
S200
244
227
519
S154
-
932
110
569
S104
-
1732
110
470
S199
228
110
520
S153
-
948
227
570
S103
-
1748
227
471
Dummy
212
227
521
S152
-
964
110
571
S102
-
1764
110
472
Dummy
196
110
522
S151
-
980
227
572
S101
-
1780
227
473
Dummy
-
196
110
523
S150
-
996
110
573
S100
-
1796
110
474
Dummy
-
212
227
524
S149
-
1012
227
574
S99
-
1812
227
475
S198
-
228
110
52
5
S148
-
1028
110
575
S98
-
1828
110
476
S197
-
244
227
526
S147
-
1044
227
576
S97
-
1844
227
477
S196
-
260
110
527
S146
-
1060
110
577
S96
-
1860
110
478
S195
-
276
227
528
S145
-
1076
227
578
S95
-
1876
227
479
S194
-
292
110
529
S144
-
1092
110
579
S94
-
1892
110
480
S193
-
308
227
530
S143
-
1108
227
580
S93
-
1908
227
481
S192
-
324
110
531
S142
-
1124
110
581
S92
-
1924
110
482
S191
-
340
227
532
S141
-
1140
227
582
S91
-
1940
227
483
S190
-
356
110
533
S140
-
1156
110
583
S90
-
1956
110
484
S189
-
3
72
227
534
S139
-
1172
227
584
S89
-
1972
227
485
S188
-
388
110
535
S138
-
1188
110
585
S88
-
1988
110
486
S187
-
404
227
536
S137
-
1204
227
586
S87
-
2004
227
487
S186
-
420
110
537
S136
-
1220
110
587
S86
-
2020
110
488
S185
-
436
227
538
S135
-
1236
2
27
588
S85
-
2036
227
489
S184
-
452
110
539
S134
-
1252
110
589
S84
-
2052
110
490
S183
-
468
227
540
S133
-
1268
227
590
S83
-
2068
227
491
S182
-
484
110
541
S132
-
1284
110
591
S82
-
2084
110
492
S181
-
500
227
542
S131
-
1300
227
592
S81
-
2100
227
4
93
S180
-
516
110
543
S130
-
1316
110
593
S80
-
2116
110
494
S179
-
532
227
544
S129
-
1332
227
594
S79
-
2132
227
495
S178
-
548
110
545
S128
-
1348
110
595
S78
-
2148
110
496
S177
-
564
227
546
S127
-
1364
227
596
S77
-
2164
227
497
S176
-
580
110
547
S126
-
1380
110
597
S76
-
2180
110
498
S175
-
596
227
548
S125
-
1396
227
598
S75
-
2196
227
499
S174
-
612
110
549
S124
-
1412
110
599
S74
-
2212
110
500
S173
-
628
227
550
S123
-
1428
227
600
S73
-
2228
227
S T7735 R
ST7735R
V0.2 10 2009-08-05
No.
PAD Name
X Y No.
PAD Name
X Y
No.
PAD Name
X Y
601
S72
-
2244
110
651
S22
-
3044
110
701
G49
-
3844
110
602
S71
-
2260
227
652
S21
-
3060
227
702
G51
-
3860
227
603
S70
-
2276
110
653
S20
-
3076
110
703
G53
-
3876
110
604
S69
-
2292
227
654
S19
-
3092
227
704
G55
-
3892
227
605
S68
-
2308
110
6
55
S18
-
3108
110
705
G57
-
3908
110
606
S67
-
2324
227
656
S17
-
3124
227
706
G59
-
3924
227
607
S66
-
2340
110
657
S16
-
3140
110
707
G61
-
3940
110
608
S65
-
2356
227
658
S15
-
3156
227
708
G63
-
3956
227
609
S64
-
2372
110
659
S14
-
3172
110
709
G65
-
3
972
110
610
S63
-
2388
227
660
S13
-
3188
227
710
G67
-
3988
227
611
S62
-
2404
110
661
S12
-
3204
110
711
G69
-
4004
110
612
S61
-
2420
227
662
S11
-
3220
227
712
G71
-
4020
227
613
S60
-
2436
110
663
S10
-
3236
110
713
G73
-
4036
110
614
S59
-
2452
227
664
S9
-
3252
227
714
G75
-
4052
227
615
S58
-
2468
110
665
S8
-
3268
110
715
G77
-
4068
110
616
S57
-
2484
227
666
S7
-
3284
227
716
G79
-
4084
227
617
S56
-
2500
110
667
S6
-
3300
110
717
G81
-
4100
110
618
S55
-
2516
227
668
S5
-
3316
227
718
G83
-
4116
227
619
S54
-
2532
110
669
S4
-
3332
110
719
G85
-
4132
110
620
S53
-
2548
227
670
S3
-
3348
227
720
G87
-
4148
227
621
S52
-
2564
110
671
S2
-
3364
110
721
G89
-
4164
110
622
S51
-
2580
227
672
S1
-
3380
227
722
G91
-
4180
227
623
S50
-
2596
110
673
Dummy
-
3396
110
723
G93
-
4196
110
624
S49
-
2612
227
674
Dummy
-
3412
227
724
G95
-
4212
227
625
S48
-
2628
110
675
Dummy
-
3428
110
725
G97
-
4228
110
626
S47
-
2644
227
676
Dummy
-
3444
227
726
G99
-
4244
227
627
S46
-
2660
110
677
G1
-
3460
110
727
G101
-
4260
110
628
S45
-
2676
227
678
G3
-
3476
227
728
G103
-
4276
227
629
S44
-
2692
110
679
G5
-
3492
110
729
G105
-
4292
110
630
S43
-
2708
227
680
G7
-
3508
227
730
G107
-
4308
227
631
S42
-
2724
110
681
G9
-
3524
110
731
G109
-
4324
110
632
S41
-
2740
227
682
G11
-
3540
227
732
G111
-
4340
227
633
S40
-
2756
110
683
G13
-
3556
110
733
G113
-
4356
110
634
S39
-
2772
227
684
G15
-
3572
227
734
G115
-
4372
227
635
S38
-
2788
110
685
G17
-
3588
110
735
G117
-
4388
110
636
S37
-
2804
227
686
G19
-
3604
227
736
G119
-
4404
227
637
S36
-
2820
110
687
G21
-
3620
110
737
G121
-
4420
110
638
S35
-
2836
227
688
G23
-
3636
227
738
G123
-
4436
227
639
S34
-
2852
110
689
G25
-
3652
110
739
G125
-
4452
110
640
S33
-
2868
227
690
G27
-
3668
227
740
G127
-
4468
227
641
S32
-
2884
110
691
G29
-
3684
110
741
G129
-
4484
110
642
S31
-
2900
227
692
G31
-
3700
227
742
G131
-
4500
227
643
S30
-
2916
110
693
G33
-
3716
110
743
G133
-
4516
110
644
S29
-
2932
227
694
G35
-
3732
227
744
G135
-
4532
227
645
S28
-
2948
110
695
G37
-
3748
110
745
G137
-
4548
110
646
S27
-
2964
227
696
G39
-
3764
227
746
G139
-
4564
227
647
S26
-
2980
110
697
G41
-
3780
110
747
G141
-
4580
110
648
S25
-
2996
227
698
G43
-
3796
227
748
G143
-
4596
227
649
S24
-
3012
110
699
G45
-
3812
110
749
G145
-
4612
110
650
S23
-
3028
227
700
G47
-
3828
227
750
G147
-
4628
227
S T7735 R
ALIGNMENT L
ST7735R
V0.2 11 2009-08-05

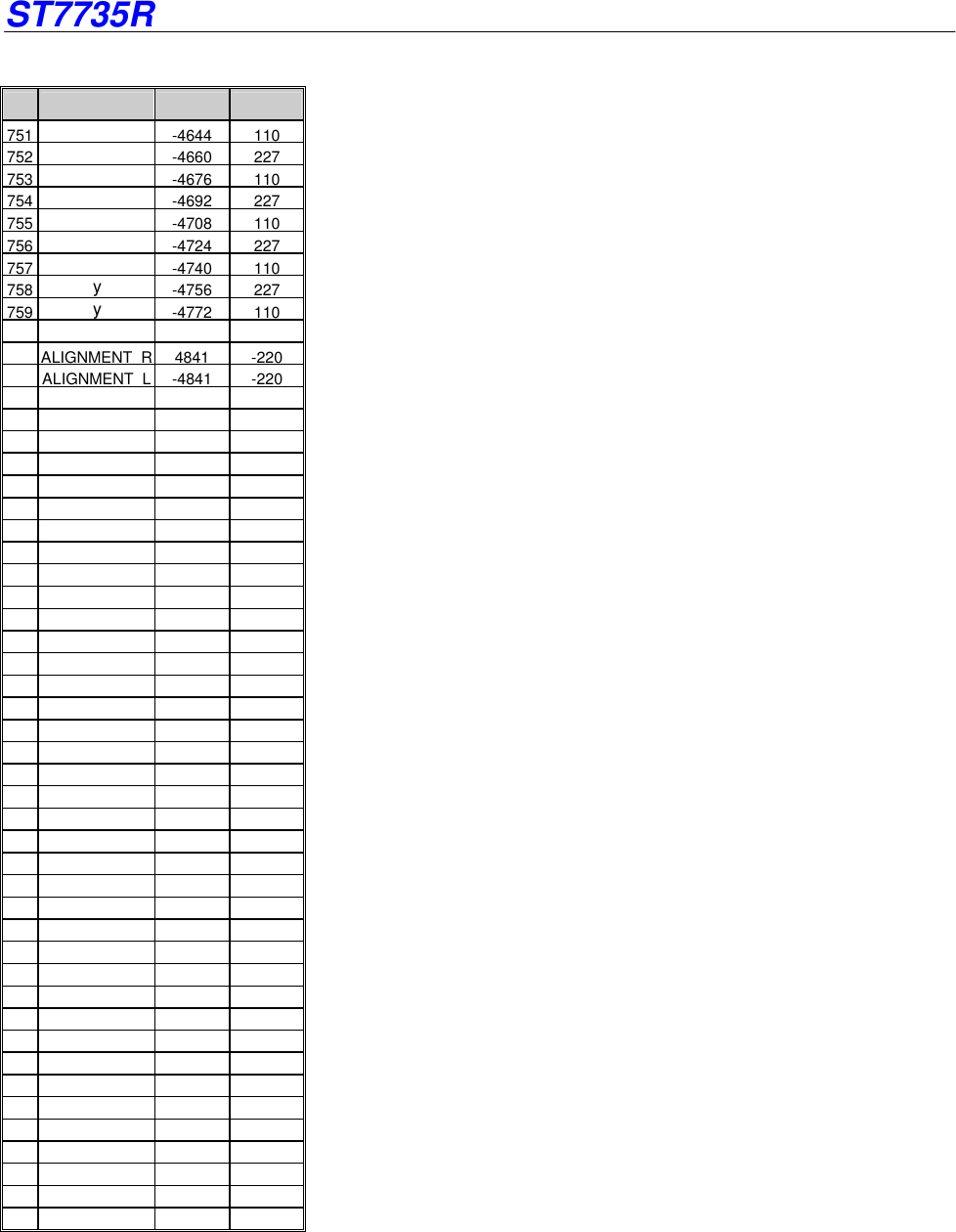

No.
PAD Name X Y
75
1
G149
-
4644
110
75
2
G151
-
4660
227
75
3
G153
-
4676
110
75
4
G155
-
4692
227
75
5
G157
-
4708
110
75
6
G159
-
4724
227
75
7
G161
-
4740
110
75
8
Dummy
-
4756
227
75
9
Dummy
-
47
72
110
ALIGNMENT_R
4841
-
220
ALIGNMENT_
L
-
4841
-
220
S T7735 R
ST7735R
V0.2 12 2009-08-05

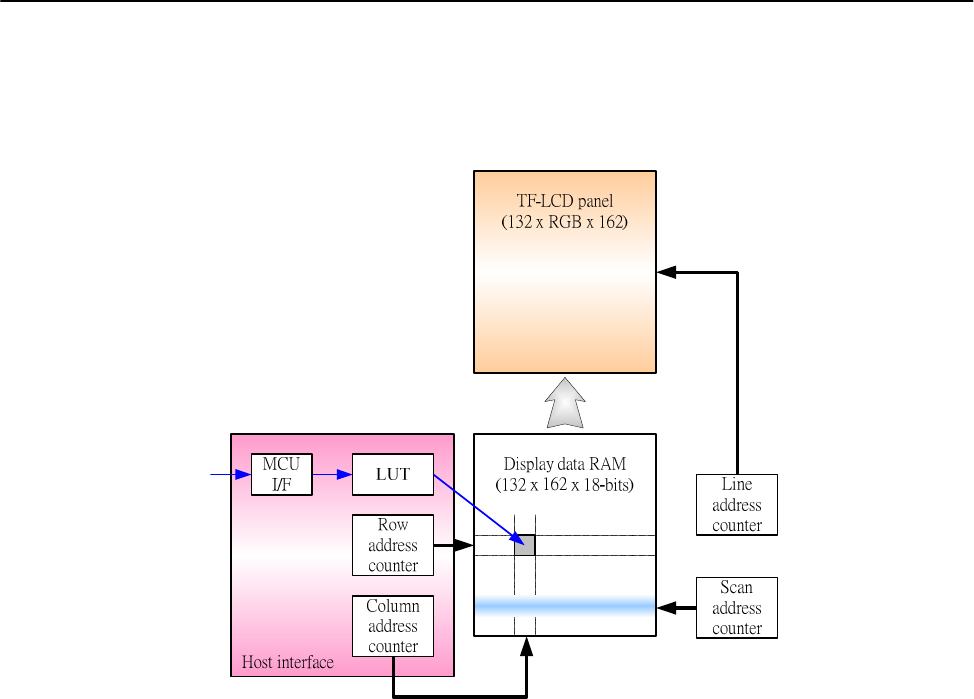

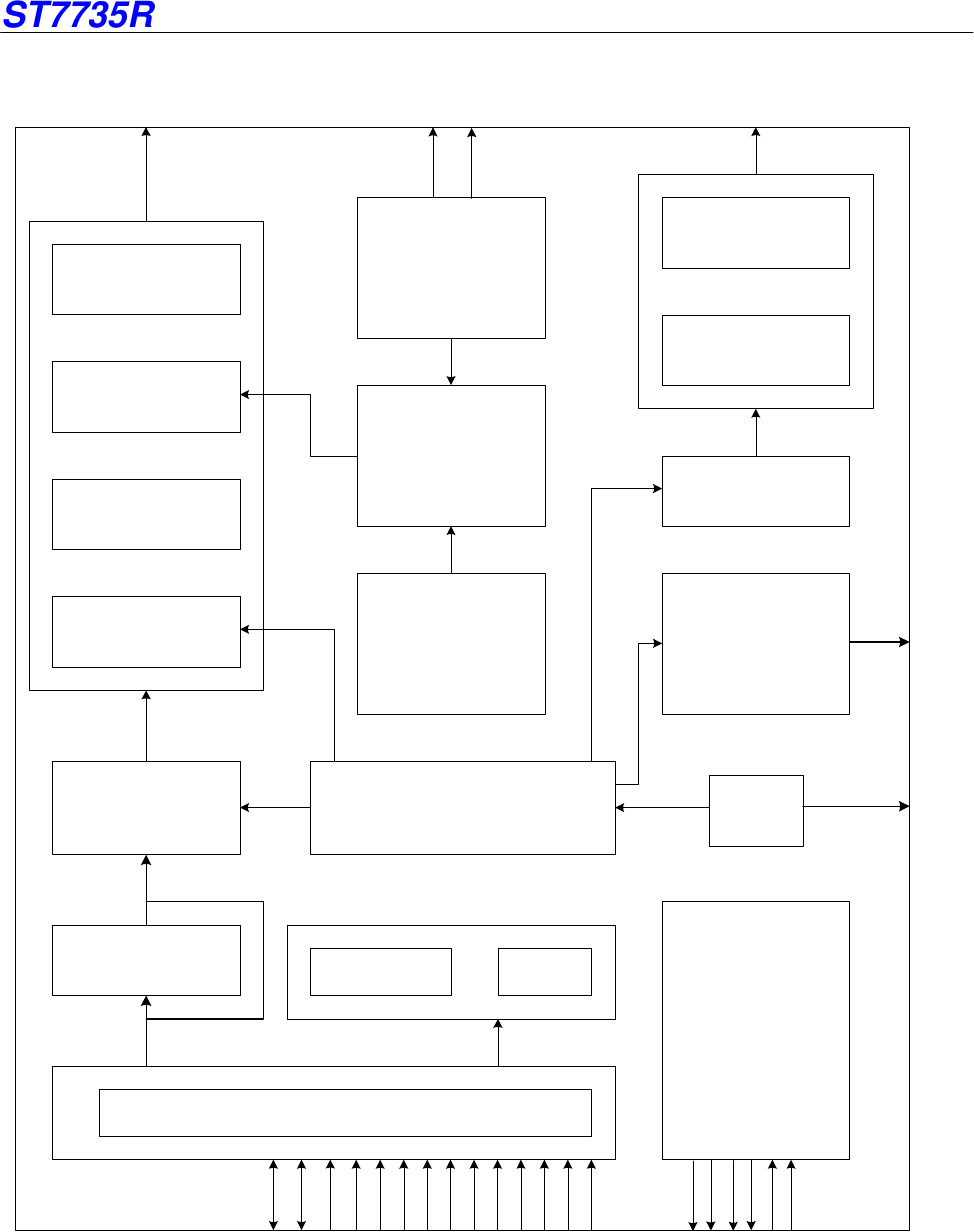

5 Block diagram
396 Source Buffer
DAC
Level Shifter
Data Latch
Color conversion
LUT table
Display Ram
132 x 162 x 18 bits
Voltage
Reference
Gamma Circuit
Gamma Table
Display control
162 Gate Buffer
Level Shifter
Gate
Decoder
Vcom generator
OSC
Booster 1/2/4
Instruction
Register NVM
MCU IF
SDA
LCM
SRGB
GS
WRX (R/WX)
RDX (E)
CSX
DC/X (SCL)
IM [2:0]
EXTC
SMX
SMY
D[17:0]
AVDD
VDDI
VDD
GVDD
VCOM
GVCL
AVCL
VGH
VGL
TESEL
S T7735 H
ST7735R
V0.2 13 2009-08-05
6 Driver IC Pin Description
6.1 Power Supply Pin
Name
I/O Description Connect pin
VDD I Power supply for analog, digital system and booster circuit. VDD
VDDI I Power supply for I/O system. VDDI
AGND
I System ground for analog system and booster circuit. GND
DGND
I System ground for I/O system and digital system. GND
6.2 Interface logic pin
Name I/O Description Connect pin
P68 I
-8080/6800 MCU interface mode select.
-P68=’1’, select 6800 MCU parallel interface.
-P68=’0’, select 8080 MCU parallel interface.
-If not used, please fix this pin at DGND level.
DGND/VDDI
IM2 I
MCU Parallel interface bus and Serial interface select
IM2=’1’, Parallel interface
IM2=’0’, Serial interface
DGND/VDDI
IM1,IM0
I
- MCU parallel interface type selection
-If not used, please fix this pin at VDDI or DGND level.
IM1 IM0 Parallel interface
0 0 MCU 8-bit parallel
0 1 MCU 16-bit parallel
1 0 MCU 9-bit parallel
1 1 MCU 18-bit parallel
DGND/VDDI
SPI4W
I
- SPI4W=’0’, 3-line SPI enable.
- SPI4W=’1’, 4-line SPI enable.
-If not used, please fix this pin at DGND level.
DGND/VDDI

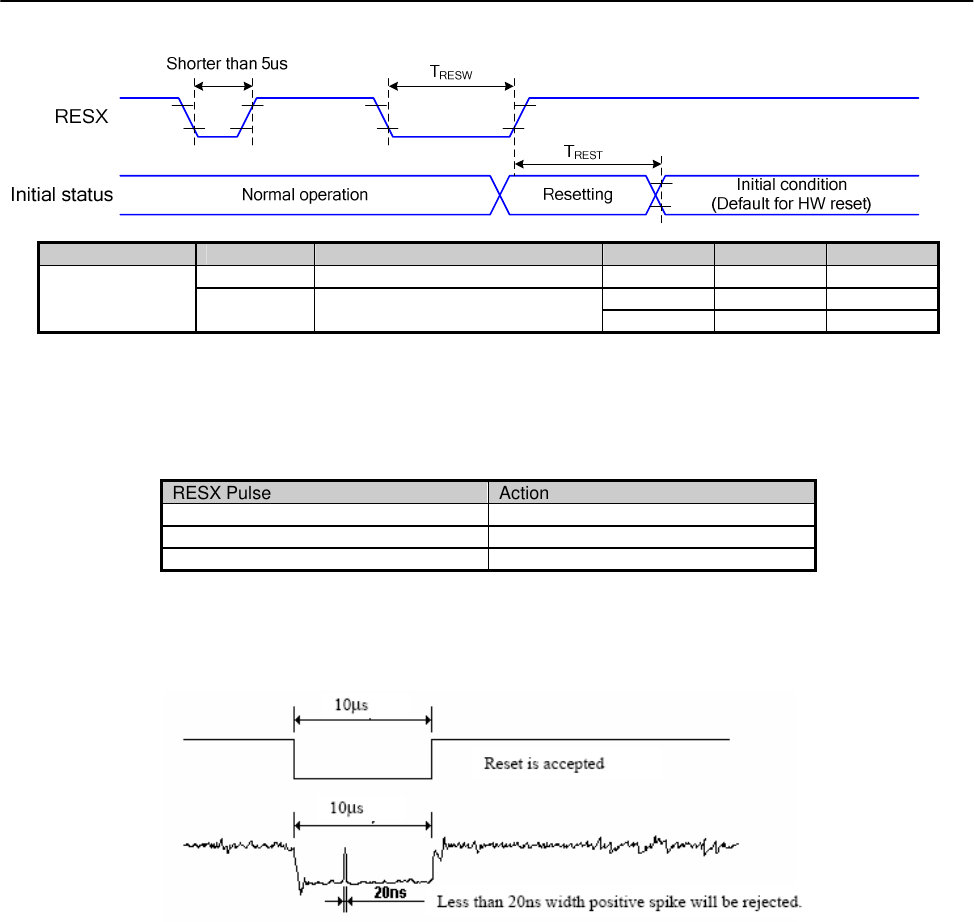

RESX I
-This signal will reset the device and it must be applied to properly
initialize the chip.
-Signal is active low.
MCU
CSX I -Chip selection pin
-Low enable. MCU
D/CX
(SCL) I
-Display data/command selection pin in MCU interface.
-D/CX=’1’: display data or parameter.
-D/CX=’0’: command data.
-In serial interface, this is used as SCL.
-If not used, please fix this pin at VDDI or DGND level.
MCU
RDX I -Read enable in 8080 MCU parallel interface.
-If not used, please fix this pin at VDDI or DGND level. MCU
S T7735 R
ST7735R
V0.2 14 2009-08-05
WRX
(D/CX)
I
-Write enable in MCU parallel interface.
-In 4-line SPI, this pin is used as D/CX (data/ command selection).
-If not used, please fix this pin at VDDI or DGND level.
MCU
D[17:0]
I/O
-D[17:0] are used as MCU parallel interface data bus.

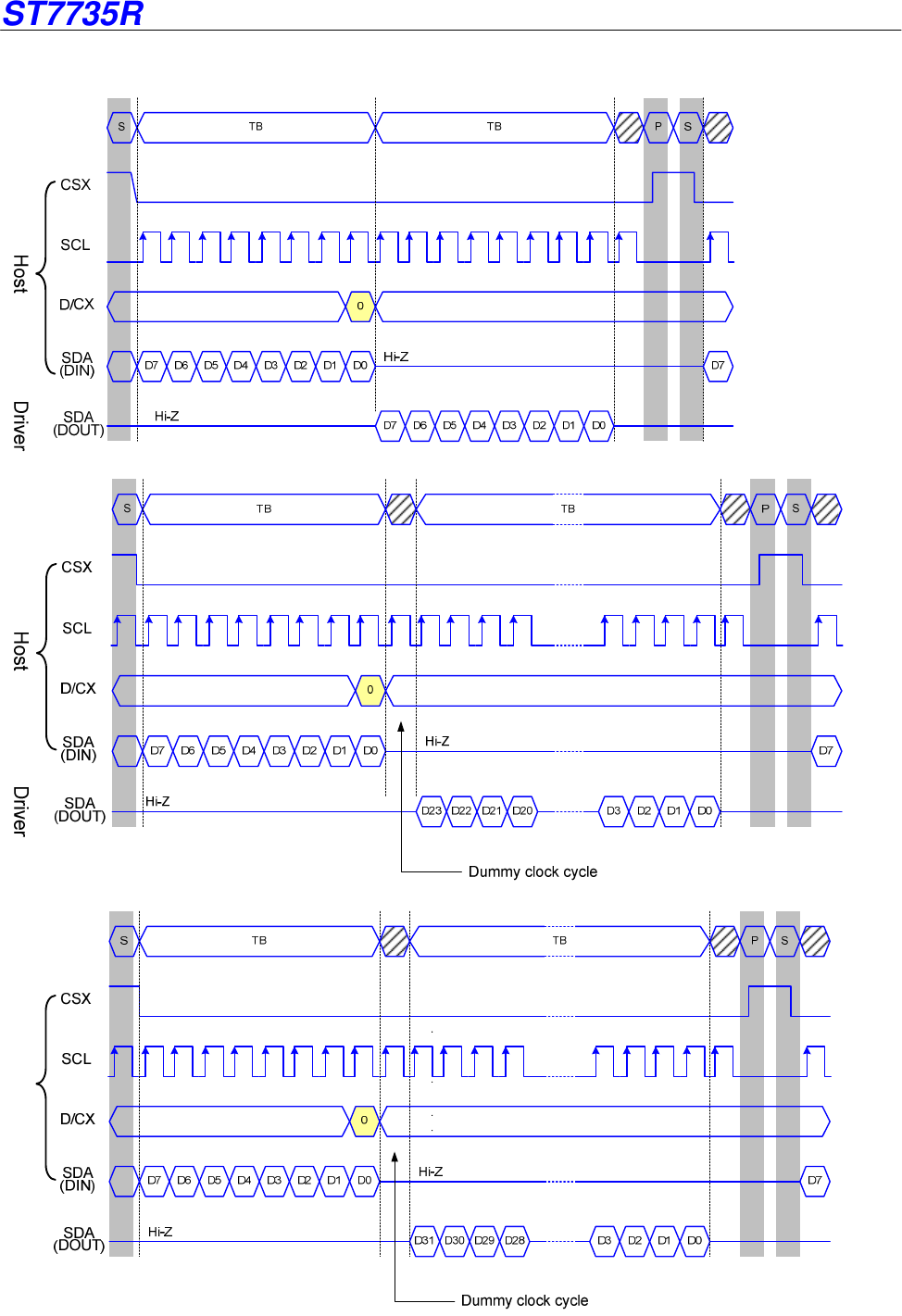

-D0 is the serial input/output signal in serial interface mode.
-In serial interface, D[17:1] are not used and should be fixed at VDDI or
DGND level.
MCU
TE O

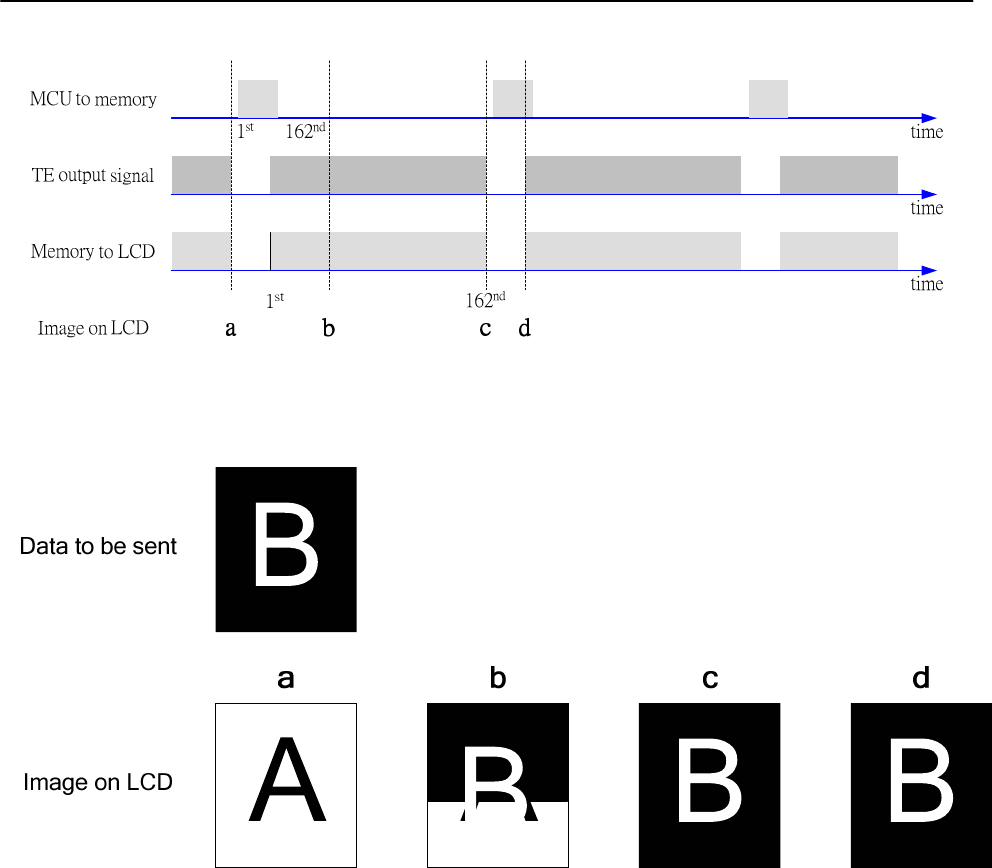

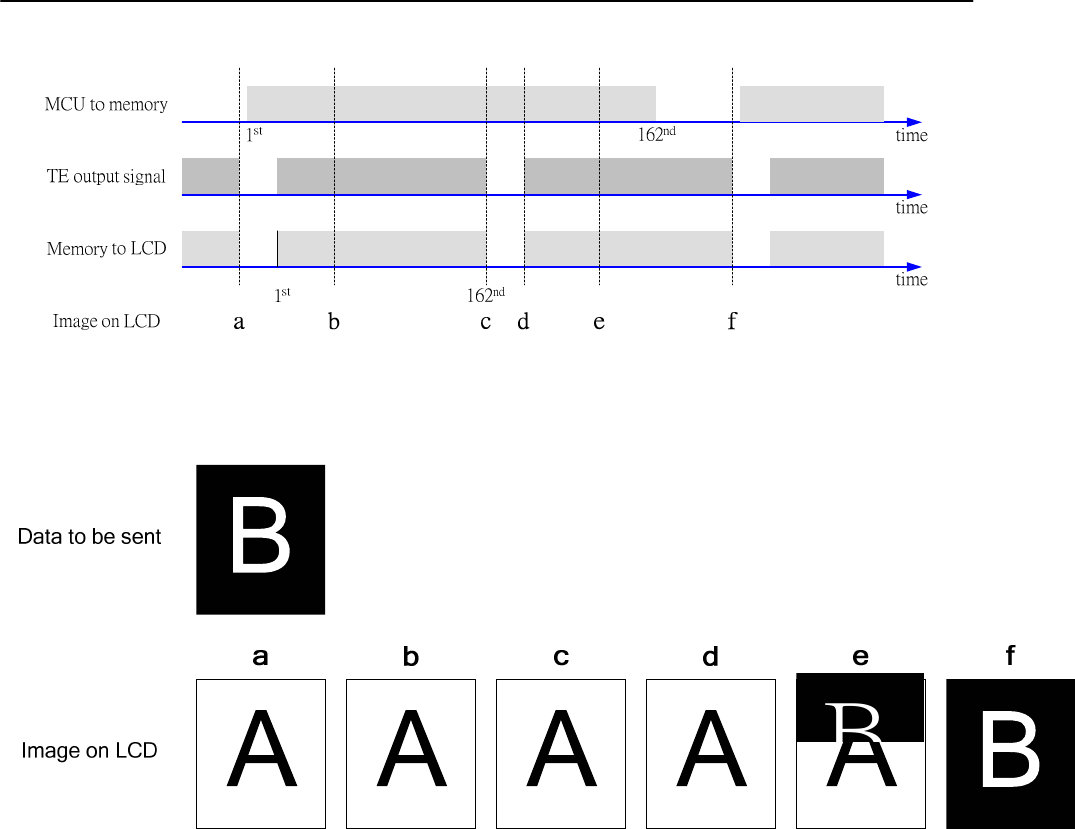

-Tearing effect output pin to synchronies MCU to frame rate, activated
by S/W command.
-If not used, please open this pin.
MCU
OSC O
-Monitoring pin of internal oscillator clock and is turned ON/OFF by
S/W command.
-When this pin is inactive (function OFF), this pin is DGND level.
-If not used, please open this pin.
-
Note1. When in parallel mode, no use data pin must be connected to “1” or “0”.
Note2. When CSX=”1”, there is no influence to the parallel and serial interface.
ST7735FI
ST7735R
V0.2 15 2009-08-05
6.3 Mode selection pin
Name
I/O Description Connect pin
EXTC
I
-During normal operation, please open this pin.
EXTC Enable/disable modification of extend command
0 Normal operation mode
1 Use NVM command set
Open
GM1,
GM0 I
-Panel resolution selection pins.
G
M
1
G
M
0
Selection of panel resolution
0
0

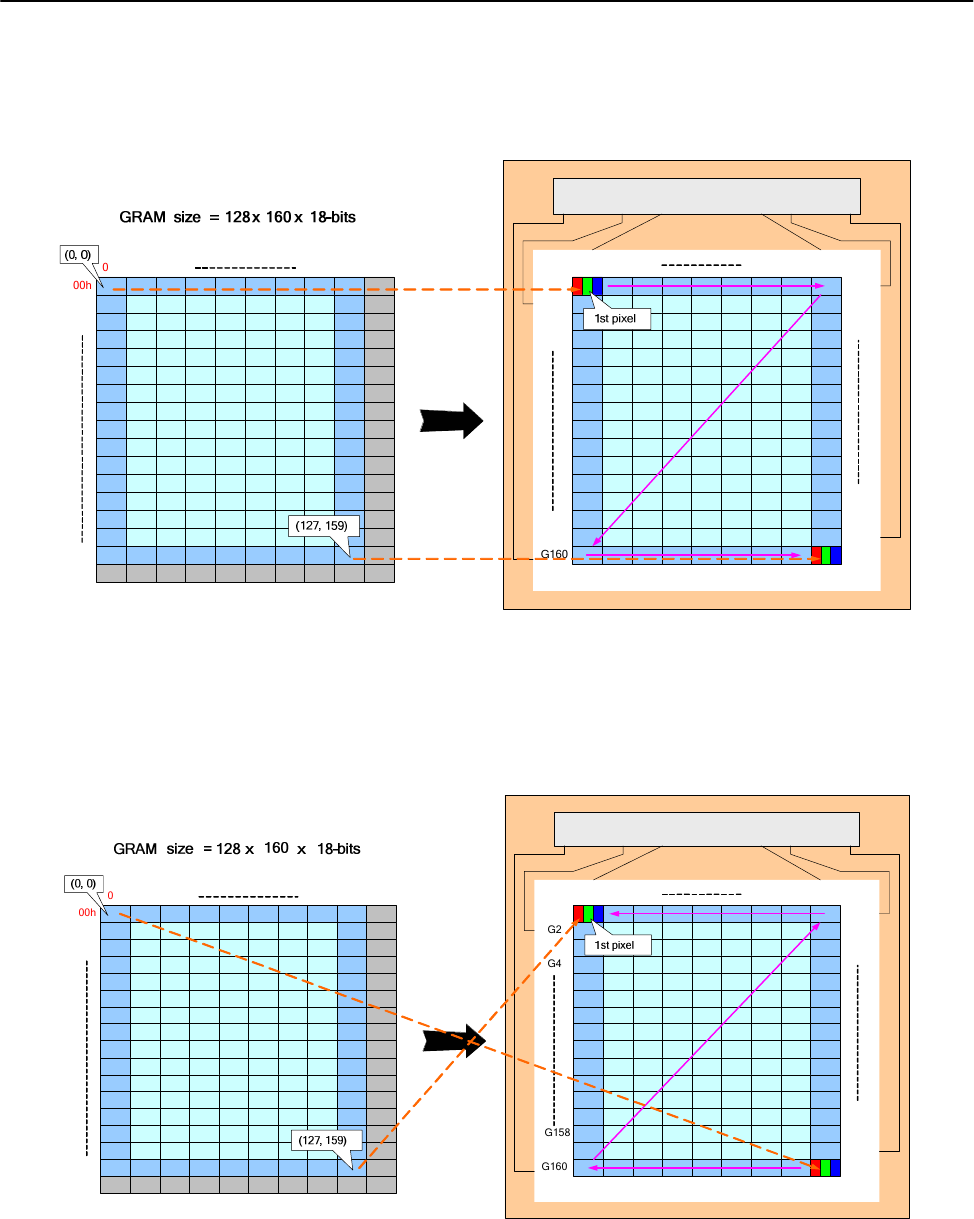

132RGB x 162 (S1~S396 & G1~G162 output)
1
1
128RGB x 160 (S7~S390 & G2~G161 output)
VDDI/DGND

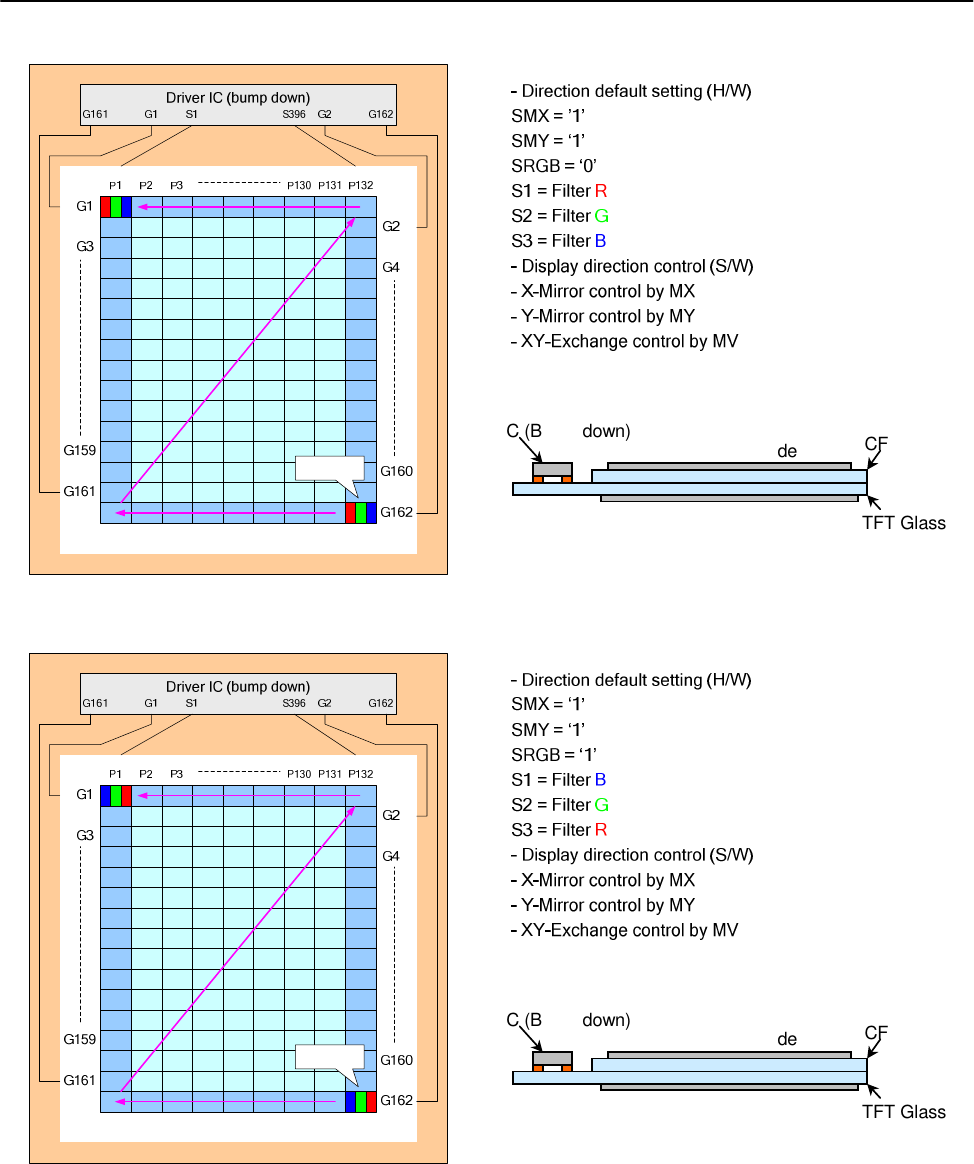

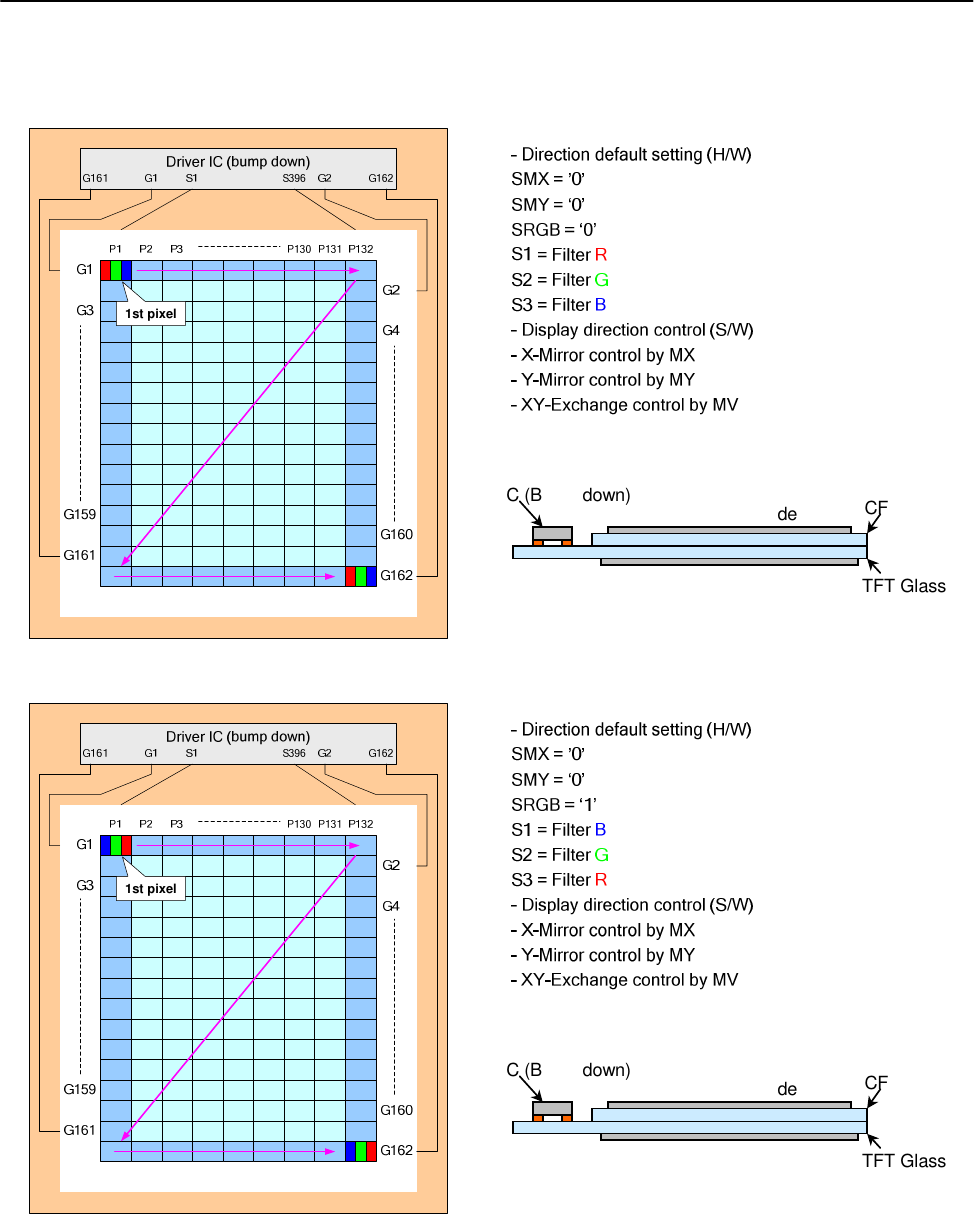

SRGB
I
-RGB direction select H/W pin for color filter setting.
SRGB RGB arrangement
0 S1, S2, S3 filter order = ’R’, ’G’, ’B’
1 S1, S2, S3 filter order = ‘B’, ‘G’, ‘R’
VDDI/DGND
SMX I

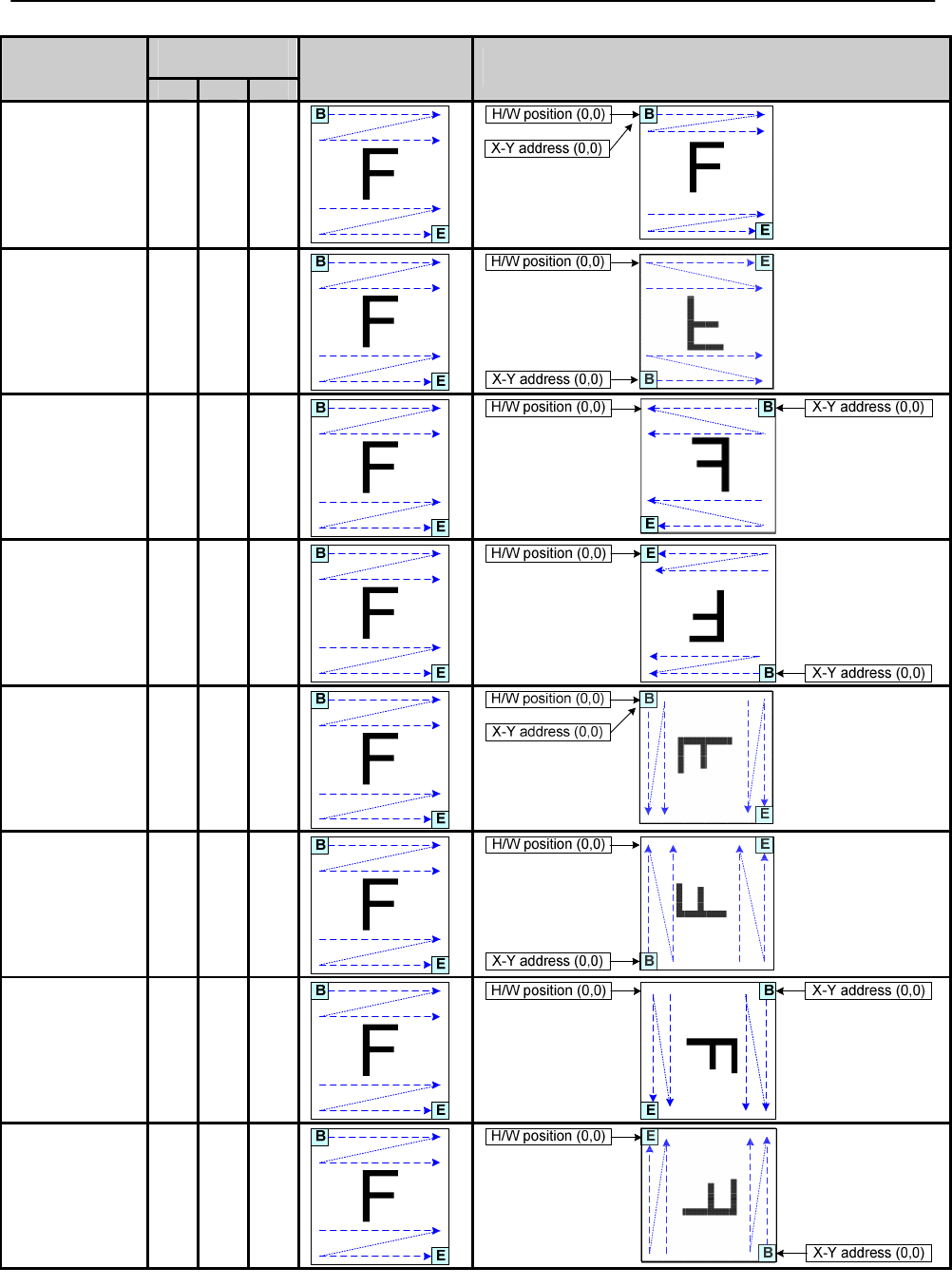

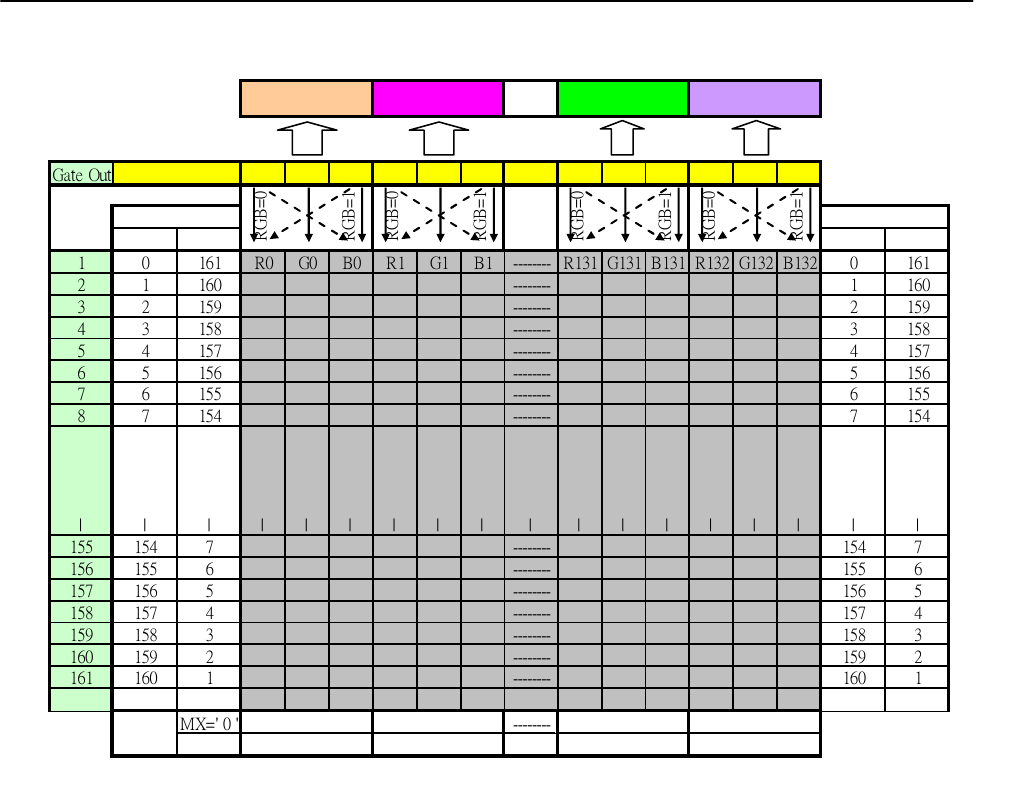

-Module source output direction H/W selection pin.
SMX Scanning direction of source output
GM= ‘00’ GM= ‘11’
0 S1 -> S396 S7 -> S390
1 S396 -> S1 S390 -> S7
VDDI/DGND
SMY I
-Module Gate output direction H/W selection pin.
SMY Scanning direction of gate output
GM= ‘00’ GM= ‘11’
0 G1 -> G162 G2 -> G161
1 G162 -> G1 G161 -> G2
VDDI/DGND
LCM I
-Liquid crystal (LC) type selection pins.
LCM Selection of LC type
0 Normally white LC type
1 Normally black LC type
VDDI/DGND
GS I
-Gamma curve selection pin.
GS Selection of gamma curve
0 GC0=1.0, GC1=2.5, GC2=2.2, GC3=1.8
1 GC0=2.2, GC1=1.8, GC2=2.5, GC3=1.0
VDDI/DGND
S T7735 Ff
ST7735R
V0.2 16 2009-08-05
VPP I When writing NVM, it needs external power supply voltage (7.5V).
TESEL
I
Input pin to select horizontal line number in TE signal.
This pin is only for GM[1:0]=’00’ mode
TESEL
Selection of gamma curve
0 TE output 162 lines
1 TE output 160 lines
VDDI/DGND
6.4 Driver output pins
Name I/O
Description Connect pin
S1 to S396 O - Source driver output pins. -
G1 to G162 O - Gate driver output pins. -
AVDD O Power pin for analog circuits.
Connect a capacitor for stabilization. Capacitor
AVCL O
- A power supply pin for generating GVCL.
- Connect a capacitor for stabilization. Capacitor
VGH O - Power output pin for gate driver
VGL O - Power output (Negative) pin for gate driver
GVDD O
- A power output of grayscale voltage generator.
- When internal GVDD generator is not used, connect an external
power supply (AVDD-0.5V) to this pin.
GVCL O
- A power output(Negative) of grayscale voltage generator.
- When internal GVCL generator is not used, connect an external
power supply (AVCL+0.5V) to this pin.
-
VCOM O - A power supply for the TFT-LCD common electrode. Common
electrode
VCC O - Monitoring pin of internal digital reference voltage.
- Please open these pins.
VDDIO O - VDDI voltage output level for monitoring. -
DGNDO O - DGND voltage output level for monitoring. -
S T7735 R
ST7735R
V0.2 17 2009-08-05
6.5 Test pins
Name I/O
Description Connect pin
TEST2P
TEST1P I
-These test pins for Driver vender test used.
-Please connect these pins to DGND. DGND
TESTOP[8]
TESTOP[7]
TESTOP[6]
TESTOP[5]
TESTOP[4]
TESTOP[3]
TESTOP[2]
TESTOP[1]
O
-These test pins for Driver vender test used.
-Please open these pins. Open
Dummy -
-These pins are dummy (have no function inside).
-Can allow signal traces pass through these pads on TFT glass.
-Please open these pins.
Open
S T7735 R
ST7735R
V0.2 18 2009-08-05
7 Driver electrical characteristics
7.1 Absolute operation range
Item Symbol Rating Unit
Supply voltage VDD - 0.3 ~ +4.6 V
Supply voltage (Logic) VDDI - 0.3 ~ +4.6 V
Supply voltage (Digital) VCC -0.3 ~ +1.95 V
Driver supply voltage VGH-VGL -0.3 ~ +30.0 V
Logic input voltage range VIN 0.3 ~ VDDI + 0.3 V
Logic output voltage range VO 0.3 ~ VDDI + 0.3 V
Operating temperature range TOPR -30 ~ +85 ℃
Storage temperature range TSTG -40 ~ +125 ℃
Note: If one of the above items is exceeded its maximum limitation momentarily, the quality of the product may be degraded. Absolute
maximum limitation, therefore, specify the values exceeding which the product may be physically damaged. Be sure to use the
product within the recommend range.
S T7735 R
ST7735R
V0.2 19 2009-08-05
7.2 DC characteristic
Specification
Parameter Symbo
l Condition Min Typ Max
Uni
t
Related
Pins
Power & operation voltage
System voltage VDD Operating voltage
2.3 2.75 4.8 V
Interface operation
voltage VDDI I/O supply voltage
1.65 1.8 3.7 V
Gate driver high voltage VGH 10 15 V
Gate driver low voltage VGL -12.4 -7.5 V
Gate driver supply voltage
| VGH-VGL | 17.5 27.5 V
Input / Output
Logic-high input voltage VIH 0.7VDDI
VDDI V Note 1
Logic-low input voltage VIL VSS 0.3VDDI
V Note 1
Logic-high output voltage
VOH IOH = -1.0mA 0.8VDDI
VDDI V Note 1
Logic-low output voltage VOL IOL = +1.0mA VSS 0.2VDDI
V Note 1
Logic-high input current IIH VIN = VDDI 1 uA
Note 1
Logic-low input current IIL VIN = VSS -1 uA
Note 1
Input leakage current IIL IOH = -1.0mA -0.1 +0.1 uA
Note 1
VCOM voltage
VCOM amplitude VCOM
-2 -0.425 V
Source driver
Source output range Vsout
0.1 GVDD V
Gamma reference voltage
GVDD
3.0 5.0 V
Source output settling
time Tr Below with 99%
precision 20 us Note 2
Output offset voltage Voffset
35 mV
Note 3
Notes:
1. TA= -30 to 85
℃
.
2. Source channel loading= 2K
Ω
+12pF/channel, Gate channel loading=5K
Ω
+40pF/channel.
3. The Max. value is between measured point of source output and gamma setting value.
S T7735 R
ST7735R
V0.2 20 2009-08-05
7.3 Power consumption
Ta=25℃, Frame rate = 60Hz, the registers setting are IC default setting.
Current consumption
Typical Maximum
Operation mode Image
IDDI
(mA)
IDD
(mA)
IDDI
(mA)
IDD
(mA)
Note 1
TBD TBD TBD TBD
Normal mode Note 2
TBD TBD TBD TBD
Note 1
TBD TBD TBD TBD

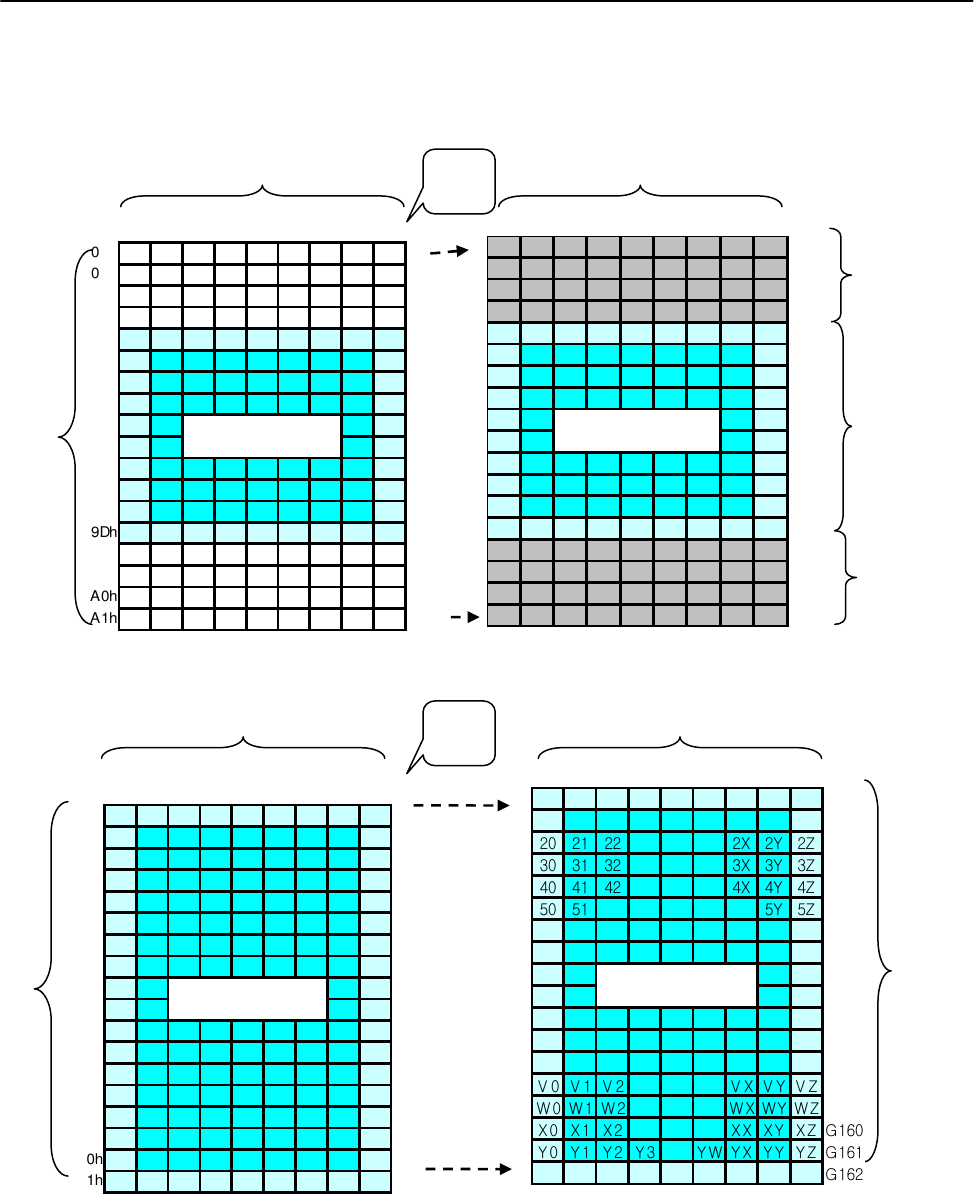

Partial + Idle mode (40 lines)
Note 2
TBD TBD TBD TBD
Sleep-in mode N/A TBD TBD TBD TBD
Notes:
1. All pixels black.
2. All pixels white.
3. The Current Consumption is DC characteristics of ST7735R.
4. Typical: VDDI=1.8V, VDD=2.75V; Maximum: VDDI=1.65 to 3.7V, VDD=2.3 to 4.8V
S T7735 R
&g $
csx V‘ T
w “fig 1
\
FT—cs’} W” ‘ ‘ 1T”
\ \
Vw
WX‘: 1: 4><11 ‘="" ‘="" ‘="" ,="" ‘="" ‘="" turk="" ,4="" twc="" \="" \="" tan="" \="" 1="" \="" wrx="" haw="" hwfi‘="" vu="" ‘="" 1="" ‘="" w="" \="" w="" w="" \="" d[17="" o]="" ‘="" write="" 1="" w="" w="" \="" ‘="" tm/tmm="" tm="" }="" ‘="" ‘="" ‘="" \="" \="" \="" j34="" ‘="" tar/tam="" i="" \="" |="" \="" \="" vw="" rdx="" ‘v="" fly="" \="" tam/tmm="" i="" m="" h—h="" \="" |="" \="" \="" ‘="" tmflmw="" l_.:="" f%="" d[17="" 0]="" vm="" read="" v‘l="" i="" \="">ST7735R
V0.2 21 2009-08-05
8 Timing chart
8.1 Parallel interface characteristics: 18, 16, 9 or 8-bit bus (8080 series MCU interface)

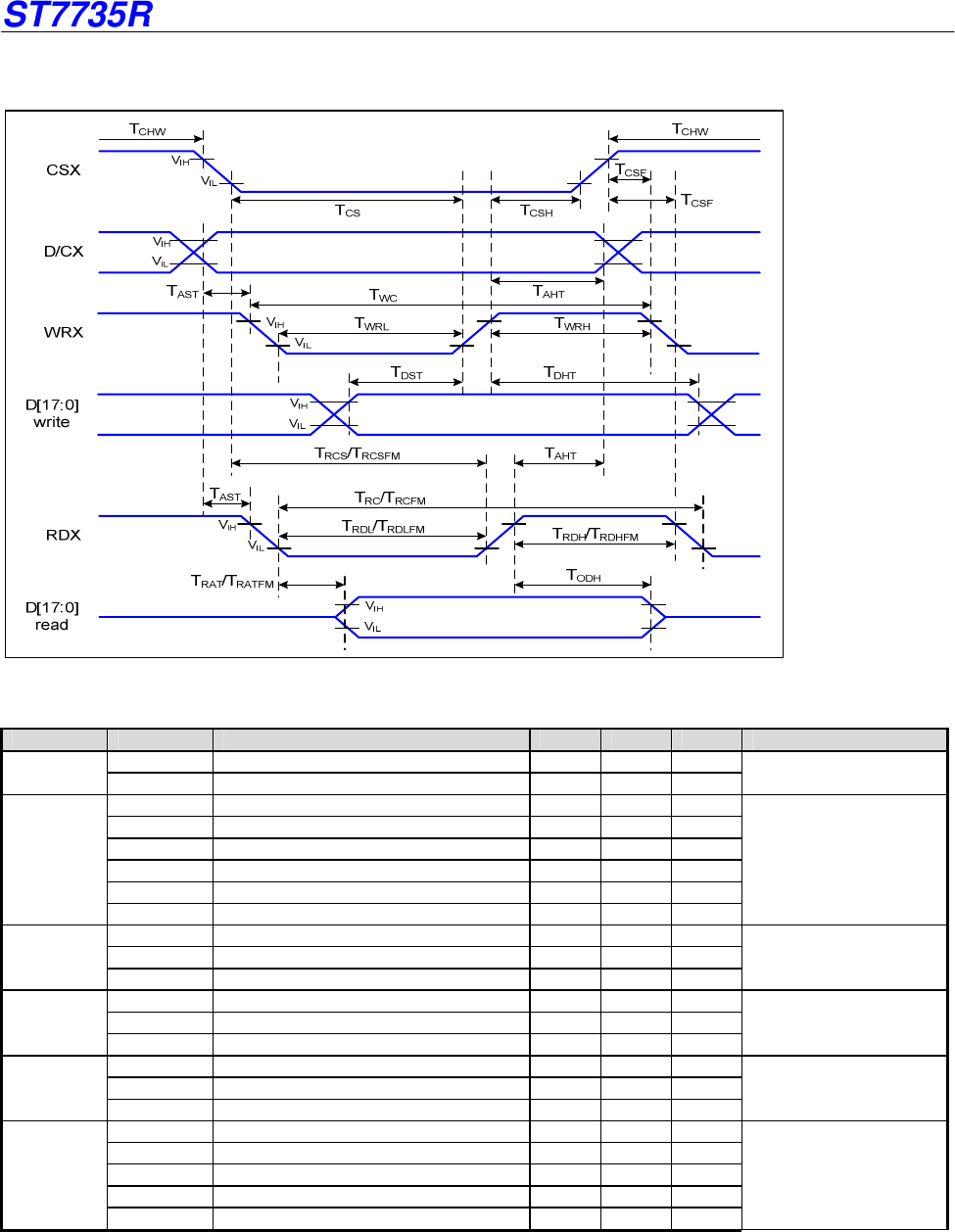

Figure 8.1.1 Parallel interface timing characteristics (8080 series MCU interface)
Ta=25 ℃, VDDI=1.65~3.7V, VDD=2.3~4.8V
Signal Symbol Parameter Min Max Unit Description
TAST Address setup time 10 ns
D/CX TAHT Address hold time (Write/Read) 10 ns -
TCHW Chip select “H” pulse width 0 ns
TCS Chip select setup time (Write) 15 ns
TRCS Chip select setup time (Read ID) 45 ns
TRCSFM Chip select setup time (Read FM) 355 ns
TCSF Chip select wait time (Write/Read) 10 ns
CSX
TCSH Chip select hold time 10 ns
-
TWC Write cycle 66 ns
TWRH Control pulse “H” duration 15 ns
WRX
TWRL Control pulse “L” duration 15 ns
TRC Read cycle (ID) 160 ns
TRDH Control pulse “H” duration (ID) 90 ns
RDX (ID)
TRDL Control pulse “L” duration (ID) 45 ns
When read ID data
TRCFM Read cycle (FM) 450 ns
TRDHFM Control pulse “H” duration (FM) 90 ns
RDX (FM)
TRDLFM Control pulse “L” duration (FM) 355 ns
When read from frame
memory
TDST Data setup time 10 ns
TDHT Data hold time 10 ns
TRAT Read access time (ID) 40 ns
TRATFM Read access time (FM) 340 ns
D[17:0]
TODH Output disable time 20 80 ns
For CL=30pF
Table 8.1.1 8080 parallel Interface Characteristics
wH=0.7 x VDDI
v.L=o.3 x VDDI
TR:T;<:1 5ns="" csx="" wrx="" r="" dx="" wrx="" ,_.="" rdx="" tm="" ‘="" tum/now="">ST7735R
V0.2 22 2009-08-05

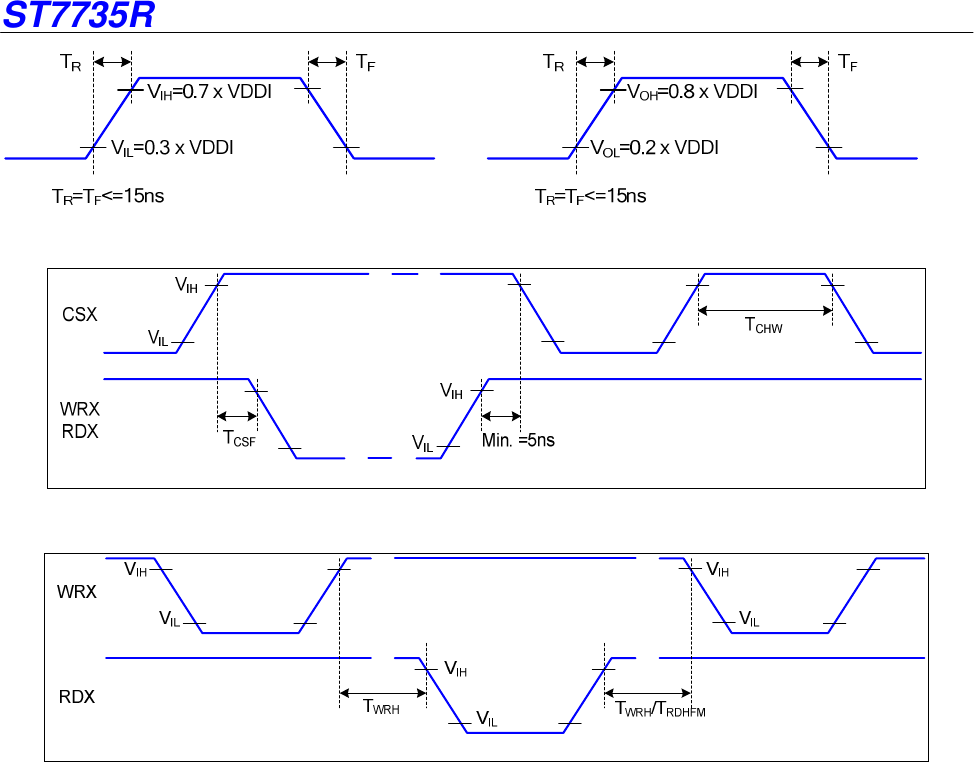

Figure
8.1.2 Rising and falling timing for input and output signal
Figure 8.1.3 Chip selection (CSX) timing

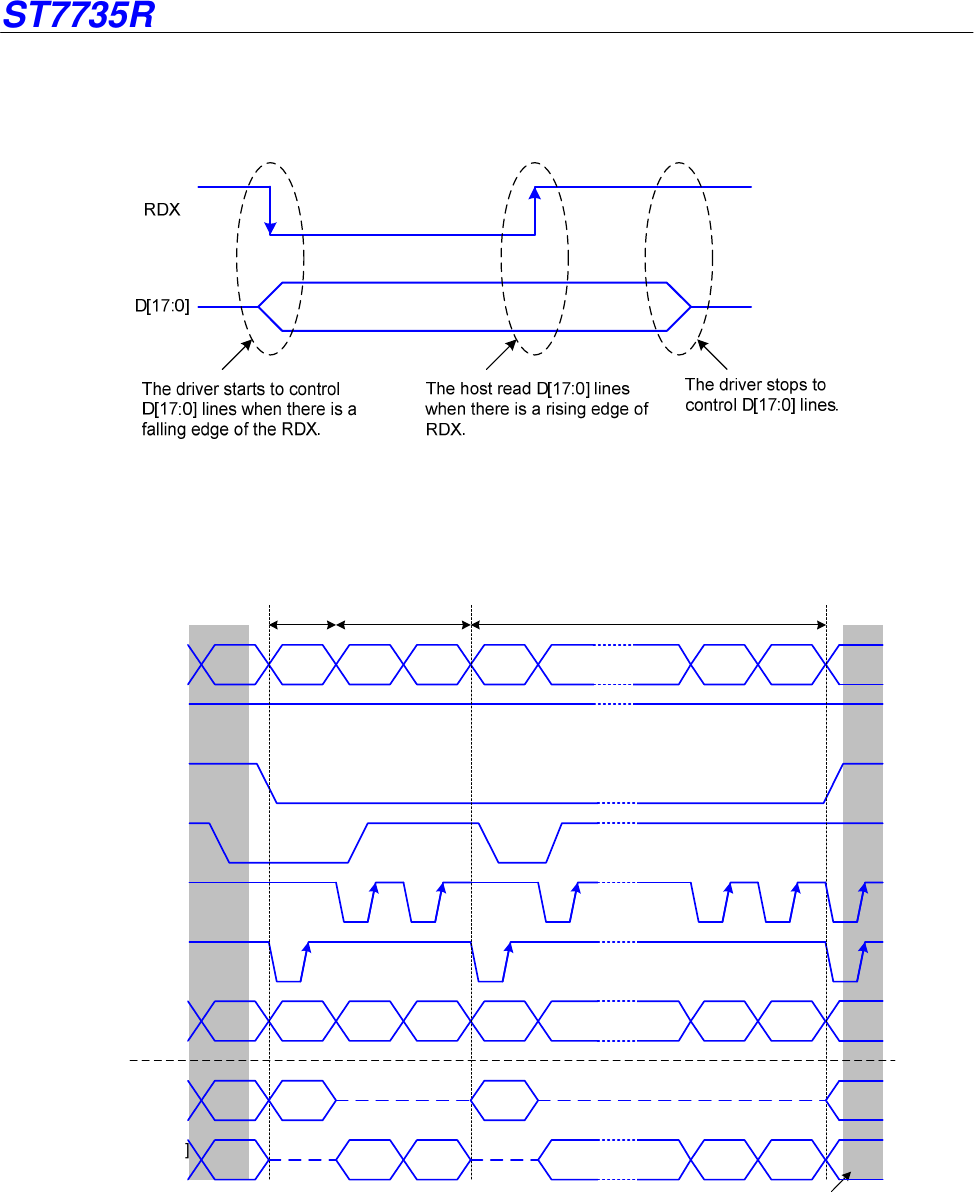

Figure 8.1.4 Write-to-read and read-to-write timing
Note: The rising time and falling time (Tr, Tf) of input signal are specified at 15 ns or less. Logic high and low levels are specified as 30%
and 70% of VDDI for Input signals.
S T7735 R
‘ Tog
CSX ‘ 3 Twcs/TRCSFM
D/CX
/\NX
D[1 7:0]
wme
RX
D[17,0]
read
ST7735R
V0.2 23 2009-08-05
8.2 Parallel interface characteristics: 18, 16, 9 or 8-bit bus (6800 series MCU interface)
Figure 8.2.1Parallel interface timing characteristics (6800-series MCU interface)
Ta=25 ℃, VDDI=1.65~3.7V, VDD=2.3~4.8V
Signal Symbol Parameter Min Max Unit Description
T
AST
Address setup time 10 ns
D/CX T
AHT
Address hold time (Write/Read) 10 ns -
T
CHW
Chip select “H” pulse width 0 ns
T
CS
Chip select setup time (Write) 15 ns
T
RCS
Chip select setup time (Read ID) 45 ns
T
RCSFM
Chip select setup time (Read FM) 355 ns
T
CSF
Chip select wait time (Write/Read) 10 ns
CSX
T
CSH
Chip select hold time 10 ns
-
T
WC
Write cycle 66 ns
T
WRH
Control pulse “H” duration 15 ns
WRX
T
WRL
Control pulse “L” duration 15 ns
T
RC
Read cycle (ID) 160 ns
T
RDH
Control pulse “H” duration (ID) 90 ns
RDX (ID) T
RDL
Control pulse “L” duration (ID) 45 ns When read ID data
T
RCFM
Read cycle (FM) 450 ns
T
RDHFM
Control pulse “H” duration (FM) 90 ns
RDX (FM)
T
RDLFM
Control pulse “L” duration (FM) 355 ns
When read from frame
memory
T
DST
Data setup time 10 ns
T
DHT
Data hold time 10 ns
D[17:0]
T
ODH
Output disable time 20 80 ns
For maximum CL=30pF
For minimum CL=8pF
Table 8.2.1 6800 parallel Interface Characteristics
Note: The rising time and falling time (Tr, Tf) of input signal are specified at 15 ns or less. Logic high and low levels are specified as 30%
and 70% of VDDI for Input signals.
S T7735 R

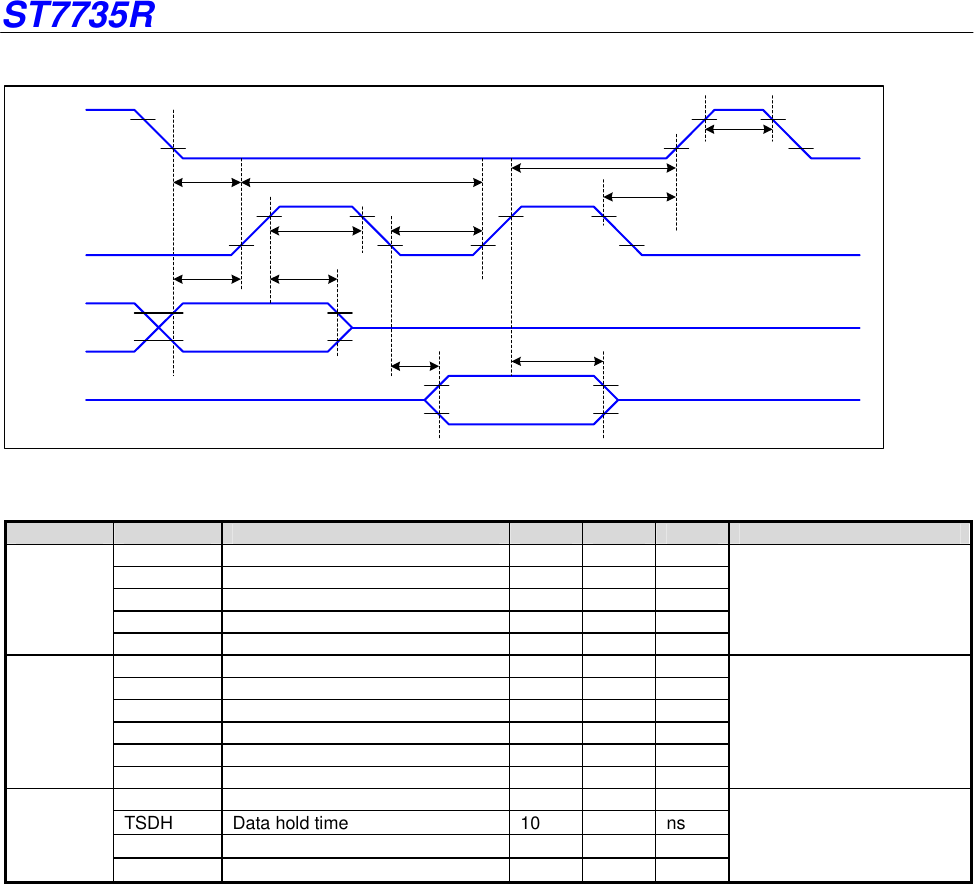

TSDH Dala hold lime
ST7735R
V0.2 24 2009-08-05
8.3 Serial interface characteristics (3-line serial)
CSX VIH
VIL TCHW
TCSH
TOH
TCSS
SCL
SDA
SDA
(DOUT)
TSCC
TSCYCW/TSCYCR
TACC
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
TSDS TSDH
TSHW/TSHR
TSLW/TSLR
Figure 8.3.1 3-line serial interface timing
Ta=25 ℃, VDDI=1.65~3.7V, VDD=2.3~4.8V
Signal Symbol Parameter Min Max Unit Description
TCSS Chip select setup time (write) 15 ns
TCSH Chip select hold time (write) 15 ns
TCSS Chip select setup time (read) 60 ns
TSCC Chip select hold time (read) 65 ns
CSX
TCHW Chip select “H” pulse width 40 ns
TSCYCW Serial clock cycle (Write) 66 ns
TSHW SCL “H” pulse width (Write) 15 ns
TSLW SCL “L” pulse width (Write) 15 ns
TSCYCR Serial clock cycle (Read) 150 ns
TSHR SCL “H” pulse width (Read) 60 ns
SCL
TSLR SCL “L” pulse width (Read) 60 ns
TSDS Data setup time 10 ns
TSDH Data hold time 10 ns
TACC Access time 10 50 ns
SDA
(DIN)
(DOUT) TOH Output disable time 15 50 ns
For maximum CL=30pF
For minimum CL=8pF
Table 8.3.1 3-line Serial Interface Characteristics
Note : The rising time and falling time (Tr, Tf) of input signal are specified at 15 ns or less. Logic high and low levels are specified as 30%
and 70% of VDDI for Input signals.
S T7735 R
Descri fion
.m
U
X
A
M
Tscvcm/TSCVCR
TsDH ;
DCH
M
Ts
H—*
g Tsns
Parameter
VM
V‘L
Va
Vu.
S bol
SDA
D/CX
SDA
(noun
ST7735R
V0.2 25 2009-08-05

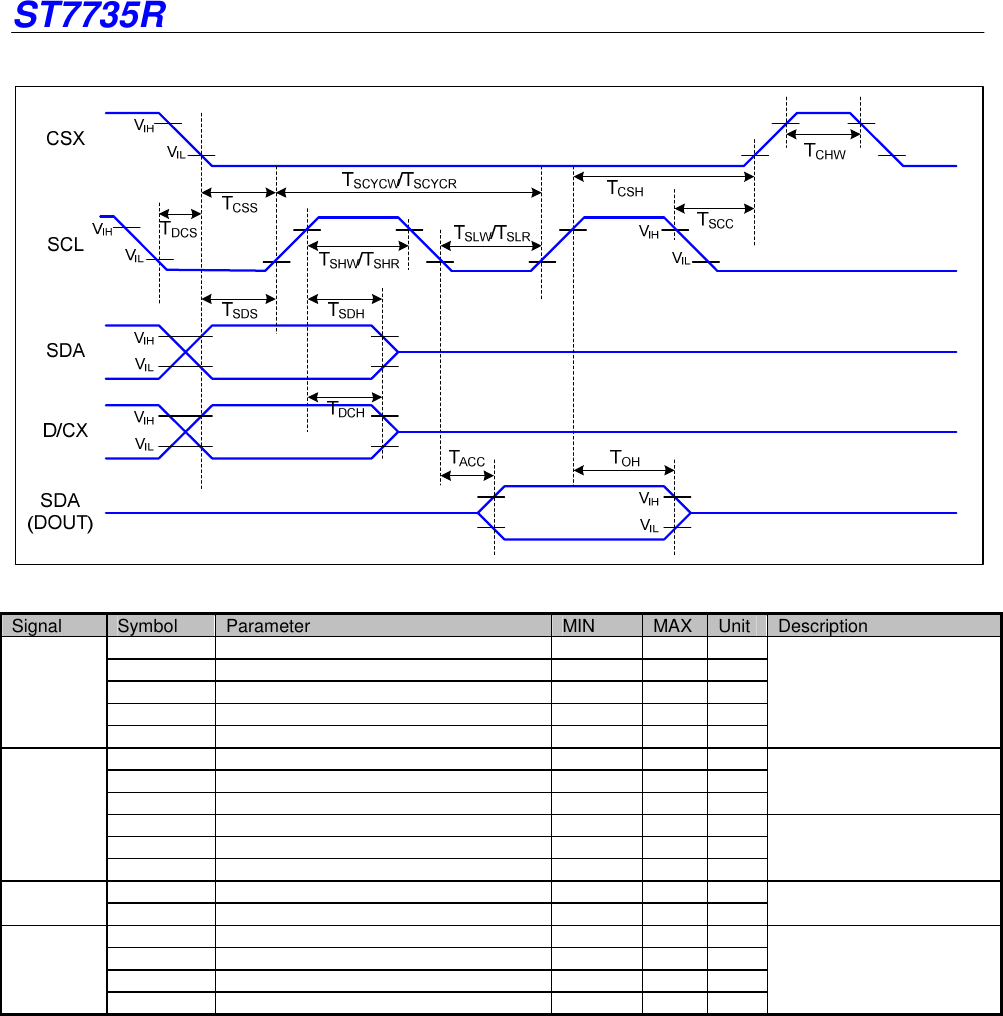

8.4 Serial interface characteristics (4-line serial)
Figure 8.4.1 4-line serial interface timing
Ta=25 ℃, VDDI=1.65~3.7V, VDD=2.3~4.8V
Signal Symbol Parameter MIN MAX
Unit
Description
TCSS Chip select setup time (write) 45 ns
TCSH Chip select hold time (write) 45 ns
TCSS Chip select setup time (read) 60 ns
TSCC Chip select hold time (read) 65 ns
CSX
TCHW Chip select “H” pulse width 40 ns
TSCYCW Serial clock cycle (Write) 66 ns
TSHW SCL “H” pulse width (Write) 15 ns
TSLW SCL “L” pulse width (Write) 15 ns
-write command & data
ram
TSCYCR Serial clock cycle (Read) 150 ns
TSHR SCL “H” pulse width (Read) 60 ns
SCL
TSLR SCL “L” pulse width (Read) 60 ns
-read command & data
ram
TDCS D/CX setup time 10 ns
D/CX TDCH D/CX hold time 10 ns
TSDS Data setup time 10 ns
TSDH Data hold time 10 ns
TACC Access time 10 50 ns
SDA
(DIN)
(DOUT) TOH Output disable time 15 50 ns
For maximum CL=30pF
For minimum CL=8pF
Table 8.4.1 4-line Serial Interface Characteristics
Note : The rising time and falling time (Tr, Tf) of input signal are specified at 15 ns or less. Logic high and low levels are specified as 30%
and 70% of VDDI for Input signals.
S T7735 R
ST7735R
V0.2 26 2009-08-05
9 Function description
9.1 Interface type selection
The selection of given interfaces are done by setting IM2, IM1, and IM0 pins as shown in following table.
P68 IM2 IM1 IM0 Interface Read back selection
- 0 - - 3-line serial interface Via the read instruction
0 1 0 0 8080 MCU 8-bit parallel RDX strobe (8-bit read data and 8-bit read parameter)
0 1 0 1 8080 MCU 16-bit parallel RDX strobe (16-bit read data and 8-bit read parameter)
0 1 1 0 8080 MCU 9-bit parallel RDX strobe (9-bit read data and 8-bit read parameter)
0 1 1 1 8080 MCU 18-bit parallel RDX strobe (18-bit read data and 8-bit read parameter)
- 0 - - 3-line serial interface Via the read instruction
1 1 0 0 6800 MCU 8-bit parallel E strobe (8-bit read data and 8-bit read parameter)
1 1 0 1 6800 MCU 16-bit parallel E strobe (16-bit read data and 8-bit read parameter)
1 1 1 0 6800 MCU 9-bit parallel E strobe (9-bit read data and 8-bit read parameter)
1 1 1 1 6800 MCU 18-bit parallel E strobe (18-bit read data and 8-bit read parameter)
Table 9.1.1 Selection of MCU interface
P68 IM2 IM1 IM0 Interface RDX WRX D/CX
Read back selection
- 0 - - 3-line serial interface Note1
Note1
SCL D[17:1]: unused, D0: SDA
0 1 0 0 8080 8-bit parallel RDX WRX D/CX
D[17:8]: unused, D7-D0: 8-bit data
0 1 0 1 8080 16-bit parallel RDX WRX D/CX
D[17:16]: unused, D15-D0: 16-bit
data
0 1 1 0 8080 9-bit parallel RDX WRX D/CX
D[17:9]: unused, D8-D0: 9-bit data
0 1 1 1 8080 18-bit parallel RDX WRX D/CX
D17-D0: 18-bit data
- 0 - - 3-line serial interface Note1
D/CX
SCL D[17:1]: unused, D0: SDA
1 1 0 0 6800 8-bit parallel E WRX RS D[17:8]: unused, D7-D0: 8-bit data
1 1 0 1 6800 16-bit parallel E WRX RS D[17:16]: unused, D15-D0: 16-bit
data
1 1 1 0 6800 9-bit parallel E WRX RS D[17:9]: unused, D8-D0: 9-bit data
1 1 1 1 6800 18-bit parallel E WRX RS D17-D0: 18-bit data
Table 9.1.2 Pin connection according to various MCU interface
Note: Unused pins can be open, or connected to DGND or VDDI.
S T7735 R
ST7735R
V0.2 27 2009-08-05
9.2 8080-series MCU parallel interface (P68 = ‘0’)
The MCU can use one of following interfaces: 11-lines with 8-data parallel interface, 12-lines with 9-data parallel interface,
19-line with 16-data parallel interface or 21-lines with 18-data parallel interface. The chip-select CSX (active low)
enables/disables the parallel interface. RESX (active low) is an external reset signal. WRX is the parallel data write enable,
RDX is the parallel data read enable and D[17:0] is parallel data bus.
The LCD driver reads the data at the rising edge of WRX signal. The D/CX is the data/command flag. When D/CX=’1’,
D[17:0] bits is either display data or command parameter. When D/C=’0’, D[17:0] bits is command. The interface functions
of 8080-series parallel interface are given in following table.
IM2
IM1
IM0
Interface D/CX
RDX
WRX
Read back selection
0 1 ↑ Write 8-bit command (D7 to D0)
1 1 ↑ Write 8-bit display data or 8-bit parameter (D7 to D0)
1 ↑ 1 Read 8-bit display data (D7 to D0)
1 0 0 8-bit
parallel
1 ↑ 1 Read 8-bit parameter or status (D7 to D0)
0 1 ↑ Write 8-bit command (D7 to D0)
1 1 ↑ Write 16-bit display data or 8-bit parameter (D15 to D0)
1 ↑ 1 Read 16-bit display data (D15 to D0)
1 0 1 16-bit
parallel
1 ↑ 1 Read 8-bit parameter or status (D7 to D0)
0 1 ↑ Write 8-bit command (D7 to D0)
1 1 ↑ Write 9-bit display data or 8-bit parameter (D8 to D0)
1 ↑ 1 Read 9-bit display data (D8 to D0)
1 1 0 9-bit
parallel
1 ↑ 1 Read 8-bit parameter or status (D7 to D0)
0 1 ↑ Write 8-bit command (D7 to D0)
1 1 ↑ Write 18-bit display data or 8-bit parameter (D17 to D0)
1 ↑ 1 Read 18-bit display data (D17 to D0)
1 1 1 18-bit
parallel
1 ↑ 1 Read 8-bit parameter or status (D7 to D0)
Table 9.2.1 the function of 8080-series parallel interface
Note: applied for command code: DAh, DBh, DCh, 04h, 09h, 0Ah, 0Bh, 0Ch, 0Dh, 0Eh, 0Fh
S T7735 R
XX
X
X
X
X
ST7735R
V0.2 28 2009-08-05
9.2.1 Write cycle sequence
The write cycle means that the host writes information (command or/and data) to the display via the interface. Each write
cycle (WRX high-low-high sequence) consists of 3 control signals (D/CX, RDX, WRX) and data signals (D[17:0]). D/CX bit
is a control signal, which tells if the data is a command or a data. The data signals are the command if the control signal is
low (=’0’) and vice versa it is data (=’1’).
WRX
D[17:0]
The host starts to control D[17:0]
lines when there is a falling edge
of the WRX.
The display writes D[17:0] lines
when there is a rising edge of
WRX.
The host stops to
control D[17:0] lines.

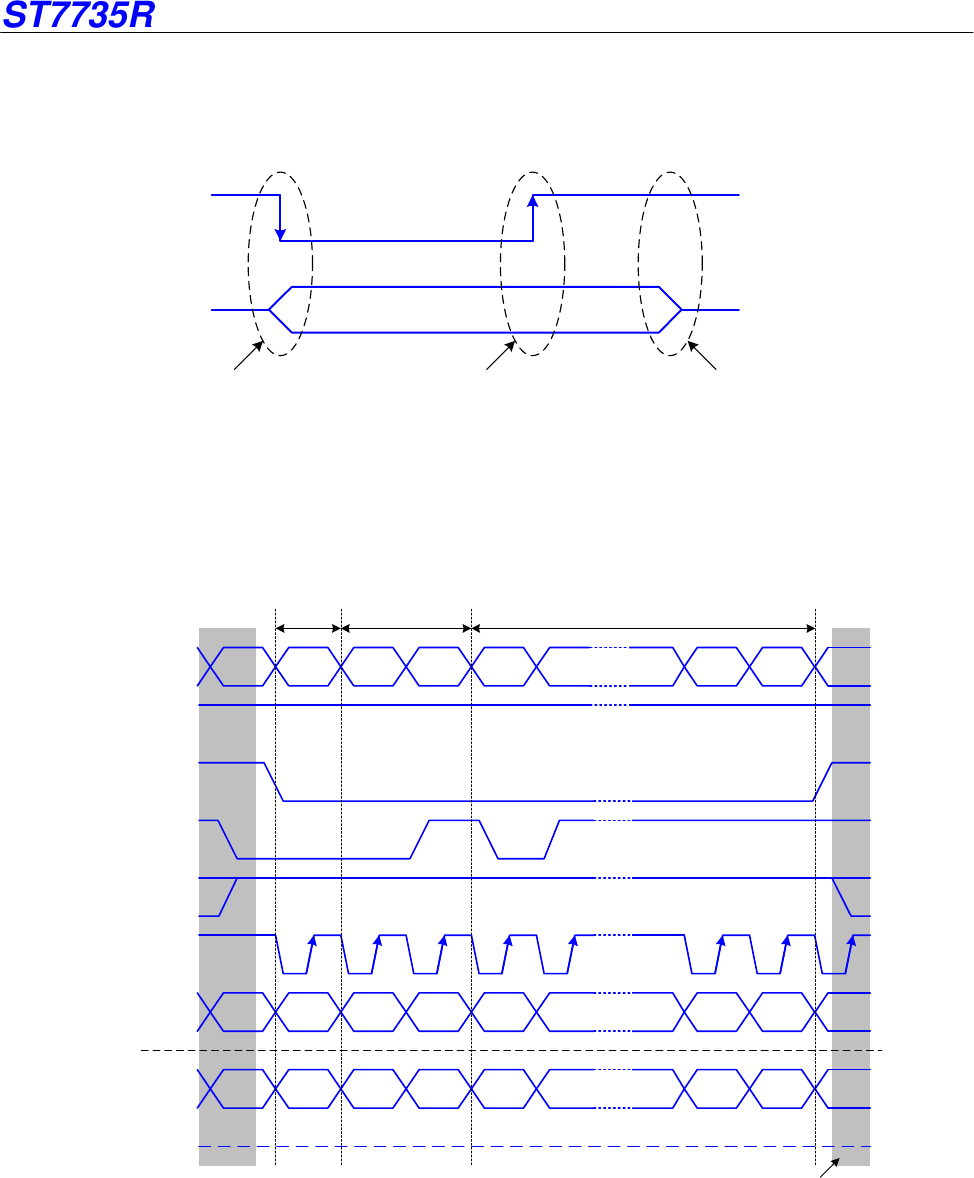

Figure 9.2.1 8080-series WRX protocol
Note: WRX is an unsynchronized signal (It can be stopped).
CMD CMD PA1 CMD PA1PAN-2 PAN-1
S P
CMD CMD PA1 CMD PA1PAN-2 PAN-1
S P
CMD CMD PA1 CMD PA1PAN-2 PAN-1
S P
D[17:0]
RESX
CSX
D/CX
RDX
WRX
D[17:0]
Host D[17:0]
Host to LCD
Driver D[17:0]
LCD to Host
“1”
“1”
Hi-Z
1-byte
command
2-byte
command
N-byte
command
CMD: write command code
PA: parameter or display data
Signals on D[17:0], D/CX, R/WX, E
pins during CSX=1 are ignored.
Figure 9.2.2 8080-series parallel bus protocol, write to register or display RAM
S T7735 R
RDX / \
The dhver stops to
The dhver star‘s to control The host read [1170] llnes V
D[17,0] hnes when there T5 3 when there Ts a nsmg edge a! comfol D{17'0]|mes
falhng edge loe RDX. RDX.
ST7735R
V0.2 29 2009-08-05
9.2.2 Read cycle sequence
The read cycle (RDX high-low-high sequence) means that the host reads information from LCD driver via interface. The
driver sends data (D[17:0]) to the host when there is a falling edge of RDX and the host reads data when there is a rising
edge of RDX.
Figure 9.2.3 8080-series RDX protocol
Note: RDX is an unsynchronized signal (It can be stopped).
CMD DM PA CMD DM & data Data DataS P
CMD DM PA CMD DM & data Data DataS P
D[17:0]
RESX
CSX
D/CX
RDX
WRX
D[17:0]
Host D[17:0]
Host to LCD
Driver D[17:0]
LCD to Host
“1”
Hi-Z
Read parameter Read display data
CMD: write command code
PA: parameter or display data
Signals on D[17:0], D/CX, R/WX, E
pins during CSX=1 are ignored.
DM PA1 DM & data PAN-2 PAN-1 PS
CMD CMDS P
Hi-Z Hi-Z
Hi-Z
Figure 9.2.4 8080-series parallel bus protocol, read data from register or display RAM
S T7735 R
68 M2 |M1 IMO Imeflace D/CX R/WX E Function
me 8-be command D7 Io D0
v
|
|
.
A A A
The hos‘ smns lo connol The dwsp‘ay writes Bum] The "05‘ S‘OPS to
own] lmes when Ihere IS lines when there IS a falling control DWVO] Imesv
a nsmg edge oflhe EV edge 0! EV
ST7735R
V0.2 30 2009-08-05
9.3 6800-series MCU parallel interface (P68 = ‘1’)
The MCU uses one of following interface: 11-lines with 8-data parallel interface, 12-lines with 9-data parallel interface,
19-lines with 16-data parallel interface, or 21-lines with 18-data parallel interface. The chip-select CSX(active low) enables
and disables the parallel interface. RESX (active low) is an external reset signal. The R/WX is the Read/Write flag and
D[17:0] is parallel data bus.
The LCD driver reads the data at the falling edge of E signal when R/WX= ‘1’ and Writes the data at the falling of the E
signal when R/WX=’0’. The D/CX is the data/command flag. When D/CX=’1’, D[17:0] bits are display RAM data or
command parameters. When D/C= ‘0’, D[17:0] bits are commands.
The 6800-series bi-directional interface can be used for communication between the micro controller and LCD driver. The
selection of this interface is done when P68 pin is high state (VDDI). Interface bus width can be selected with IM2, IM1 and
IM0.The interface functions of 6800-series parallel interface are given in Table 8.1.1.
P68
IM2
IM1
IM0
Interface D/CX
R/WX
E Function
0 0 ↓ Write 8-bit command (D7 to D0)
1 0 ↓ Write 8-bit display data or 8-bit parameter (D7 to D0)
1 1 ↓ Read 8-bit Display data (D7 to D0)
1 1 0 0 8-bit Parallel
1 1 ↓ Read 8-bit parameter or status (D7 to D0)
0 0 ↓ Write 8-bit command (D7 to D0)
1 0 ↓ Write 16-bit display data or 8-bit parameter (D15 to D0)
1 1 ↓ Read 16-bit Display data (D15 to D0)
1 1 0 1 16-bit Parallel
1 1 ↓ Read 8-bit parameter or status (D7 to D0)
0 0 ↓ Write 8-bit command (D7 to D0)
1 0 ↓ Write 9-bit display data or 8-bit parameter (D8 to D0)
1 1 ↓ Read 9-bit Display data (D8 to D0)
1 1 1 0 9-bit Parallel
1 1 ↓ Read 8-bit parameter or status (D7 to D0)
0 0 ↓ Write 8-bit command (D7 to D0)
1 0 ↓ Write 18-bit display data or 8-bit parameter (D17 to D0)
1 1 ↓ Read 18-bit Display data (D17 to D0)
1 1 1 1 18-bit Parallel
1 1 ↓ Read 8-bit parameter or status (D7 to D0)
Table 9.3.1 The function of 6800-series parallel interface
Note: applied for command code: DAh, DBh, DCh, 04h, 09h, 0Ah, 0Bh, 0Ch, 0Dh, 0Eh, 0Fh.
9.3.1 Write cycle sequence
The write cycle means that the host writes information (command or/and data) to the display via the interface. Each write
cycle (E low-high-low sequence) consists of 3 control signals (D/CX, E, R/WX) and data signals (D[17:0]). D/CX bit is a
control signal, which tells if the data is a command or a data. The data signals are the command if the control signal is low
(=’0’) and vice versa it is data (=’1’).
Figure 9.3.1 6800-Series Write Protocol
Note: E is an unsynchronized signal (It can be stopped)
S T7735 R
1ST7735R
V0.2 31 2009-08-05

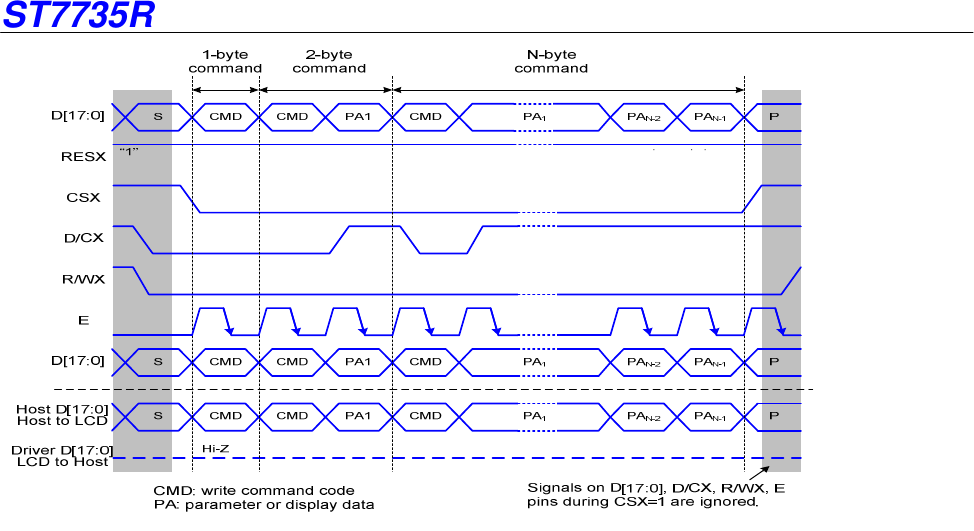

Figure 9.3.2 6800-series parallel bus protocol, write to register or display RAM
S T7735 R
R/WX
E
[117.0]
The dnver starts to contro‘ The host read D[17'0] lines The driver stops m
D[17,0] lmes when Ihere is when (here Is a fal‘lng edge of 0°"th DI17'0] lines
a rismg edge oilhe E. RDX.
Read parameter Read dismay data
D[17:O] X s CMD DM X PA CMD DM & data X Data Data P
RESX “1"
Hos‘ 17:0 HIVZ
HoslgLCEJ X 5 CM” iiiiii
Dnver D[17:0 HLZ HI—Z
LCDtoHost'X s >‘“ D” P“ 1 --
CMD: write command code Signals on [11710], D/CX, R/WX, E
PA: parameter or dxsplay data W‘s dunng C5X=1 are Ignored.
ST7735R
V0.2 32 2009-08-05
9.3.2 9.3.2 Read cycle sequence
The read cycle (E low-high-low sequence) means that the host reads information from LCD driver via interface. The driver
sends data (D[17:0]) to the host when there is a rising edge of E and the host reads data when there is a falling edge of E.
Figure 9.3.3 6800-series read protocol
Note: E is an unsynchronized signal (It can be stopped)
Figure 9.3.4 6800-series parallel bus protocol, read data form register or display RAM
S T7735 R
34ine serial data
stream format Transmwsswon [)er (TB) may be command urdala
/—/%
D/CX D7 D6 D5 D4 D3 D2 D1 D0
TB TB
A A
\ r \
DICX D7 D6 D5 D4 D3 D2 D1 D0 D/CX D7 D6 D5 D4 D3 D2 D1 D0
4—line serial data
stream format Transmisslon byte 1TB) may bewmmand urdata
D7 D6 D5 D4 D3 D2 D1 D0
TB TB
A A
r V \
D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 DI DD
ST7735R
V0.2 33 2009-08-05
9.4 Serial interface
The selection of this interface is done by IM2. See the Table 9.4.1.
IM2 4WSPI Interface Read back selection
0 0 3-line serial interface Via the read instruction (8-bit, 24-bit and 32-bit read parameter)
0 1 4-line serial interface Via the read instruction (8-bit, 24-bit and 32-bit read parameter)
Table 9.4.2 Selection of serial interface
The serial interface is either 3-lines/9-bits or 4-lines/8-bts bi-directional interface for communication between the micro
controller and the LCD driver. The 3-lines serial interface use: CSX (chip enable), SCL (serial clock) and SDA (serial data
input/output), and the 4-lines serial interface use: CSX (chip enable), D/CX (data/ command flag), SCL (serial clock) and
SDA (serial data input/output). Serial clock (SCL) is used for interface with MCU only, so it can be stopped when no
communication is necessary.
9.4.1 Command Write Mode
The write mode of the interface means the micro controller writes commands and data to the LCD driver. 3-lines serial data
packet contains a control bit D/CX and a transmission byte. In 4-lines serial interface, data packet contains just
transmission byte and control bit D/CX is transferred by the D/CX pin. If D/CX is “low”, the transmission byte is interpreted
as a command byte. If D/CX is “high”, the transmission byte is stored in the display data RAM (memory write command), or
command register as parameter.
Any instruction can be sent in any order to the driver. The MSB is transmitted first. The serial interface is initialized when
CSX is high. In this state, SCL clock pulse or SDA data have no effect. A falling edge on CSX enables the serial interface
and indicates the start of data transmission.
Figure 9.4.1 Serial interface data stream format
When CSX is “high”, SCL clock is ignored. During the high period of CSX the serial interface is initialized. At the falling edge
of CSX, SCL can be high or low (see Figure 9.4.2). SDA is sampled at the rising edge of SCL. D/CX indicates whether the
byte is command (D/CX=’0’) or parameter/RAM data (D/CX=’1’). D/CX is sampled when first rising edge of SCL (3-lines
serial interface) or 8th rising edge of SCL (4-lines serial interface). If CSX stays low after the last bit of command/data byte,
the serial interface expects the D/CX bit (3-lines serial interface) or D7 (4-lines serial interface) of the next byte at the next
rising edge of SCL..
S T7735 Ff
Command ‘ ‘ Command/Parameuer
CSX can be “H"belween parameter/command and
parameter/command SOL and SDA during CSX="H"
is ignored.
Host .
(MCU to driver)
Command 1 1 Command/Parameler
CSX can be “H"belween parameter/command and
parameler/command SCL and SDA during CSX="H"
is ignored.
ST7735R
V0.2 34 2009-08-05

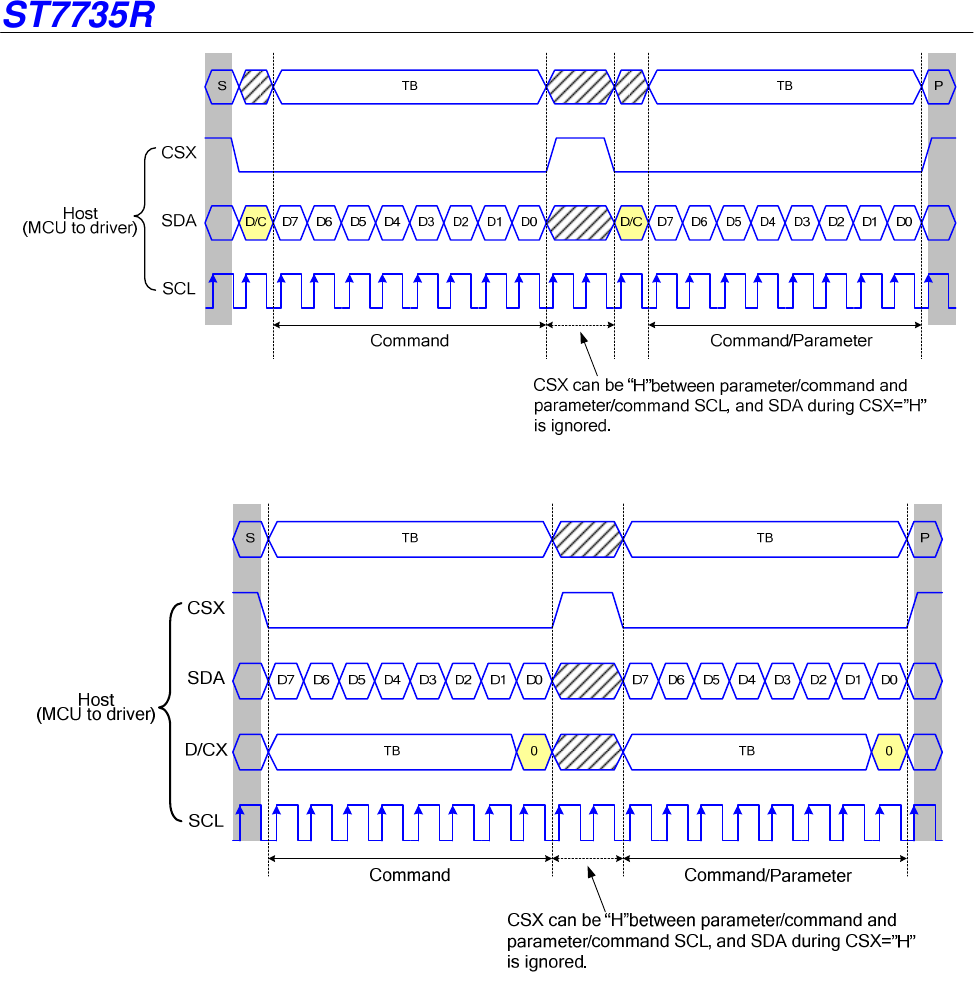

Figure 9.4.3 3-line serial interface write protocol (write to register with control bit in transmission)
Figure 9.4.4 4-line serial interface write protocol (write to register with control bit in transmission)
9.4.2 Read Functions
The read mode of the interface means that the micro controller reads register value from the driver. To achieve read
function, the micro controller first has to send a command (read ID or register command) and then the following byte is
transmitted in the opposite direction. After that CSX is required to go to high before a new command is send (see the below
figure). The driver samples the SDA (input data) at rising edge of SCL, but shifts SDA (output data) at the falling edge of
SCL. Thus the micro controller is supported to read at the rising edge of SCL.
After the read status command has been sent, the SDA line must be set to tri-state no later than at the falling edge of SCL of
the last bit.
S T7735 R
U
2 DA
E (300)
CSX
I
0°; SCL
SDA
a
5' (390)
CSX
I
“S. SCI.
w
H..z
wunsmwmmw
@ {Bi
flflflflfl,,fl.flflfl
mmmmrreeaa
Dummy m cycle
@ rs
mz
wmmmwmww
@ f“
Hm , m
w m w- w- , 9999
Dummy new Lyda
ST7735R
V0.2 35 2009-08-05

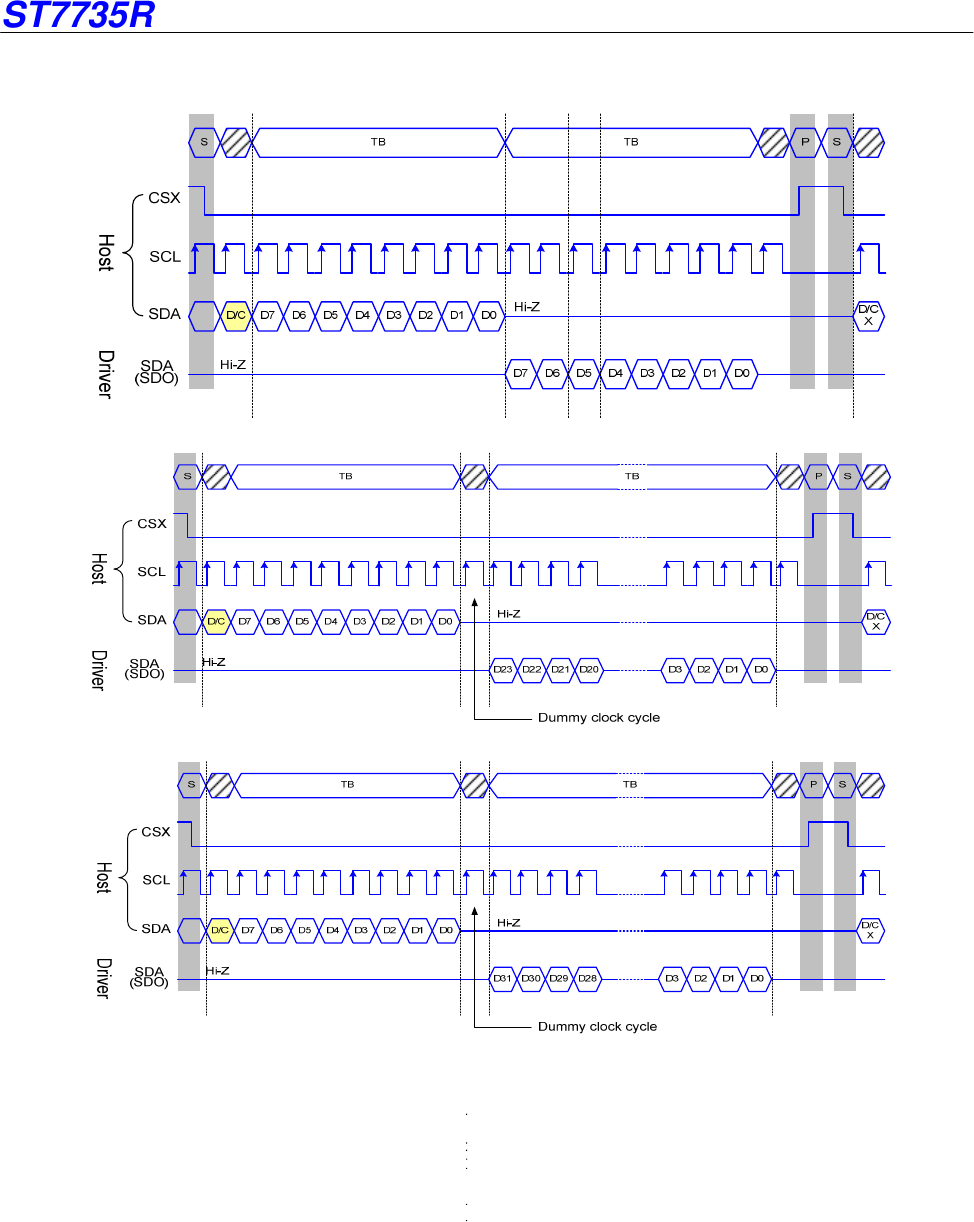

9.4.3 3-line serial protocol
3-line serial protocol (for RDID1/RDID2/RDID3/0Ah/0Bh/0Ch/0Dh/0Eh/0Fh command: 8-bit read):
3-line serial protocol (for RDDID command: 24-bit read)
3-line Serial Protocol (for RDDST command: 32-bit read)
Figure 9.4.5 3-line serial interface read protocol
S T7735 R
rs TB
CSX
5
f0
‘ w m
(gm) mmmmmmmww
0
g (536% "‘2 EEGQQEQQ
TE @ 'E
CSX
g: 5“ WNW ....... m
3
w >I< (53.143="" wwwmmmmw="" "*2="" u="" e'="" (nsé’fi‘n="" "*1="" fififlfi="" dummy="" cloak="" cycle="" rs="" @="" rs="" 53%="" mmmmmmmm="" "*2="" .......="" (336%="" w="" m="" moms="" dummy="" cloak="" cycle="">ST7735R
V0.2 36 2009-08-05
9.4.4 4-line serial protocol
4-line serial protocol (for RDID1/RDID2/RDID3/0Ah/0Bh/0Ch/0Dh/0Eh/0Fh command: 8-bit read):
4-line serial protocol (for RDDID command: 24-bit read)
4-line Serial Protocol (for RDDST command: 32-bit read)
Host Driver
Figure 9.4.6 4-line serial interface read protocol
S T7735 Ff
(As/mp 0) new)
ISOH
(3% W
W m
ZED
[— Waw ormorelhamoms
SCLflITIITIT
5“ ,999999fl //,999999997/1
flflflflflflflflflfl
Command/Parameter/Dala ‘
K
Command
SCL and SDA during RESX=" L"
IS \nvahd and next byte becomes
command
(9% m
csx j I
%%%@ TH E
H
SCL
5“ I: , 999999
,flflflflflflflflnfl
2%@Qaaaaaaaaa
j Command/Parameter/Data
Break
Command/Parameter/Dala
ST7735R
V0.2 37 2009-08-05
9.5 Data Transfer Break and Recovery
If there is a break in data transmission by RESX pulse, while transferring a command or frame memory data or multiple
parameter command data, before Bit D0 of the byte has been completed, then driver will reject the previous bits and have
reset the interface such that it will be ready to receive command data again when the chip select line (CSX) is next
activated after RESX have been HIGH state. See the following example
Host
(MCU to driver)

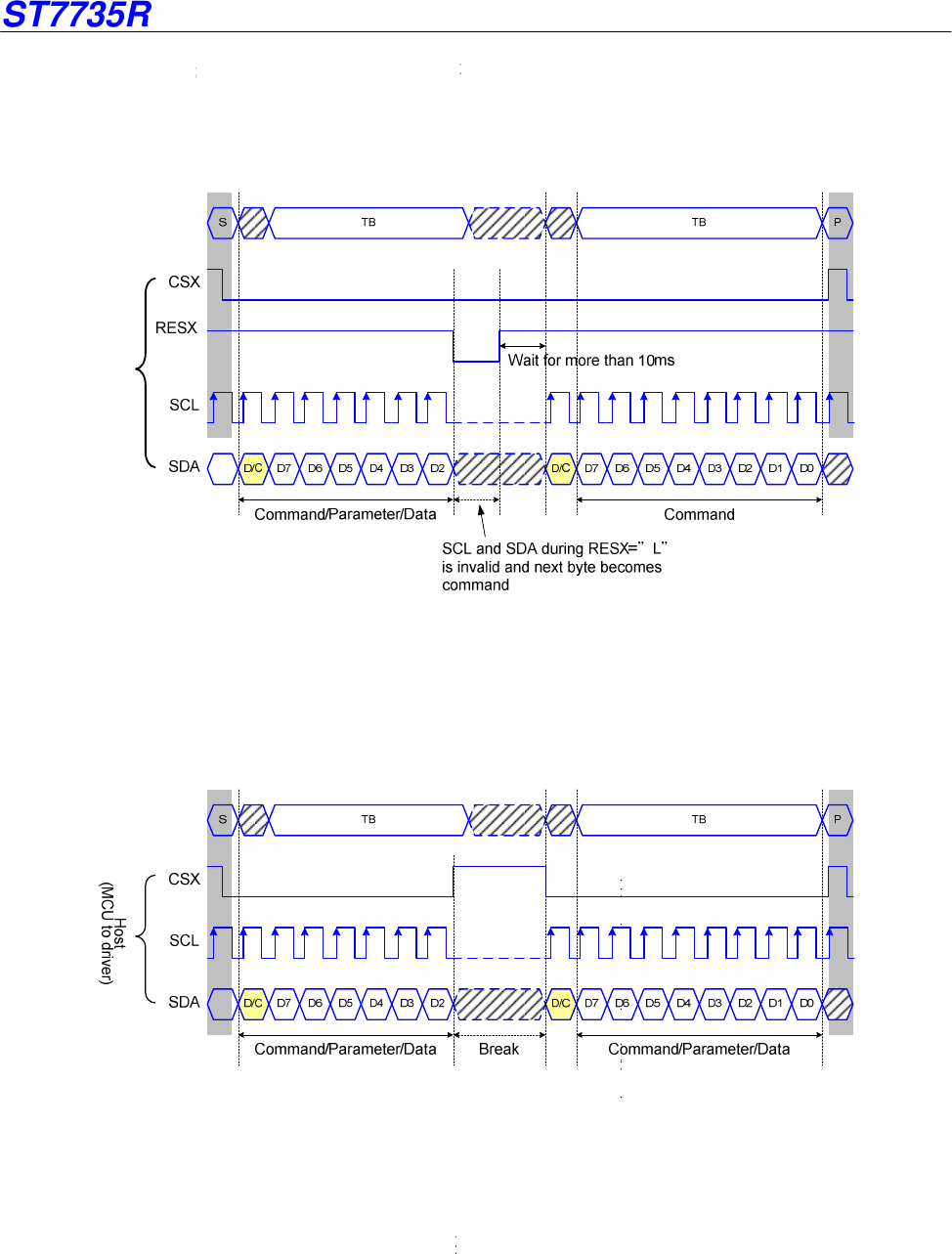

Figure 9.5.1 Serial bus protocol, write mode – interrupted by RESX
If there is a break in data transmission by CSX pulse, while transferring a command or frame memory data or multiple
parameter command data, before Bit D0 of the byte has been completed, then driver will reject the previous bits and have
reset the interface such that it will be ready to receive the same byte re-transmitted when the chip select line (CSX) is next
activated. See the following example
Figure 9.5.2 Serial bus protocol, write mode – interrupted by CSX
If 1, 2 or more parameter commands are being sent and a break occurs while sending any parameter before the last one
and if the host then sends a new command rather than re-transmitting the parameter that was interrupted, then the
parameters that were successfully sent are stored and the parameter where the break occurred is rejected. The interface is
ready to receive next byte as shown below.
S T7735 Ff
Pam 1 is successruuy sem but pera12
is broken and needs :0 be lransler again
' Pm“ i
Com mand1 with 15' parameter (paraT 1) should be executed
again to wire remained parameter (paraT 2. para13)
Para11 is successfully sent but other
parameters are not sent and me break
happens by anomer command.
[ Para“
Command1 with 1SK parameter(para1 1) should be executed
again to write remained parameter(para12. para13)
ST7735R
V0.2 38 2009-08-05

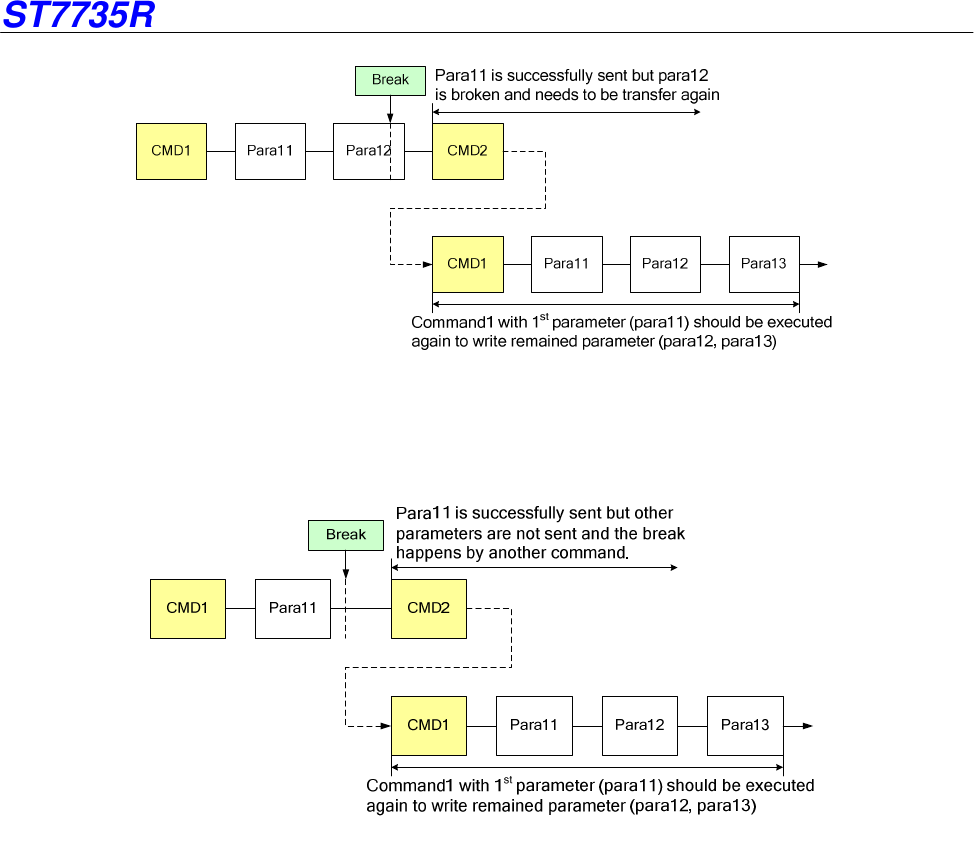

Figure 9.5.3 Write interrupts recovery (serial interface)
If a 2 or more parameter commands are being sent and a break occurs by the other command before the last one is sent,
then the parameters that were successfully sent are stored and the other parameter of that command remains previous
value.
Figure 9.5.4 Write interrupts recovery (both serial and parallel Interface)
S T7735 H
csx ‘\
r
(mummy) SBA I 7 «666666 7 ‘6‘666666
Command/Parameter/Dala
Command/Parameter/Data
SCL and SDA during Csxd'HWs mvana.
CSX
\_l
D/CX < x="" rdx="" x="" pause="" wrx="" d[1="" 7:0]="" |_t="" |_t="" c="" x="" d[17:0]="" x="" command/parameter="" pause="" x="" d[17:0]="" command/parameter="">ST7735R
V0.2 39 2009-08-05
9.6 Data transfer pause
It will be possible when transferring a command, frame memory data or multiple parameter data to invoke a pause in the
data transmission. If the chip select line is released after a whole byte of a frame memory data or multiple parameter data
has been completed, then driver will wait and continue the frame memory data or parameter data transmission from the
point where it was paused. If the chip select Line is released after a whole byte of a command has been completed, then
the display module will receive either the command‘s parameters (if appropriate) or a new command when the chip select
line is next enabled as shown below.
This applies to the following 4 conditions:
1) Command-Pause-Command
2) Command-Pause-Parameter
3) Parameter-Pause-Command
4) Parameter-Pause-Parameter
9.6.1 Serial interface pause

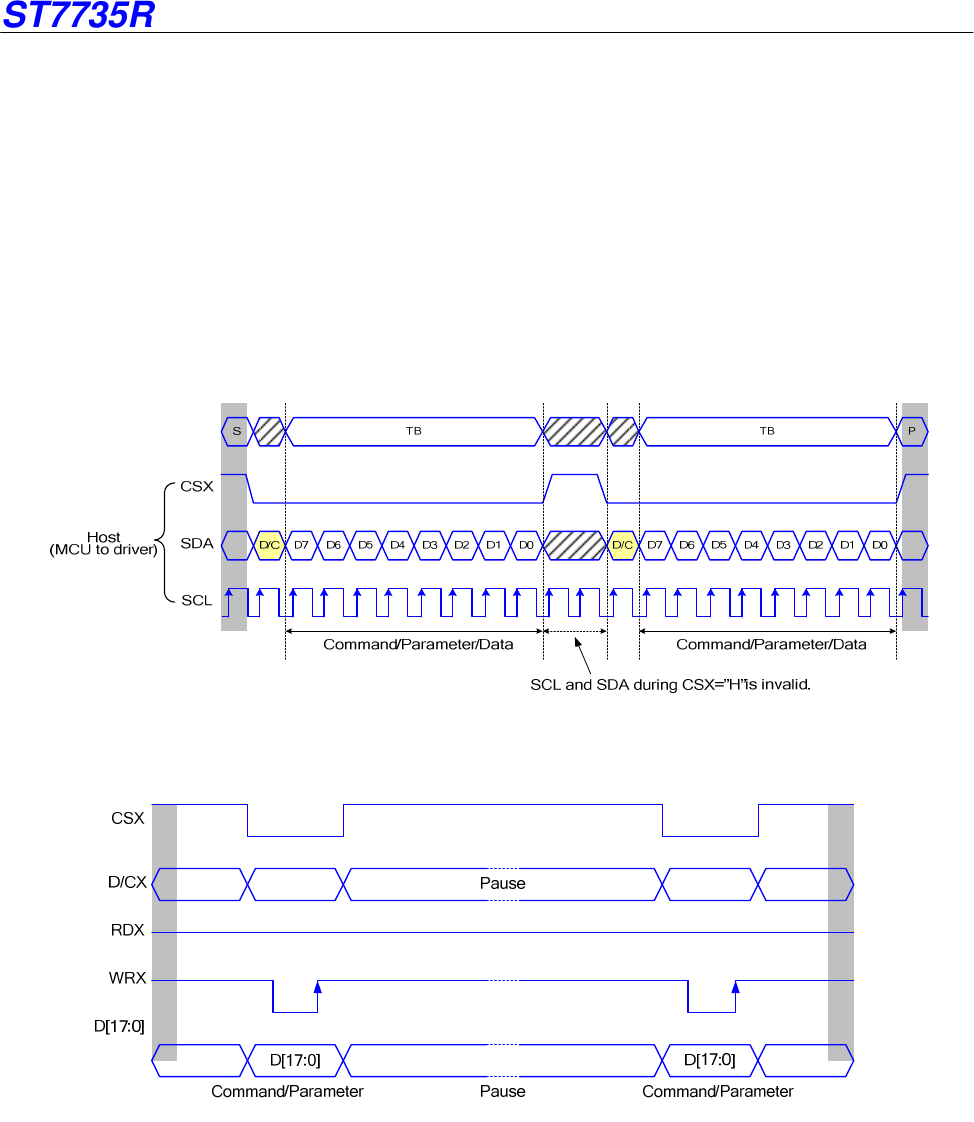

Figure 9.6.1 Serial interface pause protocol (pause by CSX)
9.6.2 Parallel interface pause
Figure 9.6.2 Parallel bus pause protocol (paused by CSX)
S T7735 R
Start Stop
Stan frame Frame 1 Frame 2 Frame 3

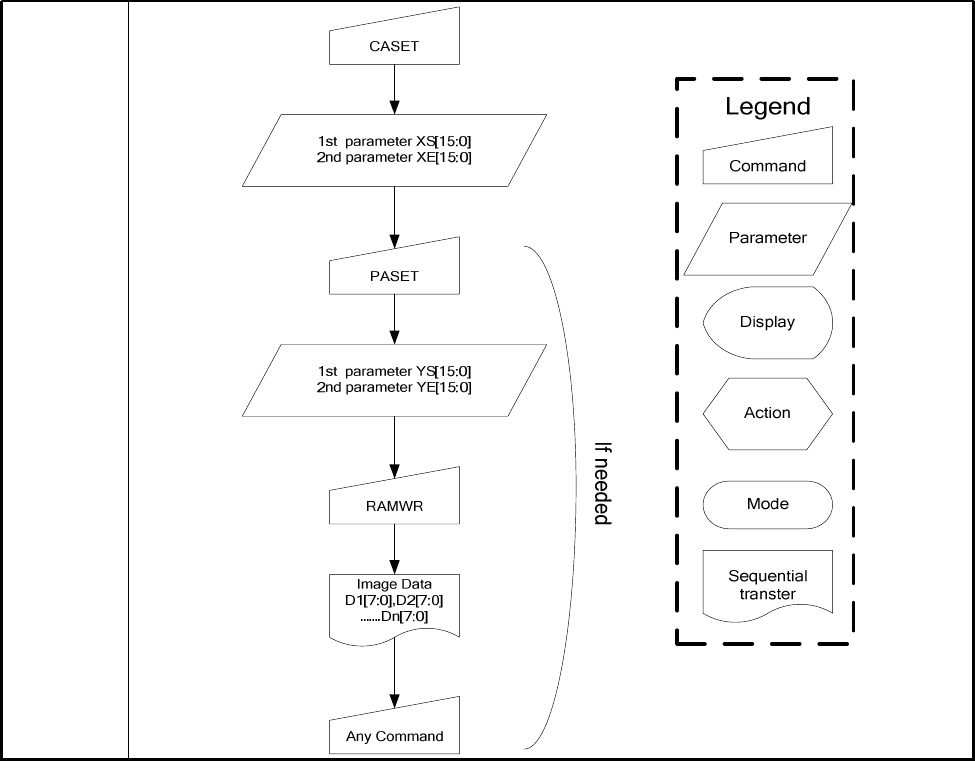

Memory wrtte Image data Image data Image data ....... Any command
Stan
Start frame Frame 1 Start frame Frame 2
Memory write Image date Any command Memory write Image data Any command
W, Any command
ST7735R
V0.2 40 2009-08-05
9.7 Data Transfer Modes
The module has three kinds color modes for transferring data to the display RAM. These are 12-bit color per pixel, 16-bit
color per pixel and 18-bit color per pixel. The data format is described for each interface. Data can be downloaded to the
frame memory by 2 methods.

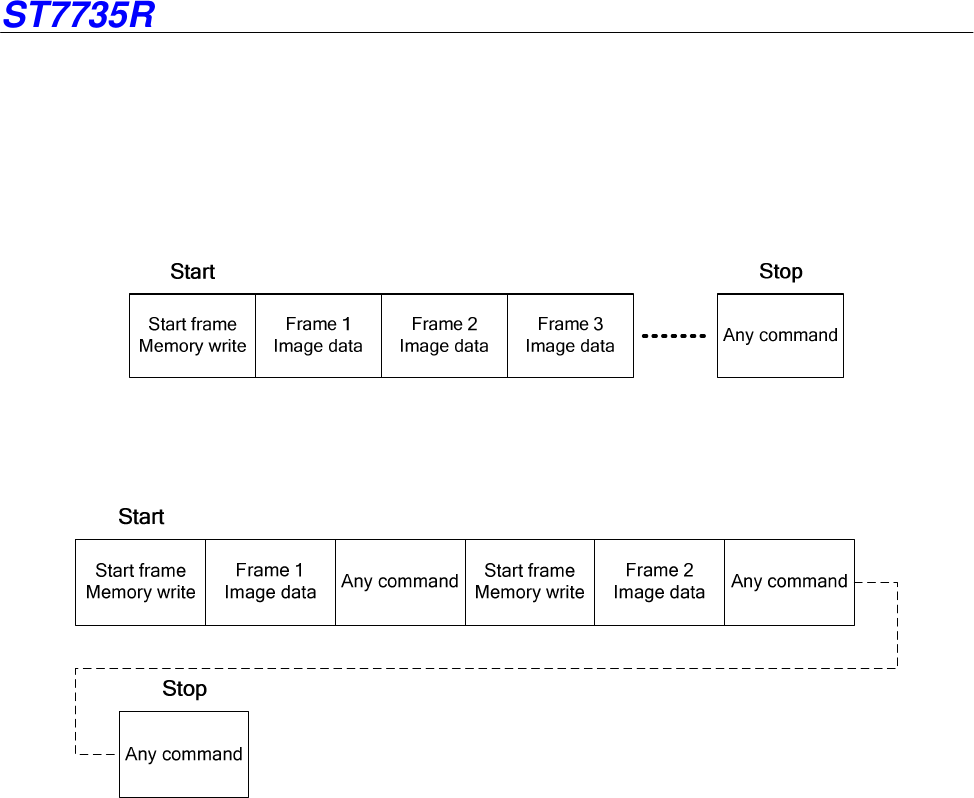

9.7.1 Method 1
The image data is sent to the frame memory in successive frame writes, each time the frame memory is filled, the frame
memory pointer is reset to the start point and the next frame is written.
9.7.2 Method 2
The image data is sent and at the end of each frame memory download, a command is sent to stop frame memory write.
Then start memory write command is sent, and a new frame is downloaded.
Note 1: These apply to all data transfer Color modes on both serial and parallel interfaces.
Note 2: The frame memory can contain both odd and even number of pixels for both methods. Only complete pixel data will be stored in
the frame memory.
ST7735R
V0.2 41 2009-08-05
9.8 Data Color Coding
9.8.1 8-bit Parallel Interface (IM2, IM1, IM0= “100”)
Different display data formats are available for three Colors depth supported by listed below.
- 4k colors, RGB 4,4,4-bit input.
- 65k colors, RGB 5,6,5-bit input.
- 262k colors, RGB 6,6,6-bit input.

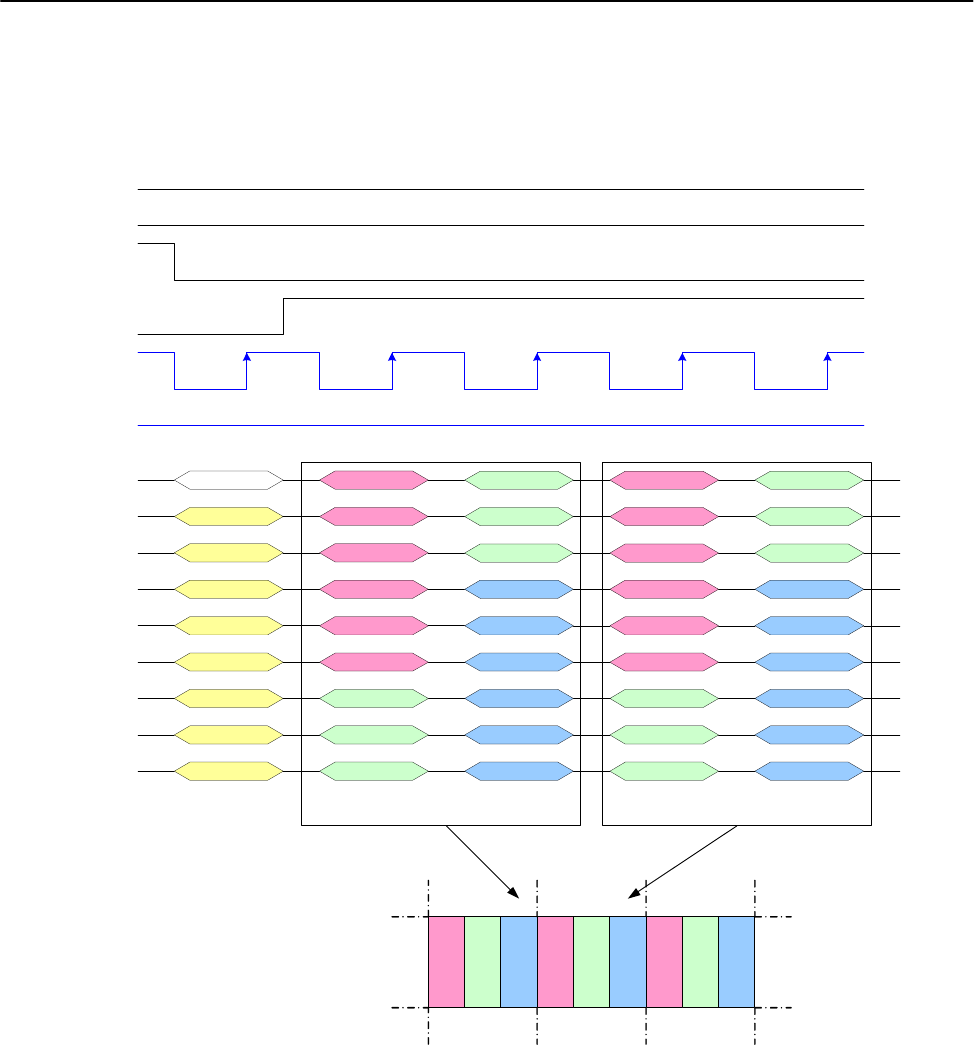

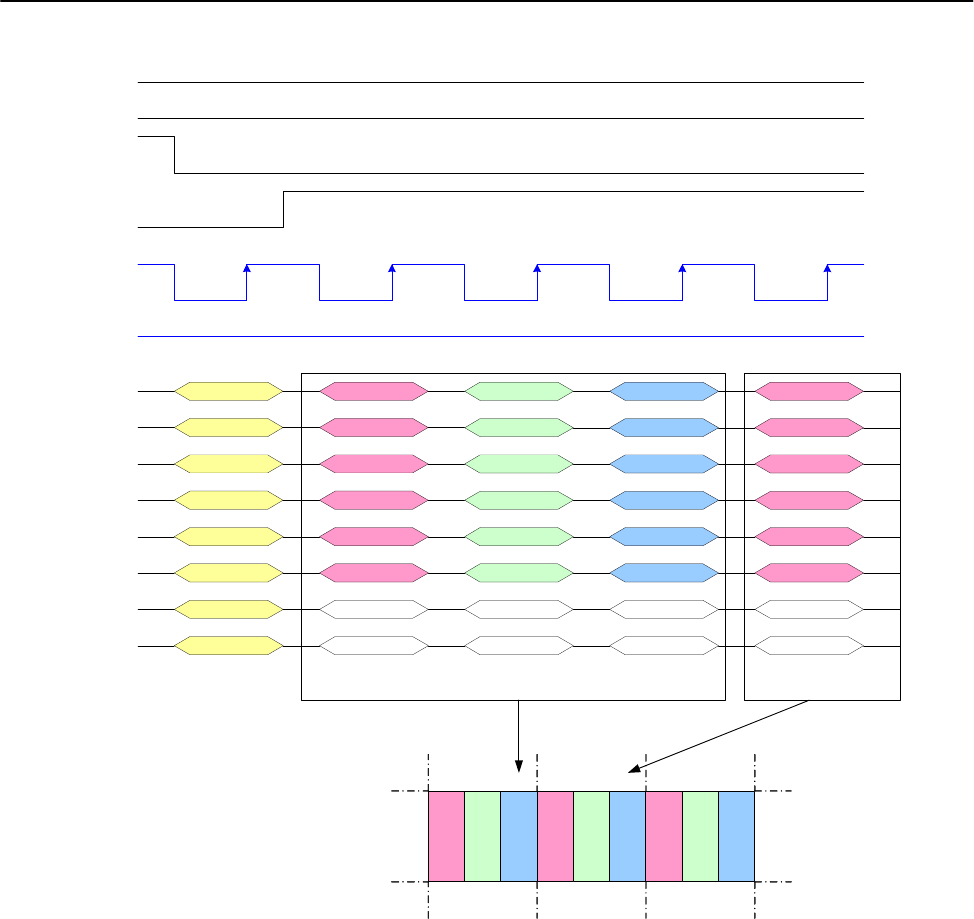

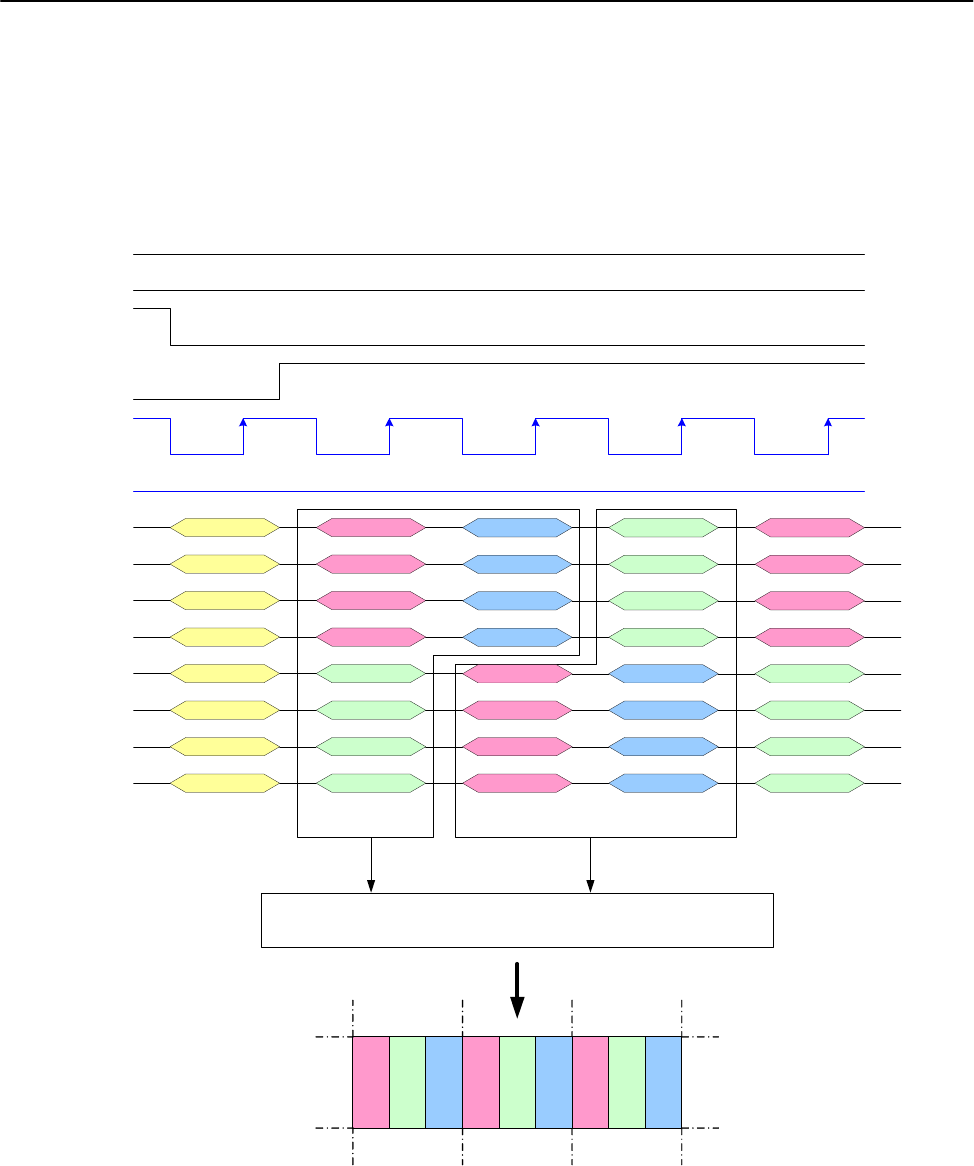

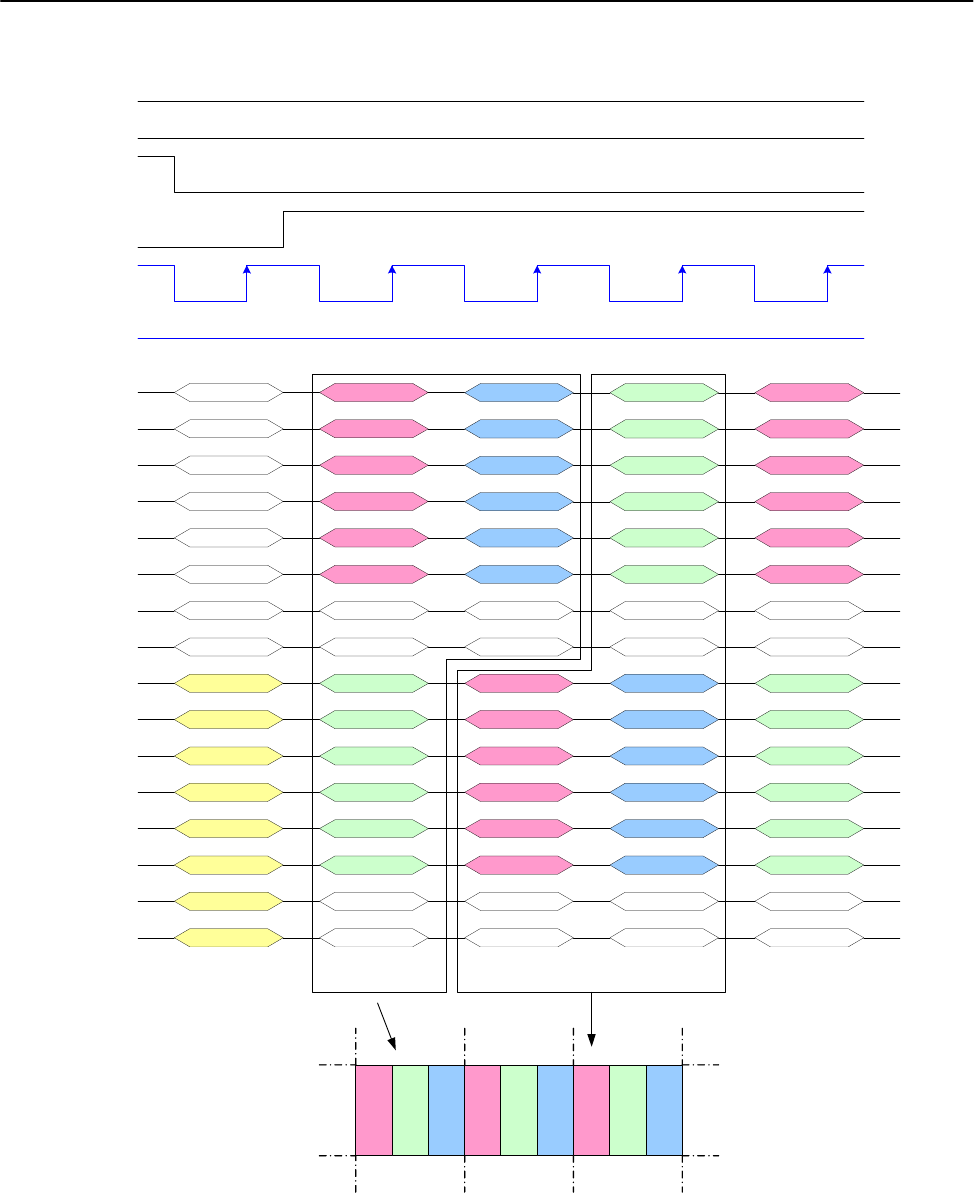

9.8.2 8-bit data bus for 12-bit/pixel (RGB 4-4-4-bit input), 4K-Colors, 3AH= “03h”
R1, Bit 3 B1, Bit 3 G2, Bit 3 R3, Bit 30
R1, Bit 2 B1, Bit 2 G2, Bit 2 R3, Bit 20
R1, Bit 1 B1, Bit 1 G2, Bit 1 R3, Bit 11
R1, Bit 0 B1, Bit 0 G2, Bit 0 R3, Bit 00
G1, Bit 3 R2, Bit 3 B2, Bit 3 G3, Bit 31
G1, Bit 2 R2, Bit 2 B2, Bit 2 G3, Bit 21
G1, Bit 1 R2, Bit 1 B2, Bit 1 G3, Bit 10
G1, Bit 0 R2, Bit 0 B2, Bit 0 G3, Bit 00
8080-series control pins
RESX
IM[2:0]
CSX
D/CX
“1 ”
“1 ”“1 ”
“1 ”
“
““
“100”
””
”
WRX
RDX “
““
“1”
””
”
D7
D6
D5
D4
D3
D2
D1
D0
Pixel n Pixel n+1
Look-up table for 4096 color data mapping (12 bits to 18 bits)
12 bits 12 bits
R1 G1 B1 R2 G2 B2 R3 G3 B3
18 bits
Frame memory
Note 1: The data order is as follows, MSB=D7, LSB=D0 and picture data is MSB=Bit 3, LSB=Bit 0 for Red, Green and Blue data.
Note 2: 3-time transfer is used to transmit 1 pixel data with the 12-bit color depth information.
Note 3: ‘-‘ = Don't care - Can be set to '0' or '1'
..
ST7735R
V0.2 42 2009-08-05
9.8.3 8-bit data bus for 16-bit/pixel (RGB 5-6-5-bit input), 65K-Colors, 3AH= “05h”
There is 1 pixel (3 sub-pixels) per 2-byte
R1, Bit 4 G1, Bit 20
R1, Bit 3 G1, Bit 10
R1, Bit 2 G1, Bit 01
R1, Bit 1 B1, Bit 40
R1, Bit 0 B1, Bit 31
G1, Bit 5 B1, Bit 21
G1, Bit 4 B1, Bit 10
G1, Bit 3 B1, Bit 00
8080-series control pins
RESX
IM[2:0]
CSX
D/CX
“
““
“1”
””
”
“
““
“100”
””
”
WRX
RDX
“
““
“1”
””
”
D7
D6
D5
D4
D3
D2
D1
D0
Pixel n Pixel n+1
Look-up table for 65k color data mapping (16 bits to 18 bits)
16 bits 16 bits
R1 G1 B1 R2 G2 B2 R3 G3 B3
18 bits
Frame memory
R2, Bit 4 G2, Bit 2
R2, Bit 3 G2, Bit 1
R2, Bit 2 G2, Bit 0
R2, Bit 1 B2, Bit 4
R2, Bit 0 B2, Bit 3
G2, Bit 5 B2, Bit 2
G2, Bit 4 B2, Bit 1
G2, Bit 3 B2, Bit 0
Note 1: The data order is as follows, MSB=D7, LSB=D0 and picture data is MSB=Bit 5, LSB=Bit 0 for Green and MSB=Bit 4, LSB=Bit 0 for
Red and Blue data.
Note 2: 2-times transfer is used to transmit 1 pixel data with the 16-bit color depth information.
Note 3: ‘-‘ = Don't care - Can be set to '0' or '1'
ST7735R
V0.2 43 2009-08-05
9.8.4 8-bit data bus for 18-bit/pixel (RGB 6-6-6-bit input), 262K-Colors, 3AH= “06h”
There is 1 pixel (3 sub-pixels) per 3-bytes.
R1, Bit 4
0
R1, Bit 3
0
R1, Bit 2
1
R1, Bit 1
0
R1, Bit 0
1
R1, Bit 5
1
- -0
- -0
8080-series control pins
RESX
IM[2:0]
CSX
D/CX
“
““
“1”
””
”
“
““
“100”
””
”
WRX
RDX
“
““
“1”
””
”
D7
D6
D5
D4
D3
D2
D1
D0
Pixel n Pixel n+1
18 bits 18 bits
R1 G1 B1 R2 G2 B2 R3 G3 B3
Frame memory
- -
- -
G1, Bit 4
G1, Bit 3
G1, Bit 2
G1, Bit 1
G1, Bit 0
G1, Bit 5
B1, Bit 4
B1, Bit 3
B1, Bit 2
B1, Bit 1
B1, Bit 0
B1, Bit 5
R2, Bit 4
R2, Bit 3
R2, Bit 2
R2, Bit 1
R2, Bit 0
R2, Bit 5
Note 1: The data order is as follows, MSB=D7, LSB=D0 and picture data is MSB=Bit 5, LSB=Bit 0 for Red, Green and Blue data.
Note 2: 3-times transfer is used to transmit 1 pixel data with the 18-bit color depth information.
Note 3: ‘-‘ = Don't care - Can be set to '0' or '1'
ST7735R
V0.2 44 2009-08-05
9.8.5 16-Bit Parallel Interface (IM2,IM1, IM0= “101”)
Different display data formats are available for three colors depth supported by listed below.
- 4k colors, RGB 4,4,4-bit input
- 65k colors, RGB 5,6,5-bit input
- 262k colors, RGB 6,6,6-bit input
9.8.6 16-bit data bus for 12-bit/pixel (RGB 4-4-4-bit input), 4K-Colors, 3AH= “03h”
There is 1 pixel (3 sub-pixels) per 1 byte
-
-
-
-
G1, Bit 3
-
G1, Bit 2
-
G1, Bit 1
-
G1, Bit 0
-
8080-series control pins
RESX
IM[2:0]
CSX
D/CX
“
““
“1”
””
”
“
““
“101”
””
”
WRX
RDX
“
““
“1”
””
”
D15
D14
D13
D12
D11
D10
D9
D8
Pixel n Pixel n+1
12 bits 12 bits
R1 G1 B1 R2 G2 B2 R3 G3 B3
18 bits
Frame memory
R1, Bit 3
0
R1, Bit 2
0
R1, Bit 1
1
R1, Bit 0
0
1
1
0
0
D7
D6
D5
D4
D3
D2
D1
D0
-
-
-
-
B1, Bit 3
B1, Bit 2
B1, Bit 1
B1, Bit 0
G2, Bit 3
G2, Bit 2
G2, Bit 1
G2, Bit 0
R2, Bit 3
R2, Bit 2
R2, Bit 1
R2, Bit 0
-
-
-
-
B2, Bit 3
B2, Bit 2
B2, Bit 1
B2, Bit 0
G3, Bit 3
G3, Bit 2
G3, Bit 1
G3, Bit 0
R3, Bit 3
R3, Bit 2
R3, Bit 1
R3, Bit 0
-
-
-
-
B3, Bit 3
B3, Bit 2
B3, Bit 1
B3, Bit 0
G4, Bit 3
G4, Bit 2
G4, Bit 1
G4, Bit 0
R4, Bit 3
R4, Bit 2
R4, Bit 1
R4, Bit 0
-
-
-
-
B4, Bit 3
B4, Bit 2
B4, Bit 1
B4, Bit 0
Pixel n+2 Pixel n+3
Look-up table for 4096 color data mapping (12 bits to 18 bits)
Note 1: The data order is as follows, MSB=D11, LSB=D0 and picture data is MSB=Bit 3, LSB=Bit 0 for Red, Green and Blue data.
Note 2: 1-times transfer (D11 to D0) is used to transmit 1 pixel data with the 12-bit color depth information.
3: ..
5.. ..
5.. ..
s: g ..
g: N. 3
ST7735R
V0.2 45 2009-08-05

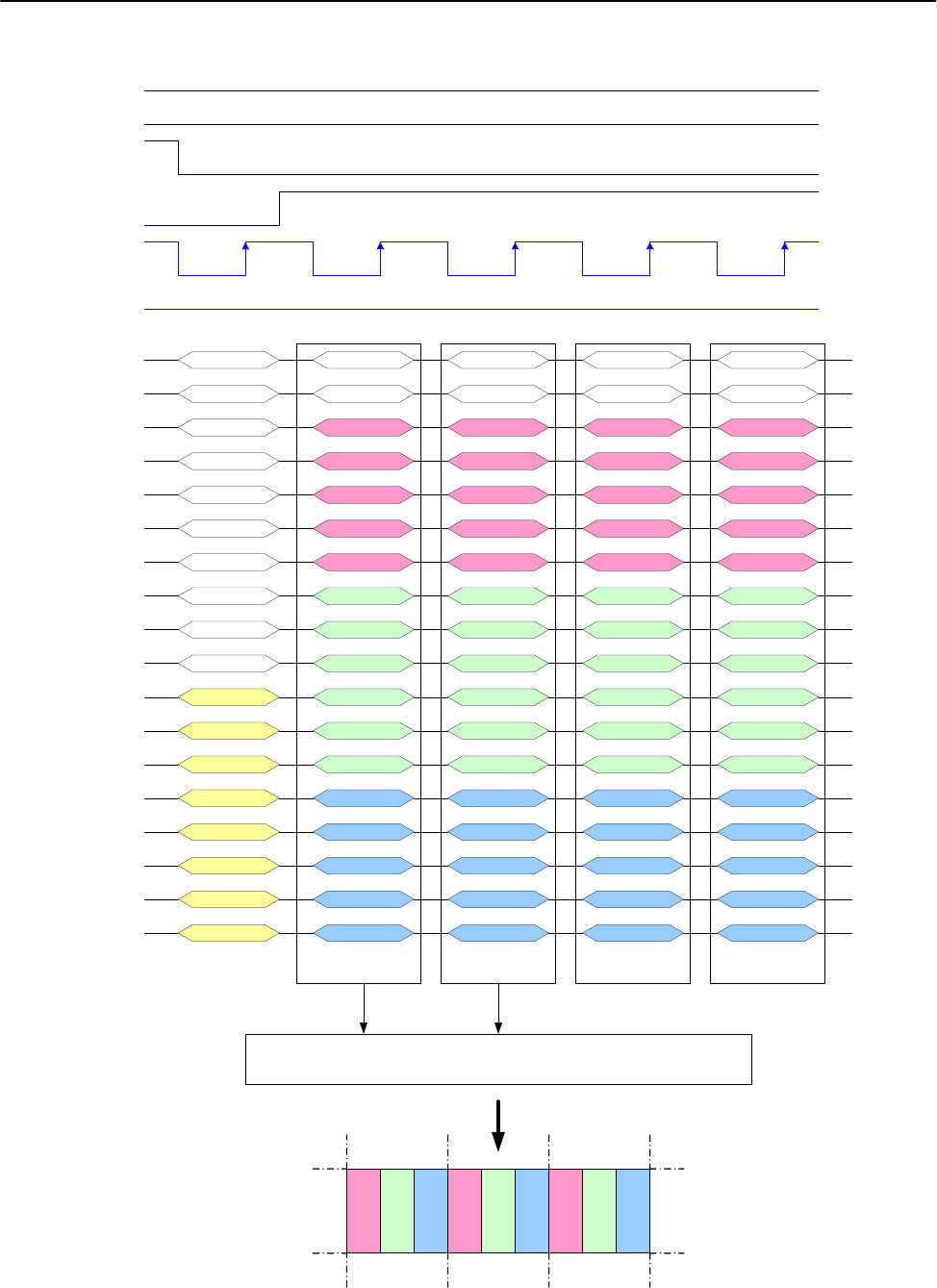

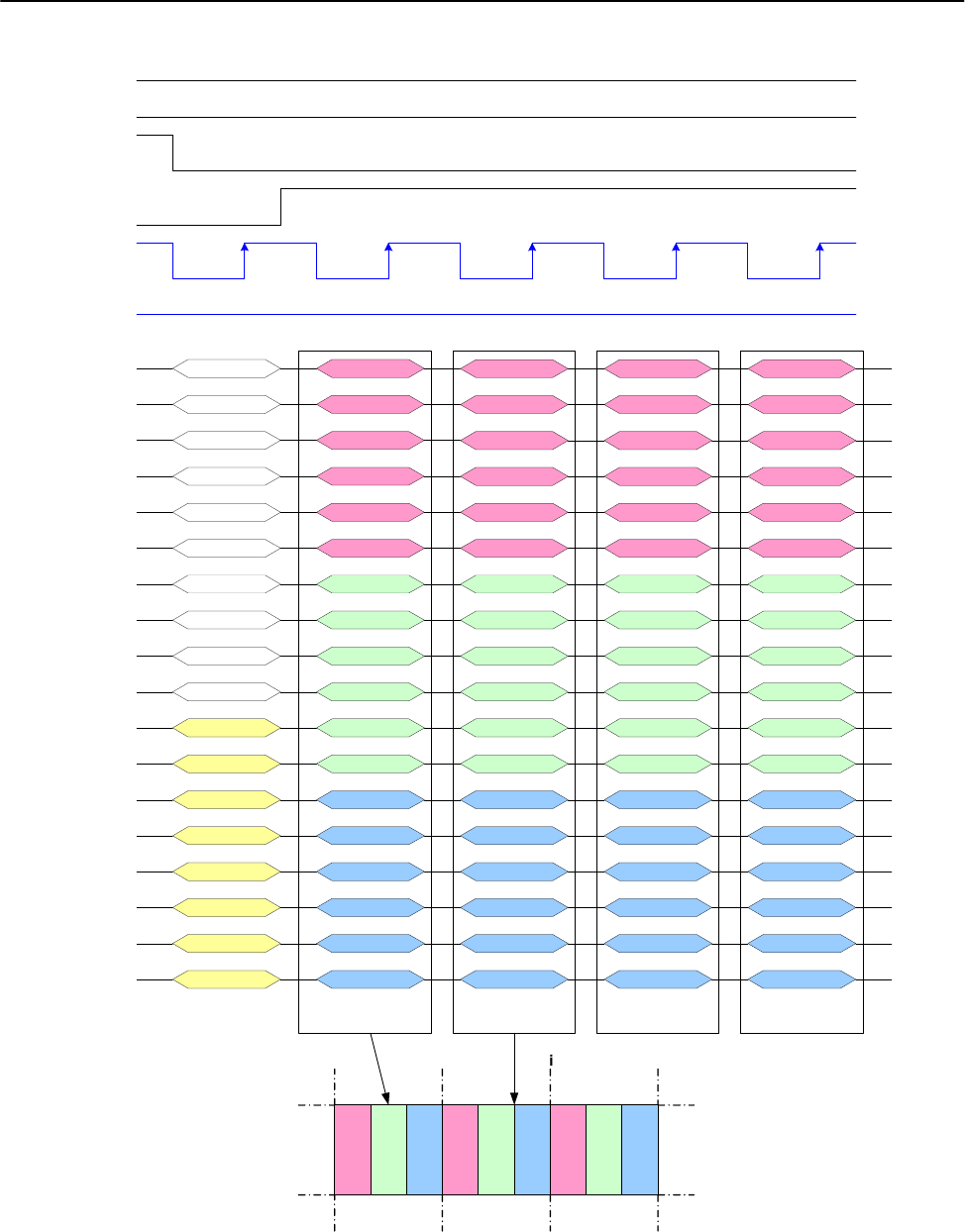

9.8.7 16-bit data bus for 16-bit/pixel (RGB 5-6-5-bit input), 65K-Colors, 3AH= “05h”
There is 1 pixel (3 sub-pixels) per 1 byte
-
-
-
G1, Bit 3
-
G1, Bit 2
-
G1, Bit 1
-
G1, Bit 0
-
8080-series control pins
RESX
IM[2:0]
CSX
D/CX
“
““
“1”
””
”
“
““
“101”
””
”
WRX
RDX
“
““
“1”
””
”
D15
D14
D13
D12
D11
D10
D9
D8
Pixel n Pixel n+1
16 bits 16 bits
R1 G1 B1 R2 G2 B2 R3 G3 B3
18 bits
Frame memory
R1, Bit 3
0
R1, Bit 2
0
R1, Bit 1
1
R1, Bit 0
0
1
1
0
0
D7
D6
D5
D4
D3
D2
D1
D0
B1, Bit 3
B1, Bit 2
B1, Bit 1
B1, Bit 0
G2, Bit 3
G2, Bit 2
G2, Bit 1
G2, Bit 0
R2, Bit 3
R2, Bit 2
R2, Bit 1
R2, Bit 0
B2, Bit 3
B2, Bit 2
B2, Bit 1
B2, Bit 0
G3, Bit 3
G3, Bit 2
G3, Bit 1
G3, Bit 0
R3, Bit 3
R3, Bit 2
R3, Bit 1
R3, Bit 0
B3, Bit 3
B3, Bit 2
B3, Bit 1
B3, Bit 0
G4, Bit 3
G4, Bit 2
G4, Bit 1
G4, Bit 0
R4, Bit 3
R4, Bit 2
R4, Bit 1
R4, Bit 0
B4, Bit 3
B4, Bit 2
B4, Bit 1
B4, Bit 0
Pixel n+2 Pixel n+3
Look-up table for 65k color data mapping (16 bits to 18 bits)
B1, Bit 4 B2, Bit 4 B3, Bit 4 B4, Bit 4
R1, Bit 4 R2, Bit 4 R3, Bit 4 R4, Bit 4
G1, Bit 5
G1, Bit 4
G2, Bit 5
G2, Bit 4
G3, Bit 5
G3, Bit 4
G4, Bit 5
G4, Bit 4
Note 1: The data order is as follows, MSB=D15, LSB=D0 and picture data is MSB=Bit 5, LSB=Bit 0 for Green, and MSB=Bit 4, LSB=Bit 0
for Red and Blue data.
Note 2: 1-times transfer (D15 to D0) is used to transmit 1 pixel data with the 16-bit color depth information.
Note 3: ‘-‘ = Don't care - Can be set to '0' or '1'
ST7735R
V0.2 46 2009-08-05
9.8.8 16-bit data bus for 18-bit/pixel (RGB 6-6-6-bit input), 262K-Colors, 3AH= “06h”
There are 2 pixels (6 sub-pixels) per 3 bytes
-
-
-
-
-
-
-
-
8080-series control pins
RESX
IM[2:0]
CSX
D/CX
“
““
“1”
””
”
“
““
“101”
””
”
WRX
RDX
“
““
“1”
””
”
D15
D14
D13
D12
D11
D10
D9
D8
Pixel n Pixel n+1
18 bits 18 bits
R1 G1 B1 R2 G2 B2 R3 G3 B3
Frame memory
R1, Bit 3
0
R1, Bit 2
0
R1, Bit 1
1
R1, Bit 0
0
1
1
0
0
D7
D6
D5
D4
D3
D2
D1
D0
B1, Bit 3
B1, Bit 2
B1, Bit 1
B1, Bit 0
B2, Bit 3
B2, Bit 2
B2, Bit 1
B2, Bit 0
B1, Bit 4
B2, Bit 4
R1, Bit 4
G1, Bit 3
G1, Bit 2
G1, Bit 1
G1, Bit 0
G3, Bit 3
G3, Bit 2
G3, Bit 1
G3, Bit 0
G1, Bit 5
G1, Bit 4
G3, Bit 5
G3, Bit 4
R1, Bit 5
- - - -
- - - -
B1, Bit 5
B2, Bit 5
- - - -
- - - -
R2, Bit 3
R2, Bit 2
R2, Bit 1
R2, Bit 0
R2, Bit 4
R2, Bit 5
G2, Bit 3
G2, Bit 2
G2, Bit 1
G2, Bit 0
G2, Bit 5
G2, Bit 4
R3, Bit 3
R3, Bit 2
R3, Bit 1
R3, Bit 0
R3, Bit 4
R3, Bit 5
Note 1: The data order is as follows, MSB=D15, LSB=D0 and picture data is MSB=Bits 5, LSB=Bit 0 for Red, Green and Blue data.
Note 2: 3-times transfer is used to transmit 1 pixel data with the 18-bit color depth information.
Note 3: ‘-‘ = Don't care - Can be set to '0' or '1'
ST7735R
V0.2 47 2009-08-05
9.8.9 9-Bit Parallel Interface (IM2, IM1, IM0=“110”)
Different display data formats are available for three colors depth supported by listed below.
-262k colors, RGB 6,6,6-bit input
9.8.10 Write 9-bit data for RGB 6-6-6-bit input (262k-color)
There is 1 pixel (6 sub-pixels) per 3 bytes
R1, Bit 40
R1, Bit 30
R1, Bit 21
R1, Bit 10
R1, Bit 01
R1, Bit 5
1
0
0
8080-series control
pins
RESX
IM[2:0]
CSX
D/CX
“
““
“1”
””
”
“
““
“110”
””
”
WRX
RDX
“
““
“1”
””
”
D7
D6
D5
D4
D3
D2
D1
D0
Pixel n Pixel n+1
18 bits 18 bits
R1 G1 B1 R2 G2 B2 R3 G3 B3
Frame memory
G1, Bit 4
G1, Bit 3
G1, Bit 2
G1, Bit 1
G1, Bit 0
B1, Bit 4
B1, Bit 3
B1, Bit 2
B1, Bit 1
B1, Bit 0
B1, Bit 5
R2, Bit 4
R2, Bit 3
R2, Bit 2
R2, Bit 1
R2, Bit 0
R2, Bit 5-
G1, Bit 5
D8
G2, Bit 4
G2, Bit 3
G2, Bit 5
B2, Bit 4
B2, Bit 3
B2, Bit 2
B2, Bit 1
B2, Bit 0
B2, Bit 5
G2, Bit 2
G2, Bit 1
G2, Bit 0
Note 1: The data order is as follows, MSB=D8, LSB=D0 and picture data is MSB=Bit 5, LSB=Bit 0 for Red, Green and Blue data.
Note 2: 3-times transfer is used to transmit 1 pixel data with the 18-bit color depth information.
Note 3: ‘-‘ = Don't care - Can be set to '0' or '1'
ST7735R
V0.2 48 2009-08-05
9.8.11 18-Bit Parallel Interface (IM2, IM1, IM0=“111”)
Different display data formats are available for three colors depth supported by listed below.
- 4k colors, RGB 4,4,4-bit input
- 65k colors, RGB 5,6,5-bit input
- 262k colors, RGB 6,6,6-bit input.
9.8.12 18-bit data bus for 12-bit/pixel (RGB 4-4-4-bit input), 4K-Colors, 3AH=“03h”
There is 1 pixel (3 sub-pixels) per 1 byte
-
-
-
-
G1, Bit 3
-
G1, Bit 2
-
G1, Bit 1
-
G1, Bit 0
-
8080-series control pins
RESX
IM[2:0]
CSX
D/CX
“
““
“1”
””
”
“
““
“111”
””
”
WRX
RDX “
““
“1”
””
”
D15
D14
D13
D12
D11
D10
D9
D8
Pixel n Pixel n+1
12 bits 12 bits
R1 G1 B1 R2 G2 B2 R3 G3 B3
18 bits
Frame memory
R1, Bit 3
0
R1, Bit 2
0
R1, Bit 1
1
R1, Bit 0
0
1
1
0
0
D7
D6
D5
D4
D3
D2
D1
D0
-
-
-
-
B1, Bit 3
B1, Bit 2
B1, Bit 1
B1, Bit 0
G2, Bit 3
G2, Bit 2
G2, Bit 1
G2, Bit 0
R2, Bit 3
R2, Bit 2
R2, Bit 1
R2, Bit 0
-
-
-
-
B2, Bit 3
B2, Bit 2
B2, Bit 1
B2, Bit 0
G3, Bit 3
G3, Bit 2
G3, Bit 1
G3, Bit 0
R3, Bit 3
R3, Bit 2
R3, Bit 1
R3, Bit 0
-
-
-
-
B3, Bit 3
B3, Bit 2
B3, Bit 1
B3, Bit 0
G4, Bit 3
G4, Bit 2
G4, Bit 1
G4, Bit 0
R4, Bit 3
R4, Bit 2
R4, Bit 1
R4, Bit 0
-
-
-
-
B4, Bit 3
B4, Bit 2
B4, Bit 1
B4, Bit 0
Pixel n+2 Pixel n+3
Look-Up Table for 4096 Color data mapping (12 bits to 18 bits)
-
-
D17 -
-
-
-
-
-
-
-
D16
Note 1: The data order is as follows, MSB=D11, LSB=D0 and picture data is MSB=Bit 3, LSB=Bit 0 for Red, Green and Blue data.
Note 2: 1-times transfer is used to transmit 1 pixel data with the 12-bit color depth information.
ST7735R
V0.2 49 2009-08-05
9.8.13 18-bit data bus for 16-bit/pixel (RGB 5-6-5-bit input), 65K-Colors, 3AH=“05h”
There is 1 pixel (3 sub-pixels) per 1 byte
-
-
-
-
G1, Bit 3
-
G1, Bit 2
-
G1, Bit 1
-
G1, Bit 0
-
8080-series control pins
RESX
IM[2:0]
CSX
D/CX
“
““
“1”
””
”
“
““
“111”
””
”
WRX
RDX
“
““
“1”
””
”
D15
D14
D13
D12
D11
D10
D9
D8
Pixel n Pixel n+1
16 bits 16 bits
R1 G1 B1 R2 G2 B2 R3 G3 B3
18 bits
Frame memory
R1, Bit 3
0
R1, Bit 2
0
R1, Bit 1
1
R1, Bit 0
0
1
1
0
0
D7
D6
D5
D4
D3
D2
D1
D0
B1, Bit 3
B1, Bit 2
B1, Bit 1
B1, Bit 0
G2, Bit 3
G2, Bit 2
G2, Bit 1
G2, Bit 0
R2, Bit 3
R2, Bit 2
R2, Bit 1
R2, Bit 0
B2, Bit 3
B2, Bit 2
B2, Bit 1
B2, Bit 0
G3, Bit 3
G3, Bit 2
G3, Bit 1
G3, Bit 0
R3, Bit 3
R3, Bit 2
R3, Bit 1
R3, Bit 0
B3, Bit 3
B3, Bit 2
B3, Bit 1
B3, Bit 0
G4, Bit 3
G4, Bit 2
G4, Bit 1
G4, Bit 0
R4, Bit 3
R4, Bit 2
R4, Bit 1
R4, Bit 0
B4, Bit 3
B4, Bit 2
B4, Bit 1
B4, Bit 0
Pixel n+2 Pixel n+3
Look-up table for 65k color data mapping (16 bits to 18 bits)
-
-
D17
-
-
-
-
-
-
-
-
D16
R1, Bit 4 R2, Bit 4 R3, Bit 4 R4, Bit 4
G1, Bit 5
G1, Bit 4
G2, Bit 5
G2, Bit 4
G3, Bit 5
G3, Bit 4
G4, Bit 5
G4, Bit 4
B1, Bit 4 B2, Bit 4 B3, Bit 4 B4, Bit 4
Note 1: The data order is as follows, MSB=D15, LSB=D0 and picture data is MSB=Bit 5, LSB=Bit 0 for Green, and MSB=Bit 4, LSB=Bit 0
for Red and Blue data.
Note 2: 1-time transfer is used to transmit 1 pixel data with the 16-bit color depth information.
3..
ST7735R
V0.2 50 2009-08-05

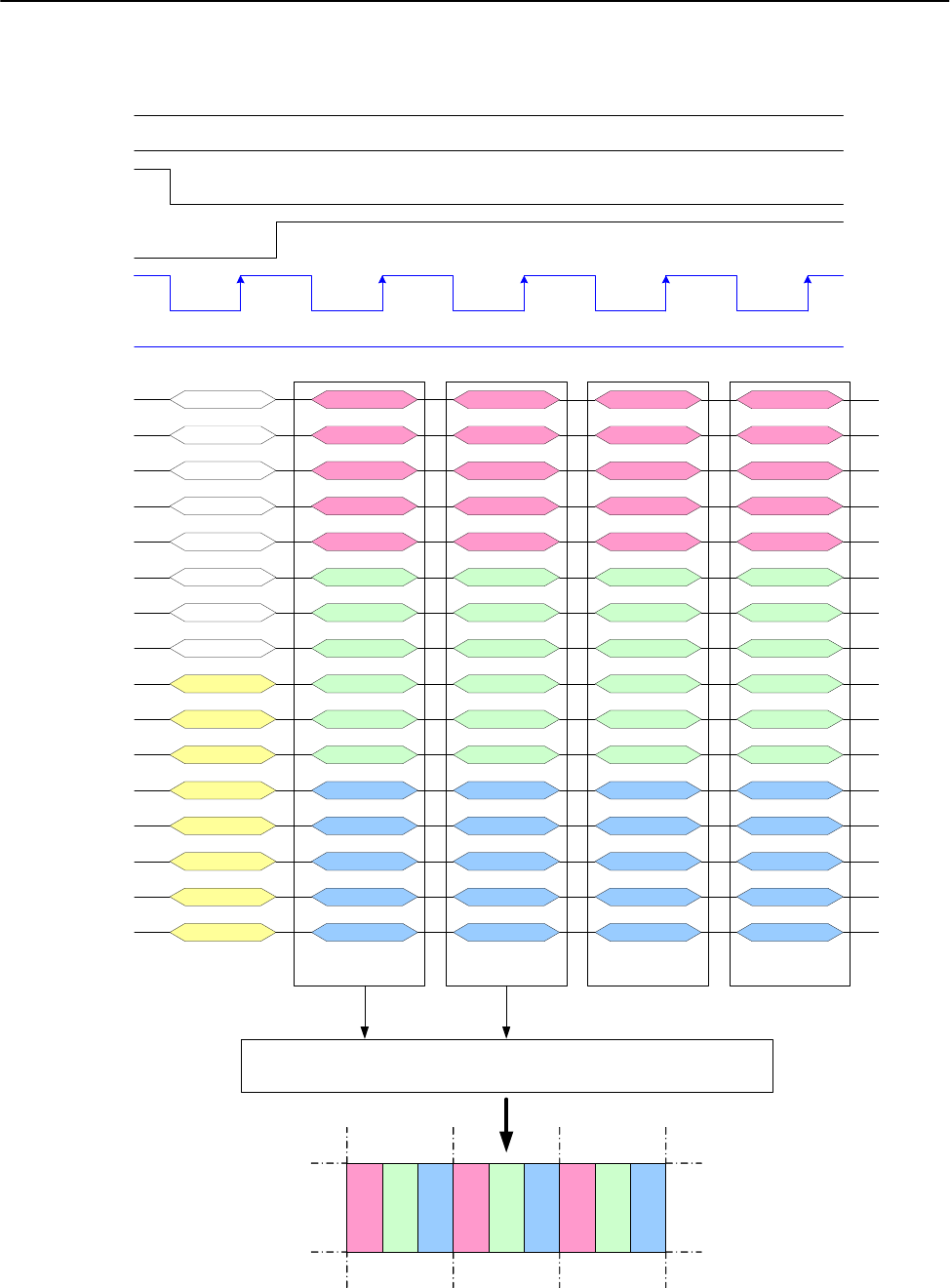

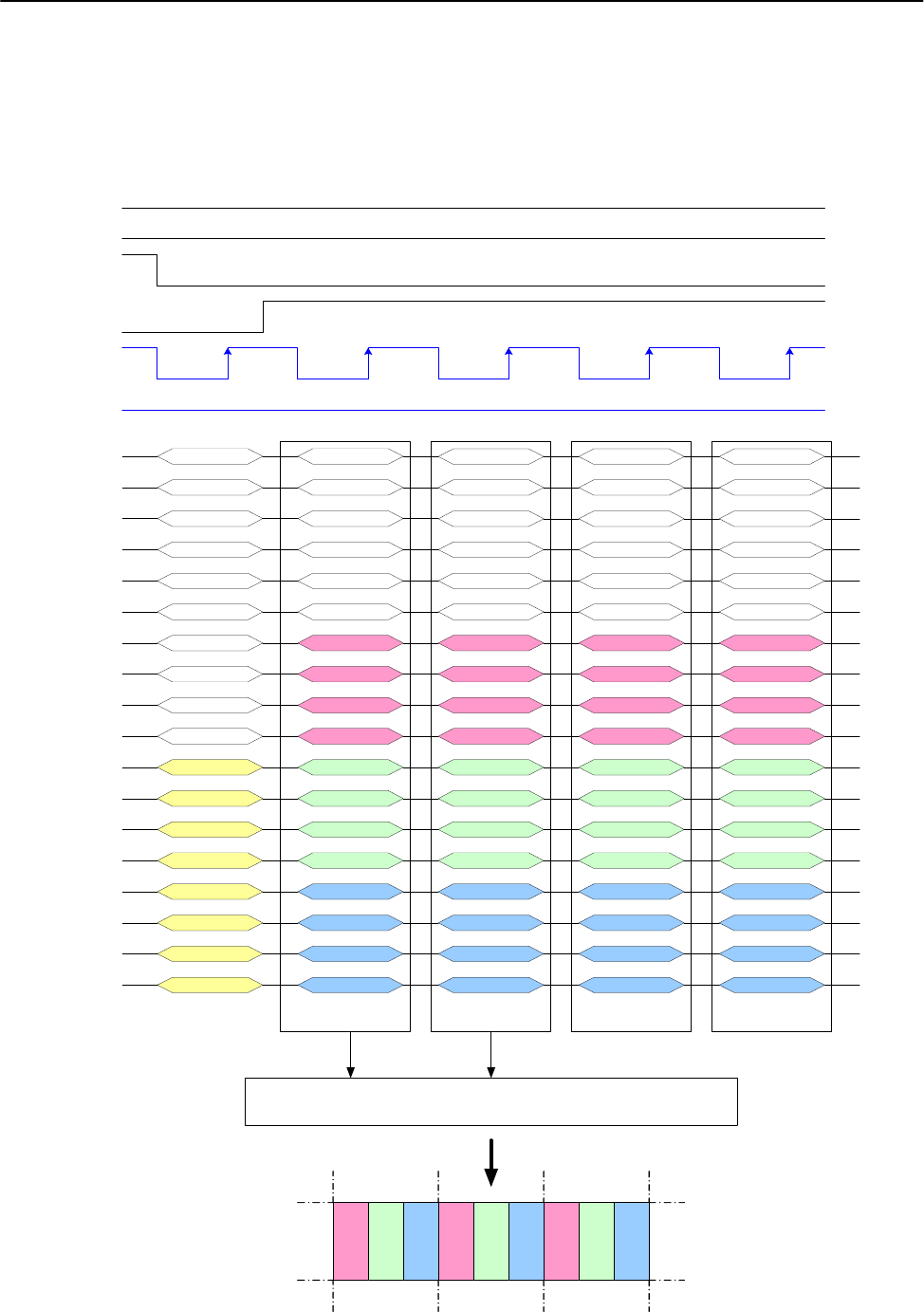

9.8.14 18-bit data bus for 18-bit/pixel (RGB 6-6-6-bit input), 262K-Colors, 3AH=“06h”
There is 1 pixel (3 sub-pixels) per 1 byte
-
-
-
-
G1, Bit 3
-
G1, Bit 2
-
G1, Bit 1
-
G1, Bit 0
-
8080-series control pins
RESX
IM[2:0]
CSX
D/CX
“
““
“1”
””
”
“
““
“111”
””
”
WRX
RDX
“
““
“1”
””
”
D15
D14
D13
D12
D11
D10
D9
D8
Pixel n Pixel n+1
18 bits 18 bits
R1 G1 B1 R2 G2 B2 R3 G3 B3
Frame memory
R1, Bit 3
0
R1, Bit 2
0
R1, Bit 1
1
R1, Bit 0
0
1
1
0
0
D7
D6
D5
D4
D3
D2
D1
D0
B1, Bit 3
B1, Bit 2
B1, Bit 1
B1, Bit 0
G2, Bit 3
G2, Bit 2
G2, Bit 1
G2, Bit 0
R2, Bit 3
R2, Bit 2
R2, Bit 1
R2, Bit 0
B2, Bit 3
B2, Bit 2
B2, Bit 1
B2, Bit 0
G3, Bit 3
G3, Bit 2
G3, Bit 1
G3, Bit 0
R3, Bit 3
R3, Bit 2
R3, Bit 1
R3, Bit 0
B3, Bit 3
B3, Bit 2
B3, Bit 1
B3, Bit 0
G4, Bit 3
G4, Bit 2
G4, Bit 1
G4, Bit 0
R4, Bit 3
R4, Bit 2
R4, Bit 1
R4, Bit 0
B4, Bit 3
B4, Bit 2
B4, Bit 1
B4, Bit 0
Pixel n+2 Pixel n+3
-
-
D17
D16
R1, Bit 4 R2, Bit 4 R3, Bit 4 R4, Bit 4
G1, Bit 5
G1, Bit 4
G2, Bit 5
G2, Bit 4
G3, Bit 5
G3, Bit 4
G4, Bit 5
G4, Bit 4
B1, Bit 4 B2, Bit 4 B3, Bit 4 B4, Bit 4
R1, Bit 5 R2, Bit 5 R3, Bit 5 R4, Bit 5
B1, Bit 5 B2, Bit 5 B3, Bit 5 B4, Bit 5
Note 1: The data order is as follows, MSB=D17, LSB=D0 and picture data is MSB=Bit 5, LSB=Bit 0 for Read, Green and Blue data.
Note 2: 1-times transfer (D17o D0) is used to transmit 1 pixel data with the 18-bit color depth information.
RESX ”1n
IM2 ImwMHMk‘D‘
CSX
mmDeDstaDzmmoamusnsmmnzmmmmneusmmmmDo
59“ C) ‘ @Efifififlfififlflfifi “QEEQIQEQQEEEI
Puxew n
mew rm
SCL
12m 1st
Look-up table {or 4096 color data mapping (12biIsI018biIs)
* 18m: ‘
‘
‘
‘ ‘
Frame memory
(31
. ‘
ST7735R
V0.2 51 2009-08-05
9.8.15 3-line serial Interface
Different display data formats are available for three colors depth supported by the LCM listed below.
4k colors, RGB 4-4-4-bit input
65k colors, RGB 5-6-5-bit input
262k colors, RGB 6-6-6-bit input

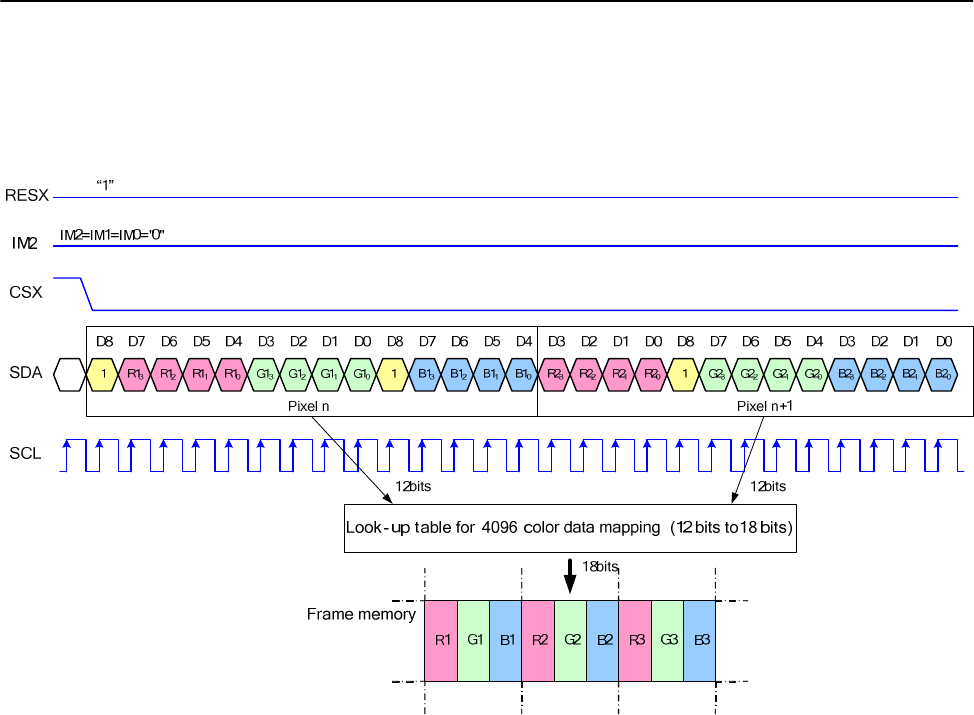

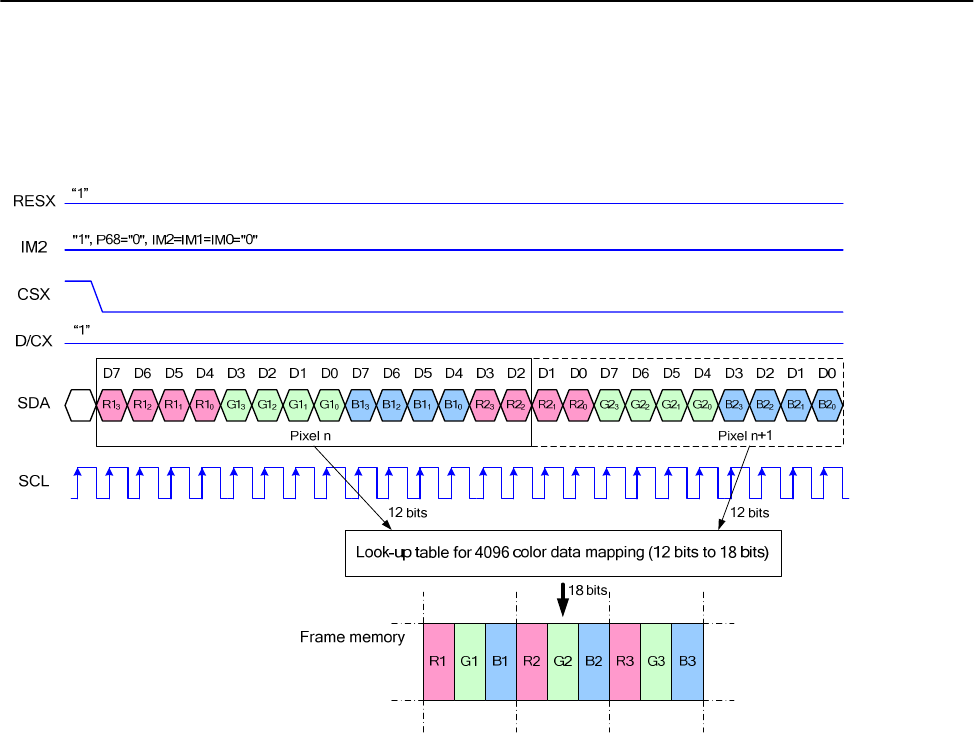

9.8.16 Write data for 12-bit/pixel (RGB 4-4-4-bit input), 4K-Colors, 3AH=“03h”
Note 1: Pixel data with the 12-bit color depth information
Note 2: The most significant bits are: Rx3, Gx3 and Bx3
Note 3: The least significant bits are: Rx0, Gx0 and Bx0
SDA C)
\M2=wn 4Mm'0‘
men n
D8D7mD5D4D3D2D1mDBD7mD5DAD3D2DIDO
DamneDsDADammno;
555555555
men m
Look-up table for 55k onlor data mapping (16 mg m 18 bits)
Frame memory
ST7735R
V0.2 52 2009-08-05

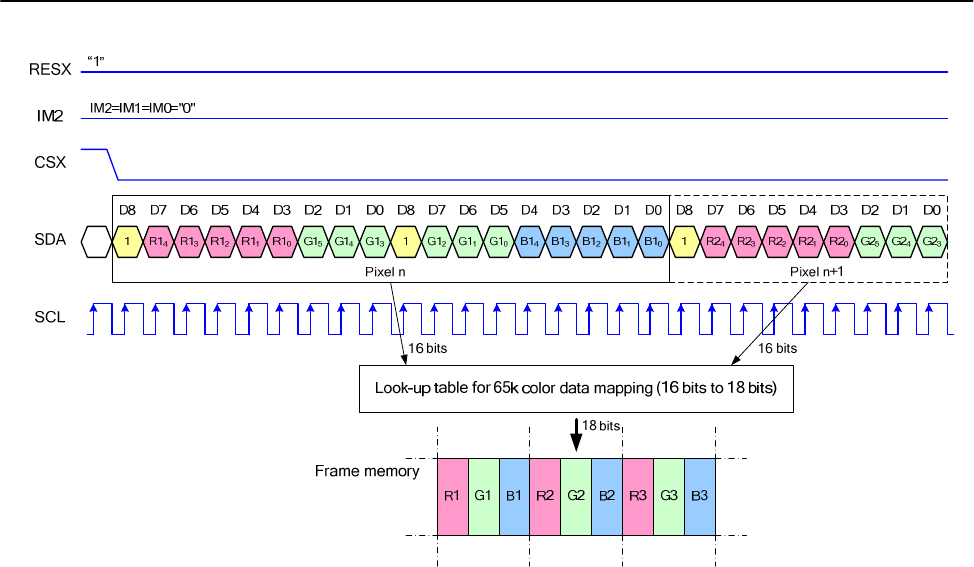

9.8.17 Write data for 16-bit/pixel (RGB 5-6-5-bit input), 65K-Colors, 3AH=“05h”
Note 1: Pixel data with the 16-bit color depth information
Note 2: The most significant bits are: Rx4, Gx5 and Bx4
Note 3: The least significant bits are: Rx0, Gx0 and Bx0
RESX '1"
W2 \M2=\Ml=wlk"0‘
CSX
DBWDGDSDADSDZDWDOD8D7D6D5D4D3D2DIDUDEWDSDSDADSDZDWDO
50" C) ‘ @flfl@flfliiflflflflflflflllflflflflflflfli ,
men n
\
‘ Habns ‘ ‘
‘ ‘ v
Frame memory
maimmezaznaa'slss
ST7735R
V0.2 53 2009-08-05

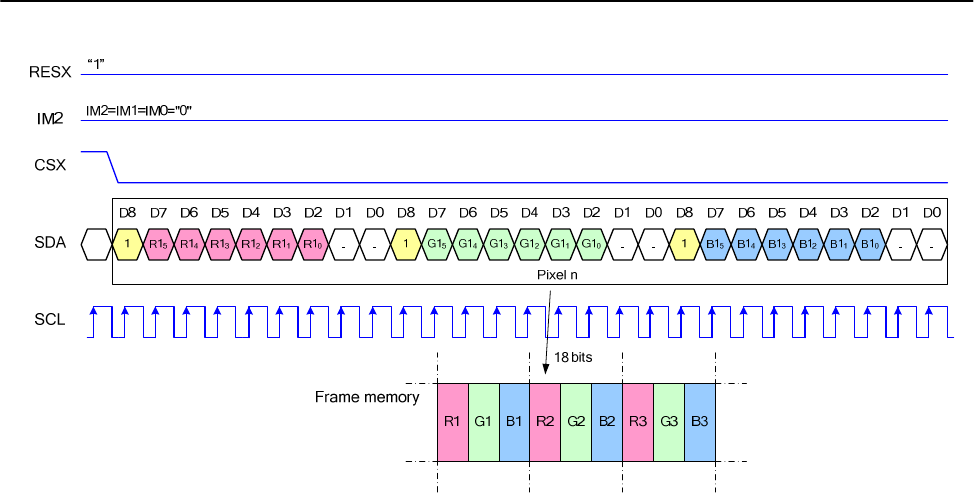

9.8.18 Write data for 18-bit/pixel (RGB 6-6-6-bit input), 262K-Colors, 3AH=“06h”
Note 1: Pixel data with the 18-bit color depth information
Note 2: The most significant bits are: Rx5, Gx5 and Bx5
Note 3: The least significant bits are: Rx0, Gx0 and Bx0
RESX ""
|M2
CSX
D/CX
SDA
SCL
-r F68:"0‘, \wqwamk-‘o‘
mew n
0706050403920101307060504030szDoD7DstDADsDszo1
O@@@@@@@@@@@@@ "a @fiééaéfififiI
men ml
LDDk—Lp 'able for 4096 onlclr data mappmg (12 DIE lo 18 bits)
yam;
Frame memnw HIHHHEEIH
ST7735R
V0.2 54 2009-08-05
9.8.19 4-line serial Interface
Different display data formats are available for three colors depth supported by the LCM listed below.
4k colors, RGB 4-4-4-bit input
65k colors, RGB 5-6-5-bit input
262k colors, RGB 6-6-6-bit input
9.8.20 Write data for 12-bit/pixel (RGB 4-4-4-bit input), 4K-Colors, 3AH=“03h”
Note 1. pixel data with the 12-bit color depth information
Note 2. The most significant bits are: Rx3, Gx3 and Bx3
Note 3. The least significant bits are: Rx0, Gx0 and Bx0
RESX “1"
M '11' Psasvx 1M2=1M1=IW"U‘
CSX
D/CX 1
D7D6D5D4D3D2D1DOD7D5D5D4D3D2D1DOD7D6D5D4D3D2D1D01
8mQaaammaaaeaaaaeaaaaaaaaaa
P1xeln P1xe1n+1 1
SCL
\v15bfls 16bus
Look-upheb‘e (or 65k color data mapping (15 bus lo 18 ms)
1 1 IE D1151 1
1 1 1 1
mee memo}; 7 7
R1G1B1R282Hm6333
RESX “"
IM2
csx
D/CX '1'
D7D5D5DAD$DQDIDOD7D5D5DAD$D2D1D007D5D5D4D3D201Do
5mOflflflfiflflllflafi@QQQQQQQQQQQI
P1xe1 n
1
1 1 lmbus 1 1
Frame memory
R1G1B1R26252R36353
ST7735R
V0.2 55 2009-08-05

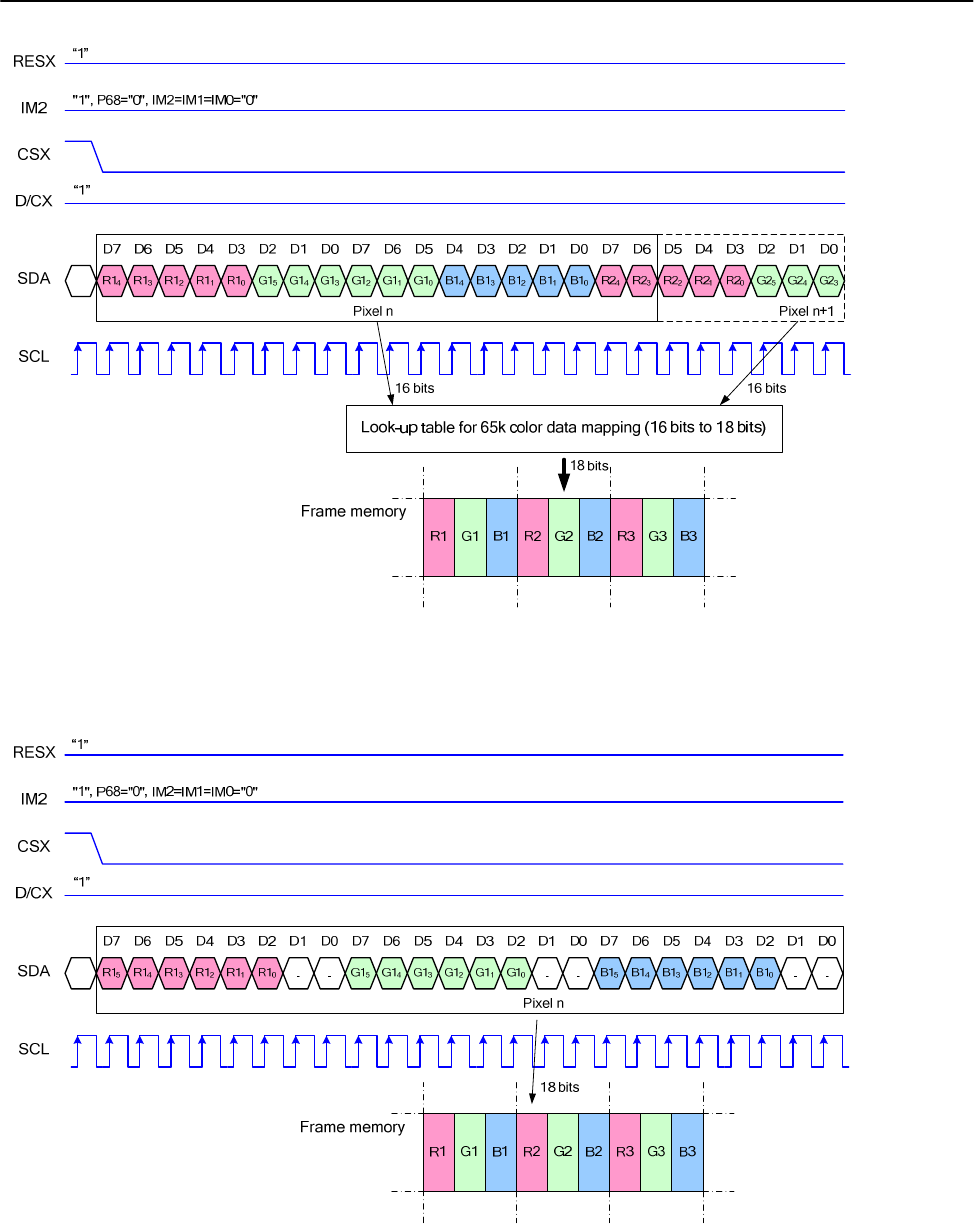

9.8.21 Write data for 16-bit/pixel (RGB 5-6-5-bit input), 65K-Colors, 3AH=“05h”
Note 1. pixel data with the 16-bit color depth information
Note 2. The most significant bits are: Rx4, Gx5 and Bx4
Note 3. The least significant bits are: Rx0, Gx0 and Bx0
9.8.22 Write data for 18-bit/pixel (RGB 6-6-6-bit input), 262K-Colors, 3AH=“06h”
Note 1. pixel data with the 18-bit color depth information
Note 2. The most significant bits are: Rx5, Gx5 and Bx5
Note 3. The least significant bits are: Rx0, Gx0 and Bx0
TFVLED panel
(132x RGB x162)
Dwm darn RAM
(132 X16). X lS-bns)
L1 nc
add! us
coumer
Scan
add! us
coumer
[\ICL ,, .
W 4» LL I
Ru .»
Add! a»
LOLHHL‘V
Com mn
add! us
Hon interface
counm I
ST7735R
V0.2 56 2009-08-05
9.9 Display Data RAM
9.9.1 Configuration (GM[1:0] = “00”)
The display module has an integrated 132x162x18-bit graphic type static RAM. This 384,912-bit memory allows storing
on-chip a 132xRGBx162 image with an 18-bpp resolution (262K-color). There will be no abnormal visible effect on the
display when there is a simultaneous Panel Read and Interface Read or Write to the same location of the Frame Memory.
Figure 9.9.1Display data RAM organization
ST7735R
V0.2 57 2009-08-05

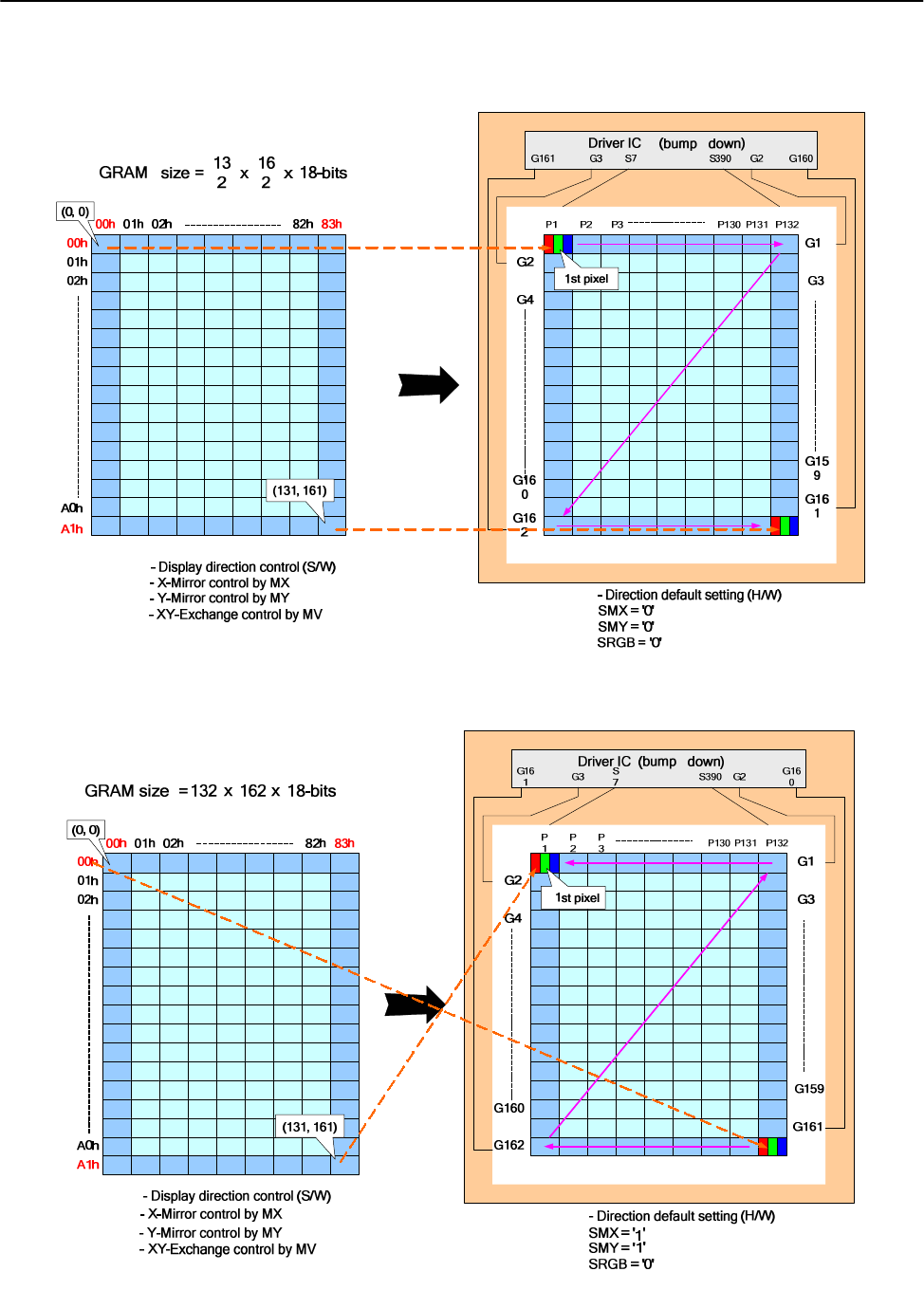

9.9.2 Memory to Display Address Mapping

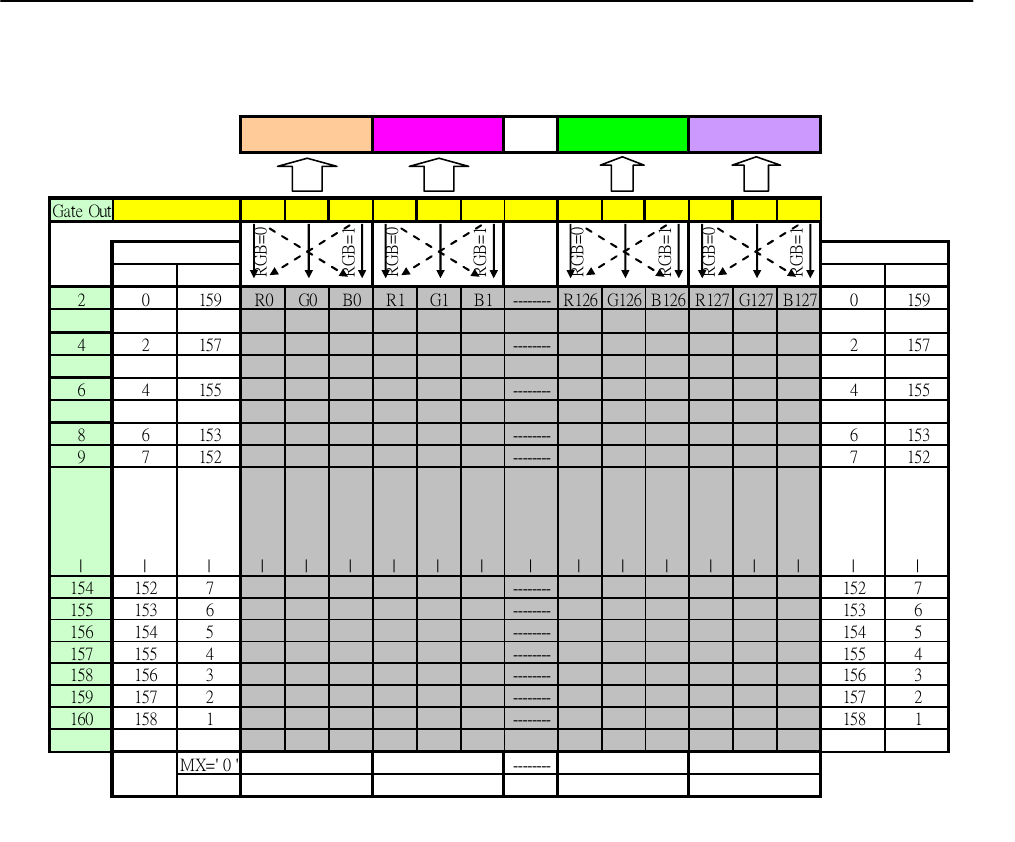

9.9.3 When using 128RGB x 160 resolution (GM[1:0] = “11”, SMX=SMY=SRGB= ‘0’)
--------
Gate Out
S7 S8 S9 S10 S11 S12 -------- S385 S386 S387 S388 S389 S390
MY=' 0 ' MY=' 1 ' ML=' 0 ' ML=' 1 '
2 0 159 R0 G0 B0 R1 G1 B1 -------- R126 G126 B126 R127 G127 B127 0 159
3 1 158 -------- 1 158
4 2 157 -------- 2 157
5 3 156 -------- 3 156
6 4 155 -------- 4 155
7 5 154 -------- 5 154
8 6 153 -------- 6 153
9 7 152 -------- 7 152
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
154 152 7 -------- 152 7
155 153 6 -------- 153 6
156 154 5 -------- 154 5
157 155 4 -------- 155 4
158 156 3 -------- 156 3
159 157 2 -------- 157 2
160 158 1 -------- 158 1
161 159 0 -------- 159 0
MX=' 0 ' --------
MX=' 1 ' --------
Pixel 1 Pixel 2 Pixel 127 Pixel 128
Source Out
RGB=0
RGB=1
RGB=0
RGB=1
RGB
Order
RGB=0
RGB=1
RGB=0
RGB=1
RA SA
CA 0 1 126 127
127 126 1 0
Note
RA = Row Address,
CA = Column Address
SA = Scan Address
MX = Mirror X-axis (Column address direction parameter), D6 parameter of MADCTL command
MY = Mirror Y-axis (Row address direction parameter), D7 parameter of MADCTL command
ML = Scan direction parameter, D4 parameter of MADCTL command
RGB = Red, Green and Blue pixel position change, D3 parameter of MADCTL command
1(11 RU ' ' R131 0131 15131 R132 (1132 15132
100
15‘?
15?;
157
150
155
15-1
ST7735R
V0.2 58 2009-08-05
9.9.4 When using 132RGB x 162 resolution (GM[1:0] = “00”, SMX=SMY=SRGB= ‘0’)
--------
Gate Out
S1 S2 S3 S4 S5 S6 -------- S391 S392 S393 S394 S395 S396
MY=' 0 ' MY=' 1 ' ML=' 0 ' ML=' 1 '
1 0 161 R0 G0 B0 R1 G1 B1 -------- R131 G131 B131 R132 G132 B132 0 161
2 1 160 -------- 1 160
3 2 159 -------- 2 159
4 3 158 -------- 3 158
5 4 157 -------- 4 157
6 5 156 -------- 5 156
7 6 155 -------- 6 155
8 7 154 -------- 7 154
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
155 154 7 -------- 154 7
156 155 6 -------- 155 6
157 156 5 -------- 156 5
158 157 4 -------- 157 4
159 158 3 -------- 158 3
160 159 2 -------- 159 2
161 160 1 -------- 160 1
162 161 0 -------- 161 0
MX=' 0 ' --------
MX=' 1 ' --------
Pixel 1 Pixel 2 Pixel 131 Pixel 132
Source Out
RGB=0
RGB=1
RGB=0
RGB=1
RGB
Order
RGB=0
RGB=1
RGB=0
RGB=1
RA SA
CA 0 1 130 131
131 130 1 0
Note
RA = Row Address,
CA = Column Address
SA = Scan Address
MX = Mirror X-axis (Column address direction parameter), D6 parameter of MADCTL command
MY = Mirror Y-axis (Row address direction parameter), D7 parameter of MADCTL command
ML = Scan direction parameter, D4 parameter of MADCTL command
RGB = Red, Green and Blue pixel position change, D3 parameter of MADCTL command
UH 9L
ST7735R
V0.2 59 2009-08-05

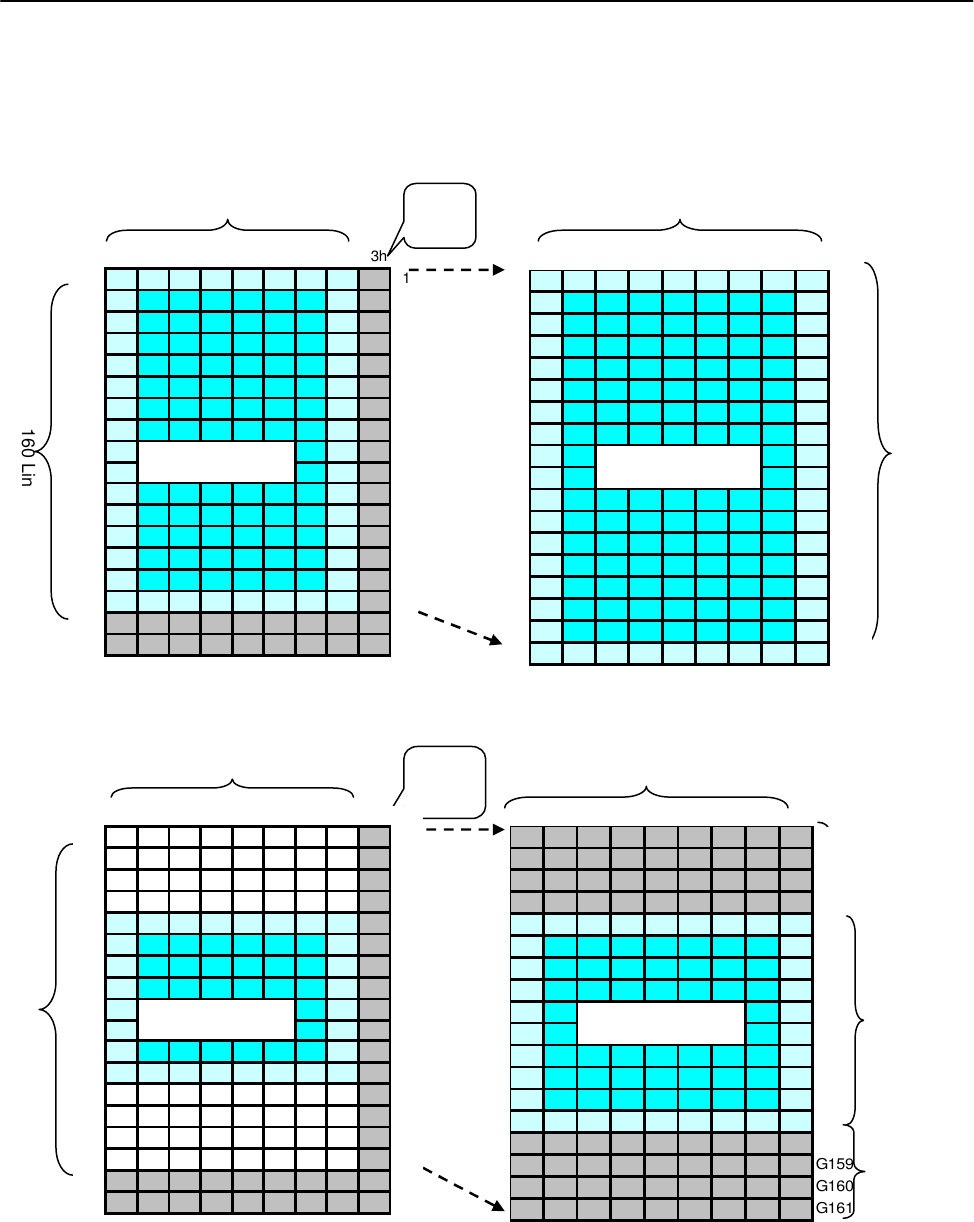

9.9.5 Normal Display On or Partial Mode On
9.9.6 When using 128RGB x 160 resolution (GM[1:0] = “11”)
In this mode, the content of the frame memory within an area where column pointer is 00h to 7Fh and page pointer is 00h to
9Fh is displayed. To display a dot on leftmost top corner, store the dot data at (column pointer, row pointer) = (0, 0).
1). Example for Normal Display On (MX=MY=ML=’0’, SMX=SMY=’0’)
2). Example for Partial Display On (PSL[7:0]=04h,PEL[7:0]=9Bh, MX=MV=ML=’0’ ,SMX=SMY=’0’)
128 Columns
00h 01h ---- ---- 76h 77h ---- 7Fh 83h
00h 00 01 0Y 0Z 1
01h 10 11 1Y 1Z 2
02h 20 21 2Y 2Z 3
| 30 31 3Y 3Z |
| 40 41 4Y 4Z |
| 50 51 5Y 5Z |
| 60 6Z |
| |
| |
| |
| |
| |
| |
| X0 X1 X2 XX XY XZ 158
9Eh Y0 Y1 Y2 Y3 YW YX YY YZ 159
9Fh Z0 Z1 Z2 Z3 ZW ZX ZY ZZ 160
A0h
A1h
128 x 160 x18bit
Frame RAM
128 Columns
160 Lines
Display area =160 lines
Scan
Order
00 01 02 03 0W 0X 0Y 0Z G2
10 11 12 13 1W 1X 1Y 1Z G3
20 21 22 2X 2Y 2Z G4
30 31 32 3X 3Y 3Z |
40 41 42 4X 4Y 4Z |
50 51 5Y 5Z |
60 6Z |
|
|
|
|
S0 SZ |
U0 U1 UY UZ |
V0 V1 V2 VX VY VZ |
W0 W1 W2 WX WY WZ |
X0 X1 X2 XX XY XZ G159
Y0 Y1 Y2 Y3 YW YX YY YZ G160
Z0 Z1 Z2 Z3 ZW ZX ZY ZZ G161
128RGB x 160
LCD Panel
128 Columns
128 Columns
160 Lines
Scan
Order
00 01 02 03 0W 0X 0Y 0Z G2
10 11 12 13 1W 1X 1Y 1Z G3
20 21 22 2X 2Y 2Z G4
30 31 32 3X 3Y 3Z |
40 41 42 4X 4Y 4Z |
50 51 5Y 5Z |
60 6Z |
|
|
|
|
S0 SZ |
U0 U1 UY UZ |
V0 V1 V2 VX VY VZ |
W0 W1 W2 WX WY WZ |
X0 X1 X2 XX XY XZ G159
Y0 Y1 Y2 Y3 YW YX YY YZ G160
Z0 Z1 Z2 Z3 ZW ZX ZY ZZ G161
128RGB x 160
LCD Panel
Non-Display
area =4 lines
Display area
=152 lines
Non-Display
area =4 lines
00h 01h ---- ---- 76h 77h ---- 7Fh 83h
00h 00 01 0Y 0Z 1
01h 10 11 1Y 1Z 2
02h 20 21 2Y 2Z 3
| 30 31 3Y 3Z |
| 40 41 4Y 4Z |
| 50 51 5Y 5Z |
| 60 6Z |
| |
| |
| |
| U0 U1 UY UZ |
| V0 V1 VX VY VZ |
| W0 W1 W2 WX WY WZ |
| X0 X1 X2 XX XY XZ 158
9Eh Y0 Y1 Y2 Y3 YW YX YY YZ 159
9Fh Z0 Z1 Z2 Z3 ZW ZX ZY ZZ 160
A0h
A1h
128 x 160 x18bit
Frame RAM
mm
m
(3160
(3161
(3162
ST7735R
V0.2 60 2009-08-05
9.9.7 When using 132RGB x 162 resolution (GM[1:0] = “00”)
In this mode, contents of the frame memory within an area where column pointer is 00h to 83h and page pointer is 00h to
A1h is displayed. To display a dot on leftmost top corner, store the dot data at (column pointer, row pointer) = (0, 0)
1). Example for Normal Display On (MX=MY=ML=’0’, SMX=SMY=’0’)
2). Example for Partial Display On (PSL[7:0]=04h,PEL[7:0]=9Dh, MX=MV=ML=’0’ ,SMX=SMY=’0’)
132 Columns
00h 01h ---- ---- ---- ---- ---- 81h 83h
00h 00 01 02 03 0W 0X 0Y 0Z 1
01h 10 11 12 13 1W 1X 1Y 1Z 2
02h 20 21 22 2X 2Y 2Z 3
| 30 31 32 3X 3Y 3Z |
| 40 41 42 4X 4Y 4Z |
| 50 51 5Y 5Z |
| 60 6Z |
| |
| |
| |
| |
| S0 SZ |
| U0 U1 UY UZ |
| V0 V1 V2 VX VY VZ |
| W0 W1 W2 WX WY WZ |
9Fh X0 X1 X2 XX XY XZ 160
A0h Y0 Y1 Y2 Y3 YW YX YY YZ 161
A1h Z0 Z1 Z2 Z3 ZW ZX ZY ZZ 162
132 x 162 x18 bit
Frame RAM
132 Columns
162 Lines
Display area =162 lines
Scan
Order
00 01 02 03 0W 0X 0Y 0Z G1
10 11 12 13 1W 1X 1Y 1Z G2
20 21 22 2X 2Y 2Z G3
30 31 32 3X 3Y 3Z |
40 41 42 4X 4Y 4Z |
50 51 5Y 5Z |
60 6Z |
|
|
|
|
S0 SZ |
U0 U1 UY UZ |
V 0 V 1 V 2 V X V Y V Z |
W0 W1 W 2 WX WY WZ |
X0 X1 X2 X X XY X Z
G160
Y0 Y 1 Y2 Y 3 YW YX YY YZ
G161
Z0 Z 1 Z2 Z 3 ZW ZX ZY ZZ
G162
132R G B x 162
132R G B x 162132R G B x 162
132R G B x 162
LC D Panel
LC D PanelLC D Panel
LC D Panel
132 Columns
00h 01h ---- ---- ---- ---- ---- 81h 83h
00h 00 01 02 03 0W 0X 0Y 0Z 1
01h 10 11 12 13 1W 1X 1Y 1Z 2
02h 20 21 22 2X 2Y 2Z 3
| 30 31 32 3X 3Y 3Z |
| 40 41 42 4X 4Y 4Z |
| 50 51 5Y 5Z |
| 60 6Z |
| |
| |
| |
| |
| S0 SZ |
| U0 U1 UY UZ |
9Dh V0 V1 V2 VX VY VZ |
9Eh W0 W1 W2 WX WY WZ |
9Fh X0 X1 X2 XX XY XZ 160
A0h Y0 Y1 Y2 Y3 YW YX YY YZ 161
A1h Z0 Z1 Z2 Z3 ZW ZX ZY ZZ 162
132 x 162 x18 bit
Frame RAM
132 Columns
162 Lines
Scan
Order
00 01 02 03 0W 0X 0Y 0Z G1
10 11 12 13 1W 1X 1Y 1Z G2
20 21 22 2X 2Y 2Z G3
30 31 32 3X 3Y 3Z |
40 41 42 4X 4Y 4Z |
50 51 5Y 5Z |
60 6Z |
|
|
|
|
S0 SZ |
U0 U1 UY UZ |
V0 V1 V2 VX VY VZ |
W0 W1 W2 WX WY WZ |
X0 X1 X2 XX XY XZ G160
Y0 Y1 Y2 Y3 YW YX YY YZ G161
Z0 Z1 Z2 Z3 ZW ZX ZY ZZ G162
132RGB x 162
LCD Panel
Non-Displa
y area =4
lines
Display
area =155
lines
Non-Displa
y area
=4lines
ST7735R
V0.2 61 2009-08-05
9.10 Address Counter
The address counter sets the addresses of the display data RAM for writing and reading.
Data is written pixel-wise into the RAM matrix of DRIVER. The data for one pixel or two pixels is collected (RGB 6-6-6-bit),
according to the data formats. As soon as this pixel-data information is complete the “Write access” is activated on the RAM.
The locations of RAM are addressed by the address pointers. The address ranges are X=0 to X=131 (83h) and Y=0 to
Y=161 (A1h). Addresses outside these ranges are not allowed. Before writing to the RAM, a window must be defined that
will be written. The window is programmable via the command registers XS, YS designating the start address and XE, YE
designating the end address.
For example the whole display contents will be written, the window is defined by the following values: XS=0 (0h) YS=0 (0h)
and XE=127 (83h), YE=161 (A1h).
In vertical addressing mode (MV=1), the Y-address increments after each byte, after the last Y-address (Y=YE), Y wraps
around to YS and X increments to address the next column. In horizontal addressing mode (V=0), the X-address
increments after each byte, after the last X-address (X=XE), X wraps around to XS and Y increments to address the next
row. After the every last address (X=XE and Y=YE) the address pointers wrap around to address (X=XS and Y=YS).
For flexibility in handling a wide variety of display architectures, the commands “CASET, RASET and MADCTL” (see
section 10 command list), define flags MX and MY, which allows mirroring of the X-address and Y-address. All combinations
of flags are allowed. Section 9.10 show the available combinations of writing to the display RAM. When MX, MY and MV will
be changed the data bust be rewritten to the display RAM.
For each image condition, the controls for the column and row counters apply as section 9.11 below
Condition Column Counter Row Counter
When RAMWR/RAMRD command is accepted Return to
“Start Column (XS)”
Return to
“Start Row (YS)”
Complete Pixel Read / Write action Increment by 1 No change
The Column counter value is larger than “End Column (XE)” Return to
“Start Column (XS)” Increment by 1
The Column counter value is larger than “End Column (XE)” and the Row
counter value is larger than “End Row (YE)”
Return to
“Start Column (XS)”
Return to
“Start Row (YS)”
D17 D16 D15 D14 D13 D12 D11 D10 DQ D8 D7 D5
B5
D3 D’Z D1 D0
B3 B2 B1 B0
88‘
E?
ST7735R
V0.2 62 2009-08-05

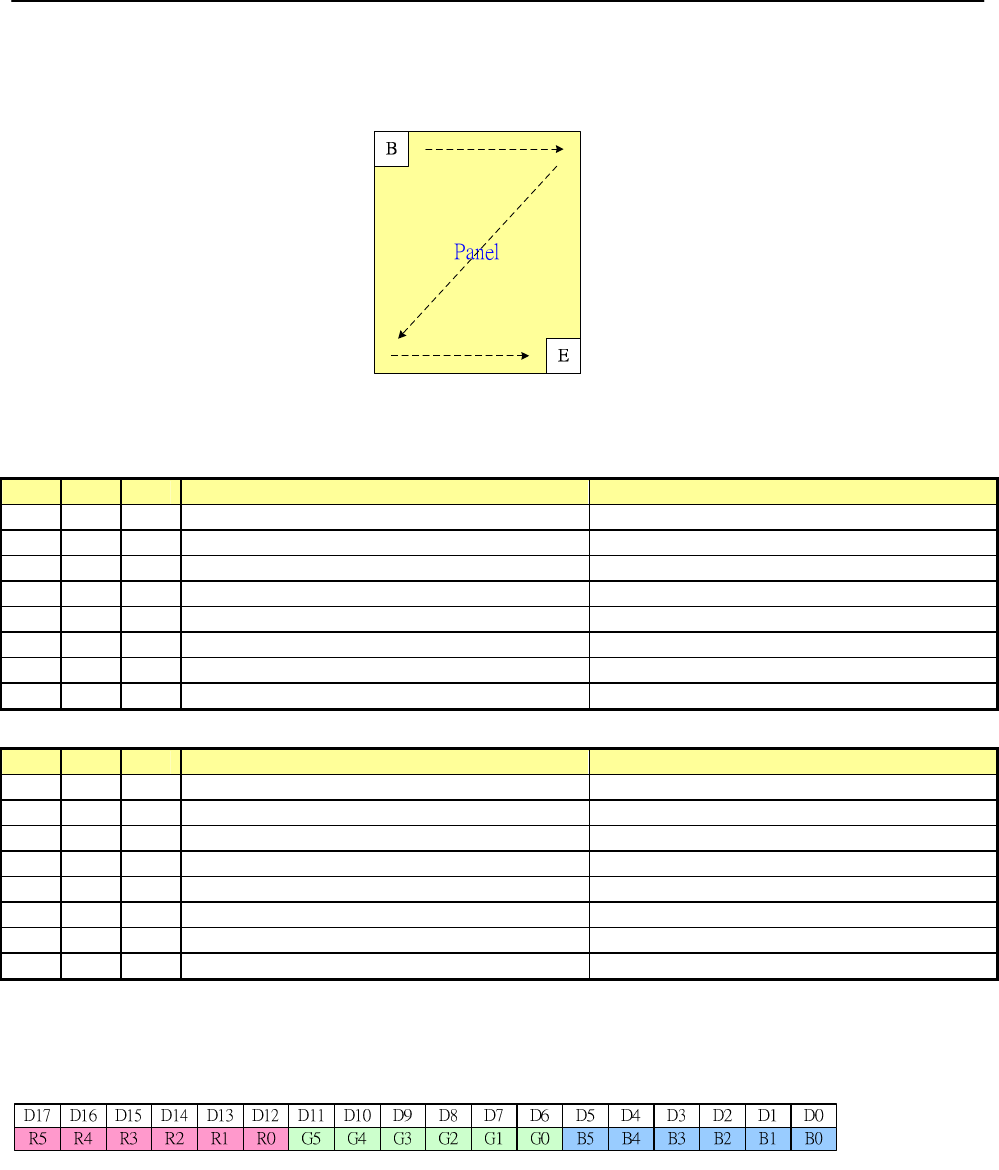

9.11 Memory Data Write/ Read Direction
The data is written in the order illustrated above. The Counter which dictates where in the physical memory the data is to be
written is controlled by “Memory Data Access Control” Command, bits B5 (MV), B6 (MX), B7 (MY) as described below.
Figure 9.11.1Data streaming order
9.11.1 When 128RGBx160 (GM= “11”)
MV
MX
MY
CASET RASET
0 0 0 Direct to Physical Column Pointer Direct to Physical Row Pointer
0 0 1 Direct to Physical Column Pointer Direct to (159-Physical Row Pointer)
0 1 0 Direct to (127-Physical Column Pointer) Direct to Physical Row Pointer
0 1 1 Direct to (127-Physical Column Pointer) Direct to (159-Physical Row Pointer)
1 0 0 Direct to Physical Row Pointer Direct to Physical Column Pointer
1 0 1 Direct to (159-Physical Row Pointer) Direct to Physical Column Pointer
1 1 0 Direct to Physical Row Pointer Direct to (127-Physical Column Pointer)
1 1 1 Direct to (159-Physical Row Pointer) Direct to (127-Physical Column Pointer)
9.11.2 When 132RGBx162 (GM= “00”)
MV
MX
MY
CASET RASET
0 0 0 Direct to Physical Column Pointer Direct to Physical Row Pointer
0 0 1 Direct to Physical Column Pointer Direct to (161-Physical Row Pointer)
0 1 0 Direct to (131-Physical Column Pointer) Direct to Physical Row Pointer
0 1 1 Direct to (131-Physical Column Pointer) Direct to (161-Physical Row Pointer)
1 0 0 Direct to Physical Row Pointer Direct to Physical Column Pointer
1 0 1 Direct to (161-Physical Row Pointer) Direct to Physical Column Pointer
1 1 0 Direct to Physical Row Pointer Direct to (131-Physical Column Pointer)
1 1 1 Direct to (161-Physical Row Pointer) Direct to (131-Physical Column Pointer)
Note: Data is always written to the Frame Memory in the same order, regardless of the Memory Write Direction set by MADCTL bits B7
(MY), B6 (MX), B5 (MV). The write order for each pixel unit is
One pixel unit represents 1 column and 1page counter value on the Frame Memory.
Panel
m m m m
m w w w
g $ $ $
m m m m
a a a a
a a a a
a .4 .4 a
v. v. y.
X X X
E a E ““““““ 3T “““““ vA “““““ a
r , ““““““ 4 “““““
, , A ““““““ +
H , _H
,
, ,
, W H—
, , , A ““““““
H , ““““““ v4 “““““
‘ ¢ 5 A “““““ fia ““““““ .755 ““““““
mm; W mm mm mm m mm m
mu, m om m mo w om w
ns n n
ms m gm m mg m gm m
we m mu m mm m mm m
on as o d a do 5
pm m «w p mm p mp w
my m wm w my. m vm m
HX H XH H HX H XH H
,E
37777777,,»
7»
$77,777,".
ST7735R
V0.2 63 2009-08-05

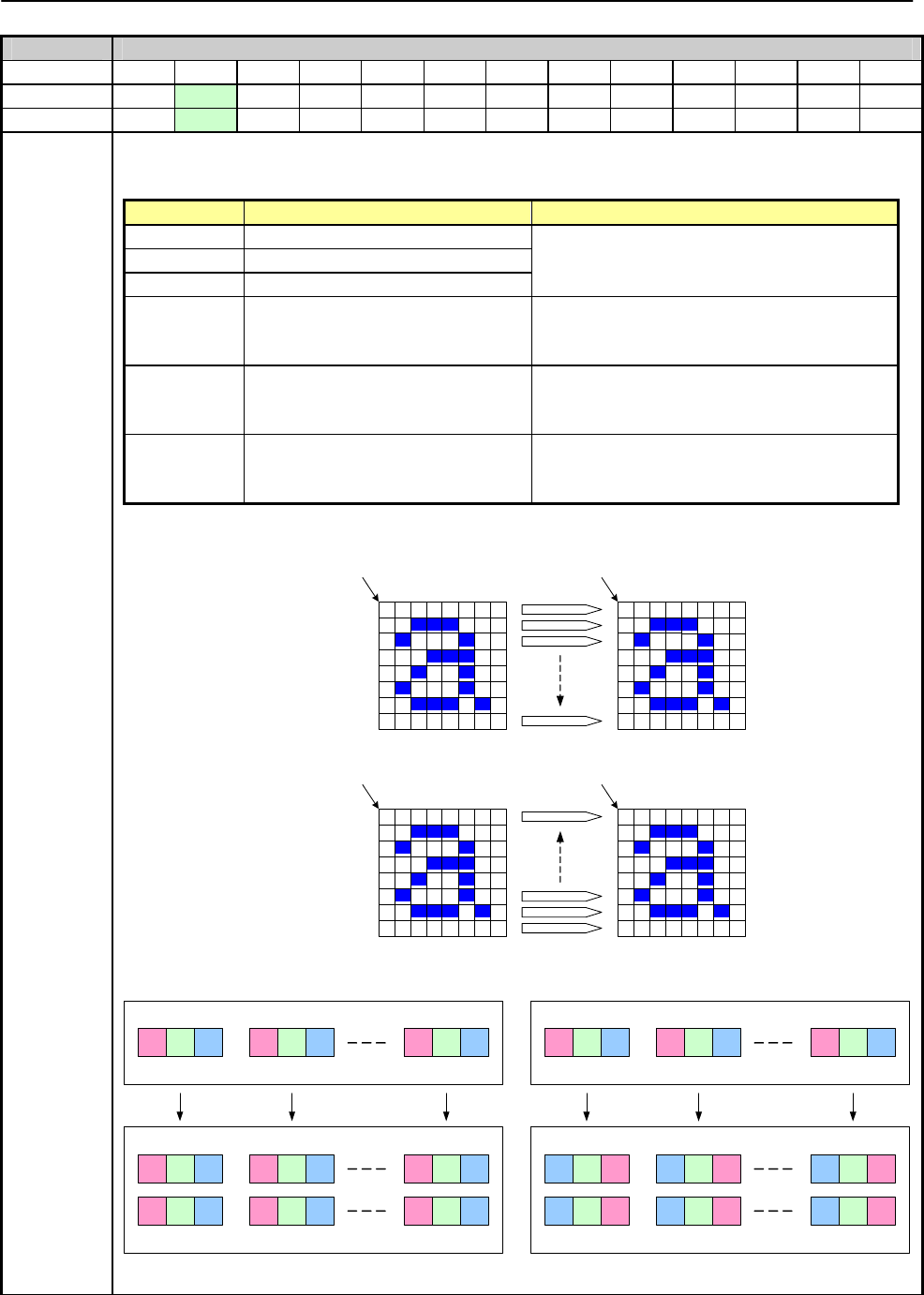

9.11.3 Frame Data Write Direction According to the MADCTL parameters (MV, MX and MY)
MADCTL
Parameter
Display Data
Direction MV
MX
MY
Image in the Host
(MPU) Image in the Driver
(DDRAM)
Normal 0 0 0
Y-Mirror 0 0 1
X-Mirror 0 1 0
X-Mirror
Y-Mirror 0 1 1
X-Y Exchange 1 0 0
X-Y Exchange
Y-Mirror 1 0 1
X-Y Exchange
X-Mirror 1 1 0
X-Y Exchange
X-Mirror
Y-Mirror 1 1 1
1 Tm 1 Tm 1
fi—w—H
Venical ximing scale / \ 1 21 \ 1
Thdl Than
1H1 1
1 1 1
Vertical liming scale W 1 ‘ 1 ‘V-syn
1 1 1 1 1l >1 — _ _ l 1 1
Invisible 15‘ 2"“ 161‘" 162‘h
line line line line line
‘ 1
Bottom 1inc 1
1 1
Top lmc 1 1
1 1
1 1
2nd linc 1 1
1 1
1- I7 I7 TI TI
iLLIULHJL .,..,1LLLLL|L1L1L
11, model
T111.
ST7735R
V0.2 64 2009-08-05

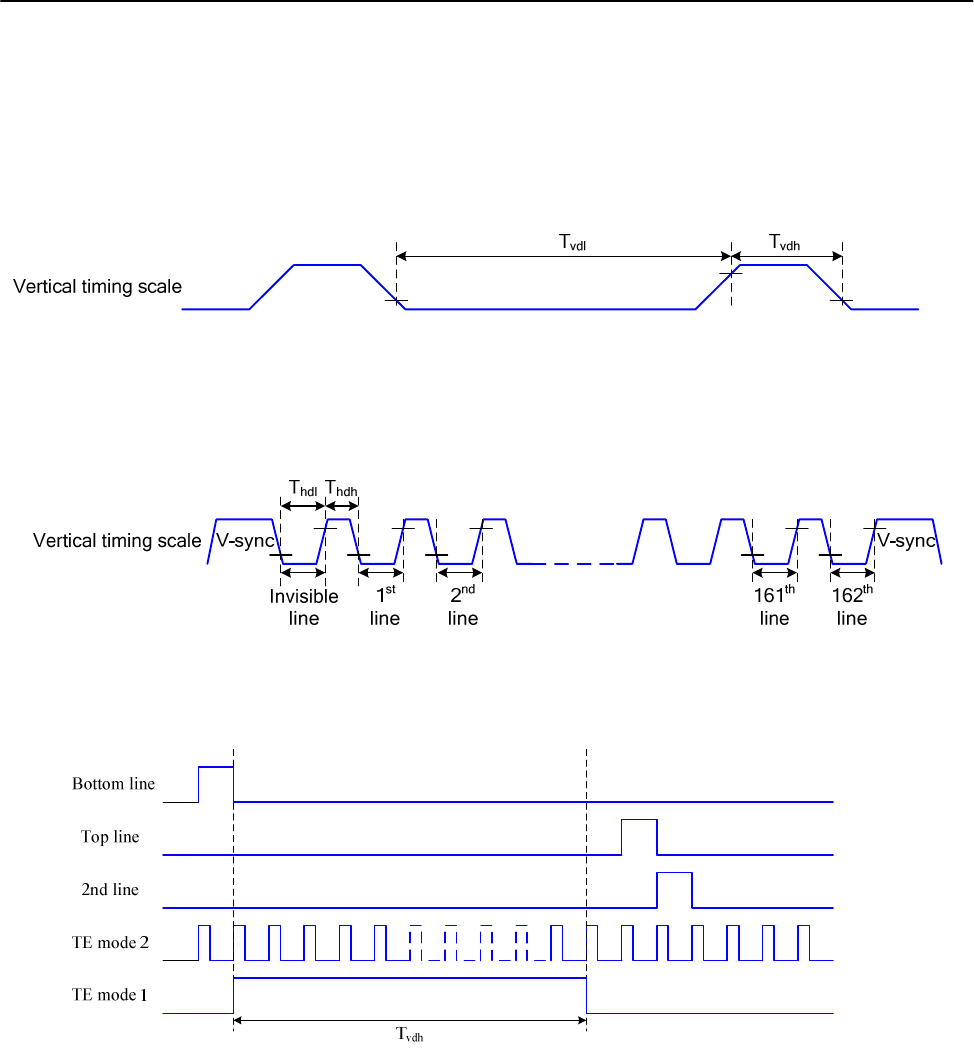

9.12 Tearing Effect Output Line
The Tearing Effect output line supplies to the MPU a Panel synchronization signal. This signal can be enabled or disabled
by the Tearing Effect Line Off & On commands. The mode of the Tearing Effect signal is defined by the parameter of the
Tearing Effect Line On command. The signal can be used by the MPU to synchronize Frame Memory Writing when
displaying video images.
9.12.1 Tearing Effect Line Modes
Mode 1, the Tearing Effect Output signal consists of V-Blanking Information only:
tvdh= The LCD display is not updated from the Frame Memory
tvdl= The LCD display is updated from the Frame Memory (except Invisible Line – see above)
Mode 2, the Tearing Effect Output signal consists of V-Blanking and H-Blanking Information, there is one V-sync and 162
H-sync pulses per field.
thdh= The LCD display is not updated from the Frame Memory
thdl= The LCD display is updated from the Frame Memory (except Invisible Line – see above)
Note: During Sleep In Mode, the Tearing Output Pin is active Low.
| Tvdl ‘ Tvd h .
r—u \ :
Vertical \ 1 I
| \ \ |
| |
Horizontal ‘ ‘
V} )Hd).8““VDDI
Vm :().2">'\/DDI
;!
i
"F
i
ST7735R
V0.2 65 2009-08-05
9.12.2 Tearing Effect Line Timings
The Tearing Effect signal is described below:
Table 9.12.1 AC characteristics of Tearing Effect Signal Idle Mode Off (Frame Rate = 60 Hz, Ta=25°C)
Note: The timings in Table 9.10.1 apply when MADCTL ML=0 and ML=1
The signal’s rise and fall times (tf, tr) are stipulated to be equal to or less than 15ns.
The Tearing Effect Output Line is fed back to the MPU and should be used as shown below to avoid Tearing Effect:
Symbol Parameter min max unit description
tvdl Vertical Timing Low Duration 13 - ms
tvdh Vertical Timing High Duration 1000 - µs
thdl Horizontal Timing Low Duration 33 - µs
thdh Horizontal Timing Low Duration 25 500 µs
.\I('I ' In ‘Wr‘mwu
TEU._1pu, >1ng
v In LCD
[mugs (m LCD
Data to be sent
Image on LCD
1* 162" mm-
mm-
mm-
14 my
c d
II
ST7735R
V0.2 66 2009-08-05
9.12.3 Example 1: MPU Write is faster than panel read
Data write to Frame Memory is now synchronized to the Panel Scan. It should be written during the vertical sync pulse of
the Tearing Effect Output Line. This ensures that data is always written ahead of the panel scan and each Panel Frame
refresh has a complete new image:
mu m memm'}
TE nquuI 5mm
Mfmoly to LCD
Image on LCD
Data to be sent
Image on LCD
i l“
1 02”“
ume
ume
a
W
1 52“
C
d
ume
ST7735R
V0.2 67 2009-08-05
9.12.4 Example 2: MPU write is slower than panel read
The MPU to Frame Memory write begins just after Panel Read has commenced i.e. after one horizontal sync pulse of the
Tearing Effect Output Line. This allows time for the image to download behind the Panel Read pointer and finishing
download during the subsequent Frame before the Read Pointer “catches” the MPU to Frame memory write position.
B
ST7735R
V0.2 68 2009-08-05

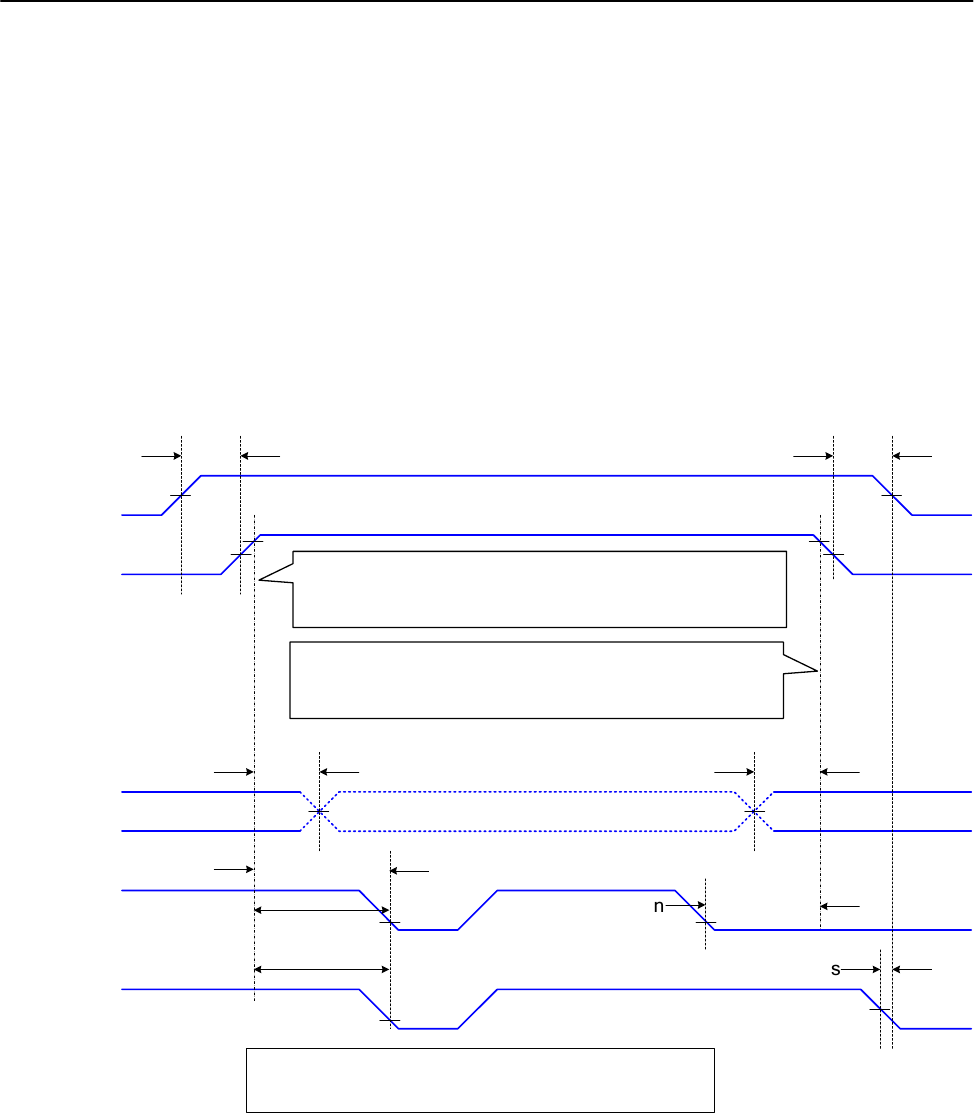

9.13 Power ON/OFF Sequence
VDD must be powered on before the VDDI.
VDDI must be powered off before the VDD.
During power off, if LCD is in the Sleep Out mode, VDD and VDDI must be powered down minimum 120msec after RESX
has been released.
During power off, if LCD is in the Sleep In mode, VDDI or VDD can be powered down minimum 0msec after RESX has
been released.
CSX can be applied at any timing or can be permanently grounded. RESX has priority over CSX.
Note 1: There will be no damage to the display module if the power sequences are not met.
Note 2: There will be no abnormal visible effects on the display panel during the Power On/Off Sequences.
Note 3: There will be no abnormal visible effects on the display between end of Power On Sequence and before receiving Sleep Out
command. Also between receiving Sleep In command and Power Off Sequence.
Note 4: If RESX line is not held stable by host during Power On Sequence as defined in the sequence below, then it will be necessary to
apply a Hardware Reset (RESX) after Host Power On Sequence is complete to ensure correct operation. Otherwise function is not
guaranteed.
The power on/off sequence is illustrated below
Timing when the latter signal rises up to 90% of its typical value.
e.g. When VDD comes later, this timing is defined at the cross
point of 90% of 2.75V, not 90% of 2.6V.
Timing when the latter signal falls up to 90% of its typical value.
e.g. When VDD comes later, this timing is defined at the cross
point of 90% of 2.75V, not 90% of 2.6V.
H or L
TrPW-CSX = +/- no limit TfPW-CSX = +/- no limit
30%
30%
TrPW-RESX = + no limit
TrPW-RESX = + no limit
TfPW-RESX1 = min
120ms
TfPW-RESX2 = min 0ms
TfPW-RESx1 is applied to RESX falling in the Sleep Out Mode.
TfPW-RESx2 is applied to RESX falling in the Sleep In Mode.
VDD
VDDI
CSX
RESX
(Power down in
sleep-out mode)
RESX
(Power down in
sleep-in mode)
TrPW 0ns TfPW 0ns
9.13.1 Uncontrolled Power Off
The uncontrolled power-off means a situation which removed a battery without the controlled power off sequence. It will
neither damage the module or the host interface.
If uncontrolled power-off happened, the display will go blank and there will not any visible effect on the display (blank
display) and remains blank until “Power On Sequence” powers it up.
ST7735R
V0.2 69 2009-08-05
9.14 Power Level Definition
9.14.1 Power Level
6 level modes are defined they are in order of Maximum Power consumption to Minimum Power Consumption
1. Normal Mode On (full display), Idle Mode Off, Sleep Out.
In this mode, the display is able to show maximum 262,144 colors.
2. Partial Mode On, Idle Mode Off, Sleep Out.
In this mode part of the display is used with maximum 262,144 colors.
3. Normal Mode On (full display), Idle Mode On, Sleep Out.
In this mode, the full display area is used but with 8 colors.
4. Partial Mode On, Idle Mode On, Sleep Out.
In this mode, part of the display is used but with 8 colors.
5. Sleep In Mode
In this mode, the DC: DC converter, internal oscillator and panel driver circuit are stopped. Only the MCU interface and
memory works with VDDI power supply. Contents of the memory are safe.
6. Power Off Mode
In this mode, both VDD and VDDI are removed.
Note: Transition between modes 1-5 is controllable by MCU commands. Mode 6 is entered only when both Power supplies are removed.
Sleep out Sleep in
ST7735R
V0.2 70 2009-08-05
9.14.2 Power Flow Chart
Sleep out
Normal display mode on
Idle mode off
Sleep in
Normal display mode on
Idle mode off
Sleep out
Normal display mode on
Idle mode on
Sleep in
Normal display mode on
Idle mode on
Sleep out
Partial display mode on
Idle mode off
Sleep in
Partial display mode on
Idle mode off
Sleep out
Partial display mode on
Idle mode on
Sleep in
Partial display mode on
Idle mode on
SLP IN
SLP IN
SLP IN
SLP IN
SLP OUT
SLP OUT
SLP OUT
SLP OUT
IDM ON IDM OFF
IDM ON IDM OFF
PTL ON
NOR ON
PTL ON
NOR ON
IDM ON IDM OFF
PTL ON
NOR ON
PTL ON
NOR ON
IDM ON IDM OFF
Power on sequence
HW reset
SW reset
Normal display mode on = NOR ON
Partial display mode on = PTL ON
Idle mode off = IDM OFF
Idle mode on = IDM ON
Sleep out = SLP OUT
Sleep in = SLP IN
ST7735R
V0.2 71 2009-08-05
9.15 Reset Table
9.15.1 Reset Table (Default Value, GM[1:0]=“11”, 128RGB x 160)
Item After Power On After H/W Reset After S/W Reset
Frame memory Random No Change No Change
Sleep In/Out In In In
Display On/Off Off Off Off
Display mode (normal/partial) Normal Normal Normal
Display Inversion On/Off Off Off Off
Display Idle Mode On/Off Off Off Off
Column: Start Address (XS) 0000h 0000h 0000h
Column: End Address (XE) 007Fh 007Fh 007Fh (127d) (when MV=0)
009Fh (159d) (when MV=1)
Row: Start Address (YS) 0000h 0000h 0000h
Row: End Address (YE) 009Fh 009Fh 009Fh (159d) (when MV=0)
007Fh (127d) (when MV=1)
Gamma setting GC0 GC0 GC0
RGB for 4k and 65k Color Mode Random values Random values No Change
Partial: Start Address (PSL) 0000h 0000h 0000h
Partial: End Address (PEL) 009Fh 009Fh 009Fh
Tearing: On/Off Off Off Off
Tearing Effect Mode (*1) 0 (Mode1) 0 (Mode1) 0 (Mode1)
Memory Data Access Control (MY/MX/MV/ML/RGB) 0/0/0/0/0 0/0/0/0/0 No Change
Interface Pixel Color Format 6 (18-Bit/Pixel) 6 (18-Bit/Pixel) No Change
RDDPM 08h 08h 08h
RDDMADCTL 00h 00h No Change
RDDCOLMOD 6 (18-Bit/Pixel) 6 (18-Bit/Pixel) No Change
RDDIM 00h 00h 00h
RDDSM 00h 00h 00h
ID2 NV value NV value NV value
ID3 NV value NV value NV value
Note: TE Mode 1 means Tearing Effect Output Line consists of V-Blanking Information only
ST7735R
V0.2 72 2009-08-05
9.15.2 Reset Table (GM[1:0]= “00”, 132RGB x 162)
Item After Power On After H/W Reset After S/W Reset
Frame memory Random No Change No Change
Sleep In/Out In In In
Display On/Off Off Off Off
Display mode (normal/partial) Normal Normal Normal
Display Inversion On/Off Off Off Off
Display Idle Mode On/Off Off Off Off
Column: Start Address (XS) 0000h 0000h 0000h
Column: End Address (XE) 0083h 0083h 0083h (131d) (when MV=0)
00A1h (161d) (when MV=1)
Row: Start Address (YS) 0000h 0000h 0000h
Row: End Address (YE) 00A1h 00A1h 00A1h (161d) (when MV=0)
0083h (131d) (when MV=1)
Gamma setting GC0 GC0 GC0
RGB for 4k and 65k Color Mode Random values Random values No Change
Partial: Start Address (PSL) 0000h 0000h 0000h
Partial: End Address (PEL) 00A1h 00A1h 00A1h
Tearing: On/Off Off Off Off
Tearing Effect Mode (*1) 0 (Mode1) 0 (Mode1) 0 (Mode1)
Memory Data Access Control (MY/MX/MV/ML/RGB) 0/0/0/0/0 0/0/0/0/0 No Change
Interface Pixel Color Format 6 (18-Bit/Pixel) 6 (18-Bit/Pixel) No Change
RDDPM 08h 08h 08h
RDDMADCTL 00h 00h No Change
RDDCOLMOD 6 (18-Bit/Pixel) 6 (18-Bit/Pixel) No Change
RDDIM 00h 00h 00h
RDDSM 00h 00h 00h
ID2 NV value NV value NV value
ID3 NV value NV value NV value
Note: TE Mode 1 means Tearing Effect Output Line consists of V-Blanking Information only
ST7735R
V0.2 73 2009-08-05
9.16 Module Input/Output Pins
9.16.1 Output or Bi-directional (I/O) Pins
Note: There will be no output from D7-D0 during Power On/Off sequence, Hardware Reset and Software Reset.
Output or Bi-directional pins After Power On After Hardware Reset After Software Reset
TE Low Low Low
D7 to D0 (Output driver) High-Z (Inactive) High-Z (Inactive) High-Z (Inactive)
Input pins During Power
On Process After Power On After Hardware
Reset After Software
Reset During Power
Off Process
RESX See 9.14 Input valid Input valid Input valid See 9.14
CSX Input invalid Input valid Input valid Input valid Input invalid
D/CX Input invalid Input valid Input valid Input valid Input invalid
WRX Input invalid Input valid Input valid Input valid Input invalid
RDX Input invalid Input valid Input valid Input valid Input invalid
D7 to D0 Input invalid Input valid Input valid Input valid Input invalid
Shorter than Sus
1 TRESY
‘—“
Ini‘ial s‘atus Normal operation X Resefling X: (Deigfi'fikgfflwgseo
‘
RESX Pulse
Resel u accepled
1m 2011‘: mm posmz'e 5pm \ull be nelecled
ST7735R
V0.2 74 2009-08-05
9.17 Reset Timing
Related Pins Symbol Parameter MIN MAX Unit
tRESW Reset pulse duration 10 - us
- 5 ms
RESX tREST Reset cancel 120 ms
Table 9.17.1 Reset timing
Notes:
1. The reset cancel includes also required time for loading ID bytes, VCOM setting and other settings from NVM (or similar
device) to registers. This loading is done every time when there is HW reset cancel time (tRT) within 5 ms after a rising
edge of RESX.
2. Spike due to an electrostatic discharge on RESX line does not cause irregular system reset according to the table below:
RESX Pulse Action
Shorter than 5us Reset Rejected
Longer than 9us Reset
Between 5us and 9us Reset starts
3. During the Resetting period, the display will be blanked (The display is entering blanking sequence, which maximum time
is 120 ms, when Reset Starts in Sleep Out –mode. The display remains the blank state in Sleep In -mode.) and then return
to Default condition for Hardware Reset.
4. Spike Rejection also applies during a valid reset pulse as shown below:
5. When Reset applied during Sleep In Mode.
6. When Reset applied during Sleep Out Mode.
7. It is necessary to wait 5msec after releasing RESX before sending commands. Also Sleep Out command cannot be sent
for 120msec.
ST7735R
V0.2 75 2009-08-05
9.18 Color Depth Conversion Look Up Tables
9.18.1 65536 Color to 262,144 Color
Look Up Table Input Data
Color Look Up Table Output
Frame Memory Data (6-bits) RGBSET
Parameter 65k Color (5-bits)
R005 R004 R003 R002 R001 R000 1 00000
R015 R014 R013 R012 R011 R010 2 00001
R025 R024 R023 R022 R021 R020 3 00010
R035 R034 R033 R032 R031 R030 4 00011
R045 R044 R043 R042 R041 R040 5 00100
R055 R054 R053 R052 R051 R050 6 00101
R065 R064 R063 R062 R061 R060 7 00110
R075 R074 R073 R072 R071 R070 8 00111
R085 R084 R083 R082 R081 R080 9 01000
R095 R094 R093 R092 R091 R090 10 01001
R105 R104 R103 R102 R101 R100 11 01010
R115 R114 R113 R112 R111 R110 12 01011
R125 R124 R123 R122 R121 R120 13 01100
R135 R134 R133 R132 R131 R130 14 01101
R145 R144 R143 R142 R141 R140 15 01110
R155 R154 R153 R152 R151 R150 16 01111
R165 R164 R163 R162 R161 R160 17 10000
R175 R174 R173 R172 R171 R170 18 10001
R185 R184 R183 R182 R181 R180 19 10010
R195 R194 R193 R192 R191 R190 20 10011
R205 R204 R203 R202 R201 R200 21 10100
R215 R214 R213 R212 R211 R210 22 10101
R225 R224 R223 R222 R221 R220 23 10110
R235 R234 R233 R232 R231 R230 24 10111
R245 R244 R243 R242 R241 R240 25 11000
R255 R254 R253 R252 R251 R250 26 11001
R265 R264 R263 R262 R261 R260 27 11010
R275 R274 R273 R272 R271 R270 28 11011
R285 R284 R283 R282 R281 R280 29 11100
R295 R294 R293 R292 R291 R290 30 11101
R305 R304 R303 R302 R301 R300 31 11110
RED
R315 R314 R313 R312 R311 R310 32 11111
Look Up Table Input Data
Color Look Up Table Output
Frame Memory Data (6-bits) RGBSET
Parameter 65k Color (5-bits)
G005 G004 G003 G002 G001 G000 33 000000
G015 G014 G013 G012 G011 G010 34 000001
G025 G024 G023 G022 G021 G020 35 000010
G035 G034 G033 G032 G031 G030 36 000011
G045 G044 G043 G042 G041 G040 37 000100
G055 G054 G053 G052 G051 G050 38 000101
G065 G064 G063 G062 G061 G060 39 000110
G075 G074 G073 G072 G071 G070 40 000111
G085 G084 G083 G082 G081 G080 41 001000
G095 G094 G093 G092 G091 G090 42 001001
G105 G104 G103 G102 G101 G100 43 001010
G115 G114 G113 G112 G111 G110 44 001011
G125 G124 G123 G122 G121 G120 45 001100
G135 G134 G133 G132 G131 G130 46 001101
G145 G144 G143 G142 G141 G140 47 001110
G155 G154 G153 G152 G151 G150 48 001111
G165 G164 G163 G162 G161 G160 49 010000
G175 G174 G173 G172 G171 G170 50 010001
G185 G184 G183 G182 G181 G180 51 010010
G195 G194 G193 G192 G191 G190 52 010011
GREEN
G205 G204 G203 G202 G201 G200 53 010100
G215G21AG21SG21262116210 010101
ST7735R
V0.2 76 2009-08-05
G215 G214 G213 G212 G211 G210 54 010101
G225 G224 G223 G222 G221 G220 55 010110
G235 G234 G233 G232 G231 G230 56 010111
G245 G244 G243 G242 G241 G240 57 011000
G255 G254 G253 G252 G251 G250 58 011001
G265 G264 G263 G262 G261 G260 59 011010
G275 G 274 G273 G272 G271 G270 60 011011
G285 G 284 G283 G282 G281 G280 61 011100
G295 G 294 G293 G292 G291 G290 62 011101
G305 G 304 G303 G302 G301 G300 63 011110
G315 G 314 G313 G312 G311 G310 64 011111
G325 G324 G323 G322 G321 G320 65 100000
G335 G334 G333 G332 G331 G330 66 100001
G345 G344 G343 G342 G341 G340 67 100010
G355 G354 G353 G352 G351 G350 68 100011
G365 G364 G363 G362 G361 G360 69 100100
G375 G374 G373 G372 G371 G370 70 100101
G385 G384 G383 G382 G381 G380 71 100110
G395 G394 G393 G392 G391 G390 72 100111
G405 G404 G403 G402 G401 G400 73 101000
G415 G414 G413 G412 G411 G410 74 101001
G425 G424 G423 G422 G421 G420 75 101010
G435 G434 G433 G432 G431 G430 76 101011
G445 G444 G443 G442 G441 G440 77 101100
G455 G454 G453 G452 G451 G450 78 101101
G465 G464 G463 G462 G461 G460 79 101110
G475 G474 G473 G472 G471 G470 80 101111
G485 G484 G483 G482 G481 G480 81 110000
G495 G494 G493 G492 G491 G490 82 110001
G505 G504 G503 G502 G501 G500 83 110010
G515 G514 G513 G512 G511 G510 84 110011
G525 G524 G523 G522 G521 G520 85 110100
G535 G534 G533 G532 G531 G530 86 110101
G545 G544 G543 G542 G541 G540 87 110110
G555 G554 G553 G552 G551 G550 88 110111
G565 G564 G563 G562 G561 G560 89 111000
G575 G574 G573 G572 G571 G570 90 111001
G585 G584 G583 G582 G581 G580 91 111010
G595 G594 G593 G592 G591 G590 92 111011
G605 G604 G603 G602 G601 G600 93 111100
G615 G614 G613 G612 G611 G610 94 111101
G625 G624 G623 G622 G621 G620 95 111110
G635 G634 G633 G632 G631 G630 96 111111
Look Up Table Input Data
Color Look Up Table Output
Frame Memory Data (6-bits) RGBSET
Parameter 65k Color (5-bits)
B005 B004 B003 B002 B001 B000 97 00000
B015 B014 B013 B012 B011 B010 98 00001
B025 B024 B023 B022 B021 B020 99 00010
B035 B034 B033 B032 B031 B030 100 00011
B045 B044 B043 B042 B041 B040 101 00100
B055 B054 B053 B052 B051 B050 102 00101
B065 B064 B063 B062 B061 B060 103 00110
B075 B074 B073 B072 B071 B070 104 00111
B085 B084 B083 B082 B081 B080 105 01000
B095 B094 B093 B092 B091 B090 106 01001
B105 B104 B103 B102 B101 B100 107 01010
B115 B114 B113 B112 B111 B110 108 01011
B125 B124 B123 B122 B121 B120 109 01100
B135 B134 B133 B132 B131 B130 110 01101
B145 B144 B143 B142 B141 B140 111 01110
B155 B154 B153 B152 B151 B150 112 01111
BLUE
B165 B164 B163 B162 B161 B160 113 10000
ST7735R
V0.2 77 2009-08-05
B175 B174 B173 B172 B171 B170 114 10001
B185 B184 B183 B182 B181 B180 115 10010
B195 B194 B193 B192 B191 B190 116 10011
B205 B204 B203 B202 B201 B200 117 10100
B215 B214 B213 B212 B211 B210 118 10101
B225 B224 B223 B222 B221 B220 119 10110
B235 B234 B233 B232 B231 B230 120 10111
B245 B244 B243 B242 B241 B240 121 11000
B255 B254 B253 B252 B251 B250 122 11001
B265 B264 B263 B262 B261 B260 123 11010
B275 B274 B273 B272 B271 B270 124 11011
B285 B284 B283 B282 B281 B280 125 11100
B295 B294 B293 B292 B291 B290 126 11101
B305 B304 B303 B302 B301 B300 127 11110
B315 B314 B313 B312 B311 B310 128 11111
ST7735R
V0.2 78 2009-08-05
9.18.2 4096 Color to 262,144 Color
Look Up Table Input Data
Color Look Up Table Output
Frame Memory Data (6-bits) RGBSET
Parameter 4k Color (4-bits)
R005 R004 R003 R002 R001 R000 1 0000
R015 R014 R013 R012 R011 R010 2 0001
R025 R024 R023 R022 R021 R020 3 0010
R035 R034 R033 R032 R031 R030 4 0011
R045 R044 R043 R042 R041 R040 5 0100
R055 R054 R053 R052 R051 R050 6 0101
R065 R064 R063 R062 R061 R060 7 0110
R075 R074 R073 R072 R071 R070 8 0111
R085 R084 R083 R082 R081 R080 9 1000
R095 R094 R093 R092 R091 R090 10 1001
R105 R104 R103 R102 R101 R100 11 1010
R115 R114 R113 R112 R111 R110 12 1011
R125 R124 R123 R122 R121 R120 13 1100
R135 R134 R133 R132 R131 R130 14 1101
R145 R144 R143 R142 R141 R140 15 1110
R155 R154 R153 R152 R151 R150 16 1111
R165 R164 R163 R162 R161 R160 17
| |
RED
R315 R314 R313 R312 R311 R310 32
Not used
G005 G004 G003 G002 G001 G000 33 0000
G015 G014 G013 G012 G011 G010 34 0001
G025 G024 G023 G022 G021 G020 35 0010
G035 G034 G033 G032 G031 G030 36 0011
G045 G044 G043 G042 G041 G040 37 0100
G055 G054 G053 G052 G051 G050 38 0101
G065 G064 G063 G062 G061 G060 39 0110
G075 G074 G073 G072 G071 G070 40 0111
G085 G084 G083 G082 G081 G080 41 1000
G095 G094 G093 G092 G091 G090 42 1001
G105 G104 G103 G102 G101 G100 43 1010
G115 G114 G113 G112 G111 G110 44 1011
G125 G124 G123 G122 G121 G120 45 1100
G135 G134 G133 G132 G131 G130 46 1101
G145 G144 G143 G142 G141 G140 47 1110
G155 G154 G153 G152 G151 G150 48 1111
G165 G164 G163 G162 G161 G160 49
| |
GREEN
G635 G634 G633 G632 G631 G630 96
Not used
B005 B004 B003 B002 B001 B000 97 0000
B015 B014 B013 B012 B011 B010 98 0001
B025 B024 B023 B022 B021 B020 99 0010
B035 B034 B033 B032 B031 B030 100 0011
B045 B044 B043 B042 B041 B040 101 0100
B055 B054 B053 B052 B051 B050 102 0101
B065 B064 B063 B062 B061 B060 103 0110
B075 B074 B073 B072 B071 B070 104 0111
B085 B084 B083 B082 B081 B080 105 1000
B095 B094 B093 B092 B091 B090 106 1001
B105 B104 B103 B102 B101 B100 107 1010
B115 B114 B113 B112 B111 B110 108 1011
B125 B124 B123 B122 B121 B120 109 1100
B135 B134 B133 B132 B131 B130 110 1101
B145 B144 B143 B142 B141 B140 111 1110
B155 B154 B153 B152 B151 B150 112 1111
B165 B164 B163 B162 B161 B160 113
| |
BLUE
B315 B314 B313 B312 B311 B310 128
Not used
ON DMON
L
a eramn
«ware reset
ead Drs \a ID
umm read
D1 read
D2 read
D3 read
ead Drs \a Status
umm read
DMON LO
0N
umm read
0N
ead Drs \a
umm read
ead Drs \a
umm read
ead Drs \a
umm read
ead Drs \a
umm read
ST7735R
V0.2 79 2009-08-05
10 Command
10.1 System function Command List and Description

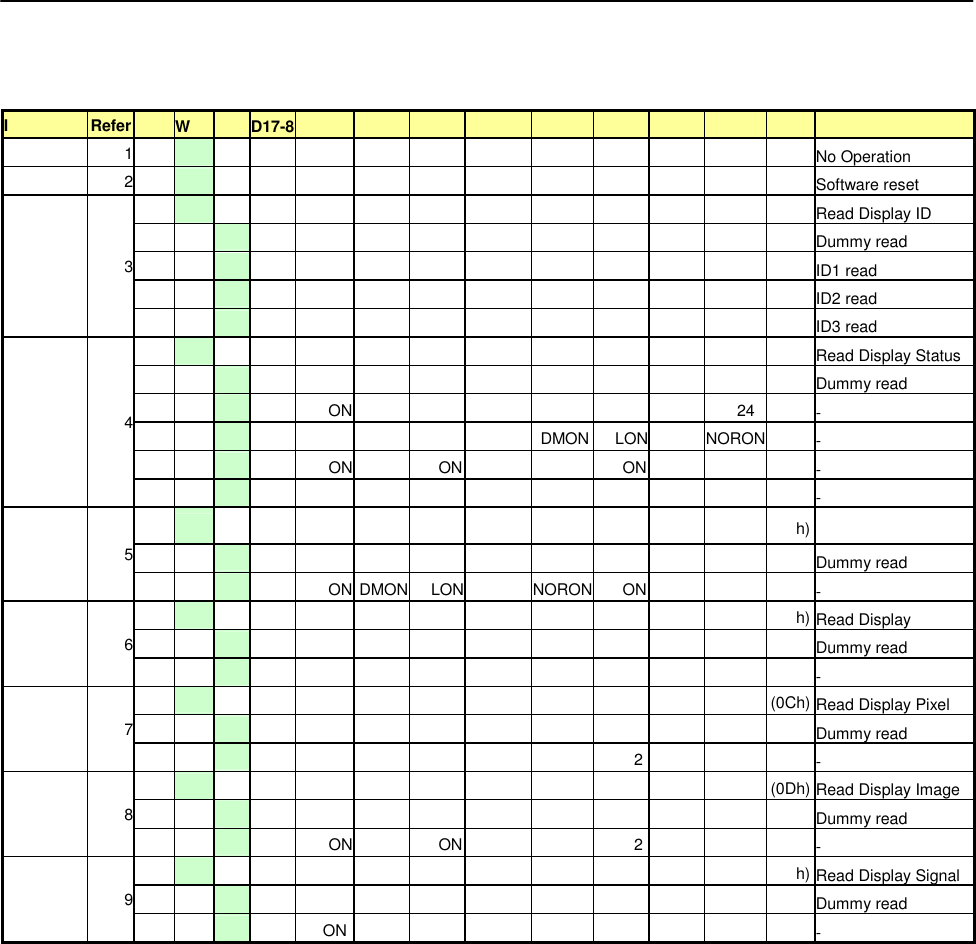

Table 10.1.1 System Function command List (1)
Instruction
Refer
D/CX
WRX
RDX
D17-8
D7 D6
D5
D4 D3 D2
D1
D0 Hex
Function
NOP 10.1.1
0
↑
1
- 0 0 0 0 0 0 0 0 (00h)
No Operation
SWRESET
10.1.2
0
↑
1
- 0 0 0 0 0 0 0 1 (01h)
Software reset
0
↑
1
- 0 0 0 0 0 1 0 0 (04h)
Read Display ID
1
1
↑
- - - - - - - - -
Dummy read
1
1
↑
- ID17
ID16
ID15
ID14
ID13
ID12
ID11
ID10
ID1 read
1
1
↑
- 1 ID26
ID25
ID24
ID23
ID22
ID21
ID20
ID2 read
RDDID
10.1.3
1
1
↑
- ID37
ID36
ID35
ID34
ID33
ID32
ID31
ID30
I
D3 read
0
↑
1
- 0 0 0 0 1 0 0 1 (09h)

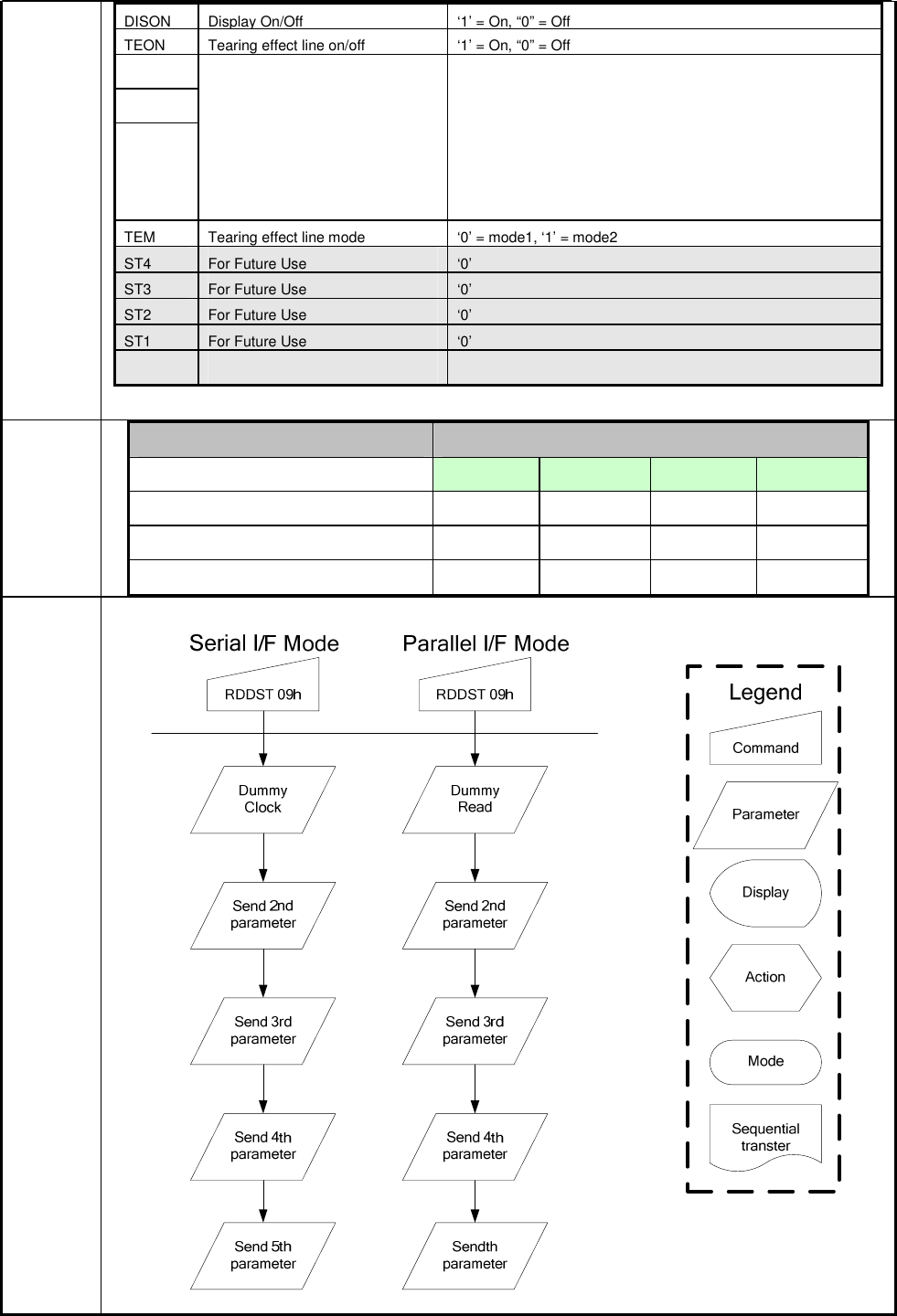

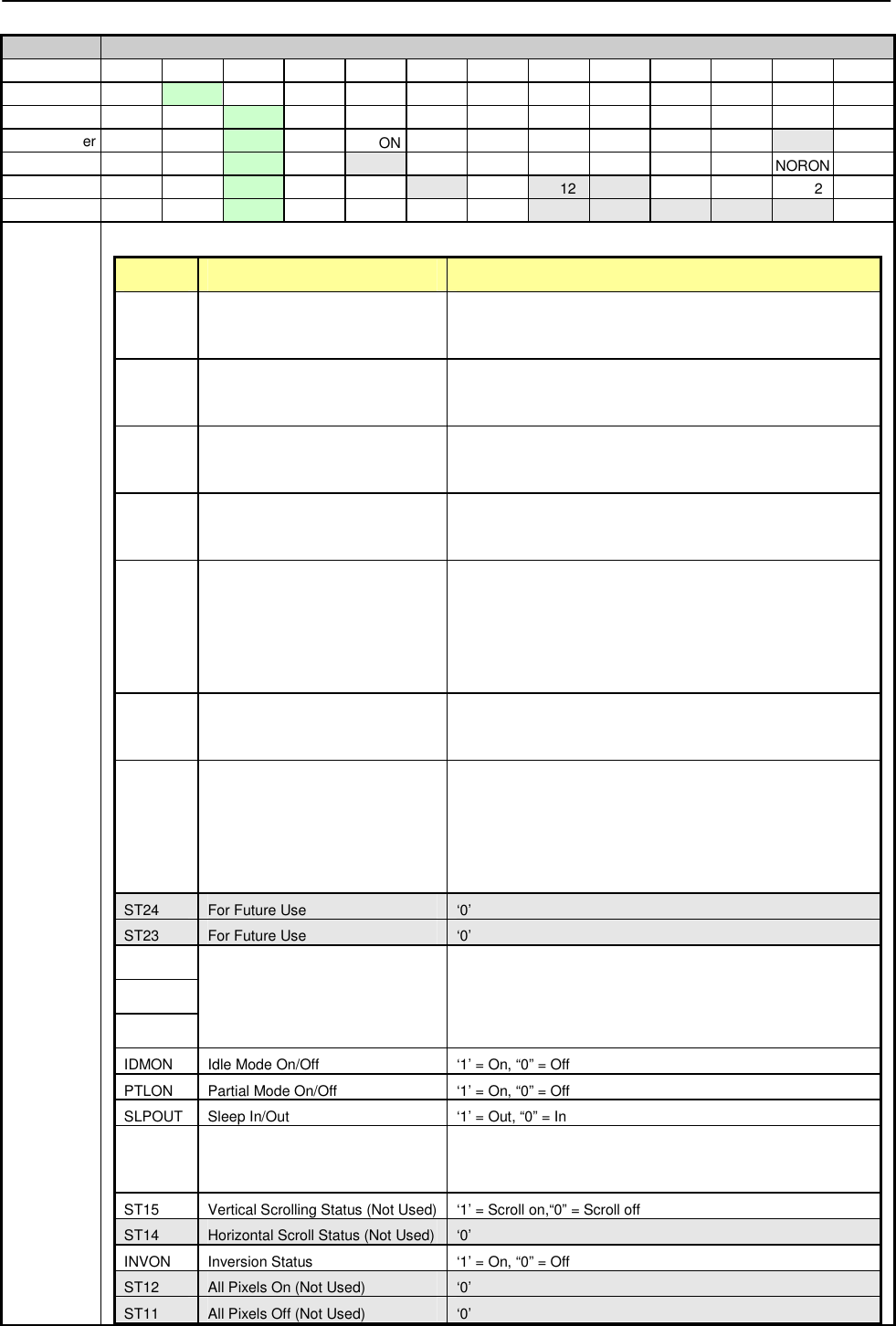

Read Display Status
1
1
↑
- - - - - - - - -
Dummy read
1
1
↑
- BSTON
MY
MX
MV ML RGB
MH
ST24
-
1
1
↑
- ST23
IFPF2
IFPF1
IFPF0
IDMON
PTLON
SLOUT
NORON
-
1
1
↑
- VSSON
ST14
INVON
ST12
ST11
DISON
TEON
GCS2
-
RDDST
10.1.4
1
1
↑
- GCS1
GCS0
TEM
ST4 ST3
ST2
ST1
ST0
-
0
↑
1
- 0 0 0 0 1 0 1 0 (0Ah)

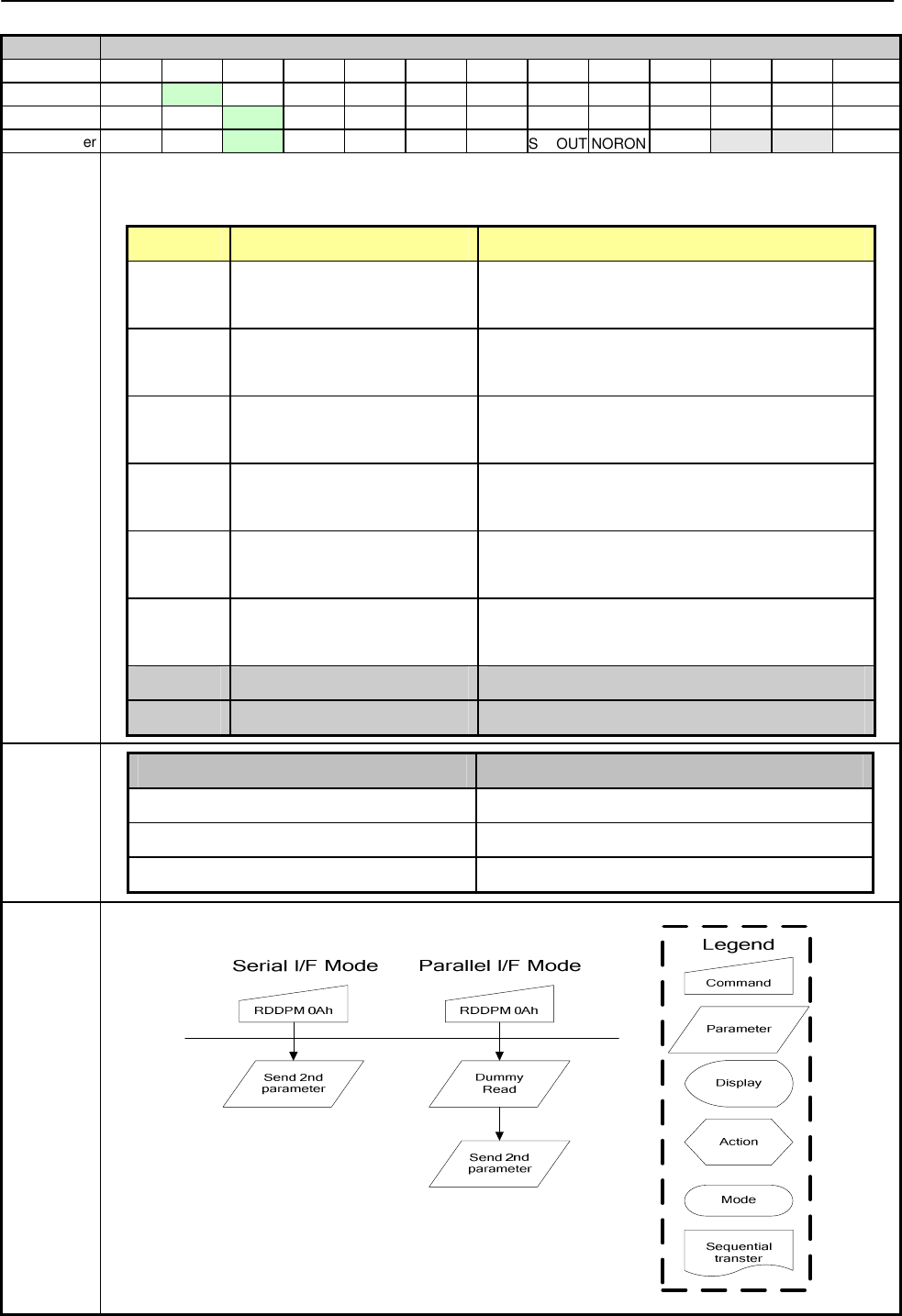

Read Display Power
1
1
↑
- - - - - - - - -
Dummy
read
RDDPM
10.1.5
1
1
↑
- BSTON
IDMON
PTLON
SLPOUT
NORON
DISON
- -
-
0
↑
1

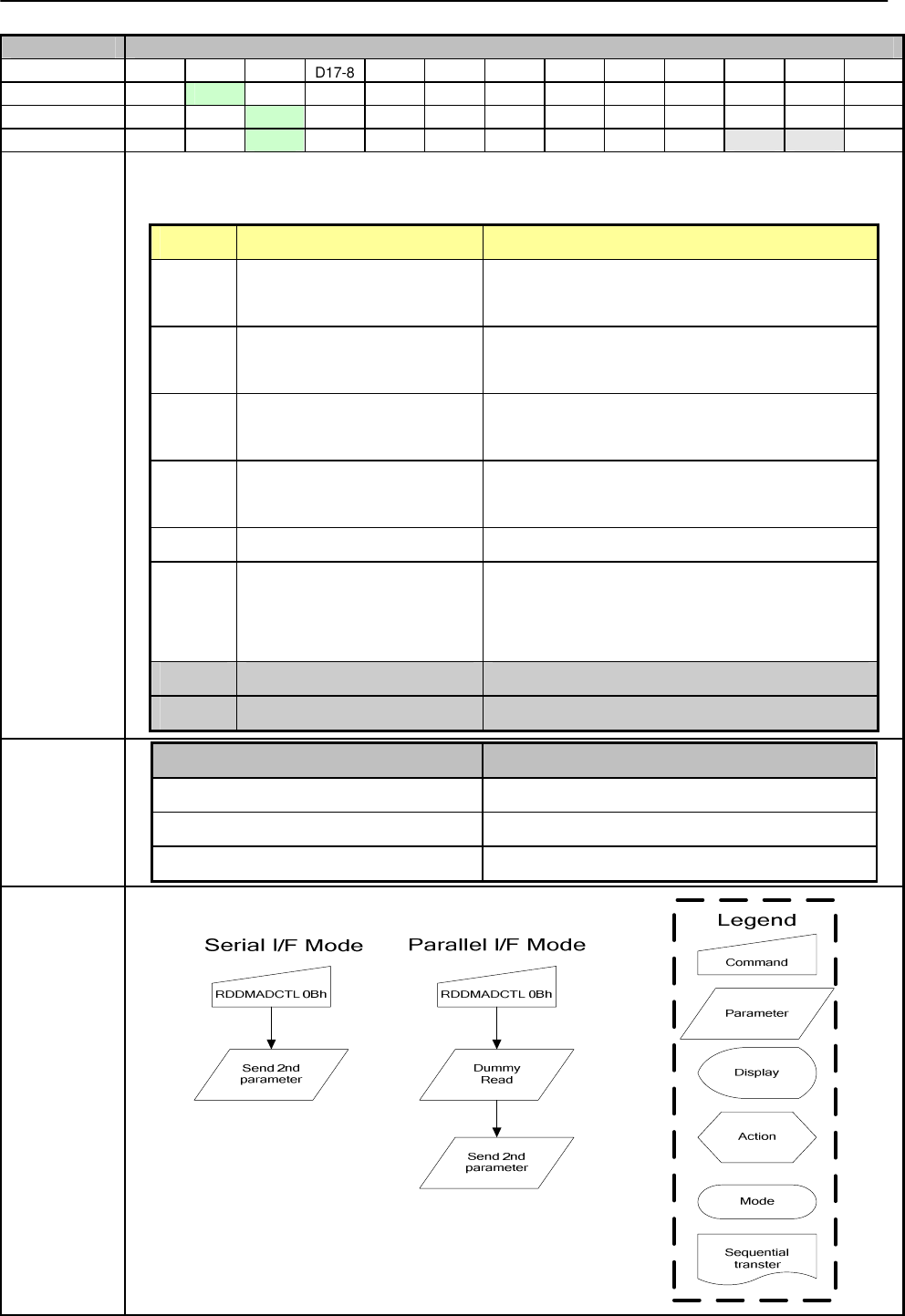

- 0 0 0 0 1 0 1 1 (0Bh)
Read Display
1
1
↑
- - - - - - - - -
Dummy read
RDD
MADCTL
10.1.6
1
1
↑
- MY
MX
MV
ML RGB
MH
- -
-
0
↑
1
- 0 0 0 0 1 1 0 0 (0Ch)

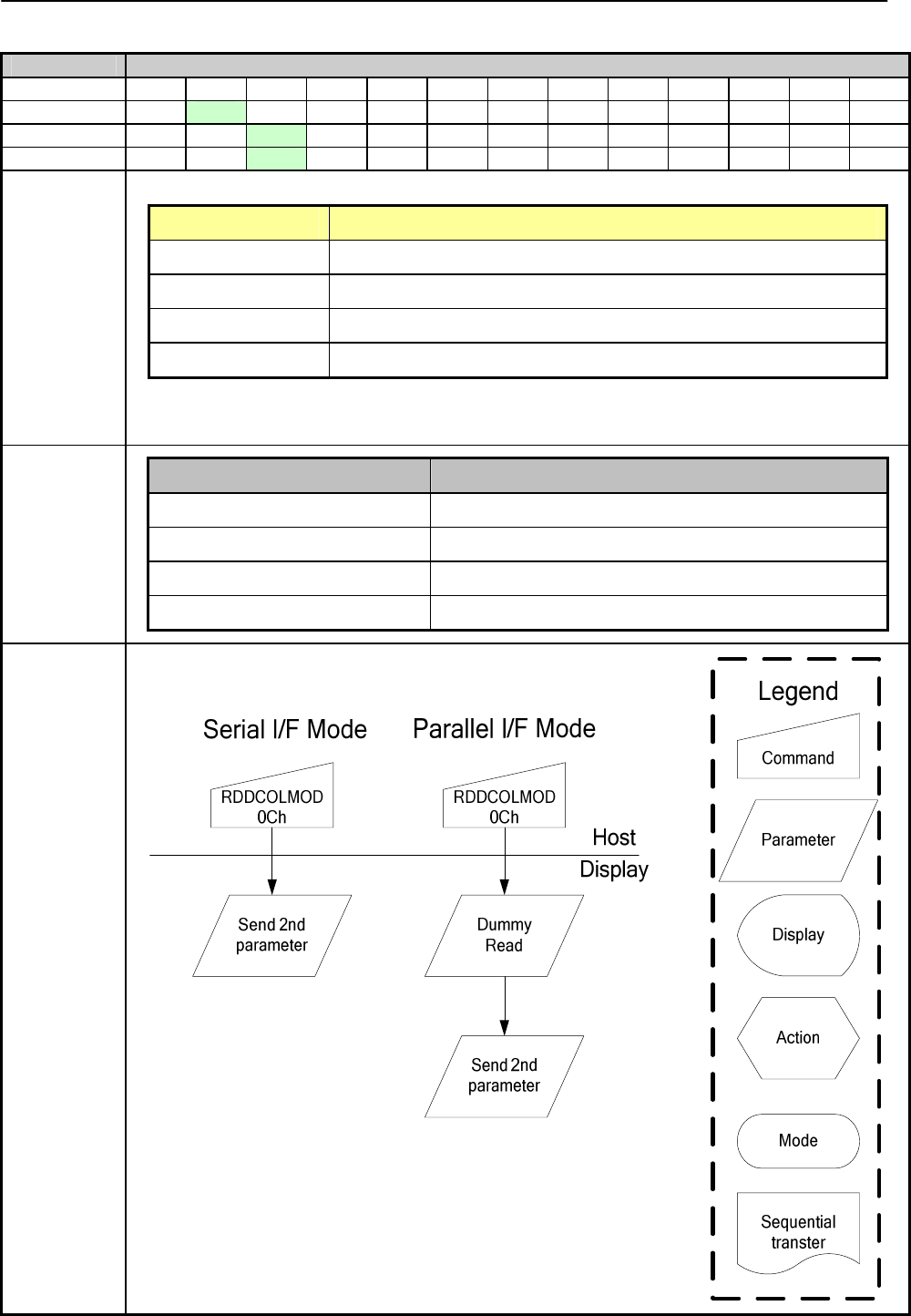

Read Display Pixel
1
1
↑
- - - - - - - - -
Dummy read
RDD
COLMOD
10.1.7
1
1
↑
- 0 0 0 0 - IFPF2
IFPF1
IFPF0
-
0
↑
1
- 0 0 0 0 1 1 0 1 (0Dh)

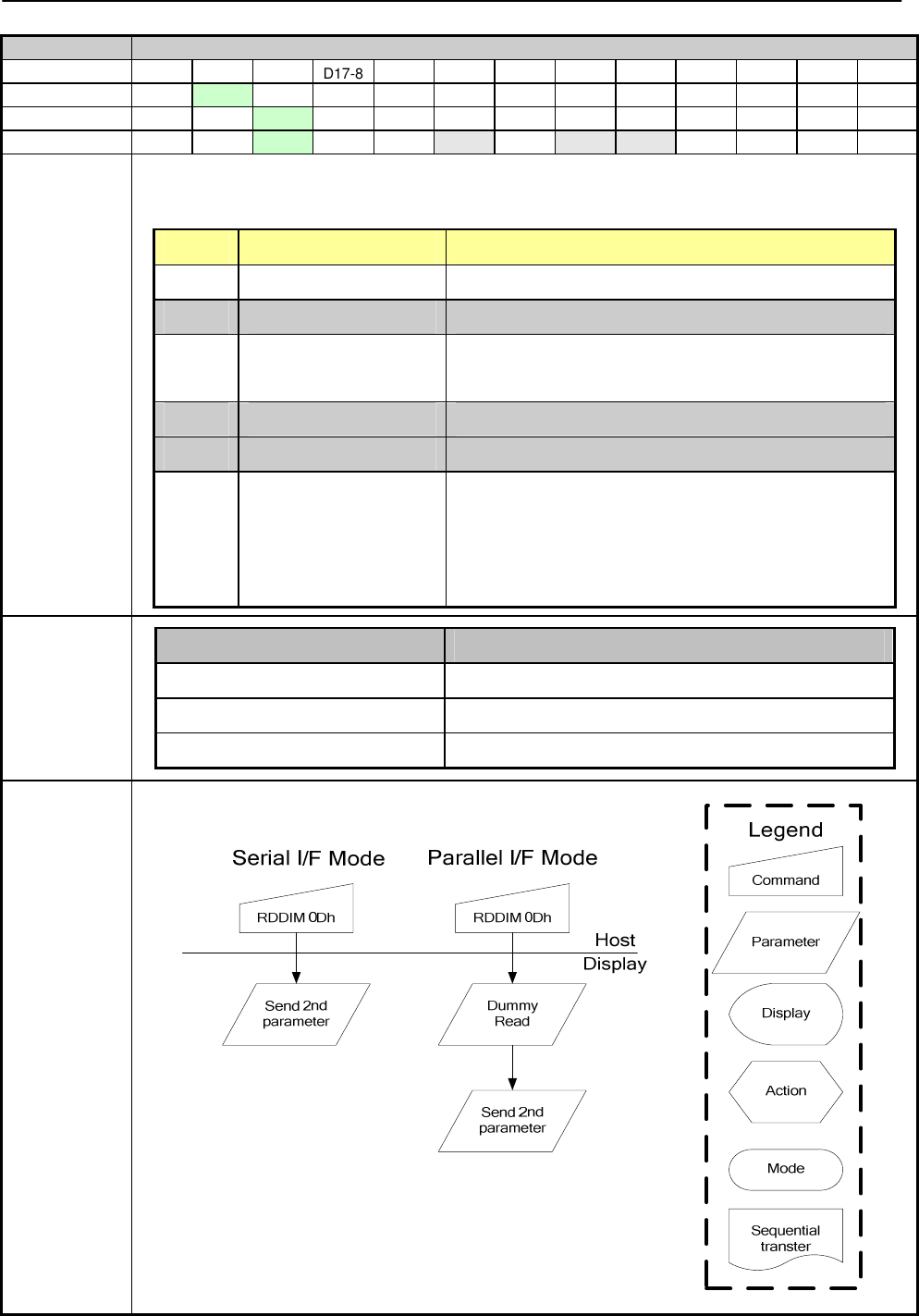

Read Display Image
1
1
↑
- - - - - - - - -
Dummy read
RDDIM
10.1.8
1
1
↑
- VSSON
D6
INVON
- - GCS2
GCS1
GCS0
-
0
↑
1
- 0 0 0 0 1 1 1 0 (0Eh)
Read Display Signal
1
1
↑
- - - - - - - - -
Dummy read
RDDSM
10.1.9
1
1
↑
- TEON
TEM
- - - - - -
-
“-“: Don’t care
D1
R002 R001 R000
(5003 G002 6001 G000
S‘ee m K booster on
See out & hamster an
Pama‘ mode on
Pama‘ a" N0rma‘
Us a mverswdn 0"
Us a mverswdn 0n
Gamma curve se‘ect
Us a 0"
Us a an
Column address set
Row address set
Memo wnte
Wnte data
LUT ldr 4k 65 262k com!
Red (one 0
Red (one "a"
Green tone 0
Green (one "D"
B‘ue tune O
B‘ue tune "0"
Memo read
Dumm read
Read data
ST7735R
V0.2 80 2009-08-05

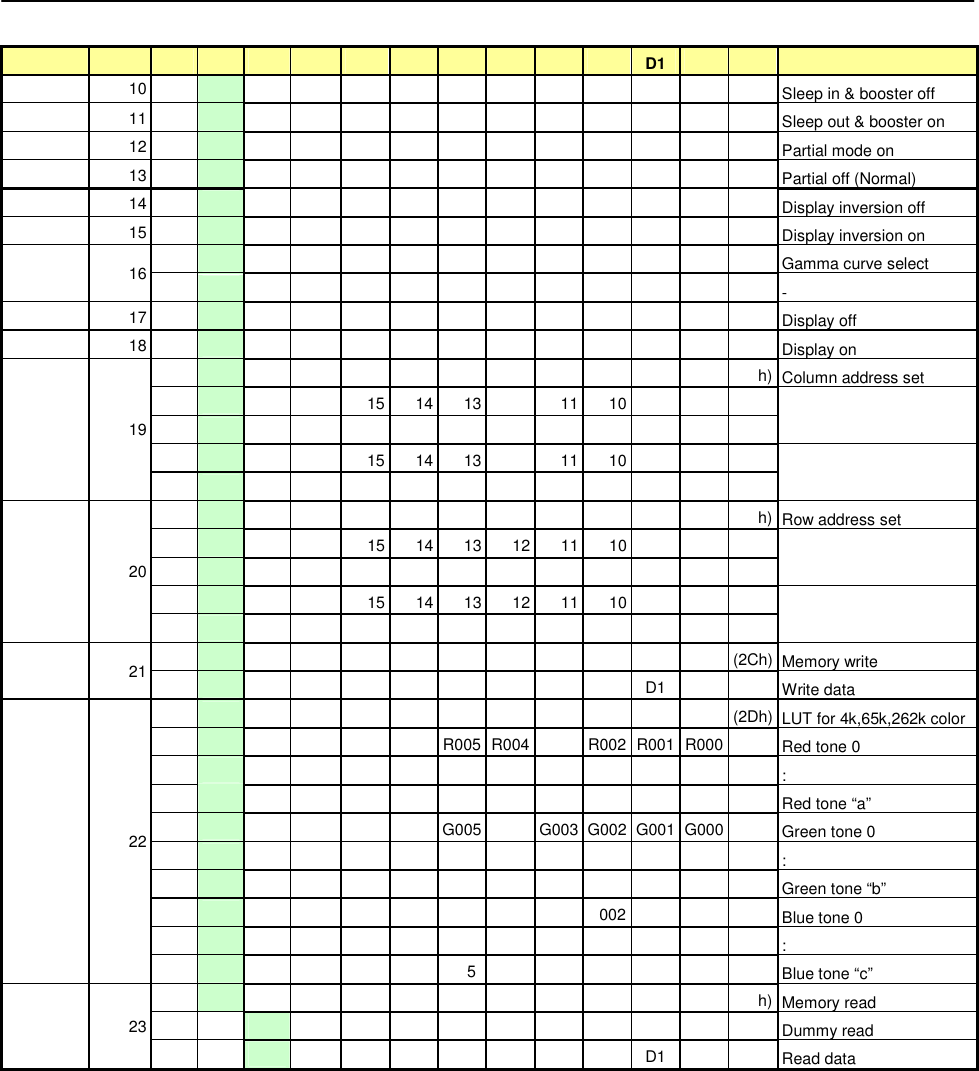

Table 10.1.2 System Function command List (2)
Instructio Refer
D/C WR RDX
D17- D7
D6
D5
D4
D3
D2
D1
D0
Hex
Function
SLPIN 10.1.10
0 ↑ 1
- 0 0 0 1 0 0 0 0 (10h)
Sleep in & booster off
SLPOUT
10.1.11
0 ↑ 1
- 0 0 0 1 0 0 0 1 (11h)
Sleep out & booster on
PTLON
10.1.12
0 ↑ 1
- 0 0 0 1 0 0 1 0 (12h)
Partial mode on
NORON
10.1.13
0 ↑ 1
- 0 0 0 1 0 0 1 1 (13h)
Partial off (Normal)
INVOFF
10.1.14
0 ↑ 1
- 0 0 1 0 0 0 0 0 (20h)
Display inversion off
INVON
10.1.15
0 ↑ 1
- 0 0 1 0 0 0 0 1 (21h)
Display inversion on
0 ↑ 1
- 0 0 1 0 0 1 1 0 (26h)
Gamma curve selec
t
GAMSET
10.1.16
1 ↑ 1
- - - - - GC3
GC2
GC1
GC0
-
DISPOFF
10.1.17
0 ↑ 1
- 0 0 1 0 1 0 0 0 (28h)

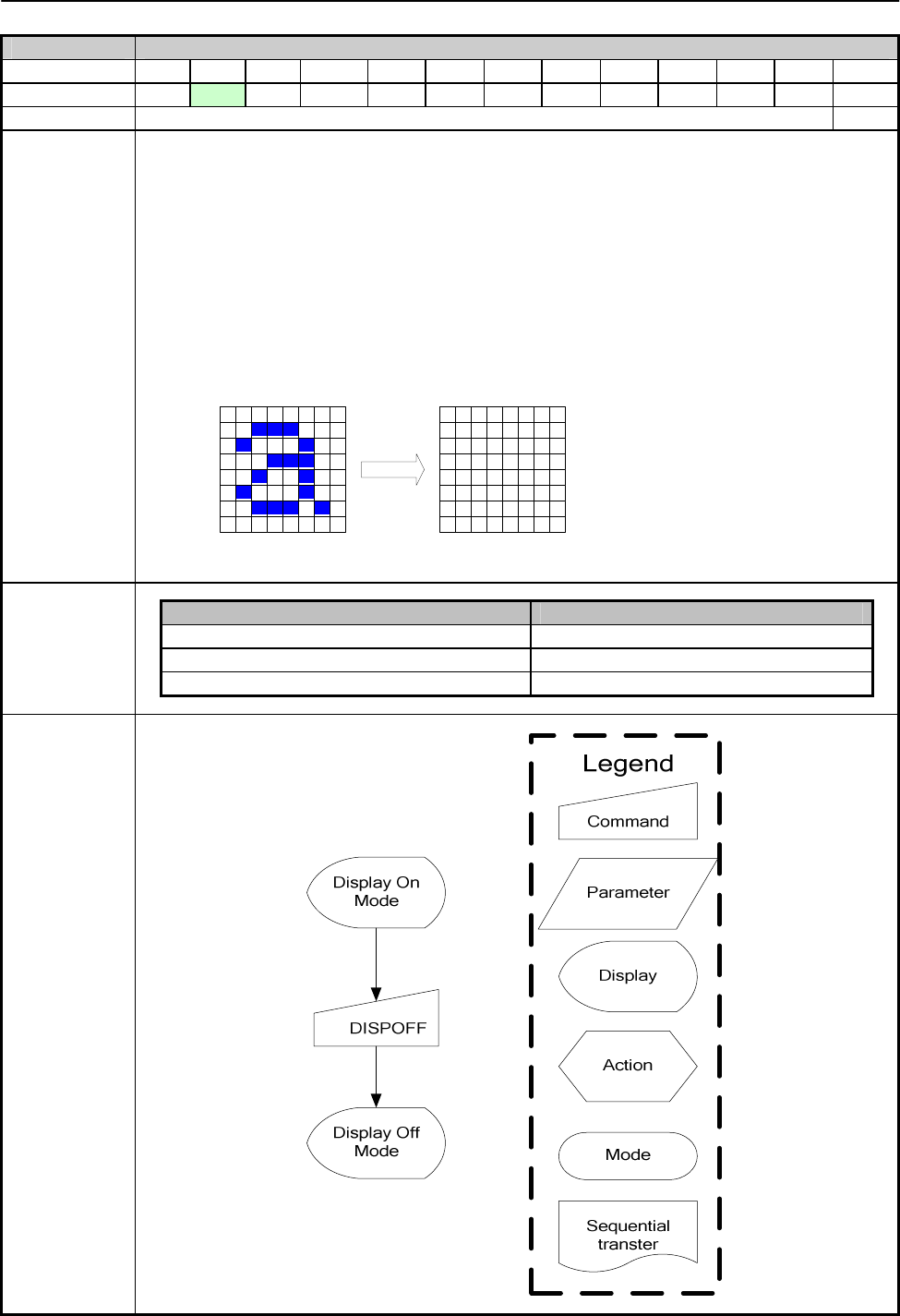

Display off
DISPON
10.1.18
0 ↑ 1
- 0 0 1 0 1 0 0 1 (29h)
Display on
0 ↑ 1
- 0 0 1 0 1 0 1 0 (2Ah)
Column address set
1 ↑ 1
- XS15
XS14
XS13
XS12
XS11
XS10
XS9
XS8
1 ↑ 1
- XS7
XS6
XS5
XS4
XS3
XS2
XS1
XS0
X address start: 0≦XS≦X
1 ↑ 1
- XE15
XE14
XE13
XE12
XE11
XE10
XE9
XE8
CASET
10.1.19
1 ↑ 1
- XE7
XE6
XE5
XE4
XE3
XE2
XE1
XE0
X address end: S≦XE≦X
0 ↑ 1
- 0 0 1 0 1 0 1 1 (2Bh)
Row address set
1 ↑ 1
- YS15
YS14
YS13
YS12
YS11
YS10
YS9
YS8
1 ↑ 1
- YS7
YS6
YS5
YS4
YS3
YS2
YS1
YS0
Y address start: 0≦YS≦Y
1 ↑ 1
- YE15
YE14
YE13
YE12
YE11
YE10
YE9
YE8
RASET
10.1.20
1 ↑ 1
- YE7
YE6
YE5
YE4
YE3
YE2
YE1
YE0
Y address end:S≦YE≦Y
0 ↑ 1
- 0 0 1 0 1 1 0 0 (2Ch)
Memory write
RAMWR
10.1.21
1 ↑ 1
- D7
D6
D5
D4
D3
D2
D1
D0
Write data
0 ↑ 1
- 0 0 1 0 1 1 0 1 (2Dh)
LUT for 4k,65k,262k color
1 ↑ 1
- - - R005
R004
R003
R002
R001
R000
Red tone 0
1 ↑ 1
- - - : : : : : :
:
1 ↑ 1
- - - Ra5
Ra4
Ra3
Ra2
Ra1
Ra0
Red tone
“
a
”
1 ↑ 1
- - - G005
G004
G003
G002
G001
G000
Green tone 0
1 ↑ 1
- - - : : : : : :
:
1 ↑ 1
- - - Gb5
Gb4
Gb3
Gb2
Gb1
Gb0
Green tone
“
b
”
1 ↑ 1
- - - B005
B004
B003
B002
B001
B000
Blue tone 0
1 ↑ 1
- - - : : : : : :
:

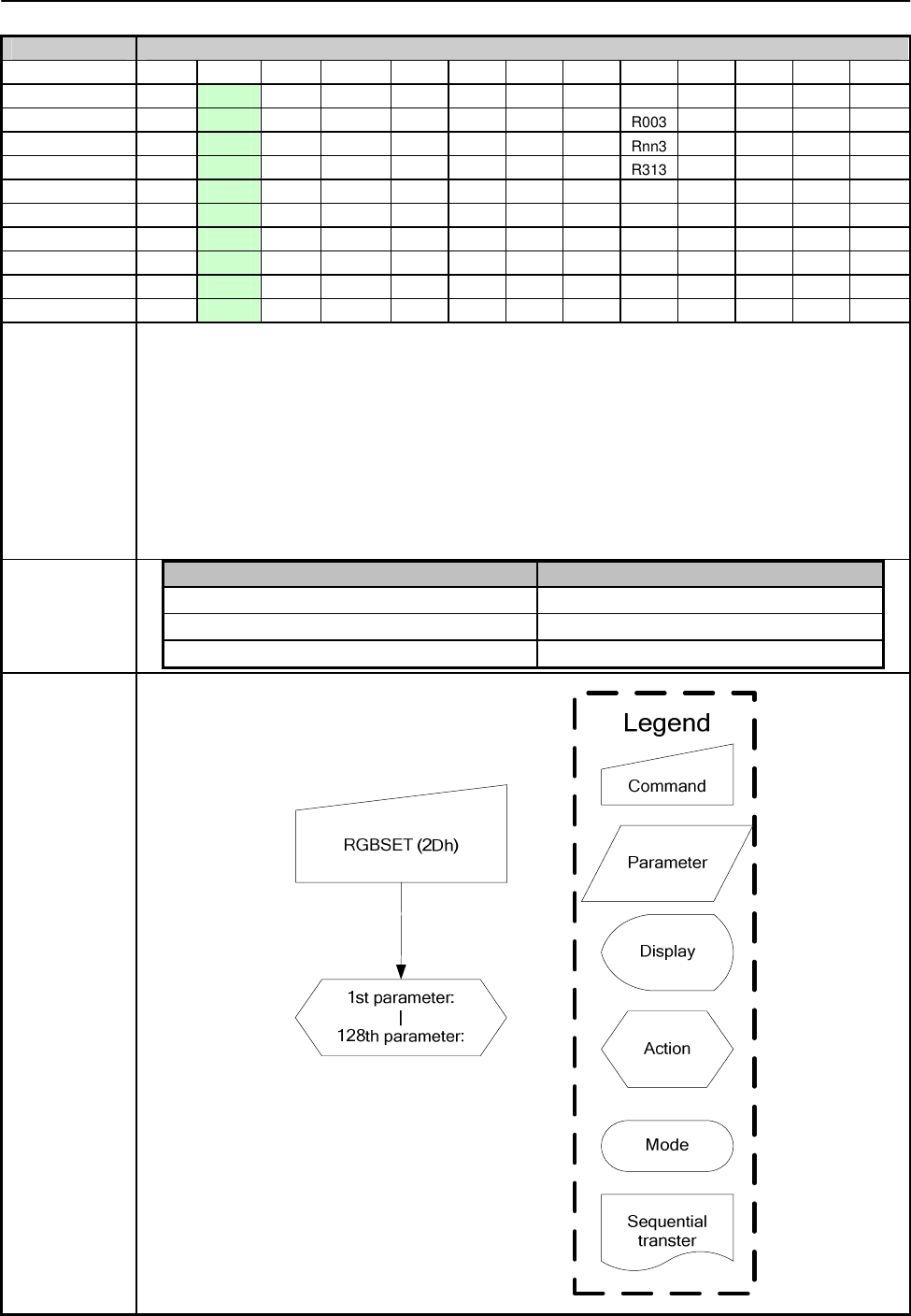

RGBSET
10.1.22
1 ↑ 1
- - - Bc5
Bc4
Bc3
Bc2
Bc1
Bc0
Blue tone
“
c
”
0 ↑ 1
- 0 0 1 0 1 1 1 0 (2Eh)

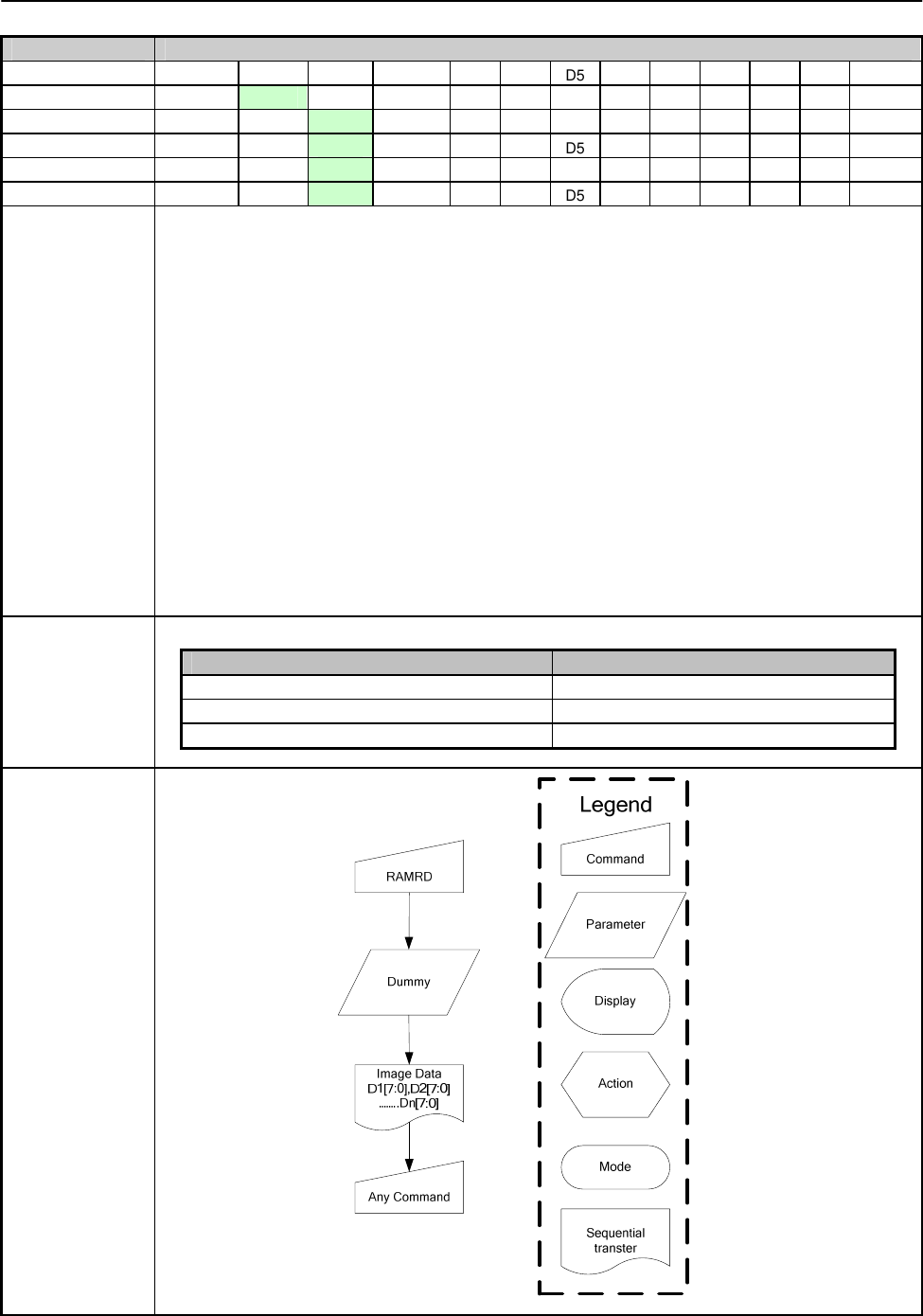

Memory read
1 1
↑ - - - - - - - - -
Du
mmy read
RAMRD
10.1.23
1 1
↑ - D7
D6
D5
D4
D3
D2
D1
D0
Read data
“-“: Don’t care

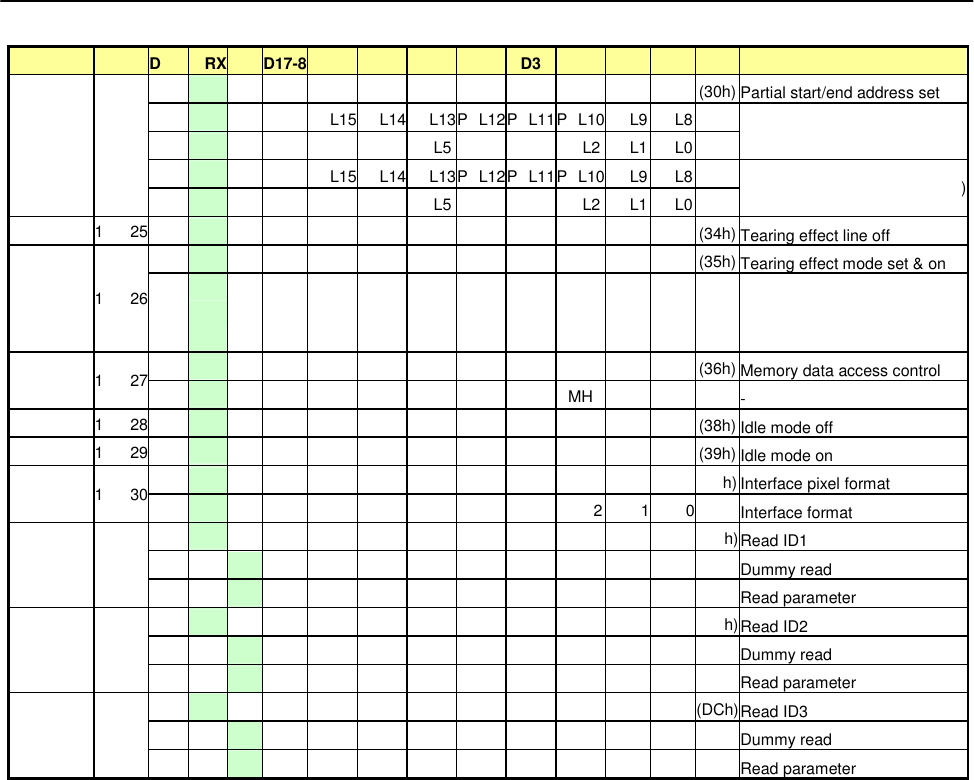

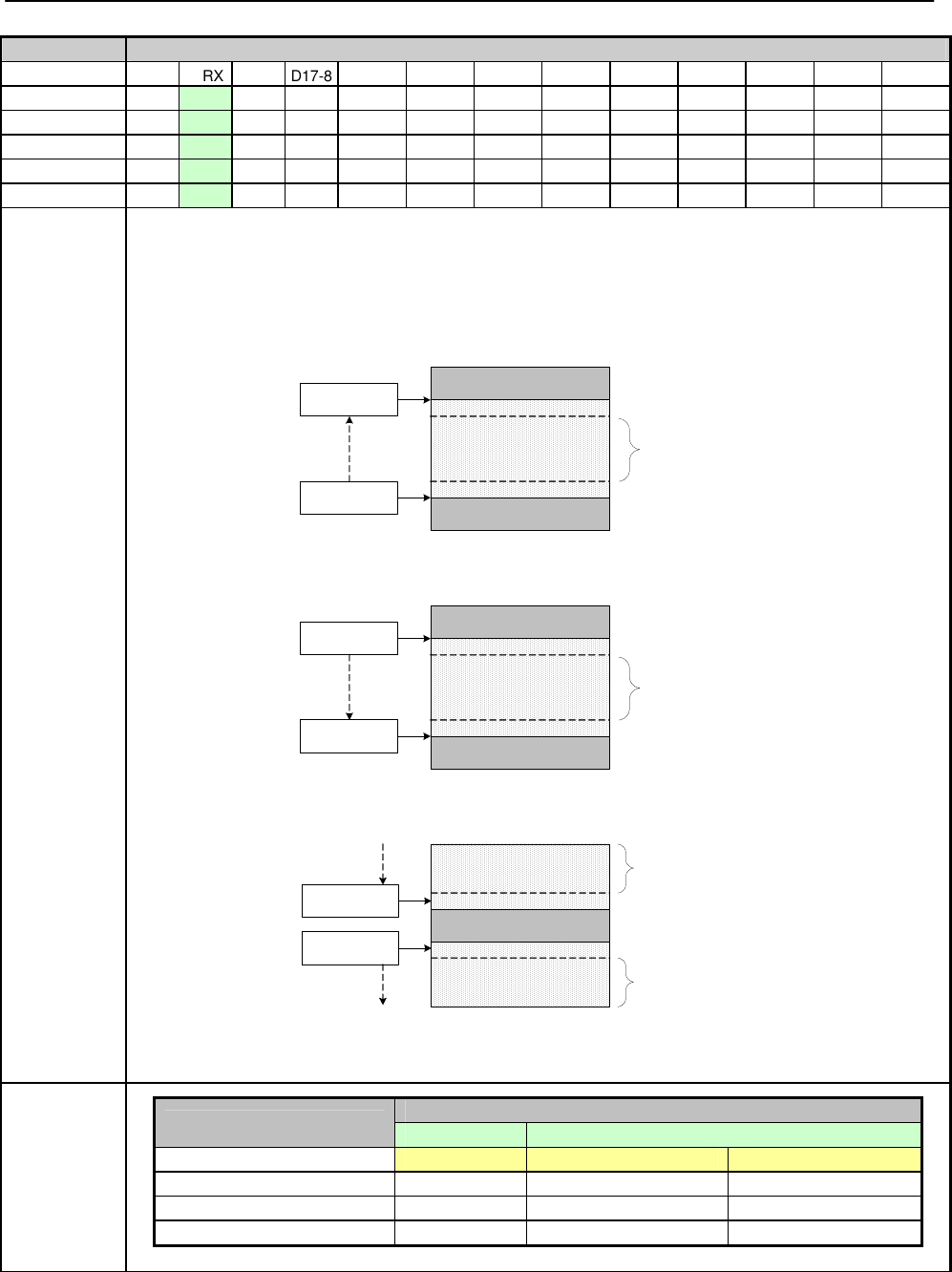

(30h) Partral stam’end address set
(34h) eari enecmnean
(35h) eari elreclmode selamn
(36h) emu data access comer
(38h) We mode 0"
(3%) We made on
h) \nterrace ’ el fidrmat
\nterrace lormal
h) Read \D!
Dumm read
Read arameter
h) Read \D2
Dumm read
Read arameter
DC”) Read \DS
Dumm read
Read arameter
ST7735R
V0.2 81 2009-08-05
Table 10.1.3 System Function command List (3)
Instruction
Refer
D/CX
WRX
RDXD17-8
D7
D6
D5
D4
D3
D2
D1
D0
Hex
Function
0
↑
1
- 0 0 1 1 0 0 0
0
(30h)
Partial start/end address set
1
↑
1
- PSL15
PSL14
PSL13PSL12
PSL11
PSL10 PSL9
PSL8
1
↑
1
- PSL7
PSL6
PSL5
PSL4
PSL3
PSL2
PSL1
PSL0
Partial start address (0,1,2, ..P)
1
↑
1
- PEL15
PEL14
PEL13PEL12
PEL11
PEL10 PEL9
PEL8
PTLAR
10.1.24
1
↑
1
- PEL7
PEL6
PEL5
PEL4
PEL3
PEL2
PEL1
PEL0
Partial end address (0,1,2, .., P)
TEOFF
10.1.25 0
↑
1
- 0 0 1 1 0 1 0
0
(34h)
Tearing effect line off
0
↑
1
- 0 0 1 1 0 1 0
1
(35h)
Tearing effect mode set & on
TEON 10.1.26 1
↑
1
- - - - - - - - TEM
Mode1: TEM=”0”
Mode2: TEM=”1”
0
↑
1
- 0 0 1 1 0 1 1
0
(36h)
Memo
ry data access control
MADCTL
10.1.27 1
↑
1
- MY
MX
MV
ML
RGB
MH
- -
-
IDMOFF
10.1.28 0
↑
1
- 0 0 1 1 1 0 0
0
(38h)
Idle mode off
IDMON
10.1.29 0
↑
1
- 0 0 1 1 1 0 0
1
(39h)
I
dle mode on
0
↑
1
- 0 0 1 1 1 0 1
0
(3Ah)
Interface pixel format
COLMOD
10.1.30 1
↑
1
- - - - - - IFPF2
IFPF1IFPF0
Interface format
0
↑
1
- 1 1 0 1 1 0 1
0
(DAh)
Read ID1
1
1
↑
- - - - - - - - -
Dummy read
RDID1
10.1.31
1
1
↑
- ID17
ID16
ID15
ID14
ID13
ID12
ID11
ID10
Read parameter
0
↑
1
- 1 1 0 1 1 0 1
1
(DBh)

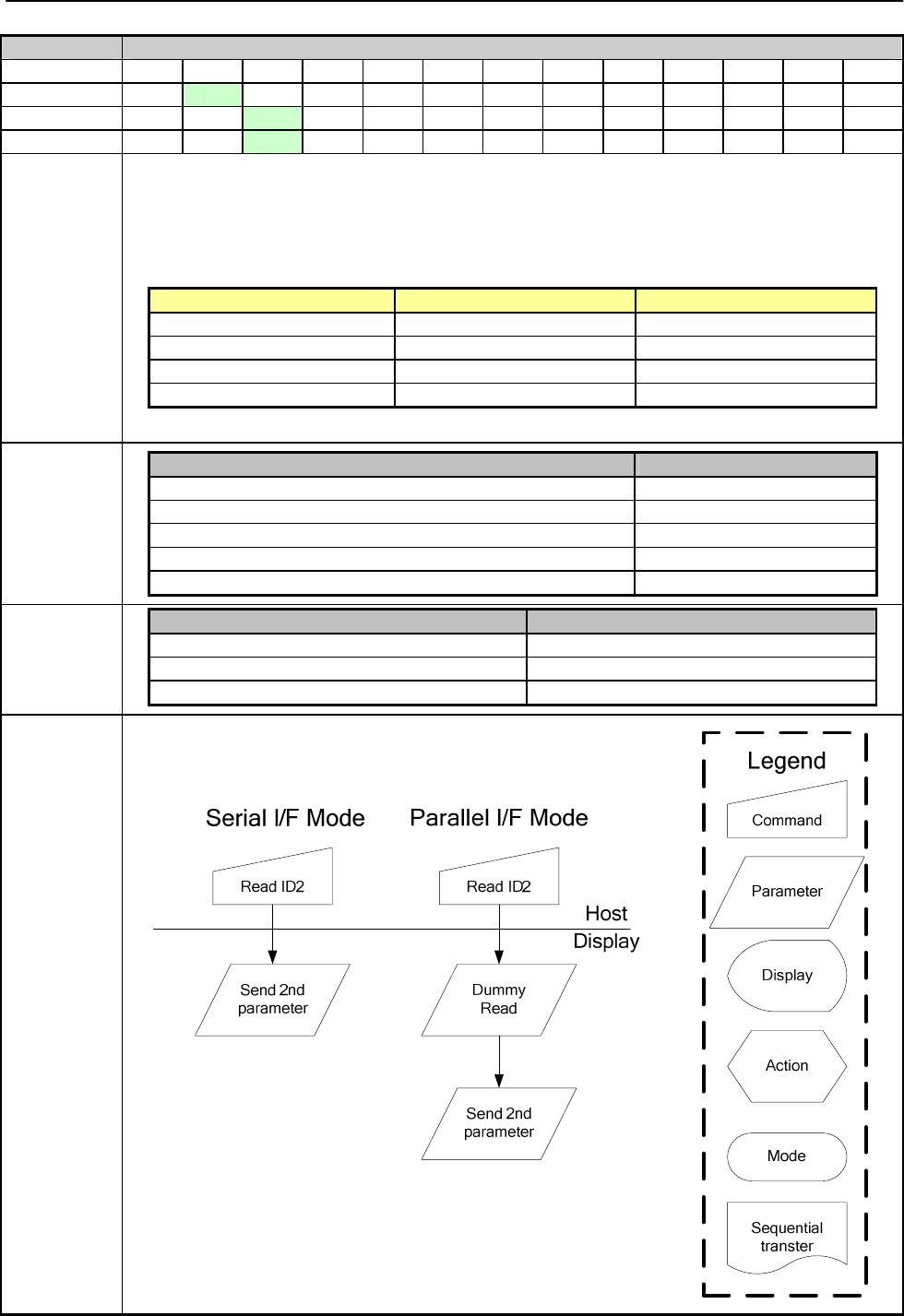

Read ID2
1
1
↑
- - - - - - - - -
Dummy read
RDID2
10.1.32
1
1
↑
- 1 ID26
ID25
ID24
ID23
ID22
ID21
ID20
Read parameter
0
↑
1
- 1 1 0 1 1 1 0
0
(DCh)
Read ID3
1
1
↑
- - - - - - - - -
Dummy read
RDID3
10.1.33
1
1
↑
- ID37
ID36
ID35
ID34
ID33
ID32
ID31
ID30
Read parameter
“-“: Don’t care
Note 1: After the H/W reset by RESX pin or S/W reset by SWRESET command, each internal register becomes default state (Refer
“RESET TABLE” section)
Note 2: Undefined commands are treated as NOP (00 h) command.
Note 3: B0 to D9 and DA to F are for factory use of driver supplier.
Note 4: Commands 10h, 12h, 13h, 20h, 21h, 26h, 28h, 29h, 30h, 33h, 36h (ML parameter only), 37h, 38h and 39h are updated during
V-sync when Module is in Sleep Out Mode to avoid abnormal visual effects. During Sleep In mode, these commands are updated
immediately. Read status (09h), Read Display Power Mode (0Ah), Read Display MADCTL (0Bh), Read Display Pixel Format
(0Ch), Read Display Image Mode (0Dh), Read Display Signal Mode (0Eh).
ST7735R
V0.2 82 2009-08-05

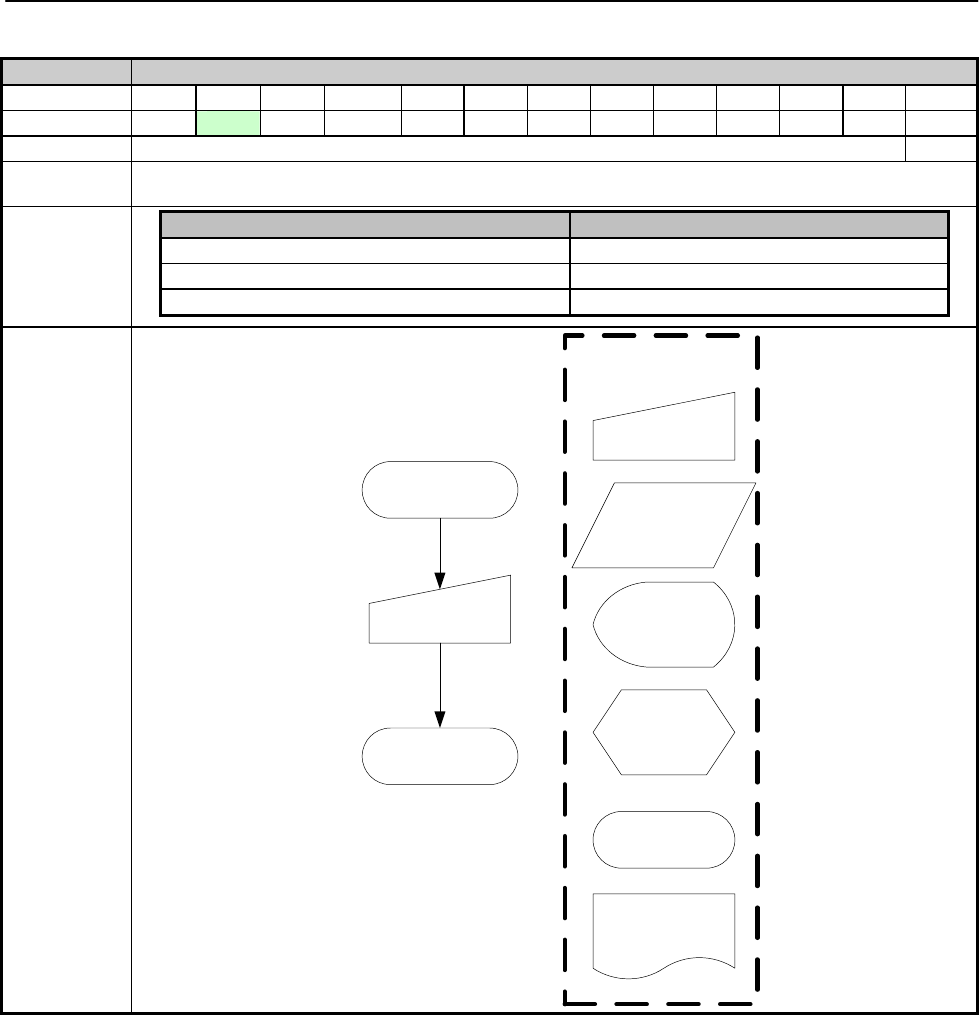

10.1.1 NOP (00h)
00H NOP (No Operation)
Inst / Para
D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
NOP 0 ↑ 1 - 0 0 0 0 0 0 0 0 (00h)
Parameter
No Parameter -
Description
This command is empty command.
“-“ Don’t care
are
ST7735R
V0.2 83 2009-08-05
10.1.2 SWRESET (01h): Software Reset
01H SWRESET (Software Reset)
Inst / Para
D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
SWRESET
0 ↑ 1 - 0 0 0 0 0 0 0 1 (01h)
Parameter
No Parameter -
Description
“-“ Don’t care
-If Software Reset is applied during Sleep In mode, it will be necessary to wait 120msec before sending next command.
-The display module loads all default values to the registers during 120msec.
-If Software Reset is applied during Sleep Out or Display On Mode, it will be necessary to wait 120msec before sending
next command.

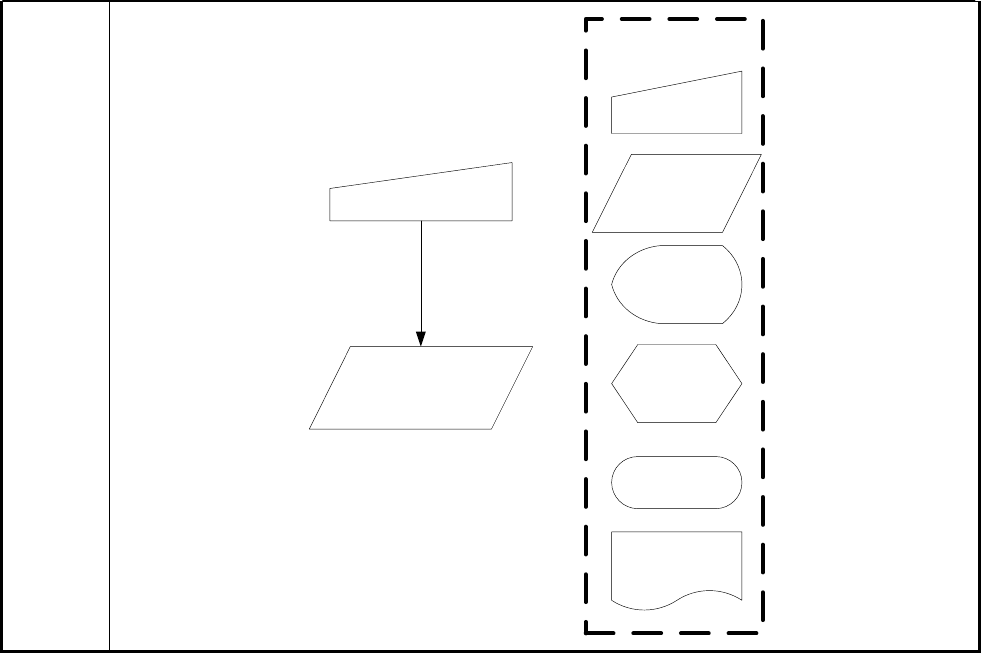

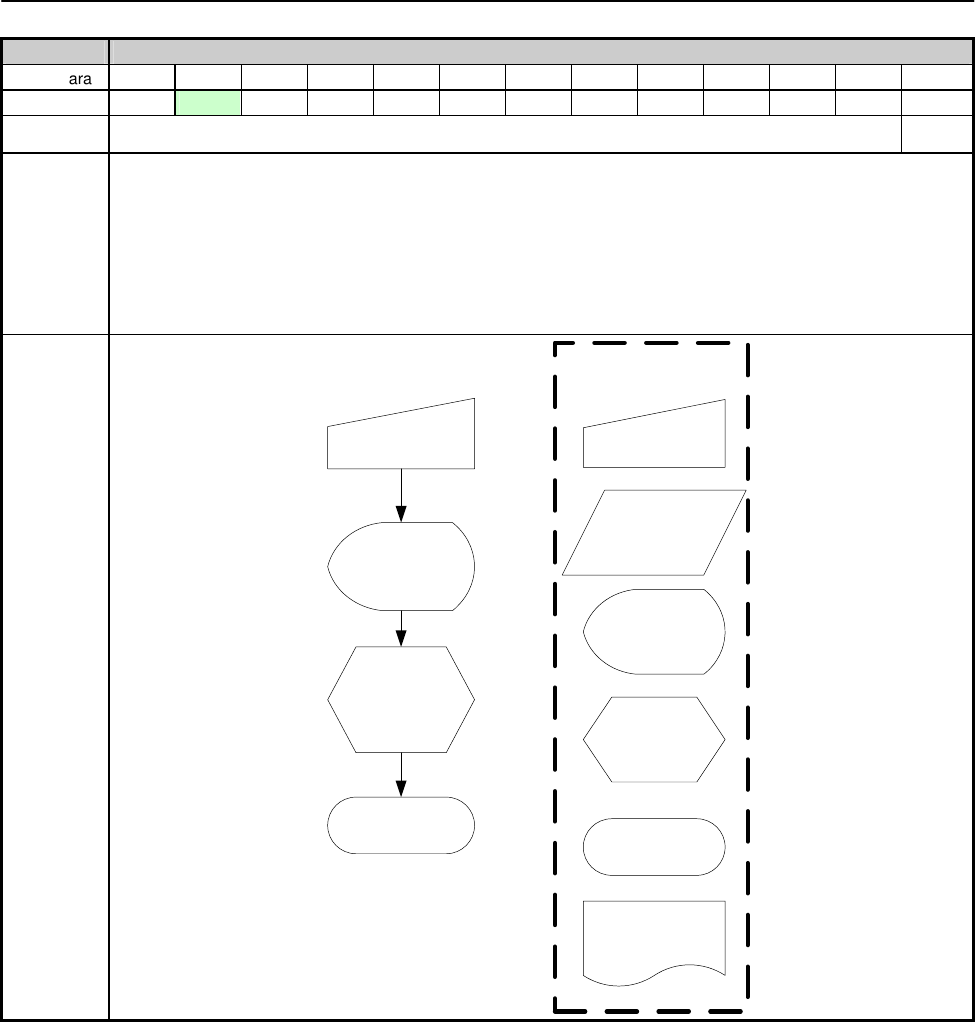

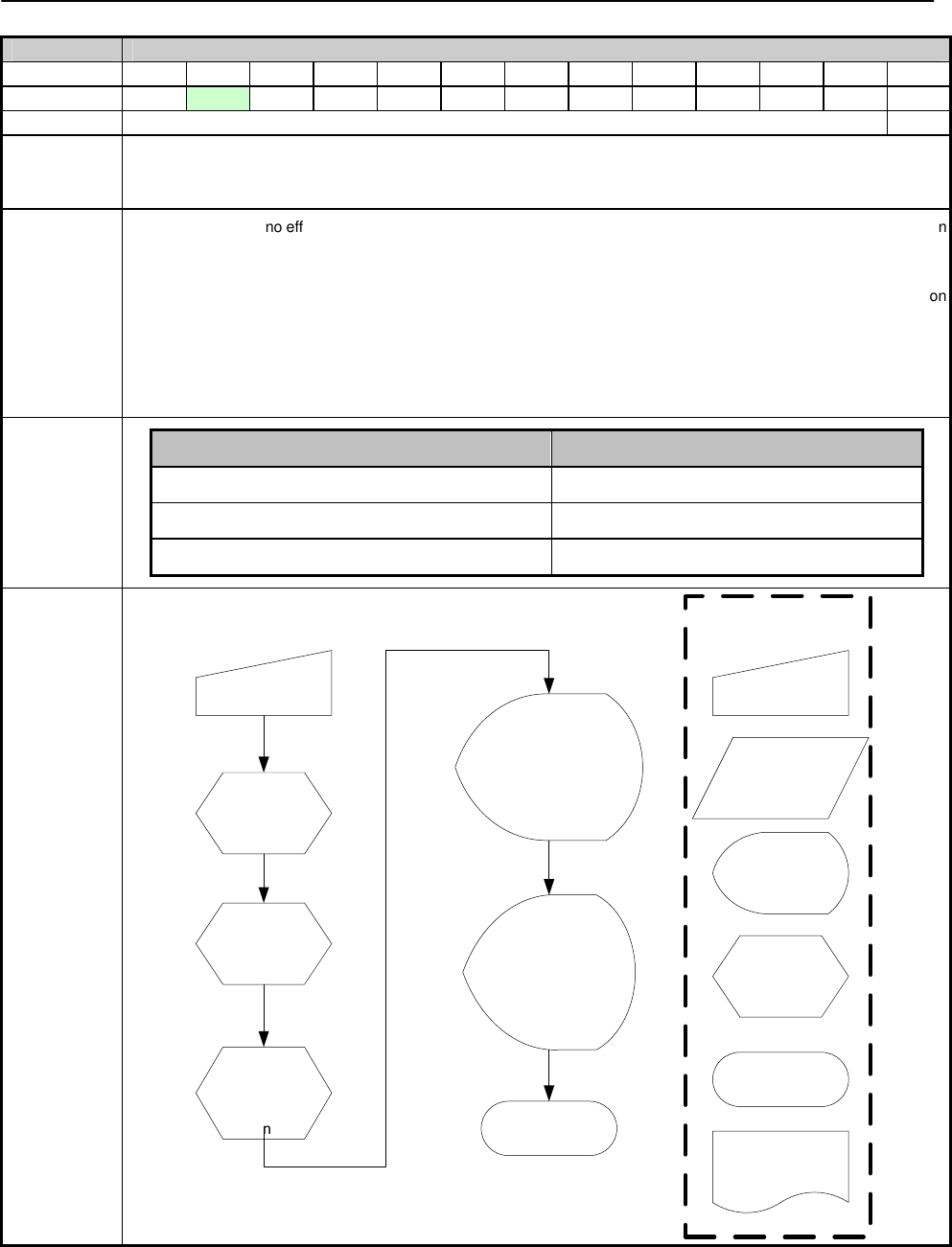

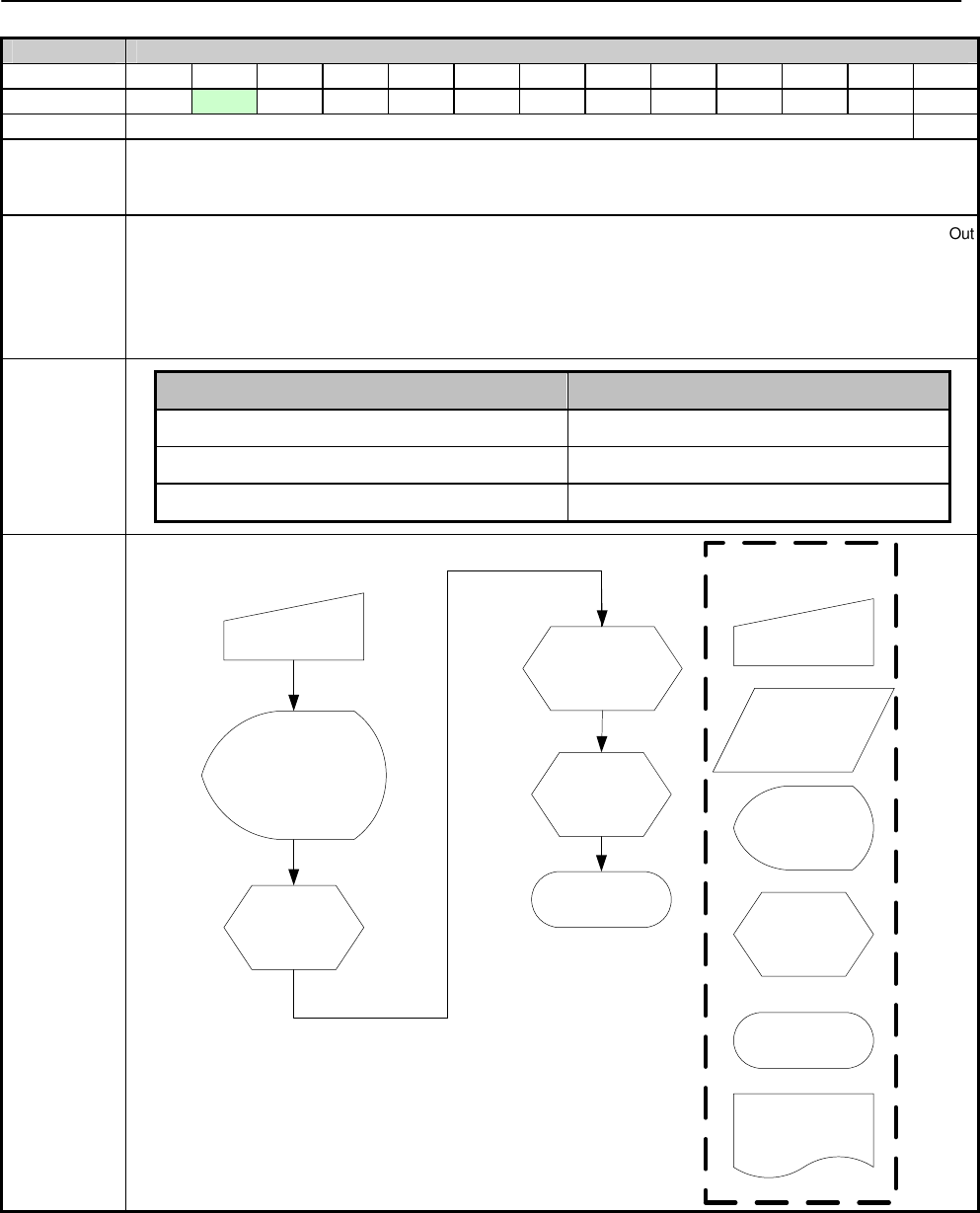

Flow Chart
SWRESET
Set
Commands
to S/W
Default
Value
Display whole
blank screen
Sleep In Mode
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
ST7735R
V0.2 84 2009-08-05

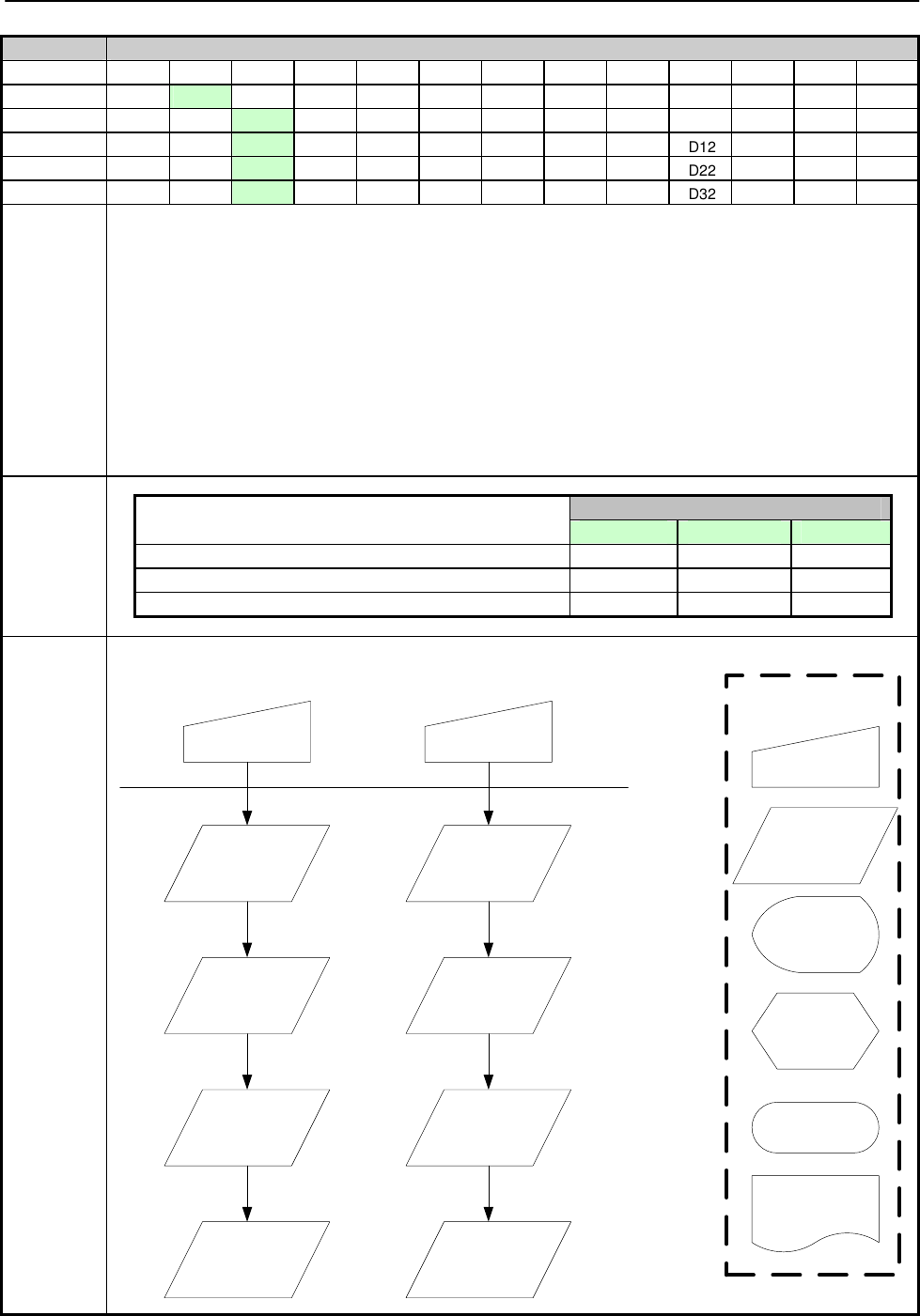

10.1.3 RDDID (04h): Read Display ID
04H RDDID (Read Display ID)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RDDID 0 ↑ 1 - 0 0 0 0 0 1 0 0 (04h)
1
st
parameter
1 1 ↑ - - - - - - - - - -
2
nd
parameter
1 1 ↑ - ID17
ID16
ID15
ID14
ID13
ID12
ID11
ID10
3
rd
parameter
1 1 ↑ - 1 ID26
ID25
ID24
ID23
ID22
ID21
ID20
4
th
parameter
1 1 ↑ - ID37
ID36
ID35
ID34
ID33
ID32
ID31
ID30
Description
-This read byte returns 24-bit display identification information.
-The 1st parameter is dummy data
-The 2nd parameter (ID17 to ID10): LCD module’s manufacturer ID.
-The 3rd parameter (ID26 to ID20): LCD module/driver version ID
-The 4th parameter (ID37 to UD30): LCD module/driver ID.
-Commands RDID1/2/3(DAh, DBh, DCh) read data correspond to the parameters 2,3,4 of the command 04h,
respectively.
“-“ Don’t care
Default
Default Value
Status ID1 ID2 ID3
Power On Sequence - NV Value NV Value
S/W Reset - NV Value NV Value
H/W Reset - NV Value NV Value
Flow Chart
Read 04h Read 04h
Dummy
Clock
Dummy
Read
Send 2nd
parameter
Send 2nd
parameter
Send 3rd
parameter
Send 3rd
parameter
Send 4th
parameter
Send 4th
parameter
Serial I/F Mode Parallel I/F Mode
Host
Display
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
IDMON
PTLON
SLPOUT
For Future Use
For Future Use
Idte Mode On/Otl
Partwat Mode OmOtt
Slee \n/Out
Vemcat Scrothn Status Nat Used ‘1 : Scrolt an,”0 : Scratl ott
Horizontal Scrolt Status Not Used ‘0‘
Inversmn Status
All waets On Not Used
All waets 0" Not Used
ST7735R
V0.2 85 2009-08-05
10.1.4 RDDST (09h): Read Display Status
09H RDDST (Read Display Status)
Inst / Para
D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RDDST 0 ↑ 1 - 0 0 0 0 1 0 0 1 (09h)
1
st
parameter
1 1 ↑ - - - - - - - - - -
2
nd
parameter
1 1 ↑ - BSTON
MY MX MV ML RGB
MH ST24
3
rd
parameter
1 1 ↑ - ST23
IFPF2
IFPF1
IFPF0
IDMON
PTLON
SLOUT
NORON
4
th
parameter
1 1 ↑ - ST15
ST14
INVON
ST12
ST11
DISON
TEON
GCS2
5
th
parameter
1 1 ↑ - GCS1
GCS0
TEM
ST4 ST3 ST2 ST1 ST0
Description
This command indicates the current status of the display as described in the table below:
Bit Description Value
BSTON Booster Voltage Status ‘1’ =Booster on,
‘0’ =Booster off
MY Row Address Order (MY) ‘1’ =Decrement, (Bottom to Top, when MADCTL (36h) D7=’1’)
‘0’ =Increment, (Top to Bottom, when MADCTL (36h) D7=’0’)
MX Column Address Order (MX) ‘1’ =Decrement, (Right to Left, when MADCTL (36h) D6=’1’)
‘0’ =Increment, (Left to Right, when MADCTL (36h) D6=’1’)
MV Row/Column Exchange (MV) ‘1’ = Row/column exchange, (when MADCTL (36h) D5=’1’)
‘0’ = Normal, (when MADCTL (36h) D5=’0’
ML Scan Address Order (ML) ‘0’ =Decrement,
(LCD refresh Top to Bottom, when MADCTL (36h) D4=’0’)
‘1’=Increment,
(LCD refresh Bottom to Top, when MADCTL (36h) D4=’1’)
RGB RGB/ BGR Order (RGB) ‘1’ =BGR, (When MADCTL (36h) D3=’1’)
‘0’ =RGB, (When MADCTL (36h) D3=’0’)
MH Horizontal Order
‘0’ =Decrement,
(LCD refresh Left to Right, when MADCTL (36h) D2=’0’)
‘1’ =Increment,
(LCD refresh Right to Left, when MADCTL (36h) D2=’1’)
ST24
For Future Use
‘0’
ST23
For Future Use
‘0’
IFPF2
IFPF1
IFPF0
Interface Color Pixel Format
Definition
“011” = 12-bit / pixel,
“101” = 16-bit / pixel,
“110” = 18-bit / pixel, others are no define
IDMON
Idle Mode On/Off
‘1’ = On, “0” = Off
PTLON
Partial Mode On/Off
‘1’ = On, “0” = Off
SLPOUT
Sleep In/Out
‘1’ = Out, “0” =
In
NORON Display Normal Mode On/Off ‘1’ = Normal Display,
‘0’ = Partial Display
ST15
Vertical Scrolling Status
(Not Used)
‘1’ = Scroll on,“0” = Scroll off
ST14
Horizontal Scroll Status
(Not Used)
‘0’
INVON
Inversion Status
‘1’ = On, “0” = Off
ST12
All Pixels On (Not Used)
‘0’
ST11
All Pixels Off (Not Used)
‘0’
DlSON DlSDlaV On/O" 0M
TEON Tearlng ellecl llne on/Dll 0"
TEM Tearlng ellecl llne mode
ST4 Fol Fulule Use ‘0‘
ST3 Fol Fulule Use ‘0‘
ST2 Fol Fulule Use ‘0‘
STl Fol Fulule Use ‘0‘
Serial |/F Mode Parallel |/F Mode
RDDST 09h RDDST 09h
Dummy Dummy
Clock Read
Send 2nd Send 2nd
parameter parameter
Send 3rd / Send 3rd
parameter parameter
Send 4th Send 4th
parameter parameter /
Send an / Sendlh
parameter parameter
Acllun
Sequential
Iranslerr
ST7735R
V0.2 86 2009-08-05
D
ISON
Display On/Off
‘1’ = On, “0” = Off
TEON
Tearing effect line on/off
‘1’ = On, “0” = Off
GCSEL2
GCSEL1
GCSEL0
Gamma Curve Selection
“000” = GC0
“001” = GC1
“010” = GC2
“011” = GC3
”100” to “111” = Not defined
TE
M
Tearing effect line mode
‘0’ =
mode1, ‘1’ = mode2
ST4
For Future Use
‘0’
ST3
For Future Use
‘0’
ST2
For Future Use
‘0’
ST1
For Future Use
‘0’
ST0 For Future Use ‘0’
“-“ Don’t care
Default
Status Default Value (ST31 to ST0)
ST[31-24] ST[23-16] ST[15-8] ST[7-0]
Power On Sequence 0000-0000 0110-0001 0000-0000 0000-0000
S/W Reset 0xxx0xx00 0xxx-0001 0000-0000 0000-0000
H/W Reset 0000-0000 0110-0001 0000-0000 0000-0000
Flow Chart
er
S OUT NORON
Serlal Ill: Mode Parallel l/F Mode
mm W l mm 0A..
fl,——
Send 2nd
Dammt‘:
50an 2nd
vnmr‘lr‘
5m ”mm-n
m mm
ST7735R
V0.2 87 2009-08-05
10.1.5 RDDPM (0Ah): Read Display Power Mode
0AH RDDPM (Read Display Power Mode)
Inst / Para
D/CX
WRX
RDX
D17-8
D7
D6
D5
D4
D3
D2
D1
D0
HEX
RDDPM 0 ↑ 1 - 0 0 0 0 1 0 1 0 (0Ah)
1
st
parameter
1 1 ↑ - - - - - - - - - -
2
nd
parameter
1 1 ↑
BSTON
IDMON
PTLON
SLPOUT
NORON
DISON
D1
D0
Description
This command indicates the current status of the display as described in the table below:
“-“ Don’t care
Bit Description Value
BSTON Booster Voltage Status ‘1’ =Booster on,
‘0’ =Booster off
IDMON Idle Mode On/Off ‘1’ = Idle Mode On,
‘0’ = Idle Mode Off
PTLON Partial Mode On/Off ‘1’ = Partial Mode On,
‘0’ = Partial Mode Off
SLPON Sleep In/Out ‘1’ = Sleep Out,
‘0’ = Sleep In
NORON Display Normal Mode On/Off ‘1’ = Normal Display,
‘0’ = Partial Display
DISON Display On/Off ‘1’ = Display On,
‘0’ = Display Off
D1 Not Used ‘0’
D0 Not Used ‘0’
Default
Status Default Value (D7 to D0)
Power On Sequence 0000_1000(08h)
S/W Reset 0000_1000(08h)
H/W Reset 0000_1000(08h)
Flow Chart
D1778
Serial l/F Mode
5m: 2111}
hm :Imrlm
Parallel I/F Mode
Room/man can
Send 2nd
Dalnmcu‘l
Pardmexel
Mime
smumum
lvnnewr
ST7735R
V0.2 88 2009-08-05
10.1.6 RDDMADCTL (0Bh): Read Display MADCTL
0BH RDDMADCTL (Read Display MADCTL)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RDDMADCTL
0 ↑ 1 - 0 0 0 0 1 0 1 1 (0Bh)
1
st
parameter 1 1 ↑ - - - - - - - - - -
2
nd
parameter 1 1 ↑ MY MX MV ML RGB
MH D1 D0
Description
This command indicates the current status of the display as described in the table below:
“-“ Don’t care
Bit Description Value
MX Column Address Order ‘1’ = Right to Left (When MADCTL B6=’1’)
‘0’ = Left to Right (When MADCTL B6=’0’)
MY Row Address Order ‘1’ = Bottom to Top (When MADCTL B7=’1’)
‘0’ = Top to Bottom (When MADCTL B7=’0’)
MV Row/Column Order (MV) ‘1’ = Row/column exchange (MV=1)
‘0’ = Normal (MV=0)
ML Vertical Refresh Order ‘1’ =LCD Refresh Bottom to Top
‘0’ =LCD Refresh Top to Bottom
RGB RGB/BGR Order ‘1’ =BGR, “0”=RGB
MH Horizontal Refresh Order
LCD horizontal refresh direction control
‘0’ = LCD horizontal refresh Left to right
‘1’ = LCD horizontal refresh right to left
D1 Not Used ‘0’
D0 Not Used ‘0’
Default
Status Default Value (D7 to D0)
Power On Sequence 0000_0000 (00h)
S/W Reset No change
H/W Reset 0000_0000 (00h)
Flow Chart
Serial |/F Mode
'F'ébbCOLMOD
Parallel |/F Mode
'RbbCOLMOD
00h 00h
l Host
l Display
Send 2nd Dummy
parameter ,’ Read
_V—
’/ Send 2nd /
parameter //
Aclion
|
I Sequential
I lran’srt/errn __
ST7735R
V0.2 89 2009-08-05
10.1.7 RDDCOLMOD (0Ch): Read Display Pixel Format
0CH RDDCOLMOD (Read Display Pixel Format)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RDDCOLMOD
0 ↑ 1 - 0 0 0 0 1 1 0 0 (0Ch)
1
st
parameter 1 1 ↑ - - - - - - - - - -
2
nd
parameter 1 1 ↑ - 0 0 0 0 - IFPF2
IFPF1
IFPF0
Description
This command indicates the current status of the display as described in the table below:
IFPF[2:0] MCU Interface Color Format
011 12-bit/pixel
101 16-bit/pixel
110 18-bit/pixel
111 No used
Others are no define and invalid
“-“ Don’t care
Default
Status Default Value
IFPF[2:0]
Power On Sequence 0110 (18 bits/pixel)
S/W Reset No Change
H/W Reset 0110 (18 bits/pixel)
Flow Chart
D1778
Serial IlF Mode
RDD‘M 0cm
Paralle‘ I/F Mode
H 051
V Send7nd ,
mammals! ,
Display
Legend
Command
,’ Para mmcr ,’
Dwsp‘ay
Acuan
Mode 1
Seimerma‘
xrans‘e; ,
|
|
|
|
,, I
|
|
|
|
L;_J
ST7735R
V0.2 90 2009-08-05
10.1.8 RDDIM (0Dh): Read Display Image Mode
0DH RDDIM (0Dh): Read Display Image Mode
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RDDIM 0 ↑ 1 - 0 0 0 0 1 1 0 1 (0Dh)
1
st
parameter 1 1 ↑ - - - - - - - - - -
2
nd
parameter 1 1 ↑ - VSSON
D6 INVON
D4 D3 GCS2
GCS1
GCS0
Description
This command indicates the current status of the display as described in the table below:
“-“ Don’t care
Bit Description Value
VSSON Reversed “0”
D6 Reversed “0”
INVON Inversion On/Off “1” = Inversion is On,
“0” = Inversion is Off
D4 All Pixels On “0” (Not used)
D3 All Pixels Off “0” (Not used)
GCS2
GCS1
GCS0
Gamma Curve Selection
“000” = GC0,
“001” = GC1,
“010” = GC2,
“011” = GC3, ”100” to “111” = Not defined
Default
Status Default Value(D7 to D0)
Power On Sequence 0000_0000 (00h)
S/W Reset 0000_0000 (00h)
H/W Reset 0000_0000 (00h)
Flow Chart
ST7735R
V0.2 91 2009-08-05
10.1.9 RDDSM (0Eh): Read Display Signal Mode
0EH RDDSM (0Eh): Read Display Signal Mode
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RDDSM 0 ↑ 1 - 0 0 0 0 1 1 1 0 (0Eh)
1
st
parameter 1 1 ↑ - - - - - - - - - -
2
nd
parameter 1 1 ↑ - TEON
TEM
D5 D4 D3 D2 D1 D0
Description
This command indicates the current status of the display as described in the table below:
“-“ Don’t care
Bit Description Value
TEON Tearing Effect Line On/Off “1” = On,
“0” = Off
TEM Tearing effect line mode “1” = mode2,
“0” = mode1
D5 Not Used “1” = On,
“0” = Off
D4 Not Used “1” = On,
“0” = Off
D3 Not Used “1” = On,
“0” = Off
D2 Not Used “1” = On,
“0” = Off
D1 Not Used “1” = On,
“0” = Off
D0 Not Used “1” = On,
“0” = Off
Default
Status Default Value(D7~D0)
Power On Sequence 0000_0000 (00h)
S/W Reset 0000_0000 (00h)
H/W Reset 0000_0000 (00h)

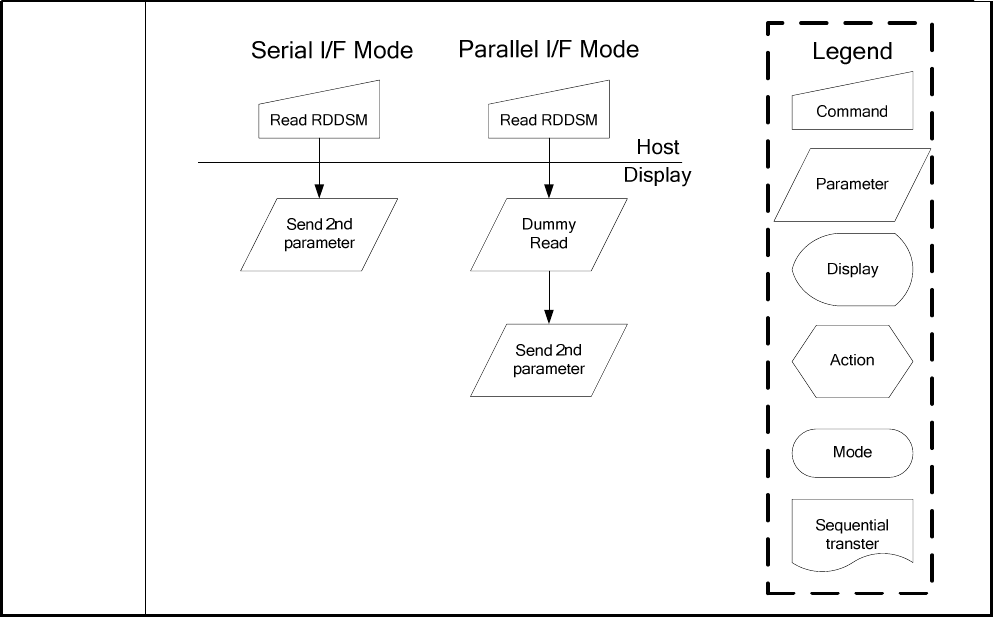

Serial l/F Mode Parallel l/F Mode
Read RDDSM Read RDDSM
Hosl
Send 2nd Dummy
parameter Read
Send 2nd
parameler
Display
'____
I Legend
| Command
Parameter
Display
\\_ I
\
Mode
\
Sequenual
Iransler ,
I____
ST7735R
V0.2 92 2009-08-05
Flow Chart
ST7735R
V0.2 93 2009-08-05
10.1.10 SLPIN (10h): Sleep In
10H SLPIN (Sleep In)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
SLPIN 0 ↑ 1 - 0 0 0 1 0 0 0 0 (10h)
Parameter No Parameter -
Description -This command causes the LCD module to enter the minimum power consumption mode.
-In this mode the DC/DC converter is stopped, Internal display oscillator is stopped, and panel scanning is stopped.
Restriction
-This command has no effect when module is already in Sleep In
mode. Sleep In Mode can only be exit by the Sleep Out
Command (11h).
-
When IC is in Sleep Out or Display On mode, it is necessary to wait 120msec before sending next command because of
the stabilization timing for the supply voltages and clock circuits.
Default
Status Default Value
Power On Sequence Sleep in mode
S/W Reset Sleep in mode
H/W Reset Sleep in mode
Flow Chart
SLPIN
Display whole
blank screen
(Automatic No effect
to DISP ON/OFF
Commands)
Drain
Charge
From LCD
Panel
Stop
DC-DC
Converter
Stop
Internal
Oscillator
Sleep In Mode
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
on
no 9"
ST7735R
V0.2 94 2009-08-05
10.1.11 SLPOUT (11h): Sleep Out
11H SLPOUT (Sleep Out)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
SLPOUT 0 ↑ 1 - 0 0 0 1 0 0 0 1 (11h)
Parameter No Parameter -
Description -This command turns off sleep mode.
-In this mode the DC/DC converter is enabled, Internal display oscillator is started, and panel scanning is started.
Restriction
-This command has no ef
fect when module is already in sleep out mode. Sleep Out Mode can only be exit by the Sleep In
Command (10h).
-
When IC is in Sleep In mode, it is necessary to wait 120msec before sending next command because of the stabilization
timing for the supply voltages and clock circuits.
-When IC is in Sleep Out or Display On mode, it is necessary to wait 120msec before sending next command due to the
download of default value of registers and the execution of self-diagnostic function.
Default
Status Default Value
Power On Sequence Sleep in mode
S/W Reset Sleep in mode
H/W Reset Sleep in mode
Flow Chart
SLPOUT
Start
Internal
Oscillator
Start up
DC:DC
Converter
Display whole blank
screen for 2 firames
(Automatic No effect
to DISP ON/OFF
Commands)
Display Memory
contents In
accordance with
the current
command table
settings
Sleep Out mode
Charge
Offset
voltage for
LCD
Panel
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
ST7735R
V0.2 95 2009-08-05
10.1.12 PTLON (12h): Partial Display Mode On
12H PTLON (12h): Partial Display Mode On
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
PTLON 0 ↑ 1 - 0 0 0 1 0 0 1 0 (12h)
Parameter No Parameter -
Description
-This command turns on Partial mode. The partial mode window is described by the Partial Area command (30h)
-To leave Partial mode, the Normal Display Mode On command (13h) should be written.
“-“ Don’t care
Default
Status Default Value
Power On Sequence Normal Mode On
S/W Reset Normal Mode On
H/W Reset Normal Mode On
Flow Chart
See Partial Area (30h)
ST7735R
V0.2 96 2009-08-05
10.1.13 NORON (13h): Normal Display Mode On
13H NORON (Normal Display Mode On)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
NORON 0 ↑ 1 - 0 0 0 1 0 0 1 1 (13h)
Parameter No Parameter -
Description
-This command returns the display to normal mode.
-Normal display mode on means Partial mode off.
-Exit from NORON by the Partial mode On command (12h)
“-“ Don’t care
Default
Status Default Value
Power On Sequence Normal Mode On
S/W Reset Normal Mode On
H/W Reset Normal Mode On
Flow Chart
See Partial Area Definition Descriptions for details of when to use this command
\HHH
ST7735R
V0.2 97 2009-08-05

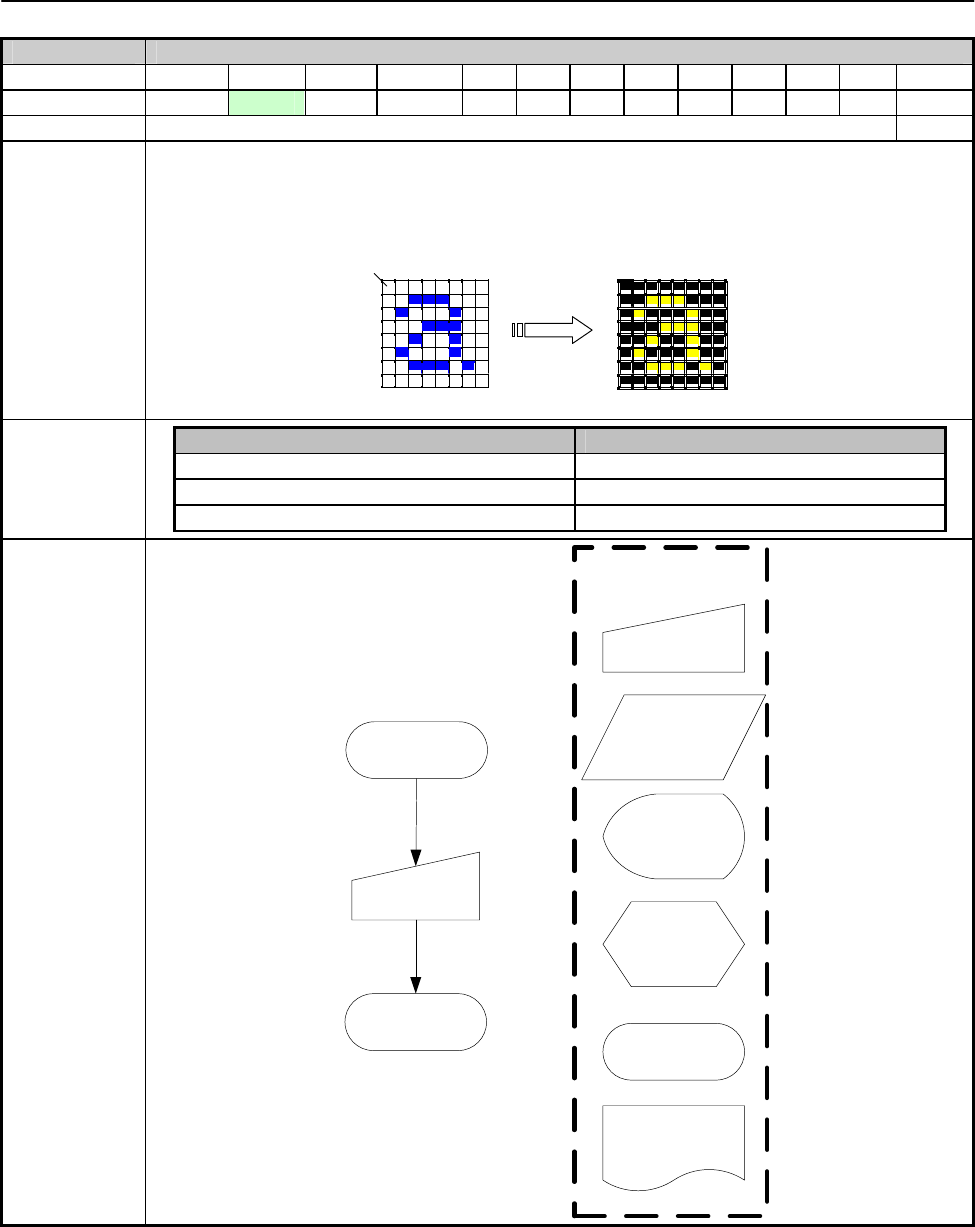

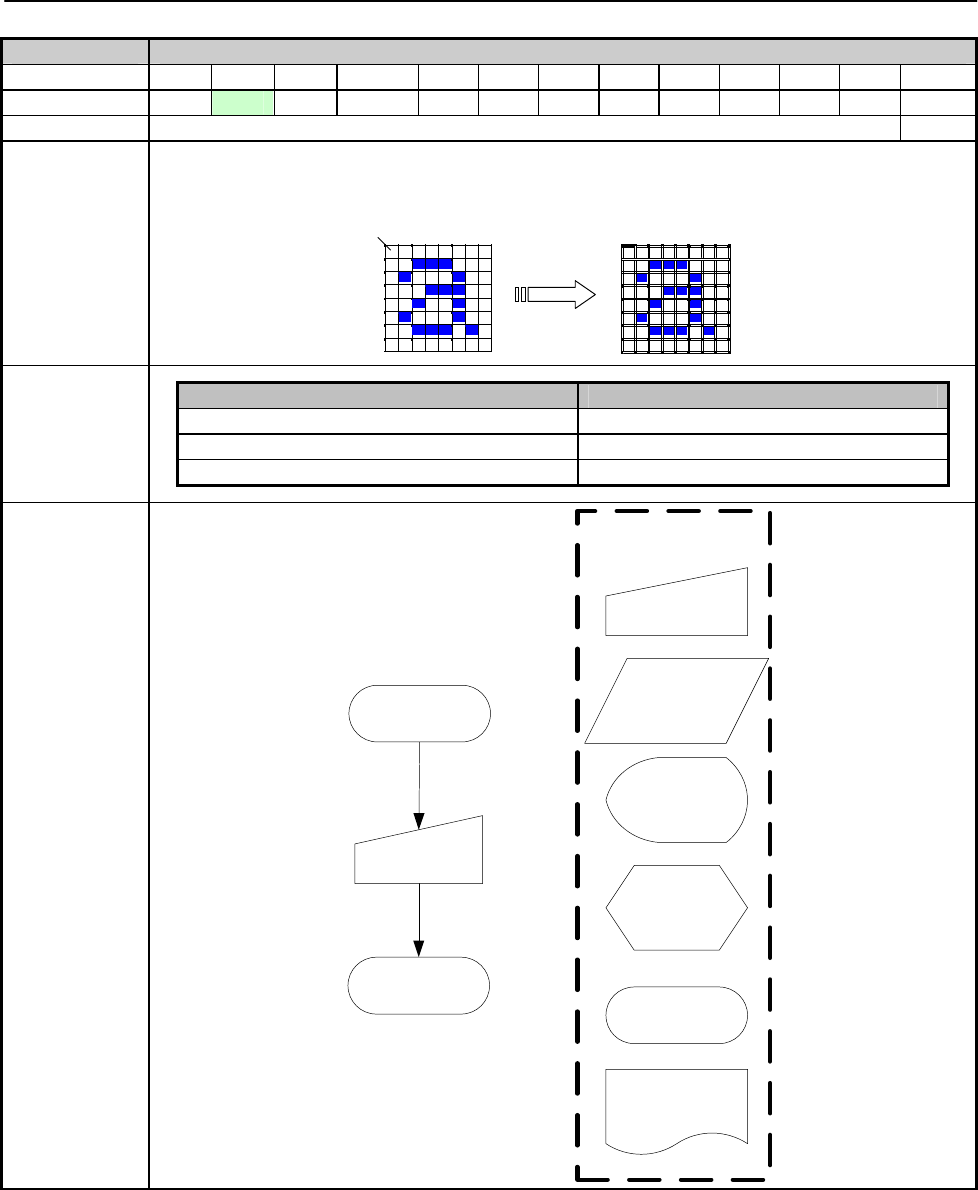

10.1.14 INVOFF (20h): Display Inversion Off
20H IVNOFF (Normal Display Mode Off)
Inst / Para D/CX
WRX
RDX
D17-8 D7 D6 D5 D4 D3 D2 D1 D0 HEX
INVOFF 0 ↑ 1 - 0 0 1 0 0 0 0 0 (20h)
Parameter No Parameter -
Description
-This command is used to recover from display inversion mode.
“-“ Don’t care
Default
Status Default Value
Power On Sequence Display Inversion off
S/W Reset Display Inversion off
H/W Reset Display Inversion off
Flow Chart
INVOFF (20h)
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
Display
Inversion On
Mode
Display
Inversion OFF
Mode
Top-Left
(0,0)
(Example)
Memory Display
HIHH
ST7735R
V0.2 98 2009-08-05
10.1.15 INVON (21h): Display Inversion On
21H IVNOFF (Display Inversion On)
Inst / Para D/CX WRX RDX D17-8 D7
D6
D5
D4
D3
D2
D1
D0
HEX
INVON 0 ↑ 1 - 0 0 1 0 0 0 0 1 (21h)
Parameter No Parameter -
Description
-This command is used to enter into display inversion mode
-To exit from Display Inversion On, the Display Inversion Off command (20h) should be written.
“-“ Don’t care
Default
Status Default Value
Power On Sequence Display Inversion off
S/W Reset Display Inversion off
H/W Reset Display Inversion off
Flow Chart
INVON (21h)
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
Display
Inversion OFF
Mode
Display
Inversion ON
Mode
Top-Left
(0,0)
(Example)
Memory
Display
GAMSET (26h)
15!
para meter:
GCU:0]
” New
Loaded
'____
Legend
C—ommand
Parameter
/
" Display
|
|
|
—|
|
:I
‘ |
|
|
|
|
|
|
' Action
Mode
Sequenlial
transler ,
I____
ST7735R
V0.2 99 2009-08-05
10.1.16 GAMSET (26h): Gamma Set
26H GAMSET (Gamma Set)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
GAMSET 0 ↑ 1 - 0 0 1 0 0 1 1 0 (26h)
Parameter 1 ↑ 1 - - - - - GC3
GC2
GC1
GC0
Description
-This command is used to select the desired Gamma curve for the current display. A maximum of 4 curves can be
selected. The curve is selected by setting the appropriate bit in the parameter as described in the Table.
GC [7:0] Parameter Curve Selected
GS=1 GS=0
01h GC0 Gamma Curve 1 (G2.2) Gamma Curve 1 (G1.0)
02h GC1 Gamma Curve 2 (G1.8) Gamma Curve 2 (G2.5)
04h GC2 Gamma Curve 3 (G2.5) Gamma Curve 3 (G2.2)
08h GC3 Gamma Curve 4 (G1.0) Gamma Curve 4 (G1.8)
Note: All other values are undefined.
Default
Status Default Value
Power On Sequence 01h
S/W Reset 01h
H/W Reset 01h
Flow Chart
,/'/Dlsplay0n '\
\
\
Mode
/'
/’ DISp‘ay on x‘
\
\
DISPOFF
\
Mode
Sequential
lransler
ST7735R
V0.2 100 2009-08-05
10.1.17 DISPOFF (28h): Display Off
28H DISPOFF (Display Off)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
DISPOFF 0 ↑ 1 - 0 0 1 0 1 0 0 0 (28h)
Parameter No Parameter -
Description
- This command is used to enter into DISPLAY OFF mode. In this mode, the output from Frame Memory is
disabled and blank page inserted.
- This command makes no change of contents of frame memory.
- This command does not change any other status.
- There will be no abnormal visible effect on the display.
- Exit from this command by Display On (29h)
Default
Status Default Value
Power On Sequence Display off
S/W Reset Display off
H/W Reset Display off
Flow Chart
(Example)
Memory Display
ST7735R
V0.2 101 2009-08-05
(Example)
Memory Display
10.1.18 DISPON (29h): Display On
29H DISPON (Display On)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
DISPON 0 ↑ 1 - 0 0 1 0 1 0 0 1 (29h)
Parameter No Parameter -
Description
- This command is used to recover from DISPLAY OFF mode.
- Output from the Frame Memory is enabled.
- This command makes no change of contents of frame memory.
- This command does not change any other status.
Default
Status Default Value
Power On Sequence Display off
S/W Reset Display off
H/W Reset Display off
Flow Chart
Display Off
Mode
DISPON
Display On
Mode
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
ST7735R
V0.2 102 2009-08-05

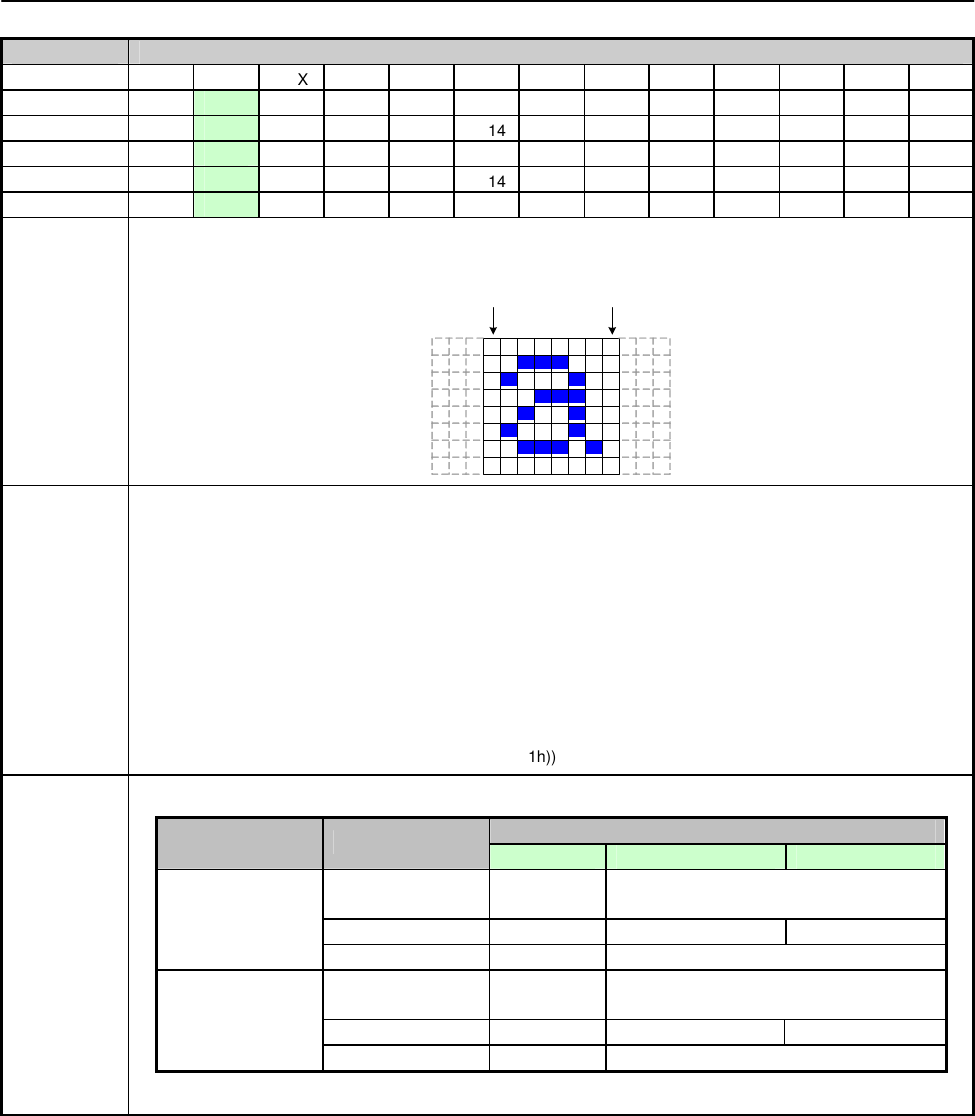

10.1.19 CASET (2Ah): Column Address Set
2AH CASET(Column Address Set)_
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
CASET(2Ah)
0 ↑ 1 - 0 0 1 0 1 0 1 0 (2Ah)
1
st
parameter
1 ↑ 1 - XS15
XS14
XS13
XS12
XS11
XS10
XS9
XS8
2
nd
parameter
1 ↑ 1 - XS7
XS6
XS5
XS4
XS3
XS2
XS1
XS0
3
rd
parameter
1 ↑ 1 - XE15
XE14
XE13
XE12
XE11
XE10
XE9
XE8
4
th
parameter
1 ↑ 1 - XE7
XE6
XE5
XE4
XE3
XE2
XE1
XE0
Description
-The value of XS [7:0] and XE [7:0] are referred when RAMWR command comes.
-Each value represents one column line in the Frame Memory.
XS[7:0] XE[7:0]
Restriction
XS [15:0] always must be equal to or less than XE [15:0]
When XS [15:0] or XE [15:0] is greater than maximum address like below, data of out of range will be ignored.
1. 128X160 memory base (GM = ’11’)
(Parameter range: 0 < XS [15:0] < XE [15:0] < 127 (007Fh)): MV=”0”)
(Parameter range: 0 < XS [15:0] < XE [15:0] < 159 (009Fh)): MV=”1”)
2. 132X162 memory base (GM = ’00’)
(Parameter range: 0 < XS [15:0] < XE [15:0] < 131 (0083h)): MV=”0”)
(Parameter range: 0 < XS [15:0] < XE [15:0] < 161 (00A1h)): MV=”1”)
Default
Default Value
GM Status Status XS [7:0] XE [7:0] (MV=’0 ’) XE [7:0] (MV=’1’)
Power On
Sequence 0000h 007Fh (127)
S/W Reset 0000h 007Fh (127) 009Fh (159)
GM=’11’
(128x160
memory base)
H/W Reset 0000h 007Fh (127)
Power On
Sequence 0000h 0083h (131)
S/W Reset 0000h 0083h (131) 00A1h (161)
GM=’00’
(132x162
memory base)
H/W Reset 0000h 0083h (131)
1s| parameter x3150] /
2nd uaramelev XE[15'0] /
%
PASET \
1s| parameter v31 50] /
2nd uaramelev YE[15'0]
Acuon
RAMWR
pepeeu Jl
Sequential
IransteL
Any Command
ST7735R
V0.2 103 2009-08-05

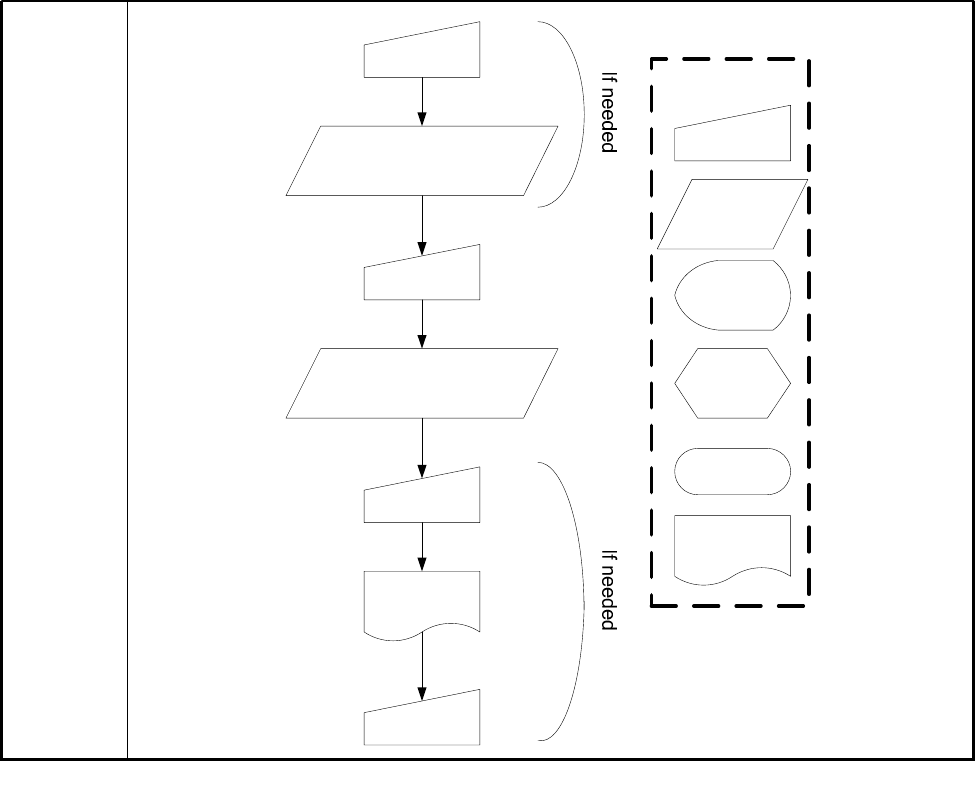

Flow Chart
100mm),
ST7735R
V0.2 104 2009-08-05

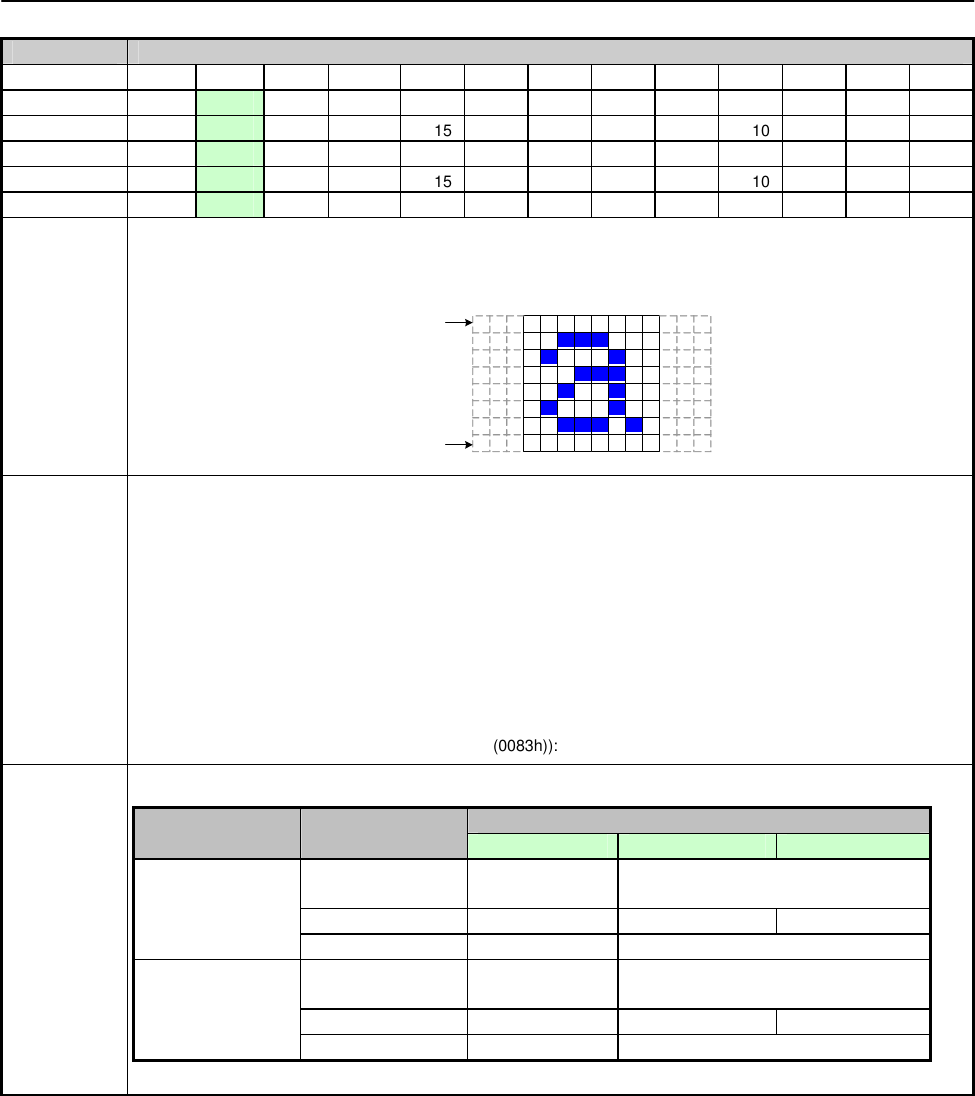

10.1.20 RASET (2Bh): Row Address Set
2BH RASET (Row Address Set)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RASET (2Bh)
0 ↑ 1 - 0 0 1 0 1 0 1 1 (2Bh)
1
st
parameter
1 ↑ 1 - YS15
YS14
YS13
YS12
YS11
YS10
YS9
YS8
2
nd
parameter
1 ↑ 1 - YS7
YS6
YS5
YS4
YS3
YS2
YS1
YS0
3
rd
parameter
1 ↑ 1 - YE15
YE14
YE13
YE12
YE11
YE10
YE9
YE8
4
th
parameter
1 ↑ 1 - YE7
YE6
YE5
YE4
YE3
YE2
YE1
YE0
Description
The value of YS [7:0] and YE [7:0] are referred when RAMWR command comes.
Each value represents one column line in the Frame Memory.
YS[7:0]
YE[7:0]
Restriction
YS [15:0] always must be equal to or less than YE [15:0]
When YS [15:0] or YE [15:0] are greater than maximum row address like below, data of out of range will be ignored.
1. 128X160 memory base (GM = ’11’)
(Parameter range: 0 < YS [15:0] < YE [15:0] < 159 (009Fh)): MV=”0”
(Parameter range: 0 < YS [15:0] < YE [15:0] < 127 (007Fh)): MV=”1”
2. 132X162 memory base (GM = ’00’)
(Parameter range: 0 < YS [15:0] < YE [15:0] < 161 (00A1h)): MV=”0”
(Parameter range: 0 < YS [15:0] < YE [15:0] < 131 (0083h)): MV=”1”
Default
Default Value
GM status Status YS [15:0] YE [15:0] (MV=’0 ’)
YE [15:0] (MV=’1’)
Power On
Sequence 0000h 009Fh (159)
S/W Reset 0000h 009Fh (159) 007Fh (127)
GM=’11’
(128x160
memory base)
H/W Reset 0000h 009Fh (159)
Power On
Sequence 0000h 00A1h (161)
S/W Reset 0000h 00A1h (161) 0083h (131)
GM=’00’
(132x162
memory base)
H/W Reset 0000h 00A1h (161)
= $33 = $88
ST7735R
V0.2 105 2009-08-05
Flow Chart
CASET
1st parameter XS[15:0]
2nd parameter XE[15:0]
PASET
1st parameter YS[15:0]
2nd parameter YE[15:0]
RAMWR
Image Data
D1[7:0],D2[7:0]
…….Dn[7:0]
Any Command
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
ST7735R
V0.2 106 2009-08-05

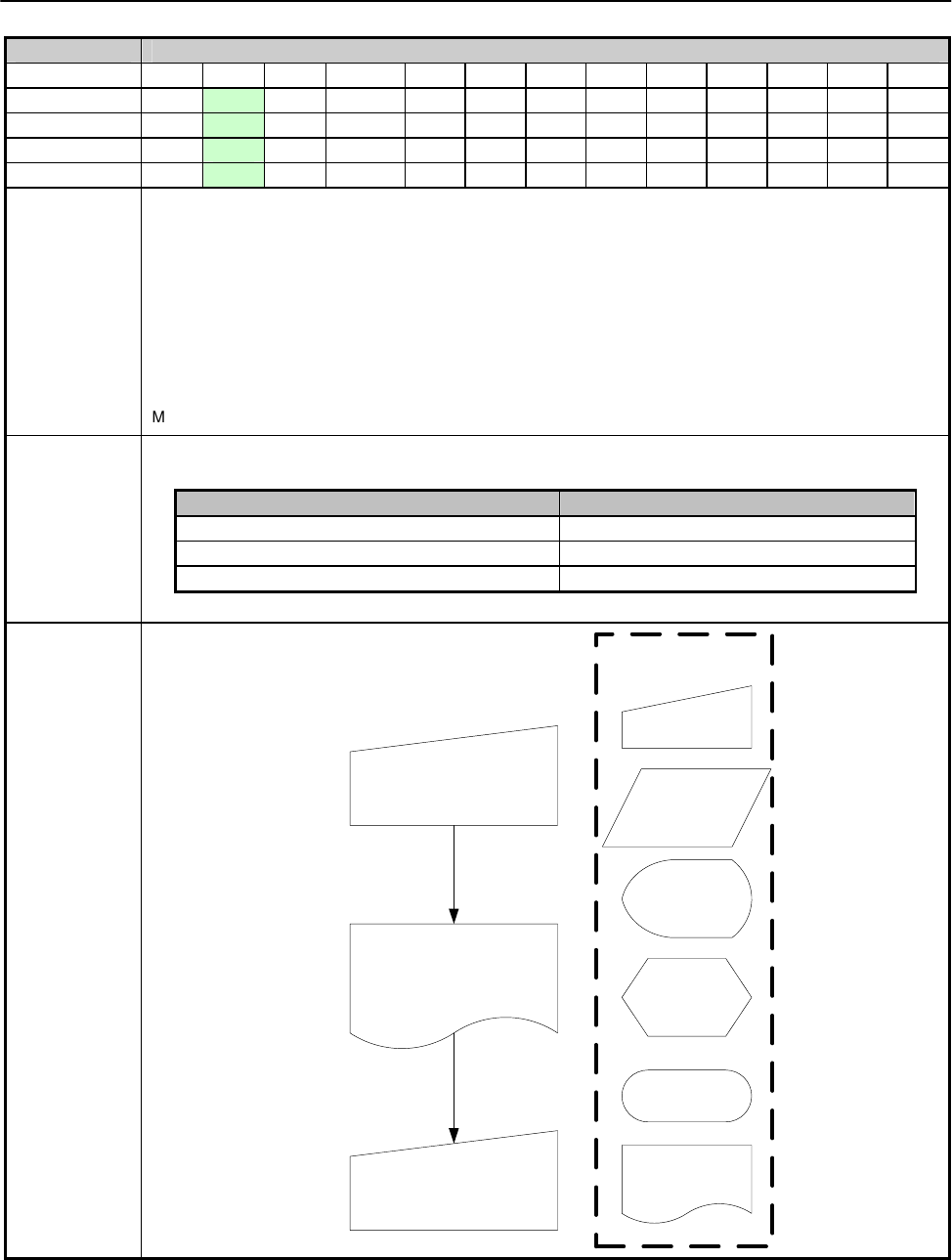

10.1.21 RAMWR (2Ch): Memory Write
2CH RAMWR (Memory Write)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RAMWR 0 ↑ 1 - 0 0 1 0 1 1 0 0 (2Ch)
1st parameter 1 ↑ 1 D17-8
D7 D6 D5 D4 D3 D2 D1 D0
∣ 1 ↑ 1 ∣ ∣ ∣ ∣ ∣ ∣ ∣ ∣ ∣
Nth parameter 1 ↑ 1 D17-8
D7 D6 D5 D4 D3 D2 D1 D0
Description
In all color modes, there is no restriction on length of parameters.
1. 128X160 memory base (GM = ‘11’)
128x160x18-bit memory can be written by this command
Memory range: (0000h, 0000h) -> (007Fh, 09Fh)
2. 132x162 memory base (GM = ‘00’)
132x162x18-bit memory can be written on this command.
Memory range: (0000h, 0000h) -> (0083h, 00A1h)
Default
Status Default Value
Power On Sequence Contents of memory is set randomly
S/W Reset Contents of memory is not cleared
H/W Reset Contents of memory is not cleared
Flow Chart
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
RAMWR
Image Data D1[7:0],D2[7:0]
…….Dn[7:0]
Any Command
Legend
I’M/r Command
|
|
|
‘ RGBSET (2Dh) I/
V
151 parameter.
«a I
\_ 128m parameter: /
// Parameter
/
|
|
I
|
a |
Display 1
/ |
|
|
|
|
_|
__\
Seq uenual
lransler
I%
|
|
|
|
|
|
|
|_
ST7735R
V0.2 107 2009-08-05
10.1.22 RGBSET (2Dh): Color Setting for 4K, 65K and 262K
2DH RGBSET (Color Set for 4K, 65K, 262K and 16.7M)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RGBSET 0 ↑ 1 - 0 0 1 0 1 1 0 1 (2Dh)
1st parameter 1 ↑ 1 - - - R005
R004
R003
R002
R001
R000
∣ 1 ↑ 1 - - - Rnn5
Rnn4
Rnn3
Rnn2
Rnn1
Rnn0
∣ 1 ↑ 1 - - - R315
R314
R313
R312
R311
R310
∣ 1 ↑ 1 - - - G005
G004
G003
G002
G001
G000
∣ 1 ↑ 1 - - - Gnn5
Gnn4
Gnn3
Gnn2
Gnn1
Gnn0
∣ 1 ↑ 1 - - - G635
G634
G633
G632
G631
G630
∣ 1 ↑ 1 - - - B005
B004
B003
B002
B001
B000
∣ 1 ↑ 1 - - - Bnn5
Bnn4
Bnn3
Bnn2
Bnn1
Bnn0
128th parameter
1 ↑ 1 - - - B315
B314
B313
B312
B311
B310
Description
This command is used to define the LUT for 12bits-to-16bits / 16-bit-to- 18bits color depth conversations.
128-Bytes must be written to the LUT regardless of the color mode. Only the values in Section 9.18 are referred.
In this condition, 4K-color (4-4-4) and 65K-color(5-6-5) data input are transferred 6(R)-6(G)-6(B) through RGB LUT
table.
This command has no effect on other commands/parameters and Contents of frame memory.
Visible change takes effect next time the Frame Memory is written to.
Do not send any command before the last data is sent or LUT is not defined correctly.
Default
Status Default Value
Power On Sequence Random
S/W Reset Contents of the look-up table protected
H/W Reset Random
Flow Chart
\mage Data
mnmmmq
Dung
Any Commanfl
'____
I Legend
Command
/ Parameter /
/,
D‘leay 1
sequenual
Hensley
\.
4 |
I____
ST7735R
V0.2 108 2009-08-05
10.1.23 RAMRD (2Eh): Memory Read
2EH RAMHD (Memory Read)
Inst / Para D/CX WRX
RDX
D17-8 D7
D6
D5
D4
D3
D2
D1
D0
HEX
RAMHD 0 ↑ 1 - 0 0 1 0 1 1 1 0 (2Eh)
1
st
parameter 1 1 ↑ - - - - - - - - -
2
nd
parameter 1 1 ↑ D17-8 D7
D6
D5
D4
D3
D2
D1
D0
∣ 1 1 ↑ ∣ ∣
∣
∣
∣
∣
∣
∣
∣
(N+1)th parameter
1 1 ↑ D17-8 D7
D6
D5
D4
D3
D2
D1
D0
Description
-This command is used to transfer data from frame memory to MCU.
-When this command is accepted, the column register and the row register are reset to the Start Column/Start
Row positions.
-The Start Column/Start Row positions are different in accordance with MADCTL setting.
-Then D[17:0] is read back from the frame memory and the column register and the row register incremented as
section 9.10
-Frame Read can be cancelled by sending any other command.
-The data color coding is fixed to 18-bit in reading function. Please see section 9.8 “Data color coding” for color
coding (18-bit cases), when there is used 8, 9, 16 and 18-bit data lines for image data.
Note1: The Command 3Ah should be set to 66h when reading pixel data from frame memory. Please check the
LUT in chapter 9.17 when using memory read function.
Default
Status Default Value
Power On Sequence Contents of memory is set randomly
S/W Reset Contents of memory is not cleared
H/W Reset Contents of memory is not cleared
Flow Chart
ST7735R
V0.2 109 2009-08-05
10.1.24 PTLAR (30h): Partial Area
30H PTLAR (Partial Area)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
PTLAR 0 ↑ 1 - 0 0 1 1 0 0 0 0 (30h)
1st parameter
1 ↑ 1 - PSL15
PSL14
PSL13
PSL12
PSL11
PSL10
PSL9
PSL8
2nd parameter
1 ↑ 1 - PSL7
PSL6
PSL5
PSL4
PSL3
PSL2
PSL1
PSL0
3rd parameter
1 ↑ 1 - PEL15
PEL14
PEL13
PEL12
PEL11
PEL10
PEL9
PEL8
4th parameter
1 ↑ 1 - PEL7
PEL6
PEL5
PEL4
PEL3
PEL2
PEL1
PEL0
Description
-This command defines the partial mode’s display area.
-There are 4 parameters associated with this command, the first defines the Start Row (PSL) and the second the End
Row (PEL), as illustrated in the figures below. PSL and PEL refer to the Frame Memory row address counter.
-If End Row > Start Row, when MADCTL ML=’0’
Non-display area
Non-display area
Partial display area
PSL [7:0]
PEL [7:0]
Start row
End row
-If End Row > Start Row, when MADCTL ML=’1’
Non-display area
Non-display area
Partial display area
PSL [7:0]
PEL [7:0]
Start row
End row
-If End Row < Start Row, when MADCTL ML=’0’
Partial display area
PSL [7:0]
PEL [7:0]
Start row
End row
Non-display area
Partial display area
-If End Row = Start Row then the Partial Area will be one row deep.
Default
Default Value
Status PSL [15:0] PEL [15:0]
GM[1:0] “xx” GM[1:0]=”11” GM[1:0]=”00”
Power On Sequence 0000h 009Fh 00A1h
S/W Reset 0000h 009Fh 00A1h
H/W Reset 0000h 009Fh 00A1h

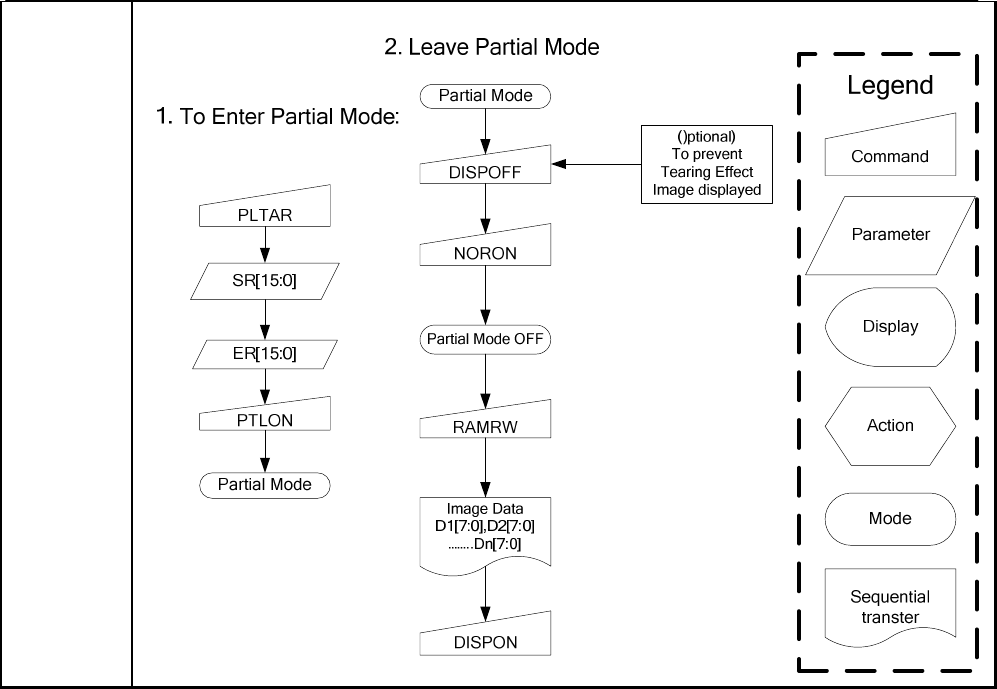

1. To Enter Partial Mode: \
I: Pama‘ Mode '\
2. Leave Partial Mode
Pama‘ Mode 7
DISPOFF
Optional)
To prevent
Tearing Efiem
Image dlsp‘ayed
DISPON
Command I
Parameter
Sequentia‘
Irans‘erri ,
ST7735R
V0.2 110 2009-08-05
Flow Chart
ST7735R
V0.2 111 2009-08-05
10.1.25 TEOFF (34h): Tearing Effect Line OFF
34H TEOFF (Tearing Effect Line OFF)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
TEOFF 0 ↑ 1 - 0 0 1 1 0 1 0 0 (34h)
Parameter No Parameter -
Description -This command is used to turn OFF (Active Low) the Tearing Effect output signal from the TE signal line.
Default
Status Default Value
Power On Sequence OFF
S/W Reset OFF
H/W Reset OFF
Flow Chart
TE Line Output
ON
TEOFF
TE Line Output
OFF
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
ST7735R
V0.2 112 2009-08-05

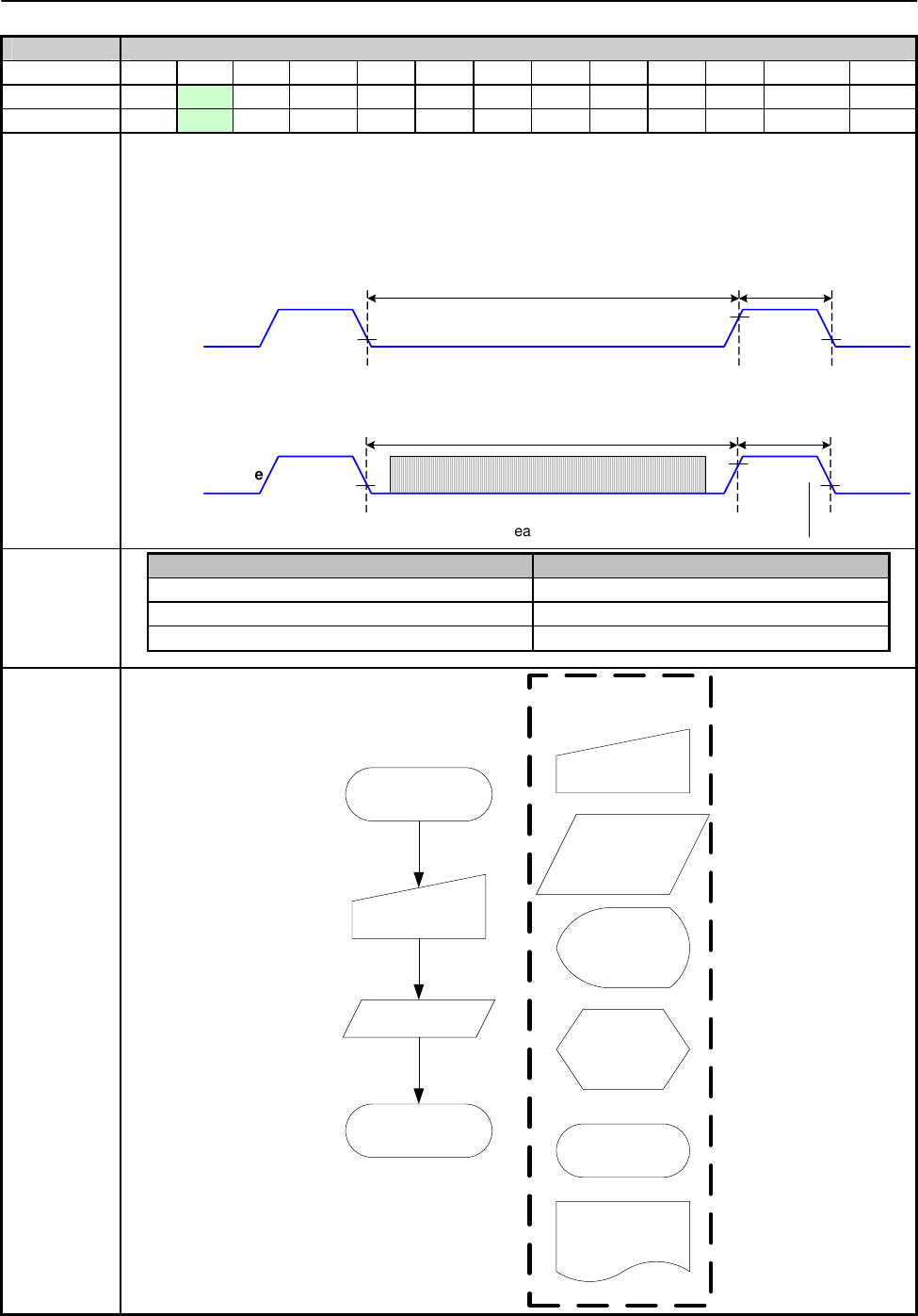

10.1.26 TEON (35h): Tearing Effect Line ON
35H TEON (Tearing Effect Line ON)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
TEON 0 ↑ 1 - 0 0 1 1 0 1 0 1 (35h)
Parameter 1 ↑ 1 - 0 0 0 0 0 0 0 TEM
Description
-This command is used to turn ON the Tearing Effect output signal from the TE signal line.
-This output is not affected by changing MADCTL bit ML.
-The Tearing Effect Line On has one parameter, which describes the mode of the Tearing Effect Output Line:
-When TEM =’0’: The Tearing Effect output line consists of V-Blanking information only
T
vdl
T
vdh
Vertical time scale
-When TEM =’1’: The Tearing Effect output Line consists of both V-Blanking and H-Blanking information
T
vdl
T
vdh
Vertical time scale
Note: During Sleep In Mode with Tearing Effect Line On, Tearing Effect Output pin will be active Low.
Default
Status Default Value
Power On Sequence Tearing effect off & TEM=0
S/W Reset Tearing effect off & TEM=0
H/W Reset Tearing effect off & TEM=0
Flow Chart
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
TE Line Output
OFF
TEON
TE Line Output
ON
TELOM
\#>
HHH l—>
HHH l—‘>
ST7735R
V0.2 113 2009-08-05
10.1.27 MADCTL (36h): Memory Data Access Control
36H MADCTL (Memory Data Access Control)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
MADCTL 0 ↑ 1 - 0 0 1 1 0 1 1 0 (36h)
Parameter 1 ↑ 1 - MY MX MV ML RGB
MH - -
Description
-This command defines read/ write scanning direction of frame memory.
-Bit Assignment
Send first
Send 2nd
Send 3rd
Send last
Memory Display
Top-left (0, 0)
ML="0"
Send first
Send 2nd
Send 3rd
Send last
Memory Display
Top-left (0, 0)
ML="1"
Top-left (0, 0)
Top-left (0, 0)
R G B R G B R G B
SIG1 SIG2 SIG132
Driver IC
RGB="0"
R G B R G B R G B
SIG1 SIG2 SIG132
Driver IC
RGB="1"
R G B
R G B
SIG1
R G B
R G B
SIG2
R G B
R G B
SIG132
RGB
RGB
SIG1
RGB
RGB
SIG2
RGB
RGB
SIG132
LCD panel LCD panel
Bit NAME DESCRIPTION
MY Row Address Order
MX Column Address Order
MV Row/Column Exchange
These 3bits controls MCU to memory
write/read direction.
ML Vertical Refresh Order
LCD vertical refresh direction control
‘0’ = LCD vertical refresh Top to Bottom
‘1’ = LCD vertical refresh Bottom to Top
RGB RGB-BGR ORDER
Color selector switch control
‘0’ =RGB color filter panel,
‘1’ =BGR color filter panel)
MH Horizontal Refresh Order
LCD horizontal refresh direction control
‘0’ = LCD horizontal refresh Left to right
‘1’ = LCD horizontal refresh right to left
ST7735R
V0.2 114 2009-08-05

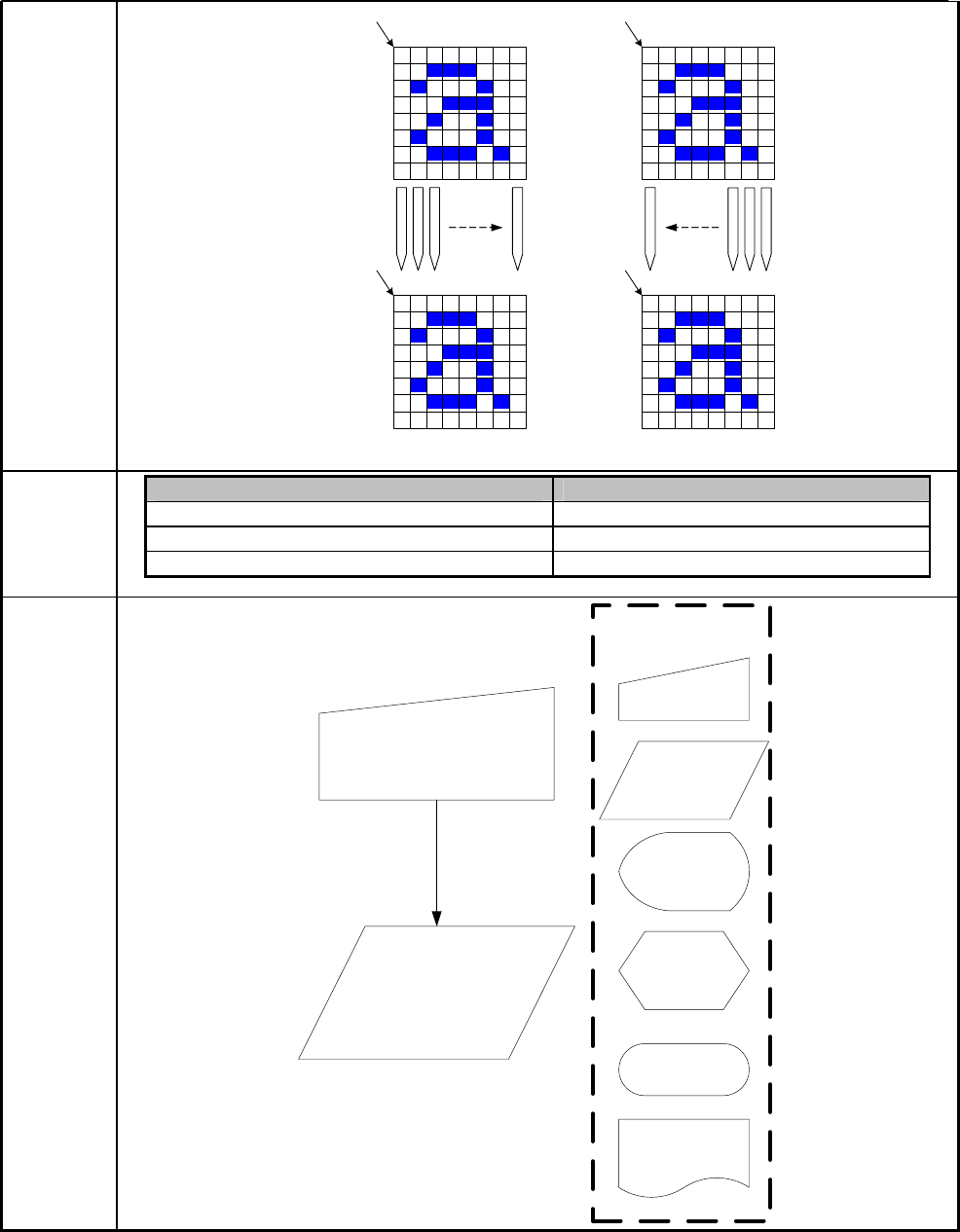

Memory
Display
Top-left (0, 0)
ML="0"
Memory
Display
Top-left (0, 0)
ML="1"
Send first
Send 2nd
Send 3rd
Send last
Send first
Send 2nd
Send 3rd
Send last
Top-left (0, 0)
Top-left (0, 0)
Default
Status Default Value
Power On Sequence MY=0,MX=0,MV=0,ML=0,RGB=0,MH=0
S/W Reset No Change
H/W Reset MY=0,MX=0,MV=0,ML=0,RGB=0,MH=0
Flow Chart
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
MADCTL
1st parameter
B[7:0]
\
Idle on mode ‘
/,
IDMOFF
/ r \
Idle off mode ‘
I S(illuential
I translef ,
ST7735R
V0.2 115 2009-08-05

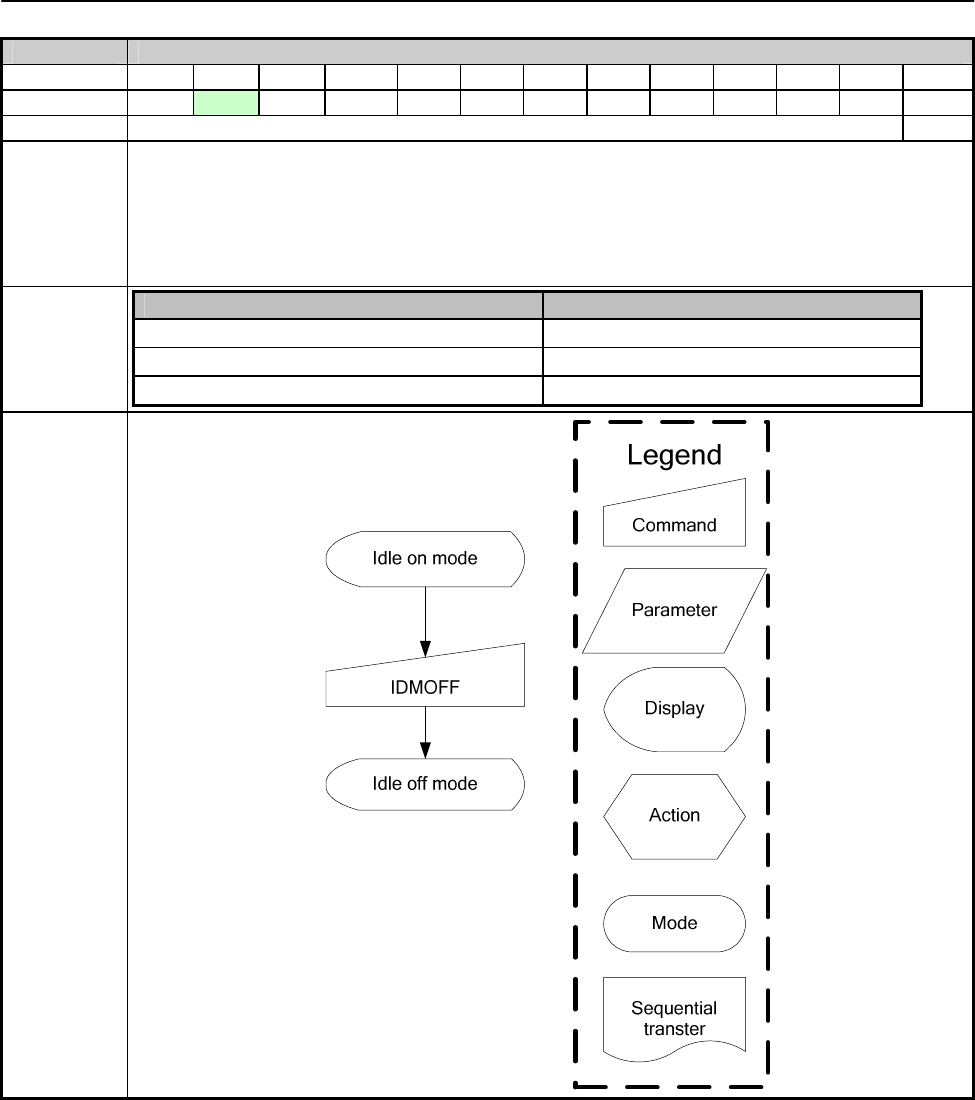

10.1.28 IDMOFF (38h): Idle Mode Off
38H IDMOFF (Idle Mode Off)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
IDMOFF 0 ↑ 1 - 0 0 1 1 1 0 0 0 (38h)
Parameter No Parameter -
Description
-This command is used to recover from Idle mode on.
-In the idle off mode,
1. LCD can display 4096, 65k or 262k colors.
2. Normal frame frequency is applied.
Default
Status Default Value
Power On Sequence Idle Mode Off
S/W Reset Idle Mode Off
H/W Reset Idle Mode Off
Flow Chart
ST7735R
V0.2 116 2009-08-05

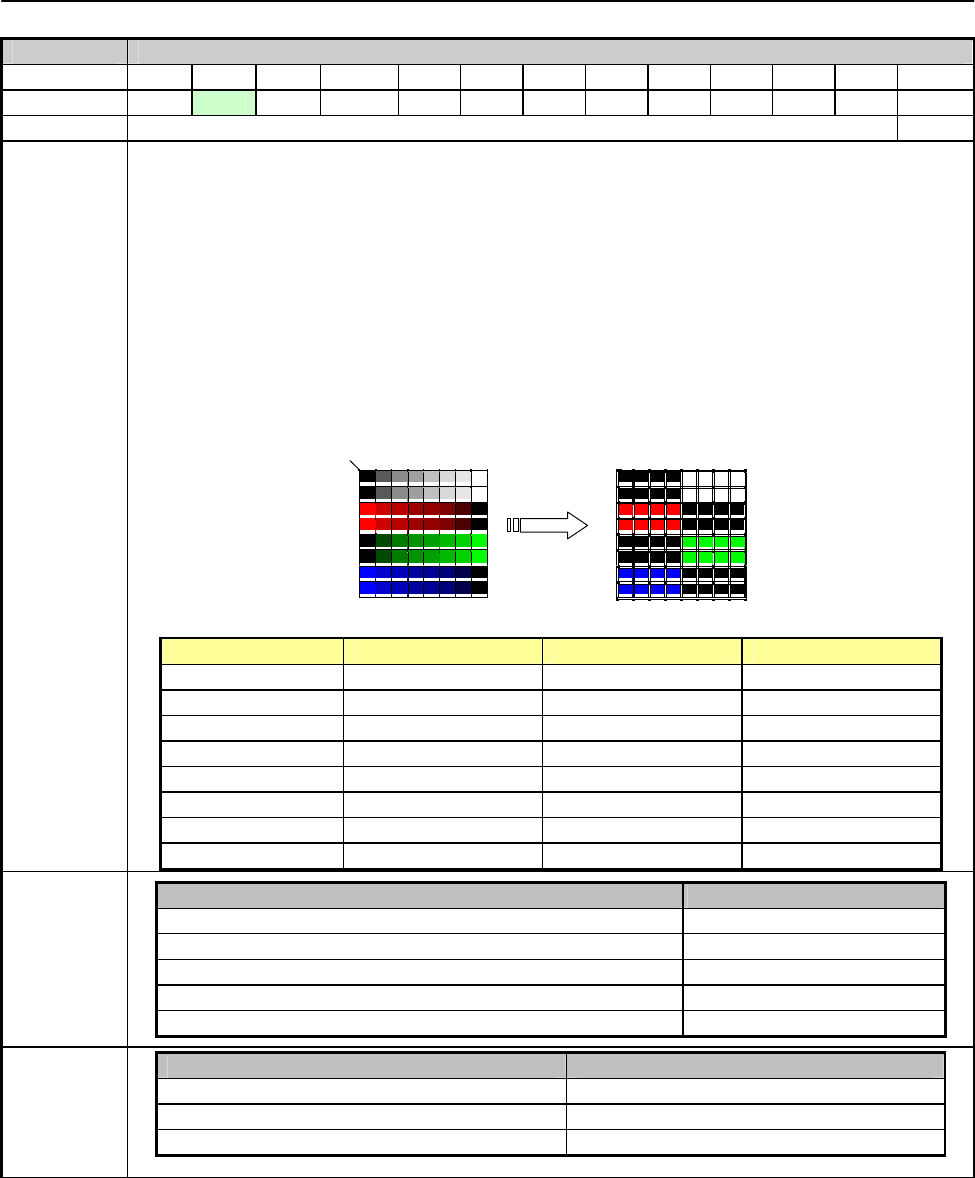

10.1.29 IDMON (39h): Idle Mode On
39H IDMON (Idle Mode On)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
IDMOFF 0 ↑ 1 - 0 0 1 1 1 0 0 1 (39h)
Parameter No Parameter -
Description
-This command is used to enter into Idle mode on.
-There will be no abnormal visible effect on the display mode change transition.
-In the idle on mode,
1. Color expression is reduced. The primary and the secondary colors using MSB of each R,G and B in the Frame
Memory, 8 color depth data is displayed.
2. 8-Color mode frame frequency is applied.
3. Exit from IDMON by Idle Mode Off (38h) command
Color R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B4 B1 B0
Black 0xxxxx 0xxxxx 0xxxxx
Blue 0xxxxx 0xxxxx 1xxxxx
Red 1xxxxx 0xxxxx 0xxxxx
Magenta 1xxxxx 0xxxxx 1xxxxx
Green 0xxxxx 1xxxxx 0xxxxx
Cyan 0xxxxx 1xxxxx 1xxxxx
Yellow 1xxxxx 1xxxxx 0xxxxx
White 1xxxxx 1xxxxx 1xxxxx
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out No
Partial Mode On, Idle Mode On, Sleep Out No
Sleep In Yes
Default
Status Default Value
Power On Sequence Idle Mode Off
S/W Reset Idle Mode Off
H/W Reset Idle Mode Off
Top-Left
(0,0)
(Example)
Memory
Display
ST7735R
V0.2 117 2009-08-05
Flow Chart
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
Idle off mode
IDMON
Idle on mode
1&bw/wae\ Made
,!
COLMOD
V
15\
Paramexer
f
, 15bvaxxe‘Mnde \
'____
Legend
Command
Paramexer
,r/
Dwsp‘ay
Amwun
Made
Sequenua‘
vanslev
|____
ST7735R
V0.2 118 2009-08-05

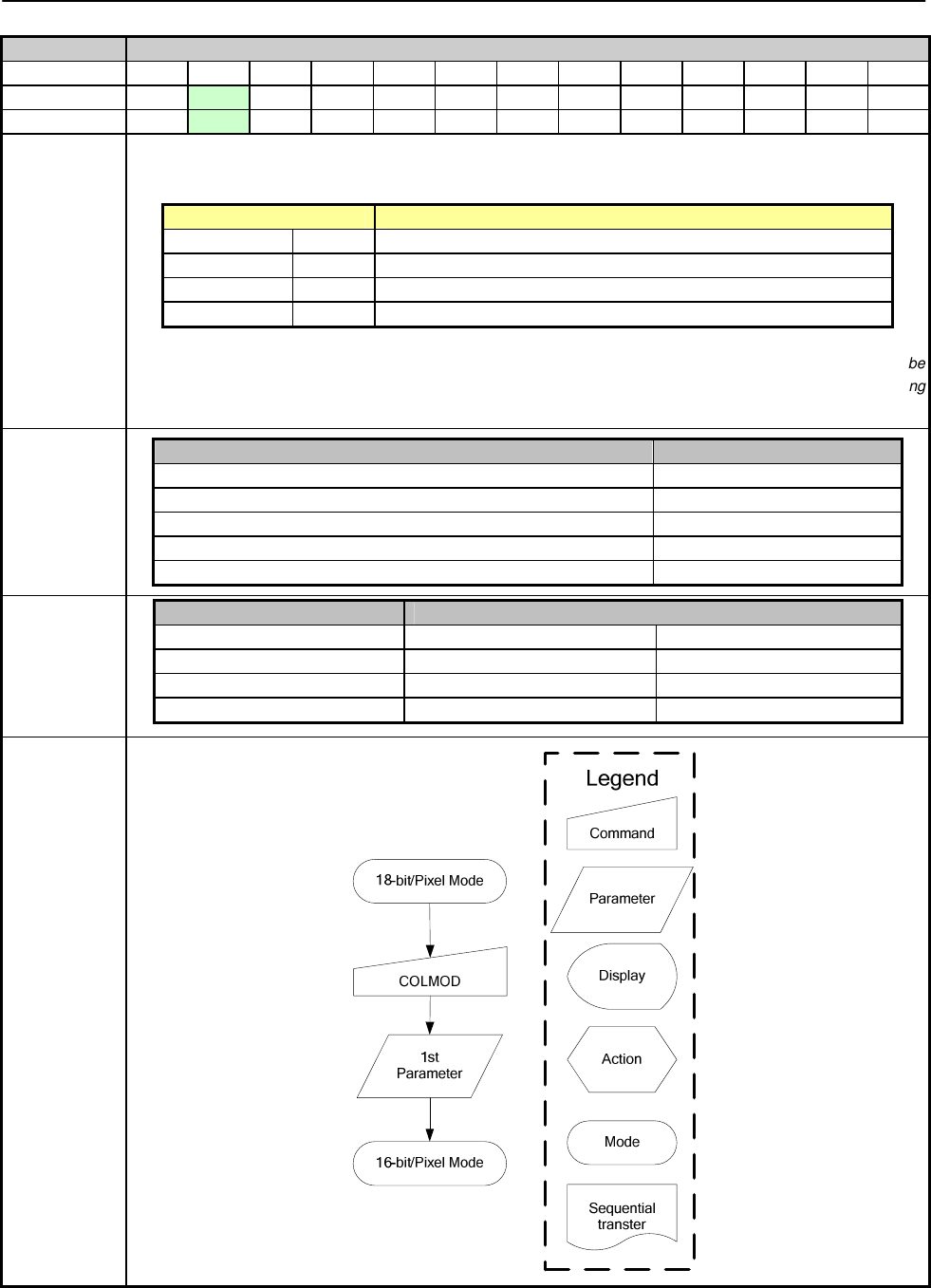

10.1.30 COLMOD (3Ah): Interface Pixel Format
3AH COLMOD (3Ah): Interface Pixel Format
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
COLMOD 0 ↑ 1 - 0 0 1 1 1 0 1 0 (3Ah)
Parameter 1 ↑ 1 - - - - - - IFPF2
IFPF1
IFPF0
Description
This command is used to define the format of RGB picture data, which is to be transferred via the
MCU interface. The formats are shown in the table:
IFPF[2:0] MCU Interface Color Format
011 3 12-bit/pixel
101 5 16-bit/pixel
110 6 18-bit/pixel
111 7 No used
Note1: In 12-bit/Pixel, 16-bit/Pixel or 18-bit/Pixel mode, the LUT is applied to transfer data into the Frame Memory.
Note2: The Command 3Ah should be set at 55h when writing 16-bit/pixel data into frame m
emory, but 3Ah should be
re-set to 66h when reading pixel data from frame memory. Please check the LUT in chapter 9.17 when using
memory read function.
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out No
Partial Mode On, Idle Mode On, Sleep Out No
Sleep In Yes
Default
Status Default Value
IFPF[2:0] VIPF[3:0]
Power On Sequence 0110(18-bit/Pixel) 0110(18-bit/Pixel)
S/W Reset No Change No Change
H/W Reset 0110(18-bit/Pixel) 0110(18-bit/Pixel)
Flow Chart
ST7735R
V0.2 119 2009-08-05
10.1.31 RDID1 (DAh): Read ID1 Value
DAH RDID1 (Read ID1 Value)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RDID1 0 ↑ 1 - 1 1 0 1 1 0 1 0 (DAh)
1st parameter
1 1 ↑ - - - - - - - - - -
2nd parameter
1 1 ↑ - ID17
ID16
ID15
ID14
ID13
ID12
ID11
ID10
Description
-This read byte returns 8-bit LCD module’s manufacturer ID
-The 1st parameter is dummy data
-The 2nd parameter (ID17 to ID10): LCD module’s manufacturer ID.
NOTE: See command RDDID (04h), 2nd parameter.
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out No
Partial Mode On, Idle Mode On, Sleep Out No
Sleep In Yes
Default
Status Default Value
Power On Sequence -
S/W Reset -
H/W Reset -
Flow Chart
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
Read ID1 Read ID1
Send 2nd
parameter
Dummy
Read
Send 2nd
parameter
Serial I/F Mode Parallel I/F Mode
Serial |/F Mode Parallel |/F Mode
Read |D2
l
Send 2nd
parameter
Send 2nd
parameter
Sequential
lransler ,
ST7735R
V0.2 120 2009-08-05
10.1.32 RDID2 (DBh): Read ID2 Value
DBH RDID2 (Read ID2 Value)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RDID2 0 ↑ 1 - 1 1 0 1 1 0 1 1 (DBh)
1
st
parameter 1 1 ↑ - - - - - - - - - -
2
nd
parameter
1 1 ↑ - 1 ID26
ID25
ID24
ID23
ID22
ID21
ID20
Description
-This read byte returns 8-bit LCD module/driver version ID
-The 1st parameter is dummy data
-The 2nd parameter (ID26 to ID20): LCD module/driver version ID
-Parameter Range: ID=80h to FFh
ID26 to ID20 Version Changes
80h
81h
82h
83h
NOTE: See command RDDID (04h), 3rd parameter.
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out No
Partial Mode On, Idle Mode On, Sleep Out No
Sleep In Yes
Default
Status Default Value
Power On Sequence NV Value
S/W Reset NV Value
H/W Reset NV Value
Flow Chart
ST7735R
V0.2 121 2009-08-05

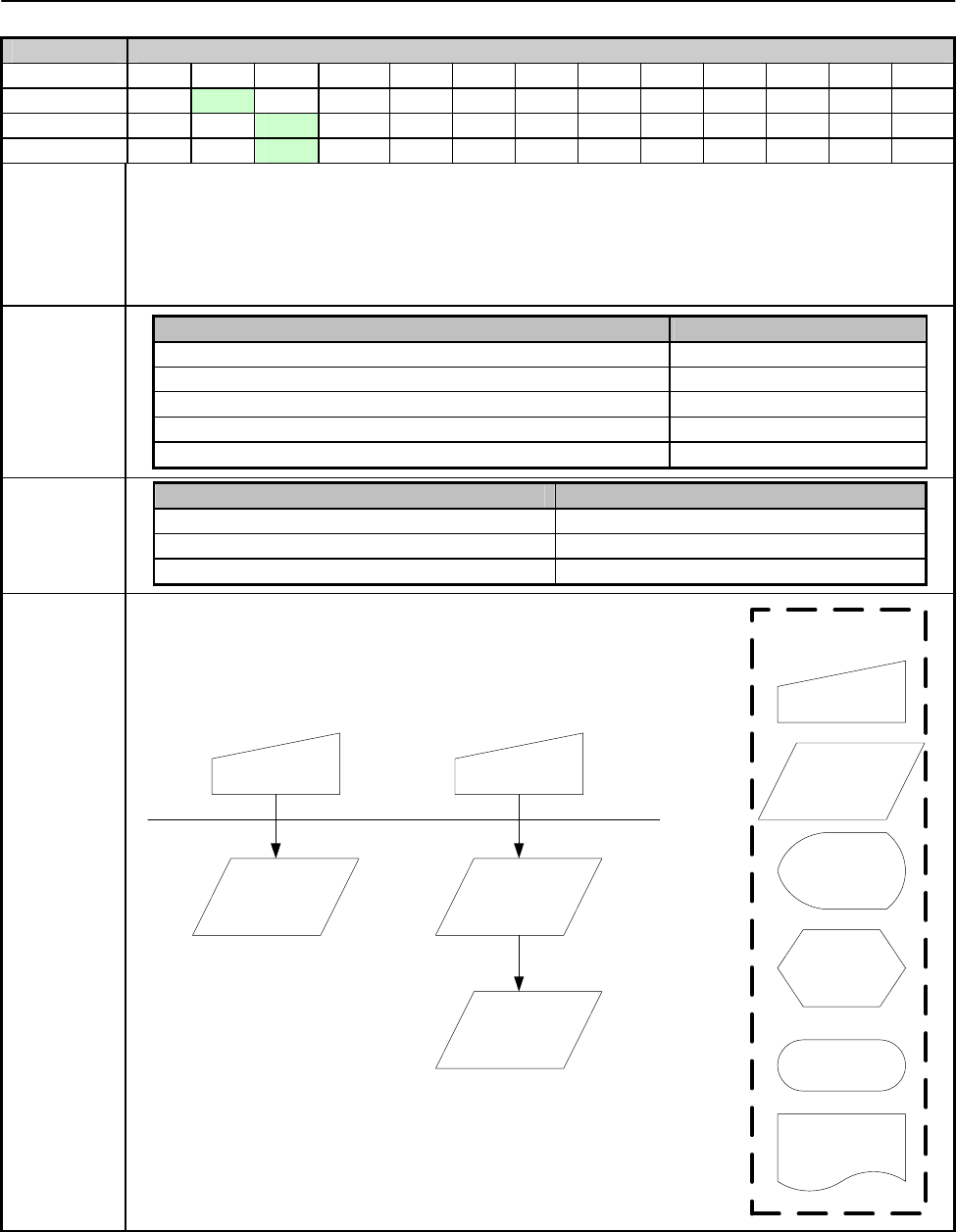

10.1.33 RDID3 (DCh): Read ID3 Value
DCH RDID3 (Read ID2 Value)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
RDID3 0 ↑ 1 - 1 1 0 1 1 1 0 0 (DCh)
1
st
parameter
1 1 ↑ - - - - - - - - - -
2
nd
parameter
1 1 ↑ - ID37
ID36
ID35
ID34
ID33
ID32
ID31
ID30
Description
-This read byte returns 8-bit LCD module/driver ID.
-The 1st parameter is dummy data
-The 2nd parameter (ID37 to ID30): LCD module/driver ID.
NOTE: See command RDDID (04h), 4th parameter.
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out No
Partial Mode On, Idle Mode On, Sleep Out No
Sleep In Yes
Default
Status Default Value
Power On Sequence NV Value
S/W Reset NV Value
H/W Reset NV Value
Flow Chart
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
Read ID3 Read ID3
Send 2nd
parameter
Dummy
Read
Send 2nd
parameter
Serial I/F Mode Parallel I/F Mode
Host
Display
ax nza-e
m) ode
3 2 I 0 ”e
4
4
2h) ode
3 2 I 0 ”e
4
4
+
an)
N03 N02 NC1 NCO
c4
et
CA 01
mnt
N03 ND2 Nm NDO
back
D4
D4 D1
4h)
on
et
ST7735R
V0.2 122 2009-08-05
10.2 Panel Function Command List and Description
Table 10.2.1 Panel Function Command List (1)
Instruction
Refer
D/CX
WRX
RDX
D23-8
D7
D6
D5
D4
D3 D2 D1 D0 Hex
Function
0 ↑ 1
- 1
0
1 1 0 0 0 1 (B1h)
In
normal mode
(Full colors)
1 ↑ 1
-
RTNA3
RTNA2
RTNA1
RTNA0
1 ↑ 1
-
FPA5
FPA4
FPA3
FPA2
FPA1
FPA0
FRMCTR1
10.2.1
1 ↑ 1
-
BPA5
BPA4
BPA3
BPA2
BPA1
BPA0
RTNA set 1-
line
period
FPA: front porch
BPA: back porch
0 ↑ 1
- 1
0
1 1 0 0 1 0 (B2h)
In Idle mode
(8-colors)
1 ↑ 1
-
RTNB3
RTNB2
RTNB1
RTNB0
1 ↑ 1
-
FPB5
FPB4
FPB3
FPB2
FPB1
FPB0
FRMCTR2
10.2.2
1 ↑ 1
-
BPB5
BPB4
BPB3
BPB2
BPB1
BPB0
RTNB: set 1-
line
period
FPB: front porch
BPB: back porch
0 ↑ 1
- 1
0
1 1 0 0 1 1 (B3h)
In partial mode +
Full colors
1 ↑ 1
-
RTNC3
RTNC2
RTNC1
RTNC0
1 ↑ 1
-
FPC5
FPC4
FPC3
FPC2
FPC1
FPC0
1 ↑ 1
-
BPC5
BPC4
BPC3
BPC2
BPC1
BPC0
1 ↑ 1
-
RTND3
RTND2
RTND1
RTND0
1 ↑ 1
-
FPD5
FPD4
FPD3
FPD2
FPD1
FPD0
FRMCTR3
10.2.3
1 ↑ 1
-
BPD5
BPD4
BPD3
BPD2
BPD1
BPD0
RTNC,RTND
: set
1-line period
FPC,FPD: front
porch
BPC,BPD: back
porch
0 ↑ 1
- 1
0
1 1 0 1 0 0 (B4h)
Display inversion
control
INVCTR
10.2.4
1 ↑ 1
- 0
0
0 0 0 NLA
NLB
NLC
NLA,NLB,NLC set
inversion
on
(con) P
DD
(cm) P
3 GL
|
(02h)
he
D e
O
(can) I
he
D e
0
(04h) I
co he
a
D e
DCCU
(can)
10
(07h) S rm
R 11
0
(pm) 5
12
ST7735R
V0.2 123 2009-08-05
Table 10.2.2 Panel Function Command List (2)
Instruction
Refer
D/CX
WRX
RDX
D17-8
D7
D6
D5
D4
D3
D2
D1
D0
Hex
Function
0 ↑ 1 - 1 1 0 0 0 0 0 0 (C0h)
Power control setting
1 ↑ 1 - AVDD[
2]
AVDD[
1]
AVDD
[0]
VRHP
4
VRHP
3
VRHP
2
VRHP
1
VRHP
0
1 ↑ 1 - 0 0 0 VRHN
4
VRHN
3
VRHN
2
VRHN
1
VRHN
0
PWCTR1
10.2.5
1 ↑ 1 MODE
[1]
MODE
[0]
0 0 0 1 0 0
VRH: Set the GVDD
voltage
0 ↑ 1 - 1 1 0 0 0 0 0 1 (C1h)
Power control setting
PWCTR2
10.2.6
1 ↑ 1 - VGH2
5[1]
VGH2
5[0]
- -
VGLSEL
[1]
VGLSEL
[0]
VGHBT[
1]
VGHBT[
0]
BT: set VGH/ VGL
voltage
0 ↑ 1 - 1 1 0 0 0 0 1 0 (C2h)
In normal mode (Full
colors)
- DCA9
DCA8
SAPA
2
SAPA
1
SAPA
0 APA2
APA1
APA0
PWCTR3
10.2.7
1 ↑ 1
- DCA7
DCA6
DCA5
DCA4
DCA3
DCA2
DCA1
DCA0
AP
A
: adjust the
operational amplifier
DCA: adjust the bo
oster
Voltage
0 ↑ 1 - 1 1 0 0 0 0 1 1 (C3h)
In Idle mode (8-colors)
- DCB9
DCB8
SAPB
2
SAPB
1
SAPB
0 APB2
APB1
APB0
PWCTR4
10.2.8
1 ↑ 1
- DCB7
DCB6
DCB5
DCB4
DCB3
DCB2
DCB1
DCB0
AP
B
: adjust the
operational amplifier
DCB
: adjust the booster
Voltage
0 ↑ 1 - 1 1 0 0 0 1 0 0 (C4h)
In partial mode + Full
colors
1 ↑ 1 - DCC9
DCC8
SAPC
2
SAPC
1
SAPC
0
APC2
APC1
APC0
PWCTR5
10.2.9
1 ↑ 1 - DCC7
DCC6
DCC5
DCC4
DCC3
DCC2
DCC1
DCC0
AP
C
: adjust the
operational amplifier
DCC
: adjust the booster
circuit for Idle mode
0 ↑ 1 - 1 1 0 0 0 1 0 1 (C5h)
VCOM control 1
VMCTR1
10.2.10
1 ↑ 1 - - -
VCOMS
5
VCOMS
4
VCOMS
3
VCOMS
2
VCOMS
1
VCOMS
0
VCOM voltage control
0 ↑ 1 - 1 1 0 0 0 1 1 1 (C7h)
Set VCOM offset control
VMOFCTR
10.2.11
1 ↑ 1 - - - - VMF4
VMF3
VMF2
VMF1
VMF0
0 ↑ 1 - 1 1 0 1 0 0 0 1 (D1h)
Set LCM version code
WRID2
10.2.12
1 ↑ 1 - - ID2[6]
ID2[5]
ID2[4]
ID2[3]
ID2[2]
ID2[1]
ID2[0]
“-“: Don’t care
Note 1: C0h to C7h are fixed for about power controller
13
(BEN
14
15
and
ode
16
and
CMD7
CMDB
CMDE
CMDA
CMDS
CMD2
CMD!
CMDO
ST7735R
V0.2 124 2009-08-05
Table 10.2.3 Panel Function Command List (3)
Instruction
Refer
D/CX
WRX
RDX
D17-8
D7
D6
D5
D4
D3
D2
D1
D0
Hex
Function
0 ↑ 1 - 1 1 0 1 0 0 1 0 (D2h)
Customer Project
code
WRID3
10.2.13
1 ↑ 1 - ID37
ID36
ID35
ID34
ID33
ID32
ID31
ID30
Set the project code
at ID3
0 ↑ 1 - 1 1 0 1 1 0 0 1 (D9)
NVCTR1
10.2.14
1 ↑ 1 - 0 VMF
_EN
ID2
_EN
0 0 0 0 EXT_
R
NVM control status
0 ↑ 1 - 1 1 0 1 1 1 1 0 (DEh)
NVM Read Command
NVCTR2
10.2.15
1 ↑ 1 - 1 0 1 0 0 1 0 1 A5
Action code
0 ↑ 1 - 1 1 0 1 1 1 1 1 (DFh)
NVM Write Command
1 ↑ 1 - NVM_
IB7
NVM _
IB6
NVM _
IB5
NVM _
IB4
NVM _
IB3
NVM _
IB2
NVM _
IB1
NVM _
IB0
1 ↑ 1 - NVM _
CMD7
NVM _
CMD6
NVM _
CMD5
NVM _
CMD4
NVM _
CMD3
NVM _
CMD2
NVM _
CMD1
NVM _
CMD0
NVCTR3
10.2.16
1 ↑ 1 - 1 0 1 0 0 1 0 1 A5
“-“: Don’t care
Note 1: The D1h to D3h registers are fixed for about ID code setting.
Note 2: The D9h, DEh and DFh registers are used for NV Memory function controller. (Ex: write, clear, etc.)
, SELVD 5 53qu SELVON3 5mm 2 savam SELVOND
ST7735R
V0.2 125 2009-08-05
Table 10.2.4 Panel Function Command List (4)
Instruction
Refer
D/CX
WRX
RDXD17-8
D7
D6
D5 D4 D3 D2 D1 D0 Hex
Function
0
↑
1
- 1 1 1 0 0 0 0 0 (E0h)
Set
1
↑
1
- ---
---
VRFP[5]
VRFP[4] VRFP[3] VRFP[2] VRFP[1] VRF0P[0]
1
↑
1
- ---
---
VOS0P[5]
VOS0P[4]
VOS0P[3] VOS0P[2] VOS0P[1] VOS0P[0]
1
↑
1
- ---
---
PKP0[5]
PKP0[4] PKP0[3] PKP0[2] PKP0[1] PKP0[0]
1
↑
1
- ---
---
PKP1[5]
PKP1[4] PKP1[3] PKP1[2] PKP1[1] PKP1[0]
1
↑
1
- ---
---
PKP2[5]
PKP2[4] PKP2[3] PKP2[2] PKP2[1] PKP2[0]
1
↑
1
- ---
---
PKP3[5]
PKP3[4] PKP3[3] PKP3[2] PKP3[1] PKP3[0]
1
↑
1
- ---
---
PKP4[5]
PKP4[4] PKP4[3] PKP4[2] PKP4[1] PKP4[0]
1
↑
1
- ---
---
PKP5[5]
PKP5[4] PKP5[3] PKP5[2] PKP5[1] PKP5[0]
1
↑
1
- ---
---
PKP6[5]
PKP6[4] PKP6[3] PKP6[2] PKP6[1] PKP6[0]
1
↑
1
- ---
---
PKP7[5]
PKP7[4] PKP7[3] PKP7[2] PKP7[1] PKP7[0]
1
↑
1
- ---
---
PKP8[5]
PKP8[4] PKP8[3] PKP8[2] PKP8[1] PKP8[0]
1
↑
1
---
---
PKP9[5]
PKP9[4] PKP9[3] PKP9[2] PKP9[1] PKP9[0]
1
↑
1
- ---
---
SELV0P[5]
SELV0P[4]
SELV0P[3]
SELV0P[2]
SELV0P[1]
SELV0P[0]
1
↑
1
- ---
---
SELV1P[5]
SELV1P[4]
SELV1P[3]
SELV1P[2]
SELV1P[1]
SELV1P[0]
1
↑
1
---
---
SELV62P[5]
SELV62P[4]
SELV62P[3]
SELV62P[2]
SELV62P[1]
SELV62P[0]
GAMCTRP1
10.2.17
1
↑
1
- ---
---
SELV63P[5]
SELV63P[4]
SELV63P[3]
SELV63P[2]
SELV63P[1]
SELV63P[0]
Gamma
adjustment
(+ polarity)
0
↑
1
- 1 1
1 0 0 0 0 1
(E1h)
Set
1
↑
1
- ---
---
VRF0N[5]
VRF0N[4]
VRF0N[3] VRF0N[2] VRF0N[1] VRF0N[0]
1
↑
1
- ---
---
VOS0N[5]
VOS0N[4]
VOS0N[3] VOS0N[2] VOS0N[1] VOS0N[0]
1
↑
1
- ---
---
PKN0[5]
PKN0[4] PKN0[3] PKN0[2] PKN0[1] PKN0[0]
1
↑
1
- ---
---
PKN1[5]
PKN1[4] PKN1[3] PKN1[2] PKN1[1] PKN1[0]
1
↑
1
- ---
---
PKN2[5]
PKN2[4] PKN2[3] PKN2[2] PKN2[1] PKN2[0]
1
↑
1
- ---
---
PKN3[5]
PKN3[4] PKN3[3] PKN3[2] PKN3[1] PKN3[0]
1
↑
1
- ---
---
PKN4[5]
PKN4[4] PKN4[3] PKN4[2] PKN4[1] PKN4[0]
1
↑
1
- ---
---
PKN5[5]
PKN5[4] PKN5[3] PKN5[2] PKN5[1] PKN5[0]
1
↑
1
- ---
---
PKN6[5]
PKN6[4] PKN6[3] PKN6[2] PKN6[1] PKN6[0]
1
↑
1
- ---
---
PKN7[5]
PKN7[4] PKN7[3] PKN7[2] PKN7[1] PKN7[0]
1
↑
1
- ---
---
PKN8[5]
PKN8[4] PKN8[3] PKN8[2] PKN8[1] PKN8[0]
1
↑
1
- ---
---
PKN9[5]
PKN9[4] PKN9[3] PKN9[2] PKN9[1] PKN9[0]
1
↑
1
-
---
---
SELV0N[5]
SELV0N[4]
SELV0N[3]
SELV0N[2]
SELV0N[1]
SELV0
N[0]
1
↑
1
- ---
---
SELV1N[5]
SELV1N[4]
SELV1N[3]
SELV1N[2]
SELV1N[1]
SELV1N[0]
1
↑
1
- ---
---
SELV62N[5]
SELV62N[4]
SELV62N[3]
SELV62N[2]
SELV62N[1]
SELV62N[0]
GAMCTRN110.2.18
1
↑
1
- ---
---
SELV63N[5]
SELV63N[4]
SELV63N[3]
SELV63N[2]
SELV63N[1]
SELV63N[0]
Gamma
adjustment
(- polarity)
“-“: Don’t care
Note 1: E0-E1 registers are fixed for adjusting Gamma
V FRMCTR‘I
1st Parameter
2nd parameter
I
Sequential
lransley ,
ST7735R
V0.2 126 2009-08-05
10.2.1 FRMCTR1 (B1h): Frame Rate Control (In normal mode/ Full colors)
B1H FRMCTR1 (Frame Rate Control)
Inst / Para D/CX
WRX
RDX
D17-8
D7
D6
D5
D4
D3
D2
D1
D0
HEX
FRMCTR1 0 ↑ 1 - 1 0 1 1 0 0 0 1
(B1h)
1
st
parameter
1 ↑ 1 - - -
- - RTNA3
RTNA2
RTNA1
RTNA0
2
nd
parameter
1 ↑ 1 - - -
FPA5 FPA4 FPA3 FPA2 FPA1 FPA0
3
rd
parameter
1 ↑ 1 - - -
BPA5 BPA4 BPA3 BPA2 BPA1 BPA0
Description
-Set the frame frequency of the full colors normal mode.
- Frame rate=fosc/((RTNA x 2 + 40) x (LINE + FPA + BPA))
-fosc = 625kHz
Default
Status Default Value
GM[1:0] = “00” GM[1:0] = “11”
Power On Sequence 01h/2Ch/2Dh 01h/2Ch/2Bh
S/W Reset 01h/2Ch/2Dh 01h/2Ch/2Bh
H/W Reset 01h/2Ch/2Dh 01h/2Ch/2Bh

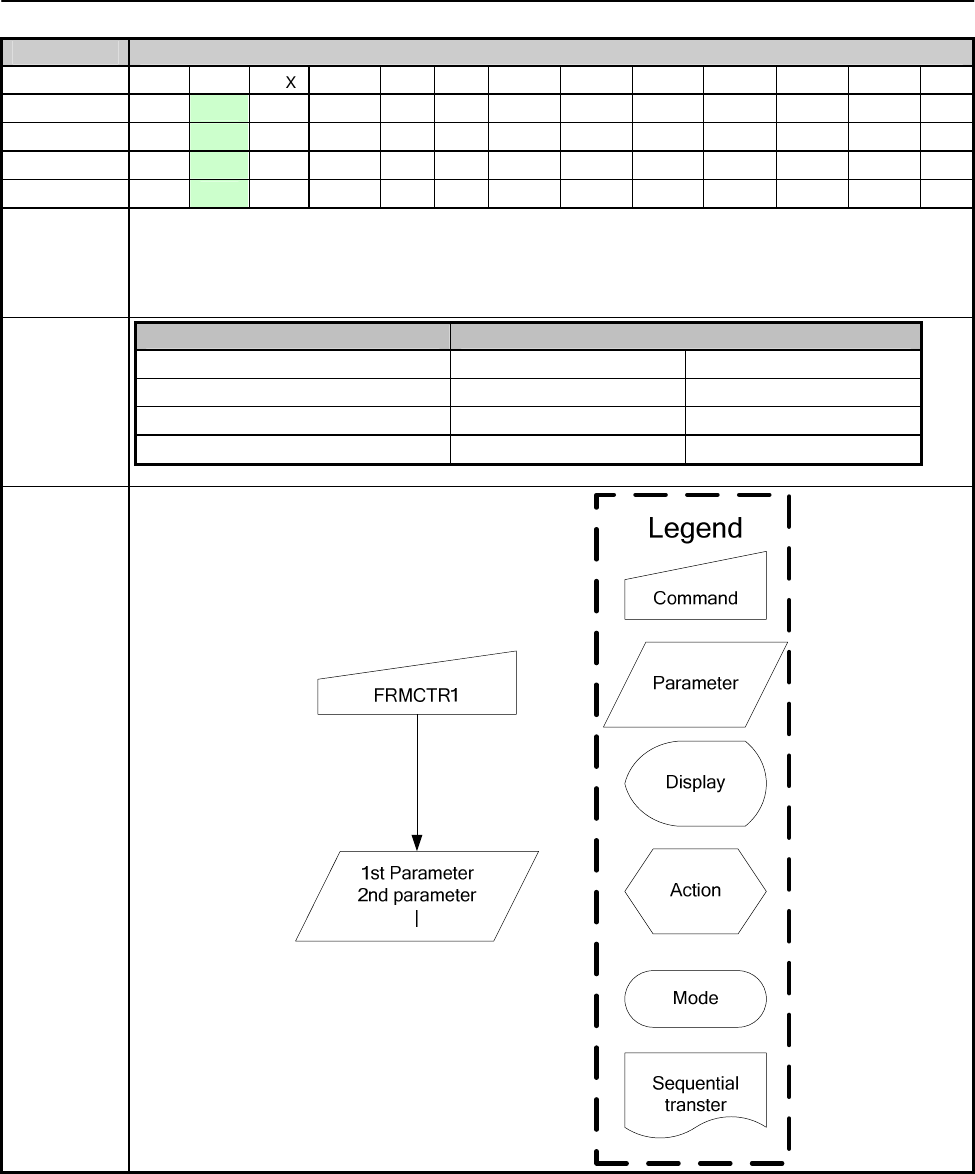

Flow Chart
w I
FRMCTF22 Parameter /I
|
Display
\\ /
/
1st Parameter \
2nd parameter Action
\
/
SeCluenlial
Minster ,
|————
ST7735R
V0.2 127 2009-08-05
10.2.2 FRMCTR2 (B2h): Frame Rate Control (In Idle mode/ 8-colors)
B2H FRMCTR2 (Frame Rate Control)
Inst / Para D/CX
WRX
RDX
D17-8
D7
D6
D5 D4 D3 D2 D1 D0
HEX
FRMCTR2 0 ↑ 1 - 1 0 1 1 0 0 1 0
(B2h)
1
st
parameter
1
↑ 1
- - -
- - RTNB3
RTNB2
RTNB1
RTNB0
2
nd
parameter
1
↑ 1
- - -
FPB5 FPB4 FPB3 FPB2 FPB1 FPB0
3
rd
parameter
1
↑ 1
- - -
BPB5 BPB4 BPB3 BPB2 BPB1 BPB0
Description
-Set the frame frequency of the Idle mode.
- Frame rate=fosc/((RTNB x 2 + 40) x (LINE + FPB + BPB))
-fosc = 625kHz
Default
Status Default Value
GM[1:0] = “00” GM[1:0] = “11”
Power On Sequence 01h/2Ch/2Dh 01h/2Ch/2Bh
S/W Reset 01h/2Ch/2Dh 01h/2Ch/2Bh
H/W Reset 01h/2Ch/2Dh 01h/2Ch/2Bh

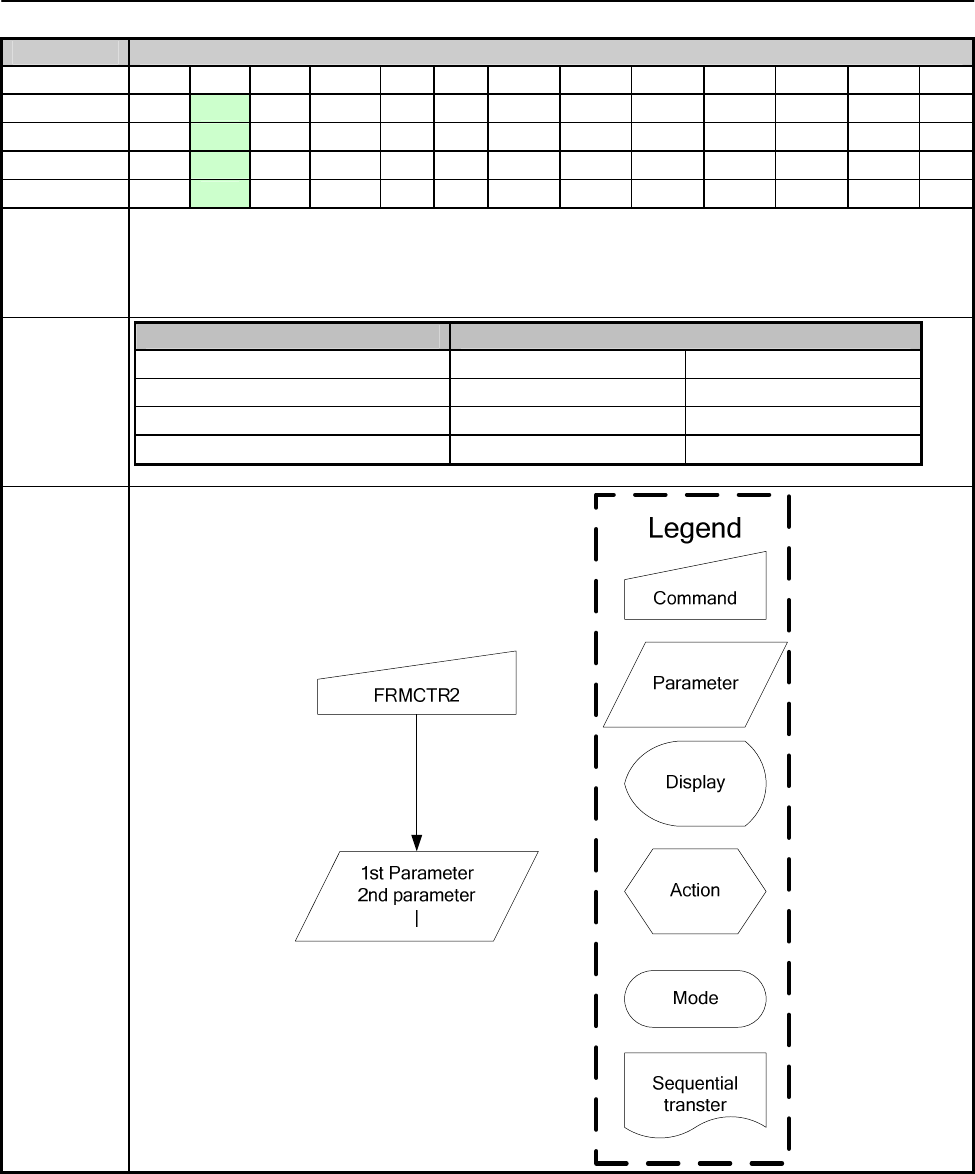

Flow Chart
V FRMCTRG
1st Parameter
|
6nd parameter
Sequential
lranslef ,
ST7735R
V0.2 128 2009-08-05

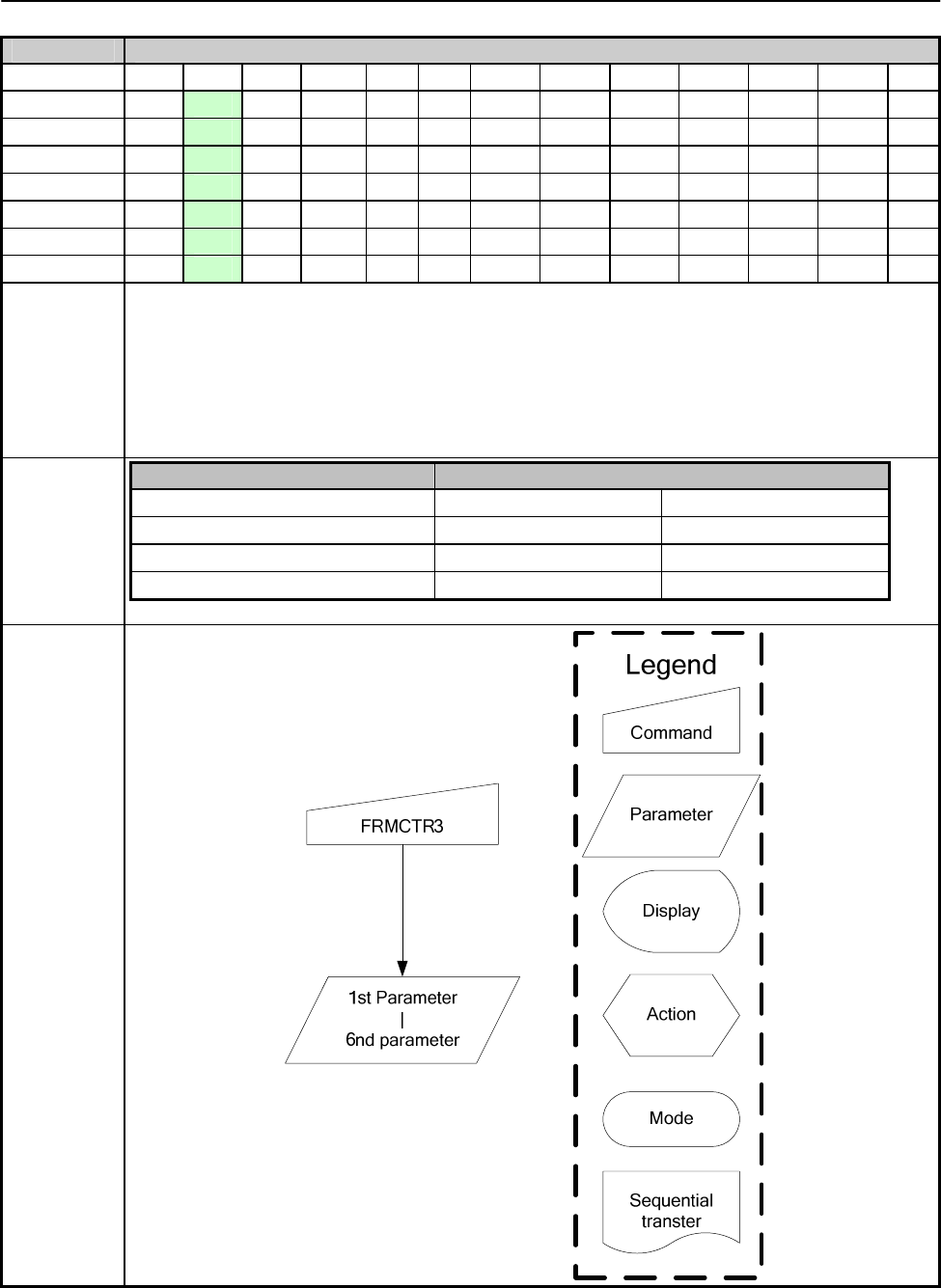

10.2.3 FRMCTR3 (B3h): Frame Rate Control (In Partial mode/ full colors)
B3H FRMCTR3 (Frame Rate Control)
Inst / Para D/CX
WRX
RDX
D17-8
D7
D6
D5 D4 D3 D2 D1 D0 HE
FRMCTR3 0 ↑ 1 - 1 0 1 1 0 0 1 1 (B3
1
st
parameter
1
↑ 1
- - - - - RTNC RTNC RTNC RTNC
2
nd
parameter
1
↑ 1
- - - FPC5
FPC4
FPC3
FPC2
FPC1
FPC0
3
rd
parameter
1
↑ 1
- - - BPC5
BPC4
BPC3
BPC2
BPC1
BPC0
4
th
parameter
1
↑ 1
- - - - - RTND RTND RTND RTND
5
th
parameter
1
↑ 1
- - - FPD5
FPD4
FPD3
FPD2
FPD1
FPD0
6
th
parameter
1
↑ 1
- - - BPD5
BPD4
BPD3
BPD2
BPD1
BPD0
Description
-Set the frame frequency of the Partial mode/ full colors.
- 1st parameter to 3rd parameter are used in dot inversion mode.
- 4th parameter to 6th parameter are used in line inversion mode.
- Frame rate=fosc/((RTNC x 2 + 40) x (LINE + FPC + BPC))
-fosc = 625kHz
Default
Status Default Value
GM[1:0] = “00” GM[1:0] = “11”
Power On Sequence 01h/2Ch/2Dh/01h/2Ch/2Dh 01h/2Ch/2Bh/01h/2Ch/2Bh
S/W Reset 01h/2Ch/2Dh/01h/2Ch/2Dh 01h/2Ch/2Bh/01h/2Ch/2Bh
H/W Reset 01h/2Ch/2Dh/01h/2Ch/2Dh 01h/2Ch/2Bh/01h/2Ch/2Bh
Flow Chart
NLC
INVCTR
/ |
I
I
ST7735R
V0.2 129 2009-08-05

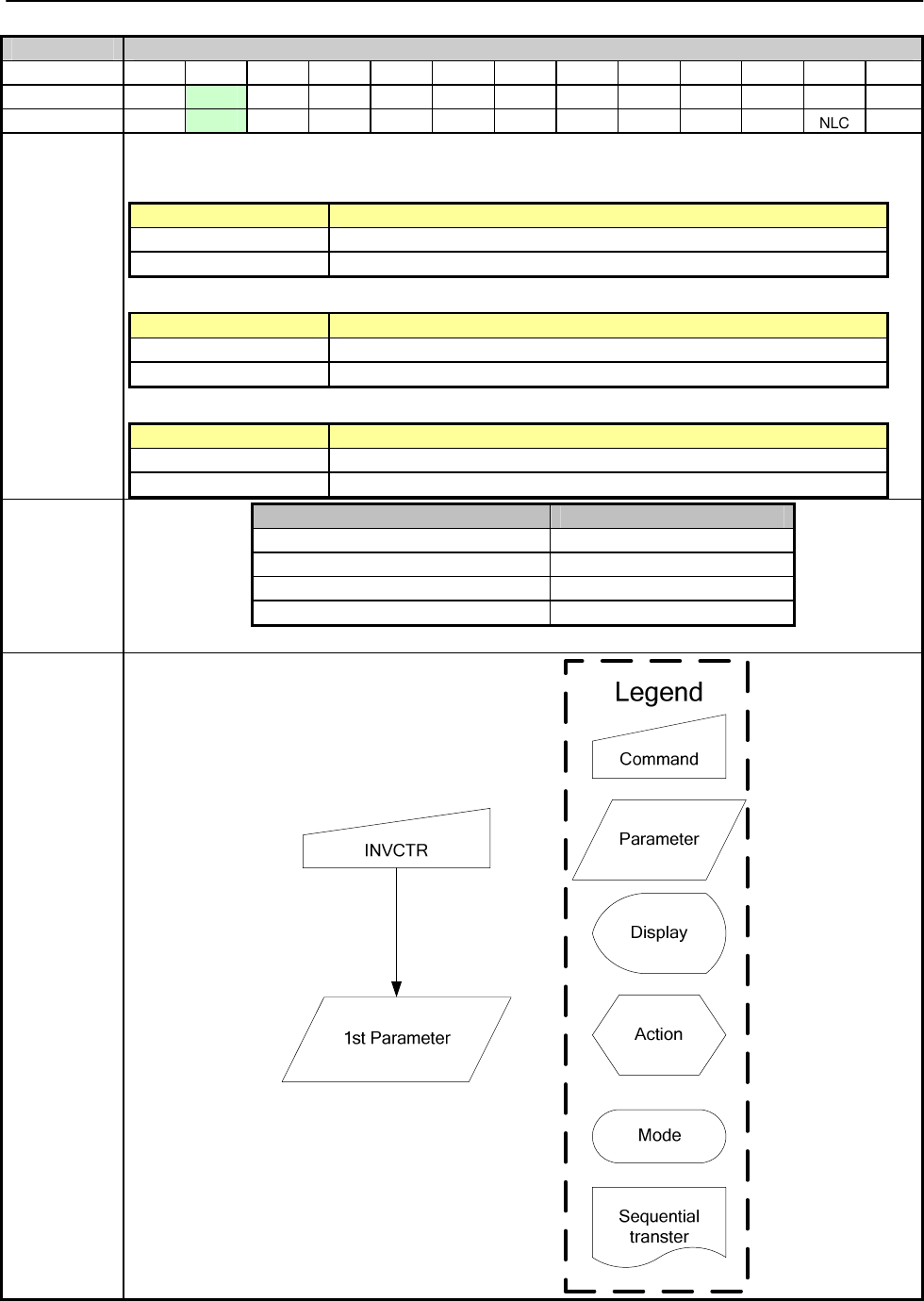

10.2.4 INVCTR (B4h): Display Inversion Control
B4H INVCTR (Display Inversion Control)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
INVCTR 0 ↑ 1 - 1 0 1 1 0 1 0 0 (B4h)
Parameter 1 ↑ 1 - 0 0 0 0 0 NLA
NLB
NLC
Description
-Display Inversion mode control
-NLA: Inversion setting in full colors normal mode (Normal mode on)
NLA Inversion setting in full Colors normal mode
0 Dot Inversion
1 Line Inversion
-NLB: Inversion setting in Idle mode (Idle mode on)
NLB Inversion setting in Idle mode
0 Dot Inversion
1 Line Inversion
-NLC: Inversion setting in full colors partial mode (Partial mode on / Idle mode off)
NLC Inversion setting in full Colors partial mode
0 Dot Inversion
1 Line Inversion
Default
Status Default Value
B4h
Power On Sequence 03h
S/W Reset 03h
H/W Reset 03h
Flow Chart
4
RHN4 RHN3 RHNZ RHN1 RHNO
ST7735R
V0.2 130 2009-08-05
10.2.5 PWCTR1 (C0h): Power Control 1
C0H PWCTR1 (Power Control 1)
Inst / Para
D/CX WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
PWCTR1 0 ↑ 1 - 1 1 0 0 0 0 0 0 (C0h)
1
st
parameter
1 ↑ 1 - AVDD[2]
AVDD[1]
AVDD[0]
VRHP4
VRHP3
VRHP2
VRHP1
VRHP0
2
nd
parameter
1 ↑ 1 - 0 0 0 VRHN4
VRHN3
VRHN2
VRHN1
VRHN0
3
rd
parameter
1 ↑ 1 - MODE[1]
MODE[0] 0 0 0 1 0 0
Description
AVDD[2:0] AVDD MODE[1:0] FUNCTION
000 4.5 00 2X
001 4.6 01 3X
010 4.7 10 AUTO
011 4.8 11 3X
100 4.9
101 5
110 5.1
111 Don’t use this setting,
reserve for testing.
VRHP[4:0] GVDD VRHN[4:0] GVCL
00000 4.7 00000 -4.7
00001 4.65 00001 -4.65
00010 4.6 00010 -4.6
00011 4.55 00011 -4.55
00100 4.5 00100 -4.5
00101 4.45 00101 -4.45
00110 4.4 00110 -4.4
00111 4.35 00111 -4.35
01000 4.3 01000 -4.3
01001 4.25 01001 -4.25
01010 4.2 01010 -4.2
01011 4.15 01011 -4.15
01100 4.1 01100 -4.1
01101 4.05 01101 -4.05
01110 4 01110 -4
01111 3.95 01111 -3.95
10000 3.9 10000 -3.9
10001 3.85 10001 -3.85
10010 3.8 10010 -3.8
10011 3.75 10011 -3.75
10100 3.7 10100 -3.7
10101 3.65 10101 -3.65
10110 3.6 10110 -3.6
10111 3.55 10111 -3.55
11000 3.5 11000 -3.5
11001 3.45 11001 -3.45
11010 3.4 11010 -3.4
11011 3.35 11011 -3.35
11100 3.3 11100 -3.3
11101 3.25 11101 -3.25
11110 3.2 11110 -3.2
11111 3.15 11111 -3.15
'____
Legend
' '|
Command I
77 PWCTR1
/
151 Parameter
2nd parameter
Sequenlial
Iranslef ,
ST7735R
V0.2 131 2009-08-05
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out Yes
Partial Mode On, Idle Mode On, Sleep Out Yes
Sleep In Yes
Default
Status Default Value
C0h
Power On Sequence 82h/02h/84h
S/W Reset 82h/02h/84h
H/W Reset 82h/02h/84h

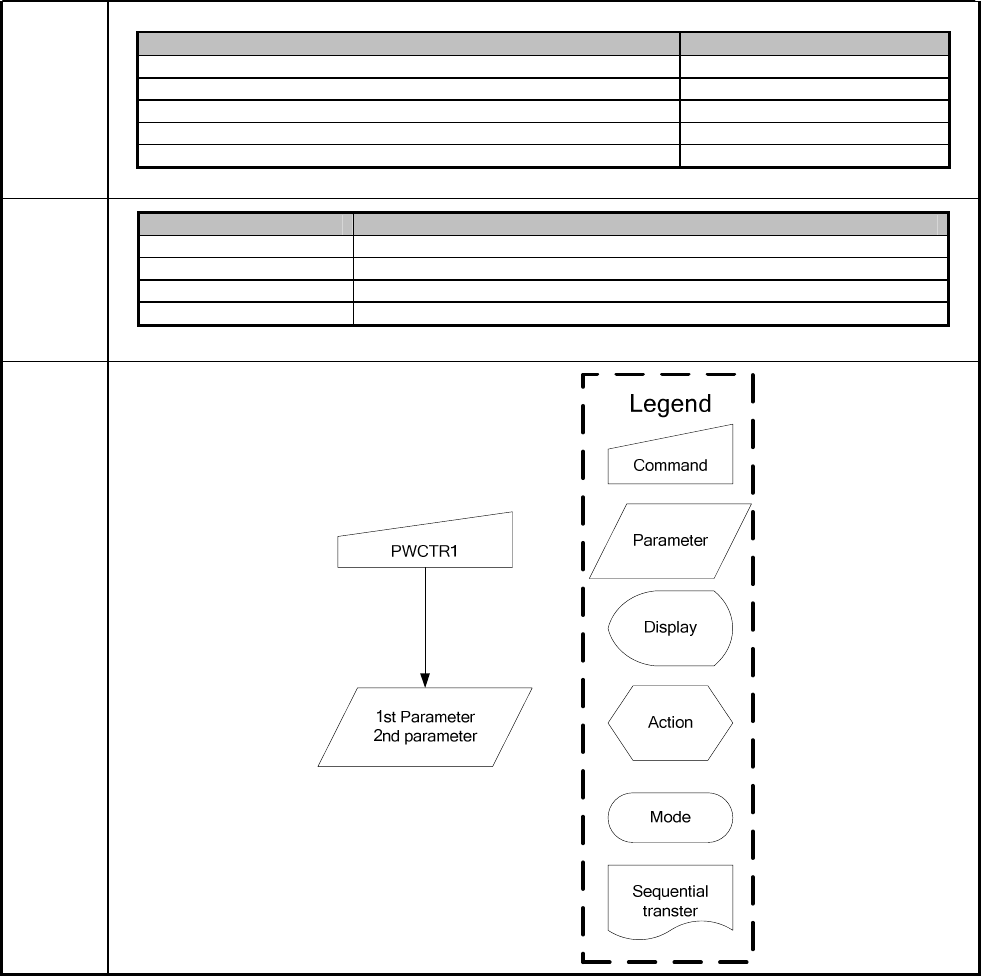

Flow Chart
Delault Value
ST7735R
V0.2 132 2009-08-05
10.2.6 PWCTR2 (C1h): Power Control 2
C1H PWCTR2 (Power Control 2)
Inst / Para
D/CX
WRX
RDX
D17-8
D7 D6 D5 D4
D3 D2 D1 D0 HEX
PWCTR2
0
↑ 1 - 1 1 0 0 0 0 0 1 (C1h)
1
st
parameter
1
↑ 1 VGH25[1]
VGH25[0]
- - VGLSEL[1]
VGLSEL[0]
VGHBT[1]
VGHBT[0]
Description
-Set the VGH and VGL supply power level
VGH25[1:0] V25
00 2.1
01 2.2
10 2.3
11 2.4
VGHBT[1:0] VGH
00 2*AVDD+VGH25
01 3*AVDD
10 3*AVDD+VGH25
11 Don’t use this setting, reserve for testing.
VGLSEL[1:0] VGL
00 -7.5
01 -10
10 -12.5
11 -13
Restriction
-The deviation value of VGH/ VGL between with Measurement and Specification: Max <= 1V
-VGH-VGL <= 32V
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out Yes
Partial Mode On, Idle Mode On, Sleep Out Yes
Sleep In Yes
Default
Status Default Value
C1h
Power On Sequence C5h
S/W Reset C5h
H/W Reset C5h
PWCTR2
1:! Parameter
[ Command
Parameter
Seq uemial
tra nsxa
ST7735R
V0.2 133 2009-08-05

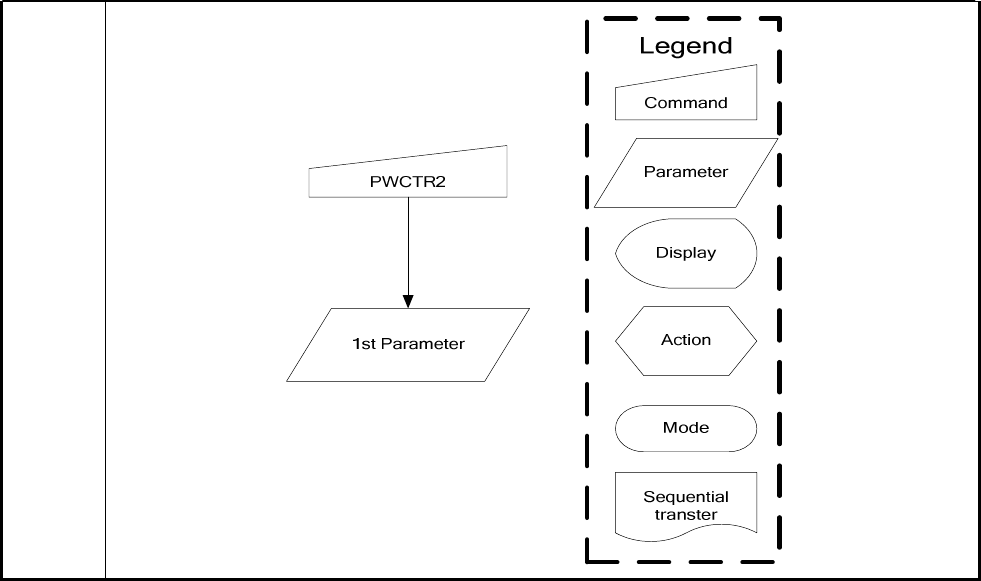

Flow Chart
ST7735R
V0.2 134 2009-08-05
10.2.7 PWCTR3 (C2h): Power Control 3 (in Normal mode/ Full colors)
C2H PWCTR3 (Power Control 3)
Inst / Para
D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
PWCTR3 0 ↑ 1 - 1 1 0 0 0 0 1 0 (C2h)
1
st
parameter
1 ↑ 1 - DCA9
DCA8
SAPA2
SAPA1
SAPA0
APA2
APA1
APA0
2
nd
parameter
1 ↑ 1 - DCA7
DCA6
DCA5
DCA4
DCA3
DCA2
DCA1
DCA0
Description
-Set the amount of current in Operational amplifier in normal mode/full colors.
-Adjust the amount of fixed current from the fixed current source in the operational amplifier for the source
driver.
AP[2:0] Amount of Current in Operational Amplifier
000 Operation of the operational amplifier stops
001 Small
010 Medium Low
011 Medium
100 Medium High
101 Large
110 Reserved
111 Reserved
SAP[2:0] Amount of Current in Operational Amplifier
000 Operation of the operational amplifier stops
001 Small
010 Medium Low
011 Medium
100 Medium High
101 Large
110 Reserved
111 Reserved
-Set the Booster circuit Step-up cycle in Normal mode/ full colors.
DCA[9:8] DCA[7:6] DCA[5:4] DCA[3:2] DCA[1:0]
00 BCLK/1 BCLK/1 BCLK/1 BCLK/1 BCLK/1
01 BCLK/1.5 BCLK/1.5 BCLK/1.5 BCLK/1.5 BCLK/1.5
10 BCLK/2 BCLK/2 BCLK/2 BCLK/2 BCLK/2
11 BCLK/4 BCLK/4 BCLK/4 BCLK/4 BCLK/4
Note: BCLK is Clock frequency for Booster circuit
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out Yes
Partial Mode On, Idle Mode On, Sleep Out Yes
Sleep In Yes
Default
Status Default Value
C2h
Power On Sequence 0Ah/00h
S/W Reset 0A h/00h
H/W Reset 0A h/00h
PWCTR3 }
Isl Parameter
2nd paramexer
ST7735R
V0.2 135 2009-08-05

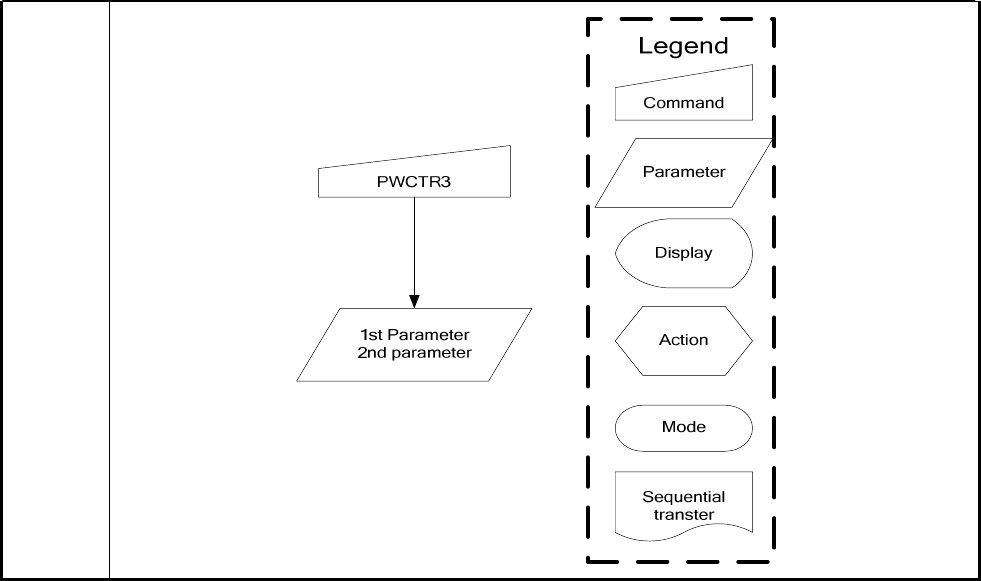

Flow Chart
ST7735R
V0.2 136 2009-08-05
10.2.8 PWCTR4 (C3h): Power Control 4 (in Idle mode/ 8-colors)
C3H PWCTR4 (Power Control 4)
Inst / Para
D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
PWCTR4 0 ↑ 1 - 1 1 0 0 0 0 1 1 (C3h)
1
st
parameter
1 ↑ 1 - DCB9
DCB8
SAPB2
SAPB1
SAPB0
APB2
APB1
APB0
2
nd
parameter
1 ↑ 1 - DCB7
DCB6
DCB5
DCB4
DCB3
DCB2
DCB1
DCB0
Description
-Set the amount of current in Operational amplifier in Idle mode/8 colors.
-Adjust the amount of fixed current from the fixed current source in the operational amplifier for the source
driver.
AP[2:0] Amount of Current in Operational Amplifier
000 Operation of the operational amplifier stops
001 Small
010 Medium Low
011 Medium
100 Medium High
101 Large
110 Reserved
111 Reserved
SAP[2:0] Amount of Current in Operational Amplifier
000 Operation of the operational amplifier stops
001 Small
010 Medium Low
011 Medium
100 Medium High
101 Large
110 Reserved
111 Reserved
-Set the Booster circuit Step-up cycle in Idle mode/8 colors.
DCB[9:8] DCB[7:6] DCB[5:4] DCB[3:2] DCB[1:0]
00 BCLK/1 BCLK/1 BCLK/1 BCLK/1 BCLK/1
01 BCLK/1.5 BCLK/1.5 BCLK/1.5 BCLK/1.5 BCLK/1.5
10 BCLK/2 BCLK/2 BCLK/2 BCLK/2 BCLK/2
11 BCLK/4 BCLK/4 BCLK/4 BCLK/4 BCLK/4
Note: BCLK is Clock frequency for Booster circuit
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out Yes
Partial Mode On, Idle Mode On, Sleep Out Yes
Sleep In Yes
Default
Status Default Value
C3h
Power On Sequence 8Ah/2Eh
S/W Reset 8Ah/2Eh
H/W Reset 8Ah/2Eh
PWCTRA
151 Parameter
2nd paramelar
"___|
I Legend
| mm
| 7 |
I/W/I
|
Display
Amen
Sequenual
«ansxer ,
ST7735R
V0.2 137 2009-08-05

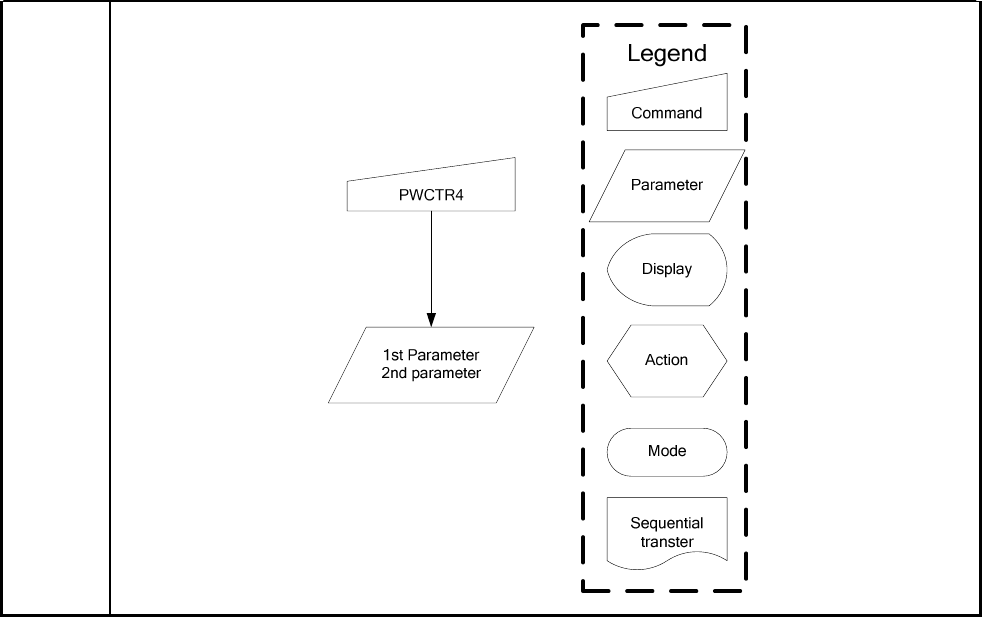

Flow Chart
ST7735R
V0.2 138 2009-08-05
10.2.9 PWCTR5 (C4h): Power Control 5 (in Partial mode/ full-colors)
C4H PWCTR5 (Power Control 5)
Inst / Para
D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
PWCTR5 0 ↑ 1 - 1 1 0 0 0 1 0 0 (C4h)
1
st
parameter
1 ↑ 1 - DCC9
DCC8
SAPC2
SAPC1
SAPC0
APC2
APC1
APC0
2
nd
parameter
1 ↑ 1 - DCC7
DCC6
DCC5
DCC4
DCC3
DCC2
DCC1
DCC0
Description
-Set the amount of current in Operational amplifier in Partial mode/ full-colors.
-Adjust the amount of fixed current from the fixed current source in the operational amplifier for the source
driver.
AP[2:0] Amount of Current in Operational Amplifier
000 Operation of the operational amplifier stops
001 Small
010 Medium Low
011 Medium
100 Medium High
101 Large
110 Reserved
111 Reserved
SAP[2:0] Amount of Current in Operational Amplifier
000 Operation of the operational amplifier stops
001 Small
010 Medium Low
011 Medium
100 Medium High
101 Large
110 Reserved
111 Reserved
-Set the Booster circuit Step-up cycle in Partial mode/ full-colors.
DCC[9:8] DCC[7:6] DCC[5:4] DCC[3:2] DCC[1:0]
00 BCLK/1 BCLK/1 BCLK/1 BCLK/1 BCLK/1
01 BCLK/1.5 BCLK/1.5 BCLK/1.5 BCLK/1.5 BCLK/1.5
10 BCLK/2 BCLK/2 BCLK/2 BCLK/2 BCLK/2
11 BCLK/4 BCLK/4 BCLK/4 BCLK/4 BCLK/4
Note: BCLK is Clock frequency for Booster circuit
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out Yes
Partial Mode On, Idle Mode On, Sleep Out Yes
Sleep In Yes
Default
Status Default Value
C4h
Power On Sequence 8Ah/AAh
S/W Reset 8Ah/AAh
H/W Reset 8Ah/AAh
ST7735R
V0.2 139 2009-08-05
Flow Chart
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
PWCTR5
1st Parameter
2nd parameter
ST7735R
V0.2 140 2009-08-05
10.2.10 VMCTR1 (C5h): VCOM Control 1
C5H VMCTR1 (VCOM Control 1)
Inst / Para
D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
VMCTR1 0 ↑ 1 - 1 1 0 0 0 1 0 1 (C5h)
1
st
parameter
1 ↑ 1 - - -
VCOMS5
VCOMS 4
VCOMS 3
VCOMS 2
VCOMS 1
VCOMS 0
Description
VCOM voltage setting.
VCOMS
[5:0] VCOM
VCOMS
[5:0] VCOM
VCOMS
[5:0] VCOM
VCOMS
[5:0] VCOM
0
000000
-0.425 16
010000
-0.825 32
100000
-1.225
48
110000
-1.625
1
000001
-0.45 17
010001
-0.85 33
100001
-1.25 49
110001
-1.65
2
000010
-0.475 18
010010
-0.875 34
100010
-1.275
50
110010
-1.675
3
000011
-0.5 19
010011
-0.9 35
100011
-1.3 51
110011
-1.7
4
000100
-0.525 20
010100
-0.925 36
100100
-1.325
52
110100
-1.725
5
000101
-0.55 21
010101
-0.95 37
100101
-1.35 53
110101
-1.75
6
000110
-0.575 22
010110
-0.975 38
100110
-1.375
54
110110
-1.775
7
000111
-0.6 23
010111
-1 39
100111
-1.4 55
110111
-1.8
8
001000
-0.625 24
011000
-1.025 40
101000
-1.425
56
111000
-1.825
9
001001
-0.65 25
011001
-1.05 41
101001
-1.45 57
111001
-1.85
10
001010
-0.675 26
011010
-1.075 42
101010
-1.475
58
111010
-1.875
11
001011
-0.7 27
011011
-1.1 43
101011
-1.5 59
111011
-1.9
12
001100
-0.725 28
011100
-1.125 44
101100
-1.525
60
111100
-1.925
13
001101
-0.75 29
011101
-1.15 45
101101
-1.55 61
111101
-1.95
14
001110
-0.775 30
011110
-1.175 46
101110
-1.575
62
111110
-1.975
15
001111
-0.8 31
011111
-1.2 47
101111
-1.6 63
111111
-2
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out Yes
Partial Mode On, Idle Mode On, Sleep Out Yes
Sleep In Yes
Default
Status Default Value
C5h
Power On Sequence 04h
S/W Reset 04h
H/W Reset 04h
/
VMCTR1
1st Parameter
2nd parameter
/
"__—|
I Legendr
I Command
' I
I Parameter
Display j
Sequential
lransleL ,
ST7735R
V0.2 141 2009-08-05

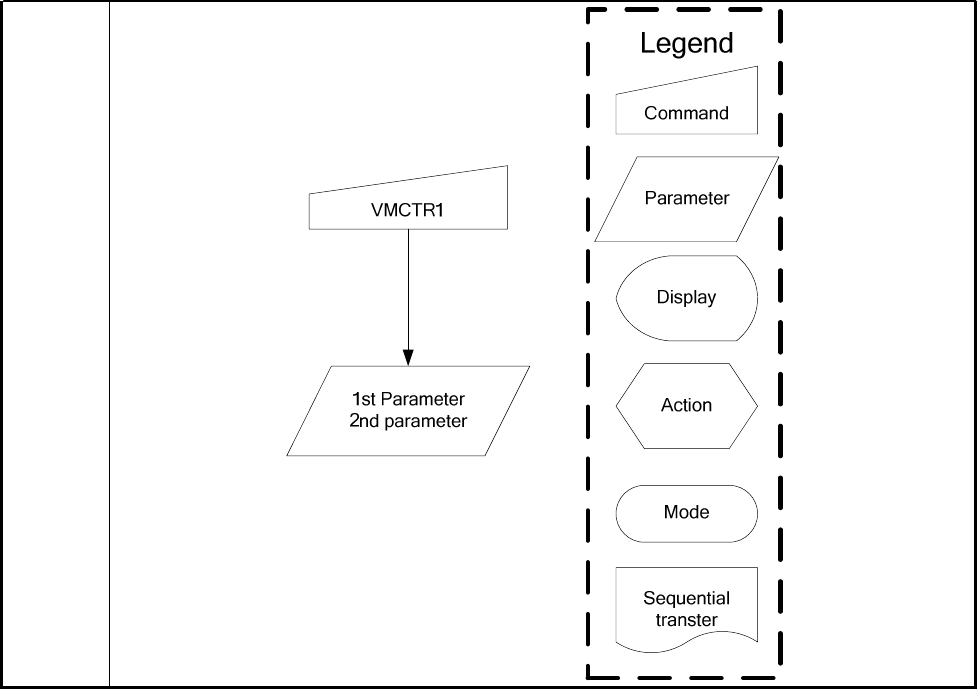

Flow Chart
VMOFCTR (cm
i
VMFIAC'] Enable
CMD DBh
Pmaaon
l
Momly VMFI‘ a] veg‘sm,
CMD cm
Pave xxh
i
vmmu} msame
CMD Dan
Pam Don
L
// EEPROM pron Now/ / /
Legend
Command
Parame|ev
Dwsn‘a
Made
|
|
l
|
|
y |
. |
|
|
|
|
5mm
"5.45.9; V
ST7735R
V0.2 142 2009-08-05
10.2.11 VMOFCTR (C7h): VCOM Offset Control
C7H VMOFCTR (VCOM Offset Control)
Inst / Para
D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
VMOFCTR
0 ↑ 1 - 1 1 0 0 0 1 1 1 (C7h)
Parameter
1 ↑ 1 - - - - VMF4
VMF3
VMF2
VMF1
VMF0
Description
-Set VCOM Voltage level for reduce the flicker issue
-Before use command 0xC7, the bit VMF_EN of command 0xD9 must be enabled (set to 1).
VMF[4] VMF[3:0] VCOM Output Level
0 0000 “VCOMS”-16d
0 0001 “VCOMS”-15d
0 | |
0 1110 “VCOMS”-2d
0 1111 “VCOMS”-1d
1 0000 “VCOMS”
1 0001 “VCOMS”+1d
1 0010 “VCOMS”+2d
1 | |
1 1110 “VCOMS”+14d
1 1111 “VCOMS”+15d
- 1d=25mV, 2d=50mV 3d=75mv....
Register
Availability
Status Availability
Normal Mode On, Idle Mode Off, Sleep Out Yes
Normal Mode On, Idle Mode On, Sleep Out Yes
Partial Mode On, Idle Mode Off, Sleep Out Yes
Partial Mode On, Idle Mode On, Sleep Out Yes
Sleep In Yes
Default
Status Default Value
C7h
Power On Sequence 10h
S/W Reset 10h
H/W Reset 10h

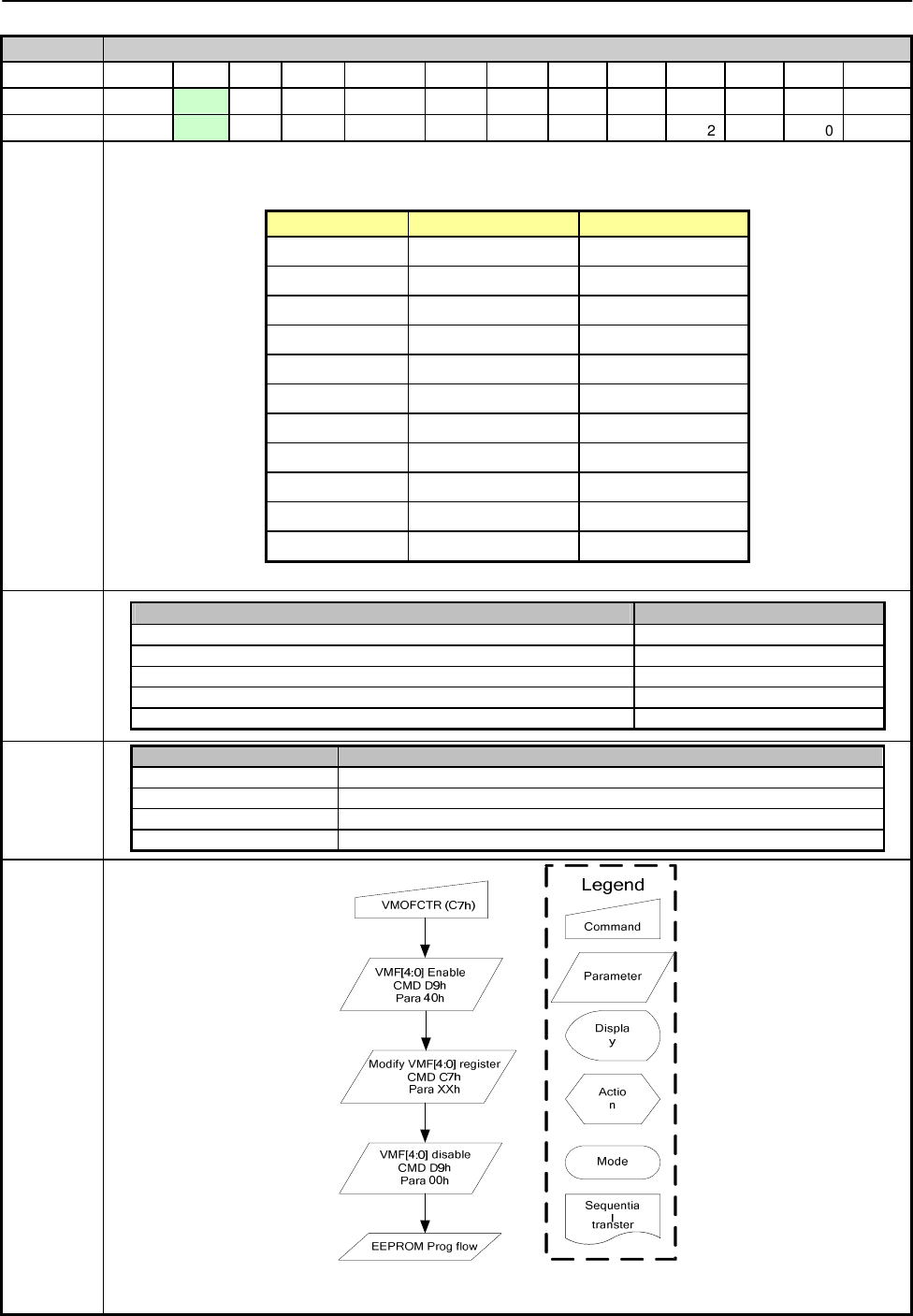

Flow Chart
|D21
\DZO
, , |D26 \D25
\D24
|D23
|D22
Parameter
NVCTR3(D1h)
V
ID2[6:O] Enable
CMD D9h ,
/ Para 10h /,
V
ModiVy ID2[6:0] register ,
CMD D1h
Para ><>ST7735R
V0.2 143 2009-08-05
10.2.12 WRID2 (D1h): Write ID2 Value
D1H WRID2 (Write ID2 Value)
Inst / Para
D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
WRID2 0 ↑ 1 - 1 1 0 1 0 0 0 1 (D1h)
Parameter
1
↑
1
-
-
ID26
ID25
ID24
ID23
ID22
ID21
ID20
-
Description
-Write 7-bit data of LCD module version to save it to NVM.
-The parameter ID2[6:0] is LCD Module version ID.
Flow Chart
(Dzh)
D35
”NWRIDS (D2h)
1st Parameter
I
I
\\ / I
(/ Actio \ I
\_/ I
\ I
/ I
Sequenlia
tranlsler I
ST7735R
V0.2 144 2009-08-05
10.2.13 WRID3 (D2h): Write ID3 Value
D2H WRID3 (Write ID3 Value)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
WRID3 0 ↑ 1 - 1 1 0 1 0 0 1 0 (D2h)
Parameter 1 ↑ 1 - ID37
ID36
ID35
ID34
ID33
ID32
ID31
ID30
-
Description -Write 8-bit data of project code module to save it to NVM.
-The parameter ID3[7:0] is product project ID.

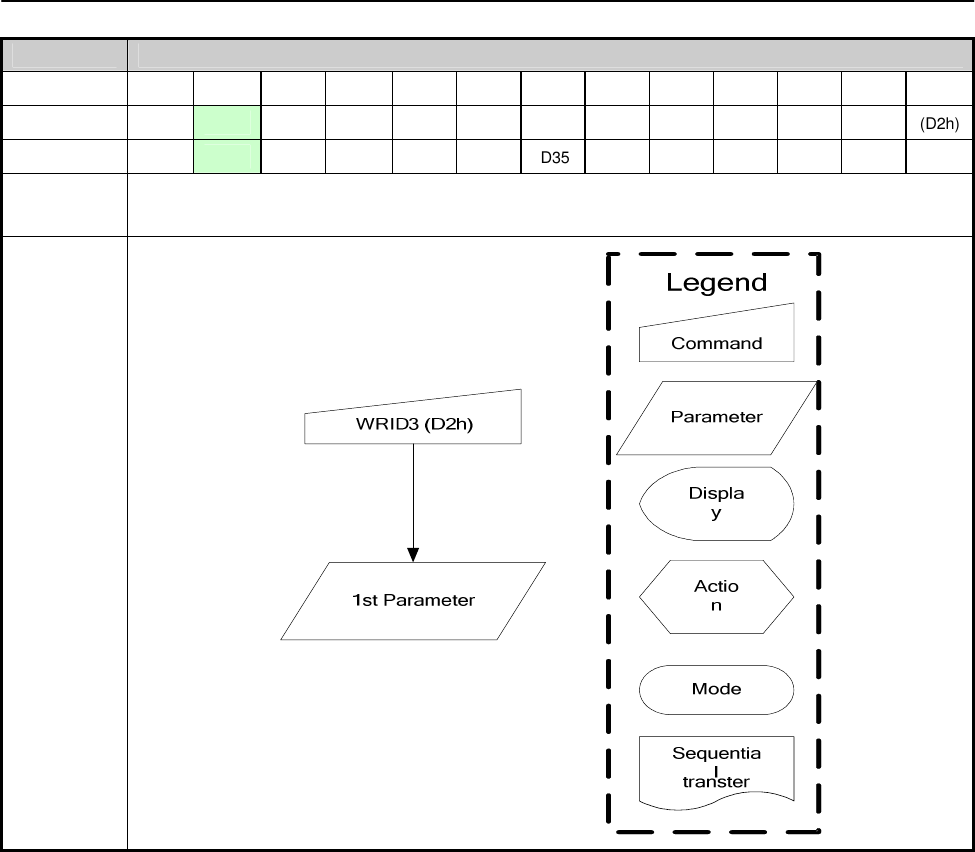

Flow Chart
NVFCTR (Ugh)
/
1st Parameter /
/
/
Acllon
I Sequenlial
I lransqu
ST7735R
V0.2 145 2009-08-05

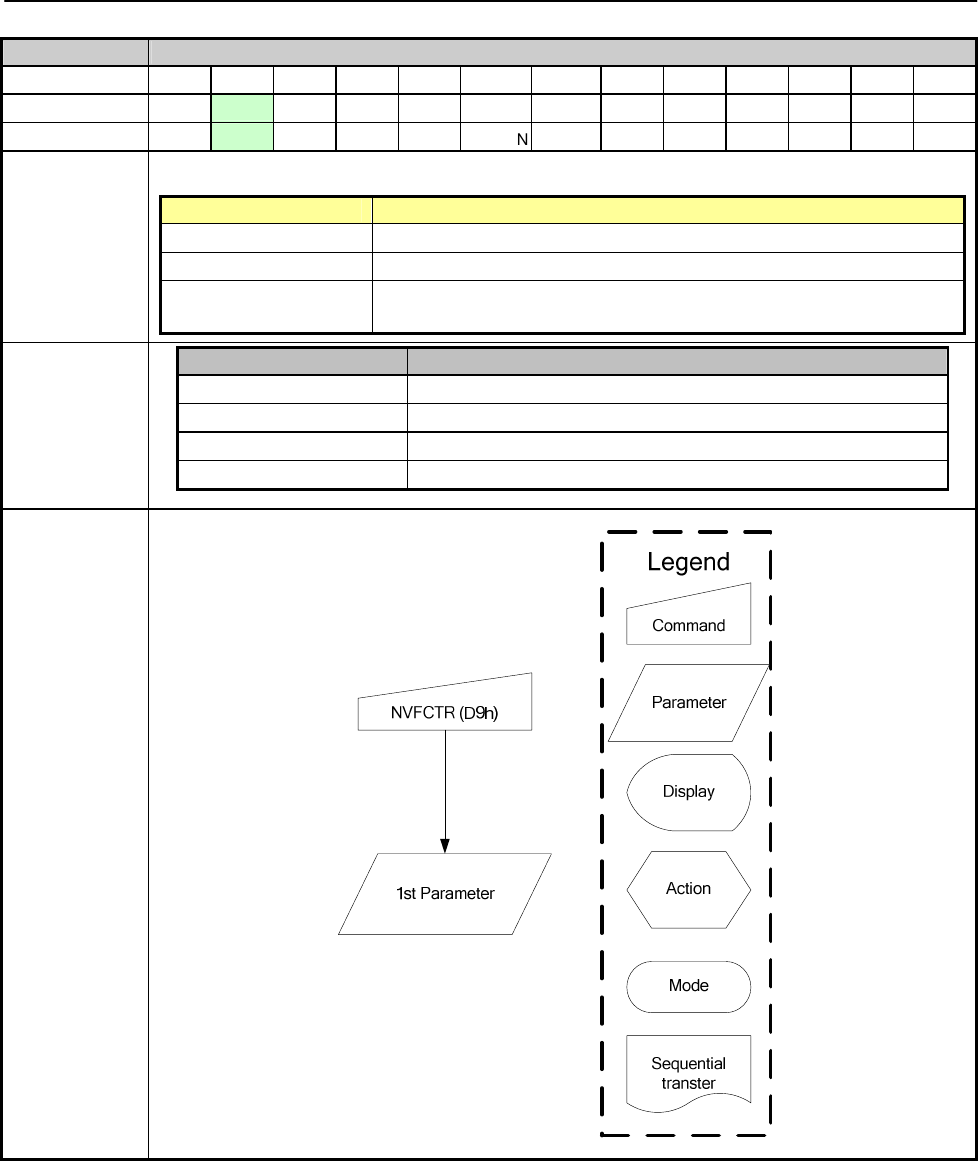

10.2.14 NVFCTR1 (D9h): NVM Control Status
D9H NVFCTR1 (NV Memory Function Controller 1)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
NVFCTR1 0 ↑ 1 - 1 1 0 0 1 0 0 1 (D9h)
parameter 1 1 ↑ - 0 VMF_EN
ID2_EN
0 0 0 0 EXT_R
Description
-NVM control status
Bit Value
VMF_EN “1” = Command C7h enable ; “0” = Command C7h disable
ID2_EN “1” = Command D1h enable ; “0” = Command D1h disable
EXT_R Read: extension command status, “1” for enable, “0” for disable.
Write: Don’t care
Default
Status Default Value
D9h
Power On Sequence 00h
S/W Reset 00h
H/W Reset 00h
Flow Chart
___'|
Legend
Command
NVFCTRZ / Parameter/
|
|
1
/|
_ Dfiphy \I
\ , |
1st Para: F577 I
|
|
|
|
_|
/ 2'“ Para : A577 / Action
Mode
\ , /
Sequenua‘
Iransler ,
|
|
|
|
|
/ |
|
|
|
|
|
ST7735R
V0.2 146 2009-08-05
10.2.15 NVFCTR2 (DEh): NVM Read Command
DEH NVFCTR1 (NV Memory Function Controller 2)
Inst / Para D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
NVFCTR2 0 ↑ 1 - 1 1 0 1 1 1 1 0 (DEh)
1
st
parameter 1 ↑ 1 1 1 1 1 0 1 0 1 F5
2
nd
parameter 1 ↑ 1 1 0 1 0 0 1 0 1 A5
Description NVM Read Command
NOTE: “-“ Don’t care

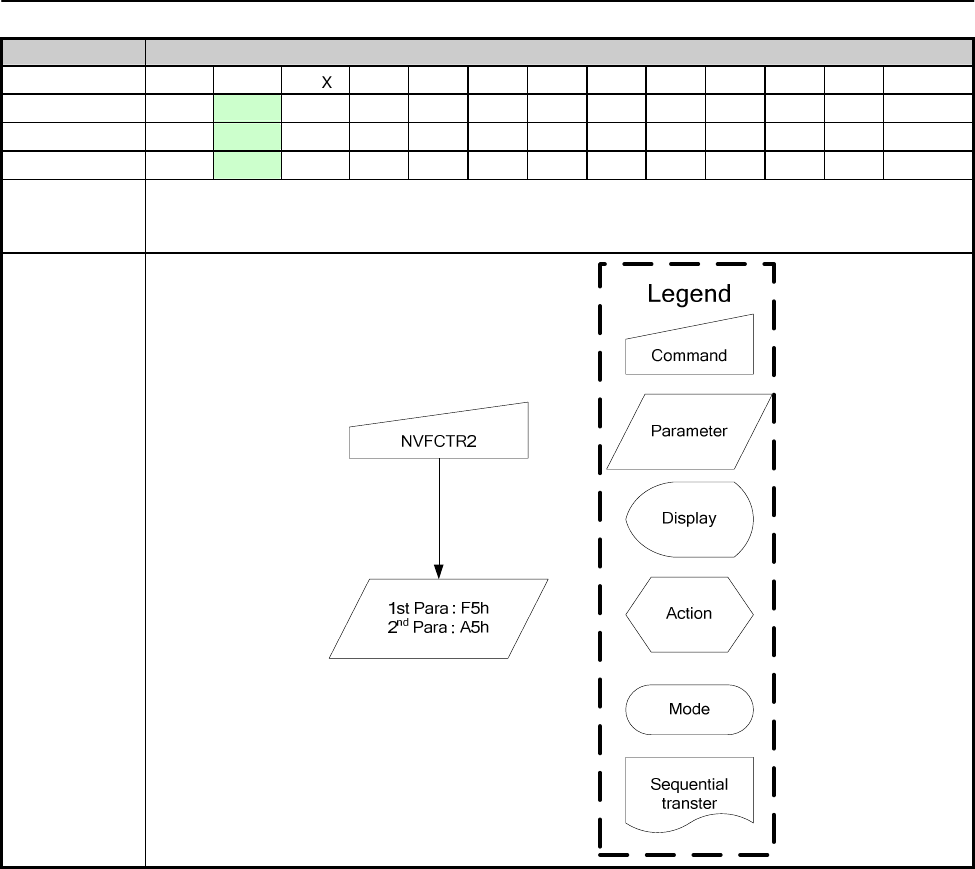

Flow Chart
1||lll||l||||
ST7735R
V0.2 147 2009-08-05
10.2.16 NVFCTR3 (DFh): NVM Write Command
DFH NVFCTR1 (NV Memory Function Controller 3
Inst / Para
D/CX
WRX
RDX
D17-8
D7 D6 D5 D4 D3 D2 D1 D0 HEX
NVFCTR1
0 ↑ 1
- 1 1 0 1 1 1 1 1 (DFh)
1
st
parameter
1 ↑ 1
NVM_CMD7
NVM_CMD6
NVM_CMD5
NVM_CMD4
NVM_CMD3
NVM_CMD2
NVM_CMD1
NVM_CMD0
2
nd
parameter
1 ↑ 1
1 0 1 0 0 1 0 1 A5
Description
-NVM Write Command
-NVM_CMD[7:0] : Select to Program/Erase ; Program command : 3Ah ; Erase command : C5h
NOTE: “-“ Don’t care
Flow Chart
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
Wait 20ms
Modify CMD register
(C7h/D1h/D2h)
Enable NVM :
EXTC = “1”
CMD F1h, 44h
External VPP = 7.5V ON
NVM Program Flow
Erase
CMD DFh
1st Para C5h
2nd Para A5h
Program
CMD DFh
1st Para 3Ah
2nd Para A5h
Wait 20ms
Disable NVM :
EXTC = “0”
CMD F1h, 04h
External VPP = 7.5V OFF
D1775
[4
Register Group
Positive Polarity
Sewn Contents
Hrgh level adlustmenl
VRFOP[5,0]
Variable reSlslor VRHP
SELVUP[5,0]
The voltage at vo grayscale is selected by the 64 tc l selector
SELVI P[5,0]
The voltage at Vt grayscale is selected by the 64 tc l selector
PKOP[5.U]
The voltage at v3 grayscale is selected by the 64 tc l selector
PK1P[5.U]
The voltage at v4 grayscale is selected by the 64 tc l selector
PK2P[5.U]
The voltage at V12 grayscale is selected by the 64 tc l selector
PK3P[5.U]
The voltage at v20 grayscale is selected by the 64 tc l selector
PK4P[5.U]
The voltage at V28 grayscale is selected b the 64 tc l selector
PK5P[5.U]
The voltage at v35 grayscale is selected by the 64 tc l selector
PK6P[5.U]
The voltage at v44 grayscale is selected b the 64 tc l selector
PK7P[5.U]
The voltage at v52 grayscale is selected b the 64 tc l selector
PKaP[5.U]
The voltage at v55 grayscale is selected by the 64 tc l selector
PK9P[5.U]
The voltage at Van grayscale is selected b the 64 tc l selector
SELV62P[5 0]
The voltage at v52 grayscale is selected by the 64 tc l selector
SELV63P[5 0]
The voltage at v53 grayscale is selected by the 64 tc l selector
Low level adjustment
VosuP[5 0]
Variable reSlslor VRLP
ST7735R
V0.2 148 2009-08-05

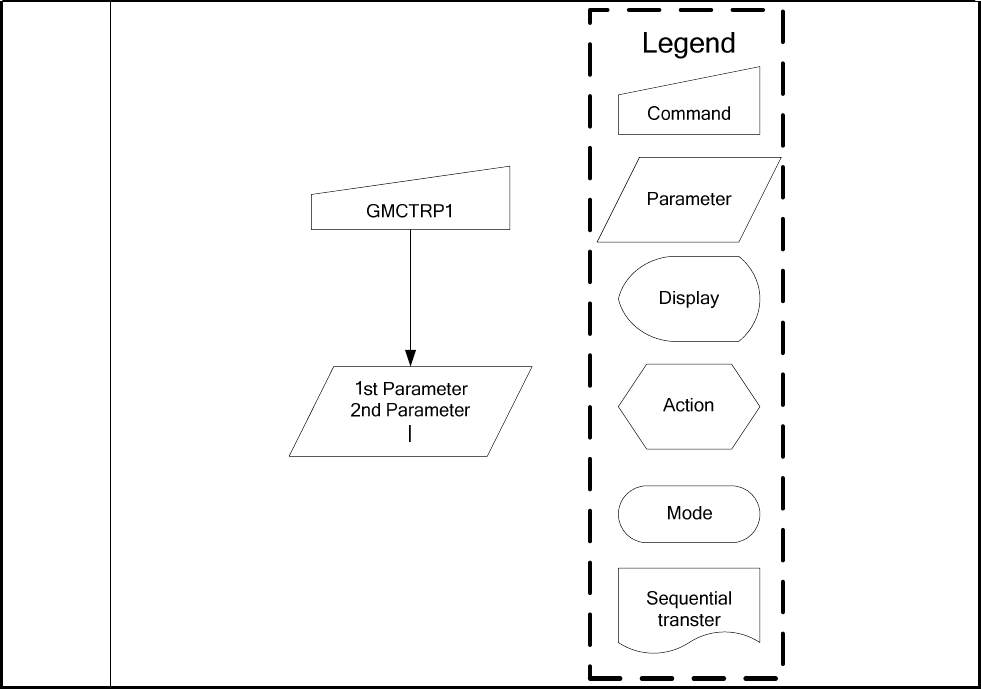

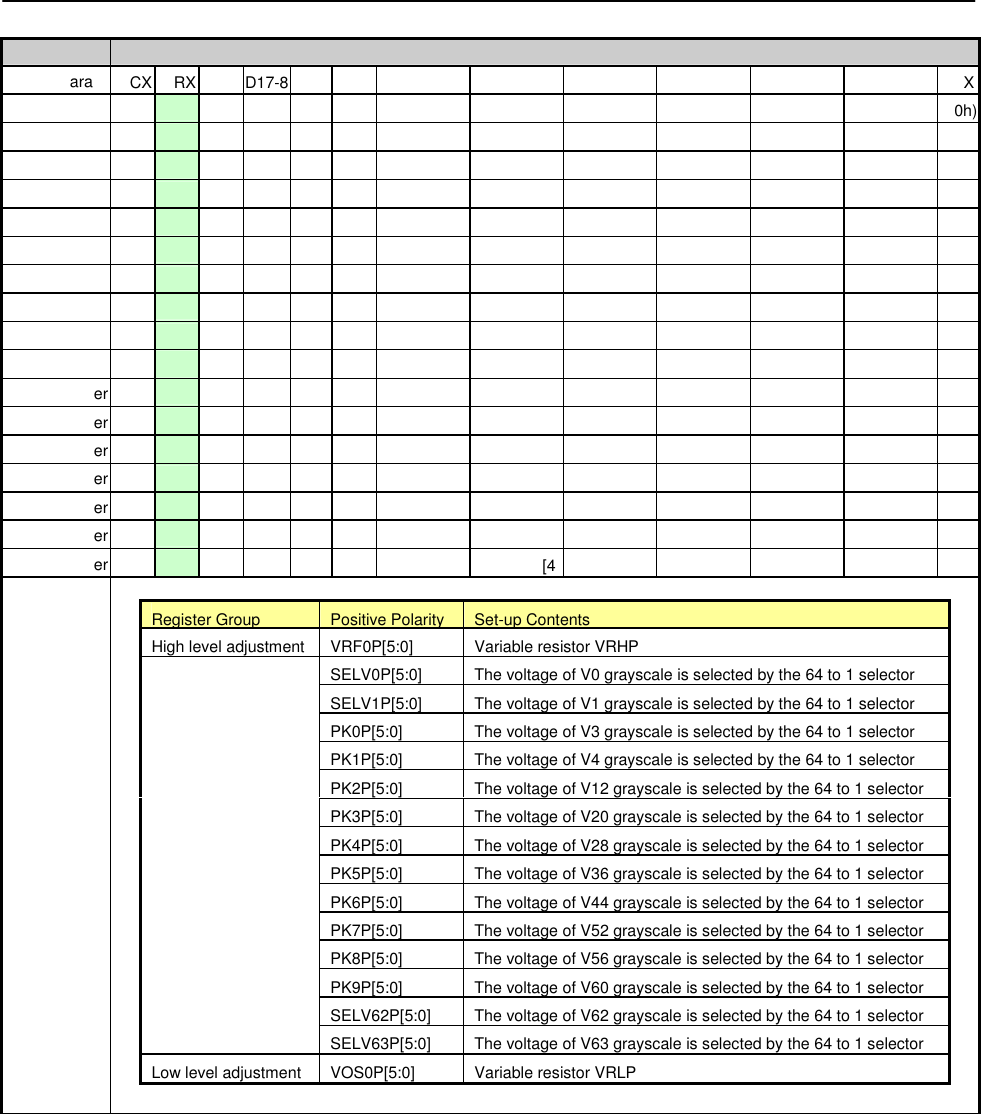

10.2.17 GMCTRP1 (E0h): Gamma (‘+’polarity) Correction Characteristics Setting
E0H GMCTRP0 (Gamma ‘+’polarity Correction Characteristics Setting)
Inst / Para
D/CX
WRX
RDX
D17-8
D7
D6
D5 D4 D3 D2 D1 D0 HEX
GMCTRP1
0
↑
1
- 1
1
1 0 0 0 0 0 (E0h)
1
st
parameter
1
↑
1
- -
- VRF0P[5]
VRF0P[4]
VF0P[3]
VRF0P[2]
VRF0P[1]
VRF0P[0]
2
nd
parameter
1
↑
1
- -
- VOS0P[5]
VOS0P[4]
VOS0P[3]
VOS0P[2]
VOS0P[1]
VOS0P[0]
3
rd
parameter
1
↑
1
- -
- PK0P[5]
PK0P[4]
PK0P[3]
PK0P[2]
PK0P[1]
PK0P[0]
4
th
parameter
1
↑
1
- -
- PK1P[5]
PK1P[4]
PK1P[3]
PK1P[2]
PK1P[1]
PK1P[0]
5
th
parameter
1
↑
1
- -
- PK2P[5]
PK2P[4]
PK2P[3]
PK2P[2]
PK2P[1]
PK2P[0]
6
th
parameter
1
↑
1
- -
- PK3P[5]
PK3P[4]
PK3P[3]
PK3P[2]
PK3P[1]
PK3P[0]
7
th
parameter
1
↑
1
- -
- PK4P[5]
PK4P[4]
PK4P[3]
PK4P[2]
PK4P[1]
PK4P[0]
8
th
parameter
1
↑
1
- -
- PK5P[5]
PK5P[4]
PK5P[3]
PK5P[2]
PK5P[1]
PK5P[0]
9
th
parameter
1
↑
1
- -
- PK6P[5]
PK6P[4]
PK6P[3]
PK6P[2]
PK6P[1]
PK6P[0]
10
th
parameter
1
↑
1
- -
- PK7P[5]
PK7P[4]
PK7P[3]
PK7P[2]
PK7P[1]
PK7P[0]
11
th
parameter
1
↑
1
- -
- PK8P[5]
PK8P[4]
PK8P[3]
PK8P[2]
PK8P[1]
PK8P[0]
12
th
parameter
1
↑
1
- -
- PK9P[5]
PK9P[4]
PK9P[3]
PK9P[2]
PK9P[1]
PK9P[0]
13
th
parameter
1
↑
1
- -
- SELV0P[5]
SELV0P[4]
SELV0P[3]
SELV0P[2]
SELV0P[1]
SELV0P[0]
14
th
parameter
1
↑
1
- -
- SELV1P[5]
SELV1P[4]
SELV1P[3]
SELV1P[2]
SELV1P[1]
SELV1P[0]
15
th
parameter
1
↑
1
- -
- SELV62P[5]
SELV62P[4]
SELV62P[3]
SELV62P[2]
SELV62P[1]
SELV62P[0]
16
th
parameter
1
↑
1
- -
- SELV63P[5]
SELV63P[4]
SELV63P[3]
SELV63P[2]
SELV63P[1]
SELV63P[0]
Description
Register Group
Positive
Polarity
Set
-
up Contents
High level adjustment
V
RF
0P
[
5
:0]
Variable resistor VRHP
SELV0P
[5:0]
The voltage of
V0
grayscale is selected by the 64 to 1 sele
ctor
SELV1P
[5:0]
The voltage of
V1
grayscale
is selected by the 64 to 1 selector
PK
0P
[5:0]
The voltage of
V3
grayscale
is selected by the 64 to 1 selector
PK
1P
[5:0]
The voltage of
V
4
grayscale
is selected by the 64 to 1 selector
PK
2P
[5:0]
The volta
ge of
V1
2
grayscale
is selected by the 64 to 1 selector
PK
3P
[5:0]
The voltage of
V
20
grayscale is selected by the 64 to 1 selector
PK
4P
[5:0]
The voltage of
V
28
grayscale is selected by the 64 to 1 selector
PK
5P
[5:0]
The voltage of
V36
grayscale is se
lected by the 64 to 1 selector
PK
6P
[5:0]
The voltage of
V44
grayscale
is selected by the 64 to 1 selector
PK
7P
[5:0]
The voltage of
V52
grayscale
is selected by the 64 to 1 selector
PK
8P
[5:0]
The voltage of
V5
6
grayscale
is selected by the 64 to 1 sel
ector
PK
9P
[5:0]
The voltage of
V60
grayscale
is selected by the 64 to 1 selector
SELV62P
[5:0]
The voltage of
V62
grayscale
is selected by the 64 to 1 selector
Mid level adjustment
SELV63P
[5:0]
The voltage of
V63
grayscale
is selected by the 64 to 1 selector
Low level ad
justment
V
OS
0P
[
5
:0]
Variable resistor VRLP
GMCTRP1
1st Parameter
2nd Parameter
|
'____
I Legend
|
|
|
Command I
|
|
Parameter
\
Display
#
Action \
Sequenlial
Ira I’ISISI
I__
ST7735R
V0.2 149 2009-08-05
Flow Chart
CX DI 775
e
e
e
e
e
e S S S S S S
e S S S S S S
Register Graun Negative Falamv Setrun Contents
Htgh tewet adtustment VRFON[5.0] Vanabte resistar VRHN
SELVON[5.0] The wattage 0| v0 grayscate ts setected by the 64 ta t setector
SELV1N[5.0] The wattage 0| Vt gra scate ts setected b the 64 tat setector
PKUN[5.U] The wattage 0| v3 grayscate ts setected by the 64 ta t setector
PKIN[5.U] The wattage at V4 grayscate ts setected by the 64 ta t setector
PK2N[5.U] The wattage 0| V12 grayscate t5 setected by the 64 to t seteclctr
PK3N[5.U] The wattage 0| v2u grayscate t5 setected by the 64 to t seteclctr
PK4N[5.U] The wattage 0| v25 grayscate t5 setected by the 64 to t seteclctr
PK5N[5.U] The wattage 0| V36 grayscate t5 setected by the 64 to t seteclctr
PK6N[5.U] The wattage 0| v44 grayscate t5 setected by the 64 to t seteclctr
PK7N[5.U] The wattage 0| v52 grayscate t5 setected by the 64 to t seteclctr
PKaNtsm The wattage at we grayscate t5 setected by the 64 to t seteclctr
PKgNtsm The wattage at Van grayscate t5 setected by the 64 to t seteclctr
SELV62N[5,0] The wattage 0| vez grayscate t5 setected by the 64 to t seteclctr
SELV63N[5,0] The wattage 0| vea grayscate t5 setected by the 64 to t seteclctr
Lctw tewet adtustment vosoNtsm Vanabte resistar VRLN
ST7735R
V0.2 150 2009-08-05
10.2.18 GMCTRN1 (E1h): Gamma ‘-’polarity Correction Characteristics Setting
E1H GMCTRP0 (Gamma ‘+’polarity Correction Characteristics Setting)
Inst / Para
D/CX
WRX
RDX
D17-8
D7
D6
D5 D4 D3 D2 D1 D0 HEX
GMCTRP1
0 ↑ 1 - 1 1 1 0 0 0 0 1 (E1h)
1
st
parameter
1 ↑ 1 - - - VRF0N[5]
VRF0N[4]
VF0N[3]
VRF0N[2]
VRF0N[1]
VRF0N[0]
2
nd
parameter
1 ↑ 1 - - - VOS0N[5]
VOS0N[4]
VOS0N[3]
VOS0N[2]
VOS0N[1]
VOS0N[0]
3
rd
parameter
1 ↑ 1 - - - PK0N[5]
PK0N[4]
PK0N[3]
PK0N[2]
PK0N[1]
PK0N[0]
4
th
parameter
1 ↑ 1 - - - PK1N[5]
PK1N[4]
PK1N[3]
PK1N[2]
PK1N[1]
PK1N[0]
5
th
parameter
1 ↑ 1 - - - PK2N[5]
PK2N[4]
PK2N[3]
PK2N[2]
PK2N[1]
PK2N[0]
6
th
parameter
1 ↑ 1 - - - PK3N[5]
PK3N[4]
PK3N[3]
PK3N[2]
PK3N[1]
PK3N[0]
7
th
parameter
1 ↑ 1 - - - PK4N[5]
PK4N[4]
PK4N[3]
PK4N[2]
PK4N[1]
PK4N[0]
8
th
parameter
1 ↑ 1 - - - PK5N[5]
PK5N[4]
PK5N[3]
PK5N[2]
PK5N[1]
PK5N[0]
9
th
parameter
1 ↑ 1 - - - PK6N[5]
PK6N[4]
PK6N[3]
PK6N[2]
PK6N[1]
PK6N[0]
10
th
parameter
1 ↑ 1 - - - PK7N[5]
PK7N[4]
PK7N[3]
PK7N[2]
PK7N[1]
PK7N[0]
11
th
parameter
1 ↑ 1 - - - PK8N[5]
PK8N[4]
PK8N[3]
PK8N[2]
PK8N[1]
PK8N[0]
12
th
parameter
1 ↑ 1 - - - PK9[5] PK9N[4]
PK9N[3]
PK9N[2]
PK9N[1]
PK9N[0]
13
th
parameter
1 ↑ 1 - - - SELV0N[5]
SELV0N[4]
SELV0N[3]
SELV0N[2]
SELV0N[1]
SELV0N[0]
14
th
parameter
1 ↑ 1 - - - SELV1N[5]
SELV1N[4]
SELV1N[3]
SELV1N[2]
SELV1N[1]
SELV1N[0]
15
th
parameter
1 ↑ 1 - - - SELV62N[5]
SELV62N[4]
SELV62N[3]
SELV62N[2]
SELV62N[1]
SELV62N[0]
16
th
parameter
1 ↑ 1 - - - SELV63N[5]
SELV63N[4]
SELV63N[3]
SELV63N[2]
SELV63N[1]
SELV63N[0]
Description
Register Group
Negative Polarity
Set
-
up Contents
High level adjustment
V
RF
0N
[
5
:0]
Variable resistor VRH
N
SELV0N
[5:0]
The voltage of
V0
gra
yscale is selected by the 64 to 1 selector
SELV1N
[5:0]
The voltage of
V1
grayscale is selected by the 64 to 1 selector
PK
0N
[5:0]
The voltage of
V3
grayscale is selected by the 64 to 1 selector
PK
1N
[5:0]
The voltage of
V
4
g
rayscale
is selected by the
64 to 1 selector
PK
2N
[5:0]
The voltage of
V1
2
grayscale is selected by the 64 to 1 selector
PK
3N
[5:0]
The voltage of
V
20
grayscale is selected by the 64 to 1 selector
PK
4N
[5:0]
The voltage of
V2
8
grayscale is selected by the 64 to 1 selector
PK
5N
[5
:0]
The voltage of
V36
grayscale is selected by the 64 to 1 selector
PK
6N
[5:0]
The voltage of
V44
grayscale is selected by the 64 to 1 selector
PK
7N
[5:0]
The voltage of
V52
grayscale is selected by the 64 to 1 selector
PK
8N
[5:0]
The voltage of
V5
6
gr
ayscale is selected by the 64 to 1 selector
PK
9N
[5:0]
The voltage of
V60
grayscale is selected by the 64 to 1 selector
SELV62N
[5:0]
The voltage of
V62
grayscale is selected by the 64 to 1 selector
Mid level adjustment
SELV63N
[5:0]
The voltage of
V63
grayscale is selected
by the 64 to 1 selector
Low level adjustment
V
OS
0N
[
5
:0]
Variable resistor VRL
N
ST7735R
V0.2 151 2009-08-05
Flow Chart
Command
Parameter
Display
Action
Mode
Legend
Sequential
transter
GMCTRN1
1st Parameter
2nd Parameter
|
VDD=2.3 V "4.8V
AGN D=0V
VGH=10V~15V
/ AVDD=4.5V"‘5.1V
GVDD = 3.15V'4.7V
VCOM = -0.425V'—2V
GVCL = -3.15V"-4.7V
AVCL=-4.5V"-5.5V
3V”-
.5V
ST7735R
V0.2 152 2009-08-05
11 Power Structure
11.1 Driver IC Operating Voltage Specification
Fig 11.1.1 Power Booster Level
@L
“W ”W
ST7735R
V0.2 153 2009-08-05
11.2 Power Booster Circuit
Charge Pump 1
Reference
Voltage
generator
Charge Pump 2
Gray reference
Circuit Block
( Gamma )
Source Output
Circuit Block
Gate
Driver
REGP
REGP
REGP
REGP
Vci1
AVDD
AVCL
AGND
VDD
CAVDD
VDD
Charge Pump 4
VDD
Vci1
AVCL
CVCL
AVDD
AGND
S1
|
S 396
AVDD
AGND
GVDD
VGH
VGL
VDDI
VCOM
G1
|
G 162
Reference
Voltage
generator
ST7735R
V0.2 154 2009-08-05
11.2.1 EXTERNAL COMPONENTS CONNECTION
Pad Name Connection Rated (Min)
Voltage
Typical
capacitance value
AVDD Connect to Capacitor: AVDD -------||-------- GND 6.3V 1.0 uF
AVCL Connect to Capacitor: AVCL -------||-------- GND 6.3V 1.0 uF
ST7735R
V0.2 155 2009-08-05
12 Gamma structure
12.1 TRUCTURE OF GRAYSCALE AMPLIFIER
16 voltage levels (VIN0-VIN15) between GVDD and VSS are determined by the high/ mid/ low level adjustment registers.
Each mid-adjustment level is split into 64 levels again by the internal ladder resistor network. As a result, grayscale
amplifier generates 64 voltage levels ranging from V0 to V63 and outputs one of 64 levels.
12.2 Gamma Voltage Formula (Positive/ Negative Polarity)
Gray Level Voltage Formula (Positive) Voltage Formula (Negative)
0 VINP0 VINP0
1 VINP1 VINP1
2 VINP2 VINP2
3 VINP3 VINP3
4 VINP4 VINP4
5 V4-(V4-V12)*(4/32) V4-(V4-V12)*(4/32)
6 V4-(V4-V12)*(8/32) V4-(V4-V12)*(8/32)
7 V4-(V4-V12)*(12/32) V4-(V4-V12)*(12/32)
8 V4-(V4-V12)*(16/32) V4-(V4-V12)*(16/32)
9 V4-(V4-V12)*(20/32) V4-(V4-V12)*(20/32)
10 V4-(V4-V12)*(24/32) V4-(V4-V12)*(24/32)
11 V4-(V4-V12)*(28/32) V4-(V4-V12)*(28/32)
12 VINP5 VINP5
13 V12-(V12-V20)*(4/32) V12-(V12-V20)*(4/32)
14 V12-(V12-V20)*(8/32) V12-(V12-V20)*(8/32)
15 V12-(V12-V20)*(12/32) V12-(V12-V20)*(12/32)
16 V12-(V12-V20)*(16/32) V12-(V12-V20)*(16/32)
17 V12-(V12-V20)*(20/32) V12-(V12-V20)*(20/32)
18 V12-(V12-V20)*(24/32) V12-(V12-V20)*(24/32)
19 V12-(V12-V20)*(28/32) V12-(V12-V20)*(28/32)
20 VINP6 VINP6
21 V20-(V20-V28)*(4/32) V20-(V20-V28)*(4/32)
22 V20-(V20-V28)*(8/32) V20-(V20-V28)*(8/32)
23 V20-(V20-V28)*(12/32) V20-(V20-V28)*(12/32)
24 V20-(V20-V28)*(16/32) V20-(V20-V28)*(16/32)
25 V20-(V20-V28)*(20/32) V20-(V20-V28)*(20/32)
26 V20-(V20-V28)*(24/32) V20-(V20-V28)*(24/32)
27 V20-(V20-V28)*(28/32) V20-(V20-V28)*(28/32)
28 VINP7 VINP7
29 V28-(V28-V36)* (4/32) V28-(V28-V36)* (4/32)
30 V28-(V28-V36)* (8/32) V28-(V28-V36)* (8/32)
31 V28-(V28-V36)* (12/32) V28-(V28-V36)* (12/32)
32 V28-(V28-V36)* (16/32) V28-(V28-V36)* (16/32)
33 V28-(V28-V36)* (20/32) V28-(V28-V36)* (20/32)
34 V28-(V28-V36)* (24/32) V28-(V28-V36)* (24/32)
35 V28-(V28-V36)* (28/32) V28-(V28-V36)* (28/32)
ST7735R
V0.2 156 2009-08-05
36 VINP8 VINP8
37 V36-(V36-V44)*(4/32) V36-(V36-V44)*(4/32)
38 V36-(V36-V44)*(8/32) V36-(V36-V44)*(8/32)
39 V36-(V36-V44)*(12/32) V36-(V36-V44)*(12/32)
40 V36-(V36-V44)*(16/32) V36-(V36-V44)*(16/32)
41 V36-(V36-V44)*(20/32) V36-(V36-V44)*(20/32)
42 V36-(V36-V44)*(24/32) V36-(V36-V44)*(24/32)
43 V36-(V36-V44)*(28/32) V36-(V36-V44)*(28/32)
44 VINP9 VINP9
45 V44-(V44-V52)*(4/32) V44-(V44-V52)*(4/32)
46 V44-(V44-V52)*(8/32) V44-(V44-V52)*(8/32)
47 V44-(V44-V52)*(12/32) V44-(V44-V52)*(12/32)
48 V44-(V44-V52)*(16/32) V44-(V44-V52)*(16/32)
49 V44-(V44-V52)*(20/32) V44-(V44-V52)*(20/32)
50 V44-(V44-V52)*(24/32) V44-(V44-V52)*(24/32)
51 V44-(V44-V52)*(28/32) V44-(V44-V52)*(28/32)
52 VINP10 VINP10
53 V52-(V52-V56)*(1/4) V52-(V52-V56)*(1/4)
54 V52-(V52-V56)*(2/4) V52-(V52-V56)*(2/4)
55 V52-(V52-V56)*(3/4) V52-(V52-V56)*(3/4)
56 VINP11 VINP11
57 V56-(V56-V60)*(1/4) V56-(V56-V60)*(1/4)
58 V56-(V56-V60)*(2/4) V56-(V56-V60)*(2/4)
59 V56-(V56-V60)*(3/4) V56-(V56-V60)*(3/4)
60 VINP12 VINP12
61 VINP13 VINP13
62 VINP14 VINP14
63 VINP15 VINP15
Driver IC (Dump down)
:1
$965:
w, mu Vlll mz
Driver IC (Dump down)
:1
$965:
w, mu Vlll pm
<32><34 1="" (350="" (3152="" -="" direction="" default="" setting="" (hnv)="" smx="" 0'="" smy="" ,="" 0'="" srgb="" :="" ‘0'="" s1="" :="" filler="" r="" 82="illerG" s3="Filler" b="" -="" display="" direction="" control="" (snv)="" -x—mirror="" comrol="" by="" mx="" -y—mirror="" control="" by="" my="" -xy-exchange="" control="" by="" mv="" c="" (e="" down)="" as="" c="" tft="" glass="" -="" direction="" default="" setting="" (hnv)="" smx="" '0'="" smy="" —="" 0'="" srgb="" :="" ‘1'="" s1="" :="" filler="" b="" 82="illerG" s3="Filler" r="" -="" display="" direction="" control="" (snv)="" -x—mirror="" comrol="" by="" mx="" -y—mirror="" comrol="" by="" my="" -xy-exchange="" control="" by="" mv="" c="" (e="" down)="" as="" c="" tft="" glass="">ST7735R
V0.2 157 2009-08-05
13 Example Connection with Panel direction and Different Resolution
13.1 Application of connection with panel direction
Case 1: (This is default case)
- 1
st
Pixel is at Left Top of the panel
- RGB filter order = RGB
1st pixel
IC (Bump down)
LCD Front side
CF Glass
TFT Glass
Case 2:
- 1
st
Pixel is at Left Top of the panel
- RGB filter order = BGR
1st pixel
IC (Bump down)
LCD Front side
CF Glass
TFT Glass
D ver IC (Dump down)
:1
$9652
m, mu Pm mz
Driver IC (Dump down)
Si
S9661
m, mu Vlll pm
(32
(34
r
(350
(3162
- Direction default setting (HNV)
$2 = ilter G
S3 = Filter B
- Display direction control (SNV)
- X—Mirror control by MX
- Y-Mirror control by MY
-XY-Exchange control by MV
C (E down)
as C
TFT Glass
- Direction default setting (HNV)
SMX ‘1'
S1 = Filter B
82 = ilter G
S3 = Filter R
- Display direction control (SNV)
- X—Mirror control by MX
- Y-Mirror control by MY
-XY-Exchange control by MV
C (E down)
TFT Glass
ST7735R
V0.2 158 2009-08-05
Case 3:
- 1
st
Pixel is at Right Bottom of the panel
- RGB filter order = RGB
IC (Bump down)
LCD Front side
CF Glass
TFT Glass
1st pixel
Case 4:
- 1
st
Pixel is at Right Bottom of the panel
- RGB filter order = BGR
IC (Bump down)
LCD Front side
CF Glass
TFT Glass
1st pixel
GRAM size = max Isox IE-biis
M27, ‘59)
GRAM size =128x 160 x mans
“27, my;
ST7735R
V0.2 159 2009-08-05
13.2 Application of connection with Different resolution
Case1 of Resolution (128RGB x 160) (GM[1:0] = “11”)
RAM size=128 x 160 x 18-bit (Used)
Display size = 128RGB x 160
1). Example for SMX=SMY=’0’
G1
G2
G3
G4
G157
G159
G160
G158
Driver IC (bump down)
G3G161 G2 G160S7 S390
00h 01h 02h 7Eh 7Fh 83h
00h
01h
02h
A1h
9Fh
- Display direction control (S/W)
- X-Mirror control by MX
- Y-Mirror control by MY
- XY-Exchange control by MV
- Direction default setting (H/W)
SMX = '0'
SMY = '0'
SRGB = '0'
P1 P2 P3 P126 P127 P128
2). Example for SMX=SMY=’1’
P1 P2 P3
G1
G2
G3
G4
G157
G159
G160
G158
Driver IC (bump down)
G3G161 G2 G160S7 S390
00h 01h 02h 7Eh 7Fh 83h
00h
01h
02h
A1h
9Fh
- Display direction control (S/W)
- X-Mirror control by MX
- Y-Mirror control by MY
- XY-Exchange control by MV
- Direction default setting (H/W)
SMX = '1'
SMY = '1'
SRGB = '0'
P126 P127 P128
Driverlc (bump down)
57 sign 52
(131,151)
- Display aireuion mmrol (51w;
- X—error 00an by MX . . .
- Y—error oolllrol by My - Dilacnm defiaun 991mm (HM!)
-xv-Exmange mmml by MV SMX
sulv = v
SRGE = u
DmerlC (oi-up am)
53 S SIN E
GRAM size =132 X162X1B—DiE
(131,161)
- Display direction oomml (smo
- x-Miirui Dollmal by MX
- v-Minu mmwl by MY
- XY-Exdlangs comml by W
ST7735R
V0.2 160 2009-08-05
Case2 of Resolution (132RGB x 162) (GM[1:0] = “00”)
RAM size=132 x 162 x 18-bit (Used)
Display size = 132RGB x 162
1). Example for SMX=SMY=’0’
2). Example for SMX=SMY=’1’
ST7735R
V0.2 161 2009-08-05
13.3 Microprocessor Interface applications
13.3.1 8080-Series MCU Interface for 8-bit data bus (P68=0, IM2, IM1, IM0=”100”)
80 Serial MPU 8-Bit Bus
MPU
ST7735R
SPI4W
IM2
IM1
IM0
RESX
CSX
D/CX (SCL)
WRX (R/WX)
D7 to D0
D17 to D8
GND
RESX
CSX
WRX
D7 to D0
RDX (E)
RDX
D/CX
GND
VDDI
P68
13.3.2 8080-Series MCU Interface for 16-bit data bus (P68=0, IM2, IM1, IM0=”101”)
80 Serial MPU 16-Bit Bus
MPU
ST7735R
SPI4W
IM2
IM1
IM0
RESX
CSX
D/CX (SCL)
WRX (R/WX)
D15 to D0
D17 to D16
GND
RESX
CSX
WRX
D15 to D0
RDX (E)
RDX
D/CX
GND
VDDI
P68
13.3.3 8080-Series MCU Interface for 9-bit data bus (P68=0, IM2, IM1, IM0=”110”)
80 Serial MPU 9-Bit Bus
MPU
ST7735R
SPI4W
IM2
IM1
IM0
RESX
CSX
D/CX (SCL)
WRX (R/WX)
D9 to D0
D17 to D9
VDDI GND
RESX
CSX
WRX
D8 to D0
RDX (E)
RDX
D/CX
GND P68
ST7735R
V0.2 162 2009-08-05
13.3.4 8080-Series MCU Interface for 18-bit data bus (P68=0, IM2, IM1, IM0=”111”)
80 Serial MPU 18-Bit Bus
MPU
ST7735R
SPI4W
IM2
IM1
IM0
RESX
CSX
D/CX (SCL)
WRX (R/WX)
D17 to D0
GND
RESX
CSX
WRX
D17 to D0
RDX (E)
RDX
D/CX
GND
VDDI
P68
13.3.5 6800-Series MCU Interface for 8-bit data bus (P68=1, IM2, IM1, IM0=”100”)
68 Serial MPU 8-Bit Bus
MPU
ST7735R
SPI4W
IM2
IM1
IM0
RESX
CSX
D/CX (SCL)
WRX (R/WX)
D7 to D0
D17 to D8
GND
RESX
CSX
R/WX
D7 to D0
RDX (E)
E
D/CX
GND
VDDI
P68
VDDI
13.3.6 6800-Series MCU Interface for 16-bit data bus (P68=1, IM2, IM1, IM0=”101”)
68 Serial MPU 16-Bit Bus
MPU
ST7735R
SPI4W
IM2
IM1
IM0
RESX
CSX
D/CX (SCL)
WRX (R/WX)
D15 to D0
D17 to D16
RESX
CSX
R/WX
D15 to D0
RDX (E)
E
D/CX
GND
GND
VDDI
P68
VDDI
ST7735R
V0.2 163 2009-08-05
13.3.7 6800-Series MCU Interface for 9-bit data bus (P68=1, IM2, IM1, IM0=”110”)
68 Serial MPU 9-Bit Bus
MPU
ST7735R
SPI4W
IM2
IM1
IM0
RESX
CSX
D/CX (SCL)
WRX (R/WX)
D7 to D0
D17 to D9
RESX
CSX
R/WX
D8 to D0
RDX (E)
E
D/CX
GND
VDDI GND
P68
VDDI
13.3.8 6800-Series MCU Interface for 18-bit data bus (P68=1, IM2, IM1, IM0=”111”)
68 Serial MPU 18-Bit Bus
MPU
ST7735R
SPI4W
IM2
IM1
IM0
RESX
CSX
D/CX (SCL)
WRX (R/WX)
D17 to D0
VDDI GND
RESX
CSX
R/WX
D17 to D0
RDX (E)
E
D/CX
P68
VDDI
13.3.9 3-Line serial MCU Interface (IM2, IM1, IM0=”000”, SPI4W=0)
3-Pin Serial Mode
MPU
ST7735R
SPI4W
IM2
IM1
IM0
RESX
CSX
RDX,WRX
D/CX (SCL)
SDA(D0)
D17 to D1
GND
GND
RESX
CSX
SCL
SDA
GND
13.3.10 4-Line serial MCU Interface (IM2, IM1, IM0=”000”, SPI4W=1)
4-Pin Serial Mode
MPU
ST7735R
SPI4W
IM2
IM1
IM0
RESX
CSX
RDX
D/CX (SCL)
SDA(D0)
D17 to D1
VDDI
GND
RESX
CSX
SCL
SDA
WRX(D/CX)
D/CX
GND
GND
ST7735R
V0.2 164 2009-08-05
14 Revision History
ST7735R Specification Revision History
Version Date Description
V0.1 2009/07/10
First issue.
V0.2 2009/08/05
Modify VGH, VGL PAD location (P7)
Add TESEL pin description. (P16)
Modify command DFh (P147)
Modify AVDD range 4.5~5.1 (P152)
