ntegrated Light Source 7 or NeaP/xe/in Adafruit parlance 7 is the latest adva pie, scalable and affordable fullrcolor LED. Red. green and blue LEDs are inte ver chip into a tiny surfacermount package controlled through a single wire. y. chained into longer strings or assembled into still more interesting formrf

The Magic of NeoPixels

Incorporating scads of LEDs into an electronic project used to be a hairy prospect, a veritable rat’s nest of

wires and code. The arrival of dedicated LED driver chips brought welcome relief, offloading grunt work

from the microcontroller and allowing one to focus on the application. Much simpler, but still not

“Christmas light” simple.

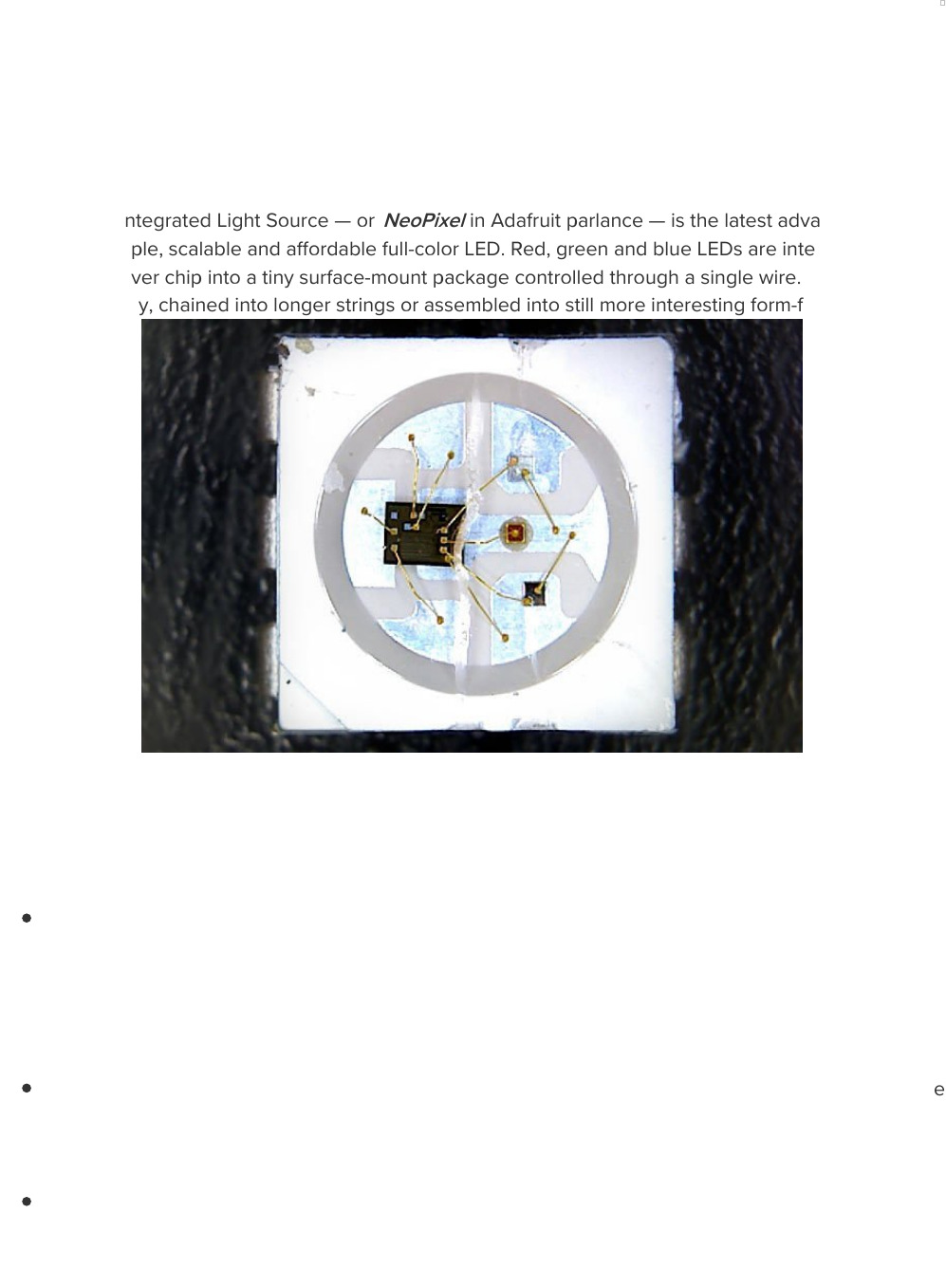

The WS2812 Integrated Light Source — or

NeoPixel

in Adafruit parlance — is the latest advance in the

quest for a simple, scalable and affordable full-color LED. Red, green and blue LEDs are integrated

alongside a driver chip into a tiny surface-mount package controlled through a single wire. They can be

used individually, chained into longer strings or assembled into still more interesting form-factors.

 We know you’re eager to get started…but If this is your first time using NeoPixels, please at least

read the “Best Practices” page before connecting anything!

Important Things to Know About NeoPixels in General

Not all addressable LEDs are NeoPixels. “NeoPixel” is Adafruit’s brand for individually-addressable

RGB color pixels and strips based on the WS2812, WS2811 and SK6812 LED/drivers, using a single-

wire control protocol. Other LED products we carry — DotStars, WS2801 pixels, LPD8806 and

“analog” strips — use different methodologies (and have their own tutorials).

When seeking technical

support in the forums, a solution can be found more quickly if the correct LED type is mentioned, i.e.

avoid calling DotStars “NeoPixels”…similar, but different!

NeoPixels don’t just light up on their own; they require a microcontroller (such as Arduino) and some

programming. We provide some sample code to get you started. To create your own effects and

animation, you’ll need some programming practice. If this is a new experience, work through some of

the beginning Arduino tutorials to get a feel for the language.

NeoPixels aren’t the answer for every project. The control signal has very strict timing requirements,

and some development boards (such as Netduino or Raspberry Pi) can’t reliably achieve this. This is

why we continue to offer other LED types; some are more adaptable to certain situations.



Can I use NeoPixels for POV (persistence of vision) displays?

Not recommended. The refresh rate is relatively low (about 400 Hz), and color displays in fast motion may

appear “speckled.” They look fine in stationary displays though (signs, decorations, jewelry, etc.). For POV

use, DotStar strips (https://adafru.it/kDg) will look much better (they have about a 20 KHz refresh rate).



How about for light painting?

Definitely! The slower movement used for photographic light painting doesn’t call attention to the limited

refresh rate; the results look great (https://adafru.it/jTb), especially with a light diffuser.



Is there a limit to the number of NeoPixels in a chain?

There’s no

inherent

limit in the maximum length of a NeoPixel chain, but eventually you’ll encounter any of

various

practical

limits:

1. RAM: NeoPixels require some RAM from the host microcontroller; more pixels = more RAM. It’s only a

few bytes each, but as most microcontrollers are pretty resource-constrained, this becomes a very

real consideration for large projects.

2. Power: each NeoPixel draws a little bit of current; more pixels = more power. Power supplies likewise

have some upper limit.

3. Time: NeoPixels process data from the host microcontroller at a fixed data rate; more pixels = more

time and lower animation frame rates.

. . . .

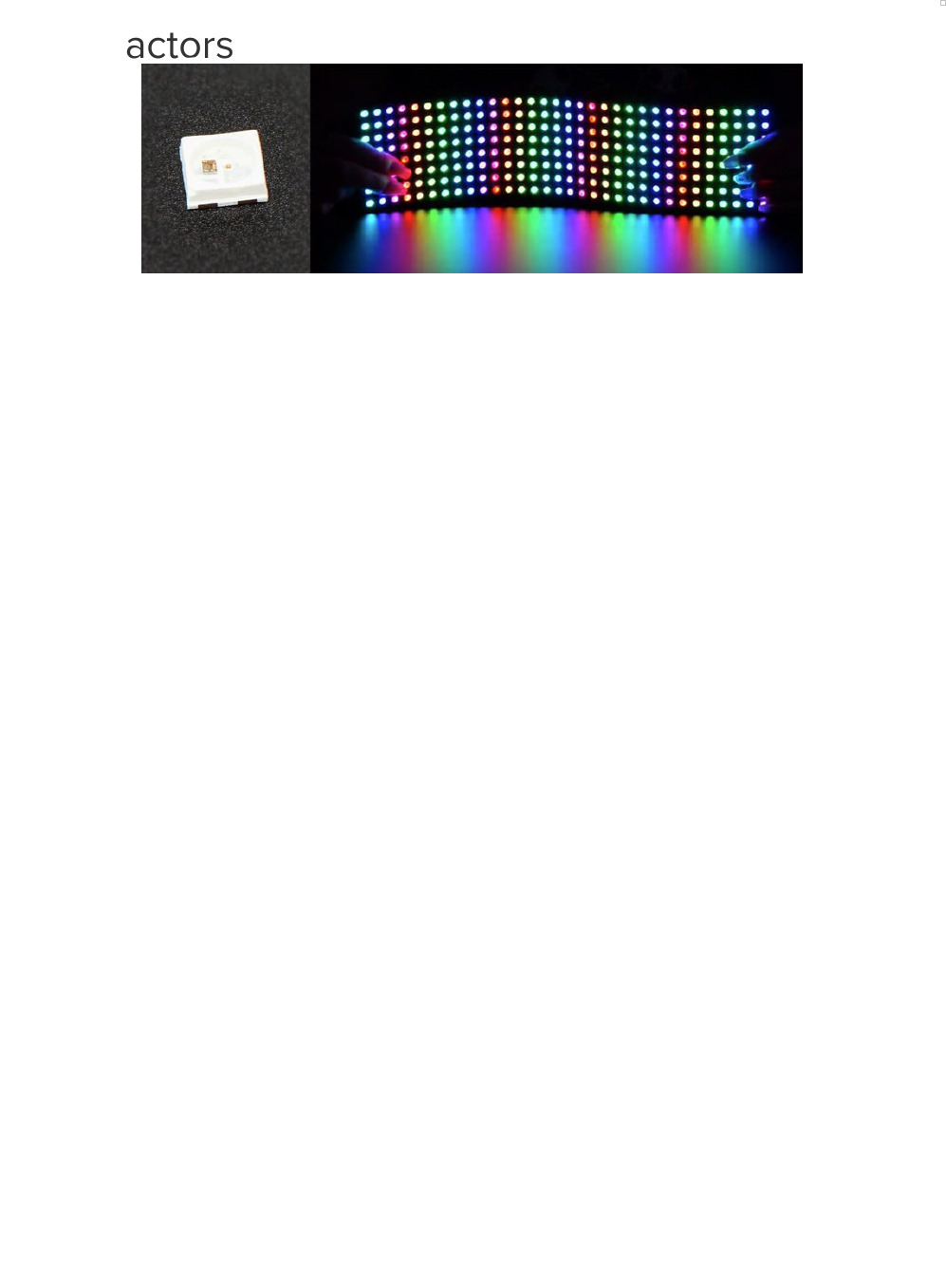

Form Factors

NeoPixel products are available in a

zillion

form factors…from individual tiny pixels to huge matrices…plus

strips, rings and everything in-between.

Pick a category from the left column for product links and tips & tricks specific to each type of NeoPixel.

GB NeoPixel Stri us

NeoPixel Strips and Strands

The most popular type of NeoPixels are these flexible LED strips…they can be cut to length and fit into all

manner of things. We’ve got over a

dozen

varieties! Two vital things to be aware of:

Though strips are described as “flexible,” they do not tolerate continuous and repeated

bending. “Formable” might be a better word. A typical application is architecture, where they can be

curved around columns and then stay put. Repeated flexing (as on costumes) will soon crack the

solder connections. For wearable use, either affix shorter segments to a semi-rigid base (e.g. a hat,

BMX armor, etc.), or use the individual

sewable

NeoPixels shown later.

Watch your power draw. Though each pixel only needs a little current, it adds up fast…NeoPixel

strips are so simple to use, one can quickly get carried away! We’ll explain more on the “Powering

NeoPixels” page.

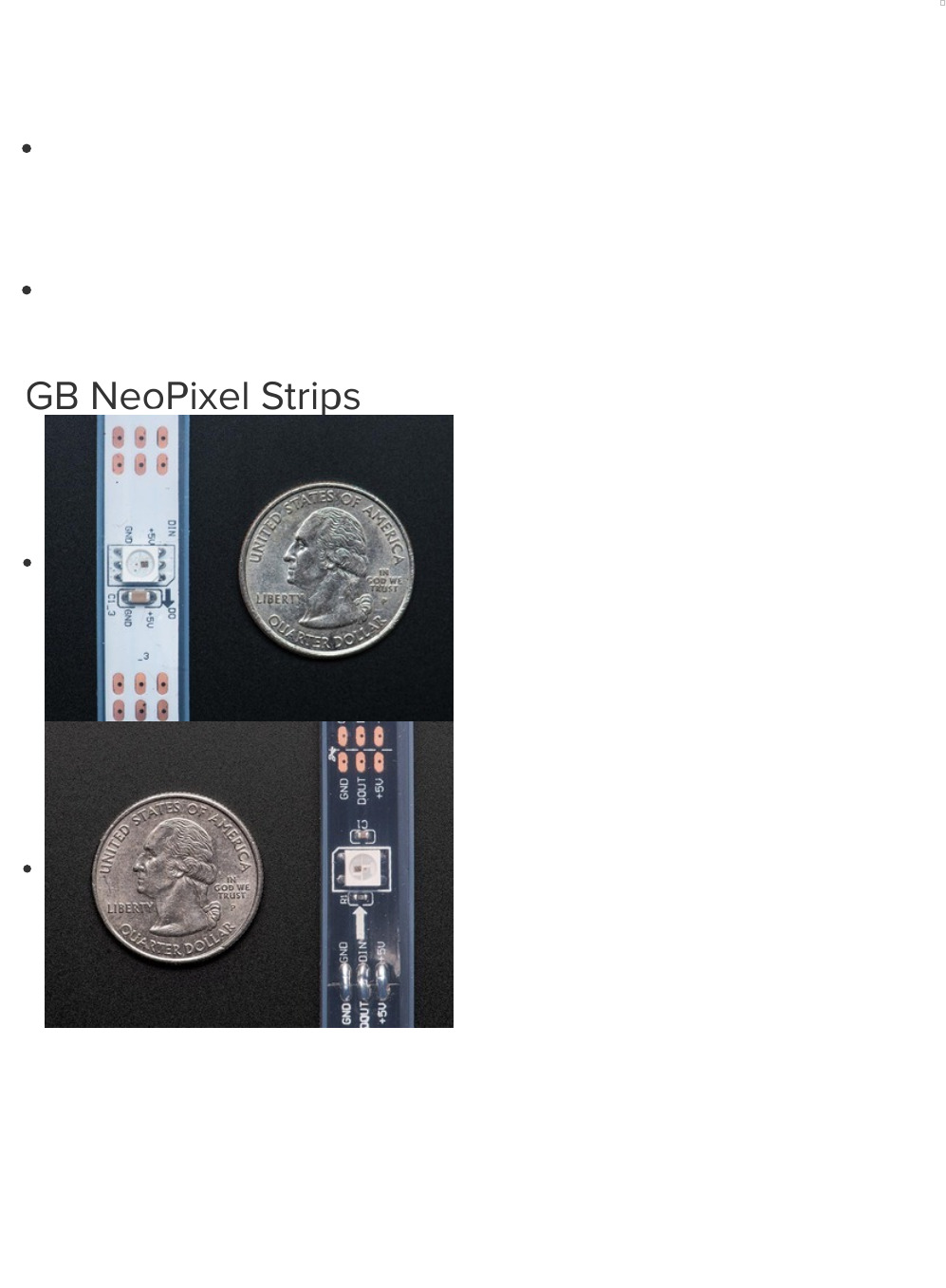

RGB NeoPixel Strips

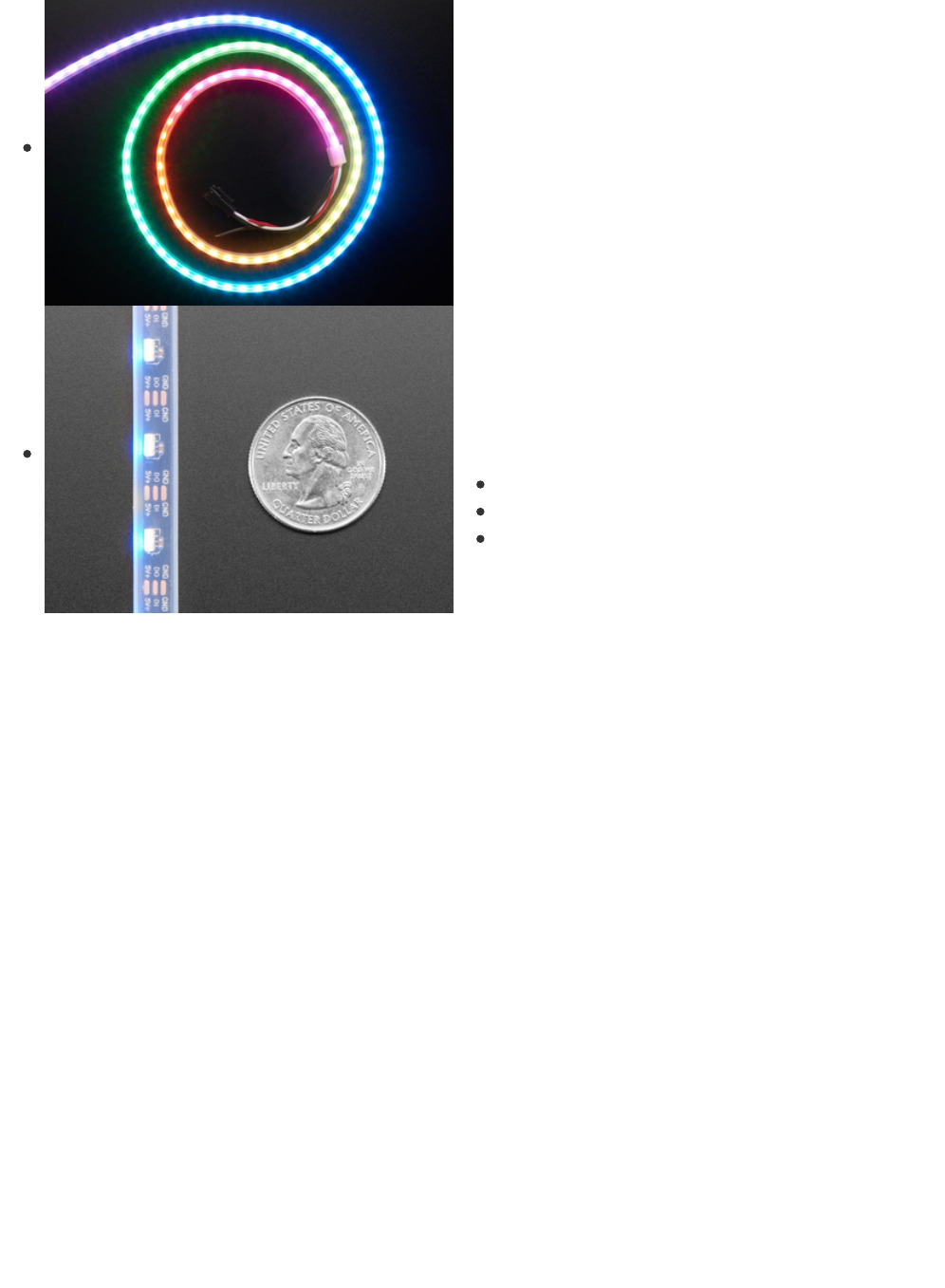

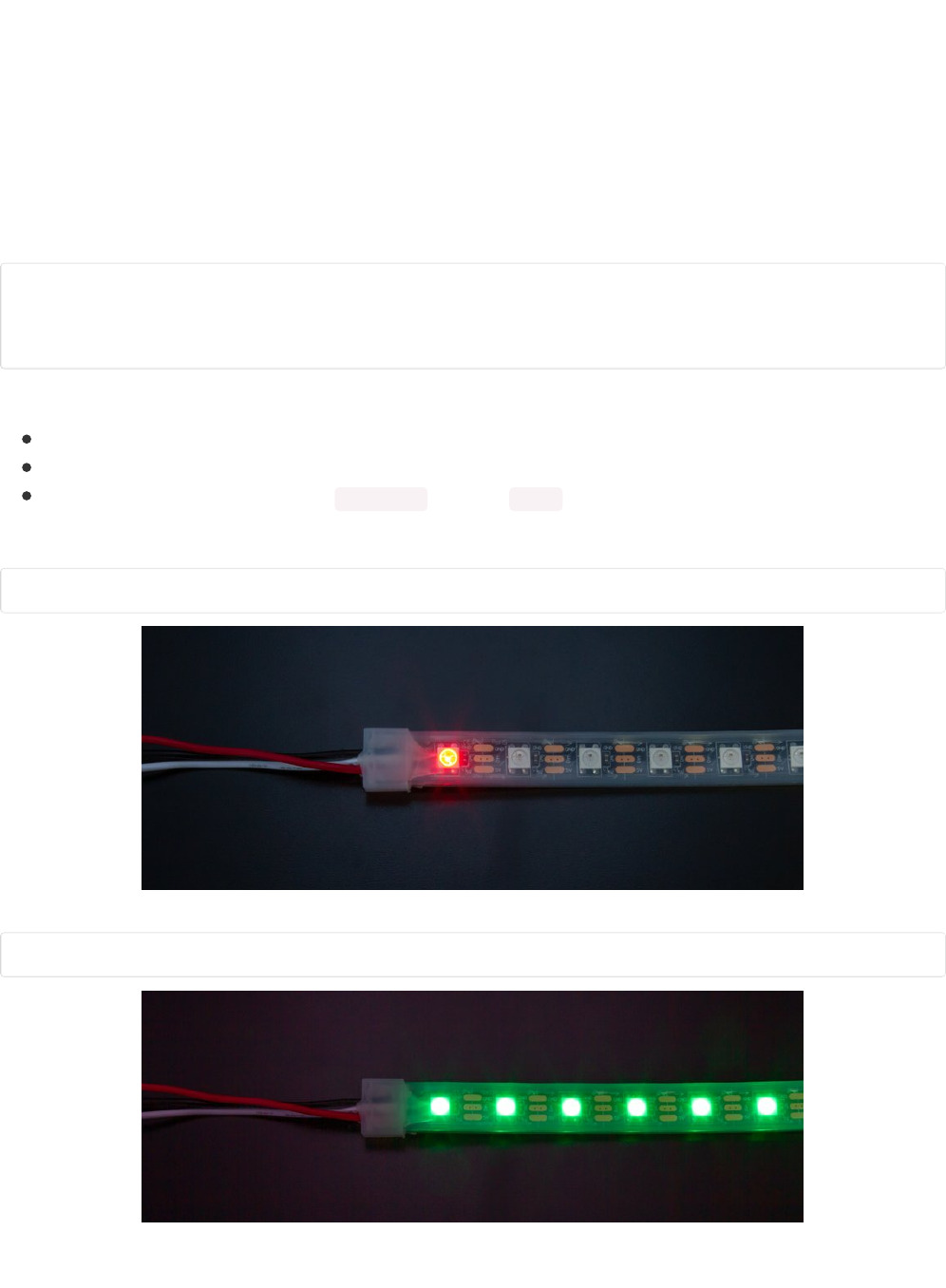

NeoPixel Digital RGB LED Weatherproof Strip is available in

three different “densities”: 30, 60 and 144 LEDs per meter, on

a white or black backing strip.

30 LEDs per meter, white strip (http://adafru.it/1376)

30 LEDs per meter, black strip (http://adafru.it/1460)

60 LEDs per meter, white strip (http://adafru.it/1138)

60 LEDs per meter, black strip (http://adafru.it/1461)

144 LEDs per meter, white strip (http://adafru.it/1507)

144 LEDs per meter, black strip (http://adafru.it/1506)

The

approximate

peak power use (all LEDs on at maximum

brightness) per meter is:

30 LEDs: 9 Watts (about 1.8 Amps at 5 Volts).

60 LEDs: 18 Watts (about 3.6 Amps at 5 Volts).

144 LEDs : 43 watts (8.6 Amps at 5 Volts).

Mixed colors and lower brightness settings will use

proportionally less power.

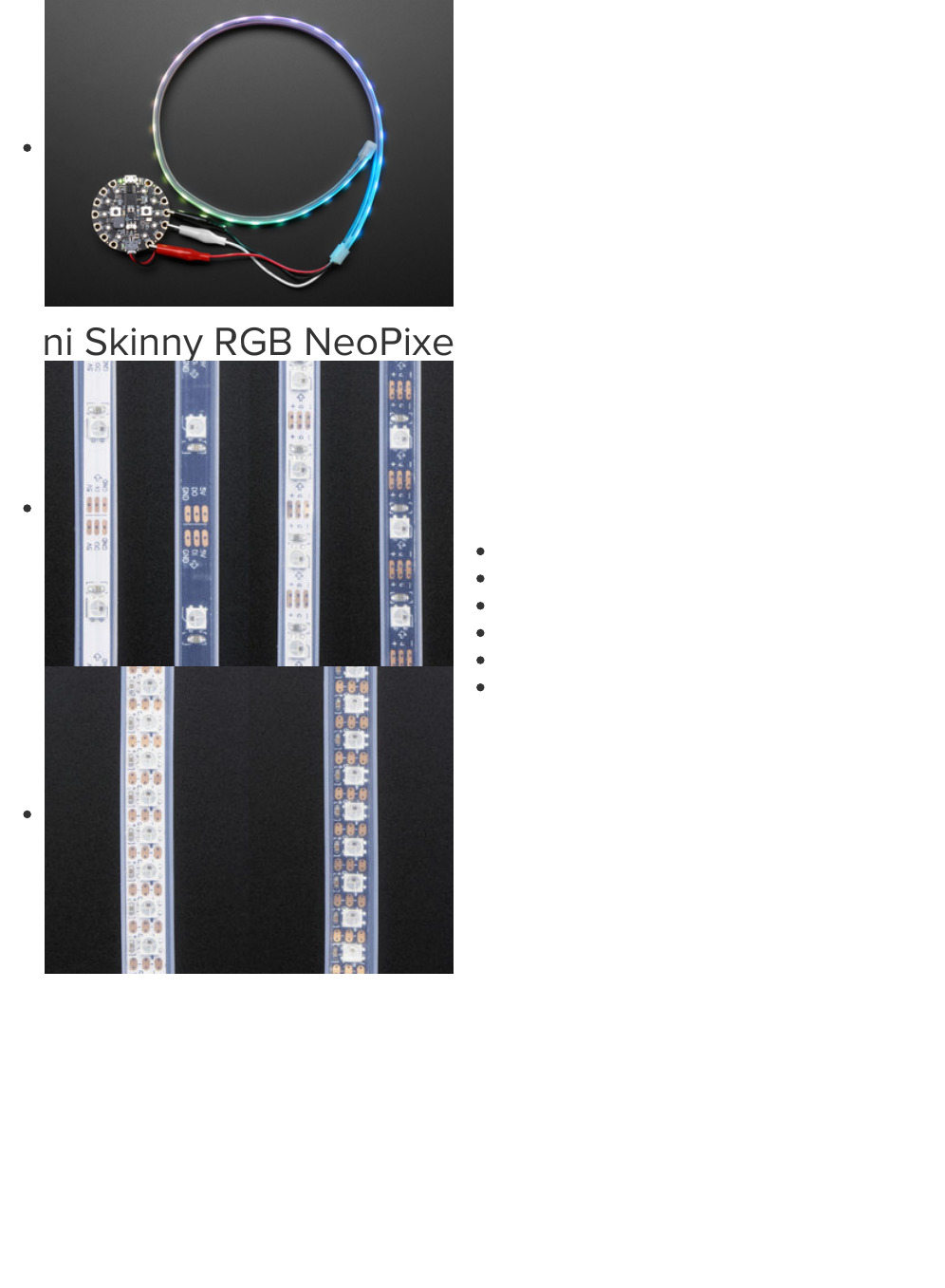

ni Skinny RGB NeoPixe 95kg:

For those using Circuit Playground

Express (https://adafru.it/wpF) or just needing a “no soldering”

option (as in most classrooms), we have a special half-meter,

30-LED NeoPixel strip with alligator clips

attached (https://adafru.it/DIV). Easy!

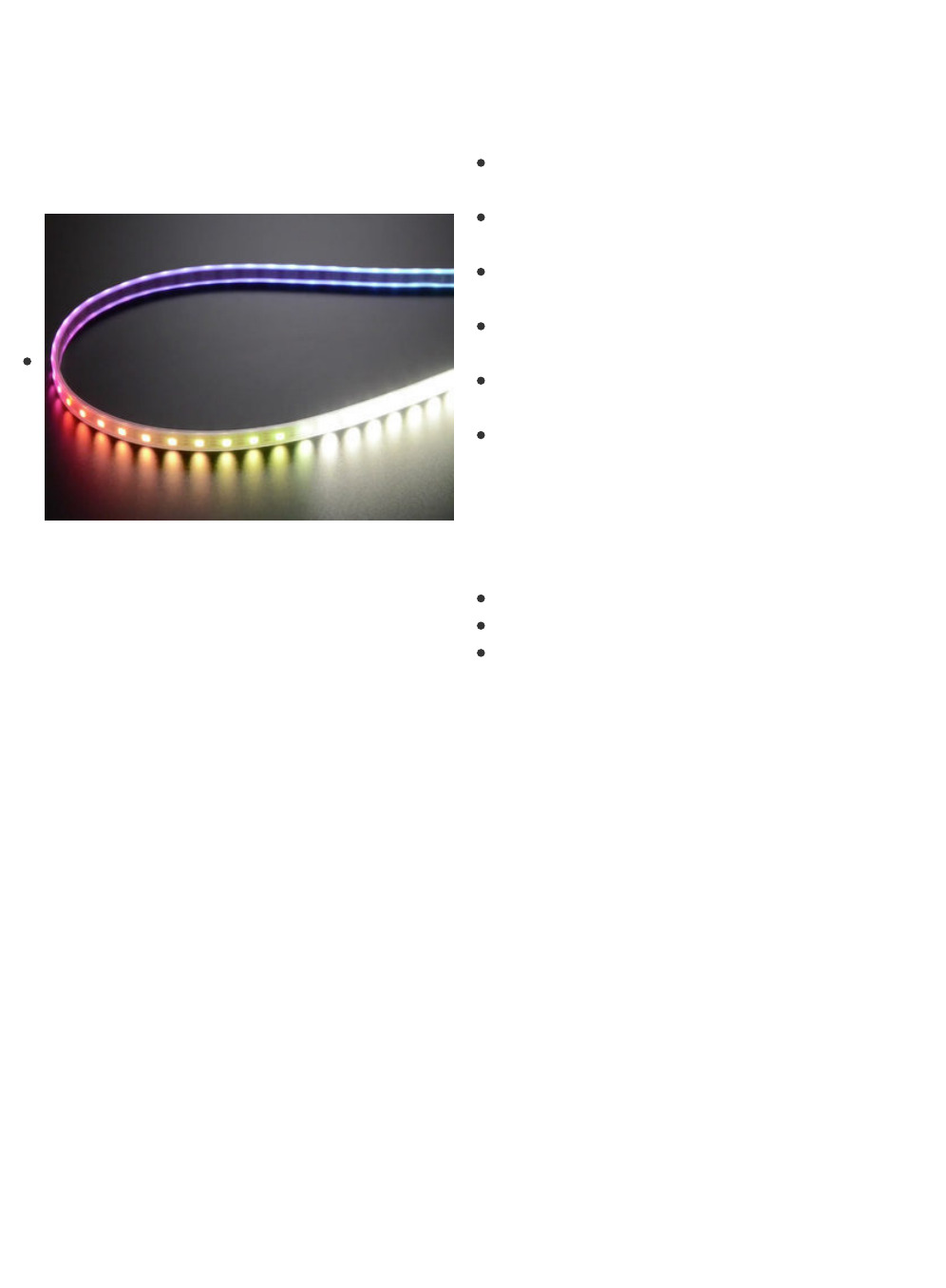

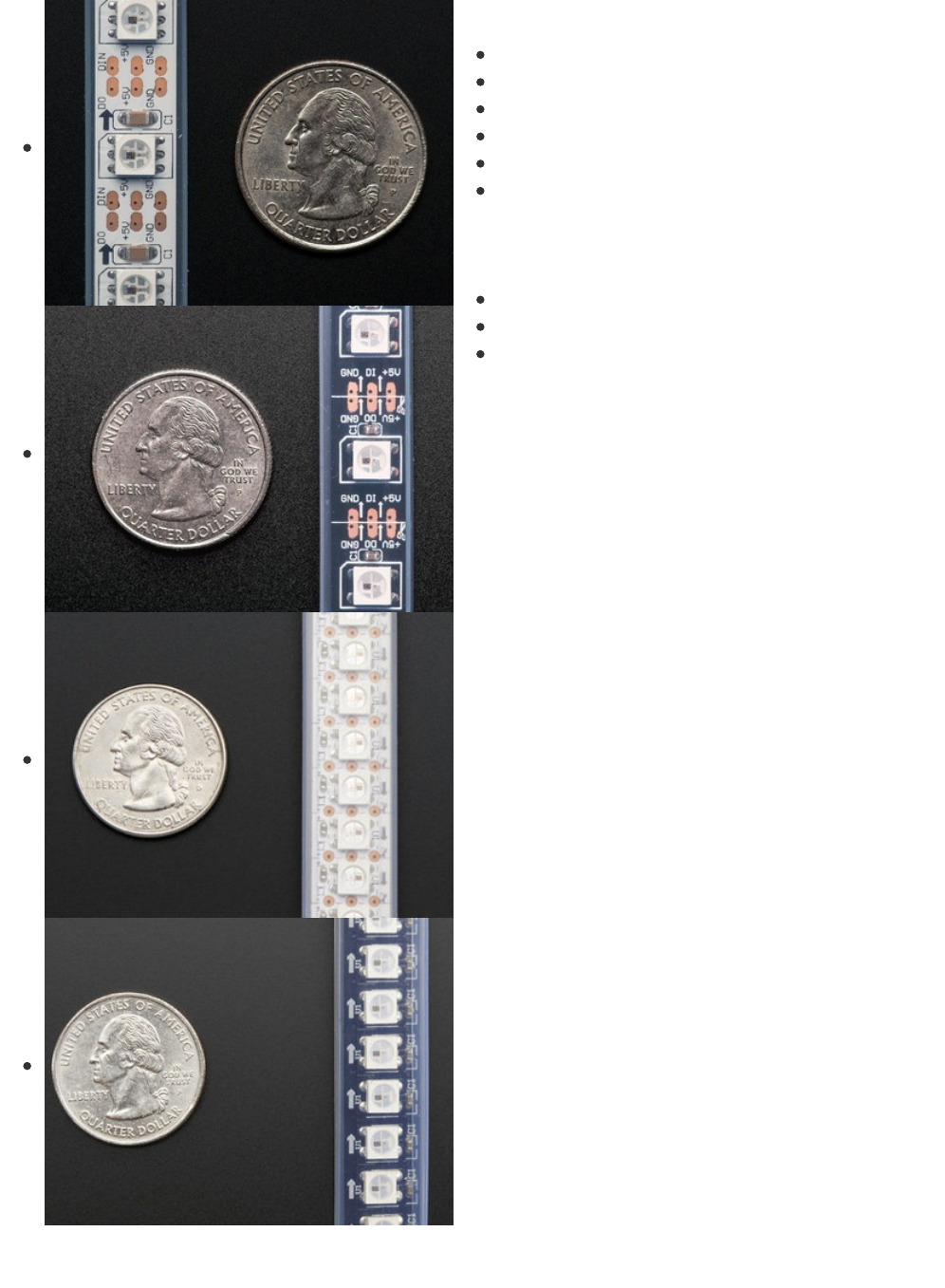

Mini Skinny RGB NeoPixel Strips

Mini Skinny

NeoPixel strips are about half the width of classic

NeoPixel strips. They’re available in two densities and

backing colors:

30 LEDs per meter, white strip (http://adafru.it/2949)

30 LEDs per meter, black strip (http://adafru.it/2954)

60 LEDs per meter, white strip (https://adafru.it/lFs)

60 LEDs per meter, black strip (http://adafru.it/2964)

144 LEDs per meter, white strip (https://adafru.it/lXa)

144 LEDs per meter, black strip (https://adafru.it/lXb)

30 and 60 LED/meter strips are 7.5 mm wide, or 5 mm if you

remove the strip from the casing (vs 12.5 mm / 10 mm for

classic strips). The high-density 144/m strips are about 10 mm

wide, or 7.5mm with the casing removed.

Power requirements are similar to standard-width NeoPixel

strips as described above.

Side-Light NeoPixel Strips

Side-Light

NeoPixel strips have the interesting property of

illuminating

to the strip rather than

over

it. They’re not

quite as bright as regular NeoPixels, but may have interesting

uses in tight spaces or for edge-lit acrylic. These strips are

available in three densities on black flex-strip:

60 LEDs, 1 meter black strip (https://adafru.it/Et0)

90 LEDs, 1 meter black strip (https://adafru.it/Et1)

120 LEDs, 1 meter black strip (https://adafru.it/Et2)

RGBW NeoPixel Strips

A recent addition is RGB

NeoPixel strips. These add a

fourth LED element — pure white — which is more “true” and

pleasing to the eye than white mixed from red+green+blue.

Like the RGB strips, they’re available in different pixel

densities and backing strip colors.

30 RGBW LEDs per meter,

white strip (http://adafru.it/2832)

30 RGBW LEDs per meter, black

strip (http://adafru.it/2824)

60 RGBW LEDs per meter, white

strip (http://adafru.it/2842)

60 RGBW LEDs per meter, black

strip (http://adafru.it/2837)

144 RGBW LEDs per meter, white

strip (http://adafru.it/2847)

144 RGBW LEDs per meter, black

strip (http://adafru.it/2848)

With a fourth LED per pixel, these strips may potentially draw

up to 33% more current than their RGB equivalents. The

maximum brightest cases are (approximately):

30 RGBW LEDs: 12 Watts (2.4 Amps at 5 Volts)

60 RGBW LEDs: 24 Watts (4.8 Amps at 5 Volts)

144 RGBW LEDs: 57 Watts (11.5 Amps at 5 Volts)

Width is the same as “classic” NeoPixel strip…these are

not

the “skinny” size.

“Neon-Like” NeoPixel Flex Strip

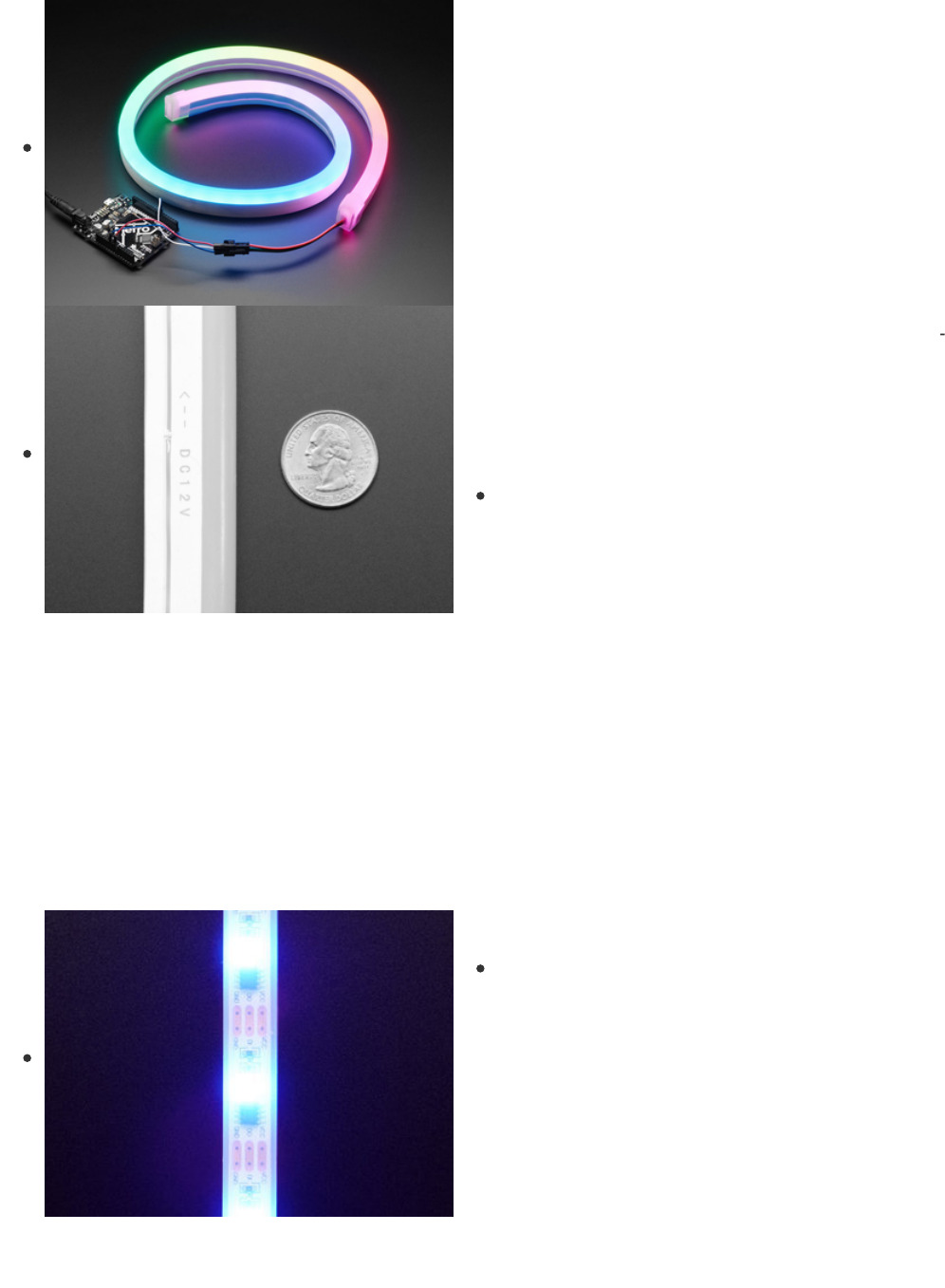

This distinctive NeoPixel flex strip has a gorgeous diffused

neon-like

appearance thanks to its thick silicone casing.

This strip contains 60 LED along the meter but in groups of 3-

LEDs-per-pixel. So basically, in your NeoPixel program, this

looks like a 20-pixel-long strand.

Unlike the other varieties of NeoPixel strip, this one needs to

be powered from 9 Volts (minimum) to 12 Volts (ideal) DC.

NeoPixel RGB Neon-like LED Flex Strip with Silicone

Tube - 1 meter (https://adafru.it/Et3)

Ultraviolet NeoPixel Strips

A single-color

ultraviolet

variant of NeoPixel strip is available

for special applications, currently one pixel density and

backing color:

32 UV LEDs per meter, white strip (https://adafru.it/BZ5)

This can provide unusual effects when combined with UV-

reactive paints, fluorescent laser-cut acrylic, etc.

The usual NeoPixel R, G and B channels translate to three

individual UV diodes. So we recommend you pretty much just

set all three channels to the same value, ranging from (0, 0, 0)

to (255, 255, 255).

Same width as “classic” NeoPixel strip, and power draw at full

brightness should be just a bit more than RGB 30/m: about

9.6W/meter (1.9A @ 5V).

eoPixel Strands

NeoPixel Strands

Like NeoPixel strips, these “strands” are flexible and can be

wrapped around things. The pixels are spaced further apart (2

or 4 inches) with each pixel is sealed in its own tiny plastic

capsule, making them weatherproof (but not rated for

continuous submersion). There are 20 pixels in a strand.

NeoPixel Strand — 20 LED 4" Pitch (https://adafru.it/Et3)

NeoPixel Strand — 20 LEDs at 2"

Pitch (https://adafru.it/CV5)

Finer Details About NeoPixel Strips

144 pixel/m NeoPixel strips and 32/m UV strips are sold in one meter lengths. Each meter is a

separate strip with end connectors. Longer contiguous lengths are

not

offered in 144 pixels/m RGB,

RGBW or 32/m UV.

30 and 60 pixel/m NeoPixel strips are sold in one meter

multiples.

Orders for multiple meters will be

a single contiguous strip, up to a limit: 4 meters for 60 pixels/m strip, 5 meters for 30 pixels/m.

For 30 and 60 pixels/meter strips, if purchasing less than a full reel (4 or 5 meters, respectively), the

strip may or may not have 3-pin JST plugs soldered at one or both ends. These plugs are for factory

testing and might be at either end — the plug does not always indicate the input end! Arrows printed

on the strip show the actual data direction. You may need to solder your own wires or plug.

The flex strips are enclosed in a weatherproof silicone sleeve, making them immune to rain and

splashes, but are not recommended for continuous submersion. Early 144 pixel/meter strips were not

weatherproof, but the current inventory now offers this feature.

The silicone sleeve can be cut and removed for a slimmer profile, but this compromises the strip's

weather resistance.

Very few glues will adhere to the weatherproof silicone sleeve. Using zip ties for a “mechanical”

bond is usually faster and easier. The only reliable glues we’ve found are Permatex 66B Clear RTV

Silicone (not all silicone glues will work!) and Loctite Plastics Bonding System, a 2-part cyanoacrylate

glue. Customers have reported

excellent

results with Permatex Ultra Grey Silicone Gasket Maker ,

Lexel® adhesive and Clear Gorilla Glue as well.

However,

do not

use Permatex 66B silicone to seal the open end of a cut strip! Like many

RTV silicones, 66B releases acetic acid when curing, which can destroy electronics. It’s fine on

the

outside

of the strip, but not the

inside.

Use GE Silicone II for sealing strip ends, or good ol’ hot

melt glue.

2-sided carpet tape provides a light grip on the silicone sleeve; something like a Post-It Note. Or you

can try clear duct tape over the top.

All LED strips are manufactured in 1/2 meter segments that are then joined into a longer strip. The

pixel spacing across these joins is usually 2-3 millimeters different than the rest. This is not a

manufacturing mistake, just physical reality.

Some batches of 144 pixel strip don’t have pads between the

LEDs. If you cut these into shorter sections, the only way to

connect to them (except at the half-meter segments) is to

carefully solder directly to the LED. The corner with the notch

is the GND pin.

NeoPixel strips are just the start…we’ve got

shapes

too! Rings, grids, shields and more…

oPier Rin Product Selector ht

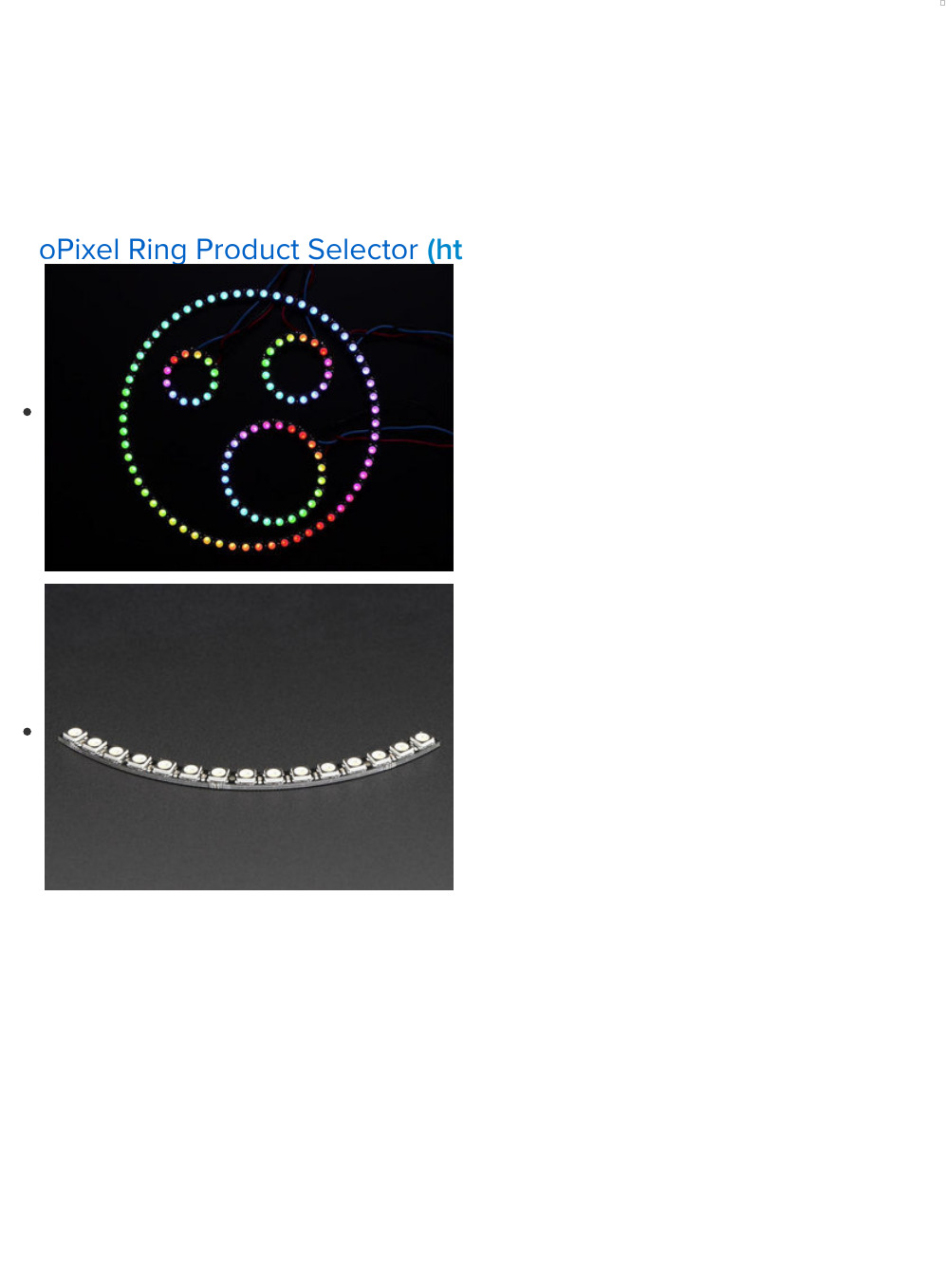

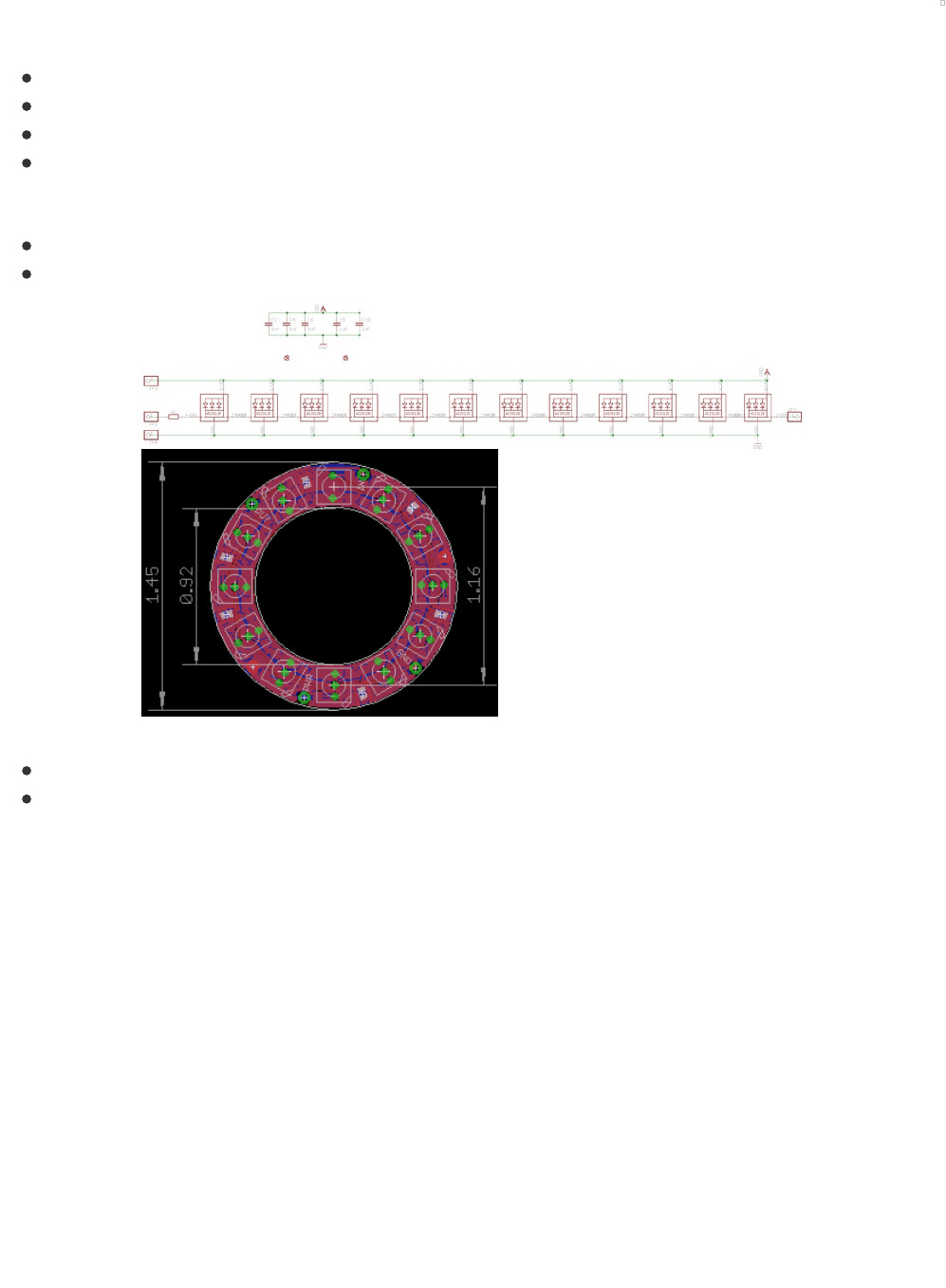

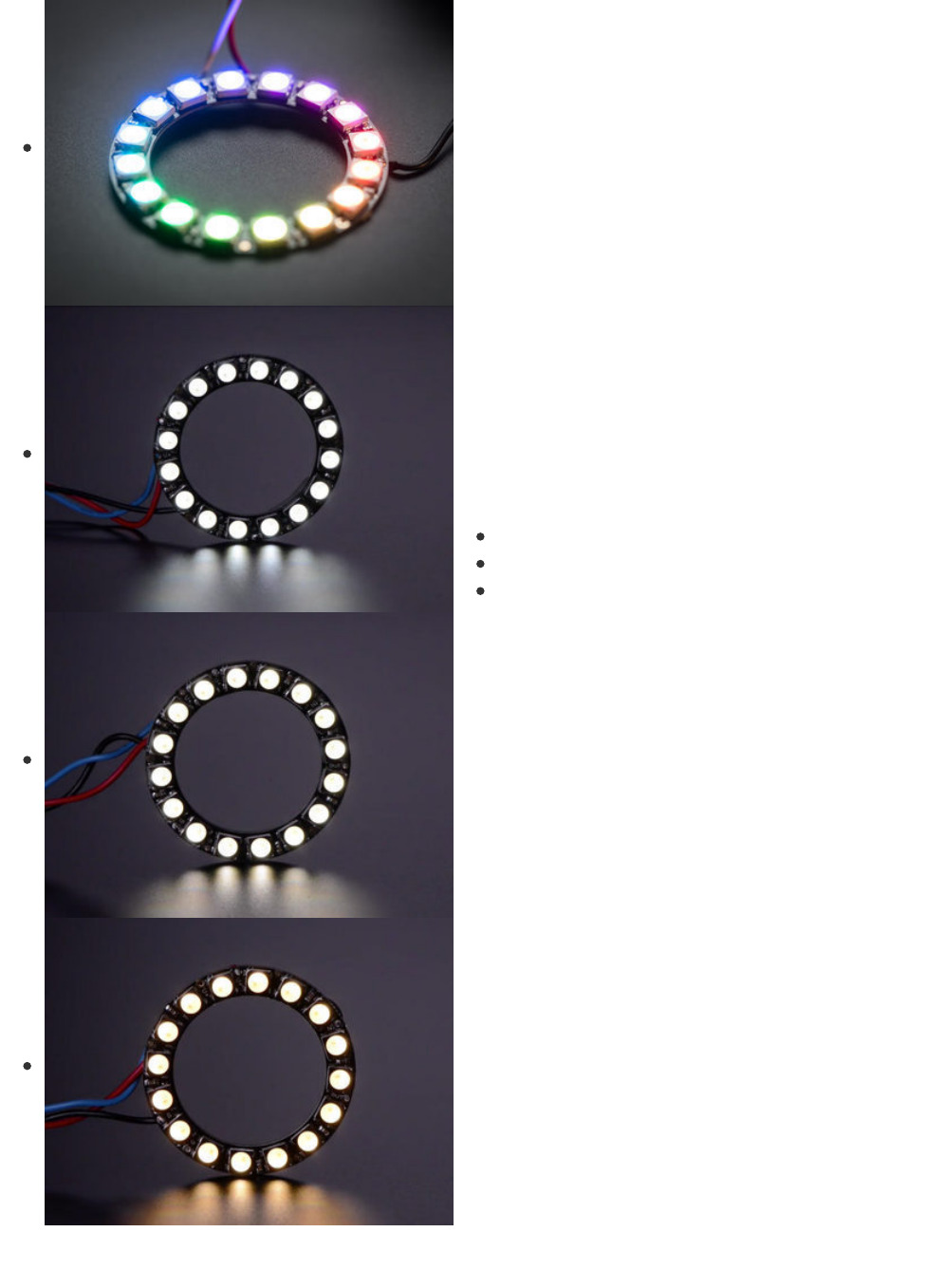

NeoPixel Rings

NeoPixel rings are circular rigid printed circuit boards festooned with NeoPixel LEDs. Originally designed

for our NeoPixel Goggles kit (http://adafru.it/2221), they proved so popular with other projects…

timepieces, GPS wayfinders, jewelry, etc…that we now offer several sizes and varieties…

Rather than list a zillion different links, we have a single landing page for selecting among all the different

NeoPixel ring products:

NeoPixel Ring Product Selector (http://adafru.it/3042)

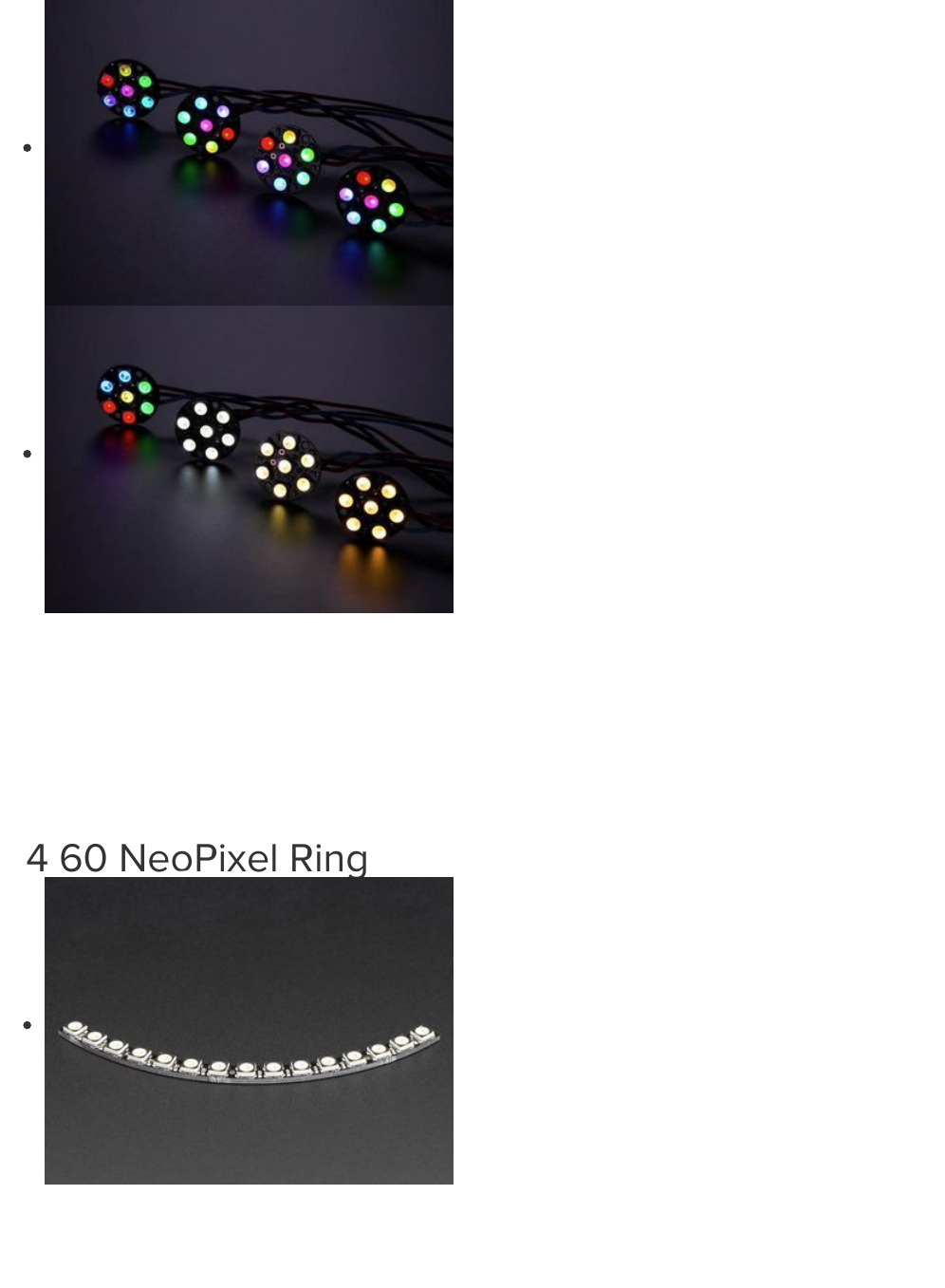

NeoPixel rings are offered in 12, 16, 24 and 60 pixel varieties.

60-pixel rings are actually sold as 15-pixel

quarters.

For a full

circle, you’ll need to purchase 4 and solder them together. Or

you might find creative ideas for individual arcs!

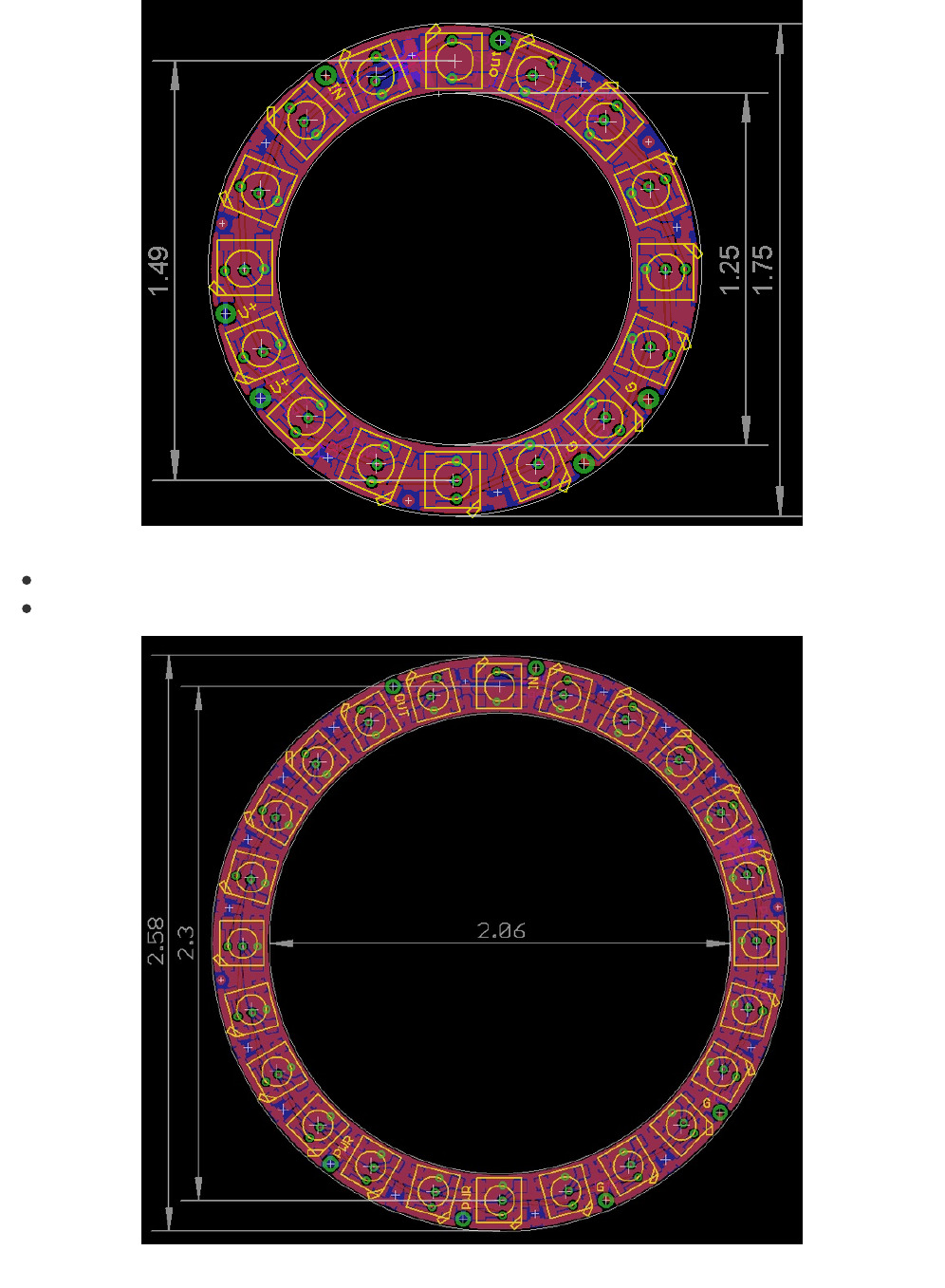

Number of Pixels Outer DiameterInner Diameter

12 37 mm / 1.5" 23 mm / 1"

16 44.5 mm / 1.75" 31.75 mm / 1.25"

24 66 mm / 2.6" 52.5 mm / 2.05"

60 (4x 15-pixel arcs)158 mm / 6.2" 145 mm / 5.7"

All rings are about 3.6 millimeters / 0.15" thick (1.6 mm for PCB, 2 mm for NeoPixels).

RGB NeoPixels are the most affordable and can produce

millions

of color combinations.

RGBW NeoPixels offer an eye-pleasing “true” white

addition

to RGB. These are available in three different color

temperaures:

Cool white: approximately 6000 Kelvin (K).

Neutral: approx 4500K.

Warm white: approx. 3000K.

RGBW pixels incorporate a translucent diffuser layer to help

mix and soften the light output. This makes them appear less

intense than RGB pixels (which are “water clear”), but it’s

really the same LEDs inside.

Finer Details About NeoPixel Rings

When soldering wires to these rings, you need to be extra vigilant about solder blobs and short

circuits. The spacing between components is

very

tight! It’s often easiest to insert the wire from the

front and solder on the back.

If using alligator clips, we recommend first soldering short jumper wires to the ring inputs and

connecting the clips to those, for similar reasons.

(Some of our tutorials and product photos do show

alligator clips directly connected to the rings, but we’ve had a lot of experience using them.)

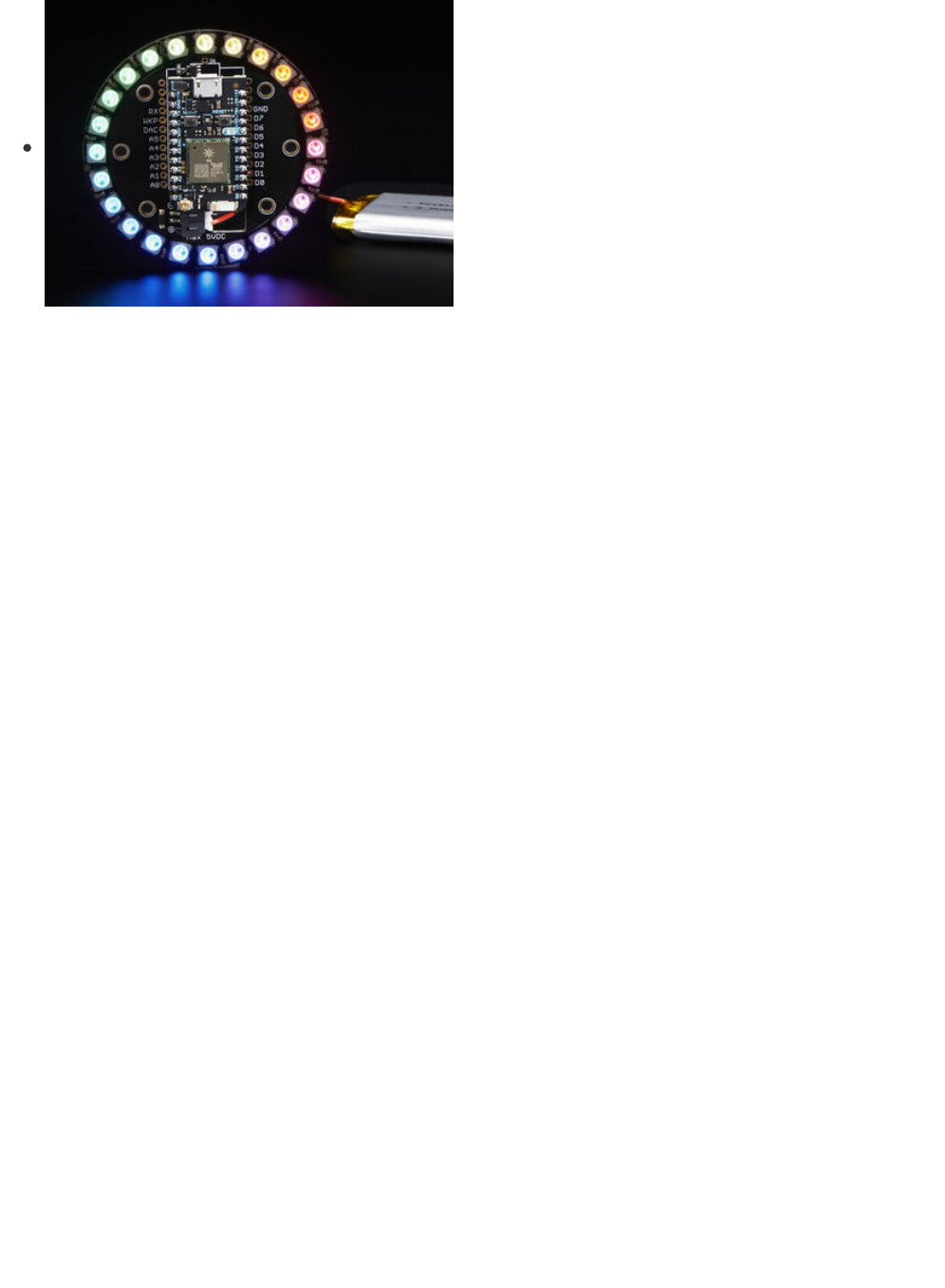

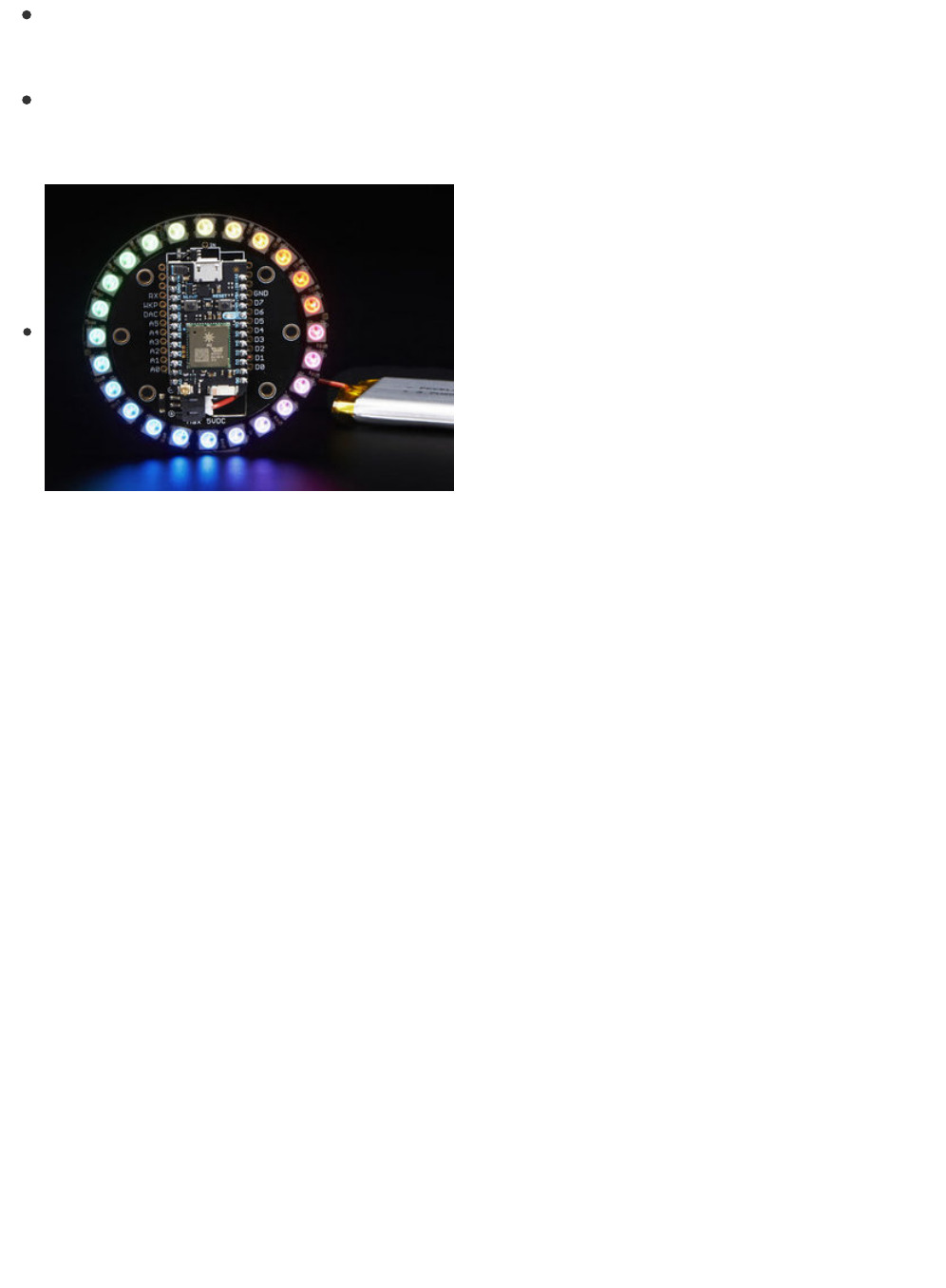

There’s also a 24-pixel RGB ring (http://adafru.it/2268)

specifically designed

for the Particle (formerly Spark) Photon

development board.

This one’s not “see-through” like the others — the space at

the center provides a socket for the Photon

board (http://adafru.it/2721).

nuaaooco IOUIIII. anon-no- III-tn:- aaaaaaa: 00000000 0000.... coo-soc. cool-IO) ovuaanoa

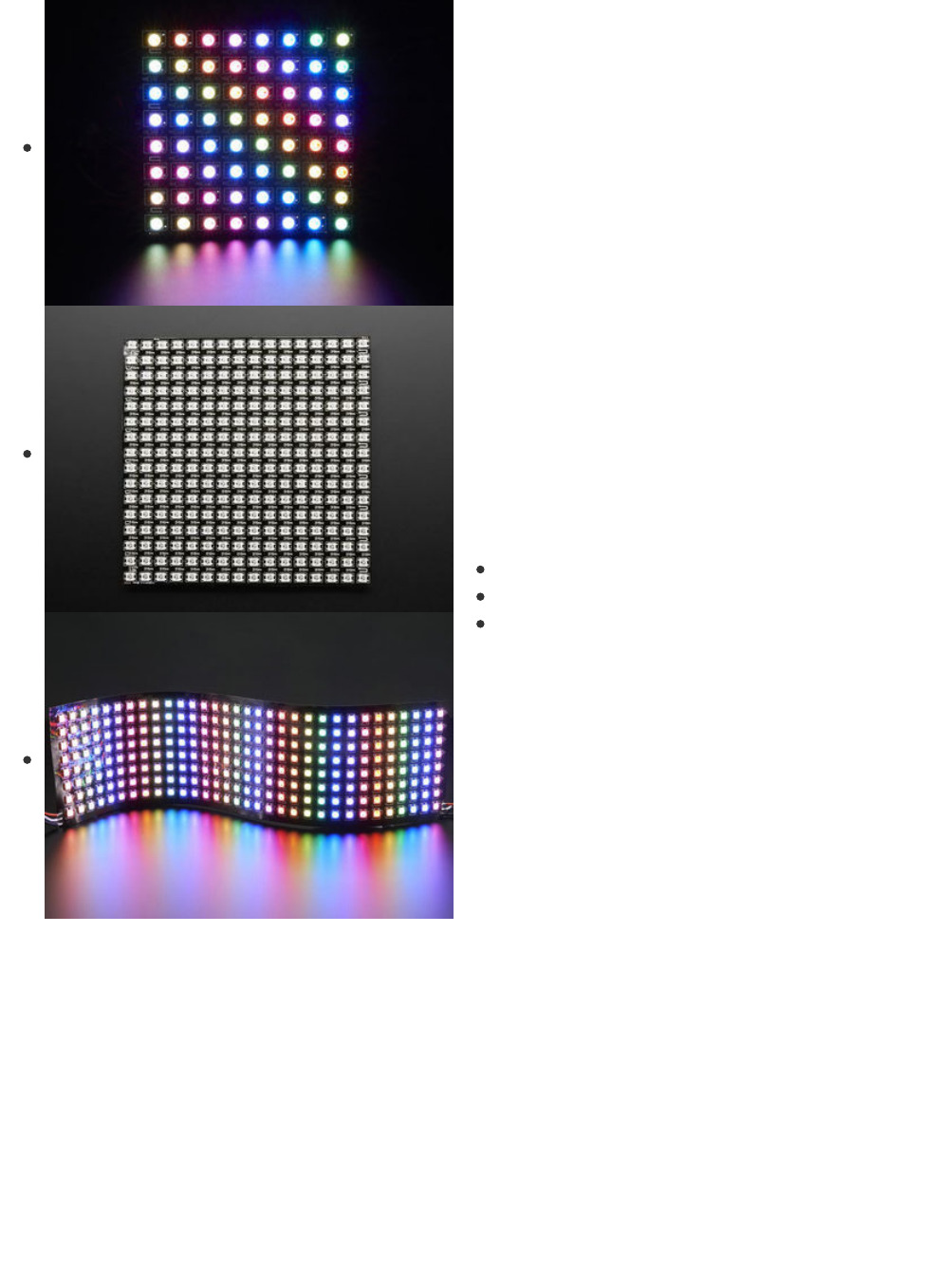

NeoPixel Matrices

NeoPixel matrices are two-dimensional

grids

of NeoPixels, all controlled from a single microcontroller pin.

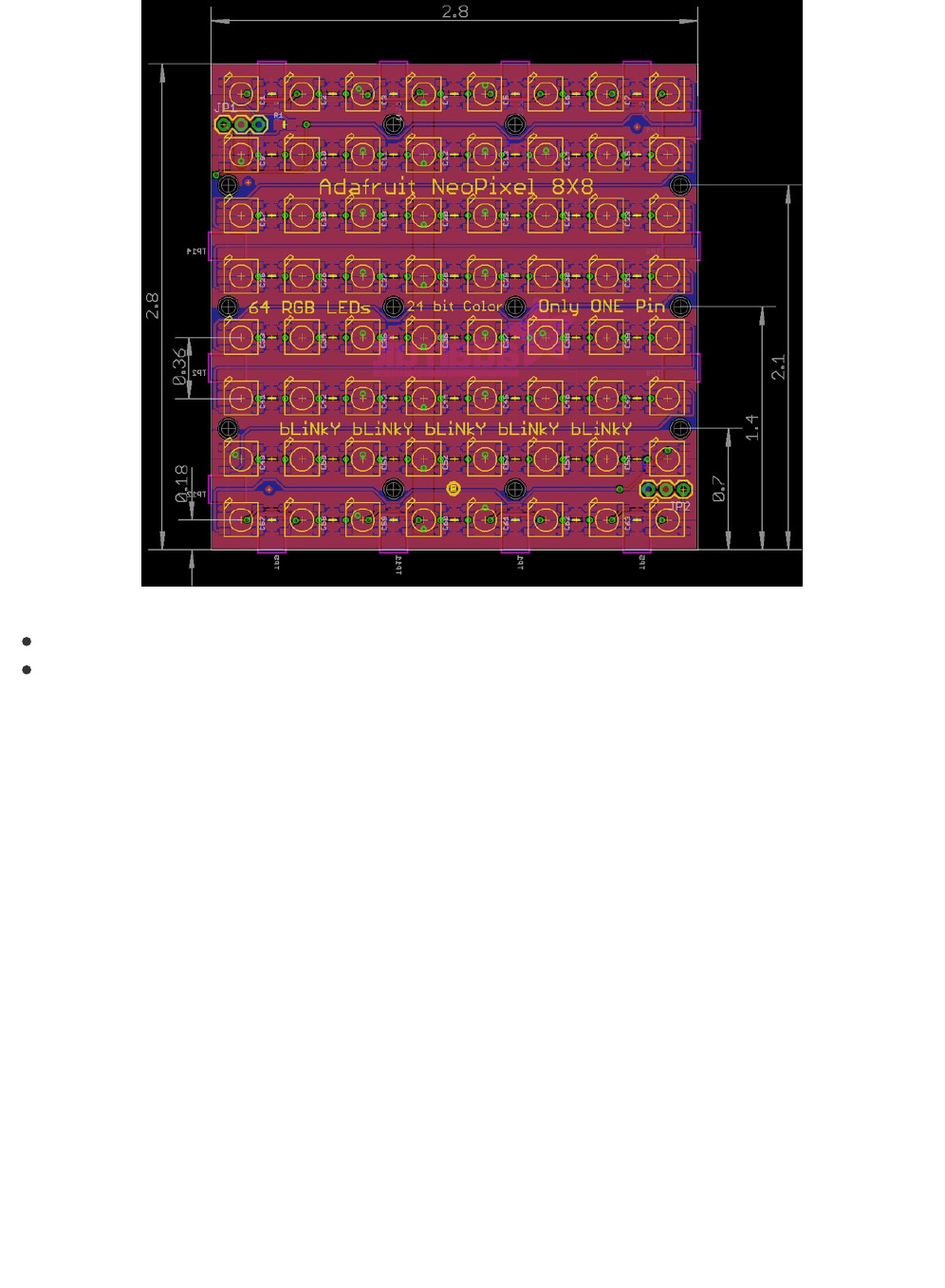

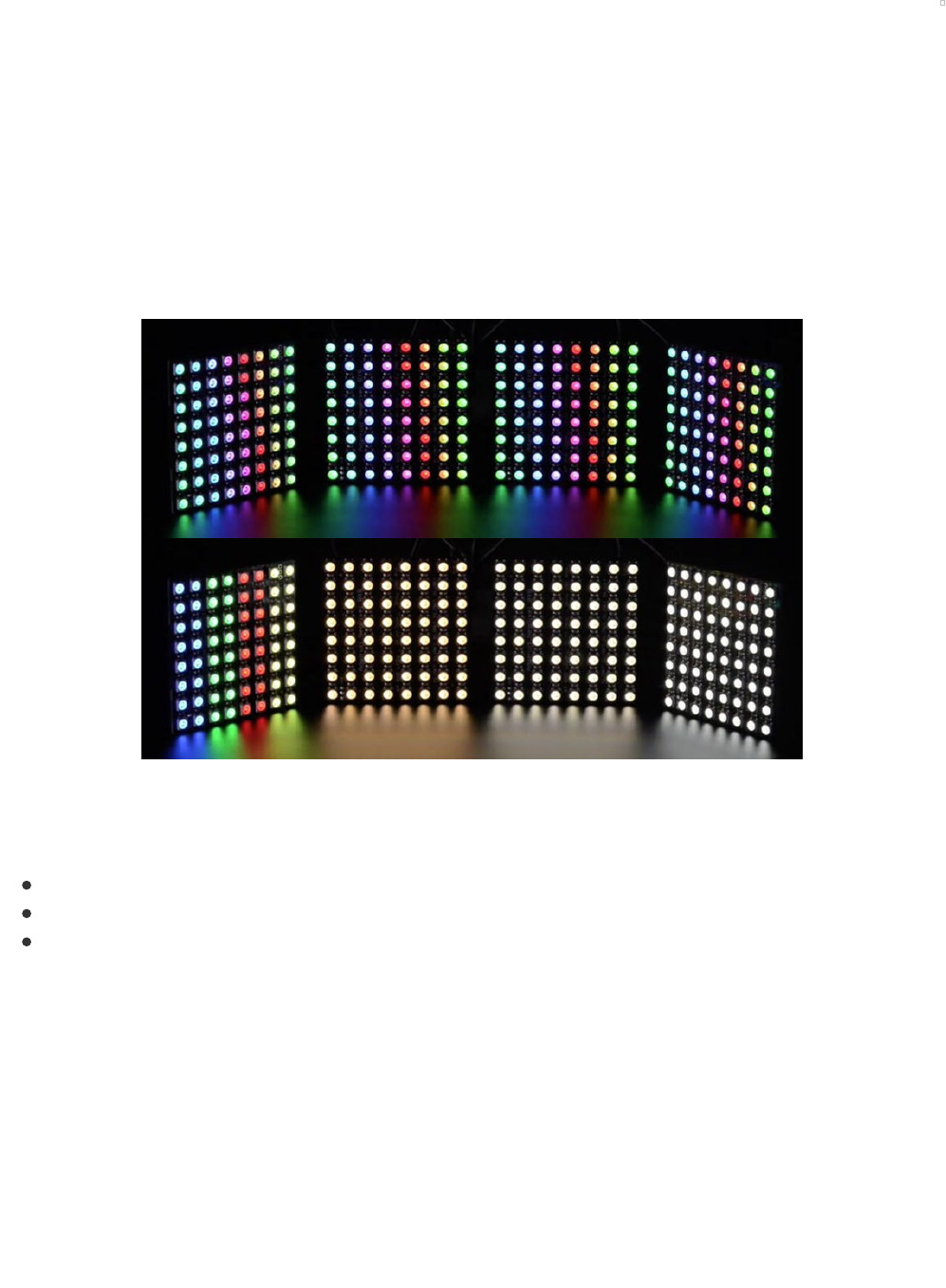

Rigid 8x8 NeoPixel Matrices

Like NeoPixel rings, these 64-pixel matrices are assembled on a rigid printed circuit board and are

available in both RGB and RGBW varieties.

NeoPixel Matrix Product Selector (http://adafru.it/3052)

All measure 71 millimeters (2.8 inches) square and about 3.6 mm thick. There are several mounting holes,

and the DOUT pin allows multiple matrices to be linked in series.

RGB NeoPixels are the most affordable and can produce

millions

of color combinations.

RGBW NeoPixels offer an eye-pleasing “true” white

in addition

to RGB. These are available in three

different color temperaures:

Cool white: approximately 6000 Kelvin (K).

Neutral: approx 4500K.

Warm white: approx. 3000K.

RGBW pixels incorporate a translucent diffuser layer to help mix and soften the light output. This makes

them appear less intense than RGB pixels (which are “water clear”), but it’s really the same LEDs inside.

Flexible NeoPixel Matrices

tun-x nin...n..n.n...i sun-ungnx-uuuun In. .q:-.u. insi-xa.....!... .u....-x..g...ni .u...u......--uu Ina-nunluuxnlunn

Flexible NeoPixel matrices are available in three different

sizes:

8x8 RGB pixels (http://adafru.it/2612)

16x16 RGB pixels (http://adafru.it/2547)

8x32 RGB pixels (http://adafru.it/2294)

Size Dimensions Total # of

LEDs Max Power Draw (approx)

8x8 80 mm / 3.15" square 64

19 Watts (3.8 Amps at 5

Volts)

16x16160 mm / 6.3" square 256 77 Watts (15 Amps at 5 Volts)

8x32 320 mm x 80 mm / 12.6" x

3" 256 77 Watts (15 Amps at 5 Volts)

Flex matrices are about 2 millimeters (0.08 inches) thick.

Though called “flexible,” these matrices do not tolerate continuous and repeated bending. “Formable”

might be a better word — they can be bent around a rigid or semi-rigid shape, like a hat. Repeated flexing

(as on costumes) will soon crack the solder connections. (The videos on the product pages are to

highlight just how flexible these matrices are, but this really is a “don’t try this at home” thing.)

Flex matrices are available with RGB pixels only; RGBW is not offered.

Finer Details About NeoPixel Matrices

As mentioned on the NeoPixel Strips page, keep power consumption in mind when working with NeoPixel

matrices. With so many pixels at your disposal, it’s easy to get carried away.

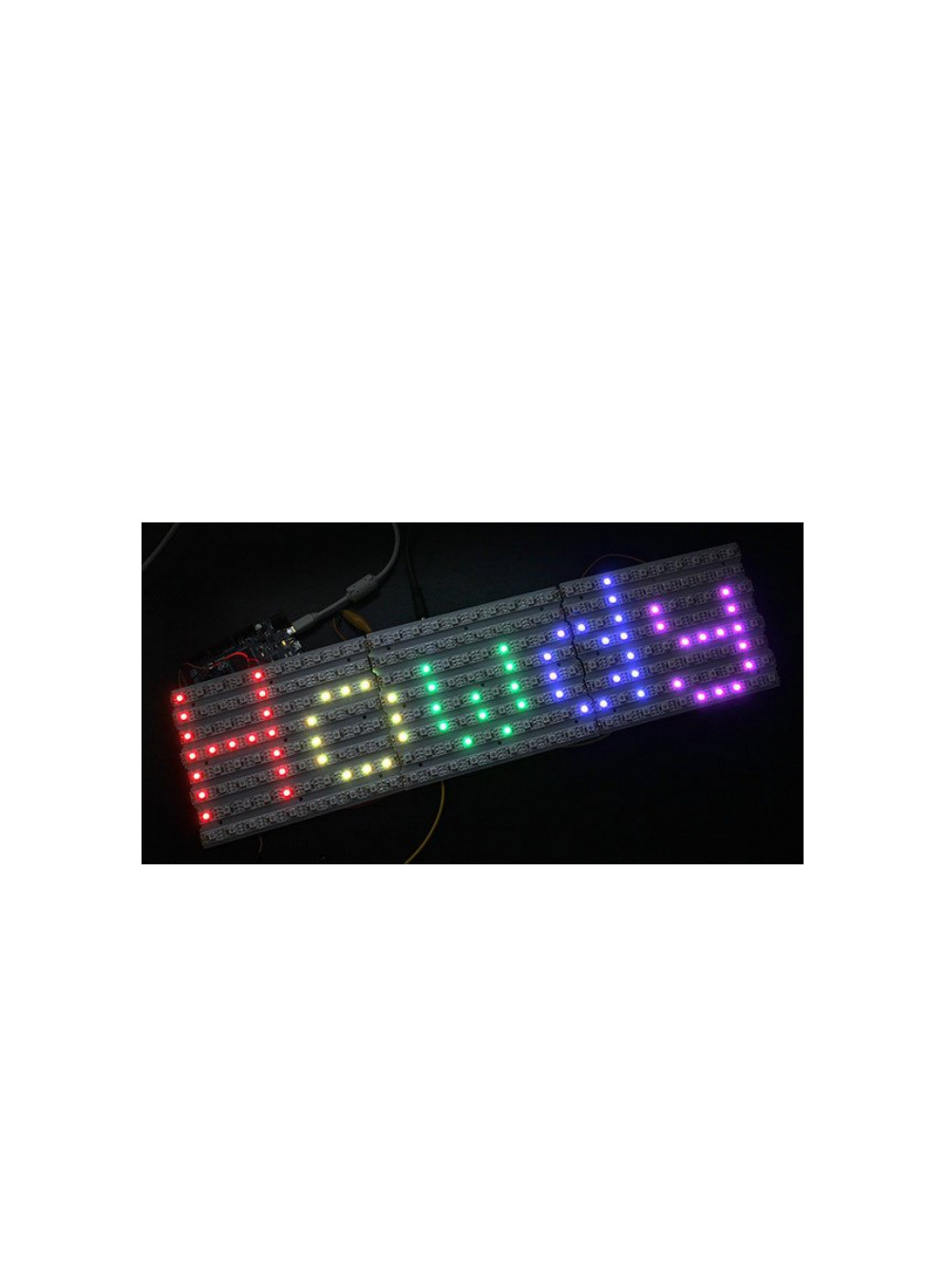

If you need a size or shape of NeoPixel matrix that’s not offered here, it’s possible to create your own

using sections of NeoPixel strip!

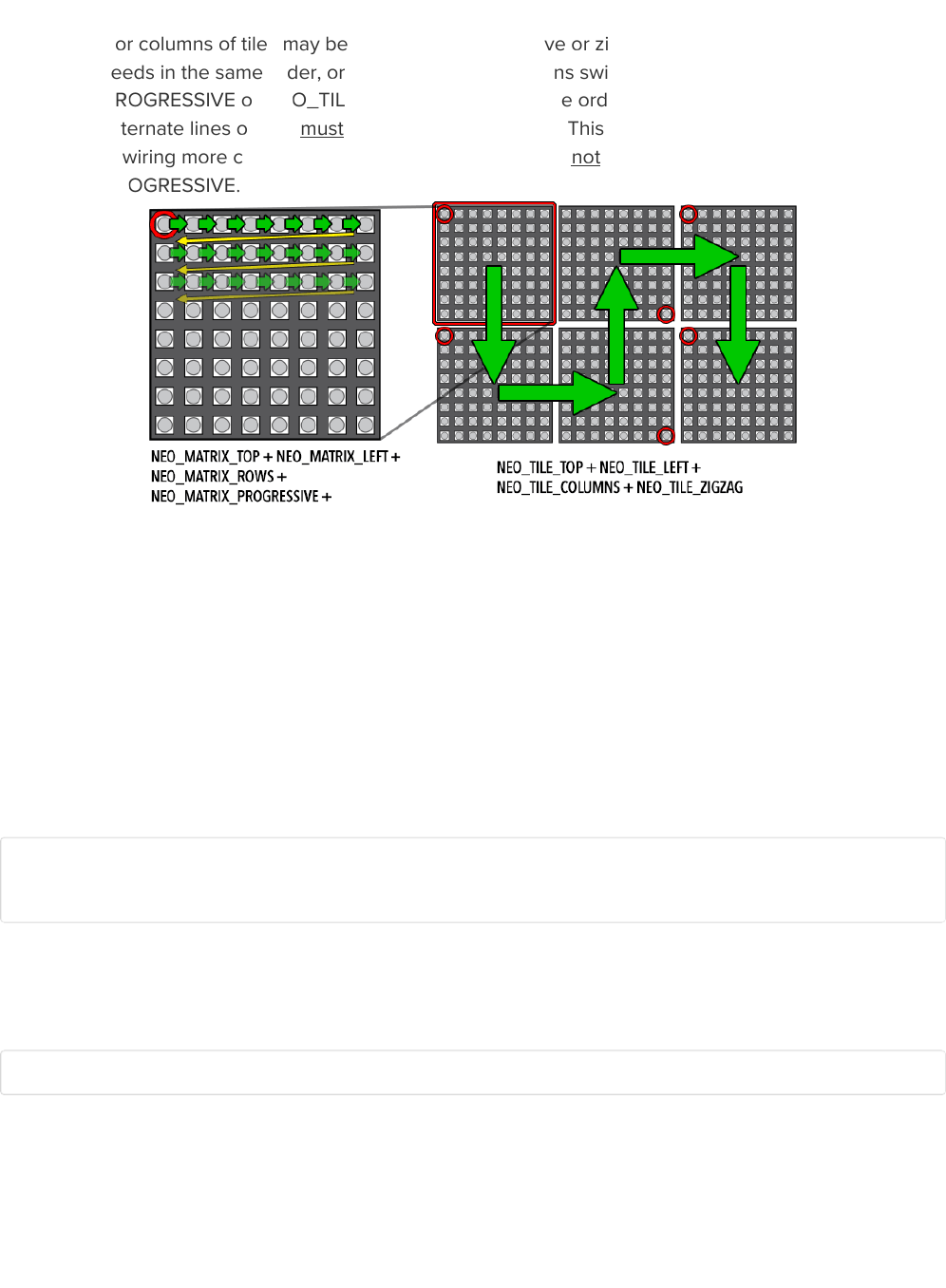

NeoPixel matrices don’t enforce any particular “topology” — some may have rows of pixels arranged left-

to-right, others may alternate left-to-right and right-to-left rows, or they could be installed in vertical

columns instead. This will require some planning in your code. Our

NeoMatrix

library supports most

matrix topologies.

We also have a few special-purpose matrices on the NeoPixel Shields

page!

eoPixel Shield for Arduin

NeoPixel Shields

Though not all “Shields” in the strictly-speaking Arduino sense, a few NeoPixel products are designed to

fit directly atop (or below) certain microcontroller boards…

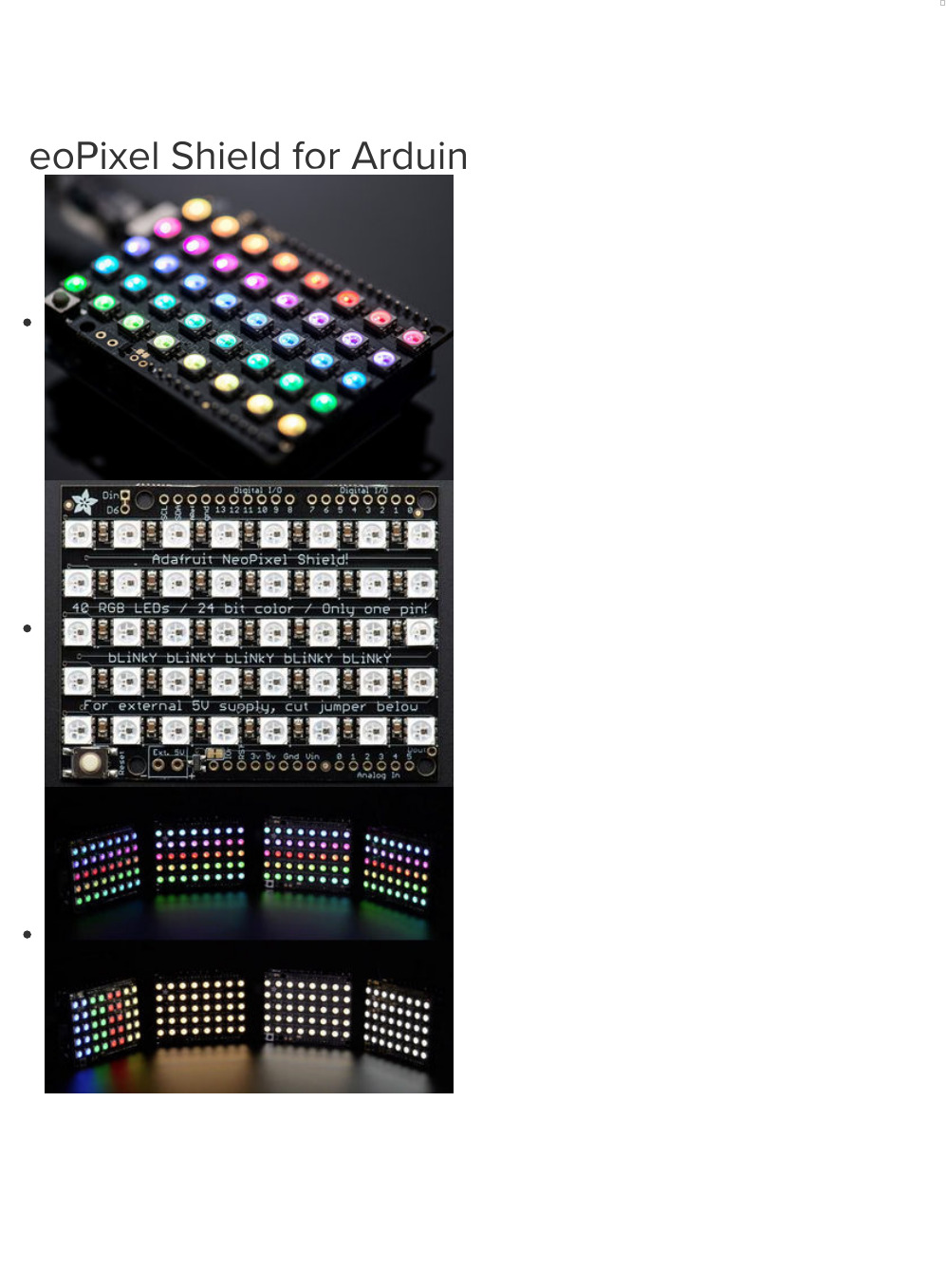

NeoPixel Shield for Arduino

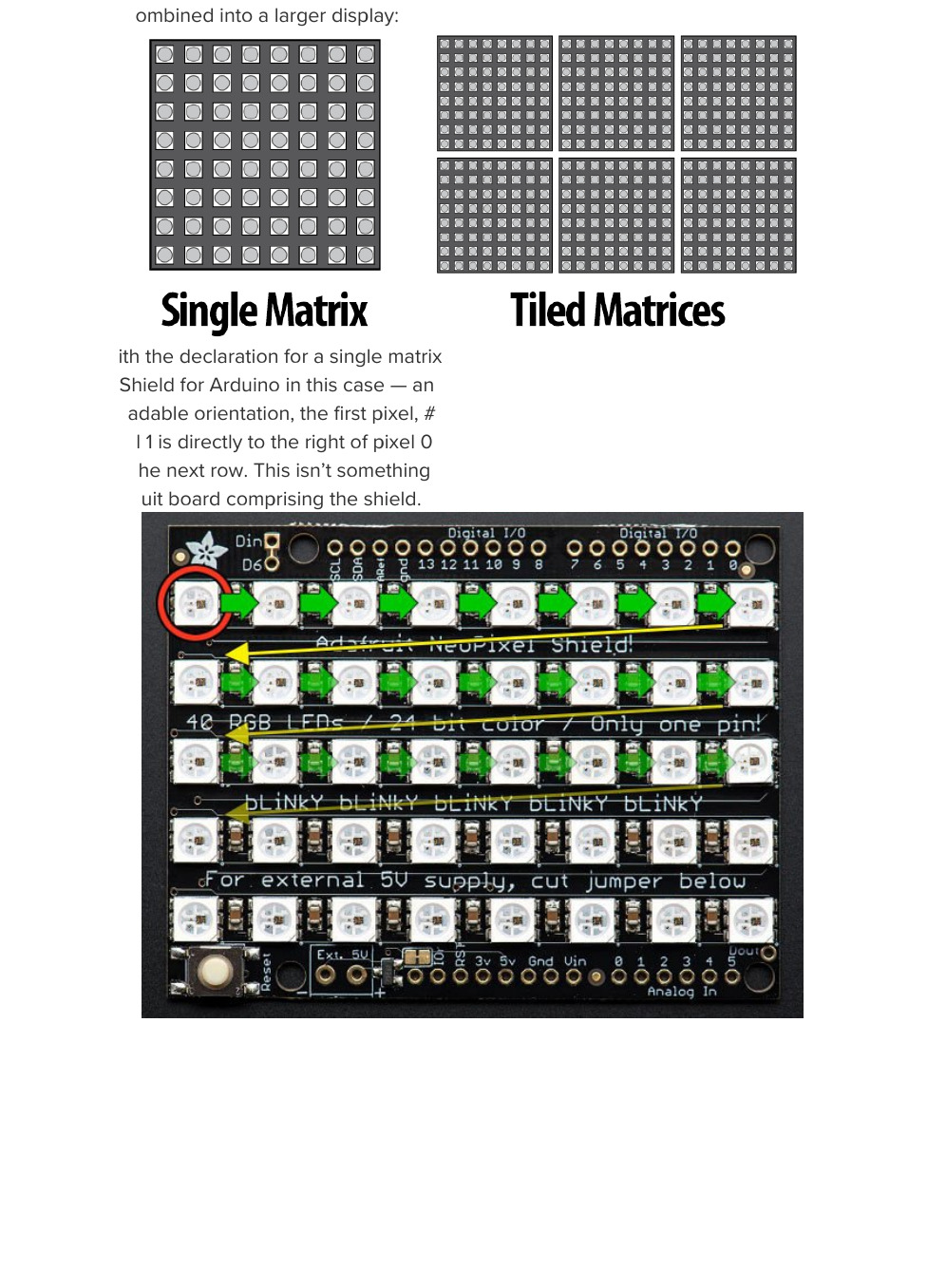

This 5x8 NeoPixel Shield for

Arduino (http://adafru.it/1430) fits neatly atop an Arduino Uno

or compatible boards (5V logic recommended). Like many of

our NeoPixel products, they’re available in RGB and various

RGBW pixel types:

NeoPixel Shield Product

Selector (https://adafru.it/lCw)

By default, the LEDs are powered from the Arduino’s 5V pin.

As long as you

aren't

lighting up all the pixels at full

brightness that should be fine. Or power the shield with an

external power supply by soldering the included terminal

block.

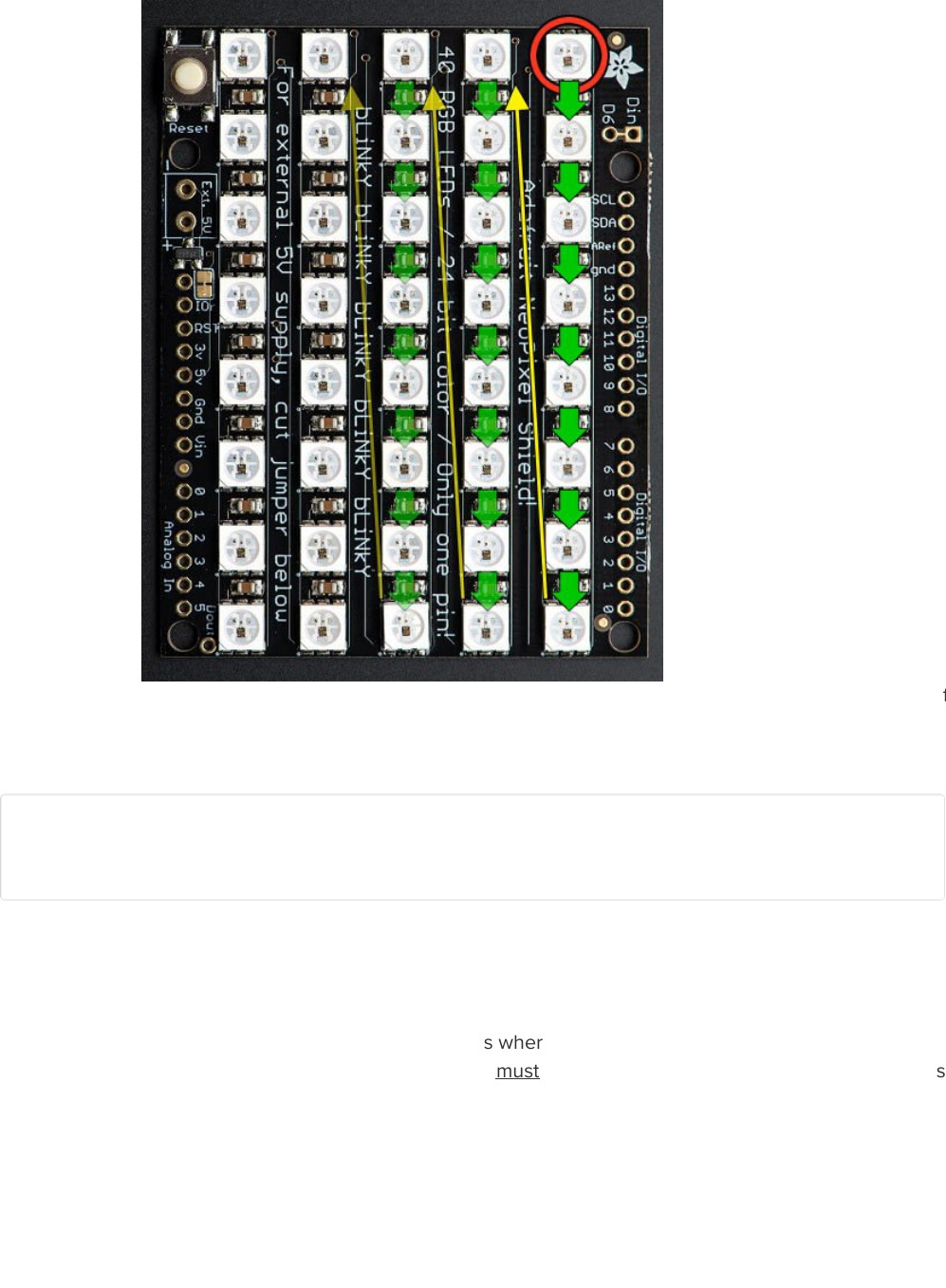

The NeoPixels are controlled on digital pin 6, but with some

deft wiring you could change this to any pin.

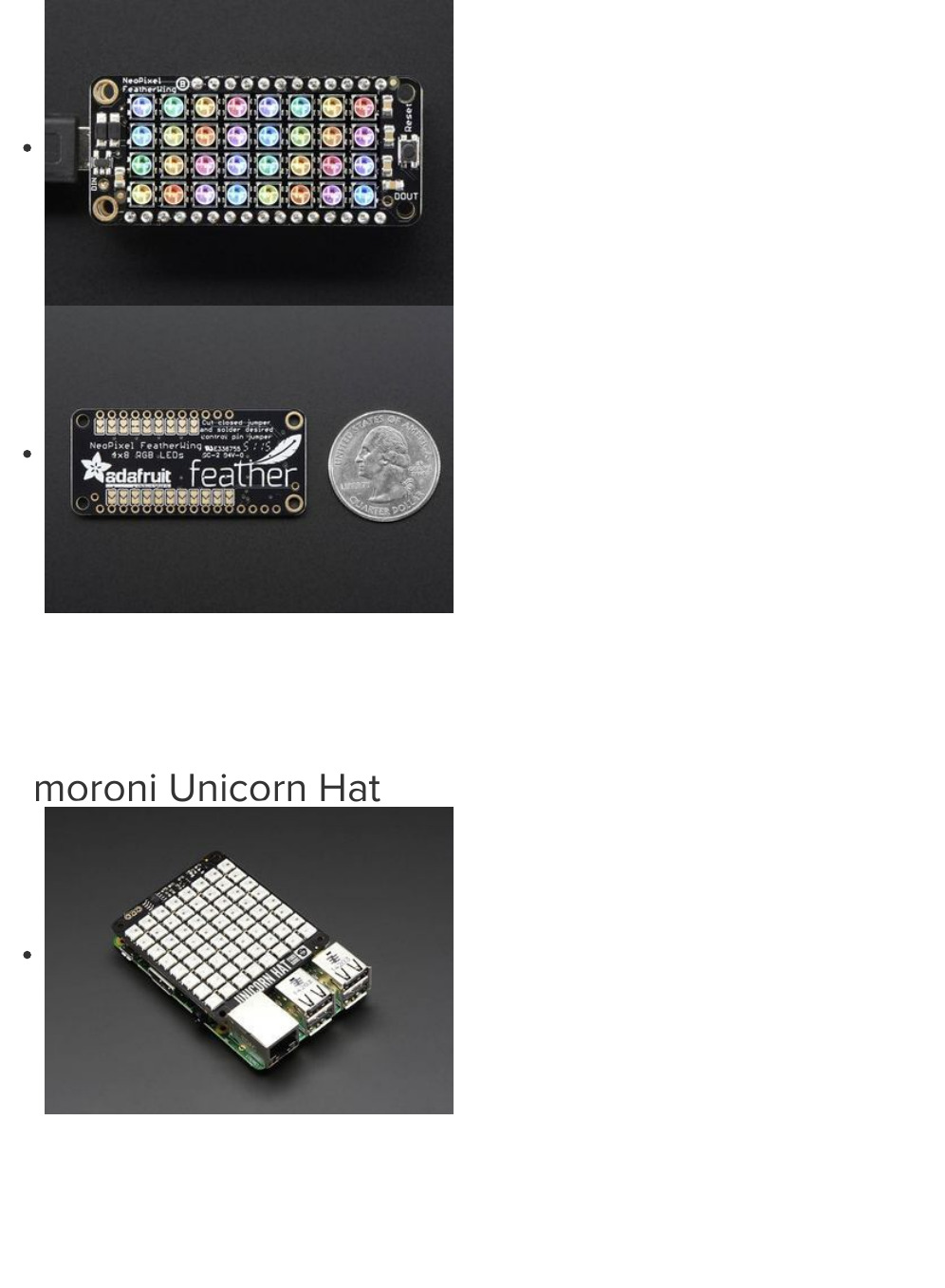

NeoPixel FeatherWing

b vb ceaoeak-e'aear'ea'a-o moroni Unicorn Hat O ‘ 9o . o o o 034.3%. 70’ ‘o’o‘o‘o‘o’o ’0 o o o o ‘ -. 9.0.30.9 ,9 \O O Qg“ o 0% ' 0.0 Q}: 4 8 ‘/

Quite possibly

The Cutest Thing in the History of Cute Little

Things,

the NeoPixel FeatherWing (http://adafru.it/2945) is is

4x8 pixel matrix that fits

perfectly

atop any of our Feather

microcontroller boards (https://adafru.it/l7B).

The NeoPixels are normally controlled from digital pin 6, but

pads on the bottom make this reassignable. In particular, the

default pin for Feather Huzzah ESP8266 must be moved, try

pin #15!

The NeoPixel Featherwing is RGB only; there’s no RGBW

version.

Pimoroni Unicorn Hat

The Pimoroni Unicorn Hat (http://adafru.it/2288) is aptly

named after a mythical animal — normally we’ll say that

NeoPixels don’t work with the Raspberry Pi, but Pimoroni has

worked up some magical software (https://adafru.it/lCx) that

makes this combination possible! It’s an 8x8 RGB matrix that

fits neatly atop the Raspberry Pi Model A+, B+ or Pi 2.

Due to the way Unicorn HAT works, you can't use your Pi's

analog audio alongside it. If you see odd random colour

patterns and flickering make sure analog audio is disabled.

Particle/Spark NeoPixel Ring Kit

Previously mentioned on the “Rings” page, but for posterity:

this 24-pixel RGB ring (http://adafru.it/2268) is specifically

designed for the Particle (formerly

Spark) Photon development board.

Other NeoPixe eoPixel Stick nl_|.rlv Onn "mam. "no nr. p.-

Other NeoPixel Shapes

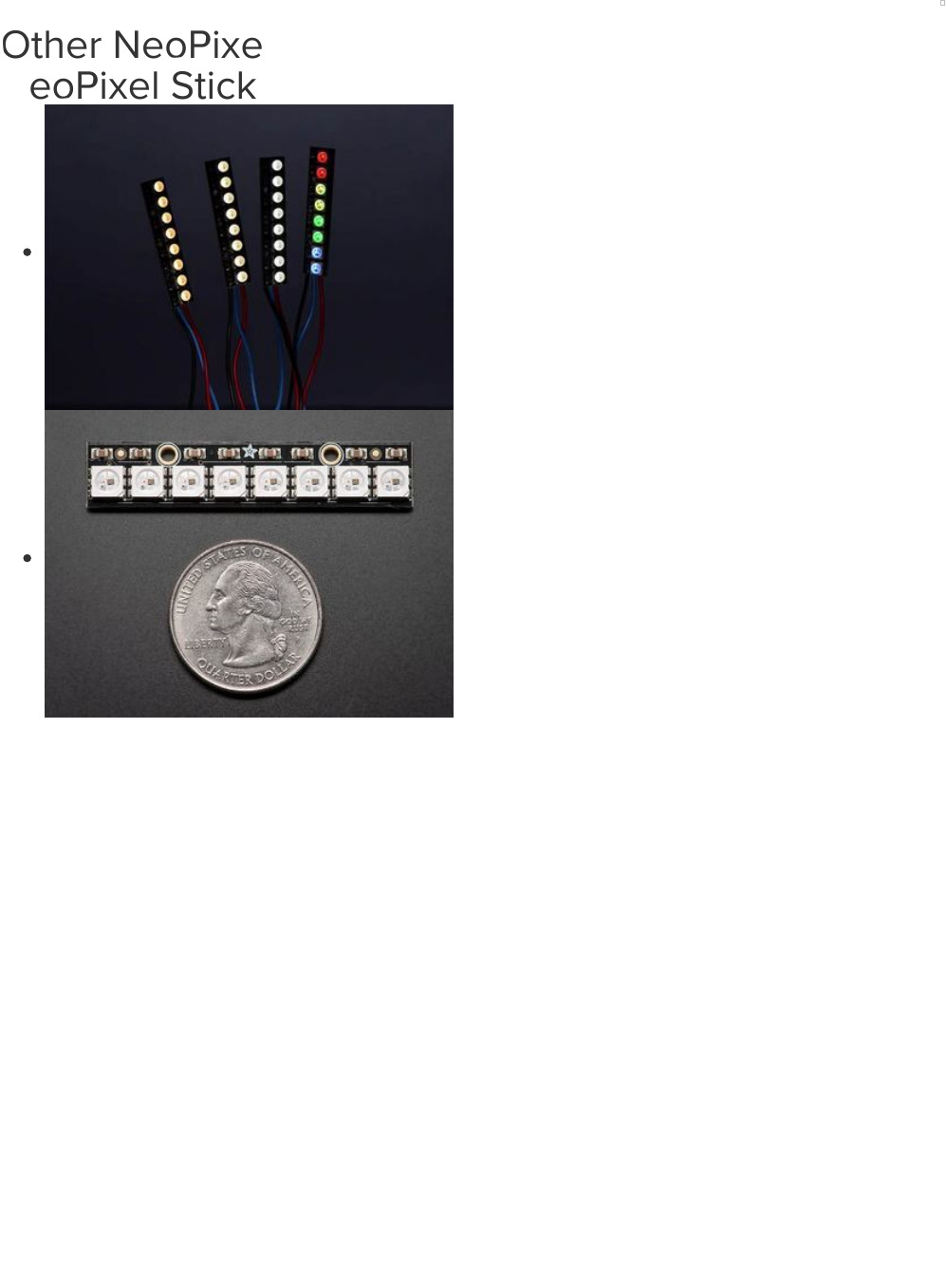

NeoPixel Stick

The simplest thing…a row of 8 NeoPixels along a rigid circuit

board. These make great bargraph indicators!

Like our rings and matrices, NeoPixel sticks are available in

RGB and RGBW varieties.

NeoPixel Stick Product

Selector (http://adafru.it/3039)

All measure 51.1 x 10.2 millimeters (2.0 x 0.4 inches).

NeoPixel Jewels

4 60 NeoPixel Rin

When you need more “punch” than a single NeoPixel can

provide, these 7-pixel jewels provide a lot of light in a

compact shape. Again, RGB and RGBW varieties are

available.

NeoPixel Jewel Product

Selector (http://adafru.it/3047)

All measure 23 millimeters (0.9 inches) in diameter.

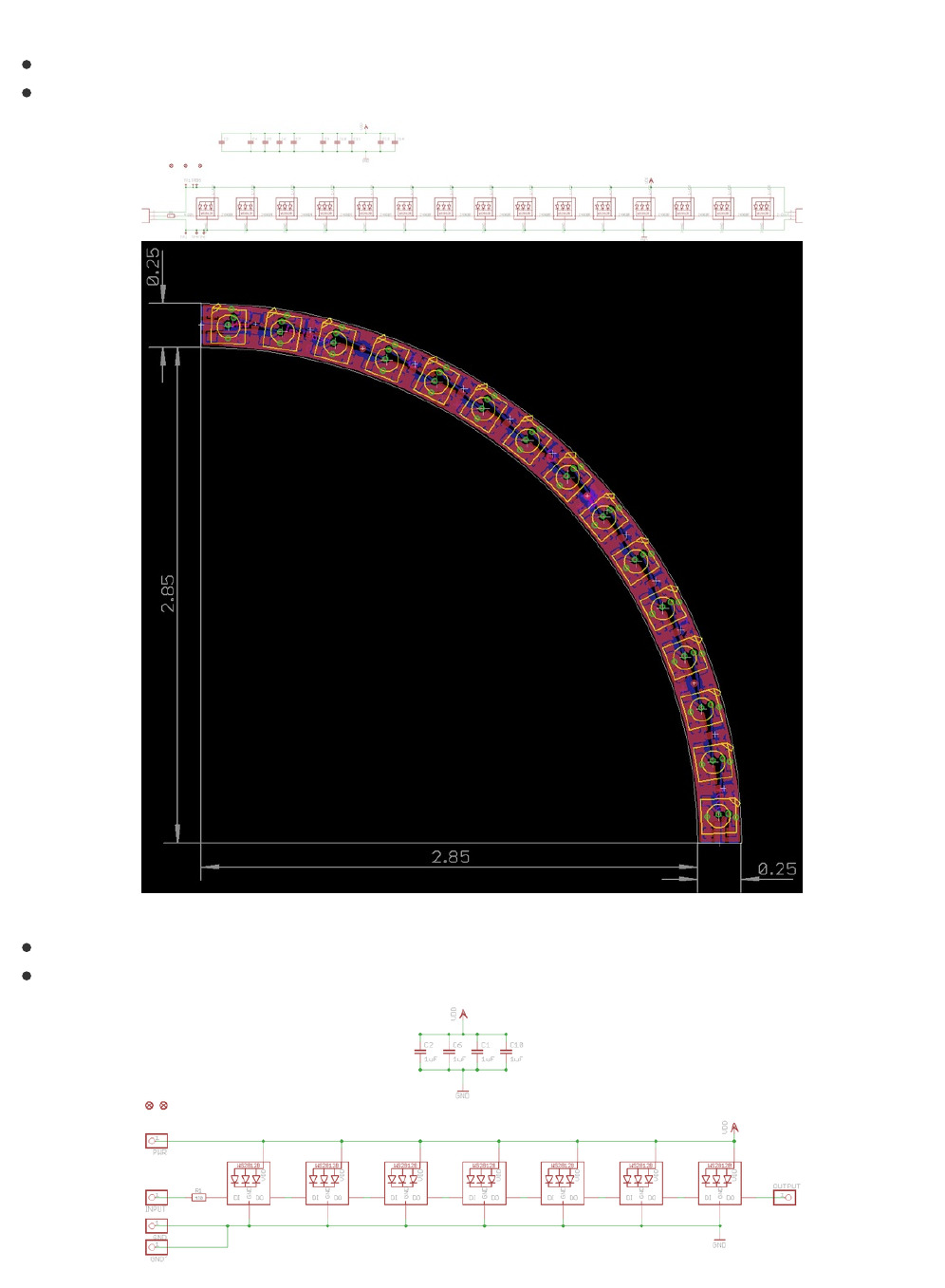

1/4 60 NeoPixel Ring

Though originally designed to be used in groups of four to

complete a 60 NeoPixel Ring, the individual 15-pixel

quarter

rings

can also be used to solve interesting design problems!

RGB and RGBW are available.

NeoPixel Ring Product

Selector (http://adafru.it/3042)

Side Light NeoPixel LED PCB Bar

A half-meter rigid PCB tightly packed with 60 side-light

NeoPixels. This is a strange animal but might be just the thing

for compact light-painting projects or edge-lit signage. What

might you make of it?

Side Light NeoPixel LED PCB Bar - 60 LEDs - 120

LED/meter - 500mm Long (https://adafru.it/Et5)

ra RGB Smart NeoPixels

Individual NeoPixels

If you need just a small number of pixels…or if ready-made shapes and strips don’t quite provide what

you’re after…individual NeoPixels provide the most control over placement and quantity.

Integrated NeoPixel Products

Some individual NeoPixel products come ready to use, with a small PCB holding the LED, a decoupling

capacitor for power, and points for connecting wires.

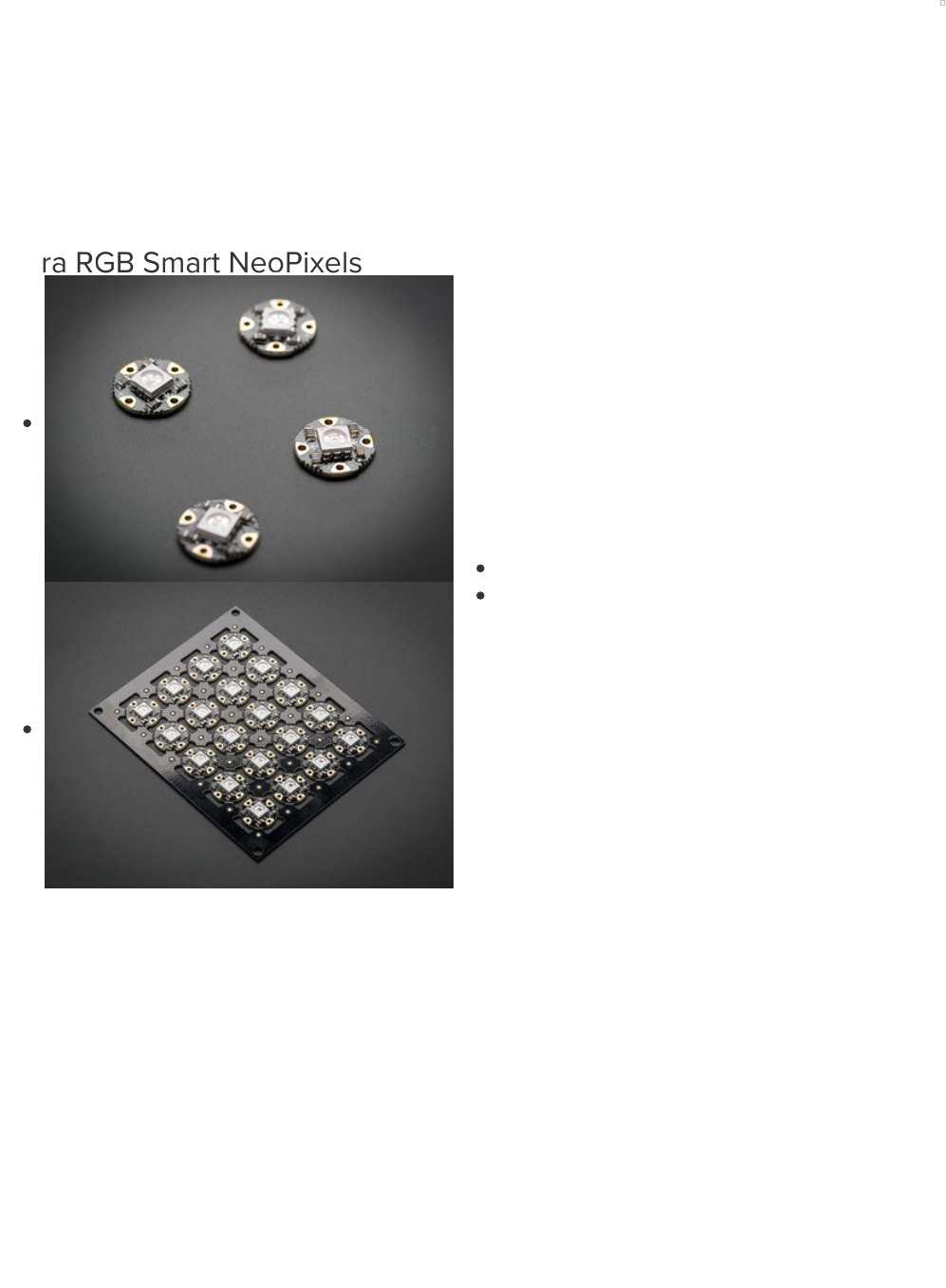

Flora RGB Smart NeoPixels

The original Adafruit NeoPixel form factor! Flora RGB Smart

NeoPixels were designed for wearable projects using

conductive thread, but can also be soldered normally with

wires. These are available in two formats:

Pack of 4 (http://adafru.it/1260), ready to use as-is.

Sheet of 20 (http://adafru.it/1559), cut them off the

sheet as you need them and save a little money.

Flora RGB Smart Pixels measure about 12.5 millimeters (0.5

inches) in diameter. These are RGB only; there’s no RGBW

version.

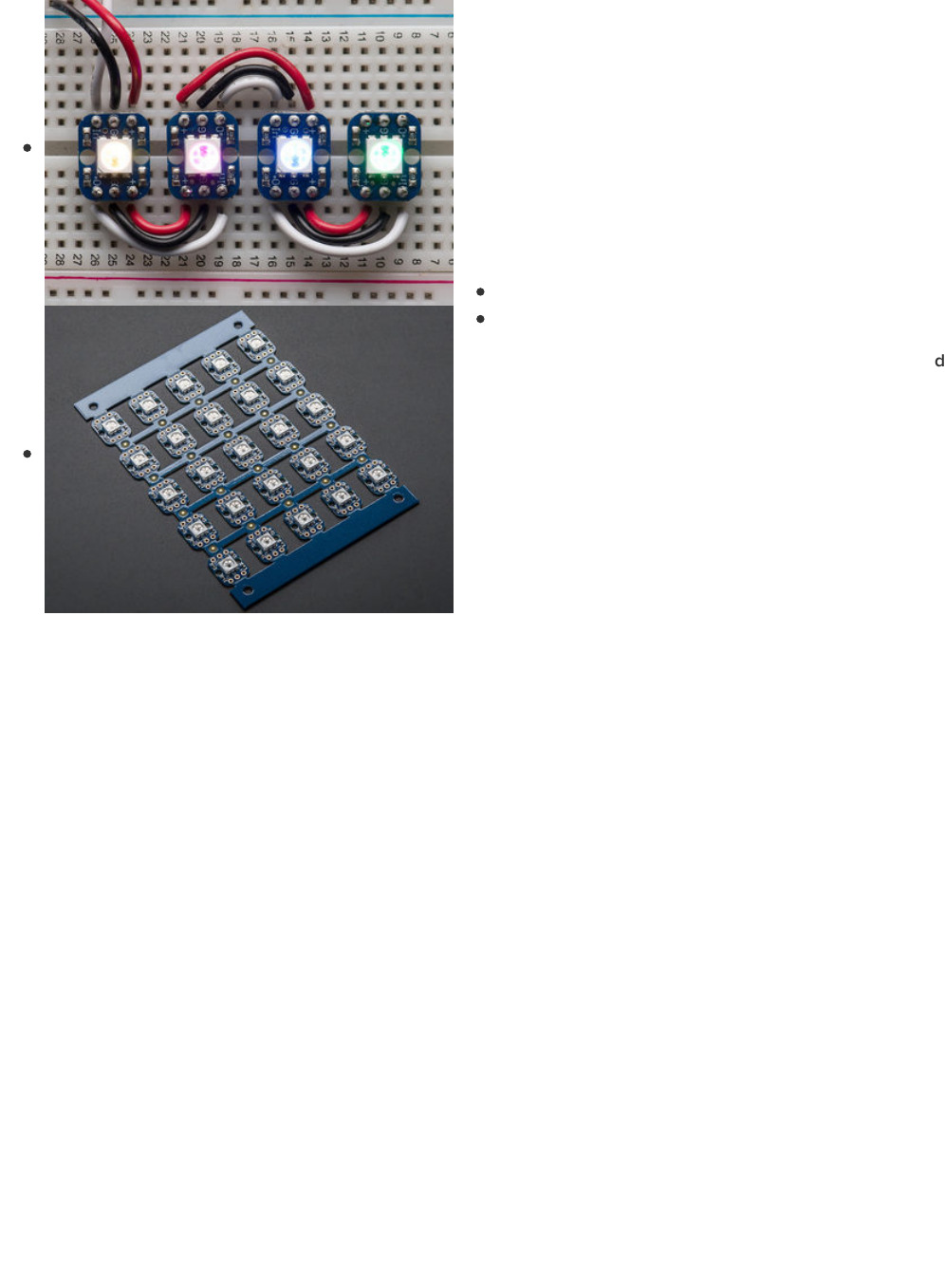

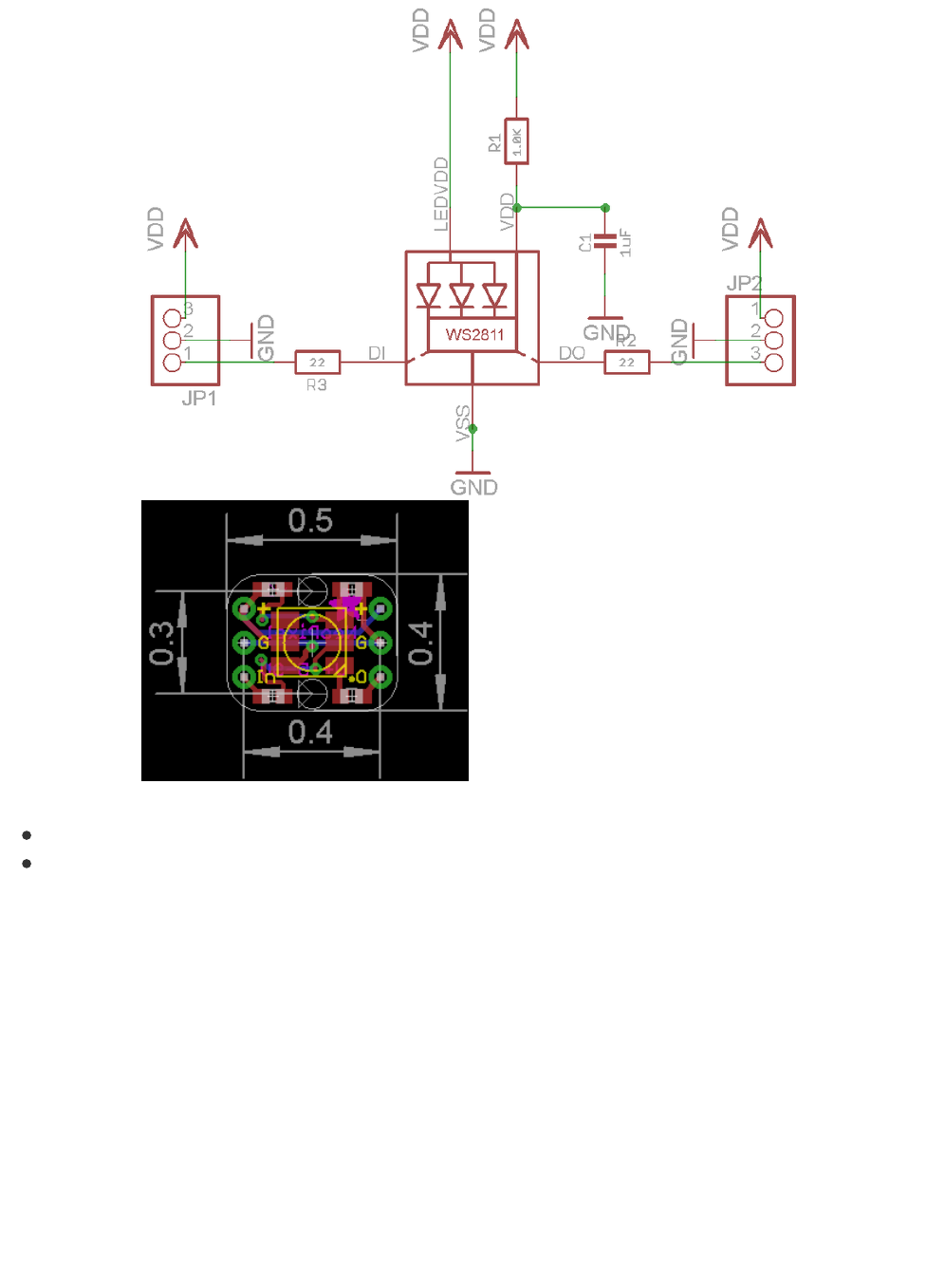

Breadboard-Friendly RGB Smart NeoPixels

These are similar to the sewable Flora NeoPixels, but with a

pin arrangement that (with the addition of headers) fits neatly

into a breadboard for prototyping. Also available in two

formats:

Pack of 4 (http://adafru.it/1312), ready to use as-is.

Sheet of 25 (http://adafru.it/1558), cut off as needed.

For both types, headers (http://adafru.it/392) are optional and

not included.

Breadboard-Friendly NeoPixels measure 10.2 x 12.7

millimeters (0.4 x 0.5 inches) and are RGB only; there’s no

RGBW version.

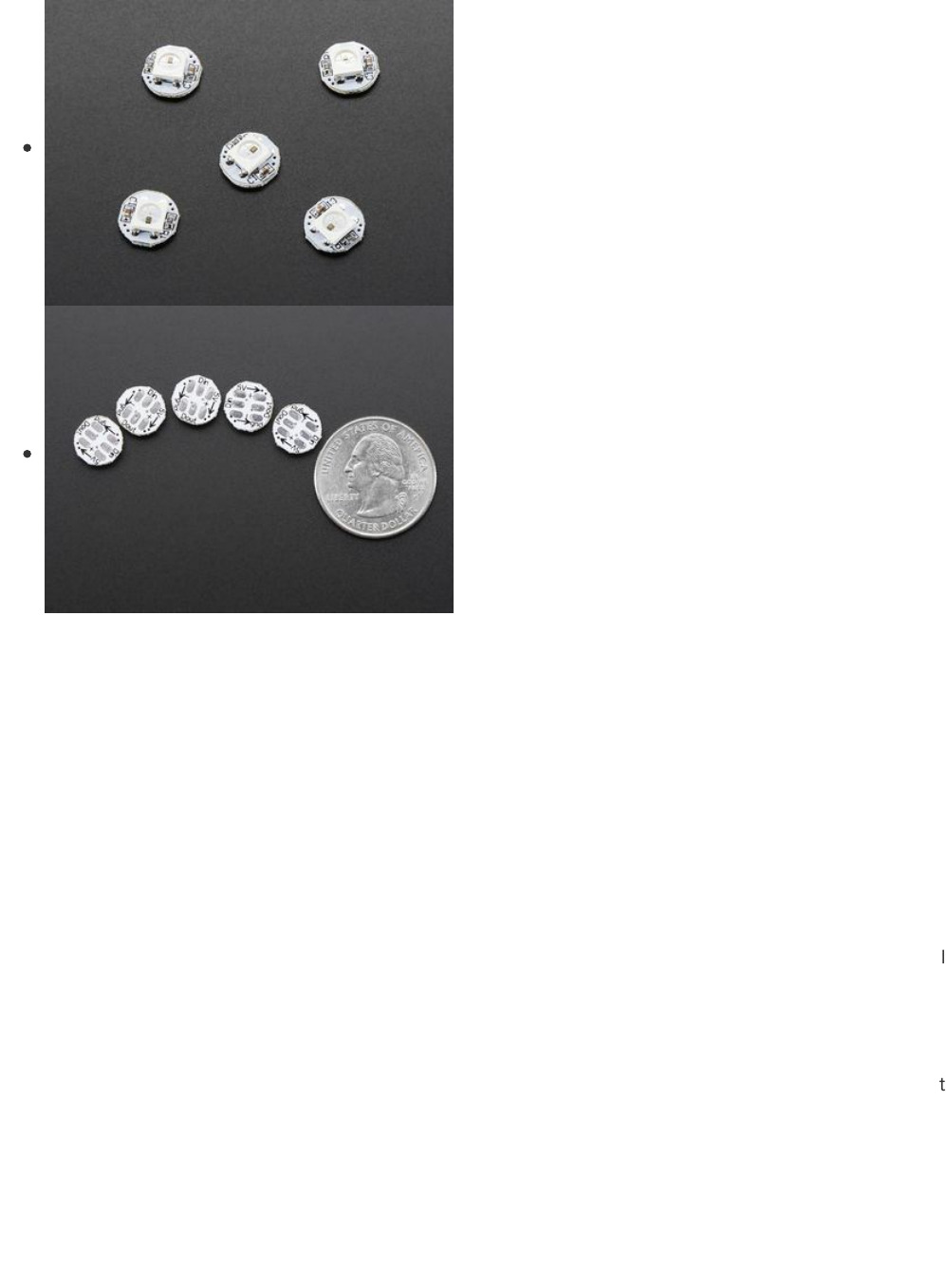

NeoPixel Mini PCB

NeoPixel Mini PCB (http://adafru.it/1612) — sold in packs of 5

— are the smallest ready-to-use NeoPixel format.

These have no mounting holes or soldering vias…wires must

be soldered directly to pads on the back of the PCB.

Each is about 10 millimeters (0.3 inches) in diameter. These

are RGB only; there’s no RGBW version.

Discrete NeoPixel Products

For advanced users needing fully customized designs, discrete NeoPixel components are available. You’ll

need to provide your own PCB and (depending on the pixel type) surface-mount soldering skill.

It’s very strongly recommended that each NeoPixel have an accompanying 0.1 μF capacitor between +V

and ground. This prevents communication problems due to brownout of the on-pixel driver logic. It’s

occasionally sufficient to have

one

capacitor

between pairs

of pixels; some of our NeoPixel rings work that

way.

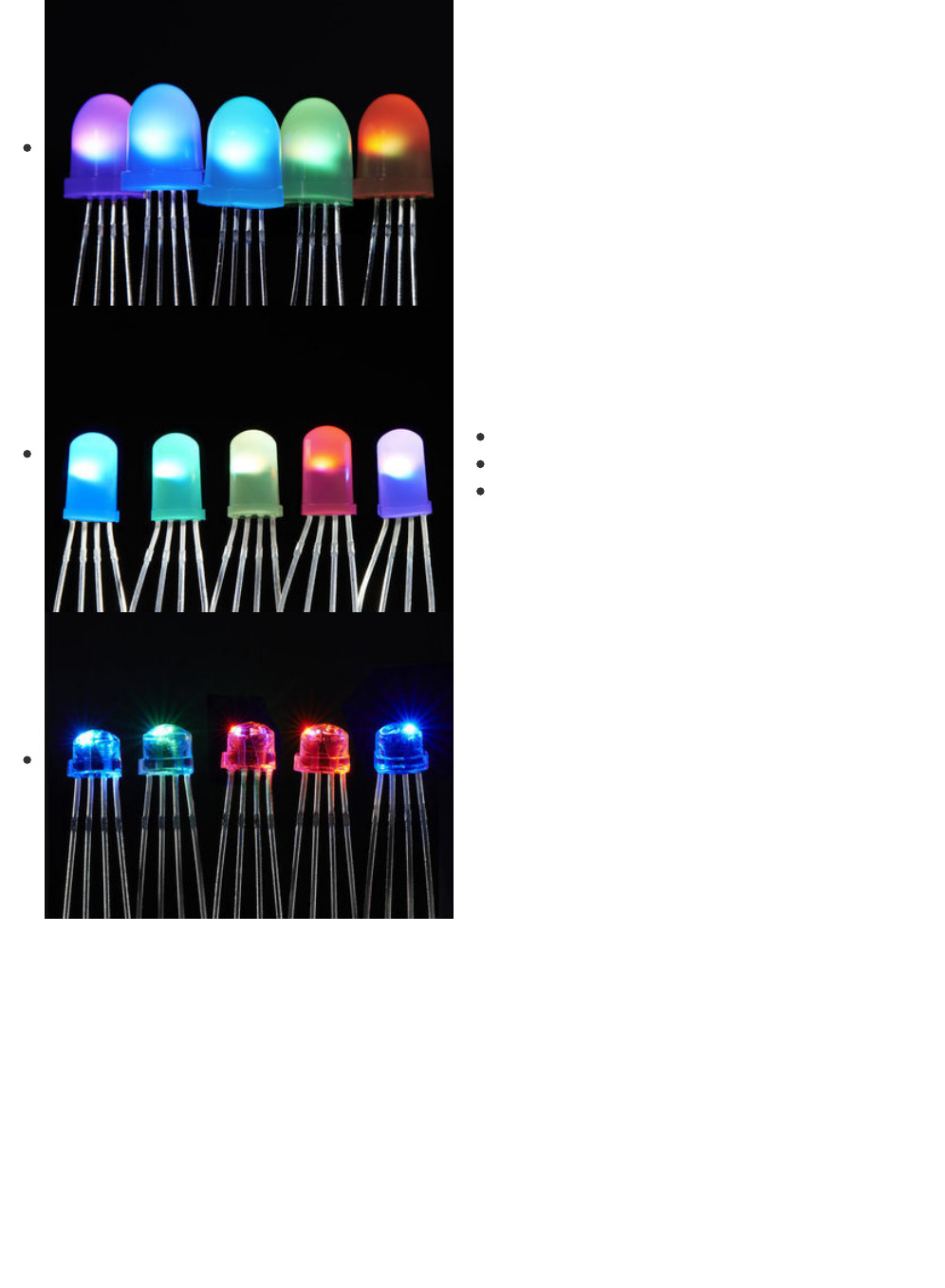

Through-Hole NeoPixels

M/M 'W% Ci m; g “/ \C‘V‘s‘fi‘f

Discrete Through-hole NeoPixels are available in two sizes:

8mm Diffused (http://adafru.it/1734) – pack of 5.

5mm Diffused (http://adafru.it/1938) – pack of 5.

5mm Clear (http://adafru.it/1837) have been

discontinued, but the product page is still available if

you require pinout information.

Through-hole NeoPixels are RGB only; there’s no RGBW

version. Use of a 0.1 μF capacitor (http://adafru.it/753)

between + and ground on each pixel is strongly encouraged.

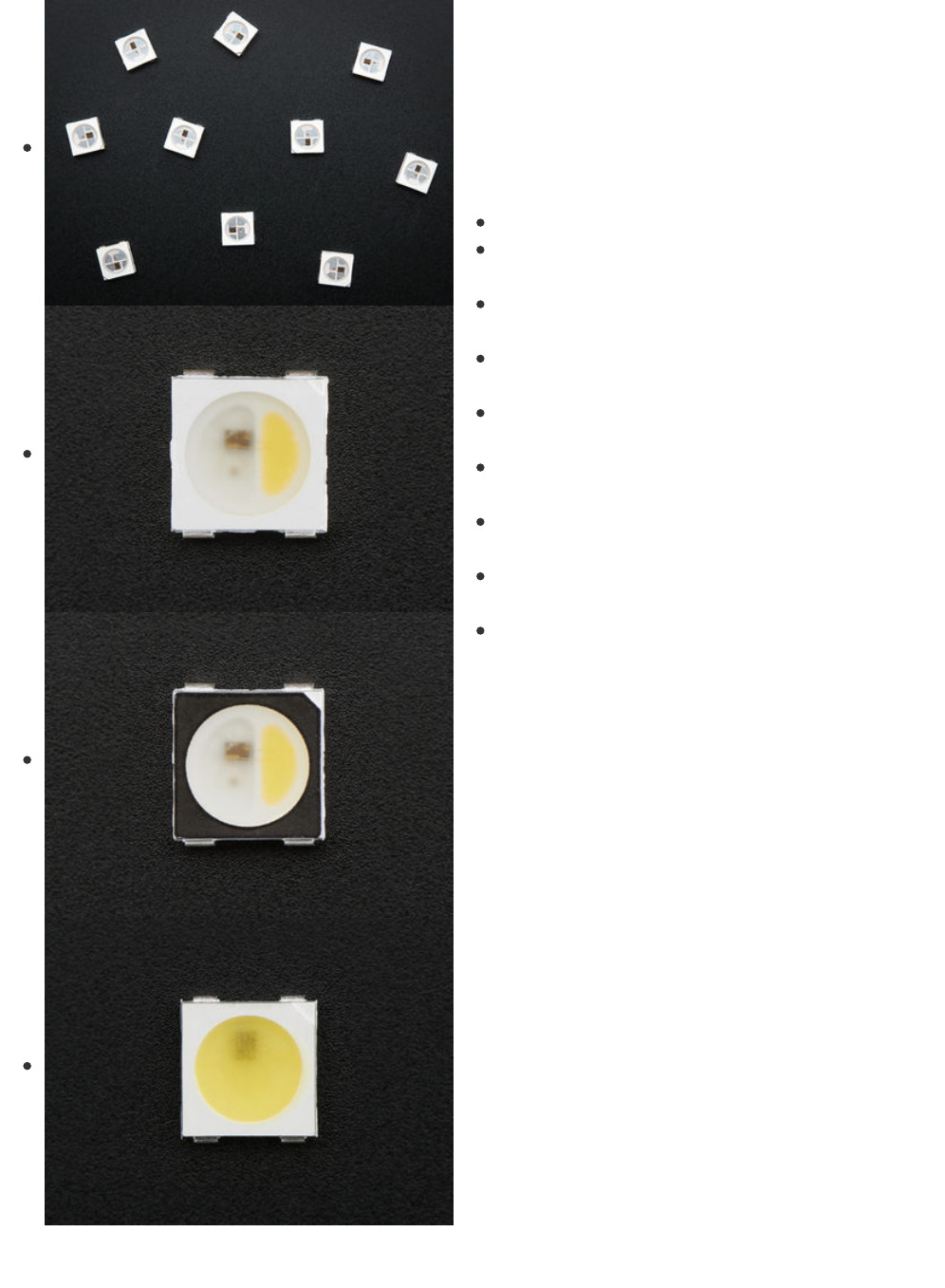

SMT NeoPixels

Surface-mount “5050” (5 millimeter square) NeoPixels are

available in many varieties:

5050 RGB LED (http://adafru.it/1655) – pack of 10.

RGBW NeoPixel – Cool White – white

case (http://adafru.it/2759) – pack of 10.

RGBW NeoPixel – Neutral White –

white case (http://adafru.it/2758) – pack of 10.

RGBW NeoPixel – Warm White –

white case (http://adafru.it/2757) – pack of 10.

RGBW NeoPixel – Cool White –

black case (http://adafru.it/2762) – pack of 10.

RGBW NeoPixel – Neutral White –

black case (http://adafru.it/2761) – pack of 10.

RGBW NeoPixel – Warm White –

black case (http://adafru.it/2760) – pack of 10.

NeoPixel – Cool White (http://adafru.it/2375) (3X white,

no RGB) – pack of 10.

NeoPixel – Warm White (http://adafru.it/2376) (3X

white, no RGB) – pack of 10.

All measure 5 millimeters square. Adding a 0.1 μF capacitor

between + and ground is recommended for each pixel.

The white- and black-cased pixels are functionally identical;

this is purely an

aesthetic

choice for your design.

“Cool white” measures approximately 6000 Kelvin. “Neutral

white” is approx. 4500K. “Warm White” is approx. 3000K.

Tiny surface-mount “3535” (3.5 millimeters square) NeoPixels

are available in two RGB versions; no RGBW is available.

NeoPixel Mini 3535 RGB – white

case (http://adafru.it/2659) – pack of 10.

NeoPixel Mini 3535 RGB – black

case (http://adafru.it/2686) – pack of 10.

Decoupling capacitor recommended. As with the “5050”

NeoPixels, white- and black-cased versions are functionally

identical, this is an aesthetic design option.

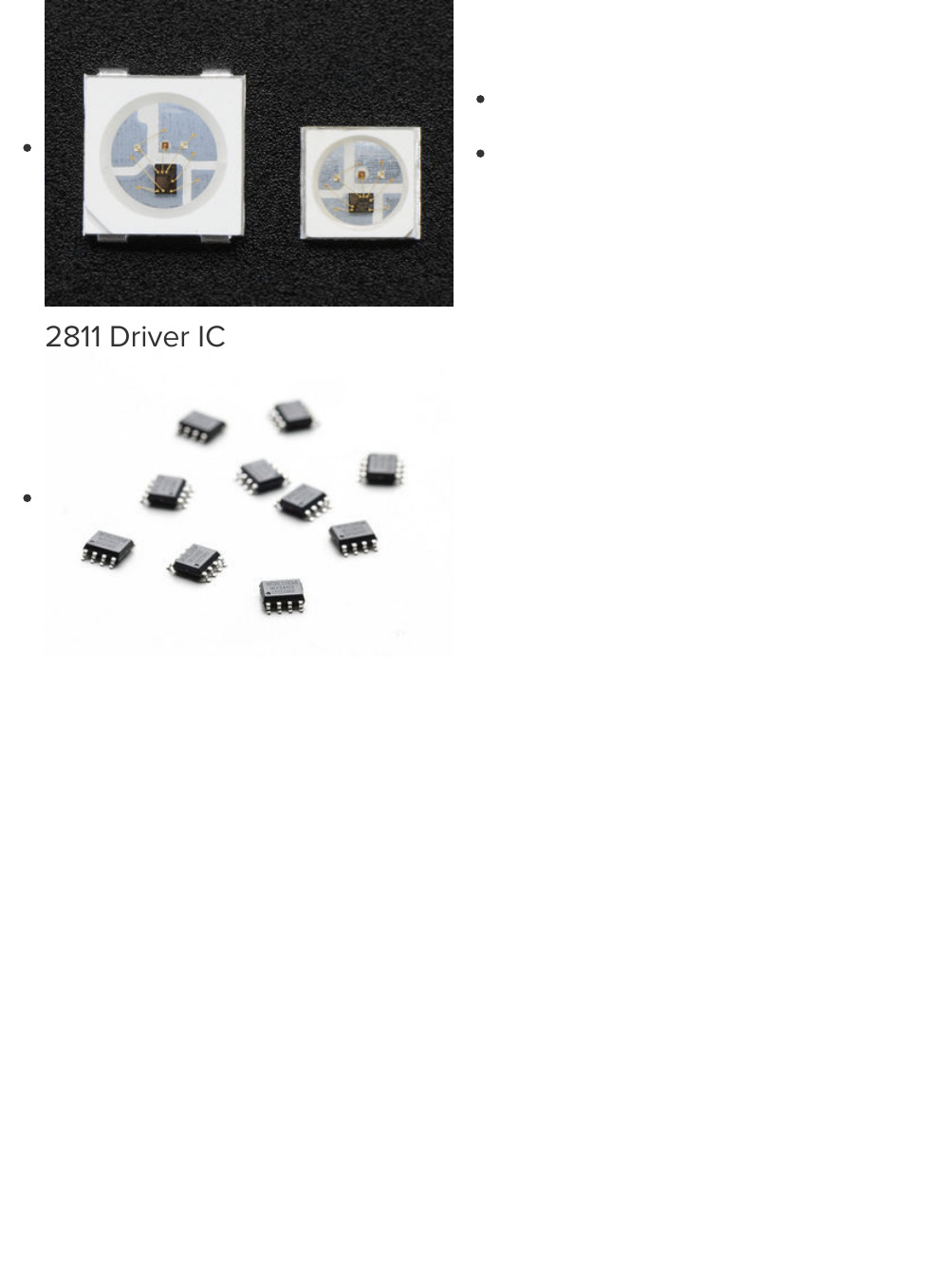

WS2811 Driver IC

The NeoPixel driver logic is available

separately (http://adafru.it/1378) from the LEDs, allowing

power-users to create extremely customized designs…

perhaps using other LED colors, or combined with power

MOSFETs (http://adafru.it/355) to control high-current LEDs or

“analog” RGB LED strips (https://adafru.it/lCy) using the

NeoPixel protocol.

These require circuit design skills, custom PCBs and fine

surface-mount soldering. A 0.1 uF decoupling capacitor is

recommended for each chip.

See note above. Some strips use a different pin order! USB power from computer +5v DC from power supply

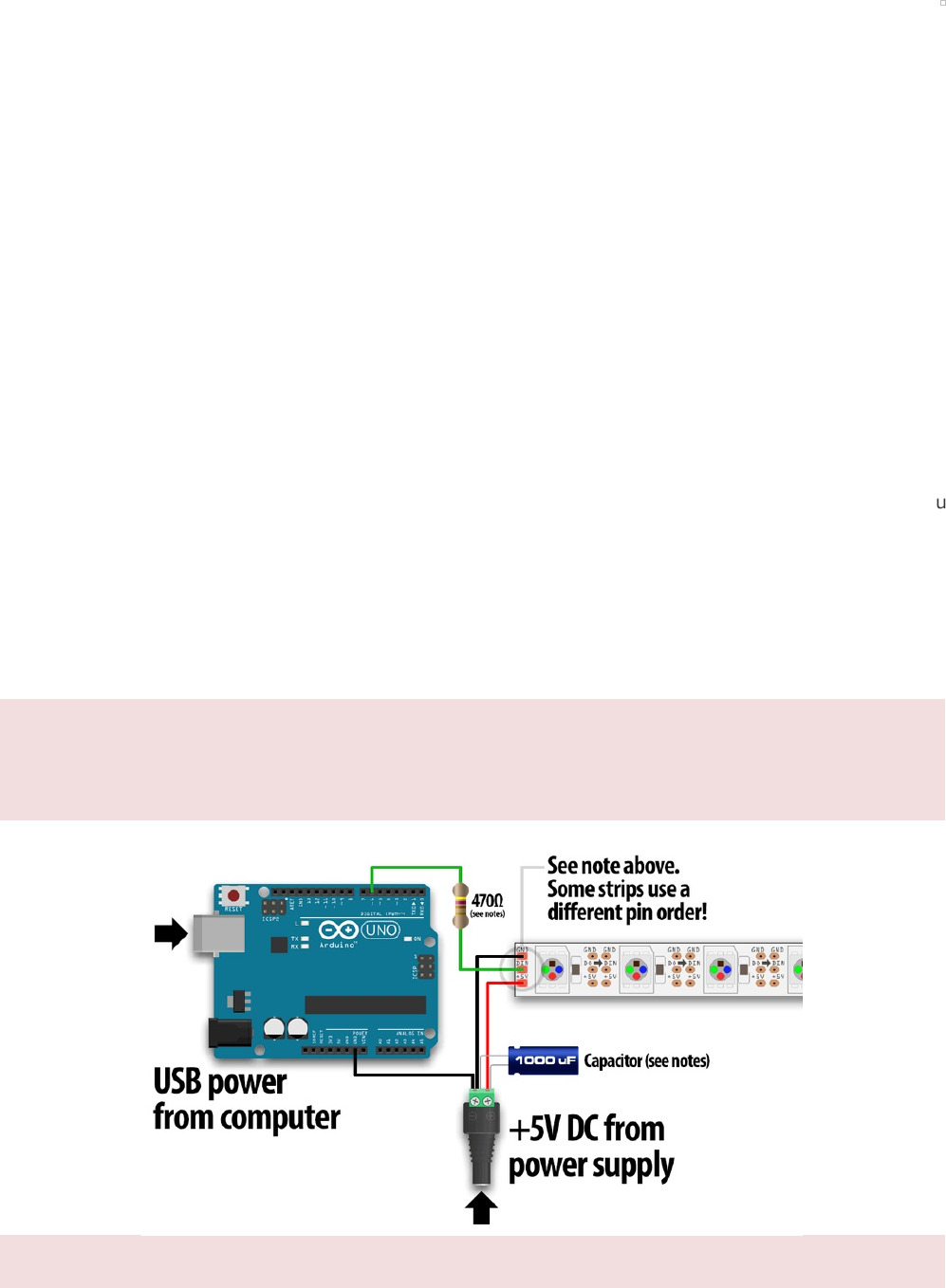

Basic Connections

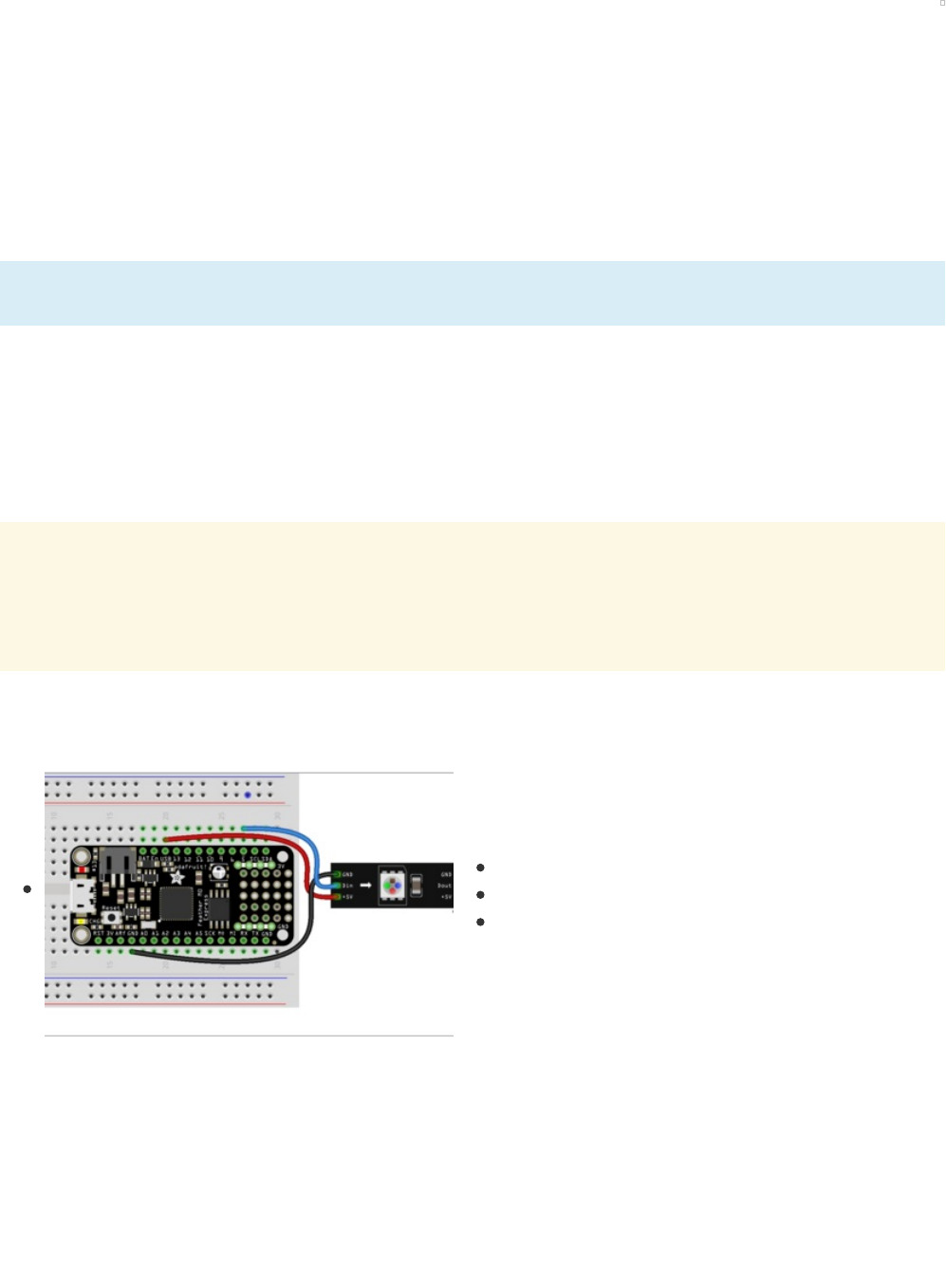

To get started, let’s assume you have some model of Arduino microcontroller connected to the

computer’s USB port. We’ll elaborate on the finer points of powering NeoPixels later, but in general you’ll

usually be using a 5V DC power supply (e.g. “wall wart”) or — for wearable projects — a 3.7 Volt lithium-

polymer battery.

Identify the “input” end of your NeoPixel strip, pixel(s) or other device. On some, there will be a solder pad

labeled “DIN” or “DI” (data input). Others will have an arrow showing the direction that data moves. The

data input can originate from any digital pin on the Arduino, but all the example code is set up for digital

pin 6 by default. The NeoPixel shield comes wired this way.

If using a Flora, Feather or other microcontroller board with an attached lithium-polymer

battery: connect the +5V input on the strip to the pad labeled VBAT or BAT on the board, GND from the

strip to any GND pad on the microcontroller board, and DIN to Flora pin D6. If the board doesn’t have a

pin #6, you’ll need to modify the example code to change the pin number.

For other Arduino boards with a separate +5V DC power supply for the NeoPixels: connect the +5V input

on the strip to the + (positive) terminal on the power supply (don’t connect to the Arduino), DIN to digital

pin 6 on the Arduino, and – (minus or GND) on the strip must connect to both the minus (–) terminal on the

DC supply and a GND pin on the Arduino (there are usually several — any will do).

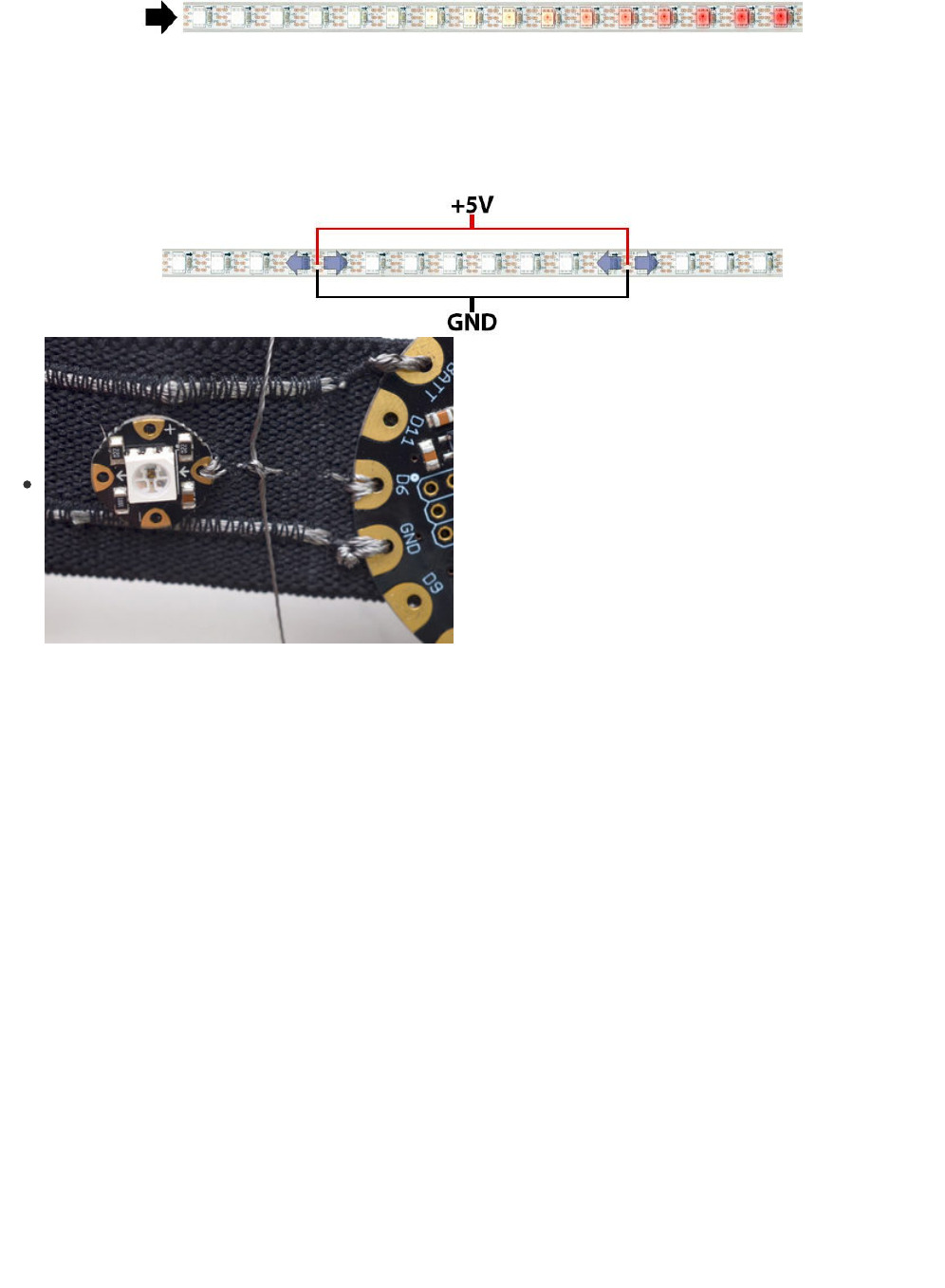

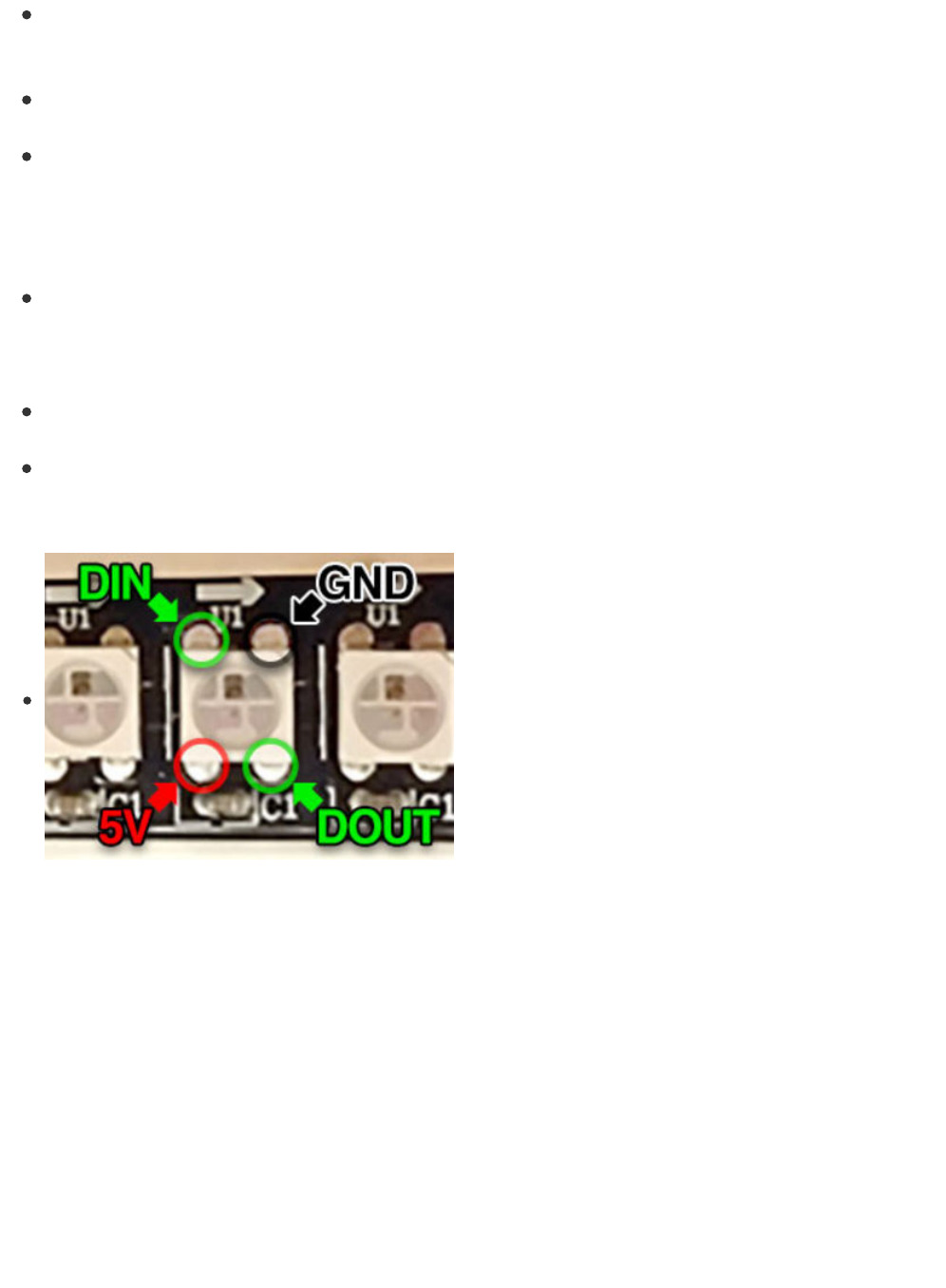

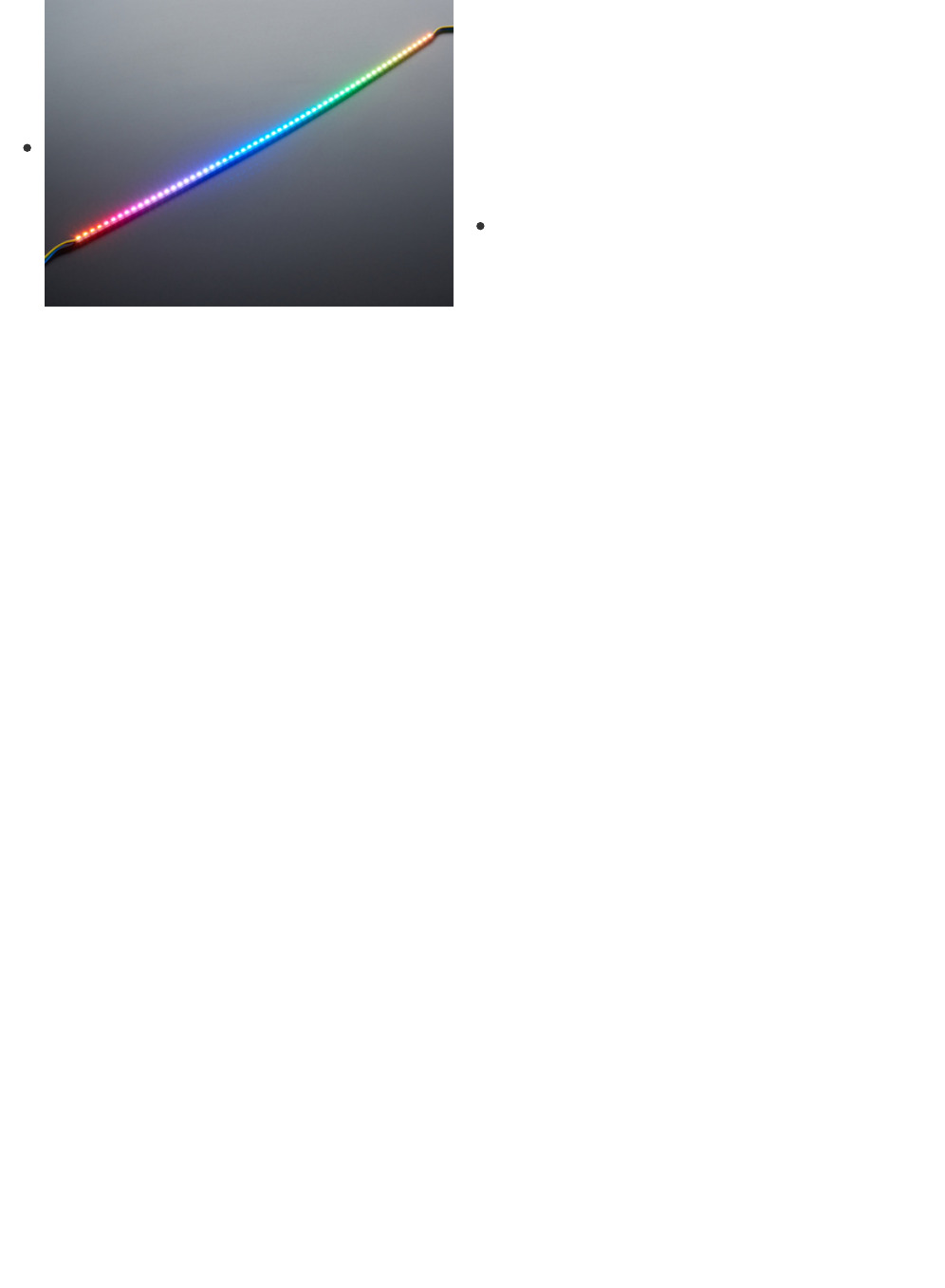

The 144 pixel strips are so tightly packed, there’s no room for labels other than –, + and the data direction

arrows. Data is the un-labeled pad.

 The order of the three pins can vary between different strip densities and batches. ALWAYS use the

labels printed ON THE STRIP. Look closely, NEVER blindly follow a NeoPixel strip wiring diagram; it

might be based on a different strip type!

 When connecting NeoPixels to any LIVE power source or microcontroller, ALWAYS CONNECT

GROUND (–) BEFORE ANYTHING ELSE. Conversely, disconnect ground last when separating.

 When using a DC power supply, or an especially large battery, we recommend adding a large

capacitor (1000 µF, 6.3V or higher) across the + and – terminals. This prevents the initial onrush of

current from damaging the pixels. See the photo on the next page for an example.

 With through-hole NeoPixels (5mm or 8mm), add a 0.1 µF capacitor between the + and – pins of

EACH PIXEL. Individual pixels may misbehave without this “decoupling cap.”

 Adding a ~470 ohm resistor between your microcontroller's data pin and the data input on the

NeoPixels can help prevent spikes on the data line that can damage your first pixel. Please add one

between your micro and NeoPixels! Our NeoPixel rings already have this resistor on there



Can NeoPixels be powered directly from the Arduino’s 5V pin?

Sometimes. The Arduino can continuously supply only about 500 milliamps to the 5V pin. Each NeoPixel

can draw up to 60 milliamps at full brightness. So yes, you can skip the separate DC supply and power

directly off the Arduino

as long as just a few pixels are used,

more if the colors and overall brightness are

low. When in doubt, give the pixels a separate power supply.

ractice use ca owin .:

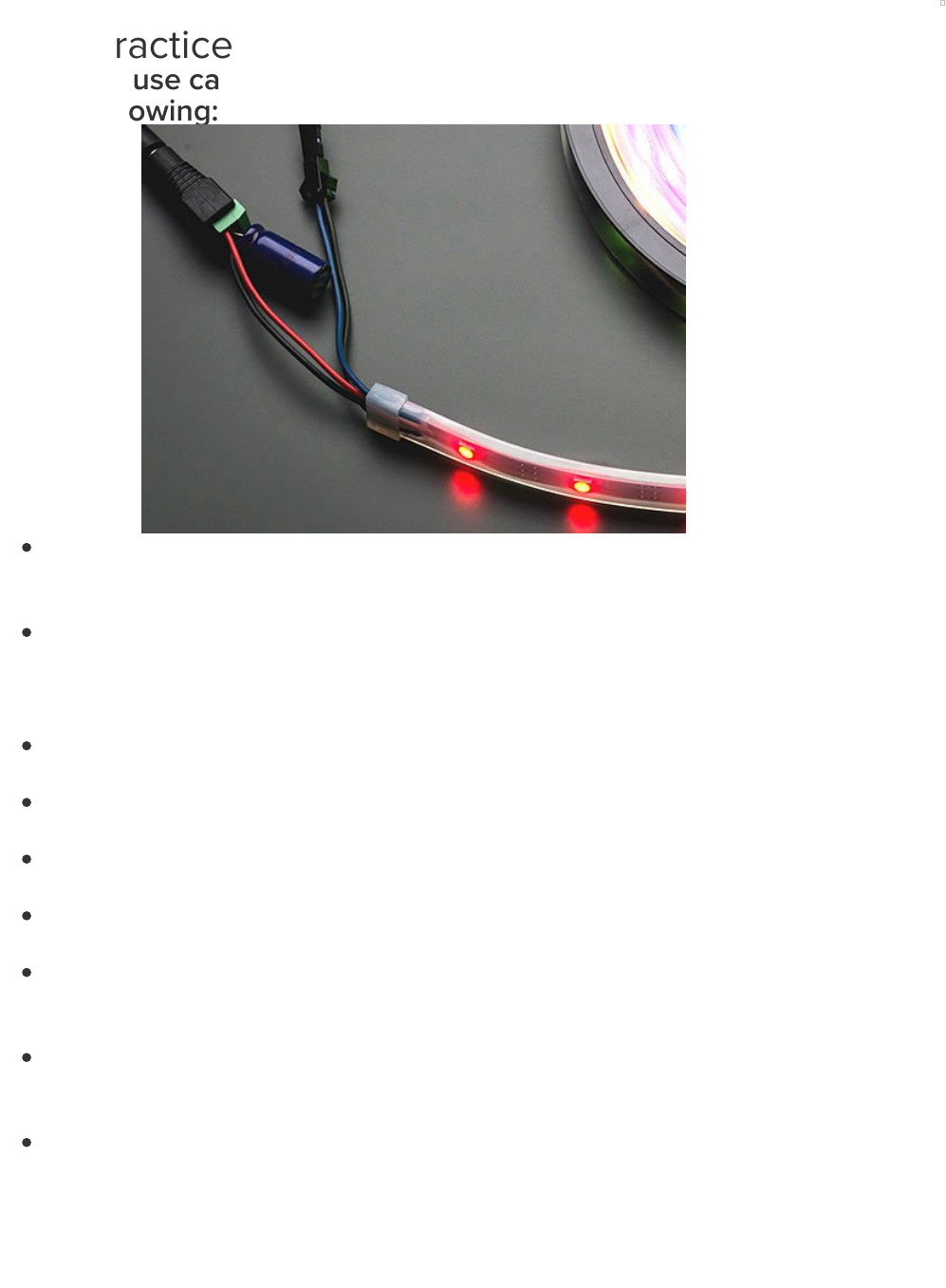

Best Practices

Improper use can damage your NeoPixels. Before diving in, be aware

of the following:

Before connecting NeoPixels to any large power source (DC “wall wart” or even a large battery), add

a capacitor (1000 µF, 6.3V or higher) across the + and – terminals as shown above. The capacitor

buffers sudden changes in the current drawn by the strip.

Place a 300 to 500 Ohm resistor between the Arduino data output pin and the input to the first

NeoPixel. The resistor should be at the end of the wire closest to the NeoPixel(s), not the

microcontroller.

Some products already incorporate this resistor…if you’re not sure, add one…there’s

no harm in doubling up!

Try to minimize the distance between the Arduino and first pixel, so the signal is clear. A meter or

two is usually no problem. Much longer and things can become unreliable.

Avoid connecting NeoPixels to a live circuit. If you simply

must,

always connect ground first, then

+5V, then data. Disconnect in the reverse order.

If powering the pixels with a separate supply, apply power to the pixels before applying power to the

microcontroller.

Observe the same precautions as you would for any static-sensitive part; ground yourself before

handling, etc.

NeoPixels powered by 5v require a 5V data signal. If using a 3.3V microcontroller you must use a

logic level shifter such as a 74AHCT125 (https://adafru.it/e5g) or 74HCT245 (http://adafru.it/1779). (If

you are powering your NeoPixels with 3.7v like from a LiPoly, a 3.3v data signal is OK)

Make sure that your connections are secure. Alligator clips do not make reliable connections to the

tiny solder pads on NeoPixel rings. Better to solder a small pigtail wire to the ring and attach the

alligator clips to that.

If your microcontroller and NeoPixels are powered from two different sources (e.g. separate batteries

for each), there

must

be a ground connection between the two.

Some of our projects don’t make the above precautions…these are typically small battery-powered

devices and power spikes aren’t a big concern. Any project with a lot pixels or a large power

source should definitely include the power capacitor and data line resistor.

not all er voltages are always acceptable, with the ca below which the LED will fail to light, or will sta “\ » ransom 13mm, nmu-mn-zi . uv

Powering NeoPixels

 When connecting NeoPixels to any live power source or microcontroller, ALWAYS CONNECT

GROUND (–) BEFORE ANYTHING ELSE. Conversely, disconnect ground last when separating.

 Adding a 300 to 500 Ohm resistor between your microcontroller's data pin and the data input on the

first NeoPixel can help prevent voltage spikes that might otherwise damage your first pixel. Please

add one between your micro and NeoPixels!

NeoPixels are usually described as “5 Volt devices,” but the reality is a little more nuanced than that.

Some (not all) NeoPixel products can work with slightly higher voltages. This depends on the additional

support components around the chip, based on available space, cost and the most likely application.

Refer to the specific product description page for guidance on acceptable voltage limits for each type.

When in doubt, aim for 5 Volts.

Lower voltages are always acceptable, with the caveat that the LEDs will be slightly dimmer. There’s a

limit below which the LED will fail to light, or will start to show the wrong color.

Before connecting a NeoPixel strip to ANY source of power,

we very strongly recommend adding a large capacitor (1000

µF, 6.3V or higher) across the + and – terminals. This

prevents the initial onrush of current from damaging the

pixels.

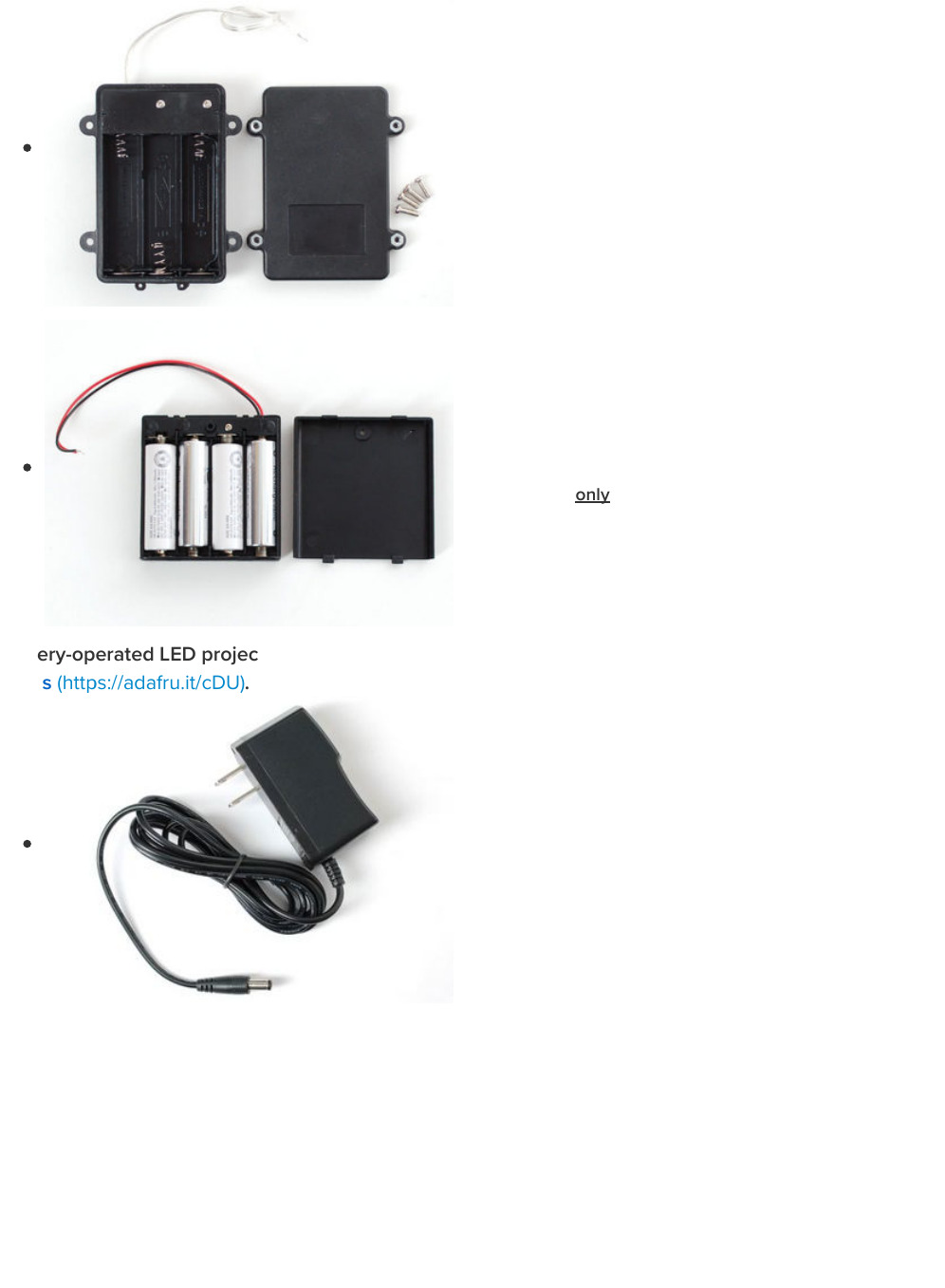

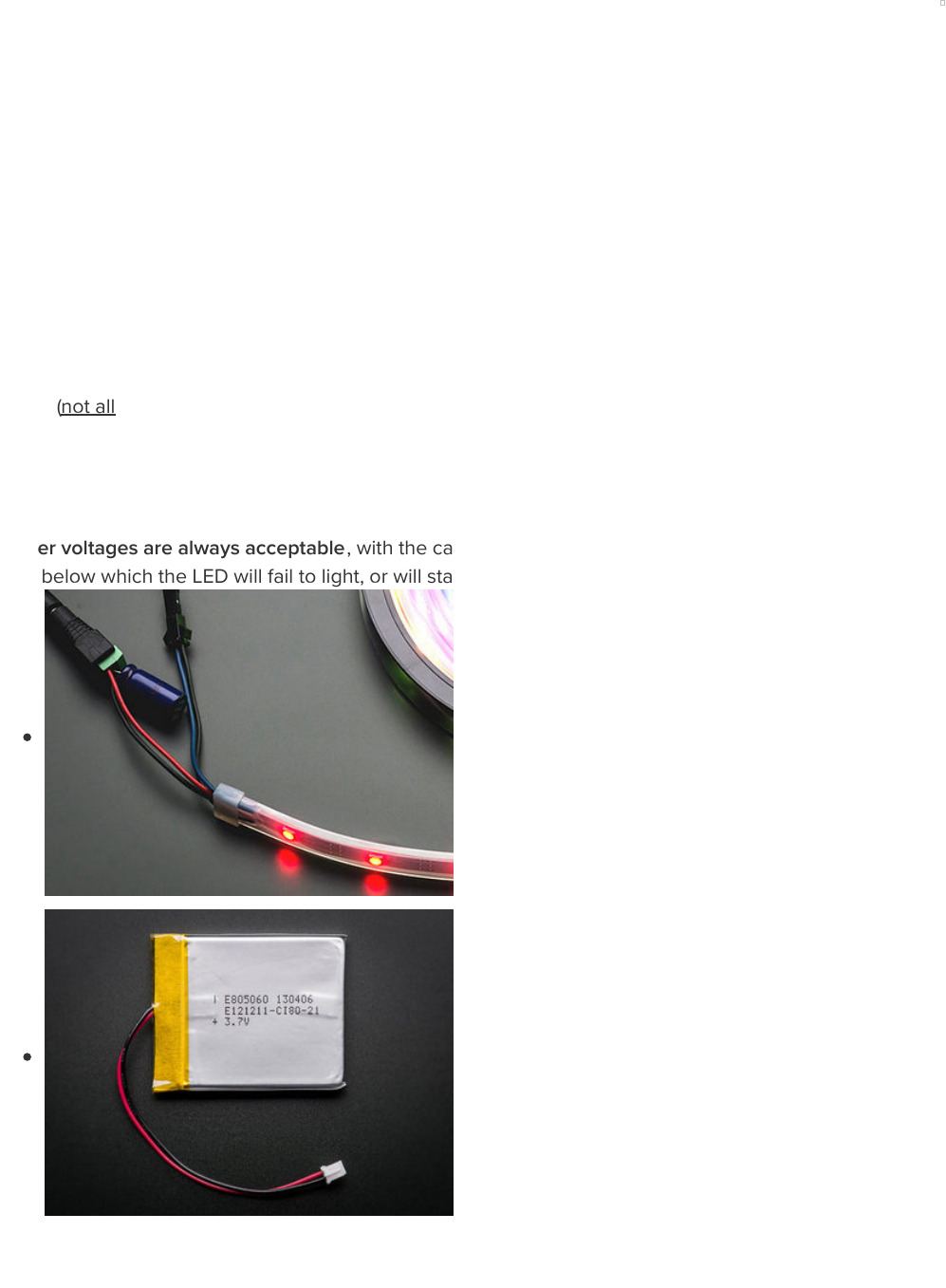

For many wearable projects we recommend a lithium-polymer

battery (http://adafru.it/328). These deliver 3.7 Volts — perfect

for directly feeding low-power microcontrollers such as the

Adafruit Flora, yet enough voltage to run a short length of

NeoPixels.

ery-operated LED projec s (httpSJ/adafrth/CDUL

Three alkaline cells (such as AA batteries) can be installed in a

battery holder (http://adafru.it/771) to provide 4.5 Volts.

Though larger and heaver than the fancy lithium-polymer

pack, they’re inexpensive and readily available.

Four nickel-metal hydride (NiMH) rechargeable cells can

similarly be used in a 4-cell battery holder (http://adafru.it/830)

to provide 4.8 Volts.

Make sure you only use NiMH cells in this configuration. Four

alkaline cells (the disposable type) will output 6V total — that’s

too high for some NeoPixels, and definitely too much for the

microcontroller!

Battery-operated LED project planning is discussed in greater detail in Battery Power for LED Pixels and

Strips (https://adafru.it/cDU).

For most non-portable “desktop” projects, a 5V DC switching

power supply (http://adafru.it/276) is ideal. This small 2 Amp

supply is good for a a meter or so of NeoPixel strip. We’ll

explain larger projects in a moment.

ur power supply is ower supply, and for short periods

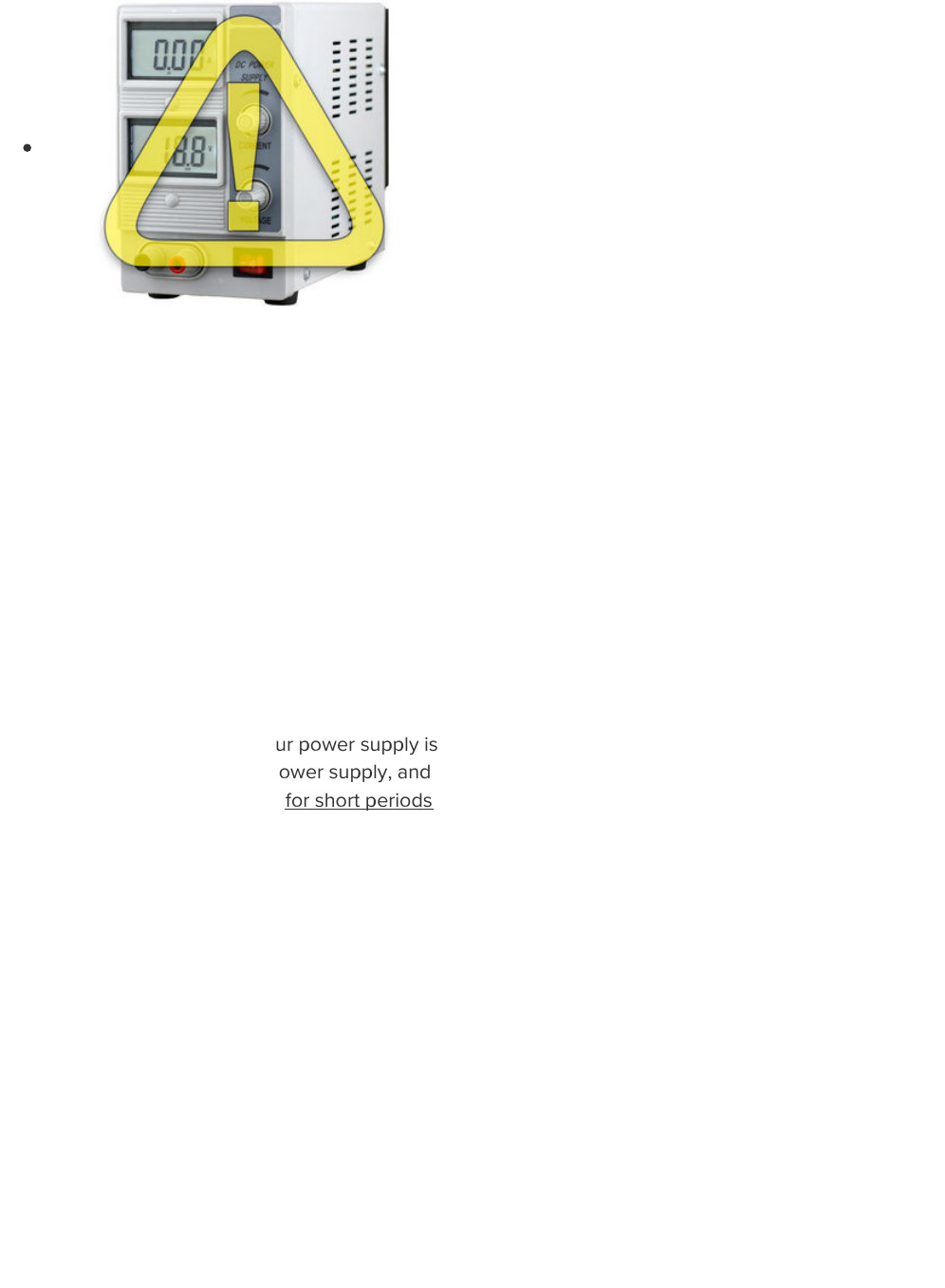

Be extremely cautious with bench power supplies. Some —

even reputable, well-regarded brands — can produce a large

voltage spike when initially switched on, instantly destroying

your NeoPixels!

If you use a bench supply, do not connect NeoPixels directly.

Turn on the power supply first, let the voltage stabilize,

then

connect the pixels (GND first).

Estimating Power Requirements

Each individual NeoPixel draws up to 60 milliamps at maximum brightness white (red + green + blue). In

actual use though, it’s rare for all pixels to be turned on that way. When mixing colors and displaying

animations, the current draw will be much less. It’s impossible to estimate a single number for all

circumstances, but we’ve been using 1/3 this (20 mA per pixel) as a gross rule of thumb with no ill effects.

But if you know for a fact that you need every pixel on at maximum brightness, use the full 60 mA figure.

To estimate power supply needs, multiply the number of pixels by 20, then divide the result by 1,000 for

the “rule of thumb” power supply rating in Amps. Or use 60 (instead of 20) if you want to guarantee an

absolute margin of safety for all situations. For example:

60 NeoPixels × 20 mA ÷ 1,000 = 1.2 Amps minimum

60 NeoPixels × 60 mA ÷ 1,000 = 3.6 Amps minimum

The choice of “overhead” in your power supply is up to you. Maximum safety and reliability are achieved

with a more generously-sized power supply, and this is what we recommend. Most power supplies can

briefly push a little extra current for short periods. Many contain a thermal fuse and will simply shut down if

overworked. So they may technically

work,

but this is the electronics equivalent of abusing a rental car.

Keep in mind, 60 mA is a

worst case

estimate! We’ve written a whole separate tutorial on getting things

under control: Sipping Power with NeoPixels (https://adafru.it/wbm).



I estimate I need a 3.6 Amp power supply. I have a 10 Amp supply on-

hand. Will this cause my NeoPixels to explode?

As long as the output is 5 Volts DC, you’re golden. The LEDs will only draw as much current (Amperes) as

they need. So extra Amps are OK — in fact, it can be a

good

thing. The larger power supply will run cooler

because it’s not being pushed to its limit.

Excessive

voltage,

however, will definitely kill your LEDs.

Extra Amps = good. Extra Volts = bad.



Con to 1 batteries rent over tim for one he have disp discharg at least mong one ut 1701

What about batteries and “Amp hours”?

Amp-hours are current over time. A 2,600 mAh (milliamp-hour) battery can be thought of as delivering 2.6

Amps continuously for one hour, or 1.3 Amps for 2 hours, and so forth. In reality, it’s not quite linear like

that; most batteries have disproportionally shorter run times with a heavy load. Also, most batteries won’t

take kindly to being discharged in an hour — this can even be dangerous! Select a battery sufficiently

large that it will take at least a couple hours to run down. It’s both safer for you and better for the longevity

of the battery.



I need to power LOTS of NeoPixels and don’t have a power supply

that large. Can I use several smaller ones?

Maybe. There are benefits to using a single supply, and large power supplies are discussed below. “Non-

optimal” doesn’t necessarily mean “pessimal” though, and we wouldn’t discourage anyone from using

what resources they have.

If you go this route, the key is to have all of the ground pins among the strips connected in common, but

the +5V from each power supply should be connected only to one length of NeoPixels — those should

not

all be joined. Every power supply is a little different — not

precisely

5 Volts — and this keeps some from

back-feeding into others.

Giant Power Supplies

Adafruit offers 5V DC power supplies up to 10 Amps (http://adafru.it/658). This is usually sufficient for a

couple hundred NeoPixels or more. For

really

large installations, you’ll need to look elsewhere.

One possibility is to repurpose an ATX computer power supply. The nice beefy server types often provide

up to 30 Amps. Some minor modifications are needed…Google around for “ATX power supply hack.”

Note that the ATX 5V rail can be very unstable if there's no load on the 12V rail!

Even larger (and scarier, and much more expensive) are laboratory power supplies with ratings into the

hundreds

of Amps. Sometimes this is what’s needed for architectural scale projects and large stage

productions. And occasionally we get requests for help…

Please note that projects of this scale are potentially very dangerous , and the problems of power

distribution are fundamentally different than hobby-scale projects. As much as we enjoy helping our

customers in the forums, they are for

product technical support

and not full-on

engineering services.

you’re developing a project of this scope, hire a professional electrician with experience in high-power,

low-voltage systems such as photovoltaics or large RVs and boats. This is no charade.

Distributing Power

The longer a wire is, the more resistance it has. The more resistance, the more voltage drops along its

length. If voltage drops too far, the color of NeoPixels can be affected.

Consider a full 4 meter reel of NeoPixels. With 5V applied at one end of the strip, for those pixels closest

to this end, power traverses only a few inches of copper. But at the far end of the strip, power traverses

meters

of copper — 4 meters out on the +5V line, 4 meters back on the ground line. Those furthest pixels

will be tinted brown due to the voltage drop (blue and green LEDs require higher voltage than red).

.u M .;

Pro Tip: NeoPixels don’t care what end they receive power from. Though data moves in only one

direction, electricity can go

either way.

You can connect power at the head, the tail, in the middle, or

ideally distribute it to several points. For best color consistency, aim for 1 meter or less distance from any

pixel to a power connection. With larger NeoPixel setups, think of power distribution as branches of a tree

rather than one continuous line.

Resistance is just as much a concern on tiny projects too!

For wearable electronics we like conductive thread…it’s

flexible and withstands hand washing. Downside is that it

doesn’t carry much current. Here several strands of

conductive thread have been grouped to provide better

capacity for the + and – conductors down a pair of

suspenders.

(From the Pac Man Pixel Suspenders (https://adafru.it/ciD)

guide.)

Driving 5V NeoPixels from 3.3V Microcontrollers

Increasingly, microcontrollers are running at 3.3 Volts instead of 5 Volts. That’s great news for efficiency,

but can present a communication problem with 5V NeoPixels. The 3.3V signal from the microcontroller

may not be “loud” enough to register with the higher-voltage device. The manufacturer recommends a

minimum signal voltage of 70% of the NeoPixel voltage.

There are two ways this can be addressed:

1. Lower the voltage to the NeoPixels so it’s closer (or equal) to that of the microcontroller. This is why

we recommend LiPo batteries for FLORA projects: 3.7V is enough to run a short length of pixels, and

the microcontroller is comfortable at that voltage as well.

2. Use a logic level shifter (https://adafru.it/e5g) to step up the signal from the microcontroller to the first

pixel.

For more info on using a level shifter with your NeoPixels, have a look at this guide. (https://adafru.it/FXc)

Software

NeoPixels got their start on Arduino, but have since branched out to other boards and languages.

Pick a category from the left column for information specific to each coding environment.

W M» [ All :] mm [ ml :] INmexal mm nun-m Iv mm Versm um mums mimmhh-nlvul h-mIl—mmmnmunm “lawn! ana M mm m an»... m mm. V-nm m: 1mm u... may mum-u LII-mum)“ nu mu. mm mm hymn. was.“ La: nu... n m um". 1.0.6 = mmmlﬂlﬂm a.- mum m .m- m mum nun-o sum (mu-um use Mus m mm In In an mm: m («mum mm mm “mm"... r», a...“ A... may m my mm a no m1; what. u... mm mm. Inw. n was xiv mm mm «my. .n rue-w. u was. mm mm m um mnrsmmn San Harms m um! \wnuw mu m htlsz/adafm. l/cDj

Arduino Library Installation

Controlling NeoPixels “from scratch” is quite a challenge, so we provide a library letting you focus on the

fun and interesting bits. The library works with most mainstream Arduino boards and derivatives: Uno,

Mega, Leonardo, Micro, Adafruit Flora, etc. — most anything with an Atmel AVR 8-bit processor from 8 to

16 MHz — and also works with the Arduino Due and all varieties of the PJRC Teensy boards.

Because processor-specific assembly language is used, this library does not work on Netduino, ChipKIT

or other advanced “Arduino-like” boards. Others may have written code and libraries for such boards, but

we’re not able to provide technical support for any bugs or trouble you might encounter there; it’s some

real frontier engineering. Some of these alternative libraries are covered in the “Advanced Coding”

section.

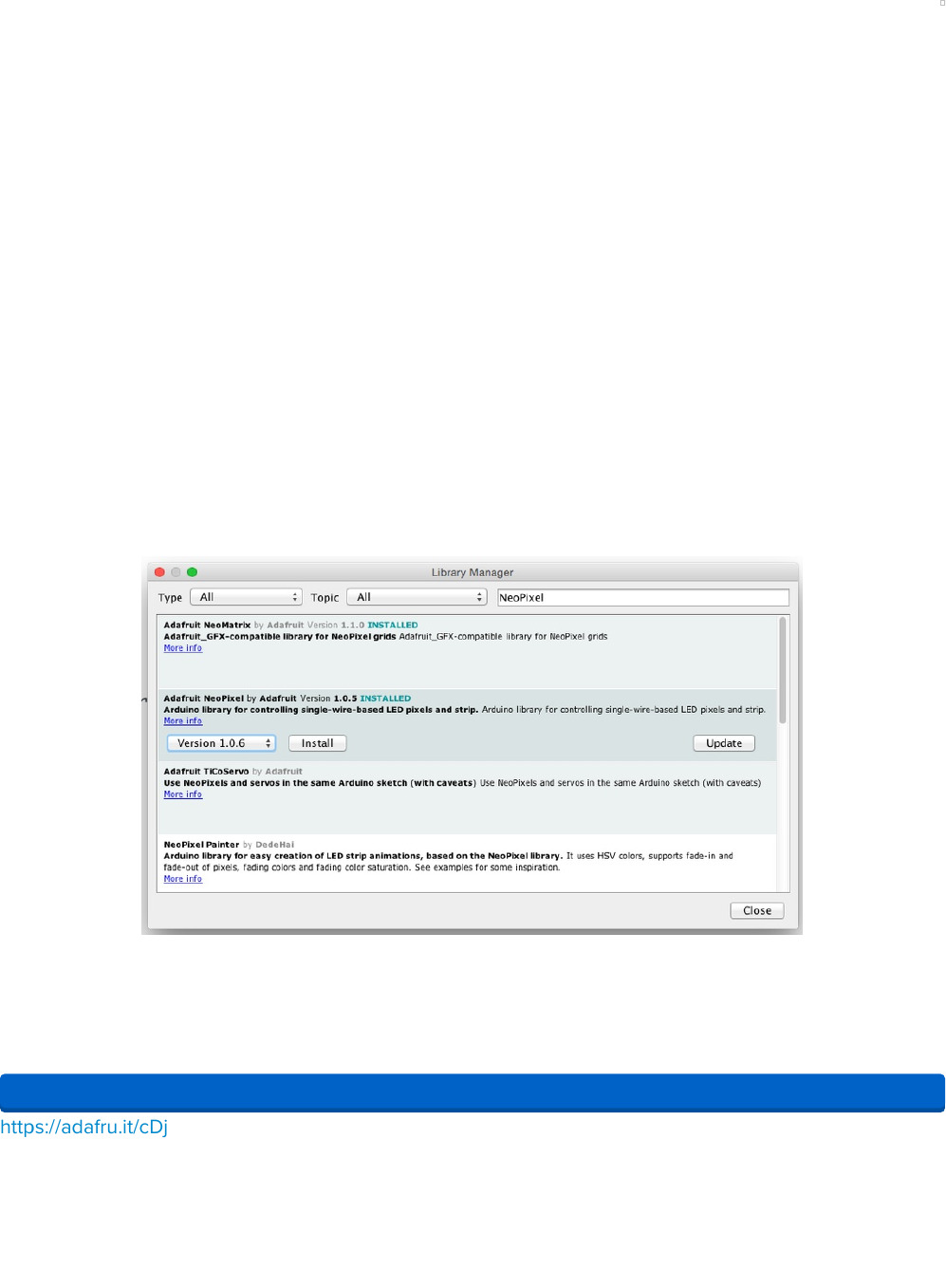

Install Adafruit_NeoPixel via Library Manager

Recent versions of the Arduino IDE (1.6.2 and later) make library installation super easy via the Library

Manager interface. From the Sketch menu, > Include Library > Manage Libraries... In the text input box

type in "NeoPixel". Look for "Adafruit NeoPixel by Adafruit" and select the latest version by clicking on

the popup menu next to the Install button. Then click on the Install button. After it's installed, you can click

the "close" button.

Manually Install Adafruit_NeoPixel Library

If you’re using an older version of the IDE, or just want to set things up manually, “classic” installation of

the library is as follows: you can visit the Adafruit_NeoPixel library page (https://adafru.it/aZU) at Github

and download from there, or just click this button:

https://adafru.it/cDj

1. Uncompress the ZIP file after it’s finished downloading.

2. The resulting folder should contain the files Adafruit_NeoPixel.cpp, Adafruit_NeoPixel.h and an

“examples” sub-folder. Sometimes in Windows you’ll get an intermediate-level folder and need to

move things around.

3. Rename the folder (containing the .cpp and .h files) to Adafruit_NeoPixel (with the underscore and

https://adafru.it/cDj

everything), and place it alongside your other Arduino libraries, typically in your (home

folder)/Documents/Arduino/Libraries folder. Libraries should

never

be installed in the “Libraries”

folder alongside the Arduino application itself…put them in the subdirectory of your home folder.

4. Re-start the Arduino IDE if it’s currently running.

Here’s a tutorial (https://adafru.it/aYM) that walks through the process of correctly installing Arduino

libraries manually.

A Simple Code Example: strandtest

Launch the Arduino IDE. From the File menu,

select Sketchbook→Libraries→Adafruit_NeoPixel→strandtest

(If the Adafruit_NeoPixel rollover menu is not present, the library has not been correctly installed, or the

IDE needs to be restarted after installation. Check the installation steps above to confirm it’s properly

named and located.)

Select your board type and serial port from the Tools menu, and try uploading to the board. If the

NeoPixels are connected and powered as previously described, you should see a little light show.



Nothing happens!

Check your connections. The most common mistake is connecting to the output end of a strip rather than

the input.



Something happens but the LEDs are blinking in a weird way!

If you are using an RGBW NeoPixel product (look at the LEDs, are they divided in half with a yellow

semicircle? You have RGBW Neopixels!)

Change this line:

Adafruit_NeoPixel strip(LED_COUNT, LED_PIN, NEO_GRB + NEO_KHZ800);

Adafruit_NeoPixel strip(LED_COUNT, LED_PIN, NEO_RGBW + NEO_KHZ800);

and reupload the strandtest example.



I don't have RGBW LEDs and the LEDs are still blinking weird!

99% of the time this is due to not having a shared ground wire connected to the Arduino. Make sure the

Ground wire from the Neopixels connects to BOTH your power supply ground AND the Arduino ground.

Arduino Library Use

Doxygen-generated documentation for the Adafruit_NeoPixel library is available

here. (https://adafru.it/Etk)

It’s assumed at this point that you have the Adafruit_NeoPixel library for Arduino installed and have run

the strandtest example sketch successfully. If not, return to the prior page for directions to set that up.

To learn about writing your own NeoPixel sketches, let’s begin by dissecting the strandtest sketch…

All NeoPixel sketches begin by including the header file:

#include <Adafruit_NeoPixel.h>

The block of code that follows is mostly descriptive comments. Only a couple lines are really doing any

work:

// Which pin on the Arduino is connected to the NeoPixels?

// On a Trinket or Gemma we suggest changing this to 1:

#define LED_PIN 6

// How many NeoPixels are attached to the Arduino?

#define LED_COUNT 60

// Declare our NeoPixel strip object:

Adafruit_NeoPixel strip(LED_COUNT, LED_PIN, NEO_GRB + NEO_KHZ800);

// Argument 1 = Number of pixels in NeoPixel strip

// Argument 2 = Arduino pin number (most are valid)

// Argument 3 = Pixel type flags, add together as needed:

// NEO_KHZ800 800 KHz bitstream (most NeoPixel products w/WS2812 LEDs)

// NEO_KHZ400 400 KHz (classic 'v1' (not v2) FLORA pixels, WS2811 drivers)

// NEO_GRB Pixels are wired for GRB bitstream (most NeoPixel products)

// NEO_RGB Pixels are wired for RGB bitstream (v1 FLORA pixels, not v2)

// NEO_RGBW Pixels are wired for RGBW bitstream (NeoPixel RGBW products)

The first few lines assign numbers to the symbols “LED_PIN” and “LED_COUNT” for later reference. It

doesn’t

need

to be done this way, but makes it easier to change the pin and length where the NeoPixels

are connected without digging deeper into the code.

The last line declares a NeoPixel

object.

We’ll refer to this by name later to control the strip of pixels.

There are three parameters or

arguments

in parenthesis:

1. The number of sequential NeoPixels in the strip. In the example this is set to LED_COUNT, which was

defined as 60 above, equal to 1 meter of medium-density strip. Change this to match the actual

number you’re using.

2. The pin number to which the NeoPixel strip (or other device) is connected. Normally this would be a

number, but we previously declared the symbol LED_PIN to refer to it by name here.

3. A value indicating the type of NeoPixels that are connected. In most cases you can leave this off and

pass just two arguments; the example code is just being extra descriptive. If you have a supply of

classic “V1” Flora pixels, those require NEO_KHZ400 + NEO_RGB to be passed here. RGBW

NeoPixels also require a different value here: NEO_RGBW.

 For through-hole 8mm NeoPixels, use NEO_RGB instead of NEO_GRB in the strip declaration. For

RGBW LEDs use NEO_RGBW (some RGBW strips use NEO_GRBW, so try that if you're getting

unexpected results!)

Then, in the setup() function, call begin() to prepare the data pin for NeoPixel output:

void setup() {

strip.begin();

strip.show(); // Initialize all pixels to 'off'

}

The second line, strip.show(), isn’t absolutely necessary, it’s just there to be thorough. That function

pushes data out to the pixels…since no colors have been set yet, this initializes all the NeoPixels to an

initial “off” state in case some were left lit by a prior program.

 The Adafruit Trinket 5V 16 MHz board requires a little extra setup. You can see the steps required in

the “strandtest” example sketch.

In the strandtest example, loop() doesn’t set any pixel colors on its own — it calls other functions that

create animated effects. So let’s ignore it for now and look ahead, inside the individual functions, to see

how the strip is controlled.

There are a couple different ways to set the color of a pixel. The first is:

strip.setPixelColor(n, red, green, blue);

or, if you're using RGBW strips:

strip.setPixelColor(n, red, green, blue, white);

The first argument — n in this example — is the pixel number along the strip, starting from 0 closest to the

Arduino. If you have a strip of 30 pixels, they’re numbered 0 through 29. It’s a computer thing. You’ll see

various places in the code using a for loop, passing the loop counter variable as the pixel number to this

function, to set the values of multiple pixels.

The next three arguments are the pixel color, expressed as red, green and blue brightness levels, where 0

is dimmest (off) and 255 is maximum brightness. The last

optional

argument is for white, which will only be

used if the strip was defined during creation as an RGBW type and the strip actually is RGBW type.

To set the 12th pixel (#11, counting from 0) to magenta (red + blue), you could write:

strip.setPixelColor(11, 255, 0, 255);

to set the 8th pixel (#7 counting from 0) to half-brightness white (with an RGBW strip), with no light from

red/green/blue, use:

strip.setPixelColor(7, 0, 0, 0, 127);

An alternate syntax has just two arguments:

strip.setPixelColor(n, color);

Here, color is a 32-bit type that merges the red, green and blue values into a single number. This is

sometimes easier or faster for some (but not all) programs to work with; you’ll see the strandtest code

uses both syntaxes in different places.

You can also convert separate red, green and blue values into a single 32-bit type for later use:

uint32_t magenta = strip.Color(255, 0, 255);

Then later you can just pass “magenta” as an argument to setPixelColor rather than the separate red,

green and blue numbers every time.

You can also (optionally) add a white component to the color at the end, like this:

uint32_t greenishwhite = strip.Color(0, 64, 0, 64);

setPixelColor() does not have an immediate effect on the LEDs. To “push” the color data to the strip, call

show():

strip.show();

This updates the whole strip at once, and despite the extra step is actually a good thing. If every call to

setPixelColor() had an immediate effect, animation would appear jumpy rather than buttery smooth.

Multiple pixels can be set to the same color using the fill() function, which accepts one to three arguments.

Typically it’s called like this:

strip.fill(color, first, count);

“color” is a packed 32-bit RGB (or RGBW) color value, as might be returned by strip.Color(). There is no

option here for separate red, green and blue, so call the Color() function to pack these into one value.

“first” is the index of the first pixel to fill, where 0 is the first pixel in the strip, and strip.numPixels() - 1 is the

last. Must be a positive value or 0.

“count” is the number of pixels to fill. Must be a positive value.

If called without a

count

argument (only color and first), this will from

first

to the end of the strip.

If called without

first

count

arguments (only color), the full strip will be set to the requested color.

If called with

arguments, the strip will be filled with black or “off,” but there’s also a different syntax

which might be easier to read:

strip.clear();

You can query the color of a previously-set pixel using getPixelColor():

uint32_t color = strip.getPixelColor(11);

This returns a 32-bit merged RGB color value. This is always RGB, even if the “ColorHSV()” function

(described below) was used.

The number of pixels in a previously-declared strip can be queried using numPixels():

uint16_t n = strip.numPixels();

The overall brightness of all the LEDs can be adjusted using setBrightness(). This takes a single argument,

a number in the range 0 (off) to 255 (max brightness). For example, to set a strip to 1/4 brightness:

strip.setBrightness(64);

Just like setPixel(), this does not have an immediate effect. You need to follow this with a call to show().

setBrightness() was intended to be called

once,

in setup(), to limit the current/brightness of the LEDs

throughout the life of the sketch. It is

not

intended as an animation effect itself! The operation of this

function is “lossy” — it modifies the current pixel data in RAM, not in the show() call — in order to meet

NeoPixels’ strict timing requirements. Certain animation effects are better served by leaving the

brightness setting at the default maximum, modulating pixel brightness in your own sketch logic and

redrawing the full strip with setPixel().

HSV (Hue-Saturation-Value) Colors…

The NeoPixel library has some support for colors in the “HSV” (hue-saturation-value) color space. This is a

different way of specifying colors than the usual RGB (red-green-blue). Some folks find it easier or more

“natural” to think about…or quite often it’s just easier for certain color effects (the popular rainbow cycle

and such).

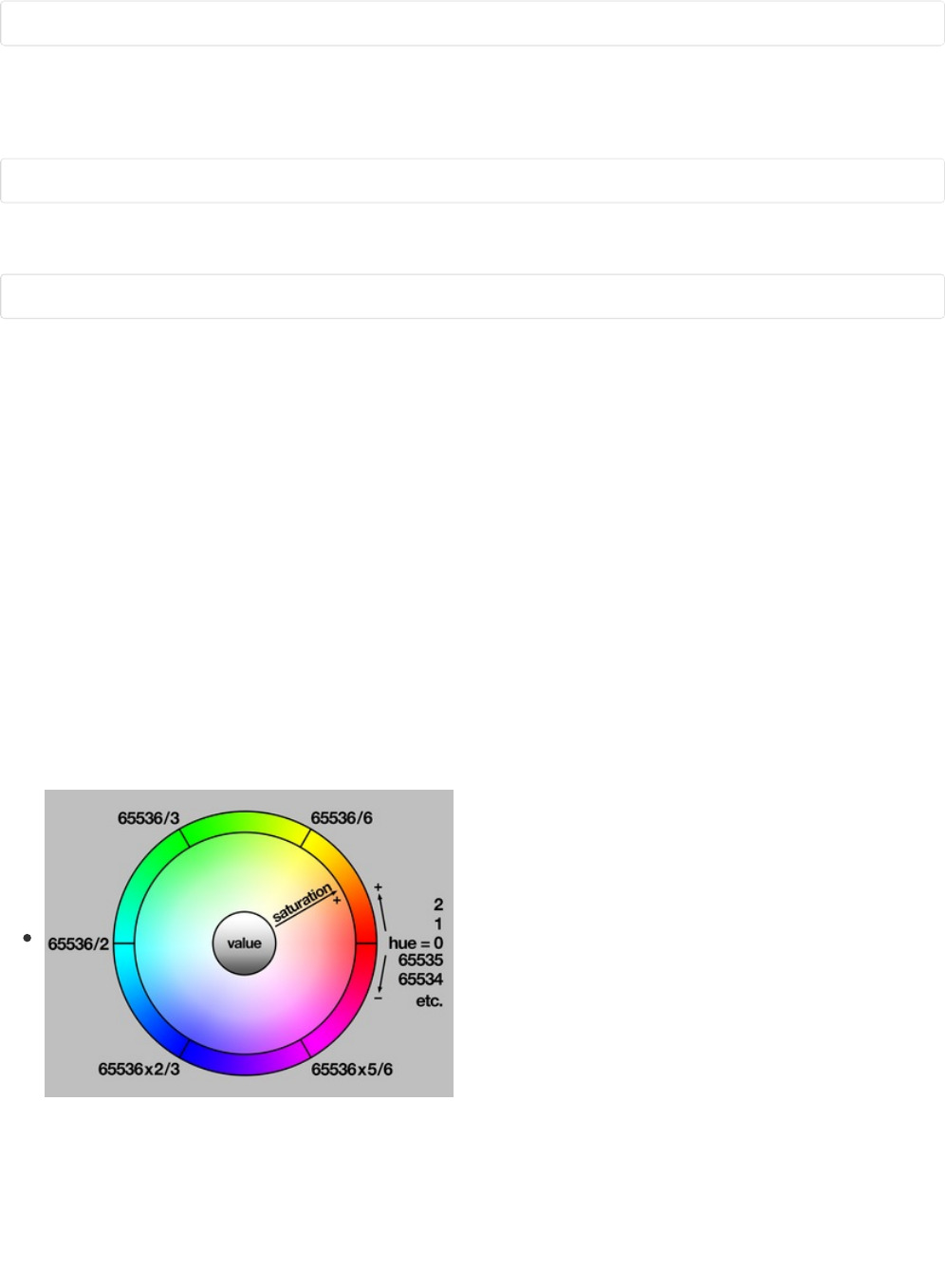

In the NeoPixel library,

hue

is expressed as a 16-bit number.

Starting from 0 for red, this increments first toward yellow

(around 65536/6, or 10922 give or take a bit), and on through

green, cyan (at the halfway point of 32768), blue, magenta

and back to red. In your own code, you can allow any hue-

related variables to

overflow

underflow

and they’ll “wrap

around” and do the correct and expected thing, it’s really

nice.

Saturation

determines the intensity or purity of the color…this

is an 8-bit number ranging from 0 (no saturation, just

grayscale) to 255 (maximum saturation, pure hue). In the

middle, you’ll start to get sort of pastel tones.

Value

determines the brightness of a color…it’s also an 8-bit

number ranging from 0 (black, regardless of hue or saturation)

to 255 (maximum brightness).

setPixelColor() and fill() both still want RGB values though, so we convert to these from HSV by using the

ColorHSV() function:

The des for

uint32_t rgbcolor = strip.ColorHSV(hue, saturation, value);

If you just want a “pure color” (fully saturated and full brightness), the latter two arguments can be left off:

uint32_t rgbcolor = strip.ColorHSV(hue);

In either case, the resulting RGB value can then be passed to a pixel-setting function, e.g.:

strip.fill(rgbcolor);

There is

corresponding function to go the other way , from RGB to HSV. This is on purpose and by

design, because conversion in that direction is often ambiguous — there may be multiple valid possibilities

for a given input. If you look at some of the example sketches you’ll see they

keep track of their own

hues

…they

don’t

assign colors to pixels and then try to read them back out again.

…and Gamma Correction

Something you might observe when working with more nuanced color changes is that things may appear

overly bright or washed-out. It’s generally not a problem with simple primary and secondary colors, but

becomes more an issue with blends, transitions, and the sorts of pastel colors you might get from the

ColorHSV() function.

Numerically

the color values are correct, but

perceptually

our eyes make something

different of it, as explained in this guide (https://adafru.it/w2B).

The gamma32() function takes a packed RGB value (as you might get out of Color() or ColorHSV()) and

filters the result to look more perceptually correct.

uint32_t rgbcolor = strip.gamma32(strip.ColorHSV(hue, sat, val));

You might notice in strandtest and other example sketches that we

never

use ColorHSV()

without

passing

the result through gamma32() before setting a pixel’s color. It’s that desirable.

However, the gamma32 operation is

not built in

to ColorHSV() — it must be called as a separate operation

— for a few reasons, including that advanced programmers might want to provide a more specific color-

correction function of their own design (gamma32() is a “one size fits most” approximation) or may need to

keep around the original “numerically but not perceptually correct” numbers.

There is no corresponding reverse operation.

When you set a pixel to a color filtered through gamma32(),

reading back the pixel value yields that filtered color,

not

the original RGB value. It’s precisely because of

this sort of decimation that advanced NeoPixel programs often treat the pixel buffer as a

write-only

resource…they generate each full frame of animation based on their own program state,

not

as a series of

read-modify-write operations.

Help!



I’m calling setPixel() but nothing’s happening!

There are two main culprits for this:

1. forgetting to call strip.begin() in setup().

2. forgetting to call strip.show() after setting pixel colors.

Another (less common) possibility is running out of RAM — see the last section below. If the program

sort

works but has unpredictable results, consider that.



Can I have multiple NeoPixel objects on different pins?

Certainly! Each requires its own declaration with a unique name:

Adafruit_NeoPixel strip_a = Adafruit_NeoPixel(16, 5);

Adafruit_NeoPixel strip_b = Adafruit_NeoPixel(16, 6);

The above declares two distinct NeoPixel objects, one each on pins 5 and 6, each containing 16 pixels and

using the implied default type (NEO_KHZ800 + NEO_GRB).



Can I connect multiple NeoPixel strips to the same Arduino pin?

In many cases, yes. All the strips will then show exactly the same thing. This only works up to a point

though…four strips on a single pin is a good and reliable number. If you need more than that, individual

NeoPixels can be used as buffers to “fan out” to more strips: connect one Arduino pin to the inputs of four

separate NeoPixels, then connect each pixels’ output to the inputs of four strips (or fewer, if you don’t

need quite that many). If the strips are 10 pixels long, declare the NeoPixel object as having 11 pixels. The

extra “buffer” pixels will be at position #0 — just leave them turned off — and the strips then run from

positions 1 through 10.



I'm getting the wrong colors. Red and blue are swapped!

When using through-hole 8mm NeoPixels (or V1 Flora pixels), use NEO_RGB for the third parameter in the

Adafruit_NeoPixel declaration. For all other types of NeoPixels, use NEO_GRB.



The colors fall apart when I use setBrightness() repeatedly!

See note above; setBrightness() is designed as a one-time setup function, not an animation effect.

Also see the “Advanced Coding” page — there’s an alternative library that includes “nondestructive”

brightness adjustment, among other features!

Pixels Gobble RAM

Each NeoPixel requires about 3 bytes of RAM. This doesn’t sound like very much, but when you start

using dozens or even hundreds of pixels, and consider that the mainstream Arduino Uno only has 2

kilobytes of RAM (often much less after other libraries stake their claim), this can be a real problem!

For using really large numbers of LEDs, you might need to step up to a more potent board like the

Arduino Mega or Due. But if you’re close and need just a little extra space, you can sometimes tweak your

code to be more RAM-efficient. This tutorial has some pointers on memory usage. (https://adafru.it/coj)

a“ three headers

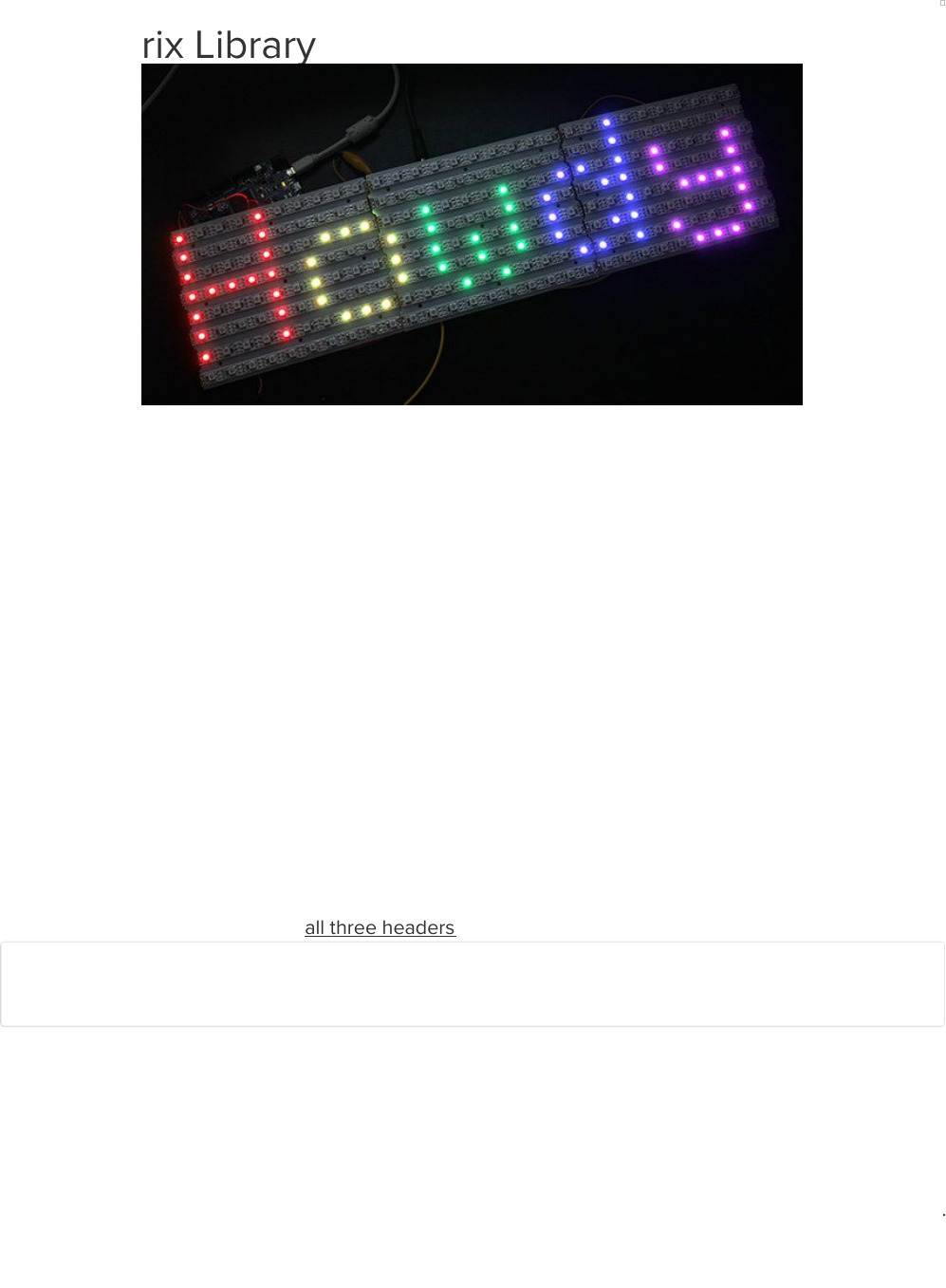

NeoMatrix Library

The Adafruit_NeoMatrix library builds upon Adafruit_NeoPixel to create two-dimensional graphic displays

using NeoPixels. You can then easily draw shapes, text and animation without having to calculate every

X/Y pixel position. Small NeoPixel matrices are available in the shop. Larger displays can be formed using

sections of NeoPixel strip, as shown in the photo above.

In addition to the Adafruit_NeoPixel library (which was already downloaded and installed in a prior step),

NeoMatrix requires two additional libraries:

1. Adafruit_NeoMatrix (https://adafru.it/cDt)

2. Adafruit_GFX (https://adafru.it/cBB)

If you’ve previously used any Adafruit LCD or OLED displays, you might already have the latter library

installed.

Installation for both is similar to Adafruit_NeoPixel before: unzip, make sure the folder name matches the

.cpp and .h files within, then move to your Arduino libraries folder and restart the IDE.

If using an older (pre-1.8.10) Arduino IDE, you’ll also need to locate and install

Adafruit_BusIO (https://adafru.it/Ldl).

Arduino sketches need to include all three headers just to use this library:

#include <Adafruit_GFX.h>

#include <Adafruit_NeoMatrix.h>

#include <Adafruit_NeoPixel.h>

Layouts

Adafruit_NeoMatrix uses exactly the same coordinate system, color functions and graphics commands as

the Adafruit_GFX library. If you’re new to the latter, a separate tutorial explains its

use (https://adafru.it/aPe). There are also example sketches included with the Adafruit_NeoMatrix library.

We’ll just focus on the

constructor

here — how to declare a two-dimensional display made from NeoPixels.

Powering the beast is another matter, covered on the prior page.

The library handles both

single

matrices — all NeoPixels in a single uniform grid — and

tiled

matrices —

ombined into a larger display' Single Matrix ith the declaration for a single matrix Shield for Arduino in this case 7 an adable orientation, the first pixel, # l1 is directly to the right of pixel 0 he next row. This isn’t something uit board comprising the shield.

multiple grids combined into a larger display:

Let’s begin with the declaration for a single matrix, because it’s simpler to explain. We’ll be demonstrating

the NeoPixel Shield for Arduino in this case — an 8x5 matrix of NeoPixels. When looking at this shield with

the text in a readable orientation, the first pixel, #0, is at the top left. Each successive pixel is right one

position — pixel 1 is directly to the right of pixel 0, and so forth. At the end of each row, the next pixel is at

the left side of the next row. This isn’t something we decide in code…it’s how the NeoPixels are hard-

wired in the circuit board comprising the shield.

We refer to this layout as

row major

and

progressive.

Row major

means the pixels are arranged in

horizontal lines (the opposite, in vertical lines, is

column major

Progressive

means each row proceeds in

the same direction. Some matrices will reverse direction on each row, as it can be easier to wire that way.

We call that a

zigzag

layout.

However…for this example, we want to use the shield in the “tall” direction, so the Arduino is standing up

on the desk with the USB cable at the top. When we turn the board this way, the matrix layout changes…

:a.cl>mh. M365, +0 .00 1an x r ”L. rc..9.\\ C15 03m 92 It". um“. .I. gland ﬂ. 6.!“ uruzrxx TV” ,._ (r:_x_ UFHZE UFHZE ”Inmﬂﬂﬂﬂu.ulﬁﬂﬂﬂ we.” mleij NHL mCJUi. MC» grim-i. Uchc s wher

Now the first pixel is at the top right. Pixels increment top-to-bottom — it’s now column major. The order of

the columns is still progressive though.

We declare the matrix thusly:

Adafruit_NeoMatrix matrix = Adafruit_NeoMatrix(5, 8, 6,

NEO_MATRIX_TOP + NEO_MATRIX_RIGHT +

NEO_MATRIX_COLUMNS + NEO_MATRIX_PROGRESSIVE,

NEO_GRB + NEO_KHZ800);

The first two arguments — 5 and 8 — are the width and height of the matrix, in pixels. The third argument

— 6 — is the pin number to which the NeoPixels are connected. On the shield this is hard-wired to digital

pin 6, but standalone matrices are free to use other pins.

The next argument is the interesting one. This indicates where the first pixel in the matrix is positioned

and the arrangement of rows or columns. The first pixel must be at one of the four corners;

which

corner is

indicated by adding either NEO_MATRIX_TOP or NEO_MATRIX_BOTTOM to either NEO_MATRIX_LEFT

or NEO_MATRIX_RIGHT. The row/column arrangement is indicated by further adding either

NEO_MATRIX_COLUMNS or NEO_MATRIX_ROWS to either NEO_MATRIX_PROGRESSIVE or

NEO_MATRIX_ZIGZAG. These values are all added to form a single value as in the above code.

NEO_MATRIX_TOP + NEO_MATRIX_RIGHT + NEO_MATRIX_COLUMNS + NEO_MATRIX_PROGRESSIVE

he sketc always each sub-matrix Lot x, the ns) an zag). both and

The last argument is exactly the same as with the NeoPixel library, indicating the type of LED pixels being

used. In the majority of cases with the latest NeoPixel products, you can simply leave this argument off…

the example code is just being extra descriptive.

The point of this setup is that the rest of the sketch never needs to think about the layout of the matrix.

Coordinate (0,0) for drawing graphics will always be at the top-left, regardless of the actual position of

the first NeoPixel.



Why not just use the rotation feature in Adafruit_GFX?

Adafruit_GFX only handles rotation. Though it would handle our example above, it doesn’t cover every

permutation of rotation

and mirroring

that may occur with certain matrix layouts, not to mention the zig-

zag capability, or this next bit…

Tiled Matrices

tiled

matrix is comprised of multiple smaller NeoPixel matrices. This is sometimes easier for assembly or

for distributing power. All of the sub-matrices need to be the same size, and must be ordered in a

predictable manner. The Adafruit_NeoMatrix() constructor then receives some additional arguments:

Adafruit_NeoMatrix matrix = Adafruit_NeoMatrix(

matrixWidth, matrixHeight, tilesX, tilesY, pin, matrixType, ledType);

The first two arguments are the width and height, in pixels, of each tiled sub-matrix, not the entire display.

The next two arguments are the number of tiles, in the horizontal and vertical direction. The dimensions of

the overall display then will always be a multiple of the sub-matrix dimensions.

The fifth argument is the pin number, same as before and as with the NeoPixel library. The last argument

also follows prior behaviors, and in most cases can be left off.

The second-to-last argument though…this gets complicated…

With a single matrix, there was a starting corner, a major axis (rows or columns) and a line sequence

(progressive or zigzag). This is now doubled — similar information is needed both for the pixel order within

the individual tiles, and the overall arrangement of tiles in the display. As before, we add up a list of

symbols to produce a single argument describing the display format.

The NEO_MATRIX_* symbols work the same as in the prior single-matrix case, and now refer to the

individual sub-matrices within the overall display. All tiles must follow the same format. An additional set of

symbols work similarly to then describe the tile order.

The first tile must be located at one of the four corners. Add either NEO_TILE_TOP or

NEO_TILE_BOTTOM and NEO_TILE_LEFT or NEO_TILE_RIGHT to indicate the position of the first tile.

This is independent of the position of the first pixel within the tiles; they can be different corners.

Tiles can be arranged in horizontal rows or vertical columns. Again this is independent of the pixel order

within the tiles. Add either NEO_TILE_ROWS or NEO_TILE_COLUMNS.

or columns of tiie may be ve or zi eeds in the same der, or ns swi ROGRESSIVE o OiTlL e 0rd lernate lines o m This wiring more c Lot OGRESSIVE. [OJZOJLOHIIOHM DUI-HI] DESIGN-HI (0] I‘ EGDQEH'IHI 1 5 CE @[01 EU GE @[01 [01(0) MEﬂiMATRIXJ'OP + NE07MATRIX7LEFI + MEﬂiMATRIXJIOWS + ME07MATRIX7PROGRESSIVE + MEOJILEJOP + NEOJIlEJEFI + MEOJILLCOUJMNS + NEOJILLZIGZAG

Finally, rows or columns of tiles may be arranged in progressive or zigzag order; that is, every row or

column proceeds in the same order, or alternating rows/columns switch direction. Add either

NEO_TILE_PROGRESSIVE or NEO_TILE_ZIGZAG to indicate the order. BUT…if NEO_TILE_ZIGZAG order

is selected, alternate lines of tiles must be rotated 180 degrees. This is intentional and by design; it keeps

the tile-to-tile wiring more consistent and simple. This rotation is not required for

NEO_TILE_PROGRESSIVE.

Tiles don’t need to be square! The above is just one possible layout. The display shown at the top of this

page is three 10x8 tiles assembled from NeoPixel strip.

Once the matrix is defined, the remainder of the project is similar to Adafruit_NeoPixel. Remember to use

matrix.begin() in the setup() function and matrix.show() to update the display after drawing. The

setBrightness() function is also available. The library includes a couple of example sketches for reference.

Other Layouts

For any other cases that are not uniformly tiled, you can provide your own function to remap X/Y

coordinates to NeoPixel strip indices. This function should accept two unsigned 16-bit arguments (pixel X,

Y coordinates) and return an unsigned 16-bit value (corresponding strip index). The simplest row-major

progressive function might resemble this:

uint16_t myRemapFn(uint16_t x, uint16_t y) {

return WIDTH * y + x;

}

That’s a crude example. Yours might be designed for pixels arranged in a spiral (easy wiring), or a Hilbert

curve.

The function is then enabled using setRemapFunction():

matrix.setRemapFunction(myRemapFn);

RAM Again

On a per-pixel basis, Adafruit_NeoMatrix is no more memory-hungry than Adafruit_NeoPixel, requiring 3

bytes of RAM per pixel. But the number of pixels in a two-dimensional display takes off exponentially…a

16x16 display requires

four times

the memory of an 8x8 display, or about 768 bytes of RAM (nearly half the

available space on an Arduino Uno). It can be anywhere from

tricky

impossible

to combine large

displays with memory-hungry libraries such as SD or ffft.

Gamma Correction

Because the Adafruit_GFX library was originally designed for LCDs (having limited color fidelity), it handles

colors as 16-bit values (rather than the full 24 bits that NeoPixels are capable of). This is not the big loss it

might seem. A quirk of human vision makes bright colors less discernible than dim ones. The

Adafruit_NeoMatrix library uses

gamma correction

to select brightness levels that are visually (though not

numerically) equidistant. There are 32 levels for red and blue, 64 levels for green.

The Color() function performs the necessary conversion; you don’t need to do any math. It accepts 8-bit

red, green and blue values, and returns a gamma-corrected 16-bit color that can then be passed to other

drawing functions.

Advanced Coding

FastLED Library

If looking to boost your NeoPixel prowess, you may find everything you need in the FastLED

library (https://adafru.it/eip). It’s an alternative to the Adafruit_NeoPixel library, providing more advanced

features like HSV color support, nondestructive brightness setting and high-speed mathematical

operations. (It works with other LED types too, such as DotStars!)

FastLED works altogether differently; it’s not a drop-in replacement for Adafruit_NeoPixel, and existing

sketches will require some rewriting.

Note: FastLED currently works only with RGB NeoPixels; RGBW pixels are not yet supported. At all. You

will get incorrect and unpredictable colors.

We don’t write or maintain FastLED, and can’t provide software troubleshooting advice.

If requesting help

with a FastLED NeoPixel project in the forums, we’ll usually ask that you try one of the known-working

Adafruit_NeoPixel example sketches to narrow down whether it’s a hardware or software issue.

Visit the FastLED web site to get started. (https://adafru.it/eip)

FAQ and Further Programming Insights



Help! My Arduino servo code stops working when combined with

NeoPixels!

Unfortunately the NeoPixel and Servo libraries don’t play nice together; one is dependent on periodically

disabling interrupts, the other absolutely requires interrupts. There are a couple of options here:

Use a dedicated servo control shield (http://adafru.it/1411) or breakout board (http://adafru.it/815),

offloading that task from the processor so interrupts are a non-issue.

Use a hardware-PWM-based servo library (https://adafru.it/kDh) rather than the stock Arduino Servo

library. This can provide rock-steady servo timing without interrupts, but can only control a very

limited number of servos (2-3), and only on very specific pins.



When driving NeoPixels I cannot receive infrared codes on my IR

receiver!

Just like servos, the infrared library uses software interrupts to poll the IR LED, while the standard

NeoPixel library blocks interrupts while NeoPixel are being updated.

If you don't constantly update the NeoPixel, IR will work in between updates, but if you update them all

the time, you will need to use another library and a microcontroller more capable than an

Uno or Mega. Ideally one with DMA so that NeoPixels don't take up any CPU cycles.

Marc MERLIN explains how to this depending on what chip you have (Teensy, ESP8266 or ESP32):

http://marc.merlins.org/perso/arduino/post_2017-04-03_Arduino-328P-Uno-Teensy3_1-ESP8266-ESP32-

IR-and-Neopixels.html (https://adafru.it/xA2)



Tha tha an EX Ano \at

How fast can I refresh a string of (N) pixels?

NeoPixels receive data from a fixed-frequency 800 KHz datastream (except for “V1” Flora pixels, which

use 400 KHz). Each bit of data therefore requires 1/800,000 sec — 1.25 microseconds. One pixel requires

24 bits (8 bits each for red, green blue) — 30 microseconds. After the last pixel’s worth of data is issued,

the stream must stop for at least 50 microseconds for the new colors to “latch.”

For a strip of 100 pixels, that’s (100 * 30) + 50, or 3,050 microseconds. 1,000,000 / 3,050 = 328 updates

per second, approximately.

However…

That’s

only

the time needed to

push the bits

down the wire. The

actual

refresh rate will be something less

than this, and can’t be estimated as a single number for all cases. It takes time to process each “frame” of

animation. How much time depends on the complexity of the math and the efficiency of the code (for

example, floating-point calculations can be relatively slow). The formula above gives a maximum

theoretical

rate, but that’s just a starting point. Reality in some cases could fall an order of magnitude (or

more) below this.

For exploratory benchmarking, you can always write code

as if

a large number of pixels were present, and

time the result. The extra output bits will simply be ignored by the strip (or you can even test with no

NeoPixels connected at all).



That won’t do. Now what?

Because NeoPixels use a fixed-frequency clock, options are limited. You can’t switch out for a faster

microcontroller and expect substantially different results.

One option is to use a different LED type, such as our DotStar or LPD8806 strips, or WS2801 pixels. These

can be driven at higher data rates, though they do have some other tradeoffs with respect to NeoPixels

(cost, color resolution and/or pixel density).

Another is to develop your own code on a more capable microcontroller or an FPGA that drives

multiple

NeoPixel strips

in parallel

. One such project — OctoWS2811 for the Teensy 3 microcontroller — is shown

later. This sort of thing is a complex undertaking and not recommended for beginners. And even among

more experienced programmers, there’s often an unreasonable over-emphasis on data rates when the

real

bottlenecks lie elsewhere…don’t dwell on this too much unless you can confirm it’s the root of

the problem.



Can I control NeoPixels using (Board X)?

We currently only offer an Arduino library. See the links later for other devices. For anything beyond this, if

considering writing your own library, understand that some processors are better suited to the task than

others. Read through the timing requirements shown below and determine if the chip in question can

synthesize a signal meeting those specifications. An 8 MHz AVR can just barely keep up…anything slower

may have trouble, though some hardware-specific hacks (like clever use of SPI) might make it possible. In

If yo Exp n d direct

many cases, assembly language is required.



Why not Raspberry Pi?

The Raspberry Pi running Linux is a multitasking system, and control may switch among multiple running

programs at any time. As such, it’s impossible to guarantee the strict 800 KHz signal required by

NeoPixels. You may be able to fudge it for short intervals, but it’s not something that can be counted upon.

This is why we use DotStar LEDs for the Raspberry Pi light painting project (https://adafru.it/kET).

DMA NeoPixels for ARM Cortex-M0 Boards

If you’re using a recent “M0” development board such as the Adafruit Feather M0, Circuit Playground

Express or Arduino Zero, an alternate NeoPixel library (https://adafru.it/xBb) exploits these devices’

direct

memory access

(DMA) feature to operate more smoothly. Advanced Arduino sketches can then use

interrupts with impunity, and code that depends on the millis() or micros() functions will not lose time.

There’s a corresponding DMA version of the NeoMatrix library (https://adafru.it/xAQ) as well.

Plus a super potent 8-way concurrent NeoPixel DMA library (https://adafru.it/Blw). We offer a

companion FeatherWing (https://adafru.it/Et6) and breakout board (https://adafru.it/CJd) to make

connections and level-shifting easier!

Third-Party Libraries

In addition to the previously-mentioned FastLED library, NeoPixel-compatible libraries have been

developed for devices beyond Arduino. Please keep in mind that Adafruit did not develop any of this code

and can’t fix bugs or offer technical help. This is Wild West stuff.

OctoWS2811 (https://adafru.it/cDM): specifically for the PJRC Teensy 3.0 microcontroller board. Uses

DMA to drive up to 8 NeoPixel strips concurrently with minimal processor load. Multiple boards can

be cascaded for still larger displays.

FadeCandy (https://adafru.it/cDN): also for Teensy 3.0. Doesn’t support as many pixels as

OctoWS2811, but adds dithering and smooth interpolation for color purists.

LEDscape (https://adafru.it/cDO): specifically for BeagleBone Black. Although the BeagleBone is a

multitasking Linux system like the not-NeoPixel-compatible Raspberry Pi, this code exploits hardware

features specific to the BeagleBone Black to drive

hundreds

of meters of NeoPixel strip with virtually

no processor load.

WS2812 LED Driver (https://adafru.it/Etc) for Parallax Propeller.

xCORE NeoPixel test code (https://adafru.it/dcO) for the XMOS xCORE startKIT.

 Some of these are 3.3V devices. See the “Powering NeoPixel” page for notes on controlling 5V

NeoPixels from 3.3V microcontrollers.



WS2811? WS2812? Why do I see two different names mentioned?

The WS2811 is an earlier driver chip separate from the RGB LED. The data signal is similar, but runs at half

the speed. By the time the WS2812 (with integrated LED) was released, a lot of code and projects had

Tl’l atasheet (https://adafru.it/cDB) explains the c — there's only one wire, not separate dat y cycle of a fixed-frequency square wave. TOL 0 code <—"—’ toh="" t="" 1="" l="" 1="" code="" 1—d4—d="" t="" 1="" h="" goof="" in="" the="" datasheet’s="" timing="" values.="" use="" these="" figures="" instead:="" du-="" tnnsfer="" time="" (tl-[+tl="I" .zsust300ns)="" toh="" a="" cod:="" .high="" voltage="" time="" 0.4m="" 1150.“="" nh="" _="" l="" cod:="" .high="" volugc="" time="" 0.8m="" usons="" m.="" a="" code="" ,="" low="" volug:="" um="" 0.st="" $150.15="" til="" 1="" code="" yll‘ni="" voltage="" time="" 0.45m="" ilsdns="" res="" low="" volug:="" rim:="" above="" 50‘“="" cnmpmﬁon="" oil/1m1="" rm="" -="" lovlcsluslmlazluzlmloolwlkslnslmlmlulm="" lxnlmluolnslm="" uslnzlm="" lnul="" igna="" n_ot="">

already built up around the WS2811 name. Sometimes code “for the WS2811” might actually be for the

newer chip, or for either type. The Adafruit_NeoPixel library supports both.

Writing Your Own Library

The WS2812 datasheet (https://adafru.it/cDB) explains the data transmission protocol. This is a

self-

clocking

signal — there’s only one wire, not separate data and clock lines. “1” and “0” bits are indicated by

varying the duty cycle of a fixed-frequency square wave.

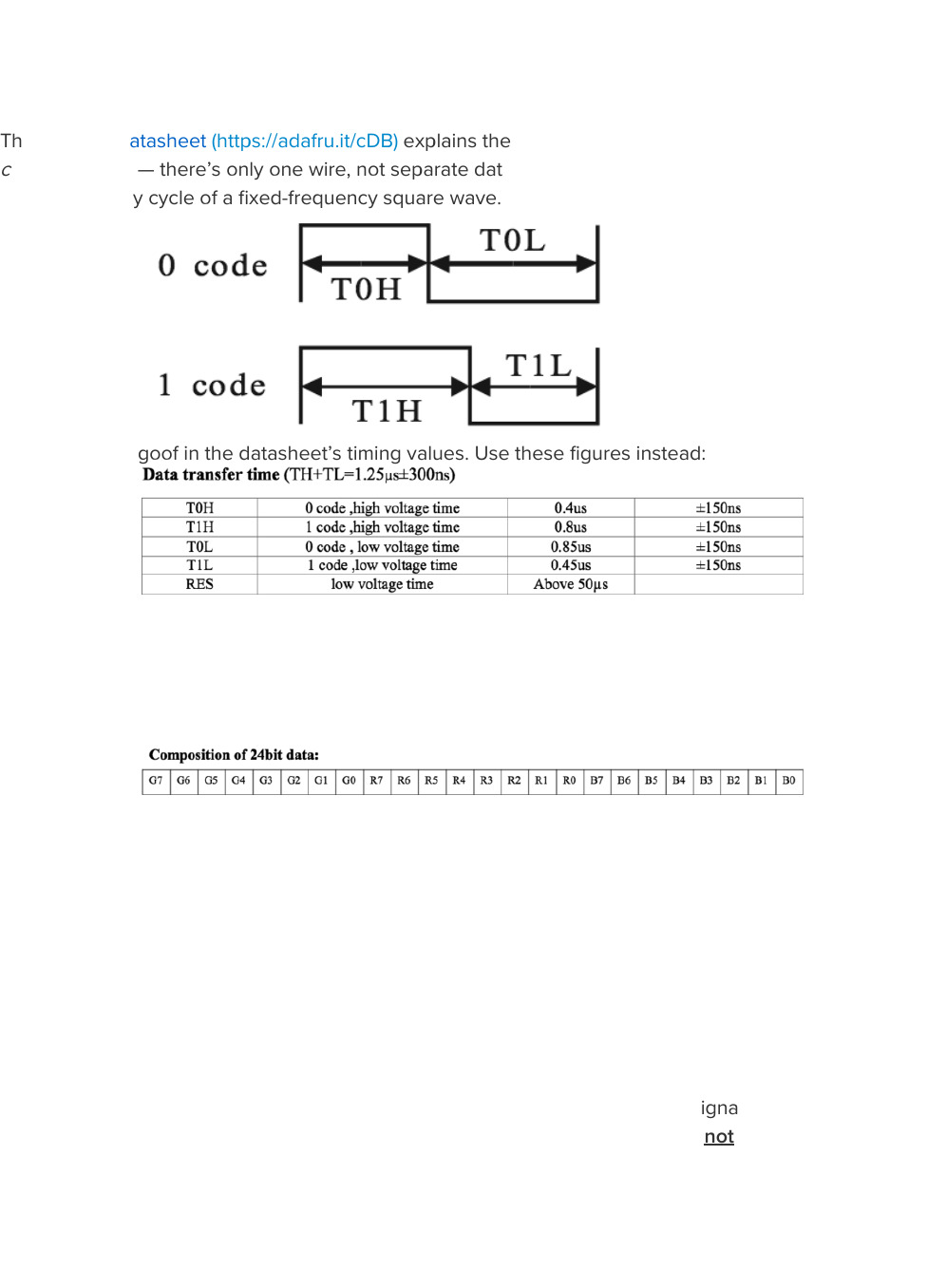

There’s a math goof in the datasheet’s timing values. Use these figures instead:

Note that there’s nearly 25% “wiggle room” in the timing. So if your code can’t match the recommended

times exactly, it’s usually okay, as long as it’s close.

There are three bytes of data for each pixel. These should be issued in green, red, blue order, with the

most-significant bit first.

The data for pixel #0 (nearest the microcontroller) is issued first, then pixel #1, and so forth to the furthest

pixel. This does not operate like a traditional shift register!

After all the color data is sent, the data line must be held low for a minimum of 50 microseconds for the

new colors to “latch.”

You may want to dig through our Arduino library (https://adafru.it/aZU) for insights. The timing-critial parts

are written in AVR assembly language, but it’s extensively commented with C-like pseudocode.



My Microcontroller Isn’t Fast Enough to Do That

The WS2812 appears to be backwardly-compatible with the 400 KHz WS2811 signal. If you can precisely

match the latter chip’s timing, either type will respond. The WS2811 protocol is not simply a half-speed

WS2812. The duty cycle for the “0” and “1” bits is slightly different. From the WS2811

datasheet (https://adafru.it/cDS):

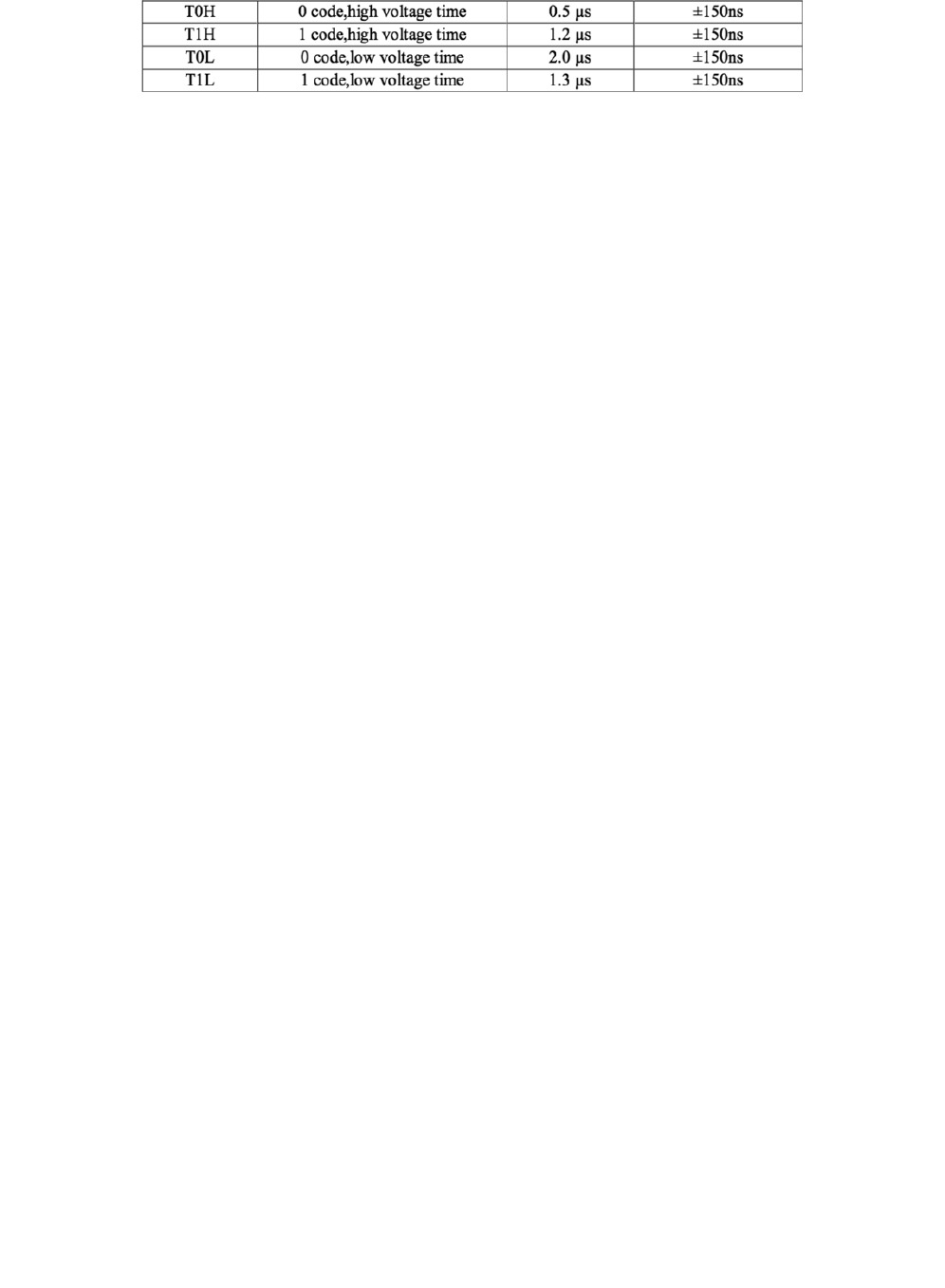

TOH o code,|1igh voltage time 115 p5 ilsfms TIH 1 codeJJigh voltage time 1.2 )Is ilSOns TOL 0 60(1qu voltage lime 20 us ilSOns TIL l wdgbw voltage lint: L3 p5 ilSDns

Python & CircuitPython

It's easy to use NeoPixel LEDs with Python or CircuitPython and the Adafruit CircuitPython

NeoPIxel (https://adafru.it/yew) module. This module allows you to easily write Python code that controls

your LEDs.

You can use these LEDs with any CircuitPython microcontroller board or with a computer that has GPIO

and Python thanks to Adafruit_Blinka, our CircuitPython-for-Python compatibility

library (https://adafru.it/BSN).

 Of single boards computers, only Raspberry Pi computers have NeoPixel support at this time.

CircuitPython Microcontroller Wiring

First wire up some NeoPixels to your board exactly as shown on the previous pages. Verify your

connection is on the DATA INPUT or DIN side. Plugging into the DATA OUT or DOUT side is a common

mistake! The connections are labeled and some formats have arrows to indicate the direction the data

must flow.

 Do not use the USB pin on your microcontroller for powering more than a few LEDs! For more than

that, you'll want to use an external power source. For more information, check out the Powering

NeoPixels page of this guide: https://learn.adafruit.com/adafruit-neopixel-uberguide/powering-

neopixels

Here's an example of wiring a Feather M0 to a NeoPIxel strip:

Board USB to LED 5V

Board GND to LED GND

Board D5 to LED Din

Python Computer Wiring

Since there's

dozens

of Linux computers/boards you can use we will show wiring for Raspberry Pi. For

other platforms, please visit the guide for CircuitPython on Linux to see whether your platform is

supported (https://adafru.it/BSN).

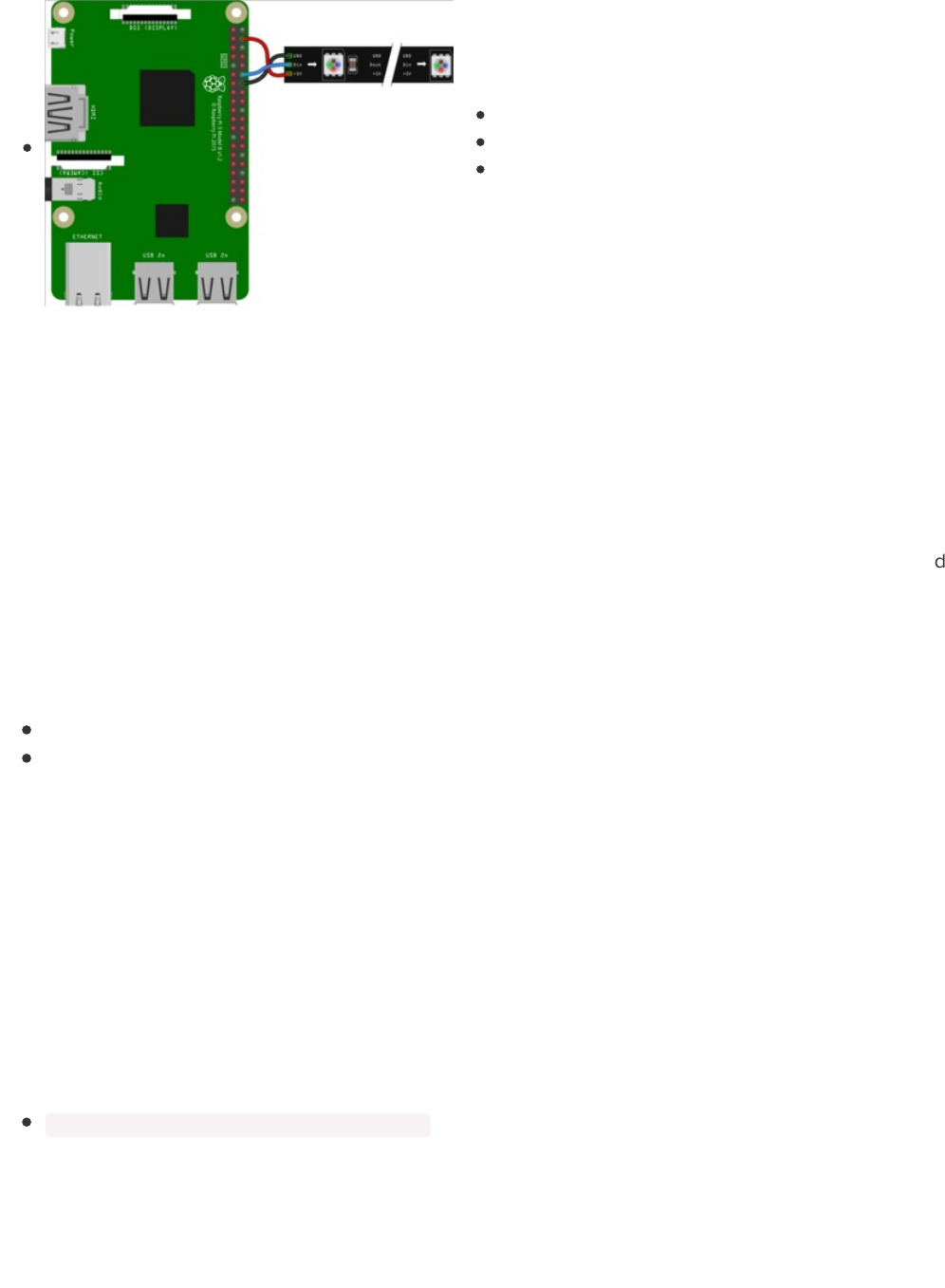

Here's the Raspberry Pi wired to a NeoPixel strip:

Pi 5V to LED 5V

Pi GND to LED GND

Pi GPIO18 to LED Din

On the Raspberry Pi, NeoPixels must be connected to

GPIO10, GPIO12, GPIO18 or GPIO21 to work!

CircuitPython Installation of NeoPixel Library

You'll need to install the Adafruit CircuitPython NeoPixel (https://adafru.it/yew) library on your

CircuitPython board.

First make sure you are running the latest version of Adafruit CircuitPython (https://adafru.it/Amd) for your

board.

Next you'll need to install the necessary libraries to use the hardware--carefully follow the steps to find and

install these libraries from Adafruit's CircuitPython library bundle (https://adafru.it/uap). Our CircuitPython

starter guide has a great page on how to install the library bundle (https://adafru.it/ABU).

For non-express boards like the Trinket M0 or Gemma M0, you'll need to manually install the necessary

libraries from the bundle:

neopixel.mpy

adafruit_bus_device

Before continuing make sure your board's lib folder or root filesystem has the neopixel.mpy, and

adafruit_bus_device files and folders copied over.

Next connect to the board's serial REPL (https://adafru.it/Awz) so you are at the CircuitPython >>> prompt.

Python Installation of NeoPixel Library

You'll need to install the Adafruit_Blinka library that provides the CircuitPython support in Python. This

may also require verifying you are running Python 3. Since each platform is a little different, and Linux

changes often, please visit the CircuitPython on Linux guide to get your computer

ready (https://adafru.it/BSN)!

Once that's done, from your command line run the following command:

sudo pip3 install adafruit-circuitpython-neopixel

If your default Python is version 3 you may need to run 'pip' instead. Just make sure you aren't trying to

use CircuitPython on Python 2.x, it isn't supported!

CircuitPython & Python Usage

To demonstrate the usage of this library with NeoPixel LEDs, we'll use the board's Python REPL.

 For NeoPixels to work on Raspberry Pi, you must run the code as root! Root access is required to

access the RPi peripherals.

Run the following code to import the necessary modules and initialise a NeoPixel strip with 30 LEDs. Don't

forget to change the pin if your NeoPixels are connected to a different pin, and change the number of

pixels if you have a different number.

import board

import neopixel

pixels = neopixel.NeoPixel(board.D5, 30) # Feather wiring!

# pixels = neopixel.NeoPixel(board.D18, 30) # Raspberry Pi wiring!

Now you're ready to light up your NeoPixel LEDs using the following properties:

brightness - The overall brightness of the LED

fill - Color all pixels a given color.

show - Update the LED colors if auto_write is set to False .

For example, to light up the first NeoPixel red:

pixels[0] = (255, 0, 0)

To light up all the NeoPixels green:

pixels.fill((0, 255, 0))

That's all there is to getting started with CircuitPython and NeoPixel LEDs!

Full Example Code

# SPDX-FileCopyrightText: 2021 ladyada for Adafruit Industries

# SPDX-License-Identifier: MIT

import time

import board

import neopixel

# On CircuitPlayground Express, and boards with built in status NeoPixel -> board.NEOPIXEL

# Otherwise choose an open pin connected to the Data In of the NeoPixel strip, i.e. board.D1

pixel_pin = board.NEOPIXEL

# On a Raspberry pi, use this instead, not all pins are supported

# pixel_pin = board.D18

# The number of NeoPixels

num_pixels = 10

# The order of the pixel colors - RGB or GRB. Some NeoPixels have red and green reversed!

# For RGBW NeoPixels, simply change the ORDER to RGBW or GRBW.

ORDER = neopixel.GRB

pixels = neopixel.NeoPixel(

pixel_pin, num_pixels, brightness=0.2, auto_write=False, pixel_order=ORDER

)

def wheel(pos):

# Input a value 0 to 255 to get a color value.

# The colours are a transition r - g - b - back to r.

if pos < 0 or pos > 255:

r = g = b = 0

elif pos < 85:

r = int(pos * 3)

g = int(255 - pos * 3)

b = 0

elif pos < 170:

pos -= 85

r = int(255 - pos * 3)

g = 0

b = int(pos * 3)

else:

pos -= 170

r = 0

g = int(pos * 3)

b = int(255 - pos * 3)

return (r, g, b) if ORDER in (neopixel.RGB, neopixel.GRB) else (r, g, b, 0)

def rainbow_cycle(wait):

for j in range(255):

for i in range(num_pixels):

pixel_index = (i * 256 // num_pixels) + j

pixels[i] = wheel(pixel_index & 255)

pixels.show()

time.sleep(wait)

while True:

# Comment this line out if you have RGBW/GRBW NeoPixels

pixels.fill((255, 0, 0))

# Uncomment this line if you have RGBW/GRBW NeoPixels

# pixels.fill((255, 0, 0, 0))

pixels.show()

time.sleep(1)

# Comment this line out if you have RGBW/GRBW NeoPixels

pixels.fill((0, 255, 0))

# Uncomment this line if you have RGBW/GRBW NeoPixels

# pixels.fill((0, 255, 0, 0))

pixels.show()

time.sleep(1)

# Comment this line out if you have RGBW/GRBW NeoPixels

pixels.fill((0, 0, 255))

# Uncomment this line if you have RGBW/GRBW NeoPixels

# pixels.fill((0, 0, 255, 0))

pixels.show()

time.sleep(1)

rainbow_cycle(0.001) # rainbow cycle with 1ms delay per step

Python Docs

Python Docs (https://adafru.it/C5m)

MakeCode

We’re got a

whole separate guide

explaining the use of NeoPixels in Microsoft

MakeCode (https://adafru.it/wpC):

Guide Link: NeoPixels with

MakeCode (https://adafru.it/D1L)

Many of the examples work right in your browser with Circuit Playground Express (https://adafru.it/wpF)

and its 10 built-in NeoPixel LEDs. There’s even a page explaining how to use MakeCode with external

strips (https://adafru.it/Etd) as well.

1 one. o.

Downloads

WS2812 Datasheet (used in some older items) (https://adafru.it/qta)

WS2812B Datasheet (https://adafru.it/uaR) (used in some older items)

SK6812 Datasheet (https://adafru.it/uaS) (used in all our strips as of 2016)

Online NeoPixel Simulator (https://adafru.it/NfG)

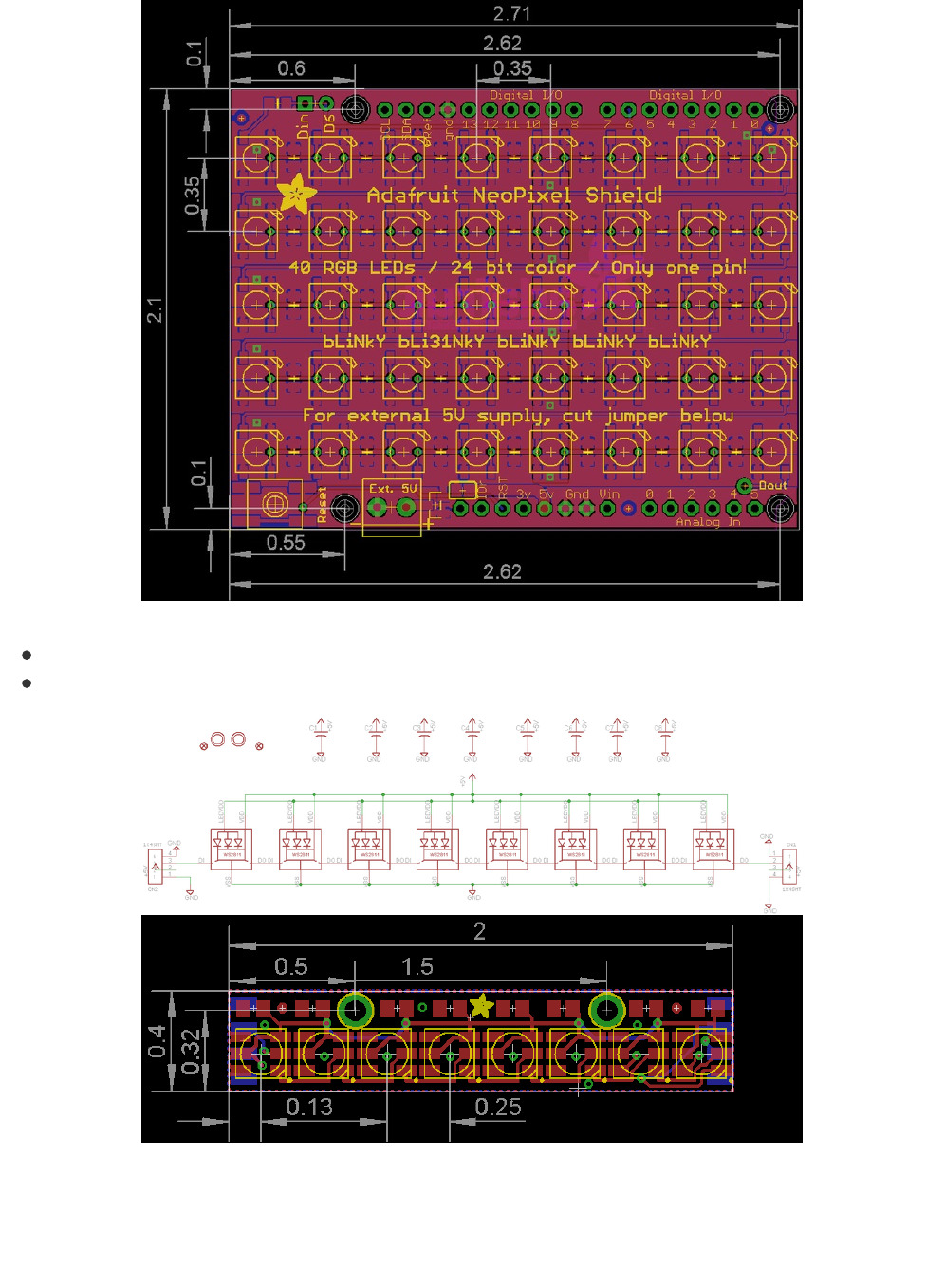

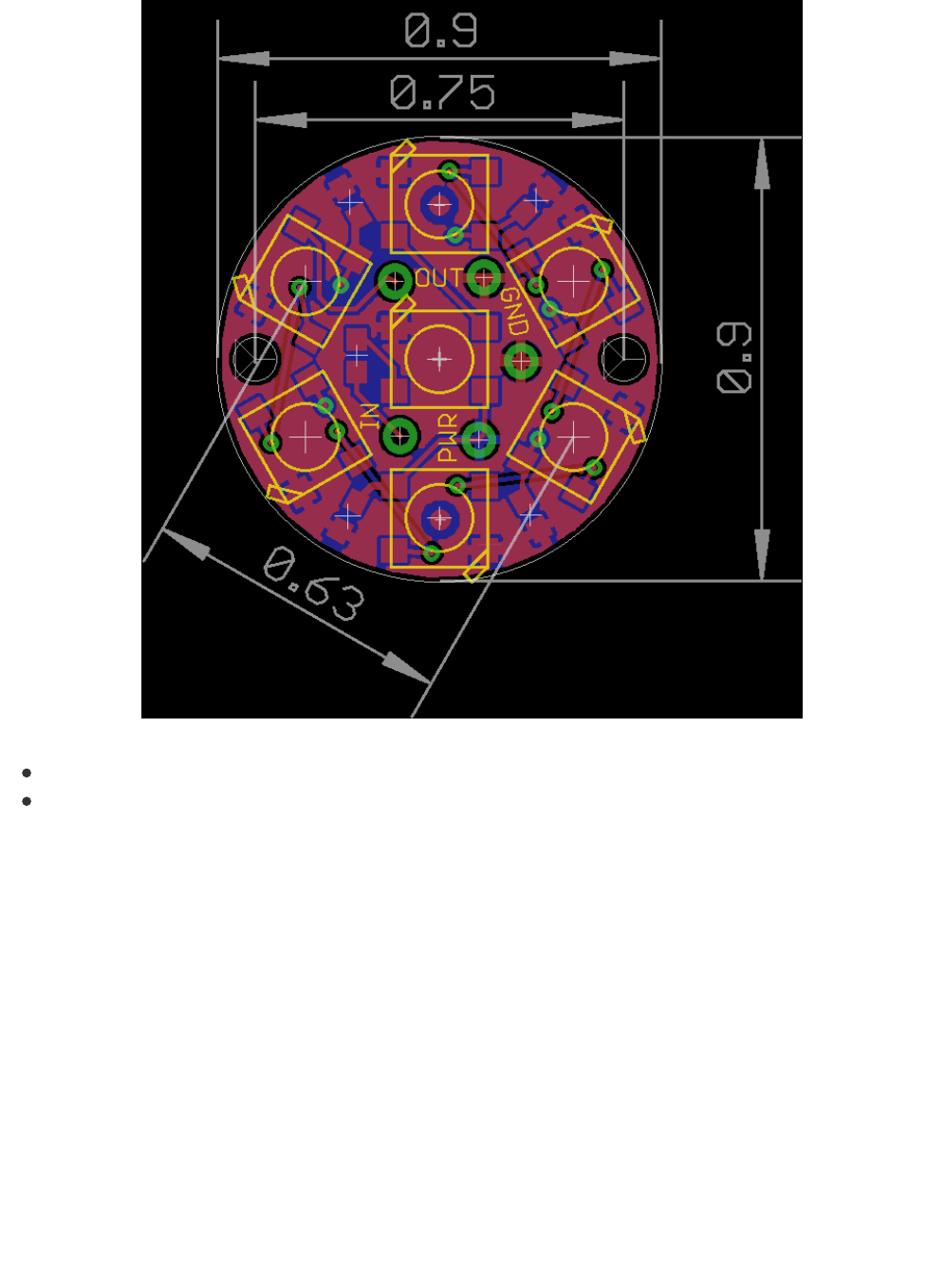

NeoPixel 12-LED Ring

EagleCAD PCB files on GitHub (https://adafru.it/qic)
