WM5102 Product Brief Datasheet by Cirrus Logic Inc.

w WM5102

Audio Hub CODEC with Voice Processor DSP

WOLFSON MICROELECTRONICS plc Product Brief, June 2014, Rev 4.2

[1] This product is protected by Patents US 7,622,984, US 7,626,445, US 7,765,019 and GB 2,432,765

DESCRIPTION

The WM5102[1] is a highly-integrated low-power audio

system for smartphones, tablets and other portable audio

devices. It combines wideband telephony voice processing

with a flexible, high-performance audio hub CODEC.

The WM5102 digital core provides a powerful combination

of fixed-function signal processing blocks with a

programmable DSP. These are supported by a fully-flexible,

all-digital audio mixing and routing engine with sample rate

converters, for wide use-case flexibility. The programmable

DSP supports a range of audio processing software

packages (supplied separately); user-programmed solutions

can also be supported. Fixed-function signal processing

blocks include filters, EQ, dynamics processors and sample

rate converters.

A SLIMbus interface supports multi-channel audio paths and

host control register access. Multiple sample rates are

supported concurrently via the SLIMbus interface. Three

further digital audio interfaces are provided, each supporting

a wide range of standard audio sample rates and serial

interface formats. Automatic sample rate detection enables

seamless wideband/narrowband voice call handover.

Two stereo headphone drivers each provide stereo ground-

referenced or mono BTL outputs, with noise levels as low as

2.3VRMS for hi-fi quality line or headphone output. The

CODEC also features stereo 2W Class-D speaker outputs, a

dedicated BTL earpiece output and PDM for external

speaker amplifiers. A signal generator for controlling haptics

devices is included; vibe actuators can connect directly to

the Class-D speaker output, or via an external driver on the

PDM output interface. All inputs, outputs and system

interfaces can function concurrently.

The WM5102 supports up to six microphone inputs, each

either analogue or PDM digital. Microphone activity

detection with interrupt is available. A smart accessory

interface supports most standard 3.5mm accessories.

Impedance sensing and measurement is provided for

external accessory and push-button detection.

The WM5102 power, clocking and output driver

architectures are all designed to maximise battery life in

voice, music and standby modes. Low-power ‘Sleep’ is

supported, with configurable wake-up events. The WM5102

is powered from a 1.8V external supply. A separate supply is

required for the Class D speaker drivers (typically direct

connection to 4.2V battery).

Two integrated FLLs provide support for a wide range of

system clock frequencies. The WM5102 is configured using

the I2C, SPI or SLIMbus interfaces. The fully-differential

internal analogue architecture, minimal analogue signal

paths and on-chip RF noise filters ensure a very high degree

of noise immunity.

FEATURES

 Audio hub CODEC with integrated voice processor DSP

 Programmable DSP capability for audio processing

 Fixed function signal processing functions

- Wind noise, sidetone and other programmable filters

- Dynamic Range Control, Fully parametric EQs

- Tone, Noise, PWM, Haptic control signal generators

 Multi-channel asynchronous sample rate conversion

 Integrated 6/7 channel 24-bit hi-fi audio hub CODEC

- 6 ADCs, 96dB SNR microphone input (48kHz)

- 7 DACs, 113dB SNR headphone playback (48kHz)

 Audio inputs

- Up to 6 analogue or digital microphone inputs

- Single-ended or differential mic/line inputs

 Multi-purpose headphone / earpiece / line output drivers

- 2 stereo output paths

- 29mW into 32 load at 0.1% THD+N

- 100mW into 32 BTL load at 5% THD+N

- 6.5mW typical headphone playback power consumption

- Pop suppression functions

- 2.3µVRMS noise floor (A-weighted)

 Mono BTL earpiece output driver

 2 x 2W stereo Class D speaker output drivers

- Direct drive of external haptics vibe actuators

 Two-channel digital speaker (PDM) interface

 SLIMbus® audio and control interface

 3 full digital audio interfaces

- Standard sample rates from 4kHz up to 192kHz

- Ultrasonic accessory function support

- TDM support on all AIFs

- 8 channel input and output on AIF1

 Flexible clocking, derived from MCLKn, BCLKn or SLIMbus

 2 low-power FLLs support reference clocks down to 32kHz



Advanced accessory detection functions

- Low-power standby mode and configurable wake-up



Configurable functions on 5 GPIO pins

 Integrated LDO regulators and charge pumps

 Support for single 1.8V supply operation

 Small W-CSP package, 0.4mm pitch

APPLICATIONS

 Smartphones and Multimedia handsets

 Tablets and Mobile Internet Devices (MID)

 General-purpose low-power audio CODEC hub

mama mum can ngvlmmabk as? 55mm Enu-hsar(EQ) Dynamc awe Canm (nae) m. pass, H‘gh msrmemwn Asynmmnu; 5mm: m Cam/emery mm» Sumwe m Damn rune Genemov Nmse Genemov pm 5w Gmersluv mm cam 5W Genermr WV WV V VVVV my. .mmmmcnm

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

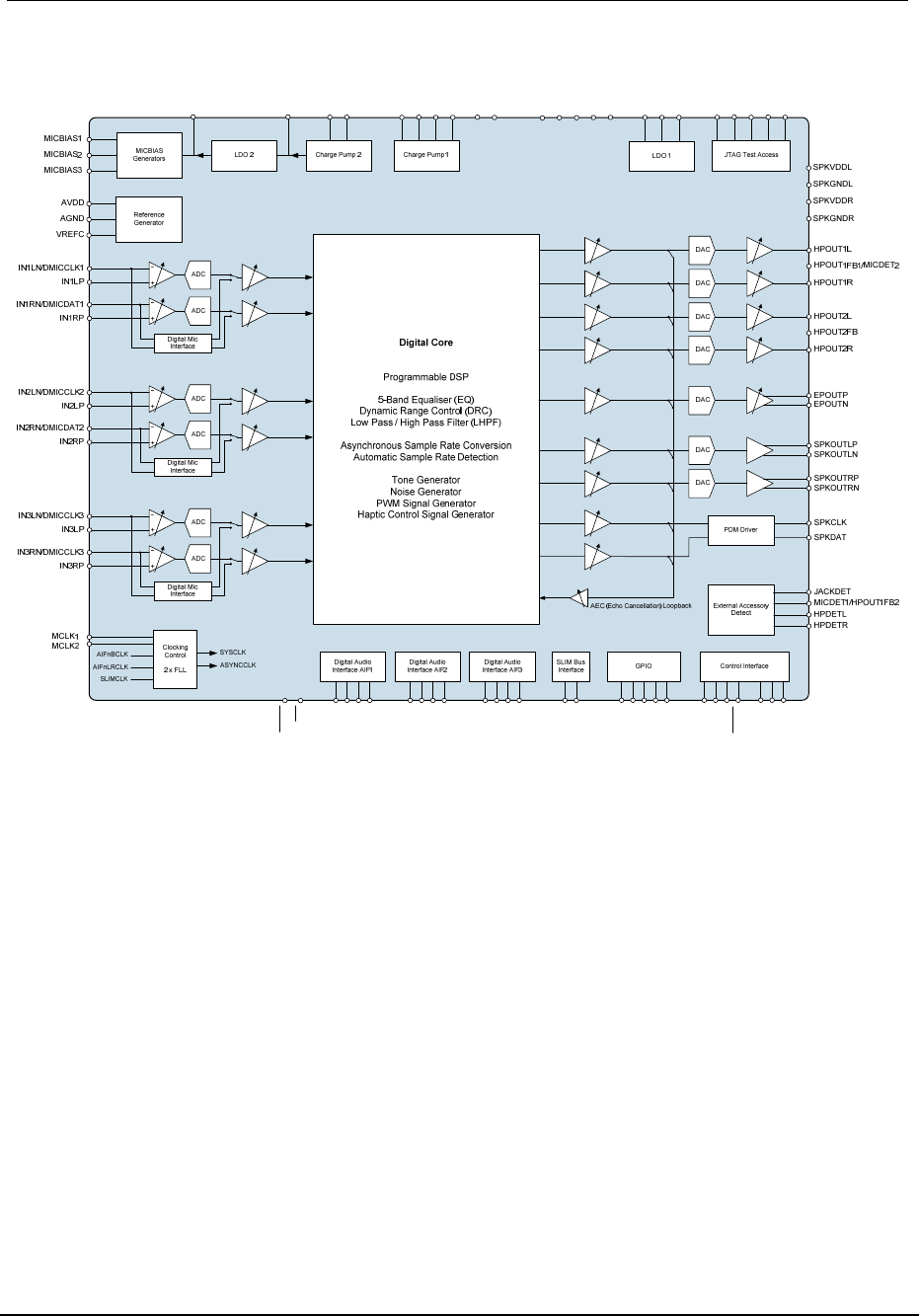

BLOCK DIAGRAM

AIF1TXDAT

AIF1RXDAT

AIF1BCLK

AIF1LRCLK

AIF2TXDAT

AIF2RXDAT

AIF2BCLK

AIF2LRCLK

AIF3TXDAT

AIF3RXDAT

AIF3BCLK

AIF3LRCLK

CP2CA

CP2CB

CP1CA

CP1CB

CP1VOUTP

CP1VOUTN

CPVDD

CPGND

CP2VOUT

MICVDD

LDOENA

LDOVDD

LDOVOUT

DBVDD1

DGND

TMS

TDO

TDI

TCK

TRST

DBVDD2

DBVDD3

DCVDD

SLIMCLK

SLIMDAT

GPIO1

GPIO2

GPIO3

GPIO4

GPIO5

RESET

IRQ

CIF2MOSI

CIF2MISO

CIF2SCLK

CIF2SS

CIF1ADDR

CIF1SCLK

CIF1SDA

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

TABLE OF CONTENTS

DESCRIPTION ....................................................................................................... 1

FEATURES ............................................................................................................ 1

APPLICATIONS ..................................................................................................... 1

BLOCK DIAGRAM ................................................................................................ 2

TABLE OF CONTENTS ......................................................................................... 3

PIN CONFIGURATION .......................................................................................... 4

ORDERING INFORMATION .................................................................................. 4

PIN DESCRIPTION ................................................................................................ 5

ABSOLUTE MAXIMUM RATINGS ........................................................................ 8

RECOMMENDED OPERATING CONDITIONS ..................................................... 9

ELECTRICAL CHARACTERISTICS ................................................................... 10

TERMINOLOGY ............................................................................................................... 21

DEVICE DESCRIPTION ...................................................................................... 22

INTRODUCTION .............................................................................................................. 22

HI-FI AUDIO CODEC ....................................................................................................... 22

DIGITAL AUDIO CORE ................................................................................................... 23

DIGITAL INTERFACES ................................................................................................... 23

OTHER FEATURES ......................................................................................................... 24

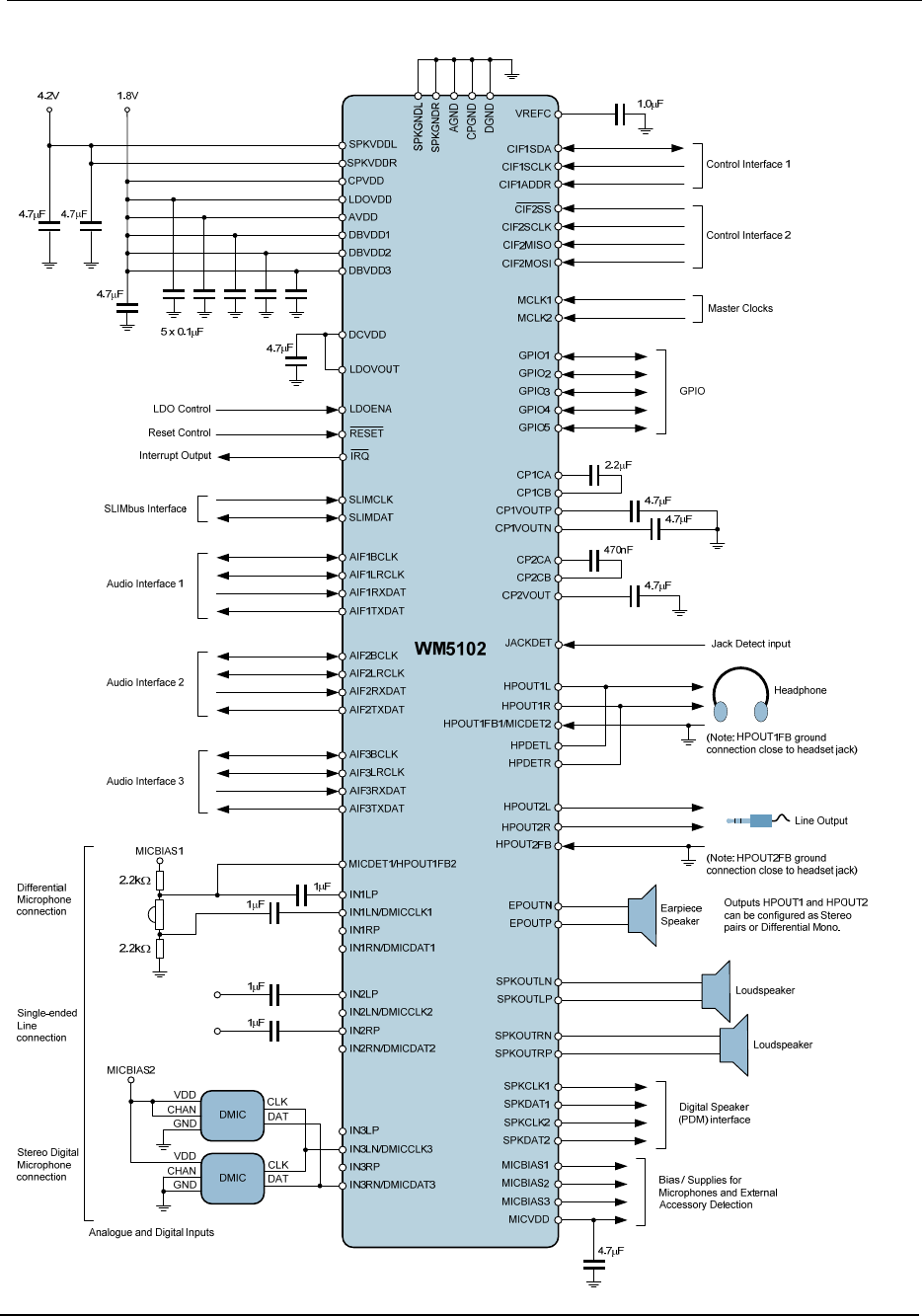

RECOMMENDED EXTERNAL COMPONENTS .................................................. 25

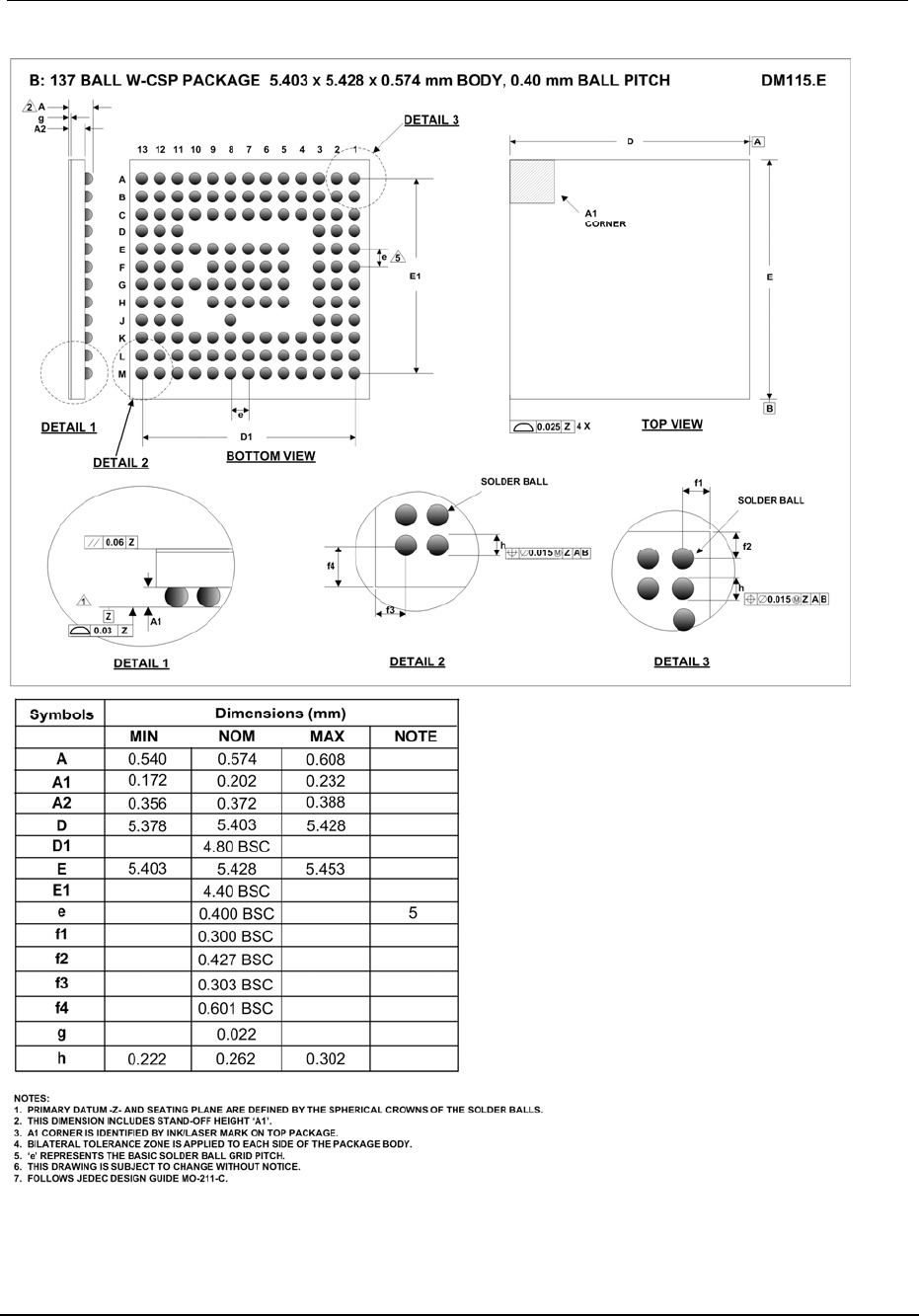

PACKAGE DIMENSIONS .................................................................................... 26

IMPORTANT NOTICE ......................................................................................... 27

ADDRESS: ....................................................................................................................... 27

REVISION HISTORY ........................................................................................... 28

000000000000 000000000000 000000000000 00020 0 000 000m0000 000 000W00000000 000W0000 000 000m0000 000 000m0000 000 00 000 000000000000 000000000000 000000000000

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

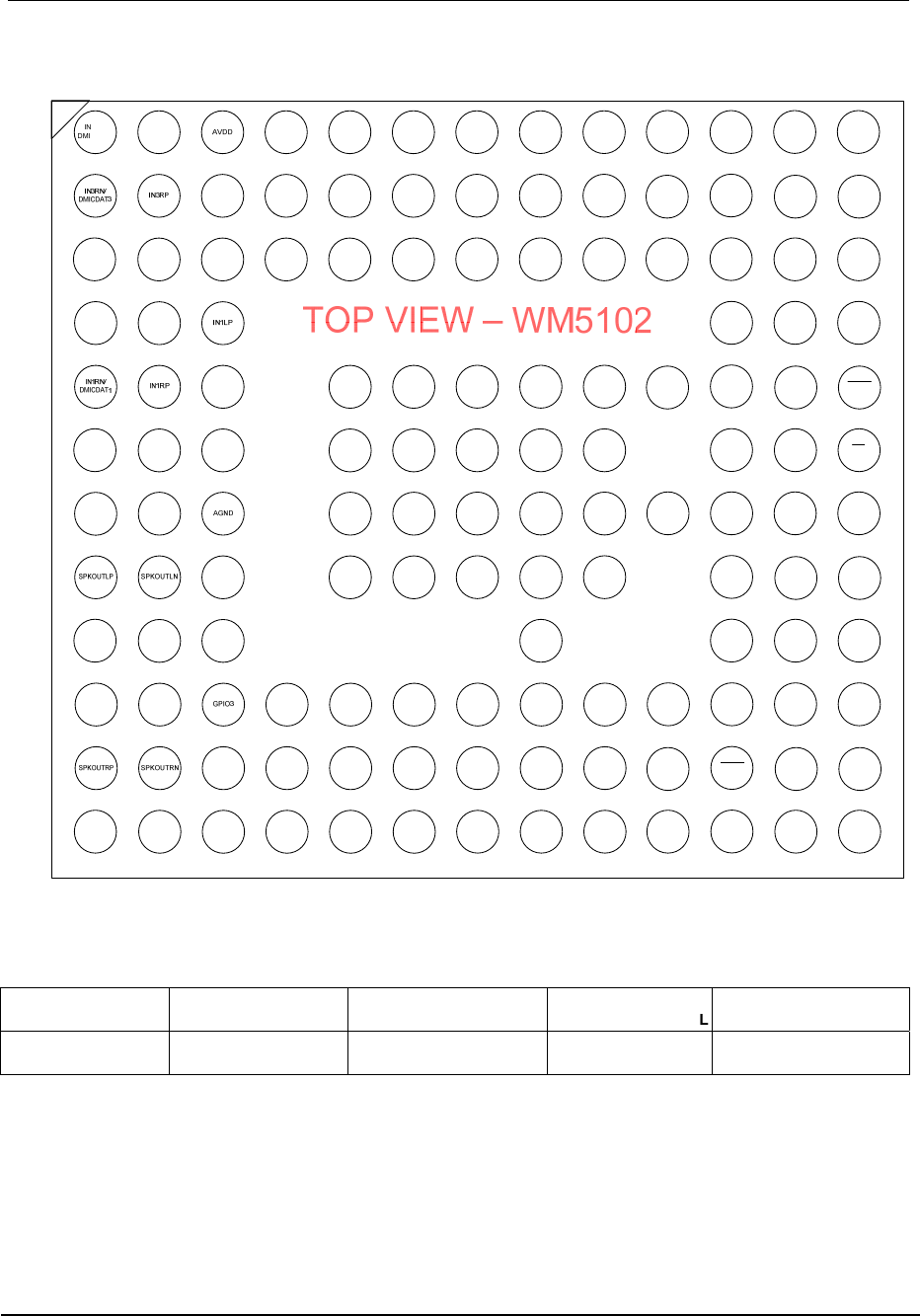

PIN CONFIGURATION

IN2LN/

DMICCLK2

IN3LN/

DMICCLK3

IN2RN/

DMICDAT2

SPKVDDL

AGND

HPOUT2FB

AGNDAGND

EPOUTPIN3LP HPOUT2LEPOUTN

AGND HPOUT2RAGND

AGNDIN2LP

65432

CPVDDAGND

HPOUT1R CP1VOUTP

AGND

AVDD

CP1CAHPOUT1L

AGND

987

CP2CA

CP2VOUT HPDETRCP1VOUTN

CP2CB

121110

CP1CB HPDETL

CPGND MICBIAS1

HPOUT1FB1

/MICDET2

MICDET1/

HPOUT1FB2

MICBIAS3

MICVDD DGND

DGND

IN2RP

IN1LN/

DMICCLK1 DGND

AGNDAGND DGNDDGND

DGND DGNDDGND

DGND LDOENA

VREFC MICBIAS2

MICVDD

JACKDET LDOVOUT

MCLK2

LDOVDD

RESET

IRQ

SPKGNDL

SPKGNDR

DGND

SPKVDDL DGNDDGND

AGND DGND

AGNDSPKGNDL AIF1TXDAT

DGND DGND

DGND

DGNDDGND

AIF1RXDAT

DCVDD DGNDGPIO5

SLIMDAT SLIMCLK

AIF1LRCLK

DBVDD1

MCLK1

AIF1BCLK

SPKVDDR DBVDD2

AIF2TXDAT

AIF3LRCLKDBVDD3

AIF3RXDATSPKGNDR TDOAIF2BCLK

AGND AIF3BCLKAIF3TXDAT

AVDDSPKVDDR AIF2RXDATDCVDD

SPKDAT CIF2MISO

GPIO2

TMS

TCKAIF2LRCLK

DGND TDI

CIF1SDA CIF1SCLKGPIO4

CIF2SS

SPKCLK CIF2SCLK

DBVDD1 TRST

GPIO1

CIF1ADDR

CIF2MOSI

ORDERING INFORMATION

ORDER CODE TEMPERATURE

RANGE

PACKAGE MOISTURE

SENSITIVITY LEVEL

PEAK SOLDERING

TEMPERATURE

WM5102ECS/R -40C to +85C W-CSP

(Pb-free, Tape and reel) MSL1 260C

Note:

Reel quantity = 5000

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

PIN DESCRIPTION

A description of each pin on the WM5102 is provided below.

Note that, where multiple pins share a common name, these pins should be tied together on the PCB.

All Digital Output pins are CMOS outputs, unless otherwise stated.

PIN NO NAME TYPE DESCRIPTION

B3, B4, B7,

C3, C4, C5,

C6, C7, C8,

F2, F3, G3,

H3, J3, L3

AGND Supply Analogue ground (Return path for AVDD)

J13 AIF1BCLK

Digital Input / Output Audio interface 1 bit clock

J11 AIF1RXDAT

Digital Input Audio interface 1 RX digital audio data

J12 AIF1LRCLK

Digital Input / Output Audio interface 1 left / right clock

J8 AIF1TXDAT

Digital Output Audio interface 1 TX digital audio data

K5 AIF2BCLK

Digital Input / Output Audio interface 2 bit clock

M9 AIF2RXDAT

Digital Input Audio interface 2 RX digital audio data

L8 AIF2LRCLK

Digital Input / Output Audio interface 2 left / right clock

L6 AIF2TXDAT

Digital Output Audio interface 2 TX digital audio data

L5 AIF3BCLK

Digital Input / Output Audio interface 3 bit clock

K4 AIF3RXDAT

Digital Input Audio interface 3 RX digital audio data

M5 AIF3LRCLK

Digital Input / Output Audio interface 3 left / right clock

L4 AIF3TXDAT

Digital Output Audio interface 3 TX digital audio data

A3, A7, M3 AVDD Supply Analogue supply

L11 CIF2SS¯¯¯¯¯¯ Digital Input Control interface 2 Slave Select (SS)

L12 CIF2SCLK

Digital Input Control interface 2 clock input

M13 CIF2MOSI

Digital Input Control interface 2 Master Out / Slave In data

K9 CIF2MISO

Digital Output Control interface 2 Master In / Slave Out data

L13 CIF1ADDR

Digital Input Control interface 1 (I2C) address select

K12 CIF1SCLK

Digital Input Control interface 1 clock input

K11 CIF1SDA

Digital Input / Output Control interface 1 data input and output / acknowledge output.

The output function is implemented as an Open Drain circuit.

B9 CP1CA

Analogue Output Charge pump 1 fly-back capacitor pin

B10 CP1CB

Analogue Output Charge pump 1 fly-back capacitor pin

A10 CP1VOUTN

Analogue Output Charge pump 1 negative output decoupling pin

A9 CP1VOUTP

Analogue Output Charge pump 1 positive output decoupling pin

C11 CP2CA

Analogue Output Charge pump 2 fly-back capacitor pin

B11 CP2CB

Analogue Output Charge pump 2 fly-back capacitor pin

A11 CP2VOUT

Analogue Output Charge pump 2 output decoupling pin / Supply for LDO2

C10 CPGND

Supply Charge pump 1 & 2 ground (Return path for CPVDD)

C9 CPVDD

Supply Supply for Charge Pump 1 & 2

G13, M10 DBVDD1 Supply Digital buffer (I/O) supply (core functions and Audio Interface 1)

M6 DBVDD2

Supply Digital buffer (I/O) supply (for Audio Interface 2)

M4 DBVDD3

Supply Digital buffer (I/O) supply (for Audio Interface 3)

G11, M8 DCVDD Supply Digital core supply

E5, E6, E7,

E8, E9, F5,

F6, F7, F8,

F9, G5, G6,

G7, G8, G9,

G12, H5, H6,

H7, H8, H9,

DGND Supply Digital ground

(Return path for DCVDD, DBVDD1, DBVDD2 and DBVDD3)

A4 EPOUTP

Analogue Output Earpiece positive output

A5 EPOUTN

Analogue Output Earpiece negative output

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

PIN NO NAME TYPE DESCRIPTION

K13 GPIO1

Digital Input / Output General Purpose pin GPIO1.

The output function is implemented as an Open Drain circuit.

L7 GPIO2

Digital Input / Output General Purpose pin GPIO2.

The output function is implemented as an Open Drain circuit.

K3 GPIO3

Digital Input / Output General Purpose pin GPIO3.

The output function is implemented as an Open Drain circuit.

K10 GPIO4

Digital Input / Output General Purpose pin GPIO4.

The output function is implemented as an Open Drain circuit.

G10 GPIO5

Digital Input / Output General Purpose pin GPIO5.

The output function is implemented as an Open Drain circuit.

B12 HPDETL

Analogue Input Headphone left (HPOUT1L) sense input

A12 HPDETR

Analogue Input Headphone right (HPOUT1R) sense input

A13 HPOUT1FB1/

MICDET2

Analogue Input HPOUT1L and HPOUT1R ground feedback pin 1/

Microphone & accessory sense input 2

B8 HPOUT1L

Analogue Output Left headphone 1 output

A8 HPOUT1R

Analogue Output Right headphone 1 output

B6 HPOUT2FB

Analogue Input HPOUT2L and HPOUT2R ground loop noise rejection feedback

A6 HPOUT2L

Analogue Output Left headphone 2 output

B5 HPOUT2R

Analogue Output Right headphone 2 output

E3 IN1LN/

DMICCLK1

Analogue Input /

Digital Output

Left channel negative differential MIC input /

Digital MIC clock output 1

D3 IN1LP

Analogue Input Left channel single-ended MIC input /

Left channel line input /

Left channel positive differential MIC input

E1 IN1RN/

DMICDAT1

Analogue input /

Digital Input

Right channel negative differential MIC input /

Digital MIC data input 1

E2 IN1RP

Analogue Input Right channel single-ended MIC input /

Right channel line input /

Right channel positive differential MIC input

C1 IN2LN/

DMICCLK2

Analogue Input /

Digital Output

Left channel negative differential MIC input /

Digital MIC clock output 2

C2 IN2LP

Analogue Input Left channel single-ended MIC input /

Left channel line input /

Left channel positive differential MIC input

D1 IN2RN/

DMICDAT2

Analogue input /

Digital Input

Right channel negative differential MIC input /

Digital MIC data input 2

D2 IN2RP

Analogue Input Right channel single-ended MIC input /

Right channel line input /

Right channel positive differential MIC input

A1 IN3LN/

DMICCLK3

Analogue Input /

Digital Output

Left channel negative differential MIC input /

Digital MIC clock output 3

A2 IN3LP

Analogue Input Left channel single-ended MIC input /

Left channel line input /

Left channel positive differential MIC input

B1 IN3RN/

DMICDAT3

Analogue input /

Digital Input

Right channel negative differential MIC input /

Digital MIC data input 3

B2 IN3RP

Analogue Input Right channel single-ended MIC input /

Right channel line input /

Right channel positive differential MIC input

F13 IRQ¯¯¯ Digital Output Interrupt Request (IRQ) output (default is active low).

The pin configuration is selectable CMOS or Open Drain.

E10 JACKDET

Analogue Input Jack detect input

F11 LDOENA

Digital Input Enable pin for LDO1

D13 LDOVDD

Supply Supply for LDO1

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

PIN NO NAME TYPE DESCRIPTION

E12 LDOVOUT

Analogue Output LDO1 output

H13 MCLK1

Digital Input Master clock 1

F12 MCLK2

Digital Input Master clock 2

C12 MICBIAS1

Analogue Output Microphone bias 1

D12 MICBIAS2

Analogue Output Microphone bias 2

C13 MICBIAS3

Analogue Output Microphone bias 3

B13 MICDET1/

HPOUT1FB2

Analogue Input Microphone & accessory sense input 1/

HPOUT1L and HPOUT1R ground feedback pin 2

E11, F1 MICVDD Analogue Output LDO2 output decoupling pin (generated internally by WM5102).

(Can also be used as reference/supply for external

microphones.)

E13 RESET¯¯¯¯¯¯ Digital Input Digital Reset input (active low)

H12 SLIMCLK

Digital Input / Output SLIM Bus Clock input / output

H11 SLIMDAT

Digital Input / Output SLIM Bus Data input / output

L10 SPKCLK

Digital Output Digital speaker (PDM) clock output

K8 SPKDAT

Digital Output Digital speaker (PDM) data output

J1, J2 SPKGNDL Supply Left speaker driver ground (Return path for SPKVDDL)

K1, K2 SPKGNDR Supply Right speaker driver ground (Return path for SPKVDDR)

H2 SPKOUTLN

Analogue Output Left speaker negative output

H1 SPKOUTLP

Analogue Output Left speaker positive output

L2 SPKOUTRN

Analogue Output Right speaker negative output

L1 SPKOUTRP

Analogue Output Right speaker positive output

G1, G2 SPKVDDL Supply Left speaker driver supply

M1, M2 SPKVDDR Supply Right speaker driver supply

L9 TCK

Digital Input JTAG clock input.

Internal pull-down holds this pin at logic 0 for normal operation.

M11 TDI

Digital Input JTAG data input.

Internal pull-down holds this pin at logic 0 for normal operation.

K6 TDO

Digital Output JTAG data output

K7 TMS

Digital Input JTAG mode select input.

Internal pull-down holds this pin at logic 0 for normal operation.

M12 TRST

Digital Input JTAG Test Access Port reset (active low).

Internal pull-down holds this pin at logic 0 for normal operation.

D11 VREFC

Analogue Output Bandgap reference decoupling capacitor connection

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

ABSOLUTE MAXIMUM RATINGS

Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at or

beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical

Characteristics at the test conditions specified.

ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore generically susceptible

to damage from excessive static voltages. Proper ESD precautions must be taken during handling and storage

of this device.

Wolfson tests its package types according to IPC/JEDEC J-STD-020 for Moisture Sensitivity to determine acceptable storage

conditions prior to surface mount assembly. These levels are:

MSL1 = unlimited floor life at <30C / 85% Relative Humidity. Not normally stored in moisture barrier bag.

MSL2 = out of bag storage for 1 year at <30C / 60% Relative Humidity. Supplied in moisture barrier bag.

MSL3 = out of bag storage for 168 hours at <30C / 60% Relative Humidity. Supplied in moisture barrier bag.

The Moisture Sensitivity Level for each package type is specified in Ordering Information.

CONDITION MIN MAX

Supply voltages (DBVDD1, LDOVDD, AVDD, DCVDD, CPVDD) -0.3V +2.0V

Supply voltages (DBVDD2, DBVDD3, MICVDD) -0.3V +4.0V

Supply voltages (SPKVDDL, SPKVDDR) -0.3V +6.0V

Voltage range digital inputs (DBVDD1 domain) AGND - 0.3V DBVDD1 + 0.3V

Voltage range digital inputs (DBVDD2 domain) AGND - 0.3V DBVDD2 + 0.3V

Voltage range digital inputs (DBVDD3 domain) AGND - 0.3V DBVDD3 + 0.3V

Voltage range digital inputs (DMICDATn) AGND - 3.3V MICVDD + 0.3V

Voltage range analogue inputs (INnLN) AGND - 0.3V MICVDD + 0.3V

Voltage range analogue inputs (INnLP, INnRN, INnRP) AGND - 3.3V MICVDD + 0.3V

Ground (DGND, CPGND, SPKGNDL, SPKGNDR) AGND - 0.3V AGND + 0.3V

Operating temperature range, TA -40ºC +85ºC

Operating junction temperature, TJ -40ºC +125ºC

Storage temperature after soldering -65ºC +150ºC

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

RECOMMENDED OPERATING CONDITIONS

PARAMETER SYMBOL MIN TYP MAX UNIT

Digital supply range (Core)

See notes 3, 5, 6

DCVDD

(24.576MHz clocking)

1.14 1.2 1.9 V

DCVDD

(>24.576MHz clocking)

1.71 1.8 1.9

Digital supply range (I/O) DBVDD1 1.7 1.9 V

Digital supply range (I/O) DBVDD2, DBVDD3 1.7 3.47 V

LDO supply range LDOVDD 1.7 1.8 1.9 V

Charge Pump supply range CPVDD 1.7 1.8 1.9 V

Speaker supply range SPKVDDL, SPKVDDR 2.4 5.5 V

Analogue supply range AVDD 1.7 1.8 1.9 V

Microphone Bias supply

See note 7

MICVDD 2.375 2.5 3.6 V

Ground DGND, AGND, CPGND,

SPKGNDL, SPKGNDR

0 V

Power supply rise time

See notes 8, 9, 10

All supplies 1 µs

Operating temperature range TA -40 85 °C

Notes:

1. The grounds must always be within 0.3V of AGND.

2. AVDD must be supplied before or simultaneously to DCVDD. DCVDD must not be powered if AVDD is not present. There are

no other power sequencing requirements.

3. An internal LDO (powered by LDOVDD) can be used to provide the DCVDD supply.

4. The RESET¯¯¯¯¯¯ input must be asserted (logic 0) during power-up, and held asserted until after the AVDD, DBVDD1 and DCVDD

supplies are within the recommended operating limits. If DCVDD is powered from the internal LDO, then the RESET¯¯¯¯¯¯ pin must

be held asserted until at least 1.5ms after the LDO has been enabled.

5. ‘Sleep’ mode is supported when DCVDD is below the limits noted, provided AVDD and DBVDD1 are present.

6. Under default conditions, digital core clocking rates above 24.576MHz are inhibited. The register-controlled clocking limit

should only be raised when the applicable DCVDD voltage is present.

7. An internal Charge Pump and LDO (powered by CPVDD) provide the Microphone Bias supply; the MICVDD pin should not be

connected to an external supply.

8. DCVDD and MICVDD minimum rise times do not apply when these domains are powered using the internal LDOs.

9. The specified minimum power supply rise times assume a minimum decoupling capacitance of 100nF per pin. However,

Wolfson strongly advises that the recommended decoupling capacitors are present on the PCB and that appropriate layout

guidelines are observed.

10. The specified minimum power supply rise times also assume a maximum PCB inductance of 10nH between decoupling

capacitor and pin.

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

ELECTRICAL CHARACTERISTICS

Test Conditions

AVDD = 1.8V,

With the exception of the condition(s) noted above, the following electrical characteristics are valid across the full range of

recommended operating conditions.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

Analogue Input Signal Level (IN1L, IN1R, IN2L, IN2R, IN3L, IN3R)

Full-scale input signal level

(0dBFS output)

VINFS Single-ended PGA input,

6dB PGA gain

0.5

-6

RMS

dBV

Differential PGA input,

0dB PGA gain

RMS

dBV

Notes:

1. The full-scale input signal level is also the maximum analogue input level, before clipping occurs.

2. The full-scale input signal level changes in proportion with AVDD. For differential input, it is calculated as AVDD / 1.8.

3. A 1.0VRMS differential signal equates to 0.5VRMS/-6dBV per input.

4. A sinusoidal input signal is assumed.

Test Conditions

TA = +25ºC

With the exception of the condition(s) noted above, the following electrical characteristics are valid across the full range of

recommended operating conditions.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

Analogue Input Pin Characteristics (IN1L, IN1R, IN2L, IN2R, IN3L, IN3R)

Input resistance RIN Differential input,

All PGA gain settings

24 k

Single-ended input,

0dB PGA gain

Input capacitance CIN 5 pF

Test Conditions

The following electrical characteristics are valid across the full range of recommended operating conditions.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

Input Programmable Gain Amplifiers (PGAs)

Minimum programmable gain 0 dB

Maximum programmable gain 31 dB

Programmable gain step size Guaranteed monotonic 1 dB

Test Conditions

The following electrical characteristics are valid across the full range of recommended operating conditions.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

Digital Microphone Input Signal Level (DMICDAT1, DMICDAT2, DMICDAT3)

Full-scale input signal level

(0dBFS output)

0dB gain -6 dBFS

Notes:

5. The digital microphone input signal level is measured in dBFS, where 0dBFS is a signal level equal to the full-scale range (FSR)

of the PDM input. The FSR is defined as the amplitude of a 1kHz sine wave whose positive and negative peaks are represented

by the maximum and minimum digital codes respectively - this is the largest 1kHz sine wave that will fit in the digital output range

without clipping. Note that, because the definition of FSR is based on a sine wave, the PDM data format can support signals

larger than 0dBFS.

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

Test Conditions

The following electrical characteristics are valid across the full range of recommended operating conditions.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

Line / Headphone / Earpiece Output Driver (HPOUTnL, HPOUTnR)

Load resistance Normal Mode 15 

Mono Mode (BTL) 30

Device survival with load

applied indefinitely

0.1

Load capacitance Direct connection,

Normal Mode

400 pF

Direct connection,

Mono Mode (BTL)

200

Connection via 16

series resistor

2 nF

DC offset at Load Single-ended mode 0.1 mV

Differential (BTL) mode 0.2

Earpiece Output Driver (EPOUTP+EPOUTN)

Load resistance Normal operation 15 

Device survival with load

applied indefinitely

0.1

Load capacitance Direct connection (BTL) 200 pF

Connection via 16

series resistor

2 nF

DC offset at Load 0.2 mV

Speaker Output Driver (SPKOUTLP+SPKOUTLN, SPKOUTRP+SPKOUTRN)

Load resistance 3 

Load capacitance 200 pF

DC offset at Load 5 mV

SPKVDD leakage current 1 µA

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

Test Conditions

DBVDD1 = DBVDD2 = DBVDD3 = LDOVDD = CPVDD = AVDD = 1.8V,

DCVDD = 1.2V (powered from LDO1), MICVDD = 3.0V (powered from LDO2), SPKVDDL = SPKVDDR = 4.2V,

TA = +25ºC, 1kHz sinusoid signal, fs = 48kHz, Input PGA gain = 0dB, 24-bit audio data unless otherwise stated.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

Analogue Input Paths (INnL, INnR) to ADC (Differential Input Mode, INn_MODE = 00)

Signal to Noise Ratio

(A-weighted)

SNR High performance mode

(INn_OSR = 1)

85 95 dB

Normal mode

(INn_OSR = 0)

Total Harmonic Distortion THD -1dBV input -88 dB

Total Harmonic Distortion Plus

Noise

THD+N -1dBV input -86 -76 dB

Channel separation (Left/Right) 100 dB

Input noise floor A-weighted,

PGA gain = +18dB

3.2 µVRMS

Common mode rejection ratio CMRR PGA gain = +30dB 65 dB

PGA gain = 0dB 70

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 70 dB

100mV(peak-peak) 10kHz 65

Analogue Input Paths (INnL, INnR) to ADC (Single-Ended Input Mode, INn_MODE = 01)

PGA Gain = +6dB unless otherwise stated.

Signal to Noise Ratio

(A-weighted)

SNR High performance mode

(INn_OSR = 1)

94 dB

Normal mode

(INn_OSR = 0)

Total Harmonic Distortion THD -7dBV input -81 dB

Total Harmonic Distortion Plus

Noise

THD+N -7dBV input -80 dB

Channel separation (Left/Right) 100 dB

Input noise floor A-weighted,

PGA gain = +18dB

3.2 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 60 dB

100mV(peak-peak) 10kHz 55

DAC to Headphone Output (HPOUT1L, HPOUT1R; RL = 32)

Maximum output power PO 0.1% THD+N 29 mW

Signal to Noise Ratio SNR A-weighted,

Output signal = 1Vrms

112 dB

Total Harmonic Distortion THD PO = 20mW -86 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 20mW -84 dB

Total Harmonic Distortion THD PO = 5mW -89 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 5mW -85 dB

Channel separation (Left/Right) P

O = 20mW 75 dB

Output noise floor A-weighted 2.5 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 57 dB

100mV (peak-peak) 10kHz 57

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

Test Conditions

DBVDD1 = DBVDD2 = DBVDD3 = LDOVDD = CPVDD = AVDD = 1.8V,

DCVDD = 1.2V (powered from LDO1), MICVDD = 3.0V (powered from LDO2), SPKVDDL = SPKVDDR = 4.2V,

TA = +25ºC, 1kHz sinusoid signal, fs = 48kHz, Input PGA gain = 0dB, 24-bit audio data unless otherwise stated.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

DAC to Headphone Output (HPOUT1L, HPOUT1R; RL = 16)

Maximum output power PO 0.1% THD+N 34 mW

Signal to Noise Ratio SNR A-weighted,

Output signal = 1Vrms

102 112 dB

Total Harmonic Distortion THD PO = 20mW -78 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 20mW -76 dB

Total Harmonic Distortion THD PO = 5mW -78 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 5mW -77 -67 dB

Channel separation (Left/Right) P

O = 20mW 75 dB

Output noise floor A-weighted 2.5 8 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 57 dB

100mV (peak-peak) 10kHz 57

DAC to Line Output (HPOUT1L, HPOUT1R; Load = 10k, 50pF)

Full-scale output signal level VOUT 0dBFS input 1

Vrms

dBV

Signal to Noise Ratio SNR A-weighted,

Output signal = 1Vrms

101 110 dB

Total Harmonic Distortion THD 0dBFS input -83 dB

Total Harmonic Distortion Plus

Noise

THD+N 0dBFS input -81 -71 dB

Channel separation (Left/Right) 100 dB

Output noise floor A-weighted 2.8 8 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 57 dB

100mV (peak-peak) 10kHz 57

DAC to Earpiece Output (HPOUT1L, HPOUT1R, Mono Mode, RL = 32 BTL)

Maximum output power PO 0.1% THD+N 89 mW

5% THD+N 104

Signal to Noise Ratio SNR A-weighted,

Output signal = 2Vrms

113 dB

Total Harmonic Distortion THD PO = 50mW -92 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 50mW -90 dB

Total Harmonic Distortion THD PO = 5mW -86 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 5mW -88 dB

Output noise floor A-weighted 2.5 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 57 dB

100mV (peak-peak) 10kHz 57

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

Test Conditions

DBVDD1 = DBVDD2 = DBVDD3 = LDOVDD = CPVDD = AVDD = 1.8V,

DCVDD = 1.2V (powered from LDO1), MICVDD = 3.0V (powered from LDO2), SPKVDDL = SPKVDDR = 4.2V,

TA = +25ºC, 1kHz sinusoid signal, fs = 48kHz, Input PGA gain = 0dB, 24-bit audio data unless otherwise stated.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

DAC to Headphone Output (HPOUT2L, HPOUT2R; RL = 32)

Maximum output power PO 0.1% THD+N 27 mW

Signal to Noise Ratio SNR A-weighted,

Output signal = 1Vrms

109 dB

Total Harmonic Distortion THD PO = 20mW -90 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 20mW -88 dB

Total Harmonic Distortion THD PO = 5mW -90 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 5mW -88 dB

Channel separation (Left/Right) P

O = 20mW 75 dB

Output noise floor A-weighted 3 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 57 dB

100mV (peak-peak) 10kHz 57

DAC to Headphone Output (HPOUT2L, HPOUT2R; RL = 16)

Maximum output power PO 0.1% THD+N 32 mW

Signal to Noise Ratio SNR A-weighted,

Output signal = 1Vrms

101 111 dB

Total Harmonic Distortion THD PO = 20mW -88 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 20mW -87 dB

Total Harmonic Distortion THD PO = 5mW -85 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 5mW -83 -73 dB

Channel separation (Left/Right) P

O = 20mW 75 dB

Output noise floor A-weighted 2.8 10 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 57 dB

100mV (peak-peak) 10kHz 57

DAC to Line Output (HPOUT2L, HPOUT2R; Load = 10k, 50pF)

Full-scale output signal level VOUT 0dBFS input 1

Vrms

dBV

Signal to Noise Ratio SNR A-weighted,

Output signal = 1Vrms

100 110 dB

Total Harmonic Distortion THD 0dBFS input -87 dB

Total Harmonic Distortion Plus

Noise

THD+N 0dBFS input -85 -75 dB

Channel separation (Left/Right) 105 dB

Output noise floor A-weighted 3.5 10 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 57 dB

100mV (peak-peak) 10kHz 57

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

Test Conditions

DBVDD1 = DBVDD2 = DBVDD3 = LDOVDD = CPVDD = AVDD = 1.8V,

DCVDD = 1.2V (powered from LDO1), MICVDD = 3.0V (powered from LDO2), SPKVDDL = SPKVDDR = 4.2V,

TA = +25ºC, 1kHz sinusoid signal, fs = 48kHz, Input PGA gain = 0dB, 24-bit audio data unless otherwise stated.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

DAC to Earpiece Output (HPOUT2L, HPOUT2R, Mono Mode, RL = 32 BTL)

Maximum output power PO 0.1% THD+N 85 mW

5% THD+N 100

Signal to Noise Ratio SNR A-weighted,

Output signal = 2Vrms

112 dB

Total Harmonic Distortion THD PO = 50mW -90 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 50mW -88 dB

Total Harmonic Distortion THD PO = 5mW -90 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 5mW -88 dB

Output noise floor A-weighted 6 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 57 dB

100mV (peak-peak) 10kHz 57

DAC to Earpiece Output (EPOUTP+EPOUTN, RL = 32 BTL)

Maximum output power PO 0.1% THD+N 80 mW

5% THD+N 100

Signal to Noise Ratio SNR A-weighted,

Output signal = 2Vrms

99 109 dB

Total Harmonic Distortion THD PO = 50mW -86 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 50mW -84 dB

Total Harmonic Distortion THD PO = 5mW -85 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 5mW -83 -73 dB

Output noise floor A-weighted 3.5 10.5 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 52 dB

100mV (peak-peak) 10kHz 52

DAC to Earpiece Output (EPOUTP+EPOUTN, RL = 16 BTL)

Maximum output power PO 0.1% THD+N 80 mW

10% THD+N 105

Signal to Noise Ratio SNR A-weighted,

Output signal = 2Vrms

111 dB

Total Harmonic Distortion THD PO = 50mW -92 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 50mW -90 dB

Total Harmonic Distortion THD PO = 5mW -84 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 5mW -82 dB

Output noise floor A-weighted 3 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 52 dB

100mV (peak-peak) 10kHz 52

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

Test Conditions

DBVDD1 = DBVDD2 = DBVDD3 = LDOVDD = CPVDD = AVDD = 1.8V,

DCVDD = 1.2V (powered from LDO1), MICVDD = 3.0V (powered from LDO2), SPKVDDL = SPKVDDR = 4.2V,

TA = +25ºC, 1kHz sinusoid signal, fs = 48kHz, Input PGA gain = 0dB, 24-bit audio data unless otherwise stated.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

DAC to Speaker Output (SPKOUTLP+SPKOUTLN, SPKOUTRP+SPKOUTRN, Load = 8, 22µH, BTL)

High Performance mode (OUT4_OSR=1)

Maximum output power PO SPKVDD = 5.0V,

1% THD+N

1.4 W

SPKVDD = 4.2V,

1% THD+N

1.0

SPKVDD = 3.6V,

1% THD+N

0.7

Signal to Noise Ratio SNR A-weighted,

Output signal = 3.3Vrms

82 97 dB

Total Harmonic Distortion THD PO = 0.9W -70 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 0.9W -68 dB

Total Harmonic Distortion THD PO = 0.5W -70 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 0.5W -68 -57 dB

Channel separation (Left/Right) P

O = 0.5W 105 dB

Output noise floor A-weighted 55 300 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 60 dB

100mV (peak-peak) 10kHz 60

PSRR (SPKVDDL, SPKVDDR) PSRR 100mV (peak-peak) 217Hz 70 dB

100mV (peak-peak) 10kHz 70

DAC to Speaker Output (SPKOUTLP+SPKOUTLN, SPKOUTRP+SPKOUTRN, Load = 4, 15µH, BTL)

High Performance mode (OUT4_OSR=1)

Maximum output power PO SPKVDD = 5.0V,

1% THD+N

2.5 W

SPKVDD = 4.2V,

1% THD+N

1.8

SPKVDD = 3.6V,

1% THD+N

1.3

Signal to Noise Ratio SNR A-weighted,

Output signal = 3.3Vrms

95 dB

Total Harmonic Distortion THD PO = 1.0W -64 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 1.0W -62 dB

Total Harmonic Distortion THD PO = 0.5W -66 dB

Total Harmonic Distortion Plus

Noise

THD+N PO = 0.5W -64 dB

Channel separation (Left/Right) P

O = 0.5W 105 dB

Output noise floor A-weighted 55 µVRMS

PSRR (DBVDDn, LDOVDD,

CPVDD, AVDD)

PSRR 100mV (peak-peak) 217Hz 60 dB

100mV (peak-peak) 10kHz 60

PSRR (SPKVDDL, SPKVDDR) PSRR 100mV (peak-peak) 217Hz 70 dB

100mV (peak-peak) 10kHz 70

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

Test Conditions

The following electrical characteristics are valid across the full range of recommended operating conditions.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

Digital Input / Output (except DMICDATn and DMICCLKn)

Digital I/O is referenced to DBVDD1, DBVDD2 or DBVDD3.

See “Recommended Operating Conditions” for the valid operating voltage range of each DBVDDn domain.

Input HIGH Level VIH V

DBVDDn =1.8V ±10% 0.65 

VDBVDDn

VDBVDDn =3.3V ±10% 0.7 

VDBVDDn

Input LOW Level VIL V

DBVDDn =1.8V ±10% 0.35 

VDBVDDn

VDBVDDn =3.3V ±10% 0.3 

VDBVDDn

Note that digital input pins should not be left unconnected or floating.

Output HIGH Level VOH I

OH = 1mA 0.9 

VDBVDDn

Output LOW Level VOL I

OL = -1mA 0.1 

VDBVDDn

Input capacitance 10 pF

Input leakage -1 1 µA

Pull-up resistance

(where applicable)

42 49 56 k

Pull-down resistance

(where applicable)

80 105 130 k

Digital Microphone Input / Output (DMICDATn and DMICCLKn)

DMICDATn and DMICCLKn are each referenced to a selectable supply, VSUP, according to the INn_DMIC_SUP registers

DMICDATn input HIGH Level VIH 0.65  VSUP V

DMICDATn input LOW Level VIL 0.35  VSUP V

DMICCLKn output HIGH Level VOH I

OH = 1mA 0.8  VSUP V

DMICCLKn output LOW Level VOL I

OL = -1mA 0.2  VSUP V

Input capacitance 10 pF

Input leakage -1 1 µA

SLIMbus Digital Input / Output (SLIMCLK and SLIMDAT)

1.8V I/O Signalling (ie. 1.65V ≤ DBVDD1 ≤1.95V)

Input HIGH Level VIH 0.65 

VDBVDD1

Input LOW Level VIL 0.35 

VDBVDD1

Output HIGH Level VOH I

OH = 1mA 0.9 

VDBVDD1

Output LOW Level VOL I

OL = -1mA 0.1 

VDBVDD1

Pin capacitance 5 pF

General Purpose Input / Output (GPIOn)

Clock output frequency GPIO pin configured as

OPCLK or FLL output

26.5 MHz

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

Test Conditions

fs  48kHz

With the exception of the condition(s) noted above, the following electrical characteristics are valid across the full range of

recommended operating conditions.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

ADC Decimation Filters

Passband +/- 0.05dB 0 0.454 fs

-6dB 0.5 fs

Passband ripple +/- 0.05 dB

Stopband 0.546 fs

Stopband attenuation f > 0.546 fs 85 dB

Signal path delay Analogue input to

Digital AIF output

2 ms

DAC Interpolation Filters

Passband +/- 0.05dB 0 0.454 fs

-6dB 0.5 fs

Passband ripple +/- 0.05 dB

Stopband 0.546 fs

Stopband attenuation f > 0.546 fs 85 dB

Signal path delay Digital AIF input to

Analogue output

1.5 ms

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

Test Conditions

DBVDD1 = DBVDD2 = DBVDD3 = LDOVDD = CPVDD = AVDD = 1.8V,

DCVDD = 1.2V (powered from LDO1), MICVDD = 3.0V (powered from LDO2), SPKVDDL = SPKVDDR = 4.2V,

TA = +25ºC, 1kHz sinusoid signal, fs = 48kHz, Input PGA gain = 0dB, 24-bit audio data unless otherwise stated.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

Microphone Bias (MICBIAS1, MICBIAS2, MICBIAS3)

Note - No capacitor on MICBIASn

Note - In regulator mode, it is required that VMICVDD - VMICBIASn > 200mV

Minimum Bias Voltage VMICBIAS Regulator mode

(MICBn_BYPASS=0)

Load current  1.0mA

1.5 V

Maximum Bias Voltage 2.8 V

Bias Voltage output step size 0.1 V

Bias Voltage accuracy -5% +5% V

Bias Current Regulator mode

(MICBn_BYPASS=0),

VMICVDD - VMICBIAS >200mV

2.4 mA

Bypass mode

(MICBn_BYPASS=1)

5.0

Output Noise Density Regulator mode

(MICBn_BYPASS=0),

MICBn_LVL = 4h,

Load current = 1mA,

Measured at 1kHz

50 nV/Hz

Integrated noise voltage Regulator mode

(MICBn_BYPASS=0),

MICBn_LVL = 4h,

Load current = 1mA,

100Hz to 7kHz, A-weighted

4 µVrms

Power Supply Rejection Ratio

(DBVDDn, LDOVDD, CPVDD,

AVDD)

PSRR 100mV (peak-peak) 217Hz 95 dB

100mV (peak-peak) 10kHz 65

Load capacitance Regulator mode

(MICBn_BYPASS=0),

MICBn_EXT_CAP=0

50 pF

Regulator mode

(MICBn_BYPASS=0),

MICBn_EXT_CAP=1

1.8 4.7 µF

Output discharge resistance MICBn_ENA=0,

MICBn_DISCH=1

5 k

External Accessory Detect

Load impedance detection range

(HPDETL or HPDETR)

HP_IMPEDANCE_

RANGE=00

4 80 

HP_IMPEDANCE_

RANGE=01

70 1000

HP_IMPEDANCE_

RANGE=10

1000 10000

Load impedance detection

accuracy (HPDETL or HPDETR)

-30 +30 %

Load impedance detection range

(MICDET1 or MICDET2)

2.2k (2%) MICBIAS resistor.

Note these characteristics assume

no other component is connected

to MICDETn.

for MICD_LVL[0] = 1 0 3 

for MICD_LVL[1] = 1 17 21

for MICD_LVL[2] = 1 36 44

for MICD_LVL[3] = 1 62 88

for MICD_LVL[4] = 1 115 160

for MICD_LVL[5] = 1 207 381

for MICD_LVL[8] = 1 475 30000

Jack Detection input threshold

voltage (JACKDET)

VJACKDET Jack insertion 0.5 x AVDD V

Jack removal 0.85 x AVDD

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

Test Conditions

DBVDD1 = DBVDD2 = DBVDD3 = LDOVDD = CPVDD = AVDD = 1.8V,

DCVDD = 1.2V (powered from LDO1), MICVDD = 3.0V (powered from LDO2), SPKVDDL = SPKVDDR = 4.2V,

TA = +25ºC, 1kHz sinusoid signal, fs = 48kHz, Input PGA gain = 0dB, 24-bit audio data unless otherwise stated.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT

MICVDD Charge Pump and Regulator (CP2 and LDO2)

Output voltage VMICVDD 1.7 2.7 3.3 V

Programmable output voltage step

size

50 mV

Maximum output current 8 mA

Start-up time 4.7µF on MICVDD,

IMICBIASn = 1mA

4.5 ms

Frequency Locked Loop (FLL1, FLL2)

Output frequency Normal operation,

input reference supplied

13 52 MHz

Free-running mode,

no reference supplied

Lock Time F

REF = 32kHz,

FOUT = 24.576MHz

10 ms

FREF = 12MHz,

FOUT = 24.576MHz

RESET pin Input

RESET input pulse width

(To trigger a Hardware Reset, the

RESET input must be asserted for

longer than this duration)

1 µs

Test Conditions

The following electrical characteristics are valid across the full range of recommended operating conditions.

Device Reset Thresholds

AVDD Reset Threshold VAVDD 0.54 0.96 V

DCVDD Reset Threshold VDCVDD 0.59 0.81 V

DBVDD1 Reset Threshold VDBVDD1 0.54 0.96 V

Note that the reset thresholds are derived from simulations only, across all operational and process corners.

Device performance is not assured outside the voltage ranges defined in the “Recommended Operating Conditions” section. Refer

to this section for the WM5102 power-up sequencing requirements.

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

TERMINOLOGY

1. Signal-to-Noise Ratio (dB) – SNR is a measure of the difference in level between the maximum full scale output signal and the

output with no input signal applied. (Note that this is measured without any mute function enabled.)

2. Total Harmonic Distortion (dB) – THD is the ratio of the RMS sum of the harmonic distortion products in the specified

bandwidth (see note below) relative to the RMS amplitude of the fundamental (ie. test frequency) output.

3. Total Harmonic Distortion plus Noise (dB) – THD+N is the ratio of the RMS sum of the harmonic distortion products plus noise

in the specified bandwidth (see note below) relative to the RMS amplitude of the fundamental (ie. test frequency) output.

4. Power Supply Rejection Ratio (dB) - PSRR is the ratio of a specified power supply variation relative to the output signal that

results from it. PSRR is measured under quiescent signal path conditions.

5. Common Mode Rejection Ratio (dB) – CMRR is the ratio of a specified input signal (applied to both sides of a differential

input), relative to the output signal that results from it.

6. Channel Separation (L/R) (dB) – left-to-right and right-to-left channel separation is the difference in level between the active

channel (driven to maximum full scale output) and the measured signal level in the idle channel at the test signal frequency.

The active channel is configured and supplied with an appropriate input signal to drive a full scale output, with signal measured

at the output of the associated idle channel.

7. Multi-Path Crosstalk (dB) – is the difference in level between the output of the active path and the measured signal level in the

idle path at the test signal frequency. The active path is configured and supplied with an appropriate input signal to drive a full

scale output, with signal measured at the output of the specified idle path.

8. Mute Attenuation – This is a measure of the difference in level between the full scale output signal and the output with mute

applied.

9. All performance measurements are specified with a 20kHz low pass ‘brick-wall’ filter and, where noted, an A-weighted filter.

Failure to use these filters will result in higher THD and lower SNR readings than are found in the Electrical Characteristics.

The low pass filter removes out of band noise.

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

DEVICE DESCRIPTION

INTRODUCTION

The WM5102 is a highly integrated low-power audio hub CODEC for mobile telephony and portable

devices. It provides flexible, high-performance audio interfacing for handheld devices in a small and

cost-effective package. It supports programmable DSP for wideband voice processing, ideally suited

for multimedia phones and smartphones.

The WM5102 digital core provides an extensive capability for signal processing algorithms, including

echo cancellation, wind noise, side-tone and other programmable filters. Parametric equalisation (EQ)

and dynamic range control (DRC) are also supported. Highly flexible digital mixing, including stereo

full-duplex asynchronous sample rate conversion, provides use-case flexibility across a broad range

of system architectures. A signal generator for controlling haptics vibe actuators is included.

The WM5102 provides multiple digital audio interfaces, including SLIMbus, in order to provide

independent and fully asynchronous connections to different processors (eg. application processor,

baseband processor and wireless transceiver).

A flexible clocking arrangement supports a wide variety of external clock references, including

clocking derived from the digital audio interface. Two integrated Frequency Locked Loop (FLL) circuits

provide additional flexibility.

Unused circuitry can be disabled under software control, in order to save power; low leakage currents

enable extended standby/off time in portable battery-powered applications. Configurable ‘Wake-Up’

actions can be associated with the low-power standby (Sleep) mode.

Versatile GPIO functionality is provided, and support for external accessory / push-button detection

inputs. Comprehensive Interrupt (IRQ) logic and status readback are also provided.

HI-FI AUDIO CODEC

The WM5102 is a high-performance low-power audio CODEC which uses a simple analogue

architecture. 6 ADCs and 7 DACs are incorporated, providing a dedicated ADC for each input and a

dedicated DAC for each output channel.

The analogue outputs comprise two 29mW (113dB SNR) stereo headphone amplifiers with ground-

referenced output, a 100mW differential (BTL) earpiece driver, and a Class D stereo speaker driver

capable of delivering 2W per channel into a 4 load. Six analogue inputs are provided, each

supporting single-ended or differential input modes. In differential mode, the input path SNR is 96dB.

The ADC input paths can be bypassed, supporting up to 6 channels of digital microphone input.

The audio CODEC is controlled directly via register access. The simple analogue architecture,

combined with the integrated tone generator, enables simple device configuration and testing,

minimising debug time and reducing software effort.

The WM5102 output drivers are designed to support as many different system architectures as

possible. Each output has a dedicated DAC which allows mixing, equalisation, filtering, gain and other

audio processing to be configured independently for each channel. This allows each signal path to be

individually tailored for the load characteristics. All outputs have integrated pop and click suppression

features.

The headphone output drivers are ground-referenced, powered from an integrated charge pump,

enabling high quality, power efficient headphone playback without any requirement for DC blocking

capacitors. Ground loop feedback is incorporated, providing rejection of noise on the ground

connections. A mono mode is available on the headphone outputs; this configures the drivers as

differential (BTL) outputs, suitable for an earpiece or hearing aid coil.

The Class D speaker drivers deliver excellent power efficiency. High PSRR, low leakage and

optimised supply voltage ranges enable powering from switching regulators or directly from the

battery. Battery current consumption is minimised across a wide variety of voice communication and

multimedia playback use cases.

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

The WM5102 is cost-optimised for a wide range of mobile phone applications, and features two

channels of Class D power amplification. For applications requiring more than two channels of power

amplification (or when using the integrated Class D path to drive a haptics actuator), the PDM output

channels can be used to drive two external PDM-input speaker drivers. In applications where stereo

loudspeakers are physically widely separated, the PDM outputs can ease layout and EMC by avoiding

the need to run the Class-D speaker outputs over long distances and interconnects.

DIGITAL AUDIO CORE

The WM5102 uses a core architecture based on all-digital signal routing, making digital audio effects

available on all signal paths, regardless of whether the source data input is analogue or digital. The

digital mixing desk allows different audio effects to be applied simultaneously on many independent

paths, whilst also supporting a variety of sample rates concurrently. This helps support many new

audio use-cases. Soft mute and un-mute control allows smooth transitions between use-cases without

interrupting existing audio streams elsewhere.

The WM5102 digital core provides an extensive capability for programmable signal processing

algorithms. The DSP can support functions such as echo cancellation, wind noise, side-tone and other

programmable filters. The DSP is optimised for advanced voice processing, but a wide range of

application-specific filters and audio enhancements can also be implemented.

Highly flexible digital mixing, including mixing between audio interfaces, is possible. The WM5102

performs stereo full-duplex asynchronous sample rate conversion, providing use-case flexibility across

a broad range of system architectures. Automatic sample rate detection is provided, enabling

seamless wideband/narrowband voice call handover.

Dynamic Range Controller (DRC) functions are available for optimising audio signal levels. In

playback modes, the DRC can be used to maximise loudness, while limiting the signal level to avoid

distortion, clipping or battery droop, in particular for high-power output drivers such as speaker

amplifiers. In record modes, the DRC assists in applications where the signal level is unpredictable.

The 5-band parametric equaliser (EQ) functions can be used to compensate for the frequency

characteristics of the output transducers. EQ functions can be cascaded to provide additional

frequency control. Programmable high-pass and low-pass filters are also available for general filtering

applications such as removal of wind and other low-frequency noise.

DIGITAL INTERFACES

Three serial digital audio interfaces (AIFs) each support PCM, TDM and I2S data formats for

compatibility with most industry-standard chipsets. AIF1 supports eight input/output channels; AIF2

and AIF3 each support two input/output channels. Bidirectional operation at sample rates up to

192kHz is supported.

Six digital PDM input channels are available (three stereo interfaces); these are typically used for

digital microphones, powered from the integrated MICBIAS power supply regulators. Two PDM output

channels are also available (one stereo interface); these are typically used for external power

amplifiers. Embedded mute codes provide a control mechanism for external PDM-input devices.

The WM5102 features a MIPI-compliant SLIMbus interface, providing eight channels of audio

input/output. Mixed audio sample rates are supported on the SLIMbus interface. The SLIMbus

interface also supports read/write access to the WM5102 control registers.

The WM5102 is equipped with an I2C slave port (at up to 1MHz), and an SPI port (at up to 26MHz).

Full access to the register map is also provided via the SLIMbus port.

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

OTHER FEATURES

The WM5102 incorporates two 1kHz tone generators which can be used for ‘beep’ functions through

any of the audio signal paths. The phase relationship between the two generators is configurable,

providing flexibility in creating differential signals, or for test scenarios.

A white noise generator is provided, which can be routed within the digital core. The noise generator

can provide ‘comfort noise’ in cases where silence (digital mute) is not desirable.

Two Pulse Width Modulation (PWM) signal generators are incorporated. The duty cycle of each PWM

signal can be modulated by an audio source, or can be set to a fixed value using a control register

setting. The PWM signal generators can be output directly on a GPIO pin.

The WM5102 provides 5 GPIO pins, supporting selectable input/output functions for interfacing,

detection of external hardware, and to provide logic outputs to other devices. Comprehensive Interrupt

(IRQ) functionality is also provided for monitoring internal and external event conditions.

A signal generator for controlling haptics devices is included, compatible with both Eccentric Rotating

Motor (ERM) and Linear Resonant Actuator (LRA) haptic devices. The haptics signal generator is

highly configurable, and can execute programmable drive event profiles, including reverse drive

control. An external vibe actuator can be driven directly by the Class D speaker output.

The WM5102 can be powered from a 1.8V external supply. A separate supply (4.2V) is typically

required for the Class D speaker driver. Integrated Charge Pump and LDO Regulators circuits are

used to generate supply rails for internal functions and to support powering or biasing of external

microphones.

A smart accessory interface is included, supporting most standard 3.5mm accessories. Jack

detection, accessory sensing and impedance measurement is provided, for external accessory and

push-button detection. Accessory detection can be used as a ‘Wake-Up’ trigger from low-power

standby. Microphone activity detection with interrupt is also available.

System clocking can be derived from the MCLK1 or MCLK2 input pins. Alternatively, the SLIMbus

interface, or the audio interfaces (configured in Slave mode), can be used to provide a clock

reference. Two integrated Frequency Locked Loop (FLL) circuits provide support for a wide range of

clocking configurations, including the use of a 32kHz input clock reference.

42v huff comm mm“ 1 I I mmmhmmz ] M. mm mm WWW SUMWW E W WW1 mm.“ WW; Hm" mmmmm “mummw WW; mum“. mu (mmmwm m mmmmmw mm. WW 014nm; HPOU’I‘I Inn HPWR mm." “WWW“ mummm MW s‘nmum m mm." Mm mm mam WWW mun... mm“ mm." WWW. mmmm‘ .mwa mm. .m nu“ mum:

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

RECOMMENDED EXTERNAL COMPONENTS

B: 137 BALL W-CSP PACKAGE 5.403 x 5.423 x0574 mm BODY, 0A0 mm BALL PITCH EEIALLJ 131141100170541140 ‘ 66.65.6606... A 0060900050050. 7 0000000000000 3W 6.. 6.. 065656635 660 "i 000 00000 000" E. 66.65.66. 65. 60 000 00 000 VI. 60 00 ' 72.0025: Ax 5mm HALL m 17 . ‘h u . . mm" v v ‘ z I A“ I) .j .0 '3 .5 am 1 new . nauu 1 Symbols Dimensions hum) MIN NDM MAX NOTE A 0.540 0.574 0.600 A1 0172 0.202 0.232 A2 0.356 0.372 0.300 D 5.370 5.400 5.425 D1 A 30 BSC E 5.403 5.420 5.453 E1 440 BSC 9 0 400 380 5 H 0.300 BSC «2 o 427 380 a 0.303 ESC H 0.501 380 a 0 022 h 0 222 0.262 0.302 News, . ms Dusnsm newnsssmuommmm. u comm Is Iniunnsn n mxuszn mm m m muss 1.4 azanesmsmz mlcsmnzn 5411mm "cu ms muwmu Issumzct m ennui wmmr Nanci mum JEDEE nzsm GuInE um mm mm roLEuMcE mu: Isnmzn m 2m $032 07 ms "cuss sum 79.: VIEW i 50. C nsz; Ah v DM115.E somzn mu »‘o.015vz u

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

PACKAGE DIMENSIONS

sales@wo\fsonmmm um

Production Data WM5102

w Product Brief, June 2014, Rev 4.2

IMPORTANT NOTICE

Wolfson Microelectronics plc (“Wolfson”) products and services are sold subject to Wolfson’s terms and conditions of sale, delivery

and payment supplied at the time of order acknowledgement.

Wolfson warrants performance of its products to the specifications in effect at the date of shipment. Wolfson reserves the right to

make changes to its products and specifications or to discontinue any product or service without notice. Customers should therefore

obtain the latest version of relevant information from Wolfson to verify that the information is current.

Testing and other quality control techniques are utilised to the extent Wolfson deems necessary to support its warranty. Specific

testing of all parameters of each device is not necessarily performed unless required by law or regulation.

In order to minimise risks associated with customer applications, the customer must use adequate design and operating safeguards

to minimise inherent or procedural hazards. Wolfson is not liable for applications assistance or customer product design. The

customer is solely responsible for its selection and use of Wolfson products. Wolfson is not liable for such selection or use nor for

use of any circuitry other than circuitry entirely embodied in a Wolfson product.

Wolfson’s products are not intended for use in life support systems, appliances, nuclear systems or systems where malfunction can

reasonably be expected to result in personal injury, death or severe property or environmental damage. Any use of products by the

customer for such purposes is at the customer’s own risk.

Wolfson does not grant any licence (express or implied) under any patent right, copyright, mask work right or other intellectual

property right of Wolfson covering or relating to any combination, machine, or process in which its products or services might be or

are used. Any provision or publication of any third party’s products or services does not constitute Wolfson’s approval, licence,

warranty or endorsement thereof. Any third party trade marks contained in this document belong to the respective third party owner.

Reproduction of information from Wolfson datasheets is permissible only if reproduction is without alteration and is accompanied by

all associated copyright, proprietary and other notices (including this notice) and conditions. Wolfson is not liable for any

unauthorised alteration of such information or for any reliance placed thereon.

Any representations made, warranties given, and/or liabilities accepted by any person which differ from those contained in this

datasheet or in Wolfson’s standard terms and conditions of sale, delivery and payment are made, given and/or accepted at that

person’s own risk. Wolfson is not liable for any such representations, warranties or liabilities or for any reliance placed thereon by

any person.

ADDRESS:

Wolfson Microelectronics plc

26 Westfield Road

Edinburgh

EH11 2QB

United Kingdom

Tel :: +44 (0)131 272 7000

Fax :: +44 (0)131 272 7001

Email :: sales@wolfsonmicro.com

WM5102 Production Data

w Product Brief, June 2014, Rev 4.2

REVISION HISTORY

DATE REV DESCRIPTION OF CHANGES PAGE CHANGED BY

15/09/11 1.0 Customer preview under NDA MP

24/10/11 1.1 Updates to Control Interface, Haptics description and Pin names MP

11/11/11 1.2 Removed DACVDD MP

7/12/11 1.3

Updated power pins to reflect implementation, and block diagram to

match.

Updated filter spec delay wording

17/02/12 1.4 Updates to all sections, and alignment with datasheet standards. PH

7/03/12 1.4

Pin Configuration / Ballout details added 4-7 PH

22/03/12 1.4 Package Drawing added 27 PH

13/04/12 1.4 Reel quantity added 4 PH

19/04/12 1.5 Updates to Electrical Characteristics KOL

01/05/12 1.6 Signal Timing Requirements deleted PH

08/06/12 1.6 Sample rates greater than 192kHz deleted.

DCVDD requirements for 50MHz clocking added.

Analogue connections updated on External Components figure.

Maximum LDO2 output voltage amended to 3.25V.

08/08/12 1.6 Pin Descriptions updated to show single-ended analogue input is on

the INxP pins (not INxN).

23/10/12 2.0 Electrical Characteristics updated

Package Drawing updated

13/11/12 2.0 Electrical Characteristics updated.

Correction to Pin Numbering (SPKOUTLP, SPKOUTLN,

SPKOUTRP, SPKOUTRN)

14/12/12 3.0 Block diagram update, showing gain in AEC Loopback path

Package drawing updated

19/02/13 3.0 Electrical Characteristics updated PH

22/02/13 3.0 Pin Description updated. JMacD

04/06/13 4.0 Electrical Characteristics updated JMacD

26/02/14 4.1 Power-up timing and Reset requirements updated.

SNR test conditions clarified.

Headphone impedance measurement control updated.

Clarification to maximum input signal levels (analogue & digital).

JMacD

27/06/14 4.2 JTAG Interface input pins all have internal pull-down resistors.

Updated Pull-up/Pull-down resistances, and Reset thresholds.

17, 20

Products related to this Datasheet

IC CODEC AUDIO HUB W/DSP 137WCSP

WM5102ECS/R

IC CODEC AUDIO HUB W/DSP 137WCSP

WM5102ECS/R

IC CODEC AUDIO HUB W/DSP 137WCSP

WM5102ECS/R
