AWHW-xxG-0x02-T Drawing Datasheet by Assmann WSW Components

View All Related Products | Download PDF Datasheet
44444447444444T44444T44’4’T4’4’4744’4’4T44’4’47 ‘ m N '_1 , ““”'“““”\\'“““'“'“ : $®$®$$$$V§E$e$®$e panamaaflflannanuna E $®$$$$$$H$$$$ $$ fifl m‘ “ q ‘ ' 2,54 $0 '1 ®'\' m 2,:4:u,:u 3 R if c; 7 254 x Nuns? Pusitiurmia‘fyzliflfio <+7 591mm="" @="" l="" 855:0;5="" ‘="" j!="" 7="" v="" a="" ‘1="" 5’.="" g):="" 5="" \\="" g="" :l="" h="" r,="" 1'!="" *1?="" n‘="" a;="" ,="" uuuuuuuluujuuuue="" .="" 2="" 54:0,0="" se;="" 364="" mitt},="" 5="" 4="" ®="" @f‘ie="" nu="" e135287="" ®="" 2="" a="" a="" g="" \vx/ewwcomponents="" svsaoe="">

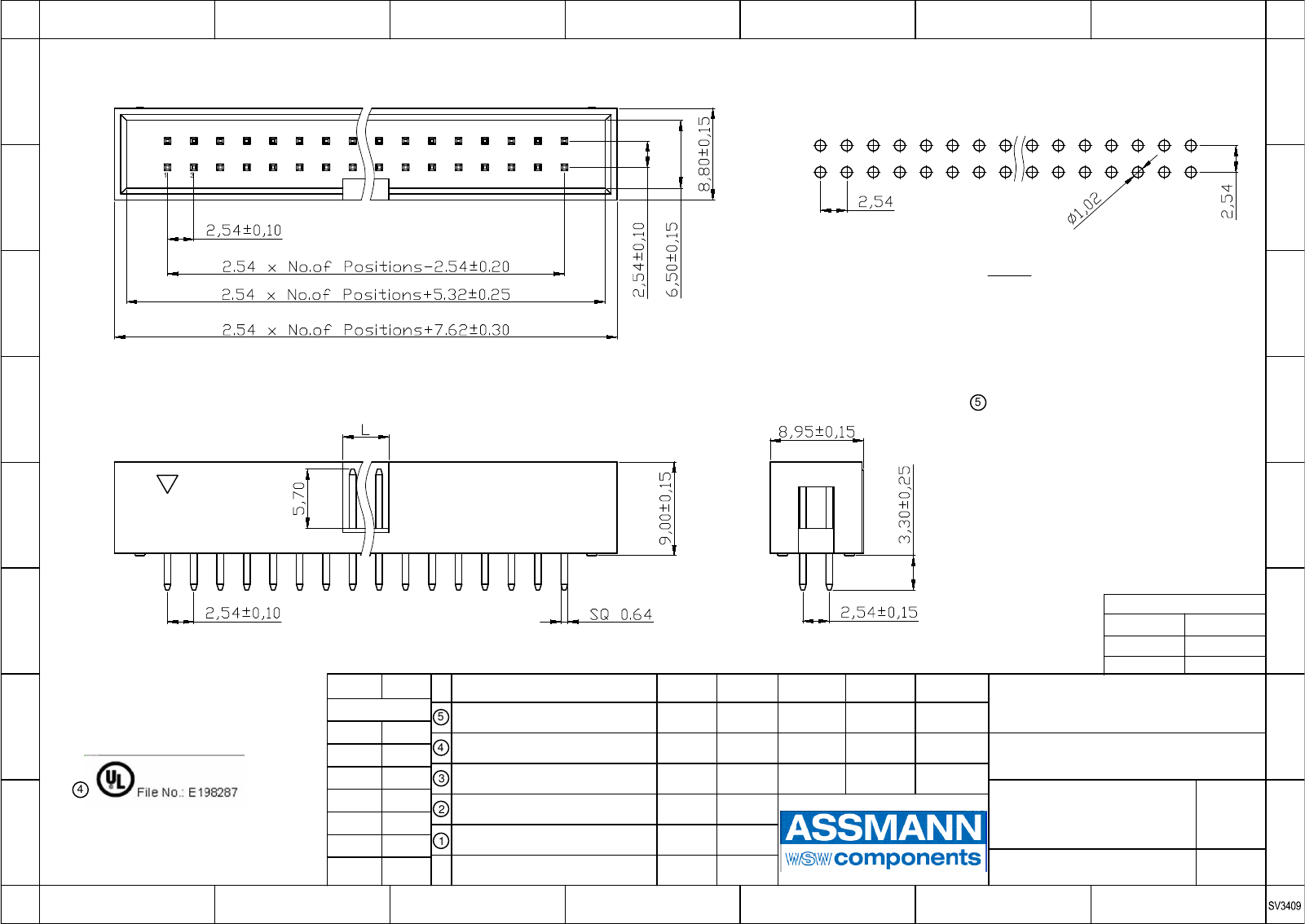

Recommended P.C.B Layout(Top Side)

1
2 4
3
A
B
C
D
E
F
G
H
Drawn
21
H
34
F
G
E
Modification NameDate Sheet
65
Drawing-No.
Replace
Date Name
1 2 3 45 6 7
D
C
B
A
Customer-No.
ASSMANN WSW-No.
rev05
Id.
RoHS compliant
NOTES:
MATERIAL
1.Insulator Material: PBT+30%GF(UL94V-0),Grey
2.Contact Material : Brass
3.Contact Plating :
AWHW xxG-0202-T: Gold flash/Tin Over Ni
AWHW xxG-0102-T: 30u"Au /Tin Over Ni
ELECTRICAL
1.Current Rating: 3AMP\
2.Voltage Rating: 250V
3.Withstand Voltage: 500V AC/Minute


ENVIRONMENTAL

2.Packing: Tray packing
Order information:
xx : 06,08,10,12,14,16,18,20,24
26,30,34,40,50,60,64

Approved
7
AWHW xxG-0202-T
Alex
25.01.2006
Amy
ASS 2314 CO
12.12.2013
TOLERANCE
X.X
X.XX
X.XXX
DIM
Angle
TOL



Scale Free

1Drawn
L
NO. Pin
6P-8P
10P-64P
4.00
4.40
Dimension antitheses list
Alex
25.01.2006
29.06.2009 Dean2 Update
1/2
23.10.2013 Winnie3 Add the plating Au 30u" AWHW xxG-0102-T
Unit: mm
12.12.2013 Amy
4Add UL file no.
4
09.07.2019 Xavier
5Add voltage rating
5
® @FHE NU E1BEQE7 ©©©®® A A wflfiwcomponents smug
A
B
C
D
E
F
G
H
Drawn
21
H
34
F
G
E
Modification NameDate Sheet
65
Drawing-No.
Replace
Date Name
1 2 3 45 6 7
D
C
B
A
ASSMANN WSW-No.
Id.
RoHS compliant
Approved
7
Alex25.01.2006
Amy
ASS 2314 CO
12.12.2013
TOLERANCE
X.X
X.XX
X.XXX
DIM
Angle
TOL



Scale Free

1Drawn Alex
25.01.2006
29.06.2009 Dean
2Update

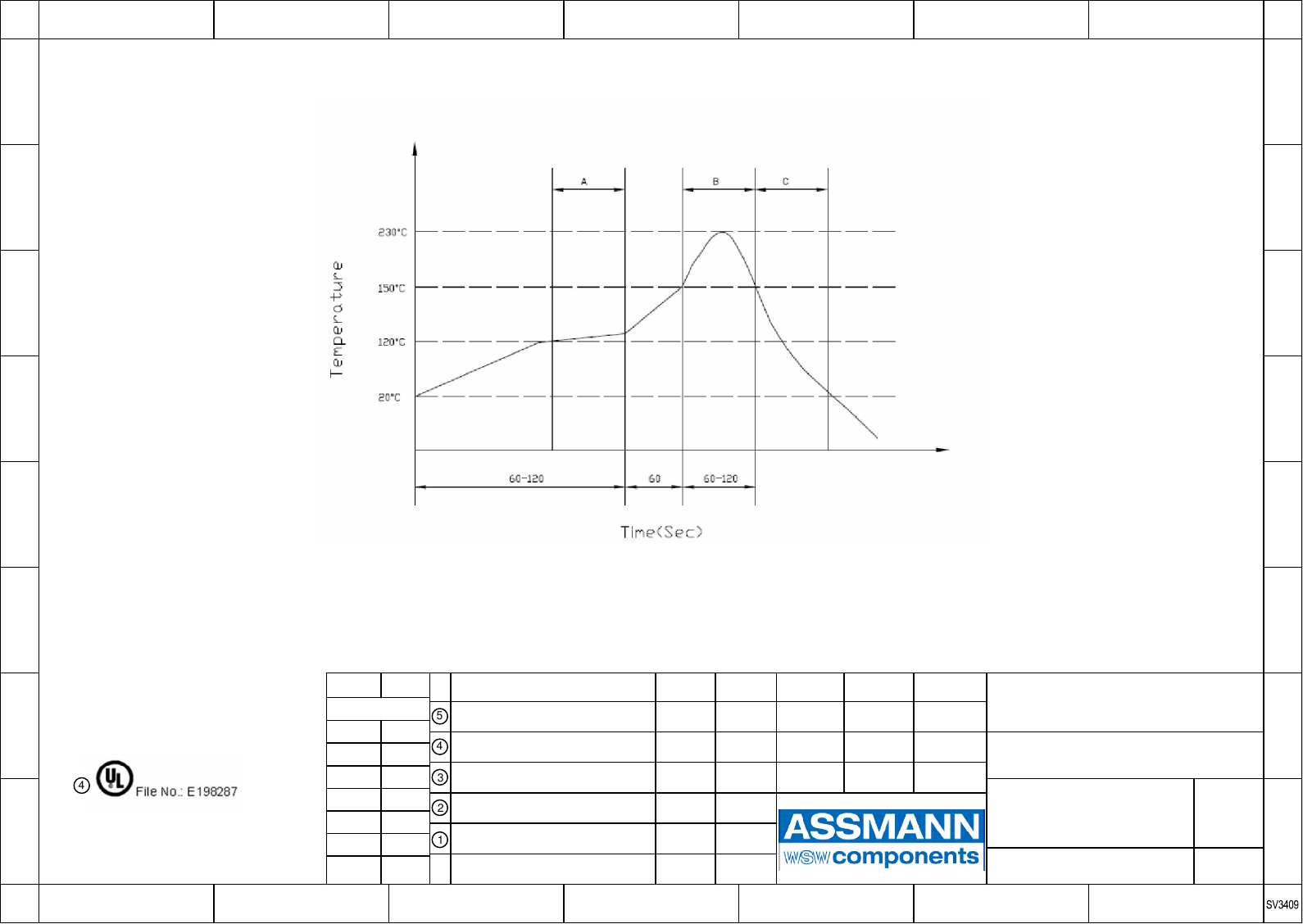

Solder Profile for PBT
2/2
A:Preheating B:Soldering C:Gradual Cooling
Tip Temperature Time:3-5Sec
23.10.2013 Winnie
3Add the plating Au 30u"
AWHW xxG-0202-T
AWHW xxG-0102-T
Unit: mm
12.12.2013 Amy
4Add UL file no.
4
rev05
09.07.2019 Xavier
5Add voltage rating
