Adafruit Data Logger Shield

Created by Bill Earl

Last updated on 2018-11-27 10:56:16 PM UTC

2
4
4
6
6
7
7
8
8
11
11
12
14
17
17
18
18
18
18
18
19
21
21
22
22
25
26
27
28
28
29
29
30
30
32
32
34
34
34
34
35
39
39
Guide Contents
Guide Contents
Overview
Features:
Installing the Headers
Assembly with male headers
Cut the headers to length:
Position the headers:
Position the shield:
And solder!
Assembly with Stacking Headers:
Position the headers:
And solder!
Place the 2x3 female header on to the Arduino/Metro
Shield Overview
SD Card
Real Time Clock
CR1220 12mm Diameter - 3V Lithium Coin Cell Battery
3.3V Power Supply
User LEDs
Prototyping Area
Breakout Pads
Wiring & Config
Which version do I have?
Older Shield Pinouts
Rev B Shield Pinouts
Older Datalogger Shield Leonardo & Mega Library

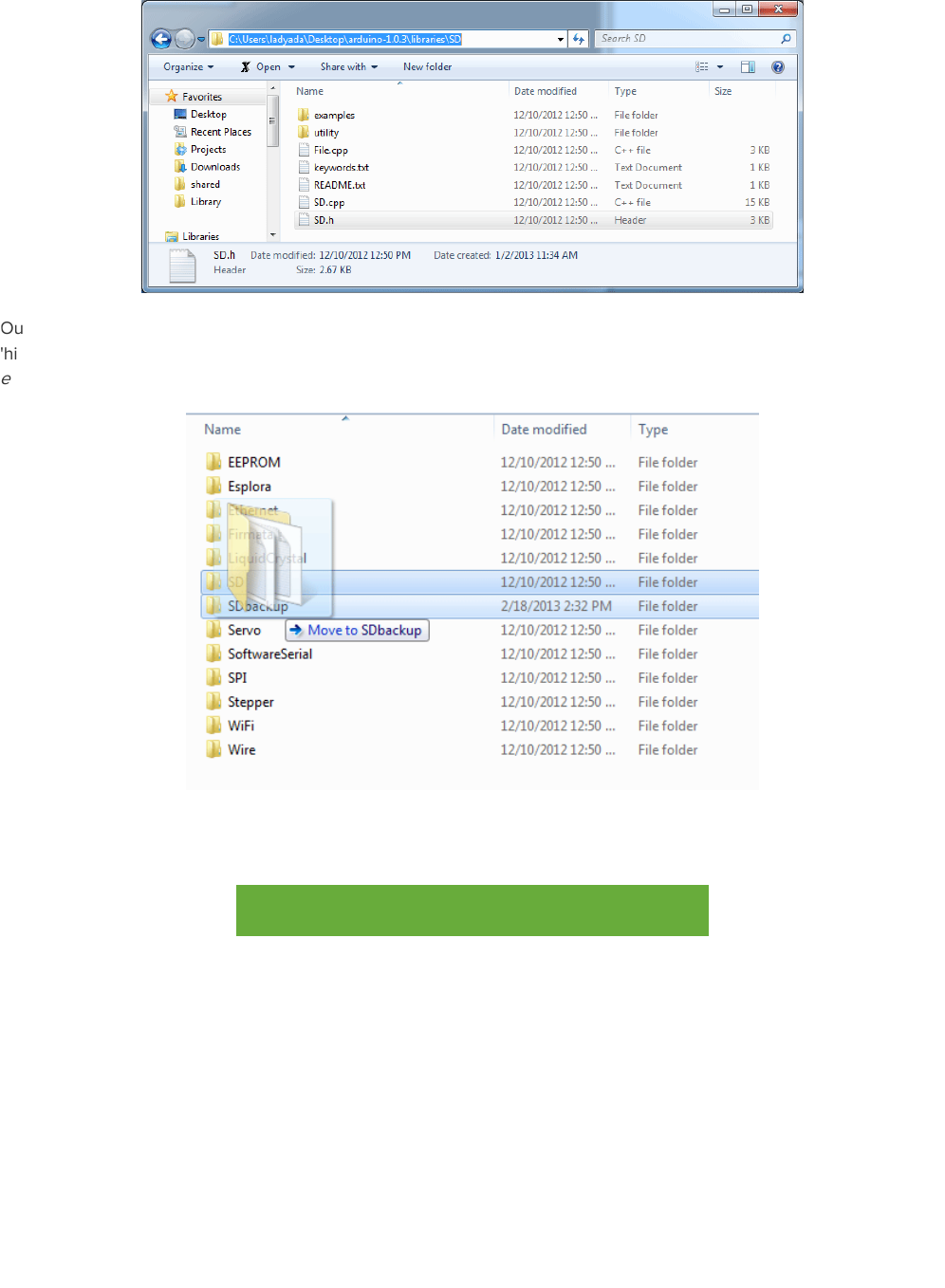

Using the SD Library with the Mega and Leonardo

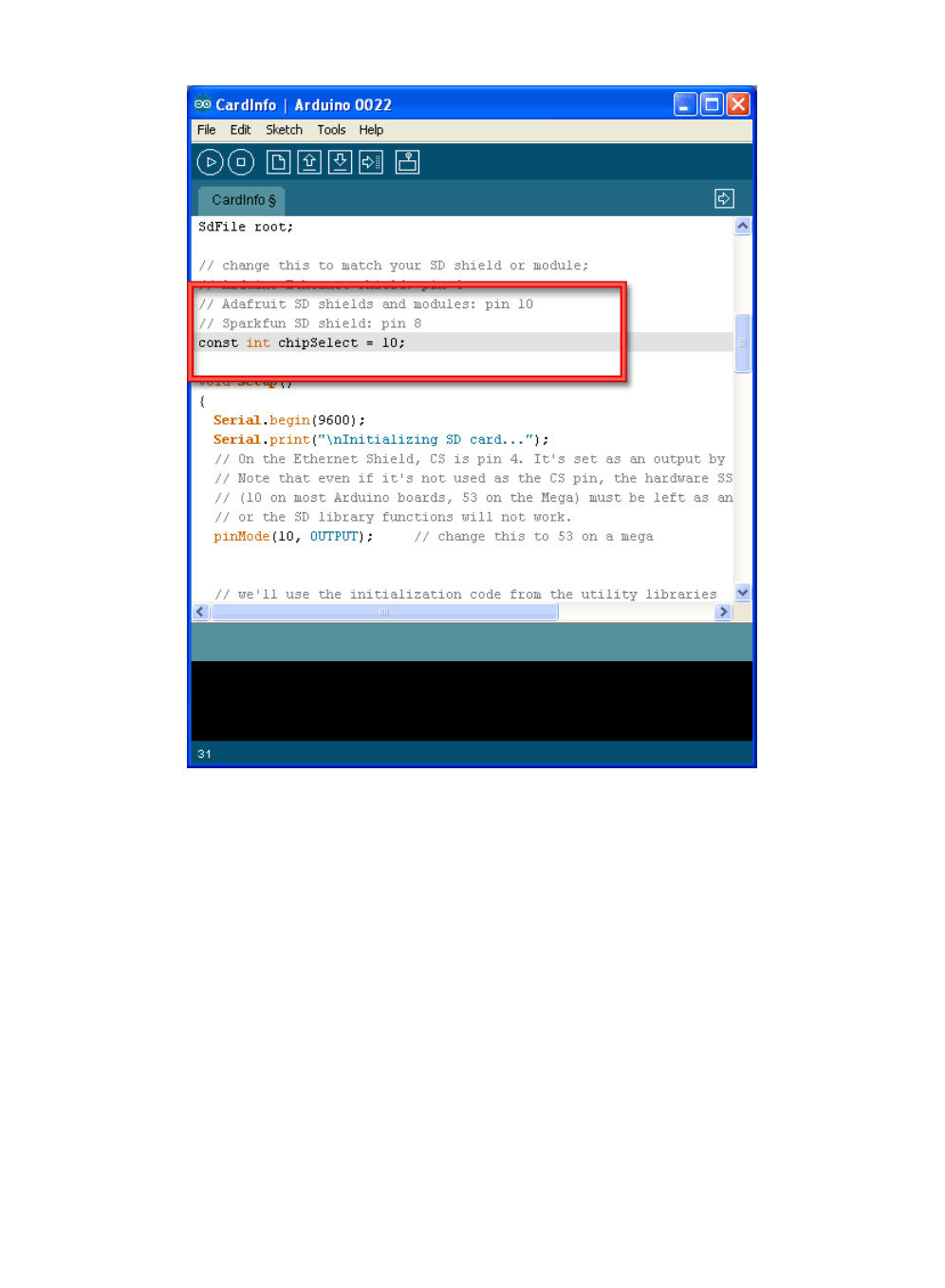

cardinfo
Using the Real Time Clock
What is a Real Time Clock?
Battery Backup
CR1220 12mm Diameter - 3V Lithium Coin Cell Battery
Talking to the RTC

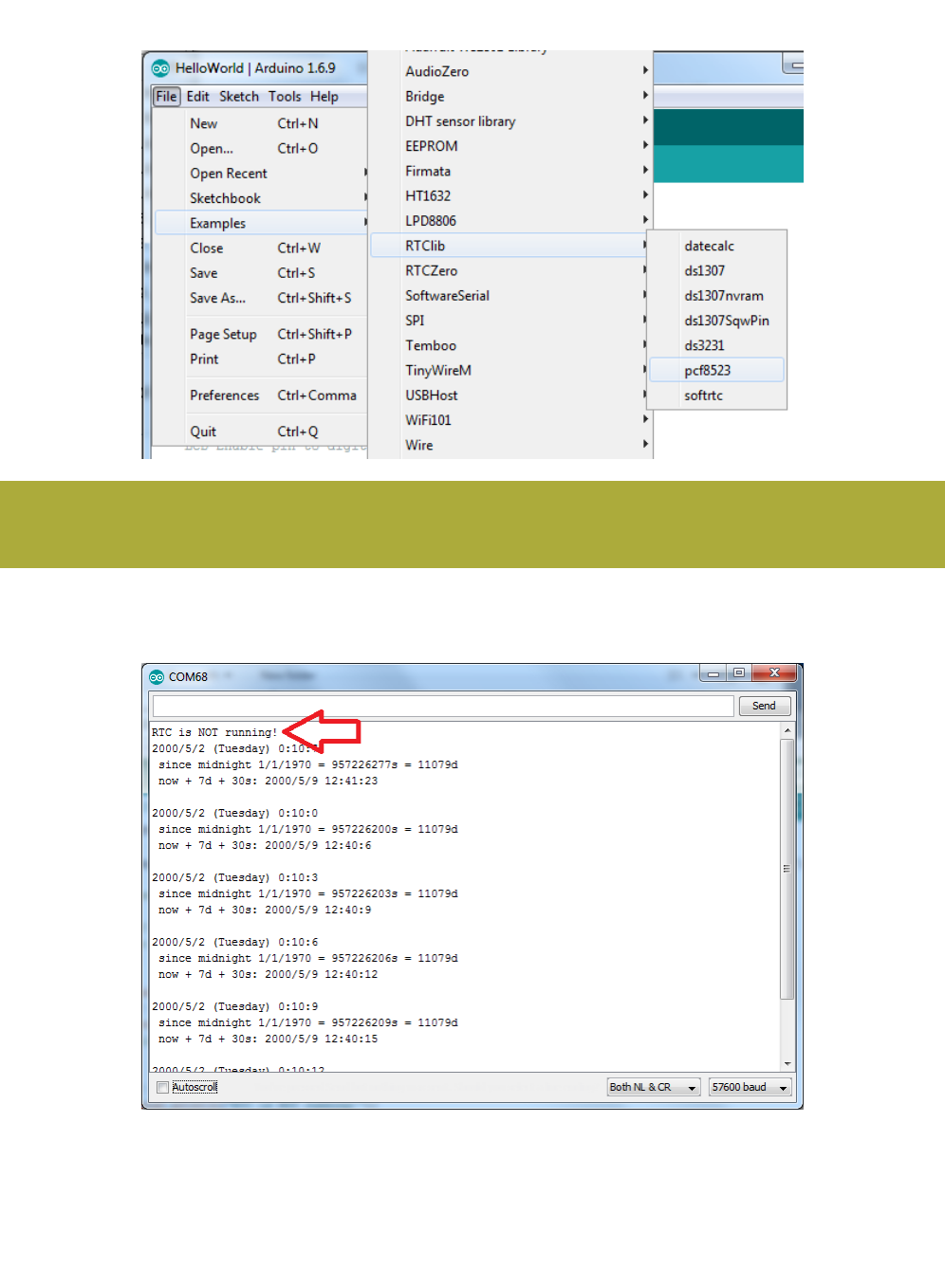

First RTC test
Setting the time
Reading the time
Using the SD Card
4GB Blank SD/MicroSD Memory Card
USB MicroSD Card Reader/Writer - microSD / microSDHC / microSDXC
Formatting under Windows/Mac
Get Card Info
Light and Temperature Logger
Introduction
© Adafruit Industries https://learn.adafruit.com/adafruit-data-logger-shield Page 2 of 67

40
40
40
41
42
42
42
43
44
44
45
46
48
48
49
50
54
56
56
56
58
59
59
59
59
60
62
62
64
65
65
65
66
67
Build It!

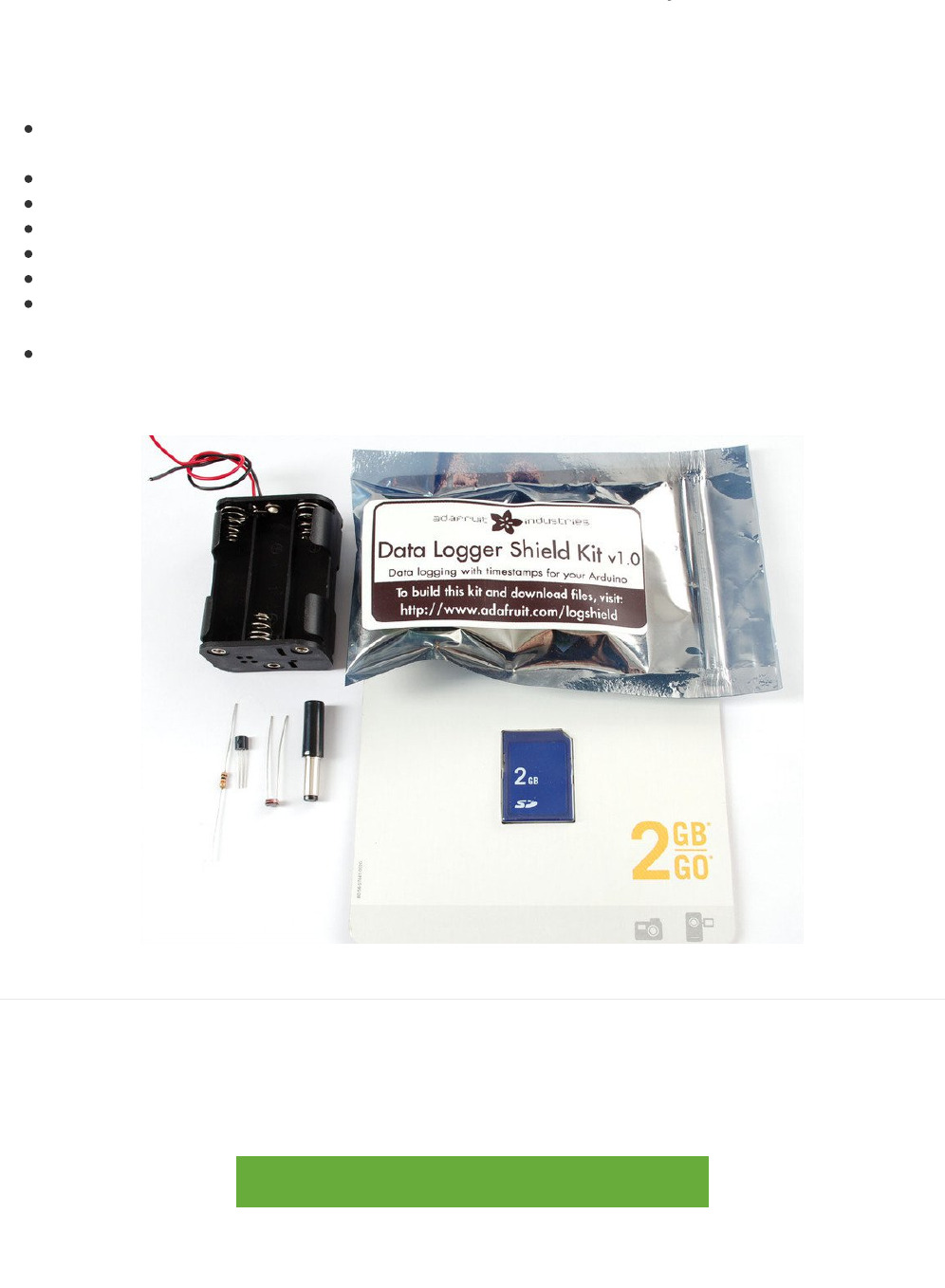

Items you'll need:
The sensors
Wiring it up
Position the sensors
Prepare some jumpers
Install the Jumpers
Make the connections
Add more jumpers for the Sensors
And also for the LEDs
Solder and trim all connections
Prepare the Battery Pack
Use It!
Sensor test
Logging sketch

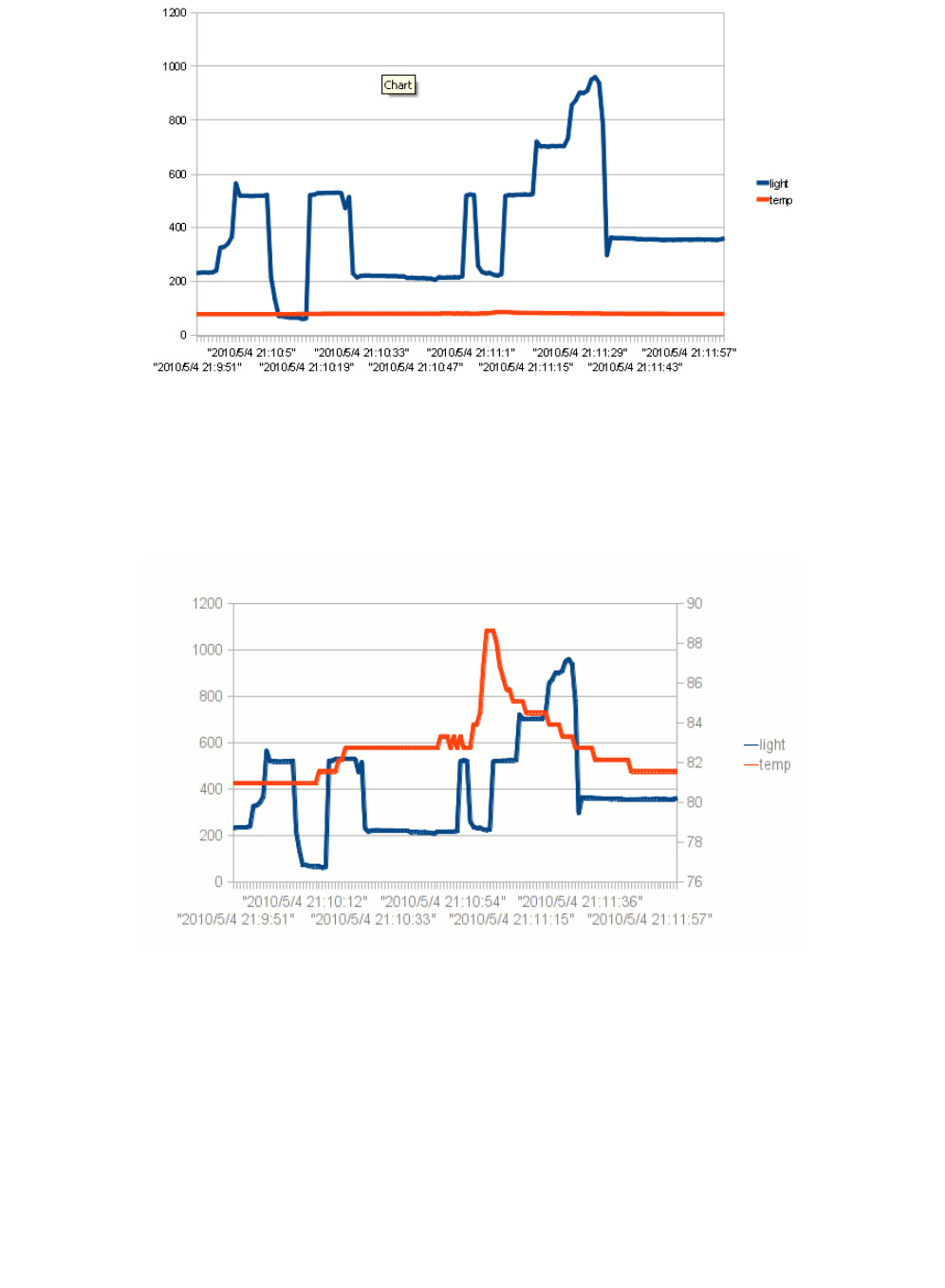

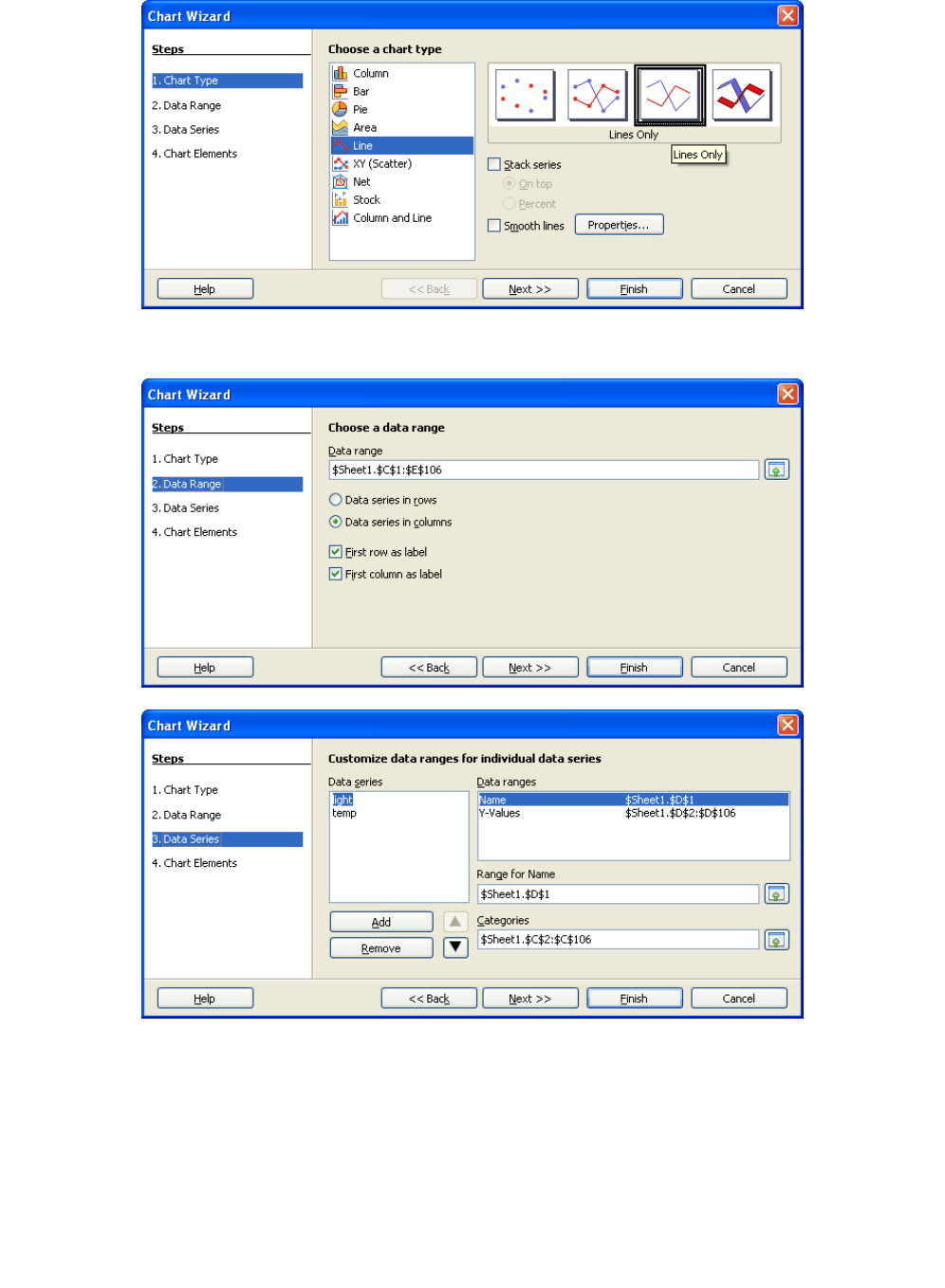

Plotting with a spreadsheet

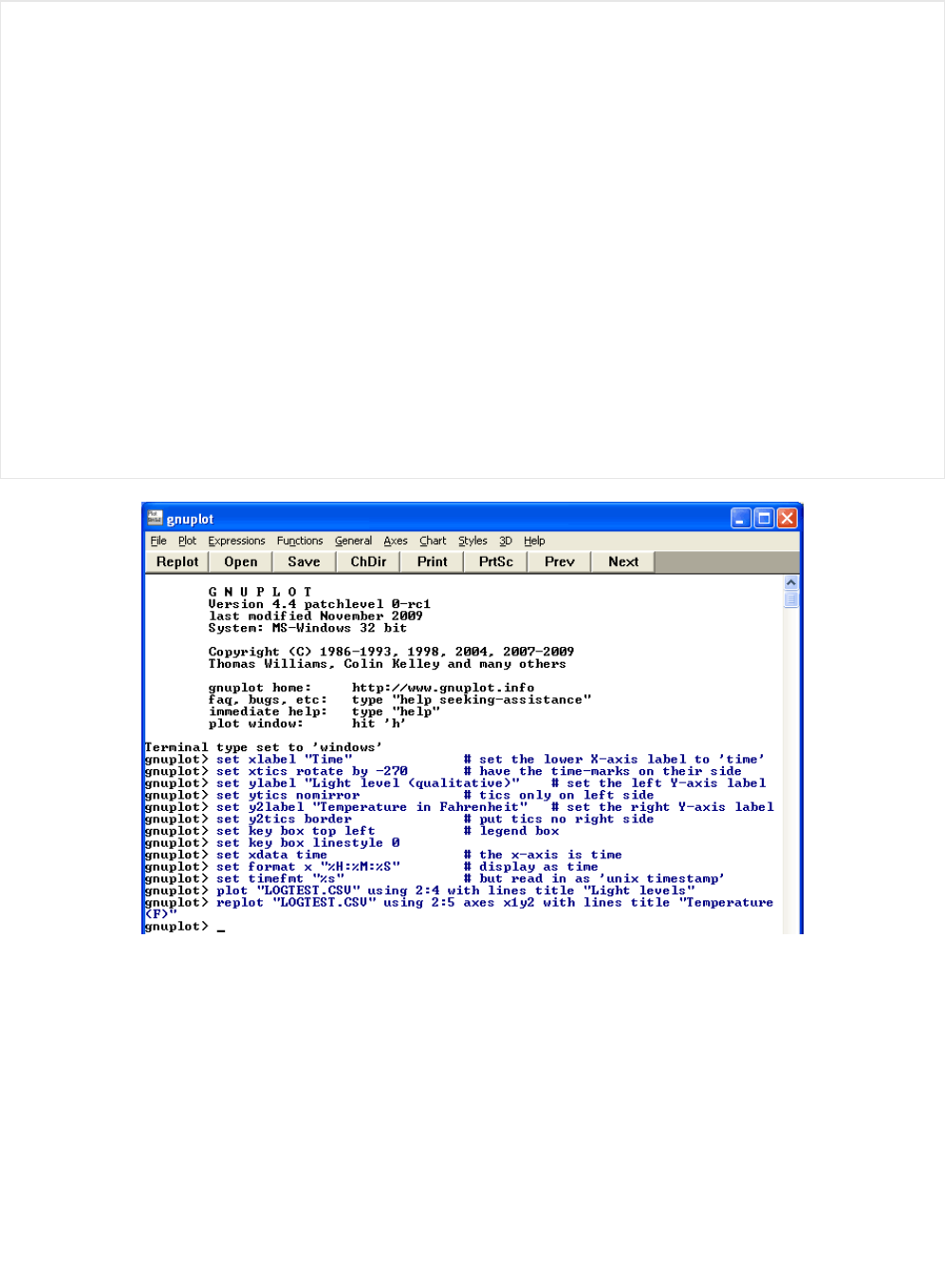

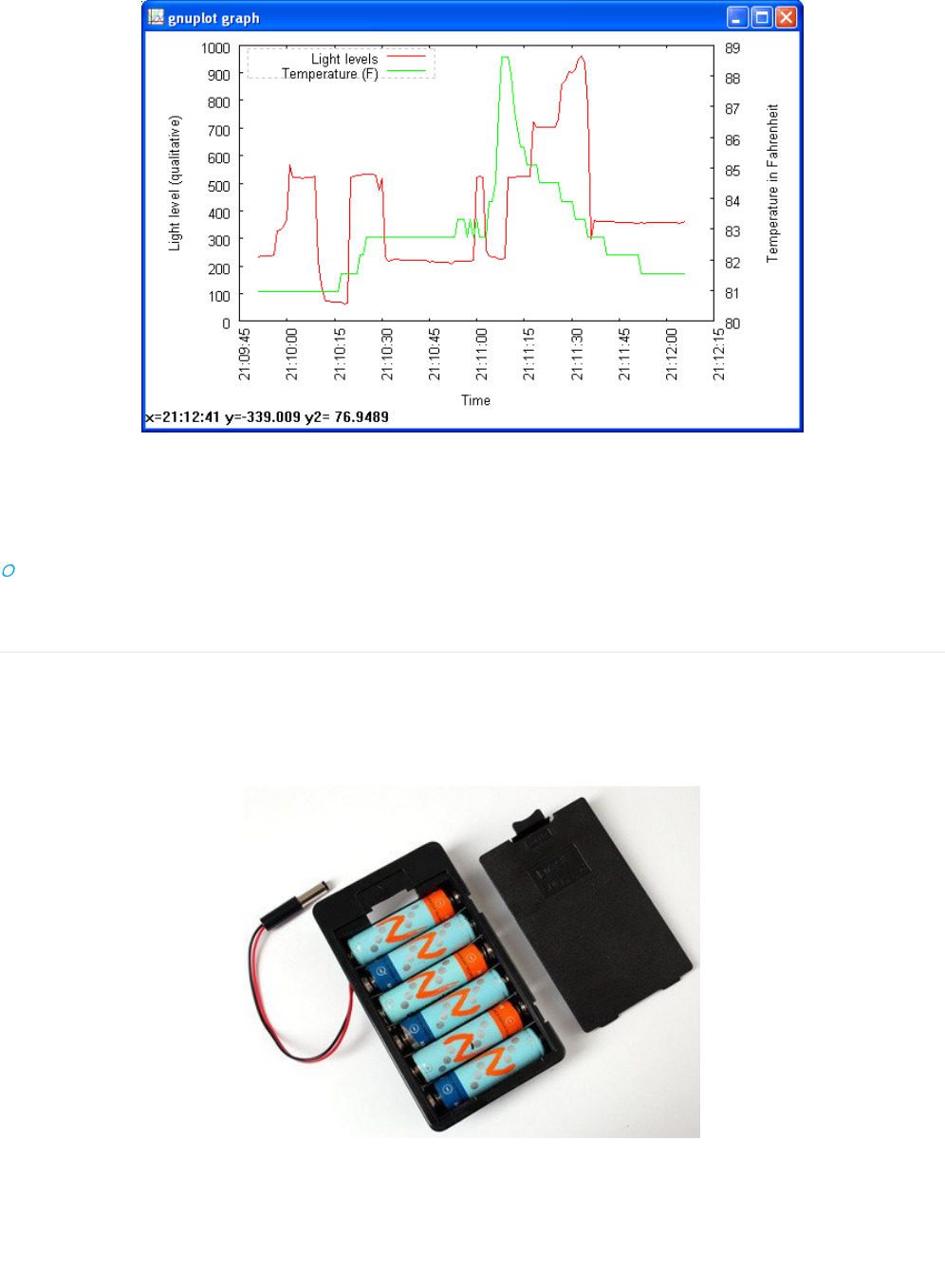

Using Gnuplot
Other plotters

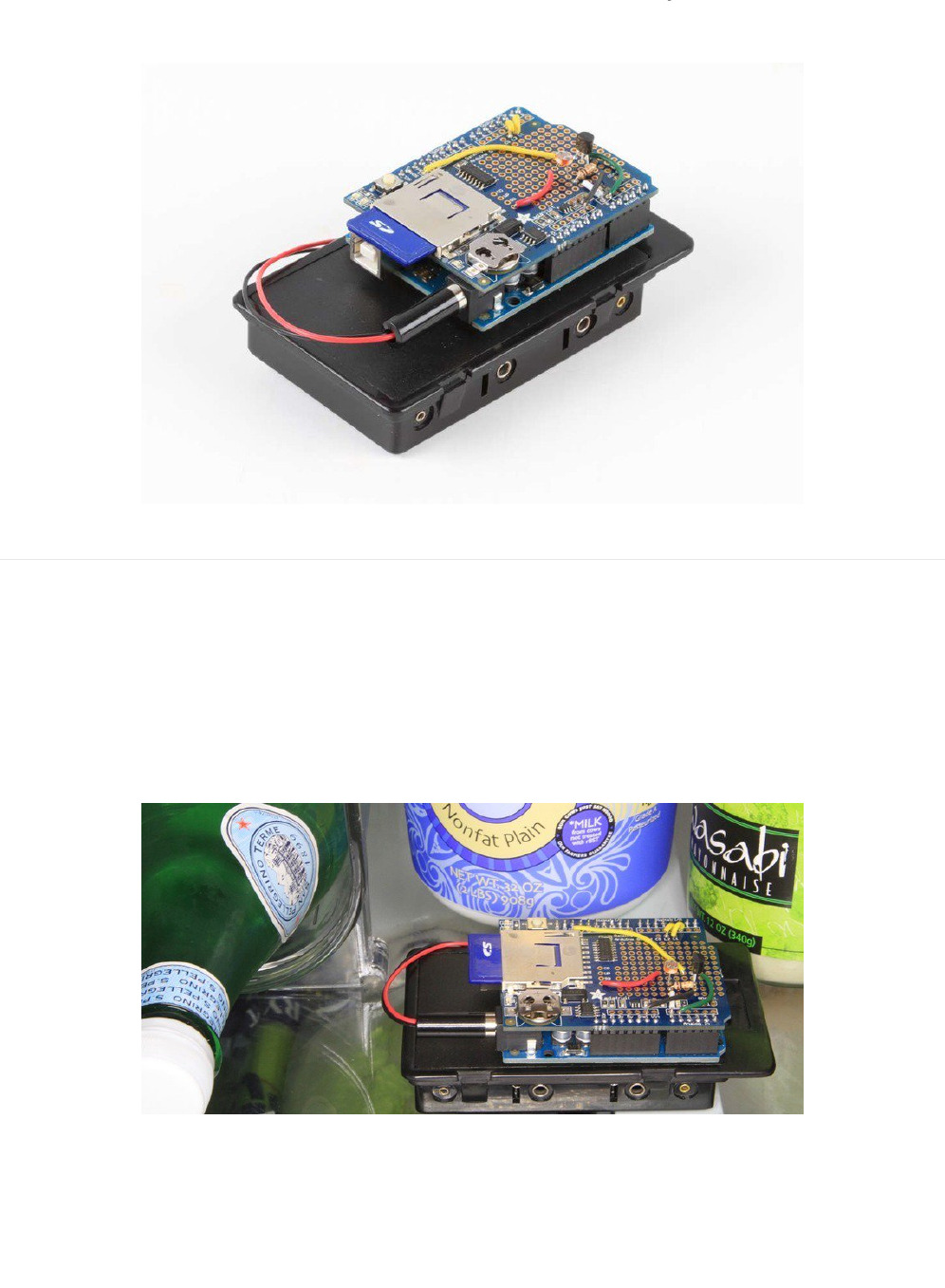

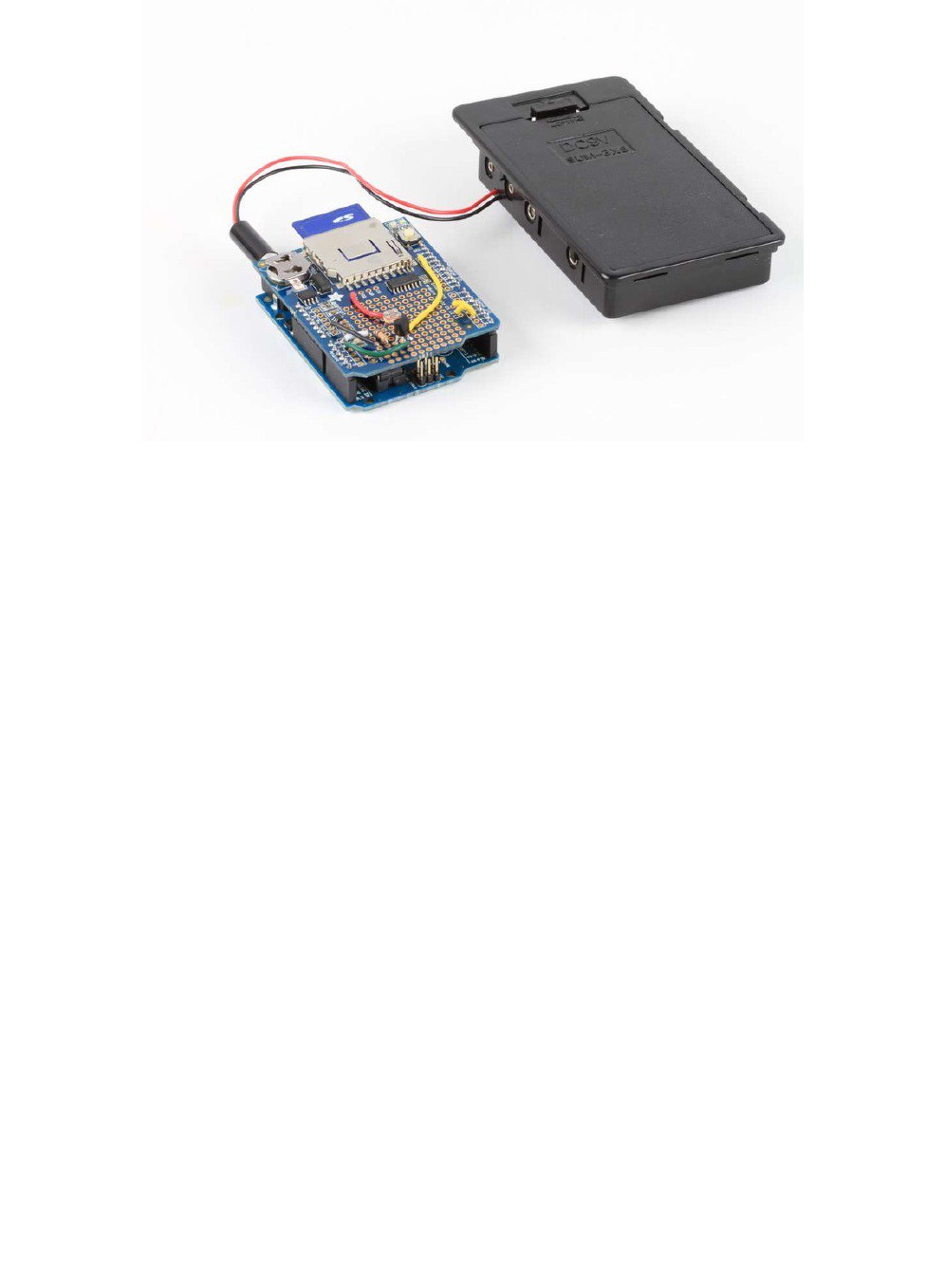

Portable logging

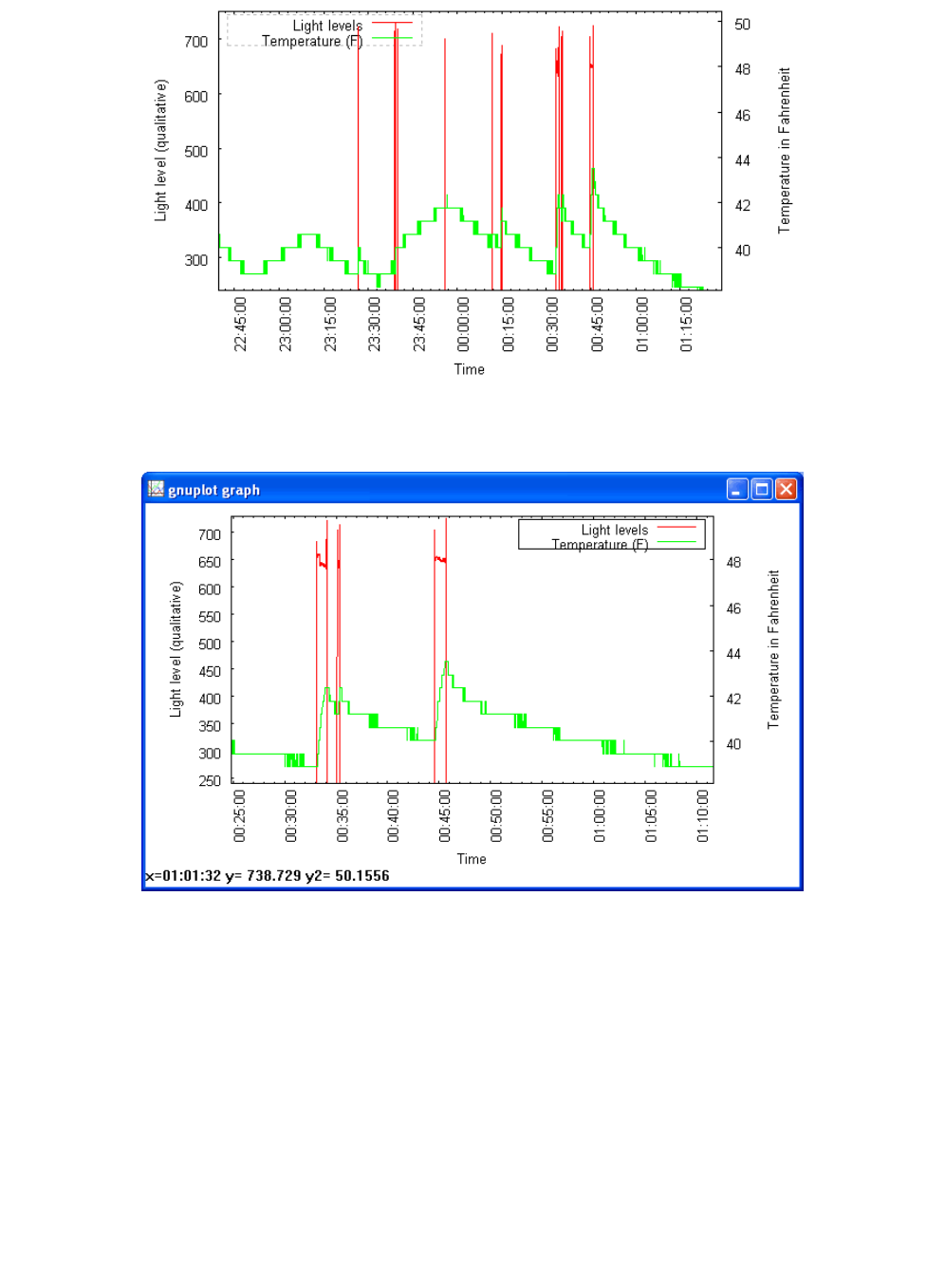

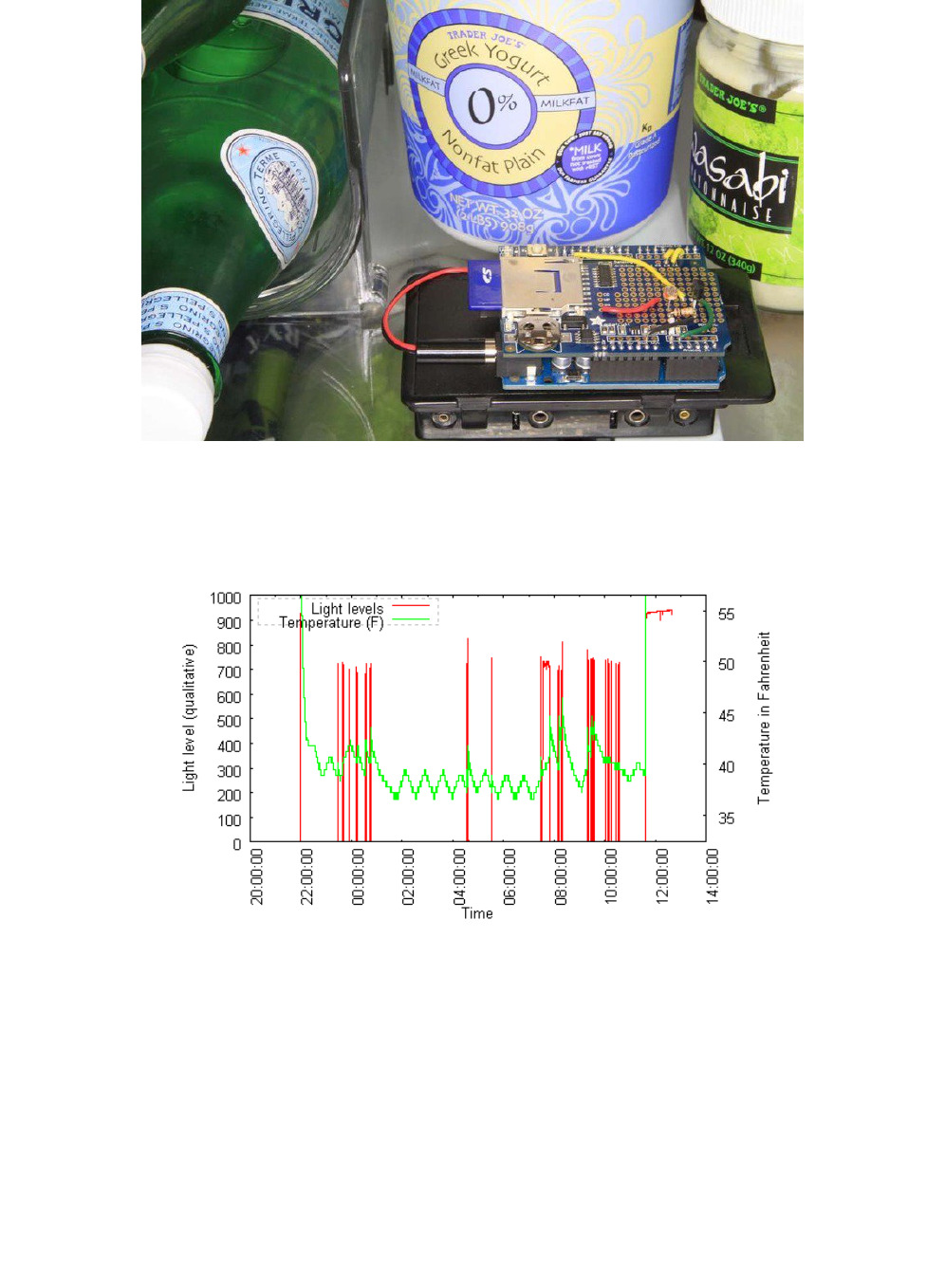

Fridge logging
Conclusion!
Code Walkthrough
Introduction
Includes and Defines
Objects and error()
Setup
Main loop
Timestamping
Log sensor data
Downloads
Files

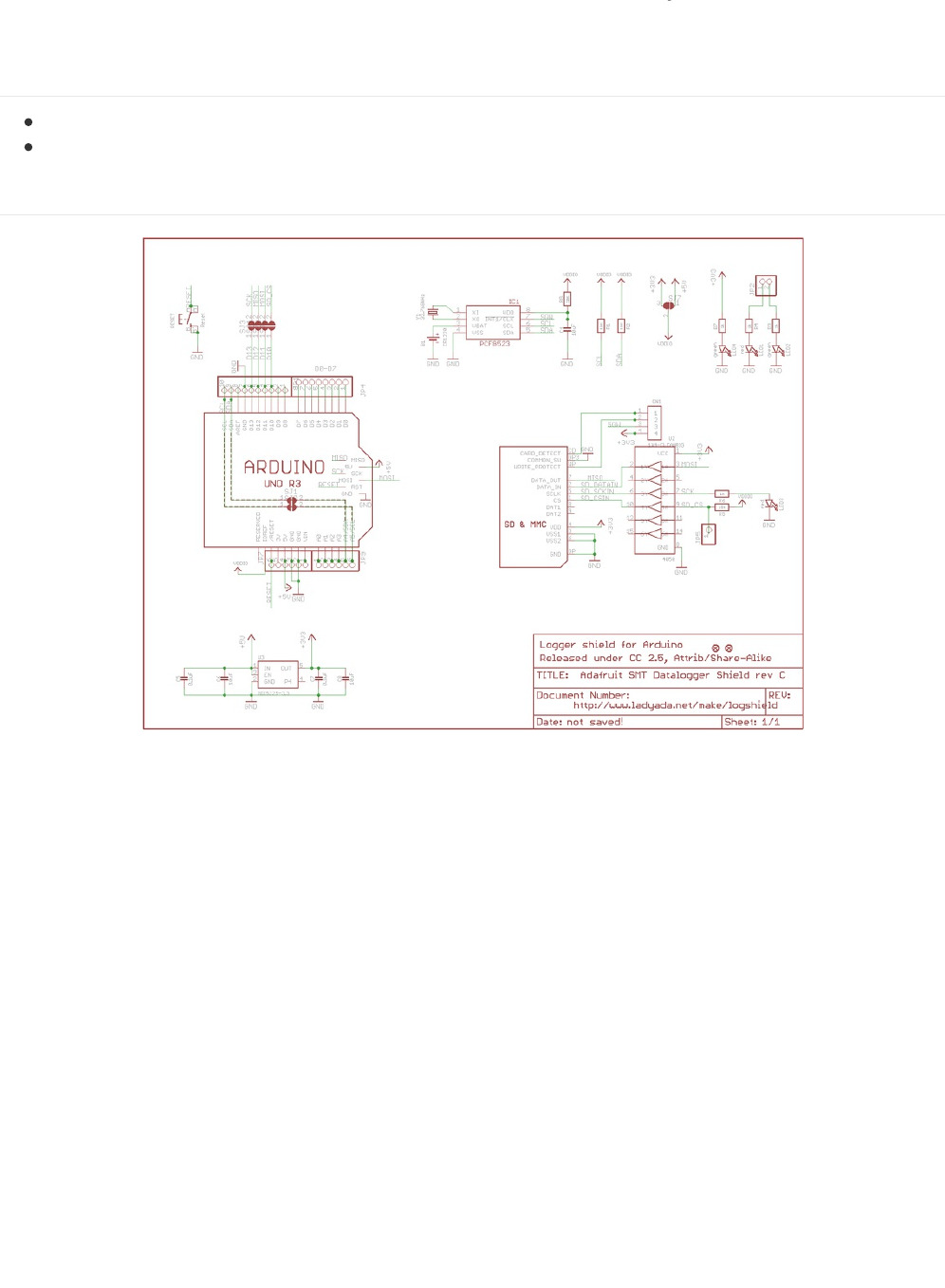

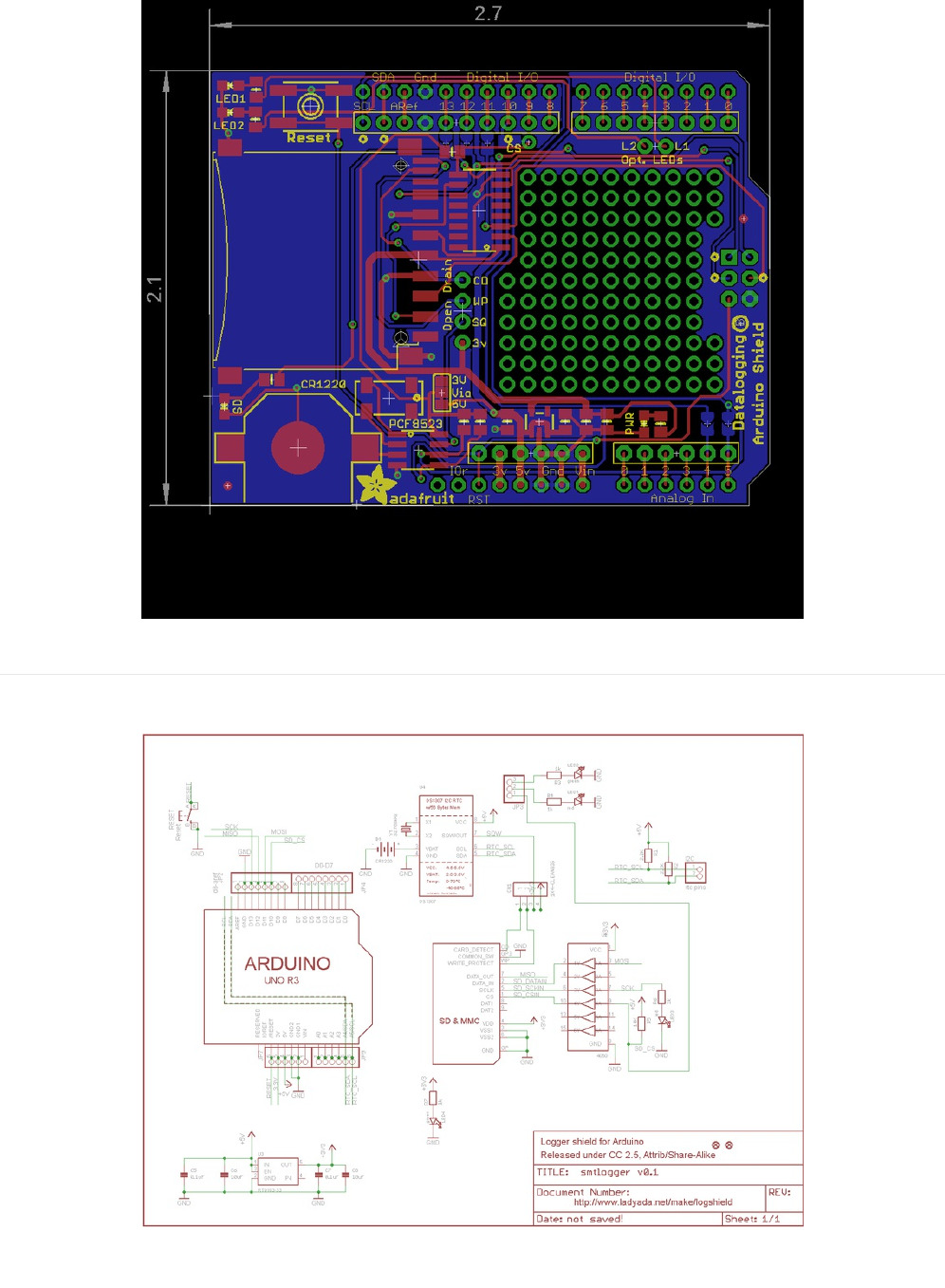

Revision C Schematics & Fabrication Print
Revision B Schematics
Original Version Schematics
© Adafruit Industries https://learn.adafruit.com/adafruit-data-logger-shield Page 3 of 67

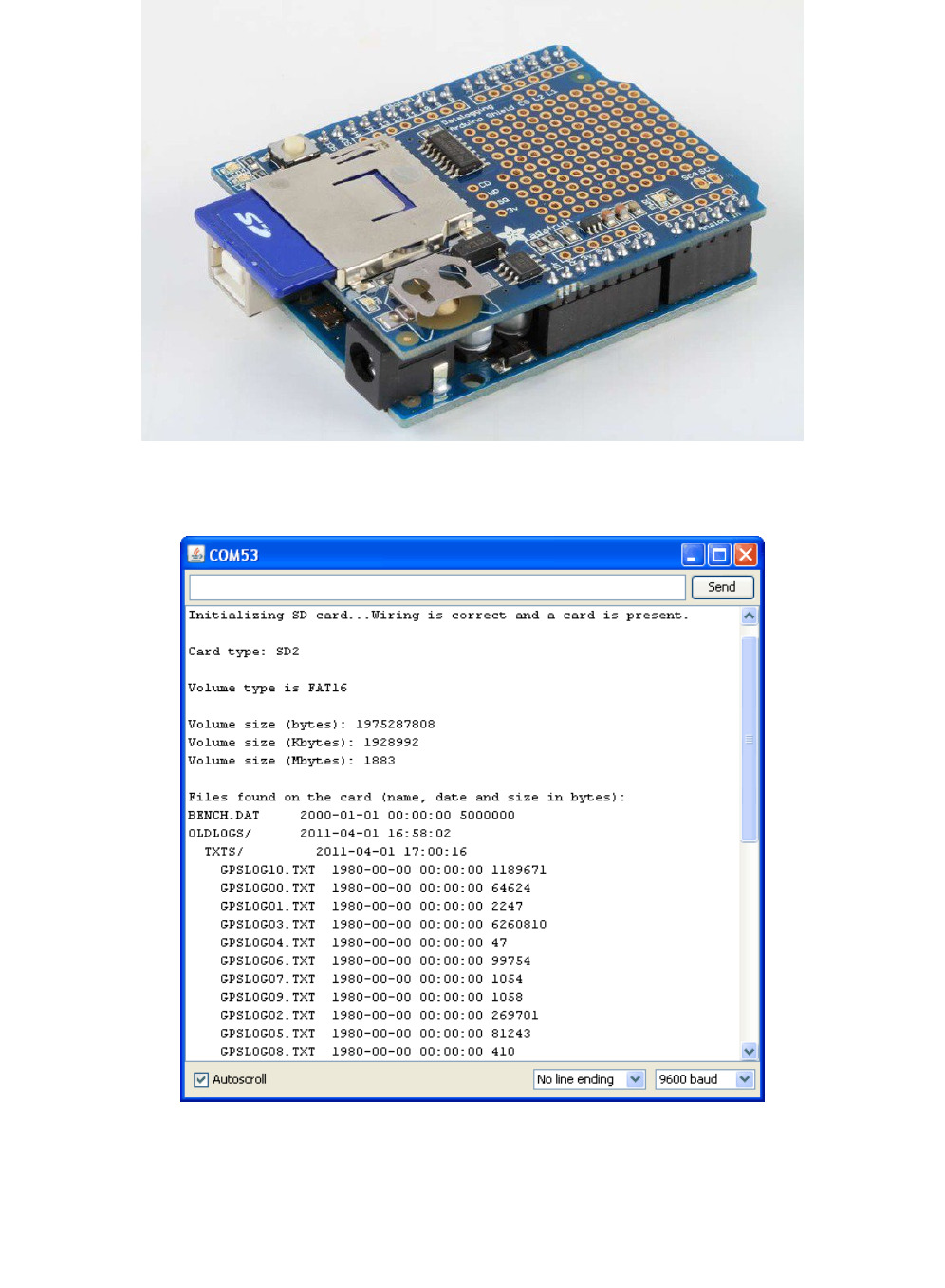

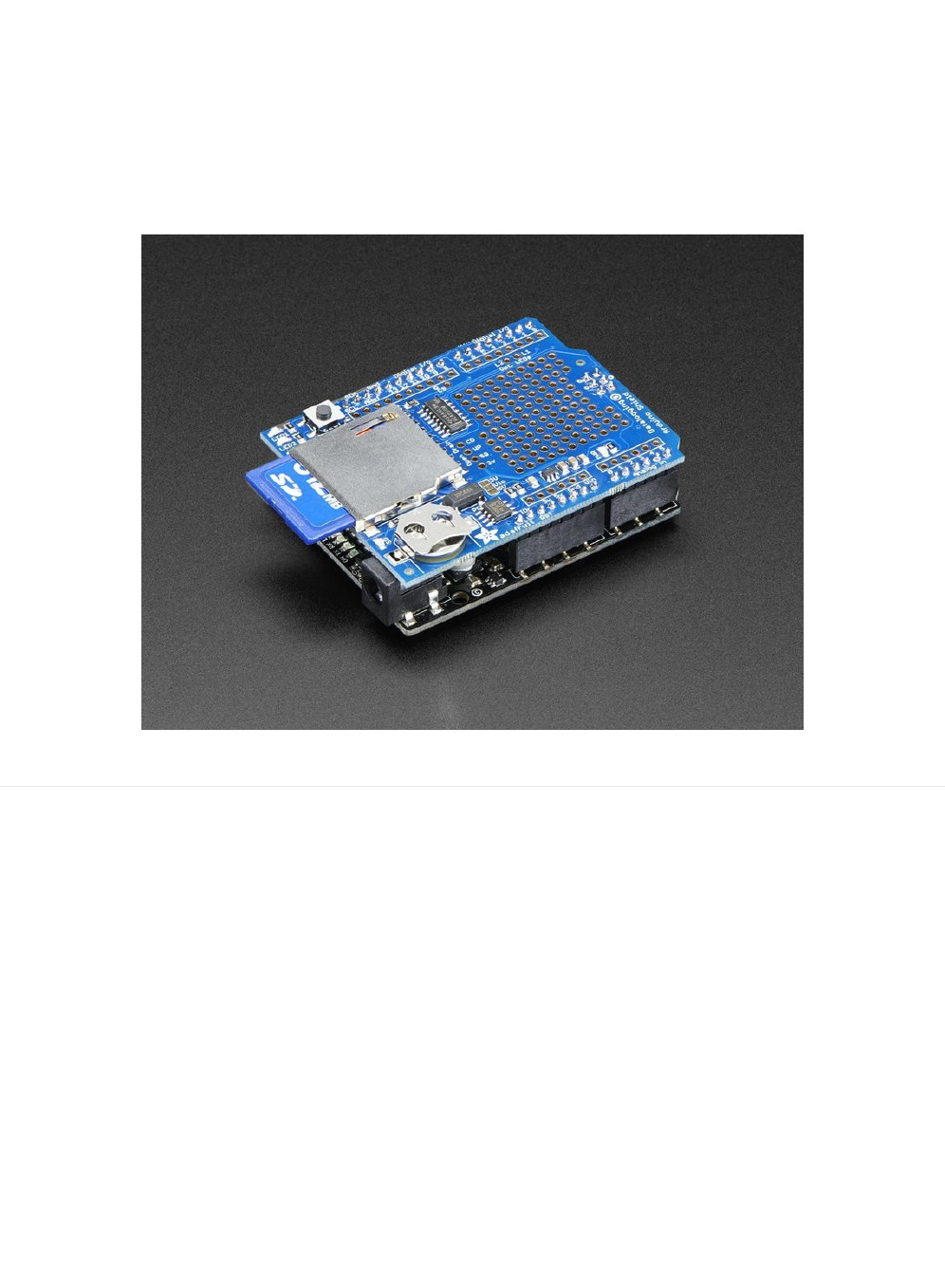

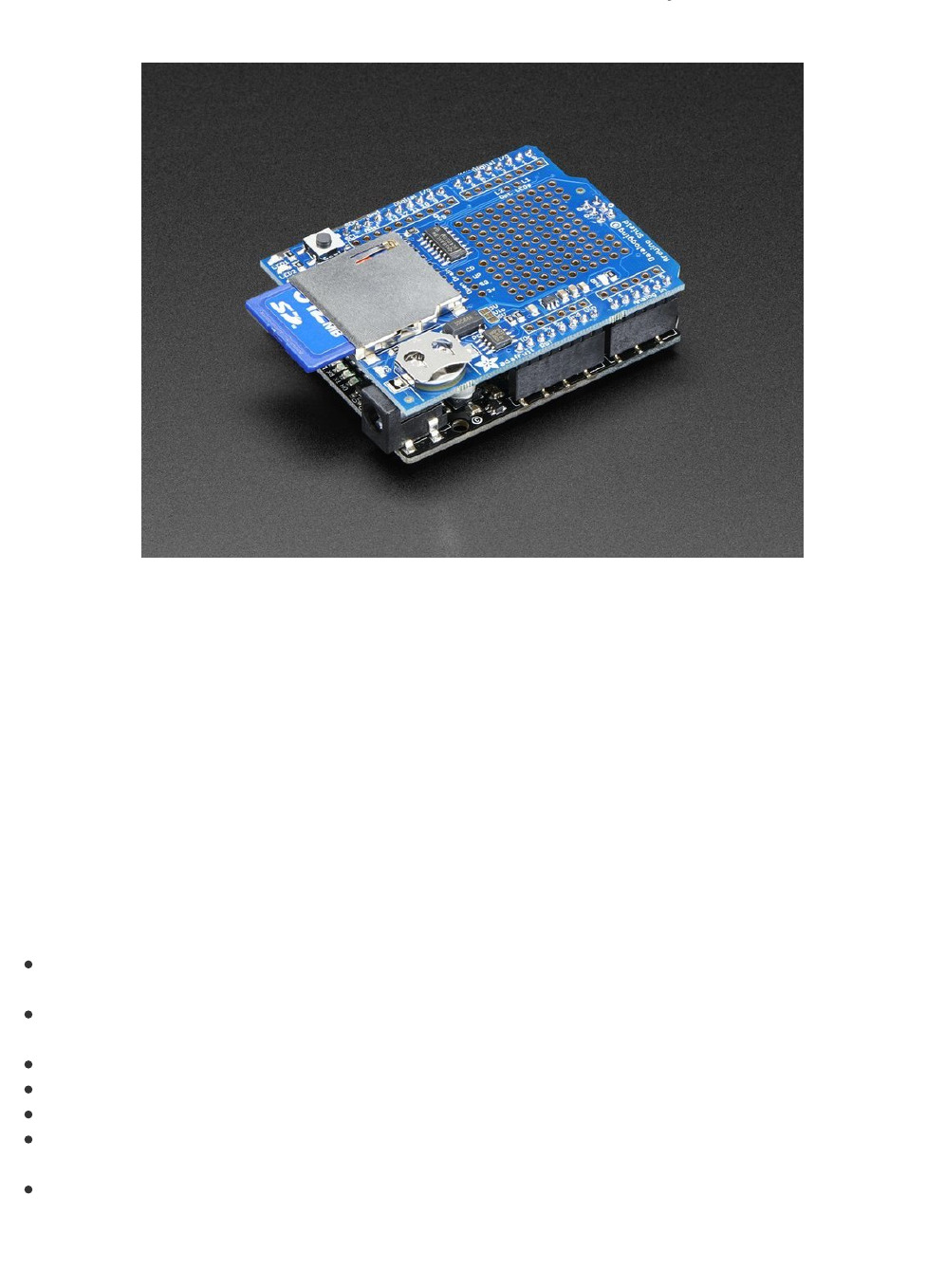

Overview

Here's a handy Arduino shield: we've had a lot of people looking for a dedicated and well-designed data logging

shield. We worked hard to engineer an inexpensive but well-rounded design. This shield makes it easy to add a 'hard

disk' with gigabytes of storage to your Arduino!

Our latest version of this popular shield has all the features of the popular original, and is "R3" compatible so you can

use it with just about any Arduino or compatible. You can be up and running with it in less than 15 minutes - saving data

to files on any FAT16 or FAT32 formatted SD card, to be read by any plotting, spreadsheet or analysis program. This

tutorial will also show you how to use two free software programs to plot your data. The included RTC (Real Time

Clock) can be used to timestamp all your data with the current time, so that you know precisely what happened when!

The data logger is a reliable, well-rounded and versatile design. It is easily expanded or modified and come well

supported with online documentation and libraries

Features:

SD card interface works with FAT16 or FAT32 formatted cards. Built in 3.3v level shifter circuitry lets you read or

write super fast and prevents damage to your SD card

Real time clock (RTC) keeps the time going even when the Arduino is unplugged. The coin cell battery backup

lasts for years

Included libraries and example code for both SD and RTC mean you can get going quickly

Prototyping area for soldering connectors, circuitry or sensors.

Two configurable indicator LEDs

Onboard 3.3v regulator is both a reliable reference voltage and also reliably runs SD cards that require a lot of

power to run

Uses the "R3 layout" I2C and ICSP/SPI ports so it is compatible with a wide variety of Arduinos and Arduino-

compatibles

With this new version you can use it with:

Ardu‘lno UNO or ATmega328 compatible , 4 analog channels at 10 bit resolution. 6 if RTC is not used

Arduino UNO or ATmega328 compatible - 4 analog channels at 10 bit resolution, 6 if RTC is not used

Arduino Leonardo or ATmega32u4 compatible - 12 analog channels at 10 bit resolution

Arduino Mega or ATmega2560 compatible - 16 analog inputs (10-bit)

Arduino Zero or ATSAMD21 compatible - 6 analog inputs (12-bit)

Arduino Due compatible - 12 analog inputs (12-bit)

Of course you can log anything you like, including digital sensors that have Arduino libraries, serial data, bit timings,

and more!

Installing the Headers

The Adafruit Data Logger shield comes tested assembled with all components and SD socket already on it, but you'll

still need need to put headers on so you can plug it into an Arduino

We don't pre-assemble the headers on because there's two options! You can either use plain 0.1" male headers

(included with the shield) or Arduino Shield Stacking headers (http://adafru.it/85). Both options additionally require a

2x3 female header soldered on.

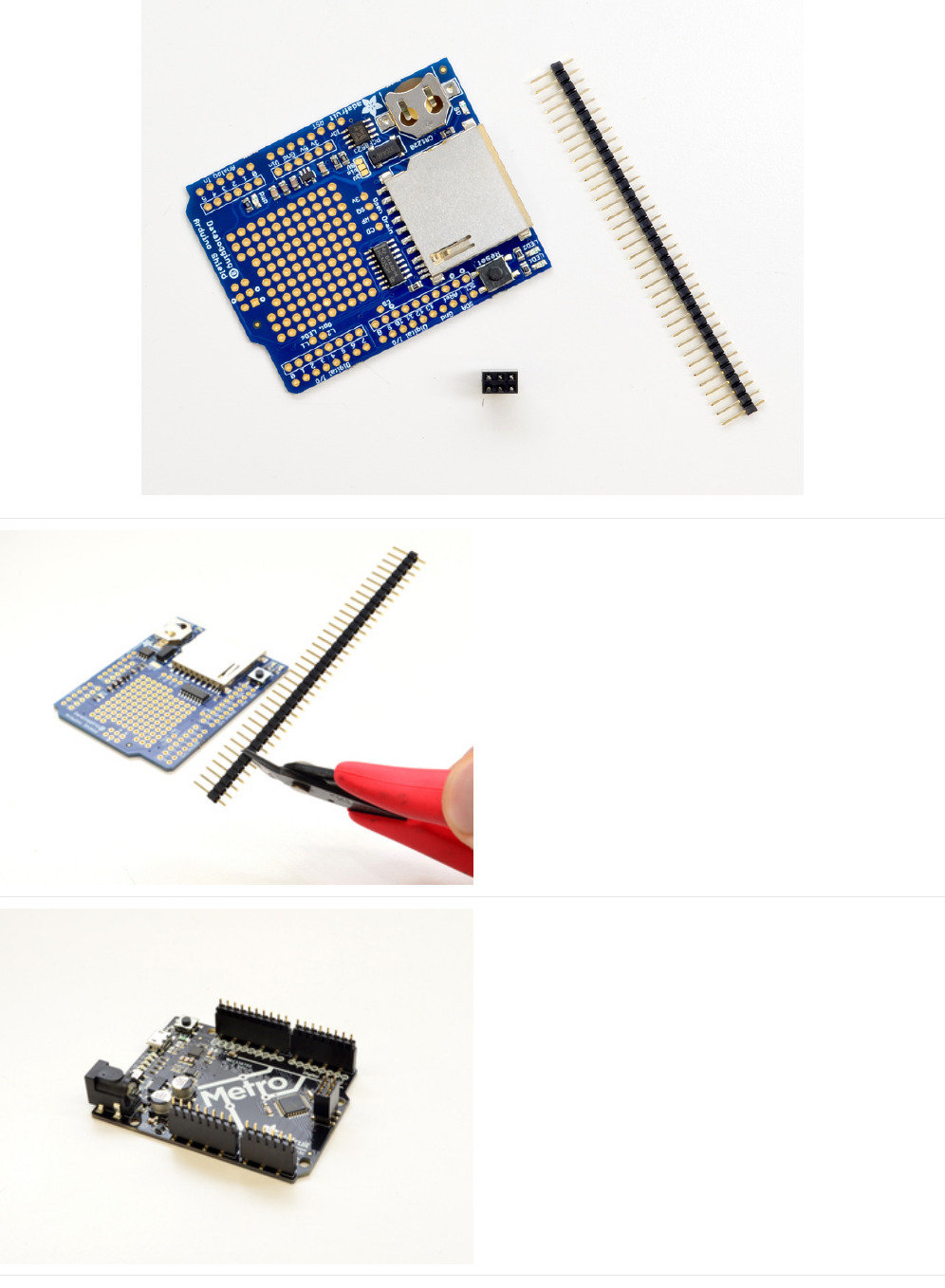

Assembly with male headers

Most people will be happy with assembling he shield with male headers. The nice thing about using these is they don't

add anything to the height of the project, and they make a nice solid connection. However, you won't be able to stack

another shield on top. Trade offs!

Cut the headers to length:

Line the header strip up with the holes on the edge of

the shield and cut 4 sections of header strip to fit.

Position the headers:

Insert the header sections - long pins down - into the

female headers on your Arduino/Metro. Additionally

insert the 2x3 female header into the corresponding

pins on the opposite side as the USB.

Position the shield:

Align the shield with the header pins and press down.

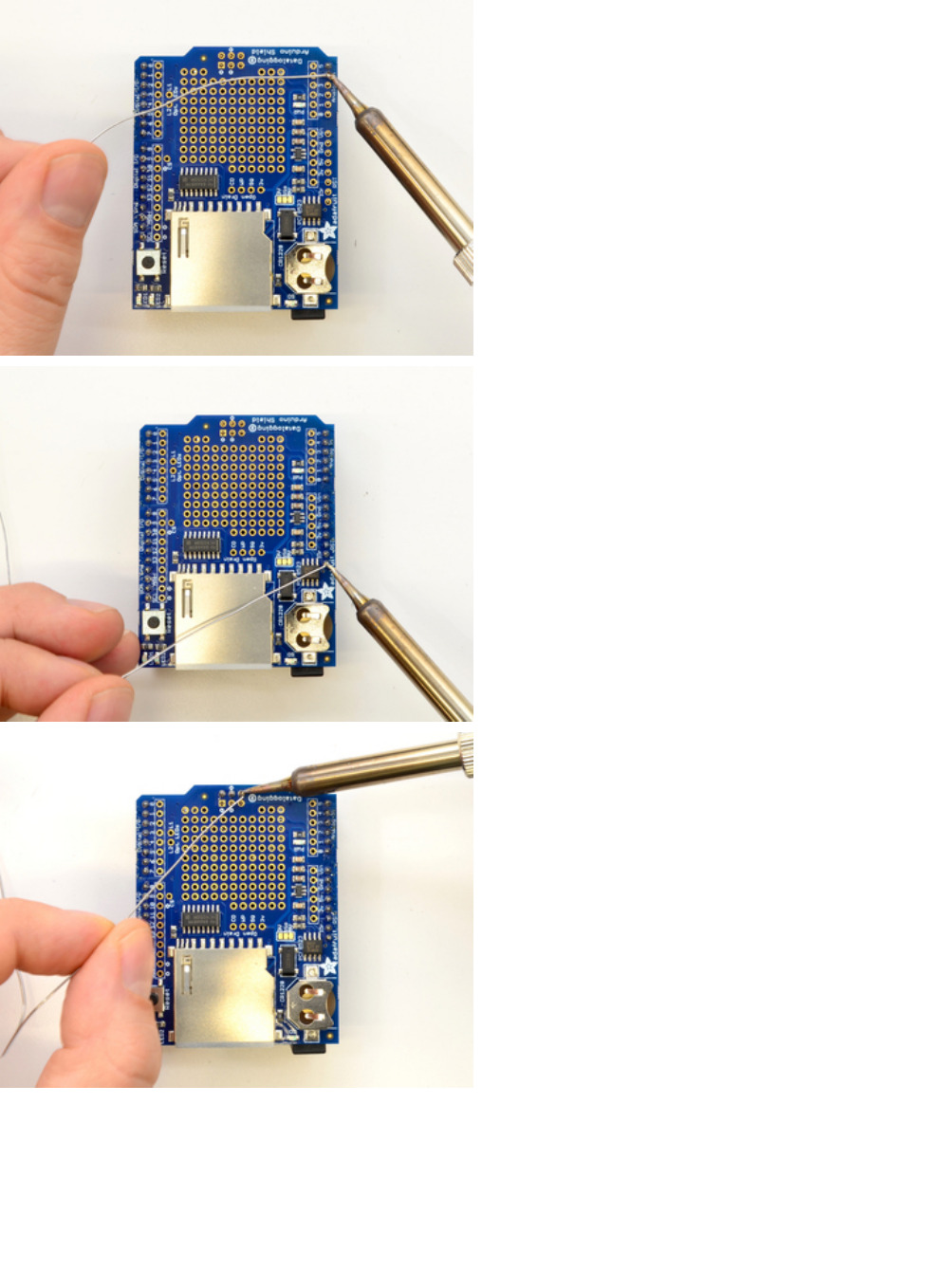

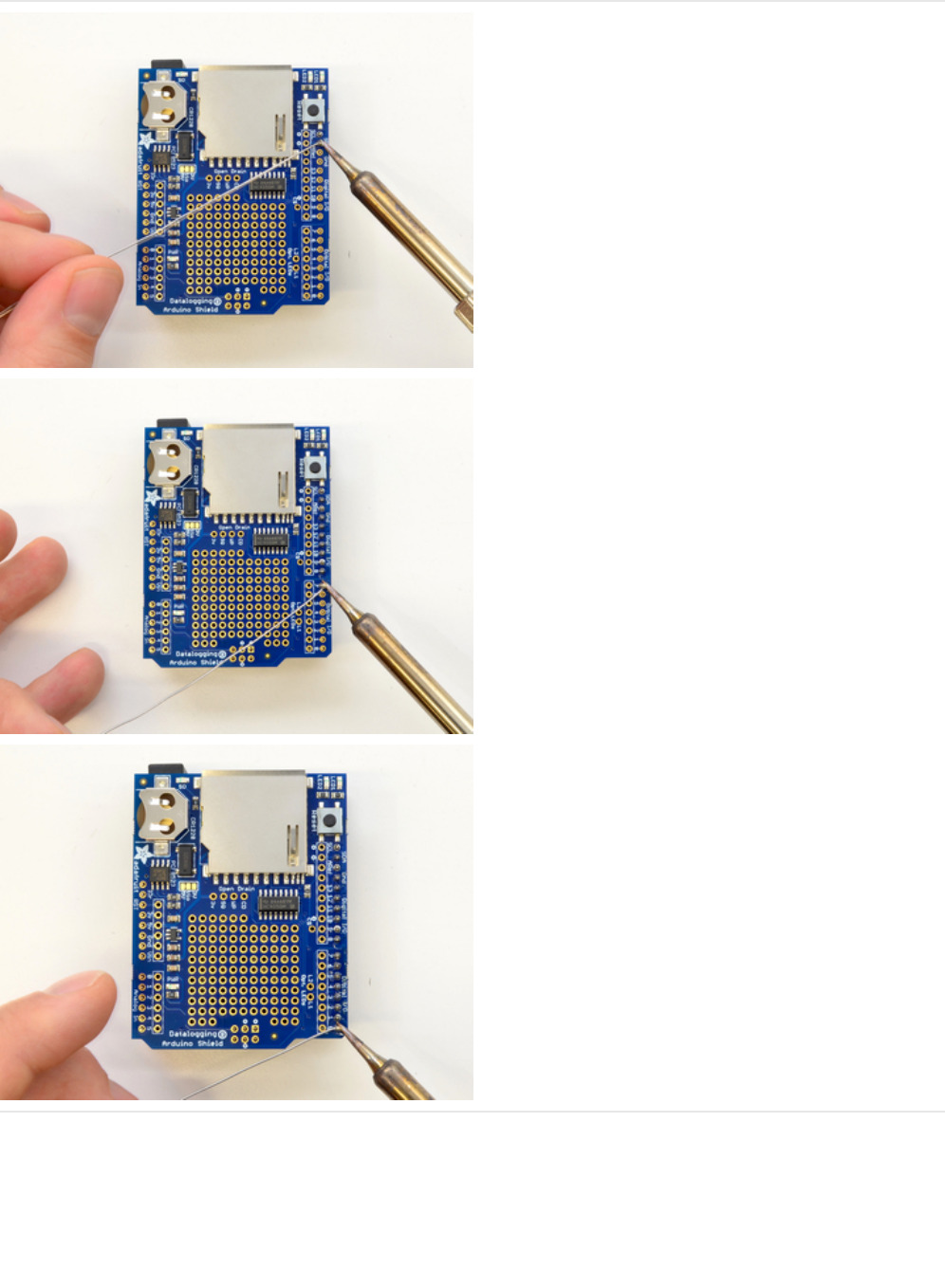

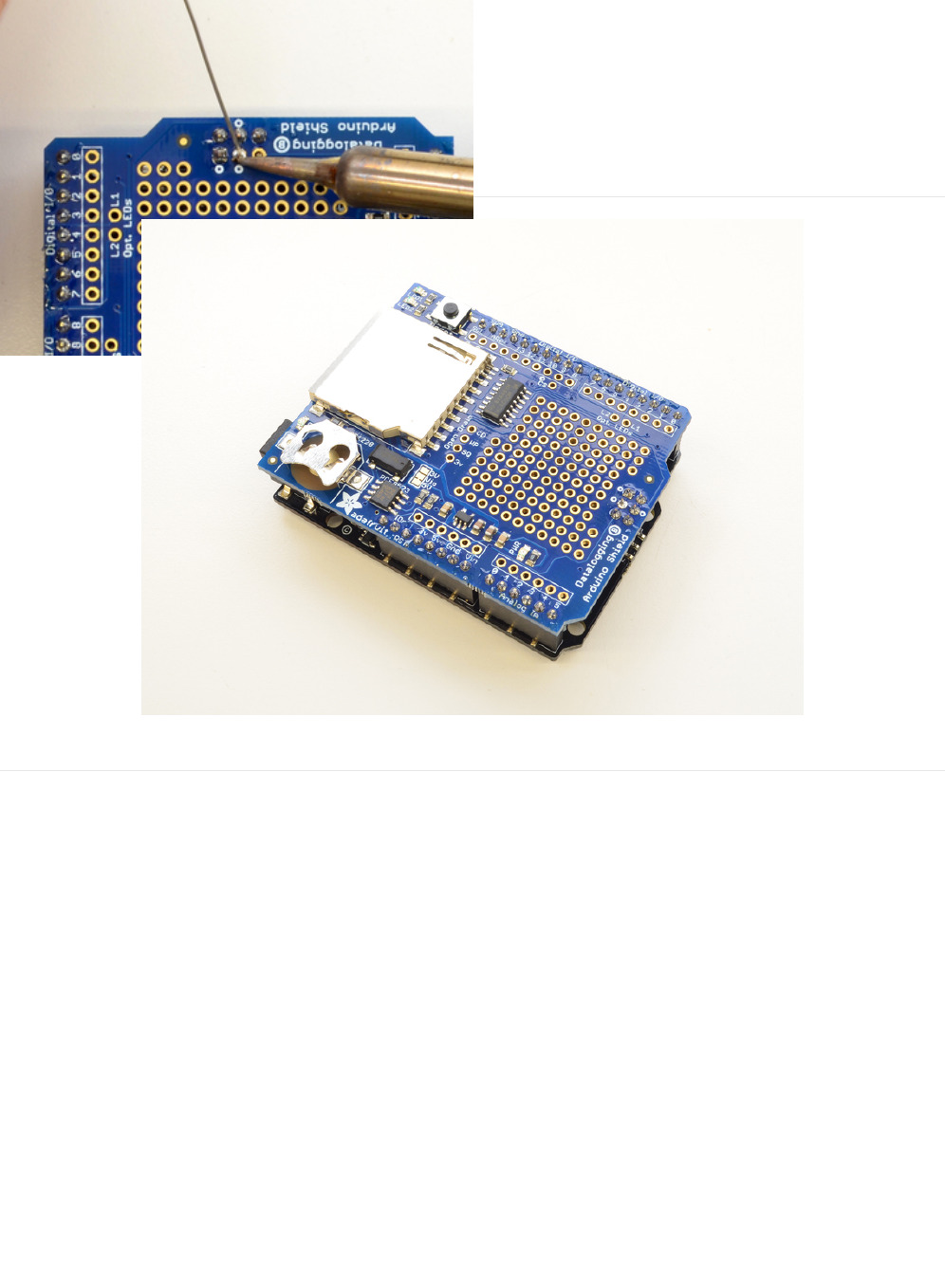

And solder!

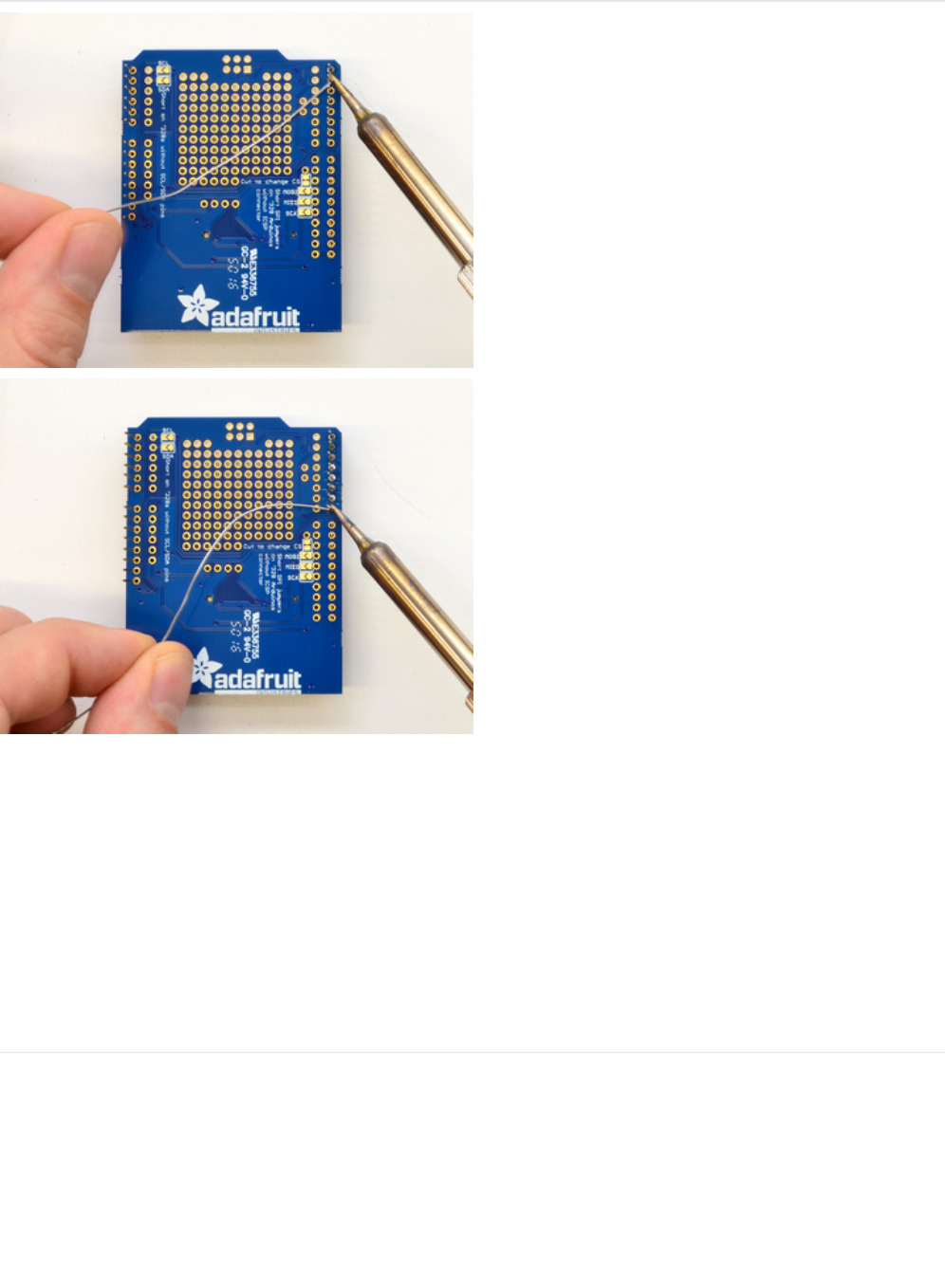

Solder each pin to assure good electrical contact. For

tips on soldering, refer to the Adafruit Guide to Excellent

Soldering (https://adafru.it/c6b).

Flip around and solder the other side as well as the 2x3

header

vI-ws cumpw ®bmbbmv~nn

Assembly with Stacking Headers:

Stacking headers give your data logger shield extra flexibility. You can combine it with other shields such as the

RGB/LCD Display shield (http://adafru.it/714) to make a compact logging instrument complete with a user interface. You

can also stack it with one or more Proto-Shields (http://adafru.it/51) to add even more prototyping space for interfacing

to sensors.

Stacking headers are installed from the top of the board instead of the bottom, so the procedure is a little different

than for installing simple male headers.

Position the headers:

Insert the headers from the top of the shield, then flip the shield over and place it on a flat surface. Straighten the

headers so that they are vertical.

Be sure to insert the headers from the TOP of the shield so that they can be soldered from the BOTTOM.

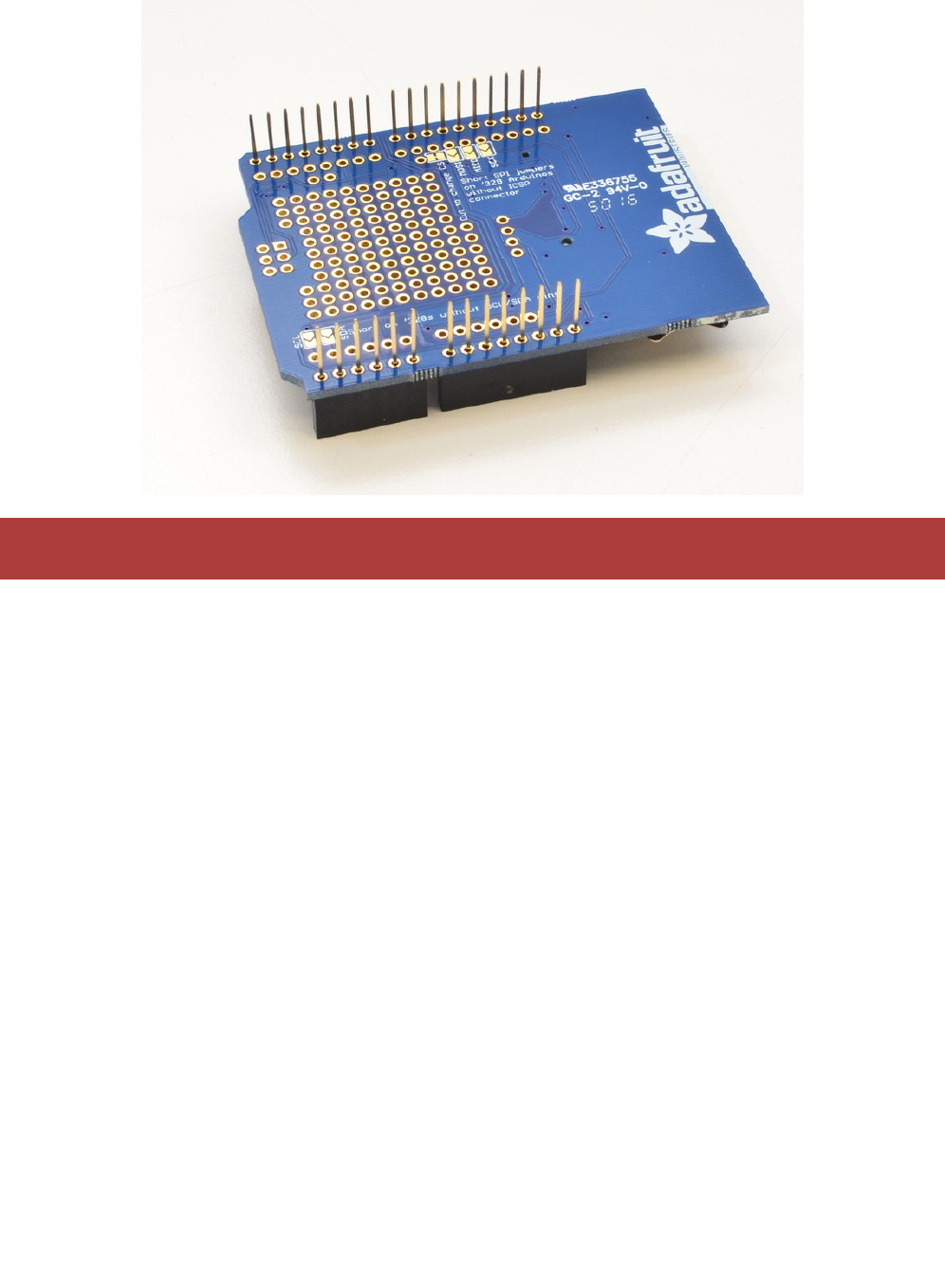

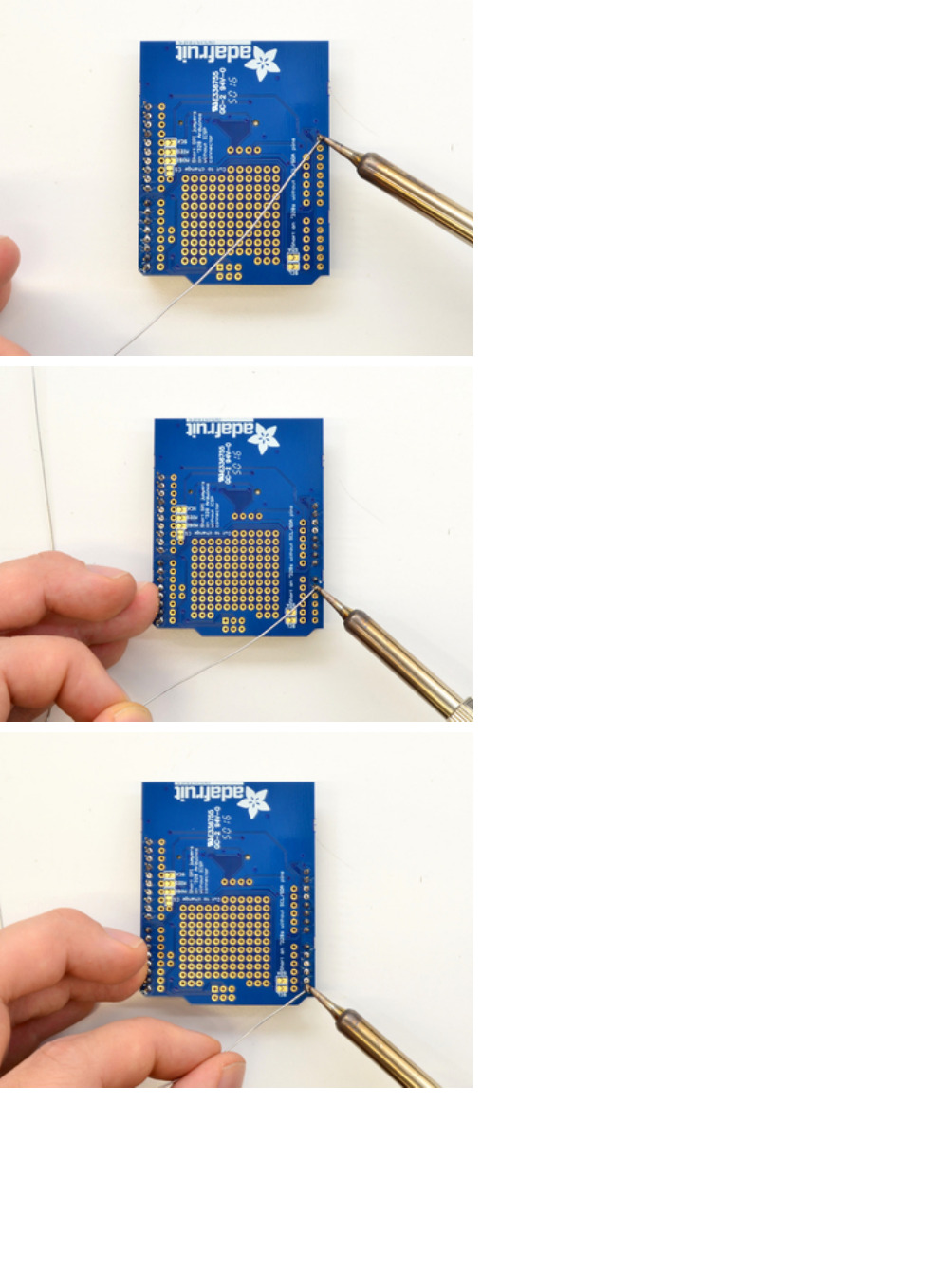

And solder!

Solder each pin for a solid electrical connection.

Tip: Solder one pin from each header section. If any of

them are crooked, simply re-heat the one solder joint

and straighten it by hand. Once all headers are straight,

continue soldering the rest of the pins.

Flip and solder the other side

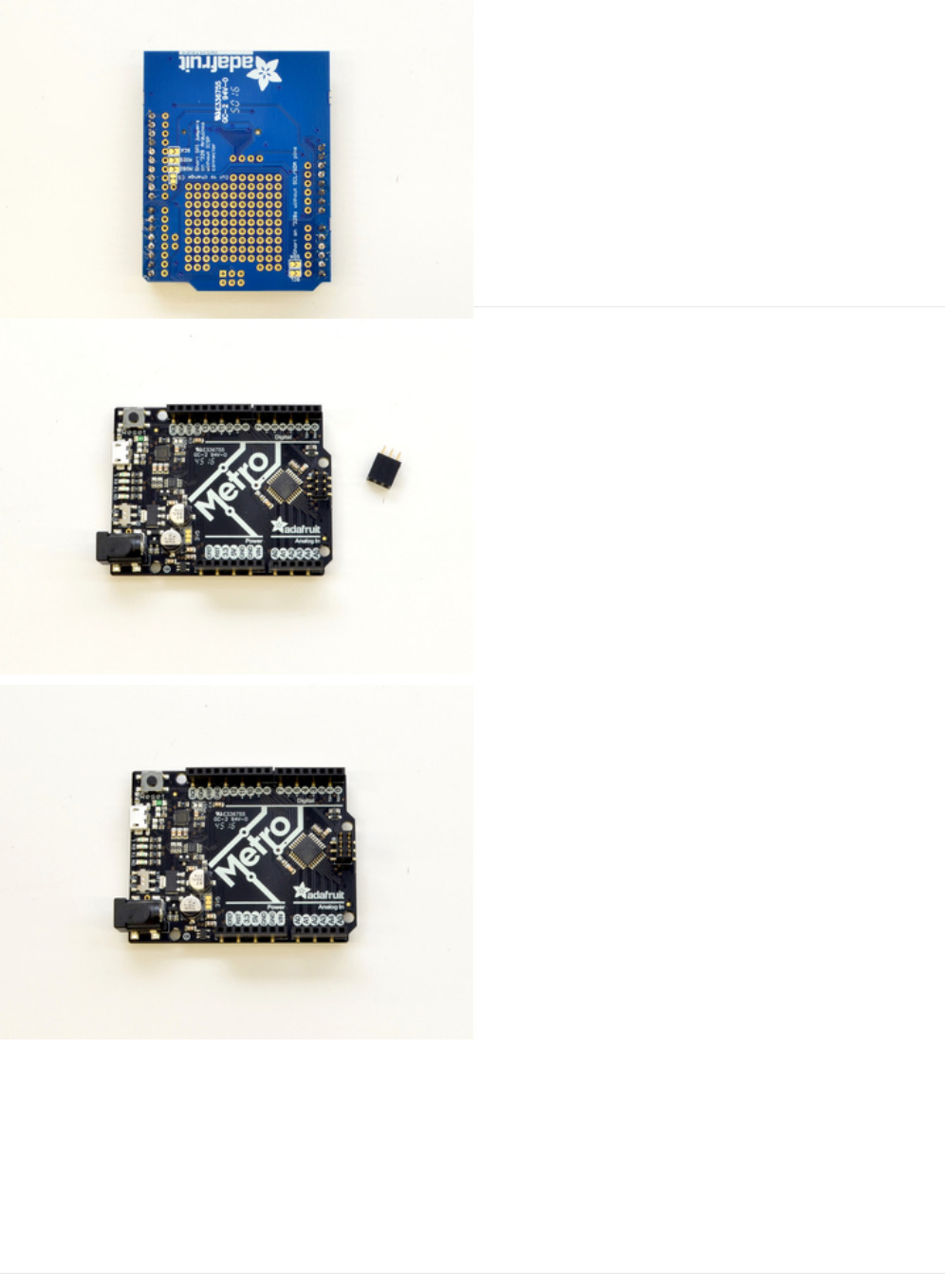

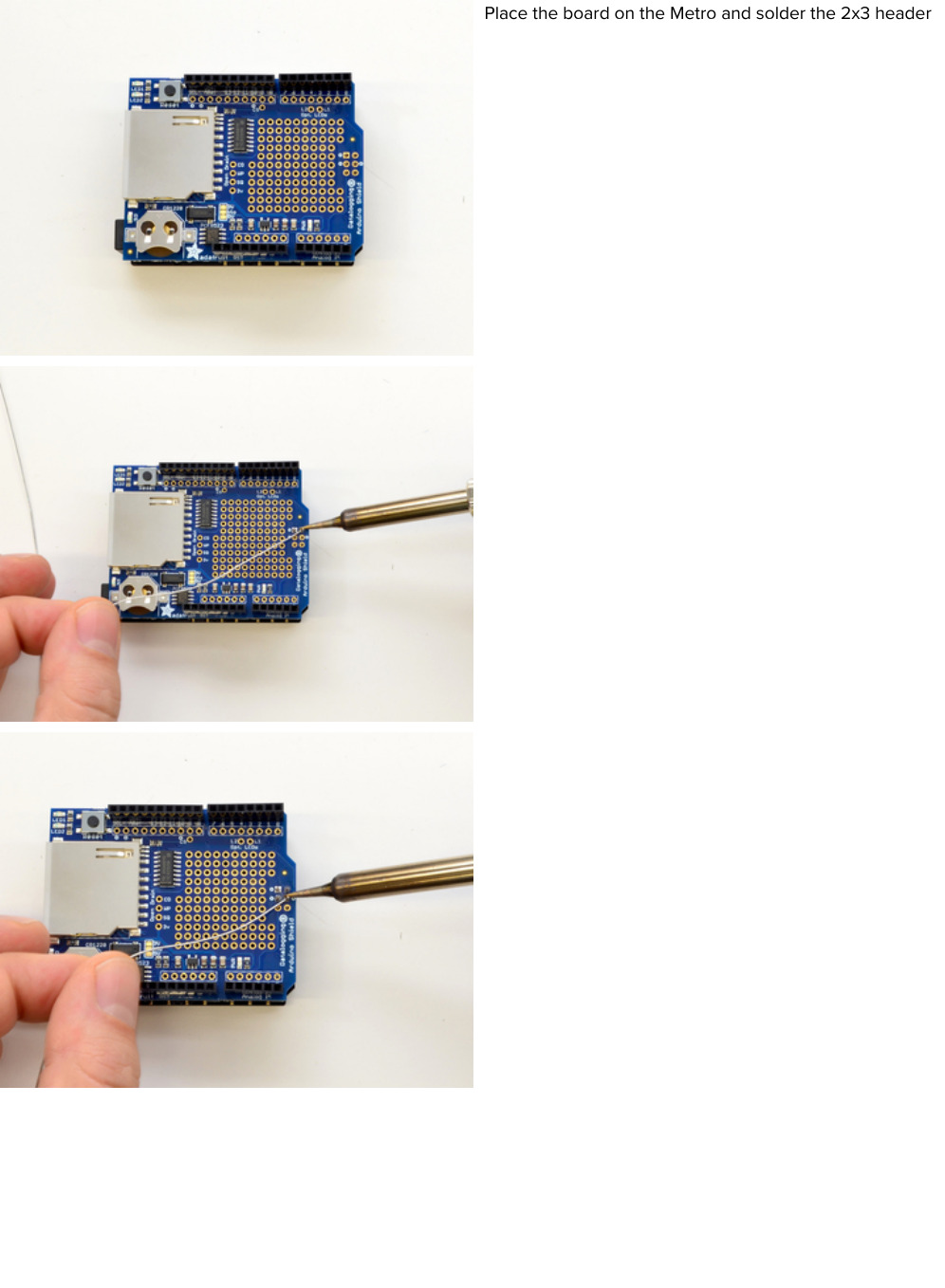

Place the 2x3 female header on to the

Arduino/Metro

Place the board on the Metro and solder the 2x3 header

mum:7 *7 7 a‘000'000 000 000 a00°00 .0000000000 00000000 :93 quince) 000000000 5000 D-JDAn 1 Ardumo Shiold |'|'| ’0000000 Ea:- 060:qu 0' 3v5v5ndU|n 312 “00000000 000 aaalruit n51“ bianal 1/0 80 00000000 00.3% 02909000 L20 0L; 0 o 9m. LED: 00000001001053» OIOIOIOIOIO’OIOIOIO‘M 0000000000 , 000000000 000000000 “30 =0w 0000000000°°°° :OW 0000000000 0 3050 0000000000 01v 00000000000 BNDOIOIOIOIOIOXOIOIOIOIO 3 JUOO'OIOIOIOIOIOIOIOIO naaLoqqer Shield "" msmmﬂﬁ I Infill] HE $530100) ooooo_, - :10: 3v5vﬁndUm I123 00000000 0000000 “um“ :31 mama In “NH" 0 Oltaloqqinq Arduinc Shiold

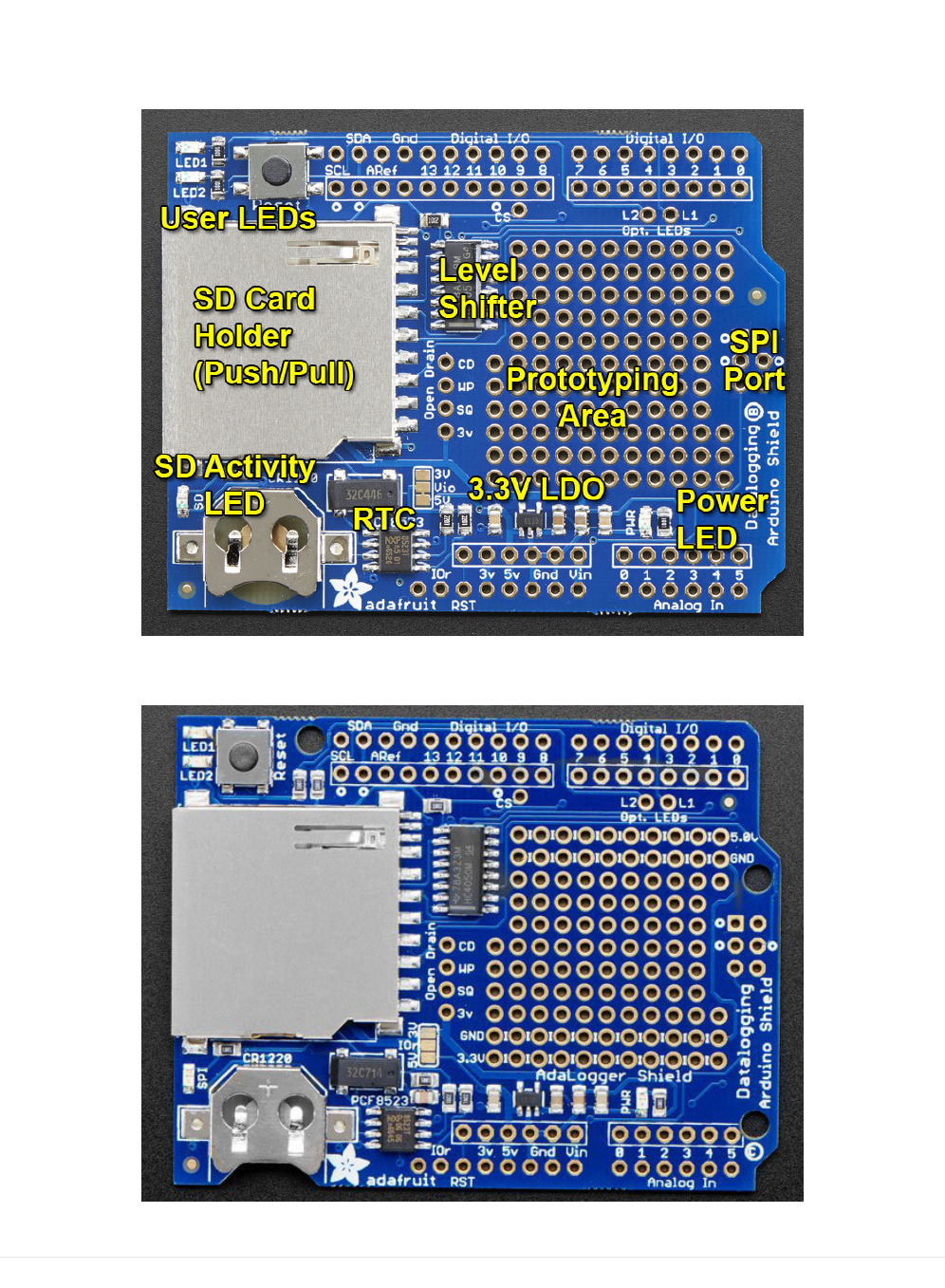

Shield Overview

The datalogger shield has a few things to make it an excellent way to track data. Here's a rough map of th shield:

Our latest version adds power rails for 5V, 3.3V and Ground:

SD Card

The big SD card holder can fit any SD/MMC storage up to 32G and and small as 32MB (Anything formatted FAT16 or

FAT32) If you have a MicroSD card, there are low cost adapters which will let you fit these in. SD cards are tougher to

lose than MicroSD, and there's plenty of space for a full size holder.

Simply Push to insert, or Pull to remove the card from this slot

The SD Activity LED is connected to the clock pin, it will blink when data goes over SPI, which can help you detect

when its ok to remove or insert the SD card or power down the Arduino.

The Level Shifter moves all signals from 3.3 or 5V down to 3.3V so you can use this shield with

any

Arduino safely and

not damage cards. Cheaper shields use resistors to level shift, but this doesn't work well at high speed or at all voltage

levels!

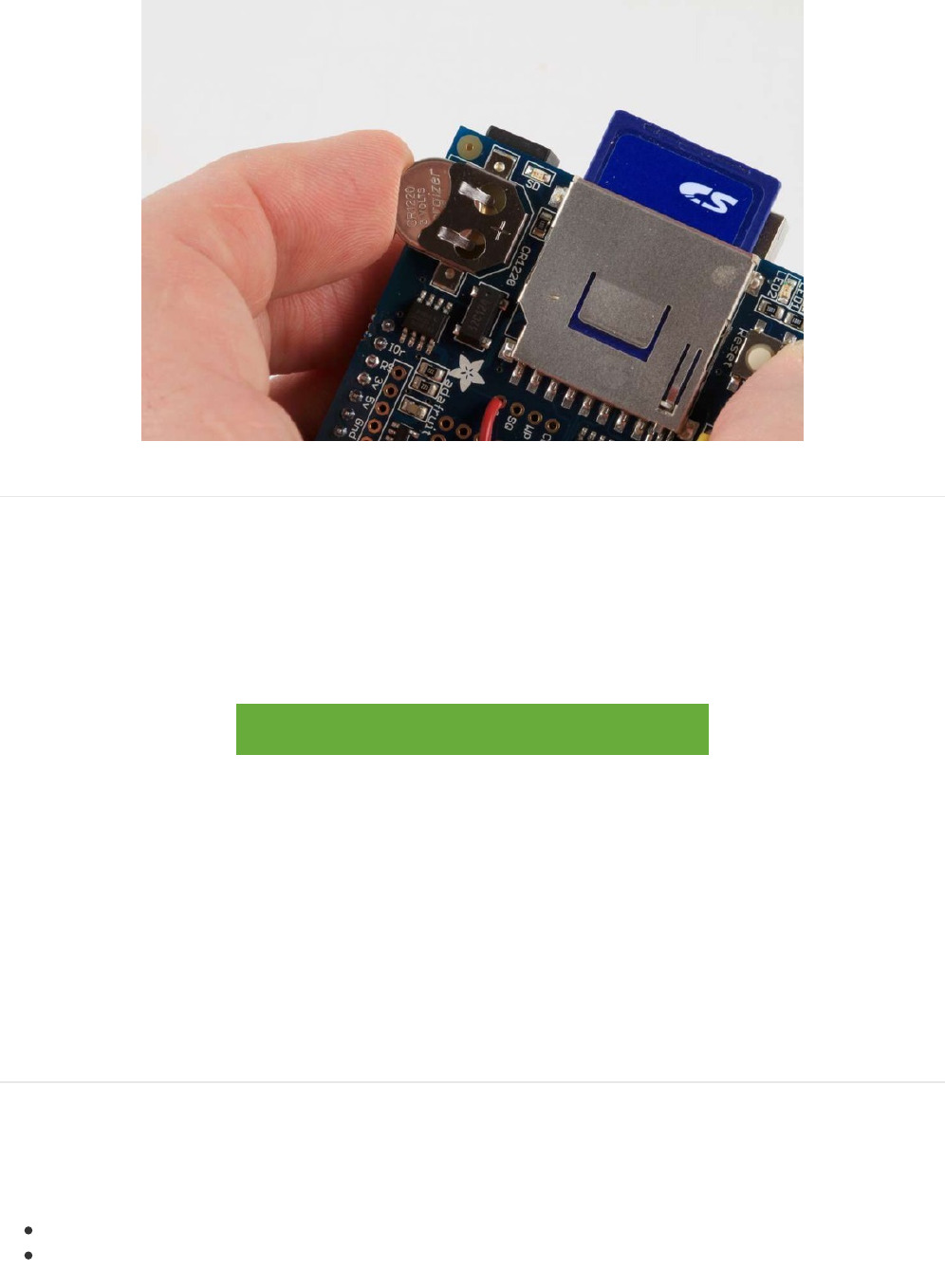

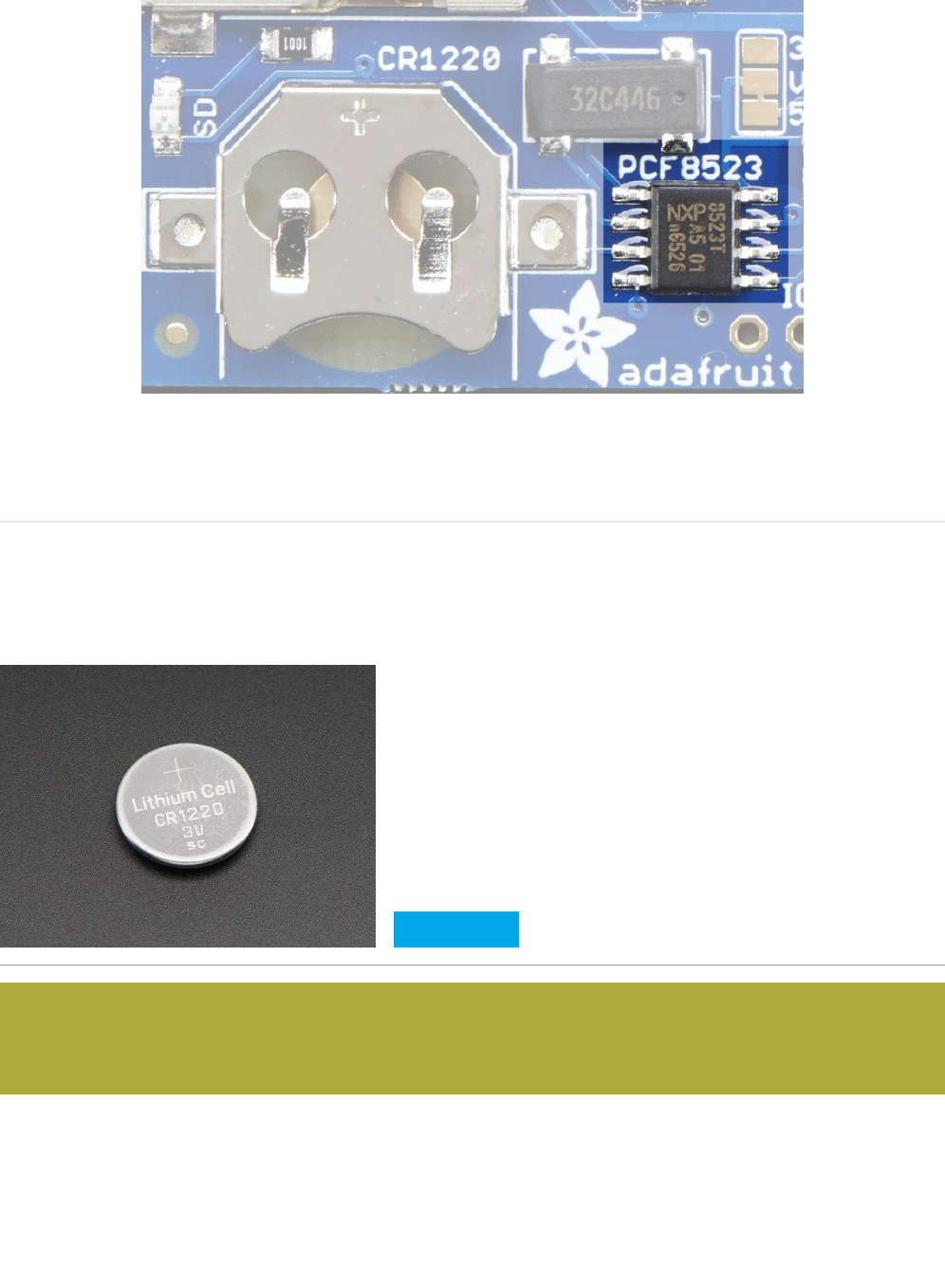

Real Time Clock

This is the time-keeping device. It includes the 8-pin chip, the rectangular 32KHz crystal and a battery holder

The battery holder must contain a battery in order for the RTC to keep track of time when power is removed from the

Arduino! Use any CR1220 compatible coin cell

3.3V Power Supply

An on-board 3.3V LDO (low drop-out type) regulator keeps the shield's 3V parts running smoothly. Some old Arduinos

did not have a full 3.3V regulator and writing to an SD card could cause the Arduino to reboot. To maintain

compatibility we just keep it there. There's also a green PWR (Power) good LED to the right

User LEDs

We have two user-configuratble LEDs. Connect a wire from any Arduino pin to L1 or L2 marked pads and pull high to

turn on LED1 or LED2

The reset button to the right of the LEDs, will reset the entire Arduino, handy for when you want to restart the board

Prototyping Area

The big middle section is filled with 0.1" grid prototyping holes so you can customize your shield with sensors or other

circuitry.

The top two and bottom two rows of proto holes are power rails.

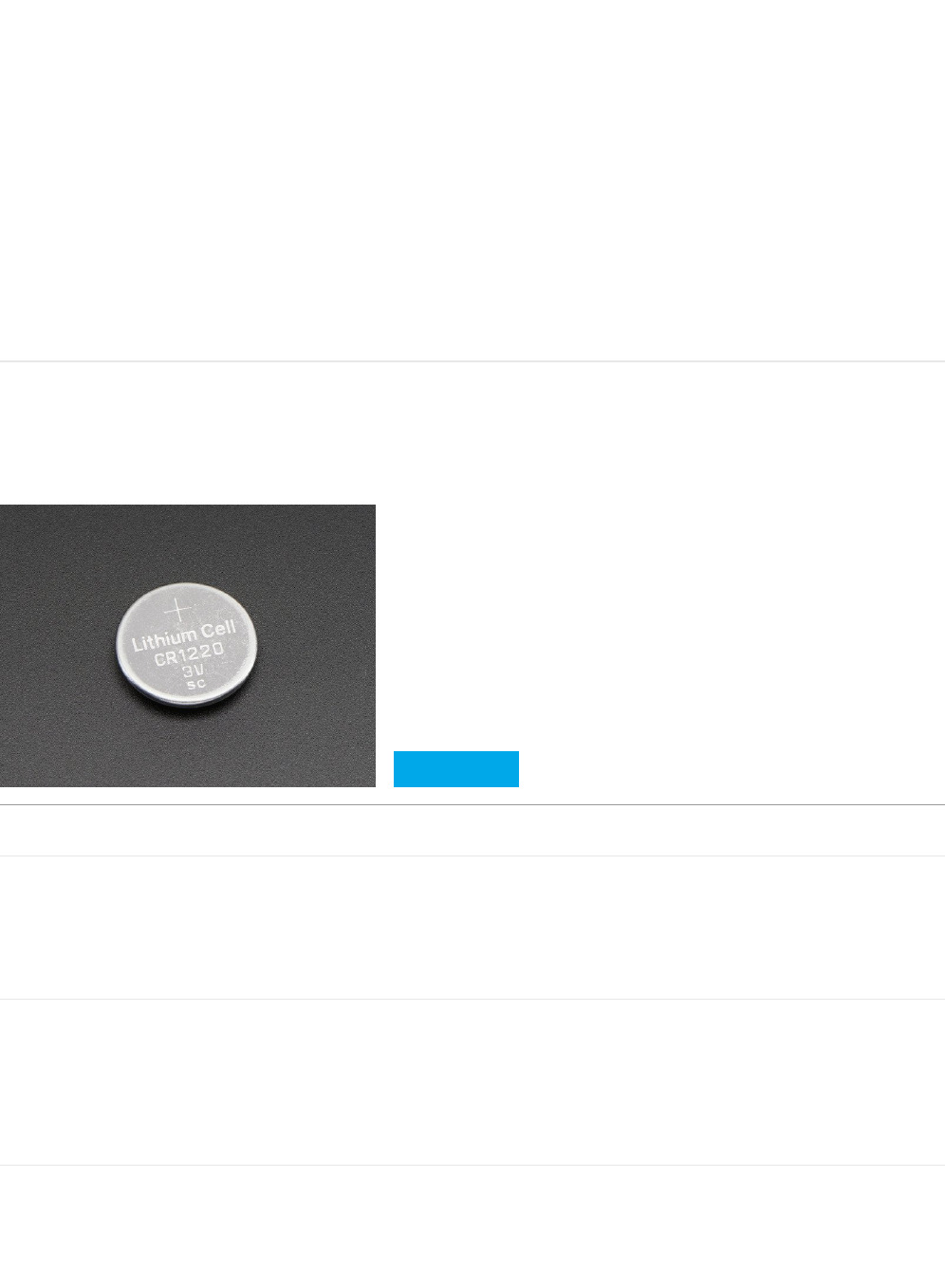

CR1220 12mm Diameter - 3V Lithium Coin Cell Battery

$0.95

IN STOCK

ADD TO CART

"ma m1 v0 0000008000 00000000 Ll@0130000000 00—000000 L10 0L1 0 9,4 H'Da Loooooooooow rEoooooooooow Eoooooooooo _Eooooooooo 000000000°D0 OED 0000000000 °°°° 00 v 03v 0000000000 0 _JW‘01OIO!OIOIO!OIOIO!O O ra—-° J J 0010.0 .00 OIO|OIO'O lﬂaaLuqqzv sumo ‘ using-51E I I...Illl él' -Eboqpo 7v 5. and Um 00000000 aduruh wsv Dal-logging nrdun‘nu Shiol m7 In 3000‘00000 00030000 00000000 0 Li a an: LCD: ~c 0000000000 10000000000 _0000000000- 000000000 000000000°00 n0000000000°00° voooooooooo 00 0000000000 vooooooooooo _ﬂﬁ______; 00000000000 ”“1 cg;22n[ l— um 00000000000 Ia ‘ 7 gen é: 314::er 2 E:— k Loooooooo ”oooooo m“ ﬂalruit :51 Ma) I Open Drain () 0 C) () u a. z n Dalalnqqinq® ﬂrduino shield

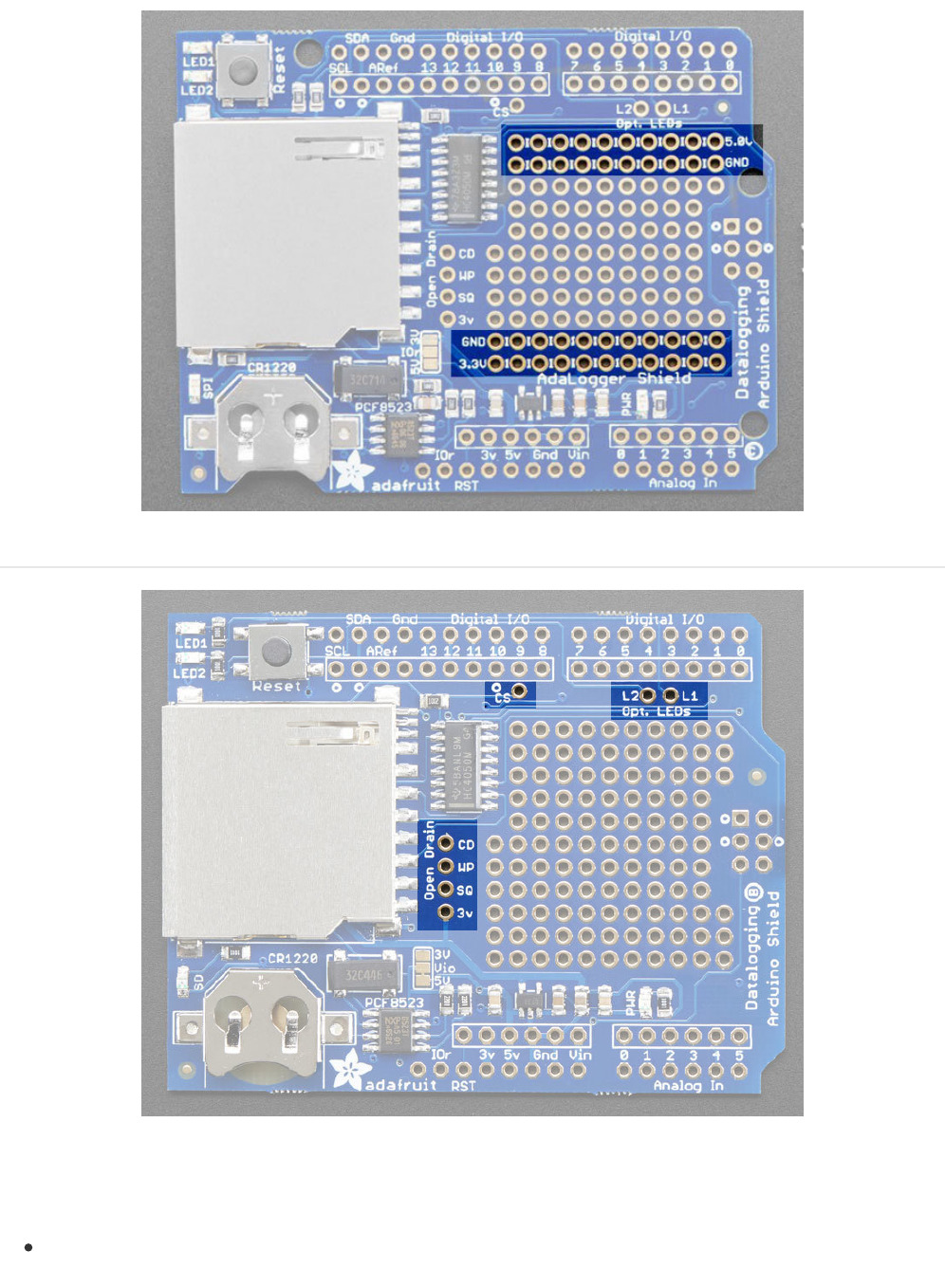

Breakout Pads

We also have some extra breakouts shown above, around the breakout board area.

To the right of the SD card holder:

CD - this is the card detect pad on the SD card. When this is connected to ground, an SD card is inserted. It is

open-drain, use a pullup (either physical resistor or enabled in software)

0 WP - this is the Write Protect pad on the SD card. you can use this to detect ifthe writerprotect tab is on the card

WP - this is the Write Protect pad on the SD card, you can use this to detect if the write-protect tab is on the card

by checking this pin. It is open-drain, use a pullup (either physical resistor or enabled in software)

SQ - this is the optional Squarewave output from the RTC. You have to send the command to turn this on but its a

way of optionally getting a precision squarewave. We use it primarily for testing. The output is open drain so a

pullup (either physical resistor or enabled in software)

3V - this is the 3V out of the regulator. Its a good quality 3.3V reference which you may want to power sensors.

Up to 50mA is available

Near Digital #10

CS - this is the Chip Select pin for the SD card. If you need to cut the trace to pin 10 because it is conflicting, this

pad can be soldered to any digital pin and the software re-uploaded

Near Digital #3 and #4

L2 and L1 - these are optional user-LEDs. Connect to any digital pin, pull high to turn on the corresponding LED.

The LEDs already have 470 ohm resistors in series.

QDJOQ"' 'JQO’D’

Wiring & Config

As of revision B of the Datalogger shield, we've moved away from using digital pins 10, 11, 12, 13 for SPI and A4, A5 for

I2C. We now use the 2x3 ICSP header, which means that you don't need special customized I2C or SPI libraries to use

with Mega or Leonardo or Zero (or any other future type) of Arduino!

Which version do I have?

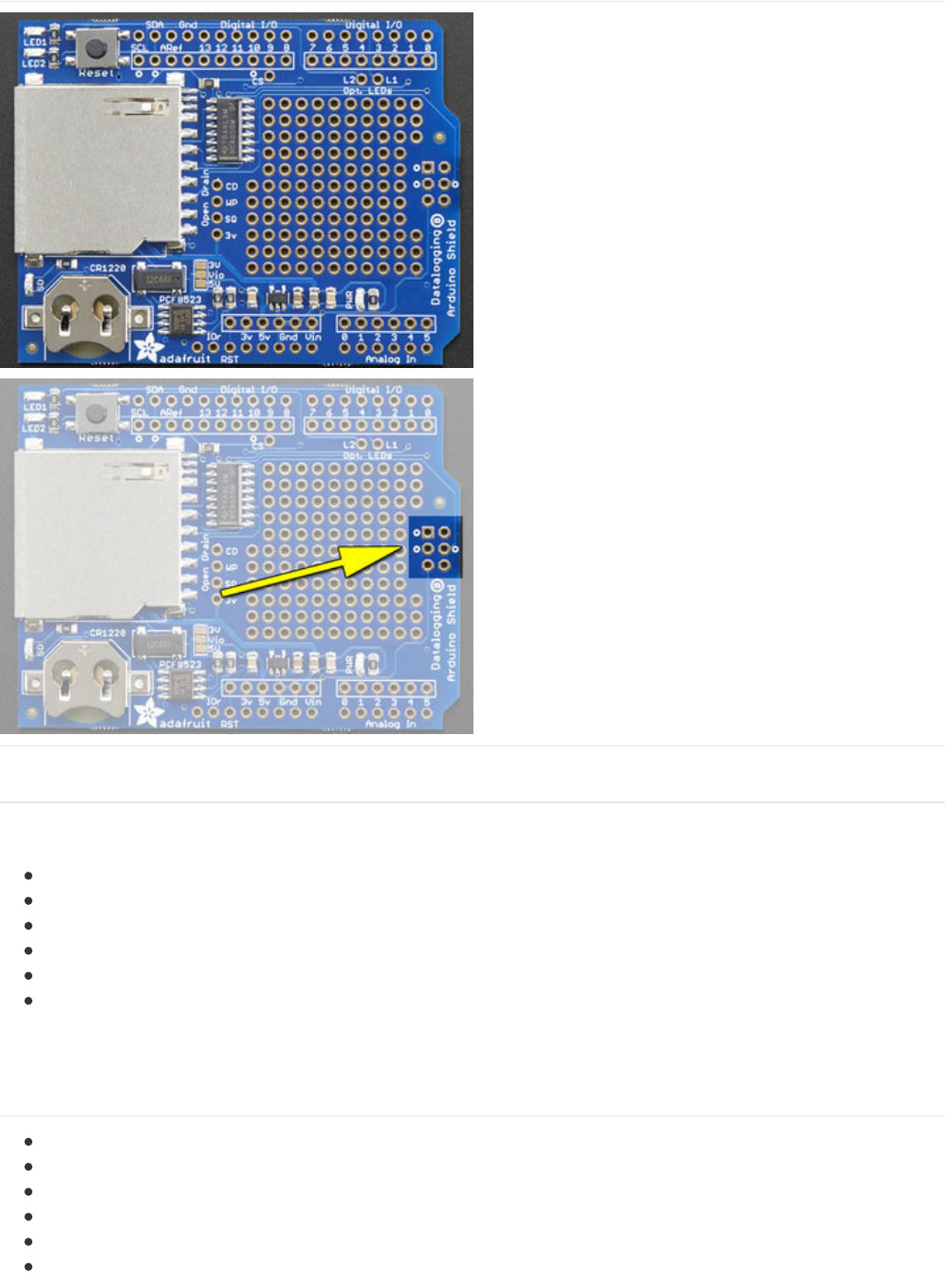

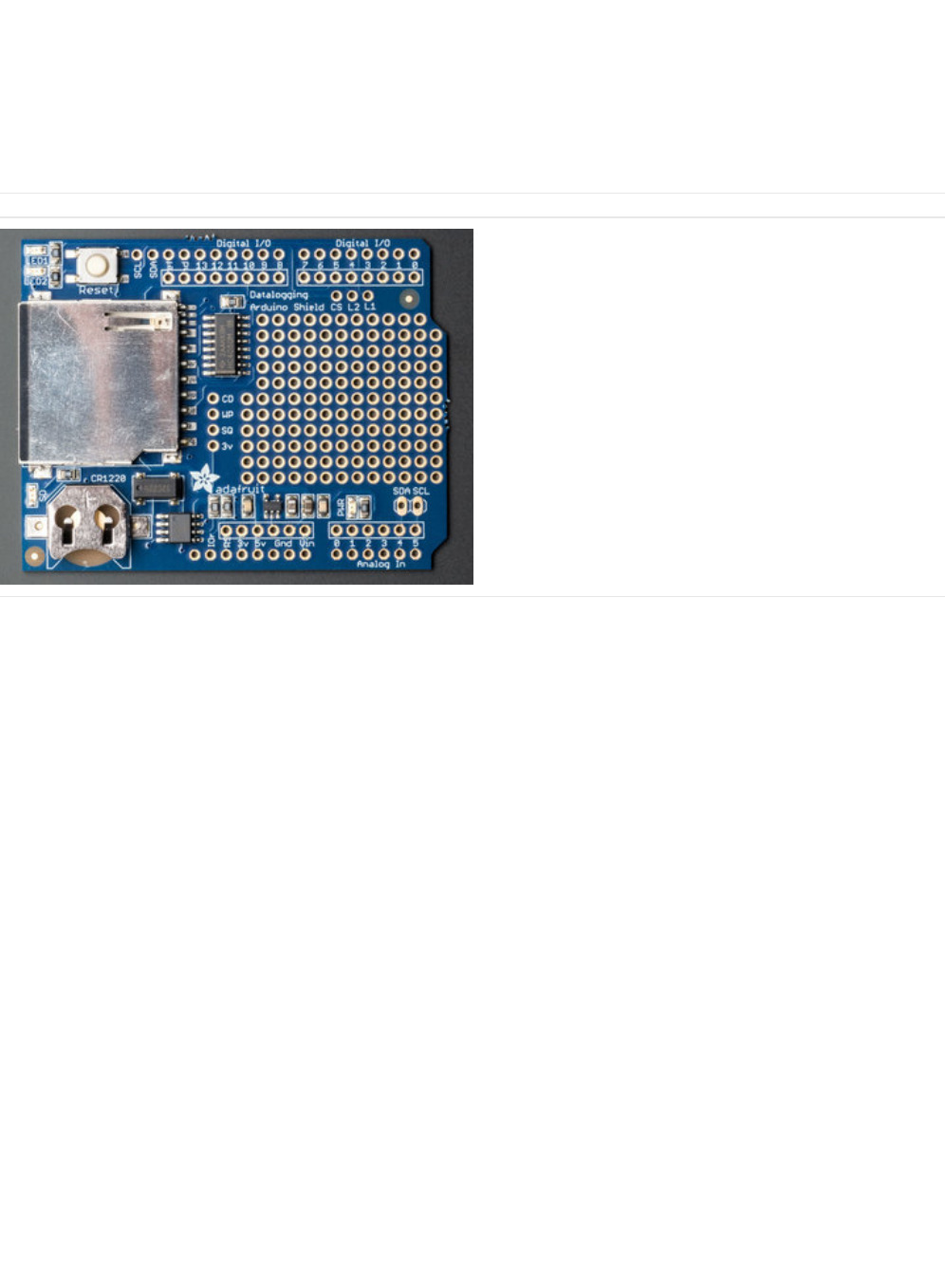

This is the older Datalogger shield. In particular, note

that the prototyping area is completely full of 0.1"

spaced holes

I ;.m.‘ . . COO 1530? \ 920A: CmCCCCC, .2 @3303? 5009?: 0252: 00930 0303 on 5:? n. 332:5: CC? yr. 1 C0, C2: on ,7 m p u n a ‘m o ".32: smroc: ,. .a Mm

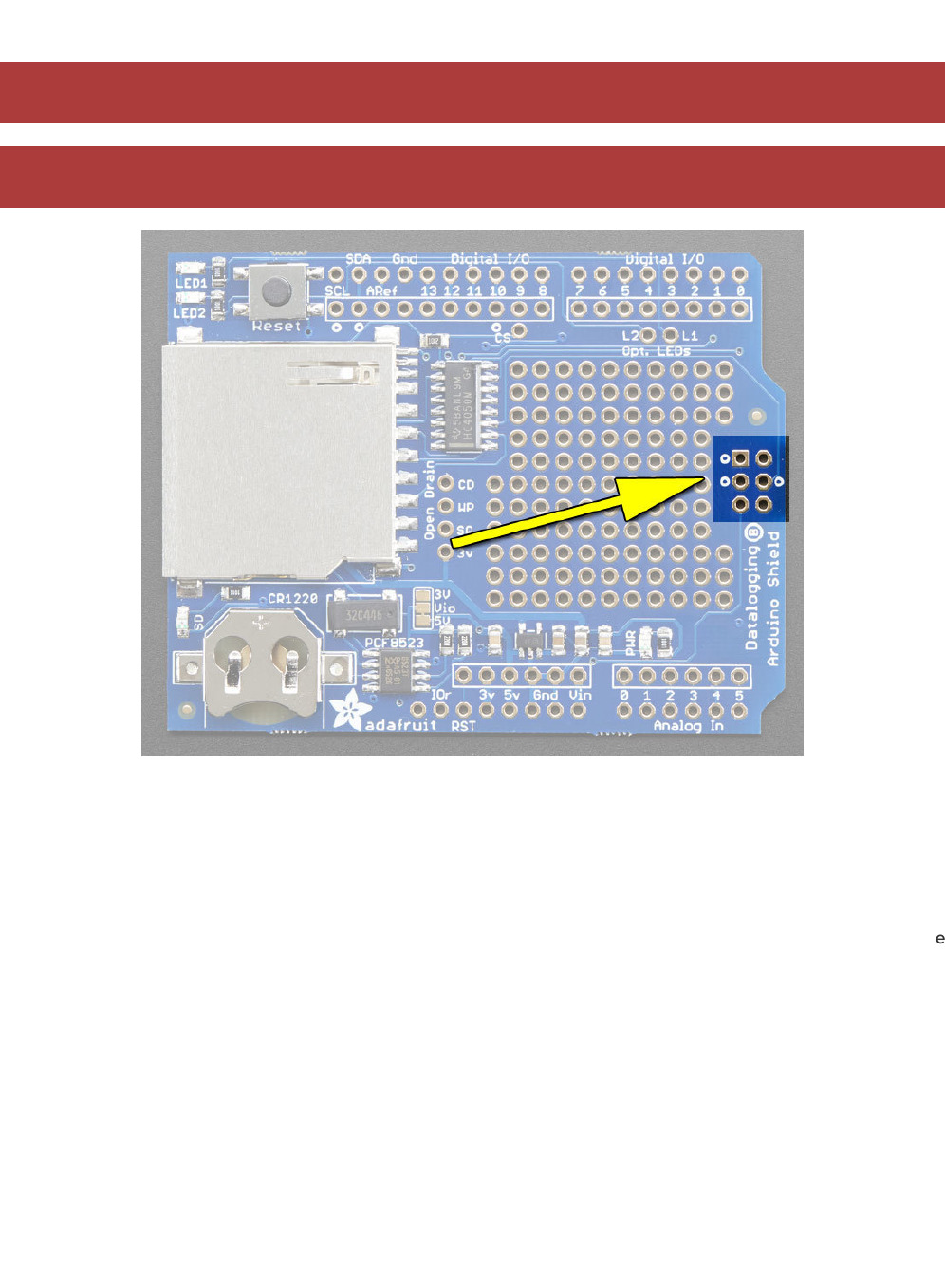

This is the "R3 compatible" Datalogger. Note that it has a

smaller prototyping area and that there is a 2x3 SPI

header spot on the right

Older Shield Pinouts

On the older shields, the pinout was

fixed

to be:

Digital #13 - SPI clock

Digital #12 - SPI MISO

Digital #11 - SPI MOSI

Digital #10 - SD Card chip select (can cut a trace to re-assign)

SDA connected to A4

SCL connected to A5

The RTC (DS1307) I2C logic level was fixed to 5V

Rev B Shield Pinouts

ICSP SCK - SPI clock

ICSP MISO - SPI MISO

ICSP MOSI - SPI MOSI

Digital #10 - SD Card chip select (can cut a trace to re-assign)

SDA

not

connected to A4

SCL

not

connected to A5

”qummvwww/ ”WU’MMMJ” Shwlsplju-peu 1 v f r , ' ( , on'aza Fwd-Amos I ; l / ; I J ”imam xcsv (III/,(J/‘I 1 (owner (/1: um unwﬂ (M) u (Arr/M «,1 of; Urjr Um”, 41'1’1'1'1’1' «,«,1/‘(.(MM ”MUCH/NM \;1‘4’,’,'AVA’MVH'J( gangs" m W MD. pm. “(NV/Gt r‘, ’. M'H‘J‘Vjv'j \

The RTC (PCF8523) logic level can be 3V or 5V

On an UNO, note that Digital #13 is the same as ICSP SCK, #12 is ICSP MISO, #11 is ICSP MOSI, SDA is tied to A4 and

SCL is A5. However, that is only true on the UNO! Other Arduino's have different connections. Since the shield no

longer makes the assumption it's on an UNO, it is the most cross-compatible shield.

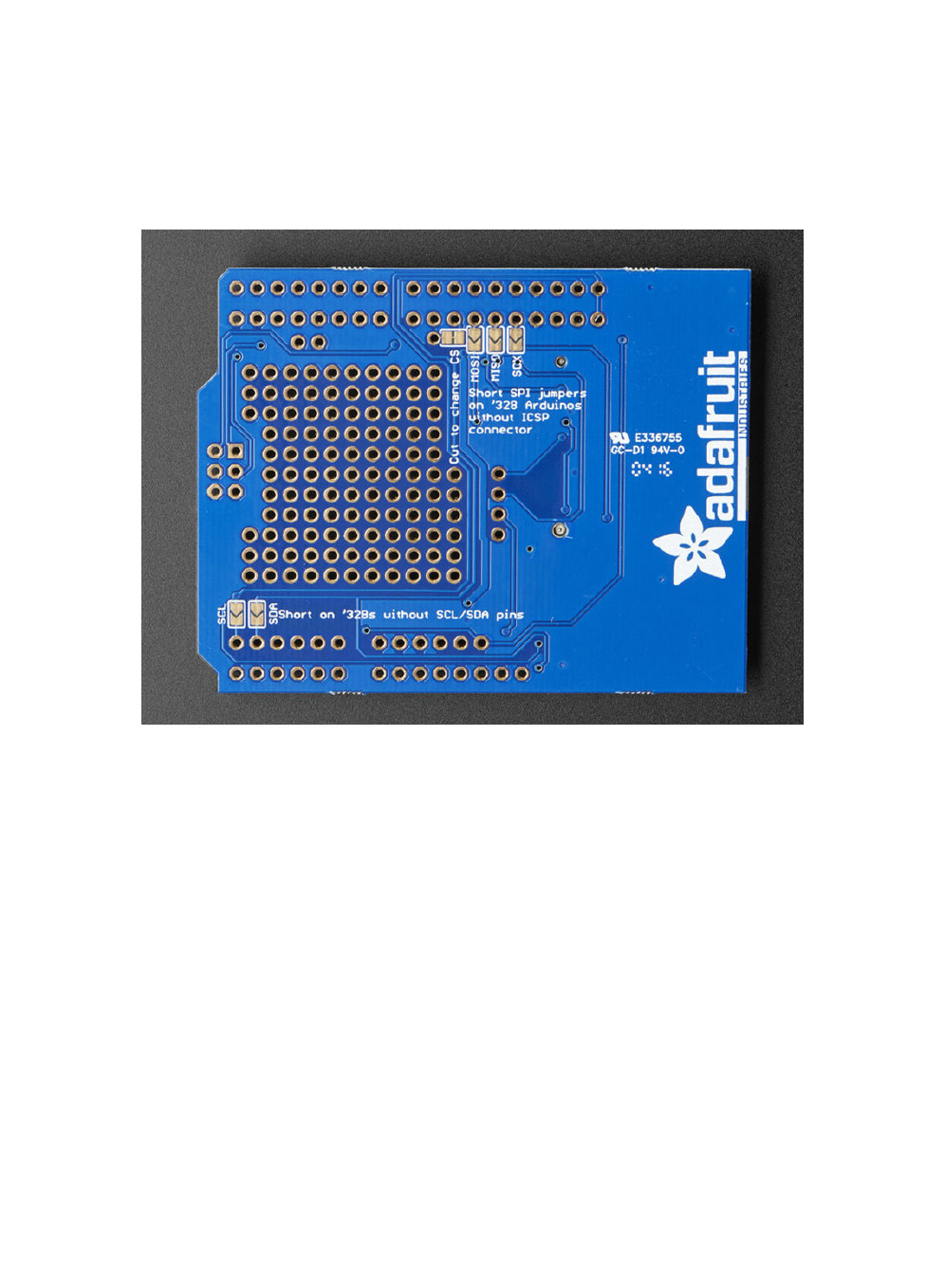

On the bottom of the Rev B shield, you can see that if you have an older Arduino where there is no ICSP 2x3 header,

and no SDA/SCL pins, you can short the solder jumpers closed.

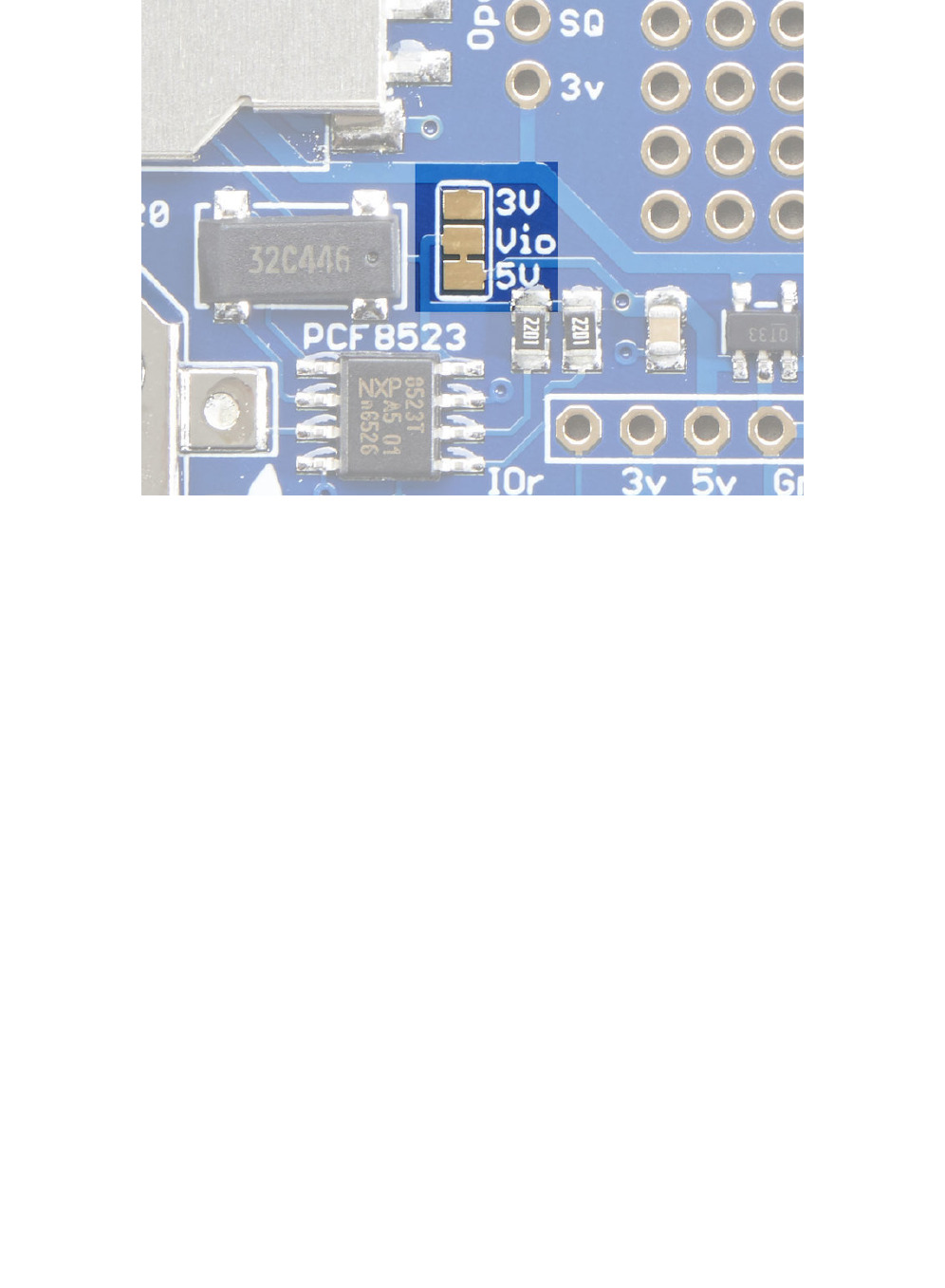

If you are using the shield with a 3.3V logic Arduino, you may want to change the Vio jumper. This is what the 10K

pullups for I2C are pulled up to. Honestly, the pullups are very weak so if you forget, it's not a big deal. But if you can,

cut the small trace between the center pad and 5V and solder the other side so that Vio is connected to 3V

'IQQUIII imp-,9!

Older Datalogger Shield Leonardo & Mega Library

If your shield looks like the above, and has the 2x3 pin header on the right,

skip this page!

If your shield does not have the 2x3 pin header section and you are using a Mega or Leonardo (e.g. not UNO-

compatible) then you can keep reading!

If you are using an Leonardo or Mega with the older datalogging shield, you will have to replace the existing SD card

library to add 'SD card on any pin' support. If you have an Uno/Duemilanove/Diecimila, this is not required. If you have

a rev B shield, this is also not required!

First, find the "core libraries" folder - if you are using Windows or Linux, it will be in the folder that contains the Arduino

executable, look for a libraries folder. Inside you will see an SD folder (inside that will be SD.cpp SD.h etc)

This is ONLY required if you have the older Datalogger shield which does not have the SPI port connection.

This is ONLY required if you are using a Leonardo or Mega with the older Datalogger shield!

owin- x op." - $1....“— * F Nam Dal: "mm Yylle IBM, H um 12/10/11021250" Human E mums I m 12/10/1012 11:50 mmm I was 1; M“: 12/10/1012le c» n: i W E W 12/10n012nm ImDnmmzm u M D m 12/10/11021250 .. m Mm. I nan-y D an“: 12/10/11021250 oak D m 12110110121250 .. Hm: mm: . am 021sz mnnmmsum 031mm,: I/znmzlnun M. 5.2113710; Ou 'hi 9 0m modmd Type 12/10/2011 1L m: Voldu 12/10/2012 1150 File Value: 12/10/2012 1250 File foldu 12/10/2012 12:50 File Voldev 11/10/2011 11‘ VII: Voldu 7 mm m Inldu yin/2013132014 may Mp 12/10/2012 1250 me Voldev 11/10/2011 11:50 v VII: Voldu 12/10/1011 11:50 File [older 12/10/2012 1250 FIIE full!!! 12/10/2012 1250 Fulﬁoldev 11/10/2011 11:50 v VII: Voldu

Ourside the libraries folder, make a new folder called SDbackup. Then drag the SDfolder into SDbackup, this will

'hide' the old SD library without deleting it.

Note that SDBackup must be outside of the libraries folder in order to

effectively 'hide' the SD library.

Now we'll grab the new SD library, visit https://github.com/adafruit/SD (https://adafru.it/aP6) and click theZIP download

button, or click the button below

https://adafru.it/cxl

Uncompress and rename the uncompressed folder SD. Check that the SD folder contains SD.cpp and SD.h

Place the SD library folder your sketchbook libraries folder. You may need to create the libraries subfolder if its your

first library. For more details on how to install libraries, check out our ultra-detailed tutorial at

(https://adafru.it/aYM)http://learn.adafruit.com/adafruit-all-about-arduino-libraries-install-use (https://adafru.it/aYM)

Using the SD Library with the Mega and Leonardo

Because the Mega and Leonardo do not have the same hardware SPI pinout, you need to specify which pins you will

be using for SPI communication with the card. For the data logger shield, these will be pins 10, 11, 12 and 13. Find the

location in your sketch where SD.begin() is called (like this):

and change it to add these pin numbers as follows:

cardinfo

The cardinfo sketch uses a lower level library to talk directly to the card, so it calls card.init() instead of SD.begin().

When calling card.init(), you must change the call to specify the SPI pins, as follows:

// see if the card is present and can be initialized:

if (!SD.begin(chipSelect)) {

// see if the card is present and can be initialized:

if (!SD.begin(10, 11, 12, 13)) {

// we'll use the initialization code from the utility libraries

// since we're just testing if the card is working!

while (!card.init(SPI_HALF_SPEED, chipSelect)) {

// we'll use the initialization code from the utility libraries

// since we're just testing if the card is working!

while (!card.init(SPI_HALF_SPEED, 10, 11, 12, 13)) {

Using the Real Time Clock

What is a Real Time Clock?

When logging data, it's often really really useful to have timestamps! That way you can take data one minute apart (by

checking the clock) or noting at what time of day the data was logged.

The Arduino does have a built-in timekeeper called millis() and theres also timers built into the chip that can keep track

of longer time periods like minutes or days. So why would you want to have a separate RTC chip? Well, the biggest

reason is that millis() only keeps track of time

since the Arduino was last powered -

that means that when the power is

turned on, the millisecond timer is set back to 0. The Arduino doesnt know its 'Tuesday' or 'March 8th' all it can tell is

'Its been 14,000 milliseconds since I was last turned on'.

OK so what if you wanted to set the time on the Arduino? You'd have to program in the date and time and you could

have it count from that point on. But if it lost power, you'd have to reset the time. Much like very cheap alarm clocks:

every time they lose power they blink 12:00

While this sort of basic timekeeping is OK for some projects, a data-logger will need to have consistent timekeeping

that doesnt reset when the Arduino battery dies or is reprogrammed. Thus, we include a separate RTC! The RTC chip

is a specialized chip that just keeps track of time. It can count leap-years and knows how many days are in a month,

but it doesn't take care of Daylight Savings Time (because it changes from place to place)

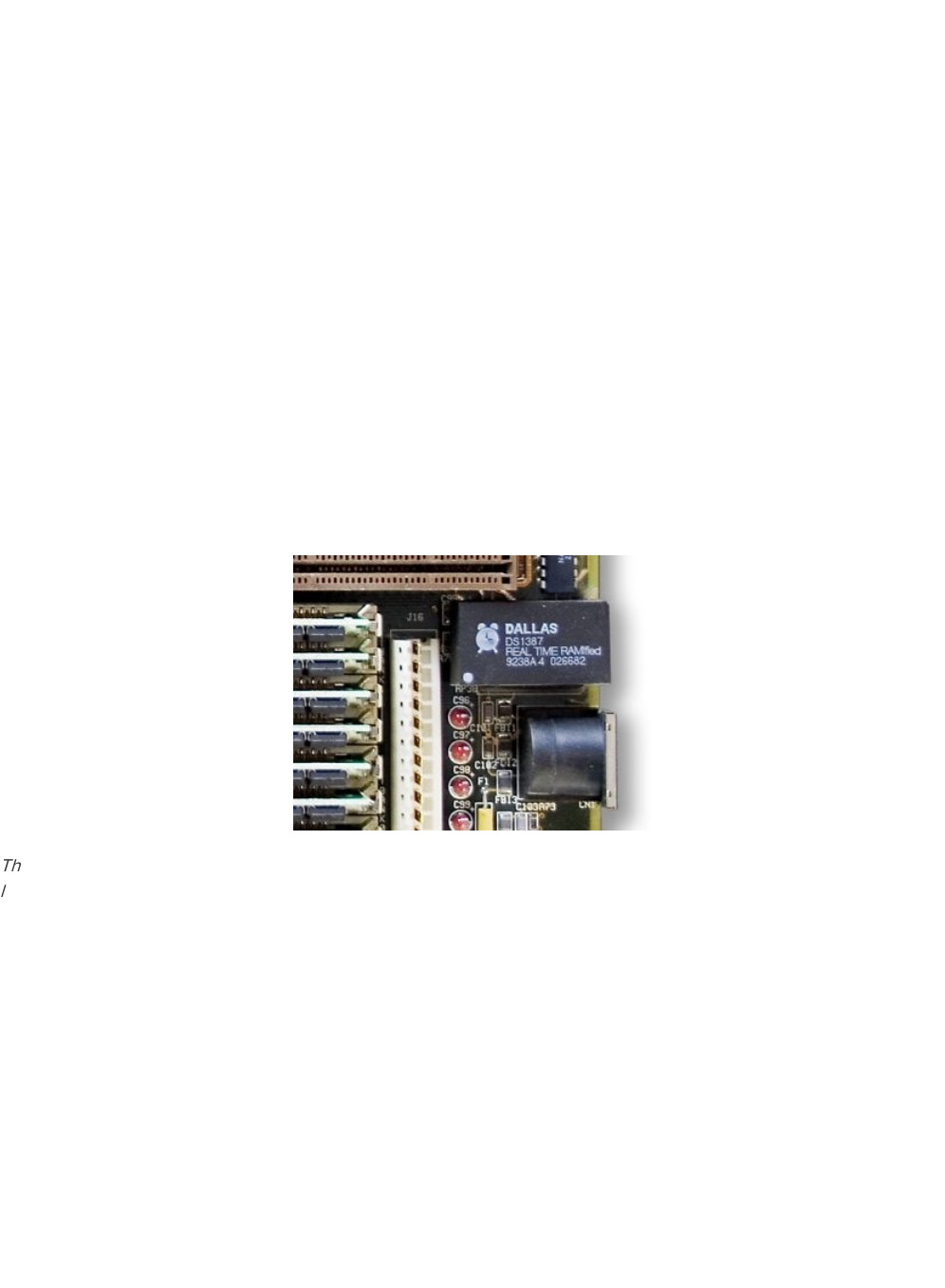

This image shows a computer motherboard with a Real Time Clock called the DS1387 (https://adafru.it/aX0). Theres a

lithium battery in there which is why it's so big.

The RTC we'll be using is the

PCF8523 (https://adafru.it/reb)

or the

DS1307

(https://adafru.it/rec).

If you have an Adafruit Datalogger Shield rev B, you will be using the PCF8523 - this RTC is newer and better than

the DS1307. Look on your shield to see if you see PCF8523 written above the chip.

L‘AA“

If you have an older Datalogger shield, you will be using the DS1307 - there's no text so you'll just need to remember

that if it

doesn't

say PCF8523 it's the DS1307

Battery Backup

As long as it has a coin cell to run it, the RTC will merrily tick along for a long time, even when the Arduino loses

power, or is reprogrammed.

Use any CR1220 3V lithium metal coin cell battery:

CR1220 12mm Diameter - 3V Lithium Coin Cell Battery

$0.95

IN STOCK

ADD TO CART

You MUST have a coin cell installed for the RTC to work, if there is no coin cell, it will act strangely and

possibly hang the Arduino when you try to use it, so ALWAYS make SURE there's a battery installed, even if

it's a dead battery.

Talking to the RTC

The RTC is an i2c device, which means it uses 2 wires to to communicate. These two wires are used to set the time

and retrieve it. On the Arduino UNO, these pins are also wired to the Analog 4 and 5 pins. This is a bit annoying since

of course we want to have up to 6 analog inputs to read data and now we've lost two.

For the RTC library, we'll be using a fork of JeeLab's excellent RTC library, which is available on

GitHub (https://adafru.it/c7r). You can do that by visiting the github repo and manually downloading or, easier, just click

this button to download the zip

https://adafru.it/cxm

Rename the uncompressed folder RTClib and check that the RTClib folder contains RTClib.cpp and RTClib.h

Place the RTClib library folder your arduinosketchfolder/libraries/ folder.

You may need to create the libraries subfolder if it's your first library. Restart the IDE.

We also have a great tutorial on Arduino library installation at:

http://learn.adafruit.com/adafruit-all-about-arduino-libraries-install-use

Once done, restart the IDE

First RTC test

The first thing we'll demonstrate is a test sketch that will read the time from the RTC once a second. We'll also show

what happens if you remove the battery and replace it since that causes the RTC to halt. So to start, remove the battery

from the holder while the Arduino is not powered or plugged into USB. Wait 3 seconds and then replace the battery.

This resets the RTC chip. Now load up the matching sketch for your RTC

For the Adafruit Datalogger shield rev B open up Examples->RTClib->pcf8523

For the older Adafruit Dataloggers, use Examples->RTClib->ds1307

Nat cum 0pm... cwo 0;:an whack Bunk! cm cww \ dike-k Sane ems dam Sink“ ecu-sums dam-warn th 5925:...) 0.1.5th Temboo m Pull cum: “Wm m was CM‘COIMII USIHM Elihu Qll'l CMOQ ”Film _ , .. ,, _ . . M.- sine: midnight 1/1/197n 551116111: mm! + 7d + ans: mun/Sly mum mums/2 (mutiny! n:1 sine: midnight 1/1/197n 551mm: mm! + 7d + ans: mun/Sly )1:In:6 mums/2 (mutiny! n:1 sine: midnight 1/1/197n = 551mm: mm! + 7d + ans: mun/Sly )1:In:s mums/2 (mutiny! n:1n:s sine: midnight 1/1/197n 551mm: mm! + 7d + ans: mun/Sly 11:In:11 mums/2 (mutiny! n sine: midnight 1/1/197n 55mm” mm! + 7d + ans: mun/Sly 11:In:15

Upload it to your Arduino with the datalogger shield on!

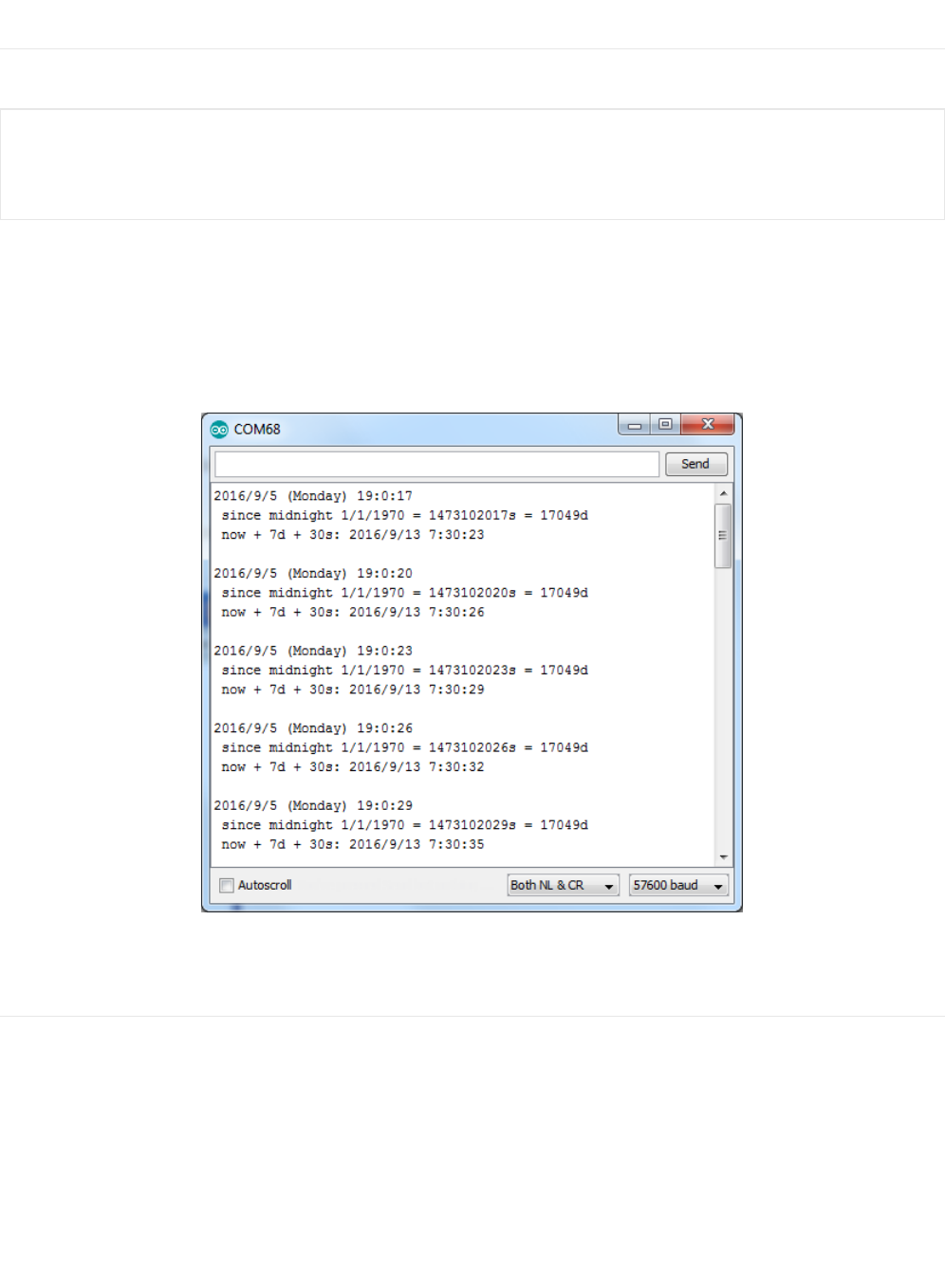

Now open up the Serial Console and make sure the baud rate is set correctly at 57600 baud you should see the

following:

Whenever the RTC chip loses all power (including the backup battery) it will reset to an earlier date and report the time

as 0:0:0 or similar. The DS1307 won't even count seconds (it's stopped).Whenever you set the time, this will kickstart

the clock ticking.

So, basically, the upshot here is that you should never ever remove the battery once you've set the time. You shouldn't

have to and the battery holder is very snug so unless the board is crushed, the battery won't 'fall out'

If you're having problems make sure you are running the right example! PCF8523 and DS1307 RTC chips are

not identical so they have separate examples!

2016/9/5 nbndnv) 19:0:17 um: 00402100: 1/1/1970 = not + 7d + 905: 2016/9/13 2016/9/5 my) 19:0:20 since m0: 1/1/1970 - m 9 7a 9 90:: 2015/9/19 1016/9/5 my) 19:0:29 mm mm: 1/1/1970 - 0m 0 70 + 90:: 2016/9/13 2016/9/5 nbudnv) 19:0:26 aim: udniqn: 1/1/1970 = now 9 7a 9 90:: 2015/9/19 2016/9/5 may) 19:0:29 since m0: 1/1/1970 - m + 70 + 90:: 2015/9/19 1179102017: 7:90:23 170994 1473102020: - 17049d 7:9 :25 1179102022; - 170994 7:90:29 19791020st 7:: :92 170990 1473102029: - 17019d 7:90:95

Setting the time

With the same sketch loaded, uncomment the line that starts with RTC.adjust like so:

This line is very cute, what it does is take the Date and Time according the computer you're using (right when you

compile the code) and uses that to program the RTC. If your computer time is not set right you should fix that first. Then

you must press the Upload button to compile and then immediately upload. If you compile and then upload later, the

clock will be off by that amount of time.

Then open up the Serial monitor window to show that the time has been set

From now on, you won't have to ever set the time again: the battery will last 5 or more years

Reading the time

Now that the RTC is merrily ticking away, we'll want to query it for the time. Let's look at the sketch again to see how

this is done

if (! rtc.initialized()) {

Serial.println("RTC is NOT running!");

// following line sets the RTC to the date & time this sketch was compiled

rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));

There's pretty much only one way to get the time using the RTClib, which is to call now(), a function that returns a

DateTime object that describes the year, month, day, hour, minute and second when you called now().

There are some RTC libraries that instead have you call something like RTC.year() and RTC.hour() to get the current

year and hour. However, there's one problem where if you happen to ask for the minute right at 3:14:59 just before the

next minute rolls over, and then the second right after the minute rolls over (so at 3:15:00) you'll see the time as 3:14:00

which is a minute off. If you did it the other way around you could get 3:15:59 - so one minute off in the other direction.

Because this is not an especially unlikely occurance - particularly if you're querying the time pretty often - we take a

'snapshot' of the time from the RTC all at once and then we can pull it apart into day() or second() as seen above. It's a

tiny bit more effort but we think its worth it to avoid mistakes!

We can also get a 'timestamp' out of the DateTime object by calling unixtime which counts the number of seconds (not

counting leapseconds) since midnight, January 1st 1970

Since there are 60*60*24 = 86400 seconds in a day, we can easily count days since then as well. This might be useful

when you want to keep track of how much time has passed since the last query, making some math a lot easier (like

checking if it's been 5 minutes later, just see if unixtime() has increased by 300, you dont have to worry about hour

changes)

void loop () {

DateTime now = rtc.now();

Serial.print(now.year(), DEC);

Serial.print('/');

Serial.print(now.month(), DEC);

Serial.print('/');

Serial.print(now.day(), DEC);

Serial.print(" (");

Serial.print(daysOfTheWeek[now.dayOfTheWeek()]);

Serial.print(") ");

Serial.print(now.hour(), DEC);

Serial.print(':');

Serial.print(now.minute(), DEC);

Serial.print(':');

Serial.print(now.second(), DEC);

Serial.println();

Serial.print(" since 2000 = ");

Serial.print(now.unixtime());

Serial.print("s = ");

Serial.print(now.unixtime() / 86400L);

Serial.println("d");

U) El § m. w rmcmsD nncmSDHC mmosnxc ADAPTER

Using the SD Card

The other half of the data logger shield is the SD card. The SD card is how we store long term data. While the Arduino

chip has a permanent EEPROM storage, its only a couple hundred bytes - tiny compared to a 2 gig SD card. SD cards

are so cheap and easy to get, its an obvious choice for long term storage so we use them for the shield.

The shield kit doesn't come with an SD card but we carry one in the shop that is guaranteed to

work (https://adafru.it/aIH). Pretty much any SD card should work but be aware that some cheap cards are 'fakes' and

can cause headaches.

You'll also need a way to read and write from the SD card. Sometimes you can use your camera and MP3 player -

when its plugged in you will be able to see it as a disk. Or you may need an SD card reader (http://adafru.it/939). The

shield doesnt have the ability to display the SD card as a 'hard disk' like some MP3 players or games, the Arduino

does not have the hardware for that, so you will need an external reader!

Formatting under Windows/Mac

If you bought an SD card, chances are it's already pre-formatted with a FAT filesystem. However you may have

problems with how the factory formats the card, or if it's an old card it needs to be reformatted. The Arduino SD library

we use supports both FAT16 and FAT32 filesystems. If you have a very small SD card, say 8-32 Megabytes you might

find it is formatted FAT12 which isnt supported. You'll have to reformat these card. Either way, its always good idea to

format the card before using, even if its new! Note that formatting will erase the card so save anything you want first

4GB Blank SD/MicroSD Memory Card

$7.95

OUT OF STOCK

USB MicroSD Card Reader/Writer - microSD / microSDHC /

microSDXC

$5.95

IN STOCK

ADD TO CART

We strongly recommend you use the official SD card formatter utility - written by the SD association it solves

m 1y problems m l QE‘E‘ mskelclliapIMa \ Arduinn 0022 He at Send: Tanls Help New (mm Open" (uh-0 Sketthhnuk v E m; LBaslcs p dose (thW 2-Dlg‘lal ’ Saw cans 3.Ana\ug p Savens. (mamas 4.Cummum(atmn> Llp‘uadlol/O Buad Cbl+u SrCantwl y — 5.5ensovs p Pagesemn cm+5mrt+P [DISNEY ’ Pnnt cmw 5.5mm: ’ Preferences (mama AvdulnnISP th cm+q AvdumnTestSmte p EEPROM , Ethernet > meata r Matnx r m Sewn p Data‘mgev 5:1 > Dumvﬂle Steppe! y Fnes Wwe , lwslﬂles Readwne

The official SD formatter is available from https://www.sdcard.org/downloads/formatter_4/ (https://adafru.it/cfL)

Download it and run it on your computer, there's also a manual linked from that page for use

https://adafru.it/cfL

Get Card Info

The Arduino SD Card library has a built in example that will help you test the shield and your connections

If you have an older Datalogging shield without the SPI header connection and you are using a Leonardo, Mega

or anything other than an UNO, you'll need to install a special version of the SD library (https://adafru.it/ref)

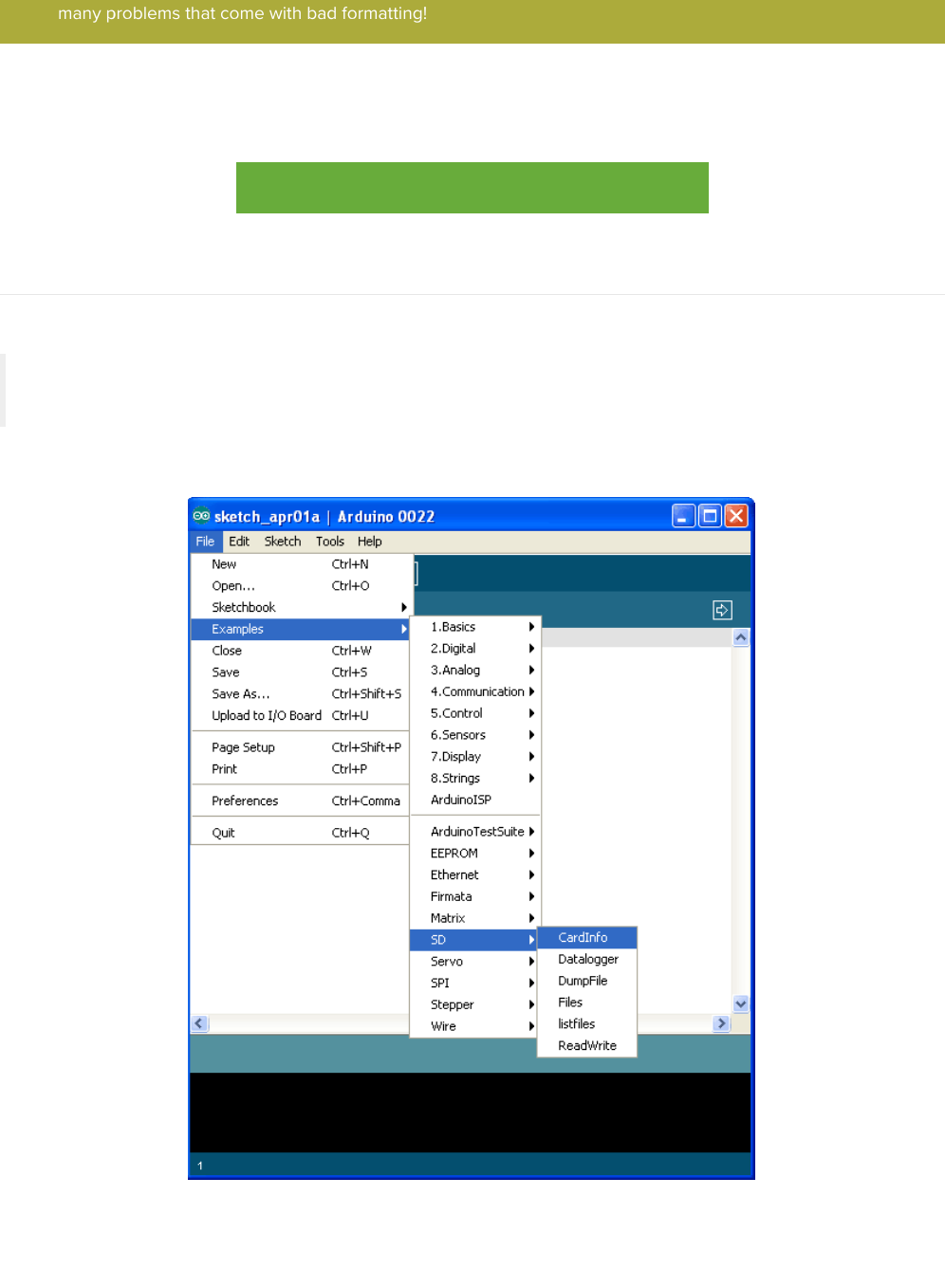

Open the file CardInfo example sketch in the SD library:

This sketch will not write any data to the card, just tell you if it managed to recognize it, and some information about it.

This can be very useful when trying to figure out whether an SD card is supported. Before trying out a new card,

please try out this sketch!

many problems that come with bad formatting!

m Canﬂnlo \ Arduinn mm F‘E‘E‘ v [ M, m [E] sank mu; m mum \u 4: 31%,; m midule; AditLut Vs; 3h) .1 an mmu pm w Spnrfvm GI cans: in: chxpselecr. . m,- seriu‘bewmwsuu): Snial‘pnncl’WnImmahmng 5n minim"); x m the Ememen noun, :5 4. In“ ‘11: 3‘ an Duty“: r , Hire ﬂat am. )1: w: xwr . _ a. t L '\, me Imam: , Uu on r, .mnm: Ends, 5: an the new} mum: :e in: H1 (1.: GI lll‘Lal (mu-(m m1, xwr vmx)‘, pmuudauo, nu‘rw‘n: r, change cm: :0 5; nn 3 uigi 1t)all:a:)un mm the mum; Jlbtatlef v >

Go to the beginning of the sketch and make sure that the chipSelect line is correct, for the datalogger shield we 're

using digital pin 10 so change it to 10!

If you have the pre-rev B version of the Datalogger Shield, and you are using a Mega or Leonardo check here for now

to adjust the pin setup (https://adafru.it/ref)

OK, now insert the SD card into the Arduino and upload the sketch

Emma H Send ] mummy s» :3:¢...W1:1nw :5 correct and a card 15 present. A cm twa; 5»: Hum a,“ u Inns Volume sue lbW25): lsvszswsos Volume sxze (“Wain 1525592 7 mm... ma unwan- 1m mu mm m. m um (um, data m mg m byzasy: swamp” zuuu-u-m ou:uo:uu Souuuoo oLDLucs/ 2011414701 1mm: ms/ zoumw; 17:0u216 cvsLochxr ma-nu-nn common 1185571 spsmsnmxr lsaa-nn-nn 00:00:00 5462‘ uPsLosuLixI lsau-UU-UD 00:00:00 2247 srsLowaJx'r Issu-uu-uu common szsusm cvsLusoAJx'r lssurunruo Dazouzau n cvsLucost‘r Assn-un-un common 59m apsmm,m Isaa-nn-nn common 105‘ spsLusustI Issu-un-nn Duzuumu ma uPsLowszI lsau-Uu»uu oowuzou zssm svsLacost‘r lssmuurno Do:ou:on um DDSLOWEJX‘E lsauruurno Dazouzau ua v Aunscml Noineandng v aeuunam v

Open up the Serial Monitor and type in a character into the text box (& hit send) when prompted. You'll probably get

something like the following:

Its mostly gibberish, but its useful to see the Volume type is FAT16 part as well as the size of the card (about 2 GB

which is what it should be) etc.

If you have a bad card, which seems to happen more with ripoff version of good brands, you might see:

atoms ‘6“ wpa any charactir cu scar: mm mm: 1st Card cype: sm Hmufaccuxex m 0 am In: Product: 1m Vaxsxon: LEI sin-1 nunhar: 2:137:27: Hmufngcurxng dam - s/znna cardsize: lSBGSlZ (st byte blocks) tlashﬂrasesxza: 5« blocks axaiisingliElunk: cru- puc,booc,cyp=,scazc,1enwh .L,o,n,u,o 2,0,n,u,a a,o,n,n,o 4,u,u,u,u valJnxc genes 5» axrur exraxcude: a errorbaca: u , 96m baud v a COMES WEE \ [i] A Immannng 517 card...xnx=1aluaclon :aues. rhmgs :0 check: , 1: a card 1; msmam * 1; yuur wiring nuxxam? . am you change Lb: chipSalan pm to match ynux stand or ”mug: Kw moscml Noineandng v aeuuhaud v

The card mostly responded, but the data is all bad. Note that the Product ID is "N/A" and there is no Manufacturer ID

or OEM ID. This card returned some SD errors. Its basically a bad scene, I only keep this card around to use as an

example of a bad card! If you get something like this (where there is a response but its corrupted) you should toss the

card

Finally, try taking out the SD card and running the sketch again, you'll get the following,

It couldn't even initialize the SD card. This can also happen if there's a soldering error or if the card is

really

damaged

If you're having SD card problems, we suggest using the SD formatter mentioned above first to make sure the card is

clean and ready to use!

Light and Temperature Logger

Introduction

OK now that we have introduced both the RTC and the SD card and verified that they're working, we can move onto

logging!

We'll use a pretty good & detailed demonstration to show off the capabilities of this most awesome data logging shield:

We'll log both temperature and relative light levels to determine:

1. How much does the temperature in a fridge vary as the compressor turns on and off?

2. Does keeping the door open cause a big temperature drop? How long does it take for it to cool down?

3. Does the light inside

really

turn off when the door is closed?

land dawnkud ﬁle . mr wwndufrwlmm/‘lagiheld

Build It!

Items you'll need:

Arduino (of course!) a Atmega328 type is best (http://adafru.it/50)- we always recommend going with an official

'classic' Arduino such as the Uno.

Adafruit data logger shield (http://adafru.it/1141) - assembled

SD card formatted for FAT (http://adafru.it/102) and tested using our example sketch (https://adafru.it/clN)

CdS photocell (http://adafru.it/161) and a matching 10K pulldown resistor

Temperature sensor with analog out, such as TMP36 (http://adafru.it/165)

Battery pack such as a 6-AA 'brick' and a 2.1mm DC jack. (http://adafru.it/248)

or you can use a 9V clip for a power supply (http://adafru.it/80) but a 9V powered logger will last only a couple

hours so we suggest 6xAA's

Some 22 AWG wire (https://adafru.it/c79), soldering iron, solder (https://adafru.it/doU), etc.

You can get most everything in that list in a discounted pack in the Adafruit shop! (http://adafru.it/249)

The sensors

We'll use two basic sensors to log data, a CdS photocell to track light (http://adafru.it/161) (this will tell us when the door

has been opened) and a semiconductor temperature sensor to log the ambient fridge temperature. (http://adafru.it/165)

We have two great tutorials for these sensors on our site, if you haven't used them before or need some refreshment,

please read them now!

https://adafru.it/reg

Arduino UNO ION . ’x X R Iu V- www ardumn FF, ANALOG IN

https://adafru.it/reh

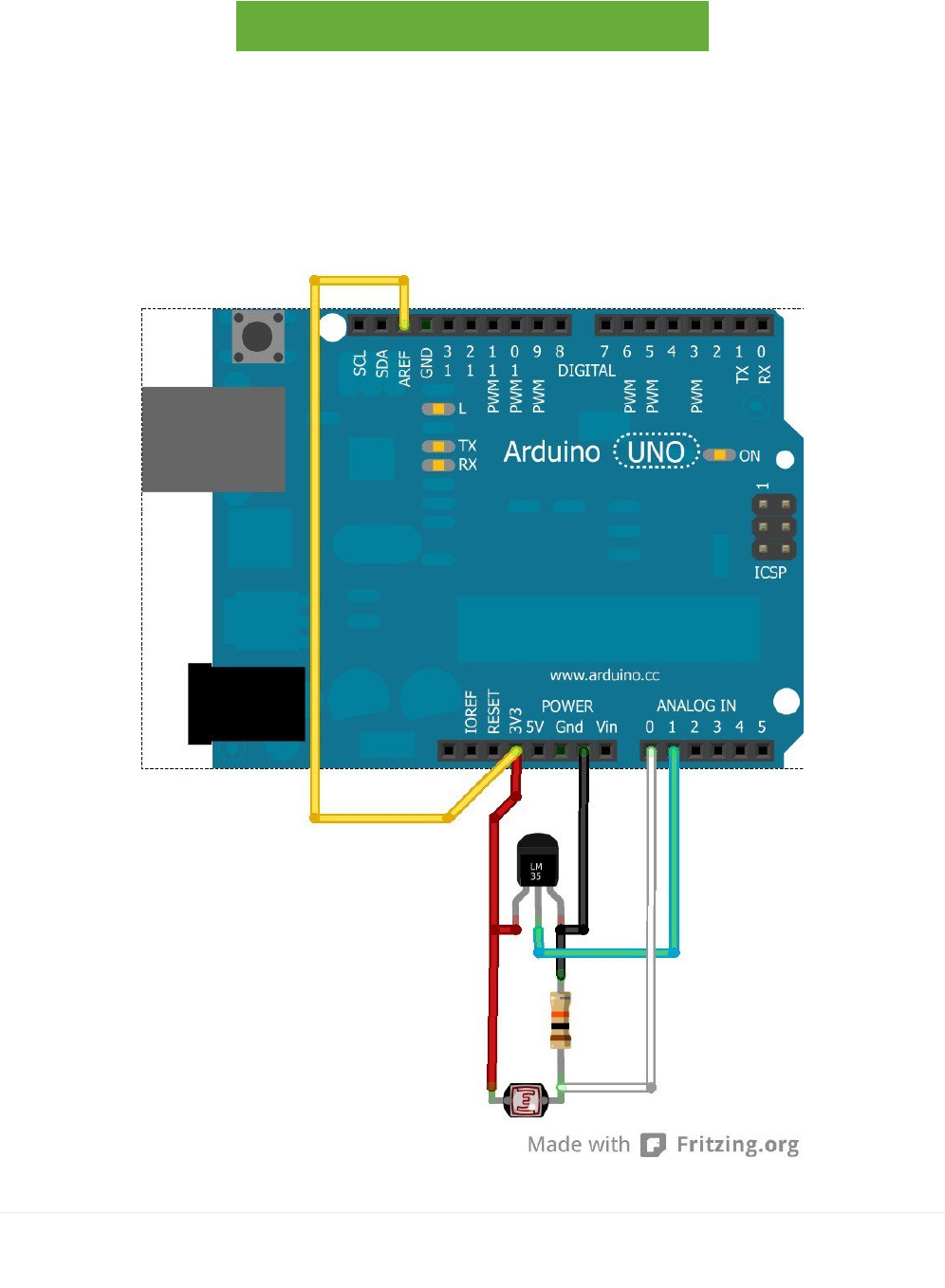

We will wire the sensors as shown in the diagram below.

Note that we connect ARef, the power pin of the temp sensor, and the light sensor to 3.3V

not to 5.0V

- we do this

because the 5V line is very noisy and the 3.3V regulator is better filtered. In the actual board we used the 3.3V line

from the datalogger's regulator, see the images below - in theory its the same as the one off of the Arduino but we

trust ours more.

Wiring it up

The prototyping area on the board is a simple array of holes with soldering pads. The steps below show how we built

this circuit and illustrate some some basic circuit prototyping techniques. For clarity, we will use the same color wire as

shown in the cwrcuit diagram above in...“ an. ‘C'. O u 0 v I 0 t . O .\

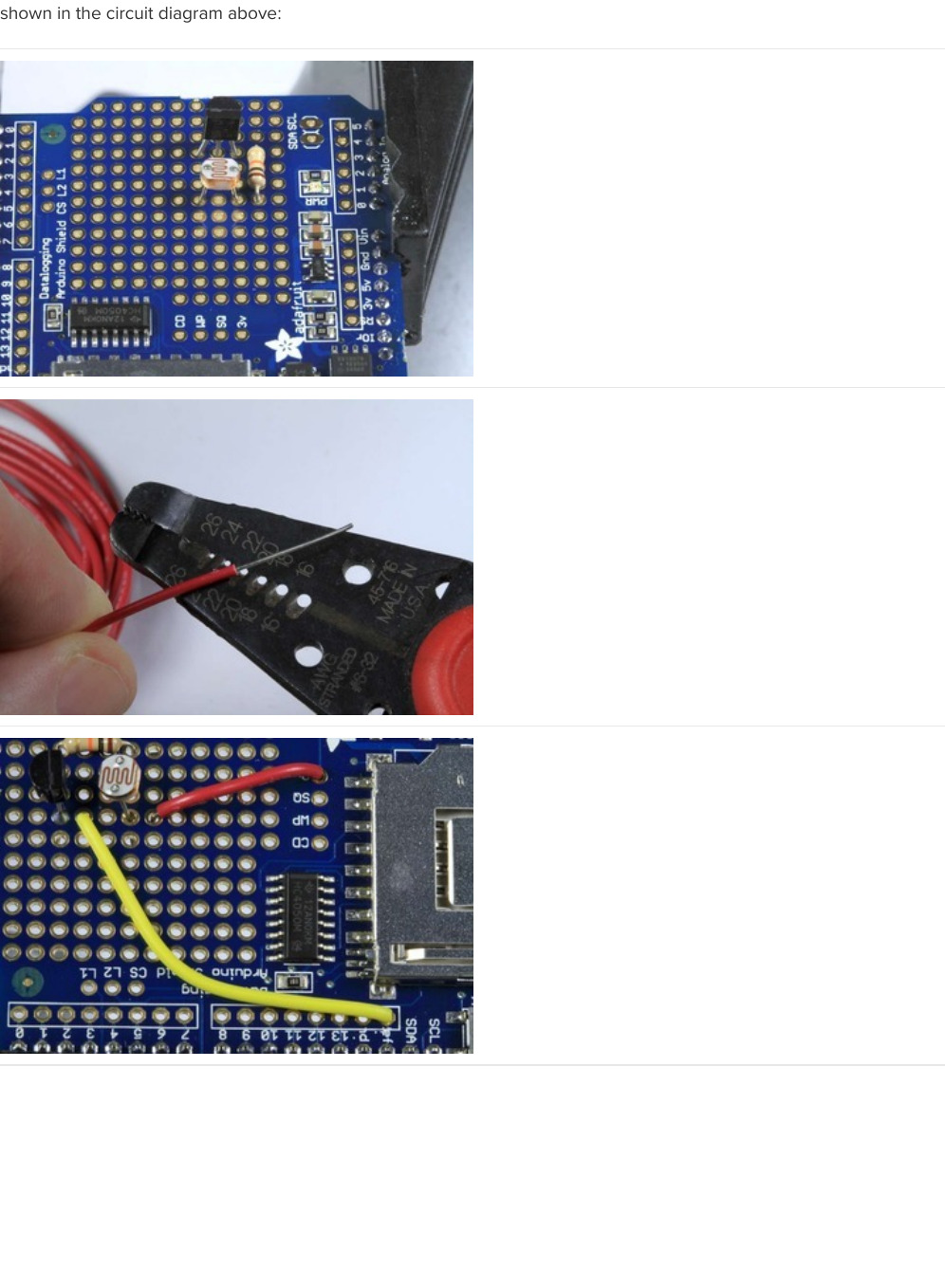

shown in the circuit diagram above:

Position the sensors

The sensors could go anywhere on the prototyping

area, but we chose this arrangement to simplify

connections between the components later on.

Prepare some jumpers

Measure a piece of wire (red) long enough to reach from

the 3v breakout hole to 1/2" past the temperature

sensor. Strip about 3/4" from one end, and about 1/4"

from the other.

Measure another one (yellow) long enough to reach

from the AREF pin to the hole between the two sensors.

Strip 1/2" from one end and 1/4" from the other.

Install the Jumpers

Place the jumpers as shown, with the long stripped ends

nearest the sensors.

Since there are no signal traces between the holes in

the prototyping area, we will use the long stripped ends

to join the legs of the components on the board.

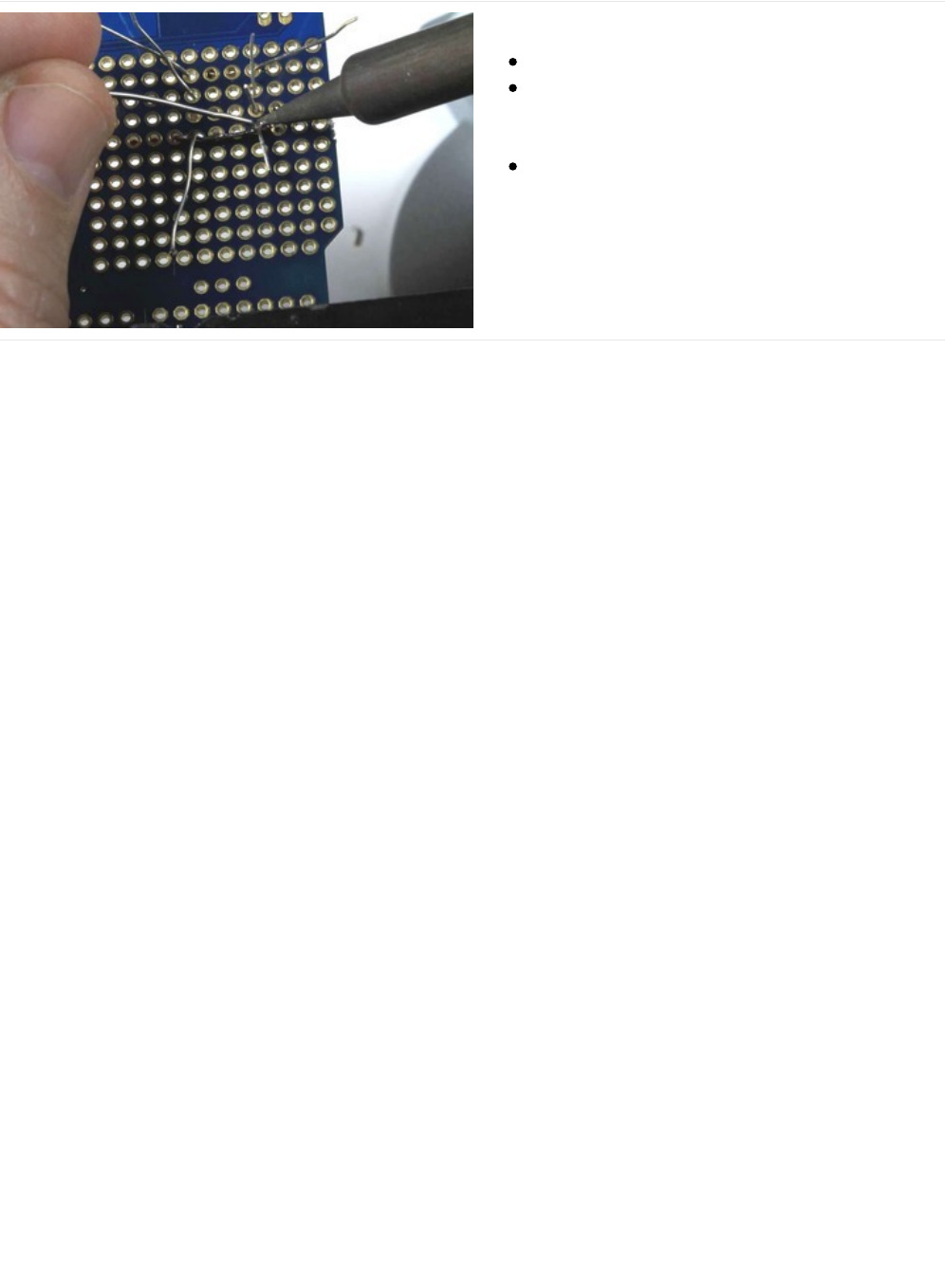

Make the connections

Solder the first jumper (red) to the 3v hole.

Bend the stripped end of the wire so it rests next

to the legs of the light sensor, the temperature

sensor and the end of the AREF jumper.

Fold the sensor legs and AREF jumper legs over

the 3v jumper and solder to make the connection.

, a (.1 D o (W \o \0 MA. ‘0 A. x0 Q «9 ‘0 \o. \o- ¢§Q|.e to a ‘0 l.'(.(. l. t. «0‘ x. «O *L {rum

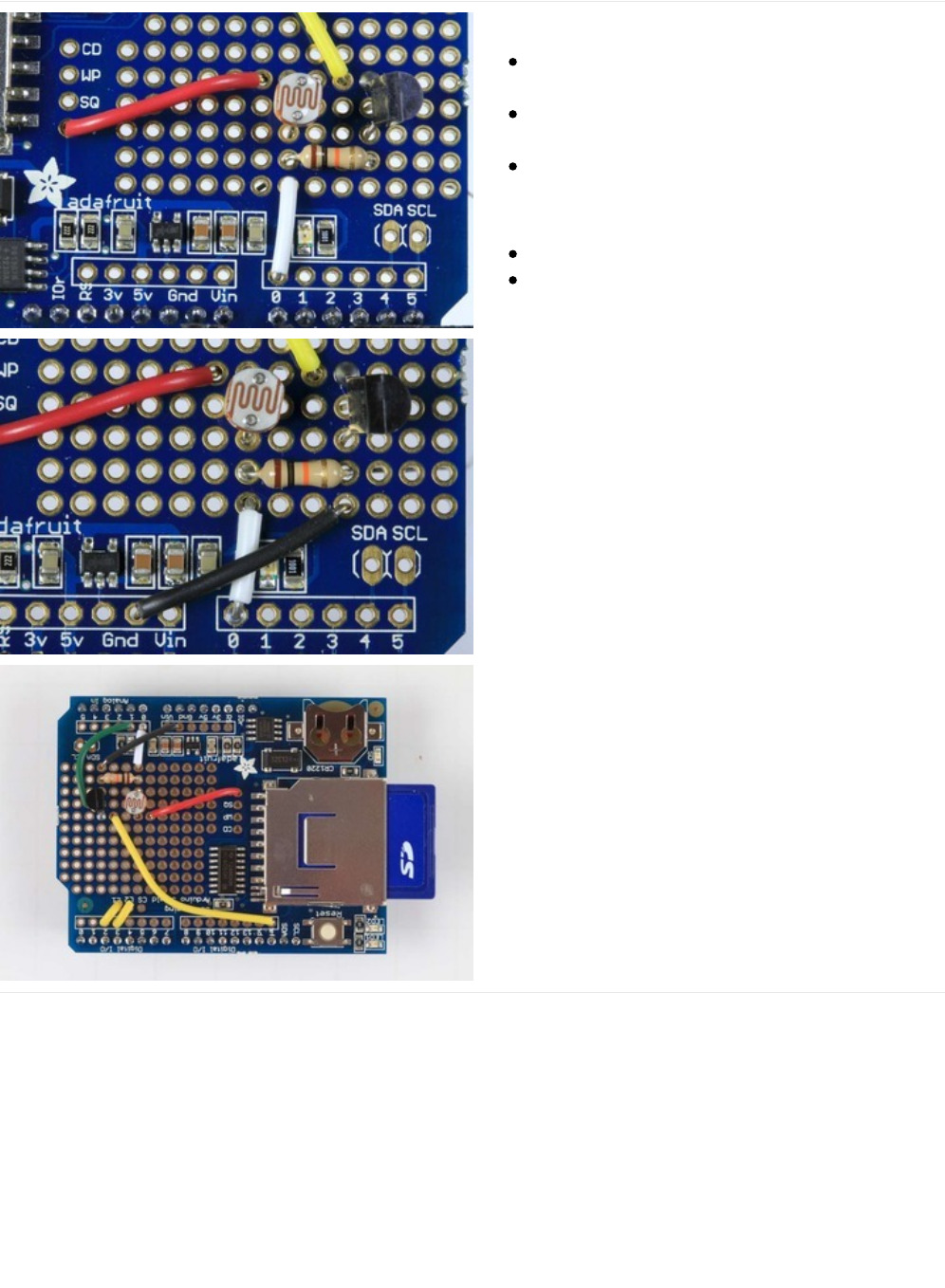

Add more jumpers for the Sensors

From Analog Pin 0 to the hole near the light

sensor and resistor. (white)

From GND to the hole next to the other end of the

resistor (black)

From the Analog pin 1 to the hole next to the

center pin of the temperature sensor (green)

And also for the LEDs

From L1 to Digital Pin 2 (yellow)

From L2 to Digital Pin 3 (yellow)

gum-nu. o u.- . coo moooooooon Enooouo a 05:34:00 0000 sung... Q’s. o

Solder and trim all connections

Using the same technique of folding the component

legs over the jumper - make all connections as shown in

the wiring diagram.

Make sure that all connections are soldered. Also solder

wires and component legs to the board where they pass

through the holes.

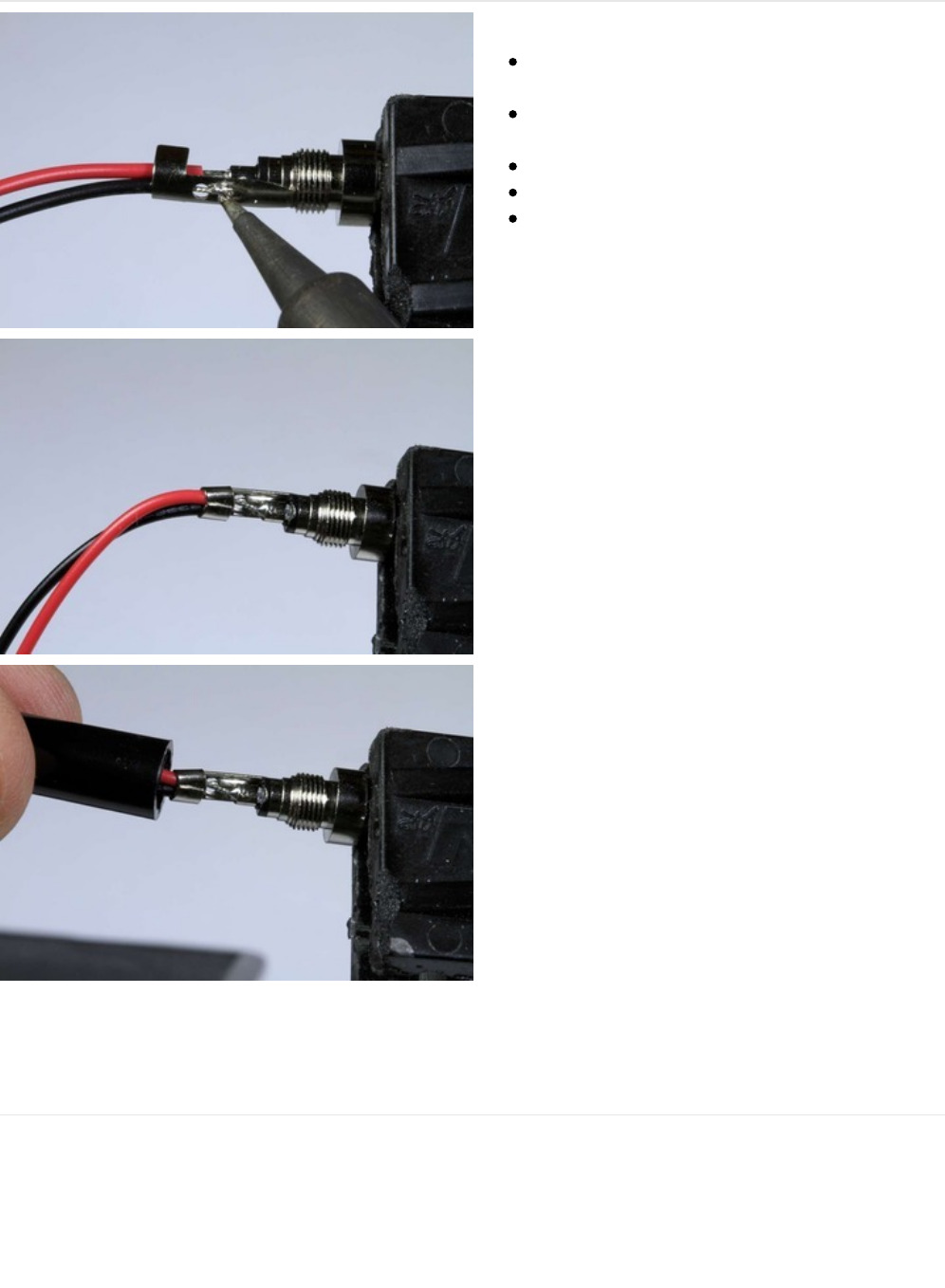

Prepare the Battery Pack

Place the black plastic ferrule from the connector

over the battery pack wires.

Solder the red wire from the battery pack to the

center pin

Solder the the black wire to the outer barrel.

Crimp to hold the wires securely

Screw the black plastic ferrule on to cover the

solder joints.

Now your Light Temp Logger is wired and ready for testing!

Use It!

Sensor test

We'll now test the sensors, using this sketch which is a bit of a mashup of the two examples in our

tutorials (https://adafru.it/c7d)

#include <SPI.h>

#include <SD.h>

/* Sensor test sketch

for more information see http://www.ladyada.net/make/logshield/lighttemp.html

*/

#define aref_voltage 3.3 // we tie 3.3V to ARef and measure it with a multimeter!

int photocellPin = 0; // the cell and 10K pulldown are connected to a0

int photocellReading; // the analog reading from the analog resistor divider

//TMP36 Pin Variables

int tempPin = 1; //the analog pin the TMP36's Vout (sense) pin is connected to

//the resolution is 10 mV / degree centigrade with a

//500 mV offset to allow for negative temperatures

int tempReading; // the analog reading from the sensor

void setup(void) {

// We'll send debugging information via the Serial monitor

Serial.begin(9600);

// If you want to set the aref to something other than 5v

analogReference(EXTERNAL);

}

void loop(void) {

photocellReading = analogRead(photocellPin);

Serial.print("Light reading = ");

Serial.print(photocellReading); // the raw analog reading

// We'll have a few threshholds, qualitatively determined

if (photocellReading < 10) {

Serial.println(" - Dark");

} else if (photocellReading < 200) {

Serial.println(" - Dim");

} else if (photocellReading < 500) {

Serial.println(" - Light");

} else if (photocellReading < 800) {

Serial.println(" - Bright");

} else {

Serial.println(" - Very bright");

}

tempReading = analogRead(tempPin);

Serial.print("Temp reading = ");

Serial.print(tempReading); // the raw analog reading

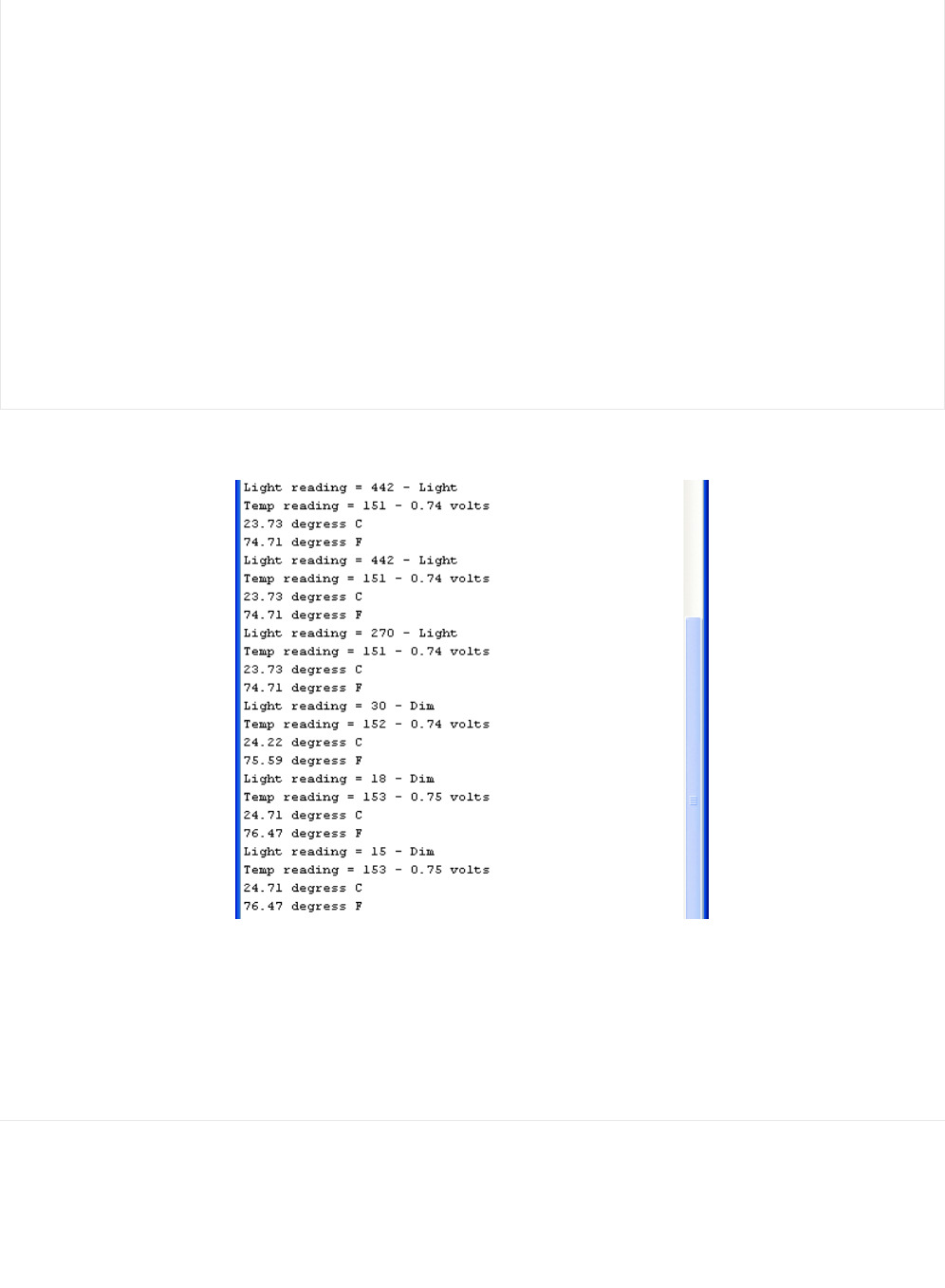

1.1g“ :iadxng = «2 - Lxght: Temp xendxng - 151 - 0,7. vain: 23:13 devress c 74.71 aewxess r ugh: :eaamg = 442 7 Light ramp raiding 151 7 mm volts 23,73 dagxass c 71,71 dagress 1: Lmhc readanv = 270 - mm Temp eeadmg 7 151 7 n.74 volts 21.7: diqxais E 71,71 degxass 1 ugh: raadmg - an - 1m. nnp resdxnw = 152 - um malts 24.22 degress E 75.55 damn; 1 Light: rsadmg = 1s - 1m. Tanp randxng - 153 - u,75 W1C; 24‘71 aeqzess c 75.47 degress 1 ugh: {andxng = 15 7 1m. Tinp mum; = 1s: 7 ans vu1=s 21,71 dagrgss c 75‘47 dearess r

OK upload this sketch and check the Serial monitor again

In my workroom, I got about 24 degrees C and a 'light measurement' of about 400 - remember that while the

temperature sensor gives an 'absolute' reading in C or F, the light sensor is not precise and can only really give rough

readings.

Once you've verified that the sensors are wired up correctly & running its time to get to the logging!

Logging sketch

Download the light and temperature logging sketch from GitHub (https://adafru.it/c7e). Insert the SD card.

Look at the top of the sketch for this section and uncomment whichever line is relevant. Check the RTC page for

details if you're not sure which one you have. (https://adafru.it/rei)

// converting that reading to voltage, which is based off the reference voltage

float voltage = tempReading * aref_voltage / 1024;

// print out the voltage

Serial.print(" - ");

Serial.print(voltage); Serial.println(" volts");

// now print out the temperature

float temperatureC = (voltage - 0.5) * 100 ; //converting from 10 mv per degree wit 500 mV offset

//to degrees ((volatge - 500mV) times 100)

Serial.print(temperatureC); Serial.println(" degrees C");

// now convert to Fahrenheight

float temperatureF = (temperatureC * 9 / 5) + 32;

Serial.print(temperatureF); Serial.println(" degrees F");

delay(1000);

}

ﬁle gut 1m ngnvles lnnls get: em. Q). g ’95,.” arm's‘gyxlq‘. E Lossznnzcsv Aﬁﬁess 9 r:\ v ‘ an Name A in \ Tyne \ Dem Maﬁa \ @ LOGGERmISV 2 KB csv Fla mrzmn 1sz AM El LOGGERDLCSV : Ka csv Fl: 111mm 12:DD AM 5 KB csv Fla mlzuuu mun AM

Upload the sketch to your Arduino. We'll now test it out while still 'tethered' to the computer

While the Arduno is still connected, blinking and powered, place your hand over the photocell for a few seconds, then

shine a flashlight on it. You should also squeeze the temp sensor with your fingers to heat it up

Plotting with a spreadsheet

When you're ready to check out the data, unplug the Arduino and put the SD card into your computer's card reader.

You'll see a at least one and perhaps a couple files, one for each time the logger ended up running

We'll open the most recent one. If you want to use the same logfile used in the graphing demos, click here to

download it (https://adafru.it/cny).

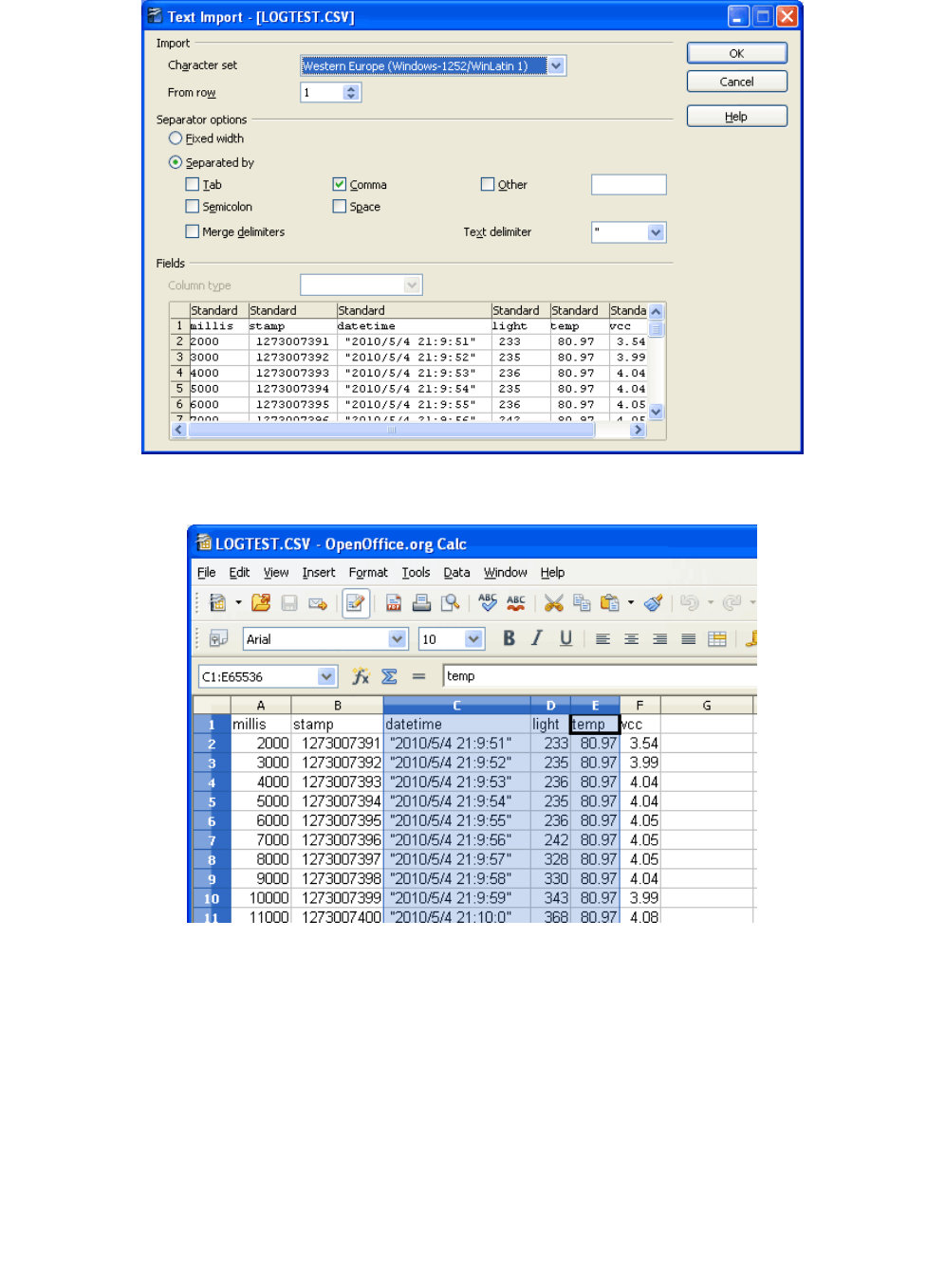

The quickest way to look at the data is using something like OpenOffice or Excel, where you can open the .csv file and

have it imported directly into the spreadsheet

/************** if you have a DS1307 uncomment this line **************/

//RTC_DS1307 RTC; // define the Real Time Clock object

/************** if you have a PCF8523 uncomment this line **************/

//RTC_PCF8523 RTC; // define the Real Time Clock object

/**********************************************************************/

7 Text Impnrlr [LOGTlST csv1 mum 0K thy-nan mEumDeU mm. v Flam-1A 1 3 Sloavamnohms 0:»th @gapamdhy Elm Egmma D911” 1 1 Dimmm Dirac: El Mugs gun-s tug: dam. 1 v 1 FEB; mummy: 1 12mm: 19mm": 15mm»: 12mm: 19m“ 19m.» nus sump danevme 1w» temp m Dun 1273007391 "Zulu/51¢ :51“ 23: 30,57 35.7 000 1273007352 "2010/5” 52“ 235 50.57 3.95 nun 1273007393 "mm/51c 5:“ us 30,97 we Dun nun AJO-IIIAQN— 1273007394 "1010/5/121.9:s¢“ 2:: 1273007395 "mm/SM 2; 9:551 2:16 am an, 97 97 4 A .01 05 M“ > a anzsmsv , 0pen0fﬁc2.nrg Calc 515 §d1l 119w 1mm ngmat 1nd; gala mum favs 33.51539»: x» _ ﬂab BIL! ‘C1:E6553 ml” 1 1 1 a A B IS stamp 2003 1273007391 3000 1273007392 4000 1273007393 5000 1273007394 5000 1273007395 7003 1273007390 3000 1273007397 9000 1273007390 0000 1273007399 1000 1273007400 . dalallma l1ghl erl '2010/5/4 21 9,51" 233 30 97 20107574 21 9 52" 235 an 97 '2010/5/4 21 953" . 235 an 97 '2010/5/4 21 9'5 . 235 an 97 70101574 21 9,5 233 an 97 '2010/5/4 21 9,55" 242 30 97 20107574 21 9 57" 3213 an 97 '2010/5/4 21 953" . 330 an 97 '2010/5/4 21 9'5 . 343 an 97 70101574 21,100" 350 EELS? F :1: 3 54 3 99 4 U4 4 D4 4 05 4 US 4 05 4 U4 3 99 4 US v 79: = ramp 6

You can then perform some graphing by selecting the columns of data

Clicking the Chart button and using Lines (we think they are the best for such graphs)

Chan Wlmvd mam: 3‘ Data 5m; 4 ChanEbmmts Sings (ham: 2 (hart no: ! Cuhmn E Bay 9 m {3 m. (>039 Um; on" {3 xv (5mm) {3 Met {L Stark m Cmumn mum E! itxk isms BMW cum Wizav d Sings x Chat rm amuse“; 4 ChanEbmmts (ham: a dam rang: [an my: 55mm 4cm {isms 0 Ba sews {n Laws 9 one sum {4 sun-ms Em um as {abel m :r‘urm as {am Chan Wizav d Sings x Chat rm 2‘ Dela Raw: 4 ChanEbmmts W (“sundae data ranges lemma-nan daa suits on gem temp 1 I 55mm $052 msms Range rm Mame ismeu inn 4 Wm E ﬁshesll‘ics CSlDé

Setting the First Column as label

Which will generate this graph

12m 1000 am am mm “W om 2m 0 “zmusuzlms” “2mn51421-m33' 'zmnkmznn“ umwzmv “magazine??- ‘Qmosmmasw “zmusumnw “zmusnmnn- “2010514211115- ‘vmnsmznua‘ 1200—790 1500 ’53 as EDD ‘ ELI BUD . ingm ilemp 400 BE‘ :00 78 D HxH\HHHHHHHHHHHHHHHHHHHHH H‘H 7B ":Dm/S/J :1 101:" “SE-1015M :1 1D :34“ “mo/5M :1 11 :5“ "SOME/5M 2195A“ "SOME/5M 21 IU 33" "IND/5M :1 H 15" “ZDWEVSM 21 H 57“

You can see pretty clearly how I shaded the sensor and then shone a flashlight on it.

You can make the graph display both with different axes (since the change in temperature is a different set of units.

Select the temp line (red), right-click and choose Format Data Series. In the Options tab, Align data series to

Secondary Y-axis.

Or you can make another graph with only the temp data

an as as a: 52 an vs vs- "201 as“ 21 ms' '2m 05/; 21 951“ “mus/$21 ms" -2mus~21 mm" “201 um 21 mar- “zﬂlﬂSMZHM' 'zmnsnz 1129- ‘mnmz «115" r \Dmumcnls and Scllmg ludyddamcsklnp\gnuplul\bm 5: m mew Fin-(as uwvaaf m? 2 s a wup‘mh‘p mm H». KB Innis m GN' 0 i ism 5W REX? Addvess E Emma“ and SethrlﬁUadyadaWskkWWnuWWm j m mm: m: u n5 15 KB ”wanna w ndaw: m Command 5mm 1 ya wmp‘mmmu mu m. l 'zmnsnz 1157- W as» 21 114:1" mam

Now you can see clearly how I warmed up the sensor by holding it between my fingers

Using Gnuplot

Gnuplot is an free (but not open source?), ultra-powerful plotting program. Its also a real pain to use! But if you can't

afford a professional math/plotting package such as Mathematica or Matlab, Gnuplot can do a lot!

We're not good enough to provide a full tutorial on gnuplot, here are a few links we found handy. Google will definitely

help you find even more tutorials and links. Mucking about is the best teacher, too!

http://www.cs.hmc.edu/~vrable/gnuplot/using-gnuplot.html (https://adafru.it/c7i)

http://www.duke.edu/~hpgavin/gnuplot.html (https://adafru.it/c7k)

http://www.ibm.com/developerworks/library/l-gnuplot/ (https://adafru.it/c7m)

We found the following commands executed in order will generate a nice graph of this data, be sure to put

LOGTEST.CSV in the same directory as wgnuplot.exe (or if you know how to reference directories, you can put it

elsewhere)

Sgnupm 5‘: an gxmsyms Fugllms gums] 51¢; gm gm; 50 deg: neplm| Open | Save Cthv Print | Pas: | Prev | a N n P l. uees1m. 4.4 Ditchlzue] aeee1 , 1-1: .nditied Nuuenhn 2mm Systau: HS‘Windows 32 bit cumin": (0) 1786*1773. 1771. m4. zan'kzam Thu-Ia: Williams. 01.11.. Kelley ind "my nthars nuplnt Inn-e: 1.1. hugs. etc immediate le: plot uindnv: mu. gun he. infn am no ins-usiac-nee" elp" eminal type set: tn ‘ nploe) m: xhh-l '11. u m: the lower “1; 1.11.1 en 'tim uplut) set: xtics rutat: h 7271: u hav: 1:}: til: luau-ks nn their side 111-1“) see ylihel "Light {euel (unnlita:10e)" a set the left y-ixis label nylot) set ytics nonirror u ties nrlly nn left side “111“) set yzlahel "Temperature 1.. Fahrenheit" a sec the right Y’axis Jahzl 111-1110 1e: 242:1“ bowl.» a W: ti“ nn riwht aide uplnt) set: key hnx e111- Inf: :1 legend hnx 111-1“) use My box linutylu a uplot) set: xdata tin: u the xeexis 1s til: “111“) see lama: x u .n s" a display as time, uplot>s ttimfut 'As I but read in as 'unix timesfamp' uplnt) 111:: "mGIESI‘. csu" using 2: 4 1.1:). lines titl: "Light 120:]: (Fgglot) raplnv: "LOGIESI. wt" dung s exu m2 "1". line. titl- nuphe) _ emu-recur.

Which makes this:

set xlabel "Time" # set the lower X-axis label to 'time'

set xtics rotate by -270 # have the time-marks on their side

set ylabel "Light level (qualitative)" # set the left Y-axis label

set ytics nomirror # tics only on left side

set y2label "Temperature in Fahrenheit" # set the right Y-axis label

set y2tics border # put tics no right side

set key box top left # legend box

set key box linestyle 0

set xdata time # the x-axis is time

set format x "%H:%M:%S" # display as time

set timefmt "%s" # but read in as 'unix timestamp'

plot "LOGTEST.CSV" using 2:4 with lines title "Light levels"

replot "LOGTEST.CSV" using 2:5 axes x1y2 with lines title "Temperature (F)"

_ gnuplnl graph 1mm 911B 300 700 mu 50D AUEI NU 211D 1EIEI w e) u mam lam (q L191“ @215 Tampavaluva (F) 7 21 09 45 211000 211015 21 man 1:12:41y:—339.nn9 yz: 76.9439 2111345 2111mm Tm: 211115 211130 211145 2112mm 211215 89 EB 87 36 as 34 33 32 31 an Temperalure 1n Fahrenheu

Note the cool double-sided y-axis scales! You can zoom in on stuff pretty easily too.

Other plotters

Our friend John also suggests Live-Graph as a free plotting program (https://adafru.it/c7o)

(https://adafru.it/c7o) - we

haven't tried it but its worth looking at if you need to do a lot of plotting!

Portable logging

Of course, having a datalogger thats chained to a desktop computer isn't that handy. We can make a portable logger

with the addition of a battery pack. The cheapest way to get a good amount of power is to use 6 AA batteries. I made

one here with rechargables and a 6xAA battery holder (http://adafru.it/248). It ran the Arduino logging once a second

for 18.5 hours. If you use alkalines you could easily get 24 hours or more.

Fridge logging

With my portable logger ready, its time to do some Fridge Loggin'! Both were placed in the fridge, in the center of the

middle shelf.

5.22%“. 5 2223th 5 n. 5 n. 5 5 5 4 4 a 88: m BEE BEE SEE SEE m SEET _ SEQ s) ‘6 Wm 88% cu ham Ln. SEN h 888 n. u n. n. n n. n. n. n. u n. n. u n. n. n n. n. n. n. u m 3 a 7 s 5 4 3 2 1 92.2.33 mi :3...

I placed it in around 10PM and then removed it around noon the next day. If you don't have a fridge handy, you can

grab the data from this zip file and use that (https://adafru.it/cnz).

Here is the logged data:

You can see in the middle and end the temp and light levels are very high because the logger was outside the fridge.

The green line is the temperature so you can see the temperature slowly rising and then the compressor kicking in

every half hour or so. The red lines indicate when the door was opened. This night was a more insominac one than

normal!

EEE E EEWES n E E A 2 U 5 A A A A A 8m. E 390 E 8mg an Bum an Bm—DD Snows Dump. mN Guam mN Gum—mm 300mm Gums mm n. U U n D n. U U n n 7 E 5 A 3 92.3.55 .32 29.. Tune m a a B A 3:52: 5 2292s.: 5 A 2 A A A D A ma u E2 E on ma E as an E B mm as an am an as me E on av an an mm on as am an mimmmw 655AA3 92.2.25 :5. 23 no 3 on Tune “.1555 "1:01:32 y: Isuzu yZ

Zooming into the plot at about 12:40AM, we can see how the temperature climbs whenever the door is open, even in a

few seconds it can climb 4 degrees very quickly!

Conclusion!

OK that was a detailed project but its a good one to test your datalogging abilities, especially since its harder to fix

bugs in the field. In general, we suggest trying other sensors and testing them at home if possible. Its also a good idea

to log more data than you need, and use a software program to filter anything you dont need. For example, we dont

use the VCC log but if you're having strange sensor behavior, it may give you clues if your battery life is affecting it.

Code Walkthrough

Introduction

This is a walkthrough of the Light and Temperature Logging sketch. Its long and detailed so we put it here for your

perusal. We strongly suggest reading through it, the code is very versatile and our text descriptions should make it

clear why everything is there!

Download the complete file here (https://adafru.it/c7e):

Includes and Defines

OK this is the top of the file, where we include the three libraries we'll use: the SD library to talk to the card, the Wire

library that helps the Arduino with i2c and the RTClib for chatting with the real time clock

Next are all the "defines" - the constants and tweakables.

LOG_INTERVAL is how many milliseconds between sensor readings. 1000 is 1 second which is not a bad starting

point

ECHO_TO_SERIA L determines whether to send the stuff thats being written to the card also out to the Serial

monitor. This makes the logger a little more sluggish and you may want the serial monitor for other stuff. On the

other hand, its hella useful. We'll set this to 1 to keep it on. Setting it to 0 will turn it off

WAIT_TO_START means that you have to send a character to the Arduino's Serial port to kick start the logging. If

you have this on you basically can't have it run away from the computer so we'll keep it off (set to 0) for now. If

you want to turn it on, set this to 1

The other defines are easier to understand, as they are just pin defines

redLEDpin is whatever you connected to the Red LED on the logger shield

greenLEDpin is whatever you connected to the Green LED on the logger shield

photocellPin is the analog input that the CdS cell is wired to

tempPin is the analog input that the TMP36 is wired to

Objects and error()

#include "SD.h"

#include <Wire.h>

#include "RTClib.h"

// A simple data logger for the Arduino analog pins

#define LOG_INTERVAL 1000 // mills between entries

#define ECHO_TO_SERIAL 1 // echo data to serial port

#define WAIT_TO_START 0 // Wait for serial input in setup()

// the digital pins that connect to the LEDs

#define redLEDpin 3

#define greenLEDpin 4

// The analog pins that connect to the sensors

#define photocellPin 0 // analog 0

#define tempPin 1 // analog 1

Next up we've got all the objects for the RTC, and the SD card chip select pin. For all our shields we use pin 10 for SD

card chip select lines

Next is the error() function, which is just a shortcut for us, we use it when something Really Bad happened, like we

couldn't write to the SD card or open it. It prints out the error to the Serial Monitor, turns on the red error LED, and then

sits in a while(1); loop forever, also known as a halt

Setup

K now we are onto the code. We begin by initializing the Serial port at 9600 baud. If we set WAIT_TO_START to

anything but 0, the Arduino will wait until the user types something in. Otherwise it goes ahead to the next part

RTC_DS1307 RTC; // define the Real Time Clock object

// for the data logging shield, we use digital pin 10 for the SD cs line

const int chipSelect = 10;

// the logging file

File logfile;

void error(char *str)

{

Serial.print("error: ");

Serial.println(str);

// red LED indicates error

digitalWrite(redLEDpin, HIGH);

while(1);

}

void setup(void)

{

Serial.begin(9600);

Serial.println();

#if WAIT_TO_START

Serial.println("Type any character to start");

while (!Serial.available());

#endif //WAIT_TO_START

Now the code starts to talk to the SD card, it tries to initialize the card and find a FAT16/FAT32 partition.

Next it will try to make a logfile. We do a little tricky thing here, we basically want the files to be called something like

LOGGERnn.csv where nn is a number. By starting out trying to create LOGGER00.CSV and incrementing every time

when the file already exists, until we get to LOGGER99.csv, we basically make a new file every time the Arduino starts

up

To create a file, we use some Unix style command flags which you can see in the logfile.open() procedure. FILE_WRITE

means to create the file and write data to it.

Assuming we managed to create a file successfully, we print out the name to the Serial port.

// initialize the SD card

Serial.print("Initializing SD card...");

// make sure that the default chip select pin is set to

// output, even if you don't use it:

pinMode(10, OUTPUT);

// see if the card is present and can be initialized:

if (!SD.begin(chipSelect)) {

Serial.println("Card failed, or not present");

// don't do anything more:

return;

}

Serial.println("card initialized.");

// create a new file

char filename[] = "LOGGER00.CSV";

for (uint8_t i = 0; i < 100; i++) {

filename[6] = i/10 + '0';

filename[7] = i%10 + '0';

if (! SD.exists(filename)) {

// only open a new file if it doesn't exist

logfile = SD.open(filename, FILE_WRITE);

break; // leave the loop!

}

if (! logfile) {

error("couldnt create file");

}

Serial.print("Logging to: ");

Serial.println(filename);

OK we're wrapping up here. Now we kick off the RTC by initializing the Wire library and poking the RTC to see if its

alive.

Then we print the header. The header is the first line of the file and helps your spreadsheet or math program identify

whats coming up next. The data is in CSV (comma separated value) format so the header is too: "millis,time,light,temp"

the first item millis is milliseconds since the Arduino started, time is the time and date from the RTC, light is the data

from the CdS cell and temp is the temperature read.

You'll notice that right after each call to logfile.print() we have #if ECHO_TO_SERIAL and a matching Serial.print() call

followed by a #if ECHO_TO_SERIAL this is that debugging output we mentioned earlier. The logfile.print() call is what

writes data to our file on the SD card, it works pretty much the same as the Serial version. If you set ECHO_TO_SERIAL

to be 0 up top, you won't see the written data printed to the Serial terminal.

Finally, we set the two LED pins to be outputs so we can use them to communicate with the user. There is a

commented-out line where we set the analog reference voltage. This code assumes that you will be using the 'default'

reference which is the VCC voltage for the chip - on a classic Arduino this is 5.0V. You can get better precision

sometimes by lowering the reference. However we're going to keep this simple for now! Later on, you may want to

experiment with it.

Main loop

Now we're onto the loop, the loop basically does the following over and over:

1. Wait until its time for the next reading (say once a second - depends on what we defined)

2. Ask for the current time and date froom the RTC

3. Log the time and date to the SD card

4. Read the photocell and temperature sensor

5. Log those readings to the SD card

6. Sync data to the card if its time

Timestamping

Wire.begin();

if (!RTC.begin()) {

logfile.println("RTC failed");

#if ECHO_TO_SERIAL

Serial.println("RTC failed");

#endif //ECHO_TO_SERIAL

}

logfile.println("millis,time,light,temp");

#if ECHO_TO_SERIAL

Serial.println("millis,time,light,temp");

#if ECHO_TO_SERIAL// attempt to write out the header to the file

if (logfile.writeError || !logfile.sync()) {

error("write header");

}

pinMode(redLEDpin, OUTPUT);

pinMode(greenLEDpin, OUTPUT);

// If you want to set the aref to something other than 5v

//analogReference(EXTERNAL);

}

Lets look at the first section:

The first important thing is the delay() call, this is what makes the Arduino wait around until its time to take another

reading. If you recall we #defined the delay between readings to be 1000 millseconds (1 second). By having more

delay between readings we can use less power and not fill the card as fast. Its basically a tradeoff how often you want

to read data but for basic long term logging, taking data every second or so will result in plenty of data!

void loop(void)

{

DateTime now;

// delay for the amount of time we want between readings

delay((LOG_INTERVAL -1) - (millis() % LOG_INTERVAL));

digitalWrite(greenLEDpin, HIGH);

// log milliseconds since starting

uint32_t m = millis();

logfile.print(m); // milliseconds since start

logfile.print(", ");

#if ECHO_TO_SERIAL

Serial.print(m); // milliseconds since start

Serial.print(", ");

#endif

// fetch the time

now = RTC.now();

// log time

logfile.print(now.get()); // seconds since 2000

logfile.print(", ");

logfile.print(now.year(), DEC);

logfile.print("/");

logfile.print(now.month(), DEC);

logfile.print("/");

logfile.print(now.day(), DEC);

logfile.print(" ");

logfile.print(now.hour(), DEC);

logfile.print(":");

logfile.print(now.minute(), DEC);

logfile.print(":");

logfile.print(now.second(), DEC);

#if ECHO_TO_SERIAL

Serial.print(now.get()); // seconds since 2000

Serial.print(", ");

Serial.print(now.year(), DEC);

Serial.print("/");

Serial.print(now.month(), DEC);

Serial.print("/");

Serial.print(now.day(), DEC);

Serial.print(" ");

Serial.print(now.hour(), DEC);

Serial.print(":");

Serial.print(now.minute(), DEC);

Serial.print(":");

Serial.print(now.second(), DEC);

#endif //ECHO_TO_SERIAL

Then we turn the green LED on, this is useful to tell us that yes we're reading/writing data now.

Next we call millis() to get the 'time since arduino turned on' and log that to the card. It can be handy to have -

especially if you end up not using the RTC.

Then the familiar RTC.now() call to get a snapshot of the time. Once we have that, we write a timestamp (seconods

since 2000) as well as the date in YY/MM/DD HH:MM:SS time format which can easily be recognized by a

spreadsheet. We have both because the nice thing about a timestamp is that its going to montonically increase and

the nice thing about printed out date is its human readable

Log sensor data

Next is the sensor logging code

This code is pretty straight forward, the processing code is snagged from our earlier tutorial. Then we just print() it to

the card with a comma seperating the two

We finish up by turning the green LED off

int photocellReading = analogRead(photocellPin);

delay(10);

int tempReading = analogRead(tempPin);

// converting that reading to voltage, for 3.3v arduino use 3.3

float voltage = (tempReading * 5.0) / 1024.0;

float temperatureC = (voltage - 0.5) * 100.0 ;

float temperatureF = (temperatureC * 9.0 / 5.0) + 32.0;

logfile.print(", ");

logfile.print(photocellReading);

logfile.print(", ");

logfile.println(temperatureF);

#if ECHO_TO_SERIAL

Serial.print(", ");

Serial.print(photocellReading);

Serial.print(", ");

Serial.println(temperatureF);

#endif //ECHO_TO_SERIAL

digitalWrite(greenLEDpin, LOW);

}

mag» mm m mm," a manna Ind" cc 2;, “Havana“. mm: mm." m Dariluwer 5mm rev c Dunn—m mm: m: humf/uul-dg-da nulm-ke/lnyhi m Dam m mld‘ |shuu m

Downloads

Files

EagleCAD PCB files on GitHub (https://adafru.it/rej)

Fritzing object in Adafruit Fritzing library (https://adafru.it/aP3)

Revision C Schematics & Fabrication Print

Revision B Schematics

click to enlarge

2.2m Eire Oucmuwﬂaﬁn m. a n a

Original Version Schematics

Click to enlarge

1141 Datasheet by Adafruit Industries LLC

Products related to this Datasheet
