Preliminary W79E4051/W79E2051 Data Sheet
8-BIT MICROCONTROLLER
Publication Release Date: April 16, 2009
- 1 - Revision A06
Table of Contents-
1 GENERAL DESCRIPTION ......................................................................................................... 4
2 FEATURES ................................................................................................................................. 5
3 PARTS INFORMATION LIST ..................................................................................................... 7
3.1 Lead Free (RoHS) Parts information list ......................................................................... 7
4 PIN CONFIGURATION ............................................................................................................... 8
5 PIN DESCRIPTION ..................................................................................................................... 9
6 FUNCTIONAL DESCRIPTION.................................................................................................. 10
6.1 On-Chip Flash EPROM ................................................................................................ 10
6.2 I/O Ports ........................................................................................................................ 10
6.3 Serial I/O ....................................................................................................................... 10
6.4 Timers ........................................................................................................................... 10
6.5 Interrupts ....................................................................................................................... 10
6.6 Data Pointers ................................................................................................................ 10
6.7 Architecture ................................................................................................................... 11
6.7.1 ALU ................................................................................................................................ 11
6.7.2 Accumulator ................................................................................................................... 11
6.7.3 B Register ....................................................................................................................... 11
6.7.4 Program Status Word: .................................................................................................... 11
6.7.5 Scratch-pad RAM ........................................................................................................... 11
6.7.6 Stack Pointer .................................................................................................................. 11
7 MEMORY ORGANIZATION ...................................................................................................... 12
7.1 Program Memory (on-chip Flash) ................................................................................. 12
7.2 Data Flash Memory ...................................................................................................... 12
7.3 Scratch-pad RAM and Register Map ............................................................................ 13
7.4 Working Registers ........................................................................................................ 14
7.5 Bit addressable Locations ............................................................................................. 15
7.6 Stack ............................................................................................................................. 15
8 SPECIAL FUNCTION REGISTERS ......................................................................................... 16
9 INSTRUCTION .......................................................................................................................... 37
9.1 Instruction Timing ......................................................................................................... 45
10 POWER MANAGEMENT .......................................................................................................... 46
10.1 Idle Mode ...................................................................................................................... 46
10.2 Power Down Mode ....................................................................................................... 46
11 RESET CONDITIONS ............................................................................................................... 48
11.1 Sources of reset ............................................................................................................ 48
11.1.1 External Reset .............................................................................................................. 48
11.1.2 Power-On Reset (POR) ................................................................................................ 48
11.1.3 Brown-Out Reset (BOR) ............................................................................................... 48
11.1.4 Watchdog Timer Reset ................................................................................................. 48
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 2 -
11.2 Reset State ................................................................................................................... 48
12 INTERRUPTS ........................................................................................................................... 51
12.1 Interrupt Sources .......................................................................................................... 51
12.2 Priority Level Structure ................................................................................................. 52
12.3 Response Time ............................................................................................................. 54
13 PROGRAMMABLE TIMERS/COUNTERS ............................................................................... 55
13.1 Timer/Counters 0 & 1 .................................................................................................... 55
13.2 Time-Base Selection ..................................................................................................... 55
13.2.1 Mode 0 ......................................................................................................................... 55
13.2.2 Mode 1 ......................................................................................................................... 56
13.2.3 Mode 2 ......................................................................................................................... 56
13.2.4 Mode 3 ......................................................................................................................... 57
14 NVM MEMORY ......................................................................................................................... 58
15 WATCHDOG TIMER ................................................................................................................. 59
15.1 WATCHDOG CONTROL .............................................................................................. 60
15.2 CLOCK CONTROL of Watchdog .................................................................................. 60
16 SERIAL PORT (UART) ............................................................................................................. 62
16.1 MODE 0 ........................................................................................................................ 62
16.2 MODE 1 ........................................................................................................................ 63
16.3 MODE 2 ........................................................................................................................ 65
16.4 MODE 3 ........................................................................................................................ 66
16.5 Framing Error Detection ............................................................................................... 67
16.6 Multiprocessor Communications................................................................................... 67
17 PULSE WIDTH MODULATED OUTPUTS (PWM) ................................................................... 69
18 ANALOG COMPARATORS ...................................................................................................... 71
18.1 Comparator Interrupt with Debouncing ......................................................................... 72
18.2 Application circuit .......................................................................................................... 73
19 TIME ACCESS PROCTECTION .............................................................................................. 74
20 I/O PORT MODE SETTING ...................................................................................................... 76
20.1 Quasi-Bidirectional Output Configuration ..................................................................... 76
20.2 Open Drain Output Configuration ................................................................................. 77
21 OSCILLATOR ........................................................................................................................... 78
21.1 On-Chip RC Oscillator Option ....................................................................................... 78
21.2 External Clock Input Option .......................................................................................... 78
22 POWER MONITORING FUNCTION ........................................................................................ 79
22.1 Brownout Detect and Reset .......................................................................................... 79
23 ICP (IN-CIRCUIT PROGRAM) FLASH MODE ......................................................................... 81
24 CONFIG BITS ........................................................................................................................... 82
24.1 CONFIG0 ...................................................................................................................... 82
24.2 CONFIG1 ...................................................................................................................... 83
25 ELECTRICAL CHARACTERISTICS ......................................................................................... 84
25.1 Absolute Maximum Ratings .......................................................................................... 84
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 3 - Revision A06
25.2 DC ELECTRICAL CHARACTERISTICS ...................................................................... 85
25.3 The COMPARATOR ELECTRICAL CHARACTERISTICS .......................................... 87
25.4 AC ELECTRICAL CHARACTERISTICS ...................................................................... 88
25.5 EXTERNAL CLOCK CHARACTERISTICS .................................................................. 88
25.6 RC OSC AND AC CHARACTERISTICS ...................................................................... 89
26 TYPICAL APPLICATION CIRCUITS ........................................................................................ 90
27 PACKAGE DIMENSIONS ......................................................................................................... 91
27.1 20-pin SOP ................................................................................................................... 91
27.2 20-pin DIP ..................................................................................................................... 92
27.3 20-pin SSOP ................................................................................................................. 93
28 REVISION HISTORY ................................................................................................................ 94
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 4 -
1 GENERAL DESCRIPTION
The W79E4051/2051 series are an 8-bit Turbo 51 microcontroller which has an in-system
programmable Flash EPROM which Flash EPROM can program by ICP (In Circuit Program) Writer.
The instruction set of the W79E4051/2051 series are fully compatible with the standard 8052. The
W79E4051/2051 series contain a 4K/2K bytes of program Flash EPROM; a 256 bytes of RAM; 128
bytes data Flash EPROM for customer data storage; two 8-bit bi-directional and bit-addressable I/O
ports; two 16-bit timer/counters; an enhanced full duplex serial port; 1 channel PWM by 10-bit counter,
Brownout voltage detection/reset, Power on reset detection and one analog comparator. These
peripherals are supported by 9 sources of four-level interrupt capability. To facilitate programming and
verification, the Flash EPROM inside the W79E4051/2051 series allow the program memory to be
programmed and read electronically. Once the code is confirmed, the user can protect the code for
security.
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 5 - Revision A06
2 FEATURES
• Fully static design 8-bit Turbo 51 CMOS microcontroller up to 24MHz
• Single power: 2.4~5.5V Up to 12MHz, 4.5~5.5V up to 24MHz
• Flexible CPU clock source configurable by config bit and software:
- High speed external oscillator: upto 24MHz Crystal and resonator (enabled by config bit).
- Internal RC oscillator: 22.1184/11.0592MHz with ±2% accuracy (selectable by config bit), at
5.0 voltage and 25℃condition, for W79E2051R and W79E4051R
• Instruction-set compatible with MCS-51
• 4K/2K bytes of Program Flash EPROM, with ICP and external writer programmable mode.
• 256 bytes of on-chip RAM
• W79E4051/2051 supports 128 bytes Data Flash EPROM for customer data storage used and 10K
writer cycles.
- 8 pages. Page size is 16 bytes.
- Data Flash program/erase VDD=3.0V to 5.5V
• One 8-bit bi-directional port(Port1), one 7-bit bi-directional port(Port3) and one 2-bit bi-
directional port(P2.0 and P2.1 shared with XT1 and XT2 pins)
• I/O capable of driving LED max. 20mA per pin, max to 80mA for total pins.
• Two 16-bit timer/counters
• 9 Interrupt source with four levels of priority
• One enhanced full duplex serial port with framing error detection and automatic address
recognition
• One channel 10-bit PWM output
• One analog Comparator
• Built-in Power Management
- Power on reset flag
- Brownout voltage detect/reset
• Operating Temperature: -40~85℃
• Packages:
- Lead Free (RoHS) PDIP 20: W79E4051AKG
- Lead Free (RoHS) SOP 20: W79E4051ASG
- Lead Free (RoHS) SSOP 20: W79E4051ARG
- Lead Free (RoHS) PDIP 20: W79E2051AKG
- Lead Free (RoHS) SOP 20: W79E2051ASG
- Lead Free (RoHS) SSOP 20: W79E2051ARG
- Lead Free (RoHS) PDIP 20: W79E4051RAKG
- Lead Free (RoHS) SOP 20: W79E4051RASG
- Lead Free (RoHS) SSOP 20: W79E4051RARG
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 6 -
- Lead Free (RoHS) PDIP 20: W79E2051RAKG
- Lead Free (RoHS) SOP 20: W79E2051RASG
- Lead Free (RoHS) SSOP 20: W79E2051RARG
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 7 - Revision A06
3 PARTS INFORMATION LIST
3.1 Lead Free (RoHS) Parts information list
Table 3-1: Lead Free (RoHS) Parts information list
PART NO. PROGRAM
FLASH
EPROM RAM DATA
FLASH
EPROM
INTERNAL RC
OSCILLATOR
ACCURACY1 PACKAGE
W79E4051AKG 4KB 256B 128B 22MHz ± 25% PDIP-20 Pin
W79E4051ASG 4KB 256B 128B 22MHz ± 25% SOP-20 Pin
W79E4051ARG 4KB 256B 128B 22MHz ± 25% SSOP-20 Pin
W79E2051AKG 2KB 256B 128B 22MHz ± 25% PDIP-20 Pin
W79E2051ASG 2KB 256B 128B 22MHz ± 25% SOP-20 Pin
W79E2051ARG 2KB 256B 128B 22MHz ± 25% SSOP-20 Pin
W79E4051RAKG 4KB 256B 128B 22.1184MHz ± 2% PDIP-20 Pin
W79E4051RASG 4KB 256B 128B 22.1184MHz ± 2%
SOP-20 Pin
W79E4051RARG 4KB 256B 128B 22.1184MHz ± 2%
SSOP-20 Pin
W79E2051RAKG 2KB 256B 128B 22.1184MHz ± 2% PDIP-20 Pin
W79E2051RASG 2KB 256B 128B 22.1184MHz ± 2% SOP-20 Pin
W79E2051RARG 2KB 256B 128B 22.1184MHz ± 2% SSOP-20 Pin
Note:
1. Factory calibration condition: VDD=5.0V, TA = 25°C
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 8 -

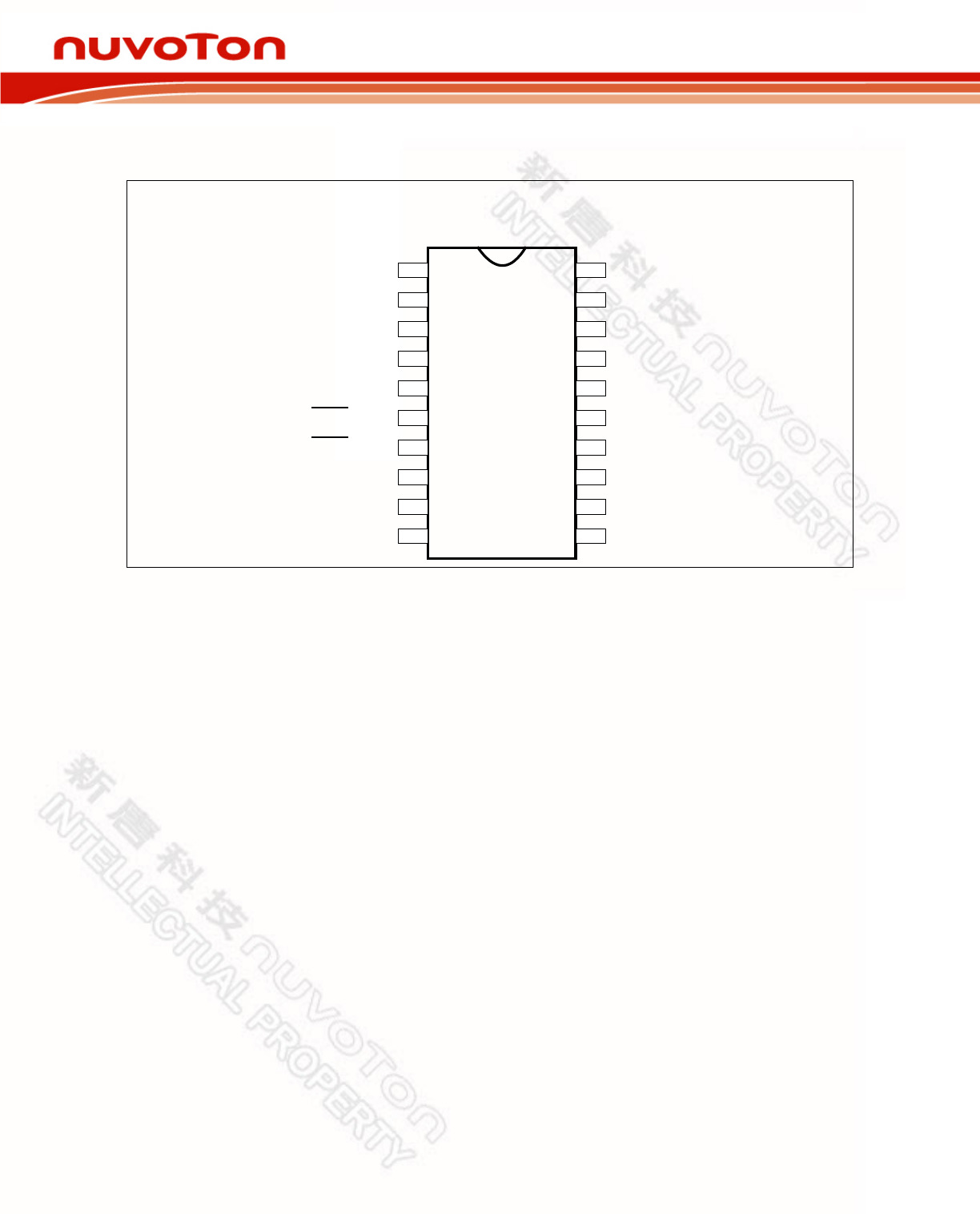

4 PIN CONFIGURATION
VCC
P1.7
P1.6
P1.5
P1.4
P1.3
P1.2
P1.1/AN1-
P1.0/AN0+
P3.7
1
2
3
4
5
6
7
8
9
10
MODE/RST
RXD/P3.0
TXD/P3.1
XTAL2/P2.0
XTAL1/P2.1
INT0/P3.2
INT1/P3.3
T0/P3.4
PWM0/T1/P3.5
GND
20
19
18
17
16
15
14
13
10
11
20 PIN
DIP/SOP
Table 4-1: Pin Configuration
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 9 - Revision A06
5 PIN DESCRIPTION
SYMBOL Alternate
Function 1
Alternate
function 2 Alternate
function 3
(ICP mode)
Type DESCRIPTIONS
P2.1 X1 I/O I CRYSTAL1: This is the crystal
oscillator input. This pin may be
driven by an external clock or
configurable i/o pin.
P2.0 X2/CLKOUT I/O O CRYSTAL2: This is the crystal
oscillator output. It is the inversion of
XTAL1. Also a configurable i/o pin.
VDD - P POWER SUPPLY: Supply voltage for
operation.
VSS - P GROUND: Ground potential.
RST MODE I RESET: A high on this pin for two
machine cycles while the oscillator is
running resets the
device.
MODE: used in ICP mode.
P1.0 AN0+ I/O, D Port1:
8-bit bi-directional I/O port with
internal weakly pull-ups. P1.0~P1.1
are open-drain mode after reset.
Multifunction pins:
AN0+ and AN1- are analog
comparator inputs.
Data and SCK are used in ICP mode.
P1.1 AN1- I/O, D
P1.2 I/O
P1.3 I/O
P1.4 I/O
P1.5 I/O
P1.6 Data I/O
P1.7 SCK I/O
P3.0 RXD I/O Port3:
7-bit bi-
directional I/O port, P3.0~P3.7
except P3.6, with internal weakly pull-
ups. P3.6 is internal wired to analog
comparator output.
Multifunction pins for TXD & RXD
(UART),/INT0-1, T0, T1/PWM0.
P3.1 TXD I/O
P3.2 /INT0 I/O
P3.3 /INT1 I/O
P3.4 T0 I/O
P3.5 T1 PWM0 I/O
P3.6 S
P3.7 I/O
* Note : TYPE P: Power, I: input, O: output, I/O: bi-directional, S: internal Signal.
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 10 -
6 FUNCTIONAL DESCRIPTION
The W79E4051/2051 architecture consist of a 4T 8051 core controller surrounded by various
registers, 4K/2K bytes AP Flash EPROM, 256 bytes of RAM, 128 bytes Data Flash EPROM, three
general purpose I/O ports, two timer/counters, one serial port, Flash EPROM program by Writer and
ICP.
6.1 On-Chip Flash EPROM
The W79E4051/2051 includes one 4K/2K bytes of main Flash EPROM for application program. A
Writer or ICP programming board is required to program the AP Flash EPROM and Data Flash
EPROM.
This ICP (In-Circuit Programming) feature makes the job easy and efficient when the application’s
firmware needs to be updated frequently. In some applications, the in-circuit programming feature
makes it possible for the end-user to easily update the system firmware without opening the chassis.
6.2 I/O Ports
W79E4051/2051 has one 8-bit, one 7-bit and one 2-bit ports using on-chip oscillator by reset options.
Except P1.0 and P1.1, all ports are in quasi-bidrectional structure that the internal weakly pull-ups are
present as the port registers are set to logic one. P1.0~P1.1, the alternate function are analog
comparator inputs, stays in PMOS-off open-drain mode after CPU reset.
6.3 Serial I/O
The W79E4051/2051 has one serial port that is functionally similar to the serial port of the original
8051 family. However the serial port on the W79E4051/2051 can operate in different modes in order to
obtain timing similarity as well. The Serial port has the enhanced features of Automatic Address
recognition and Frame Error detection.
6.4 Timers
The W79E4051/2051 has two 16-bit timers that are functionally and similar to the timers of the 8051
family. When used as timers, user has a choice to set 12 or 6 clocks per count that emulates the
timing of the original 8051. Each timer’s count value is stored in two SFR locations that can be written
or read by software. There are also some other SFRs associated with the timers that control their
mode and operation.
6.5 Interrupts
The Interrupt structure in the W79E4051/2051 is slightly different from that of the standard 8051. Due
to the presence of additional features and peripherals, the number of interrupt sources and vectors
has been increased.
6.6 Data Pointers
The data pointer of W79E4051/2051 is similar to standard 8051 but has dual 16-bit Data Pointers
(DPTR) by setting DPS of AUXR2.0. In addition there is an added instruction, DEC DPTR (op-code
A5H), which helps in improving programming flexibility for the user.
DPTR
DPTR
DPS
AUXR2.0 DPS=0
DPS=1
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 11 - Revision A06
Table 6-1: Data Pointer
6.7 Architecture
The W79E4051/2051 is based on the standard MCS-51 device. It is built around an 8-bit ALU that
uses internal registers for temporary storage and control of the peripheral devices. It can execute the
standard MCS-51 instruction set.
6.7.1 ALU
The ALU is the heart of the W79E4051/2051. It is responsible for the arithmetic and logical functions.
It is also used in decision making, in case of jump instructions, and is also used in calculating jump
address. The user cannot directly use the ALU, but the Instruction Decoder reads the op-code,
decodes it, and sequences the data through the ALU and its associated registers to generate the
required result. The ALU mainly uses the ACC which is a special function register (SFR) on the chip.
Another SFR, namely B register is also used in Multiply and Divide instructions. The ALU generates
several status signals which are stored in the Program Status Word register (PSW).
6.7.2 Accumulator
The Accumulator (ACC) is the primary register used in arithmetic, logical and data transfer operations
in the W79E4051/2051. Since the Accumulator is directly accessible by the CPU, most of the high
speed instructions make use of the ACC as one argument.
6.7.3 B Register
This is an 8-bit register that is used as the second argument in the MUL and DIV instructions. For all
other instructions it can be used simply as a general purpose register.
6.7.4 Program Status Word:
This is an 8-bit SFR that is used to store the status bits of the ALU. It holds the Carry flag, the Auxiliary
Carry flag, General purpose flags, the Register Bank Select, the Overflow flag, and the Parity flag.
6.7.5 Scratch-pad RAM
The W79E4051/2051 has a 256 byte on-chip scratch-pad RAM. This can be used by the user for
temporary storage during program execution. A certain section of this RAM is bit addressable, and can
be directly addressed for this purpose.
6.7.6 Stack Pointer
The W79E4051/2051 has an 8-bit Stack Pointer which points to the top of the Stack. This stack
resides in the Scratch Pad RAM in the W79E4051/2051. Hence the size of the stack is limited by the
size of this RAM.
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 12 -
7 MEMORY ORGANIZATION
The W79E4051/2051 series separate the memory into two separate sections, the Program Memory
and the Data Memory. The Program Memory is used to store the instruction op-codes, while the Data
Memory is used to store data or for memory mapped devices.
7.1 Program Memory (on-chip Flash)
The Program Memory on the W79E4051/2051 series can be up to 4K/2K bytes long. All instructions
are fetched for execution from this memory area. The MOVC instruction can also access this memory
region.
7.2 Data Flash Memory
The Data Flash EPROM on the W79E4051/2051 series is 128 bytes long with page size of 16 bytes.
The W79E4051/2051 series read the content of data memory by using “MOVC A, @A+DPTR”. To
write data is by NVMADDRL, NVMDATA and NVMCON SFR’s registers.
Table 7-1 W79E4051/2051 On-chip Flash Memory Map
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 13 - Revision A06
7.3 Scratch-pad RAM and Register Map
As mentioned before the W79E4051/2051 series have separate Program and Data Memory areas.
The on-chip 256 bytes scratch pad RAM is built in W79E4051/2051. There are also several Special
Function Registers (SFRs) which can be accessed by software. The SFRs can be accessed only by
direct addressing, while the on-chip RAM can be accessed by either direct or indirect addressing.
Indirect
RAM
Addressing
Direct
&
Indirect
RAM
Addressing
SFR
Direct
Addressing
Only
00H
7FH
80H
FFH

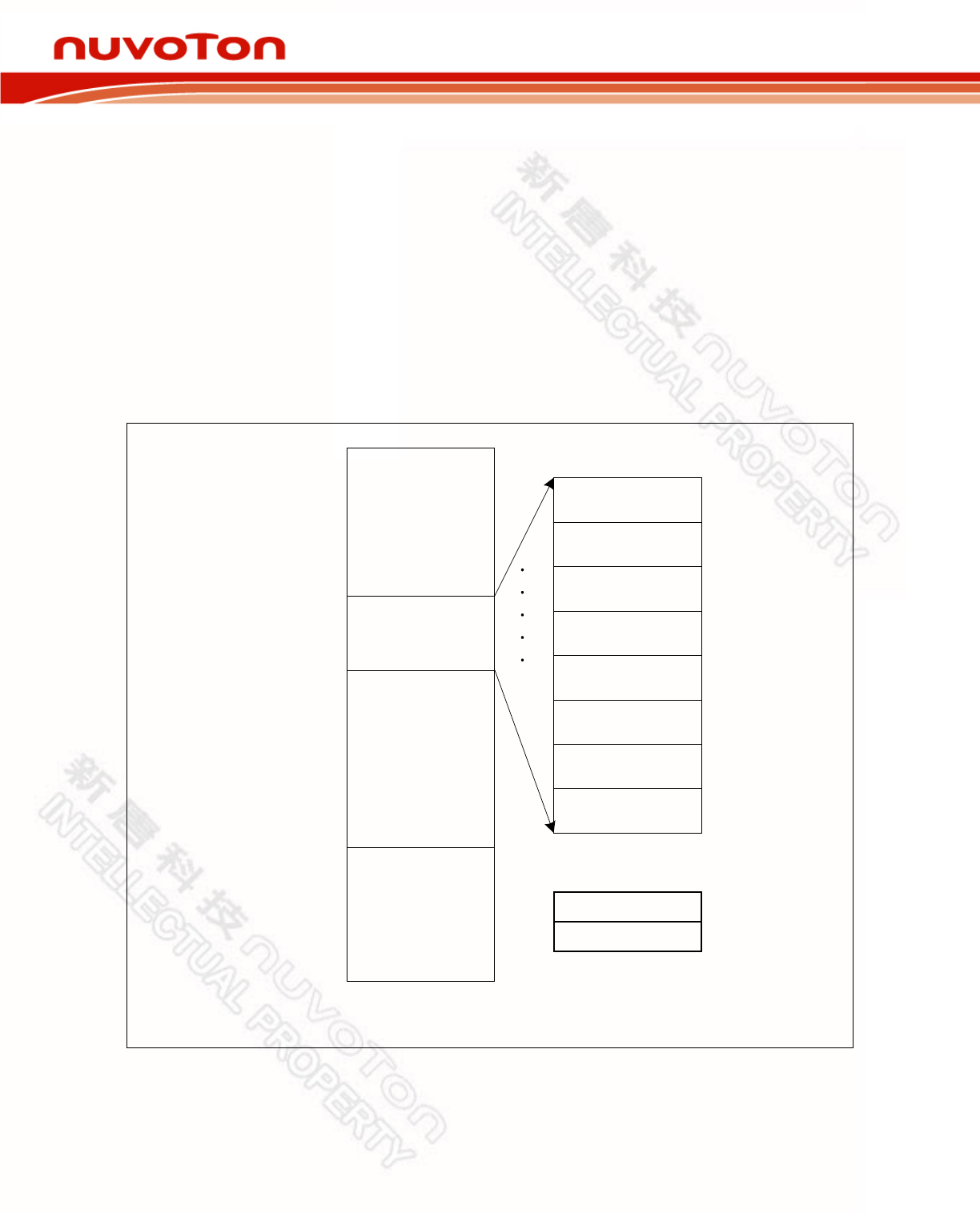

256 bytes RAM and SFR Data Memory Space
Table 7-2 W79E4051/2051 256 bytes RAM and SFR memory map
Since the scratch-pad RAM is 256 bytes it can be used only when data contents are small. There are
several other special purpose areas within the scratch-pad RAM. These are illustrated in next figure.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 14 -
Bank 0
Bank 1
Bank 2
Bank 3
03 02 01 0004050607
0B 0A 09 080C0D0E0F
13 12 11 1014151617
1B 1A 19 181C1D1E1F
23 22 21 20
24
252627
2B 2A 29 28
2C2D2E
2F
33 32 31 30
34
353637
3B 3A 39 38
3C3D3E3F
43 42 41 4044
45
4647
4B 4A 49 484C4D4E4F
53 52 51 505455
5657
5B 5A 59 58
5C
5D
5E5F
63 62 61 6064
6566
67
6B 6A 69 686C6D
6E
6F
73 72 71 7074757677
7B 7A 79 787C7D
7E
7F
Direct RAM
Indirect RAM
00H
07H
28H
08H
0FH
10H
17H
18H
1FH
20H
21H
22H
23H
24H
25H
26H
27H
29H
2AH
2BH
2CH
2DH
2EH
2FH
30H
7FH
80H
FFH

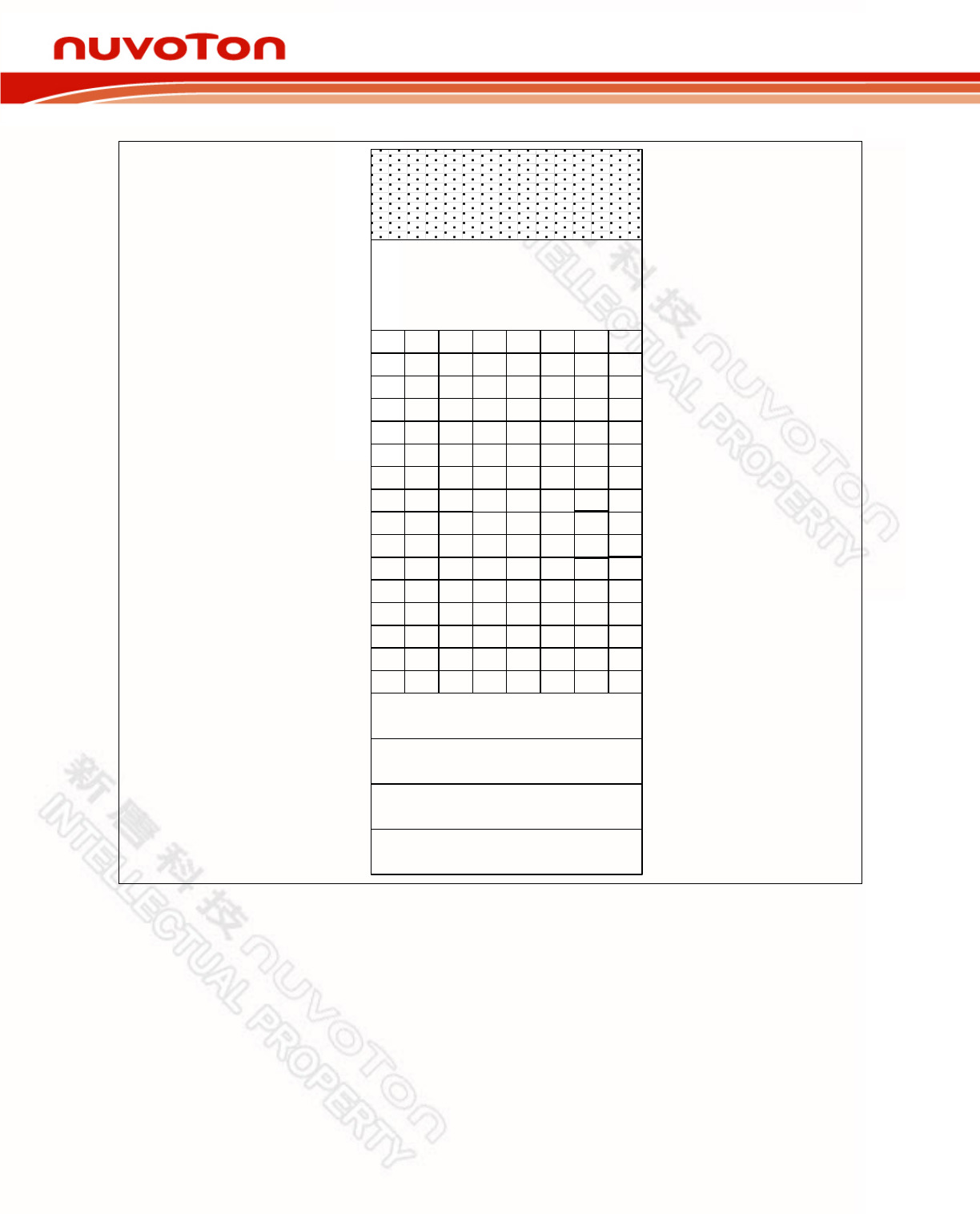

Table 7-3 Scratch-pad RAM
7.4 Working Registers
There are four sets of working registers, each consisting of eight 8-bit registers. These are termed as
Banks 0, 1, 2, and 3. Individual registers within these banks can be directly accessed by separate
instructions. These individual registers are named as R0, R1, R2, R3, R4, R5, R6 and R7. However, at
one time the W79E4051/2051 series can work with only one particular bank. The bank selection is
done by setting RS1-RS0 bits in the PSW. The R0 and R1 registers are used to store the address for
indirect accessing.
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 15 - Revision A06
7.5 Bit addressable Locations
The Scratch-pad RAM area from location 20h to 2Fh is byte as well as bit addressable. This means
that a bit in this area can be individually addressed. In addition some of the SFRs are also bit
addressable. The instruction decoder is able to distinguish a bit access from a byte access by the type
of the instruction itself. In the SFR area, any existing SFR whose address ends in a 0 or 8 is bit
addressable.
7.6 Stack
The scratch-pad RAM can be used for the stack. This area is selected by the Stack Pointer (SP),
which stores the address of the top of the stack. Whenever a jump, call or interrupt is invoked the
return address is placed on the stack. There is no restriction as to where the stack can begin in the
RAM. By default however, the Stack Pointer contains 07h at reset. The user can then change this to
any value desired. The SP will point to the last used value. Therefore, the SP will be incremented and
then address saved onto the stack. Conversely, while popping from the stack the contents will be read
first, and then the SP is decreased.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 16 -
8 SPECIAL FUNCTION REGISTERS
The W79E4051/2051 series uses Special Function Registers (SFRs) to control and monitor
peripherals and their Modes. The SFRs reside in the register locations 80-FFh and are accessed by
direct addressing only. Some of the SFRs are bit addressable. This is very useful in cases where
users wish to modify a particular bit without changing the others. The SFRs that are bit addressable
are those whose addresses end in 0 or 8. The W79E4051/2051 series contain all the SFRs present in
the standard 8052. However some additional SFRs are added. In some cases the unused bits in the
original 8052, have been given new functions. The list of the SFRs is as follows.
F8
IP1
F0
B
PCMPIDS
IP1H
E8
EIE
E0
ACC
D8
WDCON
PWMPL
PWM0L
PWMCON1
D0
PSW
PWMPH
PWM0H
PWMCON3
C8
NVMCON
NVMDATA
C0
NVMADDRL
TA
B8
IP0
SADEN
B0
P3
P1M1
IP0H
A8
IE
SADDR
A0
P2
AUXR1
AUXR2
98
SCON
SBUF
90
P1
ACCK ACSR
88
TCON
TMOD
TL0
TL1
TH0
TH1
CKCON
CLKREG
80
SP
DPL
DPH
PCON
Table 8-1: Special Function Register Location Table
Note:
1. The SFRs in the column with dark borders are bit-addressable
2. The table is condensed with eight locations per row. Empty locations indicate that these are no
registers at these addresses.
n UVOTO n = (mom 1 1 E
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 17 - Revision A06
Special Function Registers:
SYMBOL
DEFINITION
ADDRESS
MSB BIT ADDRESS, SYMBOL LSB
RESET
IP1 Interrupt priority 1 F8H (FF)
-
(FE)
PBOV
(FD)
PPWM
(FC)
PWDI
(FB)
-
(FA)
-
(F9)
-
(F8)
-
x000 xxxxB
IP1H
Interrupt high priority 1
F7H
-
PBOVH
PPWMH
PWDIH
-
-
-
-
x000 xxxxB
PCMPIDS
Port Comparator Input Disable
F6H
-
-
-
-
-
-
B1
B0
xxxx 0000B
B
B register
F0H
(F7)
(F6)
(F5)
(F4)
(F3)
(F2)
(F1)
(F0)
00000000B
EIE Interrupt enable 1 E8H (EF)
-
(EE)
EBOV
(ED)
EPWM
(EC)
EWDI
(EB)
-
(EA)
-
(E9)
-
(E8)
-
xx000 xxxxB
ACC
Accumulator
E0H
(E7)
(E6)
(E5)
(E4)
(E3)
(E2)
(E1)
(E0)
00000000B
PWMCON1
PWM CONTROL REGISTER 1
DCH
PWMRUN
load
PWMF
CLRPWM
-
-
-
PWM0I
0000 0000B
PWM0L
PWM 0 LOW BITS REGISTER
DAH
PWM0.7
PWM0.6
PWM0.5
PWM0.4
PWM0.3
PWM0.2
PWM0.1
PWM0.0
0000 0000B
PWMPL
PWM COUNTER LOW
REGISTER
D9H
PWMP0.7
PWMP0.6
PWMP0.5
PWMP0.4
PWMP0.3
PWMP0.2
PWMP0.1
PWMP0.0
0000 0000B
WDCON WATCH-DOG CONTROL D8H (DF)
WDRUN (DE)
- (DD)
WD1 (DC)
WD0 (DB)
WDIF (DA)
WTRF (D9)
EWRST (D8)
WDCLR 0X00 0000B
PWMCON3
PWM CONTROL REGISTER 3
D7H
-
-
-
PWM0OE
-
-
FP1
FP0
0000 XX00B
PWM0H PWM 0 HIGH BITS
REGISTER
D2H - - - - - - PWM0.9 PWM0.8 XXXX XX00B
PWMPH
PWM COUNTER HIGH
REGISTER
D1H
-
-
-
-
-
-
PWMP0.9
PWMP0.8
XXXX XX00B
PSW
Program
st
atus word
D0H
(D7)
CY
(D6)
AC
(D5)
F0
(D4)
RS1
(D3)
RS0
(D2)
OV
(D1)
F1
(D0)
P
00000000B
NVMDATA
NVM Data
CFH
00000000B
NVMCON
NVM Control
CEH
EER
EWR
-
-
-
-
-
00xxxxxxB
TA
Timed Access Protection
C7H
TA.7
TA.6
TA.5
TA.4
TA.3
TA.2
TA.1
TA.0
11111111B
NVMADDRL NVM byte address C6H NVMADDR
.7
NVMADDR.
6
NVMADDR
.5
NVMADDR
.4
NVMADD
R.3
NVMADD
R.2
NVMADD
R.1
NVMADDR
.0
00000000B
SADEN
Slave address mask
B9H
00000000B
IP0
Interrupt priority 0
B8H
(BF)
-
(BE)
PC
(BD)
-
(BC)
PS
(BB)
PT1
(BA)
PX1
(B9)
PT0
(B8)
PX0
x0x00000B
IP0H
Interrupt high priority 0
B7H
-
PCH
-
PSH
PT1H
PX1H
PT0H
PX0H
x0x00000B
P1M1
Port1 Mode 1
B3H
-
-
-
-
-
-
P1M1.1
P1M1.0
xxxx xx00B
P3 Port 3 B0H (B7) (B6) (B5)
T1
(B4)
T0
(B3)
INT1
(B2)
INT0
(B1)
TXD
(B0)
RXD
11111111B
SADDR
Slave address
A9H
00000000B
IE
Interrupt enable
A8H
(AF)
EA
(AE)
EC
(AD)
-
(AC)
ES
(AB)
ET1
(AA)
EX1
(A9)
ET0
(A8)
EX0
00x00000B
AUXR2
AUX function register 2
A3H
DPS
xxxx xxx0B
AUXR1
AUX function register 1
A2H
BOF
BOD2
BOI
LPBOV
SRST
BOV13
BOV03
BOS
0x00 0xx0B
P2 Port 2
A0H (A7)
- (A6)
- (A5)
- (A4)
- (A3)
- (A2)
- (A1)
P2.1
XTAL1
(A0)
P2.0
XTAL2
CLKOUT
xxxx xxxxB
SBUF
Serial buffer
99H
xxxxxxxxB
SCON
Serial control
98H
(9F)
SM0/FE
(9E)
SM1
(9D)
SM2
(9C)
REN
(9B)
TB8
(9A)
RB8
(99)
TI
(98)
RI
00000000B
ACSR
Analog Comparator Control &
Status Register
97H
-
-
CIPE
CF
CEN
CM2
CM1
CM0
xx000000B
ACCK
Analog Comparator Debounce
Clock Control
96H
ENCLK
-
-
-
-
CPCK2
CPCK1
CPCK0
0000 0000B
P1
Port 1
90H
(97)
(96)
(95)
(94)
(93)
(92)
(91)
(90)
11111111B
CLKREG
8FH
PWDEX1
PWDEX0
Xxxx x00xB
CKCON
Clock control
8EH
-
-
-
T1M
T0M
-
-
-
xxx00xxxB
TH1
Timer high 1
8DH
00000000B
TH0
Timer high 0
8CH
00000000B
TL1 Timer low 1 8BH 00000000B
TL0
Timer low 0
8AH
00000000B
TMOD
Timer mode
89H
GATE
C/T1#
M1
M0
GATE
C/T0#
M1
M0
00000000B
TCON
Timer control
88H
(8F)
TF1
(8E)
TR1
(8D)
TF0
(8C)
TR0
(8B)
IE1
(8A)
IT1
(89)
IE0
(88)
IT0
00000000B
PCON
Power control
87H
SMOD
SMOD0
POR
GF1
GF0
PD
IDL
00xx0000B
DPH
Data pointer high
83H
00000000B
DPL
Data pointer low
82H
00000000B
SP
Stack pointer
81H
00000111B
Table 8-2: Special Function Registers
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 18 -
Note :
1. In column BIT_ADDRESS, SYMBOL, containing ( ) item means the bit address.
2. BOD is initialized at reset with the inversed value of bit CBOD in config0-bits.
3. (BOV1,BOV0) are initialized at reset with the reversed value of config0-bits (CBOV1,CBOV0)
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 19 - Revision A06
STACK POINTER
Bit: 7 6 5 4 3 2 1 0
SP.7 SP.6 SP.5 SP.4 SP.3 SP.2 SP.1 SP.0
Mnemonic: SP Address: 81h
BIT NAME FUNCTION
7-0 SP.[7:0] The Stack Pointer stores the Scratch-pad RAM address where the stack begins. In
other words it always points to the top of the stack.
DATA POINTER LOW
Bit: 7 6 5 4 3 2 1 0
DPL.7 DPL.6 DPL.5 DPL.4 DPL.3 DPL.2 DPL.1 DPL.0
Mnemonic: DPL Address: 82h
BIT NAME FUNCTION
7-0
DPL.[7:0]
This is the low byte of the standard 8052 16-bit data pointer.
DATA POINTER HIGH
Bit: 7 6 5 4 3 2 1 0
DPH.7 DPH.6 DPH.5 DPH.4 DPH.3 DPH.2 DPH.1 DPH.0
Mnemonic: DPH Address: 83h
BIT
NAME
FUNCTION
7-0
DPH.[7:0]
This is the high byte of the standard 8052 16-bit data pointer.
POWER CONTROL
Bit: 7 6 5 4 3 2 1 0
SMOD SMOD0 - POR GF1 GF0 PD IDL
Mnemonic: PCON Address: 87h
BIT NAME FUNCTION
7
SMOD
1: This bit doubles the serial port baud rate in mode 1, 2, and 3.
6
SMOD
0
0: Framing Error Detection Disable. SCON.7 (SM0/FE) bit is used as SM0
(standard 8052 function).
1: Framing Error Detection Enable. SCON.7 (SM0/FE) bit is used to reflect as
Frame Error (FE) status flag.
5
-
Reserved
4
POR
0: Cleared by software.
1: Set automatically when a power-on reset has occurred.
3
GF1
General purpose user flags.
2 GF0 General purpose user flags.
1
PD
1: The CPU goes into the POWER DOWN mode. In this mode, all the clocks are
stopped and program execution is frozen.
n UVOTO n = 7 m |NT1
Preliminary W79E4051/W79E2051 Data Sheet
- 20 -
0
IDL
1: The CPU goes into the IDLE mode. In this mode, the clocks CPU clock stopped,
so program execution is frozen. But the clock to the serial, timer and interrupt
blocks is not stopped, and these blocks continue operating.
TIMER CONTROL
Bit: 7 6 5 4 3 2 1 0
TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0
Mnemonic: TCON Address: 88h
BIT NAME FUNCTION
7
TF1
Timer 1 Overflow Flag. This bit is set when Timer 1 overflows. It is cleared
automatically when the program does a timer 1 interrupt service routine. Software
can also set or clear this bit.
6
TR1
Timer 1 Run Control. This bit is set or cleared by software to turn timer/counter on
or off.
5 TF0 Timer 0 Overflow Flag. This bit is set when Timer 0 overflows. It is cleared
automatically when the program does a timer 0 interrupt service routine. Software
can also set or clear this bit.
4
TR0
Timer 0 Run Control. This bit is set or cleared by software to turn timer/counter on
or off.
3
IE1
Interrupt 1 Edge Detect Flag: Set by hardware when an edge/level is detected on
1INT
. This bit is cleared by hardware when the service routine is vectored to only if
the interrupt was edge triggered. Otherwise it follows the inverse of the pin.
2
IT1
Interrupt 1 Type Control. Set/cleared by software to specify falling edge/ low level
triggered external inputs.
1
IE0
Interrupt 0 Edge Detect Flag. Set by hardware when an edge/level is detected
on
0INT
. This bit is cleared by hardware when the service routine is vectored to
only if the interrupt was edge triggered. Otherwise it follows the inverse of the pin.
0 IT0 Interrupt 0 Type Control: Set/cleared by software to specify falling edge/ low level
triggered external inputs.
TIMER MODE CONTROL
Bit: 7 6 5 4 3 2 1 0
GATE
TC/
M1 M0 GATE
TC/
M1 M0
TIMER1 TIMER0
Mnemonic: TMOD Address: 89h
BIT NAME FUNCTION
7
GATE
Gating control: When this bit is set, Timer/counter 1 is enabled only while the
1INT
pin is high and the TR1 control bit is set. When cleared, the
1INT
pin has no effect,
and Timer 1 is enabled whenever TR1 control bit is set.
6
TC/
Timer or Counter Select: When clear, Timer 1 is incremented by the internal clock.
When set, the timer counts falling edges on the T1 pin.
5 M1 Timer 1 mode select bit 1. See table below.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 21 - Revision A06
4
M0
Timer 1 mode select bit 0. See table below.
3
GATE
Gating control: When this bit is set, Timer/counter 0 is enabled only while the
0INT
pin is high and the TR0 control bit is set. When cleared, the
0INT
pin has no
effect, and Timer 0 is enabled whenever TR0 control bit is set.
2
TC/
Timer or Counter Select: When clear, Timer 0 is incremented by the internal clock.
When set, the timer counts falling edges on the T0 pin.
1
M1
Timer 0 mode select bit 1. See table below.
0
M0
Timer 0 mode select bit 0. See table below.
M1, M0: Mode Select bits:
M1 M0 MODE
0 0
Mode 0: 8-bit timer/counter TLx serves as 5-bit pre-scale.
0 1 Mode 1: 16-bit timer/counter, no pre-scale.
1 0
Mode 2: 8-bit timer/counter with auto-reload from THx.
1 1
Mode 3: (Timer 0) TL0 is an 8-bit timer/counter controlled by the standard Timer0
control bits. TH0 is an 8-bit timer only controlled by Timer1 control bits. (Timer 1)
Timer/Counter 1 is stopped.
TIMER 0 LSB
Bit: 7 6 5 4 3 2 1 0
TL0.7 TL0.6 TL0.5 TL0.4 TL0.3 TL0.2 TL0.1 TL0.0
Mnemonic: TL0 Address: 8Ah
BIT NAME FUNCTION
7-0 TL0.[7:0] Timer 0 LSB.
TIMER 1 LSB
Bit: 7 6 5 4 3 2 1 0
TL1.7 TL1.6 TL1.5 TL1.4 TL1.3 TL1.2 TL1.1 TL1.0
Mnemonic: TL1 Address: 8Bh
BIT NAME FUNCTION
7-0
TL1.[7:0]
Timer 1 LSB.
TIMER 0 MSB
Bit: 7 6 5 4 3 2 1 0
TH0.7 TH0.6 TH0.5 TH0.4 TH0.3 TH0.2 TH0.1 TH0.0
Mnemonic: TH0 Address: 8Ch
BIT NAME FUNCTION
7-0
TH0.[7:0]
Timer 0 MSB.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 22 -
TIMER 1 MSB
Bit: 7 6 5 4 3 2 1 0
TH1.7 TH1.6 TH1.5 TH1.4 TH1.3 TH1.2 TH1.1 TH1.0
Mnemonic: TH1 Address: 8Dh
BIT NAME FUNCTION
7-0 TH1.[7:0] Timer 1 MSB.
CLOCK CONTROL
Bit: 7 6 5 4 3 2 1 0
- - - T1M T0M - - -
Mnemonic: CKCON Address: 8Eh
BIT
NAME
FUNCTION
7-5
-
Reserved.
4 T1M
Timer 1 clock select:
0: Timer 1 uses a divide by 12 clocks.
1: Timer 1 uses a divide by 6 clocks.
3 T0M
Timer 0 clock select:
0: Timer 0 uses a divide by 12 clocks.
1: Timer 0 uses a divide by 6 clocks.
2-0
-
Reserved.
CLOCK REGISTER
Bit: 7 6 5 4 3 2 1 0
- - - - - PWDEX1 PWDEX0 -
Mnemonic: CLDREG Address: 8Fh
BIT NAME FUNCTION
7-5
-
Reserved.
2 PWDEX1 Power Down Exit Mode.
1
PWDEX0
Power Down Exit Mode.
0
-
Reserved.
Power Down Exit Mode:
PWDEX1 PWDEX0 Power Down Exit Mode
0 0 Wake up from Power Down is internally timed.
INT0
or
INT1
must be configured for low-level trigger mode.
0
1
Wake up from Power Down is externally controlled.
INT0
or
INT1
must be configured for low-level trigger mode.
1
x
Wake up from Power Down immediately.
INT0
or
INT1
can be configured for low-level or edge trigger mode.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 23 - Revision A06
PORT 1
Bit: 7 6 5 4 3 2 1 0
P1.7 P1.6 P1.5 P1.4 P1.3 P1.2 P1.1 P1.0
Mnemonic: P1 Address: 90h
P1.7-0: General purpose Input/Output port. Most instructions will read the port pins in case of a port
read access, however in case of read-modify-write instructions, the port latch is read. These alternate
functions are described below:
BIT NAME FUNCTION
1 P1.1 AN1+
0
P1.0
AN0-
ANALOG COMPARATOR DEBOUNCE CLOCK CONTROL
Bit: 7 6 5 4 3 2 1 0
ENCLK - - - - CPCK2 CPCK1 CPCK0
Mnemonic: ACCK Address: 96h
BIT NAME FUNCTION
7
ENCLK
1: Enable clock output to the XTAL2 pin (P2.0) when CPU clock is from the
external OSC or on-chip RC oscillator. The frequency of the clock output is 1/4
of the CPU clock rate.
6-3 - Reserved.
2
CPCK2
See as below table.
1
CPCK1
See as below table.
0
CPCK0
See as below table.
Comparator Debouncing Time Setting:
CPCK2 CPCK 1 CPCK 0 Debouncing Time
0 0 0 (3/FDB)*2~(4/FDB)*2
0 0 1 (3/FDB)*4~(4/FDB)*4
0 1 0 (3/FDB)*8~(4/FDB)*8
0 1 1 (3/FDB)*16~(4/FDB)*16
1 0 0 (3/FDB)*32~(4/FDB)*32
1 0 1 (3/FDB)*64~(4/FDB)*64
1 1 0 (3/FDB)*128~(4/FDB)*128
ANALOG COMPARATOR CONTROL & STATUS REGISTER
Bit: 7 6 5 4 3 2 1 0
- - CIPE CF CEN CM2 CM1 CM0
Mnemonic: ACSR Address: 97h
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 24 -
BIT NAME FUNCTION
7-6
-
Reserved.
5
CIPE
Comparator Enabled in Idle and Power down Mode.
0: Comparator disabled in idle and power down mode. (default)
1: Comparator enabled in idle and power down mode.
4
CF
Comparator Interrupt Flag. Set by hardware when the comparator output meet
the conditions specified by the CM[2:0] bits and CEN is set. The flag must be
cleared by software. The interrupt may be enabled/disabled by setting/clearing
bit 6 of IE.
3
CEN
Enable Comparator. Set this bit to enable the comparator. Clearing this bit will
force the comparator output low and prevent further events from setting CF.
2
CM2
See as below table.
1
CM1
See as below table.
0 CM0 See as below table.
Comparator Interrupt Mode Setting:
CM2 CM1 CM0 Interrupt Mode
0
0
0
Negative (Low) level
0
0
1
Positive edge
0 1 0 Toggle with debounce
0
1
1
Positive edge with debounce
1
0
0
Negative edge
1
0
1
Toggle
1
1
0
Negative edge with debounce
1 1 1 Positive (High) level
SERIAL PORT CONTROL
Bit: 7 6 5 4 3 2 1 0
SM0/FE SM1 SM2 REN TB8 RB8 TI RI
Mnemonic: SCON Address: 98h
BIT NAME FUNCTION
7
SM0/FE
Serial port mode select bit 0 or Framing Error Flag: The SMOD0 bit in PCON
SFR determines whether this bit acts as SM0 or as FE. The operation of SM0 is
described below. When used as FE, this bit will be set to indicate an invalid stop
bit. This bit must be manually cleared in software to clear the FE condition.
6
SM1
Serial Port mode select bit 1. See table below.
5
SM2
Multiple processors communication. Setting this bit to 1 enables the
multiprocessor communication feature in mode 2 and 3. In mode 2 or 3, if SM2
is set to 1, then RI will not be activated if the received 9th data bit (RB8) is 0. In
mode 1, if SM2 = 1, then RI will not be activated if a valid stop bit was not
received. In mode 0, the SM2 bit controls the serial port clock. If set to 0, then
the serial port runs at a divide by 12 clock of the oscillator. This gives
compatibility with the standard 8052. When set to 1, the serial clock become
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 25 - Revision A06
divide by 4 of the oscillator clock. This results in faster synchronous serial
communication.
4
REN
Receive enable:
0: Disable serial reception.
1: Enable serial reception.
3
TB8
This is the 9th bit to be transmitted in modes 2 and 3. This bit is set and cleared
by software as desired.
2
RB8
In modes 2 and 3 this is the received 9th data bit. In mode 1, if SM2 = 0, RB8 is
the stop bit that was received. In mode 0 it has no function.
1
TI
Transmit interrupt flag: This flag is set by hardware at the end of the 8th bit time
in mode 0, or at the beginning of the stop bit in all other modes during serial
transmission. This bit must be cleared by software.
SM1, SM0: Mode Select bits:
Mode SM0 SM1 Description Length Baud Rate
0 0 0 Synchronous 8 Tclk divided by 4 or 12
1 0 1 Asynchronous 10 Variable
2 1 0 Asynchronous 11 Tclk divided by 32 or 64
3 1 1 Asynchronous 11 Variable
SERIAL DATA BUFFER
Bit: 7 6 5 4 3 2 1 0
SBUF.7 SBUF.6 SBUF.5 SBUF.4 SBUF.3 SBUF.2 SBUF.1 SBUF.0
Mnemonic: SBUF Address: 99h
BIT NAME FUNCTION
7~0
SBUF
Serial data on the serial port is read from or written to this location. It actually
consists of two separate internal 8-bit registers. One is the receive resister, and
the other is the transmit buffer. Any read access gets data from the receive data
buffer, while write access is to the transmit data buffer.
PORT 2
Bit: 7 6 5 4 3 2 1 0
- - - - - - P2.1 P2.0
Mnemonic: P2 Address: A0h
BIT NAME ALTERNATE FUNCTION
7-2
-
Reserved
1
P2.1
XTAL1 clock input pin.
0
P2.0
XTAL2 or CLKOUT pin by alternative.
AUX FUNCTION REGISTER 1
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 26 -
Bit: 7 6 5 4 3 2 1 0
BOF BOD BOI LPBOV SRST BOV1 BOV0 BOS
Mnemonic: AUXR1 Address: A2h
BIT NAME FUNCTION
7 BOF
Brown Out Flag
0: Cleared by software.
1: Set automatically when a brownout reset or interrupt has occurred. Also set at
power on.
6 BOD
Brown Out Disable:
BOD is initialized at reset with the inversed value of bit CBOD in config0-bits.
0: Enable Brownout Detect function.
1: Disable Brownout Detect function and save power.
5 BOI
Brown Out Interrupt:
0: Disable Brownout Detect Interrupt function and it will cause chip reset when
BOF is set.
1: This prevents Brownout Detection from causing a chip reset and allows the
Brownout Detect function to be used as an interrupt.
4 LPBOV
Low Power Brown Out Detect control:
0: If bit BOD=0, the Brown Out detection is always active.
1: If bit BOD=0, the Brown Out detection repeats to senses the voltage for
64/fBRC then turn off detector for 960/fBRC, therefore, it saves 15/16 of the
Brownout circuit power.
3 SRST
Software reset:
This bit has TA(Time Accessed) protection in write access.
1: reset the chip as if a hardware reset occurred.
2~1 BOV1,
BOV0
Brownout voltage selection bits:
(BOV1,BOV0) are initialized at reset with the reversed value of bits
(CBOV1,CBOV0) in config0-bits
BOV.1 BOV.0 Brownout Voltage
0 0 Brownout voltage is 2.4V
0
1
Brownout voltage is 2.7V
1
0
Brownout voltage is 3.8V
1
1
Brownout voltage is 4.5V
0 BOS
Brownout Status bit(Read only)
0: VDD is above VBOR+
1: VDD is below VBOR-
Brownout Voltage Selection
BOV1 BOV0 Brownout Voltage
0 0 Brownout voltage is 2.4V
0
1
Brownout voltage is 2.7V
1
0
Brownout voltage is 3.8V
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 27 - Revision A06
1
1
Brownout voltage is 4.5V
All the bits in this SFR have unrestricted read access. SRST require Timed Access procedure to write.
The remaining bits have unrestricted write accesses. Please refer TA register description.
AUX FUNCTION REGISTER 2
Bit: 7 6 5 4 3 2 1 0
- - - - - - - DPS
Mnemonic: AUXR2 Address: A3h
BIT NAME FUNCTION
7-1
-
Reserved
0 DPS
Dual Data Pointer Select
0: To select DPTR of standard 8051.
1: To select DPTR1
INTERRUPT ENABLE
Bit: 7 6 5 4 3 2 1 0
EA EC - ES ET1 EX1 ET0 EX0
Mnemonic: IE Address: A8h
BIT NAME FUNCTION
7
EA
Global enable. Enable/Disable all interrupts.
6 EC Enable analog comparator interrupt.
5
-
Reserved.
4
ES
Enable Serial Port 0 interrupt.
3
ET1
Enable Timer 1 interrupt.
2
EX1
Enable external interrupt 1.
1 ET0 Enable Timer 0 interrupt.
0
EX0
Enable external interrupt 0.
SLAVE ADDRESS
Bit: 7 6 5 4 3 2 1 0
SADDR.7 SADDR.6 SADDR.5 SADDR.4 SADDR.3 SADDR.2 SADDR.1 SADDR.0
Mnemonic: SADDR Address: A9h
BIT NAME FUNCTION
7~0 SADDR The SADDR should be programmed to the given or broadcast address for serial
port to which the slave processor is designated.
PORT 3
Bit: 7 6 5 4 3 2 1 0
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 28 -
P3.7 CMP_O P3.5 P3.4 P3.3 P3.2 P3.1 P3.0
Mnemonic: P3 Address: B0h
P3.7-0: General purpose Input/Output port. Most instructions will read the port pins in case of a port
read access, however in case of read-modify-write instructions, the port latch is read. These
alternate functions are described below:
BIT NAME FUNCTION
7 P3.7 -
6
CMP_O
Read only. This bit stores the hardware comparator result.
5
P3.5
T1 or PWM output
4
P3.4
T0
3 P3.3
INT1
2 P3.2
INT0
1
P3.1
TX
0
P3.0
RX
Port1 Output Mode 1
Bit: 7 6 5 4 3 2 1 0
- - - - - - P1M1.1 P1M1.0
Mnemonic: P1M1 Address: B3h
BIT NAME FUNCTION
7-2
Reserved
1
P1M1.1
0: P1.1 is in open drain mode. (Default)
1: P1.1 is in Quasi-bidirection mode
0 P1M1.0 0: P1.0 is in open drain mode. (Default)
1: P1.0 is in Quasi-bidirection mode
Interrupt High Priority 0
Bit: 7 6 5 4 3 2 1 0
- PCH - PSH PT1H PX1H PT0H PX0H
Mnemonic: IP0H Address: B7h
BIT NAME FUNCTION
7 - Reserved
6
PCH
1: To set interrupt high priority of analog comparator is highest priority level.
5
-
Reserved.
4
PSH
1: To set interrupt high priority of Serial port 0 is highest priority level.
3
PT1H
1: To set interrupt high priority of Timer 1 is highest priority level.
2 PX1H 1: To set interrupt high priority of External interrupt 1 is highest priority level.
1
PT0H
1: To set interrupt high priority of Timer 0 is highest priority level.
0
PX0H
1: To set interrupt high priority of External interrupt 0 is highest priority level.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 29 - Revision A06
Interrupt Priority 0
Bit: 7 6 5 4 3 2 1 0
- PC - PS PT1 PX1 PT0 PX0
Mnemonic: IP0 Address: B8h
BIT NAME FUNCTION
7 - This bit is un-implemented and will read high.
6
PC
1: To set interrupt priority of analog comparator is higher priority level.
5
-
This bit is un-implemented and will read high.
4
PS
1: To set interrupt priority of Serial port 0 is higher priority level.
3
PT1
1: To set interrupt priority of Timer 1 is higher priority level.
2 PX1 1: To set interrupt priority of External interrupt 1 is higher priority level.
1
PT0
1: To set interrupt priority of Timer 0 is higher priority level.
0
PX0
1: To set interrupt priority of External interrupt 0 is higher priority level.
SLAVE ADDRESS MASK ENABLE
Bit: 7 6 5 4 3 2 1 0
- - - - - - - -
Mnemonic: SADEN Address: B9h
BIT NAME FUNCTION
7~0
SADEN
This register enables the Automatic Address Recognition feature of the Serial
port 0. When a bit in the SADEN is set to 1, the same bit location in SADDR will
be compared with the incoming serial data. When SADEN is 0, then the bit
becomes a "don't care" in the comparison. This register enables the Automatic
Address Recognition feature of the Serial port 0. When all the bits of SADEN are
0, interrupt will occur for any incoming address.
NVM BYTE ADDRESS
Bit: 7 6 5 4 3 2 1 0
NVMADD
R.7 NVMADD
R.6 NVMADD
R.5 NVMADD
R.4 NVMADD
R.3 NVMADD
R.2 NVMADD
R.1 NVMADD
R.0
Mnemonic: NVMADDRL Address: C6h
BIT NAME FUNCTION
7
NVMADDR.7
Must be 0.
6~0
NVMADDR.[6:0]
The NVM low byte address:
The register indicates NVM data memory address on On-Chip code
memory space.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 30 -
TIMED ACCESS
Bit: 7 6 5 4 3 2 1 0
TA.7 TA.6 TA.5 TA.4 TA.3 TA.2 TA.1 TA.0
Mnemonic: TA Address: C7h
BIT NAME FUNCTION
7-0
TA.[7:0]
The Timed Access register:
The Timed Access register controls the access to protected bits. To access
protected bits, the user must first write AAH to the TA. This must be immediately
followed by a write of 55H to TA. Now a window is opened in the protected bits
for three machine cycles, during which the user can write to these bits.
NVM CONTROL
Bit: 7 6 5 4 3 2 1 0
EER EWR - - - - - -
Mnemonic: NVMCON Address: CEh
BIT NAME FUNCTION
7
EER
NVM page(n) erase bit:
0: Without erase NVM page(n).
1: Set this bit to erase page(n) of NVM. The NVM has 8 pages and each page
have 16 bytes data memory. Initiate page select by programming NVMADDRL
registers, which will automaticly enable page area. When user set this bit, the
page erase process will begin and program counter will halt at this instruction.
After the erase process is completed, program counter will continue executing
next instruction.
6
EWR
NVM data write bit:
0: Without write NVM data.
1: Set this bit to write NVM bytes and program counter will halt at this instruction.
After write is finished, program counter will kept next instruction then executed.
5-0
-
Reserved.
NVM DATA
Bit: 7 6 5 4 3 2 1 0
NVMDAT
A.7 NVMDAT
A.6 NVMDAT
A.5 NVMDAT
A.4 NVMDAT
A3 NVMDAT
A.2 NVMDAT
A.1 NVMDAT
A.0
Mnemonic: NVMDATA Address: CFh
BIT NAME FUNCTION
7~0 NVMDATA[7:0] The NVM data write register. The read NVM data is by MOVC instruction.
PROGRAM STATUS WORD
Bit: 7 6 5 4 3 2 1 0
CY AC F0 RS1 RS0 OV F1 P
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 31 - Revision A06
Mnemonic: PSW Address: D0h
BIT NAME FUNCTION
7
CY
Carry flag:
Set for an arithmetic operation which results in a carry being generated from the
ALU. It is also used as the accumulator for the bit operations.
6 AC Auxiliary carry:
Set when the previous operation resulted in a carry from the high order nibble.
5
F0
User flag 0:
The General purpose flag that can be set or cleared by the user.
4
RS1
Register bank select bits:
3
RS0
Register bank select bits:
2
OV
Overflow flag:
Set when a carry was generated from the seventh bit but not from the 8th bit as a
result of the previous operation, or vice-versa.
1 F1 User Flag 1:
The General purpose flag that can be set or cleared by the user by software.
0
P
Parity flag:
Set/cleared by hardware to indicate odd/even number of 1’s in the accumulator.
RS.1-0: Register bank selection bits:
RS1 RS0 Register bank Address
0
0
0
00-07h
0
1
1
08-0Fh
1
0
2
10-17h
1
1
3
18-1Fh
PWM COUNTER HIGH BITS REGISTER
Bit: 7 6 5 4 3 2 1 0
- - - - - - PWMP.9 PWMP.8
Mnemonic: PWMPH Address: D1h
BIT NAME FUNCTION
7-2 - Reserved.
1-0
PWMP.[9:8]
The PWM Counter Register bits 9~8.
PWM 0 HIGH BITS REGISTER
Bit: 7 6 5 4 3 2 1 0
- - - - - - PWM0.9 PWM0.8
Mnemonic: PWM0H Address: D2h
BIT NAME FUNCTION
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 32 -
7~2
-
Reserved.
1~0
PWM0.9~8
The PWM 0 Register bit 9~8.
PWM CONTROL REGISTER 3
Bit: 7 6 5 4 3 2 1 0
- - - PWM0OE - - FP1 FP0
Mnemonic: PWMCON3 Address: D7h
Bit Name Function
7
6
5
4 PWM0OE
PWM0 output enable bit.
0: PWM0 output disabled.
1: PWM0 output enabled. If P3.5 is set to high PWM0 will output through P3.5.
3~2
-
Reserved.
1~0 FP1~0
Select PWM frequency pre-scale select bits. The clock source of pre-scaler is in
phase with Fosc if PWMRUN=1, otherwise it is disabled.
FP1~0: PWM Prescaler select bits:
FP[1:0] Fpwm
00
FOSC
01
FOSC/2
10
FOSC/4
11 FOSC/16
WATCHDOG CONTROL
Bit: 7 6 5 4 3 2 1 0
WDRUN - WD1 WD0 WDIF WTRF EWRST WDCLR
Mnemonic: WDCON Address: D8h
BIT NAME FUNCTION
7 WDRUN 0: The Watchdog is stopped.
1: The Watchdog is running.
6
-
Reserved.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 33 - Revision A06
5~4 WD1~WD0
Watchdog Timer Time-out Select bits. These bits determine the time-out period of
the watchdog timer. The reset time-out period is 512 clocks longer than the
watchdog time-out.
WD1 WD0 Interrupt time-
out Reset
time-out
0 0 217 217 + 512
0 1 220 220 + 512
1 0 223 223 + 512
1 1 226 226 + 512
3 WDIF
Watchdog Timer Interrupt flag:
0: If the interrupt is not enabled, then this bit indicates that the time-out period has
elapsed. This bit must be cleared by software.
1: If the watchdog interrupt is enabled, hardware will set this bit to indicate that the
watchdog interrupt has occurred.
2 WTRF
Watchdog Timer Reset flag:
1: Hardware will set this bit when the watchdog timer causes a r
eset. Software can
read it but must clear it manually. A power-fail reset will also clear the bit. This
bit helps software in determining the cause of a reset. If EWRST = 0, the
watchdog timer will have no affect on this bit.
1 EWRST
0: Disable Watchdog Timer Reset.
1: Enable Watchdog Timer Reset.
0 WDCLR
Reset Watchdog Timer:
This bit helps in putting the watchdog timer into a know state. It also helps in
resetting the watchdog timer before a time-out occurs. Failing to set the EWRST
before time-out will cause an interrupt (if EWDI (EIE.4) is set), and 512 clocks
after that a watchdog timer reset will be generated (if EWRST is set). This bit is
self-clearing by hardware.
The WDCON SFR is set to a 0x000000B on a power-on-reset. WTRF (WDCON.2) is set to a 1 on
a Watchdog timer reset, but to a 0 on power on/down resets. WTRF (WDCON.2) is not altered by
an external reset. EWRST (WDCON.1) is set to 0 on all resets.
All the bits in this SFR have unrestricted read access. WDRUN, EWRST, WDIF and WDCLR
require Timed Access procedure to write. The remaining bits have unrestricted write accesses.
Please refer TA register description.
TA REG C7H
WDCON REG D8H
MOV TA, #AAH ; To access protected bits
MOV TA, #55H
SETB WDCON.0 ; Reset watchdog timer
ORL WDCON, #00110000B ; Select 26 bits watchdog timer
MOV TA, #AAH
MOV TA, #55H
ORL WDCON, #00000010B ; Enable watchdog
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 34 -
PWM COUNTER LOW BITS REGISTER
Bit: 7 6 5 4 3 2 1 0
PWMP.7 PWMP.6 PWMP.5 PWP.4 PWMP.3 PWMP.2 PWMP.1 PWMP.1
Mnemonic: PWMPL Address: D9h
Bit Name Function
7~0
PWMP
PWM Counter Low Bits Register.
PWM 0 LOW BITS REGISTER
Bit: 7 6 5 4 3 2 1 0
PWM0.7 PWM0.6 PWM0.5 PWM0.4 PWM0.3 PWM0.2 PWM0.1 PWM0.1
Mnemonic: PWM0L Address: DAh
Bit Name Function
7~0
PWM0
PWM 0 Low Bits Register.
PWM CONTROL REGISTER 1
Bit: 7 6 5 4 3 2 1 0
PWMRUN Load PWMF CLRPWM - - - PWM0I
Mnemonic: PWMCON1 Address: DCh
Bit Name Function
7 PWMRUN
Enable PWM running bit
0: The PWM is not running.
1: The PWM counter is running.
6 Load
Enable PWM counter and register re-load
0: The registers value of PWMP and Comparators are never loaded to counter
and Comparator registers.
1: The PWMP register will be load value to counter register after counter
underflow and hardware will clear by next clock cycle.
5 PWMF
PWM underflow flag.
0: No underflow.
1: PWM 10-bit down counter underflows (PWM interrupt is requested if PWM
interrupt is enabled).
4 CLRPWM
Clear PWM counter
1: Clear 10-bit PWM counter to 000H.
It is automatically cleared by hardware.
3~1 - Reserved
0 PWM0I
Inverse PWM output level
0: PWM0 output is non-inverted.
1: PWM0 output is inverted.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 35 - Revision A06
ACCUMULATOR
Bit: 7 6 5 4 3 2 1 0
ACC.7 ACC.6 ACC.5 ACC.4 ACC.3 ACC.2 ACC.1 ACC.0
Mnemonic: ACC Address: E0h
Bit Name Function
7-0 ACC The A or ACC register is the standard 8052 accumulator.
INTERRUPT ENABLE REGISTER 1
Bit: 7 6 5 4 3 2 1 0
- EBOV EPWM EWDI - - - -
Mnemonic: EIE Address: E8h
BIT NAME FUNCTION
7
-
Reserved.
6
EBOV
0: Disable Brownout interrupt.
1: Enable Brownout interrupt.
5 EPWM 0: Disable PWM underflow interrupt.
1: Enable PWM underflow interrupt.
4
EWDI
0: Disable Watchdog Timer Interrupt.
1: Enable Watchdog Timer Interrupt.
3-0
-
Reserved.
B REGISTER
Bit: 7 6 5 4 3 2 1 0
B.7 B.6 B.5 B.4 B.3 B.2 B.1 B.0
Mnemonic: B Address: F0h
Bit Name Function
7-0 B The B register is the standard 8052 register that serves as a second accumulator.
PORT COMPARATOR INPUT DISABLE
Bit: 7 6 5 4 3 2 1 0
- - - - - - Bit1 Bit0
Mnemonic: PCMPIDS Address: F6h
Bit Name Function
7-2
-
Reserved
1 PCMPIDS.1 P1.1 digital input disable bit.
0: Default (With digital/analog input).
1: Disable Digital Input of Comparator Input 1(Negative end)
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 36 -
0
PCMPIDS.0
P1.0 digital input disable bit.
0: Default (With digital/analog input).
1: Disable Digital Input of Comparator Input 1(Positive end)
INTERRUPT HIGH PRIORITY 1
Bit: 7 6 5 4 3 2 1 0
- PBOVH PPWMH PWDIH - - - -
Mnemonic: IP1H Address: F7h
BIT NAME FUNCTION
7
-
Reserved.
6 PBOVH 1: To set interrupt priority of Brownout interrupt is highest priority level.
5
PPWMH
1: To set interrupt priority of PWM underflow is highest priority level.
4
PWDIH
1: To set interrupt high priority of Watchdog is highest priority level.
3-0
-
Reserved.
EXTENDED INTERRUPT PRIORITY
Bit: 7 6 5 4 3 2 1 0
- PBOV PPWM PWDI - - - -
Mnemonic: IP1 Address: F8h
BIT NAME FUNCTION
7
-
Reserved.
6 PBOV 1: To set interrupt priority of Brownout interrupt is higher priority level.
5
PPWM
1: To set interrupt priority of PWM underflow is higher priority level.
4
PWDI
1: To set interrupt priority of Watchdog is higher priority level.
3-0
-
Reserved.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 37 - Revision A06
9 INSTRUCTION
The W79E4051/2051 series execute all the instructions of the standard 8052 family. The operations of
these instructions, as well as their effects on flag and status bits, are exactly same. However, the
timing of these instructions is different in two ways. Firstly, the machine cycle is four clock periods,
while the standard-8051/52 machine cycle is twelve clock periods. Secondly, it can fetch only once per
machine cycle (i.e., four clocks per fetch), while the standard 8051/52 can fetch twice per machine
cycle (i.e., six clocks per fetch).
The timing differences create an advantage for the W79E4051/2051 series. There is only one fetch
per machine cycle, so the number of machine cycles is usually equal to the number of operands in the
instruction. (Jumps and calls do require an additional cycle to calculate the new address.) As a result,
the W79E4051/2051 series reduces the number of dummy fetches and wasted cycles, and therefore
improves overall efficiency, compared to the standard 8051/52.
Op-code HEX Code Bytes W79E4051
/2051
series
Machine
Cycle
W79E4051
/2051
series
Clock
cycles
8032
Clock
cycles
W79E4051/205
1 series vs.
8032 Speed
Ratio
NOP 00 1 1 4 12 3
ADD A, R0 28 1 1 4 12 3
ADD A, R1 29 1 1 4 12 3
ADD A, R2 2A 1 1 4 12 3
ADD A, R3 2B 1 1 4 12 3
ADD A, R4 2C 1 1 4 12 3
ADD A, R5 2D 1 1 4 12 3
ADD A, R6 2E 1 1 4 12 3
ADD A, R7 2F 1 1 4 12 3
ADD A, @R0 26 1 1 4 12 3
ADD A, @R1 27 1 1 4 12 3
ADD A, direct 25 2 2 8 12 1.5
ADD A, #data 24 2 2 8 12 1.5
ADDC A, R0 38 1 1 4 12 3
ADDC A, R1 39 1 1 4 12 3
ADDC A, R2 3A 1 1 4 12 3
ADDC A, R3 3B 1 1 4 12 3
ADDC A, R4 3C 1 1 4 12 3
ADDC A, R5 3D 1 1 4 12 3
ADDC A, R6 3E 1 1 4 12 3
ADDC A, R7 3F 1 1 4 12 3
ADDC A, @R0 36 1 1 4 12 3
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 38 -
Op-code HEX Code Bytes W79E4051
/2051
series
Machine
Cycle
W79E4051
/2051
series
Clock
cycles
8032
Clock
cycles
W79E4051/205
1 series vs.
8032 Speed
Ratio
ADDC A, @R1 37 1 1 4 12 3
ADDC A, direct 35 2 2 8 12 1.5
ADDC A, #data 34 2 2 8 12 1.5
SUBB A, R0 98 1 1 4 12 3
SUBB A, R1 99 1 1 4 12 3
SUBB A, R2 9A 1 1 4 12 3
SUBB A, R3 9B 1 1 4 12 3
SUBB A, R4 9C 1 1 4 12 3
SUBB A, R5 9D 1 1 4 12 3
SUBB A, R6 9E 1 1 4 12 3
SUBB A, R7 9F 1 1 4 12 3
SUBB A, @R0 96 1 1 4 12 3
SUBB A, @R1 97 1 1 4 12 3
SUBB A, direct 95 2 2 8 12 1.5
SUBB A, #data 94 2 2 8 12 1.5
INC A 04 1 1 4 12 3
INC R0 08 1 1 4 12 3
INC R1 09 1 1 4 12 3
INC R2 0A 1 1 4 12 3
INC R3 0B 1 1 4 12 3
INC R4 0C 1 1 4 12 3
INC R5 0D 1 1 4 12 3
INC R6 0E 1 1 4 12 3
INC R7 0F 1 1 4 12 3
INC @R0 06 1 1 4 12 3
INC @R1 07 1 1 4 12 3
INC direct 05 2 2 8 12 1.5
INC DPTR A3 1 2 8 24 3
DEC A 14 1 1 4 12 3
DEC R0 18 1 1 4 12 3
DEC R1 19 1 1 4 12 3
DEC R2 1A 1 1 4 12 3
DEC R3 1B 1 1 4 12 3
DEC R4 1C 1 1 4 12 3
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 39 - Revision A06
Op-code HEX Code Bytes W79E4051
/2051
series
Machine
Cycle
W79E4051
/2051
series
Clock
cycles
8032
Clock
cycles
W79E4051/205
1 series vs.
8032 Speed
Ratio
DEC R5 1D 1 1 4 12 3
DEC R6 1E 1 1 4 12 3
DEC R7 1F 1 1 4 12 3
DEC @R0 16 1 1 4 12 3
DEC @R1 17 1 1 4 12 3
DEC direct 15 2 2 8 12 1.5
MUL AB A4 1 5 20 48 2.4
DIV AB 84 1 5 20 48 2.4
DA A D4 1 1 4 12 3
ANL A, R0 58 1 1 4 12 3
ANL A, R1 59 1 1 4 12 3
ANL A, R2 5A 1 1 4 12 3
ANL A, R3 5B 1 1 4 12 3
ANL A, R4 5C 1 1 4 12 3
ANL A, R5 5D 1 1 4 12 3
ANL A, R6 5E 1 1 4 12 3
ANL A, R7 5F 1 1 4 12 3
ANL A, @R0 56 1 1 4 12 3
ANL A, @R1 57 1 1 4 12 3
ANL A, direct 55 2 2 8 12 1.5
ANL A, #data 54 2 2 8 12 1.5
ANL direct, A 52 2 2 8 12 1.5
ANL direct, #data 53 3 3 12 24 2
ORL A, R0 48 1 1 4 12 3
ORL A, R1 49 1 1 4 12 3
ORL A, R2 4A 1 1 4 12 3
ORL A, R3 4B 1 1 4 12 3
ORL A, R4 4C 1 1 4 12 3
ORL A, R5 4D 1 1 4 12 3
ORL A, R6 4E 1 1 4 12 3
ORL A, R7 4F 1 1 4 12 3
ORL A, @R0 46 1 1 4 12 3
ORL A, @R1 47 1 1 4 12 3
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 40 -
Op-code HEX Code Bytes W79E4051
/2051
series
Machine
Cycle
W79E4051
/2051
series
Clock
cycles
8032
Clock
cycles
W79E4051/205
1 series vs.
8032 Speed
Ratio
ORL A, direct 45 2 2 8 12 1.5
ORL A, #data 44 2 2 8 12 1.5
ORL direct, A 42 2 2 8 12 1.5
ORL direct, #data 43 3 3 12 24 2
XRL A, R0 68 1 1 4 12 3
XRL A, R1 69 1 1 4 12 3
XRL A, R2 6A 1 1 4 12 3
XRL A, R3 6B 1 1 4 12 3
XRL A, R4 6C 1 1 4 12 3
XRL A, R5 6D 1 1 4 12 3
XRL A, R6 6E 1 1 4 12 3
XRL A, R7 6F 1 1 4 12 3
XRL A, @R0 66 1 1 4 12 3
XRL A, @R1 67 1 1 4 12 3
XRL A, direct 65 2 2 8 12 1.5
XRL A, #data 64 2 2 8 12 1.5
XRL direct, A 62 2 2 8 12 1.5
XRL direct, #data 63 3 3 12 24 2
CLR A E4 1 1 4 12 3
CPL A F4 1 1 4 12 3
RL A 23 1 1 4 12 3
RLC A 33 1 1 4 12 3
RR A 03 1 1 4 12 3
RRC A 13 1 1 4 12 3
SWAP A C4 1 1 4 12 3
MOV A, R0 E8 1 1 4 12 3
MOV A, R1 E9 1 1 4 12 3
MOV A, R2 EA 1 1 4 12 3
MOV A, R3 EB 1 1 4 12 3
MOV A, R4 EC 1 1 4 12 3
MOV A, R5 ED 1 1 4 12 3
MOV A, R6 EE 1 1 4 12 3
MOV A, R7 EF 1 1 4 12 3
MOV A, @R0 E6 1 1 4 12 3
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 41 - Revision A06
Op-code HEX Code Bytes W79E4051
/2051
series
Machine
Cycle
W79E4051
/2051
series
Clock
cycles
8032
Clock
cycles
W79E4051/205
1 series vs.
8032 Speed
Ratio
MOV A, @R1 E7 1 1 4 12 3
MOV A, direct E5 2 2 8 12 1.5
MOV A, #data 74 2 2 8 12 1.5
MOV R0, A F8 1 1 4 12 3
MOV R1, A F9 1 1 4 12 3
MOV R2, A FA 1 1 4 12 3
MOV R3, A FB 1 1 4 12 3
MOV R4, A FC 1 1 4 12 3
MOV R5, A FD 1 1 4 12 3
MOV R6, A FE 1 1 4 12 3
MOV R7, A FF 1 1 4 12 3
MOV R0, direct A8 2 2 8 12 1.5
MOV R1, direct A9 2 2 8 12 1.5
MOV R2, direct AA 2 2 8 12 1.5
MOV R3, direct AB 2 2 8 12 1.5
MOV R4, direct AC 2 2 8 12 1.5
MOV R5, direct AD 2 2 8 12 1.5
MOV R6, direct AE 2 2 8 12 1.5
MOV R7, direct AF 2 2 8 12 1.5
MOV R0, #data 78 2 2 8 12 1.5
MOV R1, #data 79 2 2 8 12 1.5
MOV R2, #data 7A 2 2 8 12 1.5
MOV R3, #data 7B 2 2 8 12 1.5
MOV R4, #data 7C 2 2 8 12 1.5
MOV R5, #data 7D 2 2 8 12 1.5
MOV R6, #data 7E 2 2 8 12 1.5
MOV R7, #data 7F 2 2 8 12 1.5
MOV @R0, A F6 1 1 4 12 3
MOV @R1, A F7 1 1 4 12 3
MOV @R0, direct A6 2 2 8 12 1.5
MOV @R1, direct A7 2 2 8 12 1.5
MOV @R0, #data 76 2 2 8 12 1.5
MOV @R1, #data 77 2 2 8 12 1.5
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 42 -
Op-code HEX Code Bytes W79E4051
/2051
series
Machine
Cycle
W79E4051
/2051
series
Clock
cycles
8032
Clock
cycles
W79E4051/205
1 series vs.
8032 Speed
Ratio
MOV direct, A F5 2 2 8 12 1.5
MOV direct, R0 88 2 2 8 12 1.5
MOV direct, R1 89 2 2 8 12 1.5
MOV direct, R2 8A 2 2 8 12 1.5
MOV direct, R3 8B 2 2 8 12 1.5
MOV direct, R4 8C 2 2 8 12 1.5
MOV direct, R5 8D 2 2 8 12 1.5
MOV direct, R6 8E 2 2 8 12 1.5
MOV direct, R7 8F 2 2 8 12 1.5
MOV direct, @R0 86 2 2 8 12 1.5
MOV direct, @R1 87 2 2 8 12 1.5
MOV direct, direct 85 3 3 12 24 2
MOV direct, #data 75 3 3 12 24 2
MOV DPTR, #data 16 90 3 3 12 24 2
MOVC A, @A+DPTR 93 1 2 8 24 3
MOVC A, @A+PC 83 1 2 8 24 3
MOVX A, @R0 E2 1 2 - 9 8 - 36 24 3 - 0.66
MOVX A, @R1 E3 1 2 - 9 8 - 36 24 3 - 0.66
MOVX A, @DPTR E0 1 2 - 9 8 - 36 24 3 - 0.66
MOVX @R0, A F2 1 2 - 9 8 - 36 24 3 - 0.66
MOVX @R1, A F3 1 2 - 9 8 - 36 24 3 - 0.66
MOVX @DPTR, A F0 1 2 - 9 8 - 36 24 3 - 0.66
PUSH direct C0 2 2 8 24 3
POP direct D0 2 2 8 24 3
XCH A, R0 C8 1 1 4 12 3
XCH A, R1 C9 1 1 4 12 3
XCH A, R2 CA 1 1 4 12 3
XCH A, R3 CB 1 1 4 12 3
XCH A, R4 CC 1 1 4 12 3
XCH A, R5 CD 1 1 4 12 3
XCH A, R6 CE 1 1 4 12 3
XCH A, R7 CF 1 1 4 12 3
XCH A, @R0 C6 1 1 4 12 3
XCH A, @R1 C7 1 1 4 12 3
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 43 - Revision A06
Op-code HEX Code Bytes W79E4051
/2051
series
Machine
Cycle
W79E4051
/2051
series
Clock
cycles
8032
Clock
cycles
W79E4051/205
1 series vs.
8032 Speed
Ratio
XCHD A, @R0 D6 1 1 4 12 3
XCHD A, @R1 D7 1 1 4 12 3
XCH A, direct C5 2 2 8 12 1.5
CLR C C3 1 1 4 12 3
CLR bit C2 2 2 8 12 1.5
SETB C D3 1 1 4 12 3
SETB bit D2 2 2 8 12 1.5
CPL C B3 1 1 4 12 3
CPL bit B2 2 2 8 12 1.5
ANL C, bit 82 2 2 8 24 3
ANL C, /bit B0 2 2 6 24 3
ORL C, bit 72 2 2 8 24 3
ORL C, /bit A0 2 2 6 24 3
MOV C, bit A2 2 2 8 12 1.5
MOV bit, C 92 2 2 8 24 3
ACALL addr11 71, 91, B1,
11, 31, 51,
D1, F1
2 3 12 24 2
LCALL addr16 12 3 4 16 24 1.5
RET 22 1 2 8 24 3
RETI 32 1 2 8 24 3
AJMP ADDR11 01, 21, 41,
61, 81, A1,
C1, E1
2 3 12 24 2
LJMP addr16 02 3 4 16 24 1.5
JMP @A+DPTR 73 1 2 6 24 3
SJMP rel 80 2 3 12 24 2
JZ rel 60 2 3 12 24 2
JNZ rel 70 2 3 12 24 2
JC rel 40 2 3 12 24 2
JNC rel 50 2 3 12 24 2
JB bit, rel 20 3 4 16 24 1.5
JNB bit, rel 30 3 4 16 24 1.5
JBC bit, rel 10 3 4 16 24 1.5
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 44 -
Op-code HEX Code Bytes W79E4051
/2051
series
Machine
Cycle
W79E4051
/2051
series
Clock
cycles
8032
Clock
cycles
W79E4051/205
1 series vs.
8032 Speed
Ratio
CJNE A, direct, rel B5 3 4 16 24 1.5
CJNE A, #data, rel B4 3 4 16 24 1.5
CJNE @R0, #data, rel B6 3 4 16 24 1.5
CJNE @R1, #data, rel B7 3 4 16 24 1.5
CJNE R0, #data, rel B8 3 4 16 24 1.5
CJNE R1, #data, rel B9 3 4 16 24 1.5
CJNE R2, #data, rel BA 3 4 16 24 1.5
CJNE R3, #data, rel BB 3 4 16 24 1.5
CJNE R4, #data, rel BC 3 4 16 24 1.5
CJNE R5, #data, rel BD 3 4 16 24 1.5
CJNE R6, #data, rel BE 3 4 16 24 1.5
CJNE R7, #data, rel BF 3 4 16 24 1.5
DJNZ R0, rel D8 2 3 12 24 2
DJNZ R1, rel D9 2 3 12 24 2
DJNZ R5, rel DD 2 3 12 24 2
DJNZ R2, rel DA 2 3 12 24 2
DJNZ R3, rel DB 2 3 12 24 2
DJNZ R4, rel DC 2 3 12 24 2
DJNZ R6, rel DE 2 3 12 24 2
DJNZ R7, rel DF 2 3 12 24 2
DJNZ direct, rel D5 3 4 16 24 1.5
Table 9-1: Instruction Set for W79E4051/2051
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 45 - Revision A06
9.1 Instruction Timing
In W79E4051/2051 series, each machine cycle is four clock periods long. Each clock period is called a
state, and each machine cycle consists of four states: C1, C2 C3 and C4, in order. Both clock edges
are used for internal timing, so the duty cycle of the clock should be as close to 50% as possible to
avoid timing conflicts.
The W79E4051/2051 series does one op-code fetch per machine cycle, so, in most instructions, the
number of machine cycles required is equal to the number of bytes in the instruction. There are 256
available op-codes. 128 of them are single-cycle instructions, so many op-codes are executed in just
four clocks period. Some of the other op-codes are two-cycle instructions, and most of these have
two-byte op-codes. However, there are some instructions that have one-byte instructions yet take two
cycles to execute.
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 46 -
10 POWER MANAGEMENT
The W79E4051/2051 series has several features that help the user to control the power consumption
of the device. These modes are discussed in the next two sections.
10.1 Idle Mode
The user can put the device into idle mode by writing 1 to the bit PCON.0. The instruction that sets the
idle bit is the last instruction that will be executed before the device goes into Idle Mode. In the Idle
mode, the clock to the CPU is halted, but not to the Interrupt, Timer, Watchdog timer, PWM, Analog
Comparator(CIPE=1) and Serial port blocks. This forces the CPU state to be frozen; the Program
counter, the Stack Pointer, the Program Status Word, the Accumulator and the other registers hold
their contents. The port pins hold the logical states they had at the time Idle was activated. The Idle
mode can be terminated in two ways. Since the interrupt controller is still active, the activation of any
enabled interrupt can wake up the processor. This will automatically clear the Idle bit, terminate the
Idle mode, and the Interrupt Service Routine (ISR) will be executed. After the ISR, execution of the
program will continue from the instruction which put the device into Idle Mode.
The Idle mode can also be exited by activating the reset. The device can put into reset either by
applying a high on the external RST pin, a Power on reset condition or a Watchdog timer reset. The
external reset pin has to be held high for at least two machine cycles i.e. 8 clock periods to be
recognized as a valid reset. In the reset condition the program counter is reset to 0000h and all the
SFRs are set to the reset condition. Since the clock is already running there is no delay and execution
starts immediately. In the Idle mode, the Watchdog timer continues to run, and if enabled, a time-out
will cause a watchdog timer interrupt which will wake up the device. The software must reset the
Watchdog timer in order to preempt the reset which will occur after 512 clock periods of the time-out.
When the W79E4051/2051 series are exiting from an Idle Mode with a reset, the instruction following
the one which put the device into Idle Mode is not executed. So there is no danger of unexpected
writes.
P1.0 and P1.1 should be set to 1 if external pull-ups are applied, or set to 0 if without external pull-ups,
or configured to quasi I/O mode by setting P1M1 bit0 and bit1 to high.
10.2 Power Down Mode
The device can be put into Power Down mode by writing 1 to bit PCON.1. The instruction that does
this will be the last instruction to be executed before the device goes into Power Down mode. In the
Power Down mode, all the clocks are stopped and the device comes to a halt. All activity, exception of
Brownout reset,
1INT
,
0INT
, watchdog timer(Config0.WDTCK=0) and Analog Comparator(CIPE=1),
is completely stopped and the power consumption is reduced to the lowest possible value. The port
pins output the values held by their respective SFRs.
Before CPU enters power-down mode, P1.0 and P1.1 should be set to 1 if external pull-ups are
applied, or set to 0 if without external pull-ups, or configured to quasi I/O mode by setting P1M1 bit0
and bit1 to high.
An external reset can be used to exit the Power down state. The high on RST pin terminates the
Power Down mode, and restarts the clock. The program execution will restart from 0000h. In the
Power down mode, the clock is stopped, so the Watchdog timer cannot be used to provide the reset to
exit Power down mode when its clock source is external OSC or crystal.
The sources that can wake up from the power down mode are external interrupts, brownout reset
(BOR), watchdog timer interrupt (if Config0 bit WDTCK = 0) and Analog Comparator(if SFR bit
n UVOTO n E Keep low over
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 47 - Revision A06
CIPE=1). The W79E4051/2051 series can be waken up from the Power Down mode by forcing the
above sources activation, provided the corresponding interrupt is enabled, while the global enable
(EA) bit is set. If these conditions are met, then interrupt event will re-start the oscillator. The device
will then execute the interrupt service routine for the corresponding external interrupt. After the
interrupt service routine is completed, the program execution returns to the instruction after one which
put the device into Power Down mode and continues from there. During Power down mode, if
AUXR1.LPBOV = 1 and AUXR1.BOD = 0, the internal RC clock will be enabled and hence save
power.
In W79E4051/2051 series either a low-level or a falling-edge at external interrupt pin,
1INT
or
0INT
will re-start the oscillator. W79E4051/2051 provides 3 wake-up modes, selected by SFR
bits PWDEX1 and PWDEX0, that the external interrupt pins can terminate power-down mode.
Refer to the table below.

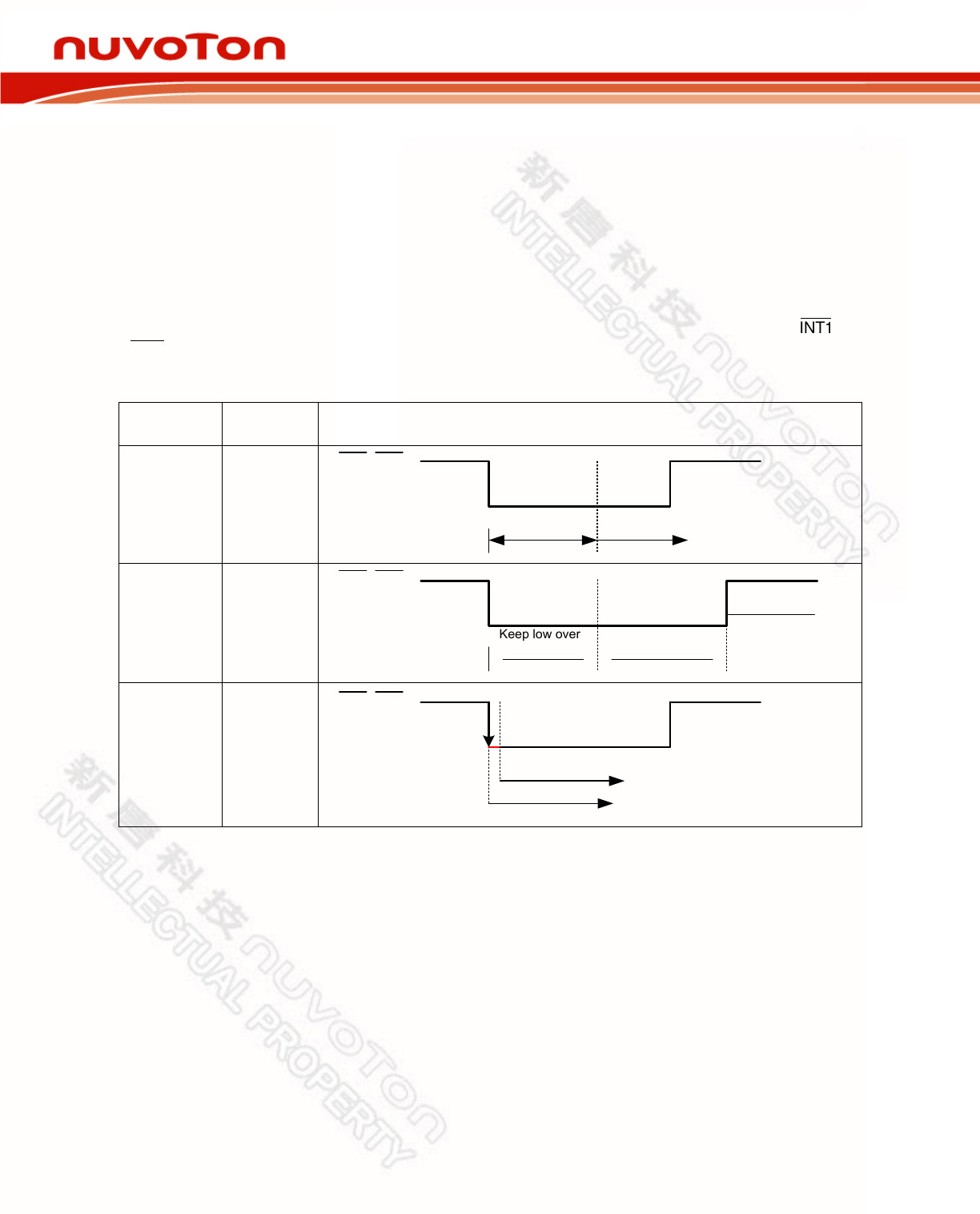

PWDEX[1:0] TRIGGER
TYPE FUNCTION TO TERMINATE POWER-DOWN MODE
0, 0
(Mode1)
Low-level
INT0, INT1
Oscillator re-start,
Program resume
Keep low over
Tpd
0, 1
(Mode2)
Low-level
Keep low over
Tpd
INT0, INT1
CPU keep in
power-down mode
Oscillator re-start,
Program resume
1, x
(Mode3)
Low-level
and
Falling-
edge
INT0, INT1
Oscillator re-start,
Program resume Low-level
Falling-edge
In mode1 and mode2, the external interrupt pin must keep low longer than Tpd otherwise CPU stays
in power-down mode continuously. Tpd is about 2mS counted by built-in RC oscillator.
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 48 -
11 RESET CONDITIONS
The user has several hardware related options for placing the W79E4051/2051 series into reset
condition. In general, most register bits go to their reset value irrespective of the reset condition, but
there are a few flags whose state depends on the source of reset. The user can use these flags to
determine the cause of reset using software.
11.1 Sources of reset
11.1.1 External Reset
The device samples the RST pin every machine cycle during state C4. The RST pin must be held high
for at least two machine cycles before the reset circuitry applies an internal reset signal. Thus, this
reset is a synchronous operation and requires the clock to be running.
The device remains in the reset state as long as RST pin is high and remains high up to two machine
cycles after RST is deactivated. Then, the device begins program execution at 0000h. There are no
flags associated with the external reset, but, since the other two reset sources do have flags, the
external reset is the cause if those flags are clear.
11.1.2 Power-On Reset (POR)
If the power supply falls below VRST, the device goes into the reset state. When the power supply
returns to proper levels, the device performs a power-on reset and sets the POR flag. The software
should clear the POR flag, or it will be difficult to determine the source of future resets. VRST is about
2.0V.
11.1.3 Brown-Out Reset (BOR)
If the power supply falls below brownout voltage of VBOV, the device goes into the reset state. When
the power supply returns to proper levels, the device performs a brownout reset.
11.1.4 Watchdog Timer Reset
The Watchdog Timer is a free-running timer with programmable time-out intervals. The program must
clear the Watchdog Timer before the time-out interval is reached to restart the count. If the time-out
interval is reached, an interrupt flag is set. 512 clocks later, if the Watchdog Reset is enabled and the
Watchdog Timer has not been cleared, the Watchdog Timer generates a reset. The reset condition is
maintained by the hardware for two machine cycles, and the WTRF bit in WDCON is set. Afterwards,
the device begins program execution at 0000h.
11.2 Reset State
When the device is reset, most registers return to their initial state. The Watchdog Timer is disabled if
the reset source was a power-on reset. The port registers are set to FFh, which puts most of the port
pins in a high state. The Program Counter is set to 0000h, and the stack pointer is reset to 07h. After
this, the device remains in the reset state as long as the reset conditions are satisfied.
Reset does not affect the on-chip RAM, however, so RAM is preserved as long as VDD remains
above approximately 2V, the minimum operating voltage for the RAM. If VDD falls below 2V, the RAM
contents are also lost. In either case, the stack pointer is always reset, so the stack contents are lost.
The WDCON SFR bits are set/cleared in reset condition depending on the source of the reset. The
WDCON SFR is set to a 0x00 0000B on the reset. WTRF (WDCON.2) is set to a 1 on a Watchdog
timer reset, but to a 0 on power on/down resets. WTRF (WDCON.2) is not altered by external reset.
EWRST (WDCON.1) is cleared by any reset. Software or any reset will clear WDIF (WDCON.3) bit.
n UVOTO n = 3— I VIII” (BOR Ian-m) I VIII (gen En-bIe) VI I van Pawer woe NaIm-I Run I I I I —.—.—.—.—55I— I — I I I I I was RST ' ' ! ' I I I I I I I I I I I I I I ! was sup I I I I I I I I I I I I I I I Sys|em NuImII Run I I I r f I I I I a.) | I I I symm Status I I V I I I Syneg' In Iem Synem In rem : : I I I I I I I I I I I I I I I‘ >I I‘i’l I I‘ ’i I5"2 ' ' I I I I I 2W|Ichdog ”I‘M” WHEY {Inks cIysI-I 65536 :Iocks cIysIaI 65536 docks IImer :lwcks Imam-I RC 255 (lacks Imam-I RC 255 :IacIIs
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 49 - Revision A06
Some of the bits in the WDCON SFR (WDRUN, WDCLR, EWRST, WDIF, WD0 and WD1) have
unrestricted read access which required Timed Access procedure to write. The remaining bits have
unrestricted write accesses. Please refer TA register description.

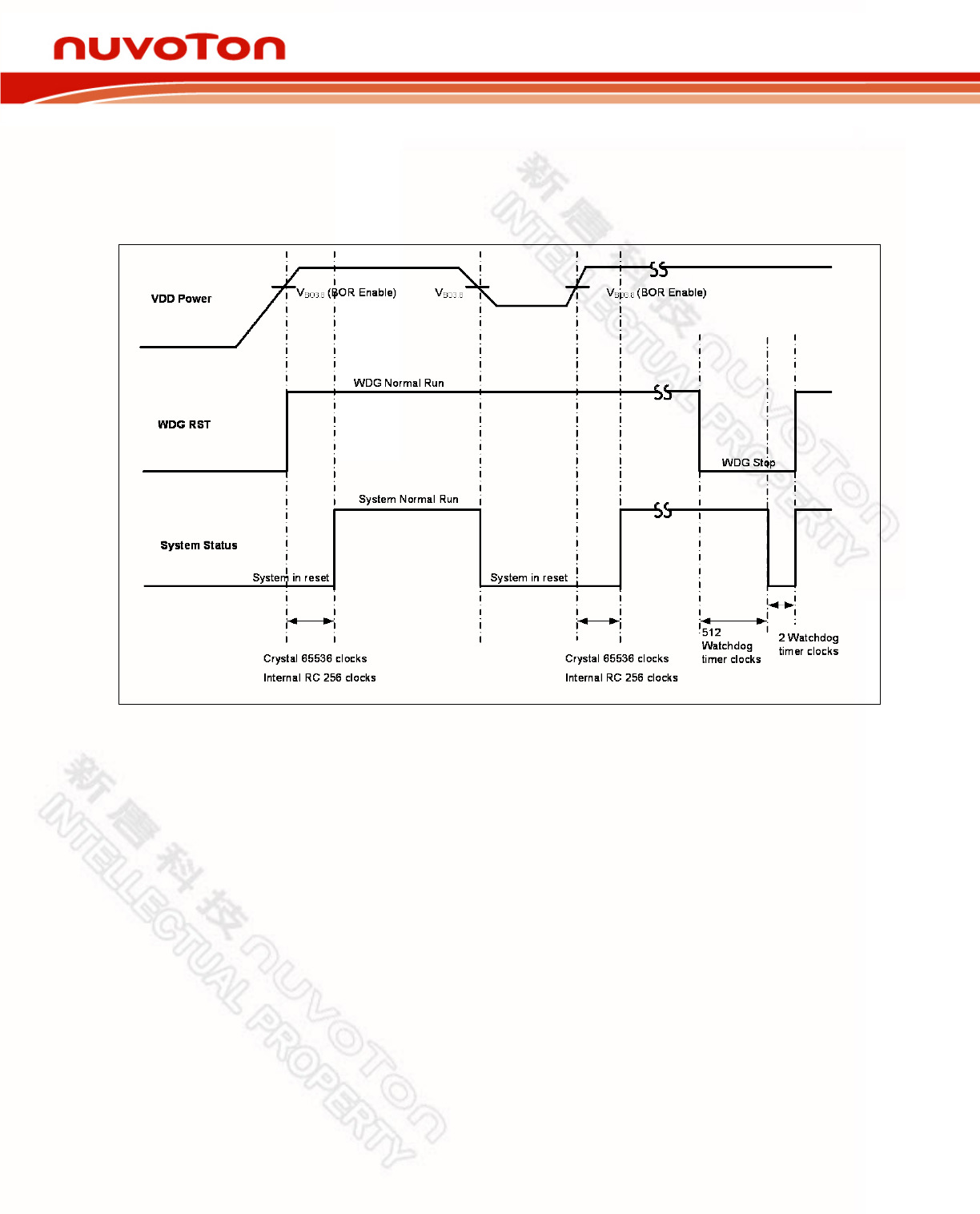

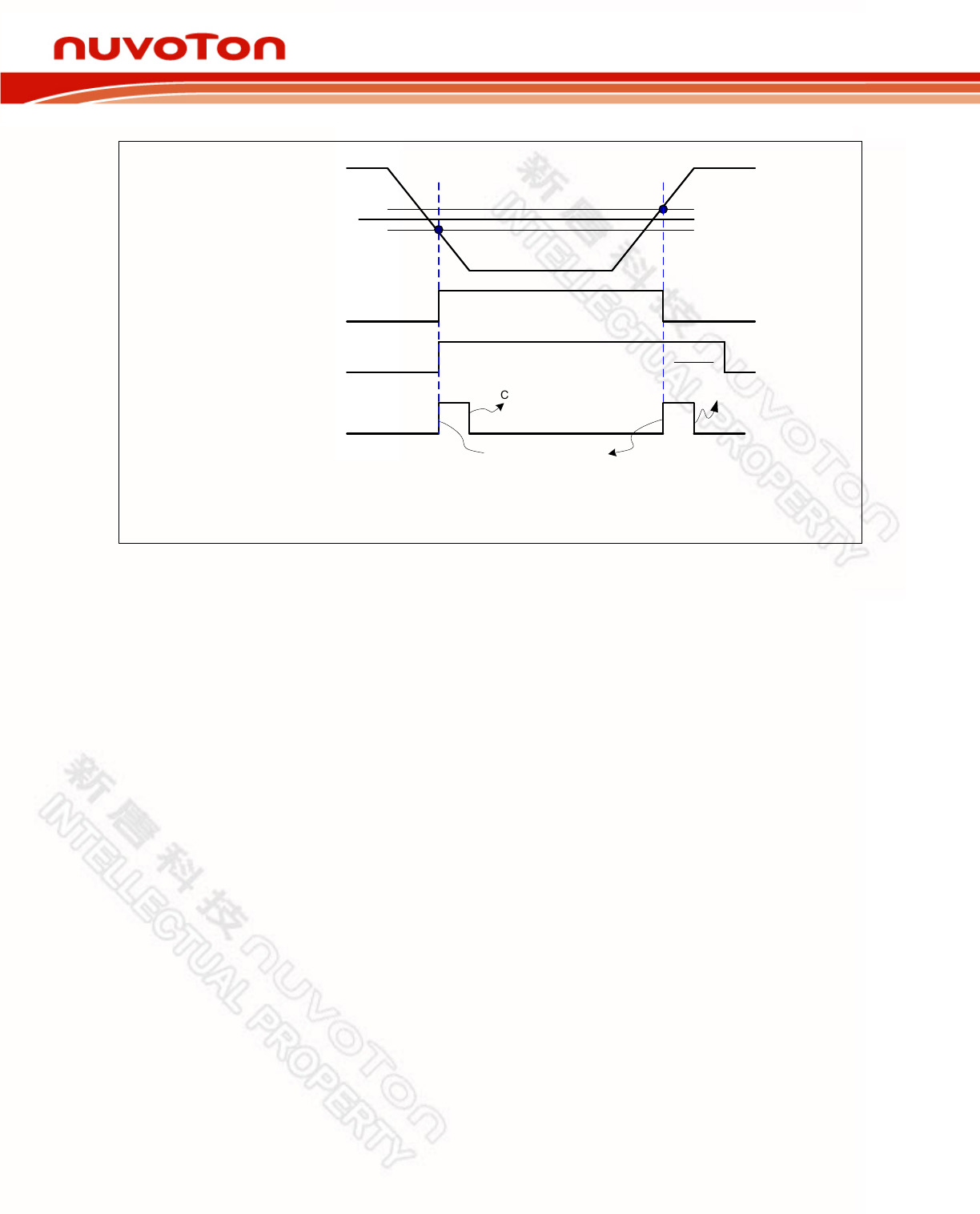

Figure 11-1: Internal reset and VDD monitor timing diagram
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 50 -
System Status
System in reset
System Normal Run
External RST Pin
VDD Power
0.3VDD
Crystal 65536 clocks
Internal RC 256 clocks
System within Power Down Mode
System not in Power Down Mode
At least 4 clocks
V
BO3.8
(BOR Enable)
Crystal 65536 clocks
Internal RC 256 clocks
System in reset
0.7VDD

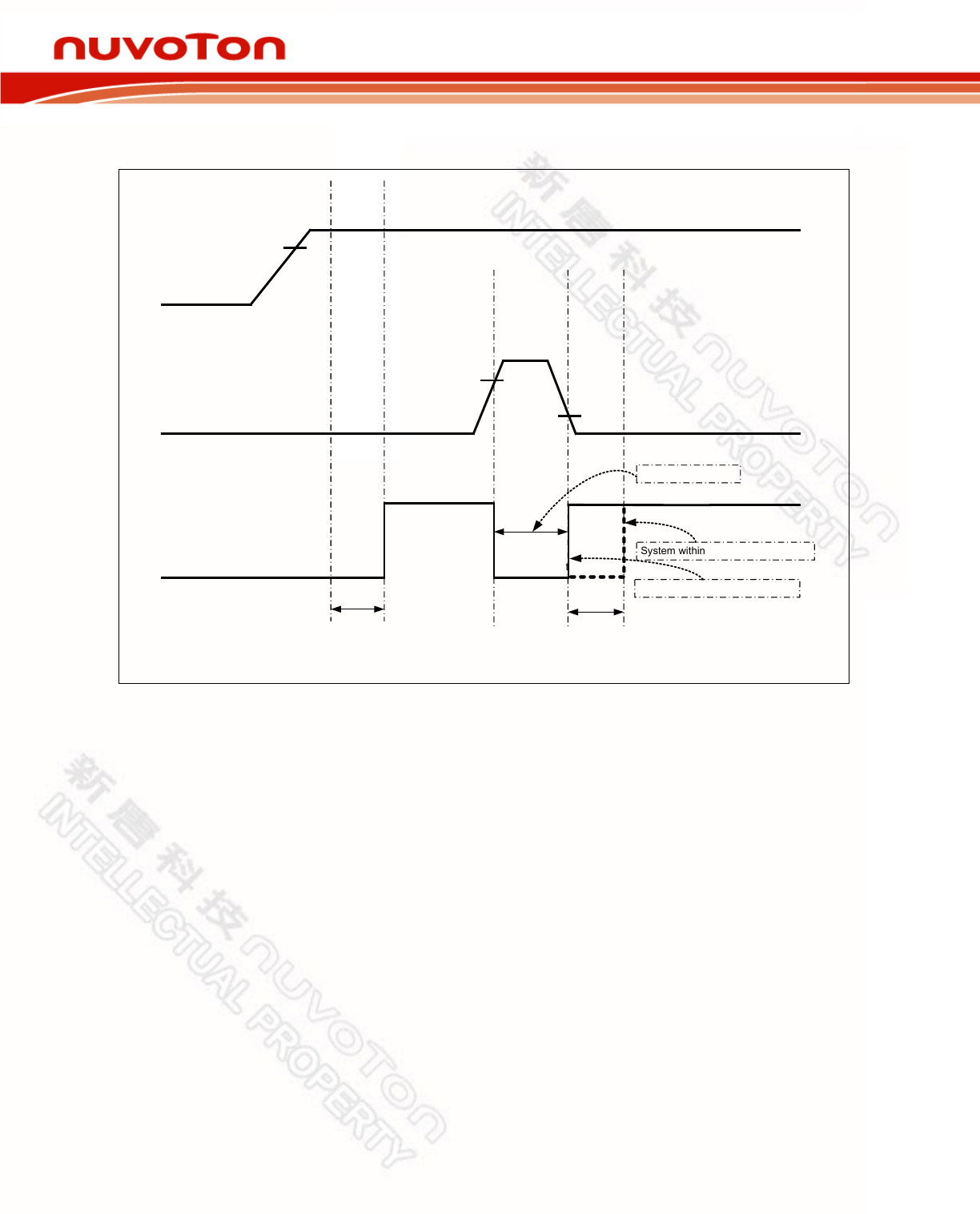

Figure 11-2: External reset timing diagram
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 51 - Revision A06
12 INTERRUPTS
The W79E4051/2051 series have 9 interrupts source that are IE0, BOF, WDIF, TF0, CF, IE1, TF1,
TI+RI and PWMF. Each of the interrupt sources has an individual priority bit, flag, interrupt vector and
enable bit. In addition, the interrupts can be globally enabled or disabled.
If an external interrupt is requested when the W79E4051/2051 series are put into Power Down or Idle
mode, the interrupt will cause the processor to wake up and resume operation.
12.1 Interrupt Sources
The External Interrupts
INT0
and
INT1
can be either edge triggered or level triggered, programmable
through bits IT0 and IT1. The bits IE0 and IE1 in the TCON register are the flags which are checked to
generate the interrupt. In the edge triggered mode, the INTx inputs are sampled in every machine
cycle. If the sample is high in one cycle and low in the next, then a high to low transition is detected
and the interrupts request flag IEx in TCON is set. The flag bit requests the interrupt. Since the
external interrupts are sampled every machine cycle, they have to be held high or low for at least one
complete machine cycle. The IEx flag is automatically cleared when the service routine is called. If the
level triggered mode is selected, then the requesting source has to hold the pin low till the interrupt is
serviced. The IEx flag will not be cleared by the hardware on entering the service routine. If the
interrupt continues to be held low even after the service routine is completed, then the processor may
acknowledge another interrupt request from the same source.
The Timer 0 and 1 Interrupts are generated by the TF0 and TF1 flags. These flags are set by the
overflow in the Timer 0 and Timer 1. The TF0 and TF1 flags are automatically cleared by the hardware
when the timer interrupt is serviced. The Watchdog timer can be used as a system monitor or a simple
timer. In either case, when the time-out count is reached, the Watchdog Timer interrupt flag WDIF
(WDCON.3) is set. If the interrupt is enabled by the enable bit EIE.4, then an interrupt will occur.
PWM interrupt is generated when its’ 10-bit down counter underflows. PWMF flag is set and PWM
interrupt is generated if enabled. PWMF is set by hardware and can only be cleared by software.
The comparator can generate interrupt after comparator output has occurs by CF flag. This bit is not
automatically cleared by the hardware, and the user will have to clear this bit using software.
The Serial block can generate interrupt on reception or transmission. There are two interrupt sources
from the Serial block, which are obtained by the RI and TI bits in the SCON SFR. These bits are not
automatically cleared by the hardware, and the user will have to clear these bits using software.
Brownout detect can cause brownout flag, BOF, to be asserted if power voltage drop below brownout
voltage level. Interrupt will occur if BOI (AUXR1.5), EBOV (EIE.6) and global interrupt enable are set.
All the bits that generate interrupts can be set or reset by software, and thereby software initiated
interrupts can be generated. Each of the individual interrupts can be enabled or disabled by setting or
clearing a bit in the IE SFR. IE also has a global enable/disable bit EA, which can be cleared to
disable all interrupts.
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 52 -
The interrupt flags are sampled every machine cycle. In the same machine cycle, the sampled
interrupts are polled and their priority is resolved. If certain conditions are met then the hardware will
execute an internally generated LCALL instruction which will vector the process to the appropriate
interrupt vector address. The conditions for generating the LCALL are;
1. An interrupt of equal or higher priority is not currently being serviced.
2. The current polling cycle is the last machine cycle of the instruction currently being execute.
3. The current instruction does not involve a write to IE, IP and IPH, registers and is not a RETI.
If any of these conditions are not met, then the LCALL will not be generated. The polling cycle is
repeated every machine cycle, with the interrupts sampled in the same machine cycle. If an interrupt
flag is active in one cycle but not responded to, and is not active when the above conditions are met,
the denied interrupt will not be serviced. This means that active interrupts are not remembered; every
polling cycle is new.
The processor responds to a valid interrupt by executing an LCALL instruction to the appropriate
service routine. This may or may not clear the flag which caused the interrupt. In case of Timer
interrupts, the TF0 or TF1 flags are cleared by hardware whenever the processor vectors to the
appropriate timer service routine. In case of external interrupt, INT0 and INT1, the flags are cleared
only if they are edge triggered. In case of Serial interrupts, the flags are not cleared by hardware. The
hardware LCALL behaves exactly like the software LCALL instruction. This instruction saves the
Program Counter contents onto the Stack, but does not save the Program Status Word PSW. The PC
is reloaded with the vector address of that interrupt which caused the LCALL. These address of vector
for the different sources are as follows:
VECTOR LOCATIONS FOR INTERRUPT SOURCES
SOURCE
VECTOR ADDRESS
SOURCE
VECTOR ADDRESS
External Interrupt 0 0003h Timer 0 Overflow 000Bh
External Interrupt 1 0013h Timer 1 Overflow 001Bh
Serial Port 0023h Brownout Interrupt 002Bh
Analog Comparator 0033h - 003Bh
- 0043h - 004Bh
Watchdog Timer 0053h - 005Bh
- 0063h PWM Period Interrupt 006Bh
Table 12-1: Vector locations for interrupt sources
Execution continues from the vectored address till an RETI instruction is executed. On execution of
the RETI instruction the processor pops the Stack and loads the PC with the contents at the top of the
stack. The user must take care that the status of the stack is restored to what it was after the hardware
LCALL, if the execution is return to the interrupted program. The processor does not notice anything if
the stack contents are modified and will proceed with execution from the address put back into PC.
Note that a RET instruction would perform exactly the same process as a RETI instruction, but it
would not inform the Interrupt Controller that the interrupt service routine is completed, and would
leave the controller still thinking that the service routine is underway.
12.2 Priority Level Structure
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 53 - Revision A06
The W79E4051/2051 series uses a four priority level interrupt structure (highest, high, low and lowest)
and supports up to 9 interrupt sources. The interrupt sources can be individually set to either high or
low levels. Naturally, a higher priority interrupt cannot be interrupted by a lower priority interrupt.
However there exists a pre-defined hierarchy amongst the interrupts themselves. This hierarchy
comes into play when the interrupt controller has to resolve simultaneous requests having the same
priority level. This hierarchy is defined as table below. This allows great flexibility in controlling and
handling many interrupt sources.
Priority Bits Interrupt Priority Level
IPxH IPx
0 0 Level 0 (lowest priority)
0 1 Level 1
1 0 Level 2
1 1 Level 3 (highest priority)
Table 12-2: Four-level interrupt priority
Each interrupt source can be individually programmed to one of four priority levels by setting or
clearing bits in the IPx and IPxH registers. An interrupt service routine in progress can be interrupted
by a higher priority interrupt, but not by another interrupt of the same or lower priority. The highest
priority interrupt service cannot be interrupted by any other interrupt source. So, if two requests of
different priority levels are received simultaneously, the request of higher priority level is serviced.
If requests of the same priority level are received simultaneously, an internal polling sequence
determines which request is serviced. This is called the arbitration ranking. Note that the arbitration
ranking is only used to resolve simultaneous requests of the same priority level.
As below Table summarizes the interrupt sources, flag bits, vector addresses, enable bits, priority bits,
arbitration ranking, and whether each interrupt may wake up the CPU from Power Down mode.
Source Flag Vector
address
Interrupt
Enable Bits
Interrupt
Priority Flag
cleared by
Arbitration
Ranking
Power
Down
Wakeup
External
Interrupt 0 IE0 0003H EX0 (IE0.0) IP0H.0, IP0.0
Edge:
Hardware,
Software;
Level:
Follow the
inverse of pin
1(highest) Yes
Brownout
Detect BOF 002BH EBOV (EIE.6) IP1H.6, IP1.6 Software 2 Yes
Watchdog Timer WDIF 0053H EWDI (EIE.4) IP1H.4, IP1.4 Software 3 Yes(1)
Timer 0
Interrupt TF0 000BH ET0 (IE.1) IP0H.1, IP0.1 Hardware,
Software 4 No
External
Interrupt 1 IE1 0013H EX1 (IE.2) IP0H.2, IP0.2
Edge:
Hardware,
Software;
Level:
5 Yes
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 54 -
Source Flag Vector
address
Interrupt
Enable Bits
Interrupt
Priority Flag
cleared by
Arbitration
Ranking
Power
Down
Wakeup
Follow the
inverse of pin
Timer 1
Interrupt TF1 001BH ET1 (IE.3) IP0H.3, IP0.3 Hardware,
Software 6 No
Serial Port Tx
and Rx TI & RI 0023H ES (IE.4) IP0H.4, IP0.4 Software 7 No
Comparator
Interrupt CF 0033H EC (IE.6) IP0H.6, IP0.6 Software 8 Yes(2)
PWM Period
Interrupt PWMF 006BH EPWM (EIE.5) IP1H.5, IP1.5 Software 9(lowest) No
Table 12-3: Vector location for Interrupt sources and power down wakeup
Note:
1. The Watchdog Timer can wake up Power Down Mode when its clock source is from internal RC.
2. The comparator can wake up Power Down Mode when bit ACSR.5(CIPE) is set to high.
12.3 Response Time
The response time for each interrupt source depends on several factors, such as the nature of the
interrupt and the instruction underway. In the case of external interrupts
INT0
to RI+TI, they are
sampled at C3 of every machine cycle and then their corresponding interrupt flags IEx will be set or
reset. The Timer 0 and 1 overflow flags are set at C3 of the machine cycle in which overflow has
occurred. These flag values are polled only in the next machine cycle. If a request is active and all
three conditions are met, then the hardware generated LCALL is executed. This LCALL itself takes
four machine cycles to be completed. Thus there is a minimum time of five machine cycles between
the interrupt flag being set and the interrupt service routine being executed.
A longer response time should be anticipated if any of the three conditions are not met. If a higher or
equal priority is being serviced, then the interrupt latency time obviously depends on the nature of the
service routine currently being executed. If the polling cycle is not the last machine cycle of the
instruction being executed, then an additional delay is introduced. The maximum response time (if no
other interrupt is in service) occurs if the W79E4051/2051 series are performing a write to IE, IP and
IPH and then executes a MUL or DIV instruction. From the time an interrupt source is activated, the
longest reaction time is 12 machine cycles. This includes 1 machine cycle to detect the interrupt, 2
machine cycles to complete the IE, IP or IPH access, 5 machine cycles to complete the MUL or DIV
instruction and 4 machine cycles to complete the hardware LCALL to the interrupt vector location.
Thus in a single-interrupt system the interrupt response time will always be more than 5 machine
cycles and not more than 12 machine cycles. The maximum latency of 12 machine cycles is 48 clock
cycles. Note that in the standard 8051 the maximum latency is 8 machine cycles which equals 96
machine cycles. This is a 50% reduction in terms of clock periods.
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 55 - Revision A06
13 PROGRAMMABLE TIMERS/COUNTERS
The W79E4051/2051 series have two 16-bit programmable timer/counters and one programmable
Watchdog Timer. The Watchdog Timer is operationally quite different from the other two timers.
13.1 Timer/Counters 0 & 1
W79E4051/2051 has two 16-bit Timer/Counters. Each of these Timer/Counters has two 8 bit registers
which form the 16 bit counting register. For Timer/Counter 0 they are TH0, the upper 8 bits register,
and TL0, the lower 8 bit register. Similarly Timer/Counter 1 has two 8 bit registers, TH1 and TL1. The
two can be configured to operate either as timers, counting machine cycles or as counters counting
external inputs.
When configured as a "Timer", the timer counts clock cycles. The timer clock can be programmed to
be thought of as 1/12 of the system clock or 1/6 of the system clock. In the "Counter" mode, the
register is incremented on the falling edge of the external input pin, T0 in case of Timer 0, and T1 for
Timer 1. The T0 and T1 inputs are sampled in every machine cycle at C4. If the sampled value is high
in one machine cycle and low in the next, then a valid high to low transition on the pin is recognized
and the count register is incremented. Since it takes two machine cycles to recognize a negative
transition on the pin, the maximum rate at which counting will take place is 1/24 of the master clock
frequency. In either the "Timer" or "Counter" mode, the count register will be updated at C3.
Therefore, in the "Timer" mode, the recognized negative transition on pin T0 and T1 can cause the
count register value to be updated only in the machine cycle following the one in which the negative
edge was detected.
The "Timer" or "Counter" function is selected by the "
TC/
" bit in the TMOD Special Function Register.
Each Timer/Counter has one selection bit for its own; bit 2 of TMOD selects the function for
Timer/Counter 0 and bit 6 of TMOD selects the function for Timer/Counter 1. In addition each
Timer/Counter can be set to operate in any one of four possible modes. The mode selection is done
by bits M0 and M1 in the TMOD SFR.
13.2 Time-Base Selection
W79E4051/2051 provides users with two modes of operation for the timer. The timers can be
programmed to operate like the standard 8051 family, counting at the rate of 1/12 of the clock speed.
This will ensure that timing loops on W79E4051/2051 and the standard 8051 can be matched. This is
the default mode of operation of the W79E4051/2051 timers. The user also has the option to count in
the 2-times mode, where the timers will increment at the rate of 1/6 clock speed. This will straight-
away increase the counting speed three times. This selection is done by the T0M and T1M bit in
CKCON SFR. A reset sets these bits to 0, and the timers then operate in the standard 8051 mode.
The user should set these bits to 1 if the timers are to operate in turbo mode.
13.2.1 Mode 0
In Mode 0, the timer/counter is a 13-bit counter. The 13-bit counter consists of THx (8 MSB) and the
five lower bits of TLx (5 LSB). The upper three bits of TLx are ignored. The timer/counter is enabled
when TRx is set and either GATE is 0 or
INTx
is 1. When
TC/
is 0, the timer/counter counts clock
cycles; when
TC/
is 1, it counts falling edges on T0 (Timer 0) or T1 (Timer 1). For clock cycles, the
time base may be 1/12 or 1/6 clock speed, and the falling edge of the clock increments the counter.
When the 13-bit value moves from 1FFFh to 0000h, the timer overflow flag TFx is set, and an interrupt
occurs if enabled. This is illustrated in next figure below.
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 56 -

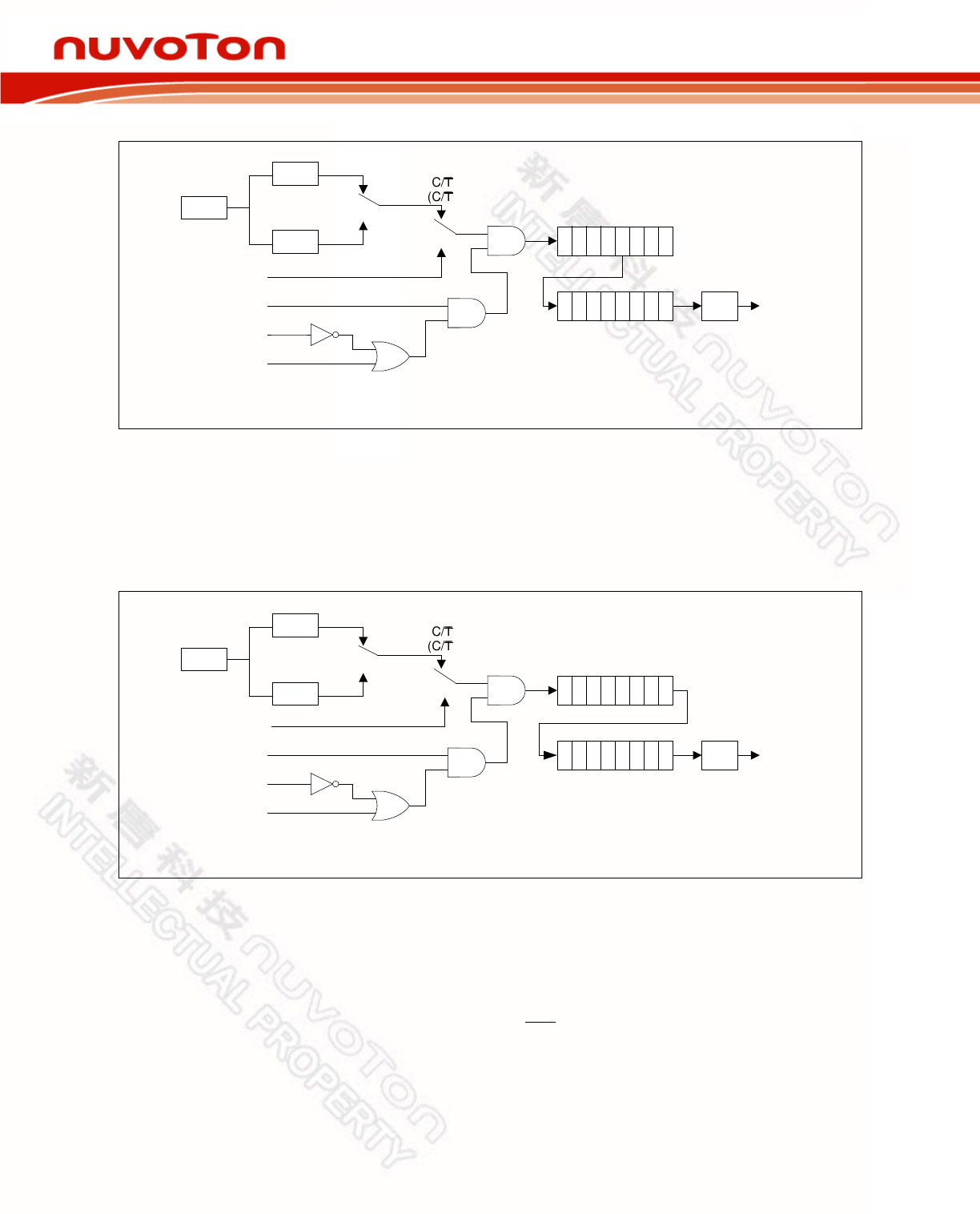

0
10 4 7
0 7
TFx
TH0
(TH1)
TL0
(TL1)
Timer/Counter 0/1 Mode 0
Interrupt
T0=P3.4
(C/T=TMOD.6)
C/T=TMOD.2
GATE=TMOD.3
(GATE=TMOD.7)
/INT0=P3.2
(/INT1=P3.3)
(T1=P3.5) TF0
(TF1)
TR0=TCON.4
TR1=TCON.6
1/12
1/6
Fosc
1
0
T0M=CKCON.3
(T1M=CKCON.4)
Figure 13-1: Timer/Counters 0 & 1 in Mode 0
13.2.2 Mode 1
Mode 1 is similar to Mode 0 except that the counting register forms a 16-bit counter, rather than a 13-
bit counter. This means that all the bits of THx and TLx are used. Roll-over occurs when the timer
moves from a count of FFFFh to 0000h. The timer overflow flag TFx of the relevant timer is set and if
enabled an interrupt will occur. The selection of the time-base in the timer mode is similar to that in
Mode 0. The gate function operates similarly to that in Mode 0.
0
10 4 7
0 7 TFx
TH0
(TH1)
TL0
(TL1)
Timer/Counter 0/1 Mode 1
Interrupt
T0=P3.4
(C/T=TMOD.6)
C/T=TMOD.2
GATE=TMOD.3
(GATE=TMOD.7)
/INT0=P3.2
(/INT1=P3.3)
(T1=P3.5) TF0
(TF1)
TR0=TCON.4
TR1=TCON.6
1/12
1/6
Fosc
1
0
T0M=CKCON.3
(T1M=CKCON.4)
Figure 13-2: Timer/Counters 0 & 1 in Mode 1
13.2.3 Mode 2
In Mode 2, the timer/counter is in the Auto Reload Mode. In this mode, TLx acts as an 8-bit count
register, while THx holds the reload value. When the TLx register overflows from FFh to 00h, the TFx
bit in TCON is set and TLx is reloaded with the contents of THx, and the counting process continues
from here. The reload operation leaves the contents of the THx register unchanged. Counting is
enabled by the TRx bit and proper setting of GATE and
INTx
pins. As in the other two modes 0 and 1
mode 2 allows counting of either clock cycles (clock/12 or clock/6) or pulses on pin Tn.
n UVOTO n { ,_l_‘ j\4—C+/T 0 4+
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 57 - Revision A06

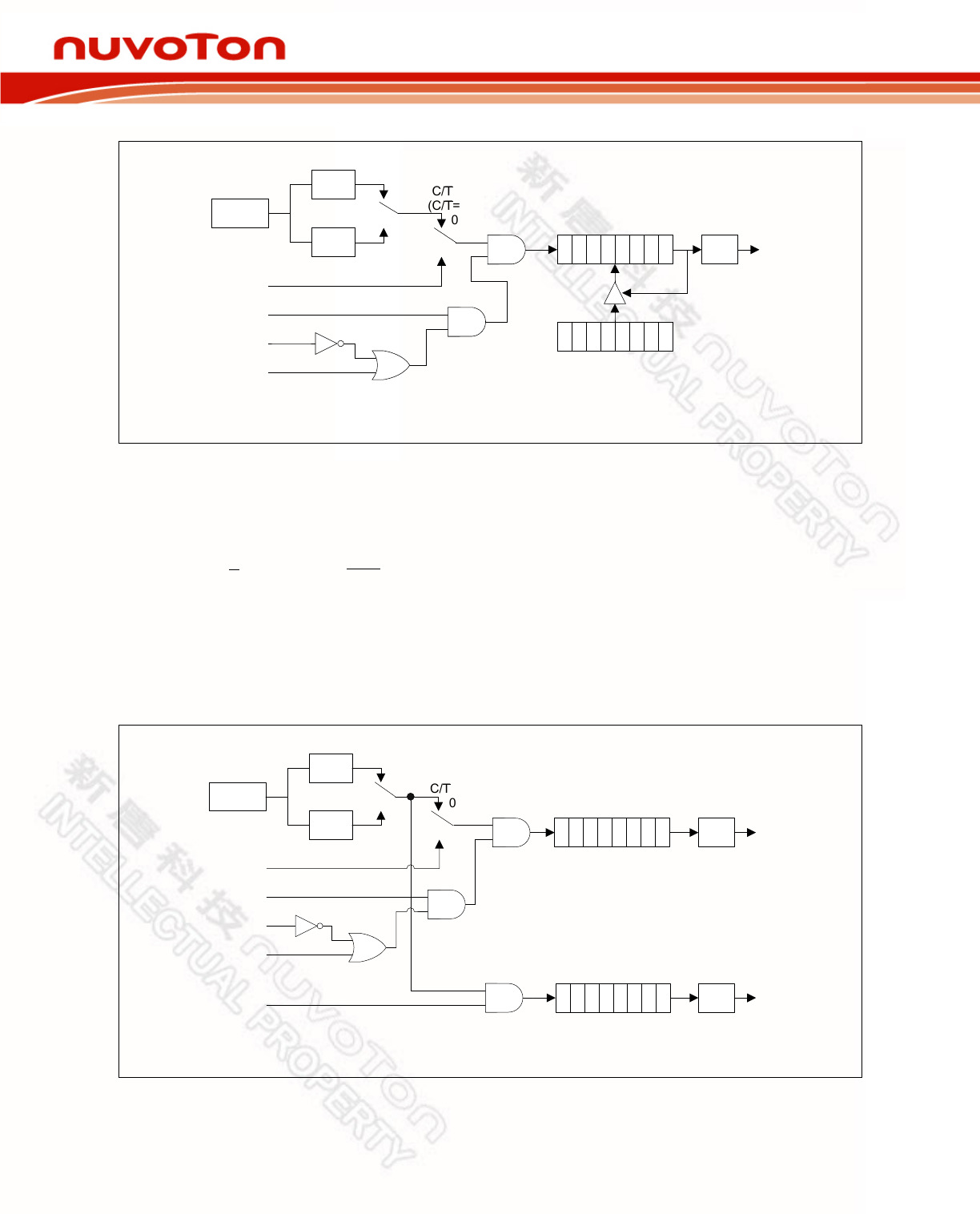

0
1
0 7
0 7
TFx
TH0
(TH1)
TL0
(TL1)
Interrupt
T0=P3.4
(C/T=TMOD.6)
C/T=TMOD.2
GATE=TMOD.3
(GATE=TMOD.7)
/INT0=P3.2
(/INT1=P3.3)
(T1=P3.5)
TF0
(TF1)
TR0=TCON.4
TR1=TCON.6
Fcpu
1/6
0
1/12
1
0
T0M=CKCON.3
(T1M=CKCON.4)
Timer 0/1 Mode 2 (8-bit Auto-reload Mode)
Figure 13-3: Timer/Counter 0 & 1 in Mode 2
13.2.4 Mode 3
Mode 3 has different operating methods for the two timer/counters. For timer/counter 1, mode 3 simply
freezes the counter. Timer/Counter 0, however, configures TL0 and TH0 as two separate 8 bit count
registers in this mode. The logic for this mode is shown in the figure. TL0 uses the Timer/Counter 0
control bits
TC/
, GATE, TR0,
INT0
and TF0. The TL0 can be used to count clock cycles (clock/12) or
1-to-0 transitions on pin T0 as determined by C/T (TMOD.2). TH0 is forced as a clock cycle counter
(clock/12) and takes over the use of TR1 and TF1 from Timer/Counter 1. Mode 3 is used in cases
where an extra 8 bit timer is needed. With Timer 0 in Mode 3, Timer 1 can still be used in Modes 0, 1
and 2, but its flexibility is somewhat limited. While its basic functionality is maintained, it no longer has
control over its overflow flag TF1 and the enable bit TR1. Timer 1 can still be used as a timer/counter
and retains the use of GATE and INT1 pin. In this condition it can be turned on and off by switching it
out of and into its own Mode 3. It can also be used as a baud rate generator for the serial port.
0
1
0 7
0 7
TF0
TH0
TL0
Interrupt
T0=P3.4
C/T=TMOD.2
GATE=TMOD.3
/INT0=P3.2
TR0=TCON.4
TR1=TCON.6 TF1 Interrupt
Fcpu
1/6
0
1/12
1
0
T0M=CKCON.3
(T1M=CKCON.4)
Timer 0/1 Mode 3 (Two 8-bit Counters)
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 58 -
Figure 13-4: Timer/Counter Mode 3
14 NVM MEMORY
The W79E4051/2051 series have NVM data memory of 128 bytes for customer’s data store used. The
NVM data memory has 8 pages area and each page has 16 bytes. The page addresses are shown on
Figure 14-1
The NVM memory can be read/write by customer program to access. Read NVM data is by MOVC
A,@A+DPTR instruction, and write data is by SFR of NVMADDRL, NVMDATA and NVMCON. Before
write data to NVM memory, the page must be erased by providing page address on NVMADDRL,
which high and low byte address of On-Chip Code Memory space will decode, then set EER of
NVMCON.7. This will automatically hold fetch program code and PC Counter, and execute page
erase. After finished, this bit will be cleared by hardware. The erase time is ~ 5ms.
For writing data to NVM memory, user must set address and data to NVMADDRL and NVMDATA,
then set EWR of NVMCON.6 to initiate NVM data write. The uC will hold program code and PC
Counter, and then write data to mapping address. Upon write completion, the EWR bit will be cleared
by hardware, the uC will continue execute next instruction. The program time is ~50us.
W79E4051/2051 On-chip Flash Memory Space
0000h
4K/2K Bytes
On-Chip
Code Memory
Unused
Code Memory
Unused
Code Memory
0FFFh/07FFh
FFFFh
FC00h
FC7Fh 128 Bytes
NVM
Data Memory
NVM Data Memory Area
FC1Fh
FC10h
FC0Fh
FC00h
Page 0
Page 1
Page 7
Page 2
Page 3
Page 4
Page 5
Page 6
128 bytes NVM
16 bytes/page
FC3Fh
FC30h
FC2Fh
FC20h
FC5Fh
FC50h
FC4Fh
FC40h
FC7Fh
FC70h
FC6Fh
FC60h
CONFIG1
CONFIG0
Figure 14-1: W79E4051/2051 Memory Map
n UVOTO n é
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 59 - Revision A06
15 WATCHDOG TIMER
The Watchdog Timer is a free-running Timer which can be programmed by the user to serve as a
system monitor, a time-base generator or an event timer. It is basically a set of dividers that divide the
system clock. The divider output is selectable and determines the time-out interval. When the time-out
occurs a flag is set, which can cause an interrupt if enabled, and a system reset can also be caused if
it is enabled. The interrupt will occur if the individual interrupt enable and the global enable are set.
The interrupt and reset functions are independent of each other and may be used separately or
together depending on the user’s software.

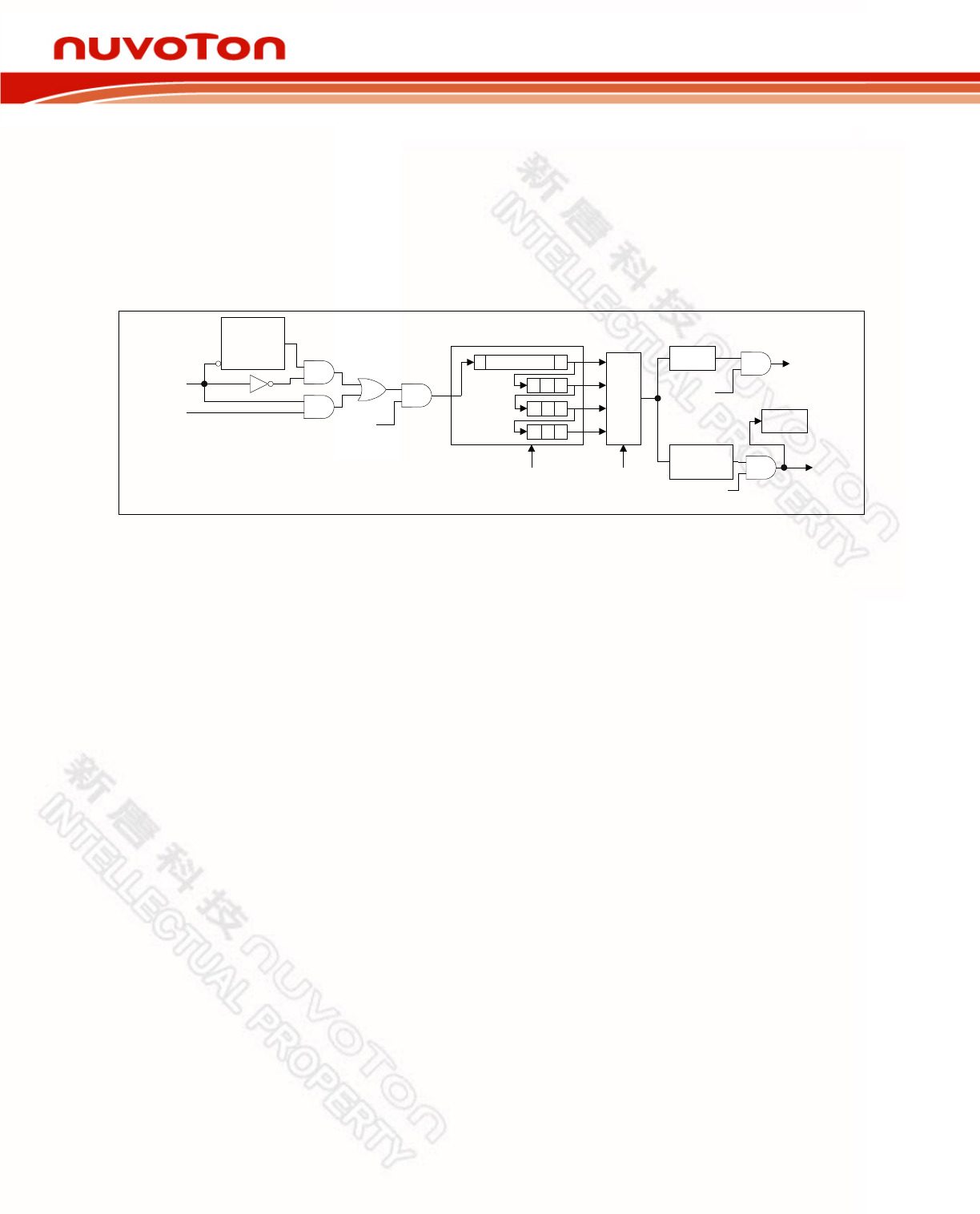

WDIF
512 clock
delay
MUX
500KHz RC
Oscillator
uC clock
WDTE
WDRUN
WD1,WD0
WDCLR
EWDI
EWRST
Reset
Interrupt
00
01
10
11
WTRF
26-bits Counter Time-Out
Selector
160
17 19
20 22
23 25
(Reset Watchdog)
(WDCON.1)
(WDCON.3)
(EIE.4) (WDCON.2)
(WDCON.0)
(WDCON.7)
(Security Bit)
(WDCON.5/4)
/Enable
Figure 15-1: Watchdog Timer
The Watchdog Timer should first be restarted by using WDCLR. This ensures that the timer starts
from a known state. The WDCLR bit is used to restart the Watchdog Timer. This bit is self clearing, i.e.
after writing a 1 to this bit the software will automatically clear it. The Watchdog Timer will now count
clock cycles. The time-out interval is selected by the two bits WD1 and WD0 (WDCON.5 and
WDCON.4). When the selected time-out occurs, the Watchdog interrupt flag WDIF (WDCON.3) is set.
After the time-out has occurred, the Watchdog Timer waits for an additional 512 WDT clock cycles. If
the Watchdog Reset EWRST (WDCON.1) is enabled, then 512 clocks after the time-out, if there is no
WDCLR, a system reset due to Watchdog Timer will occur. This will last for two machine cycles, and
the Watchdog Timer reset flag WTRF (WDCON.2) will be set. This indicates to the software that the
Watchdog was the cause of the reset.
When used as a simple timer, the reset and interrupt functions are disabled. The timer will set the
WDIF flag each time the timer completes the selected time interval. The WDIF flag is polled to detect a
time-out and the WDCLR allows software to restart the timer. The Watchdog Timer can also be used
as a very long timer. The interrupt feature is enabled in this case. Every time the time-out occurs an
interrupt will occur if the global interrupt enable EA is set.
The main use of the Watchdog Timer is as a system monitor. This is important in real-time control
applications. In case of some power glitches or electro-magnetic interference, the processor may
begin to execute errant code. If this is left unchecked the entire system may crash. Using the
watchdog timer interrupt during software development will allow the user to select ideal watchdog
reset locations. The code is first written without the watchdog interrupt or reset. Then the Watchdog
interrupt is enabled to identify code locations where interrupt occurs. The user can now insert
instructions to reset the Watchdog Timer, which will allow the code to run without any Watchdog Timer
interrupts. Now the Watchdog Timer reset is enabled and the Watchdog interrupt may be disabled. If
any errant code is executed now, then the reset Watchdog Timer instructions will not be executed at
the required instants and Watchdog reset will occur.
The Watchdog Timer time-out selection will result in different time-out values depending on the clock
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 60 -
speed. The reset, when enabled, will occur when 512 clocks after time-out has occurred.
WD1 WD0 Interrupt
time-out Reset
time-out
Number of
Clocks Time
@ 10 MHz
0 0 217 217 + 512 131072 13.11 mS
0 1 220 220 + 512 1048576 104.86 mS
1 0 223 223 + 512 8388608 838.86 mS
1 1 226 226 + 512 67108864 6710.89 mS
Table 15-1: Time-out values for the Watchdog Timer
The Watchdog Timer will be disabled by a power-on/fail reset. The Watchdog Timer reset does not
disable the Watchdog Timer, but will restart it. In general, software should restart the timer to put it into
a known state. The control bits that support the Watchdog Timer are discussed below.
15.1 WATCHDOG CONTROL
WDIF: WDCON.3 - Watchdog Timer Interrupt flag. This bit is set whenever the time-out occurs in the
Watchdog Timer. If the Watchdog interrupt is enabled (EIE.4), then an interrupt will occur (if the global
interrupt enable is set and other interrupt requirements are met). Software or any reset can clear this
bit.
WTRF: WDCON.2 - Watchdog Timer Reset flag. This bit is set whenever a watchdog reset occurs.
This bit is useful for determined the cause of a reset. Software must read it, and clear it manually. A
Power-fail reset will clear this bit. If EWRST = 0, then this bit will not be affected by the Watchdog
Timer.
EWRST: WDCON.1 - Enable Watchdog Timer Reset. This bit when set to 1 will enable the Watchdog
Timer reset function. Setting this bit to 0 will disable the Watchdog Timer reset function, but will leave
the timer running.
WDCLR: WDCON.0 - Reset Watchdog Timer. This bit is used to clear the Watchdog Timer and to
restart it. This bit is self-clearing, so after the software writes 1 to it the hardware will automatically
clear it. If the Watchdog Timer reset is enabled, then the WDCLR has to be set by the user within 512
clocks of the time-out. If this is not done then a Watchdog Timer reset will occur.
15.2 CLOCK CONTROL of Watchdog
WD1, WD0: WDCON.5, WDCON.4 - Watchdog Timer Mode select bits. These two bits select the
time-out interval for the watchdog timer. The reset time is 512 clocks longer than the interrupt time-out
value.
The default Watchdog time-out is 217 clocks, which is the shortest time-out period. The WDRUN, WD1,
WD0, EWRST, WDIF and WDCLR bits are protected by the Timed Access procedure. This prevents
software from accidentally enabling or disabling the watchdog timer. More importantly, it makes it
highly improbable that errant code can enable or disable the Watchdog Timer.
The security bit WDTCK is located at bit 7 of CONFIG register. This bit is used to configure the clock
source of watchdog timer from either the internal RC or the uC clock.
When WDTCK bit is cleared and 500KHz clock is used to run the watchdog timer, there is a chance
that the watchdog timer would hang as the counter does not increment. This problem arises when the
watchdog is set to run, (WDCON.7, WDRUN), the WDCLR bit (WDCON.0) is set to clear the
watchdog timer and the next instruction is to set the PCON register for CPU to go into idle or power-
down state. The reason this happens because the setting/clearing of WDCLR bit and the watchdog
counter are running on different clock domains, CPU clock and internal RC clock respectively. When
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 61 - Revision A06
WDCLR bit is set, to reset it, the counter must be non-zero. Since the counter is running off a much
slower clock, the counter may not have time to increment before the CPU clock halts as it entered the
idle/power-down mode. This results in the WDCLR bit is always set & the watchdog counter
remaining at zero. The solution to this problem is to monitor the WDCLR bit, ensuring that it’s cleared
before issue the instruction for the CPU to go into idle/power-down mode.
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 62 -
16 SERIAL PORT (UART)
The UART in this device is a full duplex port. It provides the user with additional features such as the
Frame Error Detection and the Automatic Address Recognition. The serial port is capable of
synchronous as well as asynchronous communication. In Synchronous mode the device generates
the clock and operates in a half duplex mode. In the asynchronous mode, full duplex operation is
available. This means that it can simultaneously transmit and receive data. The transmit register and
the receive buffer are both addressed as SBUF Special Function Register. However any write to
SBUF will be to the transmit register, while a read from SBUF will be from the receiver buffer register.
The serial port can operate in four different modes as described below.
16.1 MODE 0
This mode provides synchronous communication with external devices. In this mode serial data is
transmitted and received on the RXD line. TXD is used to transmit the shift clock. The TxD clock is
provided by the device whether it is transmitting or receiving. This mode is therefore a half duplex
mode of serial communication. In this mode, 8 bits are transmitted or received per frame. The LSB is
transmitted/received first. The baud rate is fixed at 1/12 or 1/4 of the oscillator frequency. This Baud
Rate is determined by the SM2 bit (SCON.5). When this bit is set to 0, then the serial port runs at 1/12
of the clock. When set to 1, the serial port runs at 1/4 of the clock. This additional facility of
programmable baud rate in mode 0 is the only difference between the standard 8051 and
W79E4051/2051.
The functional block diagram is shown below. Data enters and leaves the Serial port on the RxD line.
The TxD line is used to output the shift clock. The shift clock is used to shift data into and out of this
device and the device at the other end of the line. Any instruction that causes a write to SBUF will start
the transmission. The shift clock will be activated and data will be shifted out on the RxD pin till all 8
bits are transmitted. If SM2 = 1, then the data on RxD will appear 1 clock period before the falling
edge of shift clock on TxD. The clock on TxD then remains low for 2 clock periods, and then goes high
again. If SM2 = 0, the data on RxD will appear 3 clock periods before the falling edge of shift clock on
TxD. The clock on TxD then remains low for 6 clock periods, and then goes high again. This ensures
that at the receiving end the data on RxD line can either be clocked on the rising edge of the shift
clock on TxD or latched when the TxD clock is low.
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 63 - Revision A06

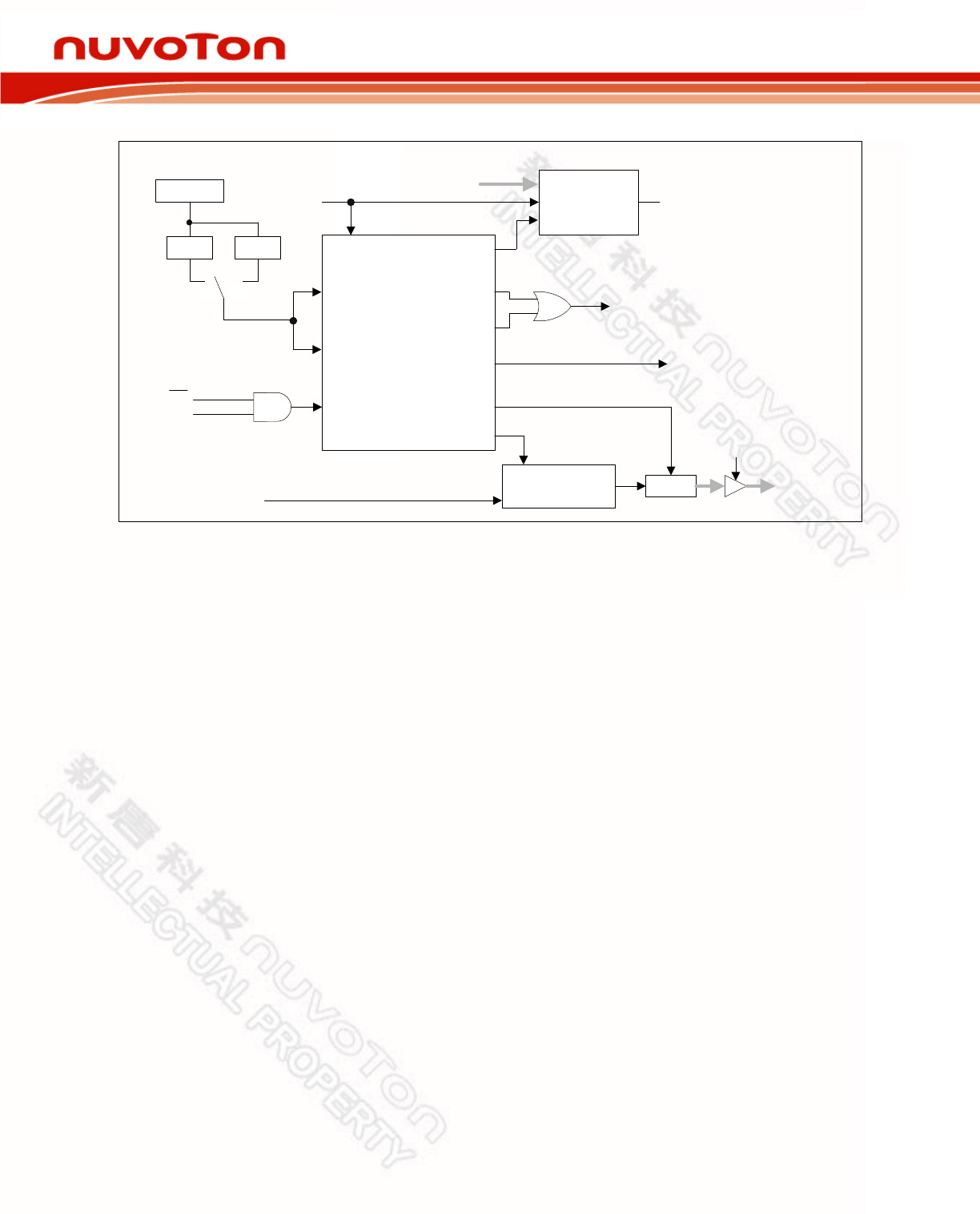

Fcpu
TX CLOCK
RX CLOCK
TI
RI
TX SHIFT
RX
START
RX SHIFT
LOAD SBUF
SHIFT CLOCK
REN
CLOCK
SIN PAROUT SBUF
Read SBUF
Internal
Data Bus
Serial Controllor
CLOCK
LOAD
PARIN
TX START
Internal
Data Bus
SBUF
Write to
SOUT
Transmit Shift Register
Serial Interrupt
RXD
TXD
RXD
0
SM2 1
1/12 1/4
RI
Figure 16-1: Serial Port Mode 0
The TI flag is set high in C1 following the end of transmission of the last bit. The serial port will receive
data when REN is 1 and RI is zero. The shift clock (TxD) will be activated and the serial port will latch
data on the rising edge of shift clock. The external device should therefore present data on the falling
edge on the shift clock. This process continues till all the 8 bits have been received. The RI flag is set
in C1 following the last rising edge of the shift clock on TxD. This will stop reception, till the RI is
cleared by software.

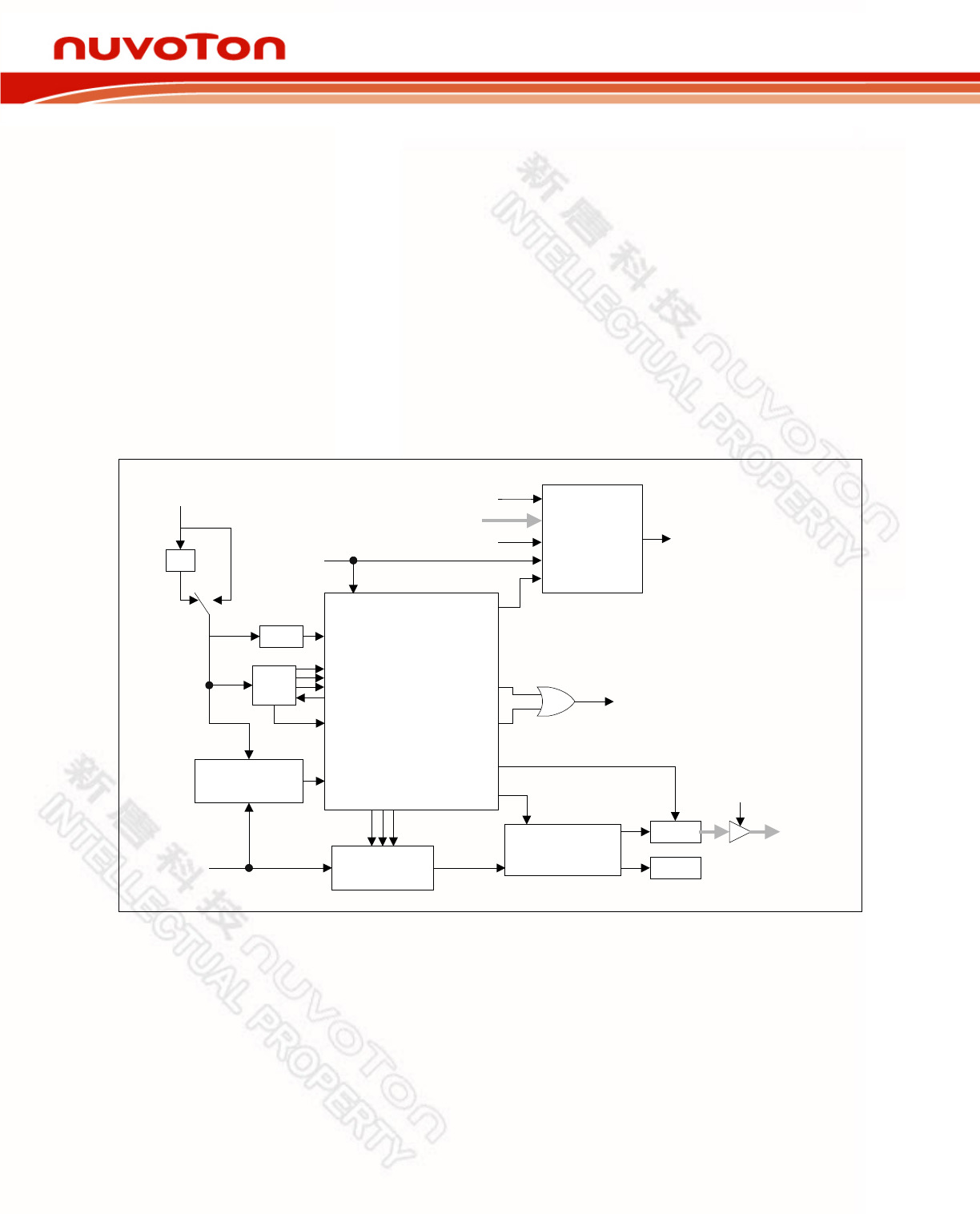

16.2 MODE 1
In Mode 1, the full duplex asynchronous mode is used. Serial communication frames are made up of
10 bits transmitted on TXD and received on RXD. The 10 bits consist of a start bit (0), 8 data bits (LSB
first), and a stop bit (1). On received, the stop bit goes into RB8 in the SFR SCON. The baud rate in
this mode is variable. The serial baud can be programmed to be 1/16 or 1/32 of the Timer 1 overflow.
Since the Timer 1 can be set to different reload values, a wide variation in baud rates is possible.
Transmission begins with a write to SBUF. The serial data is brought out on to TxD pin at C1 following
the first roll-over of divide by 16 counter. The next bit is placed on TxD pin at C1 following the next
rollover of the divide by 16 counter. Thus the transmission is synchronized to the divide-by-16 counter
and not directly to the write to SBUF signal. After all 8 bits of data are transmitted, the stop bit is
transmitted. The TI flag is set in the C1 state after the stop bit has been put out on TxD pin. This will
be at the 10th rollover of the divide by 16 counter after a write to SBUF.
Reception is enabled only if REN is high. The serial port actually starts the receiving of serial data,
with the detection of a falling edge on the RxD pin. The 1-to-0 detector continuously monitors the RxD
line, sampling it at the rate of 16 times the selected baud rate. When a falling edge is detected, the
divide–by-16 counter is immediately reset. This helps to align the bit boundaries with the rollovers of
the divide-by-16 counter.
n U VOTO n '=
Preliminary W79E4051/W79E2051 Data Sheet
- 64 -
The 16 states of the counter effectively divide the bit time into 16 slices. The bit detection is done on a
best of three bases. The bit detector samples the RxD pin, at the 8th, 9th and 10th counter states. By
using a majority 2 of 3 voting system, the bit value is selected. This is done to improve the noise
rejection feature of the serial port. If the first bit detected after the falling edge of RxD pin is not 0, then
this indicates an invalid start bit, and the reception is immediately aborted. The serial port again looks
for a falling edge in the RxD line. If a valid start bit is detected, then the rest of the bits are also
detected and shifted into the SBUF.
After shifting in 8 data bits, there is one more shift to do, after which the SBUF and RB8 are loaded
and RI is set. However certain conditions must be met before the loading and setting of RI can be
done.
1. RI must be 0 and
2. Either SM2 = 0, or the received stop bit = 1.
If these conditions are met, then the stop bit goes to RB8, the 8 data bits go into SBUF and RI is set.
Otherwise the received frame may be lost. After the middle of the stop bit, the receiver goes back to
looking for a 1-to-0 transition on the RxD pin.
1/2
1/16 TX CLOCK
RX CLOCK
TI
RI
TX SHIFT
RX
START RX SHIFT
LOAD SBUF
SMOD
CLOCK
SIN D8
SBUF
Read SBUF
Internal
Data Bus
Serial
Controllor
CLOCK
LOAD
PARIN
TX START
Internal
Data Bus
SBUF
Write to SOUT
Transmit Shift Register
Serial Interrupt
TXD
RXD
PAROUT
RB8
START
STOP
0
1
BIT
DETECTOR
1-To-0
DETECTOR
SAMPLE
1/16
0
Timer 1
Overflow
1
Receive Shift Register
Figure 16-2: Serial Port Mode 1
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 65 - Revision A06
16.3 MODE 2
This mode uses a total of 11 bits in asynchronous full-duplex communication. The functional
description is shown in the figure below. The frame consists of one start bit (0), 8 data bits (LSB first),
a programmable 9th bit (TB8) and a stop bit (0). The 9th bit received is put into RB8. The baud rate is
programmable to 1/32 or 1/64 of the oscillator frequency, which is determined by the SMOD bit in
PCON SFR. Transmission begins with a write to SBUF. The serial data is brought out on to TxD pin at
C1 following the first roll-over of the divide by 16 counter. The next bit is placed on TxD pin at C1
following the next rollover of the divide by 16 counter. Thus the transmission is synchronized to the
divide-by-16 counter, and not directly to the write to SBUF signal. After all 9 bits of data are
transmitted, the stop bit is transmitted. The TI flag is set in the C1 state after the stop bit has been put
out on TxD pin. This will be at the 11th rollover of the divide-by-16 counter after a write to SBUF.
Reception is enabled only if REN is high. The serial port actually starts the receiving of serial data,
with the detection of a falling edge on the RxD pin. The 1-to-0 detector continuously monitors the RxD
line, sampling it at the rate of 16 times the selected baud rate. When a falling edge is detected, the
divide- by-16 counter is immediately reset. This helps to align the bit boundaries with the rollovers of
the divide-by-16 counter. The 16 states of the counter effectively divide the bit time into 16 slices. The
bit detection is done on a best of three bases. The bit detector samples the RxD pin, at the 8th, 9th
and 10th counter states. By using a majority 2 of 3 voting system, the bit value is selected. This is
done to improve the noise rejection feature of the serial port.
1/2
1/16 TX CLOCK
RX CLOCK
TI
RI
TX SHIFT
RX
START RX SHIFT
LOAD SBUF
SMOD
CLOCK
SIN D8
SBUF
Read SBUF
Internal
Data Bus
Serial
Controllor
CLOCK
LOAD
PARIN
TX START
Internal
Data Bus
SBUF
Write to SOUT
Transmit Shift Register
Serial Interrupt
TXD
RXD
PAROUT
RB8
START
STOP
0
1
BIT
DETECTOR
1-To-0
DETECTOR
SAMPLE
1/16
0
Clock/2
1
D8
TB8
Receive Shift Register
Figure 16-3: Serial Port Mode 2
n U VOTO n '=
Preliminary W79E4051/W79E2051 Data Sheet
- 66 -
If the first bit detected after the falling edge of RxD pin, is not 0, then this indicates an invalid start bit,
and the reception is immediately aborted. The serial port again looks for a falling edge in the RxD line.
If a valid start bit is detected, then the rest of the bits are also detected and shifted into the SBUF.
After shifting in 9 data bits, there is one more shift to do, after which the SBUF and RB8 are loaded
and RI is set. However certain conditions must be met before the loading and setting of RI can be
done.
1. RI must be 0 and
2. Either SM2 = 0, or the received stop bit = 1.
If these conditions are met, then the stop bit goes to RB8, the 8 data bits go into SBUF and RI is set.
Otherwise the received frame may be lost. After the middle of the stop bit, the receiver goes back to
looking for a 1-to-0 transition on the RxD pin.
16.4 MODE 3
This mode is similar to Mode 2 in all aspects, except that the baud rate is programmable. The user
must first initialize the Serial related SFR SCON before any communication can take place. This
involves selection of the Mode and baud rate. The Timer 1 should also be initialized if modes 1 and 3
are used. In all four modes, transmission is started by any instruction that uses SBUF as a destination
register. Reception is initiated in Mode 0 by the condition RI = 0 and REN = 1. This will generate a
clock on the TxD pin and shift in 8 bits on the RxD pin. Reception is initiated in the other modes by the
incoming start bit if REN = 1. The external device will start the communication by transmitting the start
bit.

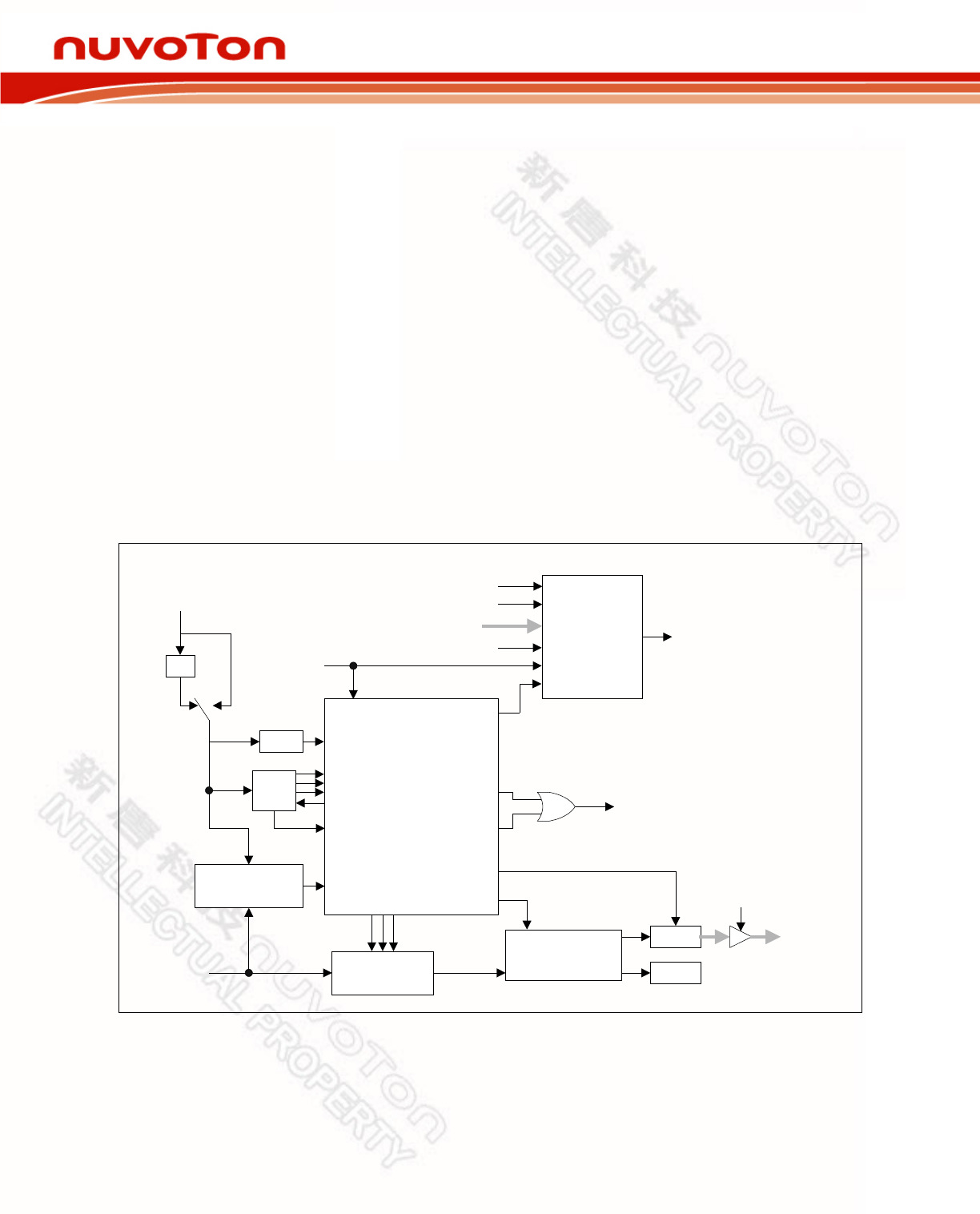

1/2
1/16 TX CLOCK
RX CLOCK
TI
RI
TX SHIFT
RX
START RX SHIFT
LOAD SBUF
SMOD
CLOCK
SIN D8
SBUF
Read SBUF
Internal
Data Bus
Serial
Controllor
CLOCK
LOAD
PARIN
TX START
Internal
Data Bus
SBUF
Write to SOUT
Transmit Shift Register
Serial Interrupt
TXD
RXD
PAROUT
RB8
START
STOP
0
1
BIT
DETECTOR
1-To-0
DETECTOR
SAMPLE
1/16
0 1
D8
TB8
Timer 1
Overflow
Receive Shift Register
Figure 16-4: Serial Port Mode 3
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 67 - Revision A06
SM0 SM1 MODE TYPE BAUD CLOCK FRAME
SIZE START
BIT STOP
BIT 9TH BIT
FUNCTION
0 0 0 SYNCH. 4 OR 12 TCLKS 8 BITS NO NO NONE
0 1 1 ASYNCH. TIMER 1 10 BITS 1 BIT 1 BIT NONE
1 0 2 ASYNCH. 32 OR 64 TCLKS 11 BITS 1 BIT 1 BIT 0, 1
1 1 3 ASYNCH. TIMER 1 11 BITS 1 BIT 1 BIT 0, 1
Table 16-1: Serial Port Mode Summary Table
16.5 Framing Error Detection
A Frame Error occurs when a valid stop bit is not detected. This could indicate incorrect serial data
communication. Typically the frame error is due to noise and contention on the serial communication
line. The W79E4051/2051 series have the facility to detect such framing errors and set a flag which
can be checked by software.
The Frame Error FE bit is located in SCON.7. This bit is normally used as SM0 in the standard 8051
family. However, in the W79E4051/2051 series it serves a dual function and is called SM0/FE. There
are actually two separate flags, one for SM0 and the other for FE. The flag that is actually accessed as
SCON.7 is determined by SMOD0 (PCON.6) bit. When SMOD0 is set to 1, then the FE flag is
indicated in SM0/FE. When SMOD0 is set to 0, then the SM0 flag is indicated in SM0/FE.
The FE bit is set to 1 by hardware but must be cleared by software. Note that SMOD0 must be 1 while
reading or writing to FE. If FE is set, then any following frames received without any error will not clear
the FE flag. The clearing has to be done by software.
16.6 Multiprocessor Communications
Multiprocessor communications makes use of the 9th data bit in modes 2 and 3. In the
W79E4051/2051 series, the RI flag is set only if the received byte corresponds to the Given or
Broadcast address. This hardware feature eliminates the software overhead required in checking
every received address, and greatly simplifies the software programmer task.
In the multiprocessor communication mode, the address bytes are distinguished from the data bytes
by transmitting the address with the 9th bit set high. When the master processor wants to transmit a
block of data to one of the slaves, it first sends out the address of the targeted slave (or slaves). All the
slave processors should have their SM2 bit set high when waiting for an address byte. This ensures
that they will be interrupted only by the reception of an address byte. The Automatic address
recognition feature ensures that only the addressed slave will be interrupted. The address comparison
is done in hardware not software.
The addressed slave clears the SM2 bit, thereby clearing the way to receive data bytes. With SM2 = 0,
the slave will be interrupted on the reception of every single complete frame of data. The unaddressed
slaves will be unaffected, as they will be still waiting for their address. In Mode 1, the 9th bit is the stop
bit, which is 1 in case of a valid frame. If SM2 is 1, then RI is set only if a valid frame is received and
the received byte matches the Given or Broadcast address.
The Master processor can selectively communicate with groups of slaves by using the Given Address.
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 68 -
All the slaves can be addressed together using the Broadcast Address. The addresses for each slave
are defined by the SADDR and SADEN SFRs. The slave address is an 8-bit value specified in the
SADDR SFR. The SADEN SFR is actually a mask for the byte value in SADDR. If a bit position in
SADEN is 0, then the corresponding bit position in SADDR is don't care. Only those bit positions in
SADDR whose corresponding bits in SADEN are 1 are used to obtain the Given Address. This gives
the user flexibility to address multiple slaves without changing the slave address in SADDR.
The following example shows how the user can define the Given Address to address different slaves.
Slave 1:
SADDR 1010 0100
SADEN 1111 1010
Given 1010 0x0x
Slave 2:
SADDR 1010 0111
SADEN 1111 1001
Given 1010 0xx1
The Given address for slave 1 and 2 differ in the LSB. For slave 1, it is a don't care, while for slave 2 it
is 1. Thus to communicate only with slave 1, the master must send an address with LSB = 0 (1010
0000). Similarly the bit 1 position is 0 for slave 1 and don't care for slave 2. Hence to communicate
only with slave 2 the master has to transmit an address with bit 1 = 1 (1010 0011). If the master
wishes to communicate with both slaves simultaneously, then the address must have bit 0 = 1 and bit
1 = 0. The bit 3 position is don't care for both the slaves. This allows two different addresses to select
both slaves (1010 0001 and 1010 0101).
The master can communicate with all the slaves simultaneously with the Broadcast Address. This
address is formed from the logical OR of the SADDR and SADEN SFRs. The zeros in the result are
defined as don't cares. In most cases the Broadcast Address is FFh. In the previous case, the
Broadcast Address is (1111111x) for slave 1 and (11111111) for slave 2.
The SADDR and SADEN SFRs are located at address A9h and B9h respectively. On reset, these two
SFRs are initialized to 00h. This results in Given Address and Broadcast Address being set as xxxx
xxxx (i.e. all bits don't care). This effectively removes the multiprocessor communications feature,
since any selectivity is disabled.
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 69 - Revision A06
17 PULSE WIDTH MODULATED OUTPUTS (PWM)
The W79E4051/2051 contains one Pulse Width Modulated (PWM) channel which generate pulses of
programmable length and interval. The output for PWM0 is on P3.5. After chip reset the internal output
of the PWM channel is high. In this case before the pin will reflect the state of the internal PWM
output, a “1” must be written to the port bit that serves as a PWM output. A block diagram is shown in
Figure 17-1. The interval between successive outputs is controlled by a 10–bit down counter which
uses the internal microcontroller clock as its input. The PWM counter clock has the frequency as
FCPWM = POSC/Prescaler. The two pre-scaler selectable bits FP[1:0] are located at PWMCON3[1:0].
When the counter reaches underflow it is reloaded with a user selectable value. This mechanism
allows the user to set the PWM frequency at any integer sub–multiple of the microcontroller clock
frequency. The repetition frequency of the PWM is given by: fPWM = FCPWM / (PWMP+1) where PWMP
is contained in PWMPH and PWMPL SFR.
A compare value greater than the counter reloaded value is in the PWM output being permanently
low. In addition there are two special cases. A compare value of all zeroes, 000H, causes the output to
remain permanently high. A compare value of all ones, 3FFH, results in the PWM output remaining
permanently low. Again the compare value is loaded into a Compare register. The transfer from this
holding register to the actual Compare register is under program control.
The PWMP register fact that writes are not into the Counter register that controls the counter; rather
they are into a holding register. As described below the transfer of data from this holding register, into
the register which contains the actual reload value, is controlled by the user’s program.
The width of PWM output pulse is determined by the value in the appropriate Compare registers,
PWM0L and PWM0H. When the counter described above reaches underflow the PWM output is
forced high. It remains high until the compare value is reached at which point it goes low and keeps
low until the next underflow. The number of microcontroller clock pulses that the PWM0 output is high
is given by:
tHI = (PWMP – PWM0+1)
Note :
1. A compare value of all zeroes, 000H, causes the PWM output to remain permanently high. A
compare value of all ones, 3FFH, results in the PWM output remain permanently low. A compare
value greater than the counter reloaded value will result in the PWM output being permanently
low.
2. When the PWMRUN is cleared, the PWM outputs take on the state prior to the bit being cleared.
In general, this state is not known. In order to place the PWM output in a known state when
PWMRUN is cleared;
Program Compare Registers to either the “always 1” or “always 0” (see note 1).
Set Load (and PWMRUN) bits to 1.
Wait for PWMF underflow flag or Load bit (=0).
Clear PWMRUN.
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 70 -

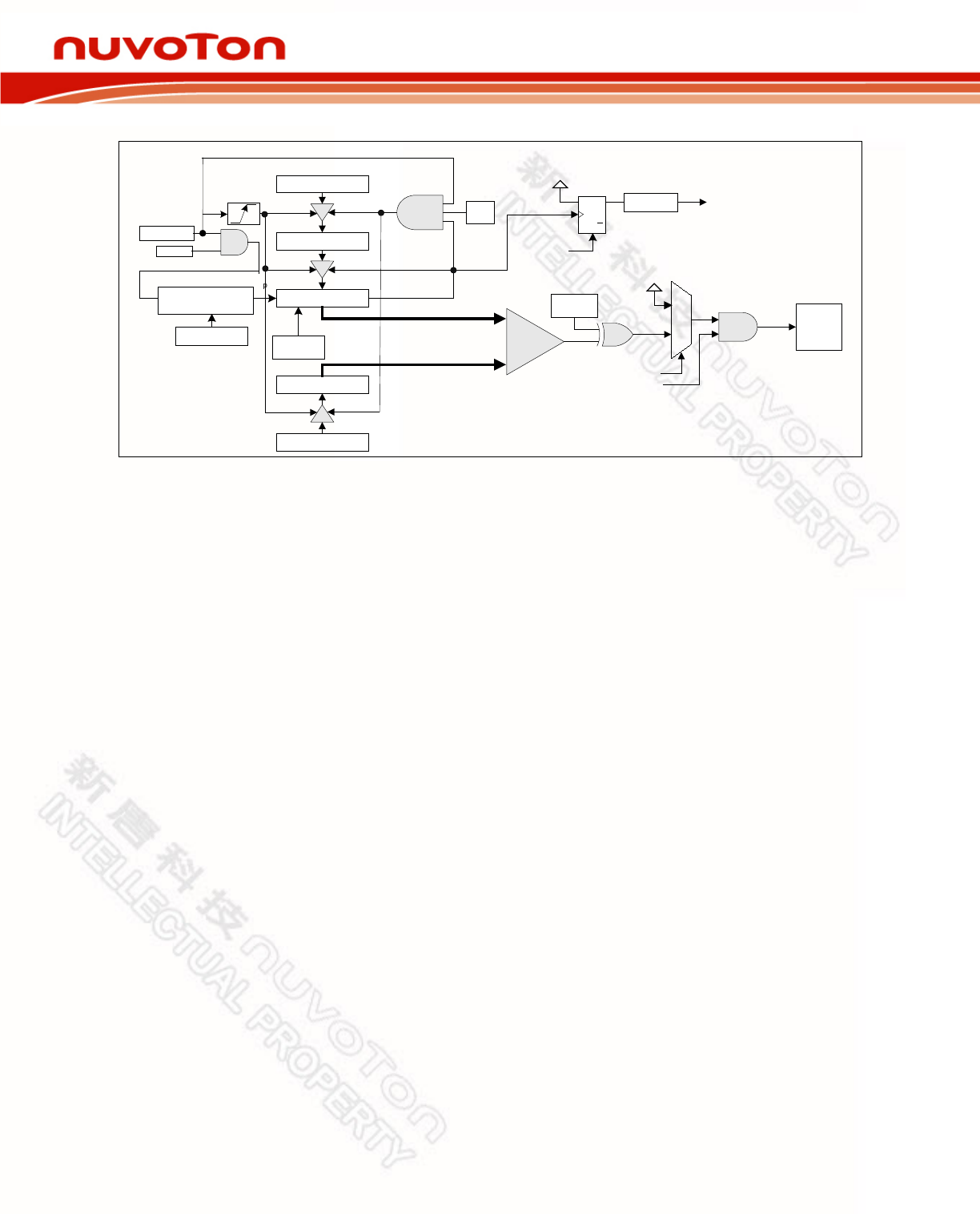

10-bit Down Counter
Compare Register
Counter Register
PWM0 register
+
-
PWM0
(P3.5)
+
-
X
Y>
load
PWMP Register
Clear
Counter
PWM0OE
0
1
P3.5
PWM0I
PWMF
PWM Period Interrupt
Q
Q
SET
CLR
D
S/W Clear
VDD
Underflow
VDD
CLRPWM
PWMRUN
Fosc
Prescaler
(1/1, 1/2, 1/4, 1/16)
Fcpwm
(FP1, FP0)
Posc
Figure 17-1: PWM block diagram
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 71 - Revision A06
18 ANALOG COMPARATORS
The W79E4051/2051 is provided an Analog Comparator shown in Figure 18-1. The comparator output
is wired to SFR bit P3.6. When the positive input of AIN0(P1.0) is greater than the negative input of
AIN1(P1.1), the comparator output is high. Otherwise the output is low.
The comparator may be configured to cause an interrupt under a variety of output value conditions by
setting bits CM[2:0] in ACSR(97H) register and bits CPCK[2:0] in ACCK(96H) register. The CF flag is
set whenever the comparator output is matched the setting condition by CM[2:0].
Setting bit CIPE(Comparator Idle Power-down Enable) in ACSR.5 to high makes the analog
comparator is active in power-down and idle mode, therefore the comparator interrupt can wake up
CPU from power down and idle mode.
-
+

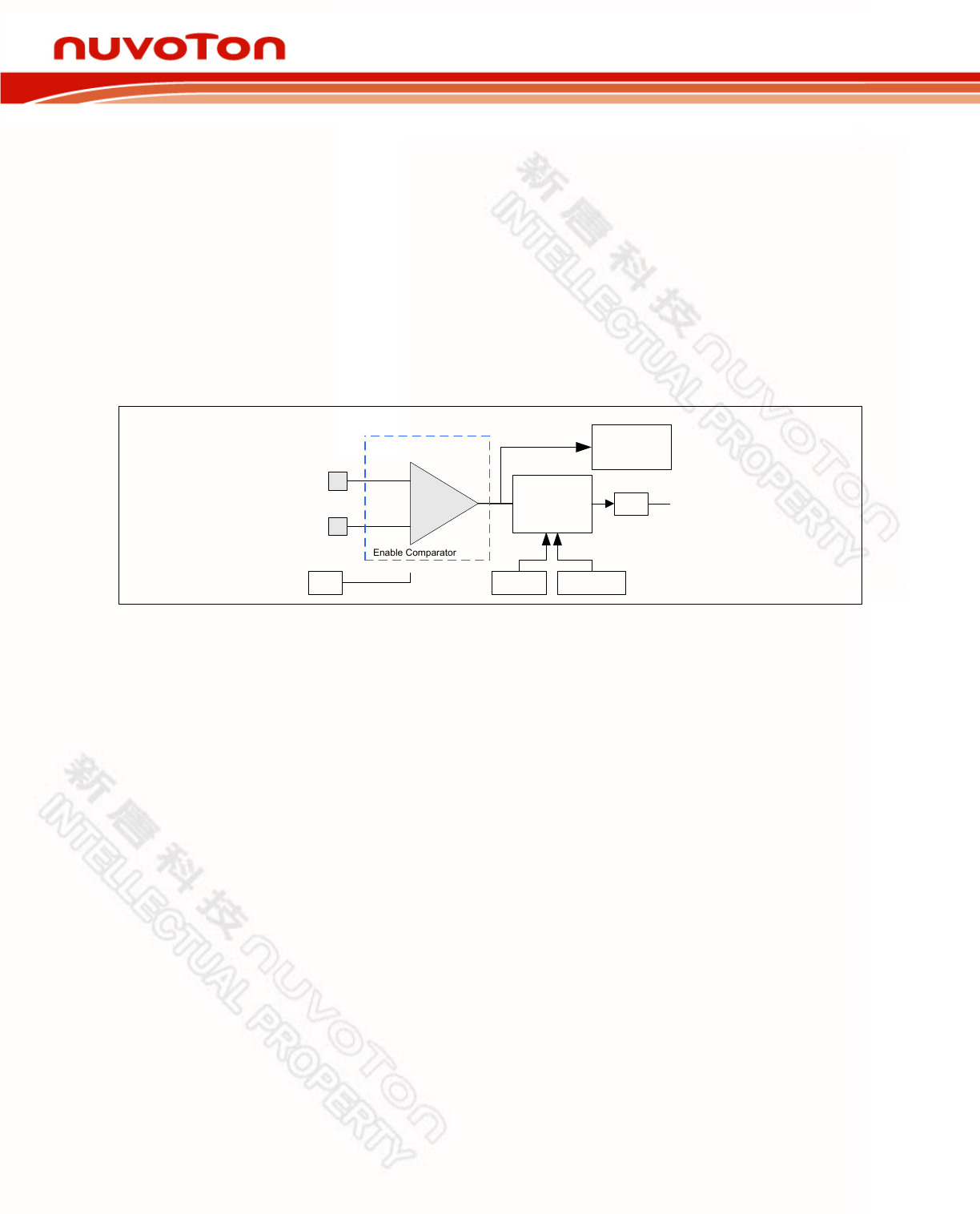

CF Interrupt
(P1.0) AIN0
(P1.1) AIN1
Analog Comparator Circuit
Enable Comparator
CEN
Debouncing
Control
CM[2:0]
Register bit
P3.6
CPCK[2:0]
Figure 18-1: Analog Comparator
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 72 -
18.1 Comparator Interrupt with Debouncing
The comparator output is sampled at every State 4 (S4) of every machine cycle. The conditions on the
analog inputs maybe cause the comparator output toggle excessively, especially applying slow
moving analog inputs. Table 18-2: Comparator Interrupt Mode shows the 8 comparator interrupt
modes set by CM[2:0] in ACSR(97H). A built-in configurable debouncing timer provides 8 debouncing
timing controlled by CPCK[2:0] for widely applications. The debouncing timing is shown in Table 18-1.
If CPU is in normal/Idle mode FDB is from Fosc; if CPU is in power-down mode FDB is from internal RC
22M/11M Hz oscillator.
CPCK2 CPCK 1 CPCK 0 Debouncing Time
0 0 0 (3/FDB)*2~(4/FDB)*2
0 0 1 (3/FDB)*4~(4/FDB)*4
0 1 0 (3/FDB)*8~(4/FDB)*8
0 1 1 (3/FDB)*16~(4/FDB)*16
1 0 0 (3/FDB)*32~(4/FDB)*32
1 0 1 (3/FDB)*64~(4/FDB)*64
1 1 0 (3/FDB)*128~(4/FDB)*128
1 1 1 (3/FDB )*256~(4/FDB)*256
Table 18-1: Comparator Debouncing Time
CM2 CM1 CM0 Comparator interrupt mode
0 0 0 Negative (Low) level
0 0 1 Positive edge
0 1 0 Toggle with debounce
0 1 1 Positive edge with debounce
1 0 0 Negative edge
1 0 1 Toggle
1 1 0 Negative edge with debounce
1 1 1 Positive (High) level
Table 18-2: Comparator Interrupt Mode
Three debouncing modes are provided to filter out this noise. In debouncing mode when the
comparator output matches one of three debouncing mode condition, the debouncing timer resets and
starts up-counting. The end of debouncing triggers the hardware to check if the comparator output
matches the mode condition or not. If it is compliant with the mode condition the comparator flag CF is
set by hardware, otherwise CF keeps low. Refer to Figure 18-2.
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 73 - Revision A06

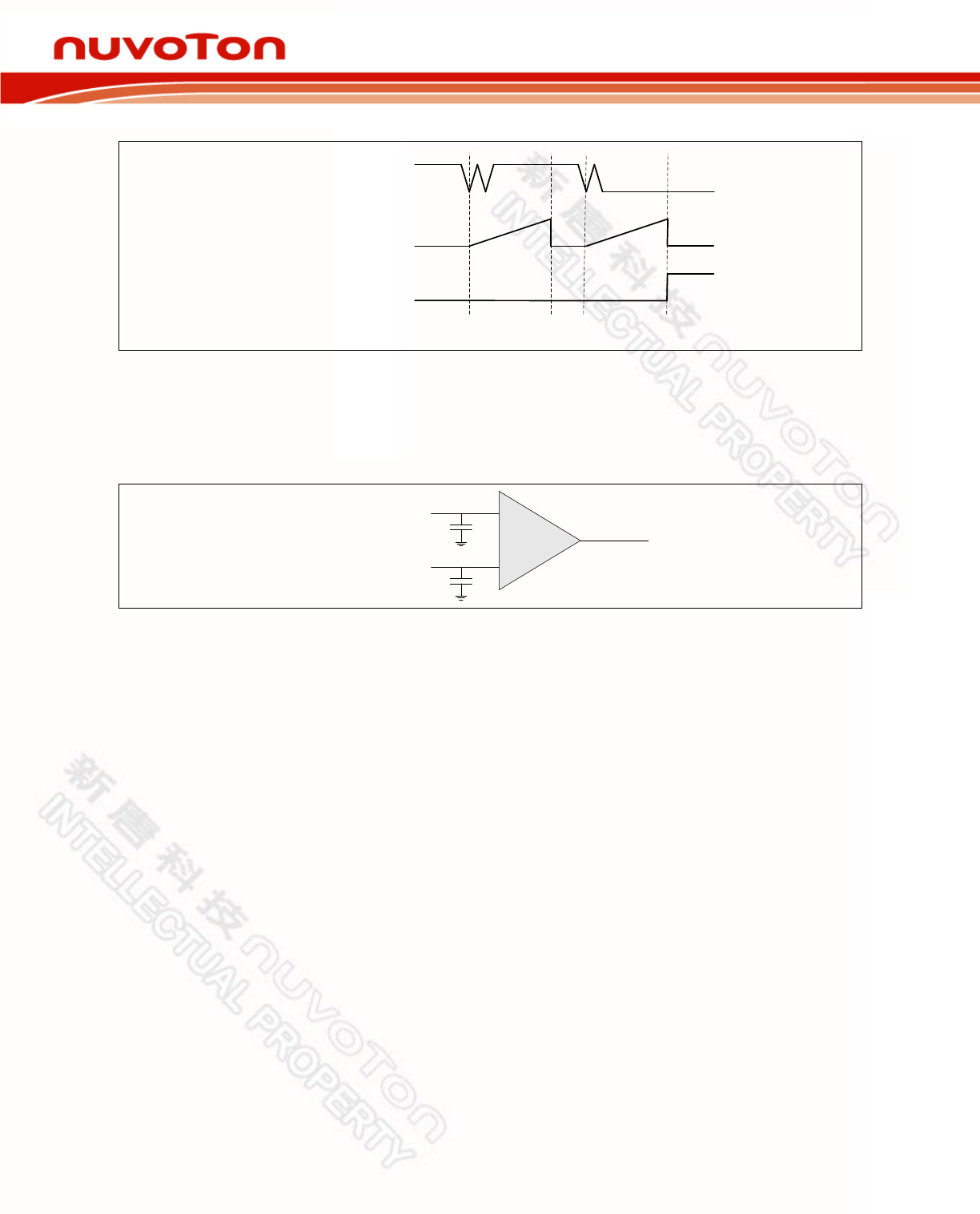

Start
debouncing
Comparator Output
Debouncing Timer
CF
End of
debouncing
Start Condition
matches
Figure 18-2: Example of Negative Edge Comparator Interrupt with Debouncing
18.2 Application circuit
It is recommended to add a decoupled capacitor as close as port pin for reducing the variation of
offset voltage as show in Figure 18-3.
-
+
(P1.0) AIN0
(P1.1) AIN1
C
C
Figure 18-3: Application Circuit of Comparator
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
- 74 -
19 TIME ACCESS PROCTECTION
The W79E4051/2051 series have a new feature, like the Watchdog Timer which is a crucial to proper
operation of the system. If left unprotected, errant code may write to the Watchdog control bits
resulting in incorrect operation and loss of control. In order to prevent this, the W79E4051/2051 series
have a protection scheme which controls the write access to critical bits. This protection scheme is
done using a timed access.
In this method, the bits which are to be protected have a timed write enable window. A write is
successful only if this window is active, otherwise the write will be discarded. This write enable window
is open for 3 machine cycles if certain conditions are met. After 3 machine cycles, this window
automatically closes. The window is opened by writing AAh and immediately 55h to the Timed Access
(TA) SFR. This SFR is located at address C7h. The suggested code for opening the timed access
window is
TA REG 0C7h ;Define new register TA, @0C7h
MOV TA, #0AAh
MOV TA, #055h
When the software writes AAh to the TA SFR, a counter is started. This counter waits for 3 machine
cycles looking for a write of 55h to TA. If the second write (55h) occurs within 3 machine cycles of the
first write (AAh), then the timed access window is opened. It remains open for 3 machine cycles,
during which the user may write to the protected bits. Once the window closes the procedure must be
repeated to access the other protected bits.
Examples of Timed Assessing are shown below.
Example 1: Valid access
MOV TA, #0AAh ;3 M/C Note: M/C = Machine Cycles
MOV TA, #055h ;3 M/C
MOV WDCON, #00h ;3 M/C
Example 2: Valid access
MOV TA, #0AAh ;3 M/C
MOV TA, #055h ;3 M/C
NOP ;1 M/C
SETB EWRST ;2 M/C
Example 3: Valid access
MOV TA, #0AAh ;3 M/C
MOV TA, #055h ;3 M/C
ORL WDCON, #00000010B ;3M/C
Example 4: Invalid access
MOV TA, #0AAh ;3 M/C
MOV TA, #055h ;3 M/C
NOP ;1 M/C
NOP ;1 M/C
CLR EWT ;2 M/C
Example 5: Invalid Access
MOV TA, #0AAh ;3 M/C
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 75 - Revision A06
NOP ;1 M/C
MOV TA, #055h ;3 M/C
SETB EWT ;2 M/C
In the first three examples, the writing to the protected bits is done before the 3 machine cycles
window closes. In Example 4, however, the writing to the protected bit occurs after the window has
closed, and so there is effectively no change in the status of the protected bit. In Example 5, the
second write to TA occurs 4 machine cycles after the first write, therefore the timed access window is
not opened at all, and the write to the protected bit fails.
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 76 -
20 I/O PORT MODE SETTING
W79E4051/2051 has maximum one 8-bit(P1), one 7-bit(P3) and one 2-bit(P2) ports. Except P1.0 and
P1.1, all pins are quasi-bidrectional mode, which are common with standard 80C51, that the internal
weakly pull-ups are present as the port registers are set to logic one. P1.0 and P1.1, the alternate
function are analog comparator inputs, stays in PMOS-off open-drain mode after CPU reset. The P2.0
(XTAL2) can be configured as clock output by setting bit ENCLK to high when CPU clock source is
from on-chip RC or external Oscillator, and the frequency of clock output is divided by 4 on on-chip RC
clock or external Oscillator.
20.1 Quasi-Bidirectional Output Configuration
After chip was power on or reset, the all ports except P1.0 and P1.1 output are in this mode, and
output is common with the MCS-51. This mode can be used as both an input and output without the
need to reconfigure the port. P1.0~P1.1 stays in PMOS-off open-drain mode after CPU reset.
P1M1.Y PORT INPUT/OUTPUT MODE
0 Open Drain
1 Quasi-bidirectional
Table 20-1: I/O port Configuration Table
When the pin is pulled low, it is driven strongly and able to sink a fairly large current. These features
are similar to an open drain output except that there are three pull-up transistors in the quasi-
bidirectional output that serve different purposes.
This mode has three pull-up resisters that are “strong” pull-up, “weak” pull-up and “very weak” pull-up.
The “strong” pull-up is used fast transition from logic “0” change to logic “1”, and it is fast latch and
transition. When port pins is occur from logic “0” to logic “1”, the strong pull-up will quickly turn on two
CPU clocks to pull high then turn off.
The “weak” pull-up is turned on when the input port pin is logic “1” level or itself is logic “1”, and it
provides the most source current for a quasi-bidirectional pin that output is “1” or port latch is logic “0”’.
The “very weak” pull-up is turned on when the port latch is logic “1”. If port latch is logic “0”, it will be
turned off. The very weak pull-up is support a very small current that will pull the pin high if it is left
floating. And the quasi-bidirectional port configuration is shown as below figure.
If port pin is low, it can drives large sink current up to about 20mA/10mA at VDD=5V/2.7V.
n UVOTO n E >—{[ %[
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 77 - Revision A06

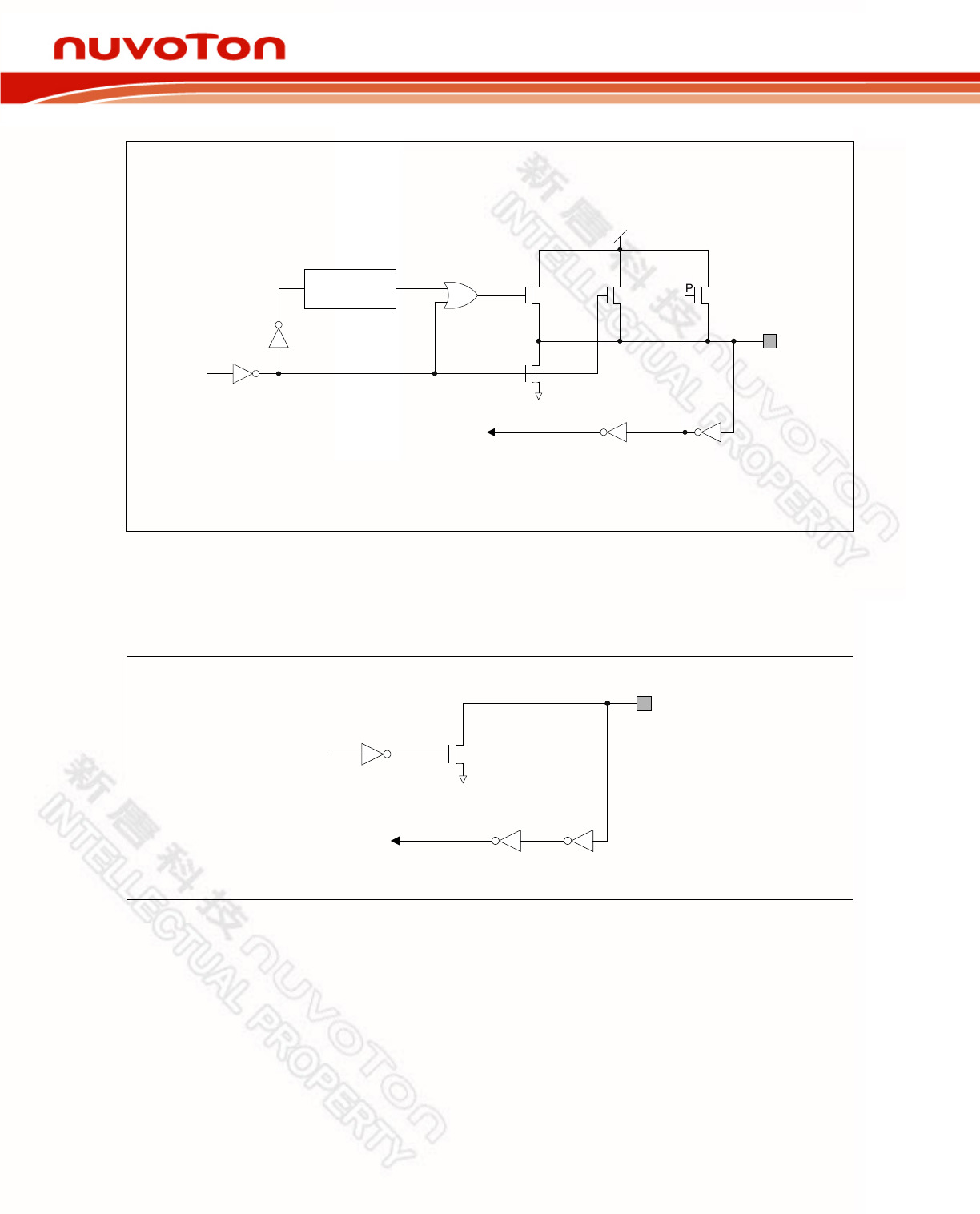

Port Pin
2 CPU
Clock Delay
Input Data
Port Latch
Data
P P P
N
VDD
Strong Very
Weak Weak
Figure 20-1: Quasi-Bidirectional Output
20.2 Open Drain Output Configuration
P1.0 and P1.1 are in open drain type after chip reset. To configure this mode is turned off all pull-ups.
If used similar as a logic output, the port must has an external pull-up resister. The open drain port
configuration is shown as below.
Port Pin
Port Latch
Data
N
Input Data
Figure 20-2: Open Drain Output
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 78 -
21 OSCILLATOR
The W79E4051/2051 series provides three oscillator input option. These are configured at CONFIG
register (CONFIG0) that include On-Chip RC Oscillator Option, External Clock Input Option and
Crystal Oscillator Input Option. The Crystal Oscillator Input frequency may be supported from 4MHz to
24MHz, and without capacitor or resister.
FOSC0FOSC1
00H
11H
01H
Crystal Oscillator
External Clock input
Internal RC Oscillator 16 bits Ripple
Counter
CPU Clock
Power Monitor Reset
Power Down
Peripheral
Clock
F
CPU
Figure 21-1: Oscillator
21.1 On-Chip RC Oscillator Option
The On-Chip RC Oscillator of W79E4051R and W79E2051R is trimmed by factory and is configurable
to 11.0592MHz/22.1184MHz
±
2% (through Configuration-bit FS1 bit) frequency to support clock
source. When FOSC1, FOSC0 = 01H, the On-Chip RC Oscillator is enabled. A clock output on P2.0
(XTAL2) may be enabled when On-Chip RC oscillator is used.
Note:
For the untrimmed parts of W79E2051 and W79E4051, the untrimmed frequency of internal RC
oscillator may have ± 25% deviation compared to the nominal frequency in 22.1184Mhz. It maybe has
an potential risk that CPU runs over specified speed if the untrimmed frequency is over 24MHz.
21.2 External Clock Input Option
The clock source pin (XTAL1) is from External Clock Input by FOSC1, FOSC0 = 11H, and frequency
range is form 4MHz up to 24MHz. A clock output on P2.0 (XTAL2) may be enabled when External
Clock Input is used.
The W79E4051/2051 series supports a clock output function when either the on-chip RC oscillator or
the external clock input options is selected. This allows external devices to synchronize to the
W79E4051/2051 serial. When enabled, via the ENCLK bit in the ACCK.7, the clock output appears on
the XTAL2/CLKOUT pin whenever the on-chip oscillator is running, including in Idle Mode. The
frequency of the clock output is 1/4 of the CPU clock rate. If the clock output is not needed in Idle
Mode, it may be turned off prior to entering Idle mode for saving additional power. The clock output
may also be enabled when the external clock input option is selected.
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 79 - Revision A06
22 POWER MONITORING FUNCTION
In order to prevent incorrect operation during power up and power drop, the W79E4051/2051 is
provided a power monitor function, Brownout Detect.
22.1 Brownout Detect and Reset
The W79E4051/2051 has an on-chip Brown-out Detection circuit for monitoring the VDD level during
operation by comparing it to a programmable brownout trigger level. There are 4 brownout trigger
levels available for wider voltage applications. The 4 nominal levels are 2.4V, 2.7V, 3.8V and 4.5V
(programmable through BOV.1-0 bits). When VDD drops to the selected brownout trigger level (VBOR),
the brownout detection logics will either reset the CPU until the VDD voltage raises above VBOR or
requests a brownout interrupt at the moment that VDD falls and raises through VBOR. The brownout
detection circuits also provides a low power brownout detection mode for power saving. When
LPBOV=1, the brownout detection repeatedly senses the voltage for 64/fBRC then turn off detector for
960/ fBRC if VDD voltage still below brownout trigger level. fBRC, the frequency of built-in RC oscillator, is
approximately 100K* VDD HZ ±50%. The relative control bits are located in SFR AUXR1 @A2h. The
Brownout Detect block is shown in Figure 22-1.
Brownout
Detect
Circuit
0
1
BOF
To Reset
To Brownout interrupt
BOV[1:0]
BOD
LPBOV
BOI
BOS
Figure 22-1: Brown-out Detect Block
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 80 -
VBOR+
VBOR -
V
DD
BOI=0 to select
Brown-out Reset
Set by Hardware
Clear by Software
Hysterisis voltage is about 30mV~150mV for each BOD voltage level
BOI=1 to select
Brown-out Interrupt
Clear by Software
T
BOR :
Brown-out Reset Delay Time with about 8mS
Nominal Brown-
out Voltage
Brown-out Status
BOS
T
BOR
8ms
Reset
BOF
Figure 22-2: Brown-out Voltage Detection
Hysterisis range of brownout detect voltage is about 30mV to 150mV
n UVOTO n E to mtg://www.manleyccm.cn/eng|ish/index.asg WW» ‘ \N\ VV\ NM
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 81 - Revision A06
23 ICP (IN-CIRCUIT PROGRAM) FLASH MODE
The ICP(In-Circuit-Program) mode is another approach to access the Flash EPROM. There are only 3
pins needed to perform the ICP function. One is mode input, shared with RST pin, which must be kept
in Vdd voltage in the entire ICP working period. One is clock input, shared with P1.7, which accepts
serial clock from external device. Another is data I/O pin, shared with P1.6, that an external ICP
program tool shifts in/out data via P1.6 synchronized with clock(P1.7) to access the Flash EPROM of
W79E4051/2051. User may refer to http://www.manley.com.cn/english/index.asp for ICP Program
Tool.

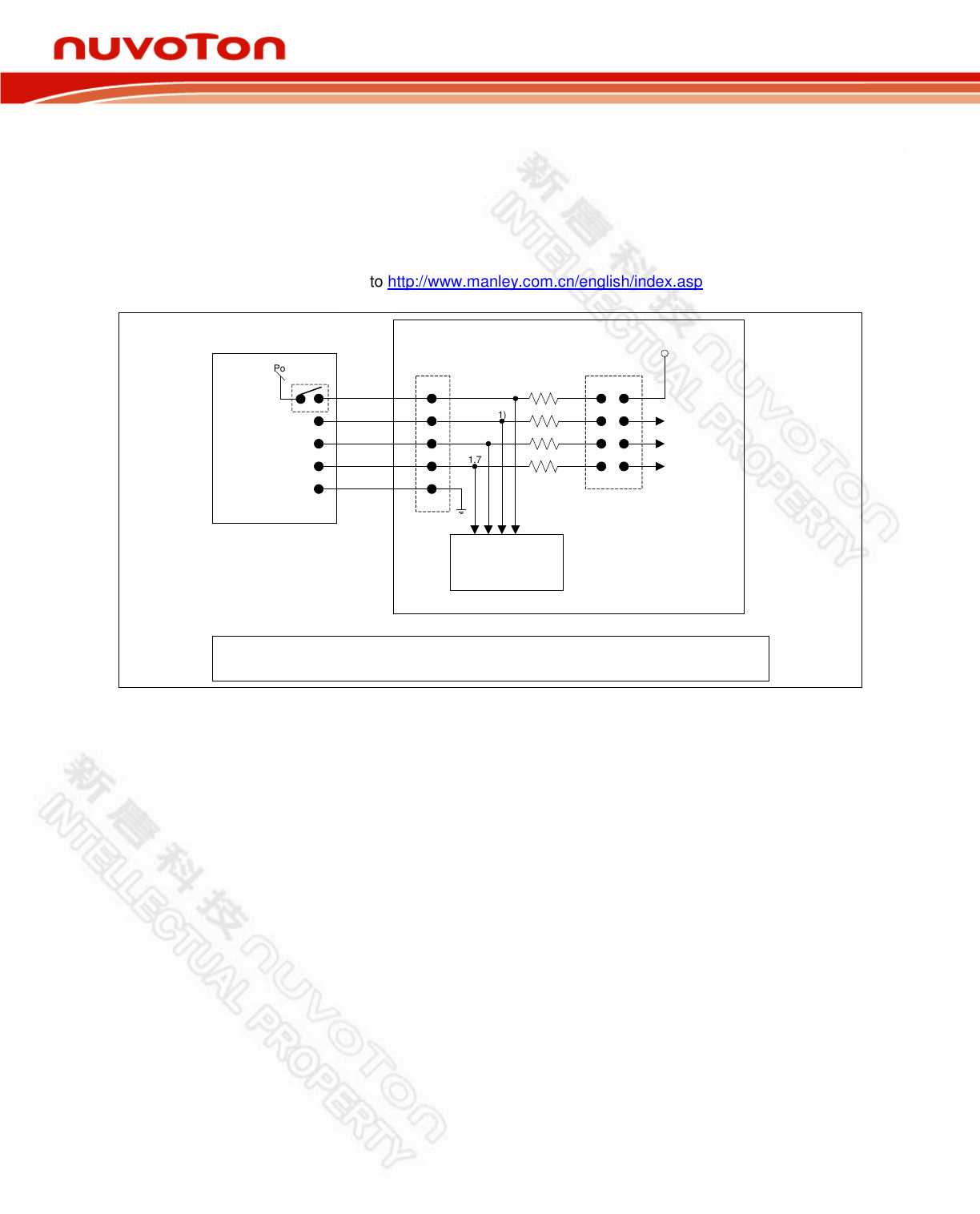

W79E2051
W79E4051
RST(Pin1)
P1.6
P1.7
V
DD
Vss
To application
To application
To application
V
DD
V
PP
Data
Clock
Vss
ICP
Writer Tool
Vcc
Jumper
[1]
ICP Connector
System Board
ICP Power
Switch
[2]
[2]
[2]
[2]
Note:
1. Circuitry separation is optionally needed between ICP and application during ICP operation.
2. Resistor is optional by application
Figure 23-1: ICP Writer Tool connector pin assign
Note: 1. When using ICP to upgrade code, the RST, P1.6 and P1.7 must be taken within design system board.
2. After program finished by ICP, to suggest system power must power off and remove ICP connector then power
on.
3. It is recommended that user performs erase function and programming configure bits continuously
without any interruption.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 82 -
24 CONFIG BITS
The W79E4051/2051 has two CONFIG bits (CONFIG0 located at FB00h, CONFIG1 located at FB01h)
that must be defined at power up and can not be set by the program after start of execution. Those
features are configured through the use of two flash EPROM bytes, and the flash EPROM can be
programmed and verified repeatedly. Until the code inside the Flash EPROM is confirmed OK, the
code can be protected. The protection of flash EPROM (CONFIG1) and those operations on it are
described below.
24.1 CONFIG0
WDTCK CBOV1CBOV00-BPFR Fosc1 Fosc0
Config0
Figure 24-1: Config0 register bits
Bit Name Function
7 WDTCK Clock source of Watchdog Timer select bit:
0: The internal 500KHz RC oscillator clock is for Watchdog Timer clock used.
1: The uC clock is for Watchdog Timer clock used.
6~5 CBOV1
CBOV0
Brownout voltage selection bits:
SFR bits (BOV1,BOV0) are initialized at reset with the inversed value of config0-bits
(CBOV1,CBOV0)
CBOV.1 CBOV.0 Brownout Voltage
1 1 Brownout voltage is 2.4V
1
0
Brownout voltage is 2.7V
0
1
Brownout voltage is 3.8V
0
0
Brownout voltage is 4.5V
2 BPFR Bypass Clock Filter.
0: Disable Clock Filter.
1: Enable Clock Filter.
1 Fosc1 CPU Oscillator Type Select bit 1.
0 Fosc0 CPU Oscillator Type Select bit 0.
Oscillator Configuration bits:
Fosc1 Fosc0 OSC source
0 0 4MHz ~ 24MHz crystal
0 1 Internal RC Oscillator (FS1 bit in CONFIG1.5 will determine
either 11MHz or 22MHZ)
XT1 and XT2 function as P2.1 and P2.0
1 0 Reserved
1 1 External Oscillator in XTAL1; XT2 is in Tri-state
n UVOTO n = er
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 83 - Revision A06
24.2 CONFIG1
C7 C6 FS1
-
-
-
--
Config1
Figure 24-2: Config1 register bits
Bit Name Function
7 C7 4K/2K Program Flash EPROM Lock bit
This bit is used to protect the customer’s progr
am code. It may be set after the programmer
finishes the programming and verifies sequence. Once this bit is set to logic 0, both the Flash
EPROM data and CONFIG Registers can not be accessed again.
6 C6 128 byte Data Flash EPROM Lock bit
This bit is use
d to protect the customer’s 128 bytes of data code. It may be set after the
programmer finishes the programming and verifies sequence. Once this bit is set to logic 0,
both the 128 bytes of Flash EPROM data and CONFIG Registers can not be accessed again.
5 FS1 Internal Oscillator 11MHz/22MHz selection bit
This bit is used to select 11MHz or 22MHz internal oscillator.
1: Internal oscillator is set to 22MHz
0: Internal oscillator is set to 11MHz
0~4 - Reserved.
Lock bits C7 and C6:
Bit 7 Bit 6 Function Description
1 1 Both security of 4K/2KB program code and 128 Bytes data area are not locked. They
can be erased, programmed or read by Writer or ICP.
0 1 The 4K/2KB program code area is locked. It can not be read and written by Writer or
ICP. The 128 Bytes data area can be program one time or read.
1 0 Not supported.
0 0 Both security of 4K/2KB program code and 128 Bytes data area are locked. They can
not be read and written by Writer or ICP.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 84 -
25 ELECTRICAL CHARACTERISTICS
25.1 Absolute Maximum Ratings
SYMBOL PARAMETER CONDITION MINIMUM MAXIMUM UNIT
DC Power Supply VDD VDD−VSS -0.3 +7.0 V
Input Voltage VIN VSS-0.3 VDD+0.3 V
Operating Temperature TA -40 +85 °C
Storage Temperature Tst -55 +150 °C
Sink current ISK - 95 mA
RAM Keep Alive
Voltage VRAM 1.4 +7.0 V
Maximum Current into
VDD - 120 mA
Maximum Current out of
VSS 120 mA
Maximum Current suck
by a I/O pin 25 mA
Maximum Current
sourced by a I/O pin 25 mA
Maximum Current suck
by total I/O pins 80 mA
Maximum Current
sourced by total I/O pins 80 mA
Note: Exposure to conditions beyond those listed under absolute maximum ratings may adversely affects the lift and reliability
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 85 - Revision A06
25.2 DC ELECTRICAL CHARACTERISTICS
(VSS = 0V, TA =-40~85° C, unless otherwise specified; Typical value is test at TA=25° C)
PARAMETER SYM. SPECIFICATION TEST CONDITIONS
MIN. TYP. MAX. UNIT
Operating Voltage VDD 2.4 5.5 V VDD=2.4V ~ 5.5V @ 12MHz
VDD=4.5V ~ 5.5V @ 24MHz
3.0 5.5 Program and erase Data Flash.
Operating Current IDD1 2 3.5 mA No load, RST = VDD, VDD= 3.0V
@ 12MHz
IDD2 8 12 mA No load, RST = VDD, VDD= 5.0V
@ 24MHz
Idle Current IIDLE1 1.6 2.5 mA No load, VDD = 3.0V @ 12MHz
IIDLE2 6.5 7.5 mA No load, VDD = 5.0V @ 24MHz
Power Down Current IPWDN1 0.5 10 µA No load, VDD = 5.0/3.0V
(Brownout detection is disabled)
INPUT / OUTPUT
Input Current P1, P2, P3 IIN1 -50 - +10 µA VDD = 5.5V, VIN = 0V or VIN=VDD
Input Current RST pin
[1]
IIN2 -55 - -30 µA VDD = 5.5V, VIN = 0.45V
Input Leakage Current P1.0,
P1.1(Open Drain) ILK -1 - +1 µA VDD = 5.5V, 0<VIN<VDD
Logic 1 to 0 Transition Current
P1, P2, P3 ITL [*3] -450 - -200 µA VDD = 5.5V, VIN<2.0V
-93 - -56 VDD =2.4 Vin = 1.3v
Input Low Voltage P1, P2, P3
(TTL input) VIL1 0 - 1.0 V VDD = 4.5V
0 - 0.6 VDD = 2.4V
Input High Voltage P1, P2, P3
(TTL input) VIH1 2.0 - VDD +0.2 V VDD = 5.5V
1.5 - VDD +0.2 VDD = 2.4V
Input Low Voltage XTAL1[*2] VIL3 0 - 0.8 V VDD = 4.5V
0 - 0.4 VDD = 3.0V
Input High Voltage XTAL1
[*2]
VIH3 3.5 - VDD +0.2 V VDD = 5.5V
2.4 - VDD +0.2 VDD = 3.0V
Negative going threshold
(RST Schmitt input) VILS -0.5 - 0.3VDD V
Positive going threshold
(RST Schmitt input) VIHS 0.7VDD - VDD+0.5 V
Hysteresis voltage
(RST Schmitt input) VHY 0.2VDD V
Source Current P1, P2, P3
(Quasi-bidirectional Mode) ISR1 -150 -210 -360 µA VDD = 4.5V, VS = 2.4V
-18 -27 -40 µA VDD = 2.4V, VS = 2.0V
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
- 86 -
Sink Current P1, P2, P3
(Quasi-bidirectional Mode) ISK1 13 20 24 mA VDD = 4.5V, VS = 0.45V
8 13 17 mA VDD = 2.4V, VS = 0.45V
Brownout voltage with
BOV[1:0]=00 VBO2.4 2.25 2.4 2.55 V
Brownout voltage with
BOV[1:0]=01 VBO2.7 2.55 2.7 2.75 V
Brownout voltage with
BOV[1:0]=10 VBO3.8 3.65 3.8 3.90 V
Brownout voltage with
BOV[1:0]=11 VBO4.5 4.30 4.5 4.65 V
Brownout detection current
IBO1 160/135 210/170 µA
No load, VDD = 5.0/3.0V
Average current at Brownout
detection active (LPBOV=0)
IBO2 24/11 32/15 µA
No load, VDD = 5.0/3.0V
Average current at Brownout
detection active (LPBOV=1, 1/16
mode)
Hysterisis range of BOD voltage
VBh
35 - 150 mV VDD = 2.4V~5.5V,
(LPBOD,BOI) = (0,x) or (1,0)
10 - 60 mV VDD = 2.4V~5.5V,
(LPBOD,BOI)=(1,1)
Power On Reset Voltage VPOR 1.45 2.0 2.10 V With Hysterisis ~= 450mV
Notes: *1. RST pin is a Schmitt trigger input.
*2. XTAL1 is a CMOS input.
*3. Pins of P1, P2 and P3 can source a transition current when they are being externally driven from 1 to 0. The transition current reaches its maximum value when Vin
approximates to 2V.
n UVOTO n =
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 87 - Revision A06
25.3 The COMPARATOR ELECTRICAL CHARACTERISTICS
(VDD−VSS = 3.0~5V±10%, TA = -40~85°C, Fosc = 24MHz, unless otherwise specified.)
PARAMETER SYMBOL SPECIFICATION TEST CONDITIONS
MIN. TYP. MAX. UNIT
Common mode range comparator
inputs VCR 0 VDD-0.3 V
Common mode rejection ratio CMRR -50 dB
Response time tRS - 50 100 ns
Comparator enable to output valid
time tEN - 1 5 us
Input leakage current, comparator IIL -10 0 10 uA 0< VIN <VDD
Comparator offset voltage VOFF 20 mV With decoupled
capacitors on inputs
n UVOTO n = m
Preliminary W79E4051/W79E2051 Data Sheet
- 88 -

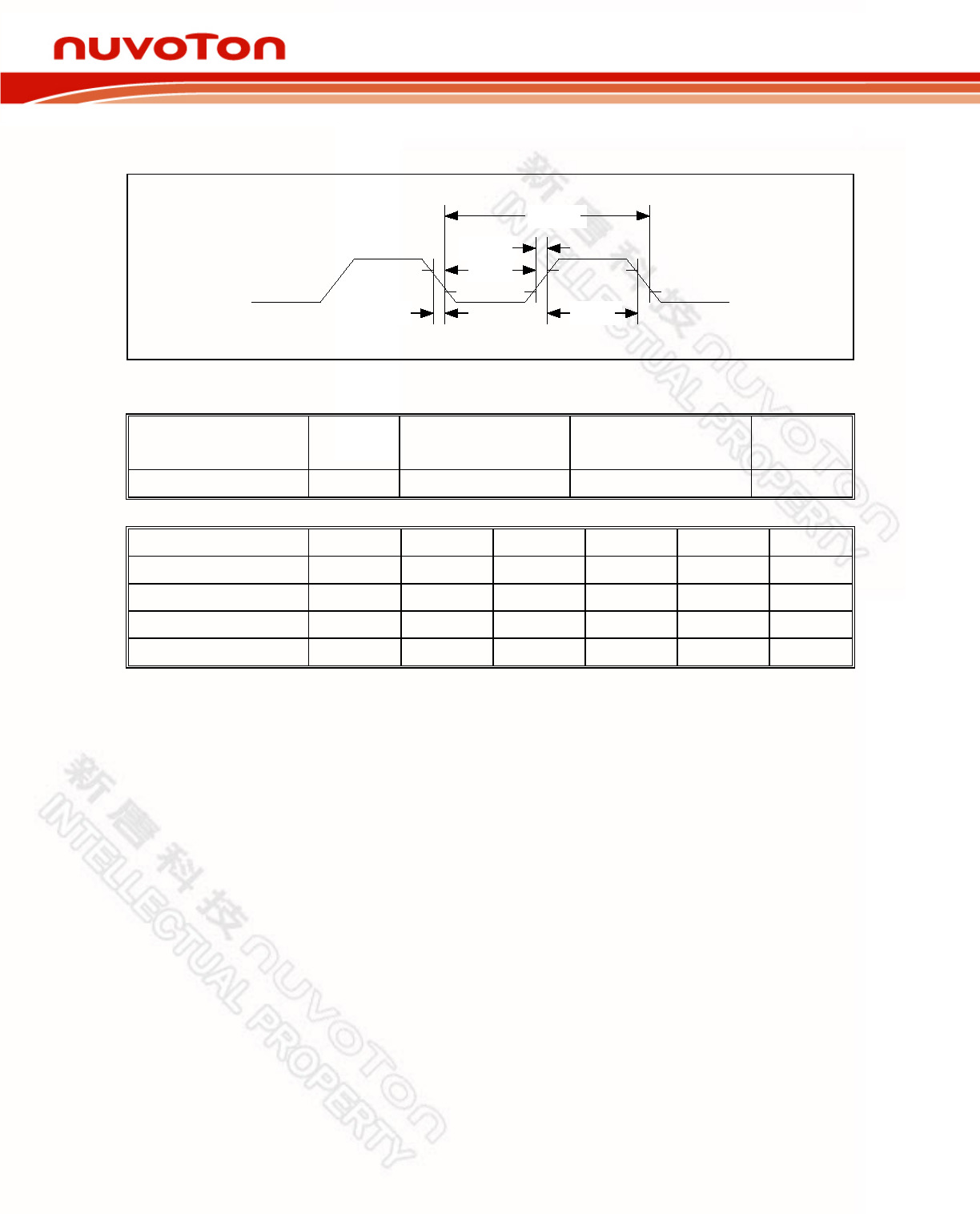

25.4 AC ELECTRICAL CHARACTERISTICS
t
CLCL
t
CLCX
t
CHCX
t
CLCH
t
CHCL
Note: Duty cycle is 50%.
25.5 EXTERNAL CLOCK CHARACTERISTICS
PARAMETER SYMBOL VARIABLE CLOCK
MIN. VARIABLE CLOCK
MAX. UNITS
Oscillator Frequency 1/tCLCL 0 24 MHz
PARAMETER SYMBOL MIN. TYP. MAX. UNITS NOTES
Clock High Time tCHCX 18.8 - - nS
Clock Low Time tCLCX 18.8 - - nS
Clock Rise Time tCLCH - - 10 nS
Clock Fall Time tCHCL - - 10 nS
n UVOTO n = ++++++
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 89 - Revision A06

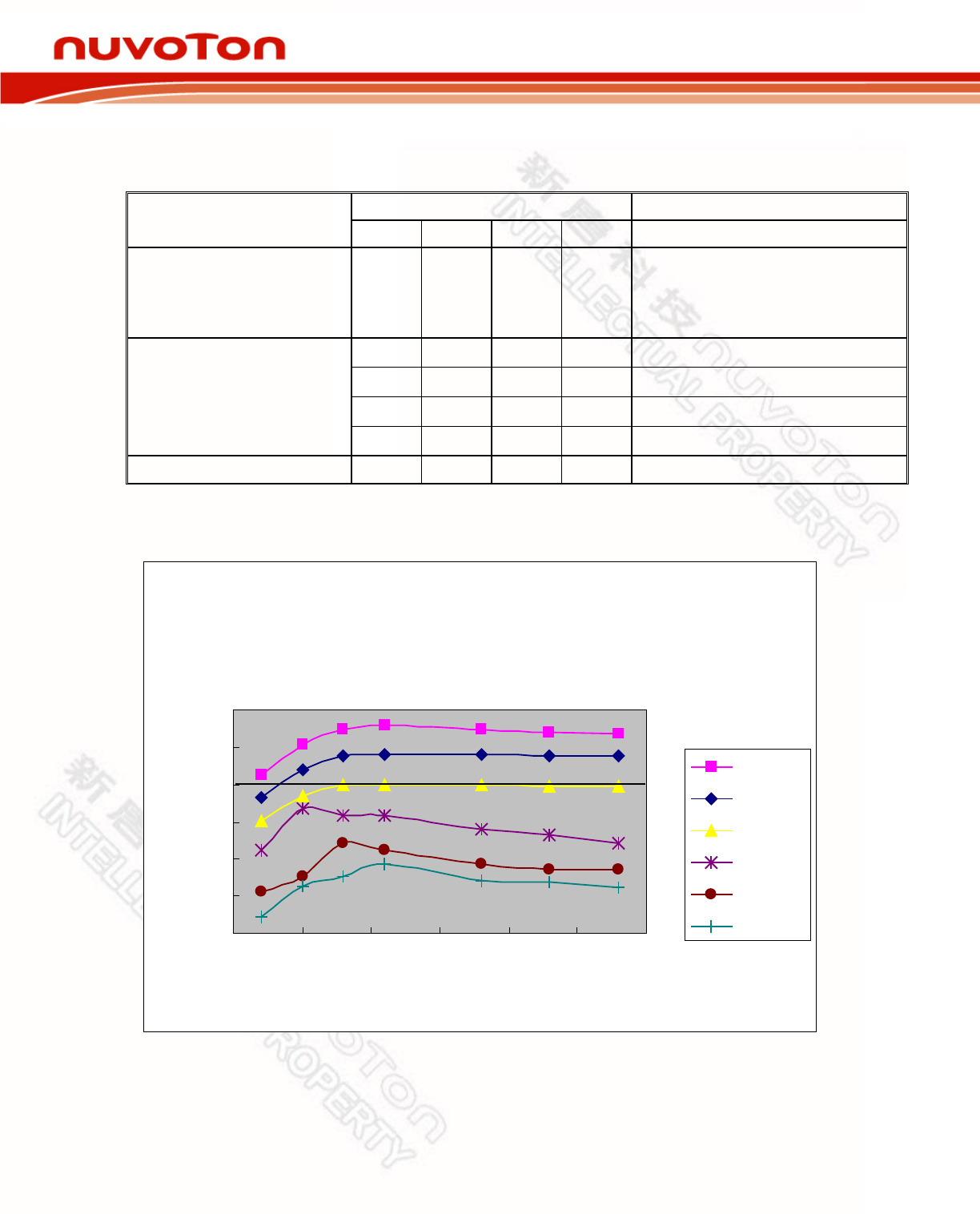

25.6 RC OSC AND AC CHARACTERISTICS
(VDD−VSS = 2.4~5V, TA = -40~85°C.)
Parameter Specification (reference) Test Conditions
Min. Typ. Max. Unit
W79E2051/W79E4051
Frequency accuracy of On-
chip RC oscillator
(Without calibration)
-25 25 % VDD=2.4V~5.5V, TA = -40°C ~85°C
W79E2051R/W79E4051R
On-chip RC oscillator with
calibration1,2
(Fosc = 22.1184MHz with
factory calibration)
-2 2 % VDD=5.0V, TA = 25°C
-5 5 % VDD=2.7V~5.5V, TA = 0~85°C
-7 7 % VDD=2.7V~5.5V, TA = -20~85°C
-9 7 % VDD=2.7V~5.5V, TA = -40~85°C
Wakeup time 256 clk
Note:
1. These values are for design guidance only and are not tested.
2. RC frequency deviation vs. VDD and Temperature is shown below
-12
-9
-6
-3
0
3
6
2.2 2.7 3.2 3.7 4.2 4.7 5.2
Supply Voltage (V)
Frequency Deviation (%)
T=85C
T=50C
T=25C
T=0C
T=-20C
T=-40C
n UVOTO n E
Preliminary W79E4051/W79E2051 Data Sheet
- 90 -

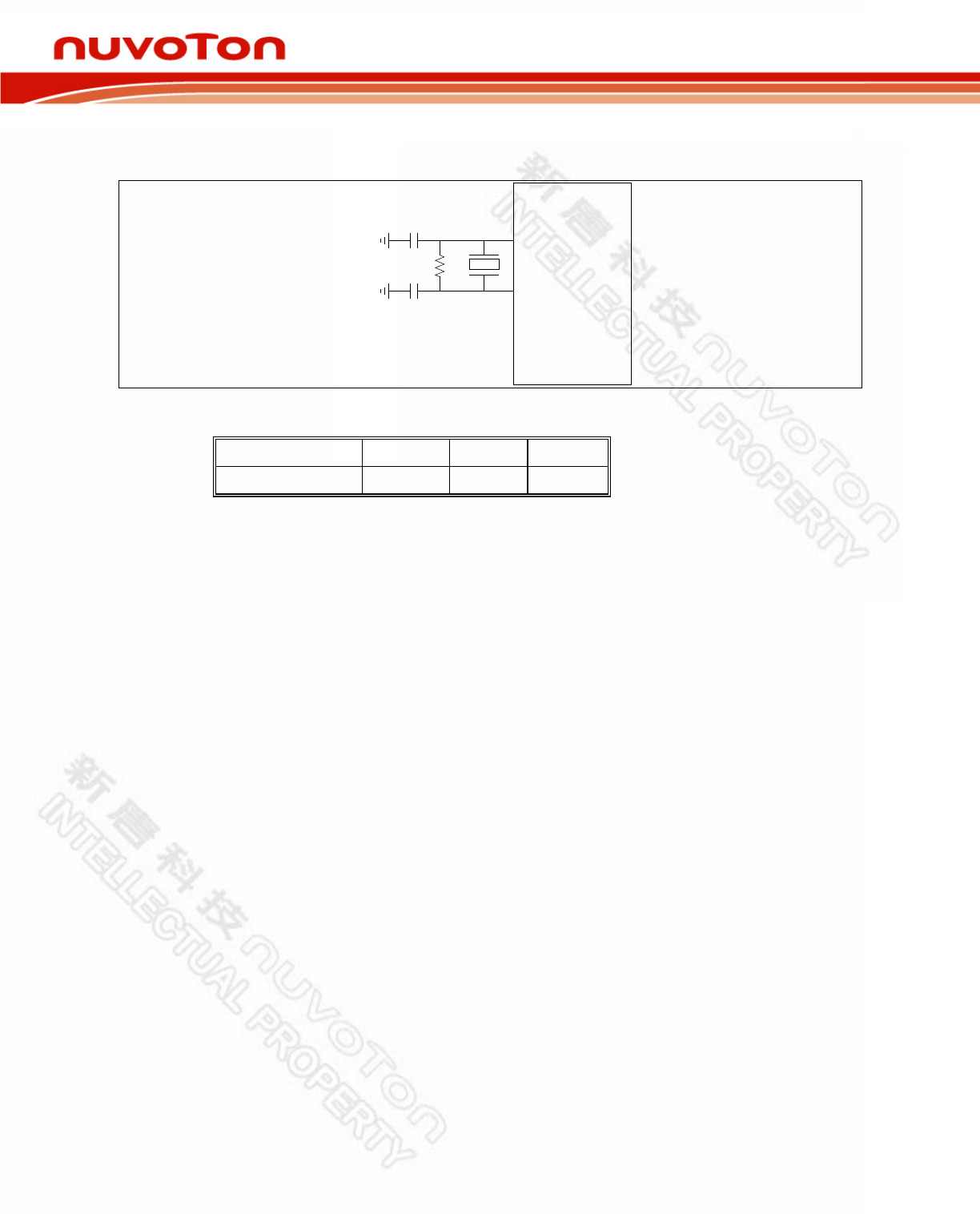

26 TYPICAL APPLICATION CIRCUITS
XTAL2
XTAL1
W79E4051/
2051
C1
C2
R
The table below shows the reference values for crystal applications.
CRYSTAL C1 C2 R
4MHz ~ 24 MHz without without without
n U VOTO n '= HHHHHHHHHHT' HHHHHHHHHHir
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 91 - Revision A06

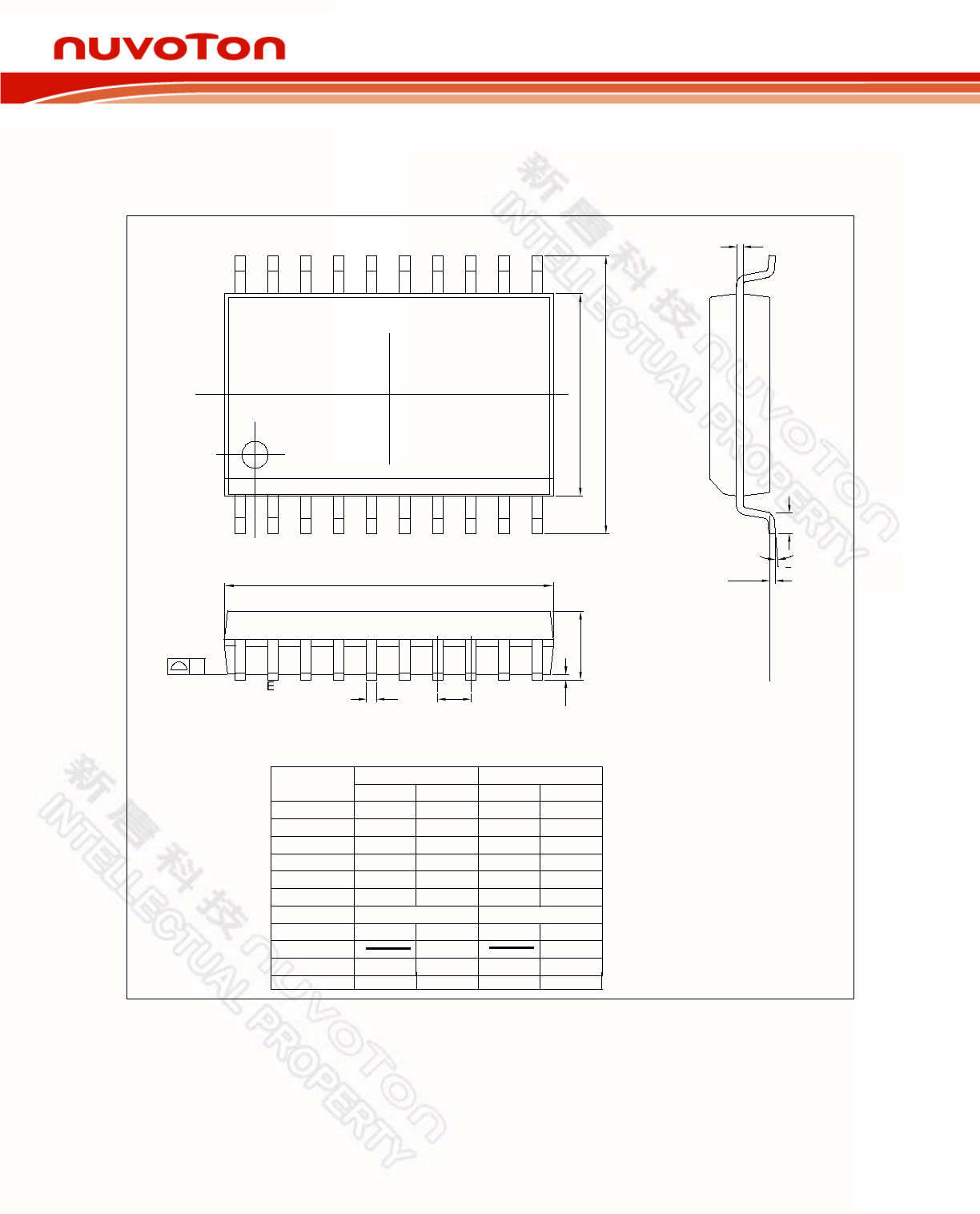

27 PACKAGE DIMENSIONS
27.1 20-pin SOP
L
O
c
E
H
A1
A
e
b
D
SEATING PLANE
Y
0.25
GAUGE P
E
1
20
11
10
7.60
0.32
0.51
0.30
E
c
b
A1
7.40
0.23
0.33
0.10
0.299
0.013
0.020
0.012
0.291
0.009
0.013
0.004
MAX.
DIMENSION IN MM
2.65
A
SYMBOL
MIN.
2.35
DIMENSION IN INCH
0.104
MIN.
0.093
MAX.
Control demensions are in milmeters .
1.27
0.10
10.65
L
θ
Y
H
0
8
0.40
10.00
e
1.27 BSC
0.050
0.004
0.419
0
0.016
0.394
8
0.050 BSC
E
D
12.60
13.00
0.496
0.512
Figure 27-1: 20L SOP-300mil
n UVOTO n H‘WH‘WPWH‘WH‘WH‘WH‘WH‘WH‘WH‘W O LUJLUJLUJLUJLUJLLALUJLUJLUJLUJ E
Preliminary W79E4051/W79E2051 Data Sheet
- 92 -

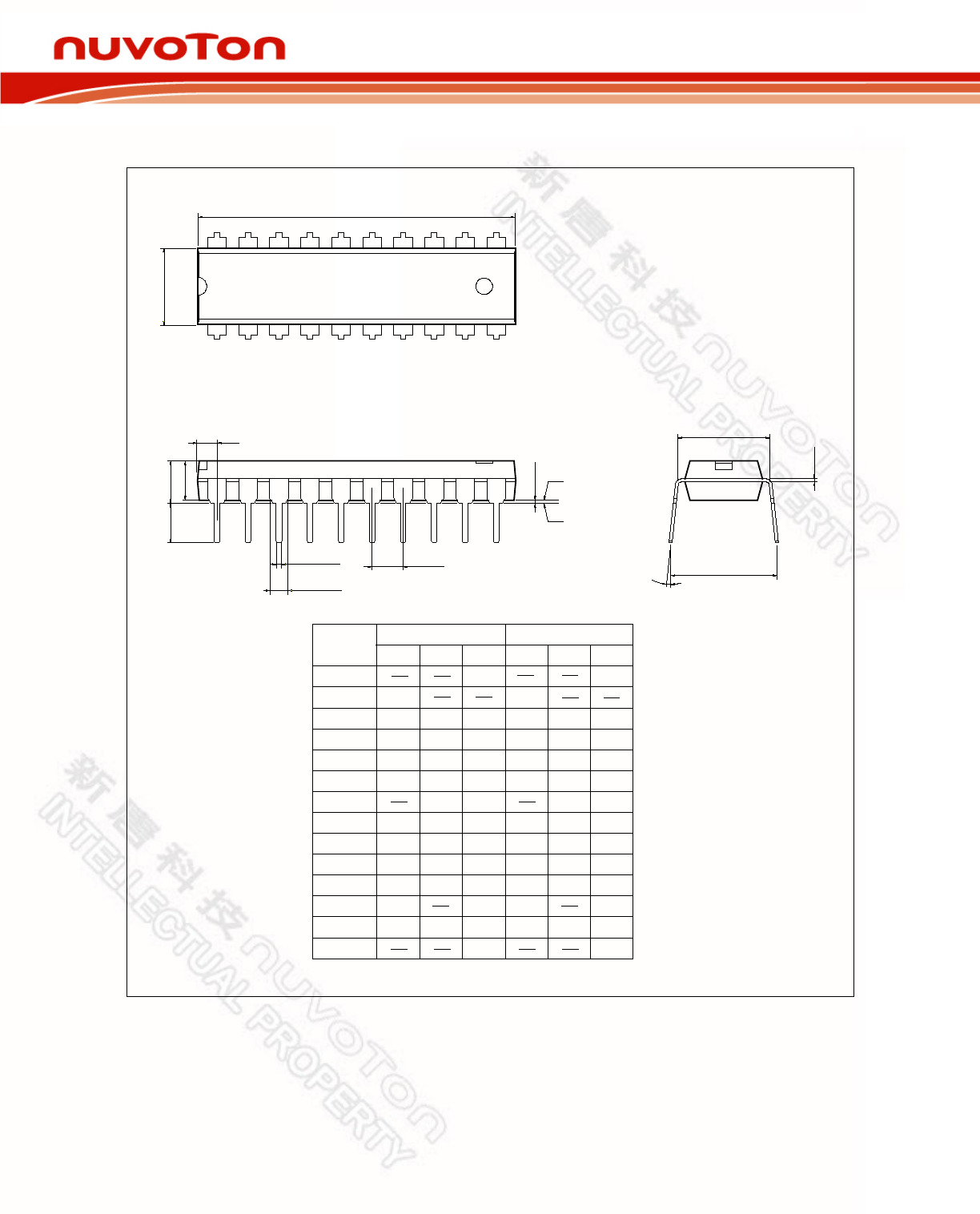

27.2 20-pin DIP
1.63
1.47
0.064
0.058
Symbol
Min
Nom
Max
Max
Nom
Min
Dimension in inch
Dimension in mm
A
B
c
D
e
A
L
S
A
A
1
2
E
0.060
1.52
0.175
4.45
0.010
0.125
0.016
0.130
0.018
0.135
0.022
3.18
0.41
0.25
3.30
0.46
3.43
0.56
0.008
0.120
0.375
0.010
0.130
0.014
0.140
0.20
3.05
0.25
3.30
0.36
3.56
0.255
0.250
0.245
6.48
6.35
6.22
9.53
7.62
7.37
7.87
0.300
0.290
0.310
2.29
2.54
2.79
0.090
0.100
0.110
B
1
1
e
E
1
1.026
1.040
20.06
26.42
0
15
0.075
1.91
0.355
0.335
8.51
9.02
15
0
Seating Plane
A
e
2
A
c
E
Base Plane
1
A
1
e
L
A
S
1
E
D
1
B
B
20
1
10
11
α
α
Figure 27-2: 20L DIP-300mil
n UVOTO n
Preliminary W79E4051/W79E2051 Data Sheet
Publication Release Date: April 16, 2009
- 93 - Revision A06

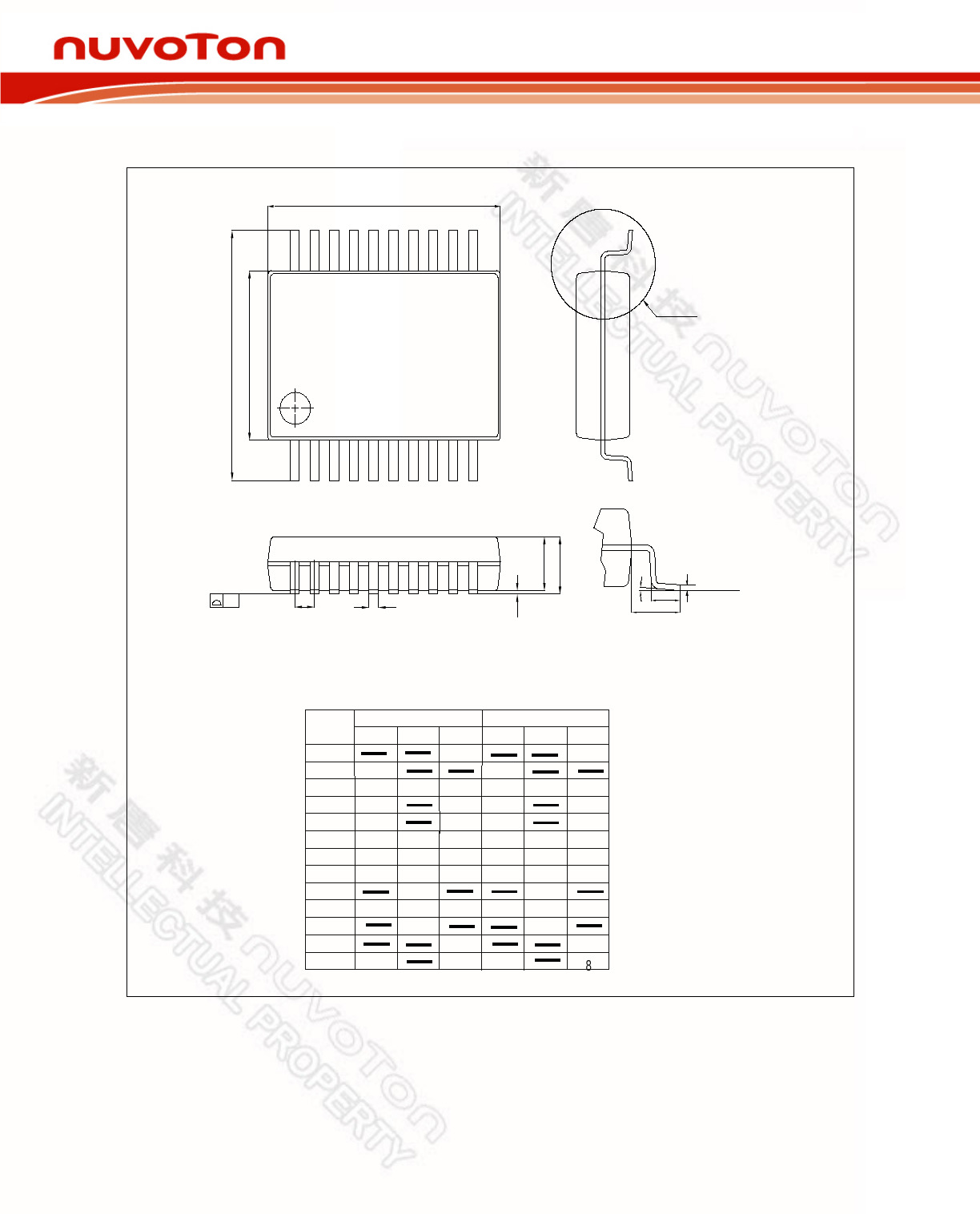

27.3 20-pin SSOP
0
0.002
0.197
0.291
7.80
0
7.40
8
8.20
5.30
b
E
D
c6.90
5.00
A1
A2
A
5.60
7.50
7.20
2.00
1.85
8
0.3230.307
0.073
0.079
0.220
0.272 0.2950.283
0.209
MIN.
DIMENSION IN INCH
SYMBOL
DIMENSION IN MM
MIN. NOM MAX. MAX.NOM
0.05
e
L
L1
Y
q
0.009 0.015
0.004 0.010
0.021 0.030
0.050 0.004
0.22 0.38
0.09 0.25
0.65 0.0256
0.55 0.75
1.25 0.10
H
E
0.95 0.037
1.75
1.65 0.065 0.069
1
20
D
E
e
YbA1
A2 A
SEATING PLANE
DTEAIL A
L
L1
q
DETAIL A
SEATING PLANE
E
H
10
11
b
Figure 27-3: 20-Pin SSOP
n UVOTO n = Please me the! all days and spec/Mam”: am sun/e0! m mange mmou: names All we made/"ems almauucrs and companies went/Med m ms aarasnea: among to the” respecwe owners
Preliminary W79E4051/W79E2051 Data Sheet
- 94 -
28 REVISION HISTORY
VERSION DATE PAGE DESCRIPTION
A01 July 9, 2008 - Initial Issued
A02 August 4, 2008
78
86
85
1. Add a notice for the untrimmed internal RC OSC.
2. Modify the test condition of “Hysterisis range of BOD
voltage” in DC spec.
3. Modify the Max value of power down current.
A03 August 29, 2008
86
91
1. Revised Maximum Current suck by total I/O pins from
75mA to 80mA.
2. Modify “24.6 RC OSC AND AC CHARACTERISTICS”
A04 December 22,
2008
25
88
83
1. Revise the description of SFR bit LPBOV
2. Correct IBO2 3215 with 32/15.
3. Add Chapter 23 ICP
A05 February 25,
2009 5, 84 1. Add DC spec of Data Flash program/erase voltage
A06 April 16, 2009
5,6,7
94
1. Add SSOP20 parts of W79E4051ARG/RARG and
W79E2051ARG/RARG.
2. Add SSOP-20 package dimension diagram.
Important Notice
Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any
malfunction or failure of which may cause loss of human life, bodily injury or severe property
damage. Such applications are deemed, “Insecure Usage”.
Insecure usage includes, but is not limited to: equipment for surgical implementation, atomic
energy control instruments, airplane or spaceship instruments, the control or operation of
dynamic, brake or safety systems designed for vehicular use, traffic signal instruments, all
types of safety devices, and other applications intended to support or sustain life.
All Insecure Usage shall be made at customer’s risk, and in the event that third parties lay
claims to Nuvoton as a result of customer’s Insecure Usage, customer shall indemnify the
damages and liabilities thus incurred by Nuvoton.

Products related to this Datasheet

IC MCU 8BIT 2KB FLASH 20DIP
IC MCU 8BIT 2KB FLASH 20DIP
IC MCU 8BIT 2KB FLASH 20SOIC
IC MCU 8BIT 4KB FLASH 20DIP
IC MCU 8BIT 4KB FLASH 20SSOP
IC MCU 8BIT 4KB FLASH 20SOIC
IC MCU 8BIT 4KB FLASH 20DIP
IC MCU 8BIT 4KB FLASH 20SSOP
IC MCU 8BIT 2KB FLASH 20SSOP
IC MCU 8BIT 2KB FLASH 20SOIC
IC MCU 8BIT 4KB FLASH 20SOIC
IC MCU 8BIT 2KB FLASH 20SSOP
